LNG (MAIN BOARD)
USER MANUAL
This document is owned, prepared and copyrighted by Duncan
Parking Technologies, Inc., which designs, manufactures and
sells parking products in the United States and is a wholly-
owned subsidiary of CivicSmart, Inc.
CivicSmart, Inc. owns several related entities
including Duncan Parking Technologies, Inc. For
simplicity, these related entities are referred to as
"CivicSmart" as in this document.
This document describes interfaces and usage of the LNG Main Board. The LNG Main Board is a
modular processor and communications board intended to be used in LNG Parking Meters and
Roadside repeater/gateways. The board is used only within authorized end products and not to be
used outside of these end products.
Unless otherwise agreed upon, CivicSmart expressly warrants products against defects in materials
and workmanship for twelve (12) months from the date of installation or fourteen (14) months from
date of delivery (whichever is sooner). No maintenance on the products is allowed for end users and
all parts under this limited warranty for repair will be managed through the relevant CivicSmart
Service Center location
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by Duncan Parking Technologies, Inc. could void
the user's authority to operate the equipment and are not permitted.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Overview
The LNG Main Board has the following onboard main components:
1) Texas Instruments MSP series microcontroller
2) Onboard power regulation with battery inputs
3) Onboard charger (to be used only in Roadside Gateway/repeater products)
4) Onboard Flash memory
5) Onboard LoRa transceiver with antenna connector
6) Onboard reset button
7) Onboard tilt sensor (optional)
8) Buffered IOs for peripherals
a. Card reader
b. Keypad
c. Display
d. Programming interface
e. Unique external ID key
f. Data key and field programming interface
g. Coin track
h. External peripheral I/O

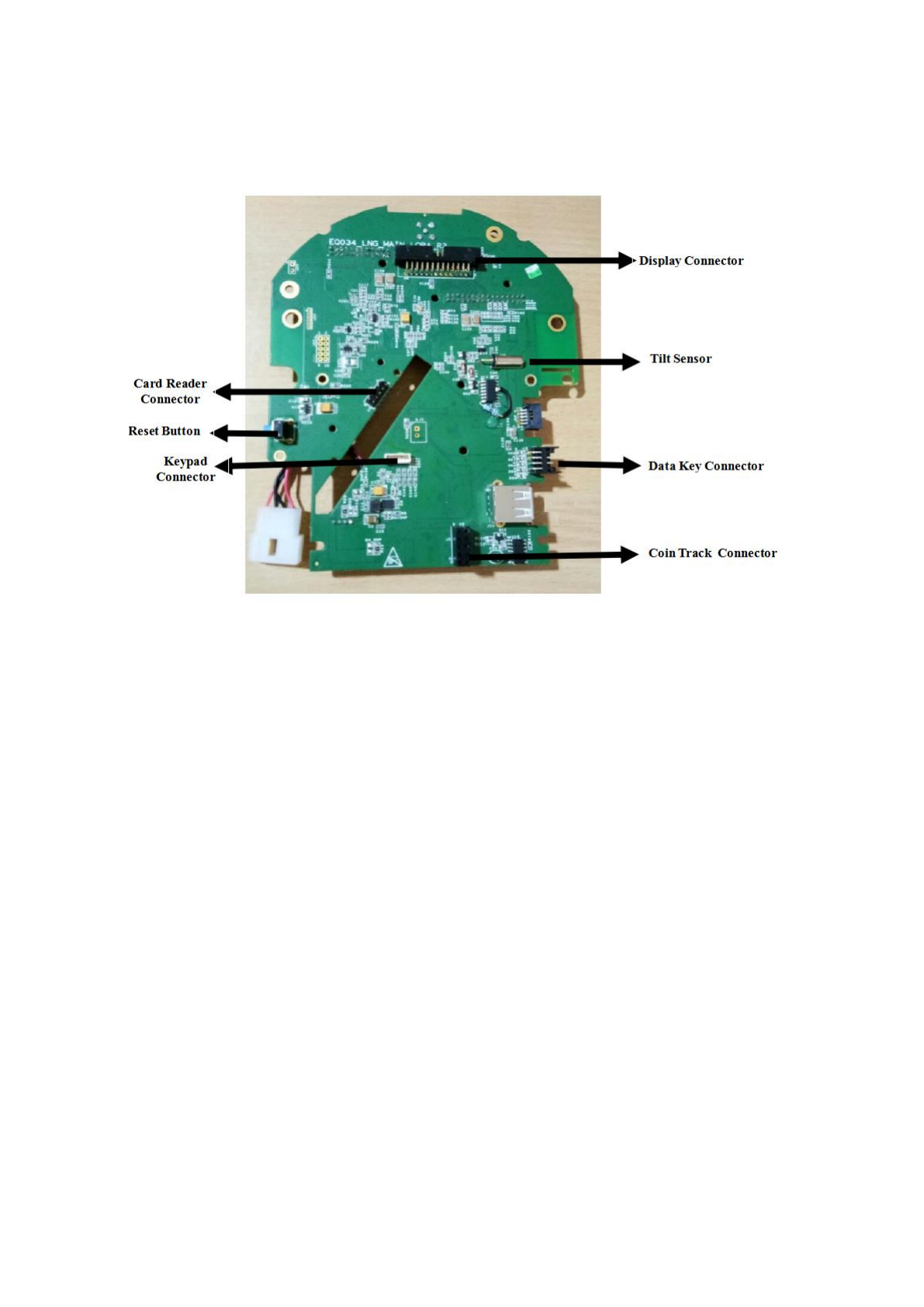

1. Display Connector - To connect a display unit
2. Card Reader - To access the card reader assembly
3. Reset Button - To reset the board
4. Keypad Connector - To access a compatible keypad
5. Tilt Sensor - For vandalism detection and maintenance indication
6. Data Key Connector - Secondary data key interface
7. Data/ID Key Connector - Unique external identification and programing
8. Coin Track Connector - To access a coin track assembly
TOP VIEW
1. SMD Connector - To connect authorized antenna within
authorized products. Only listed antennas in
Appendix A are permitted.
2. CB Connector - To connect external peripheral
communications boards
3. Battery Connector - To connect the battery
Power Requirements
Approved meter products to be powered by a rechargeable Li-ion battery with the following
specifications:
• nominal voltage 3.6V
• capacity 3000 mAh or higher
• peak continuous current rating 1A
Charging components are not populated in the meter version of the boards.
Approved roadside pole mounted gateway products are to be powered by a rechargeable Li-ion

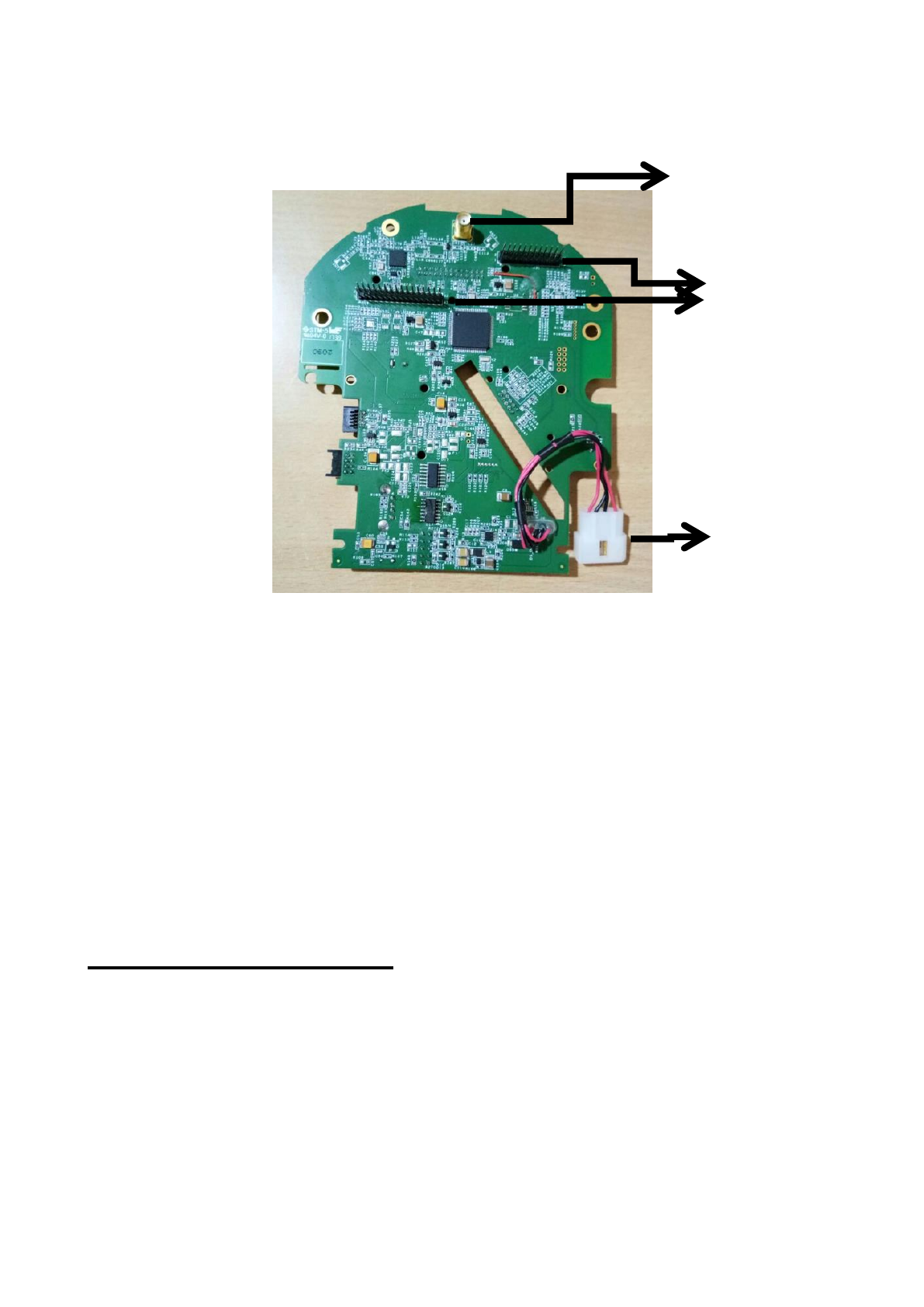

BOTTOM VIEW
Battery Connector
External Peripheral
Communications
connectors
Antenna connector
(authorized antenna
only)
battery with the following specifications:
• nominal voltage 3.6V
• capacity 3000 mAh or higher
• peak continuous current rating 1A
The Li-ion battery in a roadside pole mounted gateway products can be charged by an external
power source with the following specifications:
• nominal voltage 12V
• maximum input voltage 18V
• input current 500mA
Approved OEM End Products
The LNG Main Board can only be used in the specified end products listed below:

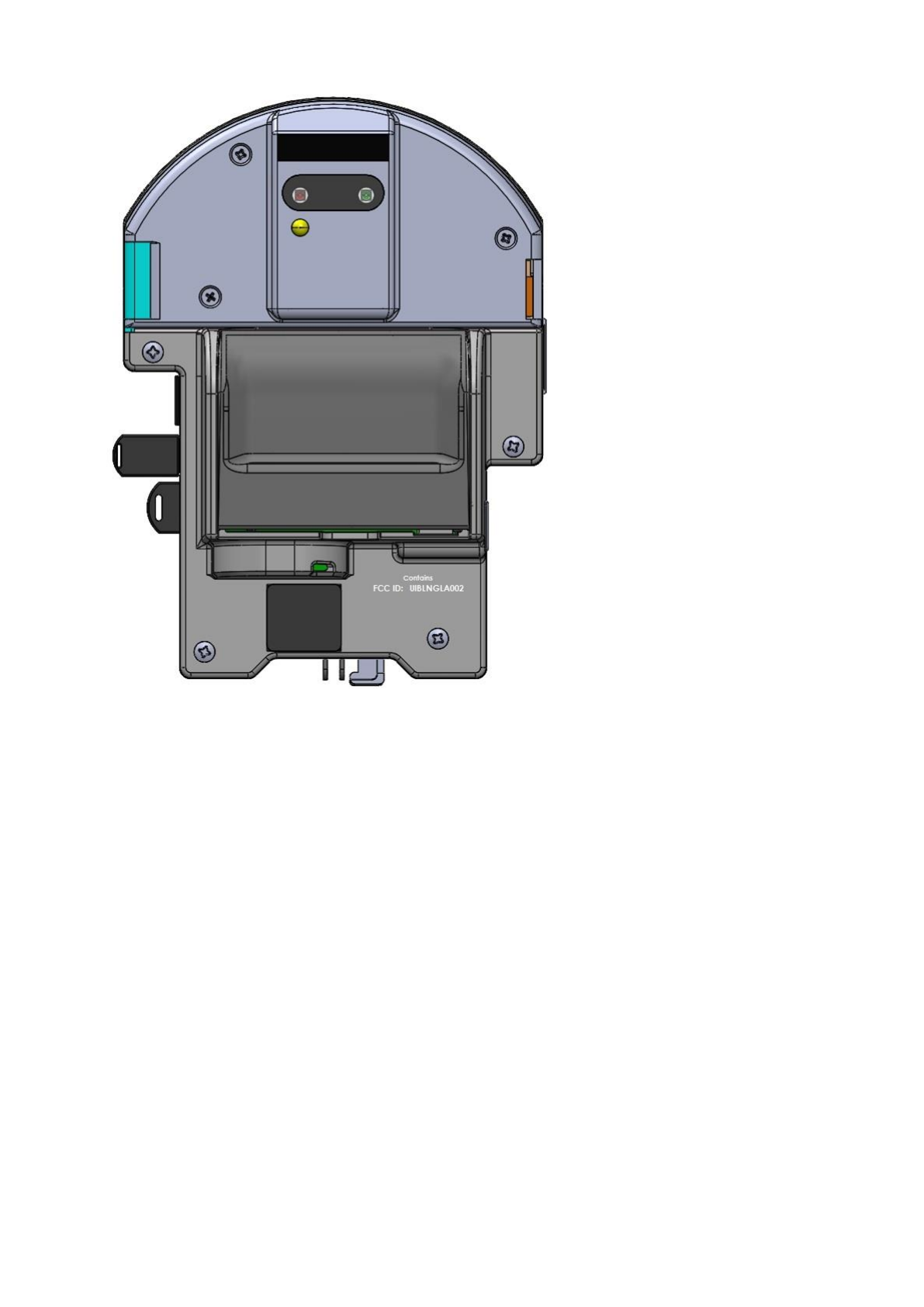

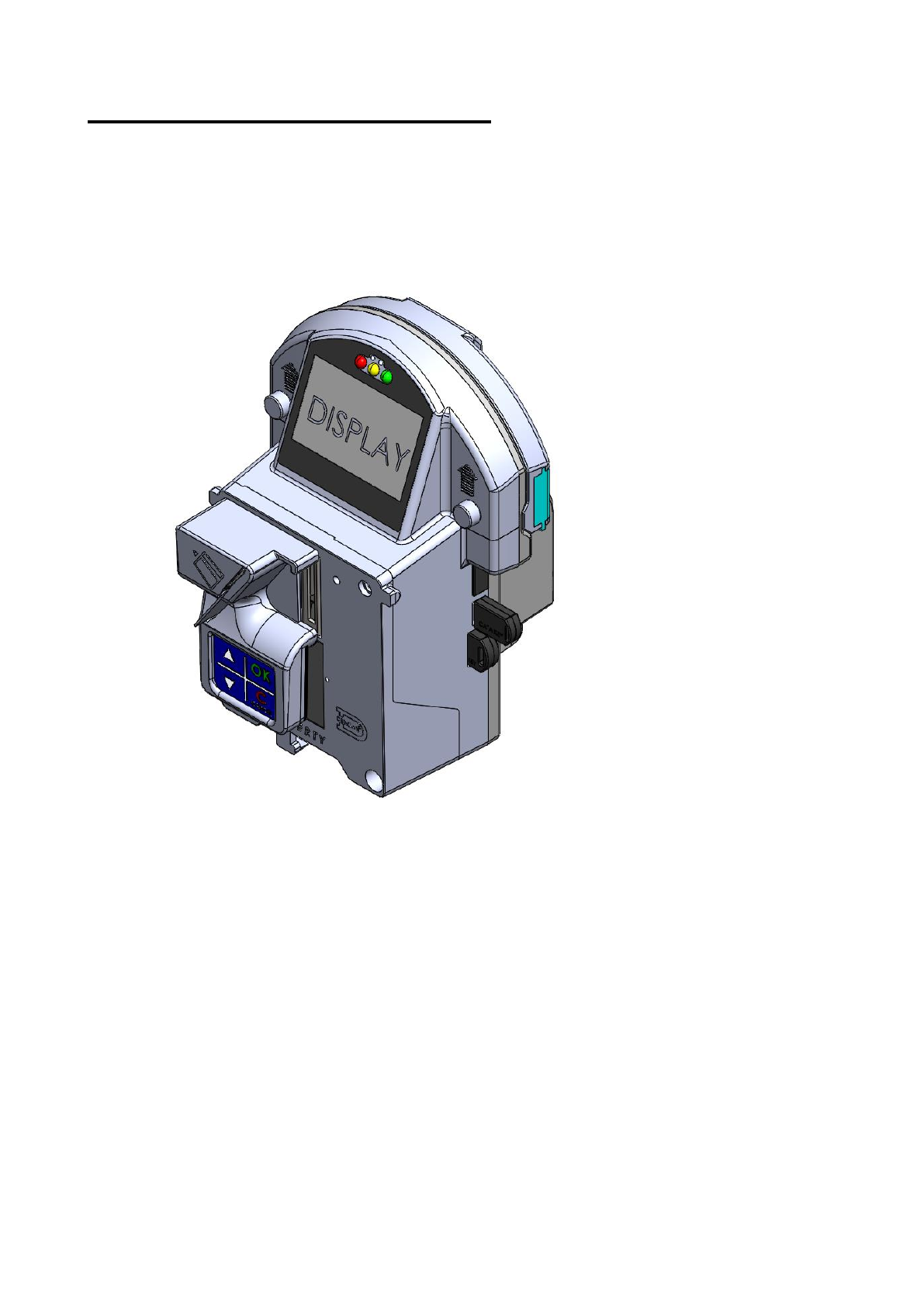

1. LNG parking meter
Note that the board is securely mounted inside with the authorized antenna and not available for
external antennas. Limited external buffered interface connectors are available.
Note: Place the following FCC 2-part warning on device:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
Place the following note in the host product manual:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. This
equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

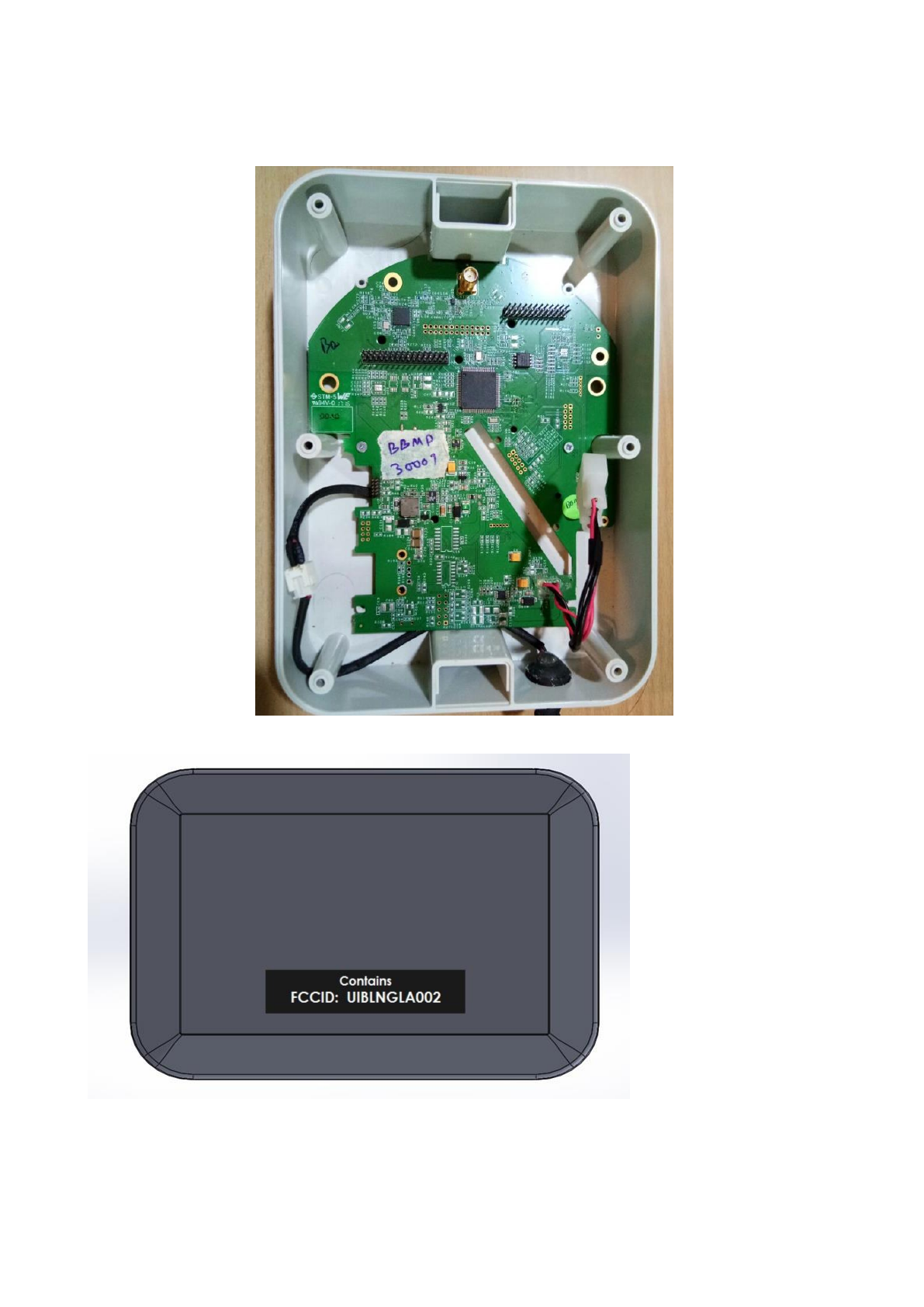

2. Roadside gateway
Note that the board is securely mounted inside to be used with the authorized antenna only.
No external interface connectors are available.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Note: Place the following FCC 2-part warning:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired
operation.
Place the following note in the host product manual:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. This equipment has
been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
