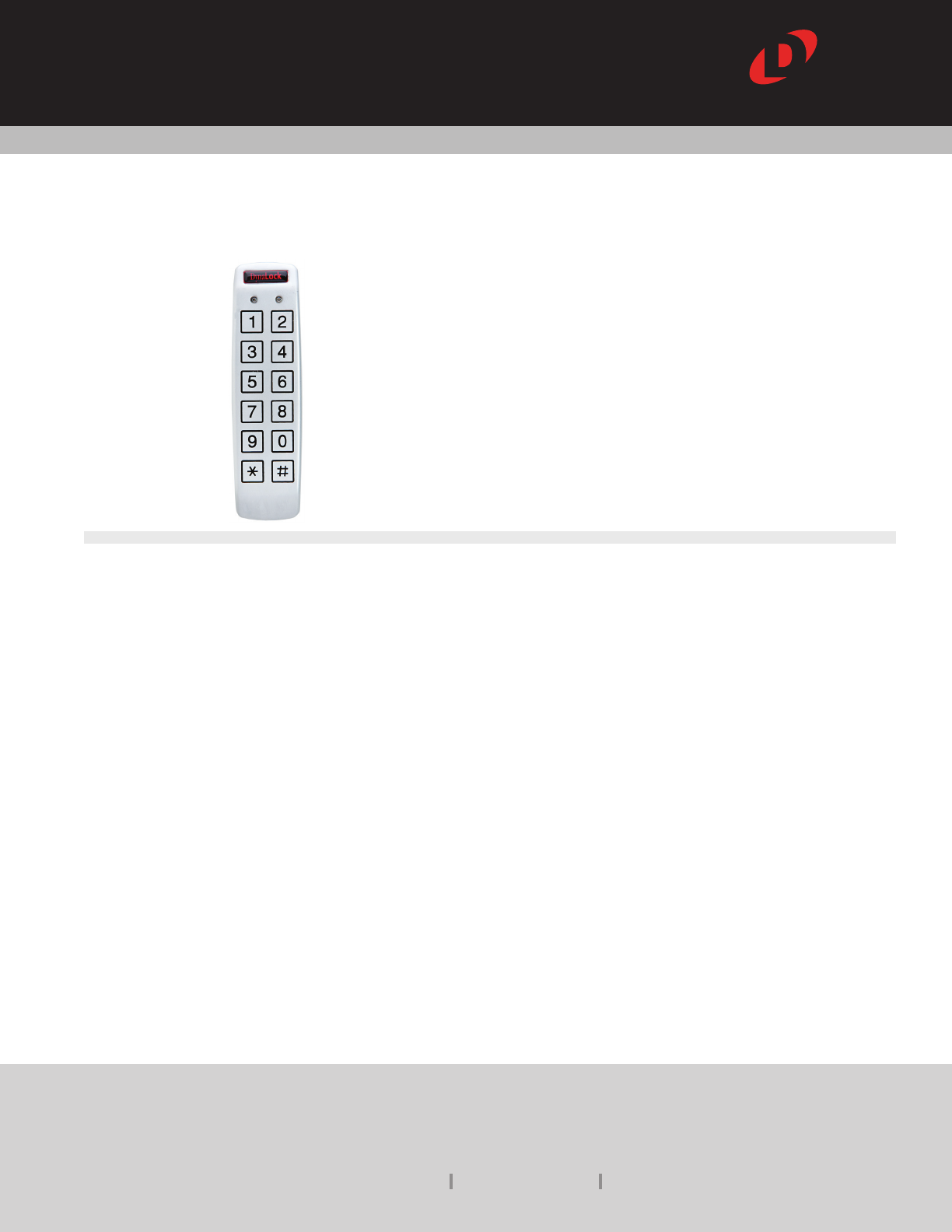

7350 Series
Stand Alone Digital Keypad
Description
The rugged DynaLock 7350 vandal-resistant, stand
alone keypad is designed to be a cost effective
access solution for harsh industrial, institutional and
commercial environments. It will store 1 to 500
user PIN codes, with up to three access levels
for each.
The 7350 features a user-friendly setup menu,
which makes conguration and use very simple for
end-users. A wide array of functions and auxiliary
modes provide extra exibility and security, allowing
it to operate as a single or two-door access controller.
The 7350 is completely epoxy lled and incorporates
a sturdy, metal, vandal-resistant casing.
The sealed, all metal piezoelectric keypad is easy to
clean and ideal for a wide spectrum of applications,
ranging from hospitals to mass transportation. A
exible power input allows the unit to operate on
12-24VDC or 16-24VAC. Two Form-C relay outputs,
rated at 2 amps, as well as REX and Auxiliary inputs
are provided.
Standard Features
• 500 User Codes: Up to 500 codes can be
programmed using one of two easy enrolling
methods.
• Flexible Power Input: 12-24 VDC or
16-24VAC.
• 3 User and Access Levels: Program one to
three different levels of access for each individual
user or for the entire system.
• Multiple Inputs and Outputs: Unit includes
a REX and Auxiliary input as well as two form C
output contacts rated at 2 Amps.
• Audio and Visual Recognition: Equipped with
an internal sounder and two tri-colored
status/programming LED’s.
• Multiple Auxiliary Modes: Ten programmable
auxiliary modes including: Door Ajar, Forced Door,
Alarm Shunt, and Door Monitor.
• IP65 Rated: Fully sealed metal enclosure, built
to withstand the elements.
• Vandal Resistant: Metal casing with a built in
optical tamper sensor.
• Installer Friendly:Includes an installation kit
and self-adhesive mounting template.
• Lifetime Warranty
•
Weather and Vandal Resistant
•
Highly Sensitive Piezoelectric Keypad
•
Up to 500 User Codes
•
Built In Tamper Detection
•
Narrow Mullion Design
•
Lifetime Warranty
For Life
TM
SM
DynaLock
LIFE SAFETY PRODUCTS
FULLY INTEGRATED SECURITY SYSTEMS
Electromagnetic Locks Controls Power Supplies
DYNALOCK CORPORATION
705 EMMETT STREET / PO BOX 2728
BRISTOL, CT 06011-2728
PHONE: 877-DYNALOCK / FAX: 860-585-0338
E-MAIL: INFO@DYNALOCK.COM
WEBSITE: WWW.DYNALOCK.COM

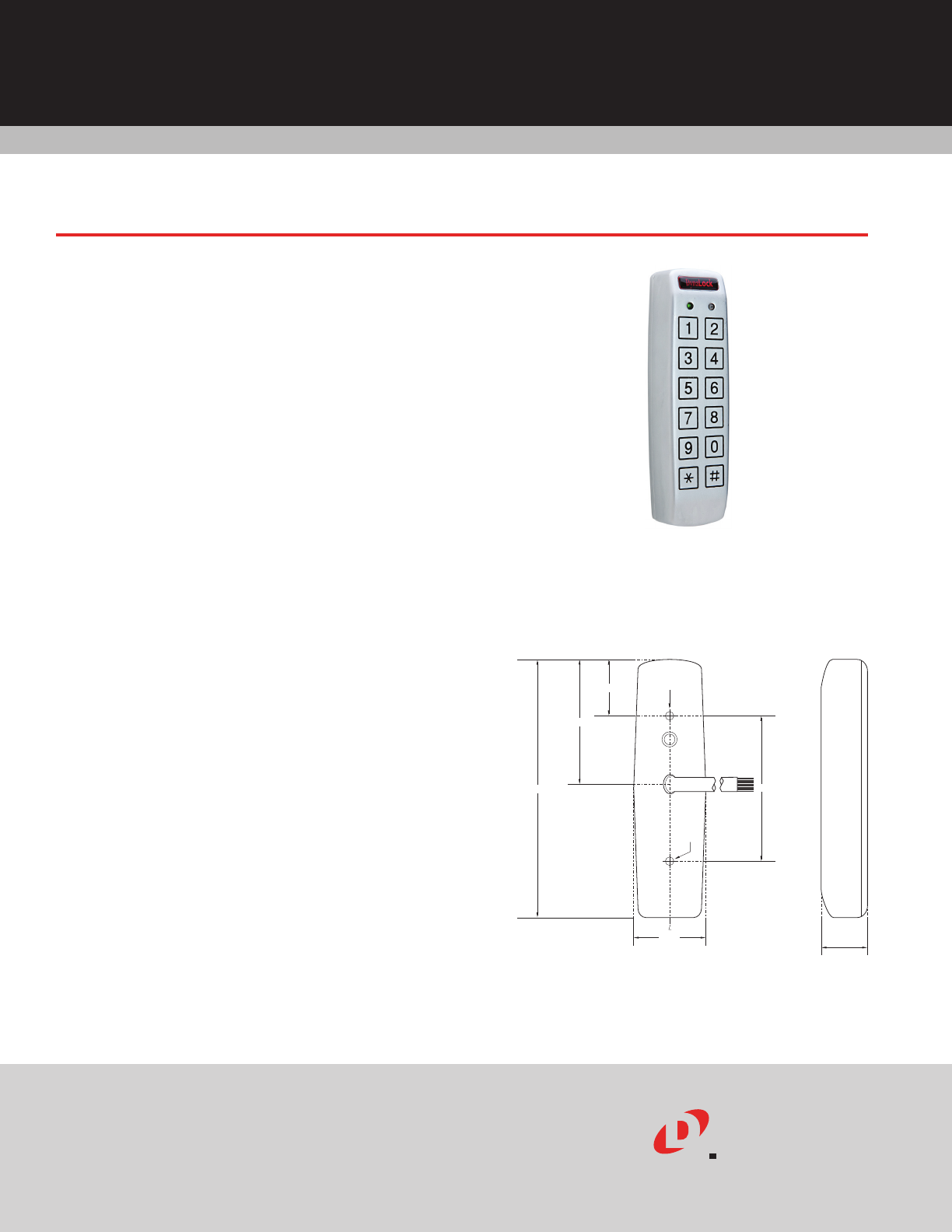

7350 Series Digital Keypad
Specications
Physical Characteristics
Size:
Weight:
Material:
Cable:
Electrical Characteristics
Voltage Range:
Input Current:
Relay Outputs:
Tamper:
Inputs:
Environmental Characteristics
Operation:
Temperature:
Humidity:
RFI Protection:
Operational Characteristics:
Capacity:
Keypad:
User Levels:
5.91” H x 1.65” L x 1.06” W
0.9 lbs
Vandal-resisitant metal
18AWG/10-Conductor, 3 Ft long
12-24VDC, From a power supply
16-24VAC, From a transformer
Standby: 35mA at 12VDC
Maximum: 90mA at 12VDC
Main: 3A Form C, N.O. and N.C.
Auxiliary: 3A Form C, N.O. and N.C.
Optical back tamper sensor
REX: N.O. dry contact
Auxiliary (In/Monitor): N.O. dry contact
10 programmable modes
Water resistant, suitable for outdoor use
Meets IP65
-40°C to 65°C ( -40°F to 150°F )
0 to 95% (non-condensing)
>20V/m up to 1000Mhz
500 users, single/dual code for each
2x6 key pad for local programming
4 to 8 digit PIN code entry
Normal/Secure/Master
Vandal-Resistant
Piezoelectric Keypad
07/09
WIRE CABLE
7/16" IN DIA.
5.91"
1.29"
2.93"
1.06"
1.65"
REAR VIEW SIDE VIEW
MOUNTING
HOLE
SENSOR
MOUNTING
HOLE
3.33"
C
Featuring
DynaLife
Lifetime Warranty
®
