DynaPoint KA558UH KEYBOARD User Manual KA558UH

DynaPoint (Dong Guan) Inc. KEYBOARD KA558UH

Users Manual

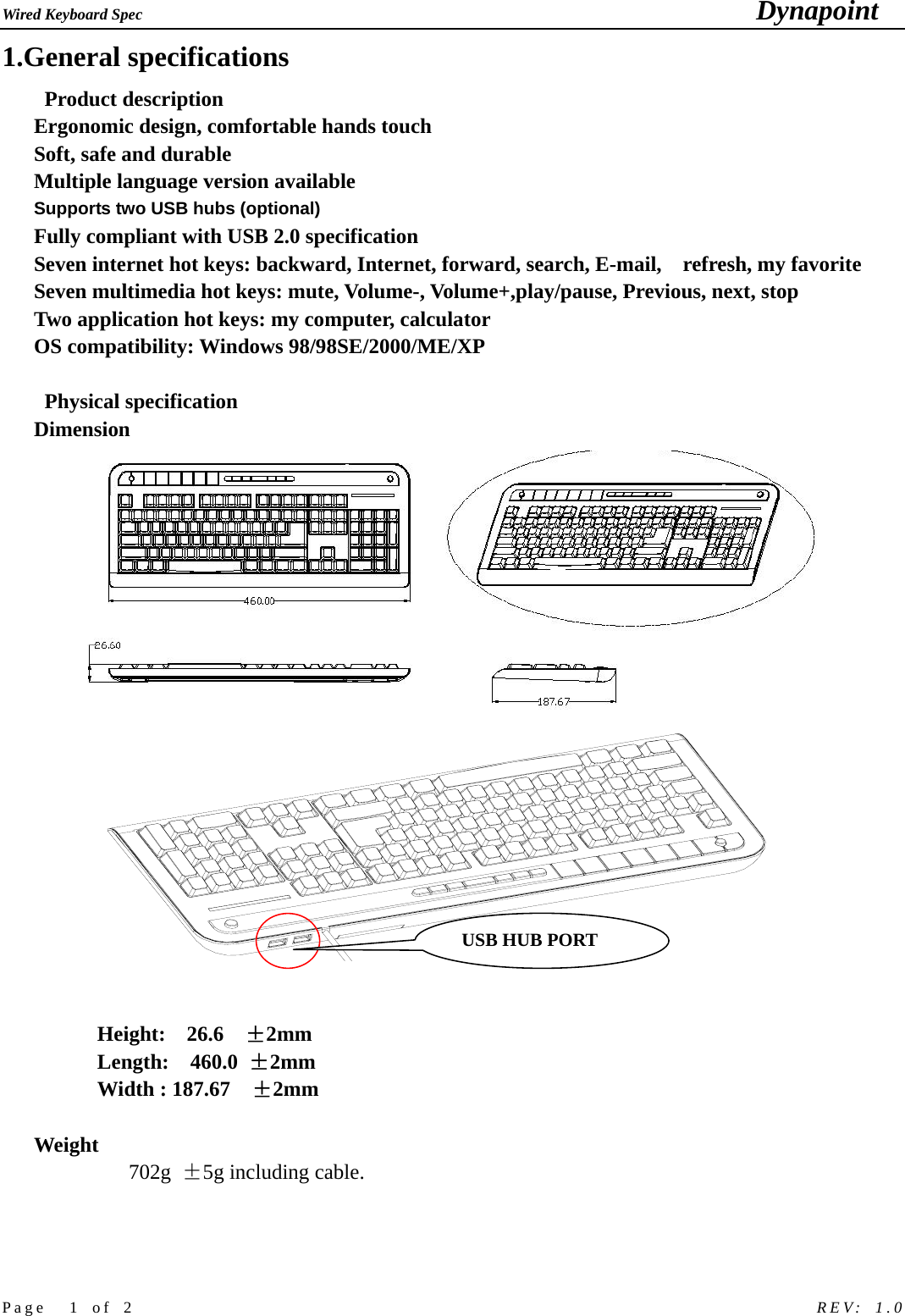

Wired Keyboard Spec Dynapoint Page 1 of 2 REV: 1.0 1.General specifications Product description Ergonomic design, comfortable hands touch Soft, safe and durable Multiple language version available Supports two USB hubs (optional) Fully compliant with USB 2.0 specification Seven internet hot keys: backward, Internet, forward, search, E-mail, refresh, my favorite Seven multimedia hot keys: mute, Volume-, Volume+,play/pause, Previous, next, stop Two application hot keys: my computer, calculator OS compatibility: Windows 98/98SE/2000/ME/XP Physical specification Dimension Height: 26.6 ±2mm Length: 460.0 ±2mm Width : 187.67 ±2mm Weight 702g ±5g including cable. USB HUB PORT

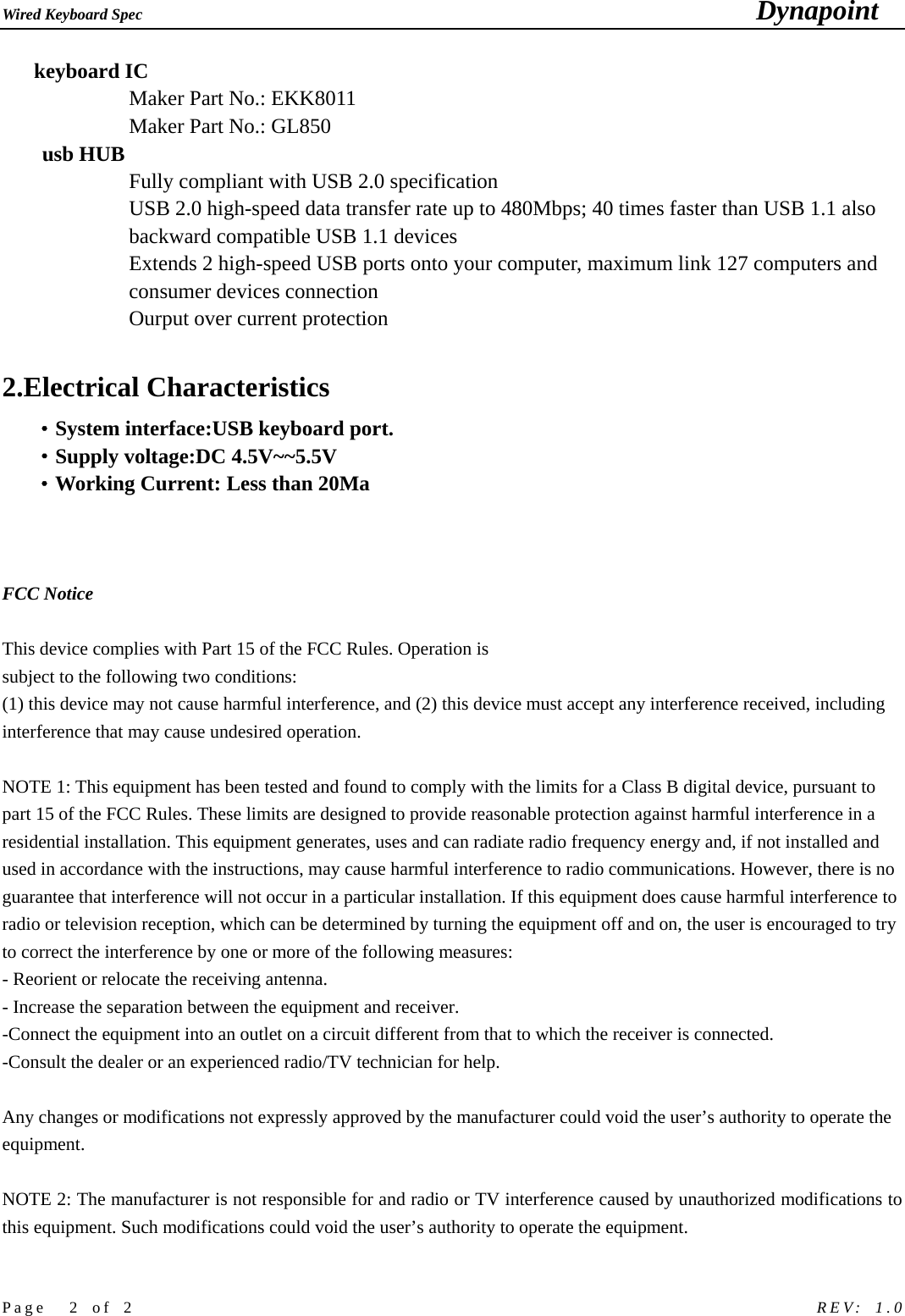

Wired Keyboard Spec Dynapoint Page 2 of 2 REV: 1.0 keyboard IC Maker Part No.: EKK8011 Maker Part No.: GL850 usb HUB Fully compliant with USB 2.0 specification USB 2.0 high-speed data transfer rate up to 480Mbps; 40 times faster than USB 1.1 also backward compatible USB 1.1 devices Extends 2 high-speed USB ports onto your computer, maximum link 127 computers and consumer devices connection Ourput over current protection 2.Electrical Characteristics ·System interface:USB keyboard port. ·Supply voltage:DC 4.5V~~5.5V ·Working Current: Less than 20Ma FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
