Host user manual
![](/img.php?id=1284990&img=bg1.png)
User’s Manual
Libretto W100
![](/img.php?id=1284990&img=bg2.png)
User’s Manual ii
Table of Contents
Copyright. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
FCC information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
EU Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
VCCI Class B Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Canadian regulatory information (Canada only) . . . . . . . . . . . . . . . . viii
Following information is only valid for EU-member States:. . . . . . . . ix
Disposing of the computer and the computer's batteries . . . . . . . . . . x
REACH - Compliance Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Following information is only for Turkey: . . . . . . . . . . . . . . . . . . . . . . . x
Preface
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
General Precautions
Provide adequate ventilation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv
Creating a computer-friendly environment . . . . . . . . . . . . . . . . . . . . . xv
Stress injury . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
Heat injury. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
Pressure or impact damage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi
Mobile phones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi
Instruction Manual for Safety and Comfort . . . . . . . . . . . . . . . . . . . . xvi
Chapter 1 Getting Started
Equipment checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
System Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Chapter 2 The Grand Tour
Front with the display closed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Left side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Right side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

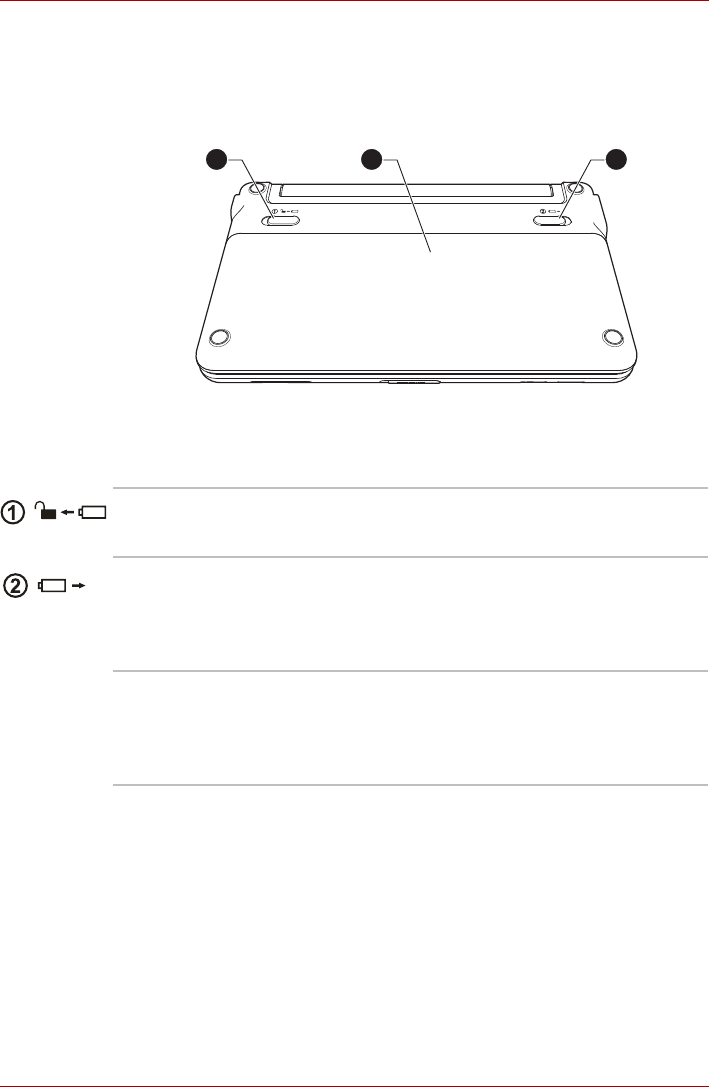

Underside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
![](/img.php?id=1284990&img=bg3.png)
Libretto W100
User’s Manual iii
Front with the display open. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
AC adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Chapter 3 Hardware, Utilities and Options
Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Special features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Utilities and Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Optional devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Bridge media slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Chapter 4 Operating Basics
Finger Tapping to Operate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Using the Dual Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Virtual Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Libretto Taskbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Changing the Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Web Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Using the TOSHIBA Face Recognition . . . . . . . . . . . . . . . . . . . . . . . . 4-6
TOSHIBA Disc Creator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Wireless communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Computer Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Heat dispersal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Chapter 5 Power and Power-Up Modes
Power conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Monitoring of power condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Power-up modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
Panel power on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
System automatic Sleep/Hibernation . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Chapter 6 HW Setup
Accessing HW Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

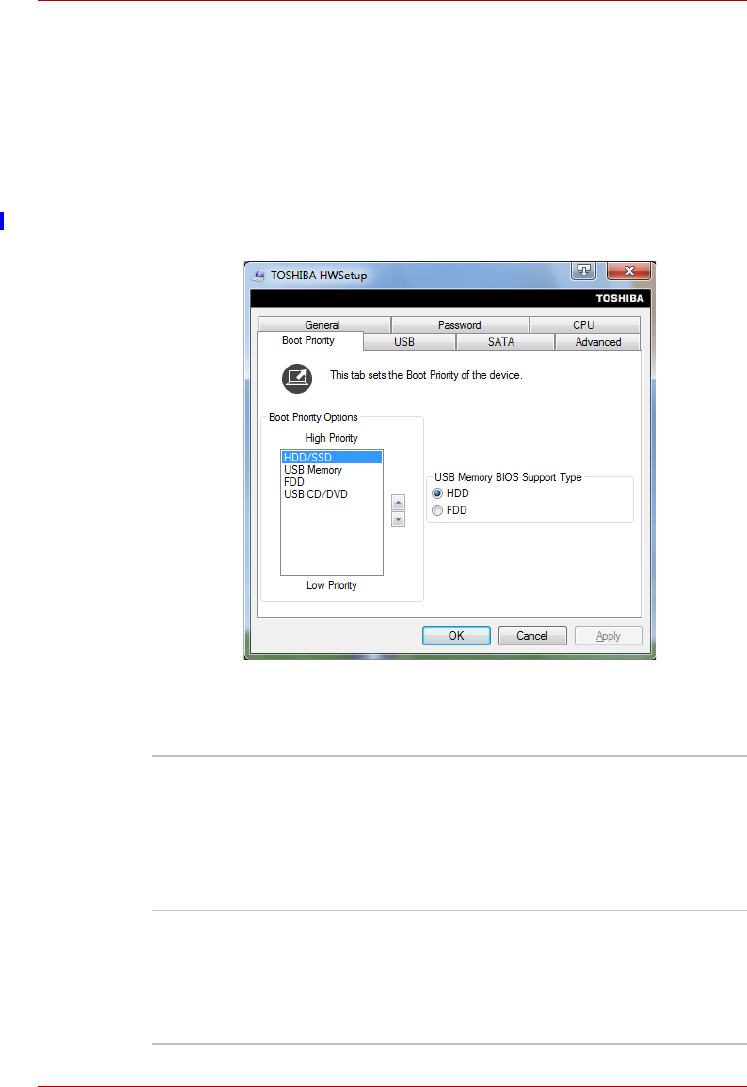

HW Setup window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Chapter 7 Troubleshooting
Problem solving process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Hardware and system checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
TOSHIBA support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
Appendix A Specifications
Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Appendix B Display Controller and Video mode
Display controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Video mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
![](/img.php?id=1284990&img=bg4.png)
Libretto W100
User’s Manual iv
Appendix C Wireless LAN
Card Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
Radio Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2
Supported Frequency Sub-bands. . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
Appendix D Bluetooth wireless technology Interoperability
Bluetooth wireless technology and your Health . . . . . . . . . . . . . . . . D-2
Regulatory statements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-2
Using Bluetooth Adaptor from TOSHIBA equipment in Japan . . . . D-4

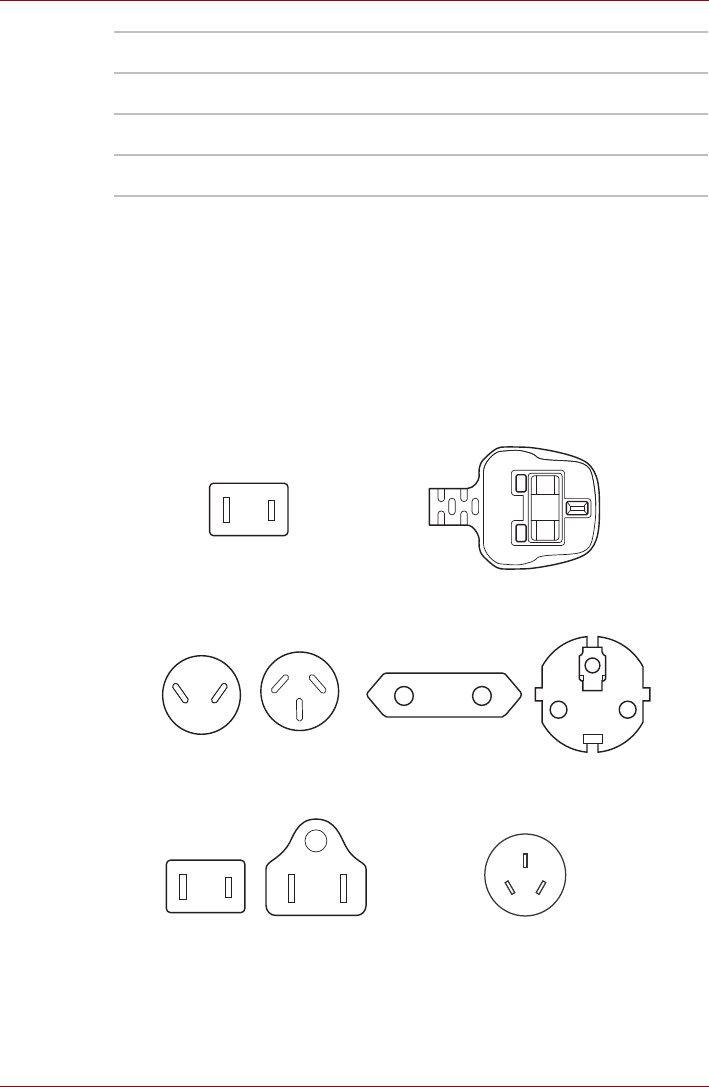

Appendix E AC Power Cord and Connectors
Certification agencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-1
Appendix F TOSHIBA PC Health Monitor
Starting the TOSHIBA PC Health Monitor. . . . . . . . . . . . . . . . . . . . . . F-2
Appendix G Legal Footnotes
Non-applicable Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G-1
CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G-1
Memory (Main System) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G-2
Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G-3
Solid State Drive (SSD) Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . G-3
LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G-3
Graphics Processor Unit ("GPU"). . . . . . . . . . . . . . . . . . . . . . . . . . . . G-3
Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G-4
Copy Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G-4
Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G-4
Glossary
Index
![](/img.php?id=1284990&img=bg5.png)
User’s Manual v
Libretto W100
Copyright
© 2010 by TOSHIBA Corporation. All rights reserved. Under the copyright
laws, this manual cannot be reproduced in any form without the prior
written permission of TOSHIBA. No patent liability is assumed, with respect
to the use of the information contained herein.
TOSHIBA Libretto W100 User’s Manual
First edition May 2010
Copyright authority for music, movies, computer programs, databases and
other intellectual property covered by copyright laws belongs to the author
or to the copyright owner. Copyrighted material can be reproduced only for
personal use or use within the home. Any other use beyond that stipulated
above (including conversion to digital format, alteration, transfer of copied
material and distribution on a network) without the permission of the
copyright owner is a violation of copyright or author's rights and is subject to
civil damages or criminal action. Please comply with copyright laws in
making any reproduction from this manual.
Disclaimer
This manual has been validated and reviewed for accuracy. The
instructions and descriptions it contains are accurate for the TOSHIBA
Libretto W100 Portable Personal Computer at the time of this manual’s
production. However, succeeding computers and manuals are subject to
change without notice. TOSHIBA assumes no liability for damages incurred
directly or indirectly from errors, omissions or discrepancies between the
computer and the manual.
Trademarks
Windows, Microsoft and Windows logo are registered trademarks of
Microsoft Corporation.
Bluetooth is a trademark owned by its proprietor and used by TOSHIBA
under license.
ConfigFree is a trademark of Toshiba Corporation.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Secure Digital and SD are trademarks of SD Card Association.
Other trademarks and registered trademarks not listed above may be used
in this manual.
![](/img.php?id=1284990&img=bg6.png)
User’s Manual vi
Libretto W100
FCC information
FCC notice "Declaration of Conformity Information"
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
■Reorient or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
■Consult the dealer or an experienced radio/TV technician for help.
FCC conditions
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Only peripherals complying with the FCC class B limits may be attached to
this equipment. Operation with non-compliant peripherals or peripherals
not recommended by TOSHIBA is likely to result in interference to radio
and TV reception. Shielded cables must be used between the external
devices and the computer’s Universal Serial Bus (USB 2.0) port and
microphone jack. Changes or modifications made to this equipment, not
expressly approved by TOSHIBA or parties authorized by TOSHIBA could
void the user’s authority to operate the equipment.
![](/img.php?id=1284990&img=bg7.png)
User’s Manual vii
Libretto W100
Contact
Address: TOSHIBA America Information Systems, Inc.
9740 Irvine Boulevard
Irvine, California 92618-1697
Telephone: (949) 583-3000
EU Declaration of Conformity
This product is carrying the CE-Mark in accordance with the related
European Directives. Responsible for CE-Marking is TOSHIBA Europe
GmbH, Hammfelddamm 8, 41460 Neuss, Germany. The complete and
official EU Declaration of Conformity can be found on TOSHIBA’s web site
http://epps.toshiba-teg.com on the Internet.
CE compliance
This product is labelled with the CE Mark in accordance with the related
European Directives, notably Electromagnetic Compatibility Directive
2004/108/EC for the notebook and the electronic accessories including the
supplied power adapter, the Radio Equipment and Telecommunications
Terminal Equipment Directive 1999/5/EC in case of implemented
telecommunication accessories and the Low Voltage Directive 2006/95/EC
for the supplied power adapter. Furthermore the product complies with the
Ecodesign Directive 2009/125/EC (ErP) and its related implementing
measures.
This product and the original options are designed to observe the related
EMC (Electromagnetic Compatibility) and safety standards. However,
TOSHIBA cannot guarantee that this product still observes these EMC
standards if options or cables not produced by TOSHIBA are connected or
implemented. In this case the persons who have connected/implemented
those options/cables have to provide assurance that the system (PC plus
options/cables) still fulfils the required standards. To avoid general EMC
problems, the following guidance should be noted:
■Only CE marked options should be connected/implemented
■Only best shielded cables should be connected
Working environment
This product was designed to fulfil the EMC (Electromagnetic Compatibility)
requirements to be observed for so-called “Residential, commercial and
light industry environments”. TOSHIBA do not approve the use of this
product in working environments other than the above mentioned
“Residential, commercial and light industry environments”.
![](/img.php?id=1284990&img=bg8.png)
User’s Manual viii
Libretto W100
For example, the following environments are not approved:
■Industrial Environments (e.g. environments where a mains voltage of
380 V three-phase is used)
■Medical Environments
■Automotive Environments
■Aircraft Environments
Any consequences resulting from the use of this product in working
environments that are not approved are not the responsibility of TOSHIBA.
The consequences of the use of this product in non-approved working
environments may be:
■Interference with other devices or machines in the near surrounding
area.
■Malfunction of, or data loss from, this product caused by disturbances
generated by other devices or machines in the near surrounding area.
Therefore TOSHIBA strongly recommend that the electromagnetic
compatibility of this product should be suitably tested in all non-approved
working environments before use. In the case of automobiles or aircraft, the
manufacturer or airline respectively should be asked for permission before
use of this product.
Furthermore, for general safety reasons, the use of this product in
environments with explosive atmospheres is not permitted.
VCCI Class B Information
Canadian regulatory information (Canada only)
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the Radio Interference
Regulation of the Canadian Department of Communications.
Note that Canadian Department of Communications (DOC) regulations
provide, that changes or modifications not expressly approved by
TOSHIBA Corporation could void your authority to operate this equipment.
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causng Equipment Regulations.
Cet appareil numérique de la class B respecte toutes les exgences du
Règlement sur le matériel brouileur du Canada.
![](/img.php?id=1284990&img=bg9.png)
User’s Manual ix
Libretto W100
Following information is only valid for EU-member States:
Disposal of products
Disposal of batteries and/or accumulators
Disposing of the computer and the computer's batteries
■Discard this computer in accordance with applicable laws and
regulations. For further information, contact your local government.
■This computer contains rechargeable batteries. After repeated use, the
batteries will finally lose their ability to hold a charge and you will need
to replace them. Under certain applicable laws and regulation, it may be
illegal to dispose of old batteries by placing them in the trash.
■Please be kind to our shared environment. Check with your local
government authority for details regarding where to recycle old batteries
or how to dispose of them properly. Disposal of this material may be
regulated due to environmental considerations. For disposal, reuse or
recycling information, please contact your local government.
The crossed out wheeled dust bin symbol indicates that products must be
collected and disposed of separately from household waste. Integrated
batteries and accumulators can be disposed of with the product. They will
be separated at the recycling centres.
The black bar indicates that the product was placed on the market after
August 13, 2005.
By participating in separate collection of products and batteries, you will
help to assure the proper disposal of products and batteries and thus help
to prevent potential negative consequences for the environment and
human health.
For more detailed information about the collection and recycling
programmes available in your country, please visit our website
(http://eu.computers.toshiba-europe.com) or contact your local city office or
the shop where you purchased the product.
The crossed out wheeled dust bin symbol indicates that batteries and/or
accumulators must be collected and disposed of separately from
household waste.
If the battery or accumulator contains more than the specified values of
lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery
Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury
(Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust
bin symbol.
By participating in separate collection of batteries, you will help to assure
the proper disposal of products and batteries and thus help to prevent
potential negative consequences for the environment and human health.
For more detailed information about the collection and recycling
programmes available in your country, please visit our website
(http://eu.computers.toshiba-europe.com) or contact your local city office or
the shop where you purchased the product.
These symbols may not stick depending on the country and region where
you purchased.
![](/img.php?id=1284990&img=bga.png)
User’s Manual x
Libretto W100
REACH - Compliance Statement
The new European Union (EU) chemical regulation, REACH (Registration,
Evaluation, Authorization and Restriction of Chemicals), entered into force
on 1 June 2007. Toshiba will meet all REACH requirements and is
committed to provide our customers with information about the chemical
substances in our products according to REACH regulation.
Please consult the following website www.toshiba-
europe.com/computers/info/reach for information about the presence in our
articles of substances included on the candidate list according to article
59(1) of Regulation (EC) No 1907/2006 („REACH“) in a concentration
above 0.1 % weight by weight.
Following information is only for Turkey:
■Compliant with EEE Regulations: Toshiba meets all requirements of
Turkish regulation 26891 “Restriction of the use of certain hazardous
substances in electrical and electronic equipment”.
■The number of possible pixel failures of your display is defined
according to ISO 13406-2 standards. If the number of pixel failures is
less than this standard, they will not be counted as defect or failure.
■Battery is a consumption product, since the battery time depends on the
usage of your computer. If the battery can not be charged at all, then it
is a defect or failure. The changes in battery time is not a defect or
failure.
![](/img.php?id=1284990&img=bgb.png)
User’s Manual xiv
General Precautions
TOSHIBA computers are designed to optimize safety, minimize strain and
withstand the rigors of portability. However, certain precautions should be
observed to further reduce the risk of personal injury or damage to the
computer.
Be certain to read the general precautions below and to note the cautions
included in the text of the manual.
Provide adequate ventilation
■Always make sure your computer and AC adaptor have adequate
ventilation and are protected from overheating when the power is
turned on or when an AC adaptor is connected to a power outlet (even if
your computer is in Sleep Mode). In this condition, observe the
following:
■Never cover your computer or AC adaptor with any object.
■Never place your computer or AC adaptor near a heat source, such
as anelectric blanket or heater.
■Never cover or block the air vents including those located at the
base of the computer.
■Always operate your computer on a hard flat surface. Using your
computer on a carpet or other soft material can block the vents.
■Always provide sufficient space around the computer.
■Overheating your computer or AC adaptor could cause system failure,
computer or AC adaptor damage or a fire, possibly resulting in serious
injury.
![](/img.php?id=1284990&img=bgc.png)
User’s Manual xv
Libretto W100
Creating a computer-friendly environment
Place the computer on a flat surface that is large enough for the computer
and any other items you are using, such as a printer.
Leave enough space around the computer and other equipment to provide
adequate ventilation. Otherwise, they may overheat.
To keep your computer in prime operating condition, protect your work area
from:
■Dust, moisture, and direct sunlight.
■Equipment that generates a strong electromagnetic field, such as
stereo speakers (other than speakers that are connected to the
computer) or speakerphones.
■Rapid changes in temperature or humidity and sources of temperature
change such as air conditioner vents or heaters.
■Extreme heat, cold, or humidity.
■Liquids and corrosive chemicals.
Stress injury
Carefully read the Instruction Manual for Safety and Comfort. It contains
information on the prevention of stress injuries to your hands and wrists
that can be caused by extensive keyboard use. Instruction Manual for
Safety and Comfort also includes information on work space design,
posture and lighting that can help reduce physical stress.
Heat injury
■Avoid prolonged physical contact with the computer. If the computer is
used for long periods, its surface can become very warm. While the
temperature will not feel hot to the touch, if you maintain physical
contact with the computer for a long time, for example if you rest the
computer on your lap or if you keep your hands on the palm rest, your
skin might suffer a low-heat injury.
■If the computer has been used for a long time, avoid direct contact with
the metal plate supporting the various interface ports as this can
become hot.
■The surface of the AC adaptor can become hot when in use but this
condition does not indicate a malfunction. If you need to transport the
AC adaptor, you should disconnect it and let it cool before moving it.
■Do not lay the AC adaptor on a material that is sensitive to heat as the
material could become damaged.
![](/img.php?id=1284990&img=bgd.png)
User’s Manual xvi
Libretto W100
Pressure or impact damage
Do not apply heavy pressure to the computer or subject it to any form of
strong impact as this can damage the computer's components or otherwise
cause it to malfunction.
Mobile phones
Please be aware that the use of mobile phones can interfere with the audio
system. The operation of the computer will not be impaired in any way, but
it is recommended that a minimum distance of 30cm is maintained between
the computer and a mobile phone that is in use.
Instruction Manual for Safety and Comfort
All important information on the safe and proper use of this computer is
described in the enclosed Instruction Manual for Safety and Comfort. Be
sure to read it before using the computer.
![](/img.php?id=1284990&img=bge.png)
User’s Manual xi
Preface
Congratulations on your purchase of the Libretto W100 computer, which is
the dual screen computer featuring the "Bulletin Board". This convenient,
lightweight device, with the floating Virtual Keyboard, TouchPad and
additional useful utilities, is designed to be operated by finger tapping on
the screens, while users can access Windows functions.
This manual tells how to set up and begin using your Libretto W100
computer. It also provides detailed information on configuring your
computer, basic operations and care, using optional devices and
troubleshooting.
If you are a new user of computers or if you’re new to portable computing,
first read over the Chapter 1, Getting Started and Chapter 3, Hardware,
Utilities and Options chapters to familiarize yourself with the computer’s
features, components and accessory devices. Then read Chapter 1,
Getting Started for step-by-step instructions on setting up your computer.
If you are an experienced computer user, please continue reading the
preface to learn how this manual is organized, then become acquainted
with this manual by browsing through its pages. Be sure to read the Special
features section in Chapter 3, Hardware, Utilities and Options to learn
about features that are uncommon or unique to this computer, as well as
the section on Chapter 6, HW Setup, to understand how to setup and
configure these features.
Read Chapter 3, Hardware, Utilities and Options if connecting optional
products or external devices.
Conventions
This manual uses the following formats to describe, identify, and highlight
terms and operating procedures.
Abbreviations
On first appearance, and whenever necessary for clarity, abbreviations are
enclosed in parentheses following their definition. For example: Read Only
Memory (ROM). Acronyms are also defined in the Glossary.
![](/img.php?id=1284990&img=bgf.png)
User’s Manual xii
Libretto W100
Icons
Icons identify ports, dials, and other parts of your computer. The indicator
panel also uses icons to identify the components it is providing information
on.
Keys
The virtual keyboard keys are used in the text to describe many computer
operations. A distinctive typeface identifies the key top symbols as they
appear on the virtual keyboard. For example, ENTER identifies the ENTER
key.
Key operation
Some operations require you to simultaneously use two or more keys. We
identify such operations by the key top symbols separated by a plus sign
(+). For example, CTRL + C means you must hold down CTRL and at the
same time press C. Please refer to Virtual Keyboard for detailed
information.
Display
Messages
Messages are used in this manual to bring important information to your
attention. Each type of message is identified as shown below.
ABC When procedures require an action such as
tapping an icon or entering text, the icon's name
or the text you are to type in is represented in the
typeface you see to the left.
SABC Names of windows or icons or text generated by
the computer that appear on its display screen
are presented in the type face you see to the left.
Pay attention! A caution informs you that improper use of equipment or
failure to follow instructions may cause data loss or damage your
equipment.
Please read. A note is a hint or advice that helps you make best use of
your equipment.
Indicates a potentially hazardous situation, which could result in death or
serious injury, if you do not follow instructions.
![](/img.php?id=1284990&img=bg10.png)
User’s Manual xiii
Libretto W100
Terminology
This term is defined in this document as follows:
Start The word "Start" refers to the " " button in
Windows 7.
SSD or Solid State
drive Your computer is equipped with a "Solid State
Drive (SSD)" instead of a hard disk drive.
![](/img.php?id=1284990&img=bg11.png)
User’s Manual 1-1
Chapter 1
Getting Started
This chapter provides an equipment checklist, and basic information to start
using your computer.
Equipment checklist
Carefully unpack your computer, taking care to save the box and packaging
materials for future use.
Hardware
Check to make sure you have all the following items:
■Libretto W100 Portable Personal Computer
■AC adaptor and power cord (2-pin plug or 3-pin plug)
■Battery pack
Documentation
■Libretto W100 User Information Guide
■Instruction Manual for Safety and Comfort
If any of the items are missing or damaged, contact your dealer
immediately.
Some of the features described in this manual may not function properly if
you use an operating system that was not pre-installed by TOSHIBA.
![](/img.php?id=1284990&img=bg12.png)
User’s Manual 1-2
Getting Started
Software
The following Windows® operating system and utility software are pre-
installed.
■Windows 7
■TOSHIBA Bulletin Board
■TOSHIBA ReelTime
■TOSHIBA Value Added Package
■TOSHIBA Recovery Media Creator
■TOSHIBA Assist
■TOSHIBA ConfigFree™
■TOSHIBA HDD/SSD Alert
■TOSHIBA Face Recognition
■TOSHIBA eco Utility
■TOSHIBA Media Controller
■Online Manual
■Libretto W100 User's Manual (This manual)
* You may not have all the softwares listed above depending on the
model you purchased.
![](/img.php?id=1284990&img=bg13.png)
User’s Manual 1-3
Getting Started
Getting Started
This section provides basic information to start using your computer. It
covers the following topics:
■Connecting the AC adaptor
■Opening the display
■Turning on the power
■Starting up for the first time
■Turning off the power
■Restarting the computer
■Creating Recovery Media
■Restoring the pre-installed software from the Recovery hard disk
drive/created Recovery Media
■All users should be sure to read the section Starting up for the first time.
■Be sure to read the enclosed Instruction Manual for Safety and Comfort
for information on the safe and proper use of this computer. It is
intended to help you be more comfortable and productive while using a
notebook computer. By following the recommendations in it you may
reduce your chance of developing a painful or disabling injury to your
hand, arms, shoulders or neck.
■Use a virus-check program and make sure it is updated regularly.
■Never format storage media without checking its content - formatting
destroys all stored data.
■It is a good idea to periodically back up the internal solid state drive or
other main storage device to external media. General storage media is
not durable or stable over long periods of time and under certain
conditions may result in data loss.
■Before you install a device or application, save any data in memory to
the solid state drive or other storage media. Failure to do so may result
in the loss of data.
![](/img.php?id=1284990&img=bg14.png)
User’s Manual 1-4
Getting Started
Connecting the AC adaptor
Attach the AC adaptor when you need to charge the battery or you want to
operate from AC power. It is also the fastest way to get started, because
the battery pack will need to be charged before you can operate from
battery power.
The AC adaptor can be connected to any power source supplying from 100
to 240 volts and 50 or 60 hertz. For details on using the AC adaptor to
charge the battery pack, refer to Chapter 5, Power and Power-Up Modes.
■Always use the TOSHIBA AC adaptor that was included with your
computer, or use AC adaptors specified by TOSHIBA to avoid any risk
of fire or other damage to the computer. Use of an incompatible AC
adaptor could cause fire or damage to the computer possibly resulting
in serious injury. TOSHIBA assumes no liability for any damage caused
by use of an incompatible adaptor.
■Never plug the AC adaptor into a power source that does not
correspond to both the voltage and the frequency specified on the
regulatory label of the unit. Failure to do so could result in a fire or
electric shock, possibly resulting in serious injury.
■Always use or purchase power cables that comply with the legal
voltage and frequency specifications and requirements in the country of
use. Failure to do so could result in a fire or electric shock, possibly
resulting in serious injury.
■The supplied power cord conforms to safety rules and regulations in
the region the product is bought and should not be used outside this
region. For use in other regions, please buy power cords that conform
to safety rules and regulations in the particular region.
■Do not use a 3-pin to 2-pin conversion plug.
■When you connect the AC adaptor to the computer, always follow the
steps in the exact order as described in the User’s Manual. Connecting
the power cable to a live electrical outlet should be the last step
otherwise the adaptor DC output plug could hold an electrical charge
and cause an electrical shock or minor bodily injury when touched. As
a general safety precaution, avoid touching any metal parts.
■Never place your computer or AC adaptor on a wooden surface,
furniture, or any other surface that could be marred by exposure to heat
since the computer base and AC adaptor's surface increase in
temperature during normal use.
■Always place your computer or AC adaptor on a flat and hard surface
that is resistant to heat damage.
Refer to the enclosed Instruction Manual for Safety and Comfort for
detailed precautions and handling instructions.
![](/img.php?id=1284990&img=bg15.png)
User’s Manual 1-5
Getting Started

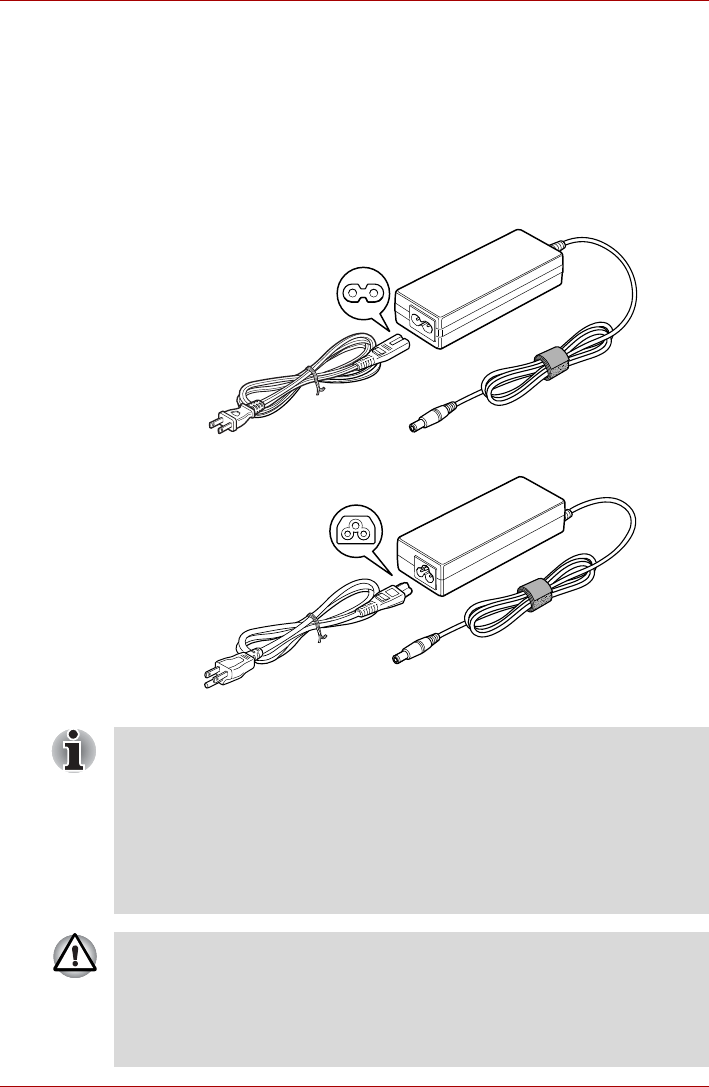

1. Connect the power cord to the AC adaptor.
Figure 1-1 Connecting the power cord to the AC adaptor (2-pin plug)
Figure 1-2 Connecting the power cord to the AC adaptor (3-pin plug)
2. Connect the AC adaptor’s DC output plug to the DC IN 19V jack on the
right side of the computer.
Figure 1-3 Connecting the DC output plug to the computer
3. Plug the power cord into a live wall outlet - the DC IN/Battery indicator
on the right of the computer should glow.
Either a 2-pin or 3-pin adaptor/cord will be included with the computer
depending on the model.
1. DC IN 19V jack 2. DC output plug
2
1
![](/img.php?id=1284990&img=bg16.png)
User’s Manual 1-6
Getting Started
Opening the display
The Libretto is a dual screen computer provided with two display panels
(upper and lower), which can be opened to a wide range of angles for
optimal viewing.
You can open the display panel as the illustration shown below.

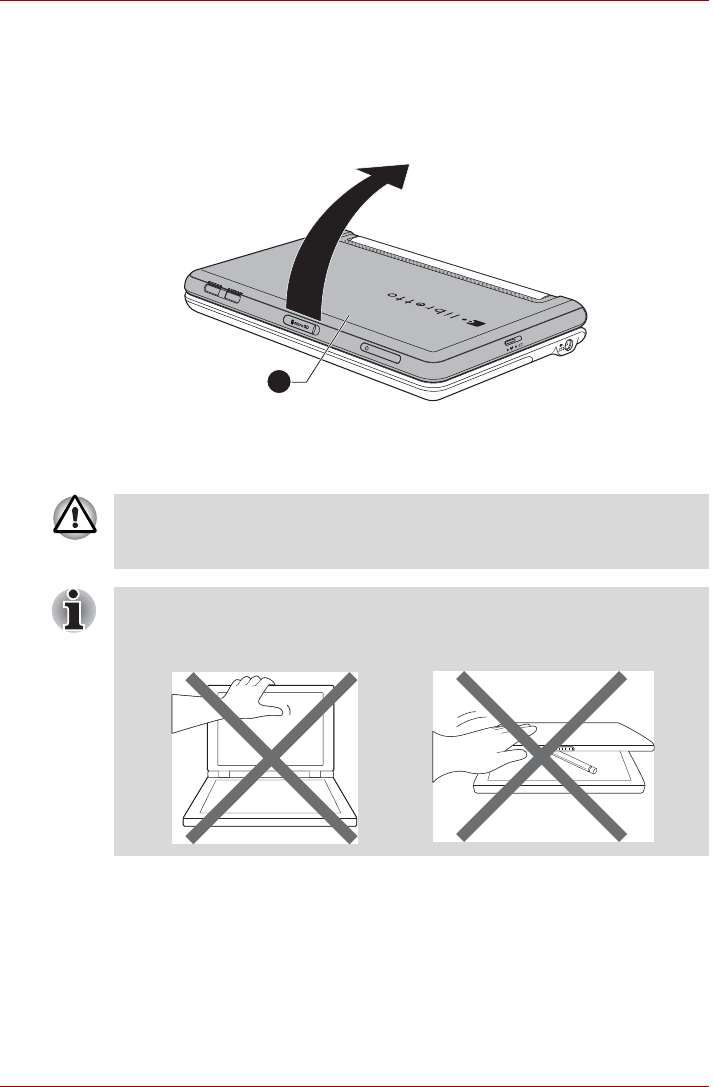

Figure 1-4 Opening the display panel
1. Upper display panel
1
Use reasonable care when opening and closing the display panels.
Opening them vigorously or slamming them shut could damage the
computer.
■Do not press or push on the display panels.
■Do not close the display panels with pens or any other objects left in
between them.
![](/img.php?id=1284990&img=bg17.png)
User’s Manual 1-7
Getting Started
Turning on the power
This section describes how to turn on the power - the Power indicator will
then indicate the status. Please refer to the Monitoring of power condition
section in Chapter 5, Power and Power-Up Modes for more information.
1. Open the display panels.
2. Press the computer's power button.

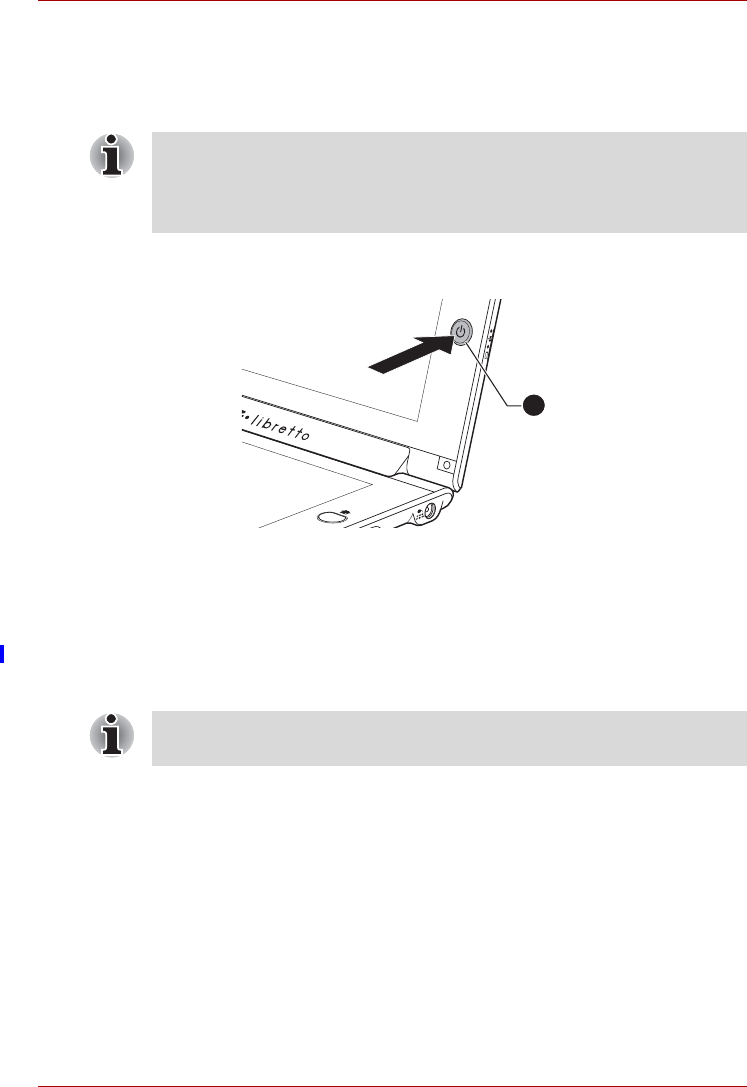

Figure 1-5 Turning on the power
Starting up for the first time
The Windows 7 Startup Screen will be the first screen displayed when you
turn on the power. Follow the on-screen instructions in order to properly
install the operating system.
■After you turn on the power for the first time, do not turn it off until you
have set up the operating system. Please refer to the section Starting
up for the first time for more information.
■Volume cannot be adjusted during Windows Setup.
1. Power button
1
When it is displayed, be sure to read the Software License Terms
carefully.
![](/img.php?id=1284990&img=bg18.png)
User’s Manual 1-8
Getting Started

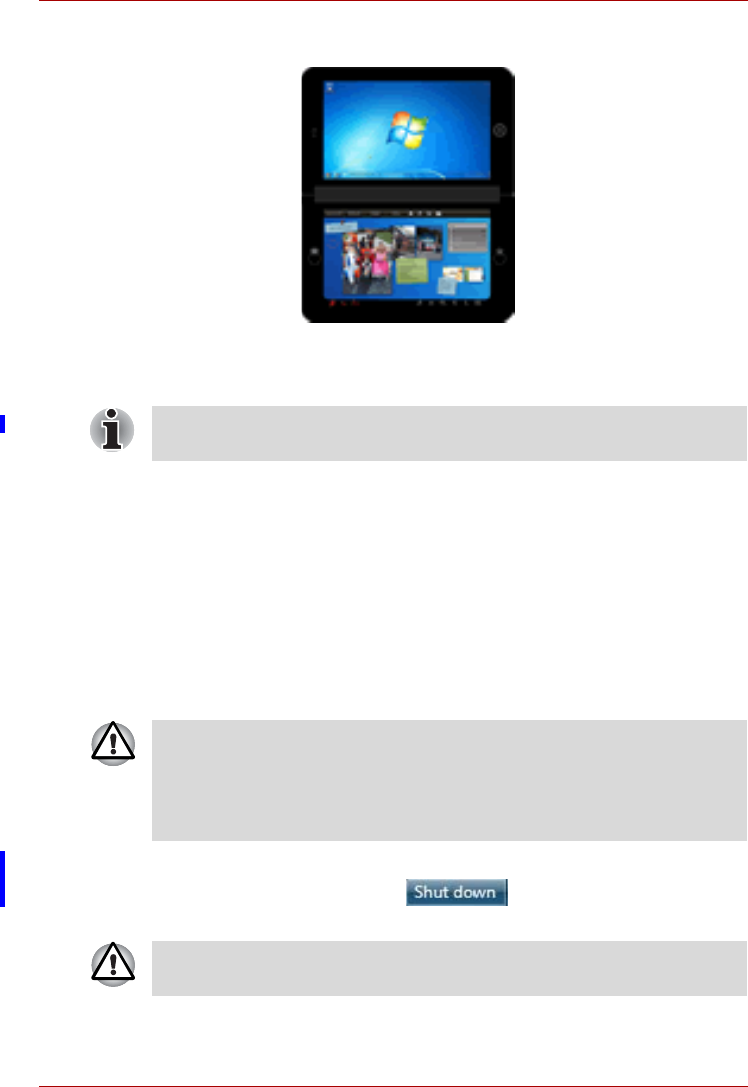

When it is completed, the Windows screen will be displayed in the upper
screen, while Libretto Home in the lower screen by default.
Figure 1-6 Starting up for the first time
Turning off the power
The power can be turned off in one of three modes, either Shut Down
Mode, Hibernation Mode or Sleep Mode.
Shut Down Mode
When you turn off the power in Shut Down Mode no data will be saved and
the computer will boot to the operating system's main screen the next time
it is turned on.
1. If you have entered data, either save it to the solid state drive or to other
storage media.
2. Tap Start.
3. Tap the Shut down button ( ).
4. Turn off any peripheral devices connected to your computer.
1. Windows screen 2. Libretto Home screen
The Libretto virtual Keyboard will be displayed in the lower screen by
pressing the Keyboard button.
■Never turn off the power while an application is running. Doing so could
cause loss of data.
■Never turn off the power, disconnect an external storage device or
remove storage media during data read/write. Doing so can cause data
loss.
Do not turn the computer or peripheral devices back on immediately - wait
a short period to avoid any potential damage.
![](/img.php?id=1284990&img=bg19.png)
User’s Manual 1-9
Getting Started
Sleep Mode
If you have to interrupt your work, you are able to turn off the power without
exiting from your software by placing the computer into Sleep Mode. In this
mode data is maintained in the computer's main memory so that when you
turn on the power again, you can continue working right where you left off.
Benefits of Sleep Mode
The Sleep Mode feature provides the following benefits:
■Restores the previous working environment more rapidly than does the
Hibernation Mode feature.
■Saves power by shutting down the system when the computer receives
no input or hardware access for the time period set by the System
Sleep Mode feature.
■Allows the use of the panel power off feature.
Executing Sleep Mode
You can enter Sleep Mode in one of three ways:
■Tap Start, point to the arrow icon ( ) and then select
Sleep from the menu.
When you have to turn off your computer aboard an aircraft or in places
where electronic devices are regulated or controlled, always completely
shut down the computer. This includes turning off any wireless
communication switches or devices, and canceling settings that reactivate
the computer automatically, such as a timer recording function. Failure to
completely shut down the computer in this way could allow the operating
system to reactivate and run pre-programmed tasks or preserve unsaved
data, which could interfere with aviation or other systems, possibly causing
serious injury.
■Before entering Sleep Mode, be sure to save your data.
■Do not remove the battery pack while the computer is in Sleep Mode
(unless the computer is connected to an AC power source). Data in
memory could be lost.
■When the AC adaptor is connected, the computer will go into Sleep
Mode according to the settings in the Power Options (to access it, tap
Start -> Control Panel -> System and Security -> Power Options).
■To restore the operation of the computer from Sleep Mode, press and
hold the power button for a short amount of time.
■If the computer enters Sleep Mode while a network application is
active, the application might not be restored when the computer is next
turned on and the system returns from Sleep Mode.
■To prevent the computer from automatically entering Sleep Mode,
disable Sleep Mode within the Power Options (to access it, tap Start ->
Control Panel -> System and Security -> Power Options).
■To use the Hybrid Sleep function, configure it in the Power Options.
![](/img.php?id=1284990&img=bg1a.png)
User’s Manual 1-10
Getting Started
■Close the display panels. Please note that this feature must be enabled
within the Power Options (to access it, tap Start -> Control Panel ->
System and Security -> Power Options).
■Press the power button. Please note that this feature must be enabled
within the Power Options (to access it, tap Start -> Control Panel ->
System and Security -> Power Options).
When you turn the power back on, you can continue where you left when
you shut down the computer.
Sleep Mode limitations
Sleep Mode will not function under the following conditions:
■Power is turned back on immediately after shutting down.
■Memory circuits are exposed to static electricity or electrical noise.
Hibernation Mode
The Hibernation Mode feature saves the contents of memory to the hard
disk drive when the computer is turned off so that, the next time it is turned
on, the previous state is restored. Please note that the Hibernation Mode
feature does not save the status of any peripheral devices connected to the
computer.
Benefits of Hibernation Mode
The Hibernation Mode feature provides the following benefits:
■Saves data to the solid state drive when the computer automatically
shuts down because of a low battery condition.
■You can return to your previous working environment immediately when
you turn on the computer.
■Saves power by shutting down the system when the computer receives
no input or hardware access for the time period set by the System
Hibernate feature.
■Allows the use of the panel power off feature.
Starting Hibernation Mode
To enter Hibernation Mode, follow the steps below.
1. Tap Start.
2. Point to the arrow icon ( ) and then select Hibernate
from the menu.
■If you are operating the computer on battery power, you can lengthen
the overall operating time by turning it off into Hibernation Mode - Sleep
Mode will consume more power while the computer is off.
■Save your data. While entering Hibernation Mode, the computer saves
the contents of memory to the solid state drive. However, for safety
sake, it is best to save your data manually.
■Data will be lost if you remove the battery or disconnect the AC adaptor
before the save is completed.
![](/img.php?id=1284990&img=bg1b.png)
User’s Manual 1-11
Getting Started
Automatic Hibernation Mode
The computer can be configured to enter Hibernation Mode automatically
when you press the power button or close the lid. In order to define these
settings, you can follow the steps as described below:
1. Tap Start and tap Control Panel.
2. Tap System and Security and tap Power Options.
3. Tap Choose what the power button does or Choose what closing
the lid does.
4. Enable the desired Hibernation Mode settings for When I press the
power button and When I close the lid.
5. Tap the Save changes button.
Data save in Hibernation Mode
When you turn off the power in Hibernation Mode, the computer will take a
moment to save the current data in memory to the solid state drive.
After you turn off the computer, and the content of memory has been saved
to the solid state drive, turn off the power to any peripheral devices.
Restarting the computer
Certain conditions require that you reset the computer, for example if:
■You change certain computer settings.
■An error occurs and the computer does not respond to your virtual
keyboard commands.
If you need to restart the computer, there are three ways this can be
achieved:
■Tap Start, tap the arrow icon ( ) and then select
Restart from the menu.
■Press and hold the Keyboard button (actions as Ctrl+Alt+Del keys) to
display the menu window, tap the up arrow icon, then select Restart
from the list menu.
■Press the power button and hold it down for five seconds. Once the
computer has turned itself off, wait between ten and fifteen seconds
before turning the power on again by pressing the power button.
System Recovery
This section describes the creation of Recovery Media and their use.
Do not turn the computer or devices back on immediately. Wait a moment
to let all capacitors fully discharge.
Pressing Ctrl+Alt+Del keys is not available on the virtual keyboard.
![](/img.php?id=1284990&img=bg1c.png)
User’s Manual 1-12
Getting Started
Creating Recovery Media
This section describes how to create Recovery Media.
A recovery image of the software on your computer is stored on the solid
state drive, and can be copied to either DVD or USB Flash Memory by
using the following steps:
1. Select either blank DVD or USB Flash Memory.
The application will allow you to choose from a variety of different media
onto which the recovery image can be copied including DVD-R, DVD-R
DL, DVD-RW, DVD+R, DVD+R DL, DVD+RW and USB Flash Memory.
2. Turn on your computer and allow it to load the Windows 7 operating
system from the solid state drive as normal.
3. Insert the first blank disc into the external optical disc drive, or
Insert the USB Flash Memory into one available USB port
4. Double-tap the Recovery Media Creator icon on the Windows 7
desktop, or select the application from Start Menu.
5. After Recovery Media Creator starts, select the type of media and the
title you wish to copy, and then taptap the Create button.
■Be sure to connect the AC adaptor when you create Recovery Media.
■Be sure to close all other software programs except the Recovery
Media Creator.
■Do not run software such as screen savers which can put a heavy load
on the CPU.
■Operate the computer at full power.
■Do not use power-saving features.
■Do not write to the media when the virus check software is running.
Wait for it to finish, then disable virus detection programs including any
software that checks files automatically in the background.
■Do not use utilities, including those intended to enhance solid state
drive access speed. They may cause unstable operation and damage
data.
■Do not shut down/log off or Sleep/Hibernate while writing or rewriting
the media.
■Set the computer on a level surface and avoid places subjected to
vibrations such as airplanes, trains, or cars.
■Do not use on an unstable surface such as a stand.
■You can use DVD media when you connected the external ODD.
■Please note that some of the above media may not be compatible with
the external optical disc drive connected into your computer. You
should therefore verify the optical disc drive supports the blank media
you have chosen before proceeding.
■USB Flash Memory will be formatted and all the data in the USB Flash
Memory will be lost when proceeding.
![](/img.php?id=1284990&img=bg1d.png)
User’s Manual 1-13
Getting Started
Restoring the pre-installed software from the Recovery solid state
drive/created Recovery Media
A portion of the total solid state drive space is configured as a hidden
recovery partition. This partition stores files which can be used to restore
pre-installed software in the event of a problem.
If you subsequently set up your solid state drive again, do not change,
delete or add partitions in a manner other than specified in the manual,
otherwise you may find that space for the required software is not available.
In addition, if you use a third-party partitioning program to reconfigure the
partitions on your solid state drive, you may find that it becomes impossible
to setup your computer.
If the pre-installed files are damaged, you are able to either use the
Recovery Media you have created or the solid state drive recovery process
to restore the computer to the state it was in when you originally received it.
To perform this restoration, follow the steps below:
1. Turn off your computer.
2. Turn on your computer - when the TOSHIBA Leading Innovation
>>> logo screen appears, press the Keyboard button to enter TOSHIBA
Boot Manager.
3. Use the Keyboard button (emulating as arrow keys) to select the
appropriate option according to your actual status, and press the Home
button(emulating as ENTER key) to proceed.
4. Follow the on-screen instructions. You can operating by directly
touching the screen now.
When the sound mute feature has been activated, be sure to disable this to
allow sounds to be heard before starting the restore process.
When you reinstall the Windows operating system, the solid state drive will
be reformatted and all data will be lost.
To restore from the Rcovery Media, load the recovery disc into the external
ODD or insert the recovery USB Flash Memory into the USB port.
For the buttons location, please refer to Front with the display open.
When drivers/utilities are installed, you can setup the respective
drivers/utilities from the following place. To open the setup files, tap Start -
> All Programs -> TOSHIBA -> Applications and Drivers.
![](/img.php?id=1284990&img=bg1e.png)
User’s Manual 2-1
Chapter 2
The Grand Tour
This chapter identifies the various components of the computer - it is
recommended that you become familiar with each before you operate the
computer.
Front with the display closed
The following figure shows the computer’s front with its display panel in the
closed position.
* Provided with some models.
Product appearance depends on the model you purchased.

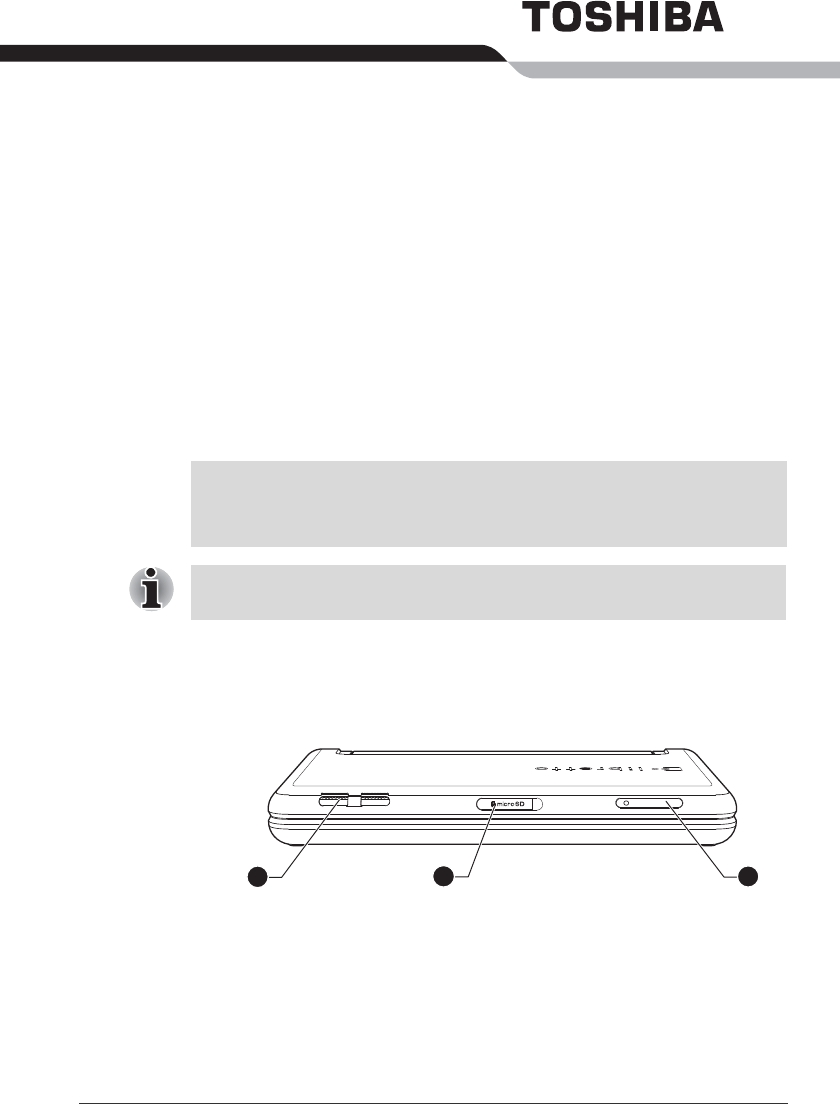

Figure 2-1 Front of the computer with display panel closed
Legal Footnote (Non-applicable Icons)
For more information regarding Non-applicable Icons, please refer to the
Legal Footnotes section in Appendix G.
Please handle your computer carefully to avoid scratching or damaging the
surface.
1. Cooling vents 3. SIM card slot*
2. MicroSD card slot
1
2
3
![](/img.php?id=1284990&img=bg1f.png)
User’s Manual 2-2
The Grand Tour
Left side
The following figure shows the computer’s left side.
Product appearance depends on the model you purchased.
Figure 2-2 The left side of the computer
Cooling vents The cooling vents help keep the processor from
overheating.
MicroSD card slot This slot can accommondate a single microSD
memory card in order to transfer data from
devices, such as digital cameras, onto your
computer.
The microSDHC card is also supported.

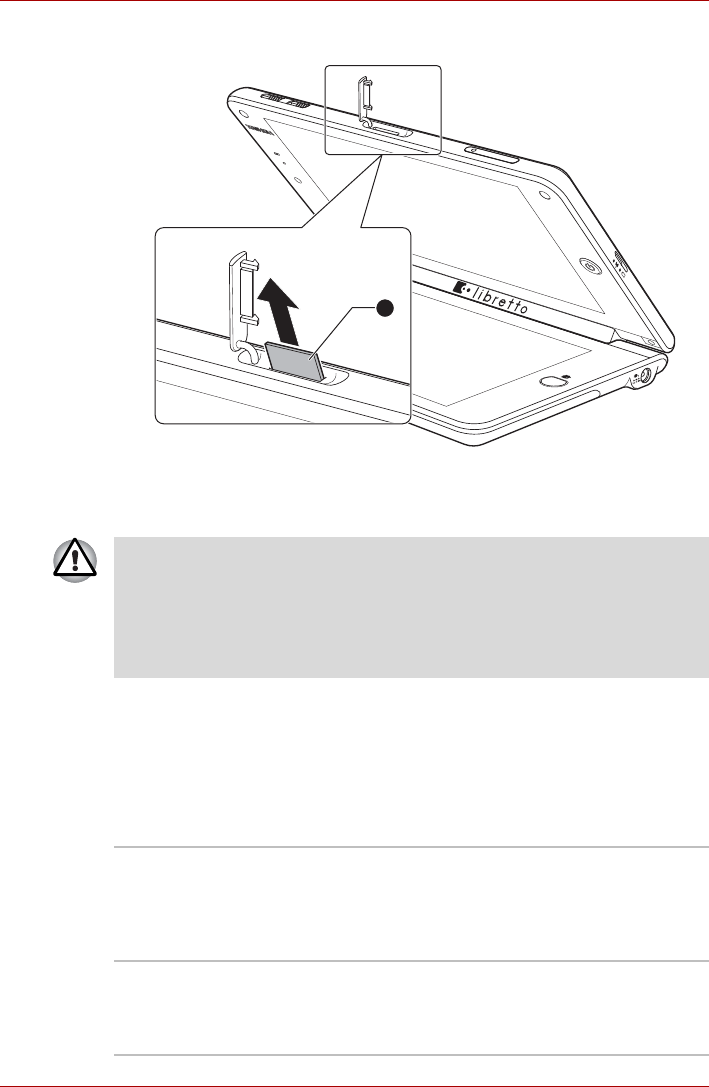

SIM card slot This slot can accommondate a single SIM card in
order to give you the ability for a high-speed
connection to the Internet, corporate Intranet,
and your email while you are away from the
office.
Do not block the cooling vents. Keep foreign metal objects, such as
screws, staples and paper clips, out of the cooling vents and the
microSD/SIM card slot. Foreign metal objects can create a short circuit,
which can cause damage and fire, possibly resulting in serious injury.

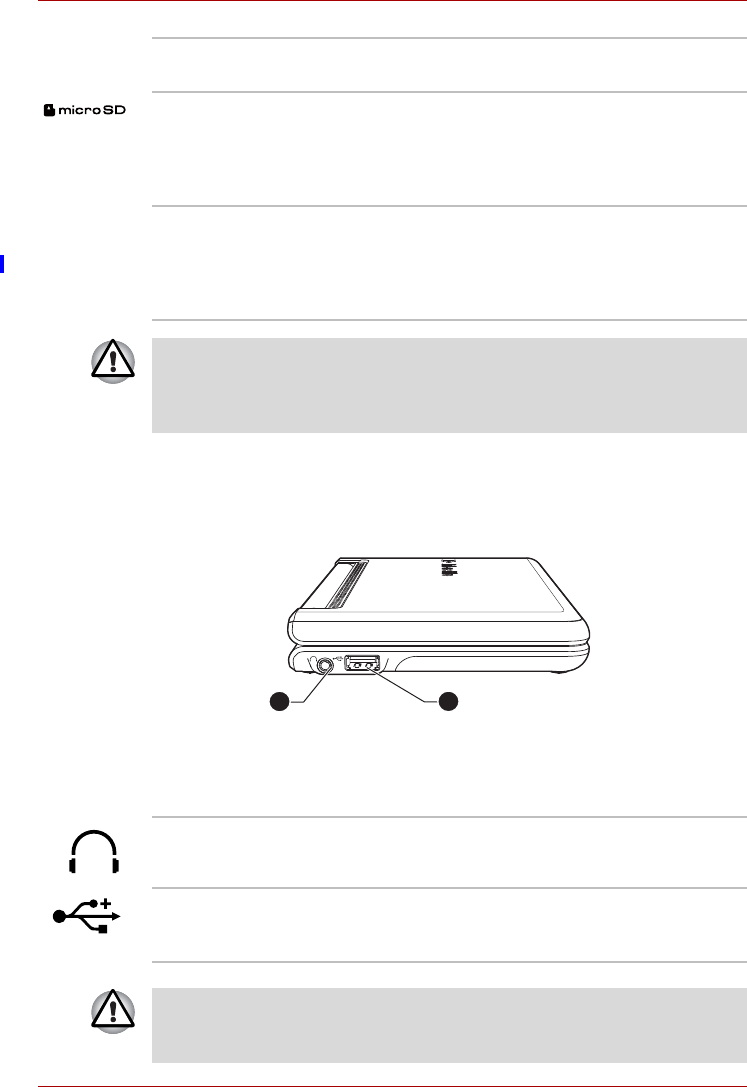

1. Headphone jack 2. Universal Serial Bus (USB 2.0) port
1
2
Headphone jack A 3.5 mm mini headphone jack enables
connection of stereo headphones.
Universal Serial Bus
(USB 2.0) port One Universal Serial Bus port, which complies to
the USB 2.0 standard, is provided on the right
hand side of the computer.
Keep foreign metal objects, such as screws, staples and paper clips, out of
the USB port. Foreign metal objects can create a short circuit, which can
cause damage and fire, possibly resulting in serious injury.
![](/img.php?id=1284990&img=bg20.png)
User’s Manual 2-3
The Grand Tour
Right side

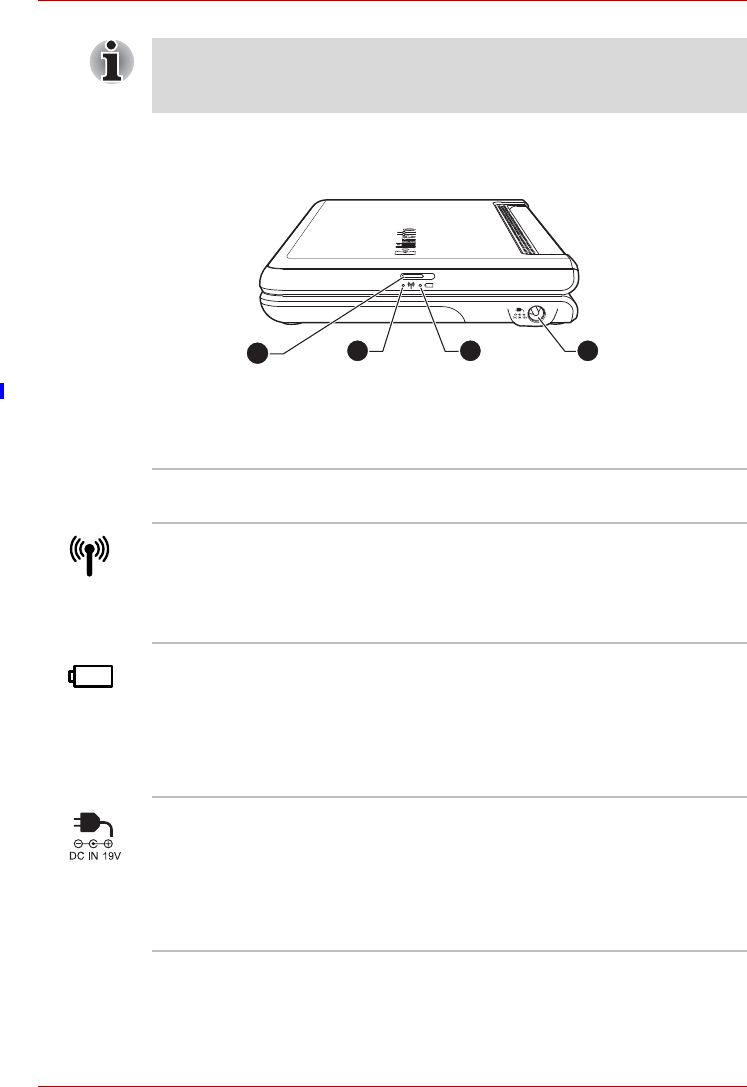

The following figure shows the computer’s right side.
Figure 2-3 The right side of the computer
Please note that it is not possible to confirm the operation of all functions of
all USB devices that are available. In view of this it may be noted that some
functions associated with a specific device might not operate properly.
1. Speaker 3. DC IN/Battery indicator
2. Wireless indicator 4. DC IN 19V jack
43
1
2
speaker The speaker emits sound generated by your
software as well as audio alarms.
Wireless
communication The Wireless communication indicator glows
amber when the Bluetooth, Wireless LAN and
Wireless WAN functions are turned on.
Only some models are equiped with Wireless
WAN function.
DC IN/Battery
indicator The DC IN/Battery indicator shows the condition
of the DC IN and the battery's charge - green
indicates the battery is fully charged while the
power is being correctly supplied from the AC
power adaptor. Please refer to Chapter 5, Power
and Power-Up Modes for more information on
this feature.
DC IN 19V jack The AC adaptor connects to this jack in order to
power the computer and charge its internal
batteries. Please note that you should only use
the model of AC adaptor supplied with the
computer at the time of purchase - using the
wrong AC adaptor can cause damage to the
computer.
![](/img.php?id=1284990&img=bg21.png)
User’s Manual 2-4
The Grand Tour
Underside
The following figure shows the underside of the computer. You should
ensure that the display is closed before the computer is turned over to
avoid causing any damage.

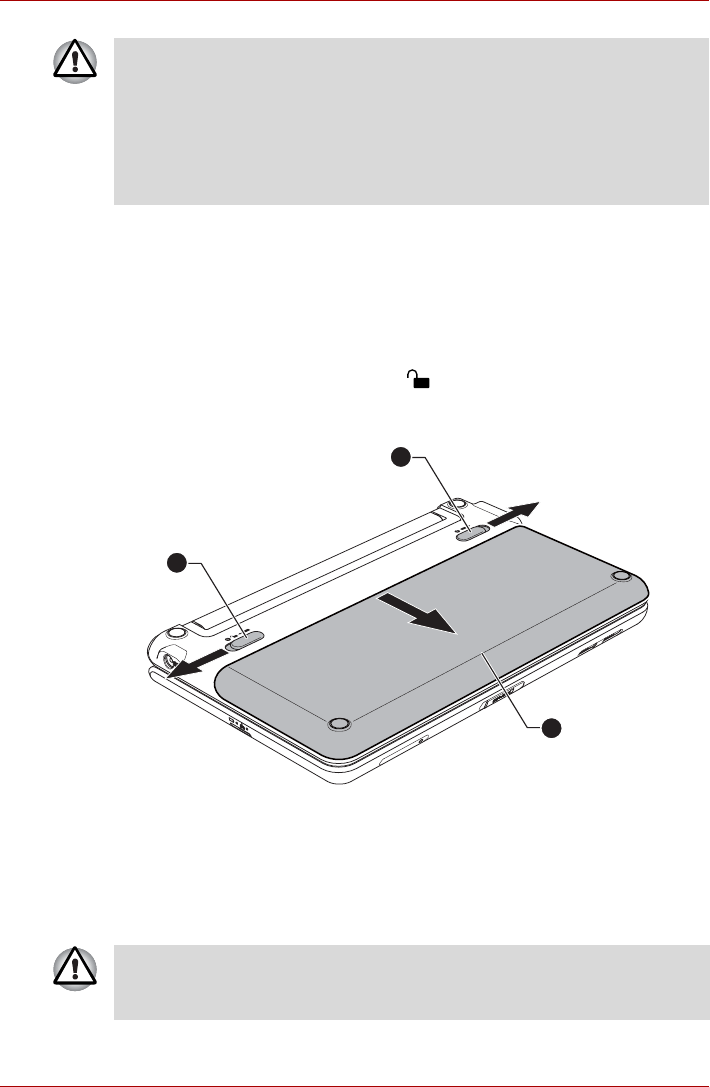

Figure 2-4 The underside of the computer
1. Battery lock 3. Battery pack
2. Battery release latch
1 3 2
Battery lock Slide the battery lock to release the battery pack
ready for removal.
Battery release latch Slide and hold this latch into its "Unlock" position
in order to release the battery pack for removal.
For more detailed information on removing the
battery pack please refer to Chapter 5, Power
and Power-Up Modes.
Battery pack The battery pack provides power to the computer
when the AC adaptor is not connected. For more
detailed information on the use and operation of
the battery pack please refer to Chapter 5, Power
and Power-Up Modes.
![](/img.php?id=1284990&img=bg22.png)
User’s Manual 2-5
The Grand Tour
Front with the display open
This section shows the computer with the display panel open. In order to
open the display, lift the display panel up and position it at a comfortable
viewing angle for you.

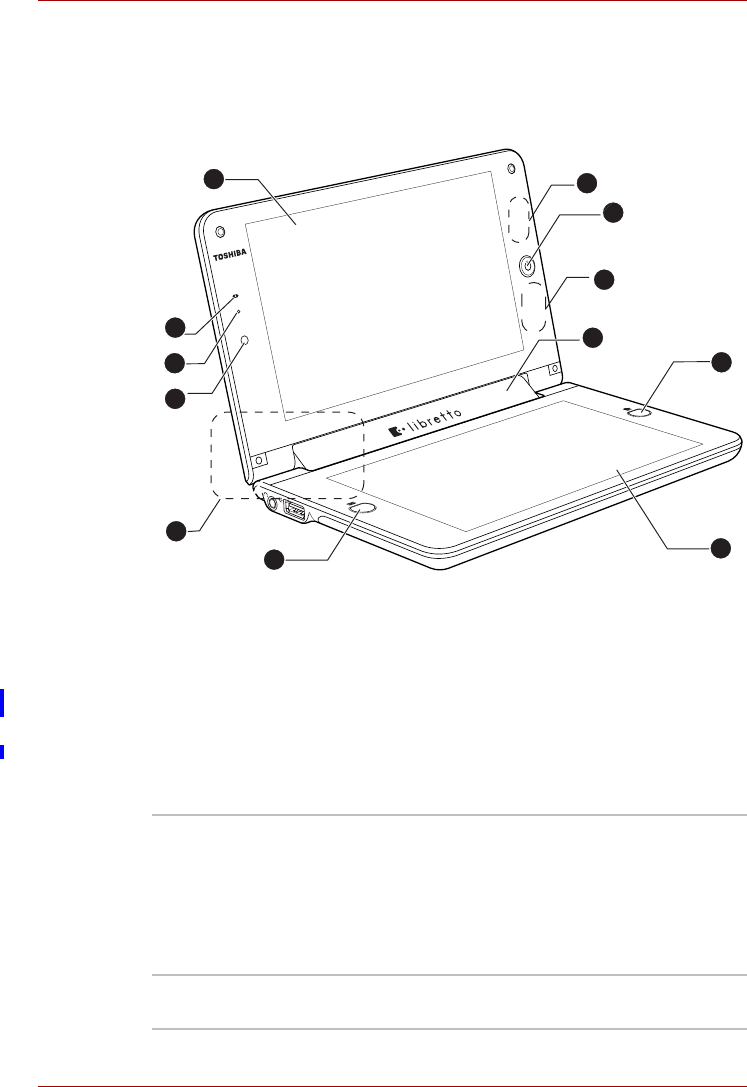

Figure 2-5 The front of the computer with the display panel open
* Provided with some models.
Product appearance depends on the model you purchased.
1. Microphone 7. Display hinge
2. Web Camera LED 8. Bluetooth antenna (not shown)*
3. Web Camera 9. Power button
4. Upper screen 10. Panel Sensor and Wireless
LAN antenna (not shown)
5. Lower screen 11. Keyboard button
6. Wireless LAN and Wireless WAN antennas (not shown)* 12. Home button
11 5
12
3
2
1
4
7
6
8
9
10
Microphone A built-in microphone allows you to import and
record sounds for your application - please refer
to the Wireless communications section in
Chapter 4, Operating Basics for more
information.
Some models are equipped with a built-in
microphone.
Web Camera LED
The Web Camera LED glows when the Web
Camera is operating.
![](/img.php?id=1284990&img=bg23.png)
User’s Manual 2-6
The Grand Tour
Web Camera Web Camera is a device that allows you to
record video or take photographs with your
computer. You can use it for video chatting or
video conferences using a communication tool
such as Windows Live Messenger. TOSHIBA
Web Camera Application will help you to add
various video effects to your video or photograph.
Enables the transmission of video and use of
video chat via the internet using specialized
applications.
Please refer to the Web Camera section in
Chapter 4, Operating Basics.
Power button Press this button to turn the computer's power on
and off.
The Power backlight LED normally glows white
when the computer is turned on.
Home button This button functions differently depending on the
number of times you press it and how to press it.
Press once: To open or close TOSHIBA Bulletin
Board.
Press twice quickly: To open TOSHIBA Flash
Cards.
Keyboard button This button functions differently depending on the
number of times you press it and how to press it.
Press once: To open or close the Virtual
Keyboard.
Press twice quickly: To open the Virtual Touch
Pad.
Press and hold: The function is equivalent to
pressing Ctrl+Alt+Del on a standard computer.
Wireless LAN
antennas Some computers in this series are equipped with
the Wireless LAN antennas.
Wireless WAN
antennas Some computers in this series are equipped with
the Wireless WAN antennas.
![](/img.php?id=1284990&img=bg24.png)
User’s Manual 2-7
The Grand Tour
Upper screen &
Lower screen Please be aware that, when the computer is
operating on the AC adaptor, the image
displayed on the internal screen will be
somewhat brighter than when it operates on
battery power. This difference in brightness
levels is intended to save power when operating
on batteries. For more information on the
computer's display, please refer to the Display
Controller and Video mode section in Appendix
B.
Panel Sensor This sensor senses when the display panel is
either closed or opened and activates the Panel
Power Off/On feature as appropriate. For
example, when you close the display panel the
computer enters Hibernation Mode and shuts
itself down and then, when you next open the
display, the computer will automatically start up
and return you to the application you were
previously working on.
You can specify within the Power Options. To
access it, tap Start -> Control Panel -> System
and Security -> Power Options.
■Do not use the Wireless LAN (Wi-Fi®) or Bluetooth functionalities near
a microwave oven or in areas subject to radio interference or magnetic
fields. Interference from a microwave oven or other source can disrupt
Wi-Fi or Bluetooth operation.
■Turn all wireless functionalities off when near a person who may have a
cardiac pacemaker implant or other medical electric device. Radio
waves may affect pacemaker or medical device operation, possibly
resulting in serious injury. Follow the instruction of your medical device
when using any wireless functionality.
■Always turn off wireless functionality if the computer is near automatic
control equipment or appliances such as automatic doors or fire
detectors. Radio waves can cause malfunction of such equipment,
possibly resulting in serious injury.
Display hinge The display hinge allows the display panel to be
position at a variety of easy-to-view angles.
Bluetooth antenna Some computers in this series are equipped with
a Bluetooth antenna.
![](/img.php?id=1284990&img=bg25.png)
User’s Manual 2-8
The Grand Tour
AC adaptor
The AC adaptor can automatically adjust to any voltage ranging from 100 to
240 volts and to a frequency of either 50 or 60 hertz, enabling you to use
this computer in almost all country/region. The adaptor converts AC power
to DC power and reduces the voltage supplied to this computer.
To recharge the battery, simply connect the AC adaptor to a power source
and to the computer. Please refer to Chapter 5, Power and Power-Up
Modes for further information.
Figure 2-6 The AC adaptor (2-pin plug)
Figure 2-7 The AC adaptor (3-pin plug)
■Depending on the model in question, either a 2-pin or 3-pin
adaptor/power lead will be bundled with the computer.
■Do not use a 3-pin to 2-pin conversion plug.
■The supplied power cord conforms to safety rules and regulations in
the region the product is bought and should not be used outside of this
region. In order to use the adaptor/computer in other regions, you
should please buy a power cord that conforms to the safety rules and
regulations in that particular region.
Always use the TOSHIBA AC adaptor that was included with your
computer, or use AC adaptors specified by TOSHIBA to avoid any risk of
fire or other damage to the computer. Use of an incompatible AC adaptor
could cause fire or damage to the computer possibly resulting in serious
injury. TOSHIBA assumes no liability for any damage caused by use of an
incompatible adaptor.
![](/img.php?id=1284990&img=bg26.png)
User’s Manual 3-1
Chapter 3
Hardware, Utilities and Options
Hardware
This section describes the hardware of your computer.
The actual specifications may vary depending on the model you
purchased.
Processor
CPU Your computer is equipped with one processor
and processor type varies depending on model.
To check which type of processor is included in
your model, open the TOSHIBA PC Diagnostic
Tool Utility by tapping Start -> All Programs ->
TOSHIBA -> Utilities -> PC Diagnostic Tool.
Legal Footnote (CPU)
For more information on the CPU, please refer to the Legal Footnotes
section in Appendix G.
![](/img.php?id=1284990&img=bg27.png)
User’s Manual 3-2
Hardware, Utilities and Options
Memory
Power
Memory slot 2GB onboard memory only.
Video RAM The memory in a computer's graphics adaptor,
used to store the image displayed on a bitmap
display.
The amount of Video RAM available is
dependent on the computer's system memory.
Start -> Control Panel -> Appearance and
Personalization -> Display -> Adjust
resolution.
The amount of Video RAM can be verified by
tapping the Advanced Settings button in the
Screen Resolution window.
Legal Footnote (Memory (Main System))
For more information regarding Memory (Main System), please refer to the
Legal Footnotes section in Appendix G.
Battery pack The computer is powered by one rechargeable
lithium-ion battery pack.
Legal Footnote (Battery Life)
For more information regarding Battery Life, please refer to the Legal
Footnotes section in Appendix G.
RTC battery The internal RTC battery backs up the Real Time
Clock (RTC) and calendar.
AC adaptor The AC adaptor provides power to the system
and recharges the batteries when they are low. It
comes with a detachable power cord which will
either have a 2-pin or 3-pin plug enclosure.
As the AC adaptor is universal, it can receive a
range of AC voltages from 100 to 240 volts,
however you should note that the output current
varies among different models. Using the wrong
adaptor can damage your computer. Refer to the
AC adaptor section in Chapter 2, The Grand
Tour.
![](/img.php?id=1284990&img=bg28.png)
User’s Manual 3-3
Hardware, Utilities and Options
Disks
Display
The computer's internal display panel supports high-resolution video
graphics and can be set to a wide range of viewing angles for maximum
comfort and readability.
Solid state drive This computer is equipped with a "Solid State
Drive (SSD)" instead of a hard disk drive.
■62GB SSD
Please note that part of the Solid state drive's
overall capacity is reserved as administration
space. Additional SSD drive sizes may be
introduced.
■SSD is a large-capacity storage media which uses Solid-State Memory
in place of a magnetic disk of the hard disk.
Under certain unusual conditions of prolonged non-use and/or exposure to
high temperatures, the SSD may be vulnerable to data retention errors.
Legal Footnote (Solid State Drive (SSD) Capacity)
For more information regarding Solid State Drive (SSD) Capacity, please
refer to the Legal Footnotes section in Appendix G.
Display panel 17.78cm (7.0" WSVGA) dual LCD screens
Legal Footnote (LCD)
For more information regarding the LCD, please refer to the Legal
Footnotes section in Appendix G.
Graphics controller The graphics controller maximizes display
performance. Refer to Display Controller and
Video mode section in Appendix B for more
information.
Legal Footnote (Graphics Processor Unit ("GPU"))
For more information regarding the Graphics Processor Unit ("GPU"),
please refer to the Legal Footnotes section in Appendix G.
![](/img.php?id=1284990&img=bg29.png)
User’s Manual 3-4
Hardware, Utilities and Options
Multimedia
Communications
Special features
The following features are either unique to TOSHIBA computers or are
advanced features which make the computer more convenient to use.
Access each function using the following procedures.
*1 To access the Power Options, tap Start -> Control Panel -> System
and Security -> Power Options.
Web Camera Web Camera is a device that allows you to
record video or take photographs with your
computer. You can use it for video chatting or
video conferences using a communication tool
such as Windows Live Messenger. TOSHIBA
Web Camera Application will help you to add
various video effects to your video or photograph.
Please refer to the Web Camera section in
Chapter 4, Operating Basics.
Bluetooth Some computers in this series have Bluetooth
wireless communication function which
eliminates the need for cables between
electronic devices such as computers, printers
and mobile phones. When it is enabled,
Bluetooth provides the wireless personal area
network environment which is safe and
trustworthy, that is quick and easy.
Wireless LAN Some computers in this series are equipped with
a Wireless LAN module that is compatible with
other Wireless LAN systems based on Direct
Sequence Spread Spectrum/Orthogonal
Frequency Division Multiplexing radio technology
that complies with the IEEE 802.11 Standard.
Legal Footnote (Wireless LAN)
For more information regarding Wireless LAN, please refer to the Legal
Footnotes section in Appendix G.
Wireless WAN Some computers in this series are equipped with
a Wireless WAN module.
![](/img.php?id=1284990&img=bg2a.png)
User’s Manual 3-5
Hardware, Utilities and Options
Display automatic
power off *1 This feature automatically cuts off power to the
computer's display panel when there is no
keyboard input for a specified time, with power
being restored the next time a key is pressed.
This can be specified in the Power Options.
HDD automatic
power off *1 This feature automatically cuts off power to the
hard disk drive when it is not accessed for a
specified time, with power being restored when
the hard disk drive is next accessed. This can be
specified in the Power Options.
System automatic
Sleep/Hibernation
Mode *1
This feature automatically shuts down the system
into either Sleep Mode or Hibernation Mode when
there is no input or hardware access for a
specified time. This can be specified in the Power
Options.
Power on password Password security - user password is available to
prevent unauthorized access to your computer.
Intelligent power
supply *1 A microprocessor in the computer's intelligent
power supply detects the battery's charge,
automatically calculates the remaining battery
capacity and protects electronic components
from abnormal conditions such as a voltage
overload from the AC adaptor. This can be
specified in the Power Options.
Battery save mode *1 This feature lets you configure the computer in
order to save battery power. This can be
specified in the Power Options.
Panel power on/off
*1 This feature automatically turns power to the
computer off when the display panel is closed,
and turns it back on when the display panel is
opened. This can be specified in the Power
Options.
Low battery
automatic
Hibernation Mode *1
When battery power is exhausted to the point that
computer operation cannot be continued, the
system automatically enters Hibernation Mode
and shuts itself down. This can be specified in the
Power Options.
Heat dispersal *1 To protect against overheating, the processor has
an internal temperature sensor so that, if the
computer's internal temperature rises to a certain
level, the cooling fan is turned on or the
processing speed is lowered. This can be
specified in the Power Options.
![](/img.php?id=1284990&img=bg2b.png)
User’s Manual 3-6
Hardware, Utilities and Options
Utilities and Applications
This section describes the pre-installed utilities that come with the
computer and details how to start them. For further information on their
operation, you may refer to each utility's online manual, help files or
README.TXT file (if applicable).
Hibernation Mode This feature lets you turn off the power to the
computer without exiting from your software. The
contents of main memory are automatically
saved to the solid state drive so that when you
next turn the power on again, you can continue
working right where you left off. Refer to the
Turning off the power section in Chapter 1,
Getting Started, for more details.
Sleep Mode If you have to interrupt your work, you can use
this feature to allow you to turn off power to the
computer without exiting from your software. Data
is maintained in the computer's main memory so
that when you next turn on the power, you can
continue working right where you left off.
USB Wakeup
function This function restores the computer from Sleep
Mode depending on the external devices
connected to the USB ports.
For example, if a mouse or USB keyboard is
connected to a USB port, clicking the mouse
button or pressing the keyboard will wakeup the
computer.
TOSHIBA PC Health
Monitor The TOSHIBA PC Health Monitor application
proactively monitors a number of system
functions such as power consumption, battery
health and system cooling, informing you of
significant system conditions. This application
recognizes the system and individual component
serial numbers and will track specific activities
related to their usage.
Refer to Appendix F, TOSHIBA PC Health
Monitor.
TOSHIBA Power
Saver
TOSHIBA Power Saver provides you with the
features of more various power supply
managements.
TOSHIBA PC
Diagnostic Tool The TOSHIBA PC Diagnostic Tool will display
basic system configuration information and allow
the functionality of some of the computer's built-
in hardware devices to be tested.
![](/img.php?id=1284990&img=bg2c.png)
User’s Manual 3-7
Hardware, Utilities and Options
TOSHIBA Flash
Cards TOSHIBA Flash Cards is a utility that uses a card
type design. It provides functions similar to those
of the Hot Keys on a standard computer.
When this utility is launched, Flash Cards are
displayed in a row at the top/bottom of the
screen.
To access this utility, tap Start -> All Programs
-> TOSHIBA -> Utilities -> Flash Cards.

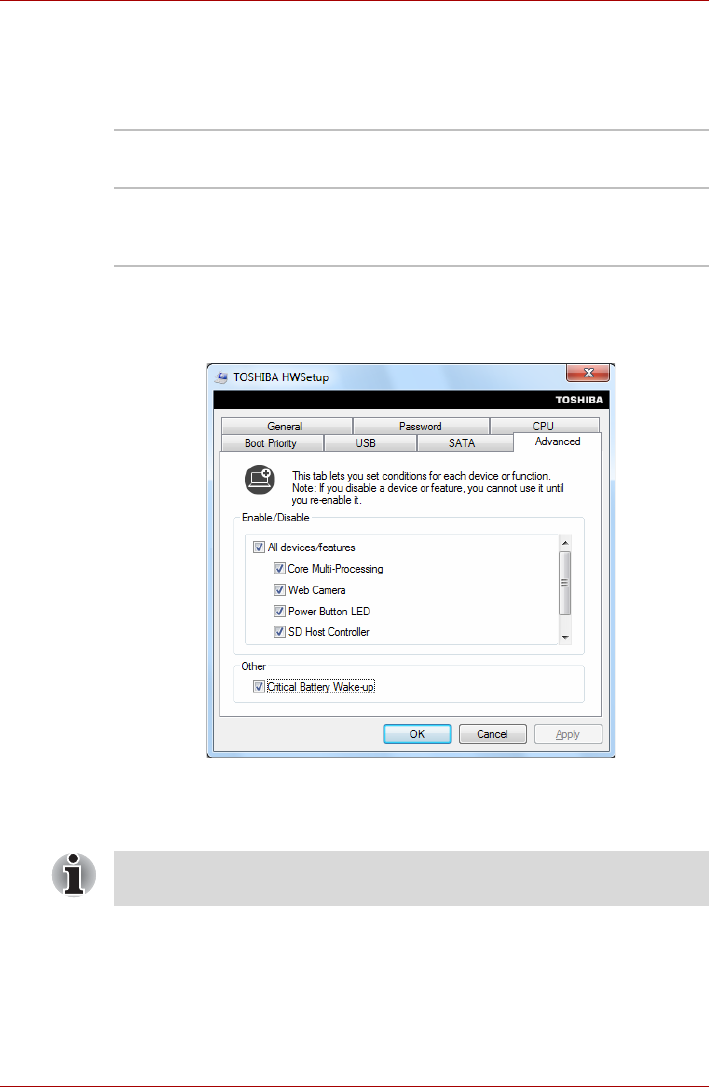

HW Setup This utility allows you to customize your
hardware settings according to the way you work
with the computer and the peripherals you use.
TOSHIBA Face
Recognition TOSHIBA Face Recognition uses a face
verification library to verify the face data of users
when they login to Windows. If the verification is
successful, the user will be logged into Windows
automatically. The user can thus avoid having to
enter a password or the like, which makes the
login process easier.
For more information, please refer to the Using
the TOSHIBA Face Recognition section in
Chapter 4, Operating Basics.
Bluetooth Stack for
Windows by Toshiba This software enables communication between
the computer and external Bluetooth devices
such as printers and mobile phones.
Bluetooth functions cannot be used in models that do not have a Bluetooth
module installed.
TOSHIBA Assist TOSHIBA Assist is a graphical user interface that
provides access to specific tools, utilities and
applications that make the use and configuration
of the computer easier.
TOSHIBA ConfigFree TOSHIBA ConfigFree is a suite of utilities that
improve the ease and control of communication
devices and network connections, help in the
identification of communication problems and
allow the creation of profiles if you need to switch
between different locations and communication
networks. To access this utility, tap Start -> All
Programs -> TOSHIBA -> ConfigFree.
![](/img.php?id=1284990&img=bg2d.png)
User’s Manual 3-8
Hardware, Utilities and Options
TOSHIBA eco Utility This PC is equipped with "eco mode". This mode
slightly lowers performance of some devices to
reduce electric power consumption. You can
realize measurable power savings by using it
continuously. TOSHIBA eco Utility helps you
monitor your power savings by showing
approximate real time power consumption.
Furthermore, it shows approximate accumulated
power consumption and approximate
accumulated power savings when using eco
mode daily, weekly, and monthly. You can track
power savings by using eco mode continuously.
TOSHIBA Disc
Creator You can create CDs and DVDs in a number of
formats including audio CDs that can be played
on a standard CD player, and data CD/DVDs
which can store copies of the files and folders on
your computer's hard disk drive. This software
can be used on models connected with a CD-
RW/DVD-ROM drive, DVD-R/-RW drive,
DVD±R/±RW drive or DVD Super Multi drive.
To start this utility, tap Start -> All Programs ->
TOSHIBA -> CD&DVD Applications -> Disc
Creator.
TOSHIBA Disc Creator is not preinstalled. You need to install it manually
by tapping Start -> All Programs -> TOSHIBA -> Applications and
Drivers, and select the TOSHIBA Disc Creator setup files.
TOSHIBA HDD/SSD
Alert Utility This utility includes wizard functions to monitor
the Disk Drive operating status and execute the
system backup.
To access the utility, tap Start -> All Programs
-> TOSHIBA -> Utilities -> HDD SSD Alert.
TOSHIBA Service
Station This application allows your computer to
automatically search for TOSHIBA software
updates or other alerts from TOSHIBA that are
specific to your computer system and its
programs. When enabled, this application
periodically transmits to our servers a limited
amount of system information, which will be
treated in strict accordance with the rules and
regulations as well as applicable data protection
law.
To access this utility, tap Start -> All Programs
-> TOSHIBA -> Utilities -> Service Station.
![](/img.php?id=1284990&img=bg2e.png)
User’s Manual 3-9
Hardware, Utilities and Options
Optional devices
Optional devices can expand the computer's capabilities and its versatility.
This section describes the connection or installation of the following
devices:
Card
■Bridge media slot
■Secure Digital™ (SD) Card (microSD/SDHC Card)
TOSHIBA Bulletin
Board Bulletin Board is a convenient place to pin things
to visually organize in a fun and creative way.
Simply drag and drop your favorite pictures, files
or notes to pin them on the Board. You can use it
to create thumbnail shortcuts, reminders, to-do
list and so on according to your personal style.
Press the Home button to launch the Bulletin
Board.
You can also access this utility by tapping Start
-> All Programs -> TOSHIBA -> TOSHIBA
Bulletin Board.
TOSHIBA ReelTime This application is a graphical history/indexing
tool that enables you to view recently accessed
files in a fun and easy-to-use format. View and
scroll through your history of opened or imported
files via thumbnails in an intuitive user interface.
To access this utility, press the Home button,
then choose the ReelTime icon on the Libretto
Taskbar.
You can also access this utility by tapping Start
-> All Programs -> TOSHIBA -> TOSHIBA
ReelTime.
TOSHIBA Media
Controller This application allows you to control your music,
pictures and videos by streaming content to any
compatible device in your home.
To access this utility, tap Start -> All Programs -
> TOSHIBA -> TOSHIBA Media Controller ->
TOSHIBA Media Controller.
For more information, please refer to the
TOSHIBA Media Controller Help.
![](/img.php?id=1284990&img=bg2f.png)
User’s Manual 3-10
Hardware, Utilities and Options
Bridge media slot
The computer is equipped with a Bridge media slot that can accommodate
some kinds of memory media with various memory capacities so that you
can easily transfer data from devices, such as digital cameras and
Personal Digital Assistants.
Figure 3-1 Example of microSD card
Memory media
This section provides the important safety precautions in order to handle
your memory media.
Points to note about the microSD/SDHC memory cards
MicroSD/SDHC memory cards comply with SDMI (Secure Digital Music
Initiative), which is a technology adopted to prevent unlawful copy or
playback of digital music. For this reason, you cannot copy or playback
protected material on another computer or other device, and you may not
reproduce any copyrighted material except for your personal enjoyment.
The supported maximum capacity of microSD memory card is 16GB.
Memory media format
New media cards are formatted according to specific standards. If you wish
to reformat a media card, be sure to do so with a device that uses media
cards.
■Keep foreign objects out of the Bridge media slot. Never allow metal
objects, such as screws, staples and paper clips, to enter the computer
or Keyboard. Foreign metal objects can create a short circuit, which
can cause computer damage and fire, possibly resulting in serious
injury.
■This Bridge media slot supports Secure Digital (SD) Card
(microSD/SDHC card).
■Please note that not all memory media have been tested and verified to
work correctly. Therefore, it is not possible to guarantee that all
memory media will operate properly.
■The slot does not support Magic Gate functions.
microSD card
![](/img.php?id=1284990&img=bg30.png)
User’s Manual 3-11
Hardware, Utilities and Options
Formatting a microSD/SDHC memory card
MicroSD/SDHC memory cards are sold already formatted in conformity to
specific standards. If you reformat a microSD/SDHC memory card, be sure
to reformat it with a device such as digital camera or digital audio player
that uses the microSD/SDHC memory cards, not with the format command
provided within Windows.
Media care
Observe the following precautions when handling the card.
Card care
■Do not twist or bend cards.
■Do not expose cards to liquids or store in humid areas or lay media
close to containers of liquid.
■Do not touch the metal part of a card or expose it to liquids or let it get
dirty.
■After using card, return it to its case.
■The card is designed so that it can be inserted only one way. Do not try
to force the card into the slot.
■Do not leave a card partially inserted in the slot. Press the card until you
hear it click into place.
Memory card care
■Set the write-protect switch to the lock position, if you do not want to
record data.
■Memory cards have a limited lifespan, so it is important to backup
important data.
■Do not write to a card if the battery power is low. Low power could affect
writing accuracy.
■Do not remove a card while read/write is in progress.
Inserting a memory media
The following instructions apply to all types of supported media devices. To
insert a memory media, follow the steps as detailed below:
1. Turn the memory media so that the contacts (metal areas) are face
down.
2. Insert the memory media into the Bridge media slot on the front of the
computer.
Should you need to format all areas of the memory card, including the
protected area, you will need to obtain an appropriate application that
applies the copy protection system.
For more details on using memory cards, see manuals accompanying the
cards.
![](/img.php?id=1284990&img=bg31.png)
User’s Manual 3-12
Hardware, Utilities and Options
3. Press the memory media gently to ensure a firm connection is made.

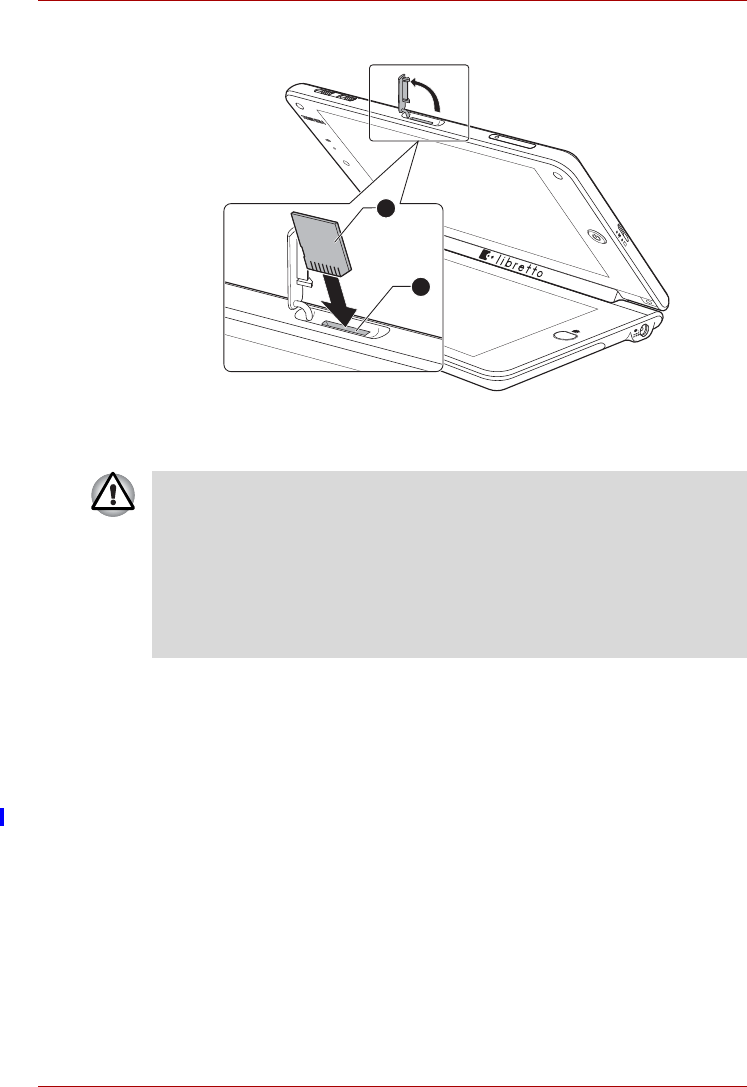

Figure 3-2 Inserting a memory media
Removing a memory media
The following instructions apply to all types of supported media devices. To
remove a memory media, follow the steps as detailed below:
1. Open the Safely Remove Hardware and Eject Media icon on the
Windows Taskbar.
2. Point to memory media and tap the left Touch Pad control button.
3. Press the memory media to partially extend it out of the computer.
1. Bridge media slot 2. Memory media
1
2
■Make sure memory media is oriented properly before you insert it. If
you insert the media in wrong direction, you may not be able to remove
it.
■When inserting memory media, do not touch the metal contacts. You
could expose the storage area to static electricity, which can destroy
data.
■Do not turn the computer off or switch to Sleep Mode or Hibernation
Mode while files are being copied - doing so may cause data to be lost.
![](/img.php?id=1284990&img=bg32.png)
User’s Manual 3-13
Hardware, Utilities and Options
4. Grasp the media and remove it.
Figure 3-3 Removing memory media
Optional accessories
You are able to add a number of options and accessories in order to make
your computer even more powerful and convenient to use. For reference,
the following list details some of the items that are available from your
reseller or TOSHIBA dealer:
1. Bridge media slot 2. Memory media
1
■Do not remove the memory media or turn off the computer’s power
while the computer is accessing the memory media, otherwise, you
may lose data or damage the media.
■Do not remove the memory media while the computer is in Sleep or
Hibernation Mode. The computer could become unstable or data in the
memory media could be lost.
Universal AC
Adaptor If you frequently use your computer at more than
one site, it may be convenient to purchase an
additional AC adaptor to be kept at each site in
order to remove the need to always carry the
adaptor with you.
Battery Pack An additional battery pack can be purchased for
use as either a spare or replacement. Please
refer to Chapter 5, Power and Power-Up Modes
for further information.
![](/img.php?id=1284990&img=bg33.png)
User’s Manual 4-1
Chapter 4
Operating Basics
This chapter describes the basic operations of your device, highlights the
precautions that should be taken when using it.
Finger Tapping to Operate
This computer can be easily operated by finger tapping.
Using the Touch Screen
You can do operations by finger tapping and scrolling on both screens, as
well as move icons, files, and the like by finger dragging across the two
screens.
Virtual Touch Pad
You can launch Libretto virtual Touch Pad on the screen and operate it by
finger tapping.
1. Press the Keyboard button twice quickly or tapping the Touch Pad icon
on the Libretto Taskbar to launch the virtual Touch Pad.
2. Operate the Touch Pad by finger tapping to perform functions similar to
those of the buttons on a standard mouse.
3. To close the Touch Pad, tap the cross icon on the upper right of the
virtual Touch Pad.
Using the Dual Screens
The Libretto is a dual screen computer that enables you to utilize Libretto
Home, Libretto Keyboard and additional useful utilities. It can be used in
different screen modes, as well as different screen orientations.
![](/img.php?id=1284990&img=bg34.png)
User’s Manual 4-2
Operating Basics
Switching the Screen
You can switch the screens by just tapping the extended functional button
on the top of the application window.
■Switch between the dual full screen mode (using two screens as one
large screen) and the single screen mode (using two screens as
separate windows).
■Switch the active window between top and bottom, or left and right
screen.
Changing the Screen Orientation
You can change the screen orientation to Portrait mode by rotating the
computer sideways.
While rotating, a message, which can be disabled by setting, will appear to
confirm whether you are sure to change the screen orientation.
Users can also lock the auto rotation and use the device always in Portrait
or Landscape mode. These settings can be performed in the Display
Rotation Setting window. Refer to Changing the Libretto Settings.
Zoom Function
You can launch the zoom function by the steps below.
1. If you tap the magnifying glass icon on the Libretto Taskbar and tap the
Windows screen, the zoom window appears around where you tapped.
2. Tap anywhere except the zoom window to close it.
Virtual Keyboard
This computer is provided with a Libretto Keyboard - a virtual keyboard
enables users to enter characters, numbers, and symbols.
Launching Virtual Keyboard
1. Press the Keyboard button once or tap the Keyboard icon on the
Libretto Taskbar. Then the virtual Keyboard appears.
2. Tap where you desire to enter text on the Windows screen, and enter
text by finger-tapping the keyboard directly.
Always make sure to keep the Web camera on the left (Landscape mode)
or on the top (Portrait mode) while rotating
■Up to two keys can be tapped simultaneously.
■Pressing Ctrl+Alt+Del keys is not available on the virtual keyboard. To
perform this action, press and hold the Keyboard button instead.
■Ctrl, Alt and Shift keys are set to toggle mode respectively. Tapping it
once sets the function ON (as if the key is being held on a standard
computer), and tapping it again releases the function.
![](/img.php?id=1284990&img=bg35.png)
User’s Manual 4-3
Operating Basics
3. Press the Keyboard button once, or tap the cross icon on the upper
right of the virtual Keyboard when you finish entering the text.
Switching Keyboard Layouts
This Libretto Keyboard is provided with several layouts. You can tap the
keyboard icon in the application bar on the virtual Keyboard to toggle.
Libretto Taskbar
Press the Home button to launch the Libretto Home. Bulletin Board is
lauched in the bottom screen. There will be the Libretto Taskbar displayed
at the bottom.
Libretto Taskbar provides several icons to launch applications and utilities
as below.
1. TOSHIBA Bulletin Board
2. TOSHIBA ReelTime
3. File Browser
4. Volume Controls
5. Application Switcher
6. TOSHIBA Flash Cards
7. Zoom Function
8. Virtual Touch Pad
9. Virtual Keyboard
File Browser
File Browser enables users to have a friendly touch experience of browsing
files and applications.
1. Tap the File Browser icon on the Libretto Taskbar to launch it. A preview
list of drivers, folders and files will be displayed.
1
2
3
5
6
8
7
4
9
Some icons are available on Windows taskbar when both screens are
used for Windows (when the Bulletin Board is hidden).
The display location of the Bulletin Board and ReelTime is fixed for your
computer. You cannot change the setting.
The descriptions in the help file of the Bulletin Board and ReelTime might
differ from the actual operation of the device.
![](/img.php?id=1284990&img=bg36.png)
User’s Manual 4-4
Operating Basics
Above the preview list, some operation icons will be displayed to
classify those drivers, folders and files.
2. Double-tap the icon of the driver, folder or file to open it.
3. Tap the cross icon on the upper right of the File Browser to exit.
Volume Controls
To adjust the volume, tap the volume icon on the Libretto taskbar. The
Volume Controls menu appears.
Tap anywhere except Volume Controls pop-up to exit.
Application Switcher
Application Switcher displays the list of all running applications. It enables
users to switch an active application or end the applications with a single
tap.
Tap the Application Switcher icon on the Libretto taskbar and select the
application thumbnail to activate it.
Changing the Settings
Changing the Libretto Settings
To change the Libretto settings, launch the Bulletin Board, and then tap
[Boards] -> the third board from the left.
The Launcher board which contains the list of Libretto setting tools
appears. It enables users to configure the settings of the display, haptics
feedback, touch panel calibration, and so on.
You can browse them by swiping from left to right or vice versa.
Tap to mute the audio.
Tap again to unmute the audio.
Tap to decrease the volume.
Tap to increase the volume.
You can also adjust the volume through the speaker icon in the Windows
screen.
Application Switcher automatically closes when other operations occur
such as tapping anywhere other than Application Switcher thumbnail area.
Once the applications do not fit on the screen, a page indicator appears
along the bottom of the pop-up. Users can flick among pages.
![](/img.php?id=1284990&img=bg37.png)
User’s Manual 4-5
Operating Basics
These setting tools can also be found by tapping Start -> All Programs ->
Libretto.
Calibrating the Touch Panel
If screen taps respond inaccurately, touch panel calibration may be
necessary. You can perform the calibrating from the Tablet PC Setting in
the Windows Control Panel.
Follow the steps below to calibrate the touch panel.
1. Tap Start->Control Panel->Hardware and Sound->Tablet PC
Setting, the Tablet PC Setting window appears.
2. In the Display box, select 2.Toshiba Internal 1024x600 Panel, which
is the second display of your device.
3. Tap Reset to remove the calibration data.
4. Tap Calibrate...
5. Tap the crosshair each time that it appears on the screen.
6. After you have completed the calibration process, tap Yes in the prompt
dialog box to save the calibration data.
Web Camera
This computer is equipped with a Web Camera, which is a device that
allows you to record video or take photographs with your computer. You
can use it for video chatting or video conferences using a communication
tool such as Windows Live Messenger. TOSHIBA Web Camera
Application will help you to add various video effects to your video or
photograph.
Enables the transmission of video and use of video chat via the internet
using specialized applications.
The effective pixel count for this web camera is HD (maximum photograph
size: 1280x800 pixels).
Please refer to the Web Camera Application Online Help for details.
![](/img.php?id=1284990&img=bg38.png)
User’s Manual 4-6
Operating Basics

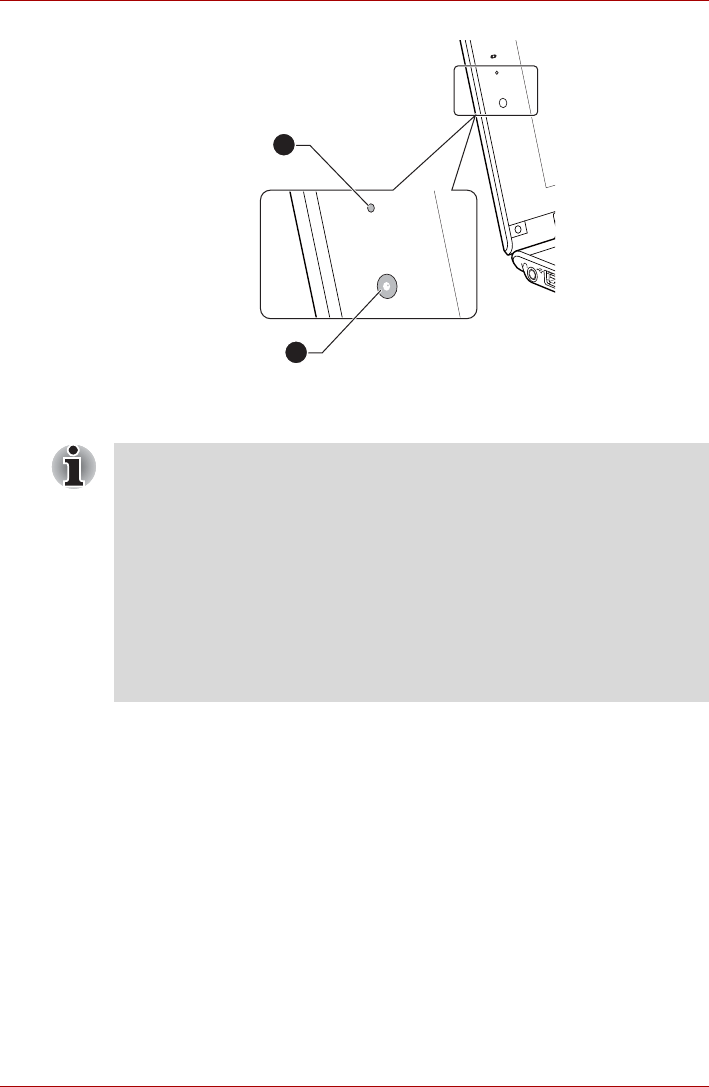

Figure 4-1 Web Camera
Using the TOSHIBA Face Recognition
TOSHIBA Face Recognition uses a face verification library to verify the
face data of users when they log in to Windows. The user can thus avoid
having to enter a password or the like, which makes the login process
easier.
1. Web Camera 2. Web Camera LED
2
1
■Do not point the web camera directly at the sun.
■Do not touch or press strongly on the web camera lens. Doing so may
reduce image quality. Use an eyeglass cleaner (cleaner cloth) or other
soft cloth to clean the lens if it becomes dirty.
■Setting the [Size] to more than "800x600" will cause a larger amount of
data to be written to the solid state drive and may interfere with smooth
recording.
■When recording in dimly lit environments, select "Night Mode" which
allows for brighter images with less noise.
■The Web Camera Application can also be launched through Bulletin
Board.
![](/img.php?id=1284990&img=bg39.png)
User’s Manual 4-7
Operating Basics
Disclaimer
Toshiba does not guarantee that the face recognition utility technology will
be completely secure or error-free. Toshiba does not guarantee that the
face recognition utility will accurately screen out unauthorized users at all
times. Toshiba is not liable for any failure or damage that might arise out of
the use of the face recognition software or utility.
TOSHIBA, ITS AFFILIATES AND SUPPLIERS SHALL HAVE NO
RESPONSIBILITY FOR DAMAGE TO OR LOSS OF ANY BUSINESS,
PROFITS, PROGRAMS, DATA, NETWORK SYSTEMS OR REMOVABLE
STORAGE MEDIA ARISING OUT OF OR RESULTING FROM THE USE
OF THE PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY
THEREOF.
How to register the Face Recognition Data
Take a picture for facial verification purposes, and register the data needed
when you log in. To register the data needed when you log in, follow the
steps as described below:
1. To launch this utility, tap Start -> All Programs -> TOSHIBA -> Utilities
-> Face Recognition.
■The Registration screen is displayed for a logged-in user whose
face has not been registered.
■The Management screen is displayed for a logged-in user whose
face has already been registered.
■TOSHIBA Face Recognition does not guarantee the correct
identification of a user. Changes to the likeness of a registrant, such as
hair style changes, wearing a cap, or wearing glasses may effect the
recognition rates when such changes occur after the registrant had
registered.
■TOSHIBA Face Recognition may incorrectly recognize faces that are
similar to a registrant.
■For high security purposes, TOSHIBA Face Recognition is not a
suitable substitute for Windows passwords. When security is a high
priority, use your established Windows passwords to log in.
■Bright background light and/or shadows may prevent a registrant from
being recognized correctly. In that case, log in using your Windows
password. If recognition of a registrant fails repeatedly, refer to your
computer documentation to learn ways to improve recognition
performance.
■TOSHIBA Face Recognition records face data in a log when face
recognition fails. When transferring ownership or disposing of your
computer, please uninstall the application or delete all the logs created
by the application. For details on how to do this, see help file.
■TOSHIBA Face Recognition can be used only in Windows Vista and
Windows 7.
![](/img.php?id=1284990&img=bg3a.png)
User’s Manual 4-8
Operating Basics
2. Tap Run as administrator in lower left of the Management screen,
and then tap the Register button. The Registration screen is
displayed.
■If you wish to practice, tap on the Next button in the Registration
screen.
■If you do not wish to practice, tap on the Skip button in the
Registration screen.
3. Tap the Next button to start the guide. Please follow the guide to
practice.
■Tap the Back button to practice the guide once more.
4. Tap the Next button to start image-capturing process.
Adjust the position of your face so that it fits within the face-shaped
frame.
5. Once your face has been positioned properly, the recording will
commence.
Start moving your neck very slightly to the left and right, and then move
your neck down and up.
6. Registration will end after you have repeatedly moved your neck left,
right, down and up.
When the register succeeds, below message will be displayed on the
screen:
"Registration successful. Now we’ll do the
verification test. Click the Next button."
Tap the Next button to perform the verification test.
7. Perform the verification test. Face the screen as you do when you
register.
■If verification fails, tap the Back button and re-register. Please refer
to step 6 from step 4.
8. If verification is successful, tap the Next button and register an account.
9. Register the account.
Fill in all the fields.
10. The Management screen is displayed.
The registered account name will be displayed. tapping on it will cause
the captured image of your face to be displayed on the left.
How to Delete the Face Recognition Data
Delete image data, account information, and personal record data created
during registration. To delete the Face Recognition Data, follow the steps
as described below:
1. To launch this utility, tap Start -> All Programs -> TOSHIBA -> Utilities
-> Face Recognition.
The Management screen is displayed.
2. Select a user which is displayed in the Management screen.
![](/img.php?id=1284990&img=bg3b.png)
User’s Manual 4-9
Operating Basics
3. Tap the Delete button. "You are about to delete the user
data. Would you like to continue?" will be displayed on the
screen.
■If you do not want the data to be deleted, tap the No button and you
will then be returned to the Management screen.
■Tapping on the Yes button will remove the selected user from the
Management screen.
How to launch the help file
For further information on this utility, please refer to help file.
1. To launch the help file, tap Start -> All Programs -> TOSHIBA ->
Utilities -> Face Recognition Help.
Windows Logon via TOSHIBA Face Recognition
This section explains how to login to Windows with TOSHIBA Face
Recognition. Two authentication modes are provided.
■1:N Mode Login mode: It will automatically start facial authentication
without requiring the selection of a user account.
■1:1 Mode Login mode: It will verify the face for a selected user
account.
1:N Mode Login screen
1. Turn on the computer.
2. The Select Tiles screen will be displayed.
3. Select Start face recognition ().
4. "Please face the camera" will be displayed.
5. Verification will be performed. If the authentication is successful, the
image data taken in step 4 will be faded in and placed over one another.
■If an error occurs during authentication, you will be returned to the
Select Tiles screen.
6. The Windows Welcome screen will be displayed, and will be logged in
automatically to Windows.
1:1 Mode Login screen
1. Turn on the computer.
2. The Select Tiles screen will be displayed.
3. Select Start face recognition ().
4. The Select Account screen will be displayed.
5. Select the account, and tap the arrow button.
6. "Please face the camera" will be displayed.
![](/img.php?id=1284990&img=bg3c.png)
User’s Manual 4-10
Operating Basics
7. Verification will be performed. If the authentication is successful, the
image data taken in step 6 will be faded in and placed over one another.
■If an error occurs during authentication, you will be returned to the
Select Tiles screen.
8. The Windows Welcome screen will be displayed, and will be logged in
automatically to Windows.
■If authentication was successful, but an authentication error
subsequently occurred during the login to Windows, you will be
asked to provide your account information.
TOSHIBA Disc Creator
Please be aware of the following limitations when you use the TOSHIBA
Disc Creator:
■DVD Video cannot be created using TOSHIBA Disc Creator.
■DVD Audio cannot be created using TOSHIBA Disc Creator.
■You cannot use TOSHIBA Disc Creator's "Audio CD" function to record
music to DVD-R, DVD-R (Dual Layer), DVD-RW, DVD+R, DVD+R
(Double Layer) or DVD+RW media.
■Do not use the "Disc Backup" function of TOSHIBA Disc Creator in
order to copy DVD Video or DVD-ROM material that has copyright
protection.
■DVD-RAM discs cannot be backed up using the "Disc Backup" function
of TOSHIBA Disc Creator.
■You cannot back up CD-ROM, CD-R or CD-RW media to DVD-R, DVD-
R (Dual Layer) or DVD-RW media using the "Disc Backup" function of
TOSHIBA Disc Creator.
■You cannot back up CD-ROM, CD-R or CD-RW media to DVD+R,
DVD+R (Double Layer) or DVD+RW media using the "Disc Backup"
function of TOSHIBA Disc Creator.
■You cannot back up DVD-ROM, DVD Video, DVD-R, DVD-R (Dual
Layer), DVD-RW, DVD+R, DVD+R (Double Layer) or DVD+RW to CD-
R or CD-RW media using the "Disc Backup" function of TOSHIBA Disc
Creator.
■TOSHIBA Disc Creator cannot record in packet format.
■You might not be able to use the "Disc Backup" function of TOSHIBA
Disc Creator to back up a DVD-R, DVD-R (Dual Layer), DVD-RW,
DVD+R, DVD+R (Double Layer) or DVD+RW disc that was made with
other software on a different optical media recorder.
You can use TOSHIBA Disc Creator when you connect external ODD.
![](/img.php?id=1284990&img=bg3d.png)
User’s Manual 4-11
Operating Basics
■If you add data to a DVD-R, DVD-R (Dual Layer), DVD+R or DVD+R
(Double Layer) disc that you have already recorded to, you might not be
able to read the added data under some circumstances. For example, it
cannot be read under 16-bit operating systems, such as Windows 98SE
and Windows Me, while in Windows NT4 you will need Service Pack 6
or later, and in Windows 2000, you will need Service Pack 2. In addition
to this, some DVD-ROM and DVD-ROM / CD-R/RW drives cannot read
this added data regardless of the operating system.
■TOSHIBA Disc Creator does not support recording to DVD-RAM discs -
to achieve this you should use Windows Explorer or another similar
utility.
■When you back up a DVD disc, be sure that the source drive supports
recording to DVD-R, DVD-R (Dual Layer), DVD-RW, DVD+R, DVD+R
(Double Layer) or DVD+RW media - if this is not the case then the
source disc might not be backed up correctly.
■When you back up a DVD-R, DVD-R (Dual Layer), DVD-RW, DVD+R,
DVD+R (Double Layer) or DVD+RW disc, be sure to use the same type
of disc.
■You cannot partially delete any data written to a CD-RW, DVD-RW or
DVD+RW disc.
Data Verification
To verify that data has been written or rewritten correctly to a data CD/DVD
you should follow the steps below before you begin the write/rewrite
process:
1. Display the setting dialog box by one of the following two steps:
■Tap the Recording settings button ( ) for writing on the main
toolbar in the Data CD/DVD mode.
■Select Settings for Each Mode -> Data CD/DVD in the Settings
menu.
2. Mark the Verify Written Data check box.
3. Select File Open or Full Compare mode.
4. Tap the OK button.
How to learn more about TOSHIBA Disc Creator
Please refer to the Help files for additional TOSHIBA Disc Creator
information.
Media care
This section provides tips on protecting data stored on your CD's and
DVD's. Handle your media with care. Following the simple precautions
listed below will increase the lifetime of your media and protect the data
stored on it.
1. Store your CD's and DVD's in the containers they originally came in to
protect them and keep them clean.
2. Do not bend the CD's or DVD's.
![](/img.php?id=1284990&img=bg3e.png)
User’s Manual 4-12
Operating Basics
3. Do not write on, apply a sticker to, or otherwise mar the surface of the
CD or DVD that contains the data.
4. Hold the CD or DVD by its outside edge or the edge on the center hole -
any fingerprints on the surface of the disc can prevent the drive from
properly reading data.
5. Do not expose the CD or DVD to direct sunlight, extreme heat or cold.
6. Do not place heavy objects on your CD's or DVD's.
7. If your CD's or DVD's become dusty or dirty, wipe them with a clean dry
cloth from the center hole outwards - do not wipe in a circular direction.
If necessary, you can use a cloth that has been lightly dampened in
water or a neutral cleaner but you must not use benzine, thinner or any
similar cleaning solution.
Wireless communications
The computer’s wireless communication function supports some wireless
communication devices.
Only some models are equipped with both Wireless LAN and Bluetooth
functions.
Wireless LAN
The Wireless LAN is compatible with other LAN systems based on Direct
Sequence Spread Spectrum / Orthogonal Frequency Division Multiplexing
radio technology that complies with the IEEE802.11 Wireless LAN
standard.
■Frequency Channel Selection of 5GHz for IEEE 802.11a or/and
IEEE802.11n
■Do not use the Wireless LAN (Wi-Fi) or Bluetooth functionalities near a
microwave oven or in areas subject to radio interference or magnetic
fields. Interference from a microwave oven or other source can disrupt
Wi-Fi or Bluetooth operation.
■Turn all wireless functionalities off when near a person who may have a
cardiac pacemaker implant or other medical electric device. Radio
waves may affect pacemaker or medical device operation, possibly
resulting in serious injury. Follow the instruction of your medical device
when using any wireless functionality.
■Always turn off wireless functionality if the computer is near automatic
control equipment or appliances such as automatic doors or fire
detectors. Radio waves can cause malfunction of such equipment,
possibly resulting in serious injury.
■It may not be possible to make a network connection to a specified
network name using the ad hoc network function.
If this occurs, the new network(*) will have to be configured for all
computers connected to the same network in order to re-enable
network connections.
* Please be sure to use new network name.
![](/img.php?id=1284990&img=bg3f.png)
User’s Manual 4-13
Operating Basics
■Frequency Channel Selection of 2.4GHz for IEEE 802.11b/g or/and
IEEE802.11n
■Roaming over multiple channels
■Card power management
■Wired Equivalent Privacy (WEP) data encryption based on an 128-bit
encryption algorithm
■Wi-Fi Protected Access™ (WPA™)
Setting
1. Please make sure that the Wireless Communication function is
turned on.
2. Tap Start -> Control Panel -> Network and Internet -> Network and
Sharing Center.
3. Tap Set up a new connection or network.
4. Follow the wizard. You will need the name of the wireless network
together with security settings. Consult the documentation
accompanied with your router or ask your wireless network
administrator for the settings.
Security
■TOSHIBA strongly recommend that you enable encryption functionality,
otherwise your computer will be open to illegal access by an outsider
using a wireless connection. If this occurs, the outsider may illegally
access your system, eavesdrop, or cause the loss or destruction of
stored data.
■TOSHIBA is not liable for the loss of data due to eavesdropping or
illegal access through the wireless LAN and the damage thereof.
Bluetooth wireless technology
Bluetooth wireless technology eliminates the need for cables, such as
desktop computers, between your PC and other electronic devices,
example of printers and mobile phones.
You cannot use the computer's built-in Bluetooth functions and an external
Bluetooth adaptor simultaneously. For reference, Bluetooth wireless
technology has the following features:
The transmission speed over the wireless LAN, and the distance over
which the wireless LAN can reach, may vary depending on surrounding
electromagnetic environment, obstacles, access point design and
configuration, client design and software/hardware configurations. The
transmission rate described is the theoretical maximum speed as specified
under the appropriate standard - the actual transmission speed will be
lower than the theoretical maximum speed.
![](/img.php?id=1284990&img=bg40.png)
User’s Manual 4-14
Operating Basics
Worldwide operation
The Bluetooth radio transmitter and receiver operate in the 2.4GHz band,
which is license-free and compatible with radio systems in most countries
in the world.
Radio links
You can easily establish links between two or more devices, with these
links being maintained even if the devices are not within a line-of-sight of
each other.
Security
Two advanced security mechanisms ensure a high level of security:
■Authentication prevents access to critical data and makes it impossible
to falsify the origin of a message.
■Encryption prevents eavesdropping and maintains link privacy.
Bluetooth Stack for Windows by TOSHIBA
Please note that this software is specifically designed for the following
operating systems:
■Windows 7
Information regarding the use of this software with these operating systems
is listed below, with further details being contained with the electronic help
files supplied with the software.
Release Notes related to the Bluetooth Stack for Windows
by TOSHIBA
1. Fax application software:
Please be aware that there is some fax application software that you
cannot use on this Bluetooth Stack.
2. Multi-user considerations:
The use of Bluetooth is not supported in a multi-user environment. This
means that, when you use Bluetooth, other users that are logged into
the same computer will not be able to use this type of functionality.
Product Support:
The latest information regarding operating system support, language
support or available upgrades can be found on our web site
http://www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe or
www.pcsupport.toshiba.com in the United States.
This Bluetooth Stack is based on the Bluetooth Version
1.1/1.2/2.0+EDR/2.1+EDR specification. However, TOSHIBA cannot
confirm the compatibility between any computing products and/or other
electronic devices that use Bluetooth, other than TOSHIBA notebook
computers.
![](/img.php?id=1284990&img=bg41.png)
User’s Manual 4-15
Operating Basics
Enable/disable Wireless communication
You can enable or disable Wireless communication functions by using
TOSHIBA Flash Cards which is launched by the icon of TOSHIBA taskbar
or Windows taskbar. No transmissions are sent or received when wireless
communication is turned off.
Wireless communication Indicator
The wireless communication indicator shows the status of the computer's
wireless communication functions.
If you used the Taskbar to disable the wireless LAN, restart the computer or
perform the following procedure to re-enable it: Start -> Control Panel
-> System and Security -> System -> Device Manager -> Network
adapters and right tap the wireless device then choose enable.
Computer Handling
This section explains computer handling and maintenance.
Cleaning the computer
To help ensure long, trouble-free operation, keep the computer free of dust
and dirt, and use care with all liquids around it.
■Be careful not to spill liquids into the computer. If the computer does get
wet, turn the power off immediately and let the computer dry completely
- in these circumstance you should get the computer inspected by an
authorized service provider in order to assess the scope of any
damage.
■Clean the plastics of the computer using a slightly water dampened
cloth.
■You can clean the display screen by spraying a small amount of glass
cleaner onto a soft, clean cloth and then wiping the screen gently with
the cloth.
Indicator status Indication
Indicator off The wireless communication switch is off - no
wireless functionality is available.
Indicator glows Wireless communication switch is on. Except for
the stopped device by the software switch, all
the wireless-communications functions can
output a radio wave.
Never spray cleaner directly onto the computer or let liquid run into any
part of it. Never use harsh or caustic chemical products to clean the
computer.
![](/img.php?id=1284990&img=bg42.png)
User’s Manual 4-16
Operating Basics
Moving the computer
While the computer is designed for flexible day-to-day usage you should
exercise a few simple precautions when moving it in order to help ensure
trouble-free operation.
■Turn off (shut down) the computer.
■Disconnect the AC adaptor and all peripherals before moving the
computer.
■Close the display panel.
■Before carrying your computer, shut it down, disconnect the AC adaptor
and allow it to cool down - a failure to follow this instruction may result in
minor heat injury.
■Be careful not to subject the computer to impact or shock - a failure to
follow this instruction could result in damage to computer, computer
failure or loss of data.
■Never transport your computer with any cards installed - this may cause
damage to either the computer and/or the card resulting in product
failure.
■Always use a suitable carry case when transporting the computer.
■When carrying your computer, be sure to hold it securely so that it does
not fall or hit anything.
■Do not carry your computer by holding any of its protruding elements.
Heat dispersal
To protect against overheating, the processor is equipped with an internal
temperature sensor which activates a cooling fan or lowers the processing
speed if the computer's internal temperature rises to a certain level. You are
able to select whether to control this temperature by either turning on the
fan first, then if necessary lowering the processor speed, or by lowering the
processor speed first, then if necessary turning on the fan. Both of these
functions are controlled through the Power Options.
When the processor's temperature falls within normal range, the fan will be
turned off and the processor operation returned to its standard speed.
If the processor's temperature reaches an unacceptably high level with
either setting, the computer automatically shuts down to prevent any
damage. In this instance all unsaved data in memory will be lost.
![](/img.php?id=1284990&img=bg43.png)
User’s Manual 5-1
Chapter 5
Power and Power-Up Modes
The computer's power resources include the AC adaptor, battery pack and
any internal batteries. This chapter provides details on making the most
effective use of these resources, and includes information on charging and
changing batteries, tips for saving battery power, and information on the
different power-up modes.
Power conditions
The computer's operating capability and battery charge status are affected
by different power conditions, including whether an AC adaptor is
connected, whether a battery pack is installed and what the charge level is
for that battery.
Table 6-1 Power conditions
The LED in the table below refers to the DC IN/Batttery indicator.
Power on
Power off
(no operation)
AC
adaptor
connected
Battery fully
charged • Operates
• No charge
• LED: green
• No charge
• LED: green
Battery partially
charged or no
charge
• Operates
• Charge
• LED: amber
• Quick charge
• LED: amber
No battery
installed • Operates
• No charge
• LED: off
• No charge
• LED: off
![](/img.php?id=1284990&img=bg44.png)
User’s Manual 5-2
Power and Power-Up Modes
Table 6-1 Power conditions continued
Monitoring of power condition
As shown in the below table, the DC IN/Battery and Power indicators on
the system indicator alert you to the computer’s operating capability and
battery charge status.
DC IN/Battery indicator
Check the DC IN/Battery indicator to determine the status of the battery
pack and the power status with the AC adaptor connected. The following
indicator conditions should be noted:
Power on
Power off
(no operation)
AC
adaptor
not
connected
Battery charge
is above low
battery trigger
point
• Operates
• LED: off
Battery charge
is below low
battery trigger
point
• Operates
• LED: flashes amber
Battery charge
is exhausted Computer shuts down
No battery
installed • No operation
• LED: off
Green Indicates the AC adaptor is connected while
correctly supplying power to the computer and the
battery is fully charged.
Amber Indicates the AC adaptor is connected and the
battery is charging.
Flashing amber The battery charge is low, the AC adaptor must be
connected in order to recharge the battery.
Or,Indicates a problem with the power supply. You
should initially try plugging the AC adaptor into
another power outlet - if it still does not operate
properly, you should contact your reseller or dealer.
No light Under any other conditions, the indicator does not
light.
![](/img.php?id=1284990&img=bg45.png)
User’s Manual 5-3
Power and Power-Up Modes
Power indicator
Check the Power indicator to determine the power status of the computer -
the following LED conditions should be noted:
Battery
This section explains battery types, use, recharging methods and handling.
Battery types
The computer has different types of batteries.
Battery pack
When the AC adaptor is not connected, the computer's main power source
is a removable lithium ion battery pack, also referred to in this manual as
the main battery. You can purchase additional battery packs for extended
use of the computer away from an AC power source although you should
not change the battery pack while the AC adaptor is connected.
Before you remove the battery pack, save your data and shut down the
computer, or place the computer into Hibernation Mode. Please be aware
that, when placing the computer into Hibernation Mode, the contents of
memory will be saved to the solid state drive, although for safety sake, it is
best to also save your data manually.
If the battery pack becomes too hot while it is being charged, the charge
will stop and the DC IN/Battery indicator will go out. When the battery
pack's temperature falls to a normal range, charging will resume - this
process will occur regardless of whether the computer's power is on or off.
White Indicates power is being supplied to the computer
and the computer is turned on.
Blinking amber Indicates that the computer is in Sleep Mode and
that there is sufficient power available (AC adaptor
or battery) to maintain this condition. In Sleep
Mode, this indicator will turn on for one second and
off for two seconds.
No light Under any other conditions, the indicator does not
light.
![](/img.php?id=1284990&img=bg46.png)
User’s Manual 5-4
Power and Power-Up Modes
Real Time Clock (RTC) battery
The Real Time Clock (RTC) battery provides power for the internal real
time clock and calendar function and also maintains the system
configuration while the computer is turned off. If the RTC battery becomes
completely discharged, the system will lose this information and the real
time clock and calendar will stop working - in this instance the following
message will be displayed when you turn on the power:
S**** RTC Power Failure ****
Press Home Button and set the date/time in OS.
You can change the Real Time Clock settings in the Date and Time screen
of Windows. To access it, tap Start -> Control Panel -> Clock, Language
and Region -> Date and Time.
Care and use of the battery pack
This section provides the important safety precautions in order to handle
your battery pack properly.
Refer to the enclosed Instruction Manual for Safety and Comfort for
detailed precautions and handling instructions.
The RTC battery does not charge while the computer is turned off even if
the AC adaptor is attached.
■Make sure the battery is securely installed in the computer before
attempting to charge the battery pack. Improper installation could
generate smoke or fire, or cause the battery pack to rupture.
■Keep the battery pack out of reach of infants and children. It can cause
injury.
■The battery pack are lithium ion batteries, which can explode if not
replaced, used, handled or disposed of properly. Dispose of the battery
as required by local ordinances or regulations. Use only batteries
recommended by TOSHIBA as replacements.
■The computer's RTC battery is a Ni-MH battery and should be replaced
only by your dealer or by a TOSHIBA service representative. The
battery can explode if not properly replaced, used, handled or
disposed. Dispose of the battery as required by local ordinances or
regulations.
■Charge the battery pack only in an ambient temperature between 5 and
35 degrees Celsius. Otherwise, the electrolyte solution might leak,
battery pack performance might deteriorate and the battery life might
be shortened.
■Never install or remove the battery pack without first turning off the
power and disconnecting the AC adaptor. Never remove the battery
pack while the computer is in Sleep Mode. Data could be lost.
![](/img.php?id=1284990&img=bg47.png)
User’s Manual 5-5
Power and Power-Up Modes
Charging the batteries
When the power in the battery pack becomes low, the DC IN/Battery
indicator will flash amber to indicate that only a few minutes of battery
power remain. If you continue to use the computer while the DC IN/Battery
indicator flashes, the computer will enable Hibernation Mode so that you do
not lose any data, and automatically turn itself off.
You must recharge a battery pack when it becomes discharged.
Procedures
To recharge a battery pack while it is installed in the computer, connect the
AC adaptor to the DC IN 19V jack and plug the other end into a working
outlet - the DC IN/Battery indicator will glow amber while the battery is
being charged.
Time
Refer to User Information Guide about Charging time.
Battery charging notice
The battery may not begin charging immediately under the following
conditions:
■The battery is extremely hot or cold (if the battery is extremely hot, it
might not charge at all). To ensure the battery charges to its full
capacity, you should charge it at room temperature of between 5°C to
35°C (41°F to 95°F).
■The battery is nearly completely discharged. In this instance you should
leave the AC adaptor connected for a few minutes and the battery
should begin charging.
The DC IN/Battery indicator may show a rapid decrease in battery
operating time when you try to charge a battery under the following
conditions:
■The battery has not been used for a long time.
■The battery has completely discharged and been left in the computer for
a long time.
■A cool battery is installed in a warm computer.
In such cases you should follow the steps as detailed below:
1. Fully discharge the battery by leaving it in the computer with the power
on until the system automatically turns itself off.
2. Connect the AC adaptor to the DC IN 19V jack of the computer, and to
a wall outlet that is supplying power.
3. Charge the battery until the DC IN/Battery indicator glows green.
Repeat these steps two or three times until the battery recovers normal
capacity.
Use only the computer connected to an AC power source or optional
TOSHIBA Battery charger to charge the battery pack. Never attempt to
charge the battery pack with any other charger.
![](/img.php?id=1284990&img=bg48.png)
User’s Manual 5-6
Power and Power-Up Modes
Monitoring battery capacity
Remaining battery power can be monitored using the following methods.
■Tapping the battery icon on the Taskbar
■Via the Battery Status in the Windows Mobility Center window
Maximizing battery operating time
A battery's usefulness depends on how long it can supply power on a single
charge, while how long the charge lasts in a battery depends on:
■Processor speed
■Screen brightness
■System Sleep Mode
■System Hibernation Mode
■Display power off period
■Solid state drive power off period
■How often and for how long you use the solid state drive and external
disk(c) drives, for example, optical disc and floppy diskette drive.
■How much charge the battery contained to begin with.
■How you use optional devices, such as an microSD Card, to which the
battery supplies power.
■Whether you enable Sleep Mode, which can conserve battery power if
you are frequently turning the computer off and on.
■Where you store your programs and data.
■Whether you close the display panel when you are not using it - closing
the display saves power.
■The environmental temperature - operating time decreases at low
temperatures.
■The condition of the battery terminals - you should always ensure the
terminals stay clean by wiping them with a clean dry cloth before
installing the battery pack.
■You should wait at least 16 seconds after turning on the computer
before trying to monitor the remaining operating time. This is because
the computer needs this time to check the battery's remaining capacity
and then calculate the remaining operating time, based on this together
with the current power consumption.
■Please be aware that the actual remaining operating time may differ
slightly from the calculated time.
■With repeated discharges and recharges, the battery's capacity will
gradually decrease. In view of this it will be noted that an often used,
older battery will not operate for as long as a new battery even when
both are fully charged.
![](/img.php?id=1284990&img=bg49.png)
User’s Manual 5-7
Power and Power-Up Modes
Retaining data with power off
Refer to User Information Guide about Retaining time.
Extending battery life
To maximize the life of your battery packs:
■At least once a month, disconnect the computer from a power source
and operate it on battery power until the battery pack fully discharges.
Before doing so, follow the steps as detailed below.
■If you have extra battery packs, rotate their use.
■If you will not be using the system for an extended period, for example
for more than one month, remove the battery pack from the computer.
■Store spare battery packs in a cool dry place out of direct sunlight.
Replacing the battery pack
Please be aware that the battery pack is classified as a consumable item.
The operating life of the battery pack will gradually reduce through
repeated charging and discharging, and will need to be replaced when it
reaches the end of its operating life. In addition to this, you might also
replace a discharged battery pack with a charged spare when you are
operating your computer away from an AC power source for an extended
period of time.
This section explains how to remove and install the battery pack, and
begins with the removal process which is detailed through the following
steps.
1. Turn off the computer's power.
2. Disconnect the AC adaptor and turn on the computer's power - if it
does not turn on then go to Step 4.
3. Operate the computer on battery power for five minutes. If you find
that the battery pack has at least five minutes of operating time,
continue operating until the battery pack is fully discharged,
however, if the DC IN/Battery indicator flashes or there is some
other warning to indicate a low battery condition, go to Step 4.
4. Connect the AC adaptor to the DC IN 19V jack of the computer, and
to a wall outlet that is supplying power. The DC IN/Battery indicator
should glow amber to indicate that the battery pack is being
charged, however, in the event that DC IN/Battery indicator does
not glow this indicates that power is not being supplied - check the
connections for the AC adaptor and the power cord.
5. Charge the battery pack until the DC IN/Battery indicator glows
green.
![](/img.php?id=1284990&img=bg4a.png)
User’s Manual 5-8
Power and Power-Up Modes
Removing the battery pack
To remove a discharged battery, follow the steps as detailed below:
1. Save your work.
2. Turn the computer's power off - ensure that the Power indicator is off.
3. Remove all cables and peripherals that are connected to the computer.
4. Close the display panel and turn the computer upside down.
5. Slide the battery lock (1) into its ( ) position.
6. Slide and hold the battery release latch (2) to disengage the battery
pack and then remove it from the computer (3).

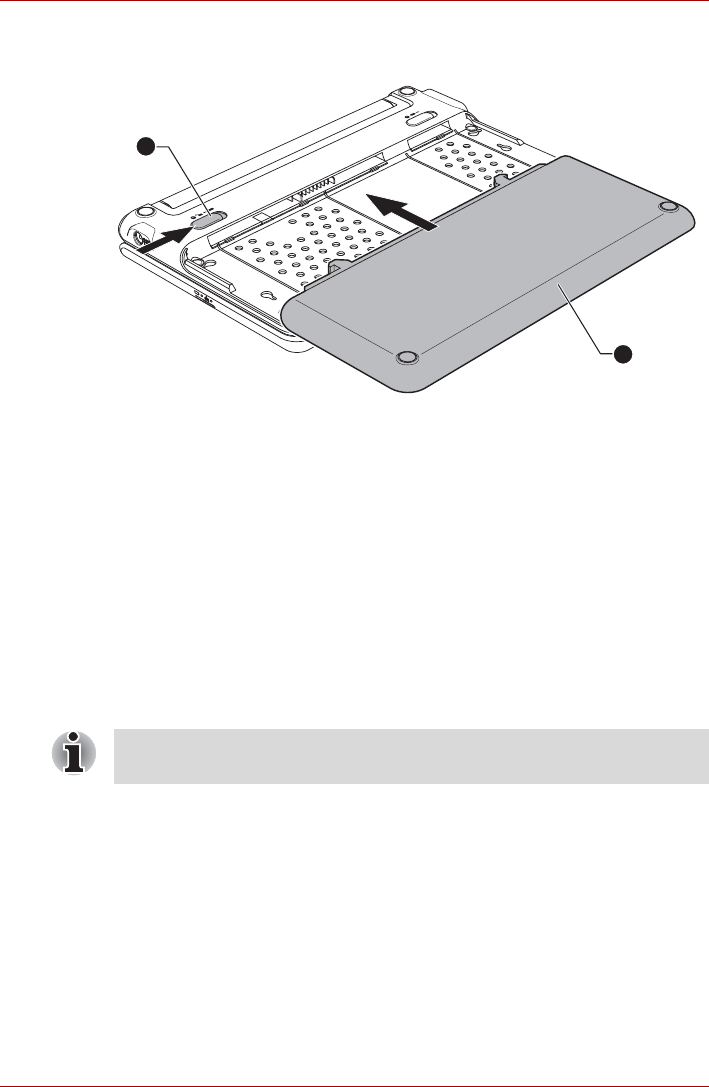

Figure 5-1 Releasing the battery pack
Installing the battery pack
To install a battery pack, follow the steps as detailed below:
1. Insert the battery pack as far as it will go into the computer (1).
■Do not remove the battery pack while the computer is in Sleep Mode.
Data is stored in RAM, so if the computer loses power it could be lost.
■In Hibernation Mode, data will be lost if you remove the battery pack or
disconnect the AC adaptor before the save is completed.
■Do not touch the battery release latch while holding the computer or the
battery pack might fall out due to the unintentional release of the
battery release latch and cause injuries.
1. Battery lock 3. Battery pack
2. Battery release latch
33
11
22
2
1
3
Do not touch the battery release latch while holding the computer or the
battery pack might fall out due to the unintentional release of the battery
release latch and cause injuries.
![](/img.php?id=1284990&img=bg4b.png)
User’s Manual 5-9
Power and Power-Up Modes
2. Ensure that the battery pack is securely in place and the battery lock (2)
is in its lock position.
Figure 5-2 Securing the battery pack
3. Turn your computer over.
Power-up modes
The computer has three different power-up modes as follows:
■Shut Down Mode : The computer will shut down without saving data - in
view of this you must always save your work before you turn the
computer off.
■Hibernation Mode : Data in memory will be saved to the solid state
drive.
■Sleep Mode : Data will be maintained in the computer's memory.
Windows utilities
You can configure various settings associated with both Sleep Mode and
Hibernation Mode within the Power Options (to access it, Start -> Control
Panel -> System and Security -> Power Options).
Panel power on/off
You can set up your computer so that power is turned off automatically
when you close the display panel, and turned on again when you open it.
Please note that this function is only available for Sleep Mode or
Hibernation Mode, not for Shut Down Mode.
1. Battery pack 2. Battery lock
2
1
1
1
2
2
Please refer to the sections Turning on the power and Turning off the
power in Chapter 1, Getting Started for further information.
![](/img.php?id=1284990&img=bg4c.png)
User’s Manual 5-10
Power and Power-Up Modes
System automatic Sleep/Hibernation
This feature automatically turns off the system in Sleep or Hibernation
Mode if the computer is not used for a set duration. Refer to Special
features, in Chapter 3 for an explanation of how to set the duration.
If the panel power off function is enabled, and you manually shut down
Windows, do not close the display panel until the shut down process has
been completed.
![](/img.php?id=1284990&img=bg4d.png)
User’s Manual 6-1
Chapter 6
HW Setup
This chapter explains how to use the TOSHIBA HW Setup program to
configure your computer, and provides information on settings for various
functions.
Accessing HW Setup
To run the HW Setup program, tap Start -> All Programs -> TOSHIBA ->
Utilities -> HWSetup.
HW Setup window
The HW Setup window contains a number of tabs (General, Password,
Boot Priority, CPU, USB, SATA, and Advanced) to allow specific functions
of the computer to be configured.
In addition there are also three buttons : OK, Cancel and Apply.
OK Accepts your changes and closes the HW Setup
window.
Cancel Closes the window without accepting your
changes.
Apply Accepts all your changes without closing the HW
Setup window.
![](/img.php?id=1284990&img=bg4e.png)
User’s Manual 6-2
HW Setup
General
This window displays the BIOS/EC version, BIOS language and contains
two buttons : Default and About.
Setup
This field displays the installed BIOS version, date, and EC version.
Password
This option allows you to set or reset the user password for power on.
User Password
Let you register a new password or change/remove an existing password.
To enter a user password:
1. Select Registered to display the following prompt:
Enter Password:
Enter a password of up to 10 characters. The character string you enter is
displayed as a string of asterisk.
2. Tap OK. The following message appears, allowing you to verify the
password.
Verify Password:
3. If character strings match, the password is registered. Tap OK. If they
do not match, the following message appears. You must repeat from
step 1.
Entry Error!!!
To delete a user password:
1. Select Not Registered to display the following prompt:
Enter Password:
2. Enter the currently registered password. The character string you enter
is displayed as a string of asterisks.
3. Tap OK. If the character string you enter matches the registered
password, the password option is reset and the display changes to:
Not registered
BIOS Language Select the language to use for BIOS settings.
Default Return all HW Setup values to the factory
settings.
About Display the HW Setup version.
Not Registered Changes or remove the password. (Default)
Registered Selects the password. A dialogue box will appear
to allow you to set the password.
![](/img.php?id=1284990&img=bg4f.png)
User’s Manual 6-3
HW Setup
If they do not match, the following message appears. You must repeat
from step 1.
Incorrect Password.
Boot Priority
Boot Priority Options
This tab allows you to set the priority for booting the computer. The Boot
Priority Options setting window will be displayed as shown below. Tap the
up and down arrow buttons to adjust the priority.
USB Memory BIOS Support Type
This option allows you to set the type of the USB memory to be used as a
startup device.
HDD Sets the USB memory to be the equivalent of a
hard disk drive (default). With this setting, the
USB memory device can be used to start the
computer as though it were a hard disk drive
based on the hard disk drive settings within both
the Boot Priority and HDD Priority options
detailed previously.
FDD Sets the USB memory to be the equivalent of a
floppy diskette drive. With this setting, the USB
memory device can be used to start the
computer as though it were a floppy diskette
based on the floppy diskette drive settings within
the Boot Priority option detailed previously.
![](/img.php?id=1284990&img=bg50.png)
User’s Manual 6-4
HW Setup
CPU
This function allows you to set the processor's operating mode.
Dynamic CPU Frequency Mode
This option allows you to configure the power saving modes associated
with the processor - the following settings are available:
USB
USB KB/Mouse Legacy Emulation
You can use this option to enable or disable USB keyboard/mouse legacy
emulation so that, even if your operating system does not support USB
devices, you can still use a standard USB mouse and keyboard - to achieve
this you should set the appropriate option(s) to Enabled.
USB-FDD Legacy Emulation
Use this option to enable or disable USB floppy diskette drive legacy
emulation. If your operating system does not support USB, you can still use
a USB floppy diskette drive by setting the USB-FDD Legacy Emulation
item to Enabled.
Dynamically
Switchable The processor's power consumption and
automatic clock speed switching functions are
enabled - in use the processor's operation is
automatically switched when necessary (default).
Always High The processor's power consumption and
automatic clock speed switching functions are
disabled - in use the processor will always run at
its highest level of power consumption and its
highest speed.
Always Low The processor's power consumption and
automatic clock speed switching functions are
disabled - in use the processor will always run at
a lower level of power consumption and a low
speed.
Enabled Enables the USB KB/Mouse Legacy Emulation
function (Default).
Disabled Disables the USB KB/Mouse Legacy Emulation
function.
Enabled Enables the USB floppy diskette drive legacy
emulation function (Default).
Disabled Disables the USB floppy diskette drive legacy
emulation function.
![](/img.php?id=1284990&img=bg51.png)
User’s Manual 6-5
HW Setup
SATA
SATA Interface setting
This feature allows you to set SATA interface setting.
Advanced
This tab allows you to set the conditions for each device or function.The
setting window will be displayed as shown below.
Enable/Disable
This option allows you to enable or disable the devices or functions you
checked for power management. Disabled mode consumes less power.
Other
This option allows you to set what the system does when the battery power
is about to run out.
If checked, when the battery power is about to run out while the system is in
Sleep Mode, the system will automatically wake up and switch to
Hibernation Mode (Default).
Performance Let HDD/SSD work with maximum performance.
(Default)
Battery life Let HDD/SSD work with battery life mode. If this
setting is selected, this caused performance
down.
If you disable a device or function, you must re-enable it before you can
use it again.
![](/img.php?id=1284990&img=bg52.png)
User’s Manual 6-6
HW Setup
If unchecked, no action is taken, even if the battery power is about to run
out while the system is in Sleep Mode.
This setting is only available when the Critical battery action in Windows is
set to Hibernate (Default).
If the battery power runs out while in Sleep Mode, any unsaved data will be
lost.
![](/img.php?id=1284990&img=bg53.png)
User’s Manual 7-1
Chapter 7
Troubleshooting
TOSHIBA have designed this computer for durability, however, should
problems occur you are able to use the procedures detailed in this chapter
to help determine the cause.
All users should become familiar with this chapter as knowing what might
go wrong can help prevent problems from occurring in the first place.
Problem solving process
Resolving problems will be much easier if you observe the following
guidelines:
■Stop immediately when you recognize a problem exists as taking further
action may result in data loss or damage, or you may destroy valuable
problem related information that can help solve the problem.
■Observe what is happening - write down what the system is doing and
what actions you performed immediately before the problem occurred.
If you have a printer attached, print a copy of the screen.
Please also be aware that the questions and procedures described in this
chapter are meant only as a guide, they are not definitive problem solving
techniques. In reality many problems can be solved simply, but a few may
require help from your reseller, dealer or service provider - if you find you
need to consult others, be prepared to describe the problem in as much
detail as possible.
Preliminary checklist
You should always consider the simplest solution first - the items detailed in
this checklist are easy to fix and yet can cause what appears to be a
serious problem:
■Make sure you turn on all peripheral devices before you turn on the
computer - this includes your printer and any other external device you
are using.
![](/img.php?id=1284990&img=bg54.png)
User’s Manual 7-2
Troubleshooting
■Before you attach an external device you should first turn the computer
off, then when you turn the computer back on again it will recognize the
new device.
■Make sure all optional accessories are configured properly in the
computer's setup program and that all required driver software has
been loaded (please refer to the documentation included with the
optional accessories for further information on its installation and
configuration).
■Check all cables to ensure they are correctly and firmly attached to the
computer - loose cables can cause signal errors.
■Inspect all connecting cables for loose wires and all connectors for
loose pins.
Always try to make detailed notes of your observations and keep them in a
permanent error log - this will help you to describe your problems to your
reseller, dealer or service provider. In addition, if a problem recurs, the log
you have made will help to identify the problem faster.
Analyzing the problem
Sometimes the computer will give you clues that can help you identify why
it is malfunctioning. In view of this you should keep the following questions
in mind:
■Which part of the computer is not operating properly - solid state drive,
display panel - as each device will produce different symptoms.
■Check the options within the operating system to ensure that its
configuration is set properly.
■What appears on the display? Does it display any messages or random
characters? If you have a printer attached, print a copy of the screen
using the PRTSC key and, if possible, look up the messages in the
documentation included with the computer, software or operating
system.
■Check that all connecting cables are correctly and firmly attached as
loose cables can cause erroneous or intermittent signals.
■Do any indicators light, if so, which ones, what color are they and do
they stay on or blink? Write down what you see.
■Do you hear any beeps, if so how many, are they long or short and are
they high pitched or low pitched? In addition, is the computer making
any unusual noises? Write down what you hear.
Record your observations so you can describe them in detail to your
reseller, dealer or service provider.
![](/img.php?id=1284990&img=bg55.png)
User’s Manual 7-3
Troubleshooting
Hardware and system checklist
This section discusses problems caused by your computer’s hardware or
attached peripherals. Basic problems may occur in the following areas:
System start-up
When the computer does not start properly, check the following items:
■Self Test
■Power Sources
■Power-on Password
Self test
While booting up the computer, self test is executed automatically and the
TOSHIBA logo is displayed on the screen.
This message remains on the screen for a few seconds.
Software The problems may be caused by your software or disk. If
you cannot load a software package, the media may be
damaged or the program might be corrupted - in these
instances try loading another copy of the software if
possible.
If an error message appears while you are using a software
package you should refer to the documentation supplied
with it as this will usually include a problem solving section
or a summary of error messages.
Next, you should check any error messages against the
operating system documentation.
Hardware If you cannot find a software problem, you should then
check the setup and configuration of your hardware. First
run through the items in the preliminary checklist as
described previously then, if you still cannot correct the
problem, try to identify the source - the next section
provides checklists for individual components and
peripherals.
Before using a peripheral device or application software that is not an
authorized Toshiba part or product, make sure the device or software can
be used with your computer. Use of incompatible devices may cause injury
or may damage your computer.
■System start-up
■Self test
■Power
■Internal display panel
■MicroSD/SDHC Card
■USB device
■Sound system
■Wireless LAN
■Bluetooth
■Recovery Media
![](/img.php?id=1284990&img=bg56.png)
User’s Manual 7-4
Troubleshooting
If the self test is successful, the computer tries to load the operating
system.
If any of the following conditions are present, the self test has failed:
■The computer stops and does not proceed to display information or
messages except for the TOSHIBA logo.
■Random characters appear on the screen and the system does not
function normally.
■The screen displays an error message.
In these instances, turn off the computer, check all cable connections and
then restart it - if the self test fails again, contact your reseller, dealer or
service provider.
Power
When the computer is not plugged into an AC power outlet, the battery
pack is the primary power source. However, your computer also has a
number of other power resources, including an intelligent power supply and
a Real Time Clock (RTC) battery, all of which are interrelated with any one
having the ability to produce apparent power problems.
This section provides checklists for AC power and the battery. If you cannot
resolve a problem after following them, the cause may lie with another
power related resource - in such an instance you should contact your
reseller, dealer or service provider.
Overheating power down
If the processor's temperature reaches an unacceptably high level with
either setting, the computer will automatically shut down to prevent any
damage.
AC power
If you have trouble turning on the computer with the AC adaptor connected
you should check the status of the DC IN/Battery indicator. Please refer to
Chapter 5, Power and Power-Up Modes for further information.
Problem Procedure
AC adaptor doesn’t
power the computer
(DC IN/Battery
indicator does not glow
amber)
Check the connections to make sure that the
power cord/adaptor is firmly connected to the
computer and a working power outlet.
Check the condition of the cord and terminals. If
the cord is frayed or damaged it should be
replaced, while if the terminals are soiled, they
should be cleaned with a clean cotton cloth.
If the AC adaptor still does not power the
computer, you should contact your reseller,
dealer or service provider.
![](/img.php?id=1284990&img=bg57.png)
User’s Manual 7-5
Troubleshooting
Battery
If you suspect a problem with the battery, you should check the status of
the DC IN/Battery indicator. Please refer to Chapter 5, Power and Power-
Up Modes for more information on these indicators, together with general
battery operation.
Problem Procedure
Battery doesn’t power
the computer The battery may be discharged - connect the AC
adaptor to recharge the battery.
Battery doesn’t charge
when the AC adaptor is
attached
(DC IN/Battery
indicator does not glow
amber).
If the battery is completely discharged, it will not
begin charging immediately, in these instances
you should wait a few minutes before trying again.
If the battery still does not charge, you should
check that the power outlet the AC adaptor is
connected to is supplying power - this can be
tested by plugging another appliance into it.
Check whether the battery is hot or cold to the
touch - if so, it will not charge properly and should
be allowed to reach room temperature before
you try again.
Unplug the AC adaptor and remove the battery to
make sure its connecting terminals are clean - if
necessary wipe them with a soft dry cloth lightly
dipped in alcohol.
Connect the AC adaptor and replace the battery,
taking care to ensure that it is securely seated in
the computer.
Check the DC IN/Battery indicator - if it does not
glow, allow the computer to charge the battery for
at least twenty minutes. If the DC IN/Battery
indicator starts to glow after this period, allow the
battery to continue to charge for at least another
twenty minutes before turning on the computer.
However, if the indicator still does not glow, the
battery may be at the end of its operating life and
should be replaced. However, if you do not
believe the battery is at the end of its operating
life, you should speak to your reseller, dealer or
service provider.
Battery doesn’t power
the computer as long as
expected
If you frequently recharge a partially charged
battery, the battery might not charge to its full
potential - in these instances you should fully
discharge the battery and then attempt to charge
it again.
Check the Power saver option under Select a
power plan in the Power Options.
![](/img.php?id=1284990&img=bg58.png)
User’s Manual 7-6
Troubleshooting
Real Time Clock
Touch screen
Apparent computer's touch screen problems may be related to the
computer's setup and configuration - please refer to Chapter 6, HW Setup,
for further information.
MicroSD/SDHC Card
For further information, please refer to Chapter 3, Hardware, Utilities and
Options.
Problem Procedure
The following message
is Displayed on the
screen:
RTC Power
Failure.
Press Home Button
and set the
date/time in OS.
The charge in the Real Time Clock (RTC) battery
has run out - you will need to set the date and
time in the Date and Time screen of Windows.
To access it, tap Start -> Control Panel ->
Clock, Language and Region -> Date and
Time.
Problem Procedure
No display Adjust the display priority, and to make sure it is
not set for output to an external monitor.
Markings appear on the
computer's touch
screen.
You should try to remove the marks by gently
wiping the touch screen with a clean dry cloth or,
if this fails, with a good quality LCD screen
cleaner. In this latter instance you should always
follow the instructions with the screen cleaner
and always ensure you let the screen dry
properly before closing it.
Problems above remain
unresolved or other
problems occur
You should initially refer to the documentation
supplied with you software to determine if it is
this that is causing the problems. Alternatively
you may wish to run the TOSHIBA PC
Diagnostic Tool to check the general operation
of the computer.
If you are still unable to resolve the problem,
contact your reseller, dealer or service provider.
![](/img.php?id=1284990&img=bg59.png)
User’s Manual 7-7
Troubleshooting
USB device
In addition to the information in this section, please also refer to the
documentation supplied with your USB device.
Sound system
In addition to the information in this section, please also refer to the
documentation supplied with your audio device.
Problem Procedure
MicroSD/SDHC Card
error occurs Remove the microSD/SDHC Card from the
computer and then reinsert it in order to ensure it
is firmly connected.
If the problem persists, then you should refer to
the documentation supplied with your
microSD/SDHC Card for further information.
You cannot read a file Check to ensure the required file is actually on
the microSD/SDHC Card that is inserted into the
computer.
If you are still unable to resolve the problem,
contact your reseller, dealer or service provider.
Problem Procedure
USB device does not
work Remove the USB device from the computer and
then reconnect it to a free port it in order to
ensure it is firmly attached.
Ensure that any required USB device drivers are
properly installed - to achieve this you should
refer to both the device documentation and the
operating system documentation.
Problem Procedure
No sound is heard Adjust the volume.
Check the software volume settings.
Please check to see if Mute is turned to Off
Check to make sure the headphone connection
is secure.
![](/img.php?id=1284990&img=bg5a.png)
User’s Manual 7-8
Troubleshooting
Wireless LAN
If the following procedures do not restore LAN access, consult your LAN
administrator. For more information on wireless communication, refer to
Chapter 4, Operating Basics.
Bluetooth
For further information on Bluetooth wireless communication, please refer
to Chapter 4, Operating Basics.
Check within the Windows Device Manager
application to ensure the sound device is
enabled and that the device is properly working.
For further information, please refer to
"Troubleshooting in Windows" section of
Windows Help and Support.
Annoying sound is
heard In this instance you may be experiencing
feedback from the internal microphone.
Volume cannot be adjusted during Windows start
up or shut down.
If you are still unable to resolve the problem,
contact your reseller, dealer or service provider.
Problem Procedure
Problem Procedure
Cannot access
Wireless LAN Make sure the computer's Wireless
communication service is turned on.
If problems persist, contact your LAN
administrator.
Problem Procedure
Cannot access
Bluetooth device Check to ensure the computer's Wireless
Communication service is turned on.
![](/img.php?id=1284990&img=bg5b.png)
User’s Manual 7-9
Troubleshooting
Recovery Media
TOSHIBA support
If you require any additional help using your computer or if you are having
problems operating the computer, you may need to contact TOSHIBA for
additional technical assistance.
Check to ensure the Bluetooth Manager
application is running on the computer and that
power to the external Bluetooth device is turned
on.
Check to ensure that no optional Bluetooth
Adaptor is installed in the computer - the built-in
Bluetooth hardware cannot operate
simultaneously with another Bluetooth controller.
If you are still unable to resolve the problem,
contact your reseller, dealer or service provider.
Problem Procedure
The following message
appears when
executing Recovery
Media Creator.
"The Recovery
Media Creator can
not be launched
because there is
no recovery
partition."
You will see this message if you have previously
chosen to remove the partition and are trying to
create "Recovery Media".
When there is no recovery partition, the
Recovery Media Creator cannot make Recovery
Media.
However, if you have already created a
"Recovery Media", you can use it to restore the
recovery partition.
Simply follow the instructions in Restoring the
pre-installed software from the Recovery solid
state drive/created Recovery Media section in
Chapter1, Getting Started.
You will be directed to select "Restore Original
Factory Image" from the drop-down menu.
If you have not created "Recovery Media",
please contact TOSHIBA support for assistance.
![](/img.php?id=1284990&img=bg5c.png)
User’s Manual 7-10
Troubleshooting
Before you call
Some problems you experience may be related to software or the operating
system so it is important that you investigate other sources of assistance
first. Before contacting TOSHIBA, try the following:
■Review troubleshooting sections in the documentation supplied with
your software and/or peripheral devices.
■If a problem occurs when you are running software applications, consult
the software documentation for troubleshooting suggestions and
consider calling the software company's technical support department
for assistance.
■Consult the reseller or dealer from where you purchased your computer
and/or software - they are your best resource for current information
and support.
Where to write
If you are still unable to solve the problem and suspect that it is hardware
related, write to TOSHIBA at the nearest location listed below:
Outside of Europe In Europe
Australia
TOSHIBA Australia Pty. Ltd.
Information Systems Division
Building C, 12-24 Talavera Rd,
North Ryde, 2113, NSW, Australia.
Germany & Austria
TOSHIBA Europe (I.E.) GmbH
Geschäftsbereich,
Deutschland-Österreich
Hammfelddamm 8, D-41460 Neuss,
Germany
Canada
TOSHIBA of Canada Ltd.
191 McNabb Street, Markham,
Ontario L3R 8H2
France
TOSHIBA Systèms France S.A.
7, Rue Ampère B.P. 131, 92804
Puteaux Cedex
China
TOSHIBA Personal Computer &
Network (Shanghai) Co., Ltd.
10F, BEA Finance Tower, No.66
Hua Yuan Shi Qiao Road, Pudong,
Shanghai, P.R.China 200120
Netherlands
TOSHIBA Information Systems,
Benelux B.V.
Rivium Boulevard 41 2909 LK
Capelle a/d IJssel
Singapore
TOSHIBA Singapore Pte. Ltd.
438B Alexandra Road #06-01
Alexandra Technopark Singapore
119968
Spain
TOSHIBA Information Systems,
ESPAÑA
Parque Empresarial San Fernando
Edificio Europa, 1a Planta, Escalera
A 28830 Madrid España
![](/img.php?id=1284990&img=bg5d.png)
User’s Manual 7-11
Troubleshooting
United States of America
TOSHIBA America Information
Systems, Inc.
9740 Irvine Boulevard Irvine,
California 92618 USA
United Kingdom
TOSHIBA Information Systems
(U.K.) Ltd.
TOSHIBA Court Weybridge
Business Park Addlestone Road
Weybridge, Surrey KT15 2UL
India
TOSHIBA India Pvt Ltd.
PC Division 6th Floor, DR Gopal Das
Bhawan Barakhamba Road, Delhi-
110001, India
The Rest of Europe
TOSHIBA Europe (I.E.) GmbH
Geschäftsbereich, Deutschland-
Österreich Hammfelddamm 8, D-
41460 Neuss, Germany
Outside of Europe In Europe
![](/img.php?id=1284990&img=bg5e.png)
User’s Manual A-1
Appendix A
Specifications
This appendix summarizes the computer’s technical specifications.
Physical Dimensions
Refer to User Information Guide about Size.
Environmental Requirements
Conditions Ambient temperature Relative humidity
Operating 5°C (41°F) to 35°C (95°F) 20% to 80%
(noncondensing)
Non-operating -20°C (-4°F) to 65°C (149°F) 10% to 90%
(noncondensing)
Wet-bulb
temperature 26°C maximum
Conditions Altitude (from sea level)
Operating -60 to 3,000 meters
Non-operating -60 to 10,000 meters
maximum
![](/img.php?id=1284990&img=bg5f.png)
User’s Manual A-2
Specifications
Power Requirements
AC adaptor 100-240V AC
50 or 60 hertz (cycles per second)
Computer 19V DC
2.37A
![](/img.php?id=1284990&img=bg60.png)
User’s Manual B-1
Appendix B
Display Controller and Video mode
Display controller
The display controller interprets software commands into hardware
commands that turn particular parts on the screen on or off.
The display controller also controls the video mode and uses industry
standard rules to govern the screen resolution and the maximum number of
colors that can be displayed at any one time. Therefore, software written for
a given video mode will run on any computer that supports that mode.
Video mode
Video mode settings are configured via the Screen Resolution dialog.
To open the Screen Resolution dialog, tap Start -> Control Panel ->
Appearance and Personalization -> Display -> Change display
settings.
Due to the display panel's increased resolution, lines may appear broken in
when displaying images in full-screen text mode.
If you are running some applications (for example a 3D application or video
playback and so on), you may see some disturbance, flickering or frame
dropping on your screen.
If that occurs, adjust the resolution of display, lowering it until the screen is
displayed properly.
Disabling Windows AeroTM may also help correct this issue.
![](/img.php?id=1284990&img=bg61.png)
User’s Manual C-1
Appendix C
Wireless LAN
This appendix is intended to help you get your Wireless LAN network up
and running, with a minimum of parameters.
Card Specifications
Form Factor PCI Express Mini Card
Compatibility ■IEEE 802.11 Standard for Wireless LANs
■Wi-Fi (Wireless Fidelity) certified by the Wi-Fi
Alliance. The "Wi-Fi CERTIFIED" logo is a
certification mark of the Wi-Fi Alliance.
Network Operating
System
■Microsoft Windows Networking
Media Access
Protocol
■CSMA/CA (Collision Avoidance) with
Acknowledgment (ACK)
![](/img.php?id=1284990&img=bg62.png)
User’s Manual C-2
Wireless LAN
Radio Characteristics
Radio Characteristics of Wireless LAN module may vary according to:
■Country/region where the product was purchased
■Type of product
Wireless communication is often subject to local radio regulations.
Although Wireless LAN wireless networking products have been designed
for operation in the license-free 2.4GHz and 5GHz band, local radio
regulations may impose a number of limitations to the use of wireless
communication equipment.
The range of the wireless signal is related to the transmit rate of the
wireless communication. Communications at lower transmit range may
travel larger distances.
■The range of your wireless devices can be affected when the antennas
are placed near metal surfaces and solid high-density materials.
■Range is also impacted due to "obstacles" in the signal path of the radio
that may either absorb or reflect the radio signal.
Refer to the printed manual for regulatory information that may apply in
your country/region.
Radio
Frequency
■Band 5GHz (5150-5850 MHz) (Revision a
and n)
■Band 2.4GHz (2400-2483.5 MHz) (Revision
b/g and n)
![](/img.php?id=1284990&img=bg63.png)
User’s Manual C-3
Wireless LAN
Supported Frequency Sub-bands
Subject to the radio regulations that apply in the countries/regions, your
Wireless LAN module may support a different set of 5 GHz/2.4 GHz
channels. Consult your Authorized Wireless LAN or TOSHIBA Sales office
for information about the radio regulations that apply in the
countries/regions.
2.4GHz Band Channels Sets (Wireless IEEE 802.11 Revision b, g and
n)
*1 Factory-set default channels
*2 The band width and the channel which can be used depends on the
installed wireless LAN module. And the approved channels on using are
different at each country or region. Check if these channels can be used in
your country/region. The channel configuration is managed as follows:
■For wireless clients that operate in a Wireless LAN Infrastructure, the
Wireless LAN module will automatically start operation at the channel
identified by the Wireless LAN Access Point. When roaming between
different access points the station can dynamically switch to another
channel if required.
Frequency Range
Channel ID 2400-2483.5 MHz
12412
22417
32422
42427
52432
62437
72442
82447
92452
10 2457*1
11 2462
12 2467*2
13 2472*2
![](/img.php?id=1284990&img=bg64.png)
User’s Manual C-4
Wireless LAN
■In a Wireless LAN Access Point, the Wireless LAN module will use the
factory-set default channel (printed in bold), unless the LAN
Administrator selected a different channel when configuring the
Wireless LAN Access Point device.
5GHz Band Channels Sets (Wireless IEEE 802.11 Revision a and n)
Frequency Range
Channel ID 5150-5850 MHz
34 5170*2
36 5180*2
38 5190*2
40 5200*2
42 5210*2
44 5220*2
46 5230*2
48 5240*2
52 5260*2
56 5280*2
60 5300*2
64 5320*2
100 5500*2
104 5520*2
108 5540*2
112 5560*2
116 5580*2
120 5600*2
124 5620*2
128 5640*2
132 5660*2
136 5680*2
140 5700*2
149 5745*2
153 5765*2
157 5785*2
![](/img.php?id=1284990&img=bg65.png)
User’s Manual C-5
Wireless LAN
*1 Factory-set default channels
*2 The channel which can be used depends on the installed wireless LAN
module. And the approved channels on using are different at each country
or region. Check if these channels can be used in your country/region. The
channel configuration is managed as follows:
■For wireless clients that operate in a Wireless LAN Infrastructure, the
Wireless LAN module will automatically start operation at the channel
identified by the Wireless LAN Access Point. When roaming between
different access points the station can dynamically switch to another
channel if required.
■In a Wireless LAN Access Point, the Wireless LAN module will use the
factory-set default channel (printed in bold), unless the LAN
Administrator selected a different channel when configuring the
Wireless LAN Access Point device.
161 5805*2
165 5825*2
![](/img.php?id=1284990&img=bg66.png)
User’s Manual D-1
Appendix D
Bluetooth wireless technology
Interoperability
Bluetooth Adaptor from TOSHIBA are designed to be interoperable with
any product with Bluetooth wireless technology that is based on Frequency
Hopping Spread Spectrum (FHSS) radio technology, and is compliant to:
■Bluetooth Specification Ver. 2.1+EDR, as defined and approved by The
Bluetooth Special Interest Group.
■Logo certification with Bluetooth wireless technology as defined by The
Bluetooth Special interest Group.
■When you use Bluetooth Adaptor from TOSHIBA close to 2.4 GHz
Wireless LAN devices, Bluetooth transmissions might slow down or
cause errors. If you detect certain interference while you use Bluetooth
Adaptor from TOSHIBA, always change the frequency, move your
computer to the area outside of the interference range of 2.4 GHz
Wireless LAN devices (40 meters/43.74 yards or more) or stop
transmitting from your computer. Please visit the following TOSHIBA
PC product support website.
■Bluetooth and Wireless LAN devices operate within the same radio
frequency range and may interfere with one another. If you use
Bluetooth and Wireless LAN devices simultaneously, you may
occasionally experience a less than optimal network performance or
even lose your network connection.
If you should experience any such problem, immediately turn off either
one of your Bluetooth or Wireless LAN.
Please visit the following TOSHIBA PC product support website.
TOSHIBA PC product support website.
In Europe visit
http://www.toshiba-europe.com/computers/tnt/bluetooth.htm
In the United States visit
http://www.pc.support.global.toshiba.com
![](/img.php?id=1284990&img=bg67.png)
User’s Manual D-2
Bluetooth wireless technology Interoperability
Bluetooth wireless technology and your Health
The products with Bluetooth wireless technology, like other radio devices,
emit radio frequency electromagnetic energy. The level of energy emitted
by devices with Bluetooth wireless technology however is far much less
than the electromagnetic energy emitted by wireless devices like for
example mobile phones.
Because products with Bluetooth wireless technology operate within the
guidelines found in radio frequency safety standards and
recommendations, TOSHIBA believes Bluetooth wireless technology is
safe for use by consumers. These standards and recommendations reflect
the consensus of the scientific community and result from deliberations of
panels and committees of scientists who continually review and interpret
the extensive research literature.
In some situations or environments, the use of Bluetooth wireless
technology may be restricted by the proprietor of the building or responsible
representatives of the organization. These situations may for example
include:
■Using the equipment with Bluetooth wireless technology on board of
airplanes, or
■In any other environment where the risk of interference to other devices
or services is perceived or identified as harmful.
If you are uncertain of the policy that applies on the use of wireless devices
in a specific organization or environment (e.g. airports), you are
encouraged to ask for authorization to use the device with Bluetooth
wireless technology prior to turning on the equipment.
Regulatory statements
General
This product complies with any mandatory product specification in any
country/region where the product is sold. In addition, the product complies
with the following.
European Union (EU) and EFTA
This equipment complies with the R&TTE directive 1999/5/EC and has
been provided with the CE mark accordingly.
Canada - Industry Canada (IC)
This device complies with RSS 210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of this device.
The term “IC” before the equipment certification number only signifies that
the Industry Canada technical specifications were met.
![](/img.php?id=1284990&img=bg68.png)
User’s Manual D-3
Bluetooth wireless technology Interoperability
USA-Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate
radio frequency energy. If not installed and used in accordance with the
instructions, it may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by tuning the equipment off and on, the
user is encouraged to try and correct the interference by one or more of the
following measures:
■Reorient or relocate the receiving antenna
■Increase the distance between the equipment and the receiver.
■Connect the equipment to outlet on a circuit different from that to which
the receiver is connected.
■Consult the dealer or an experienced radio/TV technician for help.
TOSHIBA is not responsible for any radio or television interference caused
by unauthorized modification of the devices included with this Bluetooth
Adaptor from TOSHIBA, or the substitution or attachment of connecting
cables and equipment other than specified by TOSHIBA.
The correction of interference caused by such unauthorized modification,
substitution or attachment will be the responsibility of the user.
Caution: Exposure to Radio Frequency Radiation
The radiated output power of the Bluetooth Adaptor from TOSHIBA is far
below the FCC radio frequency exposure limits. Nevertheless, the
Bluetooth Adaptor from TOSHIBA shall be used in such a manner that the
potential for human contact during normal operation is minimized.
The installer of this radio equipment must ensure that the antenna is
located or pointed such that it does not emit RF field in excess of Health
Canada limits for the general population; consult Safety Code 6, obtainable
from Health Canada's website www.hc-sc.gc.ca.
![](/img.php?id=1284990&img=bg69.png)
User’s Manual D-4
Bluetooth wireless technology Interoperability
Taiwan
Using Bluetooth Adaptor from TOSHIBA equipment in Japan
In Japan, the frequency bandwidth of 2,400 - 2,483.5 MHz for second
generation low-power data communication systems such as this equipment
overlaps that of mobile object identification systems (premises radio station
and specified low-power radio station).
1. Sticker
Please put the following sticker on computer incorporating this product.
Article 12 Without permission granted by the DGT or NCC, any
company, enterprise, or user is not allowed to change
frequency, enhance transmitting power or alter original
characteristic as well as performance to an approved low
power radio-frequency devices.
Article 14 The low power radio-frequency devices shall not influence
aircraft security and interfere legal communications; If found,
the user shall cease operating immediately until no
interference is achieved.
The said legal communications means radio communications
is operated in compliance with the Telecommunications Act.
The low power radio-frequency devices must be susceptible
with the interference from legal communications or ISM radio
wave radiated devices.
The frequency bandwidth of this equipment may operate
within the same range as industrial devices, scientific
devices, medical devices, microwave ovens, licensed radio
stations and non-licensed specified low-power radio stations
for mobile object identification systems (RFID) used in
factory production lines (Other Radio Stations).
1. Before using this equipment, ensure that it does not
interfere with any of the equipment listed above.
2. If this equipment causes RF interference to other radio
stations, promptly change the frequency being used,
change the location of use, or turn off the source of
emissions.
3. Contact TOSHIBA Direct PC if you have problems with
interference caused by this product to Other Radio Stations.
![](/img.php?id=1284990&img=bg6a.png)
User’s Manual D-5
Bluetooth wireless technology Interoperability

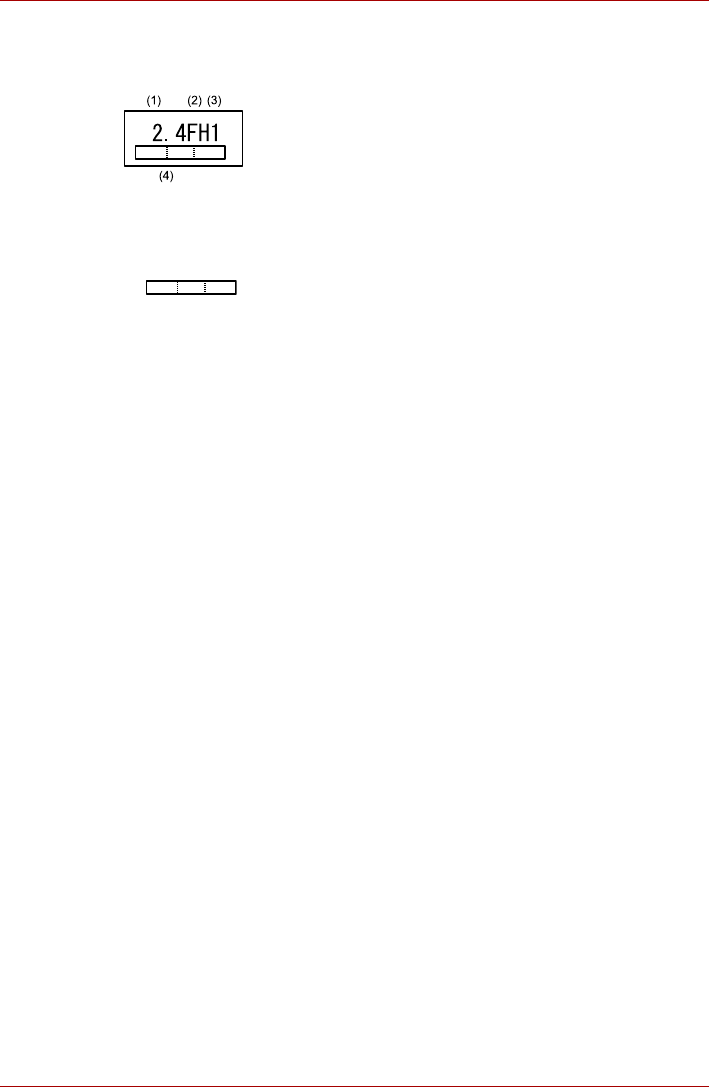

2. Indication
The indication shown below appears on this equipment.
(1) 2.4 : This equipment uses a frequency of 2.4 GHz.
(2) FH : This equipment uses FH-SS modulation.
(3) 1: The interference range of this equipment is less than 10 m.
(4) This equipment uses a frequency bandwidth from
2,400 MHz to 2,483.5 MHz.
It is impossible to avoid the band of mobile object
identification systems.
Device Authorization
This device obtains the Technical Conditions Compliance Approval, and it
belongs to the device class of radio equipment of low-power data
communication system radio station stipulated in the Telecommunications
Business Law.
The Name of the radio equipment: BSMAN3
JAPAN APPROVALS INSTITUTE FOR TELECOMMUNICATIONS
EQUIPMENT
Approval Number: D09-0366001
The following restrictions apply:
Do not disassemble or modify the device.
Do not install the embedded wireless module into other device.
![](/img.php?id=1284990&img=bg6b.png)
User’s Manual E-1
Appendix E
AC Power Cord and Connectors
The power cord’s AC input plug must be compatible with the various
international AC power outlets and the cord must meet the standards for
the country/region in which it is used. All cords must meet the following
specifications:
Certification agencies
Length: Minimum 1.7 meters
Wire size: Minimum 0.75 mm2
Current rating: Minimum 2.5 amperes
Voltage rating: 125 or 250 VAC
(depending on country/region’s power standards)
China: CQC, CEMC
U.S. and Canada: UL listed and CSA certified
No. 18 AWG, Type SVT or SPT-2
Australia: AS
Japan: DENANHO
Europe:
Austria: OVE Italy: IMQ
Belgium: CEBEC The Netherlands: KEMA
![](/img.php?id=1284990&img=bg6c.png)
User’s Manual E-2
AC Power Cord and Connectors
In Europe, two conductors power cord must be VDE type, H05VVH2-F or
H03VVH2-F and for three conductors power cord must be VDE type,
H05VV-F.
For the United States and Canada, two pin plug configuration must be a 2-
15P (250V) or 1-15P (125V) and three pin plug configuration must be 6-
15P (250V) or 5-15P (125V) as designated in the U.S. National Electrical
code handbook and the Canadian Electrical Code Part II.
The following illustrations show the plug shapes for the U.S.A. and Canada,
the United Kingdom, Australia, Europe and China.
Denmark: DEMKO Norway: NEMKO
Finland: FIMKO Sweden: SEMKO
France: LCIE Switzerland: SEV
Germany: VDE United Kingdom: BSI
USA United Kingdom
AS approved Approved by the
BS approved
UL approved
CSA approved
appropriate agency
Australia Europe
Canada
CCC approved
China
![](/img.php?id=1284990&img=bg6d.png)
User’s Manual F-1
Appendix F
TOSHIBA PC Health Monitor
The TOSHIBA PC Health Monitor application proactively monitors a
number of system functions such as power consumption, battery health
and the system cooling, informing you of significant system conditions. This
application recognizes the system and individual component serial
numbers, and will track specific activities related to the computer and their
usage.
The collected information includes device operation time and number of
actuations or status changes (i.e.: AC adaptor, battery, LCD, fan, sound
volume, and USB information), date of initial system use, and also
computer and device usage (i.e.: power settings, battery temperature and
recharging, CPU, memory, backlight illumination time, and temperatures for
various devices). The stored data uses a very small portion of the total hard
disk capacity, approximately 10MB or less per year.
This information is used to identify and provide a notification of system
conditions which may effect the performance of your Toshiba computer. It
may also be used to help diagnose problems should the computer require
service by Toshiba or Toshiba's authorized service providers. Additionally,
Toshiba may also use this information for quality assurance analysis.
Once enabled, you may disable the TOSHIBA PC Health Monitor at any
time by uninstalling the software via Uninstall a program in the Control
Panel. Doing so will automatically delete all collected information from the
SSD.
The TOSHIBA PC Health Monitor software does not extend or modify
Toshiba's obligations under its standard limited warranty in any way.
Toshiba's standard limited warranty terms and limitations apply.
![](/img.php?id=1284990&img=bg6e.png)
User’s Manual F-2
TOSHIBA PC Health Monitor
Starting the TOSHIBA PC Health Monitor
The TOSHIBA PC Health Monitor can be started using the following
methods:
■Tap Start -> All Programs -> TOSHIBA -> Utilities -> PC Health
Monitor.
■Tap the icon ( ) in the notification area, then tap the "Enable PC
Health Monitor..." message the first time you run the application
and "Run PC Health Monitor..." every time thereafter.
No matter which method is used, the TOSHIBA PC Health Monitor
explanation screen will be displayed.
Tapping Next will display the PC Health Monitor Software Notice
& Acceptance screen. Please carefully read the information displayed.
Selecting ACCEPT and tapping OK will enable the program. By enabling
the TOSHIBA PC Health Monitor software, you agree with these terms and
conditions and to the use and sharing of the collected information. Once
the program is enabled, the TOSHIBA PC Health Monitor screen is
displayed, and the program will begin monitoring system functions and
collecting information.
![](/img.php?id=1284990&img=bg6f.png)
User’s Manual G-1
Appendix G
Legal Footnotes
This chapter states the Legal Footnotes information applicable to TOSHIBA
computers.
Non-applicable Icons
Certain computer chassis are designed to accommodate all possible
configurations for an entire product series. Therefore, please be aware that
your selected model may not have all the features and specifications
corresponding to all of the icons or switches shown on the computer
chassis.
CPU
Central Processing Unit ("CPU") Performance Legal Footnotes.
CPU performance in your computer product may vary from specifications
under the following conditions:
■use of certain external peripheral products
■use of battery power instead of AC power
■use of certain multimedia, computer generated graphics or video
applications
■use of standard telephone lines or low speed network connections
■use of complex modeling software, such as high end computer aided
design applications
■use of several applications or functionalities simultaneously
■use of computer in areas with low air pressure (high altitude >1,000
meters or >3,280 feet above sea level)
![](/img.php?id=1284990&img=bg70.png)
User’s Manual G-2
Legal Footnotes
■use of computer at temperatures outside the range of 5°C to 30°C (41°F
to 86°F) or >25°C (77°F) at high altitude (all temperature references are
approximate and may vary depending on the specific computer model -
please refer to your computer documentation or visit the Toshiba
website at www.pcsupport.toshiba.com for details).
CPU performance may also vary from specifications due to design
configuration.
Under some conditions, your computer product may automatically shut-
down. This is a normal protective feature designed to reduce the risk of lost
data or damage to the product when used outside recommended
conditions. To avoid risk of lost data, always make back-up copies of data
by periodically storing it on an external storage medium. For optimum
performance, use your computer product only under recommended
conditions. Read additional restrictions in your product documentation.
Contact Toshiba technical service and support, refer to Troubleshooting
section in Chapter 7 Troubleshooting for more information.
64-Bit Computing
64-bit processors are designed to take advantage of 32 and 64 bit
computing.
64-bit computing requires that the following hardware and software
requirements are met:
■64-bit Operating System
■64-bit CPU, Chipset and BIOS (Basic Input/Output System)
■64-bit Device drivers
■64-bit applications
Certain device drivers and/or applications may not be compatible with a 64-
bit CPU and therefore may not function properly. A 32-bit version of the
operating system is preinstalled on your computer unless explicitly stated
that the operating system is 64-bit.
Memory (Main System)
Part of the main system memory may be used by the graphics system for
graphics performance and therefore reduce the amount of main system
memory available for other computing activities. The amount of main
system memory allocated to support graphics may vary depending on the
graphics system, applications utilized, system memory size and other
factors.
![](/img.php?id=1284990&img=bg71.png)
User’s Manual G-3
Legal Footnotes
Battery Life
Battery life may vary considerably depending on product model,
configuration, applications, power management settings and features
utilized, as well as the natural performance variations produced by the
design of individual components. Published battery life numbers are
achieved on select models and configurations tested by Toshiba at the time
of publication. Recharge time varies depending on usage. Battery may not
charge while computer is consuming full power.
After going through many charge and discharge cycles, the battery will lose
its ability to perform at maximum capacity and will need to be replaced.
This is a normal phenomenon for all batteries. To purchase a new battery
pack, see the accessories information that is shipped with your computer.
Solid State Drive (SSD) Capacity
1 Gigabyte (GB) means 109 = 1,000,000,000 bytes using powers of 10. The
computer operating system, however, reports storage capacity using
powers of 2 for the definition of 1 GB = 230 = 1,073,741,824 bytes, and
therefore shows less storage capacity. Available storage capacity will also
be less if the product includes one or more pre-installed operating systems,
such as Microsoft Operating System and/or pre-installed software
applications, or media content. Actual formatted capacity may vary.
LCD
Over a period of time, and depending on the usage of the computer, the
brightness of the LCD screen will deteriorate. This is an intrinsic
characteristic of LCD technology.
Maximum brightness is only available when operating in AC power mode.
Screen will dim when the computer is operated on battery power and you
may not be able to increase the brightness of the screen.
Graphics Processor Unit ("GPU")
Graphics processor unit ("GPU") performance may vary depending on
product model, design configuration, applications, power management
settings and features utilized. GPU performance is only optimized when
operating in AC power mode and may decrease considerably when
operating in battery power mode.
Total Available Graphics Memory is the total of, as applicable, Dedicated
Video Memory, System Video Memory and Shared System Memory.
Shared System Memory will vary depending on system memory size and
other factors.
![](/img.php?id=1284990&img=bg72.png)
User’s Manual G-4
Legal Footnotes
Wireless LAN
The transmission speed over the wireless LAN and the distance over which
wireless LAN can reach may vary depending on surrounding
electromagnetic environment, obstacles, access point design and
configuration, and client design and software/hardware configurations.
The actual transmission speed will be lower than the theoretical maximum
speed.
Copy Protection
Applicable copy protection standards included in certain media may
prevent or limit recording or viewing of the media.
Images
All images are simulated for purposes of illustration.
![](/img.php?id=1284990&img=bg73.png)
User’s Manual Glossary-1
Glossary
The terms in this glossary cover topics related to this manual. Alternate
naming is included for reference.
Abbreviations
AC: Alternating current
ANSI: American National Standards Institute
AMT: Intel Active Management Technology
ASCII: American Standard Code for Information Interchange
BIOS: basic input/output system
bps: bits per second
CD: compact disc
CD-ROM: Compact Disc Read-Only Memory
CD-RW: Compact Disc-ReWritable
CMOS: complementary metal-oxide semiconductor
CPU: central processing unit
CRT: cathode ray tube
DC: direct current
DDC: display data channel
DDR: double data rate
DIMM: dual inline memory module
DVD: digital versatile disc
DVD-R: Digital Versatile Disc-Recordable
DVD-RAM: Digital Versatile Disc-Random Access Memory
DVD-R (Dual Layer): Digital Versatile Disc Recordable Dual Layer
DVD-ROM: Digital Versatile Disc-Read Only Memory
DVD-RW: Digital Versatile Disc-ReWritable
DVD+R (Double Layer): Digital Versatile Disc Recordable Double Layer
eSATA: external Serial ATA
FDD: floppy diskette drive
FIR: fast infrared
GB: gigabyte
HDD: hard disk drive
HDMI: High-Definition Multimedia Interface
![](/img.php?id=1284990&img=bg74.png)
User’s Manual Glossary-2
Glossary
IDE: integrated drive electronics
IEEE: Institute of Electrical and Electronics Engineers
I/O: input/output
IRQ: interrupt request
KB: kilobyte
LAN: local area network
LCD: liquid crystal display
LED: light emitting diode
MB: megabyte
MMC: multi media card
OCR: optical character recognition (reader)
PC: personal computer
PCI: peripheral component interconnect
RAM: random access memory
RGB: red, green, and blue
ROM: read only memory
RTC: real time clock
S/P DIF: Sony/Philips Digital Interface Format
SD: Secure Digital
SDHC: Secure Digital High Capacity
SDRAM: synchronous dynamic random access memory
SLI: Scalable Link Interface
SSD: Solid state drive
TFT: thin-film transistor
USB: Universal Serial Bus
UXGA: ultra extended graphics array
VGA: video graphics array
WAN: wide area network
WSXGA: wide super extended graphics array
WSXGA+: wide super extended graphics array plus
WUXGA: Wide Ultra Extended Graphics Array
WXGA: wide extended graphics array
WXGA+: wide extended graphics array plus
XGA: extended graphics array
![](/img.php?id=1284990&img=bg75.png)
User’s Manual Index-1
Index
A
AC adaptor 3-2
additional 3-13
connecting 1-4
DC IN 19V jack 2-3
B
Battery
charging 5-5
extending life 5-7
monitoring capacity 5-6
real time clock 3-2, 5-4
save mode 3-5
types 5-3
Battery pack 2-4, 3-2
additional 5-1
replacing 5-7
Bluetooth 3-4, 4-13
Bluetooth Stack for Windows by
Toshiba 3-7
problems 7-8
Boot Priority 6-3
Bridge media slot 3-10
using 3-10
Bulletin Board 3-9
C
Cleaning the computer 4-15
Computer Handling 4-15
Cooling vents 2-2
D
DC IN/Battery
indicator 5-2
DC IN/Battery indicator 2-3
Display 3-3
automatic power off 3-5
controller B-1
hinge 2-7
opening 1-6
screen 2-7
Documentation list 1-1
E
Enable/Disable 6-5
Enable/disable Wireless communication 4-
15
Equipment checklist 1-1
F
Finger Tapping
Touch Pad 4-1
G
Graphics controller 3-3
H
Hard disk drive
automatic power off 3-5
Heat dispersal 3-5, 4-16
Hibernation Mode 3-6
HW Setup
accessing 6-1
Boot priority 6-3
CPU 6-4
general 6-2
password 6-2
SATA 6-5
window 6-1
USB 6-4
L
Libretto Keyboard
Launching Libretto Keyboard 4-2
Libretto Touch Pad
![](/img.php?id=1284990&img=bg76.png)
Libretto W100
User’s Manual Index-2
using 4-1
M
Media care 4-11
Card care 3-11
Memory card care 3-11
Memory 3-2
MicroSD card slot 2-2
MicroSD/SDHC Card
problems 7-6
microSD/SDHC Card
formatting 3-11
inserting 3-11
note 3-10
removing 3-12
Moving the computer 4-16
P
Password
power on 3-5
Power
conditions 5-1
Hibernation Mode 1-10
indicators 5-2
panel on/off 3-5, 5-9
Shut Down mode (Boot Mode) 1-8
Sleep Mode 1-9
System Auto Off 5-10
turning off 1-8
turning on 1-7
Problems
AC power 7-4
Analyzing the problem 7-2
Battery 7-5
Bluetooth 7-8
Hardware and system checklist 7-3
MicroSD/SDHC Card 7-6
Overheating power down 7-4
Power 7-4
Real Time Clock 7-6
Recovery Media 7-9
Self test 7-3
Sound system 7-7
System start-up 7-3
TOSHIBA support 7-9
Touch screen 7-6
Wireless LAN 7-8
USB device 7-7
Processor 3-1
R
Recovery Media 1-13
problems 7-9
Recovery solid state drive 1-13
Restarting the computer 1-11
S
SIM card slot 2-2
Sleep Mode
setting 1-9
System automatic 3-5
Solid state drive 3-3
Sound system
headphone jack 2-2
problems 7-7
speaker 2-3
T
TOSHIBA 3-9
TOSHIBA Assist 3-7
TOSHIBA ConfigFree 3-7
TOSHIBA Disc Creator 3-8, 4-10
TOSHIBA HDD/SSD Alert Utility 3-8
TOSHIBA PC Diagnostic Tool 3-6
TOSHIBA ReelTime 3-9
TOSHIBA Service Station 3-8
Touch Screen
using 4-1
W
Web Camera 2-6, 3-4
Video mode B-1
Video RAM 3-2
Wireless communication 4-12
indicator 2-3, 4-15
Wireless LAN 3-4, 4-12
problems 7-8
Wireless WAN 3-4
USB device
problems 7-7
