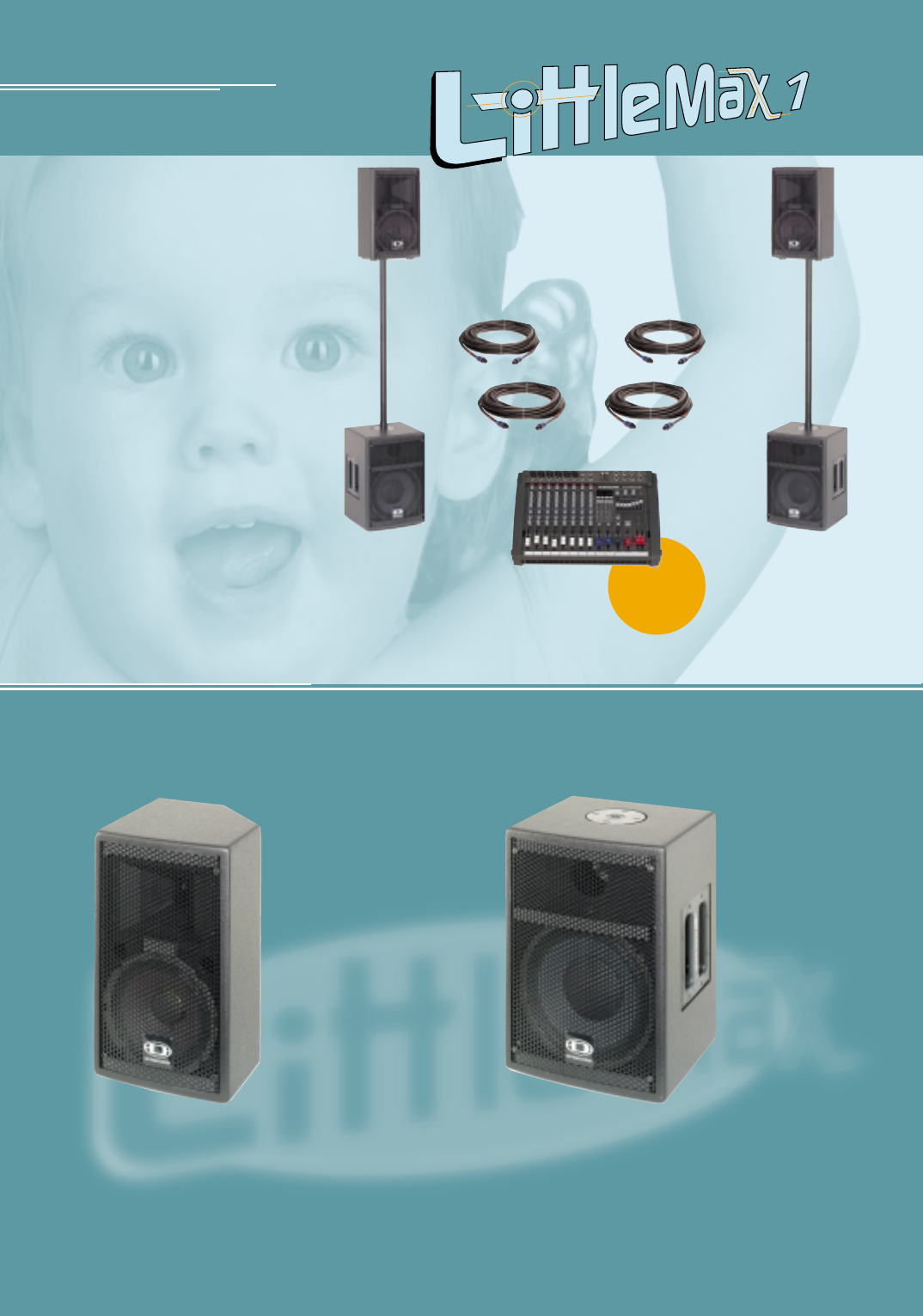

2 x LM 8-2

2 x LM10-1

4 x Speakon System cables

2 x speaker stand poles

Room always matters in the Pro-

Audio business, which is espe-

cially true when it comes to trans-

portation. Here, the lack of space

can easily turn into a serious prob-

lem.

By providing all the necessary

electronics and without compro-

mising a truly superb sound,

DYNACORD’s powered mixers –

the PowerMates – are the ideal so-

lution for any space related or

handling problems.

The new LittleMax systems add

to this concept by offering ex-

cellent sound quality at an ultra-

compact size.

LM 10-1

LM 8-2

The top-cabinet LM 8-2 is equipped with an 8” woofer and a

powerful horn-driver combination. For smaller sound reinforce-

ment purposes,it can also be used without a sub woofer making it

a stand alone full range system. Also the enclosure is slanted on

one side,which allows the cabinet to be used as a monitor speaker.

The LM 10-1 10” sub woofer’s low-frequency response and un-

paralleled dynamic range is truly amazing. So far,nobody would

have anticipated these features from a system of such compact

dimensions. When used together, the LM 8-2 and the LM 10-1

are simply operated parallel, without additional electronics.The

system-pack includes Speakon cables and stand poles.

w

e

r

e

c

o

m

m

e

n

d

POWER

MATE

600

TThhee SSyysstteemm--

CCoommppoonneennttss

SSIIZZEE

MMAATTTTEERRSS!!

The LittleMax1 system sets new standards in technical achievement for the 2 x 300-watts-class.

Therefore, the LittleMax1 perfectly suits the PowerMate 600.

2

The performance of the Little

Max2 system convinces even the

strongest critics of compact loud-

speaker systems. With regard to

sound quality, sound pressure

level, coverage,and dispersion,the

LittleMax systems exceede all ex-

pectations.

Speakon loudspeaker cables and

stand poles are supplied with

both systems.

LittleMax – two solutions from

DYNACORD for improved sound

with less problems in handling

the gear ...

LM 12-1

LM 10-2

The LM 10-2 full range cabinet employs a 10” woofer and an

Electro-Voice DH2010A/HPT94 HF-horn/driver combination.

Also the enclosure is slanted on one side,which allows the cabinet

to be used as a monitor speaker.

The LM 12-1 sub woofer is equipped with an Electro-Voice

DL12SX, offering a power handling capacity of 300 watts. All

system components are protected against thermal overload.

w

e

r

e

c

o

m

m

e

n

d

POWER

MATE

1000

1600

2 x LM 10-2

2 x LM12-1

4 x Speakon System cables

2 x speaker stand poles

Being the ideal complement to the PowerMates 1000 and 1600, the LittleMax2 system is a true multi-talent in sound

reinforcement applications offering a power handling capacity of 2 x 500 watts, which is plenty even for events with

an audience of 300 people and more.

2 x LM8-2 8“ full range cabinets

2 x LM10-1 10" sub woofers

2 x PSS 404 Speakon system cables 4 m

2 x PSS 408 Speakon system cables 8 m

2 x PCL 880 speaker stand poles

2 x LM10-2 10“ full range cabinets

2 x LM12-1 12“ sub woofers

2 x PSS 404 Speakon system cables 4 m

2 x PSS 408 Speakon system cables 8 m

2 x PCL 880 speaker stand poles

© by EVI Audio GmbH 12/99/10 · Printed in Germany (BECK) · SUBJECT TO CHANGE WITHOUT PRIOR NOTICE

EVI Audio GmbH · Hirschberger Ring 45 · D-94315 Straubing

Tel: +49 (0) 94 21 / 706 - 0 · Fax: +49 (0) 94 21 / 706 - 265 · www.dynacord.de

Technical Specifications

Type: LM8-2 LM10-2 LM10-1 LM12-1

Design: 2-Way 2-Way Subwoofer Subwoofer

Components: LO: 1 x 8“ 1 x 10“ 1 x 10“ 1 x 12“

Dynacord 357794 EV DH2010A Dynacord 357793 EV DL12SX

HI: Dynacord HFT3008 HPT94 Horn - -

Nominal power rating RMS: 150 W 200 W 200 W 300 W

Program power capacity: 300 W 400 W 400 W 600 W

Frequency response (-10 dB): 80 Hz-18 kHz 80 Hz-20 kHz 80 Hz-250 Hz 70 Hz - 280 Hz

Nominal SPL (1W/1m): 95 dB 97 dB 97 dB 98 dB

Max. SPL*: 120 dB 123 dB 123 dB 126 dB

Impedance: 8 Ω8 Ω8 Ω8 Ω

Crossover frequencies: 7 kHz 7 kHz 150 Hz 150 Hz

Dimensions:

Width: 250 mm 297 mm 297 mm 357 mm

Height: 425 mm 457 mm 425 mm 495 mm

Depth: 280 mm 280 mm 280 mm 280 mm

Weight: 11.0 kg 14.0 kg 13.5 kg 17.0 kg

* calculated with program power

2

LM10-1 LM8-2 LM12-1 LM10-2

Frequency

Response

LittleMax 1

Frequency

Response

LittleMax 2
