Loudspeaker Systems

MORE THAN 60 YEARS OF PRO AUDIO EXPERIENCE

Mobile Audio | Concert Sound | Fixed Installation | Pro Entertainment

English

dc loudspeaker_en_reprint062010.indd 1dc loudspeaker_en_reprint062010.indd 1 09.07.10 12:1209.07.10 12:12

CONTENTS

Contents

2

PRODUCTS

D-Lite Series 12 - 45

VariLine 46 - 61

CXM 15 62 - 64

AM 12 65

PowerMax 5 66 - 69

Xa 2 System 70 - 77

Cobra System 78 - 95

Alpha System 96 - 99

INTRODUCTION

Contents 02 - 03

History 04 - 05

Milestones 06 - 07

Manufacturing 08 - 09

Bosch Production System 10 - 11

dc loudspeaker_en_reprint062010.indd 2dc loudspeaker_en_reprint062010.indd 2 09.07.10 12:1209.07.10 12:12

CONTENTS

3

APPLICATIONS GUIDE

D-Lite Series 107 - 111

VariLine 111 - 114

PowerMax 5 114

Xa 2 System 115

Cobra-2 System 116 - 117

Cobra-4 System 117 - 119

TECHNICAL SPECIFICATIONS

D-Lite Series 100 - 101

VariLine 102

CXM 15 103

AM 12 103

PowerMax 5 104

Xa 2 System 104

Cobra System 105

Alpha System 105

dc loudspeaker_en_reprint062010.indd 3dc loudspeaker_en_reprint062010.indd 3 09.07.10 12:1309.07.10 12:13

HISTORY

4

German Engineering Excellence

FOR MORE THAN 60 YEARS, DYNACORD HAS BEEN ONE OF

THE MOST INNOVATIVE AND SUCCESSFUL MANUFACTURERS

OF PROFESSIONAL AUDIO EQUIPMENT.

dc loudspeaker_en_reprint062010.indd 4dc loudspeaker_en_reprint062010.indd 4 09.07.10 12:1309.07.10 12:13

HISTORY

5

In 1945 Werner Pinternagel,

who was an engineer, founded a

workshop for the repair of radio

devices in the Lower Bavarian

town of Pilsting. The development

and manufacture of audio amplifi ers,

which he began at the same time,

became a particular passion.

These pioneering experiences

formed the foundation for over

60 years of expertise in professional

power amplifier technology —

expertise upon which the brand

DYNACORD is able to draw today.

Early results included the KI cinema

amplifi er with its output of 25 watts.

The devices of the company, which

in the meantime had moved to

Landau and by then boasted a

staff of four employees, still bore

the brand name ‘Dynaphon’.

From 1948 onwards, mixing and

portable amplifiers bearing the

name DYNACORD were being

sold to an ever expanding circle

of customers. Within a few years,

the rapidly growing company had

become one of the leading enter-

prises in the still young audio

technology industry. Already in

1954, the manual workshop have

given way to industrial production

as the product portfolio continued to

expand. The high-caliber, pioneering

and often visionary products have

been presented ever since at all

important international trade fairs

and marketed successfully throughout

the world. To make it possible to

satisfy the enormous demand,

DYNACORD moved to Straubing in

1958. The workforce, which at that

time numbered 80 employees, con-

tinued to expand rapidly. Several

times, the production facility was

renovated or expanded.

Finally, in 1986 a new plant was

opened in which more than 500

employees now develop, produce

and dispatch the company’s pro-

ducts to all corners of the globe.

dc loudspeaker_en_reprint062010.indd 5dc loudspeaker_en_reprint062010.indd 5 09.07.10 12:1309.07.10 12:13

MILESTONES

6

Milestones

THE CONSTANTLY EXPANDING PRODUCT

RANGE YIELDED MANY PRO AUDIO MILESTONES.

dc loudspeaker_en_reprint062010.indd 6dc loudspeaker_en_reprint062010.indd 6 09.07.10 12:1309.07.10 12:13

MILESTONES

7

A high degree of innovation, uncompromising

quality, exceptional user-friendliness and truely

legendary reliability and value retention have for

over 60 years defined the brand DYNACORD.

• the fi rst generations of professional

mixing amplifi ers [Eminent, Gigant]

• the fi rst tape-echo/reverb devices [Echochord]

• the first ‘affordable’ digital reverb device [DRS 78]

• the most advanced digital drums

[ADDone, ADDtwo]

• the fi rst professional digital reverb device based

on 32-bit fl oating-point processing [DRP-20]

• the fi rst processor power amplifi ers

with LPN filters [PCA series]

• one of the most successful power amplifi ers

in concert sound [L2400 / EV P3000]

• the first processor-controlled

complete audio system [P3, P5]

• the first digital loudspeaker controller with

graphic display of the acoustic system frequency

response in the editing software [DSP 224 / 244

with CrossMax and EV Dx34 / 38 with RACE]

• the Planar Waveguide bass horns

[F 18, Alpha B-3 and many others]

• the world’s most powerful disco system [Alpha]

• the world’s most successful

powered mixer [PowerMate]

• the first stackable

compact line array system [Cobra]

• the first Class H grounded bridge

high-performance power amplifiers [PowerH]

• the unique IRIS-Net network software

[incl. remote supervision, remote control of

power amplifiers and digital audio matrices]

• the first digital power amplifiers with

VLD-variable load drive [DSA Multi-Channel]

Echocord

DRS-78

PowerMate

Cobra

PowerH

dc loudspeaker_en_reprint062010.indd 7dc loudspeaker_en_reprint062010.indd 7 09.07.10 12:1309.07.10 12:13

BOSCH PRODUCTION SYSTEMS

8

dc loudspeaker_en_reprint062010.indd 8dc loudspeaker_en_reprint062010.indd 8 09.07.10 12:1309.07.10 12:13

BOSCH PRODUCTION SYSTEM

9

With the introduction of the Bosch Production System

(BPS) at the Straubing works, the brand DYNACORD is

further enhancing its already legendary reputation for

the highest production quality and reliability.

Quality with system is assured by the BPS worldwide in

all Bosch production centres, since absolutely identical

indicators, equipment and processes are applied

systematically throughout the enterprise. Decisions

about which products to produce in which plant are

primarily based on core areas of competence.

The same goes for the development. The fi rst measures to

guarantee quality are applied as early as the deve-

lopment phase of a product, where the ‘thermal and

mechanical stability’, the ‘secure functioning of the

circuitry’ and the demands of quality such as the

acoustic performance and the product functions

themselves are all ascertained in advance and rigorous

tests conducted before any final decisions are taken

about the design.

Decades of experience and the most modern quality

management systems guarantee the extraordinary quality

and legendary reliability of DYNACORD products.

Bosch Production

System

QUALITY WITH SYSTEM

dc loudspeaker_en_reprint062010.indd 9dc loudspeaker_en_reprint062010.indd 9 09.07.10 12:1309.07.10 12:13

MANUFACTURING

10

Measurement Hall

PART OF THE NEW INVESTMENT INVOLVED THE CONSTRUCTION AND

COMMISSIONING OF WHAT AT 600 SQUARE METRES IS ONE OF THE

WORLD’S LARGEST AUDIO MEASUREMENT HALLS.

Since September 2006, DYNACORD has belonged

to the BOSCH concern’s Security Technology

department.

The production facility in Straubing has been consi-

derably expanded and the work reorganized along

the lines of the Bosch Production System (BPS). Part

of the new investment involved the construction and

commissioning of what at 600 square metres and

11 meters height is one of the world’s largest audio

Manufacturing

Manufacturing in Straubing, Germany

dc loudspeaker_en_reprint062010.indd 10dc loudspeaker_en_reprint062010.indd 10 09.07.10 12:1309.07.10 12:13

MANUFACTURING

11

measurement halls. A reverberation time below one

second allows for measurements under realistic

conditions. One of the particular strengths of the

brand DYNACORD is the fact that over the many years

of its history profound know-how, covering the entire

signal chain from the mixer to the loudspeakers has

been acquired.

This advantage, coupled with its traditionally close

relationship with users, has yielded many unique

solutions to once-vexing problems and helped DYNACORD

to develop a reputation the world over as a manufac-

turer of top-flight audio equipment on the absolute

cutting edge of development.

Additional capacity is available at the Bosch

plant in Zhuhai, China, where the production also

conforms to the BPS and quality controls are

conducted using identical procedures and equipment.

Manufacturing in Zhuhai, China

dc loudspeaker_en_reprint062010.indd 11dc loudspeaker_en_reprint062010.indd 11 09.07.10 12:1309.07.10 12:13

12

D-LITE SERIES

dc loudspeaker_en_reprint062010.indd 12dc loudspeaker_en_reprint062010.indd 12 09.07.10 12:1309.07.10 12:13

13

D-LITE SERIES

· D 8

· D 8A

· D 11A

· D 12 / D 12W

· D 12T / D 12TW

· D 12R / D 12RW

· D 12-3

· D 15-3

· Sub 112

· Sub 115

· Sub 118

· PowerSub 112

· PowerSub 212

· PowerSub 312

· PowerSub 315

· D-Lite 1000 System

· D-Lite 2000 System

· D-Lite activeone

· D-Lite activetwo

· D-Lite activefour

D-Lite Series

dc loudspeaker_en_reprint062010.indd 13dc loudspeaker_en_reprint062010.indd 13 09.07.10 12:1309.07.10 12:13

D-LITE SERIES

14

D-Lite Series

LOUDSPEAKER SYSTEMS

D 8

D 11A

D 8W

D 12

D 8A

D 12W

dc loudspeaker_en_reprint062010.indd 14dc loudspeaker_en_reprint062010.indd 14 09.07.10 12:1309.07.10 12:13

D-LITE SERIES

15

D 12RW

D 12T

D 12-3

D 12TW

D 15-3

D 12R

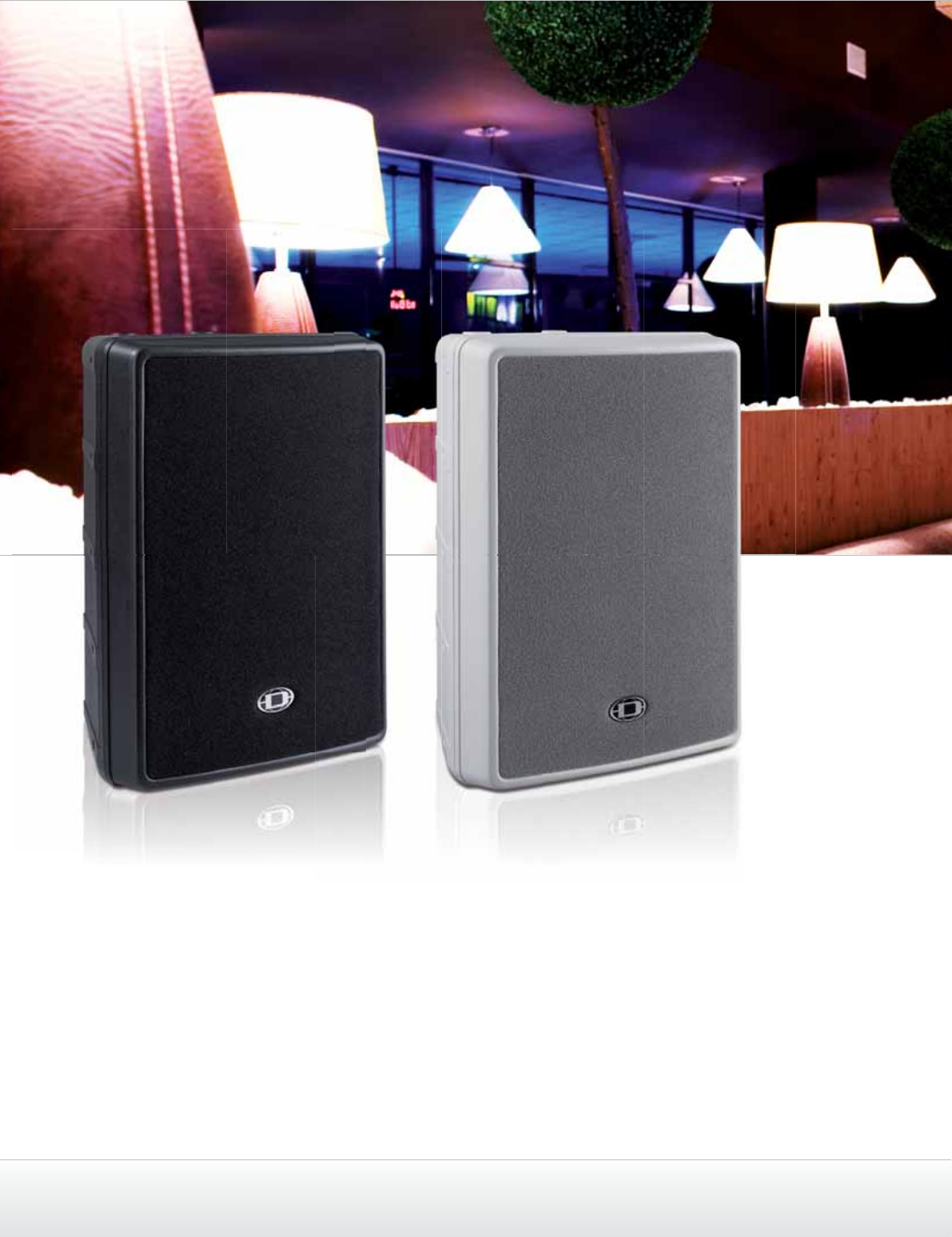

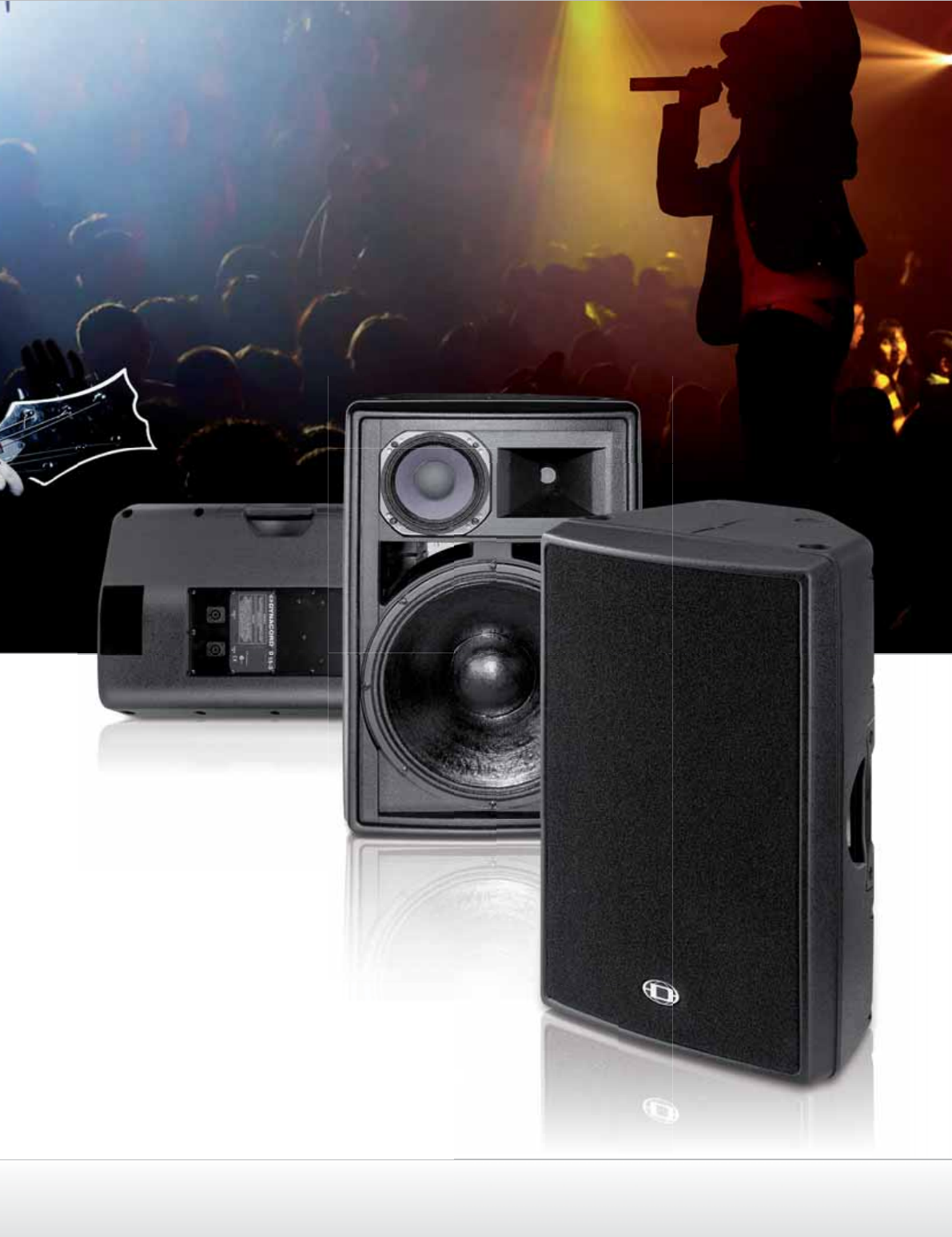

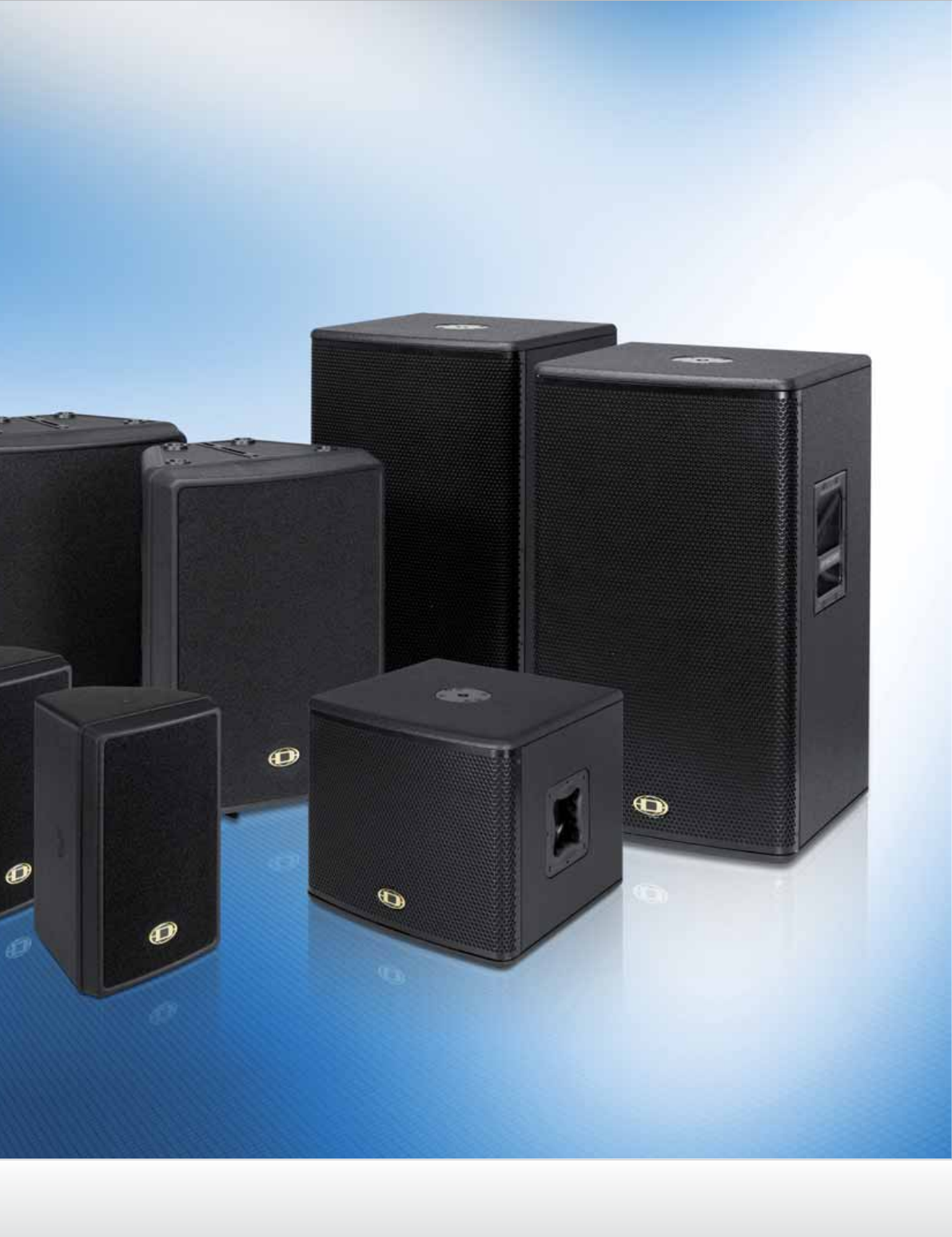

The full-range speakers of the D-Lite

series are extremely light, mechanically

durable polypropylene cabinets for

professional portable and fixed

installation sound reinforcement

applications in small to medium-sized

venues.

The wide range of mounting accessories

available for the enclosures and their

tasteful styling permit them to be used

without problems in critical fixed in-

stallation applications. Being of poly-

propylene, the enclosures are capable

of withstanding the roughest handling

during transport and use. The integration

of the constant directivity HF horns into

the baffle is CAD-optimized. The robust

powder-coated steel grilles at the front

of the enclosures are backed by black

acoustic foam plastic. Both the Speakon

sockets in the connection panels are

recessed to allow the cabinets to be operated

in cramped locations.

The beveled sides of the enclosures allow

them to be used without problems in

monitor applications in which more bass

extension is required than that provided

by typical monitor loudspeakers. Robust

handles, integrated stand adapters, and

a wide range of flying and mounting

accessories facilitate the transport and

setting up of the enclosures as well as

allowing them to be ideally positioned

and aimed. Very powerful amplifiers can

be used to achieve the widest possible

dynamic range, as the loudspeakers of

the D-Lite series offer very high pow-

er handling and are for the most part

afforded additional reliable protection by

the fully electronic Voice Coil Tracking

Protection system, as well as halogen

protectors against thermal overload. The

internal passive crossovers are optimized

for long throws and even dispersion, allowing

D-Lite cabinets to be used under acoustically

unfavorable conditions.

dc loudspeaker_en_reprint062010.indd 15dc loudspeaker_en_reprint062010.indd 15 09.07.10 12:1409.07.10 12:14

D-LITE SERIES

16

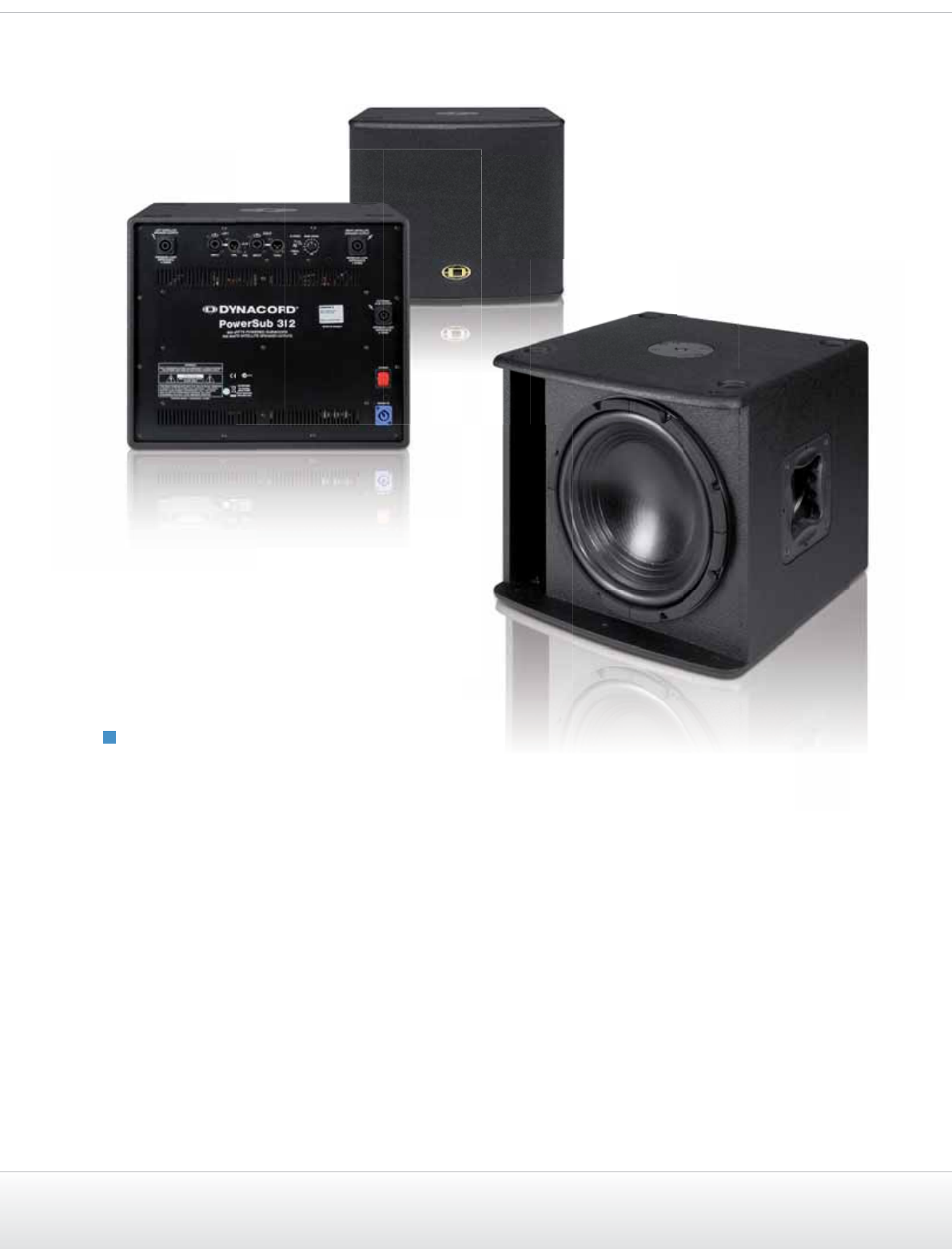

POWERSUB 112

SUB 112

POWERSUB 212

SUB 118

SUB 115

POWERSUB 312

D-Lite Series

LOUDSPEAKER SYSTEMS

dc loudspeaker_en_reprint062010.indd 16dc loudspeaker_en_reprint062010.indd 16 09.07.10 12:1409.07.10 12:14

D-LITE SERIES

17

Suitable active and passive subwoofers

implemented as vented direct-radiating

enclosures permit flexible system

configurations.

The reflex systems of these subs, when

compared with conventional bass reflex

ports, are characterized by less flow loss

and less wind noise. High sound pressure

levels at very low frequencies are generated

with considerably less distortion than is

the case with conventional bass-reflex

ports.

POWERSUB 315

The passive varieties can, as a result of

their integrated low-pass filters, simply

be operated parallel to the various passive

full-range boxes.

The active single-channel subs possess

crossover outputs for the creation of

active three-way systems with e.g. the

models D 8A or D 11A. The three-channel

subs already possess the requisite power

amplifiers for passive tops and permit in

the simplest manner the configuration of

so-called ‘satellite systems’.

dc loudspeaker_en_reprint062010.indd 17dc loudspeaker_en_reprint062010.indd 17 09.07.10 12:1509.07.10 12:15

D 8 AND D 8W

D 8 and D 8W

FULLRANGE CABINET

18

The D 8 is a very compact, lightweight and

mechanically very robust 8“ / 1“ two-way

thermoplastic cabinet for professional

sound reinforcement applications.

dc loudspeaker_en_reprint062010.indd 18dc loudspeaker_en_reprint062010.indd 18 09.07.10 12:1509.07.10 12:15

D 8 AND D 8W

19

It is remarkable in its class for

the very high sound pressure

levels it is capable of achieving as

well as its outstanding audio

performance.

The wide range of mounting accesso-

ries available for the enclosure and

its tastefully understated styling

permit its convenient use even in

critical applications in the fixed

installation sector.

The housing is made from ABS

and capable of withstanding the

roughest handling during trans-

portation and use. The D 8‘s bass

and midrange is the responsibility

of the DND8200-8 low-distortion

neodymium woofer. The integration

into the baffle of the symmetrically

radiating Constant Directivity high

frequency horn, with its nominal

radiation angle of 90° x 90° (hori-

zontal x vertical) and Electro-Voice

DH3 driver, is CAD-optimized.

With power handling of 250 W (rated)

and 1,000 W (peak), a maximum

SPL of 124 dB and a frequency range

of 65 Hz - 20 kHz, the D 8 performs

outstanding service not only as a

full-range cabinet but also as the

mid / high component of active and

passive satellite systems of superior

quality. The crossover is optimized

to achieve a long throw and a very

even sound pattern, permitting the

use of the D 8 even in unfavorable

acoustic environments.

The loudspeaker components are

guarded by thermo-switches and

halogen protectors against thermal

overload. The front is clad in black

acoustic foam with a robust, powder-

coated steel grille. The Speakon

sockets on the connection panel are

recessed. The enclosure is trapezoidal

in shape, making it suitable also for

monitoring applications.

and midran

g

e is the responsibili

ty

of

t

h

e

DND

8

2

00

-

8

l

o

w-

d

i

sto

r

t

i

o

n

neodymium woofer. The inte

g

ration

into the baffle of the s

y

mmetricall

y

radiatin

g

Constant Directivi

ty

h

ig

h

frequency horn, with its nominal

radiation an

gl

e of 90° x 90°

(

hori

-

zontal x vertica

l)

and Electro-Voice

DH3 driver, is CAD-o

p

timized.

p

assive satellite syst

e

qu

alit

y.

The crossov

e

t

o achieve a lon

g

th

r

e

ven sound pattern,

use

o

f

t

h

e

D

8

e

v

e

n i

acoust

i

c

e

nvir

o

nm

e

n

t

T

he louds

p

eaker co

m

g

uarded by thermo-s

w

h

alo

g

en

p

rotectors a

g

dc loudspeaker_en_reprint062010.indd 19dc loudspeaker_en_reprint062010.indd 19 09.07.10 12:1509.07.10 12:15

D 8A

20

dc loudspeaker_en_reprint062010.indd 20dc loudspeaker_en_reprint062010.indd 20 09.07.10 12:1509.07.10 12:15

The D 8A is the powered version

of the D 8 offering integrated

Class D power amplifiers, an

electronic crossover and loudspeaker

equalization.

For the low and high frequency

ranges, 2 x 200 W / RMS are availa-

ble. The maximum overall amplifi er

output comes to 800 W IHF-A.

The Line input is implemented as an

XLR / jack combo socket. In addition,

an XLR microphone input with a

separate level control is available.

By means of the XLR Master Out

socket, the mix of Line and Mic

inputs can be looped through to

additional powered cabinets.

D 8A

POWERED FULLRANGE CABINET

For operation with powered sub-

woofers, a switchable low-cut fi lter is

provided. The D 8A is notable for

its high sound pressure level and

a sonic image that remains free from

distortion and discoloration even at

the edges of its bandwidth.

It is ideal when combined with

active subwoofers for the creation

of very compact, active three-way

high-powered systems for a multitude

of applications in the live music,

AV and fixed installation sectors.

The extensive range of optional

accessories allows virtually unlimited

use in fixed installations or flown

configurations.

D 8A

21

D

8

A

P

OWERED FULLRAN

G

E

C

ABI

N

N

ET

dc loudspeaker_en_reprint062010.indd 21dc loudspeaker_en_reprint062010.indd 21 09.07.10 12:1509.07.10 12:15

D 11A

22

Distorsion-free, clear sound at peak levels

dc loudspeaker_en_reprint062010.indd 22dc loudspeaker_en_reprint062010.indd 22 09.07.10 12:1509.07.10 12:15

D 11A

23

D 11A

POWERED FULLRANGE CABINET

A

D

F

U

L

L

R

A

N

G

E

C

A

B

I

N

E

T

T

The D 11A is a conveniently

equipped powered 12“ / 1“ full-

range box offering integrated

Class D power amplifiers, an

electronic crossover and louds-

peaker equalization.

For the low and high frequency

ranges 2 x 200 W / RMS are available.

The maximum overall amplifier

output comes to 800 W IHF-A.

The Line input is implemented as

an XLR / jack combo socket. Via

the Line Thru XLR socket, the signal

can be looped directly through to

additional powered cabinets. The

controllable Stereo-Aux channel

with RCA / cinch sockets permits

e.g. the direct connection of CD

or MP3 players.

In addition, an XLR microphone

input with a separate level control

is available. By means of the XLR

Master Out socket, the mix of Line,

AUX and Mic inputs can be looped

through to additional powered

cabinets. For operation with powered

subwoofers, a switchable low-cut

filter is provided. The D 11A is

notable for its high sound pres-

sure level and a sonic image that

remains free from distortion and

discoloration even at the edges of

its bandwidth.

When combined with powered

subwoofers, ultra-compact active

three-way high powered systems

can be created very simply for a

multitude of applications in both

the live music and fi xed installation

sectors.

The extensive range of optional

accessories allows virtually unlimited

use in fixed installations or flown

configurations.

dc loudspeaker_en_reprint062010.indd 23dc loudspeaker_en_reprint062010.indd 23 09.07.10 12:1509.07.10 12:15

D 12 · D 12W · D 12T · D 12TW · D 12R · D 12RW

24

Weighing a mere 16 kg, the D 12 two-way

full-range cabinet with its polypropylene en-

closure has an extremely linear frequency

response and is notable for its powerful,

natural reproduction of the voice as well

as its transparent resolution throughout

the entire frequency range. Its elegant

styling and tasteful black or white

finishes make it suitable for a very wide

range of small to medium-sized events as

well as critical applications in the fixed

installation sector.

D 12 · D 12W · D 12T · D 12TW · D 12R · D 12RW

FULLRANGE CABINETS

D12

·

D 12W

·

D1

2T · D 12TW · D 12R · D 12R

2T

·

D

dc loudspeaker_en_reprint062010.indd 24dc loudspeaker_en_reprint062010.indd 24 09.07.10 12:1509.07.10 12:15

D 12 · D 12W · D 12T · D 12TW · D 12R · D 12RW

25

The 12“ DL 12 BFH high-power

transducer covers the bass and

midrange up to 1.5 kHz, whilst in

the high-frequency range, an ND-2

neodymium driver is coupled with

a large-format constant Q horn

with an 80° x 40° coverage

pattern, the integration of which

into the baffle is CAD-optimized.

As with all the D-Lite cabinets

protections by halogen bulbs,

alow for high, distortion-free peak

sound levels can be generated, and

profes-sional power amplifiers can

be used the rated outputs of which

are the same as the peak values of

the enclosures they are driving with-

out the reliability of either being

compromised.

Whether used solo as a full-range

box or in combination with passive

subwoofers, power amplifiers from

the SL or LX series are recommen-

ded, as is the PowerMate. With

its ultra-low-distortion toroidal core

transformer, the D 12T is designed

for 100 V audio networks, whilst the

D 12R is a low-impedance, weather-

resistant installation version with an

integrated PG cable.

Like the D 12, the D 12T and D 12R

are available in both black and

white. The extensive range of

optional accessories allows their

virtually unlimited use in fi xed instal-

lations or flown configurations.

dc loudspeaker_en_reprint062010.indd 25dc loudspeaker_en_reprint062010.indd 25 09.07.10 12:1609.07.10 12:16

D 12-3

26

D 12-3

FULLRANGE CABINET

DYNACORD‘s traditional and

popular 12“ / three-way concept

experiences a further dramatic

improvement in performance with

the introduction of the D 12-3.

With its voluminous bass re-

production and its uncolored,

extremely low-distortion vocal

reproduction, combined with its

transparent resolution throughout

the entire frequency range, this

lightweight full-range satellite

stands head and shoulders above

the multitude of other enclosures

on the market made from synthetic

materials. The tried-and-tested

DL 12 BFH low frequency driver,

with its high power handling,

transduces the frequency range

below 700 Hz.

The midrange is handled by an

extremely low-distortion DYNACORD

DND 6120 neodymium MF driver,

whilst a DH-3 coupled with a 90° x 50°

constant-directivity HF horn delivers

transparent reproduction of all

frequencies above 4 kHz.

Thanks to the extremely broad

(> 120°) conical dispersion

pattern in the midrange, even in

acoustically unfavorable venues

it is generally unnecessary to go

to great lengths to aim the enclo-

sures precisely at the areas to be

covered. Whether the D 12-3 is

used as a full-range box or in com-

bination with passive subwoofers

with integrated hi-cut filters, such

as the Sub 115 or Sub 118, the

PowerMate 1000 / 1600 or power

amplifiers from the SL or LX series

are the ideal partners. The Voice

Coil Tracking Protection system

combines with halogen protectors

to provide the loudspeakers with

reliable protection against thermal

overload.

The extensive range of optional acces-

sories allows virtually unlimited use

of the cabinet in fi xed installations or

flown configurations.

dc loudspeaker_en_reprint062010.indd 26dc loudspeaker_en_reprint062010.indd 26 09.07.10 12:1609.07.10 12:16

D 12-3

27

Uncolored, extremely

low-distortion vocal reproduction

dc loudspeaker_en_reprint062010.indd 27dc loudspeaker_en_reprint062010.indd 27 09.07.10 12:1609.07.10 12:16

D 15-3

28

D 15-3

FULLRANGE CABINET

15-3 designs are among the

classics of pro audio history.

With just such a design to which

an ultra-modern twist has been

added, the D 15-3 sets new standards

in the area of professional polypro-

pylene enclosures, reconciling the

highest possible sound pressure

levels, maximum power handling

and linear frequency response

with modest dimensions and

extreme lightness. Equipped with a

DYNACORD DND 15400 neodymium

loudspeaker capable of high power

handling, the D 15-3 convinces

with its powerful and natural voice

reproduction and impressive sub

bass.

For the midrange, an extremely

low-distortion DYNACORD DND

6120 neodymium loudspeaker is

used, which with its conical 120°

dispersion guarantees uncolored

reproduction of vocals and free-

dom from alignment problems. The

integration into the baffle of the

constant directivity high-frequency

horn, which has a nominal dispersion

angle of 90° x 50°, is CAD-opti-

mized, whilst the DH-3 HF driver

provides transparent reproduction

of the high frequencies.

The Voice Coil Tracking Protection

system combines with halogen

protectors to provide the loud-

speakers with reliable protection

against thermal overload. The exten-

sive range of optional accessories

allows virtually unlimited use of

the cabinet in fixed installations or

flown configurations.

In addition to delivering excellent

results in its role as a pure, full-

range box, the D 15-3 can also be

connected directly to a passive

subwoofer with an integrated

hi-cut filter, such as the Sub 118,

and run in parallel, in which case

no additional amplifier is required.

The ideal drivers for full-range or

full-range / sub combinations are

the professional power amplifiers

of the DYNACORD SL and LX se-

ries or the PowerMate.

dc loudspeaker_en_reprint062010.indd 28dc loudspeaker_en_reprint062010.indd 28 09.07.10 12:1609.07.10 12:16

D 15-3

29

15-3 DESIGNS ARE AMONG THE

CLASSICS OF PRO AUDIO HISTORY.

M

O

N

G

T

H

E

DIO HISTOR

Y

29

Y.

dc loudspeaker_en_reprint062010.indd 29dc loudspeaker_en_reprint062010.indd 29 09.07.10 12:1609.07.10 12:16

SUB 112

30

dc loudspeaker_en_reprint062010.indd 30dc loudspeaker_en_reprint062010.indd 30 09.07.10 12:1609.07.10 12:16

SUB 112

31

Sub 112

SUBWOOFER

The DYNACORD Sub 112 is a

vented, direct-radiating cabinet

equipped with a high-power

DYNACORD DND12S400 neodymium

woofer boasting power handling

of 400 W (rated) and 1600 W

(peak).

The conical vent system results in

less flow loss and lower air noise

than conventional vented designs.

High sound pressure levels are

also generated at low frequencies

with significantly less distortion

than by conventional bass reflex

vents. The Sub 112 contains a

passive low-pass filter with a slope

of 6 dB / octave. The Sub 112

can therefore be used directly in

parallel to appropriate full-range

cabinets, e.g. the DYNACORD D 8,

if extended bass reproduction is

required.

The Sub 112 cabinet is composed

of birch plywood 15 mm-thick.

All corner joints and braces are

grooved and glued. The cabinet‘s

surface is painted with a robust,

dual component lacquer finish.

The acoustic foam and powder

coated steel grille at the front

protect the DND12S400 woofer

from harm during transportation

and against the depredations of

inclement weather. The connection

panel offers two 4-pin Speakon

sockets (INPUT / THRU) for a more

secure connection and the easy daisy-

chaining of cabinets. A threaded

pole adapter is recessed in the top

of the Sub 112 cabinet for the swift

and safe pole-mounting of suitable

full-range cabinets. The cabinet is

equipped with four large rubber feet

for greater stability. Two handles on

the side make it possible to carry

the device easily and safely.

A hard-wearing protective cover is

available as an optional accessory.

dc loudspeaker_en_reprint062010.indd 31dc loudspeaker_en_reprint062010.indd 31 09.07.10 12:1609.07.10 12:16

SUB 115 AND SUB 118

32

Sub 115 and

Sub 118

SUBWOOFER

The Sub 115 is a vented direct-radiating

enclosure with an Electro-Voice EVS 15S

woofer, which offers high power handling.

As a refl ex system the High-Speed Laminar

Vent (HSLV) is used. Compared to con-

ventional bass reflex vents, airflow loss

and air noise are considerably reduced

by HSLV technology. High sound pressure

levels can be generated at low frequencies

with considerably less distortion than is

possible with conventional bass-reflex

designs.

dc loudspeaker_en_reprint062010.indd 32dc loudspeaker_en_reprint062010.indd 32 09.07.10 12:1609.07.10 12:16

SUB 115 AND SUB 118

33

D 12-3 or D 15-3, the Sub 115 and

Sub 118 are equipped with hi-cut

filters to allow their simple and un-

problematic connection in parallel

with the tops.

The Sub 115 has the same styling

and footprint as the active 3-channel

PowerSub 315 and is therefore

the ideal choice to give powerful

emphasis to the bass in active

systems.

Like almost all the loudspeakers

of the D-Lite series, the 15“ / 18“

subwoofers, too, are reliably

protected against thermal overload

by the fully electronic Voice Coil

Tracking Protection system and

halogen protectors respectively.

Extremely powerful amplifiers can

therefore be used to achieve the

widest possible dynamic range,

without any thermal overloading of

the voice coils. Instead of a disruptive

shutdown like those produced by

conventional safety circuits, VCTP

implements a gentler reining-in

of the power to safe limits („soft

switching“) whenever any overloading

occurs.

For universal use in combination

with full-range tops such as the D 12,

dc loudspeaker_en_reprint062010.indd 33dc loudspeaker_en_reprint062010.indd 33 09.07.10 12:1609.07.10 12:16

SUB 115 AND SUB 118

34

Sub 115 and

Sub 118

SUBWOOFER

Like the Sub 115, the Sub 118

is implemented as a direct-radiating

vented subwoofer with a High-

Speed Laminar Vent.

Offering extremely high power

handling (700 W RMS and 2800 W

peak power), the DYNACORD LFS

18700 low frequency driver generates

a powerful and distortion-free bass

foundation that reaches all the way

down to 30 Hz and generates sound

pressure levels as high as 132 dB.

The enclosures of both subwoofers

are made from birch multiplex with

a durable dual-component coating.

The upper bowl handle contains an

integrated M 20 screw to accom-

modate a mounting pole.

Suitably equipped full-range cabinets

can therefore be mounted direct-

ly above the subwoofers with a

consequent saving of space. The

enclosures are equipped with eight

large feet, four robust casters on

the back, and ergonomically designed

bowl handles to ensure easy trans-

portation and safe setting-up.

dc loudspeaker_en_reprint062010.indd 34dc loudspeaker_en_reprint062010.indd 34 09.07.10 12:1709.07.10 12:17

PowerSub 112

POWERED SUBWOOFER

The PowerSub 112 is the ideal

bass extension for powered

full-range cabinets such as the

D 8A.

It is very light and despite its ext-

remely compact dimensions provides

a very powerful and deep bass

foundation. The vented design gives

the PowerSub 112 a very musical,

tight and voluminous sound, quite

unlike that of the band-pass solutions

widely encountered in this product

class. The Class D power amplifi er

module delivers 200 W RMS / 400 W

IHF-A and is equipped with an inte-

grated crossover with a Mid / High

output. The polarity can be reversed

should other system components

require it.

35

POWERSUB 112

dc loudspeaker_en_reprint062010.indd 35dc loudspeaker_en_reprint062010.indd 35 09.07.10 12:1709.07.10 12:17

POWERSUB 212

36

The PowerSub 212 is an

extremely compact, high-powered

subwoofer with 2 x 12“ drivers

and a 2 x 200 W RMS / 2 x 400 W

IHF-A Class D power amplifier.

The integrated stereo crossover

also supports the creation of active

three-way systems with mono sub

and active full-range cabinets (see

System Combinations below).

The PowerSub 212 is the ideal

partner for devices like the D 8A or

D 11A and convinces with a deep

bass foundation and very high

sound pressure levels. As is the

case with the PowerSub 112, the

reproduction remains clean and

distortion-free even at the edges

of its bandwidth.

Four smooth-running casters are

provided for easier transportation.

PowerSub 212

POWERED SUBWOOFER

dc loudspeaker_en_reprint062010.indd 36dc loudspeaker_en_reprint062010.indd 36 09.07.10 12:1709.07.10 12:17

POWERSUB 312

37

The PowerSub 312 powered

12“ subwoofer, which is equipped

with an integrated three-channel

Class D power amplifier with a

total output of 1300 W / RMS,

was specially conceived to permit

the swift and simple creation of a

subwoofer satellite system.

As satellites, two passive loudspeaker

systems such as the DYNACORD

D 8 are needed. You only need to

connect them to the Speakon out-

puts provided for the purpose. The

„X-Over“ switch offers a choice of

three discrete frequencies for the

crossover between the subwoofer

and the satellites: 70 Hz, 100 Hz

and 140 Hz, whilst the „Sub Level“

control allows you to adjust the output

of the PowerSub 312 in the range

from -8 dB to +10 dB. The PowerSub

312 is made from multiplex birch

plywood and capable of withstan-

ding the toughest challenges during

transportation as well as in use.

The integrated lightweight 800 W +

2 x 250 W digital power amplifi er is

perfectly attuned in every respect

to the integrated DYNACORD DND

12S400 woofer to maximize the dy-

namic range and audio quality and

ensure that the woofer is invariably

driven within its optimum working

range.

To provide further assurance that

these operating limits are respected,

the performance is supervised by

additional protective circuitry such

as voice coil protection, DC / HF pro-

tection, audio limiters, back EMF

protection and thermal protection.

Together these ensure that even

when the most extreme demands

are placed upon the system under

the most unfavorable conditions,

the PowerSub 312 continues to

operate fl awlessly. The use of

„Class D Digital Technology“ ensures

that there is considerably less power

dissipation than in normal Class AB

designs. The thermal load on the

components is therefore markedly

reduced.

The enclosure is coated with 2K

lacquer, which is extremely scratch-

resistant and proof against rough

handling during transportation.

A robust, powder-coated steel

grille protects the woofer against

mechanical damage. All the control

elements are recessed to provide

optimal protection of the Power-

Sub 312’s most sensitive parts even

during transportation. For greater

carrying comfort, the enclosure is

furnished with two sturdy handles,

whilst an integrated threaded pole

adaptor allows you to make optimal

use of precious space on stage.

PowerSub 312

POWERED SUBWOOFER

dc loudspeaker_en_reprint062010.indd 37dc loudspeaker_en_reprint062010.indd 37 09.07.10 12:1709.07.10 12:17

POWERSUB 315

38

• active two-way Class D amplification

• 1000 W Sub + 2x 500 W Top

• switchable crossover frequencies

• High-Speed Laminar bass-refl ex design

• LFS 1008 high-power woofer

• external subwoofer output

• Voice Coil Tracking Protection

dc loudspeaker_en_reprint062010.indd 38dc loudspeaker_en_reprint062010.indd 38 09.07.10 12:1809.07.10 12:18

POWERSUB 315

PowerSub 315

POWERED SUBWOOFER

The PowerSub 315 is an

powered vented subwoofer

featuring the novel High-Speed

Laminar Vent design.

Weighing a mere 45 kg, the light-

weight enclosure accommodates

all the electronics and audio proces-

sors in addition to the switchable

stereo crossover (80 Hz / 100 Hz /

160 Hz) and four Class D power

amplifi er blocks delivering a combined

output of 2000 W.

This is the ideal centerpiece for a

high-powered satellite system.

Two bridged blocks provide the

39

integrated 15“ DYNACORD LFS

1008 subwoofer with a total of

1,000 W (RMS) / 8 Ω and 2 x 500 W

(RMS) / 4 Ω are made available to the

connected satellites.

The subwoofer level is continuously

adjustable and you can select bet-

ween three different sub / satellite

crossover frequencies ranging

from 80 Hz to 160 Hz. To provide

particularly powerful reinforcement

of the low frequency range, two

passive (e.g. DYNACORD Sub 115)

subwoofers can be driven by the

PowerSub 315. In this mode, the

integrated sub power amplifiers

are switched over from 1 x 1000 W /

8 Ω to 2 x 500 W / 4 Ω. In a fully-

expanded system, the PowerSub

315 can drive a total of four 8 Ω

satellites and an additional two

passive 8 Ω subwoofers without

any difficulty.

Packed in an extremely robust but

compact multiply birch multiplex

enclosure with castors included

in the delivery, the PowerSub 315

offers easy transport and safe

handling. An M20 threaded adapter

for a mounting pole is integrated

into the bowl handle on top of the

subwoofer.

dc loudspeaker_en_reprint062010.indd 39dc loudspeaker_en_reprint062010.indd 39 09.07.10 12:1809.07.10 12:18

D-LITE 1000

40

D-Lite 1000

SYSTEM

The D-Lite 1000 system is a

convincing answer to the central

demand of entertainers, mobile

DJs, smaller bands and other

users of mobile audio systems,

which is for a system that is as

compact as possible and as light

as possible but capable nonetheless

of delivering uncompromised

audio performance.

With a total weight of less than 45 kg

and fitting easily into the tiniest of

car boots, the D-Lite 1000 system

provides a typically well thought-out,

„It‘s a DYNACORD“ solution to a

long-felt need.

In the ultra-compact class, this

system offers exemplarily high

sound pressure levels, a substantial

long throw capability, and broad,

even coverage. At the same time, it

achieves brilliantly clear reproduction

with extremely low distortion and

therefore a very high level of intel-

ligibility – even in locations with

notoriously problematic acoustics.

A particularly convincing feature

is the exceptionally powerful bass

reproduction, which reaches all

the way down to 43 Hz.

The integrated lightweight 800 W +

2 x 250 W digital power amplifier

is perfectly tuned in every respect

to the system and also permits the

connection of two additional D 8

satellites (for example) and a passive

Sub 112 as a bass extension.

Many and various safety circuits

– such as Voice Coil Protection,

DC / HF protection, audio limiter,

back EMF protection and thermal

protection – guarantee optimum

operating security. With these charac-

teristics, the System D-Lite 1000

is also an extremely attractive

solution for many fixed installation

applications

System components:

• 2 x D 8

• 1 x PowerSub 312

dc loudspeaker_en_reprint062010.indd 40dc loudspeaker_en_reprint062010.indd 40 09.07.10 12:1809.07.10 12:18

D-LITE 2000

41

D-Lite 2000

SYSTEM

The D-Lite 2000 system has

been specially designed to meet

the various needs of solo enter-

tainers, mobile DJs and small

bands.

Easy handling — thanks to the ultra-

compact and lightweight construction

of the enclosures — and powerful,

transparent sound with loads of

headroom combine to raise the

D-Lite 2000 to the pinnacle of excel-

lence among professional satellite

systems. The basic D-Lite 2000

system, comprising a PowerSub 315

and two D 12 full-range satellites, is

designed to be easily expandable, so

you can’t go wrong when it’s time

to buy in more power. Up to four

satellites (two per side) and two

additional passive subwoofers can

be driven effi ciently and easily by

the mighty PowerSub 315. The

D-Lite 2000 system is also the ideal

solution for fi xed installation in a

wide variety of catering establish-

ments such as restaurants, cafes,

bars and pubs as well as in schools.

A comprehensive assortment of

installation hardware is available for

positioning the satellites, including

mounting yokes, wall brackets and

truss rigging gear.

te

2

000

M

System components:

• 2 x D 12

• 1 x PowerSub 315

dc loudspeaker_en_reprint062010.indd 41dc loudspeaker_en_reprint062010.indd 41 09.07.10 12:1809.07.10 12:18

ACTIVE THREE-WAY SYSTEM COMBINATIONS

42

Extremely compact self powered 3-way systems can

be set up very easily by using the powered top cabinets

together with the powered subs featuring built-in

crossovers. This configuration meets even the

highest demands of sound quality and intelligibility.

Active three-way system combinations

dc loudspeaker_en_reprint062010.indd 42dc loudspeaker_en_reprint062010.indd 42 09.07.10 12:1809.07.10 12:18

43

ACTIVE THREE-WAY SYSTEM COMBINATIONS

System components:

• 2 x D 8A

• 1 x PowerSub 212

System components:

• 2 x D 11A

• 2 x PowerSub 212

System components:

• 2 x D 8A

• 2 x PowerSub 112

D-Lite activeone, featuring one

mono double 12“ subwoofer for

smaller applications.

D-Lite activetwo, featuring two

single 12“ subwoofers for small to

mid-sized venues.

D-lite activefour, featuring two

double 12“ subwoofers for bigger

venues.

D-Lite activeone

ACTIVE THREE-WAY SYSTEM

D-Lite activetwo

ACTIVE THREE-WAY SYSTEM

D-Lite activefour

ACTIVE THREE-WAY SYSTEM

dc loudspeaker_en_reprint062010.indd 43dc loudspeaker_en_reprint062010.indd 43 09.07.10 12:1809.07.10 12:18

Accessories

D-Lite SERIES

ACCESSORIES

44

BS-35

F212

WMK-10

FB...

EBK M10

TC-TV

MB...

RMA

PM-TV

VPM 1500 / PCL 880

880

TC-02

FB-TV

SH...

TMA

PCL M10

dc loudspeaker_en_reprint062010.indd 44dc loudspeaker_en_reprint062010.indd 44 09.07.10 12:1809.07.10 12:18

ACCESSORIES

45

ACCESSORIES

Top D 8

D 8W

D 8A D 11A D 12

D 12 W

D 12T

D 12TW

D 12R

D 12RW

D 12-3 D 15-3

Color Black

White

Black Black Black

White

Black

White

Black

White

Black Black

Dust Cover SH... SH-D 8

F01U119025

SH-D 12

F01U118994

SH-D 15

F01U119006

F 212 Monitor Feet --- F01U100802 ---

MB D 8

UMH U-Bracket

MB D 8 UMH / F01U119020

MB D 8W UMH / F01U119034

--- ---

MB 212

U-Mounting Bracket

--- MB 212 / F01U100804

MB 212W / F01U100828

---

MB 312

Horiz. Cluster Plate

--- MB 312 / F01U100805

MB 312W / F01U100829

MB 112

Eyebolt-Set M 8 **

--- F01U100803

** MB 112 must only be used together with MB 212 due to safety reasons!

MB 200 UMH

U-Bracket

--- F01U120157 ---

MB 500 UMH

U-Bracket

--- --- --- --- --- --- F01U119008

FB... Flying Bracket FB-D 8

F01U119021

--- --- --- --- --- FB-D15

F01U119009

FB-TV TV-Spigot F01U100845 --- --- --- --- --- F01U100845

TC-TV

Truss > TV-Spigot

F01U100727 --- --- --- --- --- F01U100727

PM-TV

PoleMount > TV-Spigot

F01U100728 --- --- --- --- --- F01U100728

WMK-10

Wall Mount Kit

WMK-10 / F01U119022

WMK-10W / F01U119032

--- --- --- --- --- ---

TMA

Tilt angle for UMH

TMA / F01U118977

TMA W / F01U119038

RMA

Rotatable Kit for UMH

RMA / F01U118976

RMA W / F01U119039

TC-02

Truss clamp for UMH

F01U100657

PCL-M10 Pole Mount F01U100833 --- --- --- --- --- F01U100833

Speaker Stand

max. 50 kg

BS-35 / F01U141046

Sub Sub 112 Sub 115 Sub 118 PowerSub 112 PowerSub 212 PowerSub 312 PowerSub 315

Dust Cover SH... SH-SUB 112

F01U119033

SH-315

F01U118995

SH-118

F01U119007

SH-SUB 112

F01U119033

SH-PS 212

tba.

SH-SUB 112

F01U119033

SH-315

F01U118995

PCL 880

Pole Mount fi x 880mm

F01U100601

VPM 1500

Pole Mount adjustable

F01U141047

dc loudspeaker_en_reprint062010.indd 45dc loudspeaker_en_reprint062010.indd 45 09.07.10 12:1809.07.10 12:18

46

VARILINE

dc loudspeaker_en_reprint062010.indd 46dc loudspeaker_en_reprint062010.indd 46 09.07.10 12:1809.07.10 12:18

47

VARILINE

· VL 62 / VL 62W

· VL 262 / VL 262W

· VL 122

· VL 152

· VL 212

· SUB 18

· SUB 28

VariLine

dc loudspeaker_en_reprint062010.indd 47dc loudspeaker_en_reprint062010.indd 47 09.07.10 12:1809.07.10 12:18

VARILINE

48

VariLine

MULTIFUNCTIONAL SPEAKER LINE

VL 62

VL 262W

VL 62W

VL 122

VL 262

VL 152

dc loudspeaker_en_reprint062010.indd 48dc loudspeaker_en_reprint062010.indd 48 09.07.10 12:1809.07.10 12:18

VARILINE

49

Professional sound reinforcement

requires maximum performance and

high sound pressure levels for a wide

variety of touring and installation appli-

cations.

Universal loudspeaker functionality is

therefore especially important, making

it possible to react without difficulty to

changing demands. Both acoustically and

mechanically, VariLine enclosures have

VL 212 SUB 18

12

SUB 28

been designed and optimized without

compromise for multifunctional applications.

Innovative protective circuits guarantee

maximum reliability and optimal safety

for all loudspeaker components.

Engineered and made in Germany, VariLine

loudspeakers employ only the finest

components, including lightweight high-

power neodymium transducers, rotatable

CAD-optimized CD horns, fully-electronic

loudspeaker protective circuitry and

passive true-phase crossovers that ensure

linear reproduction even in critical acoustic

environments.

Comprehensive mounting and rigging ac-

cessories facilitate professional handling

and simple, secure installation of VariLine

loudspeakers. Stylish and yet visually

unobtrusive, these enclosures harmonize

with the most elegant interiors.

dc loudspeaker_en_reprint062010.indd 49dc loudspeaker_en_reprint062010.indd 49 09.07.10 12:1909.07.10 12:19

COMPONENTS

50

Components

VariLine

CROSSOVERS

Throughout the VariLine series,

only selected components of the

highest quality are used.

These include not only the cross-

overs and signal processors but

also DYNACORD‘s innovative pro-

tective circuits: the individual loud-

speaker components are safeguar-

ded from thermal overload by the

all-electronic Voice Coil Tracking

Protection system as well as halogen

protectors. VariLine loudspeakers

can therefore be driven by extre-

mely powerful amplifiers to obtain

the widest possible dynamic range

without their voice coils sustaining

damage – even when operating

errors occur. Furthermore, any

thermal overload triggers a ‚soft‘

power reduction, free from the dis-

tracting switching noise that is the

bugbear of conventional protective

circuits. The 12“ and 15“ models

offer the additional option of swit-

ching to active two-way operation.

HORNS

The large-format VariLine

constant directivity HF horns have

been optimized using advanced

CAD software and can be rotated

through 90° for horizontal applica-

tions.

As well as exemplarily low distortion,

these horns are remarkable for the

very low frequencies at which they

retain their directivity. The smaller

enclosures are equipped with

Electro-Voice DH3 titanium domes,

whilst the VL 122 and larger

models feature Electro-Voice ND6

neodymium drivers with 3“ voice

coils and 1.4“ exits. These advan-

tageous horn / driver configura-

tions provide crisp and powerful

high-resolution HF reproduction.

CONSTRUCTION

VariLine enclosures are made

from extremely rugged, multiply

birch with a dual-component

finish sufficiently resilient to

withstand the roughest of handling

on the road and on stage.

The front is protected by a sturdy

powder-coated steel grille lined

with high quality acoustic foam.

The logo can be rotated through

90° and therefore looks right whether

the enclosures are mounted verti-

cally or horizontally. The 12“ and

15“ enclosures are asymmetric,

which not only optimizes them for

fl oor monitoring but also facilitates

the creation of clusters.

dc loudspeaker_en_reprint062010.indd 50dc loudspeaker_en_reprint062010.indd 50 09.07.10 12:1909.07.10 12:19

COMPONENTS

51

LOUDSPEAKERS

VariLine loudspeakers are

equipped with extremely low-

distortion, state-of-the-art

drivers that provide not only a

linear frequency response but

also a wide dynamic range and

high power handling.

The 6“, 12“ and 15“ transducers

are armed with neodymium magnets

– which, incidentally, contributes

significantly to the exceptional

lightness of VariLine cabinets.

FLYING BRACKETS

Flying brackets are optional

accessories for precise loudspeaker

aiming at the listening areas.

In installation applications, the

bracket can be equipped with

truss clamps for flying while an

adapter enables stand mounting.

A TV spigot enables easy changing

from truss to stand mounting while

additional adapters provide maximum

flexibility for a comprehensive

range of applications.

INSTALLATION HARDWARE

A wide range of installation

hardware is available for VariLine

fullrange cabinets providing

classic three-point eyebolt

hanging, wall or ceiling bracket

mounting and, even more con-

venient, three-level adjustable

mounting.

OPTIMIZED FACTORY PRESETS INCLUDING FIR-TUNE LINEARIZATION ARE

AVAILABLE FOR DSP 600, P 64 AND PowerH AMPLIFIERS WITH RCM-26

UNDER IRIS-NET.

dc loudspeaker_en_reprint062010.indd 51dc loudspeaker_en_reprint062010.indd 51 09.07.10 12:1909.07.10 12:19

VL 62 AND VL 262

52

52

52

• top quality sound reinforcement for speech and music

• theater front fill

• multimedia applications

• satellite and delay systems

dc loudspeaker_en_reprint062010.indd 52dc loudspeaker_en_reprint062010.indd 52 09.07.10 12:1909.07.10 12:19

VL 62 AND VL 262

VL 62 and VL 262

TWO-WAY FULLRANGE CABINETS

The models VL 62 and VL 262

are extremely compact, two-way

fullrange cabinets suitable for a

wide variety of mobile and

installation applications.

Their very high sensitivity (94 dB /

97 dB @ 1 W / 1 m) and power

handling make them stand out in

their class.

Extremely low-distortion DND 6130-16

neodymium drivers transduce the

low frequencies and midrange,

while a 90° x 40° HPT94 constant

directivity horn handles everything

above. This is driven by Electro-Voice‘s

brilliant and clean DH3 titanium

dome and can be rotated easily

through 90° when the cabinets are

operated in a horizontal position.

Recessed Speakon connectors

enable the VL 62 and VL 262 to

be placed close to walls. Two M10

threaded inserts in the side of the

VL 262 are provided for the FB VL 262

bracket, which allows the cabinet

to pivot on both the vertical and

horizontal axes.

MB and MB UMH brackets can be

attached to the top or bottom using

the two M10 threaded inserts

provided, whilst four M6 threaded

inserts are provided on the back

for conventional wall-mounting

brackets.

A robust and hard-wearing, water-

repellent cover is available as an

accessory.

53

dc loudspeaker_en_reprint062010.indd 53dc loudspeaker_en_reprint062010.indd 53 09.07.10 12:1909.07.10 12:19

VL 122, VL 152 AND VL 212

54

• top quality sound reinforcement for speech and music

• high powered monitoring

• front and side fill

• club systems with subwoofers

• delay systems

VL 122, VL 152 and VL 212

HIGH-POWER TWO-WAY CABINETS

2

1

2

f

orcement

f

or speech and music

t

orin

g

u

bwoofers

VL 152 an

d

d

d

V

V

V

L

L

L

L

2

2

2

2

1

1

1

1

2

2

2

2

2

TWO-WAY CABINETS

dc loudspeaker_en_reprint062010.indd 54dc loudspeaker_en_reprint062010.indd 54 09.07.10 12:1909.07.10 12:19

VL 122, VL 152 AND VL 212

The 12“ and 15“ VariLine

models are high-power, two-way

cabinets equipped exclusively

with high-quality neodymium

components.

They are also remarkably light for

their class. Also notable are their

very high power handling capacity,

low distortion and impressive maxi-

mum SPL. Large format HF horns

with Electro-Voice ND6 drivers

provide balanced directivity well

below the crossover frequency and

clear, detailed HF reproduction.

In horizontal applications – especially

when used as monitors and in high-

quality installations – the radiation of

the midrange and higher frequencies

can be optimized by rotating the

horns.

The 12“ and 15“ models can be

used in full-range mode or switched

to active two-way operation. Their

asymmetrical enclosure design is

ideal for floor monitor use as well

as for cluster arrangements.

An extensive range of mounting

and flying hardware is available:

see page 60 - 61.

55

dc loudspeaker_en_reprint062010.indd 55dc loudspeaker_en_reprint062010.indd 55 09.07.10 12:1909.07.10 12:19

SUB 18 AND SUB 28

56

WK 600 - FOR SUB 28

WK 500 - FOR SUB18

SUB 18 and SUB 28

SUBWOOFER

The vented SUB 18 and SUB 28

direct radiators have been

designed for subwoofer use in

active multi-way systems.

The superior transient response of

the classic bass refl ex construction

also makes them suitable for medium

to large bass arrays.

The premium 700 W RMS long-

excursion woofers boast extremely

low THD, and the reliable, all-electro-

nic Voice Coil Tracking Protection

prevents thermal overload of the

100 mm sandwich voice coils.

For maximum dynamics, the Sub

models can be driven by extremely

powerful amplifiers; thermal over-

load triggers a virtually inaudible

‚soft‘ power reduction.

The 18 mm multiply birch enclo-

sures feature a rugged dual compo-

nent structured fi nish. The woofers

are protected against damage and

inclement weather by a sturdy

powder-coated steel grille lined

with high quality acoustic foam.

Wheel kits with four 100 mm

factory-assembled ‚Blue Wheels‘

are available as options.

dc loudspeaker_en_reprint062010.indd 56dc loudspeaker_en_reprint062010.indd 56 09.07.10 12:1909.07.10 12:19

SUB 18 AND SUB 28

57

These are mounted on the back

to provide easy and convenient

transport.

The SUB 28 is switchable between

1 x 4 Ω and 2 x 8 Ω operation, in

which case the signal for Subwoofer

A is on pins 1+ / 1-, and that for

Subwoofer B on pins 2+ / 2-, of the

Speakon connectors.

When driven by DYNACORD SL,

LX or PowerH series amplifiers, a

single four-pole cable connected

to Channel A is all that is needed

to drive both woofers.

dc loudspeaker_en_reprint062010.indd 57dc loudspeaker_en_reprint062010.indd 57 09.07.10 12:2009.07.10 12:20

SUB 18 AND VL 122

58

SUB 18 and VL 122

SYSTEM

OPTIMIZED FACTORY PRESETS INCLUDING

FIR-TUNE LINEARIZATION ARE AVAILABLE FOR

DSP 600, P 64 AND PowerH AMPLIFIERS WITH

RCM-26 UNDER IRIS-NET.

A combination with a high

power handling capacity in active

two- or three-way operation

providing suitable sound reinforce-

ment for small to medium-sized

venues such as bistros and clubs.

FB-VL122 flying brackets make

it possible to aim the satellites

precisely at the coverage area and

they can be pole-mounted directly

on top of the subwoofers to save

space.

As drive units, high-powered

amplifiers from LX series combined

with the DSP 600 controller or else

PowerH amplifi ers with RCM-26

modules are recommended.

dc loudspeaker_en_reprint062010.indd 58dc loudspeaker_en_reprint062010.indd 58 09.07.10 12:2009.07.10 12:20

SUB 28 AND VL 212

59

SUB 28 and VL 212

SYSTEM

A combination with a high

power handling capacity in active

two- or three-way operation.

Ideally suited to use as a front-of-

house PA system in medium-sized

venues calling for maximum sound

pressure in the low-mid frequency

range. Each loudspeaker is reliably

protected against thermal overload

by its own all-electronic Voice Coil

Tracking Protection circuit, which

makes possible the use of extre-

mely powerful power amplifiers

from DYNACORD‘s PowerH series,

such as the H 2500 or H 5000, to

OPTIMIZED FACTORY PRESETS INCLUDING FIR-TUNE LINEARIZATION ARE

AVAILABLE FOR DSP 600, P 64 AND PowerH AMPLIFIERS WITH RCM-26

UNDER IRIS-NET.

dc loudspeaker_en_reprint062010.indd 59dc loudspeaker_en_reprint062010.indd 59 09.07.10 12:2009.07.10 12:20

Accessories

VARILINE

ACCESSORIES

60

WMK-10

FB...

EBK M10

TC-TV

MB... MB UMH RMA

PM-TV TC-02

FB-TV

SH...

TMA

PCL M10

dc loudspeaker_en_reprint062010.indd 60dc loudspeaker_en_reprint062010.indd 60 09.07.10 12:2009.07.10 12:20

ACCESSORIES

61

ACCESSORIES

Top VL 62 VL 62W VL 262 VL 122 VL 152 VL 212

Color Black White Black Black Black Black

Dust Cover SH... SH-VL 62

F01U119026

SH-VL 62

F01U119026

SH-VL 262

F01U119017

SH-VL 122

F01U119018

SH-VL 152

F01U119019

SH-VL 212

F01U119028

EBK M10 EBK M10

F01U100849

EBK M10

F01U100849

EBK M10

F01U100849

EBK M10

F01U100849

EBK M10

F01U100849

EBK M10

F01U100849

WMK-10

Wall Mount Ki

WMK-10

F01U119022

WMK-10W

F01U119032

WMK-10

F01U119022

--- --- ---

MB ...

U-Mounting Bracket

MB 62

F01U119023

MB 62W

F01U119036

--- --- --- MB-VL 262

F01U119031

MB UMH

U-Bracket

--- --- MB 262 UMH

F01U119014

MB 262W UMH

F01U119037

MB 122 UMH

F01U119015

MB 152 UMH

F01U119016

TMA

Tilt angle for UMH

--- --- TMA

F01U118977

TMA W

F01U119038

TMA

F01U118977

TMA W

F01U119038

TMA

F01U118977

TMA W

F01U119038

---

RMA

Rotatable Kit for UMH

--- --- RMA

F01U118976

RMA W

F01U119039

RMA

F01U118976

RMA W

F01U119039

RMA

F01U118976

RMA W

F01U119039

---

TC-02

Truss clamp for UMH

TC-02

F01U100657

TC-02

F01U100657

TC-02

F01U100657

TC-02

F01U100657

TC-02

F01U100657

---

FB... Flying Bracket FB-VL 62

F01U119024

FB-VL 62

F01U119024

FB-VL 262

F01U119011

FB-VL 122

F01U119012

FB-VL 152

F01U119013

FB-VL 212

F01U119030

PCL M10 Pole Mount PCL M10

F01U100833

PCL M10

F01U100833

PCL M10

F01U100833

PCL M10

F01U100833

PCL M10

F01U100833

PCL M10

F01U100833

FB-TV TV-Spigot FB-TV

F01U100845

FB-TV

F01U100845

FB-TV

F01U100845

FB-TV

F01U100845

FB-TV

F01U100845

FB-TV

F01U100845

TC-TV

Truss > TV-Spigot

TC-TV

F01U100727

TC-TV

F01U100727

TC-TV

F01U100727

TC-TV

F01U100727

TC-TV

F01U100727

TC-TV

F01U100727

PM-TV

PoleMount > TV-

Spigot

PM-TV

F01U100728

PM-TV

F01U100728

PM-TV

F01U100728

PM-TV

F01U100728

PM-TV

F01U100728

PM-TV

F01U100728

dc loudspeaker_en_reprint062010.indd 61dc loudspeaker_en_reprint062010.indd 61 09.07.10 12:2009.07.10 12:20

62

MONITOR SPEAKERS

dc loudspeaker_en_reprint062010.indd 62dc loudspeaker_en_reprint062010.indd 62 09.07.10 12:2009.07.10 12:20

63

MONITOR SPEAKERS

· CXM 15 / CXM 15W

· AM 12

Monitor

Speakers

dc loudspeaker_en_reprint062010.indd 63dc loudspeaker_en_reprint062010.indd 63 09.07.10 12:2009.07.10 12:20

CXM 15 / CXM 15W

64

CXM 15 / CXM 15W

COAXIAL MONITOR SPEAKER CABINET

• Coaxial Monitor 15“ / 1.4“ 2-Way

• 102 dB SPL / 1 W / 1m

• Max. 135 dB SPL / 1 m

• Light Weight 19 kg

• Switchable to Biamp Mode

• FIR and IIR Presets available

The DYNACORD CXM 15 is a

lightweight wedge for professional

monitoring applications. The

DYNACORD DCX15450 two-way

15“ / 1.4“ transducer uses a

coaxially mounted HF unit and

can be used in passive or bi-amped

operating mode.

The acoustic crossover frequency

between the 15“ low-frequency

transducer and the 1.4“ mid-high

compression driver is at 1.2 kHz. The

slope of the built-in passive cross-

over network is 12 dB / octave.

Extremely precise vocal definition

is assured by the comparatively

low crossover frequency and the

coaxial transducer design. Power

amplifiers are connected to the

CXM 15 via Speakon NL4MPR

connectors. The pin assignment in

passive mode is 1+ / 1-. Switching

from passive mode to bi-amped

mode is performed by operation of

a slider switch. In bi-amping mode,

pins 1+ / 1- are connected to the

15“ low frequency section of the

CXM 15 and pins 2+ / 2- to the 1.4“

mid-high-frequency section.

The CXM 15 is equipped with three

Speakon sockets switched in parallel.

This simplifi es the daisy-chaining of

multiple wedges and pole-mounted

CXM 15 cabinets. The 1.4“ MF/HF

compression driver is safeguarded

against thermal overload by the

fully-electronic Voice Coil Tracking

Protection system, which exhibits

„soft“ switching characteristics,

sparing audiences the annoying

clicks and pops that are the bugbear

of conventional solutions. Both

FIR and IIR presets are available

for a wide variety of operating

modes. The CXM 15 is constructed

from birch plywood and therefore

extremely resistant to abuse on

the road. All cabinet connections

are slotted and glued. The surface

is protected by a hard-wearing

textured finish.

A powder-coated steel grille backed

by acoustic foam protects the

loudspeaker components from ac-

cidental damage. A recessed adapter

is provided to facilitate pole-moun-

ting. Handles have been integrated

into both sides of the CXM 15.

A version of the CXM 15 in white is

also available: the CXM 15W.

OPTIMIZED FACTORY PRESETS INCLUDING FIR-TUNE LINEARIZATION ARE

AVAILABLE FOR DSP 600, P 64 AND PowerH AMPLIFIERS WITH RCM-26

UNDER IRIS-NET.

dc loudspeaker_en_reprint062010.indd 64dc loudspeaker_en_reprint062010.indd 64 09.07.10 12:2009.07.10 12:20

AM 12

65

AM 12

POWERED 2-WAY CABINET

The perfect plug & play monitor

solution for a great many applications,

the AM 12 is armed with a

DYNACORD LFT 3008 12“ woofer

and a constant directivity horn for

the midrange and high frequencies.

The integrated full-range Class H

power amplifier delivers 300 W to

the Lo channel, whilst the HF amplifi er

supplies the Hi channel with

60 W. Thanks to the wide variety

of available connection and pro-

gramming options (Mic, Line and

Aux) and the possibility of expan-

ding the system through the addition

of a passive monitor box, the AM 12

is capable of functioning either as

a complete monitor system or as

a small PA as well as being suit-

able for multimedia applications.

Additional tools are offered by the

acoustic processing section: the

Lo EQ is an adjustable LPN filter to

control the punch; the Mid EQ is a

4 kHz DIP filter that can be used

to rein in the aggression of horn

sections; whilst the High EQ allows

you to increase or decrease the

brilliance according to taste.

dc loudspeaker_en_reprint062010.indd 65dc loudspeaker_en_reprint062010.indd 65 09.07.10 12:2009.07.10 12:20

66

POWERMAX 5

dc loudspeaker_en_reprint062010.indd 66dc loudspeaker_en_reprint062010.indd 66 09.07.10 12:2009.07.10 12:20

67

POWERMAX 5

· F 150

· F 8

PowerMax 5

dc loudspeaker_en_reprint062010.indd 67dc loudspeaker_en_reprint062010.indd 67 09.07.10 12:2009.07.10 12:20

POWERMAX 5

68

dc loudspeaker_en_reprint062010.indd 68dc loudspeaker_en_reprint062010.indd 68 09.07.10 12:2009.07.10 12:20

POWERMAX 5

69

The PowerMax 5 system includes

two 15” 2-way cabinets F 150, two

18“ subwoofers F 8, one system

power amplifi er PM 2600, four

system cables and two loudspeaker

stand poles, making it a ready for

operation, high-performance sound

reinforcement system in active

2-way confi guration that provides

truly powerful sound.

The system power amplifi er includes

the PowerMax controller and

provides 2 x 700 W in the bass and

2 x 600 W in the Mid / Hi range. The

system cabling ensures quick and

easy installation and highest opera-

tional reliability. Using only a single

PM 2600, it is possible to drive up

to three Mid / Hi cabinets and three

subwoofers per stereo channel.

PowerMax 5

TWO-WAY ACTIVE SYTEM

dc loudspeaker_en_reprint062010.indd 69dc loudspeaker_en_reprint062010.indd 69 09.07.10 12:2009.07.10 12:20

70

XA 2 SYSTEMS

dc loudspeaker_en_reprint062010.indd 70dc loudspeaker_en_reprint062010.indd 70 09.07.10 12:2009.07.10 12:20

71

XA 2 SYSTEMS

· FX 12

· FX 20

Xa 2 System

dc loudspeaker_en_reprint062010.indd 71dc loudspeaker_en_reprint062010.indd 71 09.07.10 12:2109.07.10 12:21

XA 2 SYSTEM

72

In a world of excess and mass

production, quality, functionality

and design remain decisive

factors. We at DYNACORD

develop and manufacture first-

class products – „Made in Germany“

– that not only supply detailed,

optimized solutions to real

problems encountered in day-to-

day practice but are a joy to use,

year after year.

In fact, achieving the highest possible

quality levels and providing full and

lasting satisfaction to our customers

are our abiding and paramount ob-

jectives: obligations that admit of no

exception. Complete audio systems

with plug & play functionality have

for many years been an indispensable

part of the DYNACORD sound rein-

forcement range. The Xa 2 system

Xa 2 System

LOUDSPEAKER SYSTEMS

FX 12 FX 20 XA 4000

set new standards in terms of audio

performance, reliability and value for

money. Where the aim is to achieve

the highest on-axis sound pressure

levels possible, fully horn-loaded

systems remain the fi rst choice.

Typical Top 40 events, city open-

air events and mobile DJ events in

which areas of up to 1,000 square

meters have to be covered with

throws of up 40 meters – these are

ideal applications for the Xa 2 sys-

tems from DYNACORD. High-quality

neodymium components, combined

with Constant Q horns and paten-

ted Planar Waveguide bass horns

deliver maximum volume levels

combined with the highest possible

audio quality. Active two-way power

amplifi ers using Class H technology

with switched-mode power supplies

and audio processors as well as all

the requisite protective circuits are

capable of driving the widest variety

of system confi gurations with abso-

lute reliability. Thanks to the VCTP

protective circuits in the cabinets

– the personal bodyguards of the

loudspeakers – the maximum dyna-

mic range is achieved along with the

highest level of reliability.

Light and easy to transport,

DYNACORD complete systems can

be set up extremely quickly thanks

in part to their clear and intuitive

system cabling. These are advanta-

ges of real practical importance. So,

too, are the time saved and peace

of mind afforded by DYNACORD‘s

extensive range of TÜV-certifi ed ac-

cessories, such as the FG 600 Flying

Grid (see Cobra), rigging ropes and

wedges that satisfy even the most

• Top 40 indoor / outdoor events

• high-powered mobile DJ events

• high quality corporate functions

• powerful speech reinforcement

• multimedia events

• theater applications

• rental

• fixed installation

dc loudspeaker_en_reprint062010.indd 72dc loudspeaker_en_reprint062010.indd 72 09.07.10 12:2109.07.10 12:21

XA 2 SYSTEM

73

OPTIMIZED FACTORY PRESETS INCLUDING FIR-TUNE LINEARIZATION ARE

AVAILABLE FOR DSP 600, P 64 AND PowerH AMPLIFIERS WITH RCM-26

UNDER IRIS-NET.

R-T

U

NE

L

L

I

I

N

N

E

E

A

A

R

R

I

I

Z

Z

A

A

TT

II

O

O

N

N

A

A

R

R

E

A

MPLIFIE

R

R

S

S

W

W

I

I

T

T

HH

R

R

C

C

M

M

-

2

2

6

6

problematic and complex rigging

requirements simply and safely. To

adapt to a multitude of very diffe-

rent sound reinforcement tasks and

venue acoustics of all descriptions,

the requisite Xa 2 components can

be confi gured swiftly and simply

without any need for complex

subwoofer but two angled tops

per side should fi t the bill. And if a

Top 40 band suddenly fi nds itself

with an audience 4,000 strong, the

same system amp is also capable of

driving three subs plus two tops as

well as additional front- or side-fi lls

without any diffi culty.

calculations, controller adjustments

or programming of limiters. If at

an open-air event extreme sound

pressure levels are required in the

sub-bass, one sub per side can be

added. If the brass brand playing in

a marquee needs extremely broad

coverage and fewer subs, a single

dc loudspeaker_en_reprint062010.indd 73dc loudspeaker_en_reprint062010.indd 73 09.07.10 12:2109.07.10 12:21

COMPONENTS

74

Components

XA 2 SYSTEM

THREADED ADAPTER

Any additional full-range cabinets

or smaller tops that may be

required as front- or side-fills can

be mounted securely on top of the

FX 20 to save space and also aimed

using the PCL 800 or VPM 1500

Threaded poles, which are available

as accessories.

CONNECTOR PANEL

If you wish to use the Xa 2 top,

the FX 12, as an individual cabinet

(e.g. to provide high-quality sound

reinforcement for the spoken

word) driven by a power amplifier

with normal pin assignments, the

connector panel offers you the

option of switching from „System“

(Pin 2+ / 2-) to „Normal“ (Pin 1+ / 1-)

and in that way revert to a standard

pin configuration.

HF UNIT

The CDH 8040-14 80°x 40°

Constant-Q HF horn with its ND 6-8

neodymium driver is responsible

for transducing frequencies above

1 kHz and is mounted coaxially in

the Conical Waveguide midrange

horn.

dc loudspeaker_en_reprint062010.indd 74dc loudspeaker_en_reprint062010.indd 74 09.07.10 12:2109.07.10 12:21

COMPONENTS

75

SUB UNIT

The Planar Waveguide Basshorn

FX 20 is armed with an Electro-Voice

heavy-duty EVX 180 B 18“ woofer.

SPECIAL ACCESSORIES

With the FG 600 Flying Grid,

which is available as an accessory,

the FX 12 can be flown safely and

swiftly from a truss or attached to

a genie (see Cobra). With the SE

600 Rigging Strap Extension and a

webbing strap, an entire wing

comprising multiple tops can be

aimed swiftly and accurately.

FLYING RAILS...

The four flying tracks that are

standard features of the FX 12

tops, in combination with the

CSST Flying Wires available as

accessories, make it easy to

suspend the cabinets safely from

trusses. Various detents are

provided, so that just the right

angle for each cabinet can be

obtained. Further cabinets can be

connected using CSSM Flying

Wires equipped with double studs.

The backs of both the FX 12 and

the FX 20 boast four robust

casters, whilst the tops are

furnished with two, and the

subwoofers with six, handles for

easier transportation and to

facilitate the safe stacking of the

cabinets.

dc loudspeaker_en_reprint062010.indd 75dc loudspeaker_en_reprint062010.indd 75 09.07.10 12:2109.07.10 12:21

FX 12

76

FX 12

2-WAY HI-POWER TOP

The FX 12 is a fully horn-loaded

and coaxial two-way, high-power

top covering a bandwidth of 100 Hz

to 19 kHz with a maximum sound

pressure level of 134 dB / 1m.

The frequency range from 1 kHz

upwards is transduced by a neody-

mium ND 6-8 driver with a 3“ voice

coil and a CDH 8040-14 Constant-Q

horn, whilst the midrange from

100 Hz to 1 kHz is the responsibi-

lity of a neodymium ND 12A driver

with a large-format conical horn.

Extremely low distortion and mini-

mal comb-filter effects whether

stacked or flown are among the

decisive advantages of conical

horns. The fully electronic Voice

Coil Tracking Protection circuitry

supervises the operating states of

the individual loudspeakers on a

permanent basis, intervening only

in the case of overload by gently

reducing the power to the speakers

(‚soft-switching‘) until a safe level

is reached. The result is the widest

possible dynamic range combined

with the highest level of operating

security.

The cabinet is made from multiply

poplar plywood covered by heavy-

duty needle-felt carpeting. The

front is securely protected by a

powder-coated metal grille backed

by acoustic foam. Handles at the

side and four large casters on the

rear facilitate handling.

Integrated flying tracks and rigging

strap attachment points are stan-

dard features. The use of four-pole

Speakon cables with system pin

assignments eliminates the risk

of accidental wiring errors when

connecting the Xa 4000 system power

amplifier or looping the signal

through to an FX 20 subwoofer.

dc loudspeaker_en_reprint062010.indd 76dc loudspeaker_en_reprint062010.indd 76 09.07.10 12:2109.07.10 12:21

FX 20

77

FX 20

PLANAR WAVEGUIDE SUB

To generate the maximum

possible sound pressure, the FX 20

subwoofer features a Planar

Waveguide bass horn and a high-

power EVX 180B 18“ woofer.

It covers a bandwidth from 30 Hz

to 150 Hz with a maximum sound

pressure level of 132 dB / 1 m.

Two of these Planar Waveguide

subwoofers deliver up to 138 dB /

1 m per side, creating an extremely

dry and deep bass foundation for

Xa 2 systems. Like the top, the

18“ woofer is securely protected

against thermal overload by the

Voice Coil Tracking Protection

system, and even extremely high

power peaks are transduced

accurately and powerfully without

compromising the dynamic range.

The cabinet is made from multiply

poplar plywood 15 mm thick cove-

red by extremely hard-wearing

needle-felt carpeting. Two FX 20

subwoofers stacked one on top

of the other reach a height of 180

cm, creating the ideal plinth for

an‚ overhead‘ stack of FX 12 tops.

Again, the use of four-pole Speakon

cables obviates the risk of wiring

errors when connecting up the

system. The Sub signal supplied by

the system power amplifier is on

Pin 1+ / 1-, and the midrange / high

frequency signal on pin 2+ / 2- is

looped through to the tops.

Four large rubber feet on the side

and the same number on the bottom

provide for safe stacking in a variety

of configurations. No fewer than

six handles and four heavy-duty

castors on the rear facilitate safe

transportation.

SYSTEM AMP

XA 4000

The Xa 4000 system amp is a two-way

(Sub-Top) power amplifier that can

either be positioned laterally – for

shorter cable runs to the cabinets – or

centrally in the rack. Only two rack

units in height and weighing a mere

8.25 kg, this Class H power amplifier

is equipped with a switch-mode power

supply of the latest generation. It out-

puts 1,100 W in the Sub and 900 W

in the Top channel – in each case into

4 Ω. Up to three tops and three sub-

woofers, however, can be driven reliably

and economically by a single amp. All

the requisite signal processing including

the equalization, LPN filter, low-cut filter

and active crossover, with its crossover

frequency of 140 Hz with 18 dB / octave

in a modified Butterworth structure, is

on board. From the front panel, the level

of the Sub and Top channels can be set

individually to allow optimization of the

system to the geometry and acoustics of

the room.

dc loudspeaker_en_reprint062010.indd 77dc loudspeaker_en_reprint062010.indd 77 09.07.10 12:2109.07.10 12:21

78

COBRA SYSTEM

dc loudspeaker_en_reprint062010.indd 78dc loudspeaker_en_reprint062010.indd 78 09.07.10 12:2109.07.10 12:21

79

COBRA SYSTEM

· Cobra-Top

· Cobra-Sub

· Cobra-4 Top

· Cobra-4 Far

· Cobra-PWH

· PWH 28

· Cobra-2 System

· Cobra-4 System

Cobra System

dc loudspeaker_en_reprint062010.indd 79dc loudspeaker_en_reprint062010.indd 79 09.07.10 12:2109.07.10 12:21

COBRA-4 FAR

System Components

COBRA COMPACT LINE-ARRAY SYSTEM

In the events sound reinforcement

business, among rental companies

and in professional concert sound

applications, two quite different

loudspeaker concepts have secured

their own niches: horn-loaded

systems, which are notable for

their high degree of effi ciency, and

line-array systems, which are

notable for their precisely defi ned

coverage patterns.

In the rock ‘n‘ roll business in

particular, but more generally in

any sound reinforcement context

in which the emphasis is primarily

upon obtaining very high sound pres-

sure levels, horn-loaded systems con-

tinue to be the ‚weapons of choice‘.

When multiple mid-high cabinets

are used, however, it is physically

impos-sible to eliminate altogether

the comb fi lter effects that result

from the less than optimal addition of

the sound waves radiating from each

cabinet. In more demanding concert

sound applications, therefore, in

SYSTEM COMPONENTS

80

COBRA-TOP COBRA-SUB

dc loudspeaker_en_reprint062010.indd 80dc loudspeaker_en_reprint062010.indd 80 09.07.10 12:2109.07.10 12:21

COBRA-PWH PWH 28

SYSTEM COMPONENTS

81

COBRA-4 TOP

which far more is expected in terms

of sound quality, line arrays have

established for themselves a secure

position in the market. Thanks to the

extremely wide horizontal radiation

pattern of line arrays, combined

with their shallow and precisely

defi ned vertical focus, the unwanted

projection of sound waves onto

ceilings and fl oors can be avoided,

and, with it, the interference their

refl ection from such surfaces would

otherwise cause. Conventional line

arrays on the market, however, are

mostly conceived exclusively as large-

scale, ‚fl ying‘ sound reinforcement

systems, and despite their advantages

in terms of quality cannot always be

used for medium-sized events with-

out quite considerable expense. In

the Cobra-2 and Cobra-4 compact

line-array systems, DYNACORD is

offering a solution optimized in

practice even for those applications

that cannot economically be served

by conventional, large-scale line

arrays. The compact and easy to

handle DYNACORD Cobra systems

in ‚fl own‘ but also in ‚stacked‘

confi gurations also make line-array

performance available for the vast

majority of those frequently encounte-

red ‚bread and butter‘ events that

take place typically in town halls,

marquees or in cities in the open air.

Reliability and operational security

at the highest level are guaranteed

with the Cobra systems, to which

the Voice Coil Tracking Protection

(VCTP) to be found in each Cobra

cabinet, serving as the personal

bodyguard of each loudspeaker

chassis, makes a valuable contribu-

tion. The fully-electronic VCPT

safety circuit monitors on a perma-

nent basis the thermal operating

state of the individual loudspeakers

and ensures, in the event only of

overload, that the power driving it is

„gently“ reduced until a safe value

is reached. The result is the widest

possible dynamic range combined

with the maximum possible degree

of operating security.

dc loudspeaker_en_reprint062010.indd 81dc loudspeaker_en_reprint062010.indd 81 09.07.10 12:2109.07.10 12:21

SYSTEM DRIVES

82

AS A RESULT OF THE HIGH SOUND PRESSURE LEVELS THEY GENERATE,

THEIR OUTSTANDING COVERAGE AND THEIR SCALABILITY, COBRA-2 AND

COBRA-4 SYSTEMS CAN BE USED IN A WIDE VARIETY OF CONTEXTS...

CITY OPEN AIR EVENT

GALA EVENT

CITY FESTIVAL

LARGE HIP-HOP OPEN AIR

OPEN AIR FESTIVAL

MEGA DISCO

dc loudspeaker_en_reprint062010.indd 82dc loudspeaker_en_reprint062010.indd 82 09.07.10 12:2109.07.10 12:21

FIR TUNE SYSTEM DRIVES

83

For the various systems,

specific preconfigured‚system

drives‘ are available, which in

their maximum configuration with

PowerH power amplifi ers or DSP 600

or a P 64 matrix under IRIS-Net

include even remote supervision

and control, and DSP presets with

FIR filter linearization.

To simplify setting up the system,

IRIS-Net contains standard

project files. These project files

make tuning Cobra systems swift

and intuitive, since they already

contain all the crossover and FIR

equalization functions needed –

though these can, if desired, also

be edited by the user. The result

of the FIR equalization is absolu-

tely linear frequency and phase

response throughout the system.

This provides the ideal starting

point from which the FOH engineer

can proceed at once to the task of

tuning the system to the acoustics

of the venue – whether in- or out-

of-doors.

FIR Tune System Drives

FOR COMPACT-LINE-ARRAY SYSTEMS

SIGNAL FLOW IN CONTROLLER

FIR-LINEARISATION COBRA-4 FAR

IRIS-NET

dc loudspeaker_en_reprint062010.indd 83dc loudspeaker_en_reprint062010.indd 83 09.07.10 12:2109.07.10 12:21

SYSTEM COMPONENTS

84

COBRA-TOP

The flyable passive three-way

FULL-RANGE / MID-HIGH compo-

nent in the Cobra-2 system. Armed

with a 15“ Electro-Voice EVX155

speaker for the low frequency ran-

ge, a coaxial midrange line-array

composed of four C8 conical mid-

range drivers, and a DH 2T titanium

driver with a CD horn for the high

frequency range.

COBRA-4 TOP

The fl yable active three-way MID-HIGH

component in the Cobra-4 system.

Armed with a 15“ Electro-Voice EVX

155 speaker for the low frequency

range, a coaxial midrange line-array

composed of four C 8 conical midrange

drivers and a DH 2T radiating into a CD

horn for the high frequency range.

dc loudspeaker_en_reprint062010.indd 84dc loudspeaker_en_reprint062010.indd 84 09.07.10 12:2109.07.10 12:21

SYSTEM COMPONENTS

85

COBRA-SUB

Flyable subwoofer with a bass-refl ex

design armed with an Electro-Voice

18“ EVX 180 B driver. With grooves

to enhance stacking stability and

four ANCRA flying tracks for flown

sub-arrays included in the delivery.

dc loudspeaker_en_reprint062010.indd 85dc loudspeaker_en_reprint062010.indd 85 09.07.10 12:2109.07.10 12:21

SYSTEM COMPONENTS

86

COBRA-4 FAR

The flyable active three-way far-

field MID-HIGH component in the

Cobra-4 system. Identically equip-

ped in the low and midrange to

the Cobra-4 top but featuring a 5°

vertical high frequency line array,

composed of three Electro-Voice

DH 2T titanium drivers with an HF

waveguide horn.

PWH 28

1,400 W planar-waveguide-horn-

loaded, high-power sub-woofer

equipped with 2 x 18“ LFS 18700

transducers for very high sound

pressure levels and long throws in

Cobra-4 systems.

dc loudspeaker_en_reprint062010.indd 86dc loudspeaker_en_reprint062010.indd 86 09.07.10 12:2109.07.10 12:21

SYSTEM COMPONENTS

87

COBRA-PWH

A planar waveguide horn subwoofer

armed with an Electro-Voice 18“

EVX 180 B driver for bass repro-

duction in the Cobra-2 and Cobra-4

systems that is particularly powerful

and carries especially far.

dc loudspeaker_en_reprint062010.indd 87dc loudspeaker_en_reprint062010.indd 87 09.07.10 12:2109.07.10 12:21

RIGGING ACCESSORIES

06

05

02

88

The FG 600 Flying Grid is

suitable for all the cabinets in the

Cobra (and FX) series that are

equipped with airline profiles for

rigging.

The complete fl ight system consists

of the FG 600 Flying Grid and the

SE-600 Strap Extension. Each of

these accessory items is supplied

with undetachable logging pins

making assembly possible without

the use of tools. The maximum

load with a safety factor of 12 is

460 kg. With large loudspeaker

constellations it is sometimes

necessary to brace the array from

behind. With the SE-600 Strap Ex-

tension, which can be inserted at

the rear and secured with spherical

locking pins, it is possible to align

the entire wing.

dc loudspeaker_en_reprint062010.indd 88dc loudspeaker_en_reprint062010.indd 88 09.07.10 12:2209.07.10 12:22

RIGGING ACCESSORIES

89

07

01

08

03

09

Rigging Accessories

CSW 25 - Wedge Set (2 x Wedge 2,5°)

WS-04 - Webbing Strap 4 m (1-3 Cabinets)

WS-08 - Webbing Strap 8 m (4-8 Cabinets)

07

0208

09

TC-04 - Truss Clamp, 2“, M12 Ring Nut

FG 600 - Flying Grid, TÜV approved

SE 600 - Strap Extension for FG 600

CSSG - Cobra System Strap Grid

(without picture)

CSST - Rigging Strap (Truss > Cabinet)

CSSM - Rigging Strap (Cabinet > Cabinet)

01

02

03

04

05

06

dc loudspeaker_en_reprint062010.indd 89dc loudspeaker_en_reprint062010.indd 89 09.07.10 12:2209.07.10 12:22

SYSTEM RACKS

90

System Racks

90

dc loudspeaker_en_reprint062010.indd 90dc loudspeaker_en_reprint062010.indd 90 09.07.10 12:2209.07.10 12:22

SYSTEM RACKS

91

Factory-assembled System Racks are available

with DSP controller, power amplifi ers and an AF

panel as well as an AC panel mounted at the rear with

a 32 A power supply connector.

Naturally the racks can be configured freely to suit

the application or the requirements of the customer –

typically through the inclusion of LX or PowerH power

amplifiers (optionally with RCM-26 DSP modules),

DSP 260, DSP 600 or P 64 controllers, and any of a

variety of different connector panels.

ICP-48

ICP-88

ICP-44

CP-48

AC 232

dc loudspeaker_en_reprint062010.indd 91dc loudspeaker_en_reprint062010.indd 91 09.07.10 12:2209.07.10 12:22

COBRA-2 SYSTEM

92

The Cobra-2 system is designed

to provide high-quality sound

reinforcement for events in small

to medium-sized marquees or

halls covering distances of up to

40 meters and areas up to 1,000

square meters.

The system produces a maximum

sound pressure level of 137 dB L

and 137 dB R in the mid / high fre-

quency range and up to 141 dB in

the bass. In its basic confi guration,

the Cobra-2 system comprises four

Cobra-Top mid / high cabinets,

four Cobra-Sub subwoofers, a

ready-wired and pre-programmed

system amp rack and the requisite

4-pin loudspeaker system cables

along with a set of wedges (two

2.5° wedges that can be used either

side) that make it possible to aim

the Cobra-Top cabinet to suit the

Cobra-2

COMPACT LINE-ARRAY ACTIVE 2-WAY SYSTEM

area to be covered. The system

amp racks are easily capable of

driving up to six Cobra-Top and/

or six Cobra-Sub cabinets. If it is

desired to expand the system, the

amp rack is capable of accommo-

dating additional power amplifiers

(bass extension, front- / side-fills

or monitors) as well as supplying

them with the requisite power via

the AC connector panel.

The maximum Cobra-2 confi guration

that makes sense comprises two

Cobra-2 systems per side (four

Cobra-Tops and four to six Cobra-

Subs per side). Since, however,

doubling the number of stacked or

flown Cobra-Top cabinets results

in a halving of the vertical co-

verage angle, particular attention

must be paid in such cases to the

aiming of the cabinets in the wing

or stack. A single Cobra-Top has

a (horizontal x vertical) coverage

pattern of 120° x 30°; this is reduced

to 120° x 15° if a second, and to

120° x 7.5° if a third, Cobra-Top is

added to the stack. When ground-

stacked, the Cobra-Top cabinets

can be aimed with precision at

the area to be covered through

the use of the 2.5° wedges that

are supplied as standard. If added

pressure or projection is needed in

the bass, whether due to the style

of music or to the acoustics of the

venue, Cobra-2 systems can also

be armed with Cobra-PWH bass

horns.

With two PWH cabinets (or three

Cobra-Subs) superposed, you obtain

a plinth the ideal height (180 cm)

for ground-stacking the Cobra-Top

cabinets on.

dc loudspeaker_en_reprint062010.indd 92dc loudspeaker_en_reprint062010.indd 92 09.07.10 12:2209.07.10 12:22

COBRA-2 SYSTEM

93

OPTIMIZED FACTORY PRESETS INCLUDING FIR-TUNE LINEARIZATION ARE

AVAILABLE FOR DSP 600, P 64 AND PowerH AMPLIFIERS WITH RCM-26

UNDER IRIS-NET

dc loudspeaker_en_reprint062010.indd 93dc loudspeaker_en_reprint062010.indd 93 09.07.10 12:2209.07.10 12:22

COBRA-4 SYSTEM

The active 4-way Cobra-4

System in its standard confi guration

is designed for throws of up to 80

meters in medium-sized marquees,

halls and open-air venues.

It is capable of generating at a

FOH position 30 meters distant a

sound pressure level of 110 dB in

the mid-high frequency range and

120 dB in the bass – exactly what

the typical Top 40 band requires.

Through the use of two Cobra-4

Tops and one Cobra-4 Far, opti-

mum line-array performance can

be obtained even from a typical

Cobra-4

COMPACT LINE-ARRAY ACTIVE 4-WAY SYSTEM

EASE FOCUS

A very wide variety of configurations can be mechanically simulated and

checked acoustically as early as the planning stage using the software

application EASE Focus. After download of EASE Focus from DYNACORD

web site, you can consult all the electrical and mechanical specifications of

the Cobra cabinets and also calculate automatically the optimal suspension

points of the grid for different loads and rigging angles.

94

OPTIMIZED FACTORY PRESETS INCLUDING FIR-TUNE

LINEARIZATION ARE AVAILABLE FOR DSP 600,

P 64 AND PowerH AMPLIFIERS WITH RCM-26

UNDER IRIS-NET

stacked configuration without

time-consuming adjustments. For

large distances, the top position in

the stack is reserved for a Cobra-4

Far unit, which has a coverage

pattern of 90° (horizontally) and

5° (vertically) in the high frequen-

cy range.

For the low frequency and midrange,

the same components are used

as in the Cobra-4 Top, providing

the ideal extension for the low-

and midrange line array. In all,

eight Cobra-PWH bass horns are

needed to generate the pressure

and projection in the bass region

required by typical Top 40 bands.

Depending upon the geometry of

the room, these can be stacked

or arranged as a horizontal bass

array.

The Cobra-4 System can be driven

either by ready-wired and pre-pro-

grammed amp racks, comprising

a controller, power amplifiers and

AF- and AC connector panels, or by

individual (user-configured) racks.

When PowerH power amplifiers are

used in conjunction with RCM-26

modules, advantage can be taken

of FIR-linearized presets.

dc loudspeaker_en_reprint062010.indd 94dc loudspeaker_en_reprint062010.indd 94 09.07.10 12:2209.07.10 12:22

COBRA-4 SYSTEM

95

dc loudspeaker_en_reprint062010.indd 95dc loudspeaker_en_reprint062010.indd 95 09.07.10 12:2209.07.10 12:22

96

ALPHA SYSTEMS

dc loudspeaker_en_reprint062010.indd 96dc loudspeaker_en_reprint062010.indd 96 09.07.10 12:2209.07.10 12:22

97

ALPHA SYSTEMS

· X-1

· B-3

Alpha System

dc loudspeaker_en_reprint062010.indd 97dc loudspeaker_en_reprint062010.indd 97 09.07.10 12:2209.07.10 12:22

ALPHA X-1 AND ALPHA B-3

Alpha B-3

2 x 18” PWH SUBWOOFER-SYSTEM

The Alpha B-3 system is a 2 x 18“

PWH subwoofer system employing

Planar Waveguide technology.

A PWH horn is a planar waveguide

horn with a Helmholtz resonator

placed inside the wave guide. The

resulting 6 to 7 dB gain in SPL

in the low frequency range is a

product of the interaction between

the resonance of the waveguide

and that of the Helmholtz resonator.

At the same time, the design of the

PWH subwoofer is such as to limit

the cone‘s excursion, protecting

the diaphragm and guaranteeing

outstandingly accurate impulse

reproduction, a very wide dynamic

range, extremely low distortion,

and prolonged reliable operation.

alpha B-3 systems offer directi-

vity in the low-frequency range

down to 30 Hz. They combine the

advantages of both direct-radiating

and horn-loaded systems, and –

thanks to their unique design – are

markedly superior to conventional

solutions.

Dynamic protections safeguard the

two 18“ speakers reliably against

critical power levels as well as

short-term thermal overload.

What was designed without

compromise remains free from

compromise: in their almost

fifteen-year history, Alpha

systems have never tasted defeat;

and their triumphant progress

continues apace, with successful

installations all over the globe.

SYSTEM DRIVES

To drive the system, we recommend

high-performance power ampli-

fiers from DYNACORD‘s PowerH

series equipped with the RCM-26

Digital FIR Controller. Naturally,

optimized settings (including FIR

filter linearization) are available

for alpha systems too through the

use of IRIS-Net software.

The Alpha X-1 system is a

horn-loaded, three-way loudspeaker

system.

The two vented 15“ loudspeakers

combine with a conical short horn

to deliver extremely precise and

punchy midrange and low frequen-

cy reproduction that extends right

down to 80 Hz and beyond. The 2“

high-performance driver with its

Alpha X-1

HORN-LOADED THREE-WAY HI-POWER LOUDSPEAKER SYSTEM

True Constant Directivity horn

(90° x 40° or 60° x 40°, according

to choice) offers in the range from

800 Hz to 8 kHz truly dynamic mid-

high reproduction, rich in presence.

The brilliant high-frequency repro-

duction of the 90° and 60° horns is

ensured by a pair of diffraction or

ring radiators respectively. The Alpha

X-1‘s trapezoidal cabinet design

facilitates the formation of multiple-

component clusters. The Alpha X-1

can be driven in active two-way or

active three-way mode, according to

choice. But whichever mode is se-

lected, every loudspeaker chassis is

reliably protected by thermal circuit

breakers or halogen lamps against

critical power levels as well as short-

term thermal overload.

98

Their legend lies not only in their

extreme reliability but also in their

extraordinarily clean (and giganti-

cally powerful!) sound.

Alpha systems are to be found

in the most up-market, the most

fashionable and the most popular

clubs and discotheques in Las Vegas,

Miami and New York, throughout

Asia and the Middle East, and, of

course, also in Europe. The Alpha

guarantees a club enthusiastic

guests, thereby ensuring a sure

and swift return on its investment.

dc loudspeaker_en_reprint062010.indd 98dc loudspeaker_en_reprint062010.indd 98 09.07.10 12:2209.07.10 12:22

ALPHA X-1 AND ALPHA B-3

99

dc loudspeaker_en_reprint062010.indd 99dc loudspeaker_en_reprint062010.indd 99 09.07.10 12:2309.07.10 12:23

TECHNICAL SPECIFICATIONS

100

D-Lite SERIES

Type / Name D 8 / D 8W D 8A D 11A D 12 / D 12W

Cabinet Fullrange Fullrange Fullrange Fullrange

Confi guration Passive 2-Way Powered

2-Way

Powered

2-Way

Passive 2-Way

Components 8“ / 1“ 8“ / 1“ 12“ / 1“ 12“ / 1“

Impedance 8 Ohms --- --- 8 Ohms

Rated Power RMS 250 W 200 W HF

200 W LF

200 W HF

200 W LF

300 W

Peak Power 1000 W --- --- 1200 W

Max. Amplifi er

Output Capability

--- 800 W 800 W ---

SPL 1 W / 1 m 94 dB --- --- 98 dB

Max. SPL 1 m / calc. 124 dB 123 dB 126 dB 129 dB

Freq. Range 65 Hz - 18 kHz 56 Hz - 20 kHz 48 Hz - 20 kHz 70 Hz - 18 kHz

Coverage (H x V) 90° x 90° 90° x 90° 80° x 40° 80° x 40°

Dimensions

(W x H x D) mm

282 x 442 x 259 282 x 442 x 259 430 x 586 x 321 430 x 586 x 321

Net. Weight 8.8 kg 9.0 kg 15.3 kg 16 kg

Accessories page 44 - 45 page 44 - 45 page 44 - 45 page 44 - 45

D-Lite SERIES

Type / Name D 12T / D 12TW D 12R / D 12RW D 12-3 D 15-3

Cabinet Fullrange Fullrange Fullrange Fullrange

Confi guration Passive 2-Way

100V Transformer

Passive 2-Way

Weatherproof

Passive 3-Way Passive 3-Way

Components 12“ / 1“ 12“ / 1“ 12“ / 6“ / 1“ 15“ / 6“ / 1“

Impedance 33 / 66 / 133 Ohms 8 Ohms 8 Ohms 8 Ohms

Rated Power RMS 300 / 150 / 75 W 300 W 350 W 500 W

Peak Power 1200 W 1200 W 1400 W 2000 W

SPL 1 W / 1 m 98 dB 98 dB 100 dB 100 dB

Max. SPL 1 m / calc. 129 dB 129 dB 131 dB 133 dB

Freq. Range 70 Hz - 18 kHz 70 Hz - 18 kHz 70 Hz - 20 kHz 50 Hz - 20 kHz

Coverage (H x V) 80° x 40° 80° x 40° 90° x 50° 90° x 50°

Dimensions

(W x H x D) mm

430 x 586 x 321 430 x 586 x 321 430 x 586 x 321 447 x 686 x 413

Net. Weight 18.6 kg 16.2 kg 19 kg 24 kg

Accessories page 44 - 45 page 44 - 45 page 44 - 45 page 44 - 45

D-Lite SERIES TECHNICAL SPECIFICATIONS

dc loudspeaker_en_reprint062010.indd 100dc loudspeaker_en_reprint062010.indd 100 09.07.10 12:2309.07.10 12:23

TECHNICAL SPECIFICATIONS

101

D-Lite SERIES

Type / Name Sub 112 Sub 115 Sub 118

Cabinet Subwoofer Subwoofer Subwoofer

Confi guration Vented -

Direct Radiator

Vented -

Direct Radiator

Vented -

Direct Radiator

Components 1 x 12“ 1 x 15“ 1 x 18“

Impedance 8 Ohms 8 Ohms 8 Ohms

Rated Power RMS 400 W 400 W 700 W

Peak Power 1600 W 1600 W 2800 W

SPL 1 W / 1 m 92 dB 99 dB 98 dB

Max. SPL 1 m / calc. 124 dB 131 dB 132 dB

Freq. Range 43 Hz - 350 Hz

(internal Hi-Cut)

55 Hz - 320 Hz

(internal Hi-Cut)

30 Hz - 300 Hz

(internal Hi-Cut)

Dimensions

(W x H x D) mm

445 x 380 x 445 464 x 601 x 660 547 x 724 x 658

Net. Weight 20 kg 34 kg 50 kg

Accessories page 44 - 45 page 44 - 45 page 44 - 45

D-Lite SERIES

Type / Name PowerSub 112 PowerSub 212 PowerSub 312 PowerSub 315

Cabinet Subwoofer Subwoofer Subwoofer Subwoofer

Confi guration Powered

1-Channel

Powered

1-Channel

Powered

3-Channel

Powered

3-Channel

Components 1 x 12“ 2 x 12“ 1 x 12“ 1 x 15“

Rated Power RMS 200 W 400 W 2 x 250 W MH

1 x 800 W LF

2 x 500 W MH

1 x 1000 W LF

Max. Amplifi er

Output Capability

400 W 800 W 1800 W 2000 W

Max. SPL 1 m / calc. 121 dB 127 dB 123 dB 129 dB

Freq. Range 40 Hz - 130 Hz 40 Hz - 130 Hz 44 Hz - 130 Hz 34 Hz - 160 Hz

Dimensions

(W x H x D) mm

445 x 380 x 445 445 x 755 x 445 445 x 380 x 445 464 x 601 x 660

Net. Weight 20 kg 39.5 kg 22.5 kg 45 kg

Accessories page 44 - 45 page 44 - 45 page 44 - 45 page 44 - 45

dc loudspeaker_en_reprint062010.indd 101dc loudspeaker_en_reprint062010.indd 101 09.07.10 12:2309.07.10 12:23

TECHNICAL SPECIFICATIONS

102

VariLine TECHNICAL SPECIFICATIONS

VariLine

Type / Name VL 62 / VL 62W VL 262 / VL 262W VL 122 VL 152 VL 212

Cabinet Fullrange Fullrange Fullrange Fullrange Fullrange

Confi guration Passive 2-Way Passive 2-Way Passive 2-Way

or Active 2-Way

Passive 2-Way

or Active 2-Way

Passive 2-Way

or Active 2-Way

Components 1 x 6“ / 1“ 2 x 6“ / 1“ 1 x 12“ / 1.4“ 1 x 15“ / 1.4“ 2 x 12“ / 1.4“

Impedance 16 Ohms 8 Ohms 8 Ohms 8 Ohms 4 Ohms

Rated Power RMS 150 W 300 W 400 W 500 W 800 W

Peak Power 600 W 1200 W 1600 W 2000 W 3200 W

SPL 1 W / 1 m 94 dB 97 dB 99 dB 100 dB 102 dB

Max. SPL 1 m / calc. 122 dB 128 dB 131 dB 133 dB 137 dB

Freq. Range 90 Hz - 20 kHz 90 Hz - 20 kHz 60 Hz - 20 kHz 50 Hz - 20 kHz 80 Hz - 20 kHz

Coverage (H x V) 90° x 40° 90° x 40° 90° x 45° 90° x 45° 90° x 45°

Dimensions

(W x H x D) mm

217 x 375 x 230 217 x 543 x 230 385 x 715 x 374 441 x 780 x 407 385 x 1035 x 374

Net. Weight 8 kg 10 kg 24 kg 26 kg 34 kg

Accessories page 60 - 61 page 60 - 61 page 60 - 61 page 60 - 61 page 60 - 61

VariLine

Type / Name SUB 18 SUB 28

Cabinet Subwoofer Subwoofer

Confi guration Vented -

Direct Radiator

Vented -

Direct Radiator

Components 1 x 18“ 2 x 18“

Impedance 8 Ohms 4 Ohms

Rated Power RMS 700 W 1400 W

Peak Power 2800 W 5600 W

SPL 1 W / 1 m 98 dB 101 dB

Max. SPL 1 m / calc. 132 dB 138 dB

Freq. Range 35 Hz - 700 Hz 35 Hz - 700 Hz

Dimensions

(W x H x D) mm

505 x 805 x 570 605 x 1205 x 675

Net. Weight 49 kg 82 kg

Accessories page 60 - 61 page 60 - 61

dc loudspeaker_en_reprint062010.indd 102dc loudspeaker_en_reprint062010.indd 102 09.07.10 12:2309.07.10 12:23

TECHNICAL SPECIFICATIONS

103

AM 12 TECHNICAL SPECIFICATIONS

CXM 15 / CXM 15W TECHNICAL SPECIFICATIONS

CXM 15 / CXM 15W

Type / Name CXM 15 CXM 15W

Cabinet Coaxial Monitor Coaxial Monitor

Confi guration Passive 2-Way

or Active 2-Way

Passive 2-Way

or Active 2-Way

Components 15“ / 1.4“ 15“ / 1.4“

Impedance 8 Ohms 8 Ohms

Rated Power RMS 450 W 450 W

Peak Power 1800 W 1800 W

SPL 1 W / 1 m 102 dB 102 dB

Max. SPL 1 m / calc. 135 dB 135 dB

Freq. Range 100 Hz - 18 kHz 100 Hz - 18 kHz

Coverage (H x V) 60° x 60° 60° x 60°

Dimensions

(W x H x D) mm

600 x 334 x 412 600 x 334 x 412

Net. Weight 19 kg 19 kg

AM 12

Type / Name AM 12

Cabinet Monitor

Confi guration Powered 2-Way

Components 12“ / 1“

Rated Power RMS 40 W HF

250 W LF

Max. Amplifi er

Output Capability

510 W

Max. SPL 1 m / calc. 125 dB

Freq. Range 80 Hz - 18 kHz

Coverage (H x V) 90° x 40°

Dimensions

(W x H x D) mm

531 x 355 x 344

Net. Weight 21 kg

dc loudspeaker_en_reprint062010.indd 103dc loudspeaker_en_reprint062010.indd 103 09.07.10 12:2309.07.10 12:23

TECHNICAL SPECIFICATIONS

104

Xa 2 SYSTEM TECHNICAL SPECIFICATIONS

PowerMax 5 TECHNICAL SPECIFICATIONS

PowerMax 5

Type / Name F 150 F 8

Cabinet Fullrange Subwoofer

Confi guration Passive 2-Way Vented -

Direct Radiator

Components 15“ / 1“ 1 x 18“

Impedance 8 Ohms 8 Ohms

Rated Power RMS 400 W 500 W

Peak Power 800 W 1000 W

SPL 1 W / 1 m 102 dB 100 dB

Max. SPL 1 m / calc. 131 dB 130 dB

Freq. Range 70 Hz - 18 kHz 40 Hz - 300 Hz

(internal Hi - Cut)

Coverage (H x V) 90° x 40° ---

Dimensions

(W x H x D) mm

522 x 755 x 395 522 x 737 x 674

Net. Weight 26.5 kg 38 kg

Xa 2 SYSTEM

Type / Name FX 12 FX 20

Cabinet Mid - High Subwoofer

Confi guration Passive 2-Way

Horn loaded

Planar

Wave-guide Horn

Components 12“ / 1.4“ 1 x 18“

Impedance 8 Ohms 8 Ohms

Rated Power RMS 350 W 600 W

Peak Power 700 W 1200 W

SPL 1 W / 1 m 106 dB 101 dB

Max. SPL 1 m / calc. 134 dB 132 dB

Freq. Range 120 Hz - 19 kHz 30 Hz - 150 Hz

Coverage (H x V) 80° x 40° ---

Dimensions

(W x H x D) mm

600 x 610 x 814 600 x 905 x 814

Net. Weight 48 kg 47.5 kg

dc loudspeaker_en_reprint062010.indd 104dc loudspeaker_en_reprint062010.indd 104 09.07.10 12:2309.07.10 12:23

TECHNICAL SPECIFICATIONS

105

Alpha SYSTEM TECHNICAL SPECIFICATIONS

Cobra SYSTEM TECHNICAL SPECIFICATIONS

Cobra SYSTEM

Type / Name Cobra-Top Cobra-4 Top Cobra-4 Far Cobra-Sub Cobra-PWH PWH 28

Cabinet Fullrange Fullrange Fullrange Subwoofer Subwoofer Subwoofer

Confi guration Passive 3-Way Active 3-Way Active 3-Way Vented -

Direct Radiator

Planar

Wave-guide Horn

Planar

Wave-guide Horn

Components 15“ / 4 x 4“ / 1“ 15“ / 4 x 4“ / 1“ 15“ / 4 x 4“ / 3 x 1“ 1 x 18“ 1 x 18“ 2 x 18“

Impedance 8 Ohms 8 - 8 - 8 Ohms 8 - 8 - 8 Ohms 8 Ohms 8 Ohms 4 Ohms

Rated Power RMS 600 W 400 - 200 - 100 W 400 - 200 - 200 W 600 W 600 W 1400 W

Peak Power 1200 W 800 - 400 - 200 W 800 - 400 - 400 W 1200 W 1200 W 5600 W

SPL 1 W / 1 m 100 dB 100 dB 100 dB 98 dB 101 dB 103 dB

Max. SPL 1 m / calc. 131 dB 131 dB 131 dB 129 dB 132 dB 140 dB

Freq. Range 50 Hz - 15 kHz 50 Hz - 17 kHz 50 Hz - 17 kHz 30 Hz - 170 Hz 30 Hz - 150 Hz 33 Hz - 2 kHz

Coverage (H x V) 90° x 40° 90° x 40° 90° x 5° (HF) --- --- ---

Dimensions

(W x H x D) mm

600 x 495 x 717 600 x 495 x 717 600 x 495 x 717 600 x 615 x 717 605 x 910 x 823 1205 x 605 x 1306

Net. Weight 60 kg 54.5 kg 63.5 kg 58 kg 72 kg 129 kg

Accessories page 88 - 89 page 88 - 89 page 88 - 89 page 88 - 89 page 88 - 89 page 88 - 89

Alpha SYSTEM

Type / Name X1-90 B-3

Cabinet Mid - High Subwoofer

Confi guration Active 3-Way

or Active 2-Way

Planar

Wave-guide Horn

Components 2 x 15“ / 2“ / 2 x Slot 2 x 18“

Impedance 4 - 8 - 4 Ohms 4 Ohms

Rated Power RMS 800 - 600 - 100 W 1000 W

Peak Power 1600 - 1200 -

200 W

2000 W

SPL 1 W / 1 m 106 dB 103 dB

Max. SPL 1 m / calc. 135 dB 133 dB

Freq. Range 63 Hz - 23 kHz 35 Hz - 1.7 kHz

Coverage (H x V) 90° x 40° ---

Dimensions

(W x H x D) mm

763 x 1440 x 720 1200 x 610 x 1220

Net. Weight 137 kg 120 kg

dc loudspeaker_en_reprint062010.indd 105dc loudspeaker_en_reprint062010.indd 105 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

106

Application Guide

dc loudspeaker_en_reprint062010.indd 106dc loudspeaker_en_reprint062010.indd 106 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

107

D-Lite SERIES APPLICATION GUIDE

D-Lite activeone PLUS CLUBS, MOBILE DJs

Confi guration Active 3-Way

Cabinet Types 2 x D 8A,

2 x PowerSub 212

Amplifi ers internal

Controllers -

Cables XLR - XLR

Accessories 2 x VPM 1500

Horizontal

Coverage

2 x 90°

Total Amp Power 3200 W

Typical Distance 15 - 20m

Options -

Comments -

D-Lite activeone SMALL CLUBS, MOBILE DJs

Confi guration Active 3-Way

Cabinet Types 2 x D 8A,

1 x PowerSub 212

Amplifi ers internal

Controllers -

Cables XLR - XLR

Accessories 2 x BS 35

Horizontal

Coverage

2 x 90°

Total Amp Power 2400 W

Typical Distance 10 - 15 m

Options -

Comments -

D 8A D 8A

PowerSub 212PowerSub 212 CMS

D 8AD 8A

CMSPowerSub 212

dc loudspeaker_en_reprint062010.indd 107dc loudspeaker_en_reprint062010.indd 107 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

108

D-Lite SERIES APPLICATION GUIDE

D-Lite activefour MUSICIANS, SMALL CLUBS

Confi guration Active 3-Way

Cabinet Types 2 x D 11A,

2 x PowerSub 212

Amplifi ers internal

Controllers -

Cables XLR - XLR

Accessories 2 x VPM 1500

Horizontal

Coverage

2 x 80°

Total Amp Power 3200 W

Typical Distance 15 - 20 m

Options -

Comments -

D-Lite activetwo SMALL CLUBS

Confi guration Active 3-Way

Cabinet Types 2 x D 8A,

2 x PowerSub 112

Amplifi ers internal

Controllers -

Cables XLR - XLR

Accessories 2 x VPM 1500

Horizontal

Coverage

2 x 90°

Total Amp Power 2400 W

Typical Distance 10 - 15m

Options -

Comments -

D 8A D 8A

PowerSub 112PowerSub 112

D 11A

PowerSub 212 PowerSub 212CMS

D 11A

CMS

dc loudspeaker_en_reprint062010.indd 108dc loudspeaker_en_reprint062010.indd 108 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

109

D-Lite LIVE BANDS, MEDIUM CLUBS

Confi guration Fullrange

Cabinet Types 2 x D 15-3,

2 x Sub 118

Amplifi ers PowerMate 1000

Controllers -

Cables -

Accessories 2 x VPM 1500

Horizontal

Coverage

2 x 80°

Total Amp Power 2 x 700 W

Typical Distance 15 - 20 m

Options -

Comments one added Top or one

added Sub can be driven

on each side

(3 x 8 ohms)

D-Lite MUSICIANS, SMALL CLUBS

Confi guration Fullrange

Cabinet Types 2 x D 12 or 2 x D 12-3,

2 x Sub 115

Amplifi ers PowerMate 1000

Controllers -

Cables -

Accessories 2 x VPM 1500

Horizontal

Coverage

2 x 80°

Total Amp Power 2 x 700 W

Typical Distance 10 - 15 m

Options -

Comments one added Top or one

added Sub can be driven

on each side

(3 x 8 ohms)

D 12 / D 12-3

Sub 115

D 15-3

Sub 118 Sub 118PowerMate 1000

D 15-3

Sub 115PowerMate 1000

D 12 / D 12-3

dc loudspeaker_en_reprint062010.indd 109dc loudspeaker_en_reprint062010.indd 109 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

110

D-Lite SERIES APPLICATION GUIDE

D-Lite LIVE BANDS, MEDIUM CLUBS

Xa4000 Xa4000

Confi guration Active 2-Way

Cabinet Types 2 x D 15-3, 2 x Sub 118

Amplifi ers 2 x Xa 4000

Controllers -

Cables -

Accessories 2 x VPM 1500

Horizontal

Coverage

2 x 90°

Total Amp Power 2 x 1100 W Sub

+ 2 x 900 W Top

Typical Distance 15 - 20 m

Options -

Comments -

D-Lite CLUBS, BARS, BISTROS

Confi guration Active 2-Way

Cabinet Types 4 x D 12 or 4 x D 12-3

Amplifi ers PowerSub 315

Controllers -

Cables -

Accessories 4 x MB 212 (Wall-Mount)

Horizontal

Coverage

-

Total Amp Power 2 x 500 W Top,

1000 W Sub

Typical Distance 15 - 20 m

Options 2 additional passive

Sub 115

Comments D 12 in each corner,

Center-Sub

D 15-3 D 15-3

Sub 118CMS 1000 - CMS 2200

Xa 4000 Xa 4000

Sub 118

D 12-3

D 12-3

PowerSub 315 MP7 or CMS

D 12

D 12

dc loudspeaker_en_reprint062010.indd 110dc loudspeaker_en_reprint062010.indd 110 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

111

D-Lite MUSICIANS, MOBILE DJ‘S

Confi guration Active 2-Way

Cabinet Types 2 x D 12 or 2 x D 12-3,

2 x Sub 115

Amplifi ers PowerSub 315

Controllers -

Cables -

Accessories 2 x BS 35

Horizontal

Coverage

2 x 80°

Total Amp Power 2 x 500 W Top,

2 x 500W Sub

Typical Distance 15 - 20 m

Options 2 additional D 12

Comments -

VariLine CLUB, BARS, BISTRO

Confi guration Fullrange + Sub

Cabinet Types 8 x VL 62, 2 x Sub 115

Amplifi ers -

Controllers -

Cables -

Accessories 8 x WMK 10

(Wall-Mount Kit)

Horizontal

Coverage

each cabinet 90°

Total Amp Power 2 x 300 W

Typical Distance Tops 5 - 10 m

Options -

Comments -

VariLine APPLICATION GUIDE

D 12-3 D 12

PowerSub 315Sub 115Sub 115

4 x VL 62 4 x VL 62

Sub 115Sub 115

MP7 or CMS Consoles & SL Amplifi ers

dc loudspeaker_en_reprint062010.indd 111dc loudspeaker_en_reprint062010.indd 111 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

112

VariLine APPLICATION GUIDE

VariLine CLUB, BARS, BISTRO

Confi guration Active 2-Way

Cabinet Types 8 x VL 62,

PowerSub 315

Amplifi ers inter grated

Controllers -

Cables -

Accessories 8 x WMK 10

(Wall-Mount Kit)

Horizontal

Coverage

each cabinet 90°

Total Amp Power 2 x 500 W Top,

1000 W Sub

Typical Distance Tops 5 - 10 m

Options -

Comments -

VariLine CLUB, BARS, BISTRO

Confi guration Active 2-Way

Cabinet Types 4 x VL 262,

PowerSub 315

Amplifi ers intergrated

Controllers -

Cables -

Accessories 4 x WMK 10

(Wall-Mount Kit) or

4 x FB-VL 262 &

4 x TC-02

Horizontal

Coverage

each cabinet 90°

Total Amp Power 2 x 500 W Top,

1000 W Sub

Typical Distance Tops 5 - 10 m

Options -

Comments -

4 x VL 62

PowerSub 315

MP7 or CMS Consoles

2 x VL 262 2 x VL 262

PowerSub 315

MP7 or CMS Consoles

4 x VL 62

or

1 x VL 262

& 2 x VL 62

per side

dc loudspeaker_en_reprint062010.indd 112dc loudspeaker_en_reprint062010.indd 112 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

113

VariLine COMPACT CLUB PA-SYSTEM

Confi guration Active 2-Way

Cabinet Types 2 x VL 122, 2 x SUB 18

Amplifi ers 2 x Xa 4000

Controllers -

Cables -

Accessories 2 x FB-VL 122,

2 x PCL M10 or

2 x TC-02

Horizontal

Coverage

each cabinet 90°

Total Amp Power 2 x 1100 W Sub,

2 x 900 W Top

Typical Distance 10 - 20 m

Options -

Comments -

VariLine HI-POWER CLUB PA SYSTEM

Confi guration Active 3-Way

Cabinet Types 2 x VL 152, 2 x SUB 28

Amplifi ers LX 3000, 2 x LX 2200

Controllers DSP 260 or DSP 600

Cables -

Accessories -

Horizontal

Coverage

each cabinet 90°

Total Amp Power 2 x 1100 W High,

2 x 1100 W Mid,

2 x 1500 W Sub

Typical Distance -

Options -

Comments Amplifi er Output Ch. B is

connected to Output Ch.

A Pin 2+ / 2-

VL 122

VL 122 TC-02

PCL M10

FB-VL122 FB-VL122

CMS 1000 - CMS 2200SUB 18

SUB 28

VL 152 VL 152

SUB 28

MF Pin 1+ / 1-

MF Pin 1+ / 1-

HF Pin 2+ / 2-

HF Pin 2+ / 2-

SUB 18

Xa 4000Xa 4000

dc loudspeaker_en_reprint062010.indd 113dc loudspeaker_en_reprint062010.indd 113 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

114

VariLine HI-POWER PA SYSTEM

Confi guration Active 3-Way

Cabinet Types 4 x VL 212,

6 x SUB 28

Amplifi ers 2 x H 5000, 2 x H 2500

Controllers 4 x RCM-26 Module

Cables 6 x 4-pole long,

8 x 4-pole short

Accessories -

Horizontal

Coverage

80° or 180°

(rotable Horns)

Total Amp Power 4 x 3000 W Sub (2.7 Ohms)

2 x 2500 W Mid (2 Ohms)

2 x 1450 W High (4 Ohms)

Typical Distance -

Options -

Comments each Sub is switched to

2 x 8 Ohms, all cables

4-pole, conn. to Amp

Output Ch. A

PowerMax 5 COMPACT PA SYSTEM, MEDIUM CLUBS

Confi guration Active 2-Way

Cabinet Types 2 x F 150, 4 x F 8

Amplifi ers 1 x PM 2600

Controllers integrated

Cables -

Accessories 2 x VPM 1500

Horizontal

Coverage

2 x 90°

Total Amp Power 2 x 600 W

+ 2 x 700 W Sub

= 2600 W

Typical Distance 15 - 20 m

Options PM 2600 can drive

3 x Top and 3 x Sub on

each side

Comments

PowerMax 5 APPLICATION GUIDE

VariLine APPLICATION GUIDE

3 x SUB 28 3 x SUB 28

2 x VL 2122 x VL 212

2 x H 2500 / 2 x H 5000

F 150

F 8 F 8 F 8 F 8PM 2600

F 150

dc loudspeaker_en_reprint062010.indd 114dc loudspeaker_en_reprint062010.indd 114 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

115

Xa 2 HI-POWER PA-SYSTEM, LIVE BANDS

Confi guration Active 2-Way

Cabinet Types 4 x FX 12 + 6 x FX 20

Amplifi ers 2 x Xa 4000

Controllers integrated

Cables 4 x 4-pole long,

2 x 4-pole short

Accessories TC-04, CSST

Horizontal

Coverage

160° or 80°

Total Amp Power 2 x 2000 W = 4000 W

Typical Distance 25 - 35 m

Options FG 600 (Grid)

Comments 2 x FX 12 ‚‚splayed“ for

wide coverage or ‚‚in-

line“ for long distance

Xa 2 HI-POWER PA-SYSTEM, MOBILE DJ‘S

Confi guration Active 2-Way

Cabinet Types 4 x FX 12 + 8 x FX 20

Amplifi ers 4 x Xa 4000

Controllers integrated

Cables 6 x 4-pole long,

6 x 4-pole short

Accessories -

Horizontal

Coverage

2 x 80°

Total Amp Power 4 x 2000 W = 8000 W

Typical Distance 30 - 40 m

Options -

Comments 1 x Xa 2 System per side

Xa 2 APPLICATION GUIDE

FX 12

FX 20 FX 20

Xa 4000Xa 4000

CMS 1600

FX 12 FX 12

FX 12 FX 12

FX 20 FX 20

Xa 4000Xa 4000Xa 4000Xa 4000

FX 20 FX 20 FX 20 FX 20 FX 20 FX 20

FX 20 FX 20 FX 20 FX 20

FX 12

FX 12

FX 12

FG 600 / CSSG

TC-040 / CSSG

dc loudspeaker_en_reprint062010.indd 115dc loudspeaker_en_reprint062010.indd 115 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

116

COBRA-2 APPLICATION GUIDE

COBRA-2 COMPACT LINE-ARRAY SYSTEM FOR SMALLER VENUES

Confi guration Active 2-Way

Cabinet Types 4 x Cobra-Top,

4 x Cobra-PWH

Amplifi ers 2 x LX 3000

Controllers DSP 260 or DSP 600

Cables 4 x 4-pole long,

4 x 4-pole short

Accessories CSW 25

Horizontal

Coverage

2 x 120°

Total Amp Power 4 x 1500 W = 6 kW

Typical Distance 30 - 40 m

Options -

Comments prewired Amprack include

NF - 32 A AC-Panel

COBRA-2 COMPACT LINE-ARRAY SYSTEM FOR MID-SIZED VENUES

Confi guration Active 2-Way

Cabinet Types 2 x Cobra-Top,

8 x Cobra-PWH

Amplifi ers 6 x LX 3000

Controllers 2 x DSP 260

or DSP 600

Cables 8 x 4-pole long,

8 x 4-pole short

Accessories -

Horizontal

Coverage

2 x 120°

Total Amp Power 10 x 1500 W = 15 kW

Typical Distance 30 - 50 m

Options FG 600 (Grid)

Comments 2 x prewired Amprack

incl. NF- & 32 A

AC-Panel

2 x Cobra-Top

2 x Cobra-Top

TC-04

CSW 25

2.5° Wedge

Cobra-PWH

Cobra-PWH Cobra-PWH

FG 600 / CSSGTC-04 / CSST

Cobra-TopCobra-Top

Cobra-TopCobra-Top

Cobra-TopCobra-Top

Cobra-TopCobra-Top

4 x Cobra-PWH 4 x Cobra-PWH

Amp-Rack Amp-Rack

Cobra-PWH

Amp-Rack

4-Channel

DSP 260 or DSP 600

LX 3000

LX 3000

CP-48

dc loudspeaker_en_reprint062010.indd 116dc loudspeaker_en_reprint062010.indd 116 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

117

COBRA-4 LINE-ARRAY SYSTEM FOR MID-SIZED VENUES

Confi guration Active 4-Way

Cabinet Types 2 x Cobra-4 Far,

4 x Cobra-4 Top,

8 x Cobra-PWH

Amplifi ers 4 x LX 3000

Controllers 2 x DSP 260

or DSP 600

Cables 6 x 8-pole long,

8 x 8-pole short

Accessories Rigging Straps CSST,

CSSM

Horizontal

Coverage

2 x 120°

Total Amp Power 2 x 2100 W,

6 x 1800 W= 15kW

Typical Distance 40 - 80 m

Options -

Comments 2 x prewired Amprack

incl. NF & AC-Panel

COBRA-2 COMPACT LINE-ARRAY SYSTEM FOR MID-SIZED VENUES

Confi guration Active 2-Way

Cabinet Types 2 x Cobra-Top,

8 x Cobra-PWH

Amplifi ers 6 x H 2500

Controllers 6 x RCM-26

Cables 8 x 4-pole long,

8 x 4-pole short

Accessories -

Horizontal

Coverage

2 x 120°

Total Amp Power 12 x 2500 W= 30 kW

Typical Distance 30 - 50 m

Options FG 600 (Grid)

Comments 2 x prewired Amprack

COBRA-4 APPLICATION GUIDE

FG 600 / CSSGTC-04 / CSST

Cobra-TopCobra-Top

Cobra-TopCobra-Top

Cobra-TopCobra-Top

Cobra-Top Cobra-Top

4 x Cobra-PWH

4 x Cobra-PWH 4 x Cobra-PWH

Amp-RackAmp-Rack

Cobra-4 Top

Cobra-4 Top

TC-04

2 x Cobra-4 Top

Cobra-4 Far

1 x Cobra-4 Far

CSW 25

2.5° Wedge

4 x Cobra-PWH

dc loudspeaker_en_reprint062010.indd 117dc loudspeaker_en_reprint062010.indd 117 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

118

COBRA-4 APPLICATION GUIDE

COBRA-4 LINE-ARRAY SYSTEM FOR LARGER VENUES

Confi guration Active 4-Way

Cabinet Types 4 x Cobra-4 Far,

8 x Cobra-Top,

12-16 x Cobra-PWH

Amplifi ers 8 x LX 3000

Controllers 4 x DSP 260

or DSP 600

Cables 12 x 8-pole long,

16 x 8-pole short

Accessories -

Horizontal

Coverage

2 x 120°

Total Amp Power 4 x 2100 W

+ 12 x 1800 W= 30kW

Typical Distance 40 - 80 m

Options FG 600 (Grid)

Comments System can be split into

two separate Systems

COBRA-4 LINE-ARRAY SYSTEM FOR MID-SIZED VENUES

Confi guration Active 4-Way

Cabinet Types 4 x Cobra-4 Far,

4 x Cobra-Top,

8 x Cobra-PWH

Amplifi ers 5 x H 5000

Controllers 5 x RCM-26

Cables 6 x 8-pole lomg,

8 x 8-pole short

Accessories Rigging Straps CSST,

CSSM

Horizontal

Coverage

2 x 120°

Total Amp Power 10 x 2500 W = 25 kW

Typical Distance 40 - 80 m

Options -

Comments -

4 x Cobra-PWH 4 x Cobra-PWH

Cobra-4 Top

Cobra-4 Far Cobra-4 Far

Cobra-4 Far Cobra-4 Far

Cobra-4 Top Cobra-4 Top

Cobra-4 Top Cobra-4 Top

Cobra-4 Top

Cobra-4 Top

Frontfi ll

Cobra-4 Top

Frontfi ll

Amp-Rack

8-Channel

Amp-Rack

8-Channel

Cobra-4 Top

Cobra-4 Top

TC-04

2 x Cobra-4 Top

Cobra-4 Far

1 x Cobra-4 Far

CSW 25

2.5° Wedge

dc loudspeaker_en_reprint062010.indd 118dc loudspeaker_en_reprint062010.indd 118 09.07.10 12:2309.07.10 12:23

APPLICATION GUIDE

119

COBRA-4 LINE-ARRAY SYSTEM FOR LARGER VENUES

Confi guration Active 2-Way

Cabinet Types 4 x Cobra-4 Far,

8 x Cobra-Top,

6 x PWH 28

Amplifi ers 10 x H 5000

Controllers 10 x RCM-26

Cables 12 x 8-pole long,

16 x 8-pole short

Accessories -

Horizontal

Coverage

2 x 120°

Total Amp Power 20 x 2500 = 50 kW

Typical Distance 40 - 80 m

Options FG 600 (Grid)

Comments System can be split into

two separate Systems

Cobra-4 Far Cobra-4 Far

Cobra-4 Far Cobra-4 Far

Cobra-4 Top Cobra-4 Top

Cobra-4 Top Cobra-4 Top

Cobra-4 Top

3 x PWH 28 3 x PWH 28

Cobra-4 Top

Cobra-4 Top

Frontfi ll

Cobra-4 Top

Frontfi ll

dc loudspeaker_en_reprint062010.indd 119dc loudspeaker_en_reprint062010.indd 119 09.07.10 12:2309.07.10 12:23

© Bosch Security Systems, Inc. · Art.Nr. F01U164883 · Printed in Germany (ERD/DR) · 6000/07/10 · Subject to change without prior notice!

www.dynacord.com

AMERICAS

HEADQUARTERS AMERICAS

Bosch Security Systems, Inc.

12000 Portland Ave South,

Burnsville, MN 55337, USA

USA–Tel: 1 800 392 3497

Fax: 1 800 955 6831

Canada–Tel: 1 866 505 5551

Fax: 1 866 336 8467

Latin America–Tel: 1 952 887 5532

Fax: 1 952 736 4212

EMEA

HEADQUARTERS EUROPE,

MIDDLE -EAST & AFRICA

Bosch Sicherheitssysteme GmbH

Werner-von-Siemens-Ring 10

85630 Grasbrunn, Germany

Contact & Visitor Address

EVI Audio GmbH

Sachsenring 60

94315 Straubing, Germany

Tel: +49 9421 706 0

Fax: +49 9421 706 265

FRANCE

EVI Audio France S.A.S

Tel: +33 1 6480 0090

Fax: +33 1 6006 5103

MIDDLE EAST

Robert Bosch Middle East FZE

Tel: +97 14 212 3300

Fax: +97 14 212 3388

ASIA & PACIFIC

HEADQUARTERS APR

Robert Bosch (SEA) Pte Ltd.

11 Bishan St. 21

Singapore 573943

Tel: +65 6571 2534

Fax: +65 6571 2699

AUSTRALIA

Bosch Security Systems Pty Ltd.

Tel: +61 2 9683 4752

Fax: +61 2 9890 5928

CHINA

Bosch (Shanghai) Security

Systems Ltd. (Shanghai) Co., Ltd.

Tel: +86 21 6317 2155

Fax: +86 21 6317 3025

INDIA

Bosch Limited

Tel: +91 80 4176 8378

Fax: +91 80 4176 8263

JAPAN

EVI Audio Japan Ltd.

Tel: +81 3 5485 4427

Fax: +81 3 5485 4428

THAILAND

Robert Bosch Limited

Tel: +662 639 3111

Fax: +662 631 2030

KOREA

Robert Bosch Korea Ltd.

Tel: +82 31 270 4765

Fax: +82 31 270 4601

TAIWAN

Robert Bosch Taiwan Co., Ltd.

Tel: +886 2 2515 5388 Ext. 2688

Fax: +886 2 2515 5399

VIETNAM

Robert Bosch Vietnam Co., Ltd.

Tel: +84 8 62583690

Fax: +84 8 62583693

INDONESIA

PT Robert Bosch

(Security Systems)

Tel: +62 21 5210600

Fax: +62 21 5214848

dc loudspeaker_en_reprint062010.indd 120dc loudspeaker_en_reprint062010.indd 120 09.07.10 12:2309.07.10 12:23
