Operator’s Guide
Includes
Installation, Operation, Maintenance and
Safety Information
Installer
Company: __________________________________________
Address: ___________________________________________
Phone: ____________________________________________
Warranty Submitted:__________________________________
Model:_____________________________________________
Serial Number: ______________________________________
Equipment Pack: ____________________________________
Color: _____________________________________________
Date of Delivery: ______________________
We appreciate your business and our sincere desire is that you receive
years of pleasure and therapy from your Dynasty Spa. Please call your
local Dynasty Spa Dealer if you have any questions or problems. If they
are unavailable, please feel free to call the Dynasty Spas Customer
Service Group at: 800-951-6224.
Dynasty Spas Operator’s Guide • www.dynastyspas.com
PLEASE VISIT WWW.DYNASTYSPAS.COM TO REGISTER
YOUR WARRANTY
OWNER’S INFORMATION
DEALER IMPRINT AREA
Dynasty Spas Operator’s Guide • www.dynastyspas.com
OWNER’S INFORMATION ......3-4
• Dealer Information
• Installer Information
• President’s Letter
SAFETY INSTRUCTIONS ......5-6
• Warnings
• Dangers
BASIC INFORMATION ..............7
• Do’s and Dont's
SET-UP AND DELIVERY
GUIDELINES ..............................8
• Surface & Pad Requirements
• Balcony and Deck Requirements
• Access Clearance
• Electrical Requirements
WIRING DIAGRAM ..................10
• Wiring Requirements
• Factory Recommendations
PRE OPERATION
INSTRUCTIONS ......................11
• Priming Pump
GENERAL CONTROLS
& VALVES ..........................12-13
• Air Controls
• Mini Diverter
• Water Diverter Valve
• Individual Jet Operation
• Waterfall Control
• Lighting Control
• Digital Top Side Control
Panel Instructions
• Stereo Controls
FILTER LOCATIONS ................14
• Single and Dual Filters
FILTER MAINTENANCE ..........15
• Cleaning and Replacing
Filter Cartridge
• Enclosed Style
• Open Style
WATER CARE ..........................16
• Cleaning Your Spa Water
• Filling Spa with Water
• Water Testing
• Balance
• Monthly - For Equipment
Protection
• As Needed
DRAINING YOUR SPA..............20
• Why Drain
WINTERIZING YOUR SPA ........21
• How To and Why Winterize
COVER MAINTENANCE ..........22
• Protect Your Cover
TROUBLE SHOOTING
GUIDE ......................................23
GLOSSARY OF TERMS ..........25
TABLE OF CONTENTS
This Operator’s Guide utilizes the
following symbols to emphasize
particular information.
The Safety Alert Symbol
indicates a potential hazard
WARNING
CAUTION
NOTE
Dynasty Spas Operator’s Guide • www.dynastyspas.com
4
Dear Dynasty Spa Owner:
Congratulations on your purchase of a new Dynasty Spa. You now
possess the ultimate passport to tranquility - a daily vacation at home,
ready and waiting for you in your own backyard!
We want you to enjoy your Dynasty Spa. Many hours of research have
gone into the design of your spa, to ensure the ultimate in hydrotherapy
and relaxation. Only the highest quality components have been used,
to ensure years of trouble-free operation. Your comfort and enjoyment
have been designed into your Dynasty Spa from the start.
Please take the time to read through this Operator’s Guide. In it, you will
find guidelines on caring for your spa, a complete explanation of the
controls, safety instructions, a trouble-shooting section, and lots more.
Once again, we welcome you to the family of Dynasty Spa owners.
Your thoughts and ideas are important and we encourage you to share
them with us. Please write to us at the address below, or send us an
e-mail with your comments.
Thank you for your business and your confidence in our company.
We look forward to serving you!
Sincerely,
Josh Deans
President, Dynasty Spas
Dynasty Spas
101 Dynasty Way
Athens, Tennessee 37303
www.dynastyspas.com
Dynasty Spas Operator’s Guide • www.dynastyspas.com 5
1) READ AND FOLLOW ALL INSTRUCTIONS.
2) WARNING: To reduce the risk of injury, do not permit children to use this
product unless they are closely supervised at all times. Keep spa cover
locked when not in use.
3) Wiring should be done by a qualified electrician, according to the
directions listed under “Set-up And Delivery Guidelines” and “Wiring
Diagram”. A GFCI must be used.
4) DANGER: Risk of injury.The suction fittings in this spa are sized to match
the specific water flow created by the pump. Never operate the spa if the
suction fittings are broken or missing. Never replace a suction fitting with
one rated less that the flow rate marked on the original suction fitting.
5) DANGER: Risk of electrical shock. Install at least 5 feet (1.5m) from all
metal surfaces. As an alternative, a spa may be installed within 5 feet of
metal surface if each metal surface is permanently connected by a
minimum #8 AWG copper conductor to the wire connector on the
terminal box that is provided for this purpose.
6) DANGER: Risk of electrical shock. Do not permit any electrical appliance,
such as light, telephone, radio or television within 5ft. (1.5m) of spa.
7) WARNING: To reduce the risk of injury:
• The water temperature in a spa should never exceed 104°F. A water
temperature of 104°F is considered safe for a healthy adult. Lower water
temperatures are recommended for young children and when spa use
exceeds 10 minutes.
• Since excessive water temperatures have a high potential for causing
fetal injury during the early months of pregnancy, pregnant or possibly
pregnant women should consult their physician before use.
• Before entering a spa, the user should measure the water temperature
with an accurate thermometer since the tolerance of water temperature
regulating devices varies.
• The use of alcohol or medications before or during spa use may lead to
unconsciousness with the possibility of drowning.
• Children should be supervised at all times.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When installing and using this electrical equipment, basic
safety precautions should be followed, including the following:
Dynasty Spas Operator’s Guide • www.dynastyspas.com
6
• Persons suffering from obesity or with a medical history of heart disease,
low or high blood pressure, circulatory system problems, or diabetes
should consult a physician before using a spa.
• Persons using medication should consult a physician before using a spa
since some medication may affect heart rate, blood pressure, and
circulation.
8) The causes, symptoms and effects of hyperthermia may be described as
follows:
Hyperthermia occurs when the internal temperature of the body reaches
a level several degrees above the normal temperature of 98.6 degrees F.
The symptoms of hyperthermia include an increase in the internal
temperature of the body, dizziness, lethargy, drowsiness and fainting. The
effects of hyperthermia include:
• Failure to feel heat
• Failure to recognize the need to exit the spa
• Unawareness of impending hazards
• Fetal injury in pregnant women
• Physical inability to exit the spa or hot tub
• Unconsciousness resulting in the potential of drowning.
9) Never touch or come in contact with any electrical accessory when in
your spa or when your body is wet.
10) Prior to performing any service to the Spa Pack, turn off ALL power to
the system at the main power source breaker.
11) Never turn equipment pack on unless spa is filled with water 2" above the
skimmer.
IMPORTANT SAFETY INSTRUCTIONS (CONT.)
CAUTION!
CAUTION: Each persons body and circulatory system has different
tolerances and responds differently to warm/hot water immersion.
Most people in good health find a water temperature of about 102ºF to
be satisfying and limit time in water at this temperature to 20-30
minutes. Use of alcoholic beverages and certain medications may
affect the way your body's system reacts to warm water/hot
immersion.
CONSULT YOUR PHYSICIAN FOR RECOMMENDATIONS.
Dynasty Spas Operator’s Guide • www.dynastyspas.com 7
BASIC INFORMATION
Congratulations on the purchase of your new spa. Our goal is to provide you
with a warm and relaxing spa which incorporates a soothing water massage.
In order to maximize the pleasure of your spa, you will need to understand how
it works.
The following operating and maintenance instructions are very important and
must be followed carefully. With proper care and maintenance your spa will
provide you with years of satisfaction with minimum effort.
• The pump and heater should be operated a minimum of two hours per
day for cleaning and heating.
• The length of time required to heat your spa to the desired water
temperature will vary, depending on the air temperature, season, and
wind velocity. We highly recommend using a vinyl hard cover to minimize
heat loss and to protect your spa when not in use. Covers are available
from your local Dynasty Spa dealer.
• The replaceable filter cartridge is trouble free and easy to clean. A routine
cleaning is the best practice. Make sure the pump is off, then remove the
cartridge. Wash it off using a water hose with a pressure nozzle and then
reassemble. This should be done on a monthly basis.
• Keep the spa water level 2" above the skimmer. Never allow the water
level to drop below the bottom of the skimmer opening. If the water level
is too low, the skimmer will allow air into the water lines of the pump,
causing it to lose its prime (waterflow). Running the pump without water
flow will damage the pump seal assembly and could possibly result in
further equipment damage, which will not be covered under warranty.
• If your spa has a natural wood skirt or if you purchased a gazebo, we
recommend applying a wood sealer of your choice (always follow
application instructions) to protect the finish. Repeat as directions
suggest.
• You should clean your spa at least every 3-4 months. (This may vary by
usage.) Drain the spa water and use a liquid cleanser such as 409 or
Fantastic. DO NOT use hard brushes or abrasive cleaners. Fill with
regular tap water and chemically treat the water for a clean and healthy
spa.
CAUTION!
Do not use soft water. It may harm your acrylic.
WARNING!
CAUTION: Cover must be kept on spa at all times when spa is drained
or winterized. Direct exposure to sunlight can damage plastic parts
and interior surface, jets, or any interior components. Damage
caused by exposure to the sun will not be covered under warranty.
Dynasty Spas Operator’s Guide • www.dynastyspas.com
8
Getting Ready For Delivery & Set-up Of Your New Spa
Surface And Pad Requirements
• Your new portable spa must be placed on a uniformly firm, flat, and level
surface. A concrete pad 3 inches thick is best.
• If your spa is located near sprinklers, adjust or cap them so they do not
hit the siding of the spa.
Balconies And Deck Requirements
• Decking must be constructed to support 85 pounds per square foot.
• Balconies must be constructed to meet current state and local codes.
• Gates must be self-closing and self-latching.
Access & Clearance
• Your spa requires from 37” (non stereo) to 42” (stereo) of clearance
through gates between house and side fences, and up to 8.5' overhead
clearance depending on the size of the unit.
• The clearance required to turn a corner can be equal to the length of the
spa.
• All debris blocking access to the job site must be removed prior to
delivery. Any trimming of trees or bushes, removal of debris, leveling of
ground or other general maintenance must be done prior to delivery and
is the responsibility of the customer.
SET-UP & DELIVERY GUIDELINES
CAUTION!
Decking must be constructed to support 85 pounds per square foot.
Dynasty Spas Operator’s Guide • www.dynastyspas.com 9
SET-UP & DELIVERY GUIDELINES (CONT.)

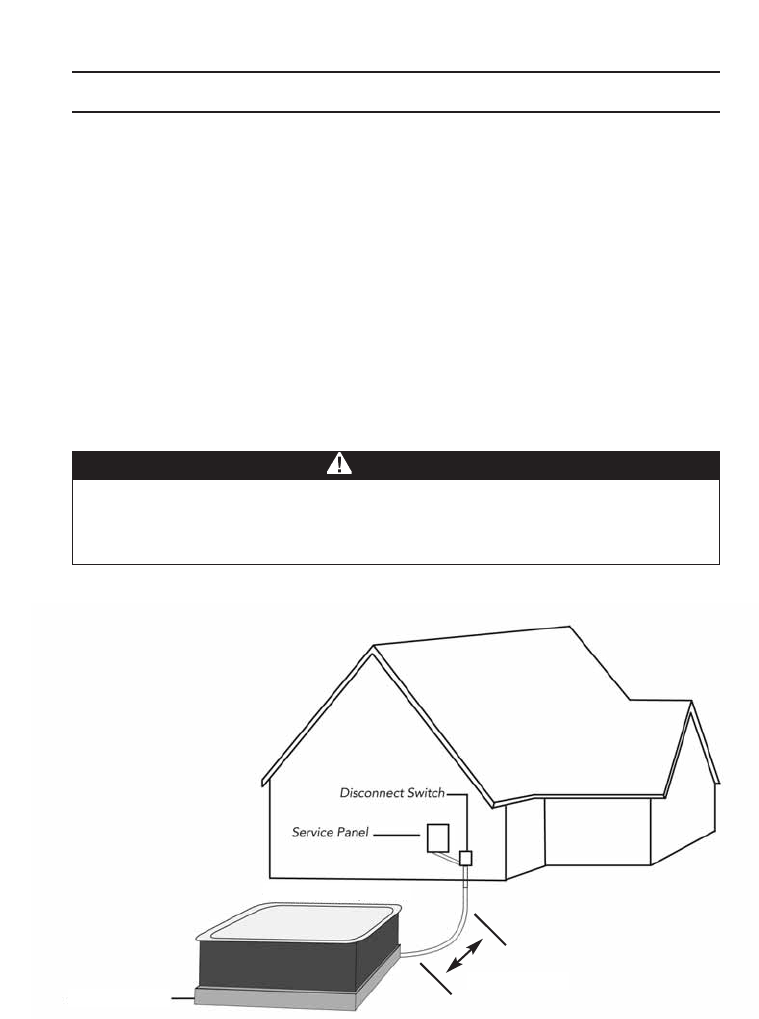

It is the customer’s responsibility to acquire necessary permits and to
arrange for installation and hook up of the electrical power by a
licensed electrician.
NOTE!
3” Concrete Pad
Getting Ready For Delivery & Set-up Of Your New Spa
Electrical Requirements
• Your 220 Volt spa pack will require a double pole 50 amp dedicated
GFCI, ground fault circuit breaker.
• Extension cords are not to be used in conjunction with operation of the
spa. Low voltage damage could result, which is not covered by warranty.
• If you have any doubts, have your electrical system checked by a
licensed electrician.
5’ Minimum
Dynasty Spas Operator’s Guide • www.dynastyspas.com
10
Factory Recommended G.F.C.I. Load Center Wiring
WIRING DIAGRAM
Note: The white neutral wire from the back of the GFCI MUST be
connected to an incoming line neutral. The internal mechanism of the
GFCI requires this neutral connection. The GFCI will not work without it.
Wiring Requirements
• The bonding wire at least No. 8 AWG copper wire.
• Pull Copper current carrying conductors (one each: black, red, white,
green), Use either No. 6 AWG 60º C, 8 AWG 75º C, or No. 8 AWG 90º C
wire, if spa is 50 feet or less away from its power supply. Note: the ground
must be equal to or larger than the largest power conductor.
7HITE7IRE4OTHE3PA
:KLWH3LJWDLO
:KLWH3LJWDLO
1HXWUDO%DU
1HXWUDO%DU
:KLWH)U
RP6SD
3PA#ONTROL"OX
,
.
,
'
;0
./4%7IRINGORDERMAYVARY
BYMODEL#HECKTHELABELONTHE
PACKACCESSCOVERFORSPECIFIC
INSTRUCTIONS
Note: Connection order may vary by pack model, please refer to
equipment pack panel for proper connection order.
CAUTION!
Dynasty Spas Operator’s Guide • www.dynastyspas.com 11
Priming Pump For Electric Packs
The Power pack system is located under the skirting. The equipment can be
serviced by simply removing the door. The door is located on the side of the
spa where three panels are located, usually on the side of the spa with the
lounger, or the side where the topside control panel is located.
It is important to make sure that all of the air is out of the pump(s) before
operating. To do this follow procedures below:
• Turn off power at the breaker
• Make sure the gate valves are open
• Fill the spa with water going thru the filter
• Turn the power on at the breaker
• Start the pump on low speed and water should start circulating within
one to two minutes. If water does not start circulating, turn pump from
low to high until prime is picked up.
•
If pump still does not prime, please see “Trouble Shooting Guide” located
in the back of this manua
l.
GENERAL PRE-OPERATION INSTRUCTIONS
WARNING!
Set thermostat, located on top side control panel, to desired temperature and continue
heating until desired temperature has been reached. Depending on equipment, this will
normally take 8 to 10 hours.

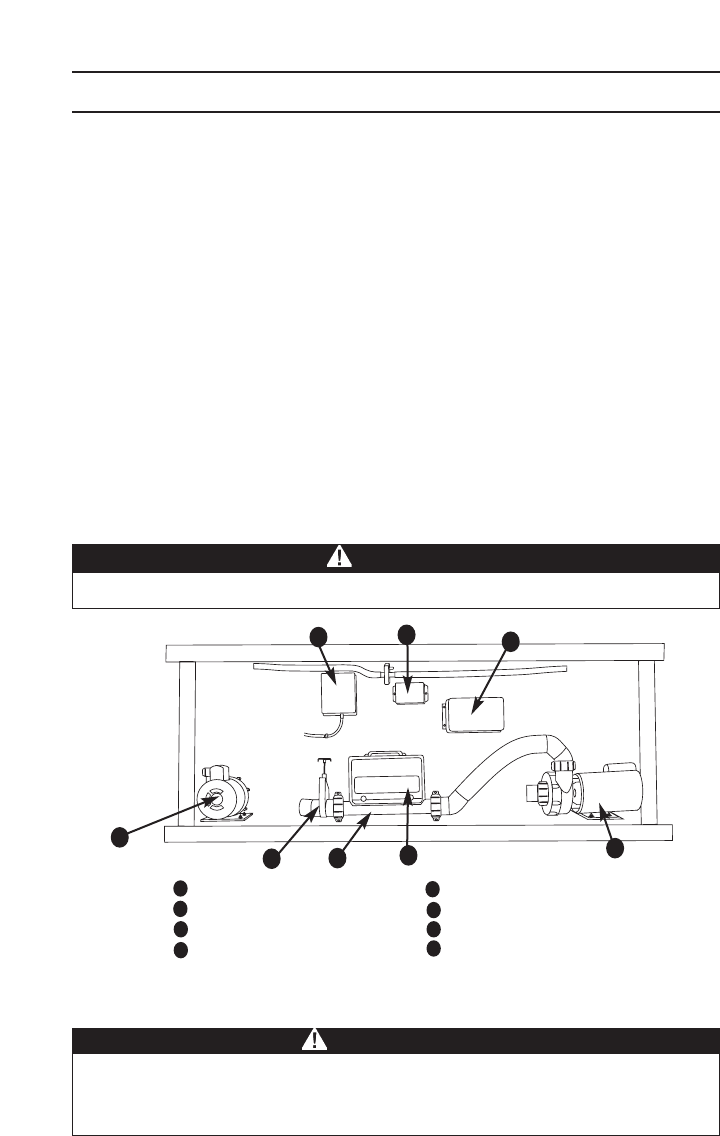

1. Ozonator (Optional)
2. LED Controller (Optional
3. Auxiliary Pump (Optional)
4. Power Supply (Optional)
5. Gate Valve
6. Flow Thru Heater
7. Equipment Pack
8. Dual Speed High Performance Pump
1
1
2
3
4
5
6
7
8
24
3
5678
WARNING: Do not run spa with gate valve (s) closed or run pump
with no water circulating in spa for long periods. This could
damage the spa equipment.
Note: Equipment style and location will vary by model
NOTE!
Dynasty Spas Operator’s Guide • www.dynastyspas.com
12

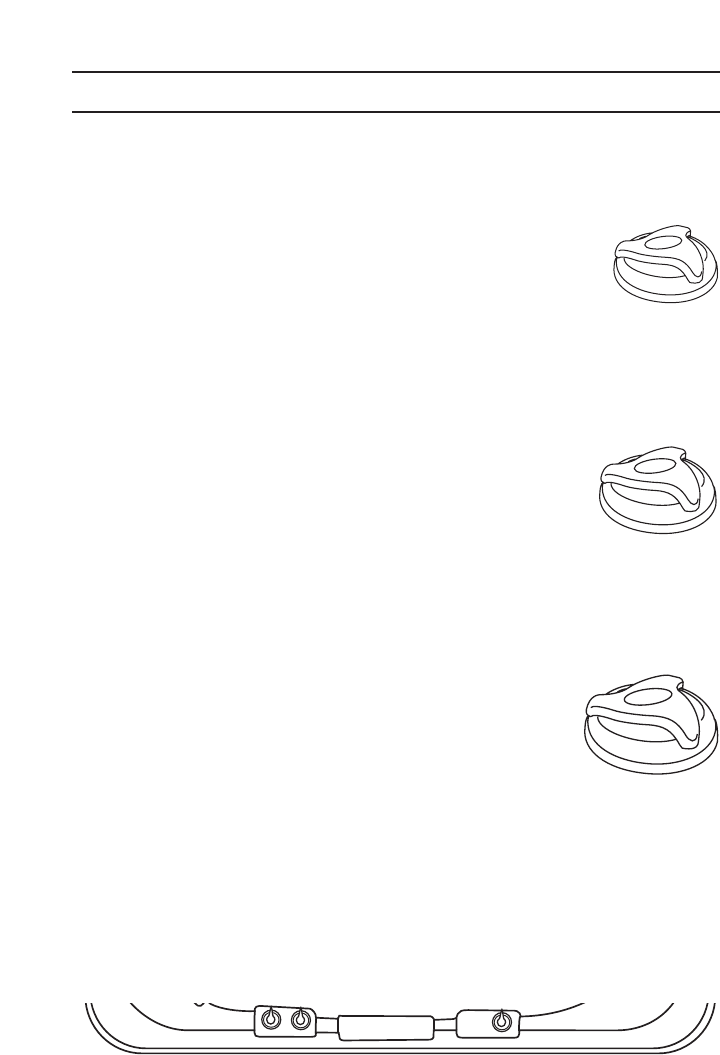

Air Control
Each spa is equipped with air controls (venturies). The
purpose of these controls is to regulate the mixture of air
and water that flows through the jets. If an optional blower is
installed, air is also pushed through the air controls
(venturies) for maximum output. If your spa has a master
massage jet located in the foot well, the spa will be
equipped with an air control specifically for the master
massage jet. This third control operates the same as the
others. Colors/style may vary from drawing. An Air Control
is the smallest of the valve controls.
Mini Diverter Valve
This valve controls the water flow of neck jets, shoulder jets,
and waterfalls (if so equipped) located throughout the spa.
A simple clockwise turn of the handle will increase to the
maximum output allowed. Another turn in the opposite
direction will decrease / turn off the jet. Colors/style may
vary from drawing. A Mini Diverter Valve is the medium size
of the valve controls.
Water Diverter Valve
The Water Diverter Valve controls the output of the pump(s)
water flow to either side of the spa, or it will provide even
water flow to all jets if left in the half way position. The
purpose of this valve is to increase or decrease the output
of one side or another for maximum or minimum water flow
in case of one or two person usage. This valve is also used
to turn the master massage jet on and off, if so equipped.
Colors/style may vary from drawing. A Water Diverter Valve
is the largest of the valve controls.
Although all three controls look similar in appearance, they
are easily discernable by size. The Air Control is the
smallest, the Mini Diverter Valve is medium in size, and the
Water Diverter Valve is the largest .
AIR CONTROLS & DIVERTER VALVES
A Mini Diverter Valve, an Air Control, and a Water Diverter Valve.
Locations will vary on each spa model.
Dynasty Spas Operator’s Guide • www.dynastyspas.com 13
Individual Jet Operation
Individual jets can be turned on and off.This is done by simply turning the outer
jet housing. Turning clockwise will turn the jet on, and turning counterclockwise
will turn the jet off. Individual jet control can be done independently from
normal diverter valve settings.
Fountain Control
If your spa is equipped with optional fountain jets, they are controlled with a
Fountain Jet Control. Turning the Fountain Jet Control full counterclockwise will
turn the Fountain Jet on full power, while turning full clockwise will turn the
Fountain Jet off. The Fountain Jet Control is marked “On” and “Off” as well.
Waterfall Control
If your spa is equipped with optional waterfalls, they are controlled with a Mini
Diverter Valve. Turning the Mini Diverter Valve full clockwise will turn the
waterfall on full power, while turning full counterclockwise will turn the waterfall
off.
Lighting Control
Your spa may be equipped with optional lighting. If so, please refer to the
“Quick Reference Card” included with your spa documentation for proper
operation.
Digital Top Side Control Panel Instructions
Depending on the Dynasty Spa model you purchased, you have different
options available to you with Dynasty’s exclusive digital top side control
system. When you are ready to program your spa, please consult the “Quick
Reference Card” included with your spa documentation. It has specific
instructions for your particular spa’s unique features and controls.
Stereo Controls (OPTIONAL)
If your Dynasty Spa is equipped with an optional stereo system, please refer
to your Stereo Owner’s Manual located inside your stereo equipment area, or
included with your spa’s documentation.
OTHER GENERAL CONTROLS
Dynasty Spas Operator’s Guide • www.dynastyspas.com
14

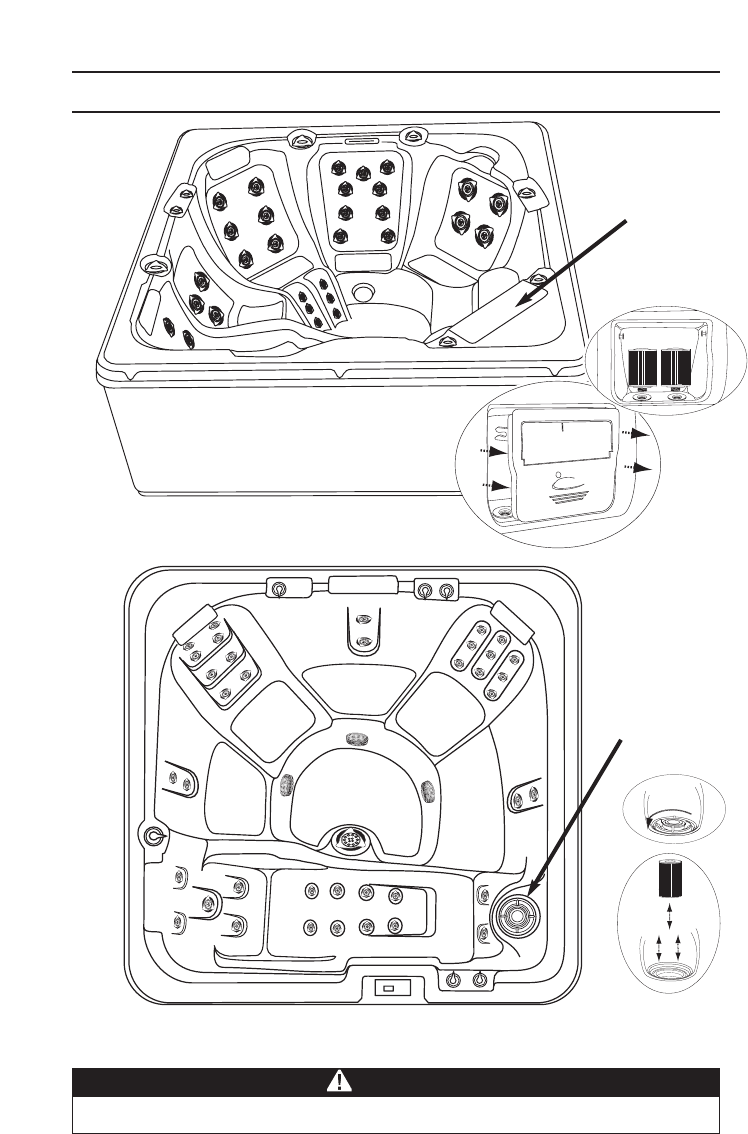

FILTER LOCATION
Dual Filter
Location
Single Filter
Location
Note: Filter style and location will vary by model
NOTE!
Dynasty Spas Operator’s Guide • www.dynastyspas.com -15
FILTER MAINTENANCE
Filtration starts as soon as water flow is steady through the filter. The filter
cartridge removes body oil and debris from the spa water, as they can cause
flow resistance. A dirty cartridge will decrease flow and may prevent the spa
from heating properly. Therefore, regular filter cleaning is essential.
Cleaning and Replacing Filter Cartridge
Your Dynasty Spa filter(s) have been designed for quick and easy
maintenance. Depending on model, your Dynasty Spa will have one of the two
following styles of filtration systems.

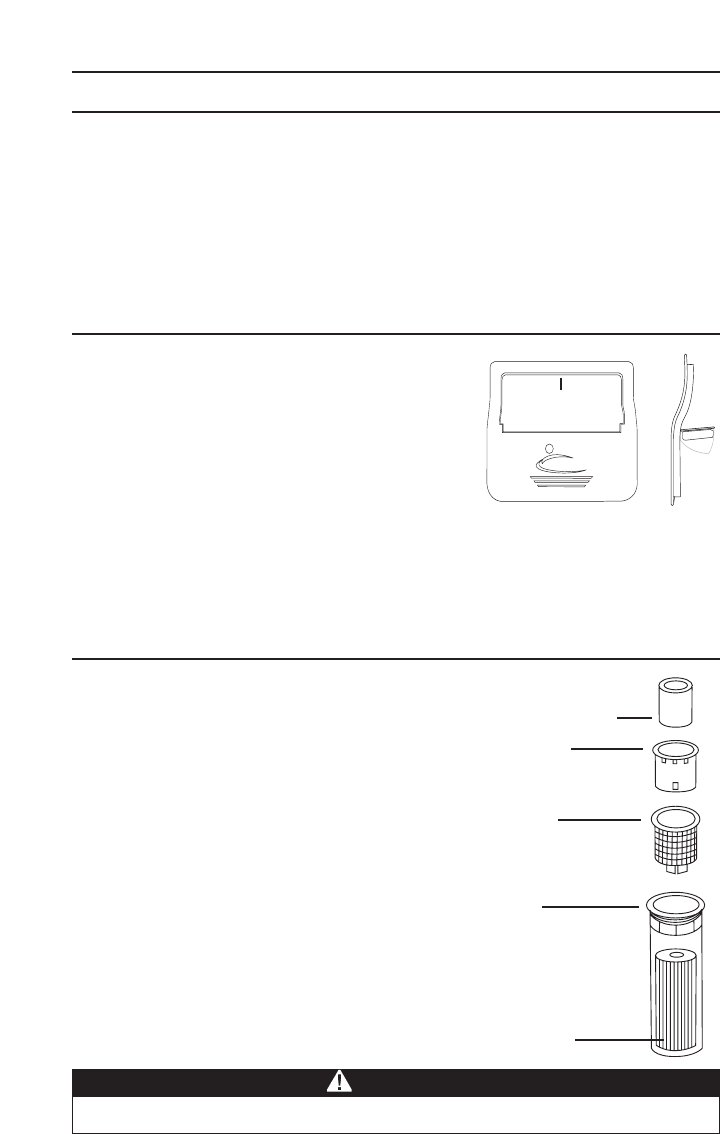

Enclosed Style
• Turn off power at the breaker.
• Open filter door and expose filter
cartridge(s) by pulling door toward center
of spa until door opens completely.
• Unscrew filter cartridge(s) and remove.
• Clean with a garden hose equipped with a
high pressure nozzle, or soak in filter cartridge cleaner if necessary, or
at every other regularly scheduled cleaning. Rinse filter thoroughly
before installing.
• Screw clean cartridge back into filter enclosure and return filter door to
original position.
Open Style
• Turn off power at the breaker.
• Remove basket from filter canister,
remove filter cartridge and clean
with a garden hose equipped with a
high pressure nozzle, or soak in
filter cartridge cleaner if necessary
or at every other regularly
scheduled cleaning. Rinse filter
thoroughly before installing.
• Place clean cartridge in filter
canister
• Replace basket weir in filter
canister.
Additional telescoping
weir section available
with Aqua-Pure only.
Floating weir
Leaf basket
Canister
Filter inserted
inside canister
Note: The filter should be inspected and cleaned on a monthly basis.
NOTE!
Dynasty Spas Operator’s Guide • www.dynastyspas.com
16
Cleaning Your Spa Water
You need to keep your spa clean and ready to use. When you enter your spa,
you bring in as much contamination as 50 people would in a normal size
swimming pool! Because your spa is such a small, enclosed environment, it
needs to be a sanitary place. We accomplish this with a simple three step
process:
1) Balance
2) Filtration
3) Sanitation
The water that comes from your tap at home is fine for showers or bathing,
because it is drained immediately after use. In a spa, your water is used for up
to three months. Hot water is a breeding ground for bacteria, so sanitizing
becomes necessary, as well as maintaining a specific mineral balance. Having
that mineral balance in place ensures that the water, which is naturally
corrosive to metal, will not cause damage to the spa equipment. We
recommend weekly water testing.
KEEPING YOUR SPA WATER CLEAN & FRESH
NOTE!
WARNING!
Filling Spa With Water
When filling the spa, use 2 ounces of SODIUM BROMIDE to create a bromide
reserve. When using BROMINATING TABLETS in a floating dispenser, two to
three tablets will treat up to 500 gallons of water. For a chlorine system, use
CHLORINATING GRANULES (1/2 oz. per 500 gallons).
WARNING: Please be careful with chemicals - damage to the
surface of the spa can occur due to the improper use of chemicals
such as trichlor or chlorine, chemical tablets, acids or spa
cleaners. Do not let undissolved chemicals lie on the surface of
the spa. Damage from chemical misuse is not covered under
warranty. Improper water chemistry balance can damage the spa
surfaces and/or equipment, and is not covered under your
warranty.
WARNING: Maintain water chemistry in accordance with test kit
instructions.
Dynasty Spas Operator’s Guide • www.dynastyspas.com 17
Once the spa has been filled to the correct level and pumps are primed and
running add:
1) STAIN & SCALE REMOVER- This prevents staining, rust and corrosion,
caused by metals in the source water. One bottle will treat up to 500
gallons for up to 3 months.
2) CALCIUM BOOSTER (If Needed) - Calcium booster treats the water if
low calcium hardness is a problem in your area. It will help prevent
equipment corrosion and foaming by raising the spa's water hardness
level to an acceptable range of 120 ppm.
3) pH STABILIZER - It will properly adjust and hold the pH for up to 3
months.
Water Testing
Your Dynasty Spas Dealer is equipped to perform a thorough analysis of your
spa water. Take a one liter sample to the store and they will advise you on the
products necessary to properly balance and care for your spa. Unbalanced
spa water can quickly damage your equipment.Your Dynasty Spas Dealer will
advise you on how to protect your investment.
Balance
Spa water must have the correct chemical balance. Unbalanced water can
irritate eyes, corrode the equipment, leave mineral deposits, and decrease the
effectiveness of the sanitizer.
Balanced water means establishing proper balance among Total Alkalinity, pH,
Calcium Hardness and Total dissolved solids.
KEEPING YOUR SPA WATER CLEAN & FRESH
Dynasty Spas Operator’s Guide • www.dynastyspas.com
18
(An Overview)
Monthly - For Equipment Protection
CALCIUM BOOSTER (If Needed) - Calcium booster treats the water if low
calcium hardness is a problem in your area. It will help prevent equipment
corrosion and foaming by raising the spa's water hardness level to an
acceptable range of 120 ppm.
Filter Cleaning
Keep your filter free of grease, grime, and oil. Clean the filter with SPA
CARTRIDGE FILTER CLEAN. One 16 oz. bottle treats a 55 square foot filter.
See Filter Maintenance section for location and diagram.
As Needed
Surface Cleaning
Between refills and as needed, clean the surface using SPA MULTI-
PURPOSE CLEANER. For tough scale & stains, use STAIN & SCALE
REMOVER.
Surface Protection
To protect and seal the spa surface, use SPA FAST GLOSS every time you
drain and clean the spa.
Water Balance
Adjust the pH quickly and easily with pH STABILIZER. It will properly adjust
and hold the pH for up to 1 month. Note: Not recommended for calcium
hardness levels above 200 ppm. Use SPA UP to raise pH and SPA DOWN
to lower pH.
Sanitizing
Use 2 ounces of SODIUM BROMIDE to create a bromide reserve. When
using BROMINATING TABLETS in a floating basket, two to three tablets will
treat up to 500 gallons of water. For a chlorine system, use CHLORINATING
GRANULES (1/2 oz. per 500 gallons).
KEEPING YOUR SPA WATER CLEAN & FRESH
Dynasty Spas Operator’s Guide • www.dynastyspas.com 19
Mineral Protection
STAIN & SCALE REMOVER - This prevents staining, rust and
corrosion, caused by metals in the source water. One bottle will treat up
to 500 gallons for up to 3 months.
Foam Control
To control foaming, use SPA FOAM DOWN. For added convenience,
use just 3 drops of SPA FOAM DOWN CONCENTRATE.
Skin Conditioning
To prevent dry skin, pour SKIN SOFTENER directly into the spa. It
soothes and moisturizes.
Algae Control
For spas with green or yellow algae, use SPA ALGAECIDE to kill and
prevent further algae growth.
KEEPING YOUR SPA WATER CLEAN & FRESH
WARNING!
Do not leave your water treatment products outside. If subjected to
extreme heat or cold, their effectiveness can be impaired.
KEEP ALL CHEMICALS OUT OF THE REACH OF CHILDREN!
Dynasty Spas Operator’s Guide • www.dynastyspas.com
20
Because your spa holds a relatively small amount of water, contaminant's such
as body oil, perspiration, dirt, hair, etc., may become quite concentrated. For
this reason, the water should be drained and replaced every three months
depending on use.
• Turn off power at the breaker.

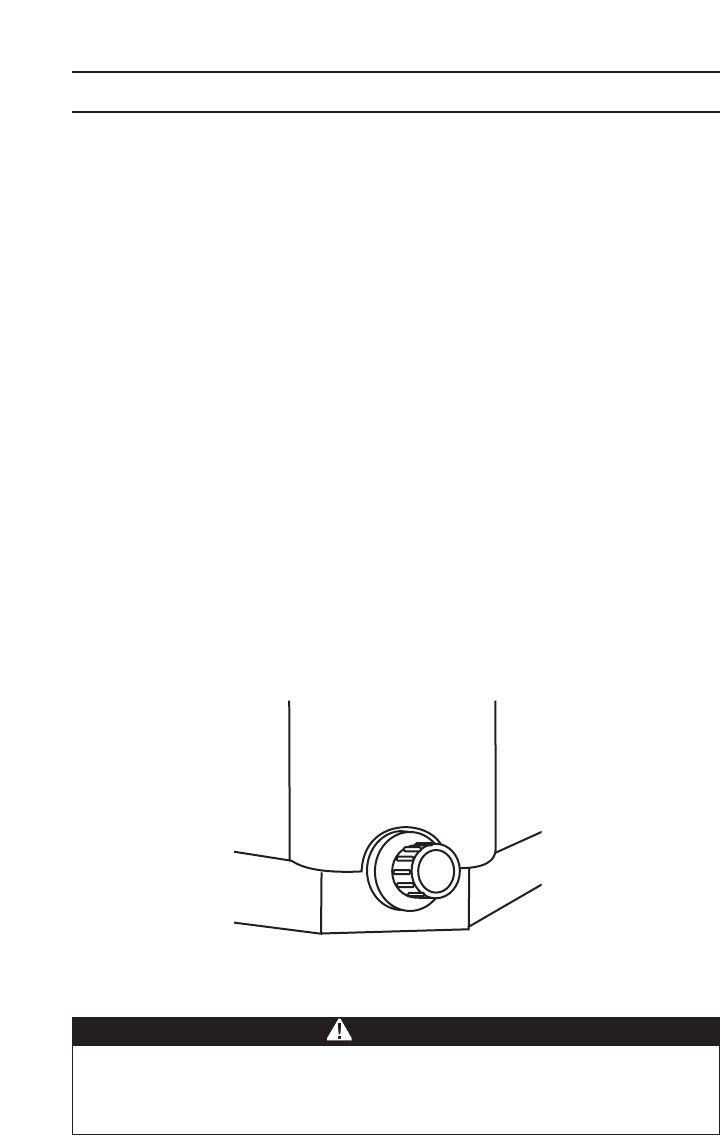

• Hook up a garden hose to the hose bib located on the exterior corner of
the cabinet. With hose still attached to bib, turn counter-clockwise one
half turn and then pull out for water to drain completely.
• When water begins to drain out of the hose, be sure to drain the water to
a convenient place.
After draining is completed, turn the hose bib off by pushing in and turn
clockwise one half turn. Remove the hose. Wipe down the inside of your spa
making sure your surface is dry and free from standing water. We recommend
that after draining or cleaning your spa that you put the cover back on. Avoid
exposing the acrylic surface to direct sunlight for an extended period of time.
Extended exposure can cause surface fading or cracking, which could void the
acrylic warranty.
DRAINING YOUR SPA
Note: Be sure that hose is on a downward grade to properly drain
spa.
Drain location may vary by model.
NOTE!
Dynasty Spas Operator’s Guide • www.dynastyspas.com 21
When winterizing the spa, we recommend putting RV Antifreeze in the spa
and running it before draining the spa.
1) If the spa is not going to be used, drain completely. Be sure all water is
removed. Break or loosen unions at each end of pump to ensure water
from pump area is removed. Remove pump freeze plugs if so equipped.
Using a shop vacuum, vacuum all jets thoroughly to remove any water
left over in the plumbing lines.
2) Do not turn unit off with water in the spa. Frozen water may rupture
plumbing. Freeze damage repairs are not covered under warranty.
3) Remove and clean filter cartridge. Store cartridge in a secure place to
prevent freezing. If the spa is going to be used, maintain normal
operating procedures and ensure cover is in place when possible.
WINTERIZING YOUR SPA
In areas of the country where the temperatures drop below 32° F, it is
important to follow these directions:
WARNING!
Note: Freeze ups or damage caused by freezing are not covered under
warranty!
NOTE!
Dynasty Spas Operator’s Guide • www.dynastyspas.com
22
Proper Maintenance For Your Dynasty Spa Cover
1) Use a soft broom to remove accumulation after every snowfall or ice
storm.
2) Splash cool tap water on the hardware to free them if they become frozen
shut. WD-40™ will keep the lock free, but apply carefully because it can
damage the cabinet finish.
3) We recommend a good treatment with Vinyl Conditioner before the first
snow or ice. If possible, treat during the winter too.
4) Monitor your water chemistry. Even it the spa is not used regularly,
improper water chemistry can cause a mildew build-up on the cover.
Clean, PH controlled water will prolong the life of the cover.
5) If mildew is found, remove foam cores from the vinyl encasement. Mix
water, a teaspoon of mild dish washing soap and a cup of bleach. With a
soft bristle brush, scrub the inside and outside of the vinyl encasement
thoroughly. Then take a washcloth and wipe down each foam core, rinse
thoroughly. Place the encasement in the sun and foam cores in the
shade to dry. Once everything is thoroughly dry, spray the cores and
encasement with a mildew inhibitor (like Pine Sol). Allow to dry
completely, then reassemble. The key here, of course, is to maintain
proper water chemistry to avoid mildew.
6) We suggest rotating the cover every six months to maintain even wear.
Unzip the cover, remove the foam cores, turn over and reassemble.
Ask Your Dealer About Using A Cover Caddy
PROTECT YOUR COVER!
MAINTAINING YOUR SPA COVER
Dynasty Spas Operator’s Guide • www.dynastyspas.com 23
TROUBLE SHOOTING GUIDE
No heat or heat too low
Probable Cause #1...................Dirty Filter.
Action .........................................Remove filter cartridge and clean.
Probable Cause #2...................Breaker at house off.
Action .........................................Reset breaker at house. Breaker can appear to be on
and one pole can be off. Turn breaker OFF then ON
twice.
Probable Cause #3...................Pump not primed.
Action .........................................Refer to the section of this manual on pump priming.
Probable Cause #4...................Improper line voltage.
Action .........................................Have a Licensed Electrician check the line voltage.
Spa Lights won't come on
Probable Cause #1...................Light bulb burned out.
Action .........................................Replace bulb (non-warranty).
Probable Cause #2...................Dirty connection.
Action .........................................Check to see if there is anything covering the
connection on the housing that holds the light bulb.
Pump will not prime
Probable Cause #1...................No water in pump.
Action .........................................Make sure water level in spa is correct.
Probable Cause #2...................Closed gate valves or blocked lines.
Action .........................................Open all gate valves. Check suction for blockage.
Probable Cause #3...................Pump surges, jets lose and gain power, loose union
or drain plug.
Action .........................................Check union on front or nose of pump to ensure
tightness. Check drain plugs to ensure tightness.
Jet(s) won't come on
Probable Cause #1...................Pump not primed.
Action .........................................Refer to the section of this manual on pump priming.
Probable Cause #2...................Gates valves closed.
Action .........................................Check to see if gate valves are in the correct position.
Check to see that pump is plugged in.
Probable Cause #3...................Water Diverter Valve not adjusted correctly.
Action .........................................Turn Water Diverter Valve until desired water flow is
obtained.
Probably Cause #4 ...................Individual jet is closed.
Action .........................................Turn the outer jet housing clockwise to turn jet on.
Low water flow
Probable Cause #1...................Dirty Filter.
Action .........................................Remove filter cartridge and clean.
Probable Cause #2...................Closed gate valves or blocked lines.
Action .........................................Open all gate valves.
Probable Cause #3...................Low voltage or incorrect voltage.
Action .........................................Have a Licensed Electrician check the line voltage.
Dynasty Spas Operator’s Guide • www.dynastyspas.com
24
TROUBLE SHOOTING GUIDE (CONT.)
Spa is leaking
Probable Cause #1...................Loose connection.
Action .........................................Hand tighten all disconnects and fittings. Check joints
and unions.
Motor does not run
Probable Cause #1...................No power to motor.
Action .........................................Check power switches and circuit breakers. Check
motor plug where plugged into control box.
Probable Cause #2...................Pump jammed from foreign matter in impeller.
Action .........................................Call dealer for recommended action.
Probable Cause #3...................Motor overheats on hot days while filtering.
Action .........................................Reprogram your controls to cycle during the coolest
parts of the day and on shorter cycles. (see
programming instructions).
Motor runs hot
Probable Cause #1...................Pump ran dry.
Action .........................................Call dealer for recommended action.
Probable Cause #2...................Restricted suction lines.
Action .........................................Make sure all valves are open/clear suction of debris.
Probable Cause #3...................Improper ventilation
Action .........................................Insure that vents on side of spa are free and clear of
any debris or landscaping. Spa should also be located
an adequate distance from any walls or fencing for
good ventilation.
WARNING!
Note: These motors will feel hot to the touch. This is normal. The
Overheat Sensor will turn the motor off if there is an overload or high
temperature problem.
Dynasty Spas Operator’s Guide • www.dynastyspas.com 25
Air Blower ..................................The air blower supplies air to the jets creating a hydro
massage action.
Air Control or Venturi.................Mounted on the lip of the spa or at the equipment
shroud, to induce air to the jets.
Cabinet ......................................The natural or synthetic wood panels that surround
the spa, also called a skirt.
Check Valve...............................Prevents back flow of water through system.
Control Panel.............................Mounted on the lip of the spa, the digital panel that
controls the spa’s functions.
Control Box................................Basically the brain of the spa. Distributes power to all
functions of the spa, pumps, ozonator, heater, fiber
optics, etc.
Drain...........................................The fitting set into the footwell that drains water from
the spa.
Filter ...........................................The filter cleans the spa, removes particles and
debris, and protects the equipment from foreign
substances.
Footwell......................................The bottom of a spa where you place your feet.
Dynasty is known for it's larger footwells and
comfortable seating.
G.F.C.I. Breaker .........................The electronic switch installed in the power box of
your house to give power to the spa. This is a non-
user serviceable part.
Gate Valves ...............................T-handled valves located at the inlets and outlets of
the equipment. The gate valve blocks or opens the
water line by the equipment.
Heater ........................................The thermostatically controlled heater raises the
temperature of the water to the desired degree. This is
located under the control box in the equipment area.
Hose Bib ....................................Used in the draining of the spa, fits a standard garden
hose.
GLOSSARY OF TERMS
Dynasty Spas Operator’s Guide • www.dynastyspas.com
26
GLOSSARY OF TERMS
Jets.............................................The fittings on your spa that direct the flow of water for
massaging action.
Ozone ........................................A water purification supplement method using Ozone
gas. Ozone gas, made by an Ozone Generator unit,
can reduce your sanitizer needs by up to 25%.
pH...............................................Stands for "Potential for Hydrogen" This is the term
used to describe the acid (low pH) or alkaline (high
pH) condition of the water. The ideal pH for spa water
is 7.5.
Skimmer ...................................The skimmer removes surface debris, allowing debris
to be caught in the filter. The water level in the spa
should be kept at 2" above the skimmer for optimum
operation.
Dynasty Spas Operator’s Guide • www.dynastyspas.com 27
NOTES
Safety Sign
The safety sign enclosed with your Owner’s Manual packet should be permanently
installed where visible to all users of the spa. It is very important that you, as a spa
owner, review the important safety instructions and warnings before you operate your
spa. It is equally important that you instruct all users, even occasional ones, as to the
warnings associated with spa use. You may obtain additional signs by contacting:
Dynasty Spas
101 Dynasty Way
Athens, TN 37303
866-951-6224
Disclaimer:
The information in this manual is accurate to the best of Dynasty Spas, Inc.’s
knowledge. However, Dynasty Spas, Inc. assumes no responsibility for errors or
omissions. Nor is any liability assumed for damages resulting from use of the
information contained herein.
Limited Warranty Summary
Please refer to the Warranty Card included with your product for complete warranty
information. In order to receive prompt warranty service, you must register your
warranty by visiting www.dynastyspas.com / warranty registration. Dynasty Spas, Inc.
provides a limited warranty to our customers. It applies to the spa structure, surface,
plumbing, pumps, heater, blower, and controls. The limited warranty does not cover
damage resulting from improper maintenance, improper installation, misuse, abuse,
accident, fire, normal wear and tear, or improper water maintenance. Unauthorized
modifications of the spa may void the warranty. Replacement costs associated with
transportation, removal, and reinstallation are the sole responsibility of the spa owner.
This manual refers to only year 2008 model spas. Dynasty Spas, Inc. reserves the right
to make changes in design or material of its products at any time without incurring
liability. This limited warranty applies to the first retail purchaser and terminates upon
any transfer of ownership.
C
Dynasty Spas
101 Dynasty Way
Athens, TN 37303
www.dynastyspas.com
©2008 Dynasty Spas, Inc. All rights reserved. Dynasty Spas reserves the right to make product modifications and enhancements.
Note
Read this guide thoroughly. It contains important safety and
maintenance information.
Please review it and keep it for future
reference.
001194.060608
