Owners Manual

Deluxe System D-1000

Premier System D-2000

Elite System D-3000

For

Owner's Information

Dealer

Installer

Model

Serial Number

Equipment Pack

Color

Date of Delivery

Company

Address

Phone

E-Mail

We Appreciate your business and our sincere desire is that you receive

years of pleasure and therapy from your Dynasty Spa. Please call your

local Dynasty Spa Dealer if you have any questions or problems. If they

are unavailable, please feel free to call the Dynasty Spas Customer

Service Group at: 800-951-6224.

Company

Address

Phone

Warranty Turned In / Date

Owner's Information

Dealer

Installer

Model

Serial Number

Equipment Pack

Color

Date of Delivery

Company

Address

Phone

E-Mail

We Appreciate your business and our sincere desire is that you receive

years of pleasure and therapy from your Dynasty Spa. Please call your

local Dynasty Spa Dealer if you have any questions or problems. If they

are unavailable, please feel free to call the Dynasty Spas Customer

Service Group at: 800-951-6224.

Company

Address

Phone

Warranty Turned In / Date

Dynasty Spas Owners Manual

Table Of Contents

Owners Information............................

Safety Instructions..............................

Basic Introductory Information...........

Set-Up & Delivery Guidelines.............

Wiring Diagram...................................

Pre-Operation Instructions.................

D-1000 Control System.......................

D-2000 Control System.......................

D-3000 Control System.......................

Air Venturies & Diverter Valves...........

Filter Location.....................................

Filter Maintenance..............................

Water Care..........................................

Draining Your Spa...............................

Winterizing Your Spa...........................

Cover Maintenance.............................

Trouble Shooting Guide......................

Glossary of Terms................................

Reference Chart..................................

Dear Dynasty Spa Owner:

Congratulations on your purchase of a new Dynasty Spa.

You now possess the ultimate passport to tranquility - a

miniature vacation at home, ready and waiting for you in your

own backyard!

We want you to enjoy your Dynasty Spa. Many hours of research

have gone into the design of your spa, to ensure the ultimate

in hydrotherapy and relaxation. Only the highest quality

components have been used, to ensure years of trouble-free

operation. Your comfort and enjoyment has been designed

into your Dynasty Spa from the start.

Please take the time to read through this Owner's Manual.

In it, you will find guidelines on caring for your spa, a

complete explanation of the controls, safety instructions,

a troubleshooting section, and lots more.

Once again, we welcome you to the family of Dynasty Spa

owners. Your thoughts and ideas are important and we

encourage you to share them with us. Please write to us at

the address below, or send us an e-mail with your comments.

Thank you for your business and your confidence in our

company. We look foward to serving you!

Sincerly

Mike Deans

President , Dynasty Spas

Dynasty Spas

100 Dynasty Way

Athens, Tennessee 37303

www.dynastyspas.com

When installing and using this electrical equipment, basic safety precautions

should be followed, including the following:

1) READ AND FOLLOW ALL INSTRUCTIONS.

2) WARNING: To reduce the risk of injury, do not permit children to use this

product unless they are closely supervised at all times. Keep Spa cover locked

when not in use.

3) A wire connector is provided on 220 V units to connect a minimum No. 8 AWG

(8.4 mm2) solid copper conductor between this unit and any metal equipment,

metal water pipe, or conduit within 5ft. (1.5 m) of the unit.

4) 110 V cord connected spas are provided with a GFCI on the end of cord. The

GFCI must be tested before each use. With the spa operating push the test button.

Spa will shut off, next push the reset button on the GFCI. The product should now

operate normally. If the product fails to operate there is a ground current flowing

indicating the possibility of an electrical shock. Disconnect the power until the

fault has been identified and corrected.

5) DANGER Risk of injury. The suction fittings in this spa are sized to match the

specific water flow created by the pump, be sure that the flow rates are

compatible. Never operate the spa if the suction fittings are broken or missing.

Never replace a suction fitting with one rated less that the flow rate marked on

the original suction fitting.

6) DANGER Risk of electrical shock. Install at least 5 feet (1.5m) from all metal

surfaces. as an alternative a spa may be installed within 5 feet of metal surfaces

if each metal surface is permanently connected by a minimum No. 8 AWG

(8.4mm2) solid copper conductor to the wire connector on the terminal box that

is provided for this purpose.

7) DANGER Risk of electrical shock. Do not permit any electrical appliance, such

as light, telephone, radio or television within 5ft. (1.5m) of spa.

8) WARNING To reduce the risk of injury:

The water temperature in a spa should never exceed 104 F.

A water temperature of 104 F is considered safe for a healthy adult.

Lower water temperatures are recommended for young children and

when spa use exceeds 10 minutes.

Since excessive water temperatures have a high potential for causing

fetal injury during the early months of pregnancy, pregnant or possibly

pregnant women should limit spa water temperature to 100 F.

Before entering a spa, the user should measure the water temperature

with an accurate thermometer since the tolerance of water temperature

- regulating devices varies.

The use of alcohol, drugs, or medications before or during spa use may

lead to unconsciousness with the possibility of drowning.

Important Safety Instructions

9) The causes, symptoms and affects of hyperthermia may be described as

follows:

10) For Cord Connection Units

11) Never touch or come in contact with any electrical accessory when in your spa

or when your body is wet.

12) Prior to performing any service to the Spa Pack, turn off ALL power to the

system at the main power source breaker.

13) Never turn equipment pack on unless spa is filled with water 2" above the

skimmer.

CAUTION: Each persons body and circulatory system has different tolerances

and responds differently to warm/hot immersion. Most people in good health

find a water temperature of about 102 F to be satisfying and limit time in water

at this temperature to 20-30 minutes. Use of alcoholic beverages and certain

medications may affect the way your body's system reacts to warm water/hot

immersion. CONSULT YOUR PHYSICIAN FOR RECOMMENDATIONS.

Persons suffering from obesity or with a medical history of heart

disease, low or high blood pressure, circulatory system problems,

or diabetes should consult a physician before using a spa.

Persons using medication should consult a physician before using

a spa since some medication may affect heart rate, blood pressure,

and circulation.

Hyperthermia occurs when the internal temperature of the body reaches

a level several degrees above the normal temperature of 98.6 degrees F.

Replace damaged cord immediately with same specification cord.

Do not bury cord.

Connect to grounded, dedicated 20 amp receptacle.

The symptoms of hyperthermia include an increase in the internal

temperature of the body, dizziness, lethargy, drowsiness and fainting.

The effects of hyperthermia include:

Failure to feel heat

Failure to recognize the need to exit the spa

Unawareness of impending hazards

Fetal injury in pregnant women

Physical inability to exit the spa or hot tub

Unconsciousness resulting in the potential of drowning.

Important Safety Instructions

SPA & POOL

NATIONAL

INSTITUTE

Congratulations on the purchase of your new spa. Our purpose is to provide you with a

warm and relaxing spa which incorporates a soothing water massage. In order to

maximize the pleasure of your spa, you will need to understand how it works.

The following operating and maintenance instructions are very important and must

be followed carefully. With proper care and maintenance your spa will provide you with

years of satisfaction with minimum effort.

The pump and heater should be operated a minimum of four hours per day for

cleaning and heating.

The length of time required to heat your spa to the desired water temperature

will vary, depending on the air temperature, season, and wind velocity. Therefore,

this is something each owner must adjust to your liking. We highly recommend

using a vinyl hard cover to minimize heat loss and to protect your spa when not

in use. Covers are available from your local Dynasty Spa dealer.

The replaceable filter cartridge is trouble free and easy to clean. A routine cleaning

is the best practice. Make sure the pump is off, then remove the cartridge. Wash it

off using a water hose with a pressure nozzle and then reassemble. This should be

done on a monthly basis.

Keep the spa water level 2" above the skimmer. Never allow the water level to drop

below the bottom of the skimmer opening. If the water level is too low, the skimmer

will allow air into the water lines of the pump, causing it to lose its prime (water -

flow). Running the pump without water flow will damage the pump seal assembly

and could possibly result in further equipment damage.

If your spa has a redwood skirt or if you purchased a redwood gazebo, we

recommend applying a wood sealer of your choice (always follow application

instructions) to protect the finish. Repeat as directions suggest.

You should clean your spa at least every 3-4 months. Drain the spa water and

use a liquid cleanser free of abrasives to clean your spa. Such cleaners would be,

for example 409 or Fantastic. DO NOT use hard brushes. Fill with regular tap water

and chemically treat the water for a clean and healthy spa.

CAUTION: Cover must be kept on spa at all times when spa is drained or

winterized. Direct exposure to sunlight can damage plastic parts and interior

surface, jets, or any interior components. Damage as such will not be covered

under warranty.

WARNING: Do not use soft water. It may harm your acrylic.

Basic Introductory Information

Getting Ready For Delivery & Set-up Of Your New Spa

Surface And Pad Requirements

Balconies And Deck Requirements

Access & Clearance

Electrical Requirements

Wiring Requirements

Your new portable spa must be placed on a uniformly firm, flat, and level

surface. A concrete pad 4 inches thick is best.

Your spa requires up to 40" of clearance through gates between house

and side fences, and up to 8.5' overhead clearance depending on the size

of the unit.

Your 110 Volt spa pack requires an isolated (no other appliances or lights

on this circuit at any time) 110 Volt, 20 amp circuit breaker cords maximum

length 15 ft.

Your 220 Volt spa pack will require a 50 amp dedicated GFCI circuit

breaker, depending on model.

4 Wire #6 Gauge wire over 50 ft.

2-Hots, 1-Neutral, 1-Isolated

Ground

The clearance required to turn a corner can be equal to the length of the

spa.

All debris blocking access to the job site, must be removed prior

to delivery. Any trimming of trees or bushes, removal of debris, leveling

of ground or other general maintenance must be done prior to

delivery and is the responsibility of the customer.

Decking must be constructed to support 85 pounds per square foot.

Balconies must be constructed to meet current state and local codes.

Gates must be self closing and self-latching.

If your spa is located near sprinklers, adjust or cap them so as not to

hit the siding of the spa.

Set-up & Delivery Guidelines

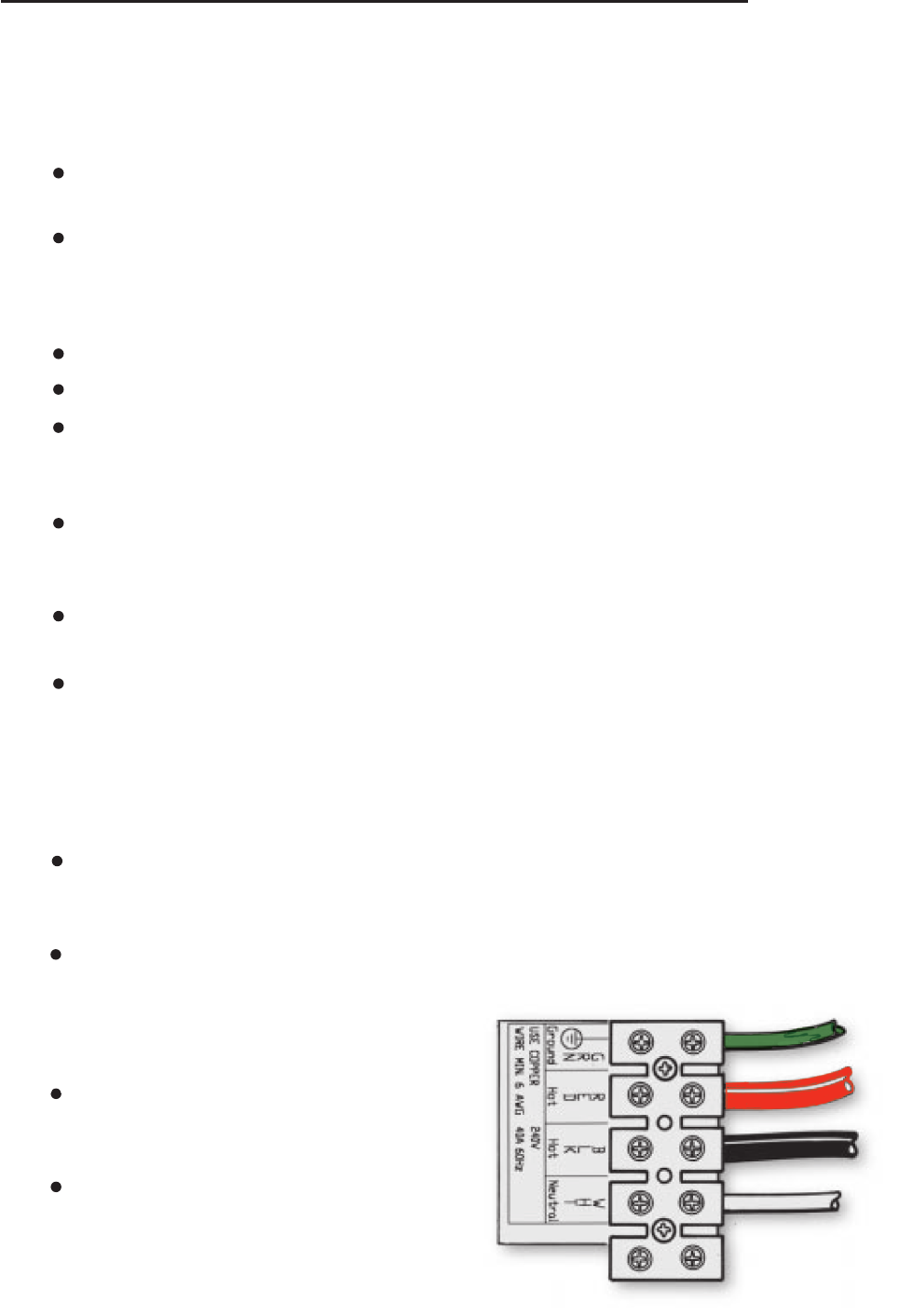

4 Wire #8 Gauge wire under 50 ft.

2-Hots, 1-Neutral, 1-Isolated

Ground

Getting Ready For Delivery & Set-up Of Your New Spa

Wiring Requirements (Cont.)

It is the customers responsibility to acquire necessary

permits, to arrange for installation and hook up of the

electrical power.

Extension Cords are not to be used in conjunction with operation of the

spa. Low voltage damage could result, which is not covered by warranty.

If you have any doubts, have your electrical system checked by a qualified

electrician.

Set-up & Delivery Guidelines

Factory Recommended G.F.C.I Load Center Wiring

Note: The white neutral wire

from the back of the G.F.C.I MUST

be connected to an incoming line

neutral. The internal mechanism of

the G.F.C.I. requires this neutral

connection. The G.F.C.I. will not work

without it.

Wiring Diagram

House Breaker Box

G.F.C.I. Breaker Box

Spa System Box

GRN (GROUND)

WHT (NEUTRAL)

RED (HOT)

BLK (HOT)

RED (HOT)

WHT

GRN (GROUND)

WHT

BLK (HOT)

GRN (GROUND)

Front View of G.F.C.I. (Square D)

TB1

Bottom View of G.F.C.I.

(Square D)

RED (HOT)

BLK (HOT)

WHT

BLK (HOT)

WHT

RED (HOT)

GRN

WHITE (NEUTRAL)

BLK (HOT)

RED (HOT)

GREEN (GROUND)

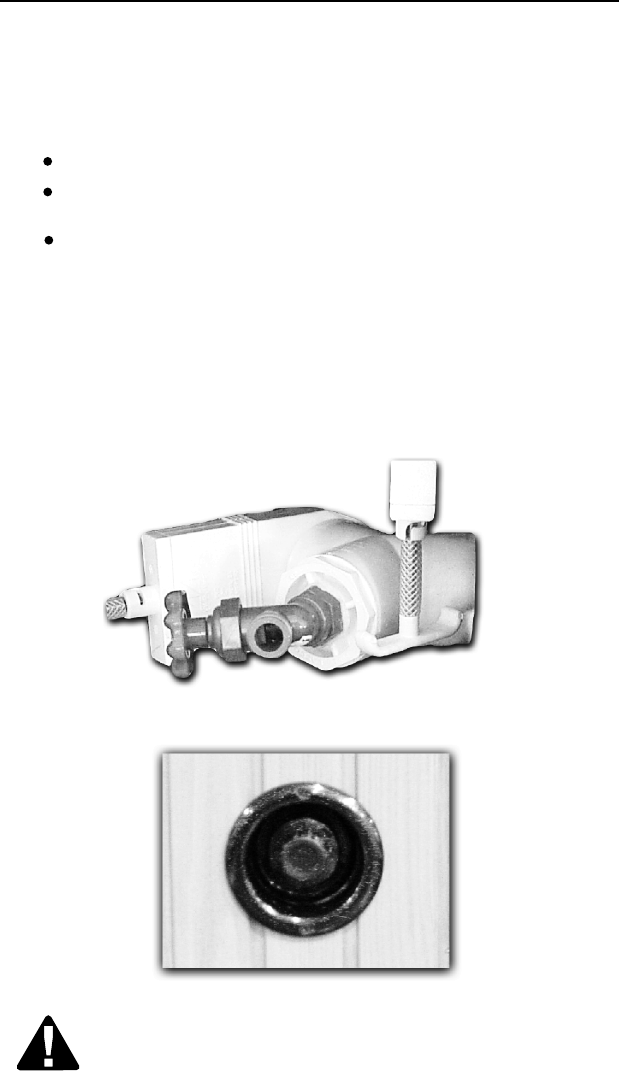

Priming Pump For Electric Packs

Turn off power at the breaker

It is important to make sure that all of the air is out of the equipment pack

before operating. To do this follow procedures below:

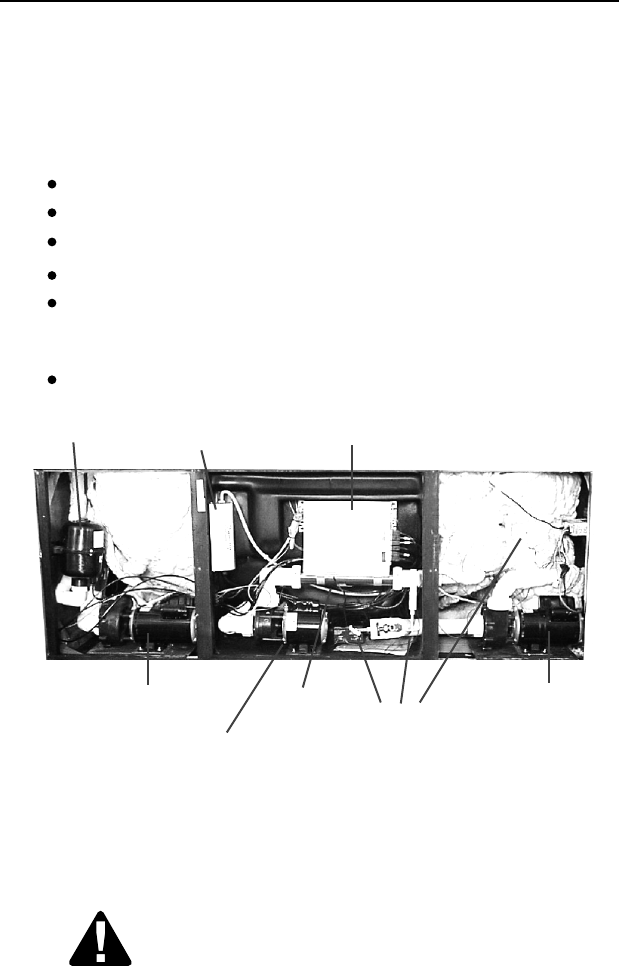

The Power pack system is located under the wood skirt. The equipment

can be serviced by simply opening the doors.

Set thermostat, located on top side control panel to desired temperature, and

continue heating until desired temperature has been reached. Depending

on equipment, this will normally take 8 to 10 hours.

Make sure the gate valves are open

Fill the spa with water going thru the filter

Turn the power on at the breaker

Start the pump on Hi-Speed and water will start circulating within

one to two minutes. (The pump is self-priming). If water does not circulate,

turn off the power and make sure all gate valves are open if so equipped.

Restart the pump. Within one to two minutes, it should be primed

General Pre-Operation Instructions

WARNING: Do not run spa with gate valves closed or run pump with

no water circulating in spa for long periods. This could damage

the spa equipment.

Air Blower Ozonator

(Optional) Equipment Pack

Gate Valves

Flow Thru

Heater

Circulation

Pump

(Optional)

Auxiliary Pump

(Optional)

2 Speed

High Performance

Pump

When your spa is first powered up, it will automatically heat and

maintain 100 F until you change the setting temperature.

The current temperature is constantly displayed on the LED. Press either

or pad once to display the set temperature. Each time either pad is

pressed again, the set temperature will increase or decrease depending

upon which pad is pressed. After three seconds, the LED will automatically

display the current spa temperature.

Two Pump Option: Touch the pad once to activate the low speed of

pump 1. Press the pad again and the high speed of pump 1 and pump 2 will

run. Press the pad again to turn off the equipment.

Press the pad to turn the spa light on or off. The light will automat-

ically turn off after 1 hour.

One Pump and Blower Option: Touch the pad once to activate the

pump's low speed. Press the pad again and the pump's high speed and

the blower will run. One more press, and only the pump's high speed will

run. Press the pad again to turn off the equipment.

The low speed of pump 1 will run when the heater is turned on or when a

filter cycle is activated. If automatically activated, the low speed of pump 1

cannot be disabled from the front panel; however, the high speed of both

pumps may be started. The low speed of pump 1 turns off after 2 hours. The

high speeds of pump 1, pump 2, or blower (if installed) turn off after

20 minutes.

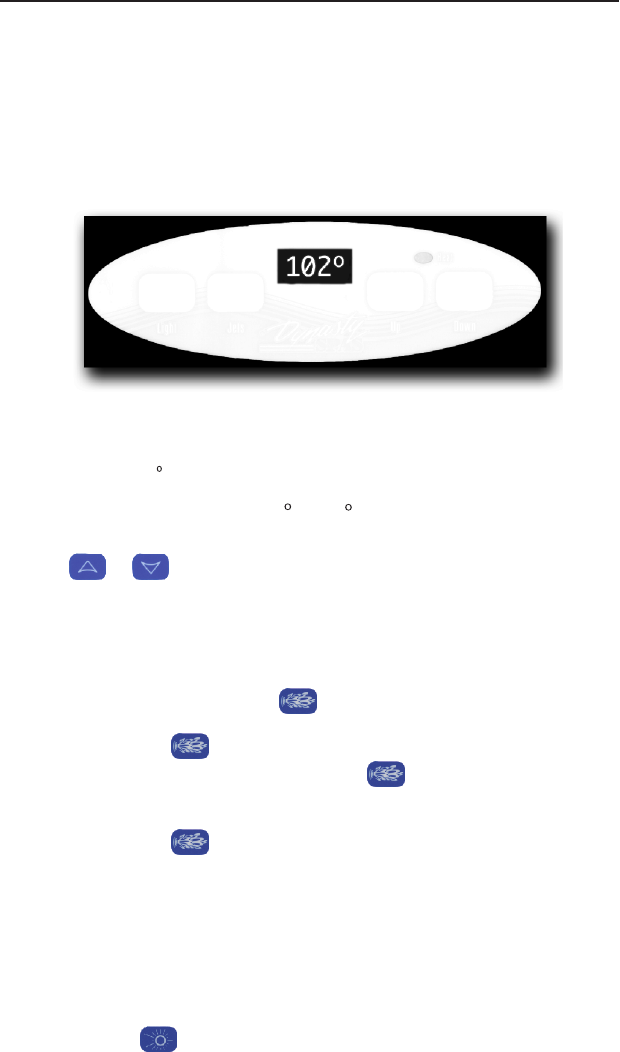

D - 1000 System

Initial Start-up

Temperature Adjustment (80 F -104 F)

Jets

Light

Depending on the Dynasty Spa model you purchased, you'll have different options

available to you with Dynasty's digital controls. The operations of your hot tub

can be enjoyed at the touch of a button. This section is designed to walk you

through the details of the operation of the Dynasty 1000, 2000 & 3000 controls.

Top Side Control Instructions

Your spa will automatically filter itself twice each day. The first filter

cycle will begin 1 minute after the spa is energized. The second filter cycle

will begin 12 hours after the start of the first filter cycle. Filter duration

is programmable at the topside panel for 0, 1, 2, 3, 4 or 12 hours. The

default filter time is 2 hours. To program, press the or pad,

then the pad. Continue to press the or pad to select

the filter duration. Press the pad again to exit programming. The

low speed of pump 1 constantly runs during the filter times (unless the

high speed is on). The ozone generator (if installed) will run 24 hours

a day.

Overheat Protection (Spa is deactivated)

If the high limit sensor detects 40 F at the heater, then the high speed

of pump 1 and pump 2 (if installed) automatically activates to provide

freeze protection. The equipment stays on until the sensor detects

45 F at the heater. Freeze protection is activated regardless of the spa's

status. In colder climates, an optional additional freeze sensor may be

added to protect against freeze conditions. See your dealer for details.

DO NOT ENTER THE WATER. If the spa water has reached 112 F, remove

the spa cover to cool the water. Overheating may occur if the filter cycle

is set too long. At 110 F, the spa should reset itself. If the high limit sensor

detects 118 F at the heater, the spa will shut down. When the heater

cools to 110 F, press any button to reset the spa. If the spa will not

reset, then shut off power to the spa and call your dealer or service

organization.

Flow Switch Detection

The high-limit sensor or water temperature sensor is not working. Call

your dealer or service organization.

Sensor (Spa is deactivated)

WARNING! SHOCK HAZARD! No User Serviceable Parts.

Do not attempt service of this control. Contact you dealer or service

organization for assistance. Follow all owner's manual power connection

instructions. Installation must be performed by a licensed electrician and

all grounding connections must be properly installed.

Preset Filter Cycles

Freeze Protection

Diagnostic Messages

Top Side Control Instructions

Flashing alternately with temperature. The filter may need cleaning.

The water level is too low. Be sure flow valves are open. FL (NOT

FLASHING) a pressure switch has malfunctioned. Contact your dealer

or service organization.

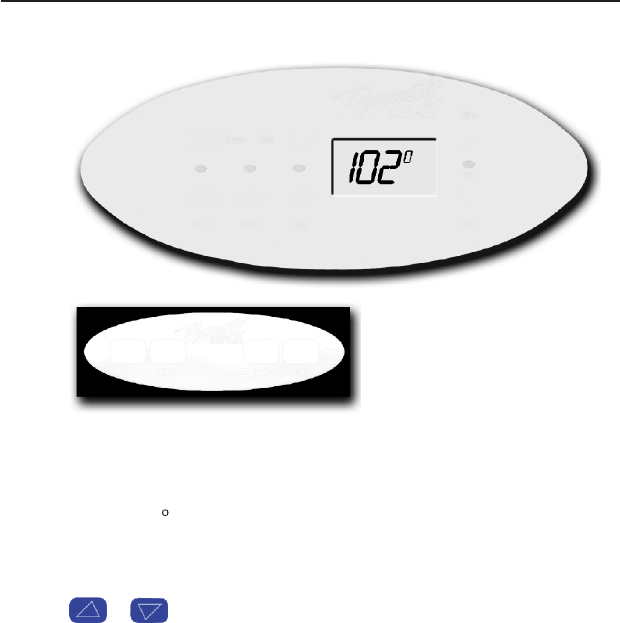

When your spa is first powered up, it will automatically heat and

maintain 100 F until you change the set temperature.

Pressing the pad a second time will cause the set temperature to increase

or decrease depending on what direction was last chosen. Each press will

change the set temperature in the same direction. If the opposite direction

is desired, release the pad and let the display revert to the actual water

temperature again. Press the pad to display the temperature, and

again to make the temperature change in the desired direction.

Press the pad to display the temperature setting. The set temperature

is flashed on the display. In a few seconds, the numbers will

stop flashing, and the display will show the actual water temperature.

Press the pad to turn the spa light on or off. The light will automat-

ically turn off after 1 hour.

Press the pad to activate the low speed of pump 1. Press the pad

again for the high speed of pump 1 (and pump 2 if installed). Press the jets

pad again to turn off the pump(s). The low-speed pump also runs when the

heater is on (not on circulation pump systems) and during filter cycles. If

automatically activated, the low-speed pump cannot be disabled from the

front panel; however, the high-speed pump(s) may be started. The low-

speed pump turns off after 2 hours, and the high-speed pump(s) turn

off after 20 minutes.

Press the pad to turn the blower on and off. The blower will

automatically turn itself off after 20 minutes.

Initial Start-up

Temperature Adjustment

Jets

Blower (optional)

Light

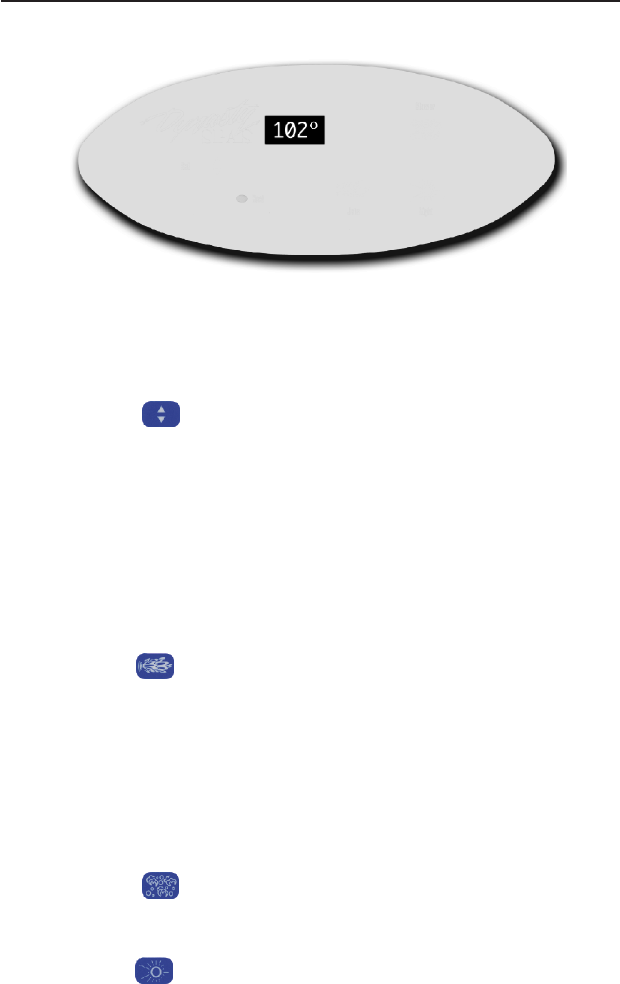

Your spa will automatically filter itself twice each day. The first filter cycle begins

Preset Filter Cycles

Top Side Control Instructions

D - 2000 System

1 minute after the spa is energized. The second filter cycle will begin

12 hours after the start of the first filter cycle. Filter duration is programm-

able at the topside panel for 0, 1, 2, 3, 4 or 12 hours. To program, press

the SET pad, then the JETS pad. Press the SET pad again and F2 will be

displayed on the panel. (F2 is the default filter time and indicates a 2 hour

cycle). Continue pressing SET to cycle through the rest of the filter time

options, FO =O hour, F1 = 1 hour, F2 = 2 hours, F3 = 3 hours, F4 = 4 hours,

and FC = 12 hours. Press the JETS pad again to exit the programming mode.

During filtration, the low-speed pump will run and the blower (if installed)

operates for 30 seconds at the start of the first filter cycle to clean out

the air channel. If a circulation pump is installed, when the water is at set

temperature or below, it will run for 24 hours/day to constantly filter

the water. However, it turns off at 2 F above the set temperature and comes

back on for 1 hour every 3 hours until set temperature is reached again.

An ozone generator (if installed) also runs 24 hours/day.

Overheat Protection (Spa is deactivated)

If the high limit sensor detects 40 F at the heater, then the high speed

of pump 1 and pump 2 (if installed) automatically activates to provide

freeze protection. The equipment stays activated until the sensor detects
