Dyson Airblade V Brochure

2015-08-14

: Dyson Dyson-Airblade-V-Brochure-800069 dyson-airblade-v-brochure-800069 dyson pdf

Open the PDF directly: View PDF PDF.
Page Count: 24

The fastest to dry hands hygenically
with HEPA filtered air.
Dyson Airblade™ hand dryers 01 02
Why do we put up with products
that don’t work properly?
In 1907, paper towels were introduced
to washrooms. The electric hand dryer
made its first appearance in 1948.
But both have changed little since –
they can still be expensive, unhygienic
and harmful to the environment.
At Dyson, our engineers didn’t think
that was good enough. So in 2006,
they put a century of poor performing
hand drying methods to rest – with
the invention of Airblade™ technology.

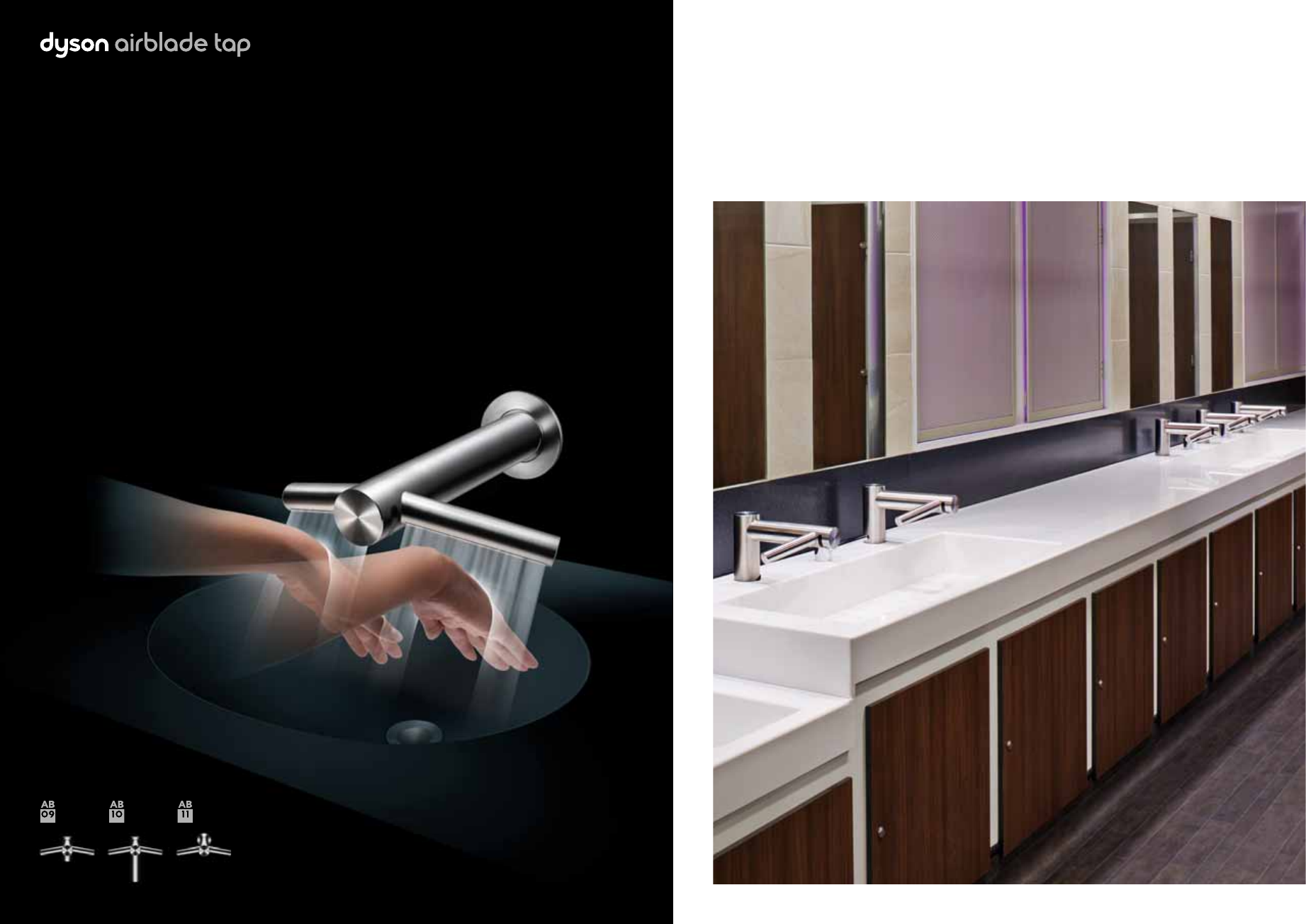

The Dyson Airblade Tap hand dryer installed
in the washrooms of a leading F1 team.
03 04Dyson Airblade™ hand dryers

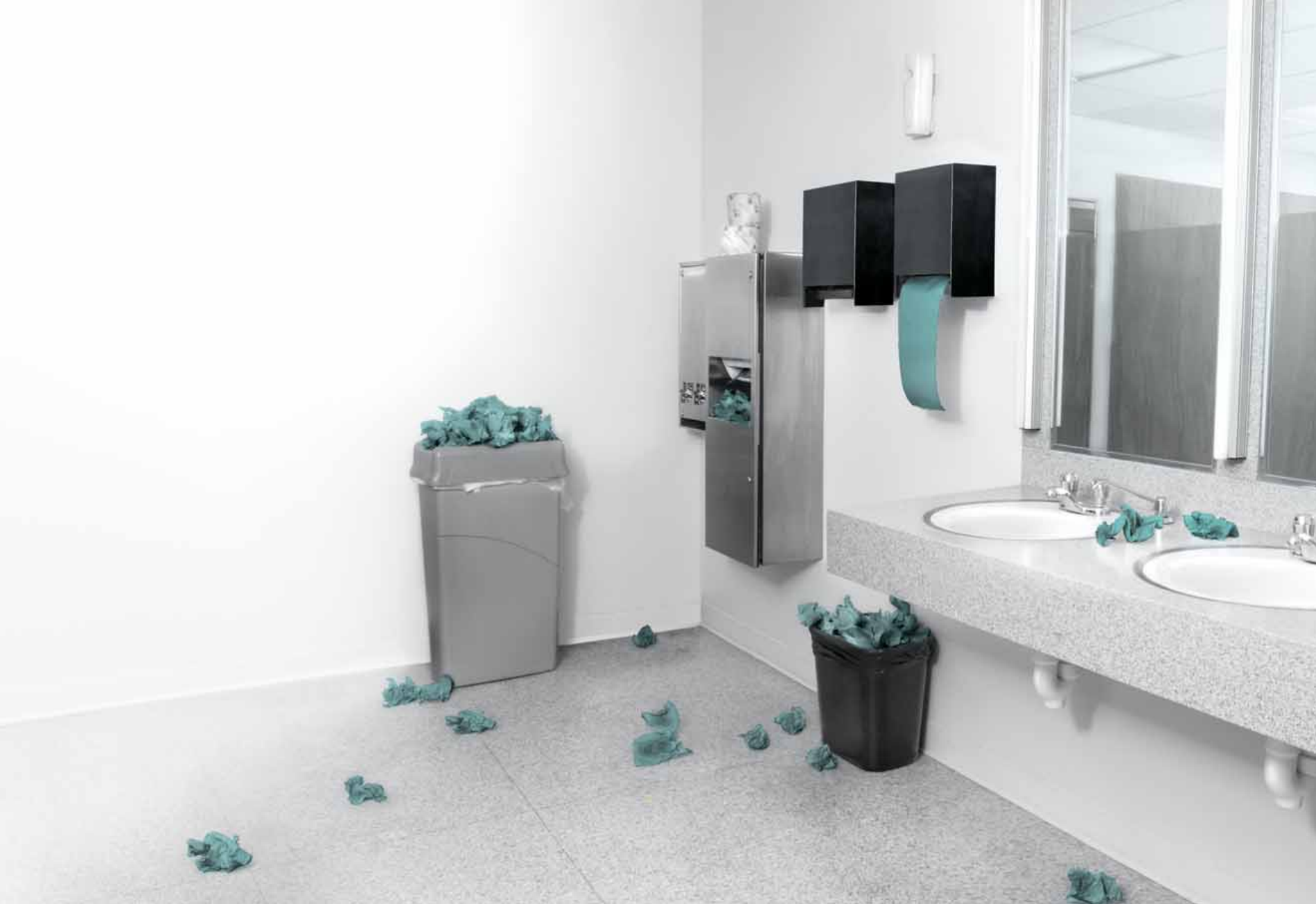

Paper towels are expensive,
have a high impact on the
environment and cause extra
washroom maintenance
through mess and blockages.
And because dispensers are
often found empty, leaving no
way to dry hands, paper towels
can create hygiene issues
beyond the washroom.
The problems
with paper towels
Did you know?
Ensuring hands are dry is crucial
for maintaining hygiene levels,
as damp hands can spread up
to 1,000 times more bacteria
to the surfaces they touch.
05 06Dyson Airblade™ hand dryers
The problems with
other hand dryers

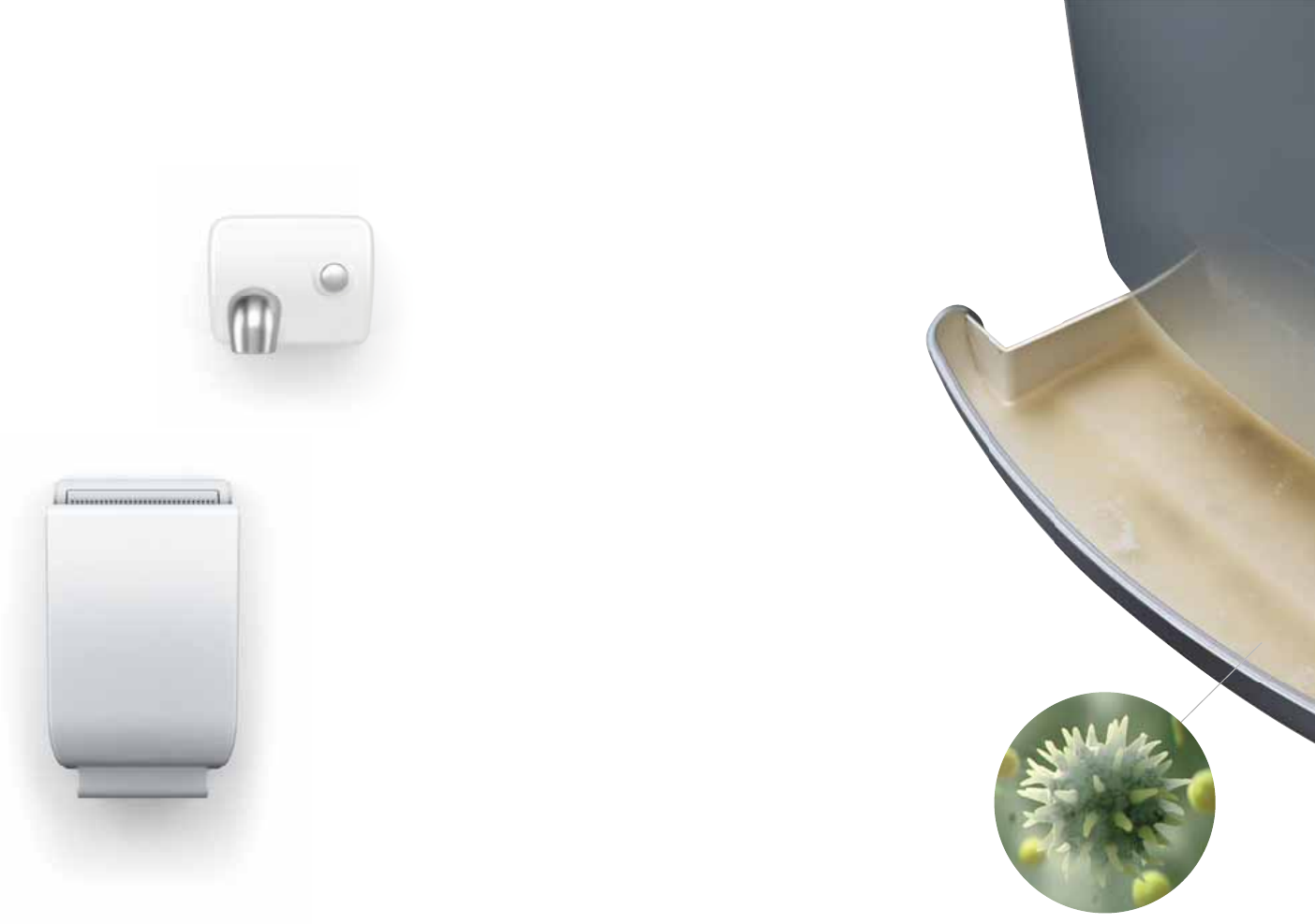

Have you ever looked inside a drain tank?
Some hand dryers collect waste water
using drain tanks. But these are
unhygienic – providing the perfect
breeding ground for bacteria.
Drain tanks must be emptied and
cleaned regularly – adding time and
effort to the washroom maintenance
process, and risking spillage of
waste water during disposal.
Warm air dryers
Warm air dryers are slow.
Which means they’re energy hungry,
expensive to run and unhygienic.
Dry times can take up to 43 seconds,
so many users give up before their
hands are dry – risking increased
spread of bacteria.
Jet dryers
Other jet dryers might look like
a Dyson Airblade™ hand dryer,
but when it comes to performance,
there’s no comparison. Thanks to
weak motors, most other jet dryers
can’t generate the fast airflow
needed to dry hands quickly.
They can also lack the power
required to draw the air through
a HEPA filter.
So most other jet dryers aren’t just
slower than Airblade™ technology,
they’re less hygienic too.
Did you know?
Public health specialists NSF state
that to be cer tified as hygienic,
a hand dryer must dry hands
in 15 seconds or less.
Did you know?
In recent testing, Dyson
microbiologists detected greater
levels of bacteria in a drain tank
than levels that can be found in
the average household toilet.1
1 Sources: Dyson in-house testing, 2015;
Scott et al., 2009; Medrano-Felix et al., 2010.
Dyson Airblade™ hand dryers
Dyson Airblade™hand
dryers work differently
07 08
Airblade™ technology The fastest way
to dry hands
hygenically with
HEPA filtered air
No other hand
dryer has this
technology
Dyson digital motor V4 HEPA filter
++=
Dyson digital motor V4
Conventional motors are bulky, slow
and can be inefficient. They also rely on
carbon brushes, which wear out over time.
The Dyson digital motor V4 is different.
It’s one of the world’s smallest fully
integrated 1600W motors, and instead
of old-fashioned carbon brushes, it uses
digital pulse technology to spin up to three
times faster than a conventional motor.
HEPA filter
Bacteria and viruses in washrooms
can cause colds, flu, sickness, diarrhoea
or worse. Dyson Airblade™ hand dryers
have HEPA filters installed as standard,
which capture 99.9% of bacteria and
viruses in the washroom air. So hands
are dried with cleaner air, not dirty air.
Airblade™ technology
Every second, the Dyson digital motor
V4 draws in up to 35 litres of air through
a HEPA filter, and forces it through apertures
up to 0.8 mm wide. The result –430 mph
sheets of filtered air that scrape water from
hands, drying them quickly and hygienically.
The latest Dyson Airblade™ hand dryers
are powered by the Dyson digital motor V4 –
one of the world’s smallest, fully-integrated
1600W motors. Its small size and power
density are what have made our latest
hand dryer technology possible.
It means you’ll now find a compact Dyson
hand dryer that’s just 10 centimetres deep –
and one that’s 50% quieter than the original
but still dries hands in 10 seconds. You’ll even
find Airblade™ technology in a tap at the sink.
Airblade™ technology
has evolved
Dyson Airblade™ hand dryers
Concentrated Airblade™ technology.
Slim and compact profile.
Original Dyson Airblade™ hand dryer.
Acoustically re-engineered
to reduce noise by 50%.
Airblade™ hand drying
technology in a tap.
Wash and dry hands at the sink.
09 10
Only Dyson Airblade™
hand dryers have
all these benefits.
10-12 second dry time.
Most hygienic.
Costs less to run.
Better for the environment.
5 year guarantee.
Dyson Airblade™ hand dryers 11 12
£ 5
13 14
43 sec 22 sec 10 sec 10 sec 12 sec
Other hand dryers are too slow
Testing based on NSF Protocol P335 shows that
most other hand dryers are much slower than their
manufacturers claim– with dry times based on drying
hands without a HEPA filter. Many people give up when
using a slow hand dryer. But damp hands can spread
up to 1,000 times more bacteria than dry hands.
HEPA filter as standard HEPA filter as standard HEPA filter as standardNo HEPA filter as standard
Dyson hand dryers are fast
Testing based on NSF Protocol P335 shows
that Dyson Airblade™ hand dryers are fast.
Every second, up to 35 litres of air is forced
through apertures up to 0.8 mm wide. The result –
430 mph sheets of air that scrape water from
hands, drying them quickly and hygienically.
NSF Protocol P335
For a more detailed overview
of NSF Protocol P335 please
see the reference section
at the end of the brochure.
Dyson Airblade™ hand dryers
Dyson Airblade™ hand dryers
Airblade™ technology
is fast and the most hygienic
Hygienically drying hands is
as important as washing them
Bacteria and viruses deposited by
hands onto surfaces can survive
for several hours. When others
touch these contaminated
surfaces, they can be transferred.
Damp hands can spread up to
1,000 times more bacteria than
dry hands. It’s why it’s important
that hands are dried properly.
The most hygienic hand dryer
Dyson Airblade™ hand dryers
use HEPA filters. 99.9% of bacteria
and viruses in the washroom air
are captured. So hands are dried
in 12 seconds or less using cleaner
air, not dirty air. Both the Dyson
Airblade V hand dryer and the
Dyson Airblade dB hand dryer
contain an antibacterial additive
which can help prevent the
growth of bacteria.
No drain tank
When you dry your hands with
a Dyson Airblade V hand dryer
or Dyson Airblade dB hand dryer,
waste water is designed to drip
onto the floor where it evaporates –
so bacteria dry out and perish.
But some hand dryers use drain
tanks to collect waste water –
providing the perfect breeding
ground for bacteria.
That’s unhygienic.
15 16
Dyson digital motor
HEPA filter
10 second dry time
No drain tank
Antibacterial additive
No heating element
Touch-free operation
Only hand dryer globally
accredited by NSF and
HACCP International.
These are the reasons why:
+
+
+
+
+
+
Damp hands can spread
up to 1000 times more
bacteria than dry hands.
=
Dyson Airblade™ hand dryers
Proven as hygienic
17 18
Bradford University
Conclusions:
Using a Dyson Airblade™
hand dryer reduces bacteria
on washed hands by up to 40%.
Study background:
Conducted by the Bradford University
Infection Group, the study’s findings
have been peer-reviewed by the
academic community and published
in the Journal of Applied Microbiology.
What they studied:
Bacteria removal by the Dyson
Airblade™ hand dryer.
Campden BRI
Conclusions:
Using a Dyson Airblade™ hand
dryer has no significant impact
on bacteria levels in washroom
air compared to paper towels.
Study background:
Conducted by independent food and
drink research organisation Campden
BRI, whose clients include hygiene-
conscious global food businesses
such as Cadbury, Pepsico, Danone,
Coca-Cola, Heinz and Nestlé.
What they studied:
Bacteria counts in washroom air
following use of Dyson Airblade™
hand dryers and paper towels.
University of Florida
Conclusions:
The surface of a Dyson Airblade™
hand dryer is no more contaminated
than any other high-touch area in
the washroom.
Study background:
Conducted by an epidemiologist
from the Division of Infectious
Diseases at the University of
Florida’s College of Medicine.
What they studied:
Bacterial contamination from Dyson
Airblade™ hand dryers and other
hand drying methods on high-touch
areas in public washrooms –including
paper towel dispensers, toilets, door
knobs, toilet cubicle handles, flush
controls, counter tops etc.
Funding into further
independent studies
will continue.
Dyson Airblade™ hand dryers

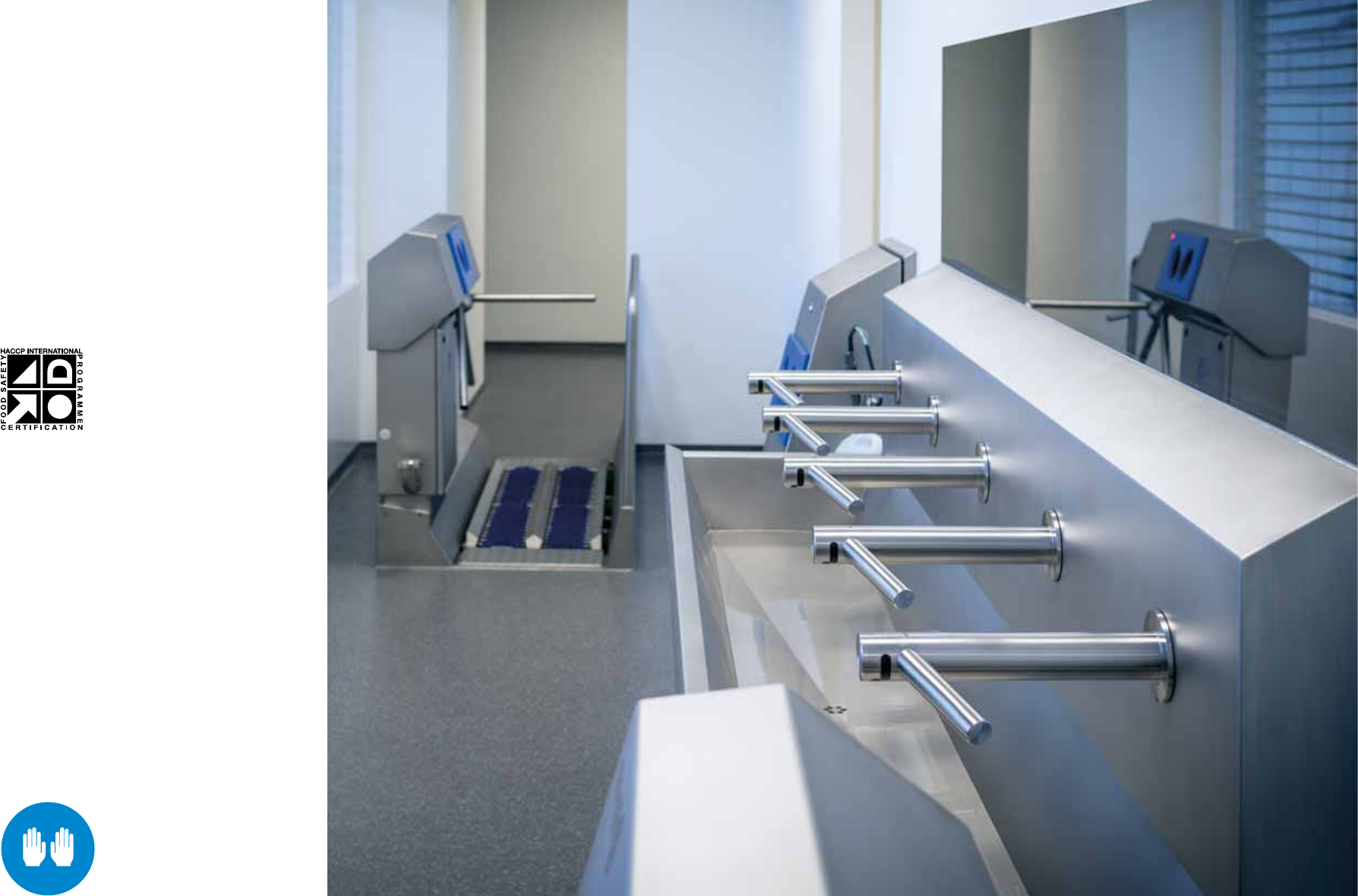

Certified by
HACCP International.
Safe for the food sector.
19 20
The Dyson Airblade dB hand dryer
and the Dyson Airblade Tap hand
dryer have been certified for use
in food preparation environments
by HACCP International.
They are the only hand dryers
globally certified for use in the
food and beverage industry.
21 22Dyson Airblade™ hand dryers
Cost of Dyson Airblade dB
hand dryer after 5 years
YR 2 YR 3 YR 4 YR 5
£7,300
88%1
SAVING OVER
PAPER TOWELS
£900
£5,000
£3,000
£7,000
Hygienic.
And costs less to run.
£
YR 1
£1,000
Cost of paper towels
after 5 years
1 For calculations visit dysonairblade.co.uk/calcs
With their slow dry times and lack of
HEPA filtration, maintaining a hygienic
washroom means avoiding other hand
dryers altogether. But as you can see from
the graph, paper towels are an expensive
alternative. While paper towels can be
just as hygienic as a Dyson Airblade™
hand dryer, their higher fixed running
costs add up and up. And up.
23 24
13.9g
CO2 per dry1
15.6g
CO2 per dry1
3.4g
CO2 per dry1
3.6g
CO2 per dry1
4.0g
CO2 per dry1
Dyson Airblade™ hand dryers
Airblade™ technology
is better for the environment
Higher impact on the environment
Dyson Airblade™ hand dryers produce
up to 79% less CO2 than some other
hand dryers and up to 76% less than
paper towels.1
Low impact on the environment
Dyson Airblade™ hand dryers have
a lower environmental impact across
measures including carbon emissions
and energy consumption.1
1 In collaboration with Carbon Trust, Dyson has produced a method to measure the environmental
impact of electrical appliances and paper towels. The carbon calculations were produced using
GaBi software provided by PE International, based on product use over 5 years and using the
US as a representative country of use. Dry times for products were evaluated using DTM 769.
8.0g
CO2 per dry1
25 26Dyson Airblade™ hand dryers
The only hand dryer
certified by the Carbon Trust
The environmental
impact of paper towels
Everything we make or use has a carbon
footprint. It represents the total amount
of carbon dioxide and other greenhouse
gases generated during its life.
Working with the Carbon Trust, Dyson
has measured the carbon footprint of
the Dyson Airblade™ hand dryer range.
From cutting down trees, through
chemical processes to disposal –
using paper towels has a significant
impact on the environment.
Every single component
All components inside the Dyson
Airblade™ hand dryer were assessed.
Materials and manufacture contribute
8% of total emissions.
Waterways vs. highways
Constant paper towel restocking relies
on road transport. Dyson Airblade™
hand dryers use energy-efficient
ships – representing less than
1% of total emissions.
Less energy = less carbon
Airblade™ technology has fast dry
times and no energy-hungry heating
elements. So it uses up to 80% less
energy than warm air dryers.
End of life
With a 5 year guarantee, the
Dyson Airblade™hand dryer is built
to last. Even so, many components
are designed to be recyclable with
negligible environmental impact.
Felling trees
Trees are a major source
of pulp for virgin paper
towel production.
Transportation
Once trees are felled they
need to be transported from
the forest to the mill.
Mix with water
Lots of water and energy
are needed to make paper.
Pulping and bleaching
Chemicals are also used
in the bleaching process.
Maintenance
Paper towel dispensers
need constant restocking.
Disposal
Most used paper towels
cannot be recycled. They have
to be disposed of. Used paper
towels, packaging and bin
liners end up in landfill or
an incinerator.
27 28Dyson Airblade™ hand dryers
5 year guarantee.
Unrivalled service.
Test. Test. Test.
Dyson Airblade™ hand dryers are
engineered to last. They have been
repeatedly tested for durability and
resilience to physical abuse.
They have also been exposed to
real-life environments to ensure
that they can withstand the
pressures of high usage.
Guarantee
Thanks to this rigorous testing regime,
all factory parts on Dyson Airblade™
hand dryers are guaranteed against
original defects in materials and
workmanship for 5 years.
Aftersales support
But if anything does go wrong
with your machine, we provide
repair and maintenance support
through Dyson service engineers
and self-service spare parts.
Reducing downtime and
disruption to your facilities.
Dyson Airblade dB hand dryer
5 year parts, 1 year labour.
Dyson Airblade V hand dryer
5 years parts, easy self-service.
Dyson Airblade Tap hand dryer
5 year parts and labour.
5
Concentrated Airblade™ technology.
Slim and compact profile.
29 30
Takes up less space
The Dyson Airblade V hand dryer
has a slim profile that protrudes
just 10 centimetres from the wall.
It’s 60% smaller than the original
Dyson Airblade™ hand dryer, but
still dries hands in 10 seconds.
Concentrated, not compromised.
Low maintenance
The Dyson Airblade V hand dryer
can be mounted or removed
from the wall quickly and easily
thanks to its innovative backplate.
This installation design means
all Dyson Airblade V hand dryers
come with a self service guarantee.
For full product details visit
www.dysonairblade.co.uk
The View From the Shard
“ The Dyson Airblade V hand dryers have
a modern and sleek design that fits the general
design of ‘The View From the Shard’ very well.
Guests have told us they like the power and
speed of the machines. We are very proud to
be amongst the first to have these hand dryers.”
Sandy Clark
Operations Director.
Original Dyson Airblade™ hand dryer.
Acoustically re-engineered
to reduce noise by 50%.
31 32
Less washroom noise
The Dyson Airblade dB hand
dryer has been acoustically
re-engineered to reduce air rush
noise and sound generated by
the motor. It’s 50% quieter than
the original Dyson Airblade™
hand dryer, but still dries
hands in 10 seconds.
Safe for the food sector
The Dyson Airblade dB hand
dryer has been approved for use
in food preparation environments
by HACCP International. It is the
only hands-in dryer globally
certified for use in the food
and beverage industry.
For full product details visit
www.dysonairblade.co.uk
Gloucester Services
“ Although we had a wide range of hand
dryers to choose from, our sister station
has had its Dyson Airblade™ hand dryers
for over 5 years and they still only
have positive things to say.”
Joshua Jackson,
Facilities Manager.
Airblade™ hand drying
technology in a tap.
Wash and dry hands
at the sink.
33 34
No waste water on the floor
With Airblade™ technology in a tap,
hands can be dried at the sink in just
12 seconds. There’s no need for users
to move to a separate dr ying area,
so no water is dripped on the floor.
Free up your washroom
Other hand drying methods take
up valuable wall and floor space.
With the Dyson Airblade Tap hand
dryer, there’s room for extra toilet
cubicles and other facilities.
For full product details visit
www.dysonairblade.co.uk
Coca-Cola London Eye
“ As an iconic global landmark, The London Eye
needs to meet high expectations of quality –
and that extends to our washrooms.
Installing the Dyson Airblade Tap hand
dryer has allowed us to achieve this.”
Davey Barrett,
Show Services Manager.
Short Long Wall
Dyson Airblade™ hand dryers
It all began with James Dyson himself,
who wondered if a vacuum cleaner
really needed that bag. Later, Dyson
engineers discovered hand dryers
could dry hands without heat.
And fans didn’t have to use
blades to cool you down.
At Dyson, we’ve been challenging
the conventions of existing technology
for over 20 years. Our engineers use
this approach every day – helping
us invent new machines that simply
work better. And we’re only just
getting started.
Reference
NSF Protocol P335 criteria.
Dyson Airblade™ hand
dryer specifications.
A different approach
35 36
Dyson Airblade™ hand dryers
The only hand dryer
certified hygienic
37 38
Air filtration
Air used to dry hands
must be HEPA filtered.
Unheated air
Warming moist bacteria
increases their reproduction
rate. Heated air can also remove
beneficial oils from the skin.
Drying time
Hands must be dried in under
15 seconds. NSF have defined
dry as 0.1g of residual moisture.
Damp hands can spread up
to 1,000 times more bacteria.
Touch-free operation
The hand dryer must start
and stop without user contact.
NSF certified
Dyson asked independent public
health specialists NSF to define the
criteria for a hygienic hand dryer.
The result is NSF Protocol P335 –
and Dyson Airblade™ hand dryers
are the only hand dryers that
meet every part of it.
When are dry hands dry?
Here’s how they test it.
Take three male and
female volunteers.
1
5
9101112
2
6
3
7
4
8
Fold paper towel once,
place on digital scales
and record weight.
Place both hands in water
container up to level of wrist
crease for five seconds. Rub
hands in the water to remove
trapped air and bubbles.
Remove hands from container
and let water drip from hands
for five seconds.
Place hands under dryer 5cm
from outlet. Dry hands according
to manufacturer’s instructions.
If these instructions include
rubbing then rub hands at a rate
of two times per five seconds.
Once air begins to flow from
dryer start to rub and dry
hands. Commence drying
process by rubbing palms
together twice.
Continue drying process
by rolling hands twice.
Continue drying process by
interlocking and unlocking
hands twice.
Remove excess water from
hands (between fingers and
wrist) with paper towel until
hands feel dry. Roll towel into
a ball and place on scales
within five seconds.
Re-weigh the towel
and record the weight.
Repeat the test for all six
volunteers and calculate the
mean dry time of the six tests.
The machine will be considered
‘hygienic’ only if the unit can
effectively dry hands to less
than 0.1g o f re s i d u al moist u r e
within 15 seconds.
A ny thi n g over 0 .1g of mois ture
means the product will be
deemed unhygienic.
<0.1g>0.1g
Mounting
Bracket
(including
2 fixings)
Fixing
locations
(4)
Cable
entry
point
Alternative
cable entry
point
All dimensions shown in mm (+/-5mm) All dimensions shown in mm (+/-5mm)
Recommended installation heights from floor
Male X 1050mm Y 990mm Z 390mm
Female X 975mm Y 915mm Z 315mm
Child or disabled X 875mm Y 815mm Z 215mm
Machine dimensions
Height 661mm Width 303mm Depth 247mm.
FLOOR FLOOR
Fixing
locations
(4)
Fixing
locations
(4)
See table for recommended
mounting heights
Side cable
entry point
Side cable
entry point
Rear cable
entry point
Recommended installation heights from floor
Male X 1324mm Y 1300mm Z 930mm
Female X 1289mm Y 1265mm Z 895mm
Child or disabled X 1074mm Y 1050mm Z 680mm
Machine dimensions
Height 394mm Width 234mm Depth 100mm.
SIDE ELEVATIONSIDE ELEVATION REAR ELEVATIONREAR ELEVATION
Visit the website for
full downloadable
technical specifications.
www.dysonairblade.co.uk
Visit the website for
full downloadable
technical specifications.
www.dysonairblade.co.uk
142
266
297 286
Short
Fixing
locations
(4)
Fixing
locations
(4)
Water
entry point
All dimensions shown
in mm (+/-5mm)
Rear cable
entry point
Tap dimensions
AB09 Height 159mm Width 297mm Depth 286mm
Motor bucket dimensions
AB09 Height 266mm Width 142mm Depth 189mm
SIDE ELEVATIONREAR ELEVATION
Visit the website for full downloadable technical specifications,
sink recommendations and pre-installation guides.
www.dysonairblade.co.uk
Minimum clearance
Z 100mm clearance from floor.
FLOOR
297
309
142
266
286
FLOOR
Long
Fixing
locations
(4)
Fixing
locations
(4)
Water
entry point
All dimensions shown
in mm (+/-5mm)
Rear cable
entry point
Minimum clearance
Z 100mm clearance from floor.
Tap dimensions
AB10 Height 309mm Width 297mm Depth 286mm
Motor bucket dimensions
AB10 Height 266mm Width 142mm Depth 189mm
SIDE ELEVATIONREAR ELEVATION
Wall
Fixing
locations
Water
entry
point
Cable
entry
point
Tap dimensions
AB11 Length 312mm Width 297mm
Motor bucket dimensions
AB11 Height 266mm Width 142mm Depth 189mm
REAR ELEVATIONSIDE ELEVATION
FLOORFLOOR
To try the Dyson Airblade™
hand dryers or for more
information, please call:
0800 345 7788
www.dysonairblade.co.uk
The Carbon label is a trade mark of the Carbon Trust.
The NSF logo is the registered trade mark of NSF International. HACCP International
non-food certification mark is the registered trademark of HACCP International.
HACCP International have certified Dyson products based on their recommended
installation and operating conditions. Licensed by Dyson.
JN: 69931 23.07.15

Navigation menu
