GENERAL SAFETY PRECAUTIONS

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER

When using an electrical appliance, basic precautions should always be followed, including

the following:

1 This machine is for domestic use only. Do not use outdoors or on wet surfaces.

2 Do not handle plug or appliance with wet hands.

3 Do not use with damaged cable or plug. If the supply cable is damaged, it must be replaced by

Dyson Ltd, our service agent or similarly qualied persons in order to avoid a hazard.

4 If the vacuum cleaner is not functioning properly, has been dropped, damaged, left outdoors,

or immersed in liquid, do not use. Contact the Dyson Helpline.

5 Do not use the cleaner if any parts appear to be faulty, missing or damaged.

6 Ensure all parts including clear binTM are securely attached before use or carrying the machine.

7 This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that they do not play with the appliance.

8 Do not leave appliance when plugged in. Unplug from outlet when not in use, and before

performing user maintenance, connecting or disconnecting the hose or changing accessories.

9 If the machine overheats it will cut-out. If that happens, it must be switched off, unplugged and

allowed to cool down before attempting to check lters or for blockages.

10 Store the machine indoors. Put the vacuum cleaner away after use with the cable coiled safely,

to prevent tripping hazards.

11 Turn off all controls before unplugging.

12 Do not unplug by pulling on cable. To unplug, grasp the plug, not the cable.

13 Do not pull or carry by cable, use cable as a handle, close a door on cable, or pull cable around

sharp edges or corners. Do not run appliance over cable. Keep cable away from heated surfaces.

14 The use of an extension cable is not recommended.

15 Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts,

such as the brushbar.

16 Do not put any object into openings. Do not use with any opening blocked.

17 Take extra care when vacuuming on stairs; do not work with the vacuum cleaner above you on

the stairs.

18 Keep the vacuum cleaner on the oor. Do not put the vacuum cleaner on chairs, tables etc.

19 Do not shake the machine or press cyclone release button while carrying the machine.

20 Do not use to pick up ammable or combustible liquids, such as petrol, or use in areas where

they may be present.

21 Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

22 Check to ensure your electricity supply corresponds to that shown on the rating plate.

The vacuum cleaner must only be used as rated.

23 Use only as described in this manual. Use only Dyson recommended attachments.

24 Do not use without clear binTM and lters in place.

25 Do not lubricate any parts, or carry out any maintenance or repair work other than that shown

in this manual, or as advised by the Dyson Helpline.

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS INTENDED FOR DOMESTIC USE ONLY

After registering for your 5 year guarantee, your

Dyson vacuum cleaner will be covered for parts

and labour for 5 years from the date of purchase,

subject to the terms of the guarantee.

If you have any query about your Dyson, call the

Dyson Customer Helpline with your serial number

and details of where/when you bought the

cleaner. Your serial number can be found on your

rating plate which is behind the clear binTM.

Most queries can be solved over the phone by

one of our trained Helpline staff. If your machine

needs attention, we’ll aim to send one of our

Dyson engineers to x it within 3 working days.

We won’t keep you waiting around either; our

engineers can visit a home or work address –

wherever is most convenient for you.

Note your serial number for future reference

Parts and labour guaranteed

by Dyson for 5 years.

5 year

guarantee

Ensure you register for your

5 year guarantee today.

ONLINE

Just visit

www.dyson.com/register

MAIL

Complete and return the

free post registration form

PHONE

7 days a week

UK 0800 279 5127

IRL 01 475 7109

Do not pull

on the cable.

Do not store

near heat

sources.

Do not use

near naked

flame.

Do not run

over the

cable.

Do not pick

up water or

liquids.

Do not pick

up burning

objects.

Do not use

above you

on the stairs.

Do not put

hands near

the brushbar

when the

cleaner is

in use.

Clear binTM emptying

High-reach cleaning

clik

1

clik

2

Using your Dyson Hard floors or carpets

clik

ON

OFF

ON/OFF

Looking for blockages Clearing brushbar obstructions

IMPORTANT! Wash filters with cold water at least every month.

WASH FILTERS 1

Turn over and tap very firmly to

remove motor emissions. Repeat

10x or until water runs clear.

10x

Filter A

Filter B

24

1

2

3

4

5

6

7

8

9

10

11 12

24

1

2

3

4

5

6

7

8

9

10

11 12

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS INTENDED FOR NORMAL DOMESTIC USE ONLY

Assembly

Lie machine at and push on cleaner head until it clicks. Stand vacuum up straight, insert wand into

hose and push into place until it clicks. Attach tool to the side of the machine.

Using your Dyson

Press foot pedal and recline handle to use. The stabiliser stand will automatically lift up. To switch

‘ON’, depress power button in front of handle. When nished cleaning, push machine into an upright

position and stabiliser wheels will automatically drop. Use the carrying handle to carry the machine.

Caution:

(i) When returning to the upright position, ensure that the stabiliser wheels are fully engaged before

releasing the cleaner.

(ii) Do not press the cyclone release button while carrying the machine or it could fall and

cause injury.

Please note:

(i) Fine dust such as plaster or our should only be vacuumed in very small amounts.

(ii) Consult your ooring manufacturer’s recommended instructions before vacuuming and caring

for your ooring, rugs and carpets. Some carpets will fuzz if a rotating brushbar is used when

vacuuming. If this is the case, we recommend vacuuming in hard oors mode and consulting

with your ooring manufacturer. (See ‘Hard oors or carpets’ section.)

(iii) If used in a garage for car cleaning, care should be taken to wipe the soleplate and wheels

with a dry cloth after vacuuming to clean off any sand, dirt, or pebbles which could damage

delicate oors.

Hard oors or carpets

The brushbar will always default to ‘ON’ (spinning) each time you switch on the machine and recline

it for cleaning. The brushbar will automatically stop if it becomes obstructed. If the brushbar stops

during use, please refer to the ‘Clearing brushbar obstructions’ section.

To switch the brushbar off (e.g. for hard oors), recline the machine and turn it ‘ON’, then press the

brushbar ‘ON/OFF’ button – the brushbar will stop spinning.

High-reach cleaning

Caution:

(i) Powerful suction can cause the hose to ‘pull back’ – please take care.

(ii) To avoid personal injury and to prevent the machine from falling when cleaning stairs,

do not work with the vacuum above you on the stairs.

To release the wand, press button and lift up. Rotate the wand, open the wand cap and clip handle

into hose. Tools can be attached to either the hose or wand.

Emptying the Clear binTM

Caution:

(i) Switch ‘OFF’ machine before emptying the bin.

Empty as soon as the dirt reaches the level of the MAX mark – do not overll. To remove the

clear binTM from the machine press the button at rear of carrying handle. To release the dirt, press

the button again to open the bin. The British Allergy Foundation is a UK national charity with the

aim of improving awareness, prevention and treatment of allergies. The British Allergy Foundation

Seal of Approval is a UK-registered trademark.

Please note:

(i) Do not use the machine without the clear binTM in place.

Cleaning the Clear binTM

Caution:

(i) Do not immerse the whole cyclone in water or pour water into the cyclones.

(ii) Ensure bin is completely dry before replacing.

Please note:

(i) Do not use detergents, polishes or air fresheners to clean the bin.

(ii) Do not put bin in a dishwasher.

(iii) When vacuuming, certain carpets may generate small static charges in the clear bin™.

These are entirely harmless and are not associated with the mains supply. To minimise

any effect from this, do not put your hand or insert any object into the clear bin™ unless

you have rst emptied it and rinsed it out with cold water.

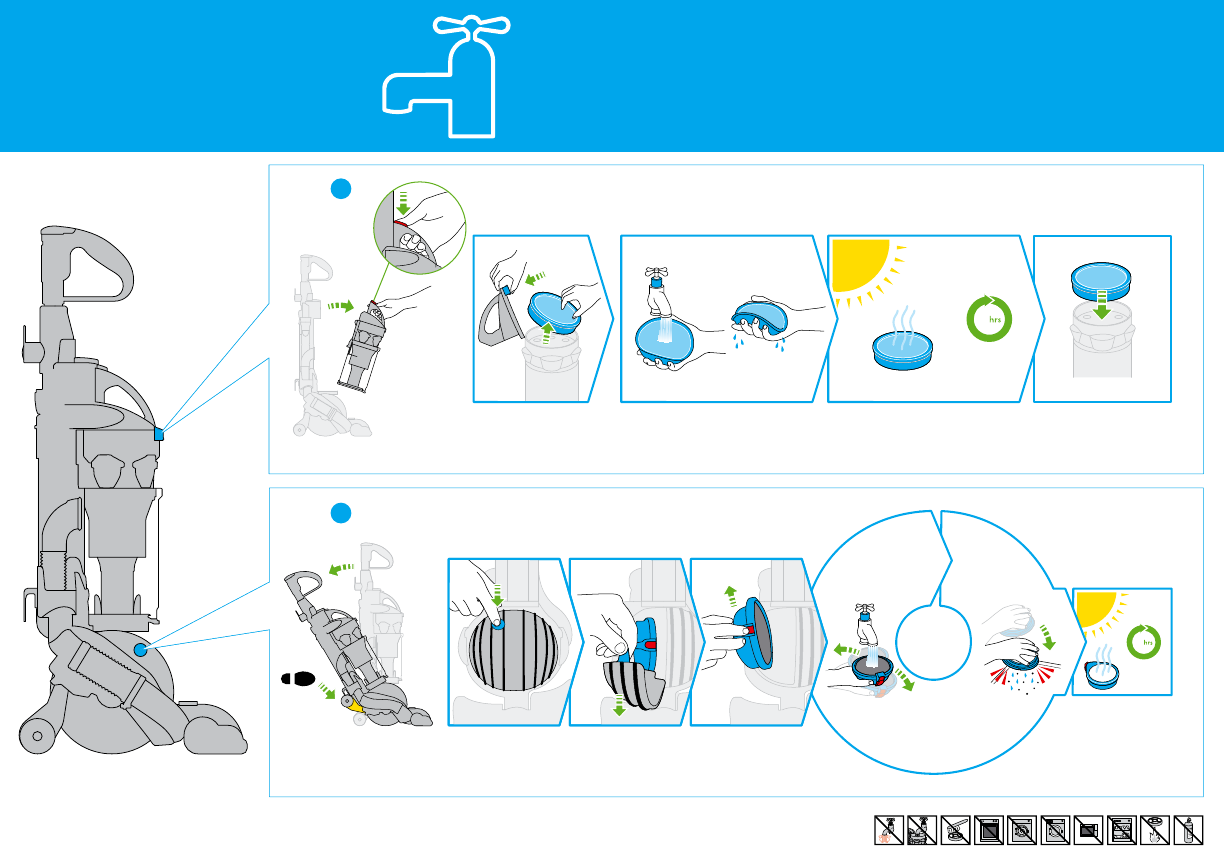

Washing your lters

Caution:

(i) Switch ‘OFF’ before removing the lters.

(ii) Ensure lters are completely dry before retting to machine.

This machine has two lters, located as shown. It is important to check your lters regularly

and wash at least every month according to instructions, to maintain performance.

The lter in the ball should be rinsed and tapped out until the water runs clean, then tapped

out again to ensure all excess water is removed. This will normally require up to 10 rinse cycles.

Please leave to dry completely for 24 hours.

Please note:

(i) It is normal for the lter in the ball to turn grey in colour. The lters may require more

frequent washing if vacuuming ne dust.

(ii) Do not use detergents to clean the lters.

(iii) Do not put the lters in the dishwasher, washing machine, tumble dryer, oven,

microwave or near an open ame.

Looking for blockages

Caution:

(i) Switch ‘OFF’ and unplug machine before checking for blockages.

(ii) Please ensure machine is upright before removing hose or airway inspection parts.

(iii) Beware of sharp objects when clearing blockages.

(iv) Ret all parts of the machine securely before using.

Please note:

(i) Clearing blockages is not covered by your machine’s limited warranty. If any part

of your machine becomes blocked, it may overheat and then automatically shut off.

Unplug machine and leave to cool down. Clear blockage before restarting.

Clearing brushbar obstructions

Caution:

(i) Switch ‘OFF’ and unplug machine before clearing brushbar obstructions.

If your brushbar is obstructed, it may shut off. If this happens you will need to remove

brushbar as shown and clear any obstructing debris.

Conformity information: A sample of this product has been tested and found to conform with the following

European Directives: 2006/95/EC Low voltage Directive, 2004/108/EC EMC Directive, 93/68/EEC CE

Marking Directive.

Product information: Net weight 5.2kg, 230-240V, 50Hz, maximum power 650W.

This product is protected by the following intellectual property rights:

Patent/Patent Application numbers: JP 2004-537336; EP 1361812; AU 744408; EP1119282; JP 2002-527132;

US 6,519,807; AU 744362; EP 1121043; JP 2002-527131; US 6,572,078; GB 0326102.1; AU 2002-226556;

EP 1370172; JP 2004-528876; US 6,991,666; AU 2002-225207; EP 1361814; JP 2004-520137; US 7,018,439;

AU 2001-240894; EP 1268076; JP 2003-528704; US 6,835,222; AU 2002-225232; EP 1361815;

JP 3940082; US 6,974,488; AU 2003-283157; EP 1526796; JP 2006-503607; US 2005-0235454;

AU 2003-283159; EP 1526797; JP 2005-534442; AU 2003-283161; EP 1526798; JP 2006-503608;

AU 2004-294771; EP 1680232; JP 2007-508934; US 2007-0079579; AU 2005-263889; EP 1768536

Equivalent patents, registered designs and applications exist in other countries.

Please note: Small details may vary from those shown.

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS INTENDED FOR NORMAL DOMESTIC USE ONLY

..

JN.18112 PN.14492-02-01 25.10.07

GB

Dyson Customer care

service@dyson.co.uk

0800 279 5127

Dyson Ltd, Tetbury Hill, Malmesbury, Wiltshire SN16 0RP

IRL

Dyson Customer care

irelandservice@dyson.com

01 475 7109

The Connect Agency Ltd, Unit 2, Baldonnell Business Park,

Naas Road, Co. Dublin.

Dyson Customer care

If you have a question about your Dyson vacuum cleaner, call the

Dyson Helpline with your serial number and details of where and

when you bought the cleaner, or contact us via the Dyson website.

The serial number can be found on the main body of the machine

behind the clear bin.

TM

www.dyson.com
