ECORE TECHNOLOGY COMPANY LIMITED EXO-900 multi-function lantern
User Manual
EXO-900
multi-function lantern
®
2
3
Thanks for purchasing the bem wireless EXO-900 Lantern Speaker! This
speaker is Bluetooth enabled, easy to use, equipped with two speakers
for more powerful sound, and ready to hit the road, making it ideal for
listening to music on a hike, at home, or anywhere in-between. With its
rugged, dust and water resistant design, its built-in lantern (providing
up to 300 lumens), and SOS safety features, the EXO-900 is almost a
necessary companion. But to make sure you get the best possible results
from your new EXO-900 Bluetooth speaker, please thoroughly read
and carefully follow all instructions in this User Guide. This short guide
explains everything you need to know to start using your lantern with
Bluetooth speaker.
Please keep this User Guide in a convenient location for future reference
and visit bemwireless.com for additional information.
4
5
6 Product Overview
9 Operation Details
14 Troubleshooting
15 Maintenance
15 TechnicalSpecications
16 Stay in Touch
17 FCC Statement
19 Safety Instructions
20 Warranty
6
Product Overview
The bem wireless EXO-900 Lantern Speaker combines great sound with
Bluetooth connectivity. With a rugged design and a carabiner included,
hands-free use on the go is easy! And the two-speaker design makes sure
you always get great sound. Simply pair your EXO-900 with your Blue-
tooth enabled device and enjoy wireless performance wherever you are.
Package Contents
Your EXO-900 should include:
EXO-900 x 1
Auxiliary (AUX) Cable x 1
AC Adaptor x 1
Car Power Adaptor x 1
Large Carabiner x 1
User Guide x 1
If any items are missing or damaged, please call bēm wireless customer
support at 1-855-839-8616 or email admin@bemwireless.com to arrange
for replacements.
7
Durability
Trail-ready, life-ready, you ready!
Wireless technology is great, but sometimes you need something that
lets you enjoy your music when you’re otherwise disconnected. The
EXO-900 offers that freedom with its perfect combination of good looks,
connectivity, and durability. And with an IPX rating for dust resistance
and water resistance, it can handle almost anything you throw at. Just
toss it in your bag, hang it on your pack, your tent, or from a small tree
limb using the large carabiner that’s included, or carry it along and enjoy
life on the road - or trail - without worrying about your music.
Safety
Whether you’re hiking, camping, or just generally out exploring the world,
safety is important. That’s why the EXO-900 Speaker has an audio/visual
SOSalarmthatcansound/ashupto24hoursafterthebatterydies(If
three AAA batteries - not included - are properly installed. See “Backup
Battery Installation” on page 5.).
Compatibility
Compatible with devices enabled with Bluetooth technology, including
iPhones, iPads, iPods, smartphones, laptops, tablets and more.
8
Meet Your New EXO-900
1. Bluetooth
Indicator LED
2. Battery
Indicator LEDs (4)
3. AUX IN Port
4. Attachment Bolt
5. DC IN Port
6. USB Output 1
7. USB Output 2
SOS LIGHT AUDIO
VOL- VOL+
8
5
7
6
3
4
1 2
9
13
10
1211
USB output1 USB output2
AUX IN
DC IN
8. Volume Up Button
9. Play / Pause
10. Volume Down Button
11. SOS Button
12. Light Button
13. Audio Button
9
The full set of instructions below will help you get the most use out of your EXO-
900 Lantern Speaker.

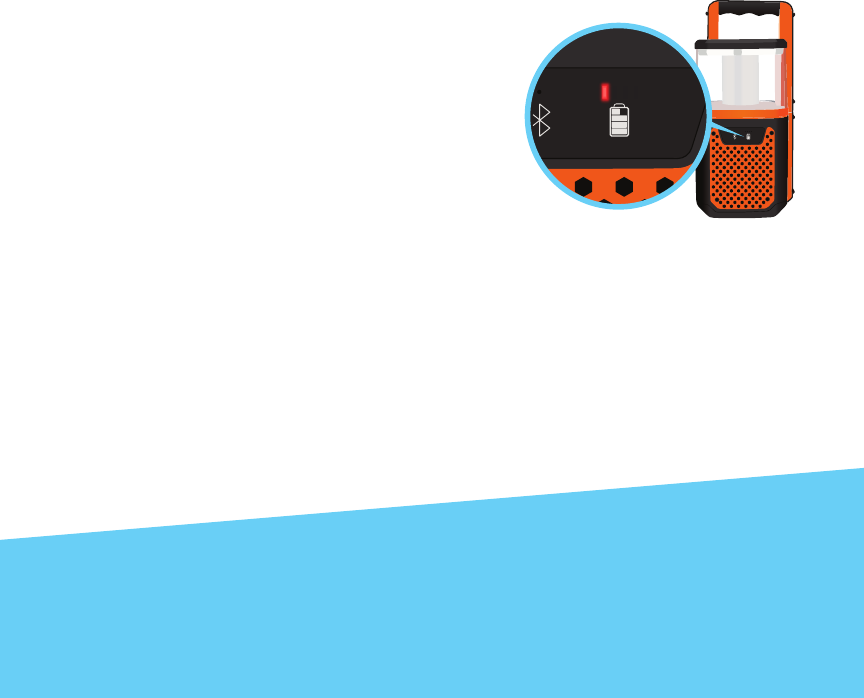

Charge
Connect your EXO-900 to a standard wall outlet
using the AC adaptor. When charging, one or more
of the Battery Indicator LED’s will turn red and one
willashtoindicatethelevelofchargeontheEXO-
900 and all four Battery Indicator LEDs will turn red
when fully charged. Please allow approximately 2
hours to fully charge.
1. You may use your EXO-900 while it’s charging.
2. The four Battery Indicator LED’s indicate the following: 1 LED is solid red when
25% charged, 2 LEDs are solid red when 50% charged, 3 LEDs are solid red when
75% charged, and 4 LEDs are solid red when 100% charged.
Connectivity Options
Bluetooth
When your EXO-900 is fully charged or plugged into a standard wall outlet, pair it
with your smartphone or other Bluetooth enabled device.
Operation Details
10
Operation Details (cont)

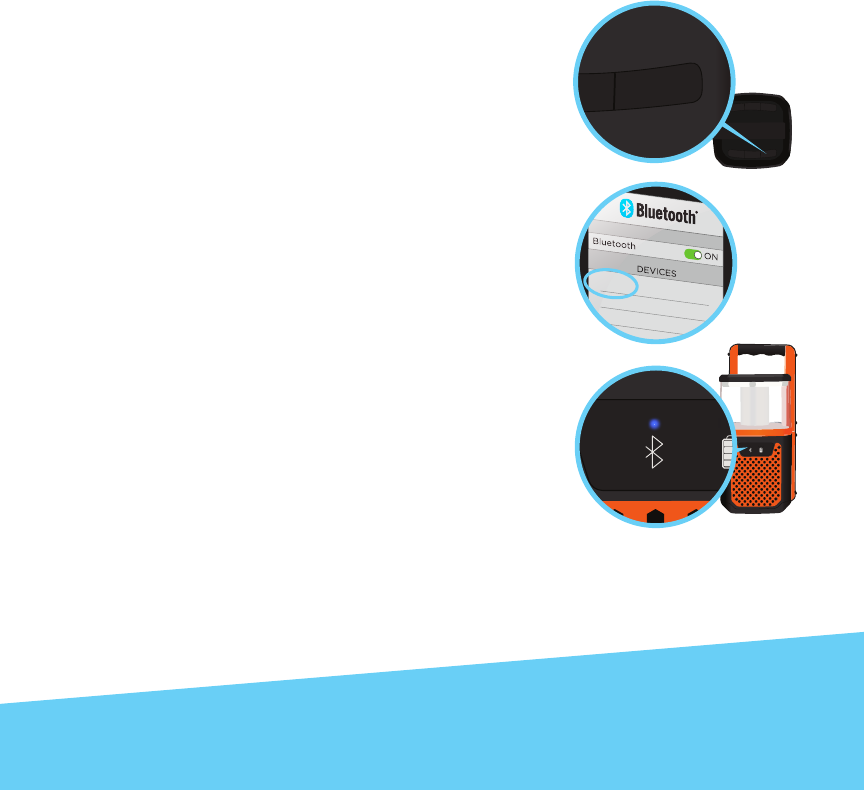

1. Press the AUDIO button to turn on the speaker. A tone
will sound to indicate that the speaker has powered on
and is ready to pair with your device. The blue Bluetooth
IndicatorLEDwillashrapidly.
2. Activate Bluetooth on your smartphone or other
Bluetooth enabled device (refer to your device user guide
for details). Your smartphone/device will now begin
searching for Bluetooth devices.
3.Whenyoursmartphone/devicenishessearching,
select “EXO-900” from the device list. When connected, a
tone will sound from the speaker and the blue Bluetooth
IndicatorLEDwillremainonwithoutashing.
After initial pairing, “EXO-900” will appear in your device list and a connection
will automatically be established when the speaker is turned on and Bluetooth is
activated on your device. A tone will sound when the device is powered on and a
tone indicating a successful Bluetooth connection will follow.
Useyourdevicetondthemusicyoulove.Hitplayonyourdevice.Enjoyyour
music.
NOTE:WhentheBluetoothconnectionislost,theblueBluetoothIndicatorwillbeginashing.
VOL-
VOL-
LIGHT
AUDIO
SOS
VOL+
LIGHT
AUDIO
EXO-900
CONNECTED
11
Auxiliary
Your EXO-900 can also connect to audio devices that are not Bluetooth
enabled. Connect your device to your EXO-900 using an auxiliary (AUX)
cable (included) by inserting one end of the cable into the AUX IN port on
yourEXO-900andtheotherendintoyourdeviceasspecied.Theblue
Bluetooth Indicator LED will light solid blue when connected to a device
with an AUX cable and the speaker will default to AUX connectivity when
powered on with the AUDIO button
Power On/Off - Audio
Press the AUDIO button to power on your EXO-900. A tone will sound to indicate
that the speaker has powered on and is ready to pair with your device. The blue
BluetoothindicatorLEDwillashrapidly.
Press the AUDIO button to power off your EXO-900. No chime will sound when the
unitisturnedoff,buttheBluetoothlightwillstopashing.
Power On/Off – SOS Signal (Audio sound)
Press and hold the SOS button. The international Morse code distress signal of three
short beeps, three long beeps, and three short beeps (… ———…) will begin to sound
at90dB.Thelightwillashthesamepattern.
Press the SOS button to power off the SOS feature.
Operation Details (cont)
12

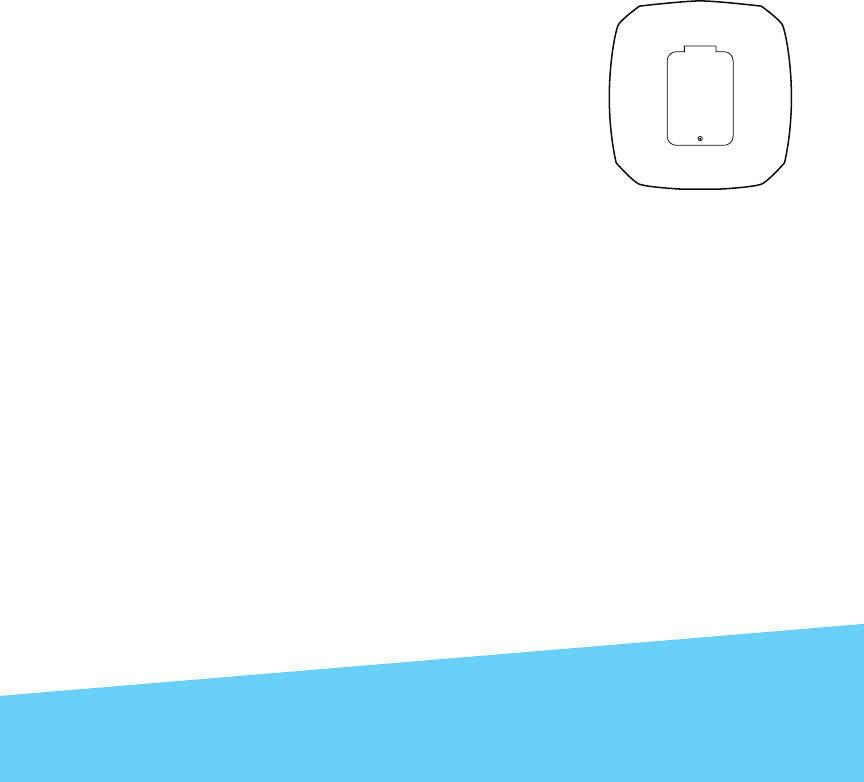

Backup Battery Installation
Three AAA batteries (not included) can be installed in
the bottom of the speaker to allow the lantern to work,
the Bluetooth speakers to function, and the SOS signal to
continue broadcasting up to 24 hours after the rechargeable
battery dies. To install batteries, follow the simple steps
outlined below.
1. Loosen the screw on the battery door using a standard Phillips-head (crosshead)
screwdriver until you can remove the battery door.
2. Insert the batteries according to the directions displayed in the battery
compartment.
3. Replace the battery door and tighten the screw
To ensure performance, these batteries should be replaced every 6 months.
Music Controls
Play, pause, skip and otherwise control your music as you normally would from your
device after pairing with you EXO-900 Speaker. You can also use the Play/Pause
button (with icons) on the top of the device.
Volume Controls
1. On your EXO-900: Repeatedly press the VOLUME UP button to increase the
volume incrementally or hold the VOLUME UP button to steadily increase the
volume. Repeatedly press the VOLUME DOWN button to decrease the volume
incrementally or hold the VOLUME DOWN button to steadily decrease the volume.
2. On your device: Adjust the volume of your music as you normally would.
Operation Details (cont)
AAA X3
13
Operation Details (cont)
NOTE: If the VOLUME DOWN button is pressed often enough or held long enough,
the speaker will stop producing sound until the volume is increased again, but the
speaker will remain on and the music will continue to play.
Lantern Controls
Sometimes you need a little light. Sometimes you need a lot. The EXO-900 offers
the best of both worlds. The simple steps outlined below will walk you through
switching between the lantern’s four different light modes.
1. Press the LIGHT button to turn the light on. It will start in
the “high” setting.
2. Press the LIGHT button again and the lantern will turn
down to “medium.”
3. Press the LIGHT button again and the lantern will turn down to “low.”
4. Press the LIGHT button again and the lantern will turn off.
5. Press the LIGHT button again to go back through the
options listed above.
The lantern may be used/controlled while other functions are in use.

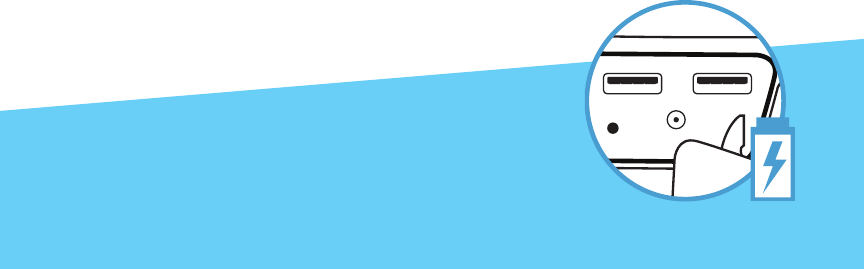

USB Charging
The two USB ports on the back panel of you EXO-900
(see “Meet Your New EXO-900” on page 8) can be used
to charge mobile devices. If your device can be charged
with a USB port (refer to your device user guide for
details) simply insert the USB end of your USB cable (not
included) into the speaker and then insert the other end
into your device to begin charging.
USB output2
AUX IN
DC IN
The two USB output DC 5V,1A,only used for charging
with no USB playing function.
14
Troubleshooting
YourEXO-900isdesignedtooperateeasilyandreliably.However,problems
can arise from time to time. If you need a little help, check out these common
issues and solutions.
Will Not Turn On
• Your EXO-900 may not be charged. Please charge for at
least 2 hours.
•Makesuretormlypressthedesiredbutton.TheAUDIO,LIGHT,
or SOS button will turn on the speaker for that given function.
Bluetooth Won’t Connect
• Make sure your EXO-900 speaker is attempting to pair with your
Bluetoothdevice(blueBluetoothindicatorLEDashingrapidly).
• Make sure the Bluetooth function on your smartphone or other
Bluetooth enabled device is activated.
• Make sure you are within Bluetooth connectivity range (40 feet).
Poor Sound Quality/Volume
• Make sure your EXO-900 speakers are facing outward
and are unobstructed
• Make sure the volume on your EXO-900 Speaker and your
device are at your desired level.
Ifissuespersist,youcanndadditionalsuggestionsandtechnicalsupportatbemwireless.com/support.
15
Maintenance
To keep your EXO-900 working well and looking sharp, simply wipe with a
dry cloth as needed. Do not use cleaning agents as they may damage the
Note: All are subject to change without notice.
Product Name EXO-900
Model Number EXO900
Music Time Up to 6 hours
(with internal battery)
Bluetooth V4.1 with auto pairing
SOS Audio Signal 90 dB
Light Brightness up to 300 lumens
Power Supply DC In
Operating Temperature 32°F - 113°F
Dimensions 10.7” H x 4.75” W x 5.25” D
Battery Rechargeable 4000mAh
Bluetooth Range 40ft
16
Stay in Touch!
For questions, comments, or to purchase additional bēm wireless
products, go to: bemwireless.com.
You can also follow us at:
facebook.com/bemwireless
twitter.com/bemwirelessco
youtube.com/bemwireless
17
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference,and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
2. Changes or not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
18
FCC Statement (cont)
RF warning statement:
The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure condition
without restriction.
19
Safety Instructions
This product is specially designed based on full attention to safety; in order
to encourage accident-free operation, please follow the guidelines listed
below:
• Do not drop, unpack, open, hit, bend, puncture, burn or otherwise
attempt to damage/modify the set
• Avoid using the set in the rain or near basins or sinks where parts may
come in contact with water
• Protect the set from all heat-producing devices, including radiators, forced
air vents, cooking surfaces, and other heat-producing devices
• Set the volume properly to prevent damage to the unit and personal
injury
Correct Disposal of this Product
This marking indicates that this product should not be disposed
of with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact the
retailer where the product was purchased. Retailers can take this product for
environmentally safe recycling.
Warning
• The battery (battery or batteries or battery pack) shall not be
exposed to excessive heat such as sunshine, or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
20
bēm wireless warranties this product against defects in materials and/or
workmanship under normal use for a period of NINETY (90) DAYS from the date
of purchase by the original purchaser (“Warranty Period”). If a defect arises and a
valid claim is received within the Warranty Period, at its option bēm wireless will
either 1) Repair the defect at no charge, using new or refurbished replacement
parts or 2) Replace the product with a new product that is at least functionally
equivalent to the original product. A replacement product or part, including a
user-installable part installed in accordance with instructions provided by bēm
wireless, assumes the remaining warranty of the original product. When a product
or part is exchanged, any replacement item becomes your property and the
replaced item becomes bēm wireless’s property.
Obtaining Service: To obtain warranty service, call bēm wireless at 1-815-
337-0541 or e-mail customerservice@bemwireless.com. Please be prepared
to describe the product that needs service and the nature of the problem.
A purchase receipt will be required. All repairs and replacements must be
authorized in advance. Service options, parts availability and response times
will vary. You are responsible for delivery including the cost of delivery of the
product or any parts to the authorized service center for replacements, per
our instructions.
Limits and Exclusions: Coverage under this Limited Warranty is limited to
the United States of America, including the District of Columbia and the
U.S. Territories of Guam, Puerto Rico and U.S. Virgin Islands. This Limited
Warranty applies only to products manufactured by or for bēm wireless
thatcanbeidentiedbythebēm wireless trademark, trade name, or logo
afxedtothemoritspackaging.TheLimitedWarrantydoesnotapplyto
any non-bēm wireless products.
bēm wireless
1725 Kilkenny Court
Woodstock, IL 60098 USA
www.bemwireless.com
©2016 bēm wireless All Rights Reserved.
Made in China
90-Day Limited Warranty
be¯m wireless | 1725 Kilkenny Court | Woodstock IL 60098
© 2016 be¯m wireless
