1/3

User’sManual

Productoverview

InordertomakesureyougetthebestpossibleresultsfromyournewVisorSpeaker,pleasethoroughlyreadand

carefullyfollowallinstructionsinthisUser’sManualorontheproduct.KeepthisUser’sManualinaconvenient

locationforfuturereference.

Packagecontents

z Visorspeakerx1

z Carchargerx1

z MicroUSBchargingcablex1

z User’sManualx1

Ifanyoftheseweremissingordamaged,pleasevisitbemwirelesss.comtoobtainreplacement.



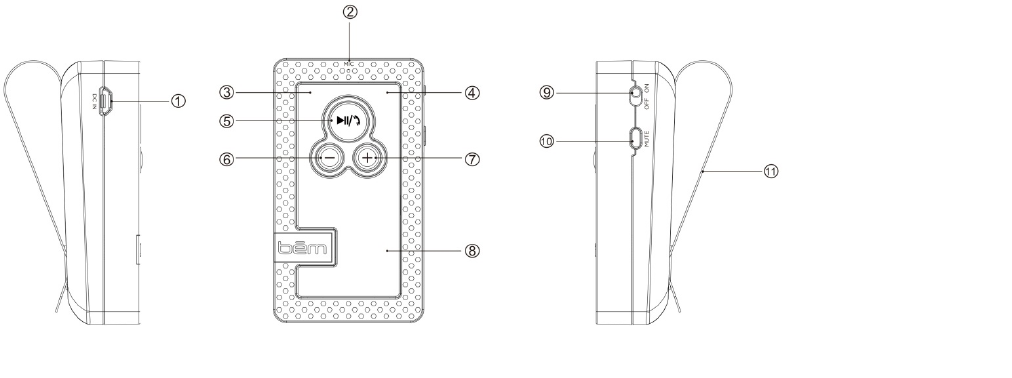

MeettheVisorSpeaker

Beforelearningyourvisorspeaker,takeamomenttolookitoverandfamiliarizeyourselfwithitsfeatures.



Pairwithyourmobilephone

Firsttimepairing

Turnonthevisorspeakerbyslidetheon/offswitchto“on”,andtheBluetoothLEDwithlightsupwithabeep.

ActivateBluetoothonyourmobilephoneandselect“visorspeaker”.

Afterpairedforthefirsttime,theVisorSpeakercanpairtoyourmobilephoneautomatically.

Pairwiththe2ndmobilephone

Turnonthevisorspeaker,activateBluetoothonyour2ndmobilephoneandselect“visorspeaker”,

Tips:

Ifthe2NDmobilephonecannotfindthevisorintheBluetoothlist,disconnecttheBluetoothconnectionfromthe1st

mobilephonewillhelp.



PositiontheVisorSpeaker

CliptheVisorSpeakertothesunvisorinyourvehicle

Tips:

Visorspeakercanturnoffautomaticallywhenyouleavethecarandwhenyouenteritagain,hittheAnswer/end

buttontoreconnectthevisorspeaker.

1. DCin

2. Microphone

3. BluetoothLED

4. PowerLED

5. Answer/end

6. Voldown

7. Volup

8. Driver

9. On/offswitch

10. Mute

11. Clip

2/3

UsingtheVisorspeaker

MakecallCallwillautomaticallytransfertothespeakerphone.If

not,tapAnswer/endbutton

AnswercallTapanswer/endbuttontoanswertheincomingcall

Endcall Tapanswer/endbuttonduringthecalltoendthecall

Rejectcall Holdanswer/endbuttontorejecttheincomingcall

RediallastnumberHoldanswer/endbuttontorediallastnumberwhenitis

notinacall

Play/pauseTapanswer/endbuttontoplayandpausethemusicplay

Answer/

end

VoiceCommands*Doubletapanswer/endbuttontoactivatethevoice

commandinyourmobilephone

‐/+ Volumedown/upTapvolumeuporvolumedownbutton

MuteMute/un‐mutemicrophoneTapmutebutton

*phonedependent

MusicandGPS

MusicorGPSonyourmobilephonewillautomaticallyplayontheVisorspeakerwhenconnected.

ChargingtheVisorSpeaker

ThepowerLEDwillflashwhenthebatteryislow.

UsethesuppliedcarchargerorotherUSBpowersourcetochargeVisorspeaker,justconnectthepowersourceand

visorspeakerwiththemicroUSBchargingcable,thepowerLEDbecomesolid.Thenyouhaveanimmediately

successforchargingthedevice.

ThePowerLEDwillgoesoffwhenitisfullycharged.



Troubleshooting

Noconnection:

z MakesuretheBluetoothconnectionofyourmobilephoneison

z Makesurethespeakerison

z Taptheanswer/endbuttontowakeupthevisorspeaker

z Pairthespeakeragain



Maintenance

CleaningtheCase:

Tocleanthecase,firstunplugthepowercable.Toremovedirtordust,wipethecasingwithasoft,dry,lint‐freecloth.Toremove

stubborndirtorstains,moistenasoftclothwithwaterandaneutraldetergentandthenwipethecasing.

Donotusealcohol,benzene,thinnersorotherchemicaldetergentsasthesecancausethecasingtobewarpedordiscolored.

Storage

Alwayspoweroffthevisorspeakerwhenyoufinishusingit.

Iftheunitwillnotbeusedforanextendedperiod,besuretofollowtheseguidelines:

Donotstoretheunitinadampenvironment

z Avoidexposingtheunittoveryhighorlowtemperatures

z Avoidprolongedexposuretodirectsunlight.

z Chargeitbeforeuseitagain.



3/3

TechnicalSpecifications

Note:Allspecificationsaresubjecttochangewithoutnotice

z ProductName:VisorSpeaker

z ModelNumber:HL2068

z PowerSupply:USB5V,1A

z WorkingTemperature:0˚C‐40˚C

z WorkingHumidity:20%‐90%RH



FCCStatement

1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

(1) Thisdevicemaynotcauseharmfulinterference.

(2) Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.

2.Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthority

tooperatetheequipment.

NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15

oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential

installation.

Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewith

theinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotryto

correcttheinterferencebyoneormoreofthefollowingmeasures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

• Consultthedealeroranexperiencedradio/TVtechnicianforhelp



FCCRadiationExposureStatement

ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipment

shouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator&yourbody.


