SpeakerDuoUser’sManual

Productoverview

ThankyouforpurchasingthebemwirelessSpeakerDuo.Ourspeakerwillbringyouanewfoundfreedomfromwires

whiledeliveringanincrediblesound.TheSpeakerDuoiscompatiblewithalldevicesenabledwithBluetooth©

technology...whichiscurrentlyalotofdevices!

Makesuretoreadthroughthefollowingdirections,fullychargeyourdeviceandperformtheinitialBluetooth©

syncingprocessandyoushouldbeupandrunninginnotime.Ifyouhaveanyproblemsstoponbybemwireless.com

fortheanswerstoallyourquestions.

Packagecontents

z MatrixCasex1

z SatelliteSpeakerx2

z Poweradapterx1

z Auxcablex1

z User’sManualx1

Ifanyoftheseweremissingordamaged,pleasevisitbemwirelesss.comtoobtainreplacement.

Compatibility

z AlldevicesenabledwithBluetoothtechnology,includingiPhones,iPads,iPods,smartphones,laptops,tablets

andmore;

z Alsocompatiblewithanydevicethathasastandard3.5mmearphonejacksuchasMP3players,PSP,mobile

phones,etc.

MeettheSpeakerDuo

BeforelearningyourSpeakerDuo,takeamomenttolookitoverandfamiliarizeyourselfwithitsfeatures.

TheMatrixCase



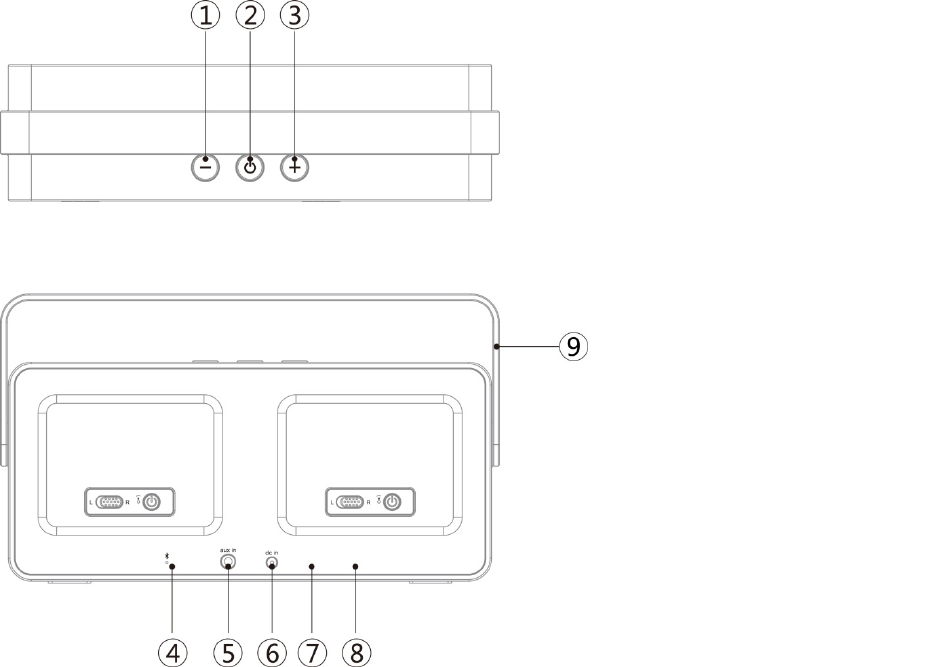

(1) Volume–

(2) Power/Pair

(3) Volume+

(4) Bluetooth©Indicator

(5) AuxIn

(6) DCIn

(7) ChargingIndicator

(8) ConnectionIndicator

(9) Handle

2/5

TheSatelliteSpeaker



GettingStarted

WeknowyouareexcitedtoexperienceyournewSpeakerDuo.Thesetwoeasystepswillgetyouupandrunningquickly.

Step1:ChargeIt

ConnectyourSpeakerDuomatrixcasetoanoutletusingtheincludedpoweradapter.Itwillstartchargingthematrixcase.

Slidethesatellitespeakersintothecaseforcharging.Theredbacklightwillslowlyflashduringchargingandgoesoutwhen

ithasreachedacompletecharge(Approx.3.5hours).



Step2:Connectit

TherearetwooptionsforconnectingtoyourSpeakerDuo‐wirelesslybyBluetooth©orwiredusingtheincludedaux

cable.

z ConnectWirelessly

Turnonthepowerofthematrixcasefollowedbypoweringoneachofthe2satellitespeakers.Oncethebaseispowered

ontheBluetooth©indicatorwilllightandatoneconfirmingthattheunitiscurrentlyinparingmodewillsound.

GototheBluetooth©settingsonyourmobilephone,tabletorcomputertofindthedevicenamed“SpeakerDuo”.Atone

willsoundtoconfirmthedevicehaspairedsuccessfully.NexttimetheSpeakerDuoandconnecteddevicewillpair

automatically.Aftercompletingthisstepyouarereadytostartplayingaudiofromyourconnecteddevice.

HoldthePlay/Pausebuttonfor5secondswilldisconnecttheconnecteddeviceandenterpairingmodeforpairinganew

device.

z DirectConnection

TheSpeakerDuocanalsobeconnectedtoanydevicethathasaheadphonejackorlineoutusingtheincludedauxcable.

Pleasenotetheplay/pausebuttononlyoperateswhenconnectedviaBluetooth©.

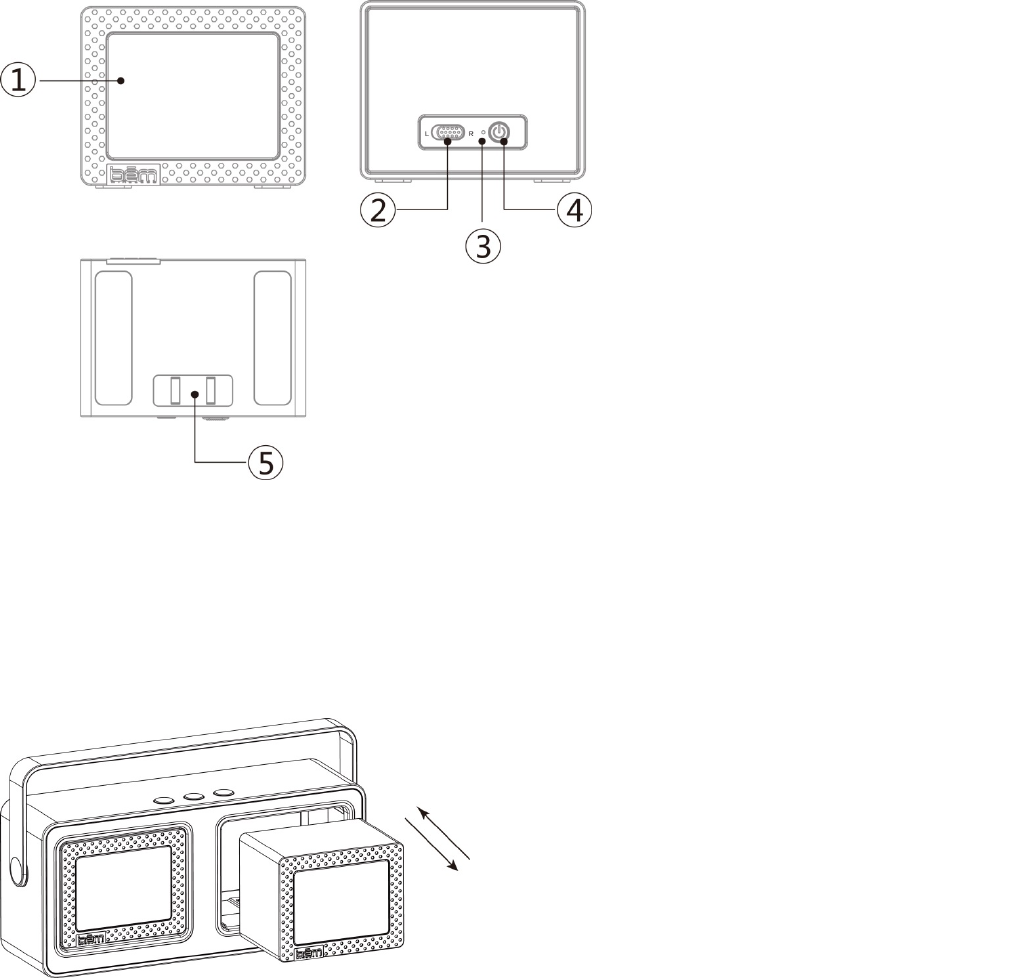

(1) SpeakerDriver

(2) L/Rswitch

(3) Charging&ConnectionIndicator

(4) Power/Pair

(5) ChargingPin

3/5

OperationDetails

Poweron/Poweroff

MatrixCase:PressthepowerbuttontoturnontheMatrixCaseofSpeakerDuo.TheBluetooth©indicatorwilllightupto

signifytheunitisonandreadytobepaired.PressthepowerbuttonagaintoturnoffthebaseandtheBluetoothindicator

lightwillgoout.

SatelliteSpeakers:Pressthepowerbuttontoturnthespeakeron.TheIndicatoronthespeakerwilllightuptosignifythe

unitison.PressthepowerbuttonagaintoturnoffthespeakerandtheIndicatorwillalsogoout.

Pleasenote,alwaysmakesuretofirstturnonthebaseunitbeforeturningonthespeakers

Playmodes

Bluetoothmode:playanaudiosignalfromtheconnectedBluetooth©device.

AUXmode:playanaudiosignalfromtheconnected"wired"device.

Pleasenote,ifanAuxcableisconnectedtothespeakeritwillnotplaymusicfromBluetooth©connecteddevices.

SelecttheL/RChannel

UsetheL/RswitchatthebackoftheSatelliteSpeakertoselectthesoundchannel.

SwitchtoLtoplayleftchannelandRforrightchannel.

AudioUse

FollowtheaboveconnectionstepstopairaBluetooth©devicewiththeSpeakerDuo.Atthispointyoucansendanykindof

audiosignaltoyourspeaker(music,video,gaming,etc.).Justuseyourdeviceasnormalandtheaudiowillplaythrough

yourSpeakerDuo.

Controls

PressthePower/PairbuttontoplayorpausethemusicwhenusingamusicplayerthroughyourBluetooth©connected

device.

Pressingthe+and‐buttonswillincreaseordecreasethevolumeontheSpeakerDuo.Pleasenotethatthiswillnotaffect

thevolumelevelsontheconnecteddevice.

Connection

Laptop/notebook/PC

AstheBluetooth©versionsforthesetypesofdevicesvariesgreatly,theconnectionmethodswilldifferaswell.Ifyoucan

notconnectwiththeSpeakerDuousingthepreviousmethodinstructedyoumayneedtoinstallanewversionofthe

Bluetooth©driver.

Pleasereferencetheinstructionsofdevicefordetails.

SpeakerPlacement

TheSatellitematrixcasehasbatterybuilt‐in,withthemetalhandle,itcanbetakeeasilyonthego.

The2individualspeakerscanberemovedfromthematrixcasetobesetanywhereyoulike.Approximaterangeis50ft

awayfromthecase(openarea).TheSpeakerDuouses5.8gHzsignalsoyou'refreetoputthespeakerswhereyoulike!

Charging

Connectyourmatrixcasetoanoutletusingtheincludedpoweradapter.Placethespeakersintothechargingareaofthe

case.Theredbacklightwillslowlyflashduringchargingandgoesoutwhenithasreachedacompletecharge(Approx.3.5

hours).

Note:iftheunithasnotbeenusedinthepast7dayspleasechargefor10minutesbeforeusingtheSpeakerDuo.

Troubleshooting

Issue:Pairingisunsuccessfullyaftermultipleattempts

Solution:

z CheckiftheBluetooth©indicatorlightison.Iftheindicatorlightisoff,pleasepressthepowerbuttontoturntheunit

on.IftheBluetooth©indicatorlightstilldoesn’tcomeonafterpressingthepowerbutton,pleasechargetheunit.

z CheckforotherBluetooth©devicesaroundthesurroundingsthatmayinterferewithsearchingandturndevicesoff.

4/5

z PoweroffandthenpowerontheunittorestarttheBluetooth©functionoftheunitoryourBluetoothdevice

z UnpluganycablespluggedintotheAUXIN,restartalldevicesandthenattemptpairingagain.

Issue:Interferenceorstaticduringplayback

Solution:

z Avoidusingthedevicebetweenconcreteorotherbuildingstructuresthatmayinterferewiththesignal.

z PleasecheckifthebatteryleveloftheunitandtheBluetooth©deviceandchargeifnecessary.

Formoretroubleshootinghelpgotohttp://bemwireless.com

Maintenance

PleasefollowtheinstructionsbelowforcleaningyourSpeakerDuo

z Powerofftheunitandunplugthepoweradapterfromwalloutlet

z Useasoft,dry,lint‐freeclothandwipegently

z Donotusealcohol,benzene,thinnersorotherchemicaldetergentsasthesecancausethecasingtobe

z warpedordiscolored

Forquestions,commentsortopurchasemorebemwirelessproductsgotobemwireless.com

Storage

z PowerofftheSpeakerDuoIftheunitwillnotbeusedforanextendedperiodoftime.

z Donotsettheunitinadampenvironment,hightemperaturesorindirectsunlight.

TechnicalSpecifications

Note:Allspecificationsaresubjecttochangewithoutnotice

z ProductName:SpeakerDuo

z ModelNumber:HL2506

z PowerSupply:USB5V,2A

z Outputpower:2.5WX2

z Batterycapacity:3.7V2000mAhforthecase,3.7V1000mAhforthespeaker

z BluetoothV4.0+EDR,profileSupported:A2DP,AVRCP

z Workingrange:Approximately25ft,8m

z Workingatmosphere:0˚C‐40˚C/20%‐90%RH



FCCStatement

1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

(1) Thisdevicemaynotcauseharmfulinterference.

(2) Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.

2.Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthority

tooperatetheequipment.

NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15

oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential

installation.

Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewith

theinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotryto

5/5

correcttheinterferencebyoneormoreofthefollowingmeasures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

• Consultthedealeroranexperiencedradio/TVtechnicianforhelp



SafetyInstructions

Thisproductisspeciallydesignedbasedonthefullattentiontosafety;inordertomakesuretheaccident‐freeoperation,

pleaseabidetheguidelineslistedbelow:

z Alwayspositiontheunitonastableandlevelsurface.Unstablesurfacecancausetheunittotoppleandfall,resulting

inpossibledamageorinjury

z Donotdrop,unpack,open,beat,curve,prinkandburntheunit

z Avoidusingtheunitnearbybasinsorsinkswhereitmaycomeincontactwithwater

z Donotplaceanywarewithfullwateronthetopoftheunit,suchasvase,glass,pot,andpleaseavoidplacingcandle

onthespeakersurfaceaswell

z Protecttheusingoftheunitfromanyoverheatingdevices(suchasradiator,heatinginstallation,cookingstoveorother

heatingdevices)

z Regardlessofwhatreasonscausetheunitdamage,pleaseaskforthemaintenancepersonneltorepair

z Ifyouwanttodothecleaning,pleaseturnofftheunitandunplugthepowercablefromtheoutletfirst

z Setthevolumeproperlytopreventinjurytotheunitandyourpersonalhealth

CorrectDisposalofthisproduct.Thismarkingindicatesthatthisproductshouldnotbedisposedwithotherhousehold

wastesthroughouttheEU.To preventpossibleharmtotheenvironmentorhumanhealthfromuncontrolledwastedisposal,

recycleitresponsiblytopromotethesustainablereuseofmaterialresources.Toreturnyouruseddevice,pleaseuse

thereturnandcollectionsystemsorcontacttheretailerwheretheproductwaspurchased.Theycantakethisproductfor

environmentalsaferecycling.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable

exposure condition without restriction.
