E Core Technology HL2507 Express Speaker User Manual
ECORE TECHNOLOGY COMPANY LIMITED Express Speaker Users Manual
Users Manual
Contents
English Page 4
Canadian Fran is Page 17
Español Page 31
140.0000
mic
usb out aux in dc in
54
Product Overview
In order to make sure you get the best possible results from your
new Express Speaker, please thoroughly read and carefully follow
all instructions in this User’s Manual or on the product. Keep this
User’s Manual in a convenient location for future reference.
Package contents:
Express Speaker x 1
Power Adapter x 1
Aux Cable x 1
User’s Manual x 1
If any of these were missing or damaged, please visit
bemwirelesss.com to obtain replacement.
Compatibility
All devices enabled with Bluetooth technology, including iPhones,
iPads, iPods, smartphones, laptops, tablets and more.
Also compatible with any device that has a standard 3.5mm
earphone jack such as MP3 players, PSP, mobile phones, etc.

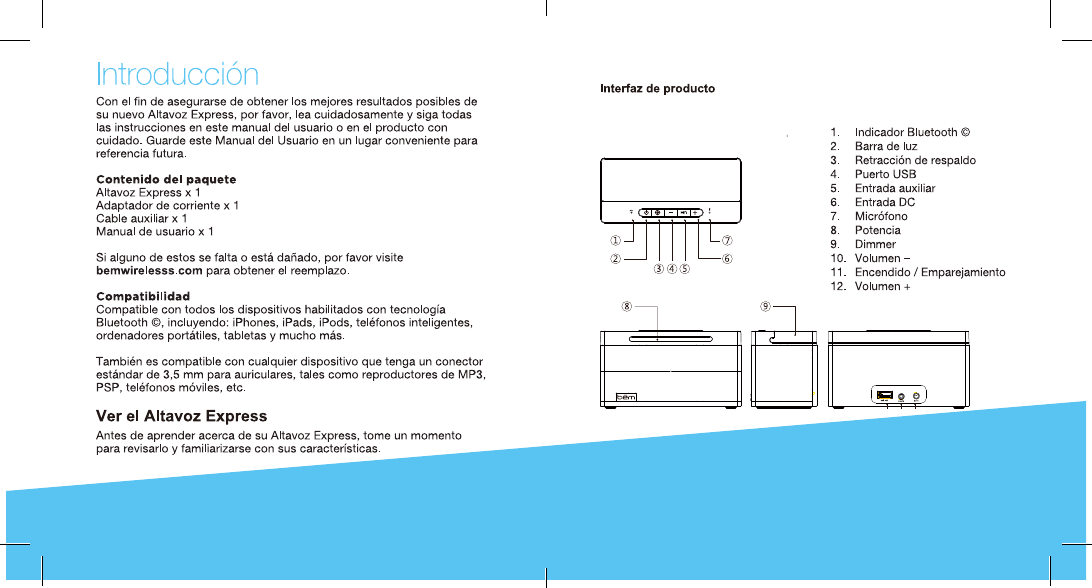

Meet the Express Speaker
Before learning about your Express Speaker, take a moment to look
it over and familiarize yourself with its features.
1. Bluetooth© indicator
2. Light Bar
3. Retracting back rest
4. USB port
5. Aux in
6. DC in
7. Microphone
8. Power
9. Dimmer
10. Volume –
11. Power / Pair
12. Volume +
Product Interface
76

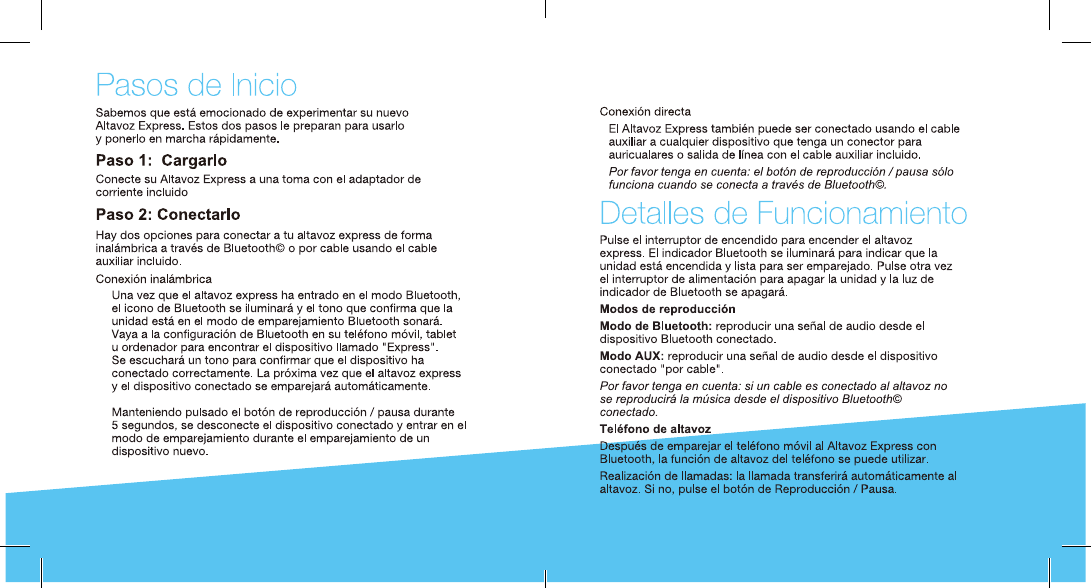

Getting Started
We know you are excited to experience your new Express Speaker.
These two easy steps will get you up and running quickly.
Step 1: Power It
Connect your Express Speaker to an outlet using the included
power adapter,
Step 2: Connect it
There are two options for connecting to your Express Speaker—
wirelessly by Bluetooth© or wired using the included aux cable.
Connect Wirelessly
Once the Express Speaker is powered on the Bluetooth©
indicator will light and tone confirming that the unit is currently
in Bluetooth© pairing mode will sound. Go to the Bluetooth©
settings on your mobile phone, tablet or computer to find the
device named “Express”. A tone will sound to confirm the device
has paired successfully. Next time the Express Speaker and
connected device will pair automatically.
Hold the Play/Pause button for 5 seconds will disconnect the
connected device and enter pairing mode for pairing a new
device.
Direct Connection
The Express Speaker can also be connected to any device that
has a headphone jack or line out using the included aux cable.
Please note the play/pause button only operates when
connected via Bluetooth.
Operation Details
Press the power button to turn on the Express Speaker.
The Bluetooth© indicator will light up to signify the unit is on and
ready to be paired. Press the power button again to turn off the
unit and the Bluetooth indicator light will go out.
Play modes
Bluetooth mode: play an audio signal from the connected
Bluetooth device.
AUX mode: play an audio signal from the connected “wired” device.
Please note: if an Aux cable is connected to the speaker it will not
play music from Bluetooth connected devices.
Speaker Phone
After paired your mobile phone to Express Speaker with Bluetooth,
the speaker phone function can be used.
Making calls: Call will automatically transfer to the speakerphone. If
not, tap play/pause button
98
Charging Your Device
The Express speaker features a standard USB charging port at
the back with 5V, 1A power output to charge your device, like
iPhones, iPods and smartphones. Please reference the instructions
of device for details.
The charging cable is not included.
Connection
Laptop / notebook / PC
As the Bluetooth© versions for these types of devices varies
greatly, the connection methods will differ as well. If you can
not connect with the Express Speaker using the previous
method instructed you may need to install a new version of
the Bluetooth driver.
Please reference the instructions of device for details.
Speaker Phone (cont.)
Answering calls: Tap play/pause button to answer the incoming call
Ending calls: Tap play/pause button during the call to end the call
Rejecting calls: Hold play/pause button to reject the incoming call
Redial last number: Double tap play/pause button to redial last
number when it is not in a call
Night Light
The LED Night light will turn on when express is powered on,
Press the dimmer button to adjust the brightness by following
order: high-middle-low-off.
Audio Use
Follow the above connection steps to pair a Bluetooth device
with the Express Speaker. At this point you can send any kind
of audio signal to your speaker (music, video, gaming, etc.).
Just use your device as normal and the audio will play through
your Express Speaker.
Controls
Press the Play/Pause button to play or pause the music when using
a music player through your Bluetooth© connected device.
Pressing the + and - buttons will increase or decrease the volume
on the Express Speaker. Please note that this will not affect the
volume levels on the connected device.
Troubleshooting
Issue: Pairing is unsuccessfully after multiple attempts
Solution:
• Check if the Bluetooth indicator light is on. If the indicator
light is off, please press the power button to turn the unit
on. If the Bluetooth indicator light still doesn’t come on after
pressing the power button, please charge the unit.
• Check for other Bluetooth devices around the surroundings
that may interfere with searching and turn devices off.
1110
• Power off and then power on the unit to restart the Bluetooth
function of the unit or your Bluetooth device
• Unplug any cables plugged into the AUX IN, restart all
devices and then attempt pairing again.
Issue: Interference or static during playback
Solution:
• Avoid using the device between concrete or other building
structures that may interfere with the signal.
• Please check if the battery level of the unit and the
Bluetooth© device and charge if necessary.
For more troubleshooting help go to http://bemwireless.com
Maintenance
Please follow the instructions below for cleaning your
Express Speaker.
• Power off the unit and unplug the power adapter from
wall outlet
• Use a soft, dry, lint-free cloth and wipe gently
• Do not use alcohol, benzene, thinners or other chemical
detergents as these can cause the casing to be warped
or discolored
For questions, comments or to purchase more be¯m wireless
products go to bemwireless.com
Troubleshooting (cont.) Storage
• Power off the Academia if the unit will not be used for an
extended period of time.
• Do not set the unit in a damp environment, high temperatures
or in direct sunlight.
More Info
For questions, comments or to purchase more be¯m wireless
products go to: bemwireless.com
You can also follow us at:
facebook.com/bemwireless
twitter.com/bemwirelessco
youtube.com/bemwireless
For information on your product’s warranty go to:
bemwireless.com/support
1312
be¯m wireless
http://bemwireless.com/
be¯m wireless LLC.
1725 Kilkenny Ct.
Woodstock, IL. USA
Made in China

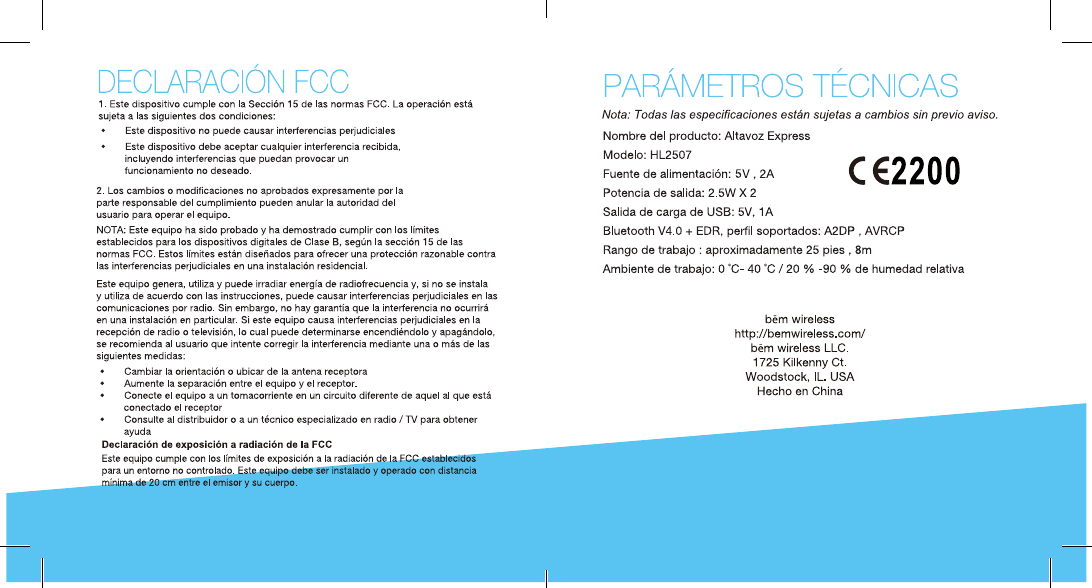

FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Product Name : Express Speaker
Model Number : HL2507
Power Supply: 5V,2A
Output Power: 2.5W X 2
USB charging output: 5V,1A
Bluetooth V4.0+EDR , profile Supported: A2DP, AVRCP
Working Range: Approximately 25ft, 8m
Working Atmosphere: 0˚C-40˚C / 20%-90%RH
1514
Safety Instructions
This product is specially designed based on the full attention to safety; in
order to make sure the accident-free operation, please abide the guidelines
listed below:
• Always position the unit on a stable and level surface. Unstable surface
can cause the unit to topple and fall, resulting in possible damage or injury
• Do not drop, unpack, open, beat, curve, prink and burn
the unit
• Avoid using the unit nearby basins or sinks where it may come in contact
with water
• Do not place any ware with full water on the top of the unit, such as vase,
glass, pot, and please avoid placing candle on the speaker surface as well
• Protect the using of the unit from any overheating devices (such as
radiator, heating installation, cooking stove or other heating devices)
• Regardless of what reasons cause the unit damage, please ask for the
maintenance personnel to repair
• If you want to do the cleaning, please turn off the unit and unplug the
power cable from the outlet first
• Set the volume properly to prevent injury to the unit and your
personal health
Correct Disposal of this product. This marking indicates that
this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device,
please use the return and collection systems or contact the
retailer where the product was purchased. They can take this
product for environmental safe recycling.
WARNING:
• The battery (battery or batteries or battery pack) shall not be exposed to
excessive heat such as sunshine, fire or the like.
• No naked flame sources, such as lighted candles, should be placed on the
apparatus.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type.
IC ID STATEMENT
- English: "
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device."
This equipment should be installed and operated with a minumum
distance of 20 cm between the radiator and your body.
- French:"
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement."
Cet équipement doit être installé et utilisé à une distance
minimale de 20 cm entre le radiateur et votre corps.
1716
1918
2120
2322
2524
2726
29
28
IC ID STATEMENT
- English: "
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device."
This equipment should be installed and operated with a minumum
distance of 20 cm between the radiator and your body.
- French:"
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement."
Cet équipement doit être installé et utilisé à une distance
minimale de 20 cm entre le radiateur et votre corps.
30
31
3332
3534
3736
3938
4140
4342
8
