E Core Technology HL2508 Mini Mobile User Manual

ECORE TECHNOLOGY COMPANY LIMITED Mini Mobile

User manual

Product Overview
In order to make sure you get the best possible results from your
new Mini Mobile, please thoroughly read and carefully follow all
instructions in this User’s Manual or on the product. Keep this User’s
Manual in a convenient location for future reference.
Package contents:
Mini Mobile x 1
Micro USB charging cable x 1
Aux cable x 1
User’s Manual x 1
If any of these were missing or damaged, please visit
bemwirelesss.com to obtain replacement.
Compatibility
All devices enabled with Bluetooth technology, including iPhones,
iPads, iPods, smartphones, laptops, tablets and more.
Also compatible with any device that has a standard 3.5mm
earphone jack such as MP3 players, PSP, mobile phones, etc.
Meet the Mini Mobile
Before learning about your Mini Mobile, take a moment to look it
over and familiarize yourself with its features.

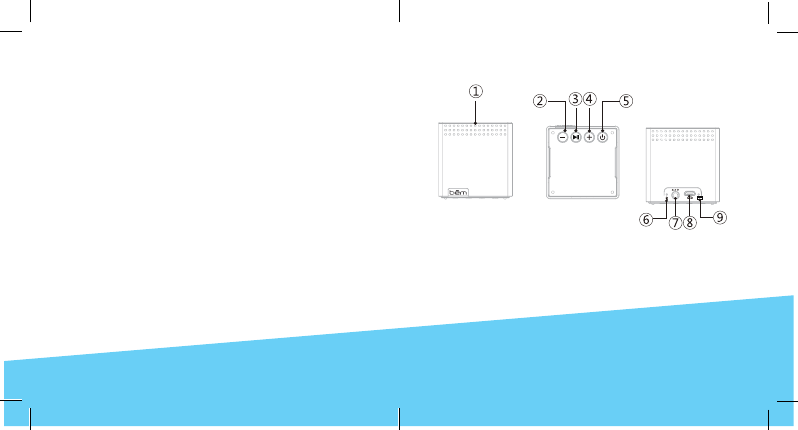

Product Interface
1. Driver
2. Volume -
3. Play / Pause
4. Volume +
5. Power
6. Bluetooth© indicator
7. Aux in
8. Micro USB power port
9. Charging Indicator
4 5
Getting Started
We know you are excited to experience your new Mini Mobile.
These two easy steps will get you up and running quickly.
Step 1: Charge It
Connect your Mini Mobile to an outlet using the USB charging
cable. The red LED light will slowly flash during charging and goes
off when it has reached a complete charge.
Step 2: Connect it
There are two options for connecting to your Mini Mobile —
wirelessly by Bluetooth© or wired using the included aux cable.
Connect Wirelessly
Once the Mini Mobile is powered on the Bluetooth indicator will
light and tone confirming that the unit is currently in Bluetooth
pairing mode will sound. Go to the Bluetooth settings on your
mobile phone, tablet or computer to find the device named
“Mini Mobile”. A tone will sound to confirm the device has paired
successfully. Next time the Mini Mobile and connected device will
pair automatically.
Direct Connection
The Mini Mobile can also be connected to any device that has a
headphone jack or line out using the included aux cable.
Please note the play/pause button will mute the speaker (the
microphone still working) when connected via Aux.
Operation Details
Power on / Power off
Hold the power button for 3 seconds until the Bluetooth indicator
will light up; the Mini Mobile is on and ready to be paired.
Hold the power button for 3 seconds until the Bluetooth indicator
go out, the unit is off.
Play modes
Bluetooth mode: play an audio signal from the connected
Bluetooth device.
AUX mode: play an audio signal from the connected
“wired” device.
Please note, if an Aux cable is connected to the speaker it will not
play music from Bluetooth connected devices.
Audio Use
Follow the above connection steps to pair a Bluetooth device with
the Mini Mobile. At this point you can send any kind of audio signal
to your speaker (music, video, gaming, etc.). Just use your device as
normal and the audio will play through your Mini Mobile.
Controls
Press the Play/Pause button to play or pause the music when
using a music player through your Bluetooth connected device.
Pressing the + and - buttons will increase or decrease the
volume on the Mini Mobile.
Please note that this will not affect the volume levels on the
connected device.
6 7
Operation Details (cont.)
Charging the speaker
When the Battery is less than 15%, a shot beep will comes out
from the Mini Mobile to signify the power is low.
Using supplied USB cable connect the Mini Mobile to a USB power
source, like USB ports on PC, USB charging port to charge, the
power indicator will lights up when it starts charging, and it will
goes off when it is fully charged.
Troubleshooting
Issue: Pairing is unsuccessfully after multiple attempts
Solution:
Check if the Bluetooth indicator light is on. If the indicator
light is off, please press the power button to turn the unit
on. If the Bluetooth indicator light still doesn’t come on after
pressing the power button, please charge the unit.
Check for other Bluetooth devices around the surroundings
that may interfere with searching and turn devices off.
Power off and then power on the unit to restart the Bluetooth
Unplug any cables plugged into the AUX IN, restart all devices
and then attempt pairing again.
Issue: Interference or static during playback
Solution:
Avoid using the device between concrete or other building
structures that may interfere with the signal.
Please check if the battery level of the unit and the Bluetooth
device and charge if necessary.
For more troubleshooting help go to http://bemwireless.com
Storage
Power off the Mini Mobile If the unit will not be used for an
extended period of time.
Do not set the unit in a damp environment, high temperatures
or in direct sunlight.
Product Name : Mini Mobile
Model Number : HL2508
Output Power: 1.5W X 2
Frequency response: 100Hz-16000KHz
S/N ratio (A-W): 60 Db
Distortion:<10% THD (1KHz-6 dB Input)
Built-in rechargeable battery: 3.7V,320mAh
Bluetooth V2.1+EDR , profile Supported: A2DP, AVRCP
Working Range: Approximately 25ft, 8m
Working atmosphere: 0˚C-40˚C / 20%-90%RH
8 9
Maintenance
Please follow the instructions below for cleaning your
Mini Mobile
Power off the unit and unplug the power adapter from
wall outlet
Use a soft, dry, lint-free cloth and wipe gently
Do not use alcohol, benzene, thinners or other chemical
detergents as these can cause the casing to be warped
or discolored
For questions, comments or to purchase more be¯m wireless
products go to bemwireless.com
More Info
For questions, comments or to purchase more be¯m wireless
products go to: bemwireless.com
You can also follow us at:
facebook.com/bemwireless
twitter.com/bemwirelessco
youtube.com/bemwireless
For information on your product’s warranty go to:
bemwireless.com/support
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received,
including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
More Info (cont.)
10 11
be¯m wireless
http://bemwireless.com/
be¯m wireless LLC.
1725 Kilkenny Ct.
Woodstock, IL. USA
Made in China
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
FCC Statement (cont.)
Safety Instructions
This product is specially designed based on the full attention to
safety; in order to make sure the accident-free operation, please
abide the guidelines listed below:
Always position the unit on a stable and level surface. Unstable surface
can cause the unit to topple and fall, resulting in possible damage or injury
Do not drop, unpack, open, beat, curve, prink and burn
the unit
Avoid using the unit nearby basins or sinks where it may come in contact
with water
Do not place any ware with full water on the top of the unit,
such as vase, glass, pot, and please avoid placing candle on
the speaker surface as well
Protect the using of the unit from any overheating devices
(such as radiator, heating installation, cooking stove or
other heating devices)
Regardless of what reasons cause the unit damage, please
ask for the maintenance personnel to repair
If you want to do the cleaning, please turn off the unit and
unplug the power cable from the outlet first
Set the volume properly to prevent injury to the unit and your
personal health
Correct Disposal of this product. This marking indicates that this product
should not be disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
WARNING:
The battery (battery or batteries or battery pack) shall not be exposed to
excessive heat such as sunshine, fire or the like.
No naked flame sources, such as lighted candles, should be placed on the
apparatus.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type.
Safety Instructions (cont.)
12 13
The device has been evaluated to meet general RF
exposure requirement. The device can be used in portable exposure condition
without restriction.
IC ID STATEMENT
- English: "
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device."
- French:"
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil nedoit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement."
14
