E Core Technology HL6621 Roady User Manual
ECORE TECHNOLOGY COMPANY LIMITED Roady
User manual
User’s Manual
2
Product Overview
Thank you for purchase of Roady 2-in-1 Bike Mount Bluetooth Speaker! To
ensure a proper use of Roady please carefully read this manual before you
start to use. Also, please safely keep this manual for future reference and
trouble shooting.
Package Contents
1. Roady Bluetooth Speaker main unit x 1
2. USB charging cable x 1
3. Aux cable x 1
4. Carabiner x 1
5. Bracket x 1
6. User’s manual x 1
Compatibility
The product is compatible with Bluetooth enabled devices, including I
Phone, I Pad, I Pod, Android Phone, tablets and etc.
It is also compatible with devices which have 3.5mm earphone jack to
connect to the product.
Features
Wireless and To-Go
Easy connection with your electronic devices wirelessly and use it portably.
The wireless working range is around 8-10 meters (30 feet), no cords and
no hassle.
Hand free calling on-the-go
With a built-in microphone, the unit takes on your calls just free and easy.
2-in-1 design for use in bicycle and backpack
3
Carabiner and bicycle bar mounter with bracket are provided for two uses
in carrying it over.

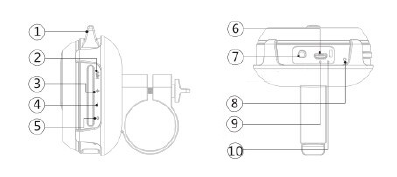

Product Interface
(1) The handle to hook a carabiner
(2) Play/pause
(3) Volume + ( Long press ) / Next ( Short press )
(4) Volume – ( Long press ) /Previous ( Short Press )
(5) Power
(6) USB charging port
(7) AUX in
(8) Microphone
(9) Charging LED indicator
(10) Bluetooth LED indicator
4
Getting Started
Two easy steps get it up and running quickly.
Step 1: Charging before use
Connect your Roady Bluetooth Speaker to a USB power source using the
enclosed USB charging cable.
Step 2: Connecting to play
There are two options to connect to your ROADY Bluetooth Speaker -
wirelessly by Bluetooth© or wired by the enclosed AUX cable.
Connect Wirelessly
Once the Roady Bluetooth Speaker is powered on, the Bluetooth©
indicator will flash on and a tone starts to confirm the unit is currently in
Bluetooth© pairing mode. Go to the Bluetooth© settings on your mobile
phone, tablet or computer to find the device named "Roady" and press to
select. A tone will arise to confirm the device has been paired successfully
in seconds. In your next use of ROADY, the product will connect to your
devices automatically once you had paired up before. To disconnect the
device,holdthePlay/Pausebuttonfor5secondsanditwillstarttopaira
new device available.
Direct Connection
The ROADY Bluetooth Speaker can also connect to devices that have a
headphone jack or line out using the enclosed AUX cable.
Please note that the long press on play/pause button to switch to a new
device is working only when you connect device via Bluetooth©.
Operation Details
Power on/power off
1. Power on the unit: Hold the ON/OFF button to turn on the unit, the
Bluetooth indicator flashes when it is on;
5
2. Power off the unit：Hold the ON/OFF button to turn on the unit to turn
off the unit, the Bluetooth indicator goes out at the same time.
Play modes
Bluetooth mode: play an audio signal from the connected Bluetooth©
device.
AUX mode: play an audio signal from the connected "wired" device.
Please note, if an Aux cable is connected to the speaker it will not play
music from Bluetooth© connected devices.
Audio Use
Follow the above connection steps to pair a Bluetooth© device with the
ROADY Bluetooth Speaker. At this point you can send any kind of audio
signal to your speaker (music, video, gaming, etc.). Just use your device as
normal and the audio will play through your ROADY Bluetooth Speaker.
Controls
Press the Play/Pause button to play or pause the music when using a music
player through your Bluetooth© connected device.
Pressing the + and - buttons will increase or decrease the volume on the
ROADY Bluetooth Speaker. Please note that this will not affect the volume
levels on the connected device.
Speaker Phone
After paired your mobile phone to ROADY Bluetooth Speaker with
Bluetooth©, the speaker phone function can be used.
Make call : Call will automatically transfer to the speakerphone. If not,
tap play/pause button;
Answer call: Tap play/pause button to answer the incoming call;
6
End call : Tap play/pause button during the call to end the call;
Reject call : Hold play/pause button to reject the incoming call;
Redial last number: Double tap play/pause button to redial last number
when it is not in a call.
Charge
When the power is low, a beep will comes out from the speaker, please
charge the speaker when you heard the beep.
1. Connect the standard USB end of the supplied USB cable to a USB
power source (like PC, USB power adapter…etc.)
2. Connect the Micro USB jack to the USB charging port in the unit. The
charging indicator will light up while charging
3. It will take about 2 hours to fully charge the Bluetooth speaker
4. The LED indicator will stay on while charging, and goes off after fully
charged.
Note: if the unit is not to be used longer than 7 days, please charge the unit
for 10 minutes before turn on the unit.
Connection
Laptop / notebook / PC
As the Bluetooth© versions for these types of devices varies greatly, the
connection methods will differ as well. If you cannot connect with the
ROADY Bluetooth Speaker using the previous method instructed you may
need to install a new version of the Bluetooth© driver.
Please reference the instructions of device for details.
Technical parameters
Note: All specifications are subject to change without notice.
Product Name: Roady
7
Model Name：HL6621
Power Supply: USB 5V, 1A
Built-in Lithium Ion batteries: 3.7V 800mAh
Output power: RMS 3Wx1
Bluetooth Profile Supported: A2DP, AVRCP
Working range: up to 8-10m
Working atmosphere: 0℃-40℃/20%-90%RH
Maintenance
Please follow the instructions below before clear the unit
Power off the unit first before clear
Use a soft, dry, lint-free cloth to wipe gently
Do not use alcohol, benzene, thinners or other chemical detergents as
these can cause the casing to be warped or discolored
Storage
If the unit will not be used for an extended period of time, power off the
unit and place the unit with accessories into the package
Do not set the unit in a damp, high temperature or the sun point-blank
place
Troubleshooting
Issue: Pairing is unsuccessfully after multiple attempts
Solution:
Check if the Bluetooth© indicator light is on. If the indicator light is off,
please press the power button to turn the unit on. If the Bluetooth©
indicator light still doesn’t come on after pressing the power button, please
charge the unit.
Check for other Bluetooth© devices around the surroundings that may
8
interfere with searching and turn devices off.
Power off and then power on the unit to restart the Bluetooth©
function of the unit or your Bluetooth device
Unplug any cables plugged into the AUX IN, restart all devices and then
attempt pairing again.
Issue: Interference or static during playback
Solution:
Avoid using the device between concrete or other building structures
that may interfere with the signal.
Please check if the battery level of the unit and the Bluetooth© device
and charge if necessary.
Safety Instructions
This product is specially designed based on the full attention to safety; in
order to make sure the accident-free operation, please abide the
guidelines listed below:
Always position the unit on a stable and level surface. Unstable surface can
cause the unit to topple and fall, resulting in possible damage or injury;
Do not drop, unpack, open, beat, curve, prink and burn the unit;
Avoid using the unit nearby basins or sinks where it may come in
contact with water;
Do not place any ware with full water on the top of the unit, such as vase,
glass, pot, and please avoid placing candle on the speaker surface as well;
Protect the using o
f
the unit from any overheating devices (such as radiator,
heating installation, cooking stove or other heating devices);
Regardless of what reasons cause the unit damage, please ask for the
maintenance personnel to repair;
I
f
you want to do the cleaning, please turn off the unit and unplug the power
cable from the outlet first;
Set the volume properly to prevent injury to the unit and your health;
9
Correct Disposal of this product. This marking indicates that this product
should not be disposed with other household wastes throughout the EU.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device, please
use the return and collection systems or contact the retailer where the
product was purchased. They can take this product for environmental safe
recycling.
WARNING:
The battery (battery or batteries or battery pack) shall not be exposed to
excessive heat such as sunshine, fire or the like.
No naked flame sources, such as lighted candles, should be placed on
the apparatus.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type.
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
10
responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
Warning: Roady is designed for a common and casual use on a bicycle as
an entertaining electronic devise. We are not liable to your risk in using
Roady while you ride on a bicycle for speed racing, BMX performance,
downhill riding, jumping and etc. Please always use Roady on a bike in a
manner of safe riding.
