E Core Technology HP5286 2.4GHz WIRELESS DEVICE User Manual USERS MANUAL
E-Core Technology (China) Co., Ltd. 2.4GHz WIRELESS DEVICE USERS MANUAL
USERS MANUAL
PS3 Lava Glow Wireless Controller
Contents:
PS3 Lava Glow Wireless Controller
PS3 Lava Glow Wireless Receiver
Operation:
1. Open the battery compartment located on the bottom of the PS3 Lava Glow Wireless controller.
Insert 3 x “AAA” batteries
2. The PS3 Lava Glow Wireless controller feathers a 3 position power switch located on the bottom
side of the controller
OFF=The controller is powered “OFF”;
LED OFF(middle Setting)=This setting allows you to have full use of the controller without
the internal LED’s being “ON”;
ON LED=The controller and LED’s are powered “ON”.
3. With your PlayStation 3 ® game console powered “ON”, plug the PS3 Lava Glow Wireless
Receiver into controller port #1 (or other, if using multiple controllers) of your game console. LED
will begin to flash slowly. Press the “CONNECT” button on the receiver,(the LED will flash rapidly)
4. Press the “MENU” button on the PS3 Lava Glow Wireless Controller, the four (4) channel
indicators flash rapidly; Press “MENU” button again to enter an operation channel, the
corresponding channel indicator(s) will become solid, and the receivers LED as well. You are now
ready to enjoy your new PS3 Lava Glow Wireless Controller.
5. Hold the “MENU” button for Three (3) seconds to enter main menu of PlayStation 3® game
console.
6. When connecting multiple controllers, connect each controller separately. First connect player
one’s controller and than connect the remaining controllers. The channel indicator(s) displaying
as below:

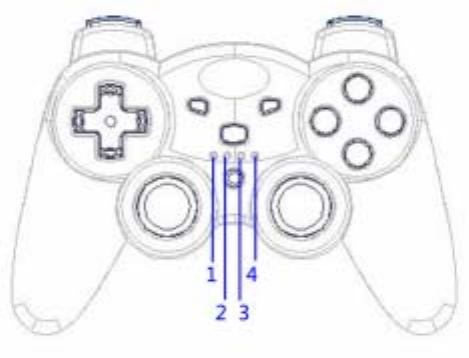

Channel 1=Indicator one (1) lights up
Channel 2=Indicator two (2) lights up
Channel 3=Indicator three (3) lights up
Channel 4=Indicator four (4) lights up
Channel 5=Indicator one (1) + four (4) lights up
Channel 6=Indicator two (2) + four (4) lights up
Channel 7=Indicator three (3) + four (4) lights up
TURBO Programming:
Press any action button and “TURBO” button at same time to set the button with the TURBO function.
Do it again to cancel TURBO function.
IMPORTANT INFORMATION REQUIRED BY THE FCC
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD
VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
