E Lead Electronic EL409 TPMS User Manual TPMS FCC
E-Lead Electronic Co., Ltd TPMS TPMS FCC
User Manual
1
Tire Pressure Monitoring System
(TPMS)
User Manual
EL-409
2
Table of contents
01. Notice............................................................................................................................................................................3
02. Accessory Line Up........................................................................................................................................................5

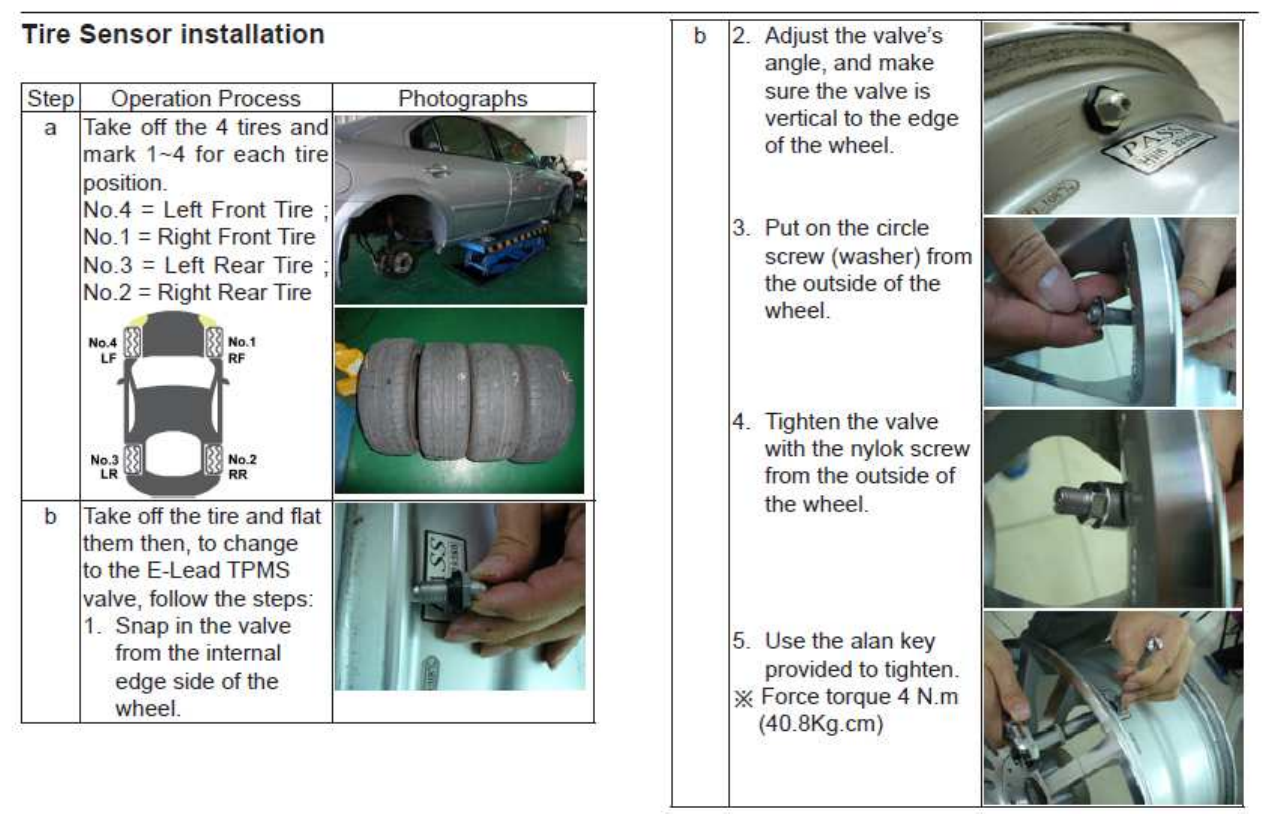

03. TPMS Installation..........................................................................................................................................................6

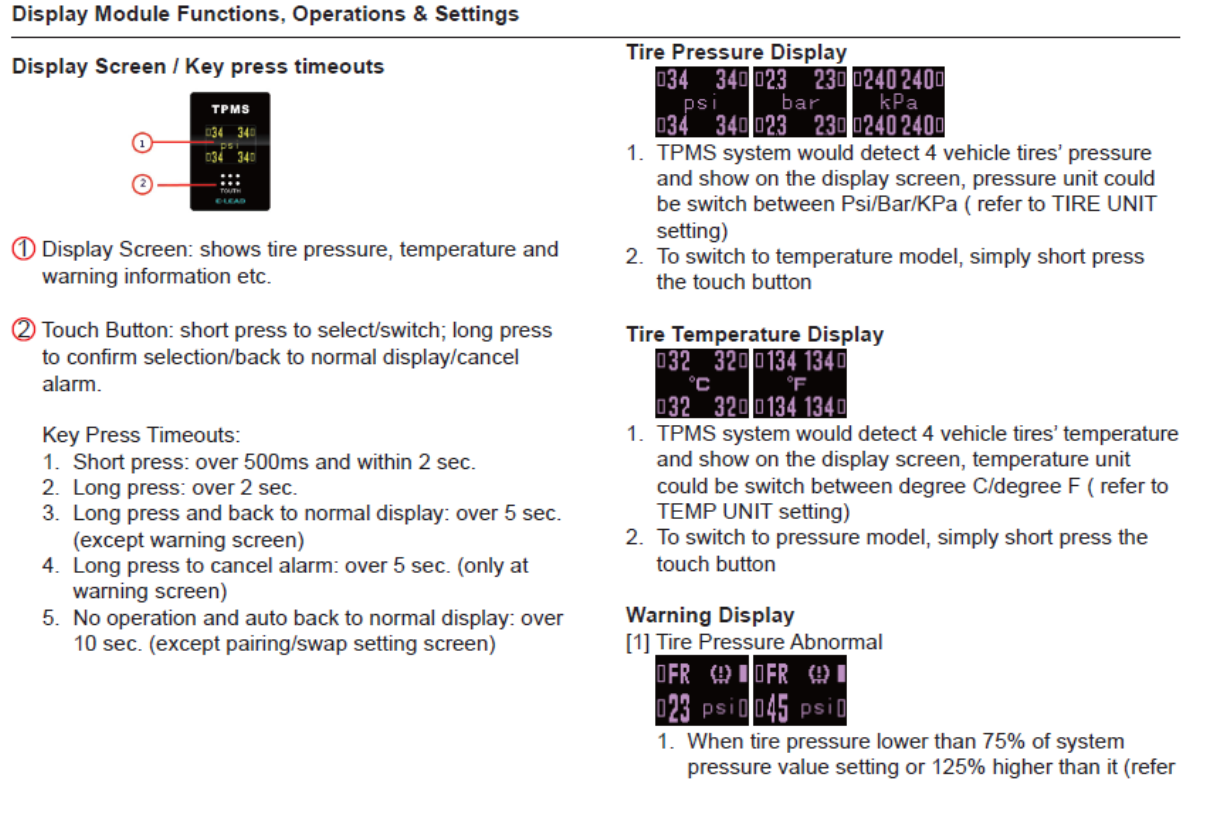

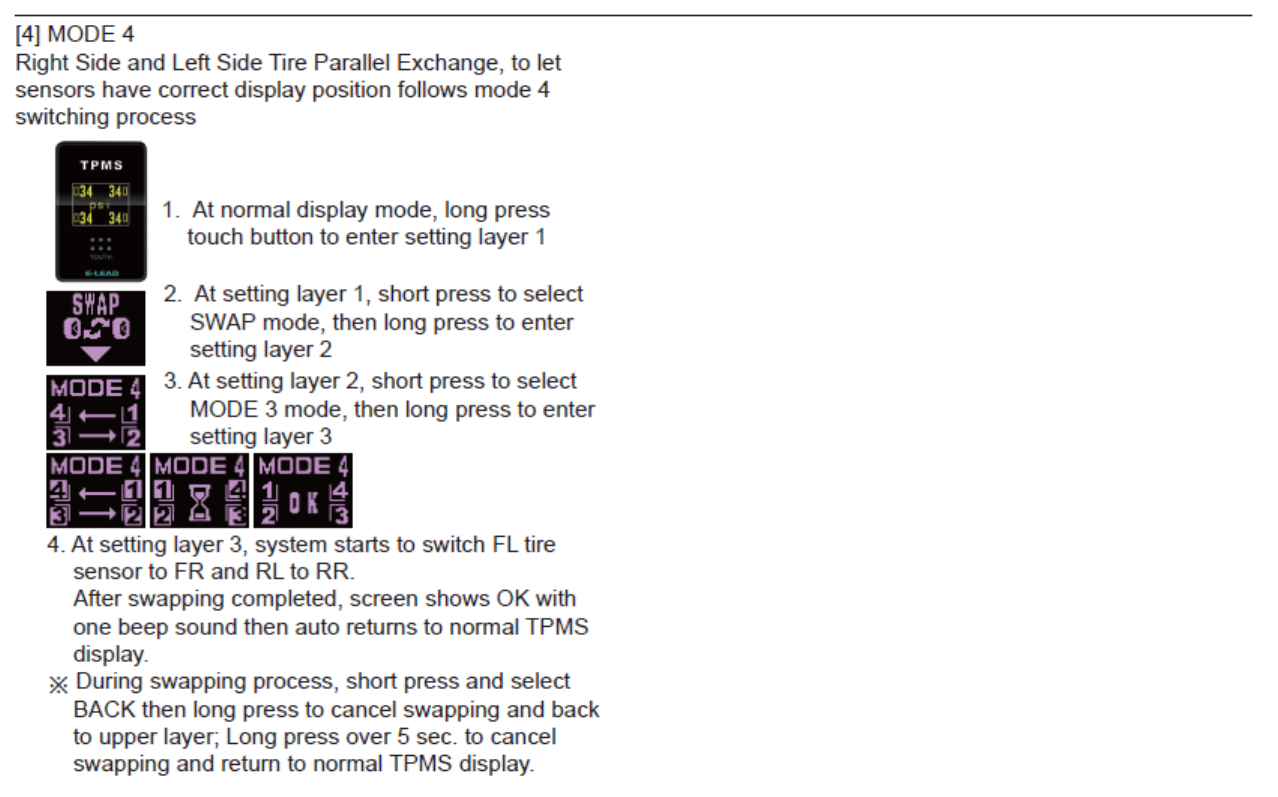

04. Display Module Functions, Operations & Settings.......................................................................................................10

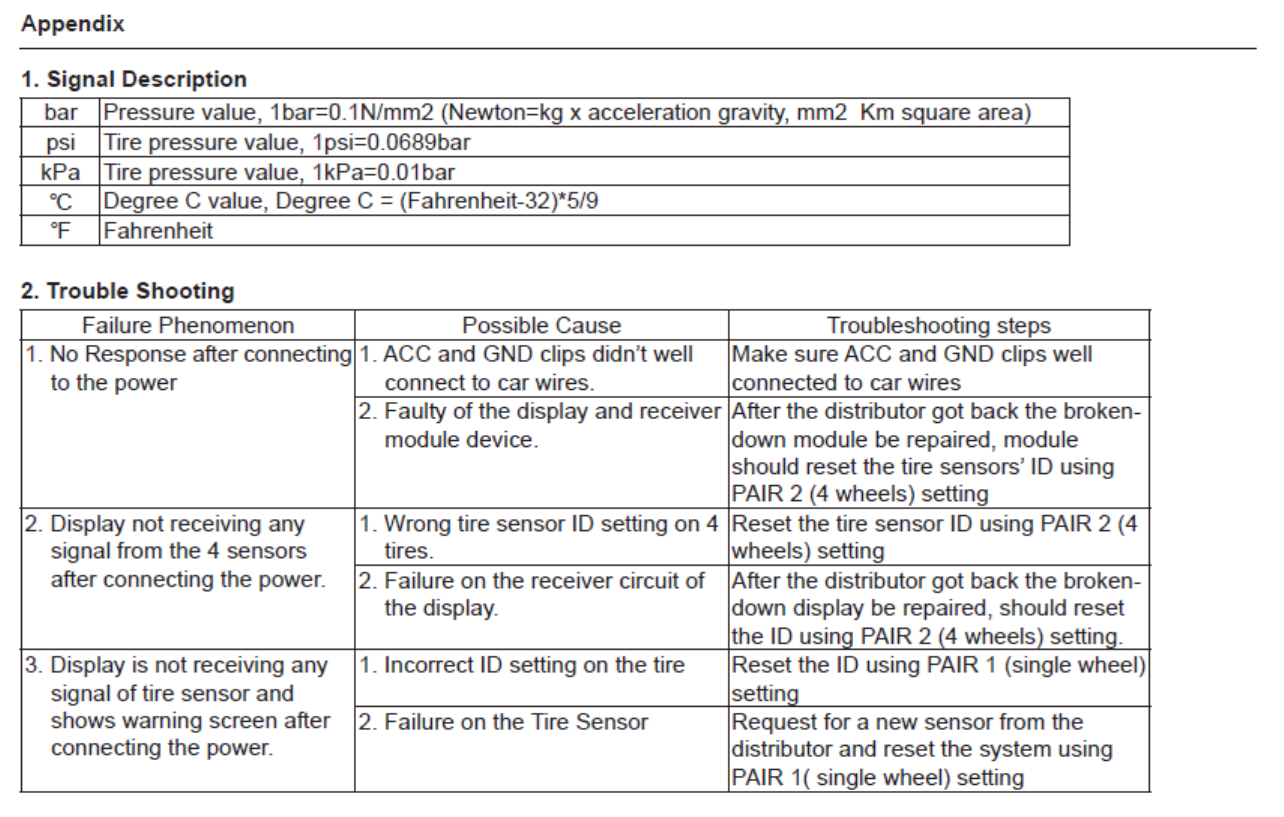

Appendix
1. Signal Description..........................................................................................................................................................18
2. Trouble Shooting............................................................................................................................................................18
3
Notice
System Scope of Use and Warnings
■System Installation and Usage
Use of the TPMS requires that qualified personnel according to the instructions here have properly installed it. This system is
suitable for use on a passenger car, SUV and 4X4 tires.
TPMS can monitor and provide tire pressure and tire temperature in real time to help the driver control and keep the normal tire
pressure in order to reduce the fuel consumption and extend the tire life, and also reduce the possibility of vehicle breakdown on the
road or heavy incident or crash to occur.

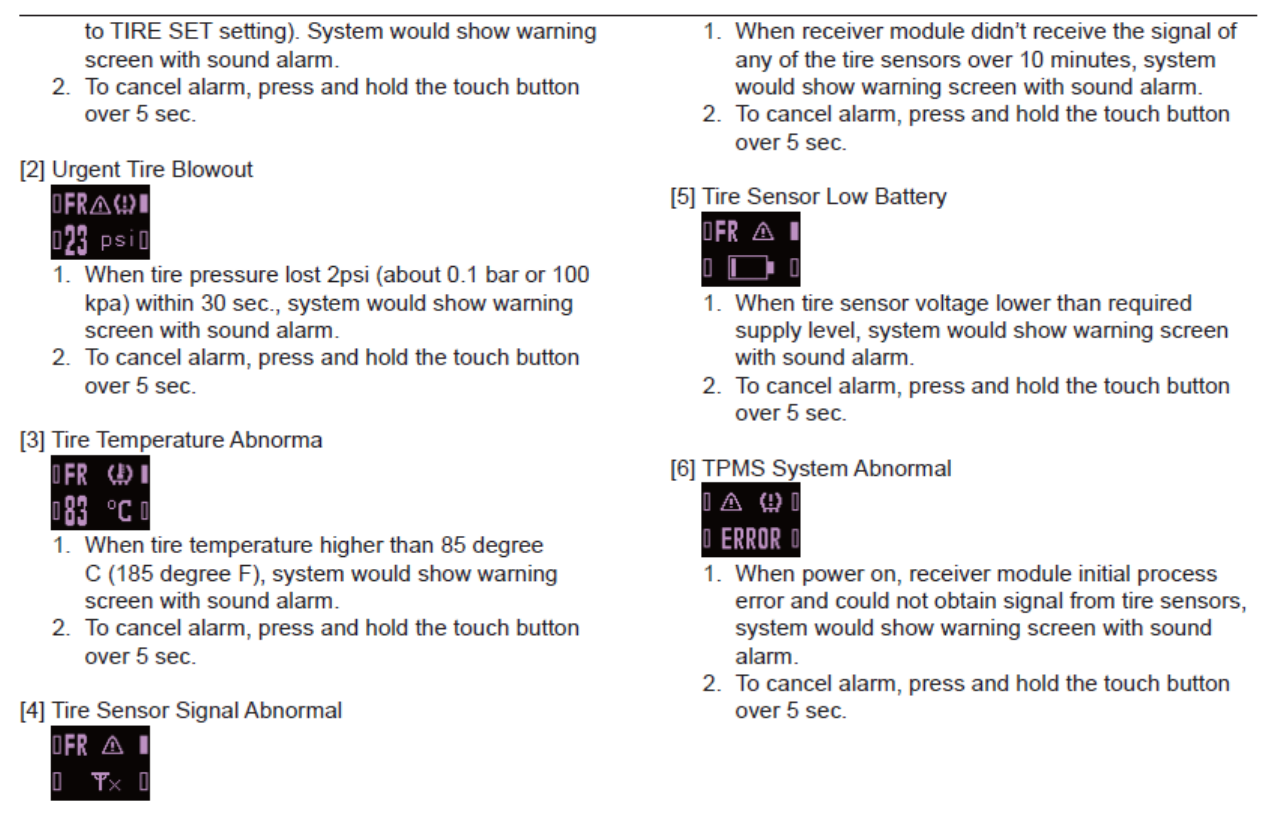

■Reacting to Alerts
When an alert or warning is received, reduce vehicle’s speed and proceed to a safe location to stop where the tire can be inspected
and /or serviced.
The low-pressure alert indicates that the air pressure has dropped to a selected minimum and a high-temperature alert indicates that
the temperature of the tire content has surpassed the threshold value set.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
4
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
5

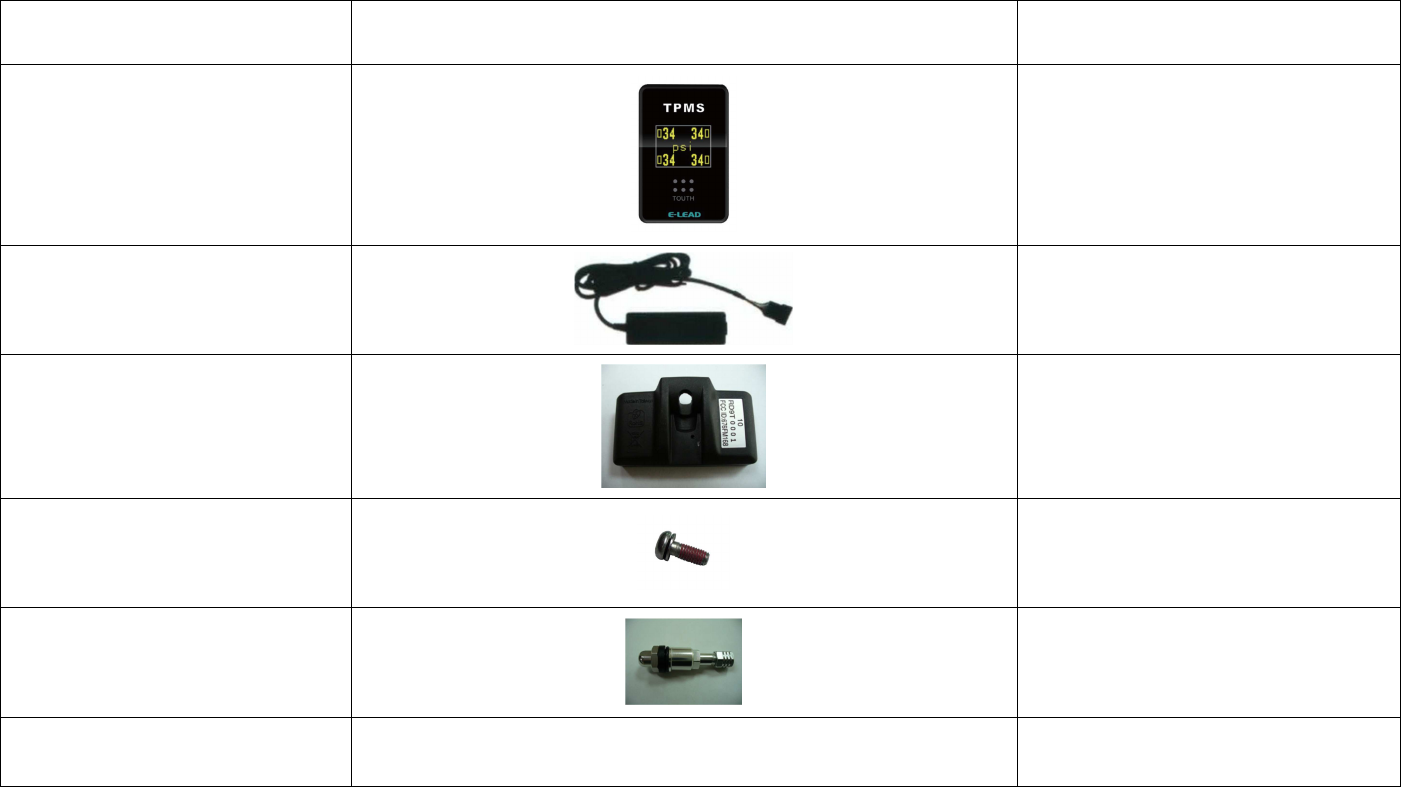

Accessory Line Up
Accessories Pictures QTY
Display Module
1
Receiver Module
1
Tire Sensor
4
Nylok Screw
4
Aluminum Valve
4
User Manual
1
