Users Manual
![](/img.php?id=865185&img=bg1.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 1/16
▶Table of Contents◀
1. Introduction
2. Description of Unit
3. Technical Specifications
4. Theory of Operation
5. Circuit Descriptions
Any changes or modifications to the equipment not expressly
approved by the party responsible for compliance could void
user’s authority to operate the equipment.
![](/img.php?id=865185&img=bg2.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 2/16
1. Introduction
EP400 has a compact size with a various features in the range of 403~520MHz. EP400
Has a various features shown as below.
EP400 constructed with a microprocessor controlled, temperature compensated Phase Locked
Loop(PLL) frequency synthesizer. The radio features a double conversion receiver and a direct FM
transmitter modulator. A special integrated circuit provides support to sub-audible signaling(CTCSS & DCS)
and most of the receiving parts are switched off periodically in the power save mode to reduce battery current
drain during standby.
2. Description of Unit
Items Model
Radio EP400
Antenna
1700mAh Li-Ion battery pack
Desktop rapid charter
Adaptor
Supplied
Package
User manual
Items Model
External / Speaker Microphone
Earpiece Microphone
Earpiece VOX Microphone
Accessories
VOX & PTT Headset
![](/img.php?id=865185&img=bg3.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 3/16
3. Technical Specifications
3-1 General
1) Frequency range : 403 ~ 520 MHz
2) Channels : 255 Channels
3) Channel spacing : 12.5 kHz/25 kHz
4) Communication method : Simplex
5) Antenna Impedance : 50 ohm
6) Antenna : Helical Antenna
7) Power supply voltage : LI-1700mAh Li-Ion battery pack(Voltage: 7.4V DC)
8) Current Drain : When Transmitting(5W) - < 2A
When Receiving(0.5W) - < 300mA
Transmit standby - < 60mA
Receiver standby(PSC MODE) - < 50mA
9) Microphone : Internal Condenser Microphone(External Speaker Micro
phone is available)
10) Operating temperature range: -30 +℃∼ 60℃
11) Size : 55(W)x114(H)x30(D)
12) Weight : 300g
3-2 Transmitter
1) Power Output : HIGH – 4W, LOW - 1W
2) Modulation : 8K5OF3E/16KOF3E
3) Oscillator method : PLL
4) Frequency Stability : less than ±0.00025% (±2.5PPM)
5) Maximum frequency deviation: ±2.5 kHz(Narrow)/ ±5 kHz(Wide)
6) Audio Distortion : less than 5% (1 kHz 60%)
7) SPURIOUS Emission : -36 [dBm]
8) FM Hum & Noise : -40 [dB] (HP8920A 300Hz 3kHz BP∼F)
9) BAND SPREAD : 117 [MHz]
![](/img.php?id=865185&img=bg4.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 4/16
3-3 Receiver
1) Receiver Type : Double Super Hetero type
2) Sensitivity : -0.25uV e.m.f ( 12dB SINAD )
3) Frequency Stability : ±0.00025%(±2.5PPM)
4) SPURIOUS Rejection : -70 dB
5) Adjacent Channel Selectivity: -60 dB (Narrow) , -70 dB (Wide)
6) Distortion : 5% (1 kHz 60%)
7) Hum & Noise : -40 dB(HP8920A 300Hz ∼3kHz BPF)
8) Audio output : 1000 mW
9) BAND SPREAD : 117MHz
10) Speaker size : 45 pi
4. Theory of Operation

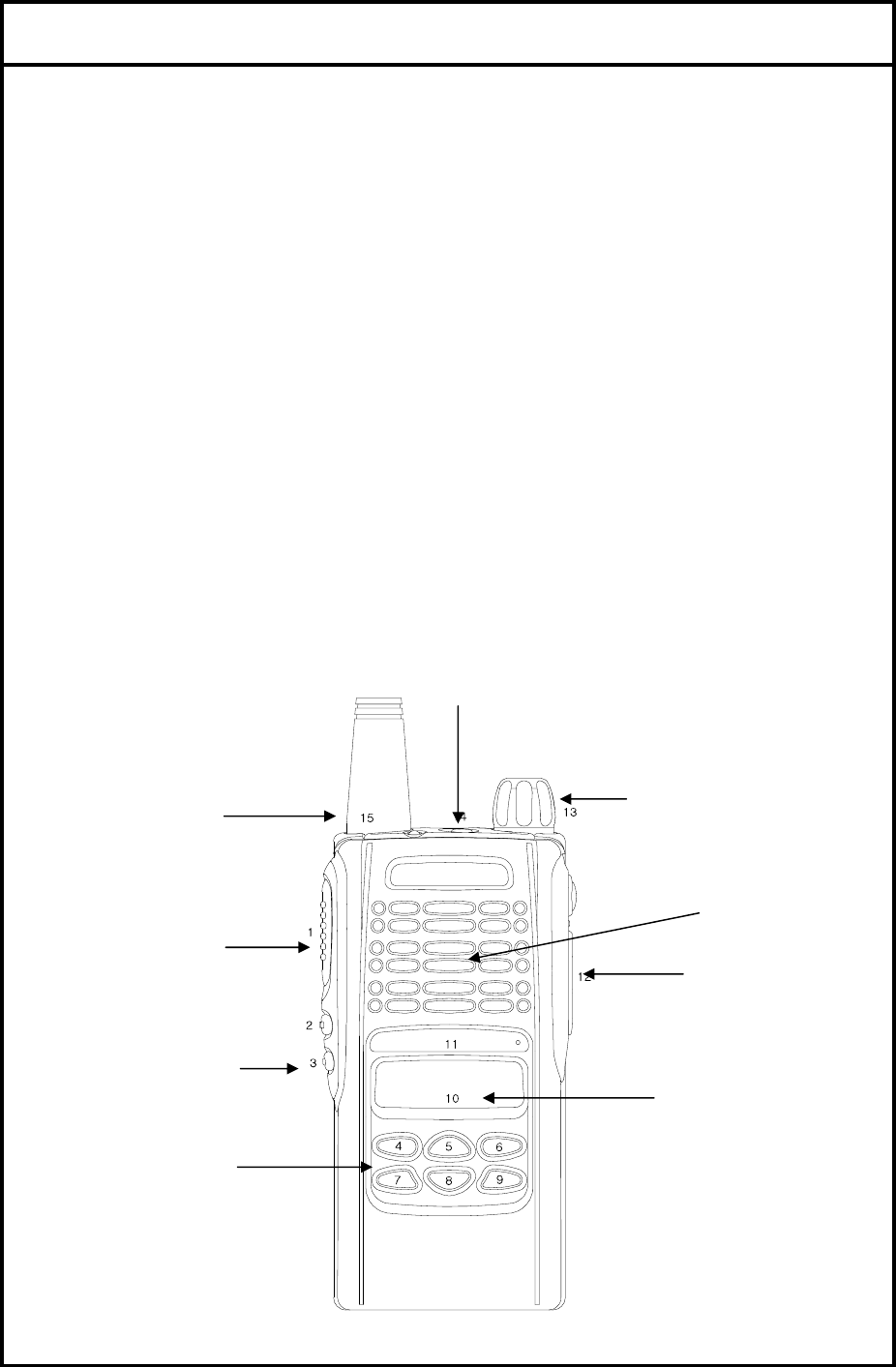

EXTERNAL VIEW
4)Emergency Key
Antenna
PTT
Monitor Button
Ear/Mic jack
Power ON / OFF
KEY PAD
LCD
Speaker
![](/img.php?id=865185&img=bg5.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 5/16
4-1 Features & Operation
1. Monitor
Press the Monitor key momentarily to disable the Tone squelch.
2. Radio Call
By using Various 5Tone, individual / Group call is available.
16 Receiving codes are available as well as open call.
3. Missed calls list
16 Missed calls can be listed. If a call remains unanswered, the call will be stored
by the radio.
4. contact list
During a call, the contact list may be used to give access to up to 16 preprogrammed
numbers accessed via the menu.
5. status list
A status is a code for transmitting prearranged messages, e.g. status “05” may indicate
“launch”. Status list contains up to 30 entries.
6. Channel : 255 channel
7. Scan ON/off
8. Power level : Power level is adjustable in each channel respectively.
9. Talkaround on/off
10. Emergency :
11. Lone Worker
12. Tx Tone select : In the menu, tx dcs /ctcss tone is adjustable.
13. Rx Tone select : In the menu, rx dcs /ctcss tone is adjustable.
14. Group : Defines group tone. You can select tone code for group, and it is used as a default value
. 0~9 and a, b, c, d available. And “A” is used as a basic value..
15. BEEP ON/OFF : BEEP sound ON/OFF.
16. KEY LOCK : LOCK/UNLOCK Button KEY.
17. SQUELCH : Squelch level is adjustable
18. AUTO SQUELCH : Squelch level is adjustable automatically by surroundings.
19. DTMF ON/OFF : DTMF function is available.
20. VOX : VOX LEVEL is adjustable by pushing up and down button.
21. AUTO VOX : VOX level is adjustable automatically by surroundings.
22. P - SCAN : Priority Scan
23. POWER SAVE : Power save mode is available.
24. PASS WORD : This function is useful for security reason.
25. LOCATION INDICATE : Indicate where the radio is located by blinking green light every 7 seconds.
26. SCRMABLE : Internal Voice Scrambler is available.
27. STUN / UNSTUN : For added security and to avoid abuse of the radio system in which you operate
a feature known as Stun/Unstun is included in your radio.
28. BACKLIGHT : Lamp is lighting when you check LCD status.
![](/img.php?id=865185&img=bg6.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 6/16
4-2 LCD Display and Icons
1.ANT GAZE ; Shows the received signal strength.
2.TX POWER HIGH: Indicate power level
3.KEY LOCK: Appears during key lock function is ON.
4.ALART(BEEP) ON/OFF: Appears when beep sound is turned ON.
5.Battery level indicator: Indicates reaming battery power.
6.VOX ON/OFF: Appears when VOX function is turned On.
7.SCAN: Appears when Scan function is activated.
8.SCRAMBLE: Appears while the voice scrambler function is activated.
9.TALK AROUND Indicator.
4-3 Features
1. Channel
This radio offers up to 255 channels
1). By using button, you can select the desired channel.
2. Missed calls list
Up to 16 calls can be stored. If the same radio calls more than once, only the most recent call is stored.
When fifteen calls have been stored by the radio, depending on the radio programming the sixteenth call
received may overwrite the first or not be stored by the radio.
1). to enter Menu Mode.
2) Display shows
3) to select
4) or to scroll list
5) to exit
![](/img.php?id=865185&img=bg7.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 7/16

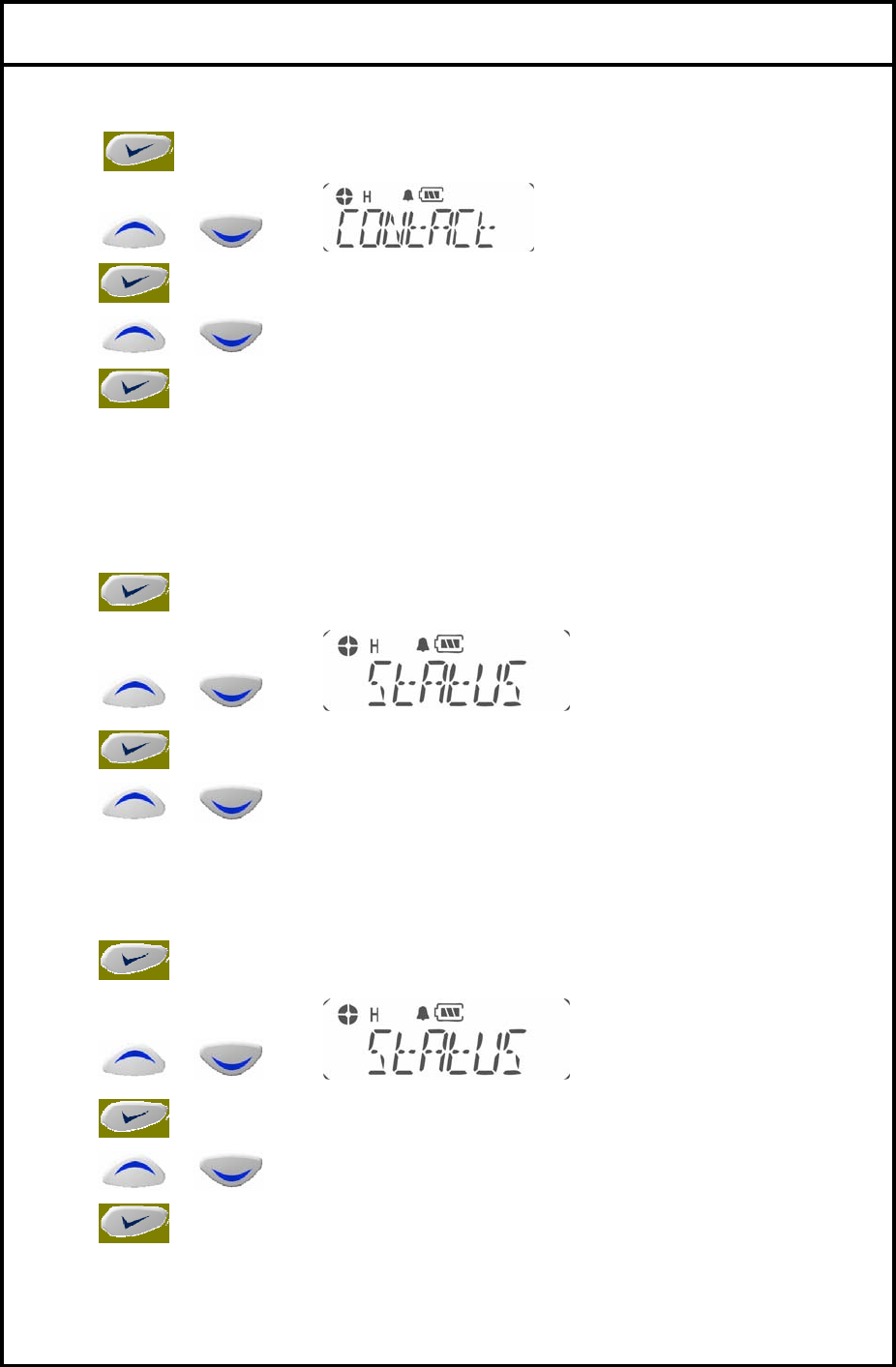

3. Contact list
1). to enter Menu Mode.
2) or to until
3) to select
4) or to scroll list
5) to exit
4. Status call list
4-1. Making STATUS call
1) to enter Menu Mode.
2) or to until
3) to select
4) or to scroll list
5) Push PTT KEY for sending message on the LCD.
4-2 Make STATUS Message
1) to enter Menu Mode.
2) or to until
3) to select
4) or to scroll list
5) to SELECT
![](/img.php?id=865185&img=bg8.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 8/16

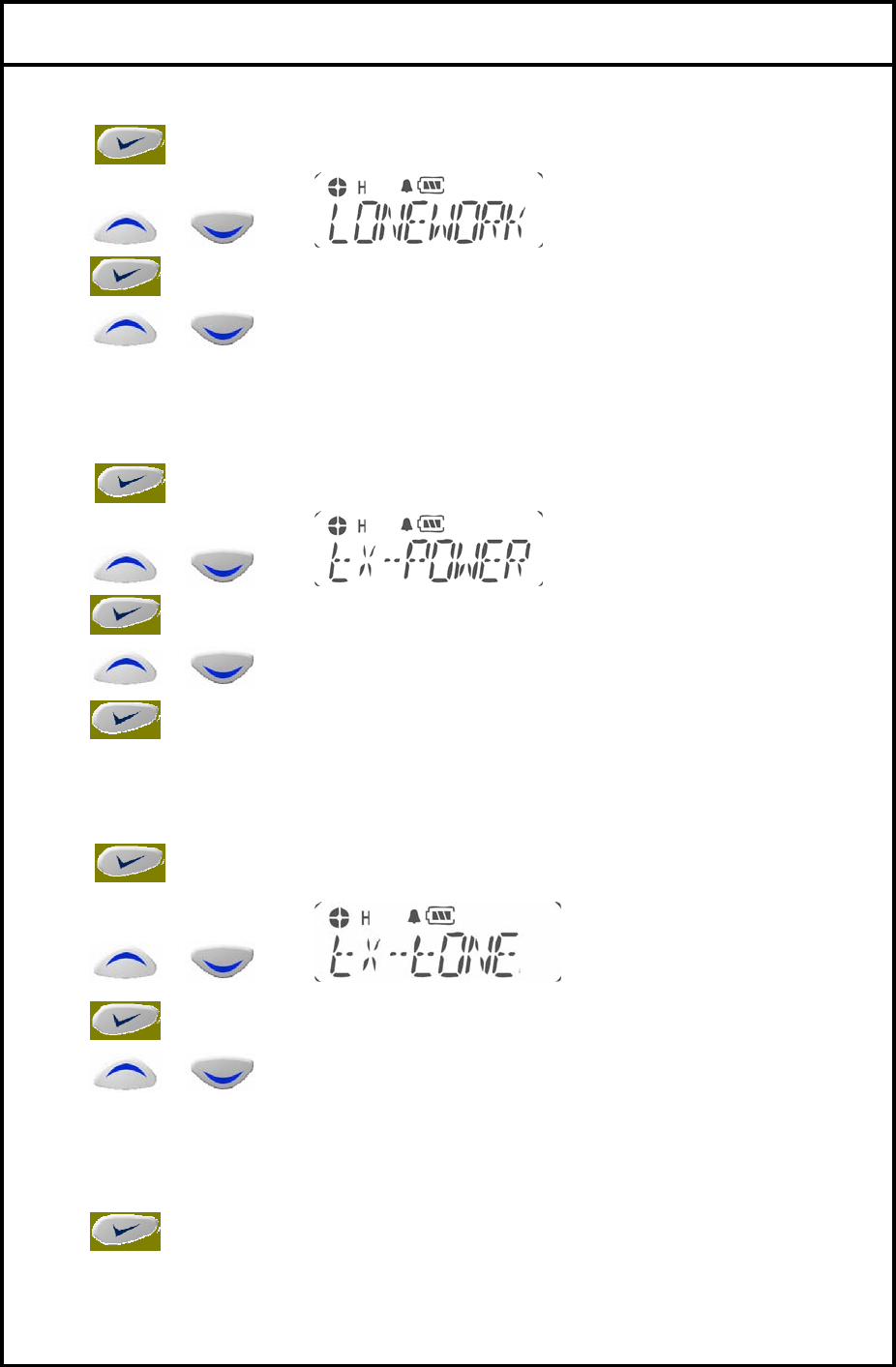

5. Lone work
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select ON/OFF
6. Tx power
.
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select HIGH / LOW POWER
5) to select
7. Tx Tone
Selecting Transmitting TONE(CTCSS/DCS).
1). to enter Menu Mode.
2) or to until
3) to select
4) or to Select TONE을 either CTCSS or DCS.
0= NON TONE
1-38 CTCSS
101 – 183 DCS TONE
5) to select exit
![](/img.php?id=865185&img=bg9.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 9/16

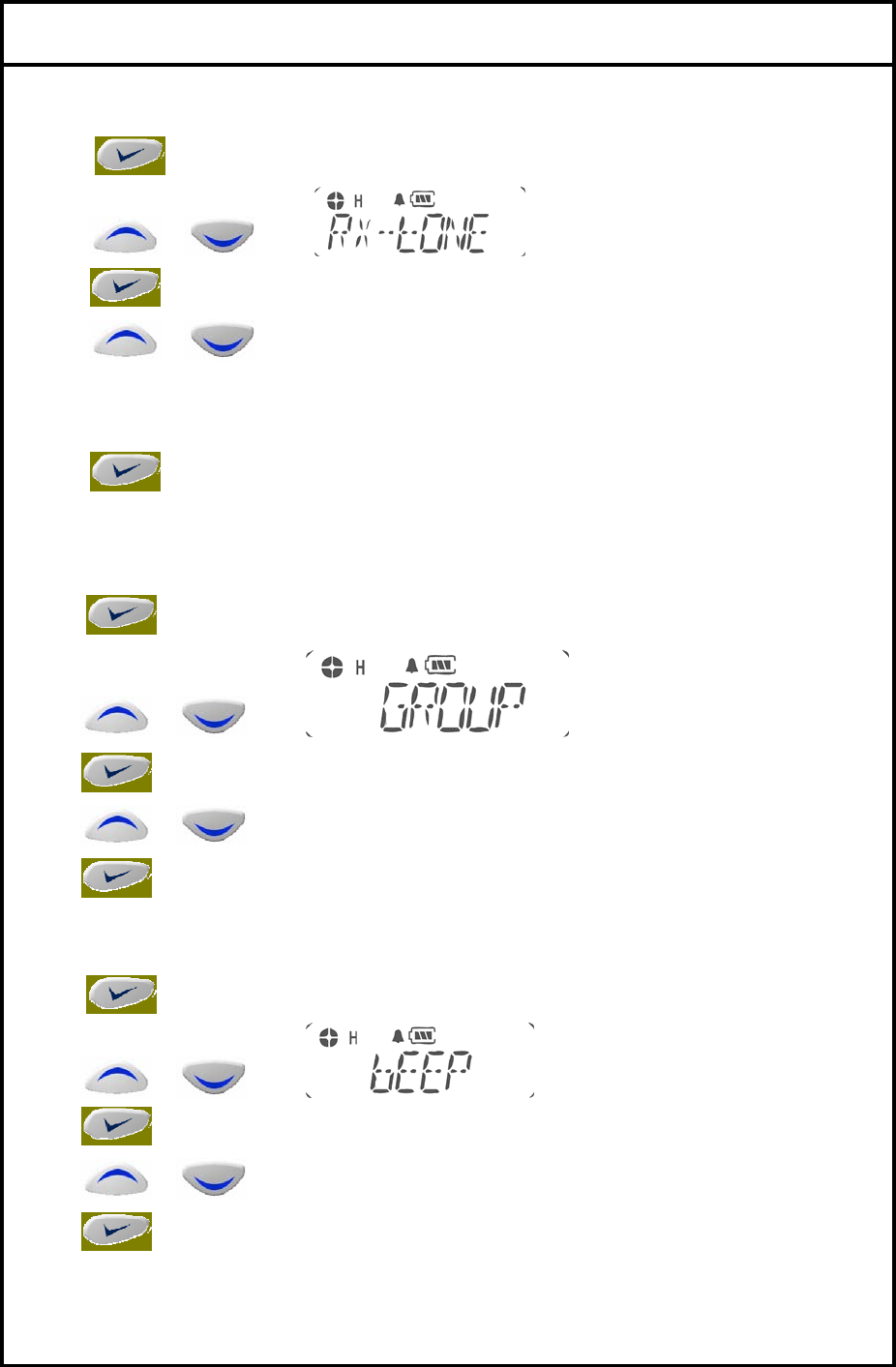

8. Rx Tone
Changing Receiving TONE(CTCSS/DCS).
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select TONE either CTCSS or DCS.
0= NON TONE
1-38 CTCSS
101 – 183 DCS TONE.
5) to select exit
9. Group
Changing GROUP Tone.
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select scroll list
5) to select exit
10. Beep on/off
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select on off .
5) to select
![](/img.php?id=865185&img=bga.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 10/16

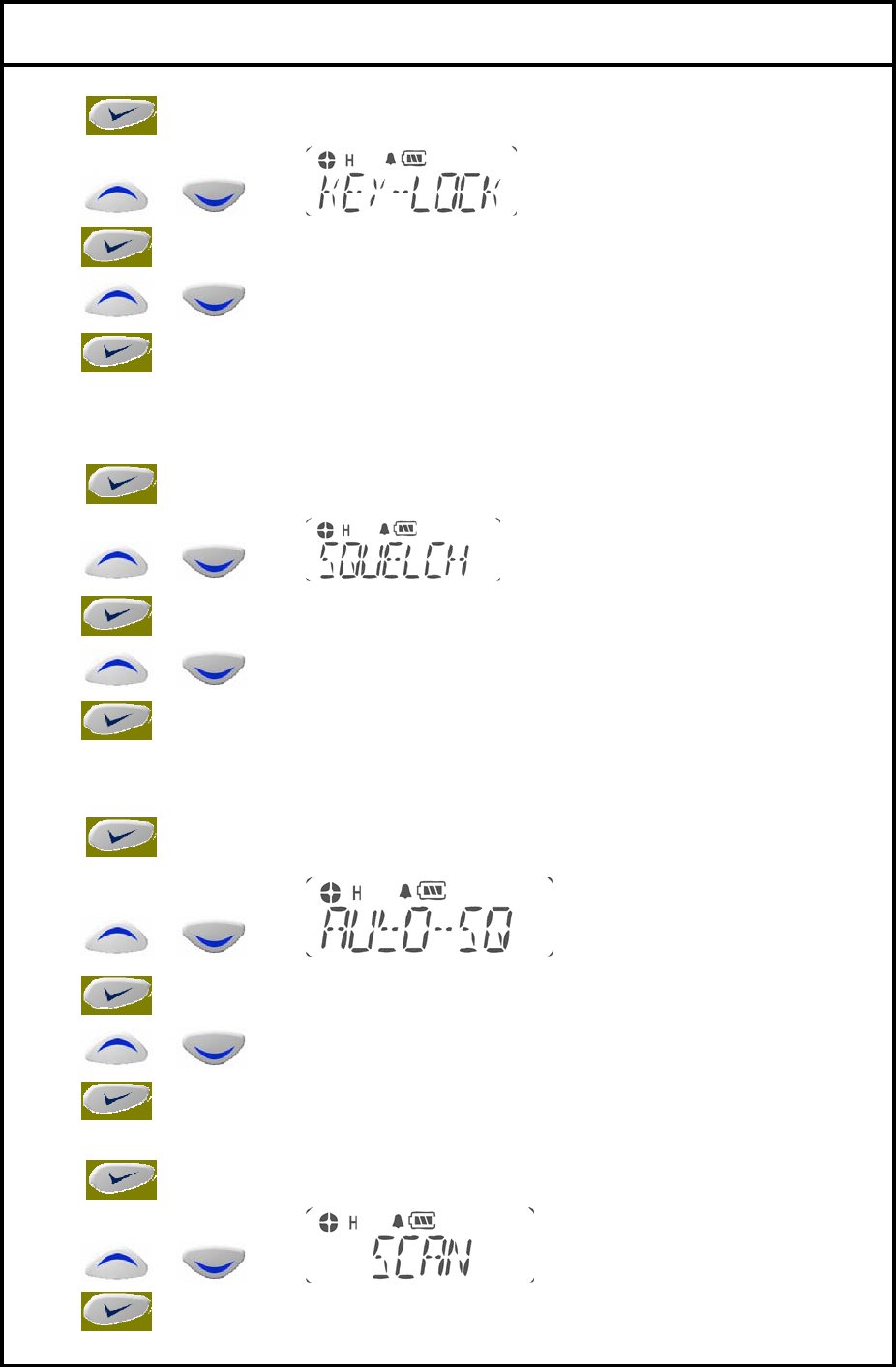

11. Key lock
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select key lock /unlock.
5) to select
12. Squelch level
16 level is available. 0 = terminate sq function
1). to enter Menu Mode.
2) or to until
3) to select
4) or to the scroll list
5) to select exit
13. Auto Squelch
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select on /off .
5) to select
14. Scan
1). to enter Menu Mode.
2) or to until
3) to scan.
![](/img.php?id=865185&img=bgb.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 11/16
4) Push PTT for exit
15. DTMF
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select ON /OFF.
5) to select
16. Vox on/off
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select ON /OFF.
5) to select
17. Vox Level
16 level is available..
1). to enter Menu Mode.
2) or to until
3) to select
4) or to scroll list
5) to select for exit
![](/img.php?id=865185&img=bgc.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 12/16

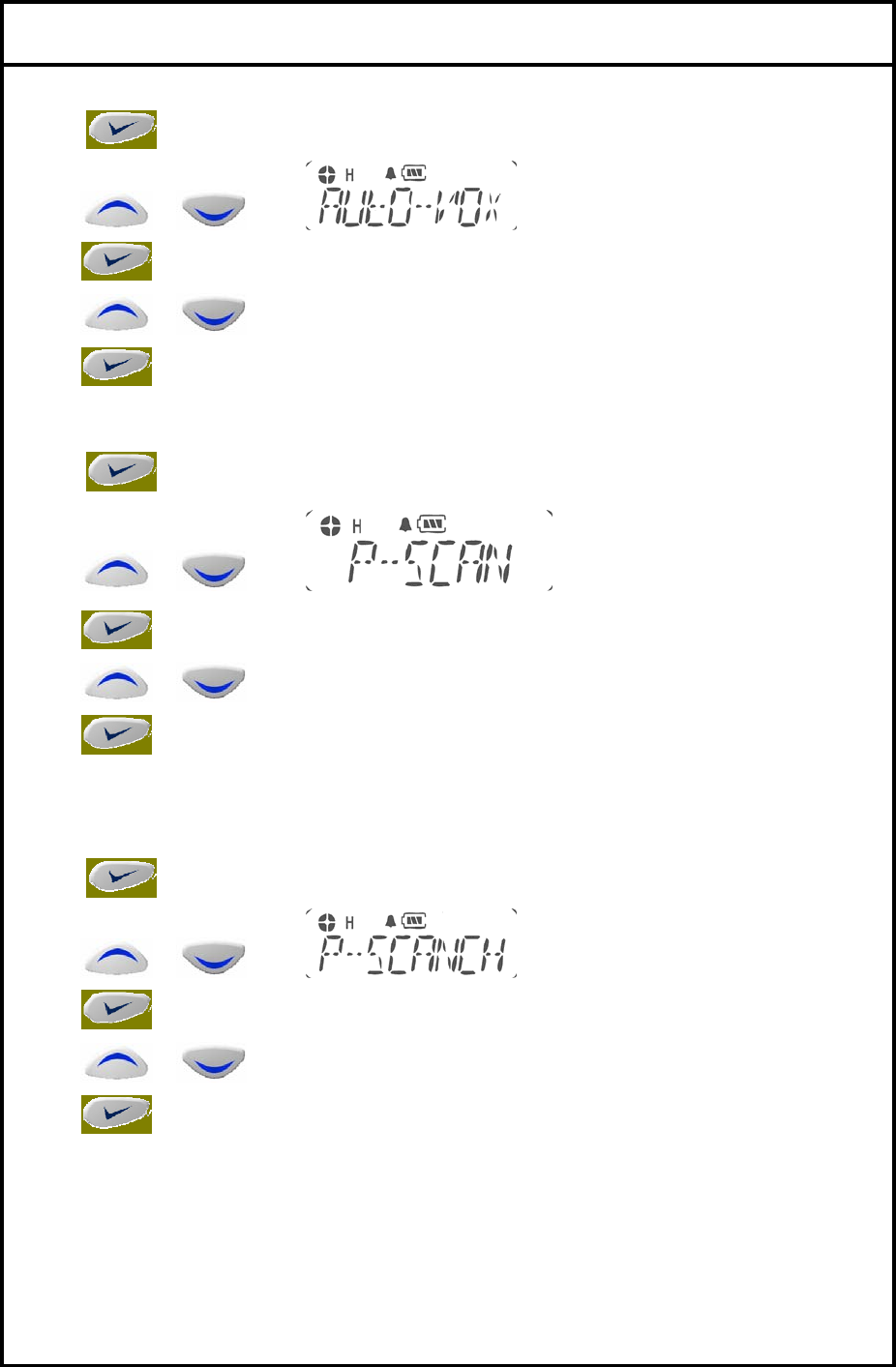

18. Auto Vox
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select ON /OFF.
5) to select
19. Priority Scan
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select ON /OFF.
5) to select
20. Priority scan CH
1). to enter Menu Mode.
2) or to until
3) to select
4) or to scroll list
5) to select for exit
![](/img.php?id=865185&img=bgd.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 13/16

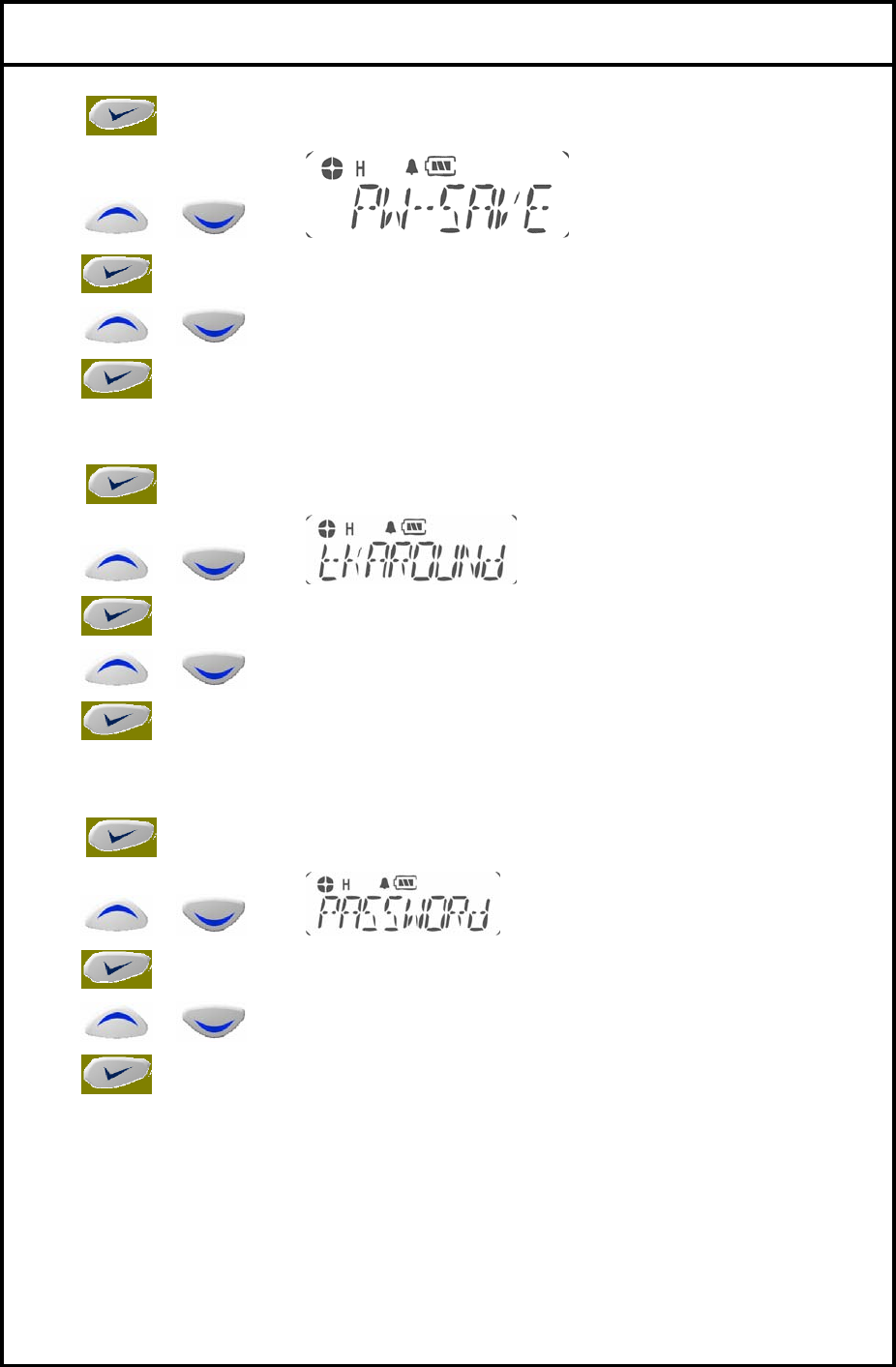

21. Power save
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select ON /OFF.
5) to select
22. Talkaround
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select ON /OFF.
5) to select
23. Password
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select ON /OFF.
5) to select
![](/img.php?id=865185&img=bge.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 14/16

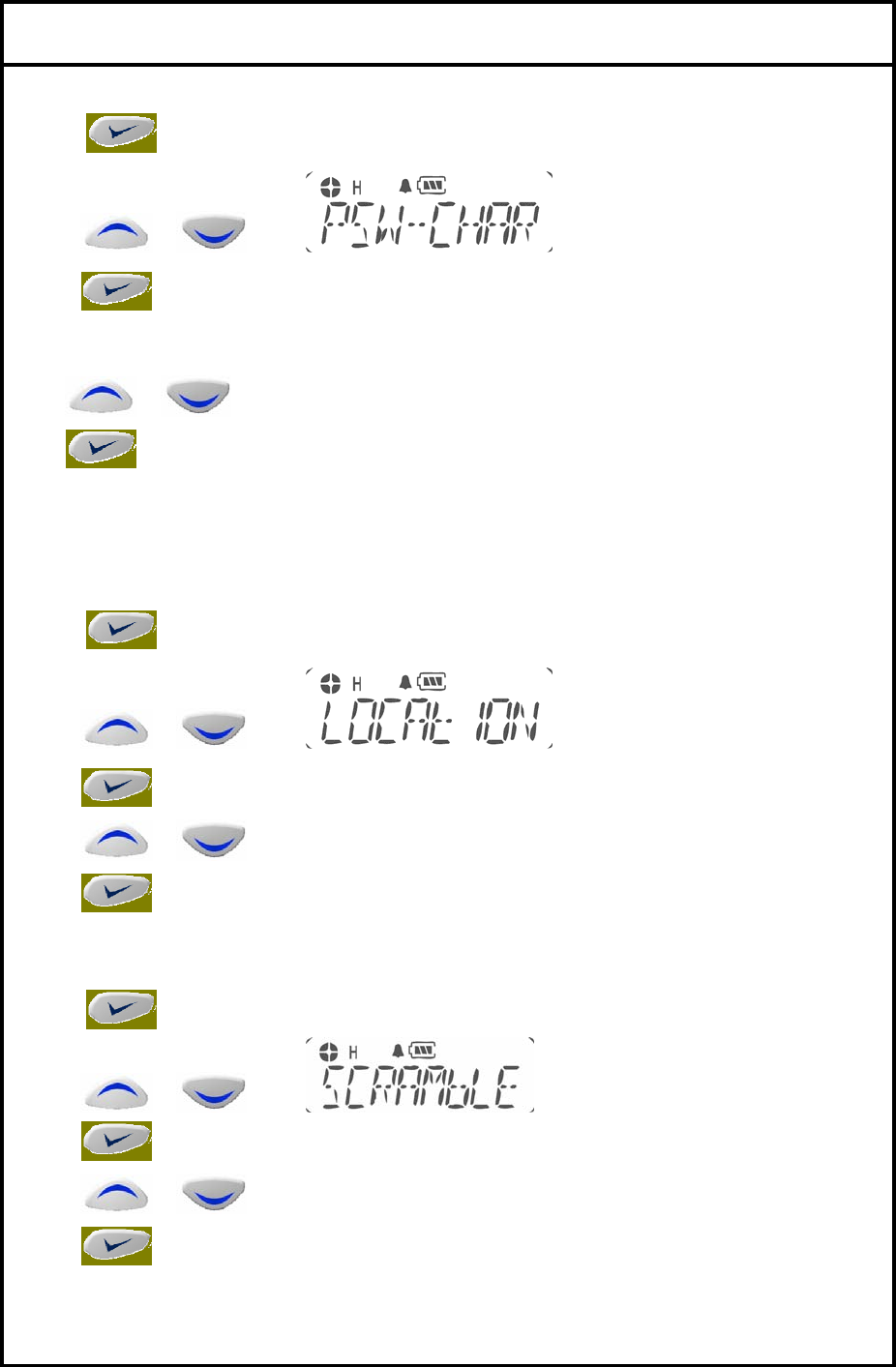

24. Password CH
1). to enter Menu Mode.
2) or to until
3) to select
4) ---- will display on the LCD( enter old password)
or by pushing up and down KEY to change password.
by pushing enter KEY to change digit of password.
5) Enter new password by 4 digit.
25. Location
Indicate where the radio is located by blinking green light every 7 seconds.
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select ON /OFF.
5) to select
26. Scramble
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select ON /OFF.
5) to select
![](/img.php?id=865185&img=bgf.png)
EP400 Ver. 1.0
E-TECH Co., Ltd 15/16

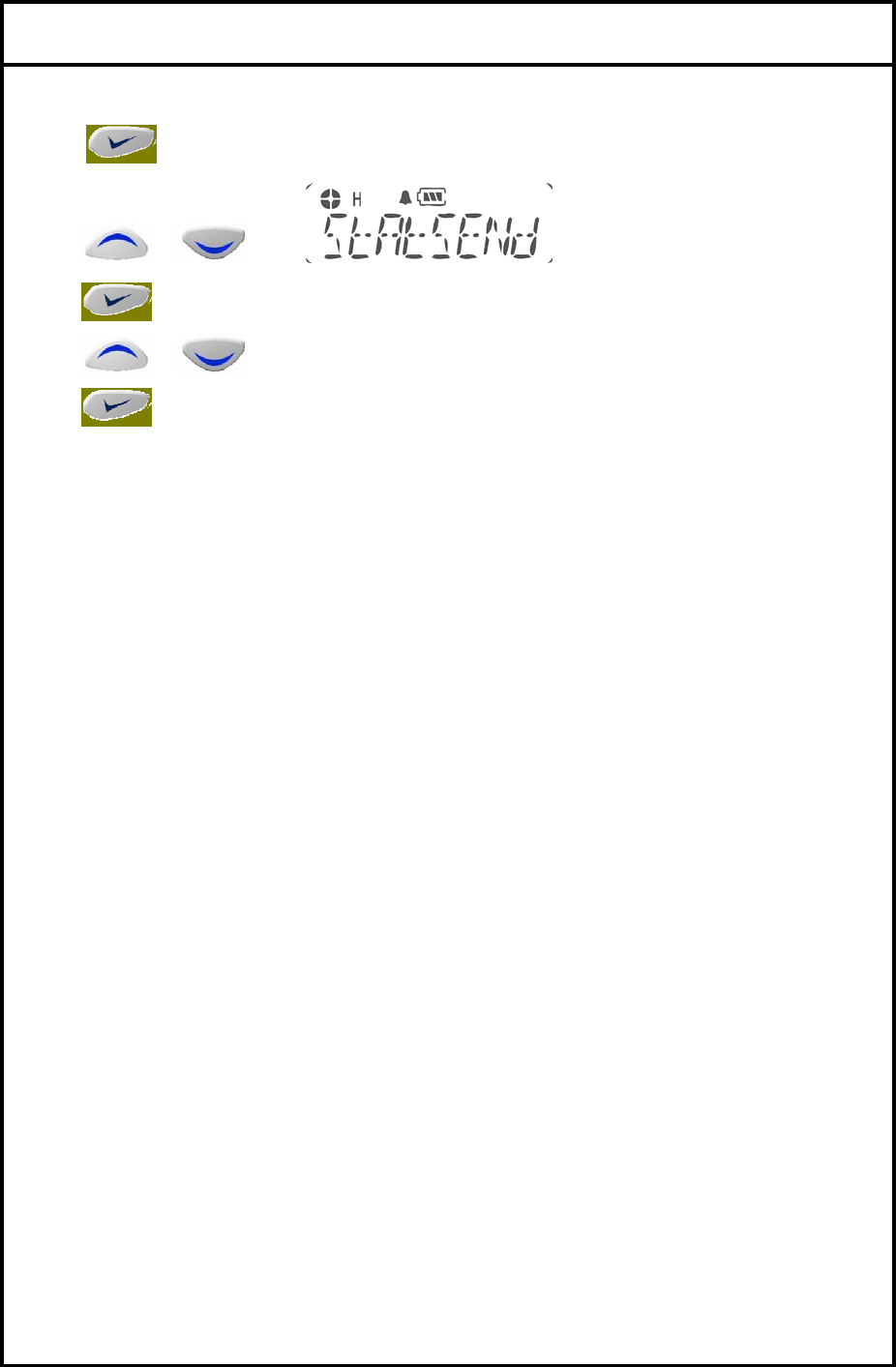

27. Status call Send
1). to enter Menu Mode.
2) or to until
3) to select
4) or to select ON /OFF.
5) to select
