E TECS ET-DM32 H.264 DIGITAL MONITOR WITH 3.2" SCREEN User Manual DM32

E-TECS LIMITED H.264 DIGITAL MONITOR WITH 3.2" SCREEN DM32

Users Manual

The pictures, diagrams and certain functions described in this manual
may differ from the actual product due to different firmware version.
2.4GHZ WIRELESS H.264 DIGITAL
MONITOR with 3.2"Screen
- PORTABLE DVR
USER MANUAL
SAFETY AND GENERAL INFORMATION
Important information on safe and efficient operation of this
product. Before operating your Wireless Baby Monitor, please
read all these safety and operating instructions completely and
then retain for future reference.
1. Your Baby Monitor is designed to be an aid and should not be used
as a substitute for responsible and proper adult supervision.
2. Do not place the camera on any surface or mount it on any wall
where the camera or the AC adapter cords are within baby's reach.
3. Never place the camera inside your baby's crib, bed or playpen.
4. Never cover the camera and monitor (e.g. with clothes, towels or
blankets).
5. Position the camera, monitor and AC adapters to allow adequate
ventilation.
6. Never use or place your camera and monitor in moist places or
near water. For example, do not use near a bathtub, washbowl,
laundry tub, kitchen sink, in a wet basement, etc.
7. To prevent overheating, keep the camera, monitor and AC
adapters away from heat sources such as radiators, heat
registers, stoves or other appliances (including amplifiers),
which produce heat.
8. Keep the camera out of direct sunlight.
9. Disconnect the AC adapter from wall outlets during long periods
of non-use.
10. Use only the AC adapters provided. Use of any others may
damage the camera and/or monitor.
11. If traveling abroad, make sure that the voltage shown on the
power adapters corresponds to the local power, before plugging
in the AC adapters into the electric outlets.
FCC Notice to Users
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications to this equipment. Such modifications could
void the user's authority to operate the equipment.
The antenna used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
co-located or operated in conjunction with any other antenna or transmitter
CARE AND MAINTENANCE
1. Keep all parts and accessories out of children's reach.
2. Fingerprints or dirt on the lens surface can adversely affect
camera performance. Avoid touching the lens with your fingers.
3. Should the lens become dirty, use a blower to blow off dirt and
dust, or a soft dry cloth to wipe the lens.
4. Keep the camera dry. Precipitation, humidity and other liquids
contain minerals that will corrode electronic circuits.
5. Do not use or store in dusty, dirty areas.
6. Do not use or store in hot areas. High temperatures can shorten
the life of electronic devices and warp or melt certain plastics.
7. Do not store in very cold areas. When the system warms up, the
moisture can form inside the case, which may damage electronic
circuit boards.
8. Do not attempt to open the case. Non-expert handling of the
device may damage the system.
9. Avoid dropping or strong shocks.
10. Operate the product using only the AC adapters included or
provided as an accessory.
11. Do not overload electrical outlets or extension cords. This can
result in a fire or an electric shock.
TABLE OF CONTENT
Main Features··············································································1
Monitor Diagrams····················· ································2
Preparing Baby Monitor for First Time Use···································3
Using the Receiver(Monitor)·························································6
Receiver(Monitor) Main Menu ·····················································7
Register Camera·······································································8
Photo Album/Taking Pictures······················································13
Motion Detection/Audio/Video Recording·····································15
Additional Remarks···································································· 18
·····················
MAIN FEATURES
* Digital H.264 encoding & decoding technology
* Transmit rate:20-25Frames/second
* Transmits up to 600 feet range in open area
* Friendly On Screen menu for easy adjustments
* Supports up to 4 cameras
* Baby Monitor works in 2modes:Audio & Video or Audio only
* In auto scan mode, the cycle time between cameras can be
adjusted from 10-60 seconds
* Digital zoom with selectable regions
* Voice Activation(VOX) Feature
* Feeding Alarm setup Feature
* Multi-Languages Support
* Recording & photo function, Review
* Recording to TF micro SD card--Manual or with motion detection
* Built-in Rechargeable Batteries for Camera and Monitor
BOX CONTENT
1 x transmitter with integrated camera
1 x receiver with 3.2"TFT display and loud speaker
2 x 5V DC 1000mA adaptors (for Transmitter and Receiver)
1 x rechargeable lithium ion battery for receiver
1 x integrated rechargeable lithium ion battery for transmitter
1 x USB cable
1 x camera mounting bracket
1 x monitor PU stand
1 x user manual
NOTE:You can purchase replacement accessories for the
receiver and transmitter.
Please use only original replacement accessories. We shall not
accept any responsibility of material damage or personal injury
in the event you do not heed these instructions,in which case
all guarantee claims shall become null and void.
01
MONITOR
① Up button(Volume adjustment/Select camera/Menu navigation)
② Down button(Volume adjustment/Select camera/Menu navigation)
③ Left button(Take a snapshot/Menu navigation)
④ Right button(Audio/Video Recording/Menu navigation)
⑤ Menu/OK button
⑥ RESET button
⑦ ON/OFF/ESC button
⑧ Charging indicator LED
⑨ Active Camera indicator
LEDs
⑩ Mini USB connection
NOTE:ON/OFF: Press and hold button for 3 to 5 seconds.
ESC:Press and quickly release button.
7
69
8
4
5
2
3
1
10
02
1. PREPARING BABY MONITOR FOR FIRST TIME USE
1.1 INSTALLING RECHARGEABLE BATTERY IN RECEIVER

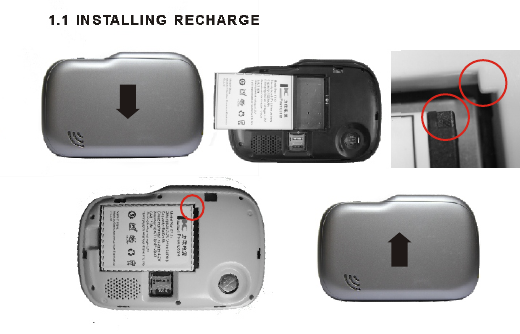

● Open battery compartment by pressing and pushing the battery
cover down as show in Fig 1.
● Insert rechargeable battery in the battery compartment as show
in Fig 2. Align battery so the small plastic corner pieces above
and below the metal pins in the battery compartment,align with
the cut-out portions of the battery as show in Fig 3 and Fig 4.
● Close the battery compartment by aligning the cover with the
battery compartment and pressing and pushing the cover up as
show in Fig 5.
Warning! There is a danger of explosion in the event the rechargeable
batteries are not . Never use conventional
batteries only use rechargeable lithium ion batteries.
properly disposed off
PUSH DOWN
Fig 1Fig 2Fig 3
Fig 4Fig 5
PUSH UP
03
1.2 INSTALLING TF CARD
IMPORTANT: Turn off monitor power before installing the TF card
● To access TF card slot, open the battery compartment by pressing
and pushing down on battery compartment cover and remove
rechargeable battery (if already installed)

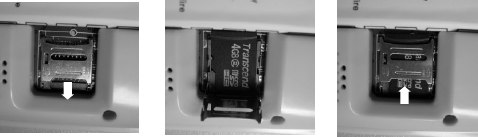

● Push the TF card holder shell down to unlock it and then flip it open.
● Put the TF card in the card slot aligning it with the TF card
OUTLINE printed in the slot.
● Close card holder shell and push it up to lock it.
● Close the battery compartment cover.
NOTE: See section 1.1 for illustrations to open and close the battery
compartment cover
PUSH U P
PUSH D OWN
04
1.3 CHARGING RECHARGEABLE BATTERY IN THE RECEIVER
(MONITOR)
The built-in rechargeable battery the receiver must be fully
charged before the device is used for the first time y .
Warning:Replace defective rechargeable battery only with original
rechargeable battery. Conventional battery must not be used in the
receiver.
NOTE:The receiver will automatic turn on when plugged
or ' .

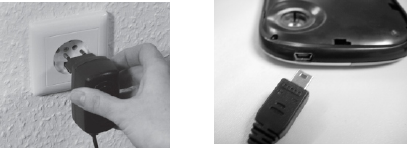

● To charge the rechargeable battery, plug the
(100-240 V AC/50Hz, 5 V DC/1000mA) into Mini USB socket.
● The battery starts charg automatically
. When the receiver is turned on, the
charging status indicator LED turns on red and the battery symbol
on the display flashes. When the receiver is turned off, the
charging indicator LED still turn on red and the battery
symbol on the display shows battery symbol with charging status.
● The charging time for a fully rechargeable battery when
the device is turned off is approximately 5 hours. The charging time
is doubled if the receiver is turned on while the battery is being
charged.The charging status indicator LED turns OFF (very dim
RED) when the battery is fully charged.
.
in
on batter power
ally into
AC power computer s USB port
AC adapter
ing once the receiver is
connected to AC adapter
status
discharged
Receiver battery can be charged using AC adapter or via computer's
USB port using a USB cable
05
3. USING THE RECEIVER(MOINTOR)
● Insert receiver in the PU cover/stand and s
lace the receiver.
● receiver , recharg-
eable battery, or .
NOTE:The receiver automatically turn on when power is supplied
using an AC adapter or via computer’s USB port.
● The receiver when the ON/OFF/ESC
pressed for 5 seconds. The welcome screen is displayed.
After a short start-up phase the
CONNECTING CAMERA 1.
.
.
Note:If the camera is powered ON and within range but the
monitor displays:CONNECTING CAMERA 1.Please reregister
camera.The camera can be registered via the MULTI CAMERA
menu .
● When ’
,
.
4. RECEIVER
following buttons to navigate:
MENU/OK button - - to display main menu and to confirm selection.
UP and DOWN buttons - - to move through individual menu
or volume and .
LEFT and RIGHT buttons - - to move through individual menu
or snap and / .
ON/OFF/ESC button - - to return to the main menu press and quickly
release.
NOTE: All within approximately 10 seconds,
.
elect flat surface to
p
Power can be supplied to the by using AC adapter
from computer's USB port using a USB cable
can also be powered on button
is
video from camera is displayed or
message is displayed on the monitor
screen
Pressing ON/OFF/ESC button for 5 seconds turns monitor off
option, see section 4.6 for details
the monitor is plugged into AC adapter or computer s
USB port charging status indicator LED will be bright red
indicating battery is getting charged
(MONITOR) MAIN MENU
Use the
options
change brightness
options
take shots do audio video recording
(
)
selections must be made
else the monitor will return to audio/video mode
06
4.1 MAIN MENU
.
Menu/OK → Main Menu
4.2 VOLUME
volume.
Menu/OK → Main Menu → Volume
Use left or right (up or down) navigation keys to adjust volume.
N:If up and down navigation keys are not assigned to
manually switch between cameras(see section 4.13 for details)
the Volume can also be adjusted directly by us Up(Vol+) and
down(Vol-) navigation keys
4.3 BRIGHTNESS
.
Menu/OK → Main Menu → Brightness
Use left or right (up or down) navigation keys to adjust brightness.
Press the Menu button to display Main Menu on the monitor screen,
use navigation keys to pick a menu option and then OK button to
confirm selection. Press Esc key to exit from the Main Menu
Use this option to adjust
OTE
ing
.
Use this option to adjust screen brightness
07
4.4 ZOOM IN
enlarge the picture or a specific
of the picture,choose from 5 different specific regions:Center,Top
Right,Top Left,Bottom Right or Bottom Left.
The specific region enlarged or zoomed in by 2X.Chose Original
Size to cancel the enlarge or zoom out.
Menu/OK → Main Menu → Specific Regions, Original Size
4.5 LANGUAGE
set the Screen Menu Display Language,
hoose from 5 different languages: English, French, German,
Italian Spanish.
Menu/OK → Main Menu → Languages
4.6 REGISTER/PAIR CAMERA
register camera ,
before us it for the first time.This menu
camera(s). .
A camera must be registered before
.
Before register please turn on receiver and
transmitter.
Menu/OK → Main Menu→ Register Camera → Camera 1
→ Register Camera 1? → Yes
n transmitter/camera → On/Off
Note:Press and quickly release the ON/OFF/PAIR button on the
CAMERA to complete pairing process.
'Thumbs up' sign is displayed on the camera list next to registered
cameras. And the camera number LED turns blue.Choose "No" to
cancel the registration operation.
NOTE:If the registration process is not successful,repeat this
process again.
You can unregister a camera in the event that you no longer need it.
This is done the same way as camera .
Use this option to zoom in on region
Use this option to
c
or
Use this option to if it is not already registered
ing option is also used to
register additional This monitor supports up to 4 cameras
the monitor can receive audio/
video from it
ing camera both the
O
is registered
08
4.7 CAMERA SELECTION
.
Menu/OK → Main Menu → Camera Selection
→ Manual Selection
watch.
Menu/OK → Main Menu → Camera Selection
→ Auto Scan
cycle time for camera display.
camera display
.
N:
, "Never".
4.8 ALARM(MORNING CALL)
MORNING CALL and the
FEEDING ALARMS.
Menu/OK → Main Menu → → Morning Call
In order to set the respective alarm, select ALARM TIME. Using the
UP and DOWN buttons to change the hours and minutes.
Pressing MENU/OK button hour to minute .
Press MENU/OK once more in order to confirm the setting.
NOTE:ALARM STATUS must be turn on .
ff is default .
The FEEDING ALARM as MORNING CALL.
Use this option to manually select registered cameras or enable
Auto Scan mode
Select any of the registered cameras (Thumbs up sign next to the
camera) to
Use this option to select Each
registered gets ed on the monitor for the duration
selected under Auto Scan
IMPORTAN OTE To disable auto scan or if only one camera
is registered set Auto scan to
This option is used to set individual
Alarm
to move from s s
ed to use Alarm function
O setting
is set the same way
09
4.9 VOICE ACTIVATION
set the standby time turn off screen to save
power or Audio Only mode.
If the camera not detect sound in the set time,he screen
turn off automatically .
Menu/OK → Main Menu → Voice Activation
→ Close video time→ Never,15,30,60,90,120
If you ,
"Never".
The screen turn on automatically when the camera detect
sound,nd the sound louder than the set sensitivity.
There 3 level sensitivity to choose Low,Medium,
High.Or choose "Never" under close video Time to disable
Audio Only ode.
Menu/OK → Main Menu → Voice Activation
→ Sensitivity →, , Medium,
: Voice Activation feature (switching from audio only
mode to audio/video mode) can be disabled by setting
"Never"(
" ").
hen Activation "Never" and monitor is
in Audio Only Mode,the monitor will not switch to audio/video
mode when sound is detected, it will only switch to audio/video
mode if a key is pressed on the monitor.
Note:In Audio/Video mode,when there is no sound detected
above set sensitivity level for 5 minutes, the speaker sound is
muted.The sound is activated when sound above set sensitivity
level is detected.Sound does not mute
" ".
:
Use this option to to
battery setup
does t
s and switches to Audio Only Mode
want the audio and video to be on all the time set close
video time to
s s
a level is
are s of from
M
Never Low High
IMPORTANT
activation
sensitivity to Sound is always on when activation
sensitivity is set to Never
W sensitivity is set to
when sensitivity is set to
Never
See Table on next page for details
10
Close Video
Time
Voice Activation
Sensitivity Monitor Mode Notes
Never Audio & Video
always on
Never
Low,
Medium,
High
Speaker never mutes ,and Audio &
Video are always on.
Speaker volume mutes after no
sound is detected above the
sensitivity level set for 5 minutes
(video stays on). Volume is
activated when sound above
sensitivity level setting is detected
Speaker never mutes. Once monitor
switches to Audio Only mode,it stays
in that mode even when sound is
detected. The only way monitor
switches back to audio & video mode
(displays video from the camera)is if
a key is pressed on the monitor.
Speaker volume mutes after no
sound is detected above the
sensitivity level set for 5 minutes.
Once monitor is in power save mode
(Black Screen),it switches back
to Audio & Video mode when sound
above sensitivity level setting is
detected
Switches to Audio Only
mode (Black Screen)
after time setting in
Close Video Time has
passed without sound
detection
15, 30, 60, 90
15, 30, 60, 90
Switches to Audio Only
mode (Black Screen)
after time setting in
Close Video Time has
passed without sound
detection
Low,
Medium,
High
Never
Never
Audio & Video
always on
11
4.10 VIDEO REVIEW
.
Menu/OK → Main Menu → Video Review
T
.
,
●
●
: ( )
.
●
● .
● .
.
& . .
Use this option to view recorded videos
he recorded videos are saved as files on the memory card (TF
memory card is sold separately), the video files are saved in a folder
There is a separate folder for each date all files recorded on a
particular date are saved in that folder.
Use Up and Down keys to select the folder and press OK/Menu
button to open that folder.
Use UP and Down keys to select the file from the file list and press
OK/Menu to play that video.
NOTE To DELETE a file highlight select the file from the file list
and press left key marked with symbol
Use Left and Right keys to play next or previous recorded video in
the selected folder.
Use UP and Down keys to adjust volume
Press MENU/OK or ON/OFF/Esc key to exit preview mode
NOTE: To view recorded videos, TF card must be installed in the
monitor (see section 1.2 for instructions to install the card and there
must be recorded videos on the TF card – See section 4.16 1
4 16 2 for instructions to record videos
12
4.11 PHOTO ALBUM
( )
.
Menu/OK → Main Menu → Photo Album
●
●
: ( )
.
●
●
.
.
4.11.1 TAKE PICTURES
T ake photo use the RIGHT button,it the
shortcutkey for nd is .
Press take picture.
" !" .
Use this option to view snapshots photos taken and saved on
the TF memory card
The snapshots are saved as files on the memory card (TF memory
card is sold separately), the photos are saved in a folder. There
is a separate folder for each date, all pictures taken on a particular
date are saved in that folder.
Use Up and Down keys to select the folder and press OK/Menu
button to open that folder.
Use UP and Down keys to select the file from the file list and press
OK/Menu to display picture.
NOTE To DELETE a file highlight select the file from the file list
and press left key marked with symbol
Use Left and Right keys to display next or previous picture in the
selected folder.
Press ON/OFF/Esc key to exit preview mode
NOTE: To view pictures, TF card must be installed in the monitor
(see section 1.2 for instructions to install the card and there must be
saved pictures on the TF card – See section 4.11 1 for instructions
to take pictures
o t s navigation is
taking pictures a marked with symbol
ing and releasing the button s a
Picture is saved message is displayed on the screen
13
4.12 SETTINGS(DATE AND TIME)
set the date, time and the time format (12hour/
24hour).
Menu/OK → Main Menu → Settings → Date and Time
4.13 SETTINGS(UP&DOWN BUTTONS FUNCTION)
UP and DOWN buttons
,
.
Menu/OK → Main Menu → Settings
→ Up&Down Buttons Function
4.14 SETTINGS(BACKGROUND)
.
Menu/OK → Main Menu → Settings → Background Display
4.15 SETTINGS(SYSTEM INFORMATION)
display System ID, firmware version
.
Menu/OK → Main Menu → Settings →System Information
Use this option to
Use this option to assign function to the on
the monitor. By default, up and down buttons are assigned Volume
control function, but if multiple cameras are being used and you want
to manually switch between cameras, then use this menu option to
assign Camera Selection function to up and down buttons.
NOTE: Once camera selection is assigned to the Up and Down button
the Volume menu option must be used from the Main Menu to adjust
volume (see section 4.2)
Use this option to select blue background or no background (black).
Blue or black background is displayed when an error message is
displayed on the monitor or when monitor is switching between
cameras (multi-camera in use)
Use this option to ,firmware
release date and size of the installed memory card
14
4.16 MOTION DETECTION
Use this option to enable or disable manual or motion detection
based audio/video recording,and enable or disable motion alert
(beeps).
To disable motion detection set Motion Detection to "Never" .
Menu/OK → Main Menu → Motion Detection
→ Motion Detection →
: ,
(Settings are not changed).
,
" ".
Menu/OK → Main Menu → Motion Detection
→ Motion Detection →
Menu/OK → Main Menu → Motion Detection
→ Motion Detection Recording→
,
●
●
. ,
/OK or ON/OFF/ESC .
" " .
.
Never
NOTE Once Motion Detection is set to Never then Motion
Detection Recording and Motion Detection Alert are
disable
4.16.1 MANUAL RECORDING
For manual recording Motion Detection must be set to “Never” or
Motion Detection Recording must be set to Disable
Never
Disable
While monitor is displaying video press and release RIGHT
navigation key, which is marked by red symbol on the monitor,
to start video recording. Red with timer is displayed in upper
left corner indicating video is being recorded Press this key again
MENU key to stop video recording
Video is saved message is displayed on the screen
NOTE: See section 4.10 for instructions to view recorded videos
15
4.16.2 MOTION DETECTION RECORDING
To enable automatic audio video recording when motion is detected
set Motion Detection to Low Medium or High and Motion
Detection Recording to Enable .
or
Enable
Press and release On Off Esc Key until video is displayed and
then press and release RIGHT
red symbol on the monitor
A red with timer is displayed near upper left corner indicating
monitor has enabled motion detection based recording In this
mode monitor will record at least 10 seconds audio
MENU key or RIGHT
red symbol on the monitor
NOTE See section 4 10 for instructions to view recorded video
/
, ,
" "
Menu/OK → Main Menu → Motion Detection
→ Motion Detection → Low,Medium High
&
Menu/OK → Main Menu → Motion Detection
→ Motion Detection Recording→
/ /
navigation key,which is marked
by ● .
●
.
/video every
time motion is detected. The recording time could be longer
if motion is detected for more than 10 seconds.
To cancel motion detection based recording,press and release
/OK or ON/OFF/ESC navigation key marked
by ● .
: . .
16
4.16.3 MOTION DETECTION ALERT
This feature is used to enable or disable
o enable M
Detection Low Medium or High M D A
Enable
or
Enable
Disable
This baby monitor uses software based motion detection, in which
monitor compares the change in video displayed on the monitor.
The Low, Medium and High settings determine what level of change
in video should trigger motion detection alert to start video recording.
With “Low” setting a significant change in displayed video will
generate motion detection trigger to start video recording whereas
with “High” setting even a small change in displayed video will
generate motion detection trigger to start video recording.
Motion Detection Alert works the same way
NOTE REGARDING MULTI CAMERA USE
When more than one camera are in use with Auto Scan on and
the monitor is doing manual or motion detection based recording
of active camera e g Camera1 then the monitor will not switch
to another camera unless manual recording is turned off or motion
detection based recording stops
motion alert (beeps)
when ever motion is detected.T motion alert set otion
to , and otion etection lert to
" ".
Menu/OK → Main Menu → Motion Detection
→ Motion Detection → Low,Medium High
&
Menu/OK → Main Menu → Motion Detection
→ Motion Detection Alert→
Once Motion Detection Alert is enabled, the monitor beeps every
time motion is detected.If there is continuous motion,the monitor
beeps continuously.To disable this feature set Motion Detetion
Alert to " ".
.
:
,
(. . ),
.
17
5.ADDITIONAL REMARKS
5.1 BATTERY STATUS
The battery display 4 different
.When the solid battery symbol is displayed,
the rechargeable battery is fully charged.
The battery symbol flashes when the rechargeable battery
need .
5.2 ALARM
If an alarm , the alarm symbol will appear on the display.
5.3 SIGNAL
The signal works similar to mobile phone
signal strength indicator,the signal bars change indicating
camera signal strength.
5.4 RANGE
Transmission of wireless signal depends on the physical
conditions, you can determine the range of your baby monitor by
testing it in your surroundings. In open area under ideal conditions
achieve a range of up to 200 m(600 feet). The actual range depends
mainly on conditions like the location of the transmitter, the type
of building
.
status indicator s
charging states
s to be charged
is set
STRENGTH INDICATOR
strength indicator
construction material and presence of other wireless
devices
18

Navigation menu
