E matic B016 bluetooth voice remote User Manual
E-matic bluetooth voice remote Users Manual
E matic >
Users Manual
1
change history
Date Revised
version
Modify
Chapter
Modify
Description
Author
20180525 V1.0 Create huangwei
Model Name: B016
Prepared For: E-matic
Address: 3435 Ocean Park Blvd # 107 PMB # 444, Santa Monica CA 90405, Los
Angeles CA 90405, United States
2
Directory
Remote control test conditions and parameters .......................... 4
Remote Control Effect Chart ................................ ......... 13
3
R emote control test conditions and parameters
1, hardware requirements
Ordinal Description
Project
Technical Specifications Notes
1 Number of keys 15 Key
2 Key size 150*39*19mm
3 Button Free
Height
≤2mm
4 The height of
the button
≥0.5mm
5 Key force 160g±30gf
6 Shell Plastic
Material
ABS Raw material (tasteless, not mixed
back), thickness ≥2.0mm
7 Shell Color Plastic color, Black
8 Silk screen Anti-acid and alcohol-resistant
9 PCB Board
Material
Epoxy fiberglass substrates (FR -4)
4
10 PCB Cabling
line width and
spacing
Line width ≥7mil, spacing ≥10mil
11 Surface Coating
Treatment
See the remote control "appearance and
process requirements" in detail
Surface should be flat and firm, not allowed
to have scratches, spot defects, flow
hanging, peeling and breakage
12 Board
Production
requirements
All printed circuit boards should be anti-
corrosion
No flying lines allowed
Solder joints full, no virtual welding, off
welding, Lianxi
13 Key
requirements
Key adhesive edge structure should be
added "waterproof wall", in order to achieve
the key assembly, the finger buckle can not
be out of the plastic shell button hole, key
surface positioning through the hole using
silicone rubber bag plastic design, so that the
entire silicone button surface has no holes to
5
ensure long time to use the board clean,
silicone button to be hard
14 Conductive
adhesive
Material
Must use silicone material (no powder) and
no pungent odor
15 Metal Dome Remote control all keys to use the metal
Dome button, and life must be ≥100 million
times, continuous press test number ≥50
million times, can restore to the original load
2, product specifications
Ordinal Project Specification parameter Notes
1 Operating
temperature
0~50 ℃
2 Humidity ≤95%
3 Atmospheric
pressure
86~ 106Kpa
4 Ambient
illumination
Natural light or fluorescent lamp 200
± 50LX
5 Board material FR -4
6
6 Shell material ABS
7 Sample Color Reference Customer Requirements
Specifications
8 Battery
specification
AAA 1.5*2
9 Infrared
wavelength
950±50nm
10 IR Carrier
Frequency
38.0±0.3KHz
11 Bluetooth
carrier
Frequency
2.400GHz ~2.4835GHz
12 Average
working current
≤20mA
13 Average static
current
≤5uA
14 Operating
voltage Range
2.2~3.6V
7
15 Remote
distance
L≥12M
16 Button Free
Height
≤3mm
17 The height
after the key
action
≥0.5mm
18 Key force 120~ 180gf
19 Key Load Life ≥50 million times
20 Free Drop test From the 80cm height, six sides are
freely dropped at no less
than 3cm Atsugi floors, three loops.
Customer
special
requirements,
according to
customer
standards
21 Electrostatic
environment
test
±8KV
8
22 High
Temperature
Storage test
60℃
23 Low
Temperature
storage test
-20℃
24 Constant damp
heat test
40℃ relative humidity 90± 2%

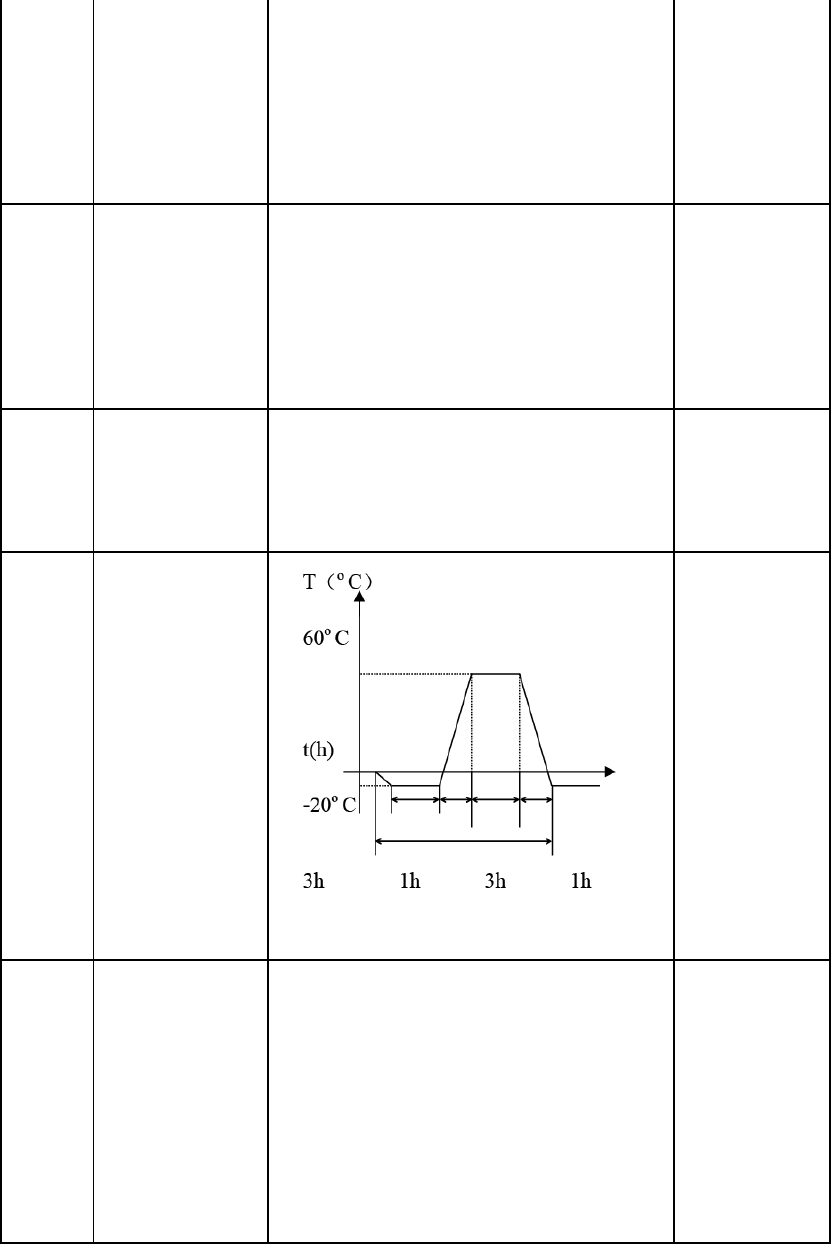

25 Temperature
Cycle Change
Test
26 Acceptance
criteria
Mil-std-105e-
level (Ⅱ) AQL
Heavy defects (A Class) aql=0.65
Light defect (C Class) aql=1.5
9
27 Remote control
transport and
storage
conditions
In transit should avoid the direct atta
ck
of rain or snow or strong impact.
Remote control should be stored at
ambient temperature -20℃~+60℃,
relative humidity is not greater
than 80%, with no strong magnetic
field, corrosive substances and other
harmful gases in the warehouse,
storage period of one year. After the
product has been reassessed for more
than one year, it can be brought into
the market.
3, specification requirements
Ordinal Project Description Notes
1 Use battery Alkaline Environmental Protection
Battery
2 Supply voltage 2.2-3.6v
3 Current
description
≤5μa@ hibernate power
≤3ma@ standby power
10
≤20ma@ emission power consumption
(general key)
≤25ma@ recording feature (voice
function)
4 Audio output Mono,16K sampling
rate,16bit Precision Audio output
5 Transmission
Distance
(Bluetooth)
≥12m(no shelter around)
6 Bluetooth
protocol
(Bluetooth)
Bluetooth 4.2 protocol and above
7 Signal
requirements
(Bluetooth)
Meet the communication transmission
distance requirements, while complyi
ng
with the Bluetooth BQB Certification
Requirements
8 Voice
requirements
(Bluetooth)
The speech software recognition rate
≥90%(sentence), has the interference
case: the speech recognition rate ≥
11
85%(needs to confirm and the set-top
box and the software normal state)
9 Connection
response
(Bluetooth)
≤200ms, this refers to the speed at
which the connection is restored, the
time interval at which the test begins
broadcasting to the connected
10 Other universal
Bluetooth Device
impact
HOST -side adapter driver, or affect
the original Bluetooth universal device
support, such as Bluetooth
headset / Audio (HSP/HFP,A2DP ,
etc.), Bluetooth keyboard, Bluetooth
mouse, game handles and so on.
11 Audio
Transmission
Requirements
No abnormal audio transmission, no
obvious interference, loss of data,
intercept, etc.
12 Microphone
Sensitivity
Sensitivity -42±3dB
13 Microphone
Signal-to-noise
ratio
cannot be less than 58dB
12

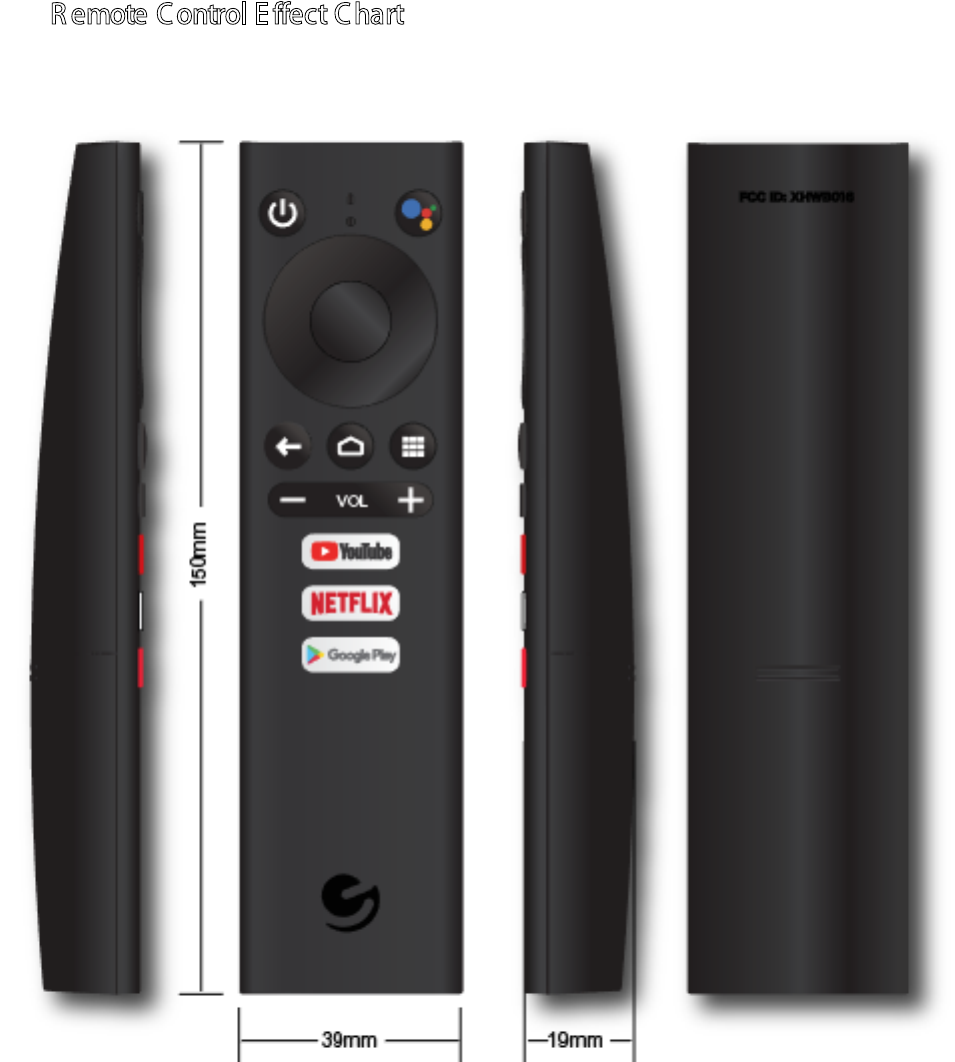

R emote Control E ffect Chart
13
R emote control physical function requirements description
1. Button function description
No.
Key
Features
1
POWER
Perform sleep/wake on the box
2
apps Application List
3
UP
Move focus/volume up +
4
DOWN
Move focus/volume down -
5
LEFT
Move focus to / left / rewind / switch to
previous channel
6 RIGHT Move focus / fast forward / switch to the next
channel
7
ENTER
Enter the command indicated by the currently
selected focus/pause/execute button
8
BACK
Return to the previous or previous page
9
HOME
Return to the system level home page on any
interface
10 VOICE (Bluetooth pairing works only after it is
connected)
11
VOL+
Increase the volume (global applies, this
button has only one operation)
12
VOL-
Decrease the volume (global applies, this
button has only one operation)
13
YouTube
14
NETFLIX
15 Google
play
14
2. remote Control key value
System code：0x08F7 code format：NEC
Key code：
Usage Page
Usage ID
I R CODE
Power
0x0C
0x0030
0x0A
Back
0x0C
0x0224
0x1C
Home
0x0C
0x0223
0x0C
Voice search
0x0C
0x0221
0x74
enter（select ）
0x0C
0x0041
0x1F
Up
0x0C
0x0042
0x00
Down
0x0C
0x0043
0x01
Left
0x0C
0x0044
0x03
Right
0x0C
0x0045
0x02
Voice+
0x0C
0x00E9
0x58
Voice-
0x0C
0x00EA
0x5D
APPS
0x0C
0x01A2
0x66
0x0C 0x0007 0x4D
0x0C
0x0008
0x4E
0x0C
0x0009
0x4F
15
R emote control instructions
1. Special requirements for remote control
1) When Bluetooth is connected, the remote control sends the
Bluetooth key value; if Bluetooth is not connected, the
infrared key value is sent.
2) Indicator light: red, each time the button is pressed, the
indicator light flashes
Low voltage reminder: When the battery is low, the indicator
light flashes quickly. As long as it is still operating, it
will keep shining. When it is no longer operated by the remote
control, it will flash 5 times or flash 3 seconds, then stop
and go out.
3) Support Bluetooth remote control online upgrade, and trigger
upgrade through HOST.
4) Pairing method:
a) Press and hold th e “OK” + “VOL- ” button for 3 seconds at
the same time, the indicator light flashes, and the pairing
success indicator light is on for 3 seconds and then off.
b) If the pairing is not successful, if you still press the
OK+VOL- button, the pairing broadcast will be sent all the time
so that the user can pair.
c) Press the OK+VOL - button once to match successfully. Do not
clear the pairing and then pair again. After a key pairing is
successful, the pairing broadcast can no longer be sent until
the next time th e button is pressed.
Connection interval ＜12ms
5) Remote control distance ：≥10m
6) Bluetooth device name：RemoteB016
16
2, remote control other requirements
1) Matching function requirements: There must be no problem of scanning
the Bluetooth device or not matching (including pressing the
pairing button continuously for a short time), please verify
50 times to ensure no problem;
2) Reconnection function requirements: There must be no problems with
the connection failure, including the power failure of the
box, the remote control power failure, and the static
connection for 2 hours. Please verify 50 times to ensure no
problem;
3) Anti - interference function requirements: There must be no problem
that affects the throughput of the host WIFI. Please ensure
that the WIFI throughput of the host is normal when the
remote controller is connected.
4) Performance requirements: Requires support ≤10m, there must be no
problems with voice calls, loss, and button presses, lost
codes or keys on the remote control;
5) Power consumption requirements: The remote control can be used for
at least 6 months.
Voice: 16Khz voice sample with 16 - bit sampling, press the voice button
(color button) to start recording. The remote controller stops
recording after receiving the stop recordi ng command from the voice
engine. Voice timeout 30s protection, forced to exit recording.
The box software can control the MIC to be turned on and off.
Support remote control MIC and other MIC (such as the recording
button on the phone apk) alternate, switch voice input.
17

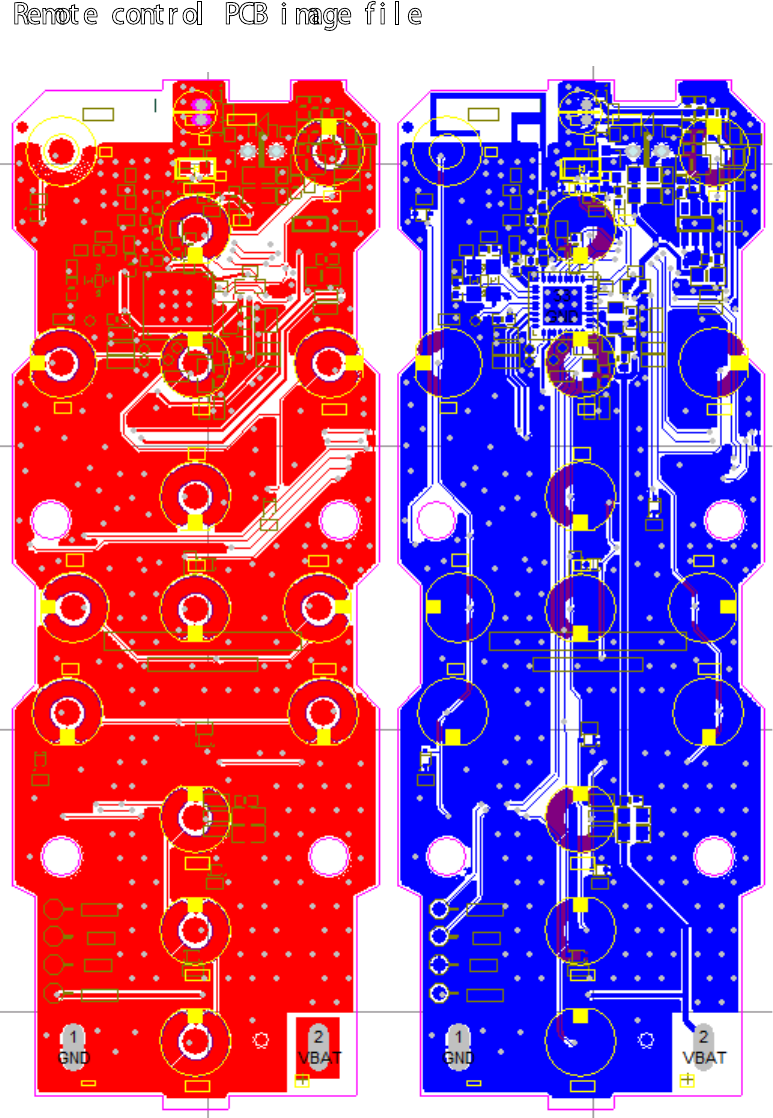

Remot e cont r ol PCB i mage f i l e
18

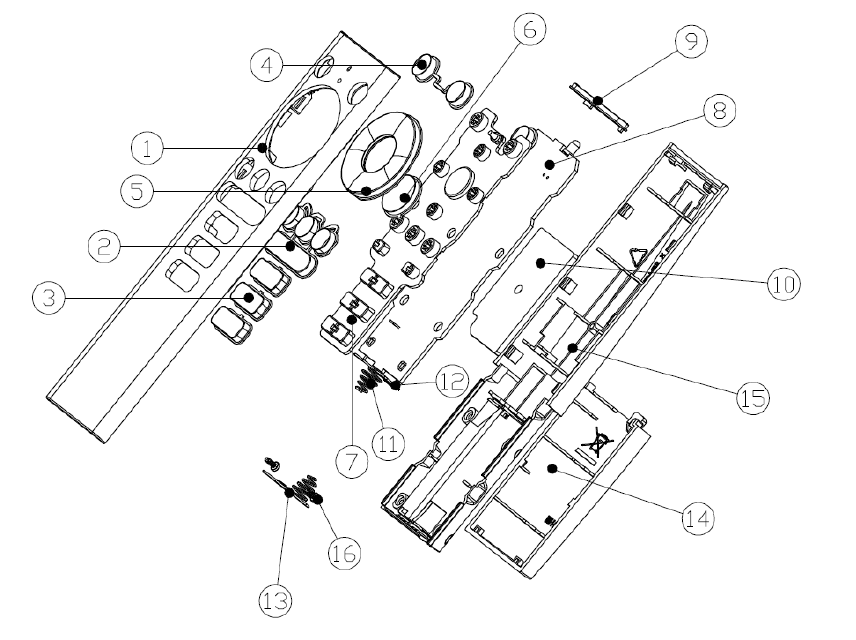

Remote control structure
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be u
sed in portable exposure condition without restriction
