User Manual



User Manual

for Android Lollipop

Table of Contents

Beforeoperatingthisproduct,pleaseread&followinstructions.



MAINFEATURES ............................................................5

HowtoUseYourTablet...............................................5

JACK ...........................................................................5

PHYSICALBUTTONS ........................................................5

TOUCHBUTTONS ...........................................................6

SHORTCUTS ..................................................................6

WIDGETS .....................................................................9

NOTE ........................................................................11

POWERON/OFF/STANDBY ...........................................11

RESET........................................................................12

MICROSD .................................................................13

DESKTOPANDMAINMENU ...........................................14

OPENORSWITCHAPPLICATION.......................................16

GENERALFUNCTION .....................................................18

SOMECOMMONFEATURESSUCHASBRIGHTNESS,WALLPAPER,

SLEEPTIMECANBECHANGEINSETTINGS‐DETAILSASFOLLOWS:

................................................................................18

WI‐FI .......................................................................18

BLUETOOTH................................................................19

STORAGE ...................................................................20

APPS.........................................................................21



ENTERTHE“APPS”,YOUCANVIEWTHESTATUSOFEACHAPP,

FOREXAMPLE:THERUNNING,INSTALLED,ANDSOON.DETAILS

ASBELOW: .................................................................21

SECURITY ...................................................................22

LANGUAGE&INPUT .....................................................22

BACKUP&RESET .........................................................23

CAMERA ....................................................................24

GALLERY ....................................................................25

MUSIC ......................................................................26

BROWSER ..................................................................26

MESSAGING ...............................................................27

TroubleShooting .......................................................28



Cautions

Forbetteruse,pleasecarefullyreadthe"User'sGuide",

andfollowtheprompts.

Avoidproductsplacedabove40℃orbelow‐5℃

environment.

Pleaseforbidtheproductfromfire,moisture

environment,anddirectsunlight.

Pleasedonotattempttopersonallydisassemble,

repair,modifytheproduct,ifdemandpleasecontact

salesstaff.

Pleaseoperateaccordingtothe"User'sGuide".

Pleaseavoidcrashingtheproduct.

Pleasedonotusetheproductnearstrongmagnetic

fields,powerplants,etc.

Donotusetheproductwhenridingbicycle,carand

motorcycletoavoiddangerous.

Donotusehighvolumetoavoiddamagetoyourhearing.

Properlydisposeofelectronicwaste,suchasbatteries.



MainFeatures

Accessories

BelowitemsareincludedinyourMIDpackage

1. MIDx1

2. USBcablex1

3. Adapterx1

4. Manualx1

HowtoUseYourTablet

Jack

EarphoneJack:Insertearphonetothisjackforphone

callsorlisteningmusic.

MicroUSBJack:Chargingyourtablet,orconnecting

yourtabletwithPCtocopy/deletefiles,or

connectingyourUSBaccessoriesbytheUSB

OTGcable,suchasUSBmouse,USBkeyboard.

(Canonlyuseoneequipmentatthesame

time)

TFCardSlot:InsertTFcard,cansupportupto32GB.

Mic:Built‐inmicrophoneforphonecalls.



PhysicalButtons

ItemsNameFunctions

1Power

ON/OFF

Shortpress：Displaysleep

Longpress:(1)Poweron/off

(2)Restart

(3)Airplanemode

(4)Ring/Vibrate/Silent

2Vol+/‐ Shortpress，vol+/‐

3PressPowerandvol‐buttonatthesametime,can

takescreenshot.



TouchButtons



ItemsNameFunctions

1Short

press

Pressonscreenwithin1.2s,itmainly

usedonmenuchoiceandconfirm.



2



Long

press

Pressandholdonscreenformorethan

1.2s.

3Drag

Itbelongstoidentifythetouchtracking

direction.Mainlyforpictures,flip,dragand

soon.

4Virtual

keyItbelongstothevirtualkeyboard.

Virtualkeyboardasbelow:



Shortcuts

Pleaserefertothefigurebelow:



Thereare6shortcutsatthebottomofthescreen:

ItemFunctions

Returnkey



Returntothelastscreen

Desktopmenu ReturntotheDesktop



Recentprogramkey



Listtherecentprogram



Quicksettingsisshownasbelow:

Touchanddragthewindowtwicefromthecenterof

screentoopentheshortcutandfrequentusesetting

option.Quicksettingwindowisopenjusttouchthe

correctsettingwhichyouneedtochange.

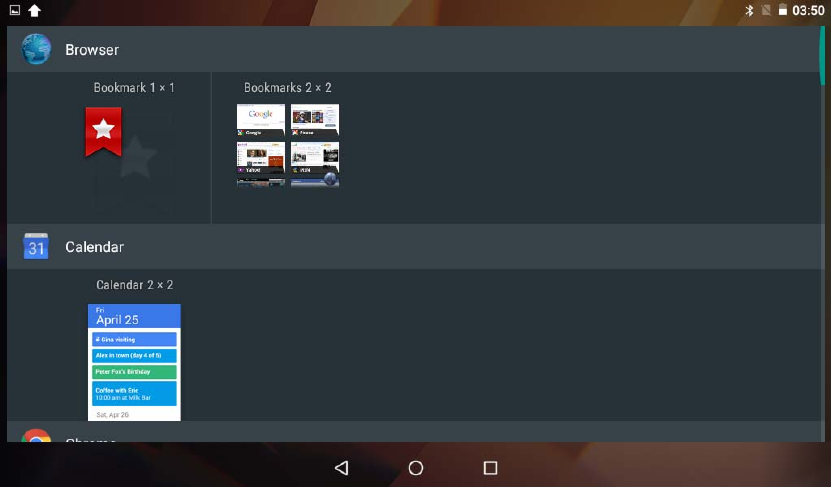

Widgets

Asshownbelow,italsobelongstoasystemof

shortcuts.Somewidgetsarebuilt‐inandotheryou

candownloadfromplaystoreorthird‐partyAPK&

installwidgets.

Widgetscanbedraggedtoanydesktopinterfacein

fiveHOMEscreen.



ProductUse

BatteryCharging

Yourtablethasabuilt‐inrechargeablelithiumbattery.

Beforeusingtheproductforthefirsttime,the

batteryshouldbechargedfullytoensureproper

workingoftheproduct.

Thebatteryinsidethedevicecannotbereplaced.

Ifyouhavequestionsorneedtoreplacethebattery,

pleasecontactourequipmentservicecenter.

Donotconnectthetablettoapowersource

otherthanthatwhichisindicatedhereoronthe

ratinglabelasthismayresultintheriskoffireor

electricshockandfailureoftheproduct.

Whenthebatterypowerislow,thedevicewill

displayalowbatterymessage,ifpowerislow,the

devicewillautomaticallyshutdown.Pleaserecharge

thetablettocontinueusingit.

Ifmisusedbatteryusedinthisdevicemaycausea

fireorchemicalburns.

Thebatteryusedinthisdevicemayresultinfire

orchemicalburnifitismisused.Donotdisassemble,



incinerate,orheatthebattery.Donotleavethe

batteryinaplacesubjecttodirectsunlight.



Note

Pleaseusetheadapterforchargingwhichisprovidedwith

thetablethisadapterisdesignedtochargethetabletfaster

at2Ainput.



PowerOn/Off/Standby

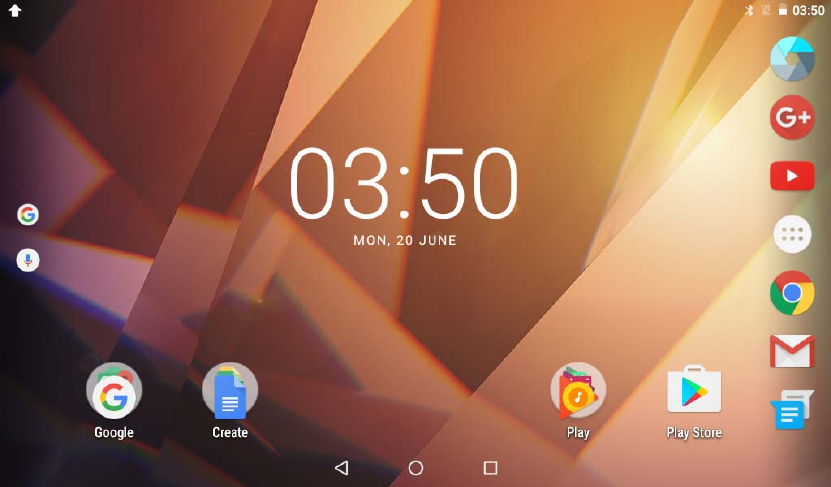

Power on： LongpressPowerON/OFFbutton,after

the“ANDROID”logoloadingforseveralseconds,the

desktopappearsasbelow:



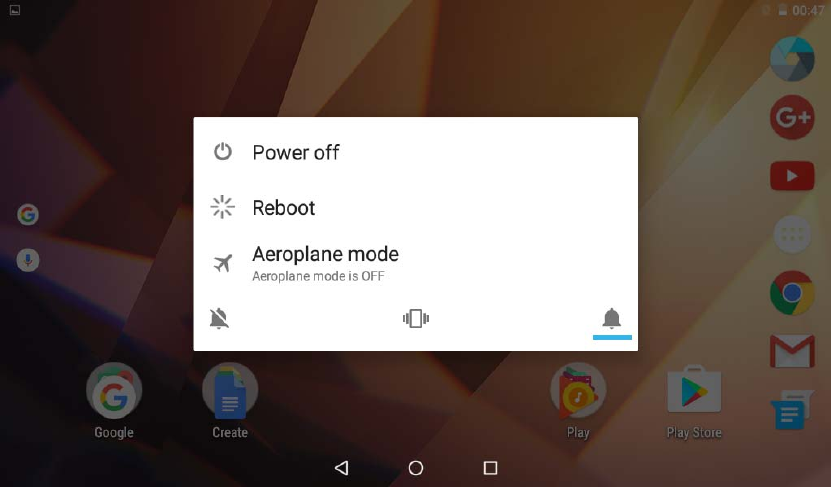

Power Off：LongpressthePowerON/OFFbuttonfor5

seconds,youcanpoweroffthetabletaccordingthe

dialogpoponthescreen.Referthefigurebelow:



Standby: Duringthepoweronmode,pressthepower

buttononcetoenterthepower‐savingstandbymode,

thenpressthepowerbuttonagain,thescreen

promptstoentertheunlockmode.

Reset

Stabtheresetholewithasharphardobject,youcan

resetthemachine.Afterthereset,themachinewill

poweroff.



ConnectingtothePC

USBConnect

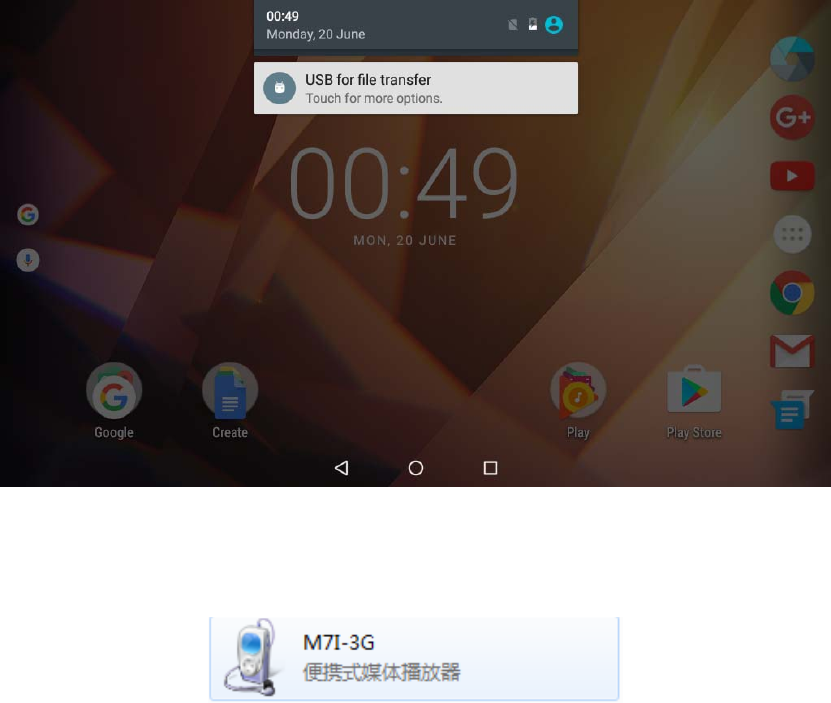

Connectiontoacomputer:Youcanconnectyour

Tablettothecomputertocopythedatafromthe

tablettocomputerorviceversa.Forthisyouneedto

usetheUSBcableprovided.Connectthesmallsideof

thecabletothetabletmicroUSBjackandanother

endtothecomputer,afterthisconnectionyouneed

togoto“MyComputer”windowandfindalong_8321

icon.Doubleclickon

thisyouwillseetabletstorage.Hereyoucancopythe

dataordelete.



Micro SD

MicroSDcardmaximumcapacityofthisproduct

supportsupto32G.



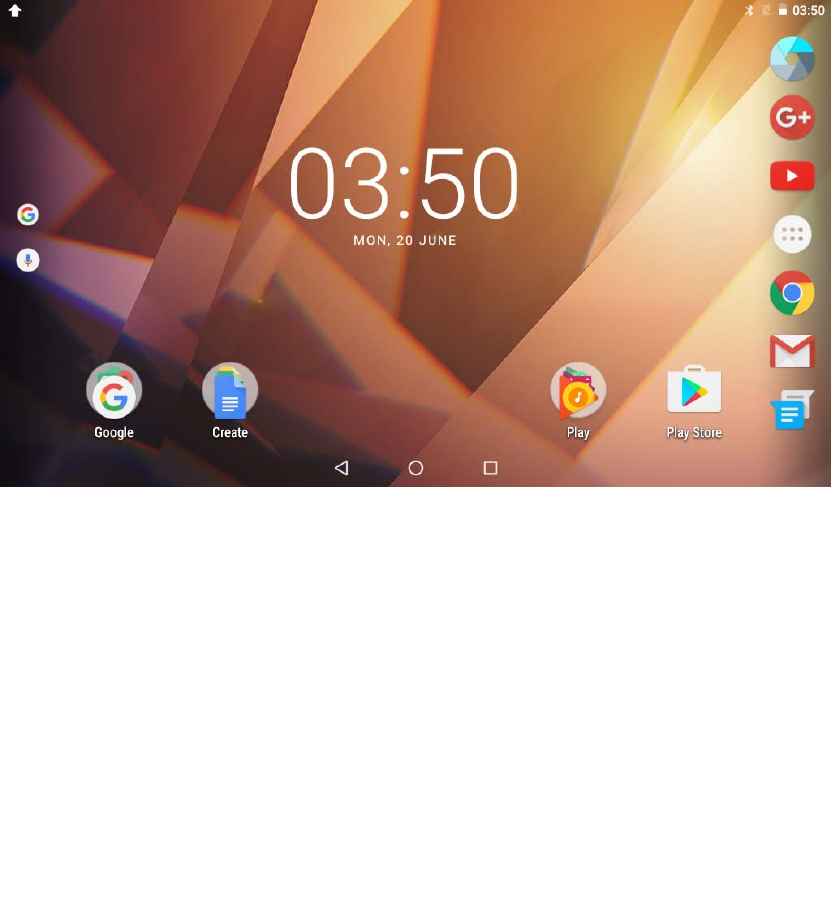

Desktop and Main Menu

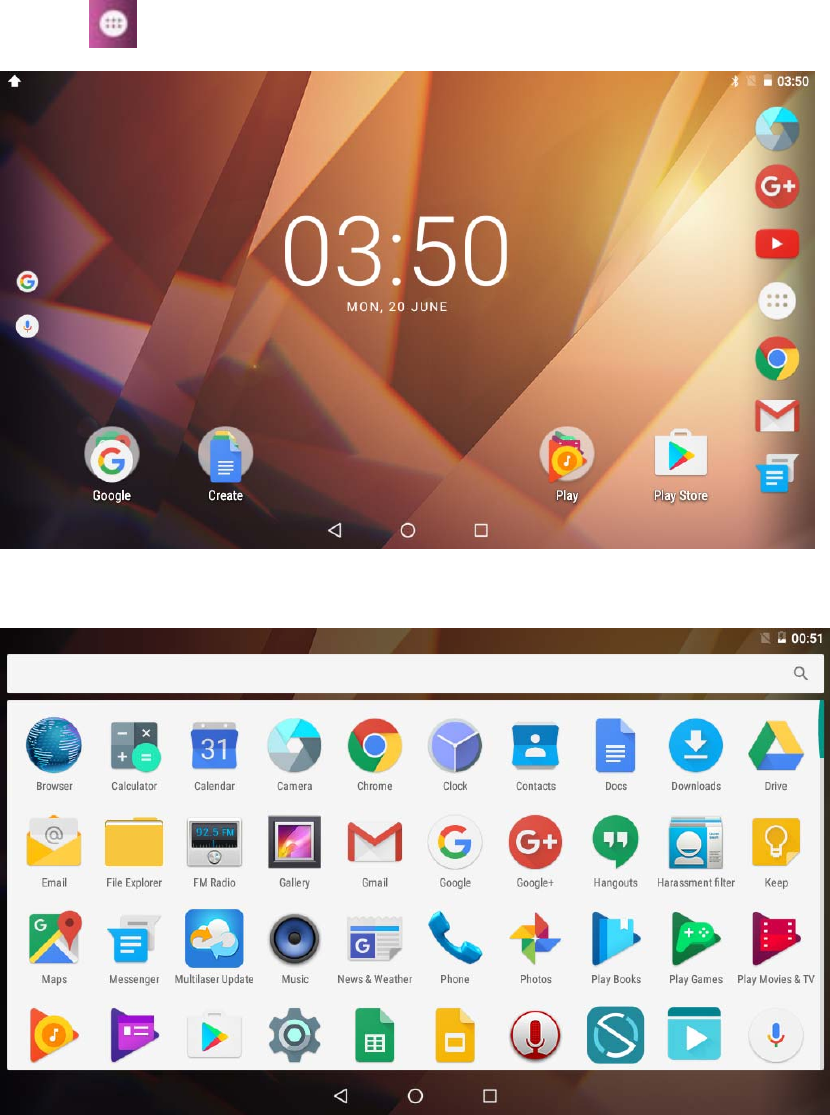

Desktopscreenasbelow:



Theshortcutsinthedesktopcanbefreelydragand

deleted.

Desktopcanbeslidingaround,longpresstheiconto

dragtheicons.Dragtheicontothetopofthescreen,

thetopofthescreentherewillbea"×Remove",drag

theiconthere,thecorrespondingshortcutisdeleted.



Click icontoentertheMainmenu

AlltheAPKappearontheMainmenu.



AlltheInstallAPKwillbevisibleinmainmenu,just

clicktheAPKandstartusing.YoucandeletetheAPK

byLongPresstheAPKandBringtheicontodesktop

andDragtheAPKtouninstalliconandtheapplication

willbedeleted.OrsimplygotothesettinginApps



optionanddeletetheApps.

Open or Switch Application

Onthedesktoporthemainmenu,selectan

application,click‐toenter,youcanUsethe

application.Toexit,pressthe or tothe

maininterface.Afterthereturn,youcanclickinto

otherapplications.

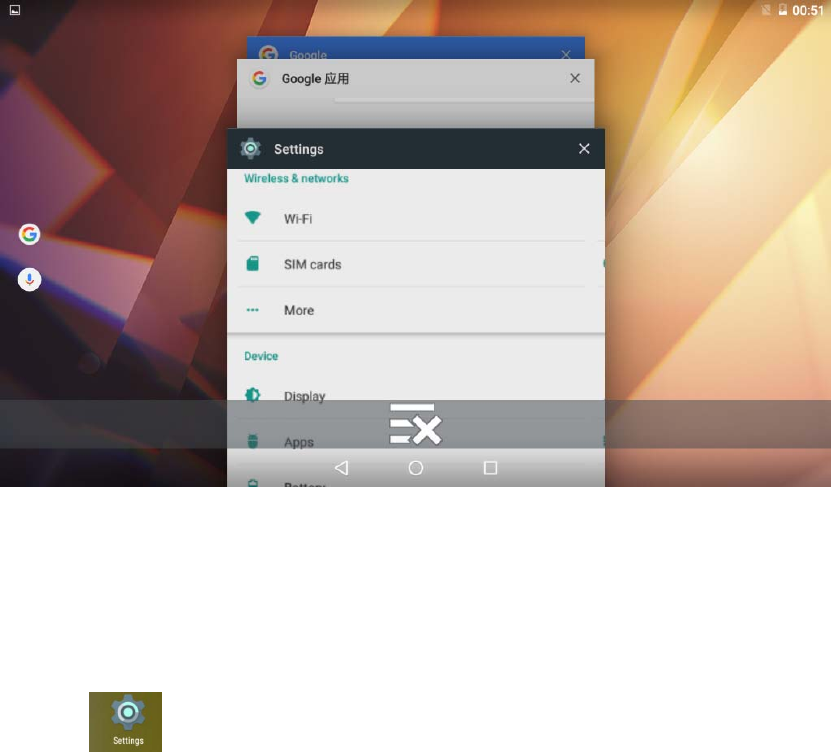

Click toswitchbetweentherunning

applications,refertothefigurebelow:



Settings

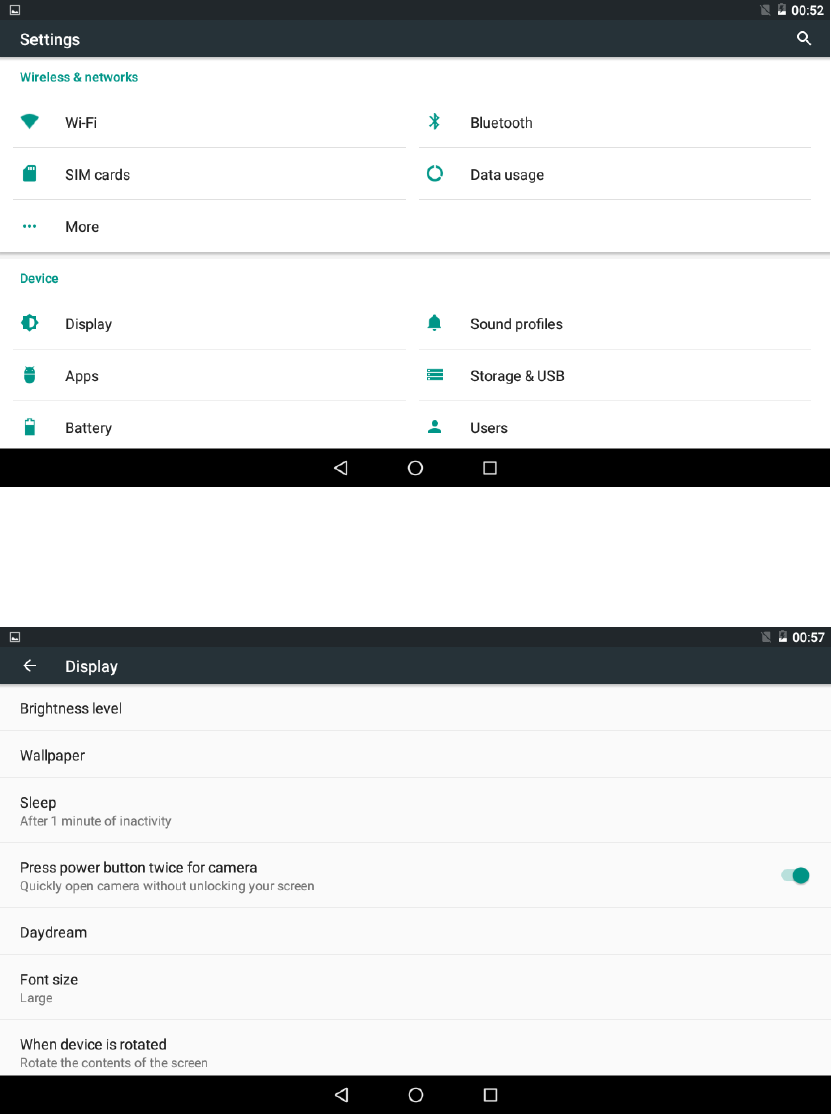

Click iconinthemainapplicationstoopenthe

systemsettingsinterface,asshownbelow:

Selecttheappropriateoperationoftherelevant

items,suchas:wirelessandnetwork,display,date

andtimesettings,aboutdevice,etc.



GeneralFunction

Somecommonfeaturessuchasbrightness,wallpaper,

sleeptimecanbechangeInSettings‐Detailsas

follows:

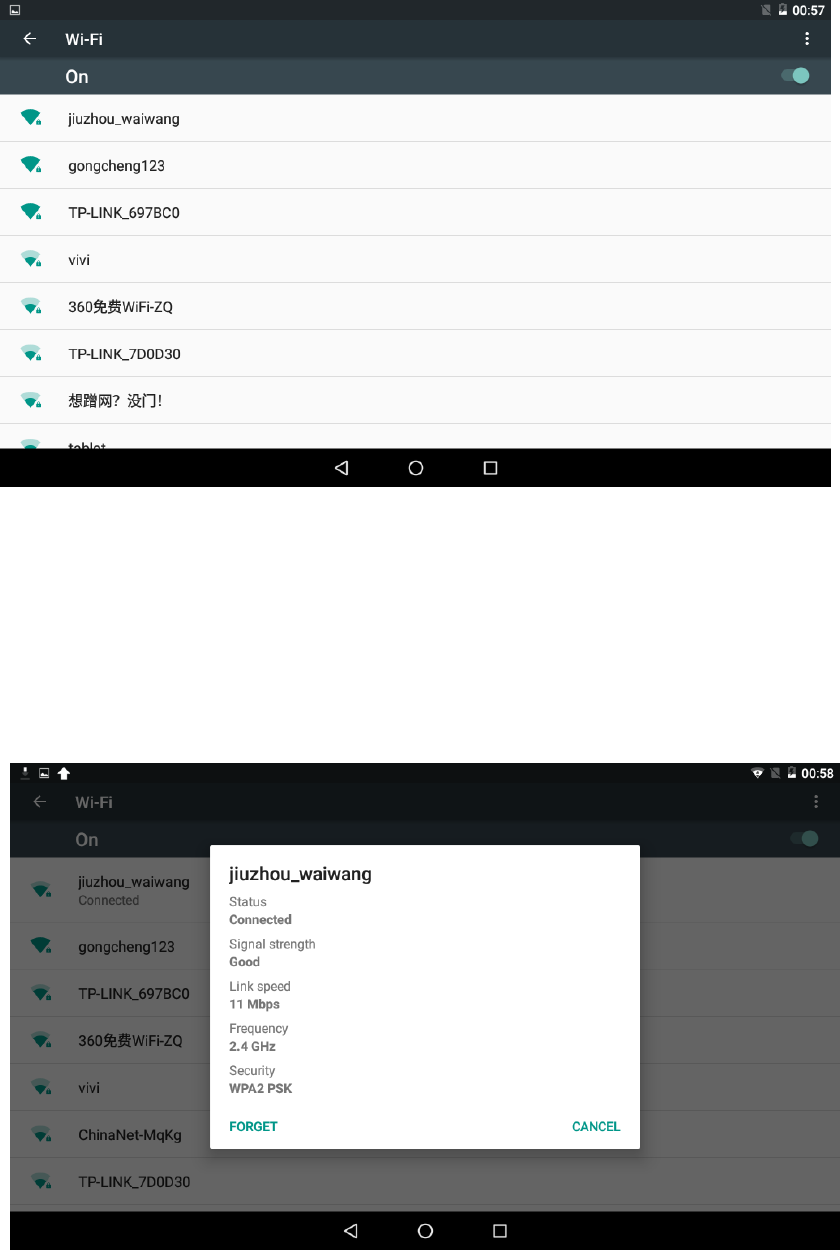

WI-FI

ToConnectWI‐FIsimplyclickWI‐FIiconinsettings.

First,openWI‐FI,thentapWI‐FInetworkyouwantto

connectandthenenterthepasswordtologin.

Detailsasfollows:



AftertheWI‐FInetworkisconnected,youcanclick

thenetwork&checkthespecificdetailsofthe

networkconnection.Detailsasfollows:

Ofcourse,youcanalsoopenWI‐FInetwork

throughthe"Quicksettingshortcut"described

earlier.

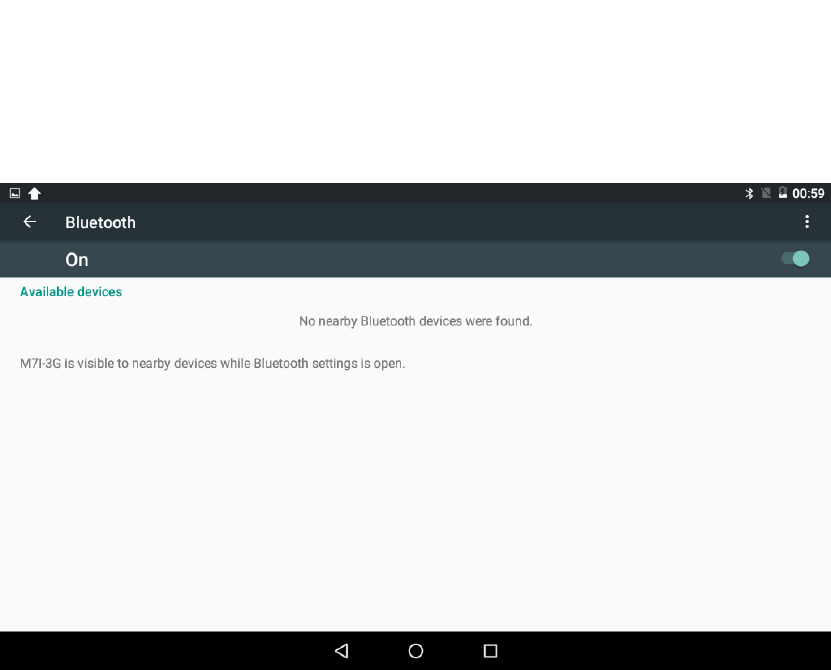

Bluetooth

ClicktheBluetoothinsetting&ONTheBluetooth,

youcanseethelistofBluetoothdeviceavailablefor



readytopair.YoucanallowotherBluetoothdeviceto

connectyourtabletbyclickingonthe

"TM‐MID793".Switchbetween"Notvisibletoother

Bluetoothdevices"and"Visibletoallnearby

Bluetoothdevices".Detailsasshown:



Storage

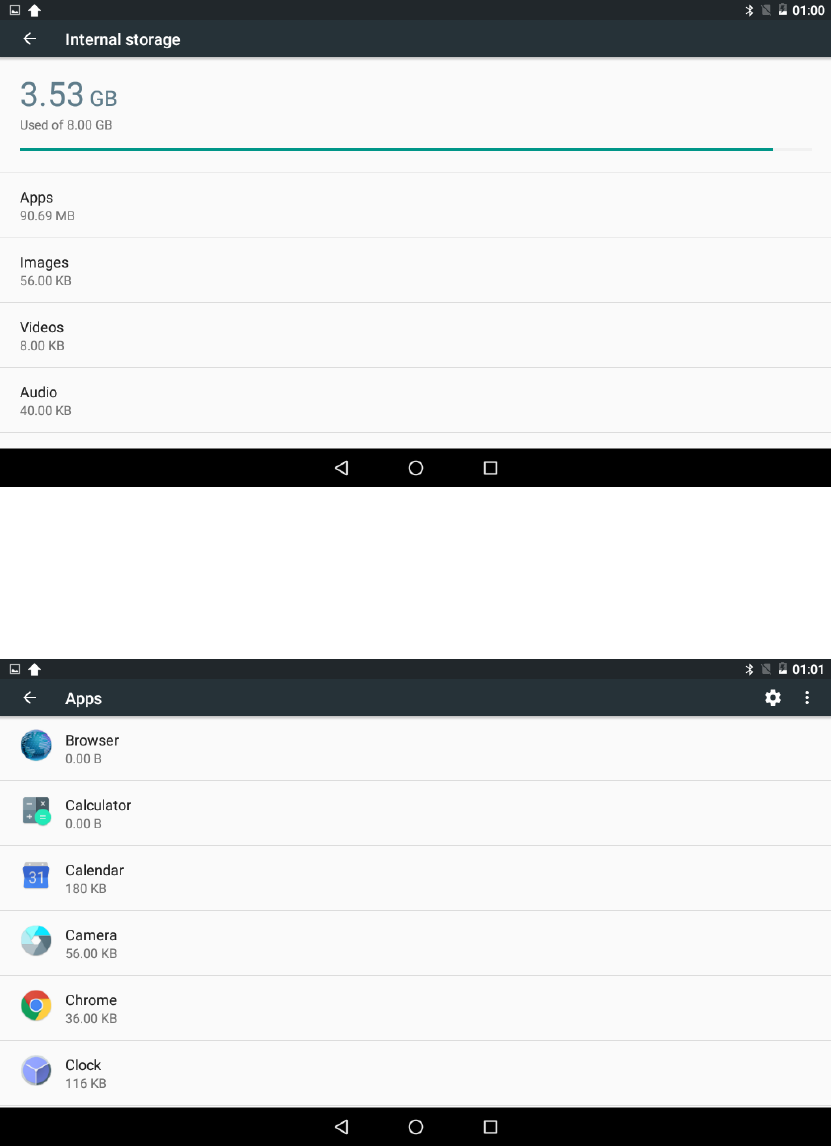

Enter“Storage”,youcanseethestoragedevice

information,includingthetabletcapacity,external

Micro‐SDcardcapacityandusage.Detailsasfollows:



Apps

Enterthe“Apps”,youcanviewthestatusofeachAPP,

forexample:therunning,installed,andsoon.Details

asbelow:



ClickonanindividualAPPtoviewdetails,youcan

forciblystoptheRunningAPP,cleardata,uninstall,

movetoSDcardandotheroperations.Detailsas



below:

Security

Enter“Security”tosetsecuritysettingslock,setthe

securitylockaspassword,patternandsoon.Details

asbelow:

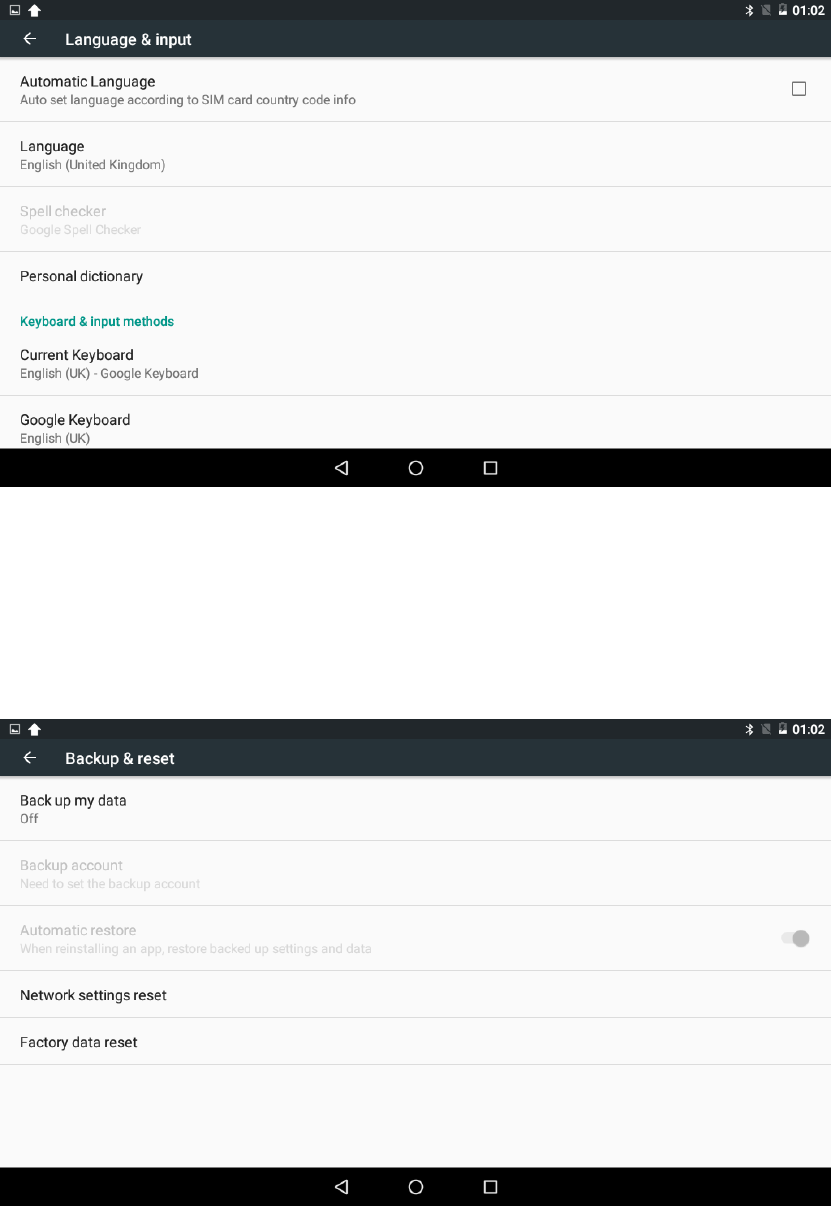

Language&input

Enter“Language&input”,cansetthelanguageand

input.Asshownbelow,clickonthelanguagetoenter,



youcansetthemachinelanguage.Languagelibraryis

thelatest5.1systemlanguagelibraries.

Backup&reset

Enter“Backup&reset”,canbackupthemachine

informationtoavoidlostofthem.Remark:Resetwill

emptyalltheuserInformation&data,please

carefullyusethisfeature.



Sound&notification

Clicksetting‐‐>Sound&notificationtosetaudio

profileslikeSilent/Outdoor，detailsasfollows



Camera



Clicktoenterthecameraapplication.Can

previewbiggerpicture,zoompicturesbysliding2

fingersonthescreen.Afterpreview,gentlyslide,you

canre‐enterthecamerainterface.Detailsasbelow.



Gallery

Clicktoenterthegalleryapplication,inthe

gallery,youcanpreviewallthestoragedataofthe

machineinthepictureandvideofiles,including

memoryandMicro‐SDcardpicturesandvideofiles.

Belowisapicturegallerydocumentpreview.



Music

Clicktoplaymusic,detailsasbelow:

Browser

Click  toentertheinternet,afterthenetwork

connection,openaWebbrowser,entertheURL,you

canquicklybrowsetheweb,orentertheURL

throughthemaindesktopsearchbartoopenthe

page.



Messaging

Clicktoenterthemessagingapplication.Users

canrefertoSMSrelatedoperationstoexplore.Below

isthenewmassageinterface.



TroubleShooting

Ifyouhaveaproblemwiththisdevice,pleasecheck

thetroubleshootingguidebelow.

ProblemSolution

TheTabletdoesnot

turnon.

●Ensurethatthetabletisfully

charged.TrychargingtheTablet

overnight(6hours).

Thebuttonsdoes

notwork.

Switch–offandswitchonthetablet

Icannottransfer

filestothetablet.



●Ensurethatyourcomputeris

runningonasupportedoperating

systemplatform.

●ChecktheUSBextensioncable,

ensurethatitissecurelyattachedto

thetabletandthePC,ortryusing

anotherUSBcable.

●Ensurethatthetablet’smemory

capacityisnotfull.

Thereisnosound

duringplayback.



●Checkthevolumelevel.

●Ensurethattheearphoneis

attachedsecurelytothetablet.



Specification

Display

Displayinch7inch

ResolutionHDpanel1024X600

Ratio16:9

Touchpanel5pointCapacitivemulti‐touch

Processor/Memory

CPUMediaTek8321

Frequency1.2GHz

GPUMali400MP2

RAM1G

ROM16GB

SystemAndroid6.0.1OS(GUI)

Connect

WIFISupport,IEEE802.11b/g

USBHostx1

Micro‐SDSlotx1

BluetoothSupport

Earphonex1,3.5mm

Batteryinformation

BatteryTypeLithiumionbattery

BatteryCapacity2200mAh



FCCWarningStatement

Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatetheequipment.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB

digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto

providereasonableprotectionagainstharmfulinterferenceinaresidential

installation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergy

and,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause

harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby



turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe

interferencebyoneormoreofthefollowingmeasures:‐‐Reorientorrelocatethe

receivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



E matic EGQ371 TABLET PC User Manual Lollipop 2 0826x

E-matic TABLET PC Lollipop 2 0826x

User Manual

Navigation menu

Namespaces

Views

Navigation
