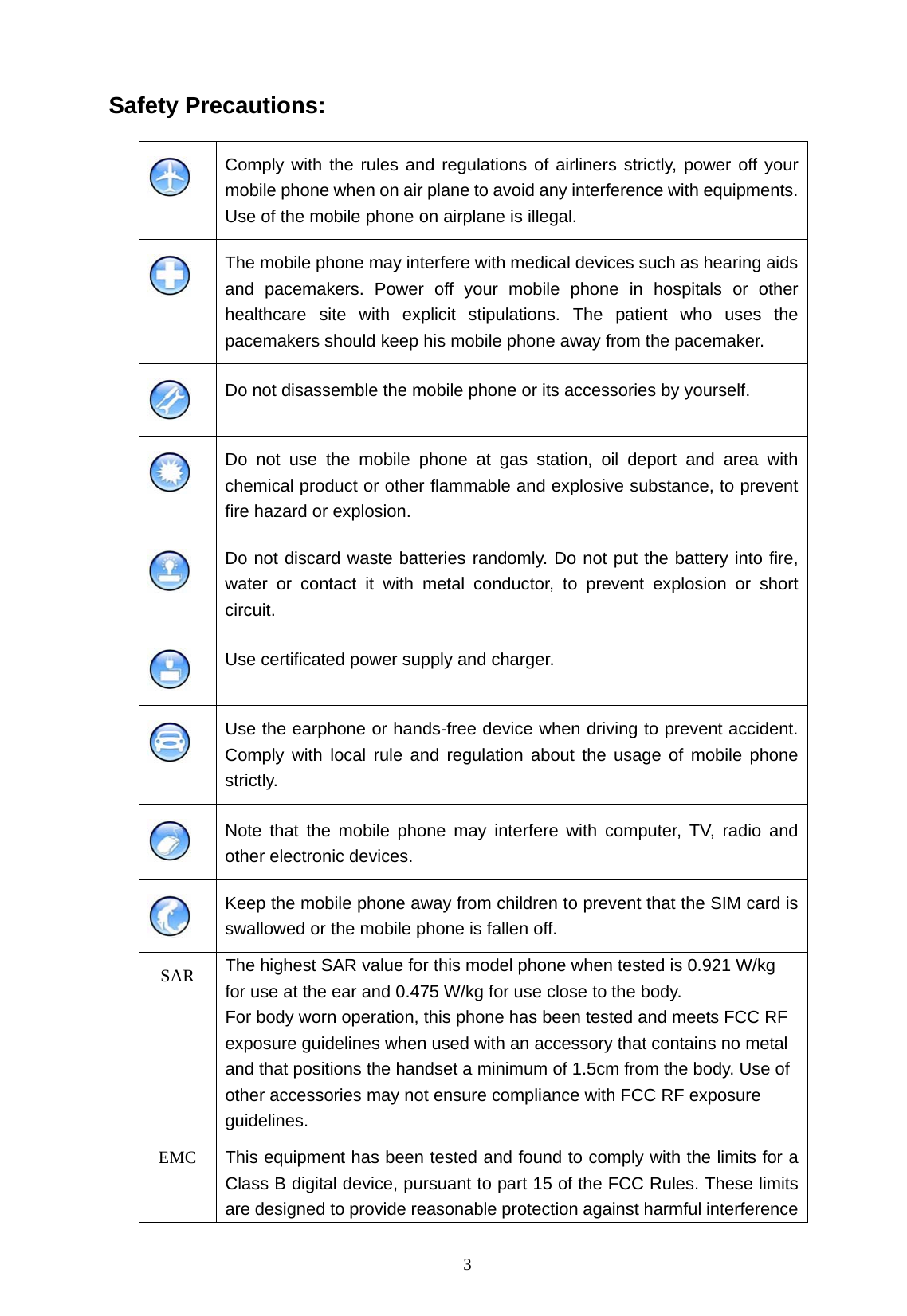

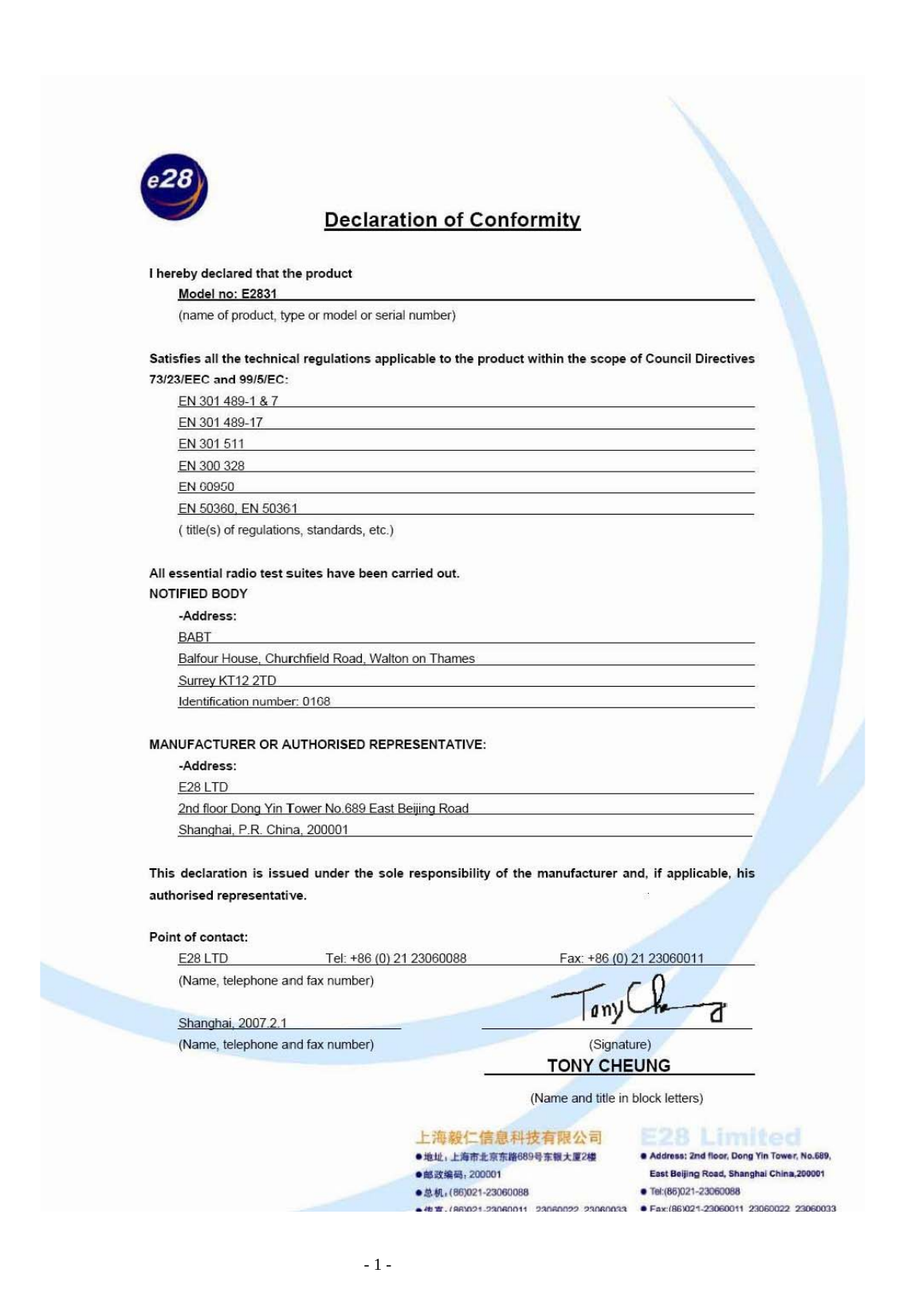

3 Safety Precautions: Comply with the rules and regulations of airliners strictly, power off your mobile phone when on air plane to avoid any interference with equipments. Use of the mobile phone on airplane is illegal. The mobile phone may interfere with medical devices such as hearing aids and pacemakers. Power off your mobile phone in hospitals or other healthcare site with explicit stipulations. The patient who uses the pacemakers should keep his mobile phone away from the pacemaker. Do not disassemble the mobile phone or its accessories by yourself. Do not use the mobile phone at gas station, oil deport and area with chemical product or other flammable and explosive substance, to prevent fire hazard or explosion. Do not discard waste batteries randomly. Do not put the battery into fire, water or contact it with metal conductor, to prevent explosion or short circuit. Use certificated power supply and charger. Use the earphone or hands-free device when driving to prevent accident. Comply with local rule and regulation about the usage of mobile phone strictly. Note that the mobile phone may interfere with computer, TV, radio and other electronic devices. Keep the mobile phone away from children to prevent that the SIM card is swallowed or the mobile phone is fallen off. SAR The highest SAR value for this model phone when tested is 0.921 W/kg for use at the ear and 0.475 W/kg for use close to the body. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. EMC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

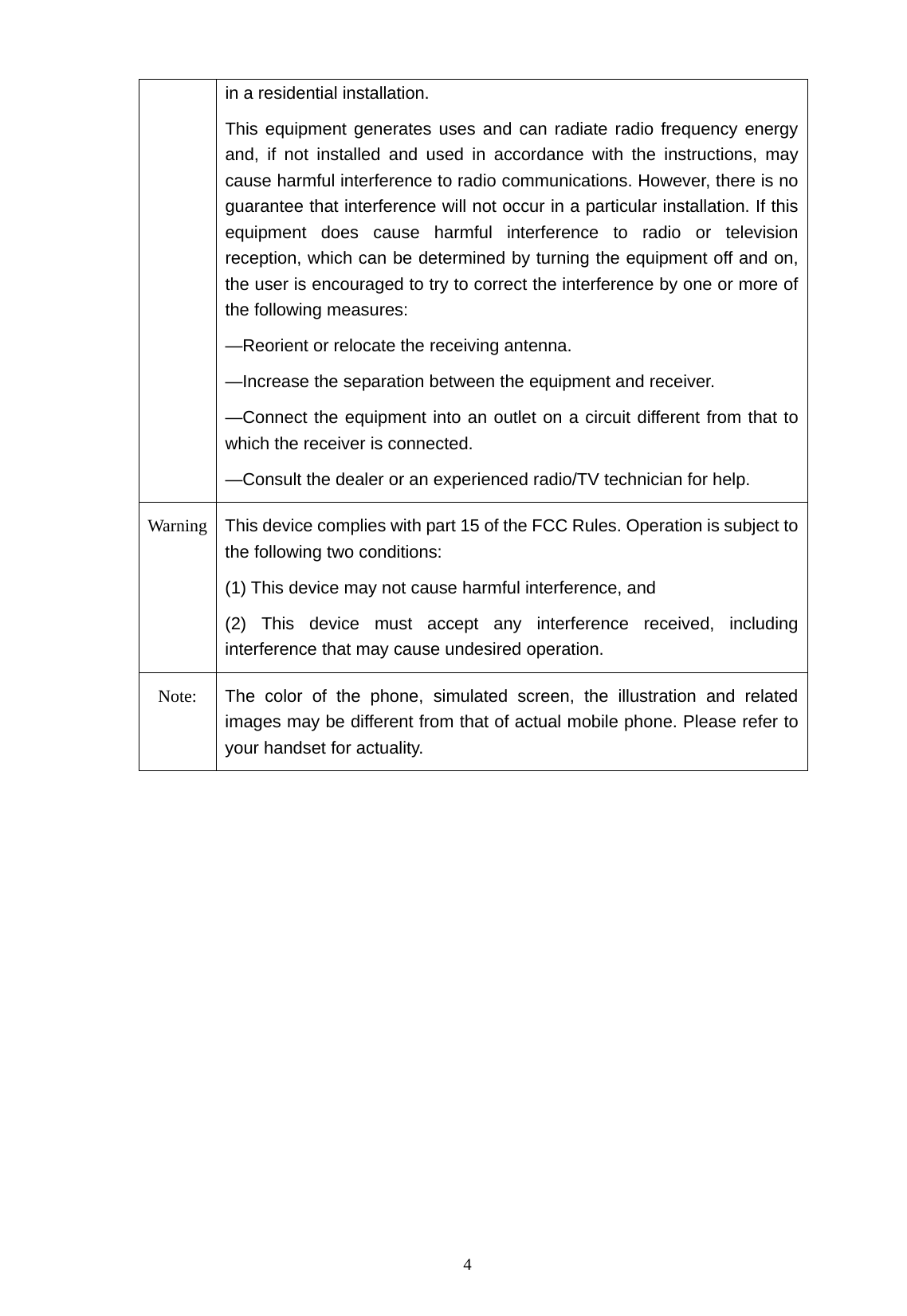

4 in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The color of the phone, simulated screen, the illustration and related images may be different from that of actual mobile phone. Please refer to your handset for actuality.

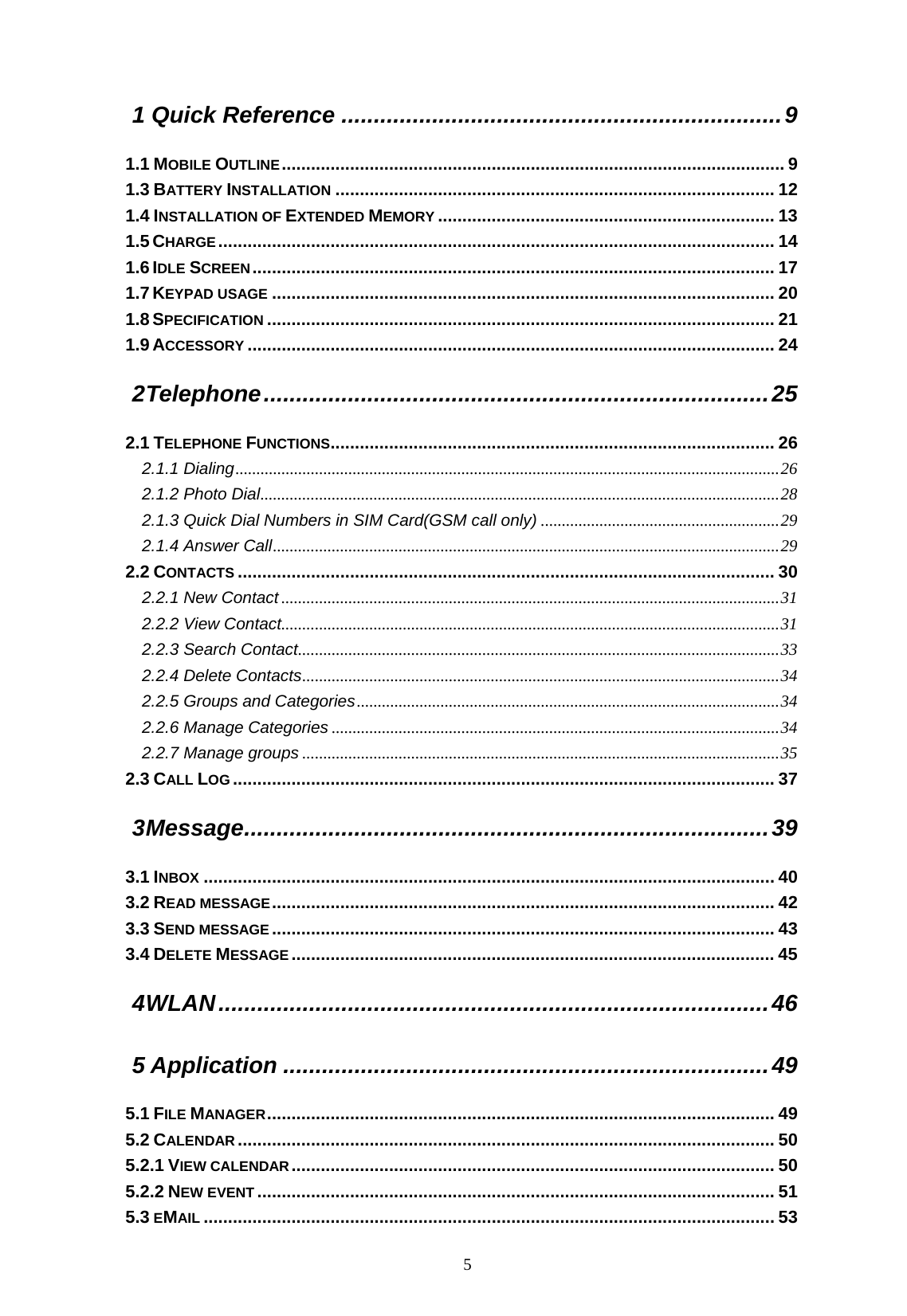

5 1 Quick Reference ....................................................................9 1.1 MOBILE OUTLINE....................................................................................................... 9 1.3 BATTERY INSTALLATION .......................................................................................... 12 1.4 INSTALLATION OF EXTENDED MEMORY ..................................................................... 13 1.5 CHARGE.................................................................................................................. 14 1.6 IDLE SCREEN........................................................................................................... 17 1.7 KEYPAD USAGE ....................................................................................................... 20 1.8 SPECIFICATION ........................................................................................................ 21 1.9 ACCESSORY ............................................................................................................ 24 2 Telephone..............................................................................25 2.1 TELEPHONE FUNCTIONS........................................................................................... 26 2.1.1 Dialing..................................................................................................................................26 2.1.2 Photo Dial............................................................................................................................28 2.1.3 Quick Dial Numbers in SIM Card(GSM call only) .........................................................29 2.1.4 Answer Call.........................................................................................................................29 2.2 CONTACTS .............................................................................................................. 30 2.2.1 New Contact.......................................................................................................................31 2.2.2 View Contact.......................................................................................................................31 2.2.3 Search Contact...................................................................................................................33 2.2.4 Delete Contacts..................................................................................................................34 2.2.5 Groups and Categories.....................................................................................................34 2.2.6 Manage Categories ...........................................................................................................34 2.2.7 Manage groups ..................................................................................................................35 2.3 CALL LOG ............................................................................................................... 37 3 Message.................................................................................39 3.1 INBOX ..................................................................................................................... 40 3.2 READ MESSAGE....................................................................................................... 42 3.3 SEND MESSAGE....................................................................................................... 43 3.4 DELETE MESSAGE ................................................................................................... 45 4 WLAN.....................................................................................46 5 Application ...........................................................................49 5.1 FILE MANAGER........................................................................................................ 49 5.2 CALENDAR .............................................................................................................. 50 5.2.1 VIEW CALENDAR................................................................................................... 50 5.2.2 NEW EVENT .......................................................................................................... 51 5.3 EMAIL ..................................................................................................................... 53

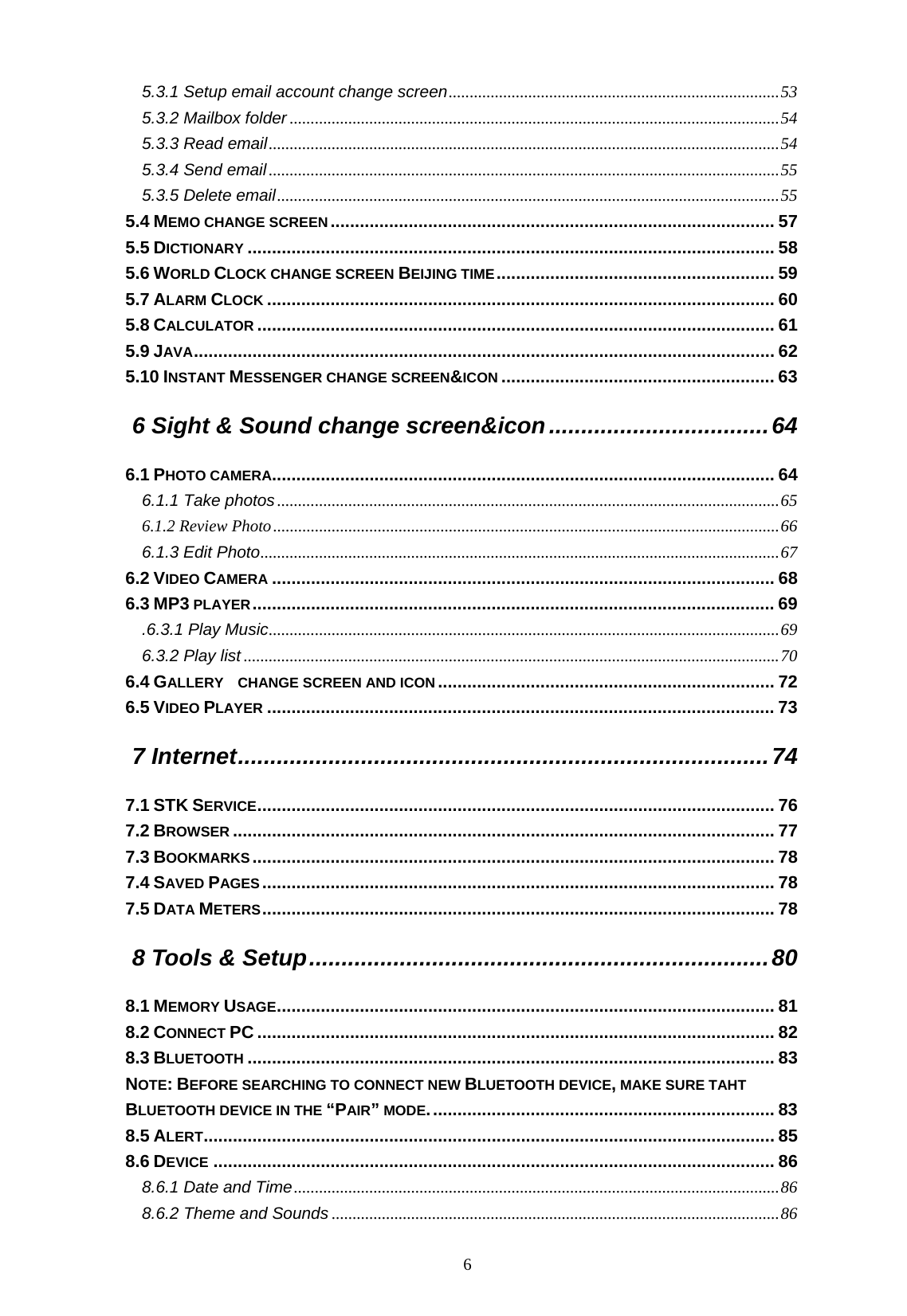

6 5.3.1 Setup email account change screen...............................................................................53 5.3.2 Mailbox folder .....................................................................................................................54 5.3.3 Read email..........................................................................................................................54 5.3.4 Send email..........................................................................................................................55 5.3.5 Delete email........................................................................................................................55 5.4 MEMO CHANGE SCREEN........................................................................................... 57 5.5 DICTIONARY ............................................................................................................ 58 5.6 WORLD CLOCK CHANGE SCREEN BEIJING TIME......................................................... 59 5.7 ALARM CLOCK ........................................................................................................ 60 5.8 CALCULATOR .......................................................................................................... 61 5.9 JAVA....................................................................................................................... 62 5.10 INSTANT MESSENGER CHANGE SCREEN&ICON ........................................................ 63 6 Sight & Sound change screen&icon..................................64 6.1 PHOTO CAMERA....................................................................................................... 64 6.1.1 Take photos........................................................................................................................65 6.1.2 Review Photo.........................................................................................................................66 6.1.3 Edit Photo............................................................................................................................67 6.2 VIDEO CAMERA ....................................................................................................... 68 6.3 MP3 PLAYER........................................................................................................... 69 .6.3.1 Play Music..........................................................................................................................69 6.3.2 Play list ................................................................................................................................70 6.4 GALLERY CHANGE SCREEN AND ICON..................................................................... 72 6.5 VIDEO PLAYER ........................................................................................................ 73 7 Internet..................................................................................74 7.1 STK SERVICE.......................................................................................................... 76 7.2 BROWSER ............................................................................................................... 77 7.3 BOOKMARKS........................................................................................................... 78 7.4 SAVED PAGES ......................................................................................................... 78 7.5 DATA METERS......................................................................................................... 78 8 Tools & Setup.......................................................................80 8.1 MEMORY USAGE...................................................................................................... 81 8.2 CONNECT PC .......................................................................................................... 82 8.3 BLUETOOTH ............................................................................................................ 83 NOTE: BEFORE SEARCHING TO CONNECT NEW BLUETOOTH DEVICE, MAKE SURE TAHT BLUETOOTH DEVICE IN THE “PAIR” MODE....................................................................... 83 8.5 ALERT..................................................................................................................... 85 8.6 DEVICE ................................................................................................................... 86 8.6.1 Date and Time....................................................................................................................86 8.6.2 Theme and Sounds ...........................................................................................................86

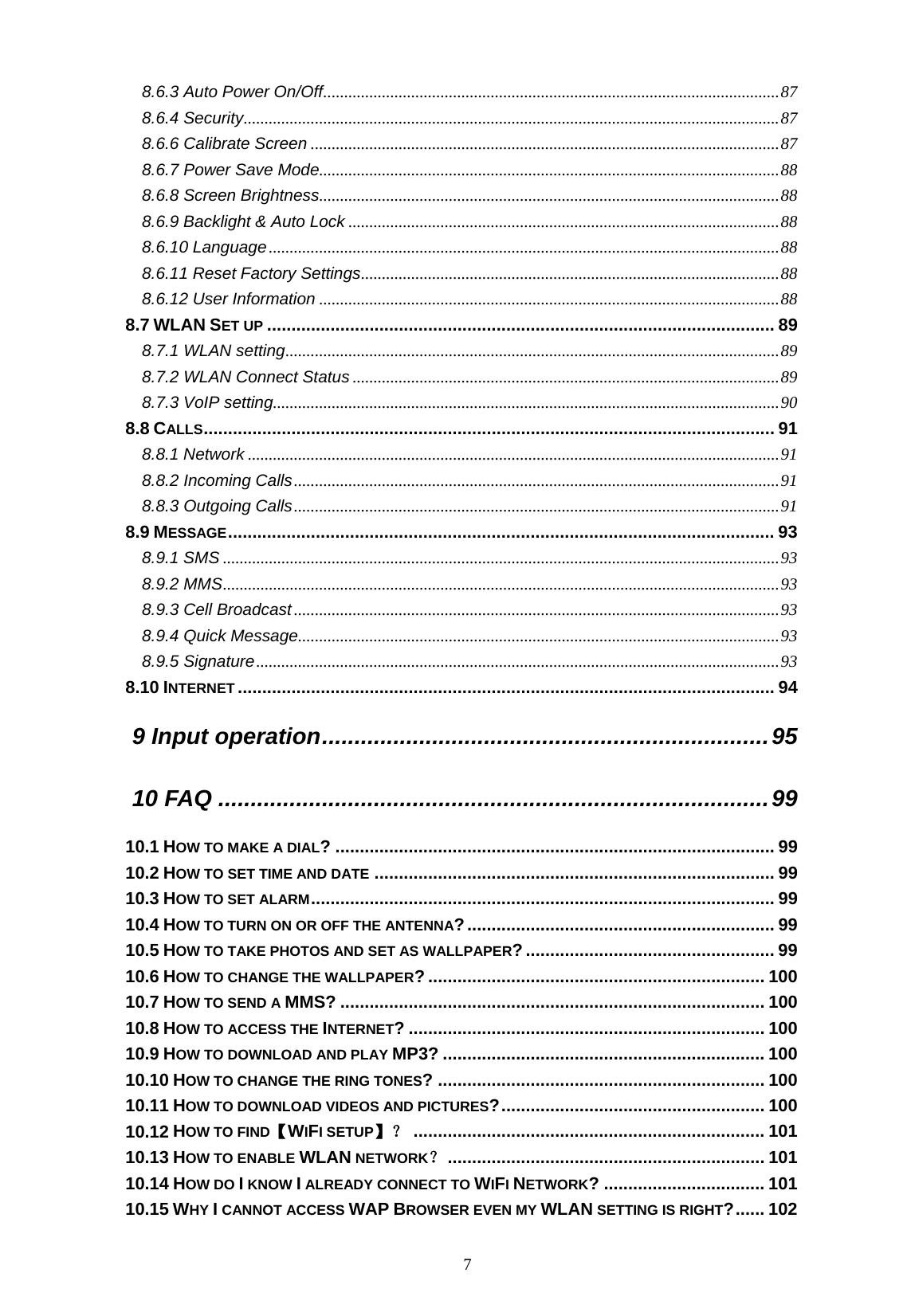

7 8.6.3 Auto Power On/Off.............................................................................................................87 8.6.4 Security................................................................................................................................87 8.6.6 Calibrate Screen ................................................................................................................87 8.6.7 Power Save Mode..............................................................................................................88 8.6.8 Screen Brightness..............................................................................................................88 8.6.9 Backlight & Auto Lock .......................................................................................................88 8.6.10 Language..........................................................................................................................88 8.6.11 Reset Factory Settings....................................................................................................88 8.6.12 User Information ..............................................................................................................88 8.7 WLAN SET UP ........................................................................................................ 89 8.7.1 WLAN setting......................................................................................................................89 8.7.2 WLAN Connect Status ......................................................................................................89 8.7.3 VoIP setting.........................................................................................................................90 8.8 CALLS..................................................................................................................... 91 8.8.1 Network ...............................................................................................................................91 8.8.2 Incoming Calls....................................................................................................................91 8.8.3 Outgoing Calls....................................................................................................................91 8.9 MESSAGE................................................................................................................ 93 8.9.1 SMS .....................................................................................................................................93 8.9.2 MMS.....................................................................................................................................93 8.9.3 Cell Broadcast....................................................................................................................93 8.9.4 Quick Message...................................................................................................................93 8.9.5 Signature.............................................................................................................................93 8.10 INTERNET .............................................................................................................. 94 9 Input operation.....................................................................95 10 FAQ .....................................................................................99 10.1 HOW TO MAKE A DIAL? .......................................................................................... 99 10.2 HOW TO SET TIME AND DATE .................................................................................. 99 10.3 HOW TO SET ALARM............................................................................................... 99 10.4 HOW TO TURN ON OR OFF THE ANTENNA?............................................................... 99 10.5 HOW TO TAKE PHOTOS AND SET AS WALLPAPER?................................................... 99 10.6 HOW TO CHANGE THE WALLPAPER? ..................................................................... 100 10.7 HOW TO SEND A MMS? ....................................................................................... 100 10.8 HOW TO ACCESS THE INTERNET? ......................................................................... 100 10.9 HOW TO DOWNLOAD AND PLAY MP3? .................................................................. 100 10.10 HOW TO CHANGE THE RING TONES? ................................................................... 100 10.11 HOW TO DOWNLOAD VIDEOS AND PICTURES?...................................................... 100 10.12 HOW TO FIND【WIFI SETUP】？ ........................................................................ 101 10.13 HOW TO ENABLE WLAN NETWORK？................................................................. 101 10.14 HOW DO I KNOW I ALREADY CONNECT TO WIFI NETWORK? ................................. 101 10.15 WHY I CANNOT ACCESS WAP BROWSER EVEN MY WLAN SETTING IS RIGHT?...... 102

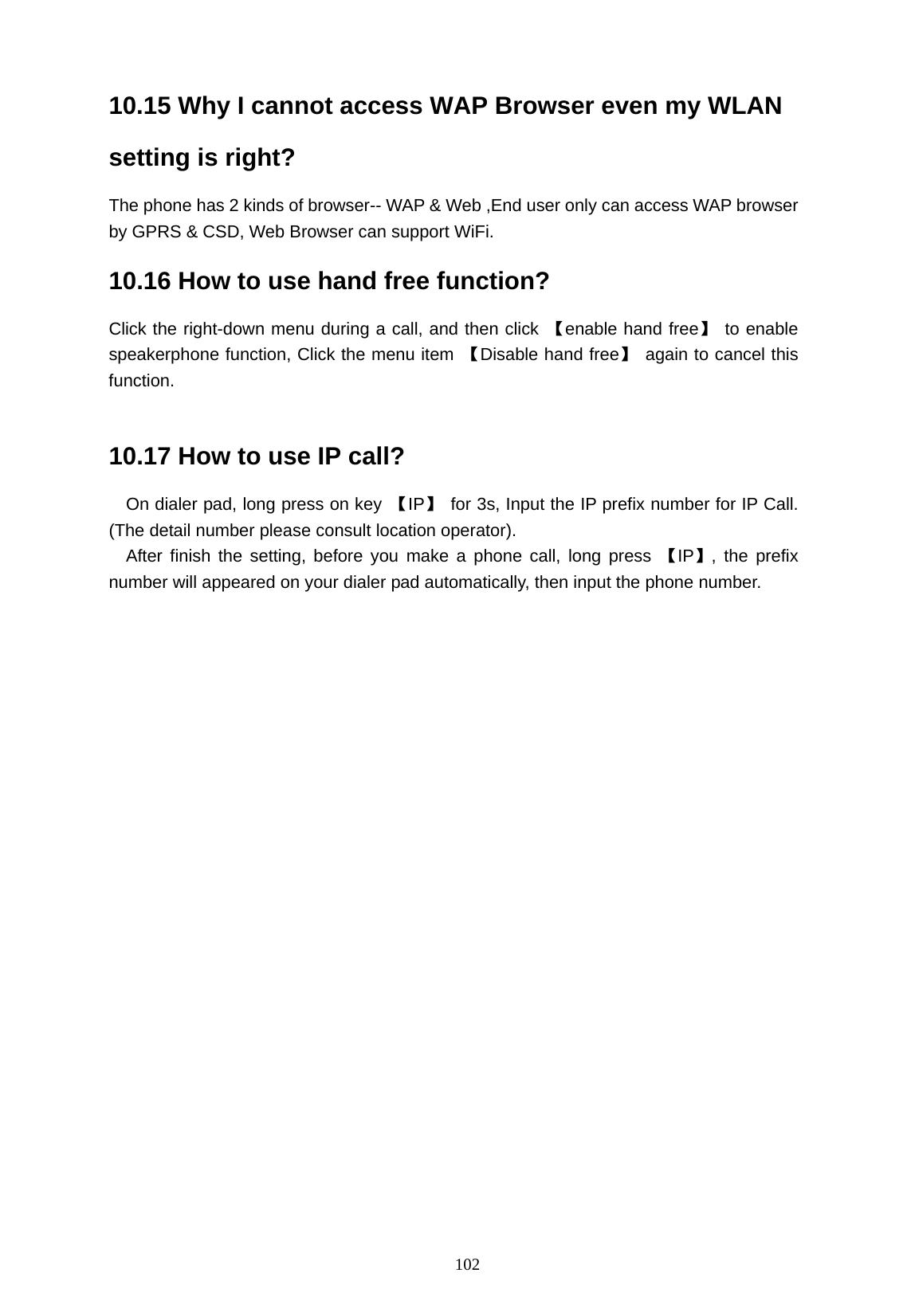

8 10.16 HOW TO USE HAND FREE FUNCTION?.................................................................. 102 10.17 HOW TO USE IP CALL?....................................................................................... 102 11 Troubleshooting...............................................................103

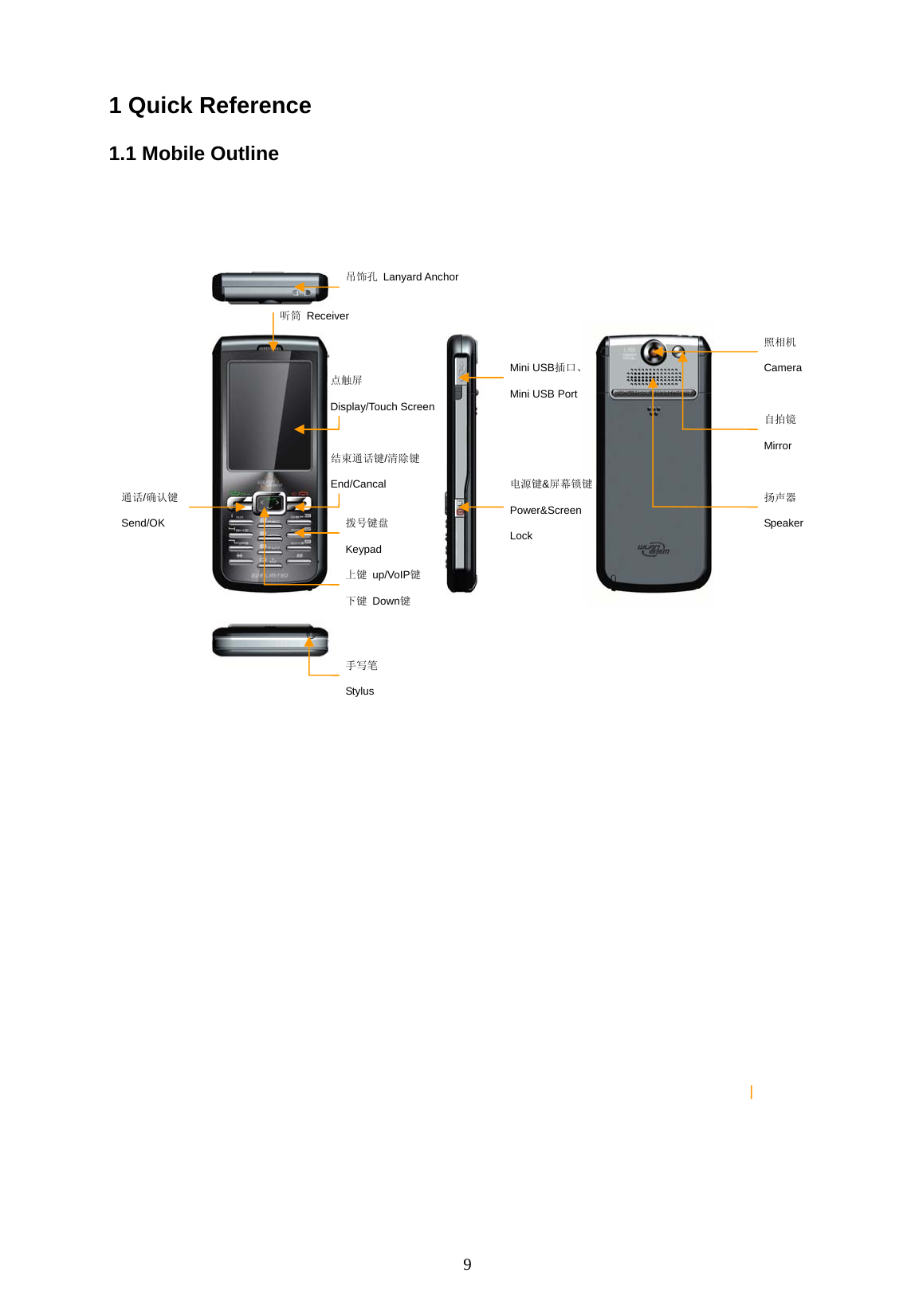

9 1 Quick Reference 1.1 Mobile Outline 结束通话键/清除键End/Cancal 拨号键盘Keypad 点触屏 Display/Touch Screen通话/确认键 Send/OK上键 up/VoIP键下键 Down键吊饰孔 Lanyard Anchor 电源键&屏幕锁键 Power&Screen Lock 手写笔 Stylus Mini USB插口、 Mini USB Port 听筒 Receiver 照相机 Camera 自拍镜 Mirror 扬声器 Speaker

10 1.2 SIM Card Installation Caution 1. E2831 supports latest 3V SIM card. Apply for a new from the mobile operator if the old 5V SIM card is used. Most of mobile operators will replace it with a new without change of the phone number. 2. Do not bend or scratch on SIM card, and keep it away from static electricity, dust or water. ① ② Power off the mobile phone before removing the battery. 1. Take out the stylus. Press the up part of battery cover. Slide the battery cover down, and lift the battery cover to remove it. 2. Take out the battery 3. Slide SIM card into the card slot with the notch in the upward right corner and the gold plate facing down. Insert the SIM card③ ④

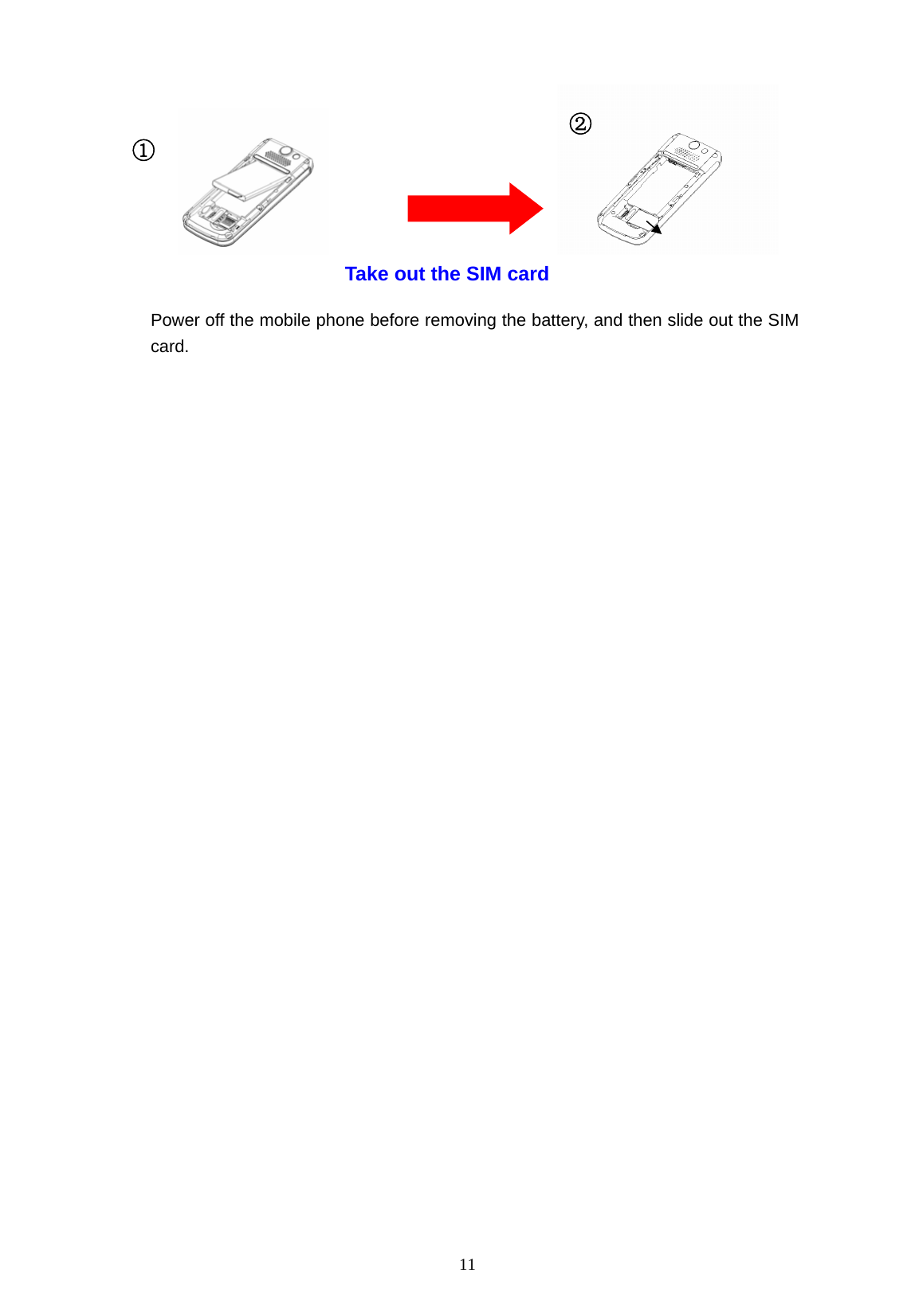

11 Power off the mobile phone before removing the battery, and then slide out the SIM card. Take out the SIM card ① ②

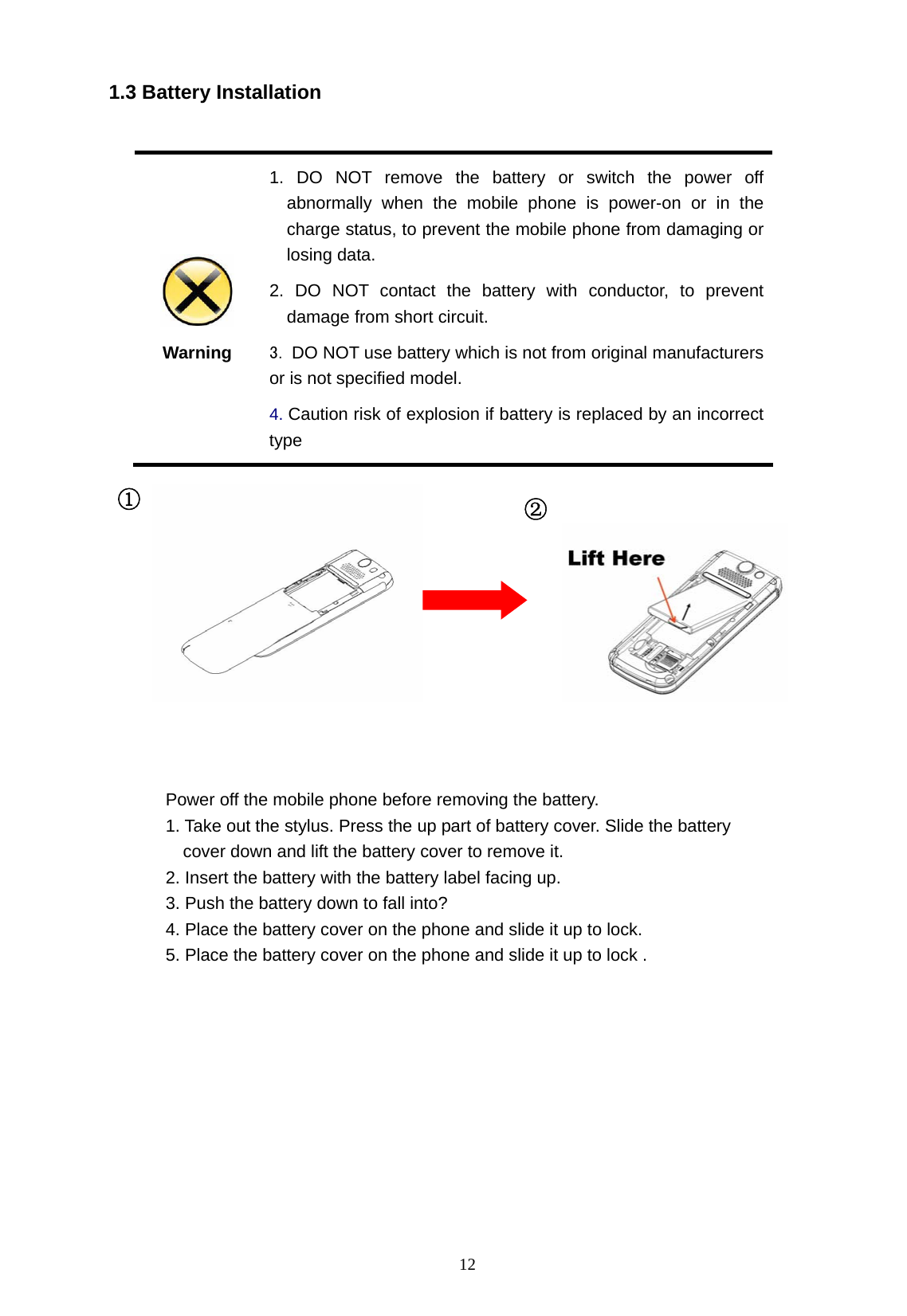

12 1.3 Battery Installation Warning 1. DO NOT remove the battery or switch the power off abnormally when the mobile phone is power-on or in the charge status, to prevent the mobile phone from damaging or losing data. 2. DO NOT contact the battery with conductor, to prevent damage from short circuit. 3. DO NOT use battery which is not from original manufacturers or is not specified model. 4. Caution risk of explosion if battery is replaced by an incorrect type ① ② Power off the mobile phone before removing the battery. 1. Take out the stylus. Press the up part of battery cover. Slide the battery cover down and lift the battery cover to remove it. 2. Insert the battery with the battery label facing up. 3. Push the battery down to fall into? 4. Place the battery cover on the phone and slide it up to lock. 5. Place the battery cover on the phone and slide it up to lock .

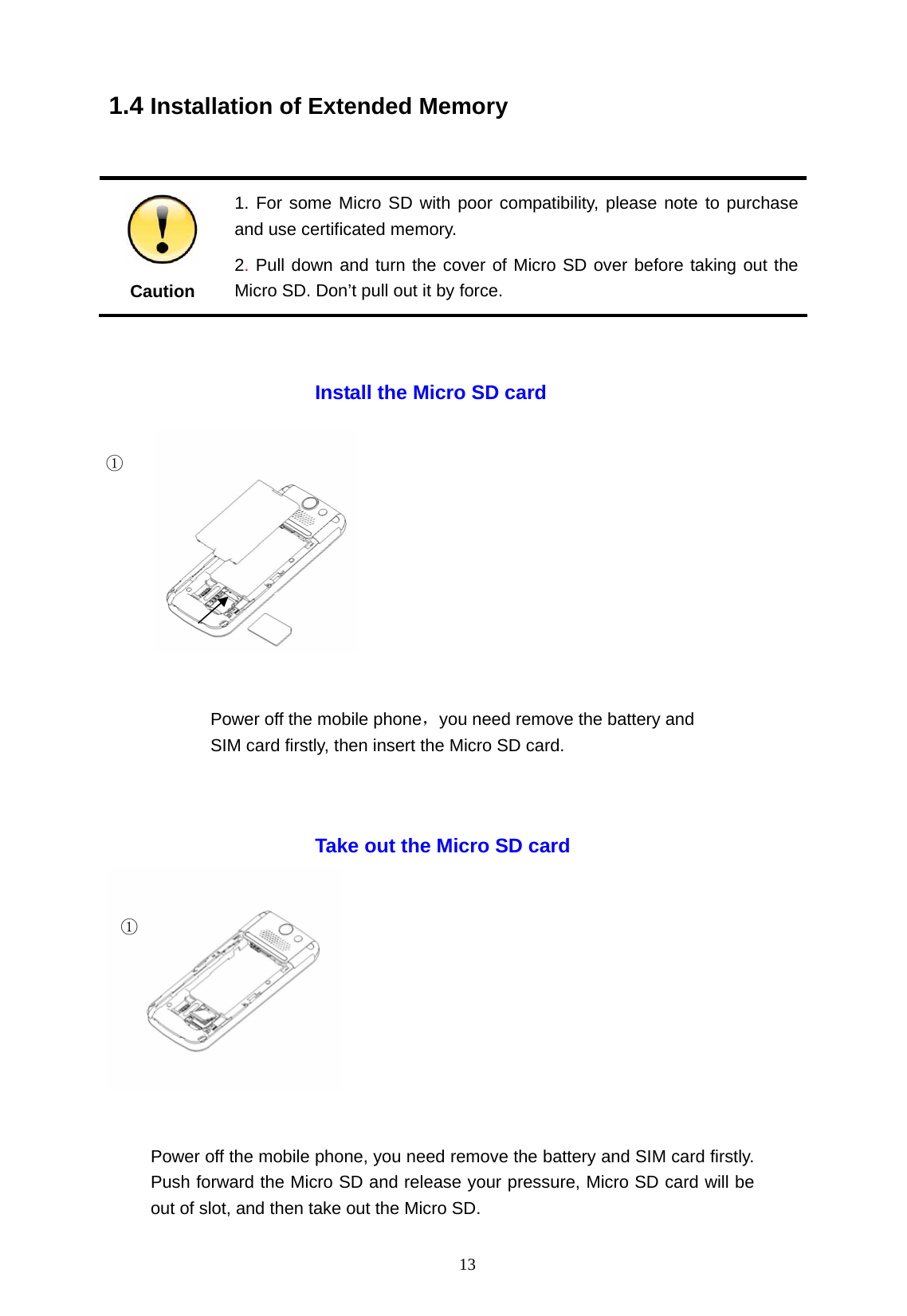

13 1.4 Installation of Extended Memory Caution 1. For some Micro SD with poor compatibility, please note to purchase and use certificated memory. 2. Pull down and turn the cover of Micro SD over before taking out the Micro SD. Don’t pull out it by force. Take out the Micro SD card Install the Micro SD card ① ① Power off the mobile phone，you need remove the battery and SIM card firstly, then insert the Micro SD card. Power off the mobile phone, you need remove the battery and SIM card firstly. Push forward the Micro SD and release your pressure, Micro SD card will be out of slot, and then take out the Micro SD.

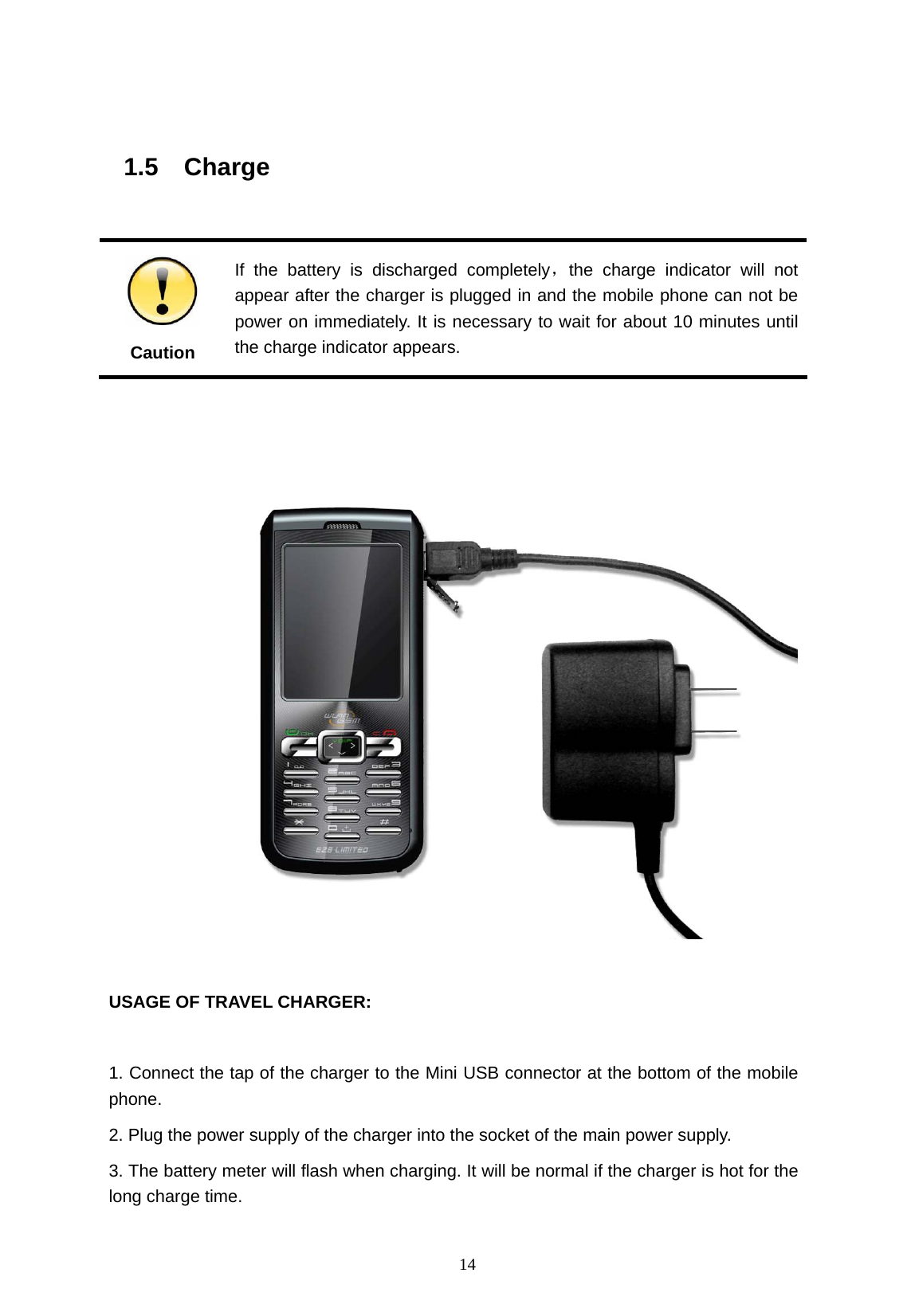

14 1.5 Charge Caution If the battery is discharged completely，the charge indicator will not appear after the charger is plugged in and the mobile phone can not be power on immediately. It is necessary to wait for about 10 minutes until the charge indicator appears. USAGE OF TRAVEL CHARGER: 1. Connect the tap of the charger to the Mini USB connector at the bottom of the mobile phone. 2. Plug the power supply of the charger into the socket of the main power supply. 3. The battery meter will flash when charging. It will be normal if the charger is hot for the long charge time.

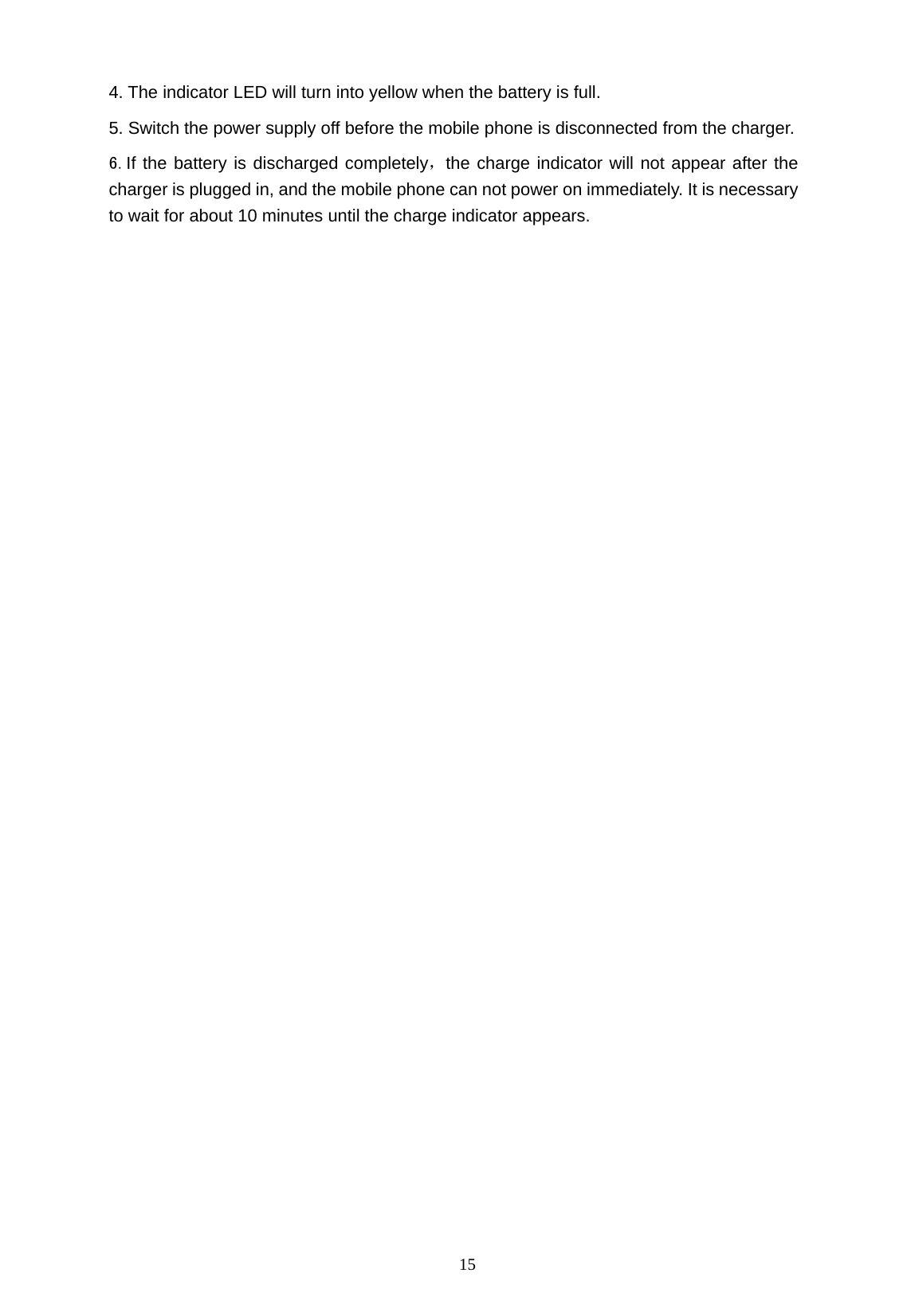

15 4. The indicator LED will turn into yellow when the battery is full. 5. Switch the power supply off before the mobile phone is disconnected from the charger. 6.If the battery is discharged completely，the charge indicator will not appear after the charger is plugged in, and the mobile phone can not power on immediately. It is necessary to wait for about 10 minutes until the charge indicator appears.

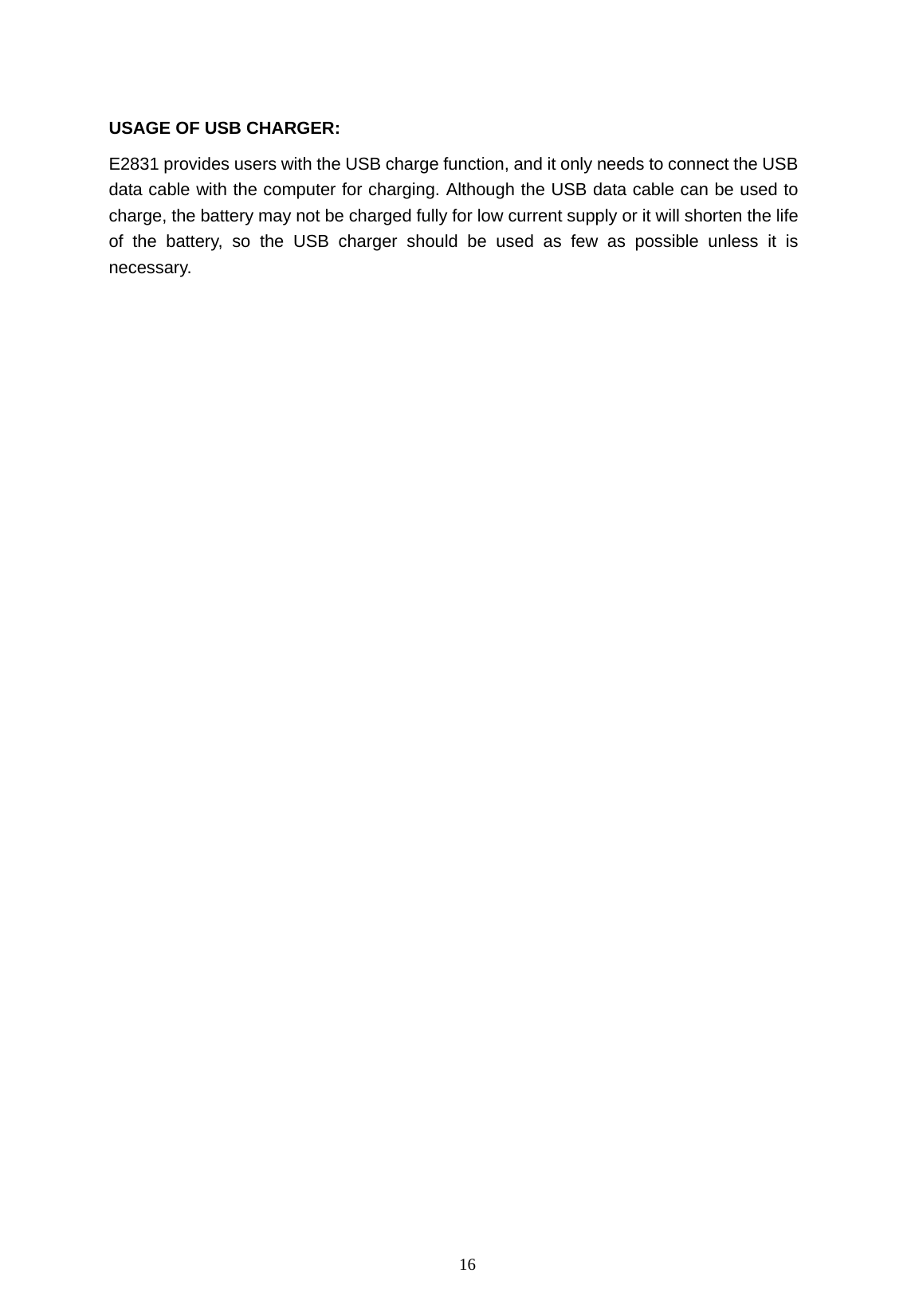

16 USAGE OF USB CHARGER: E2831 provides users with the USB charge function, and it only needs to connect the USB data cable with the computer for charging. Although the USB data cable can be used to charge, the battery may not be charged fully for low current supply or it will shorten the life of the battery, so the USB charger should be used as few as possible unless it is necessary.

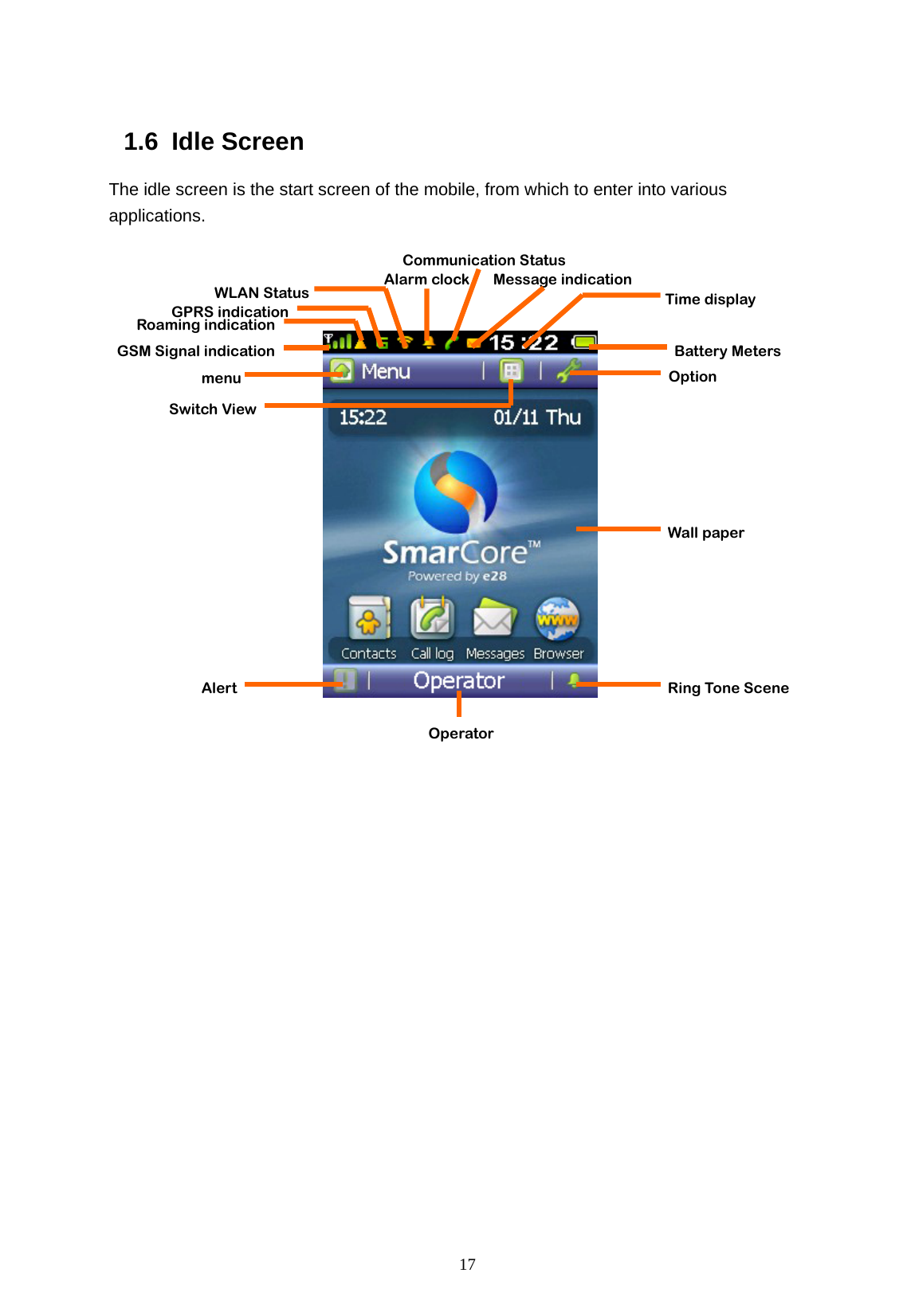

17 1.6 Idle Screen The idle screen is the start screen of the mobile, from which to enter into various applications. menu GSM Signal indication Roaming indication GPRS indication WLAN Status Alarm clock Communication Status Message indication Time display Battery Meters Option Wall paper Switch View Alert Ring Tone Scene Operator

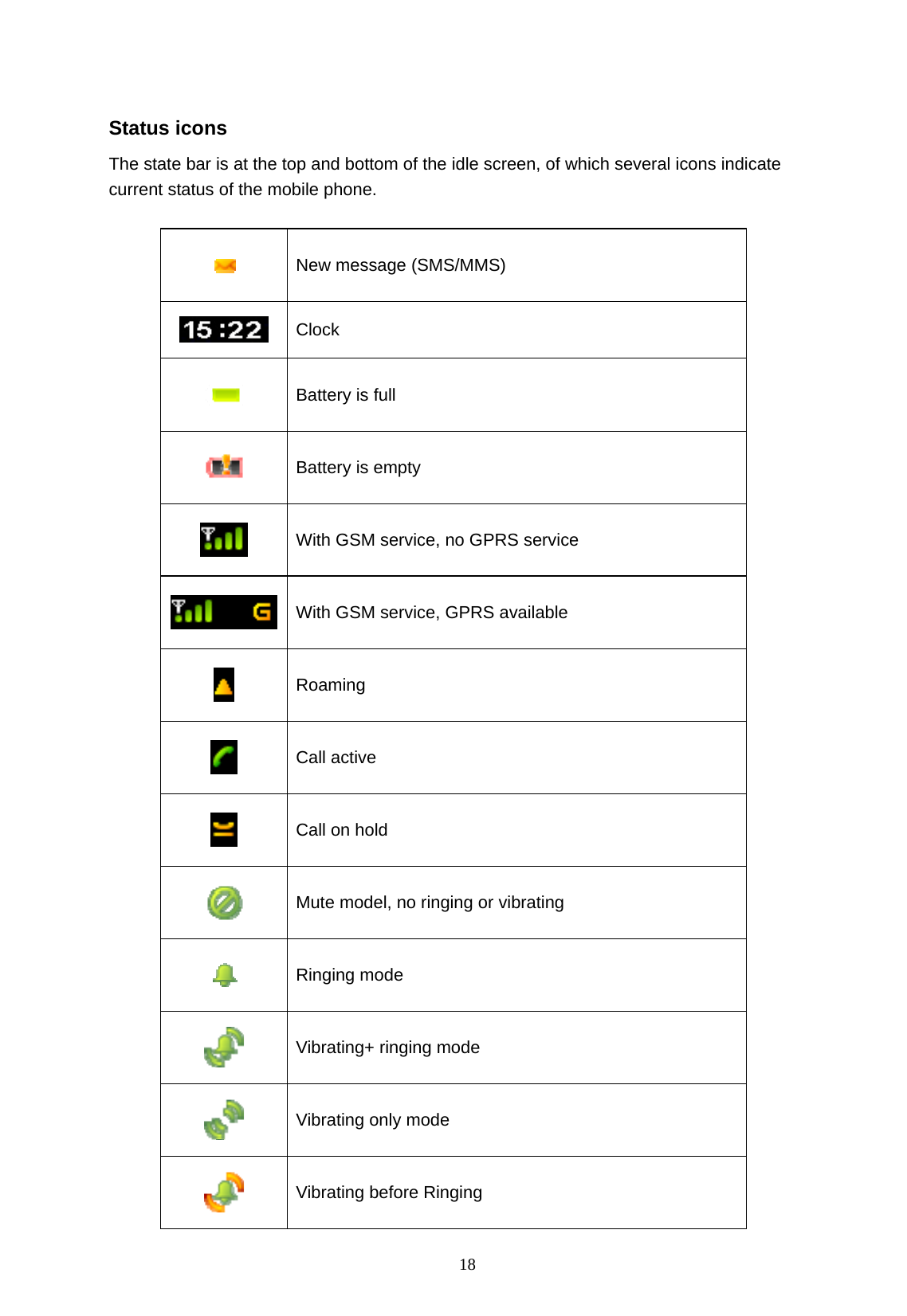

18 Status icons The state bar is at the top and bottom of the idle screen, of which several icons indicate current status of the mobile phone. New message (SMS/MMS) Clock Battery is full Battery is empty With GSM service, no GPRS service With GSM service, GPRS available Roaming Call active Call on hold Mute model, no ringing or vibrating Ringing mode Vibrating+ ringing mode Vibrating only mode Vibrating before Ringing

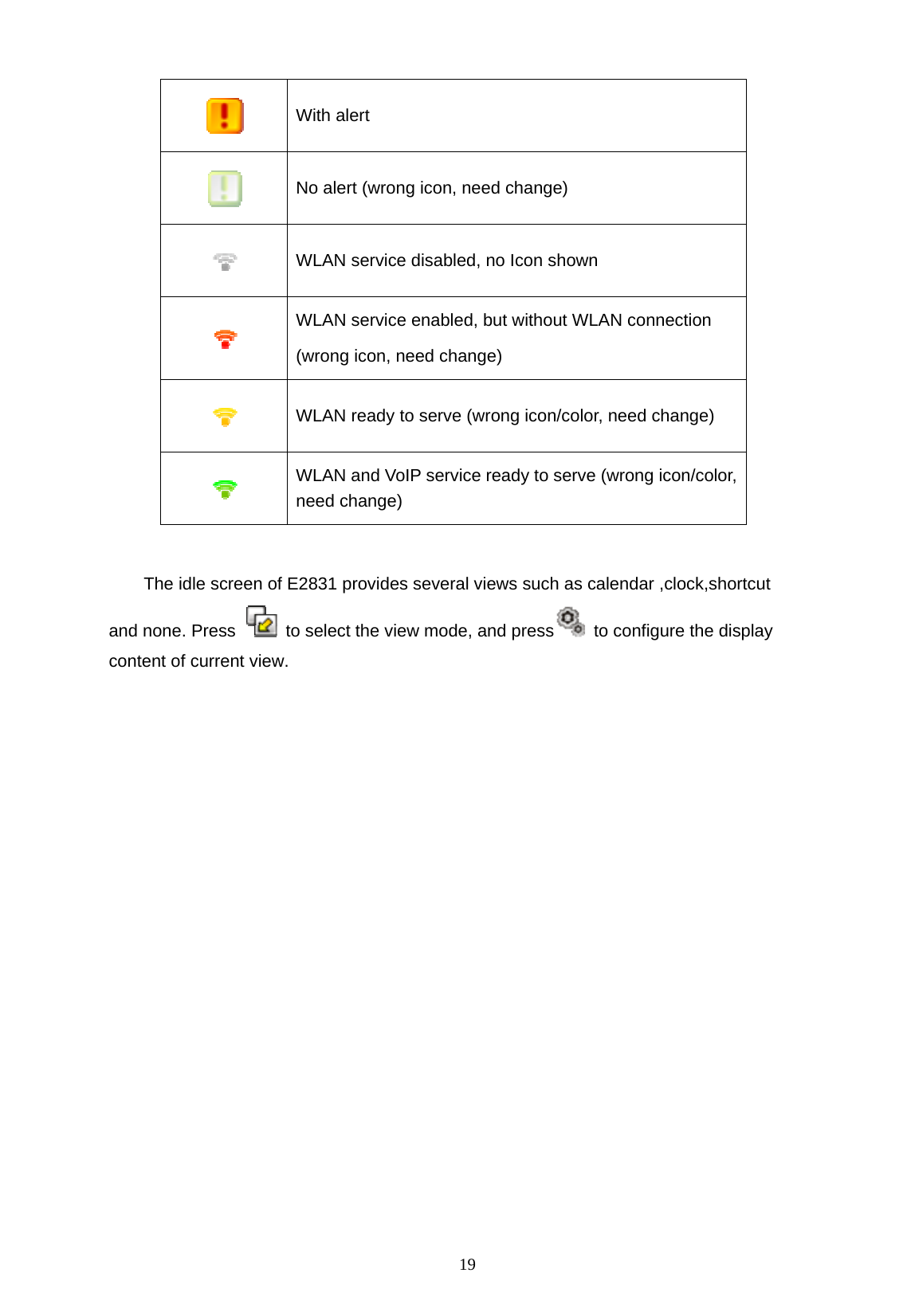

19 With alert No alert (wrong icon, need change) WLAN service disabled, no Icon shown WLAN service enabled, but without WLAN connection (wrong icon, need change) WLAN ready to serve (wrong icon/color, need change) WLAN and VoIP service ready to serve (wrong icon/color, need change) The idle screen of E2831 provides several views such as calendar ,clock,shortcut and none. Press to select the view mode, and press to configure the display content of current view.

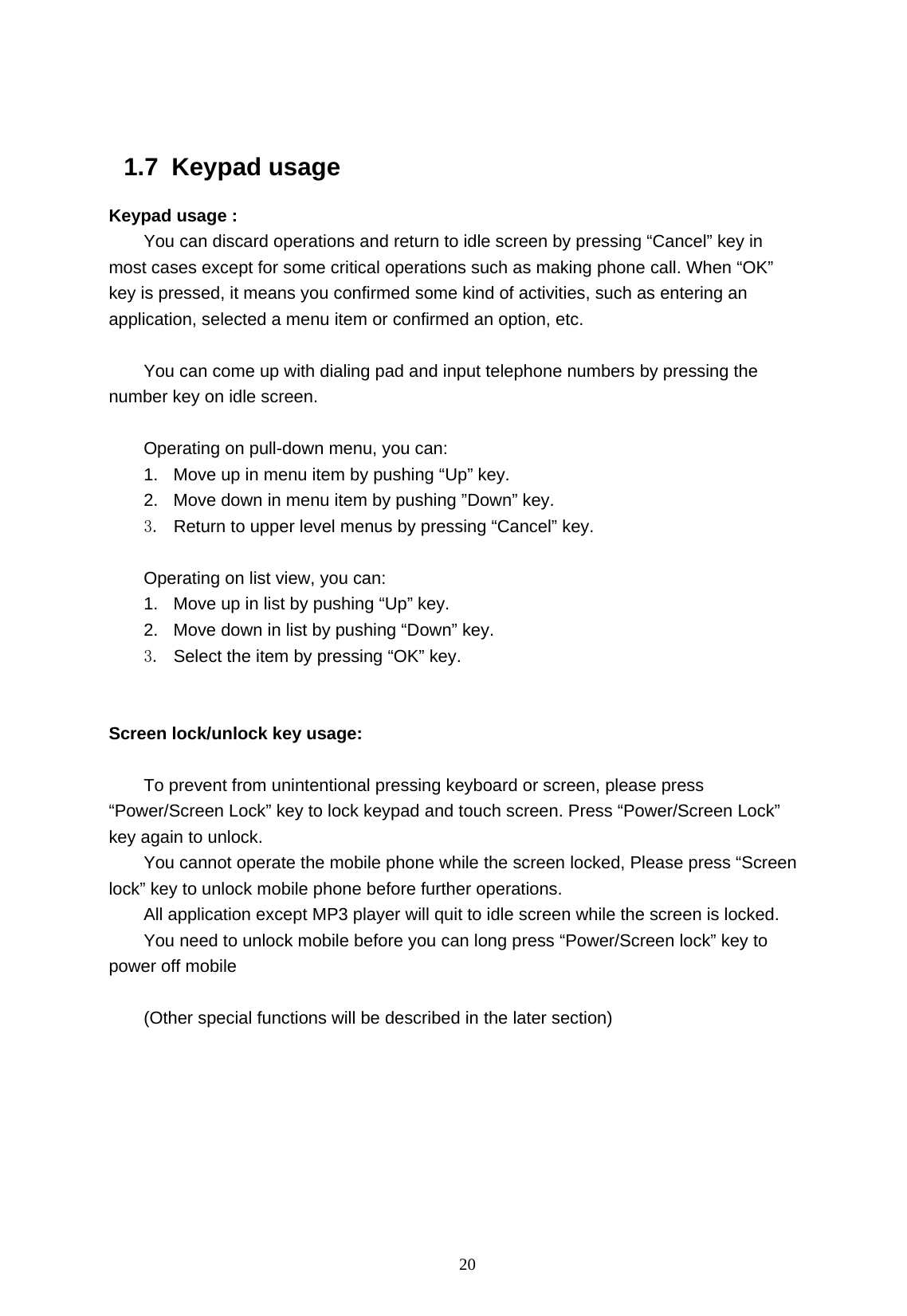

20 1.7 Keypad usage Keypad usage : You can discard operations and return to idle screen by pressing “Cancel” key in most cases except for some critical operations such as making phone call. When “OK” key is pressed, it means you confirmed some kind of activities, such as entering an application, selected a menu item or confirmed an option, etc. You can come up with dialing pad and input telephone numbers by pressing the number key on idle screen. Operating on pull-down menu, you can: 1. Move up in menu item by pushing “Up” key. 2. Move down in menu item by pushing ”Down” key. 3. Return to upper level menus by pressing “Cancel” key. Operating on list view, you can: 1. Move up in list by pushing “Up” key. 2. Move down in list by pushing “Down” key. 3. Select the item by pressing “OK” key. Screen lock/unlock key usage: To prevent from unintentional pressing keyboard or screen, please press “Power/Screen Lock” key to lock keypad and touch screen. Press “Power/Screen Lock” key again to unlock. You cannot operate the mobile phone while the screen locked, Please press “Screen lock” key to unlock mobile phone before further operations. All application except MP3 player will quit to idle screen while the screen is locked. You need to unlock mobile before you can long press “Power/Screen lock” key to power off mobile (Other special functions will be described in the later section)

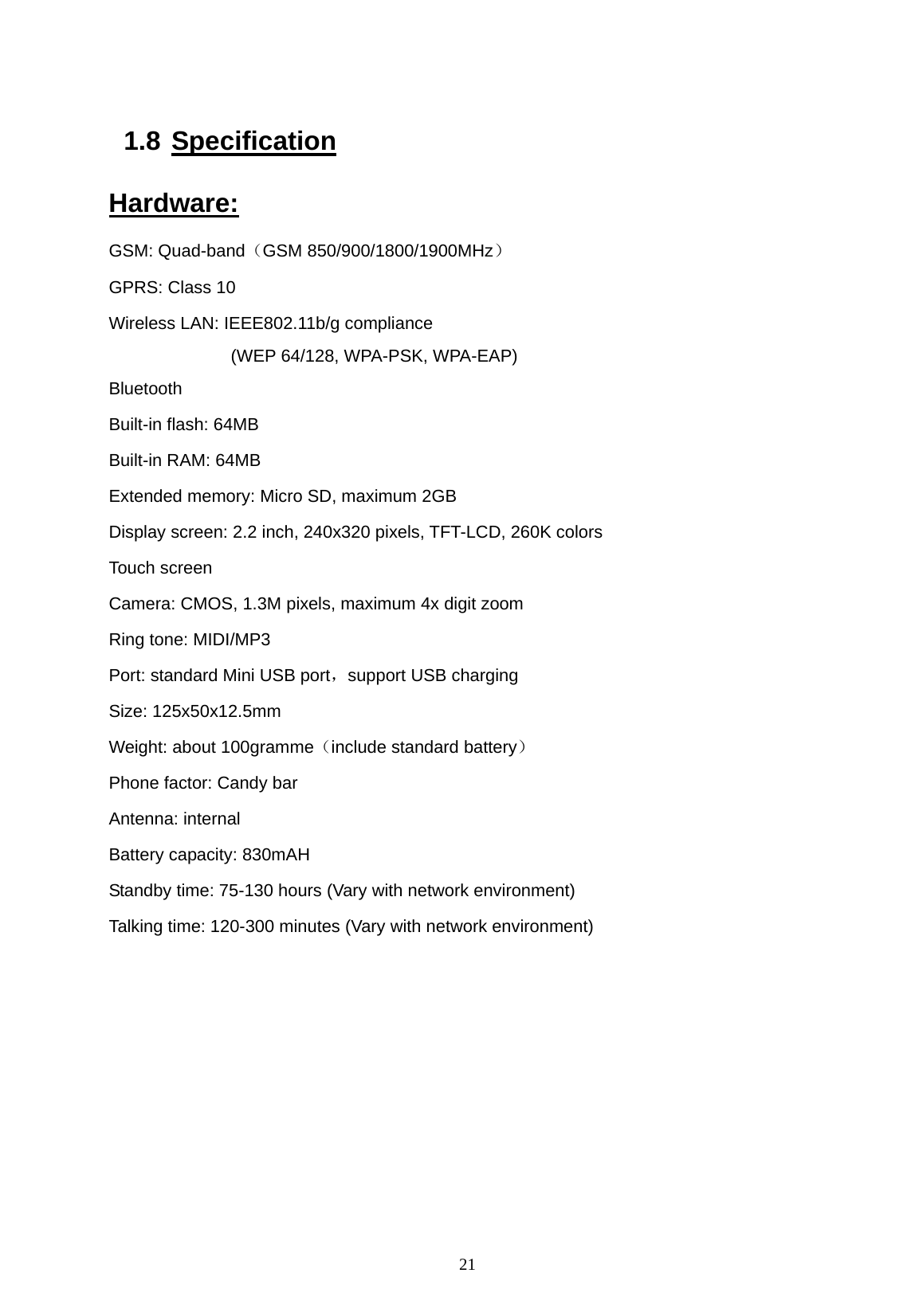

21 1.8 Specification Hardware: GSM: Quad-band（GSM 850/900/1800/1900MHz） GPRS: Class 10 Wireless LAN: IEEE802.11b/g compliance (WEP 64/128, WPA-PSK, WPA-EAP) Bluetooth Built-in flash: 64MB Built-in RAM: 64MB Extended memory: Micro SD, maximum 2GB Display screen: 2.2 inch, 240x320 pixels, TFT-LCD, 260K colors Touch screen Camera: CMOS, 1.3M pixels, maximum 4x digit zoom Ring tone: MIDI/MP3 Port: standard Mini USB port，support USB charging Size: 125x50x12.5mm Weight: about 100gramme（include standard battery） Phone factor: Candy bar Antenna: internal Battery capacity: 830mAH Standby time: 75-130 hours (Vary with network environment) Talking time: 120-300 minutes (Vary with network environment)

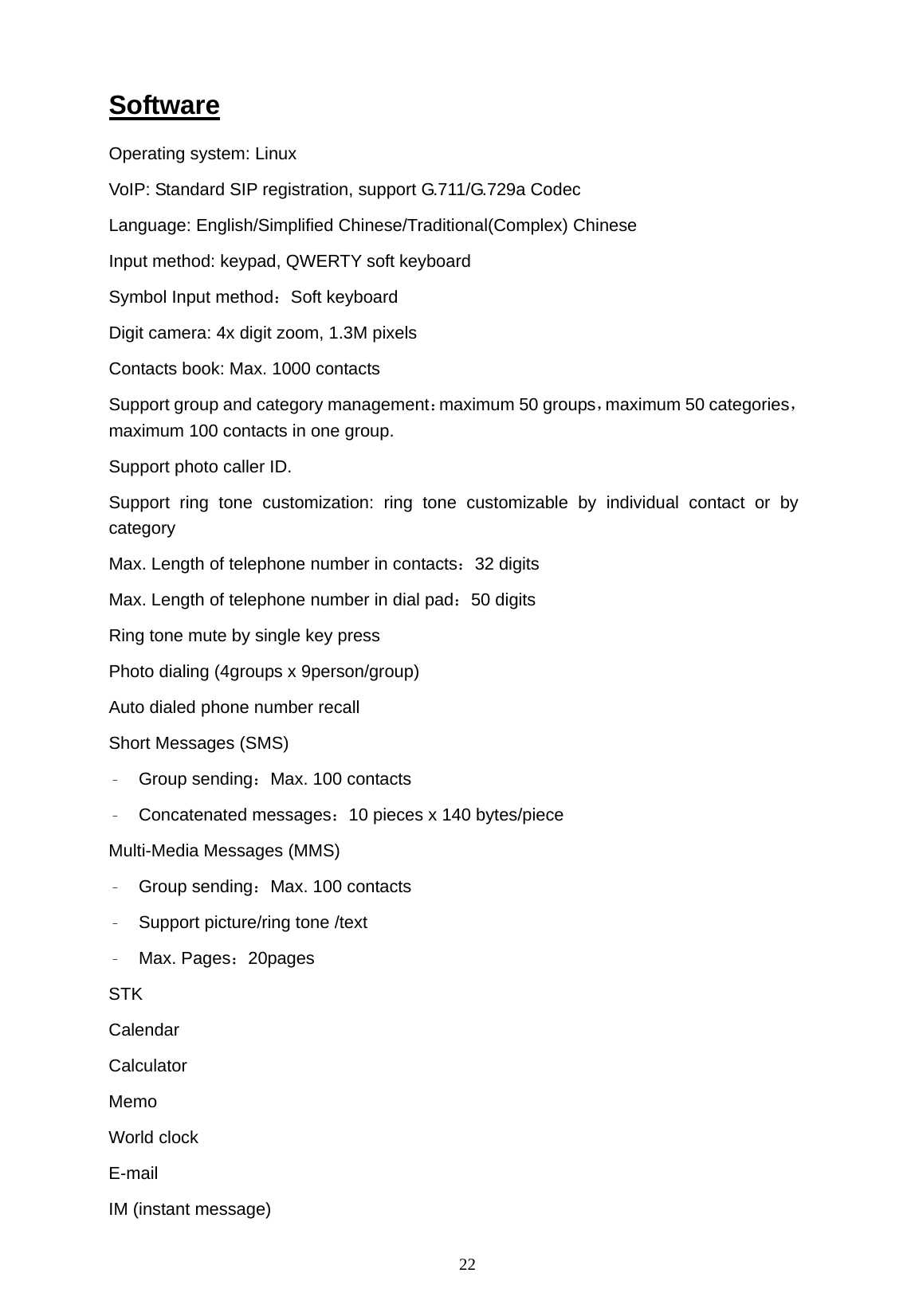

22 Software Operating system: Linux VoIP: Standard SIP registration, support G.711/G.729a Codec Language: English/Simplified Chinese/Traditional(Complex) Chinese Input method: keypad, QWERTY soft keyboard Symbol Input method：Soft keyboard Digit camera: 4x digit zoom, 1.3M pixels Contacts book: Max. 1000 contacts Support group and category management：maximum 50 groups，maximum 50 categories， maximum 100 contacts in one group. Support photo caller ID. Support ring tone customization: ring tone customizable by individual contact or by category Max. Length of telephone number in contacts：32 digits Max. Length of telephone number in dial pad：50 digits Ring tone mute by single key press Photo dialing (4groups x 9person/group) Auto dialed phone number recall Short Messages (SMS) – Group sending：Max. 100 contacts – Concatenated messages：10 pieces x 140 bytes/piece Multi-Media Messages (MMS) – Group sending：Max. 100 contacts – Support picture/ring tone /text – Max. Pages：20pages STK Calendar Calculator Memo World clock E-mail IM (instant message)

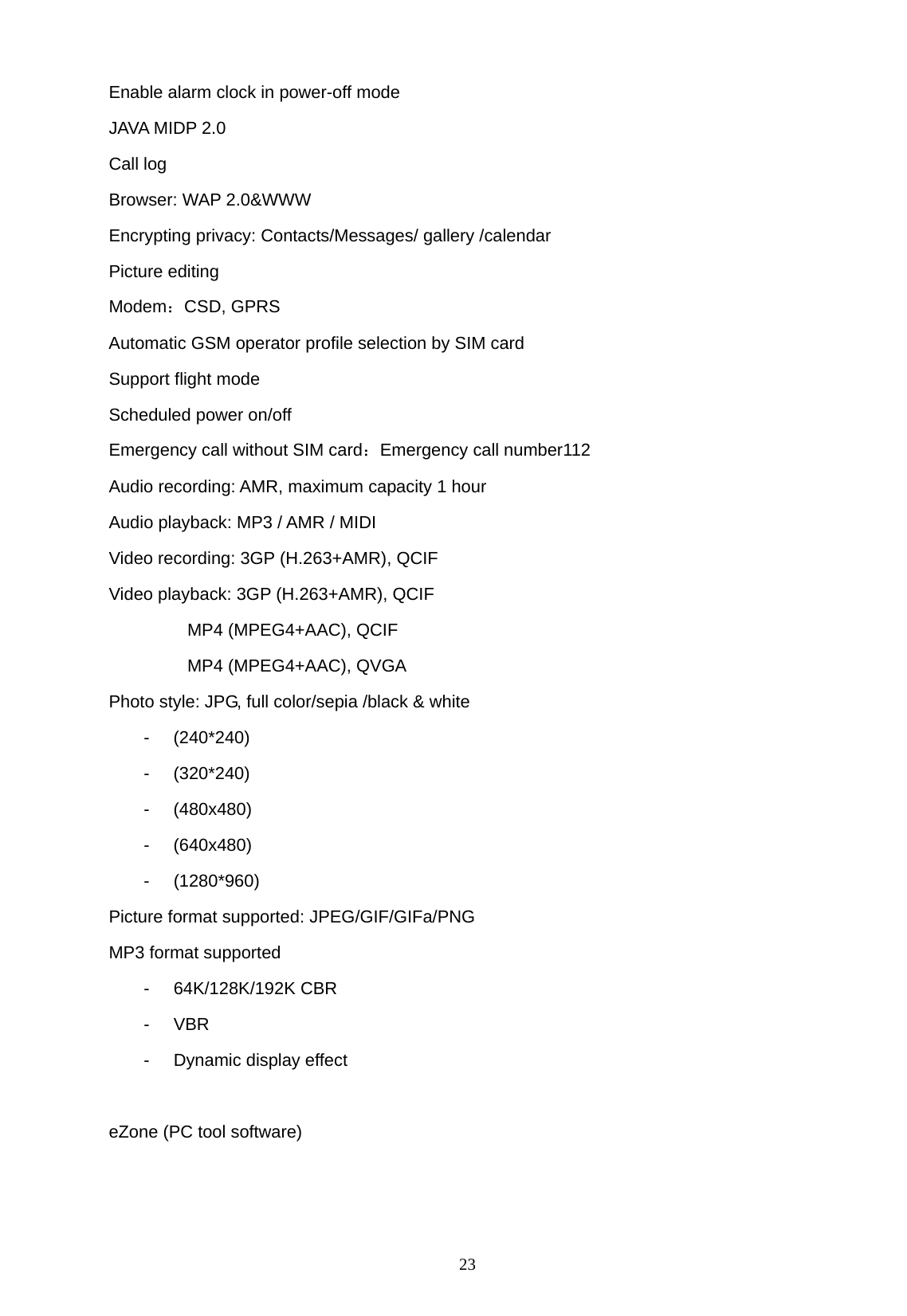

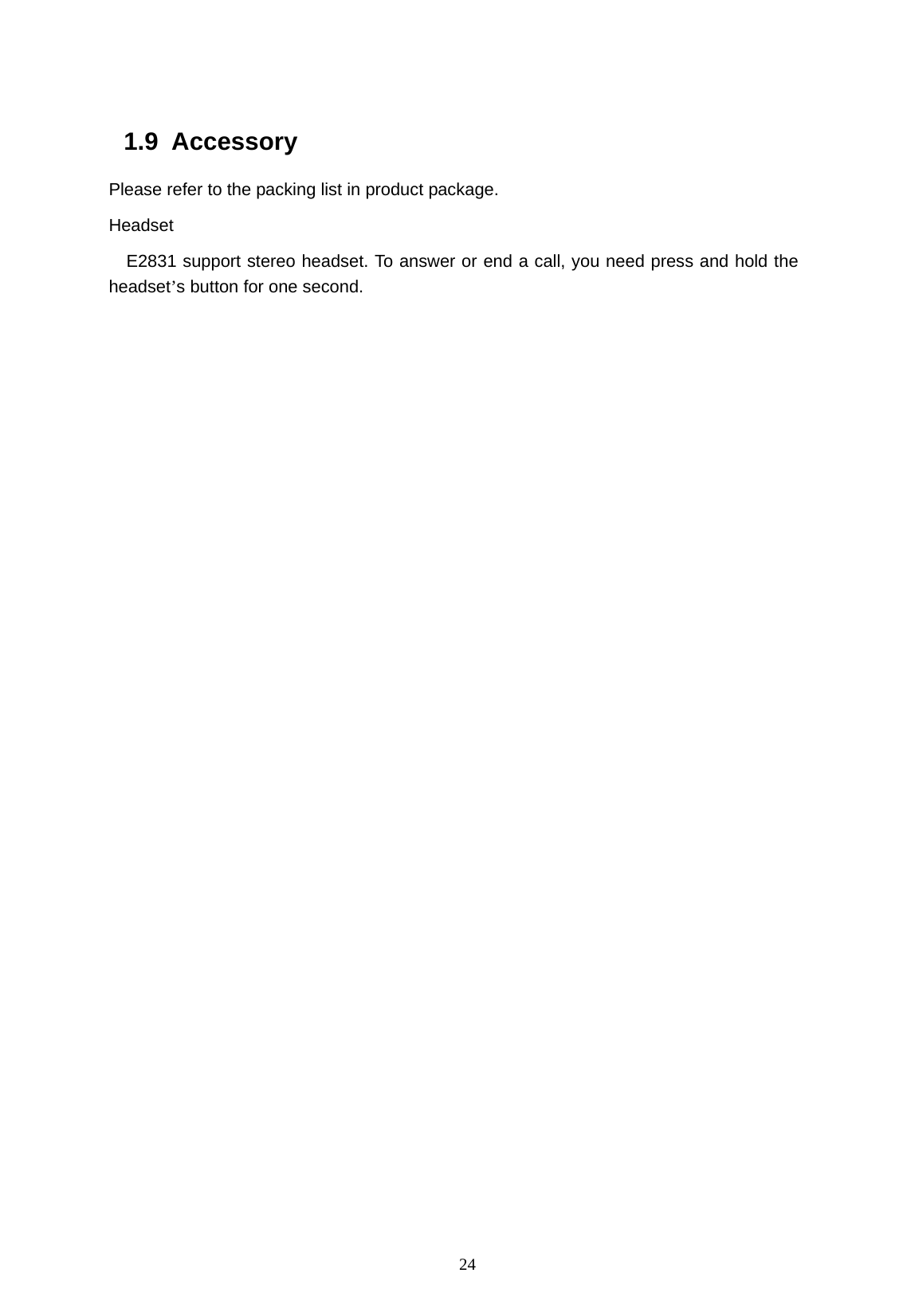

24 1.9 Accessory Please refer to the packing list in product package. Headset E2831 support stereo headset. To answer or end a call, you need press and hold the headset’s button for one second.

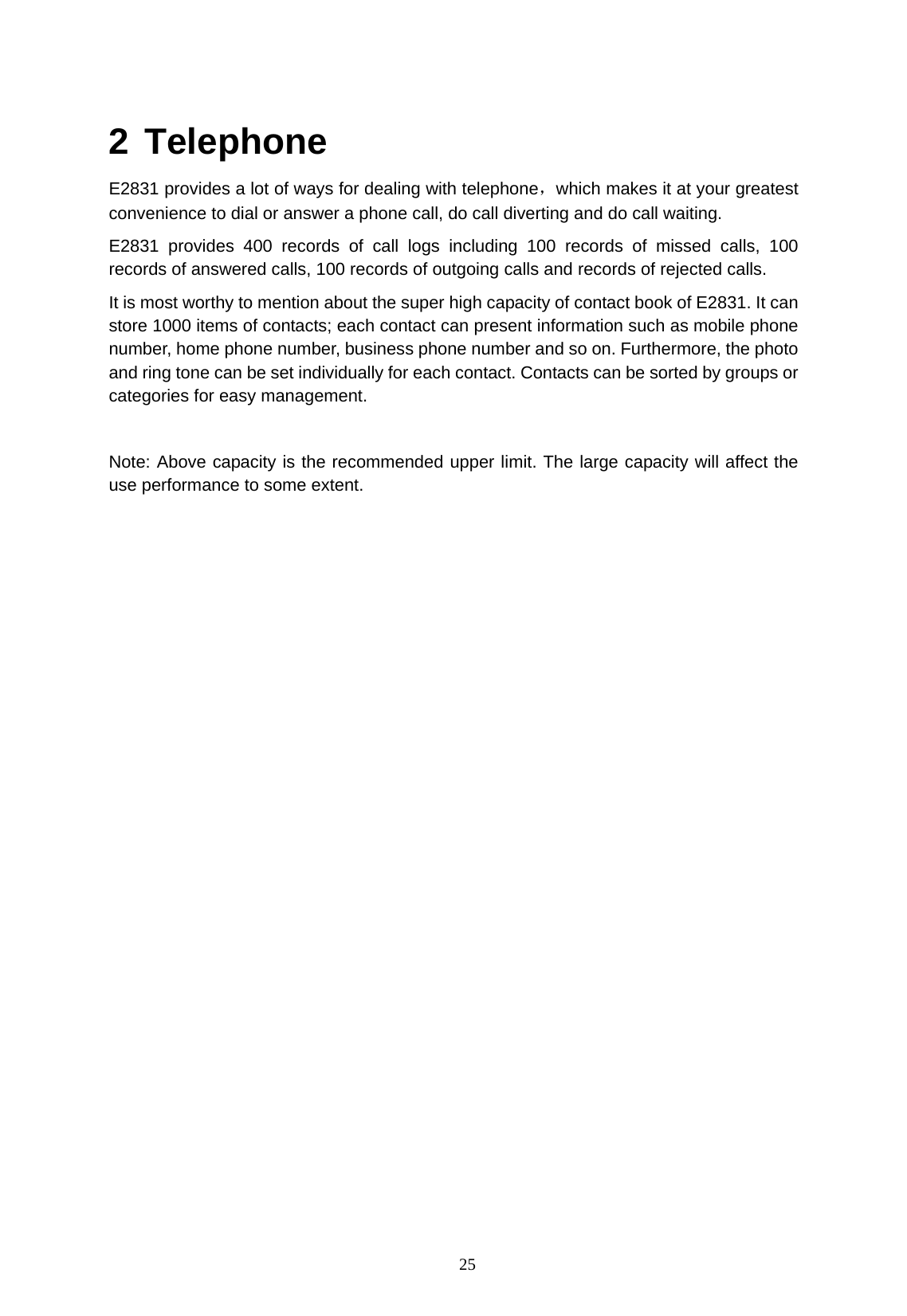

25 2 Telephone E2831 provides a lot of ways for dealing with telephone，which makes it at your greatest convenience to dial or answer a phone call, do call diverting and do call waiting. E2831 provides 400 records of call logs including 100 records of missed calls, 100 records of answered calls, 100 records of outgoing calls and records of rejected calls. It is most worthy to mention about the super high capacity of contact book of E2831. It can store 1000 items of contacts; each contact can present information such as mobile phone number, home phone number, business phone number and so on. Furthermore, the photo and ring tone can be set individually for each contact. Contacts can be sorted by groups or categories for easy management. Note: Above capacity is the recommended upper limit. The large capacity will affect the use performance to some extent.

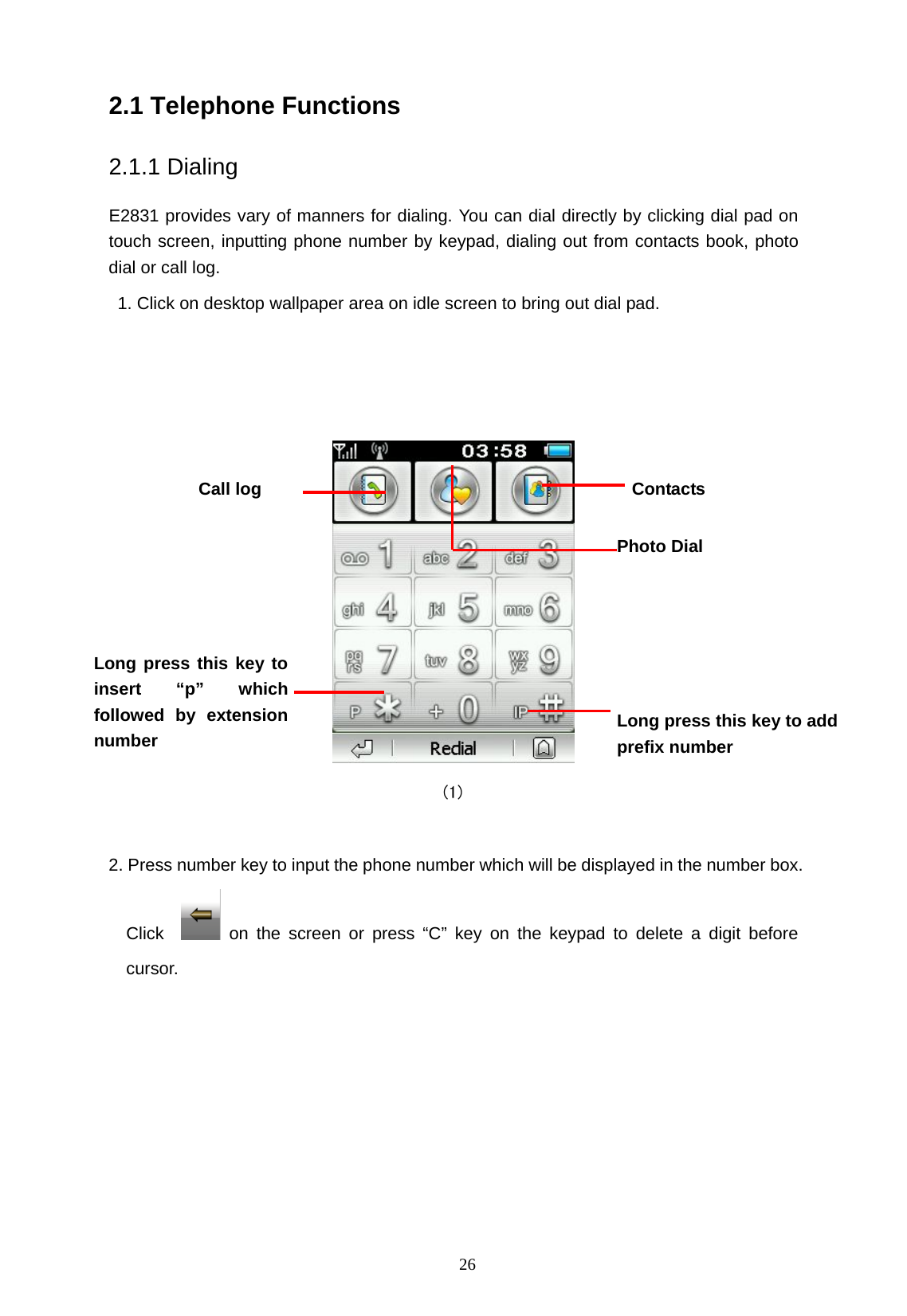

26 2.1 Telephone Functions 2.1.1 Dialing E2831 provides vary of manners for dialing. You can dial directly by clicking dial pad on touch screen, inputting phone number by keypad, dialing out from contacts book, photo dial or call log. 1. Click on desktop wallpaper area on idle screen to bring out dial pad. (1) 2. Press number key to input the phone number which will be displayed in the number box. Click on the screen or press “C” key on the keypad to delete a digit before cursor. Contacts Call log Long press this key to insert “p” which followed by extensionnumber Photo Dial Long press this key to addprefix number

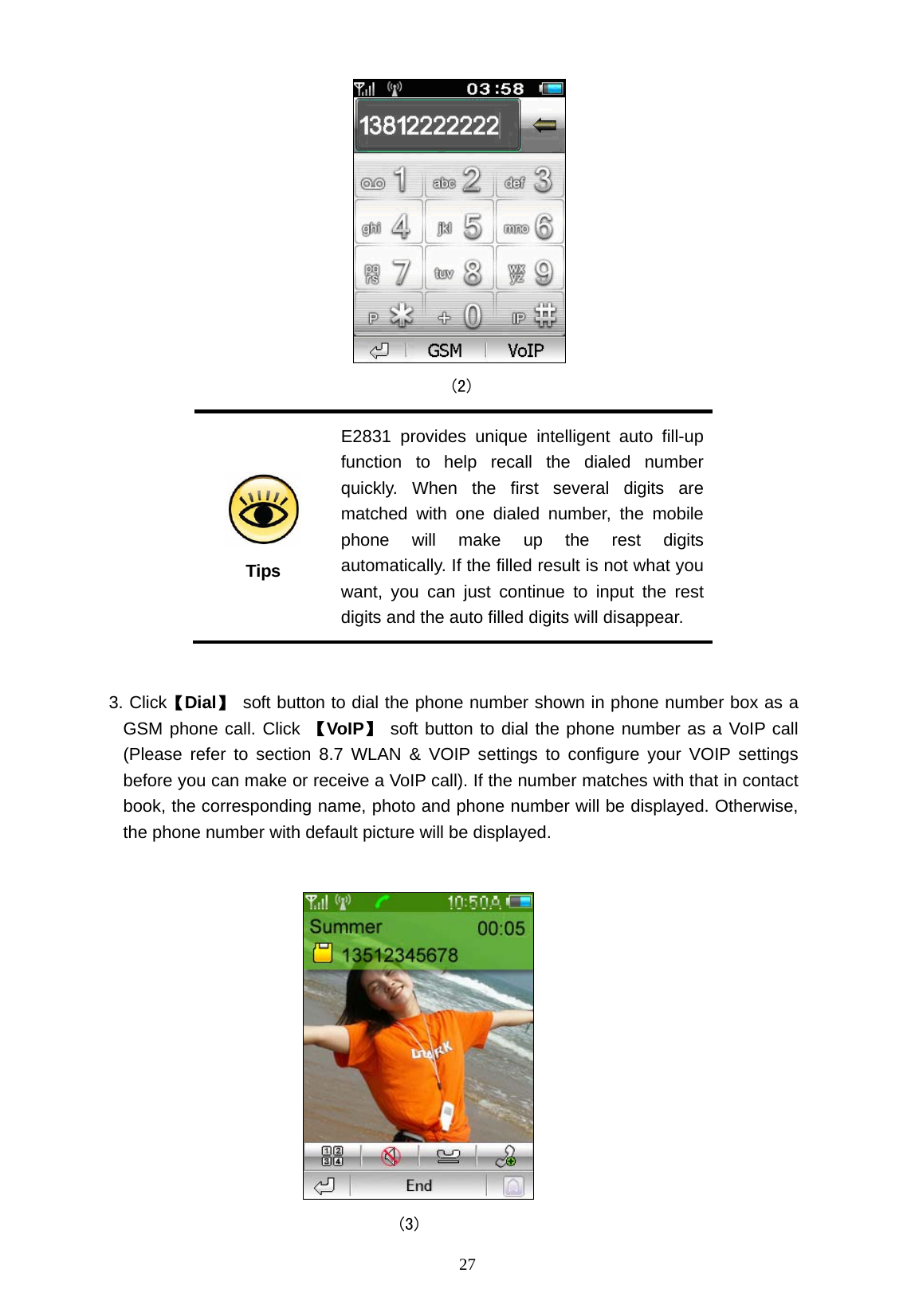

27 (2) Tips E2831 provides unique intelligent auto fill-up function to help recall the dialed number quickly. When the first several digits are matched with one dialed number, the mobile phone will make up the rest digits automatically. If the filled result is not what you want, you can just continue to input the rest digits and the auto filled digits will disappear. 3. Click【Dial】 soft button to dial the phone number shown in phone number box as a GSM phone call. Click 【VoIP】 soft button to dial the phone number as a VoIP call (Please refer to section 8.7 WLAN & VOIP settings to configure your VOIP settings before you can make or receive a VoIP call). If the number matches with that in contact book, the corresponding name, photo and phone number will be displayed. Otherwise, the phone number with default picture will be displayed. (3)

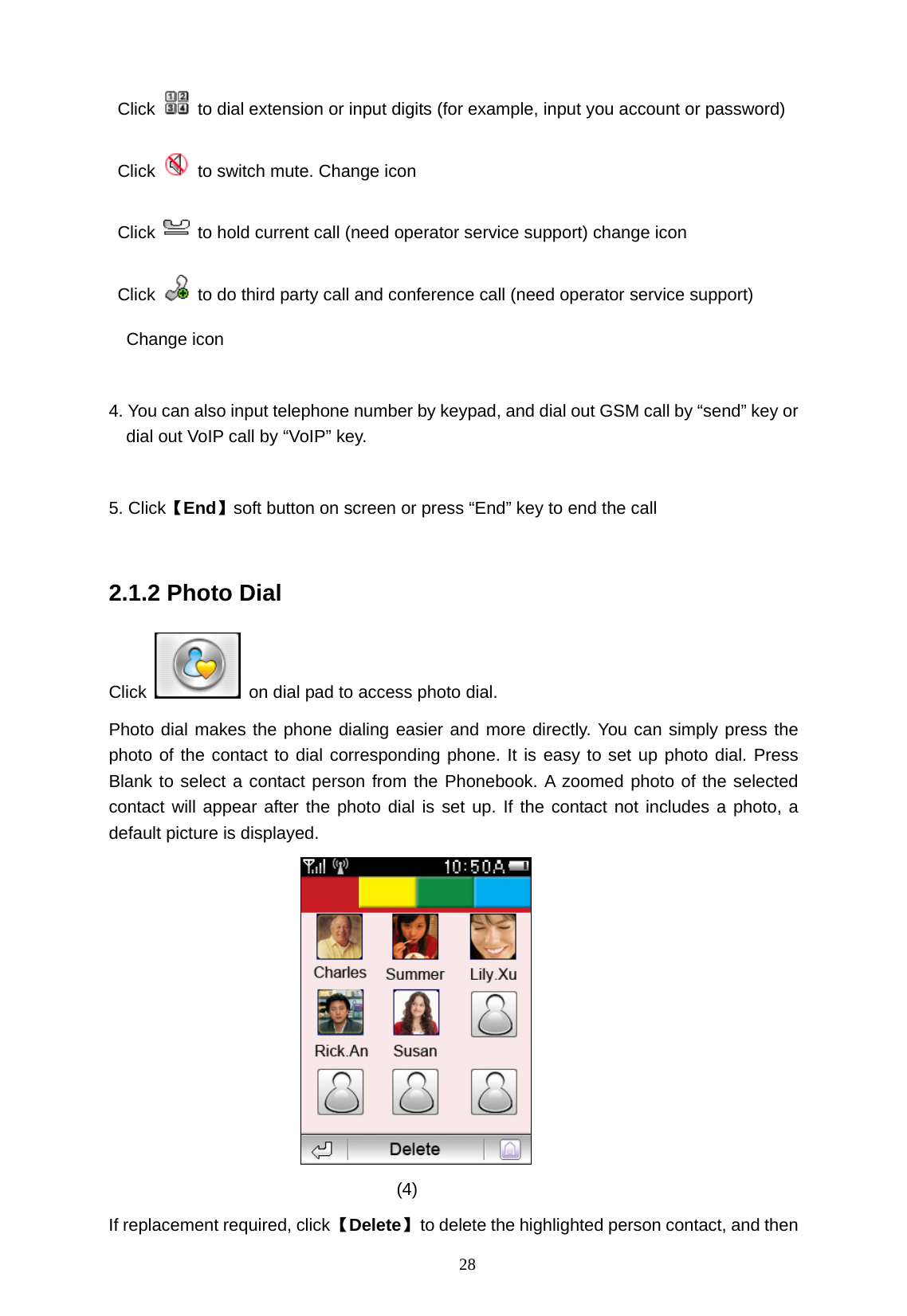

28 Click to dial extension or input digits (for example, input you account or password) Click to switch mute. Change icon Click to hold current call (need operator service support) change icon Click to do third party call and conference call (need operator service support) Change icon 4. You can also input telephone number by keypad, and dial out GSM call by “send” key or dial out VoIP call by “VoIP” key. 5. Click【End】soft button on screen or press “End” key to end the call 2.1.2 Photo Dial Click on dial pad to access photo dial. Photo dial makes the phone dialing easier and more directly. You can simply press the photo of the contact to dial corresponding phone. It is easy to set up photo dial. Press Blank to select a contact person from the Phonebook. A zoomed photo of the selected contact will appear after the photo dial is set up. If the contact not includes a photo, a default picture is displayed. (4) If replacement required, click 【Delete】 to delete the highlighted person contact, and then

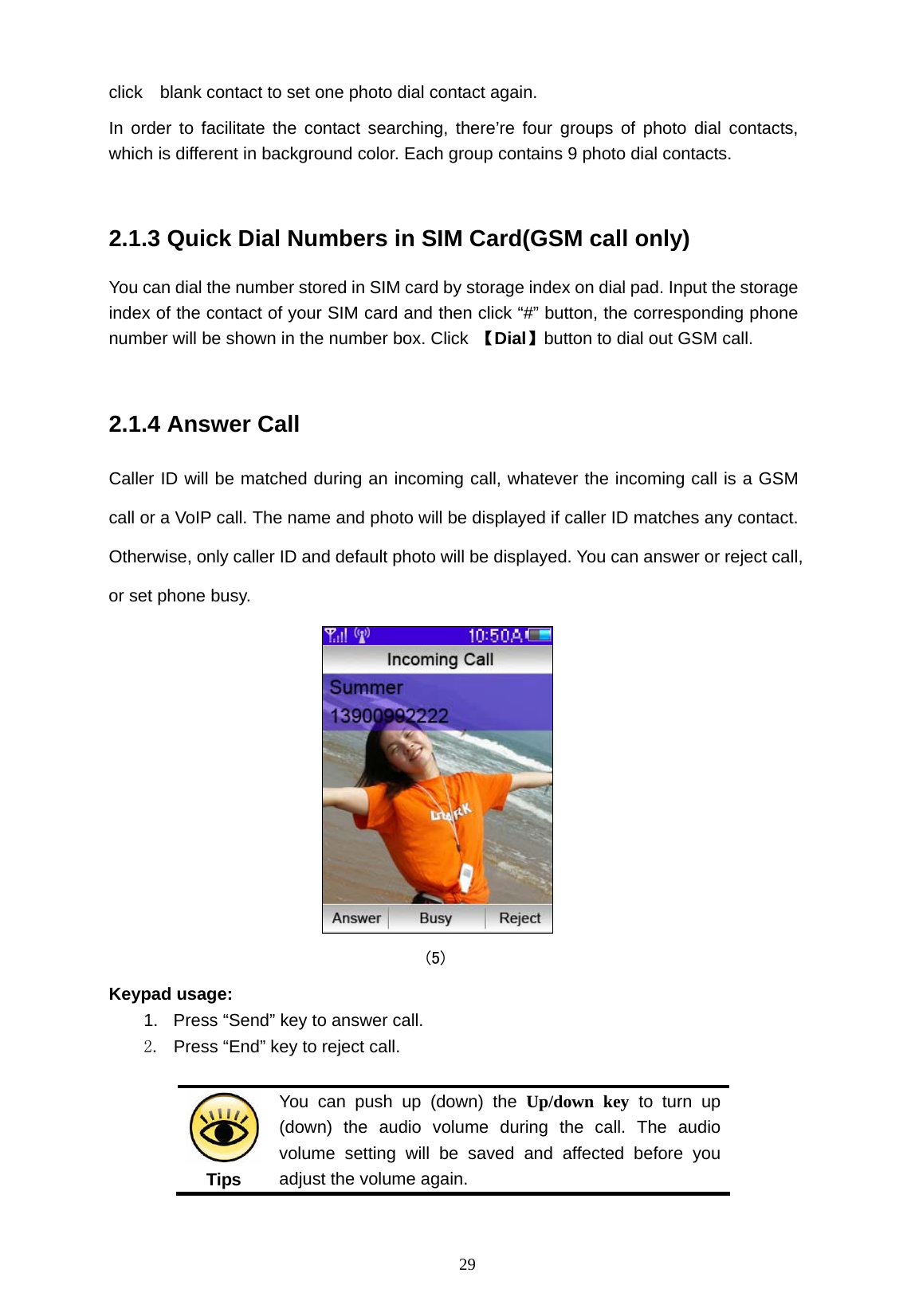

29 click blank contact to set one photo dial contact again. In order to facilitate the contact searching, there’re four groups of photo dial contacts, which is different in background color. Each group contains 9 photo dial contacts. 2.1.3 Quick Dial Numbers in SIM Card(GSM call only) You can dial the number stored in SIM card by storage index on dial pad. Input the storage index of the contact of your SIM card and then click “#” button, the corresponding phone number will be shown in the number box. Click 【Dial】button to dial out GSM call. 2.1.4 Answer Call Caller ID will be matched during an incoming call, whatever the incoming call is a GSM call or a VoIP call. The name and photo will be displayed if caller ID matches any contact. Otherwise, only caller ID and default photo will be displayed. You can answer or reject call, or set phone busy. (5) Keypad usage: 1. Press “Send” key to answer call. 2. Press “End” key to reject call. Tips You can push up (down) the Up/down key to turn up (down) the audio volume during the call. The audio volume setting will be saved and affected before you adjust the volume again.

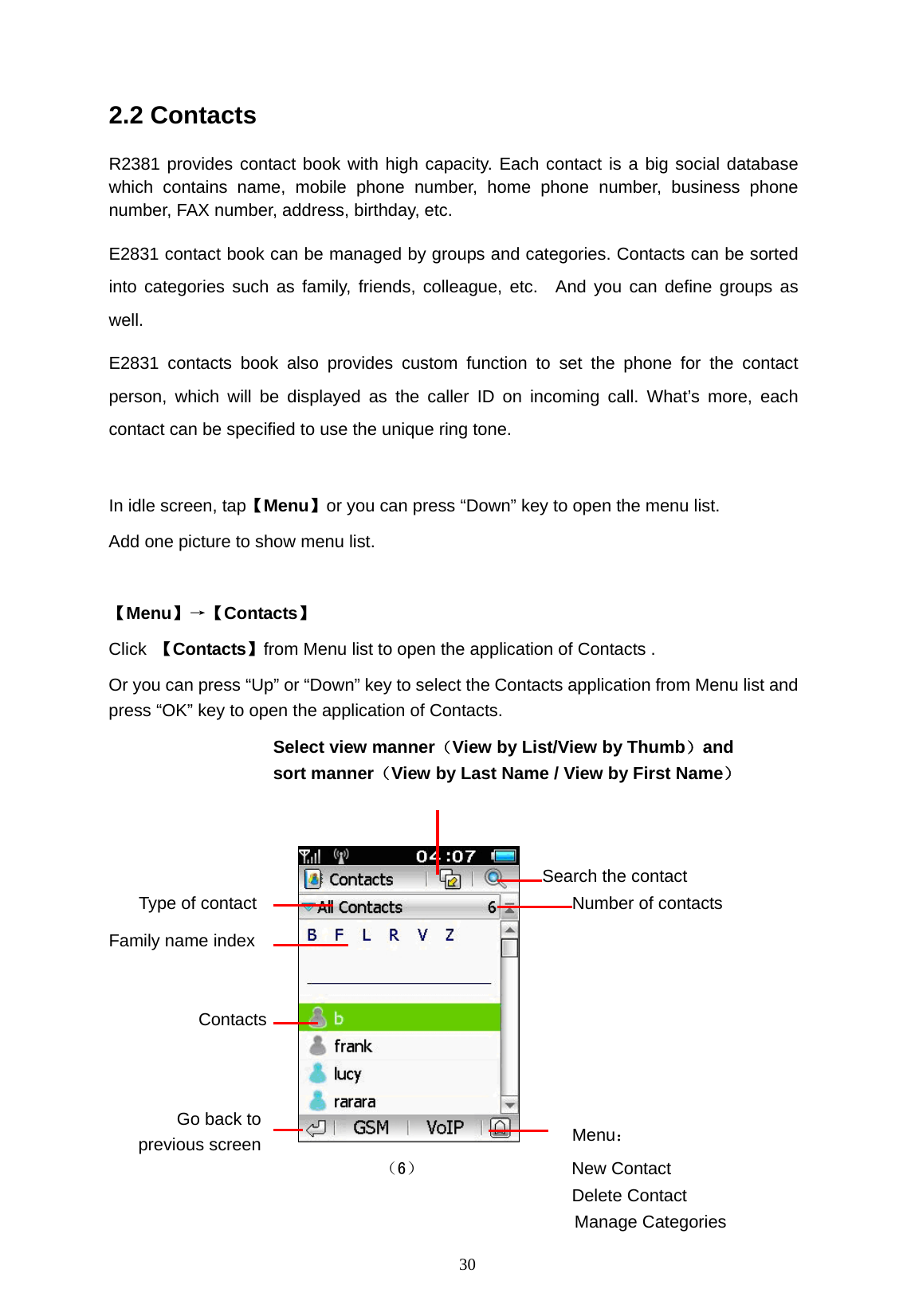

30 2.2 Contacts R2381 provides contact book with high capacity. Each contact is a big social database which contains name, mobile phone number, home phone number, business phone number, FAX number, address, birthday, etc. E2831 contact book can be managed by groups and categories. Contacts can be sorted into categories such as family, friends, colleague, etc. And you can define groups as well. E2831 contacts book also provides custom function to set the phone for the contact person, which will be displayed as the caller ID on incoming call. What’s more, each contact can be specified to use the unique ring tone. In idle screen, tap【Menu】or you can press “Down” key to open the menu list. Add one picture to show menu list. 【Menu】→【Contacts】 Click 【Contacts】from Menu list to open the application of Contacts . Or you can press “Up” or “Down” key to select the Contacts application from Menu list and press “OK” key to open the application of Contacts. Menu：（6） New Contact Delete Contact Manage Categories Type of contact Search the contact Contacts Select view manner（View by List/View by Thumb）and sort manner（View by Last Name / View by First Name） Number of contacts Family name index Go back to previous screen

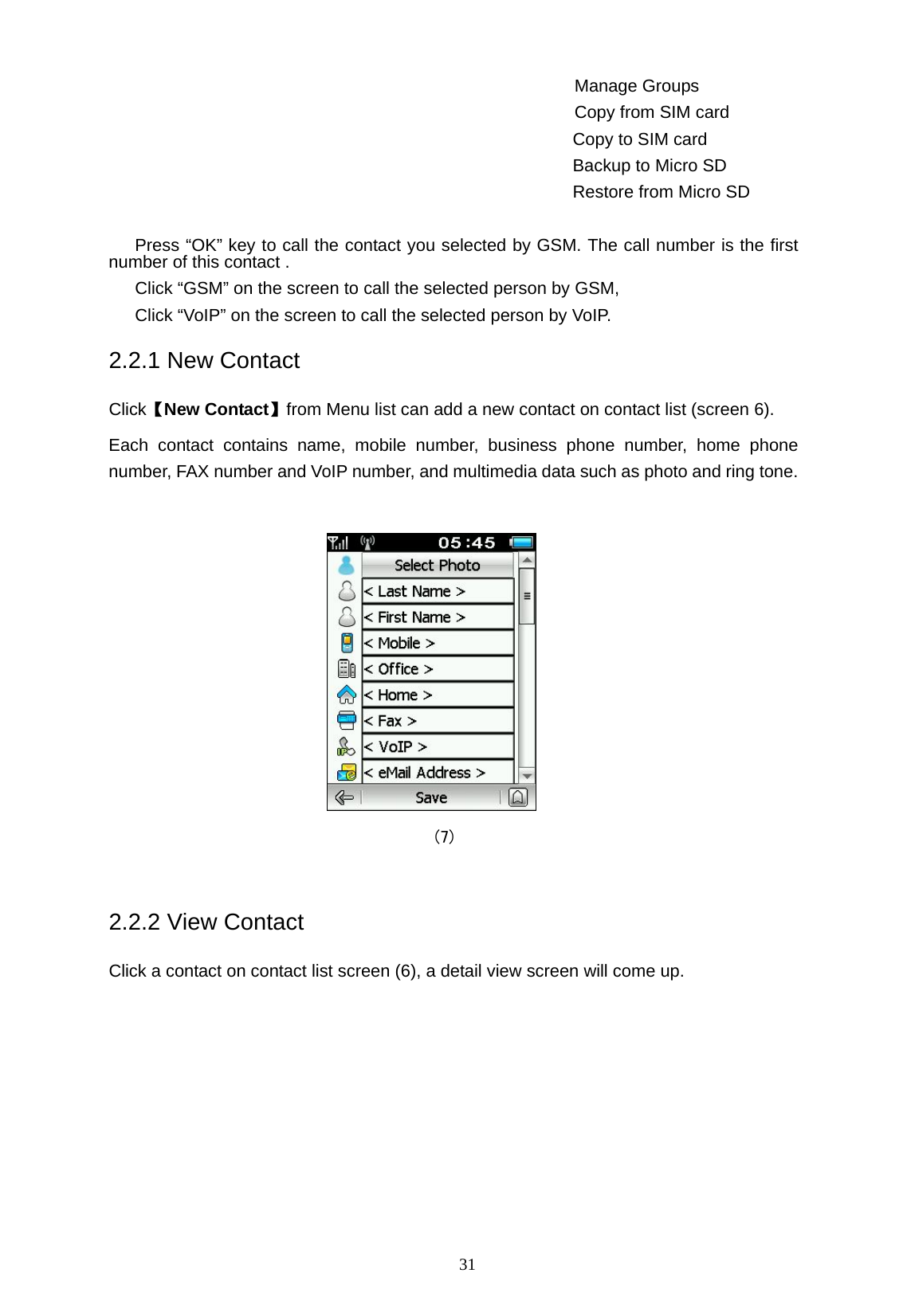

31 Manage Groups Copy from SIM card Copy to SIM card Backup to Micro SD Restore from Micro SD Press “OK” key to call the contact you selected by GSM. The call number is the first number of this contact . Click “GSM” on the screen to call the selected person by GSM, Click “VoIP” on the screen to call the selected person by VoIP. 2.2.1 New Contact Click【New Contact】from Menu list can add a new contact on contact list (screen 6). Each contact contains name, mobile number, business phone number, home phone number, FAX number and VoIP number, and multimedia data such as photo and ring tone. (7) 2.2.2 View Contact Click a contact on contact list screen (6), a detail view screen will come up.

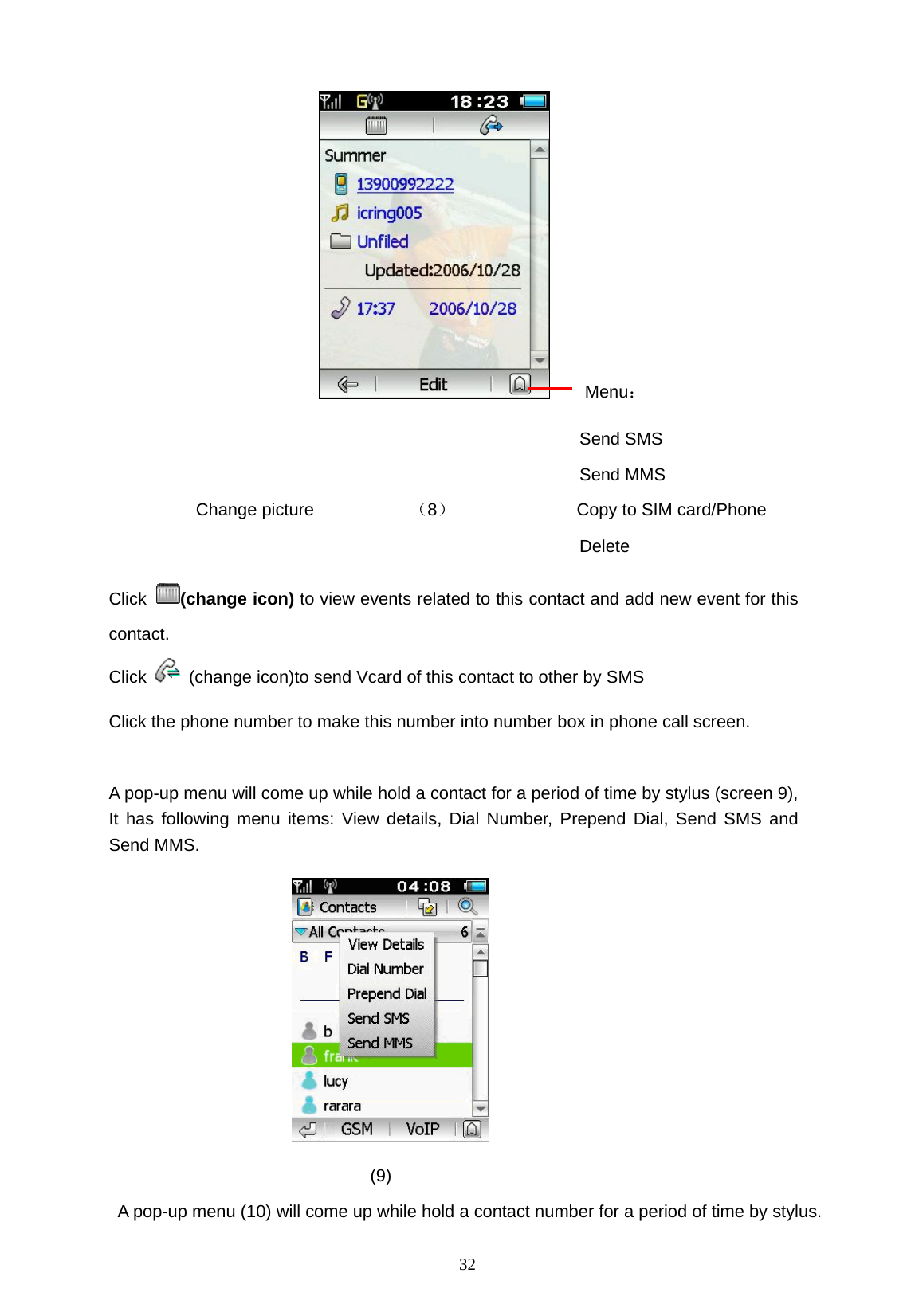

32 Menu： Send SMS Send MMS Change picture （8） Copy to SIM card/Phone Delete Click (change icon) to view events related to this contact and add new event for this contact. Click (change icon)to send Vcard of this contact to other by SMS Click the phone number to make this number into number box in phone call screen. A pop-up menu will come up while hold a contact for a period of time by stylus (screen 9), It has following menu items: View details, Dial Number, Prepend Dial, Send SMS and Send MMS. (9) A pop-up menu (10) will come up while hold a contact number for a period of time by stylus.

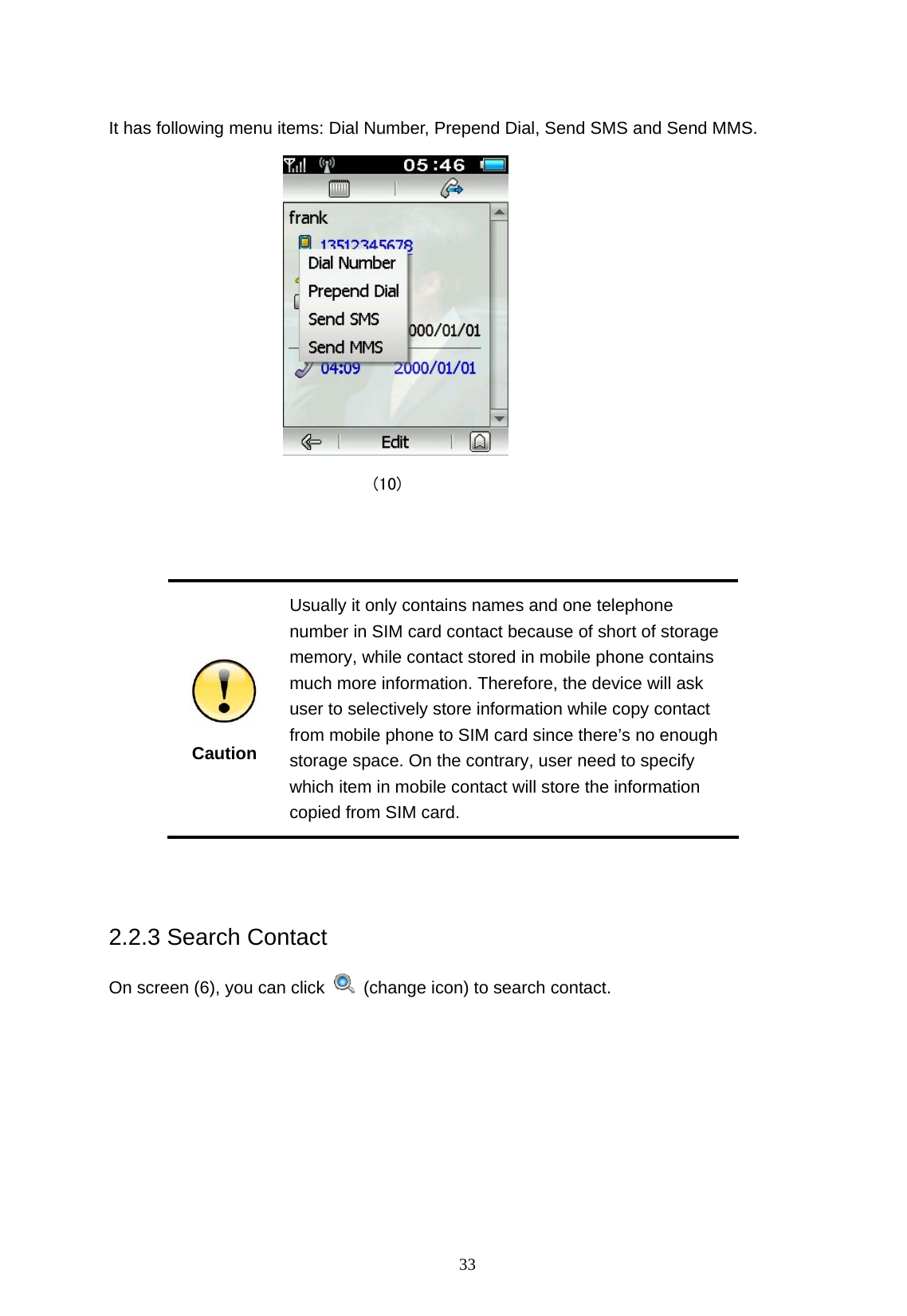

33 It has following menu items: Dial Number, Prepend Dial, Send SMS and Send MMS. (10) Caution Usually it only contains names and one telephone number in SIM card contact because of short of storage memory, while contact stored in mobile phone contains much more information. Therefore, the device will ask user to selectively store information while copy contact from mobile phone to SIM card since there’s no enough storage space. On the contrary, user need to specify which item in mobile contact will store the information copied from SIM card. 2.2.3 Search Contact On screen (6), you can click (change icon) to search contact.

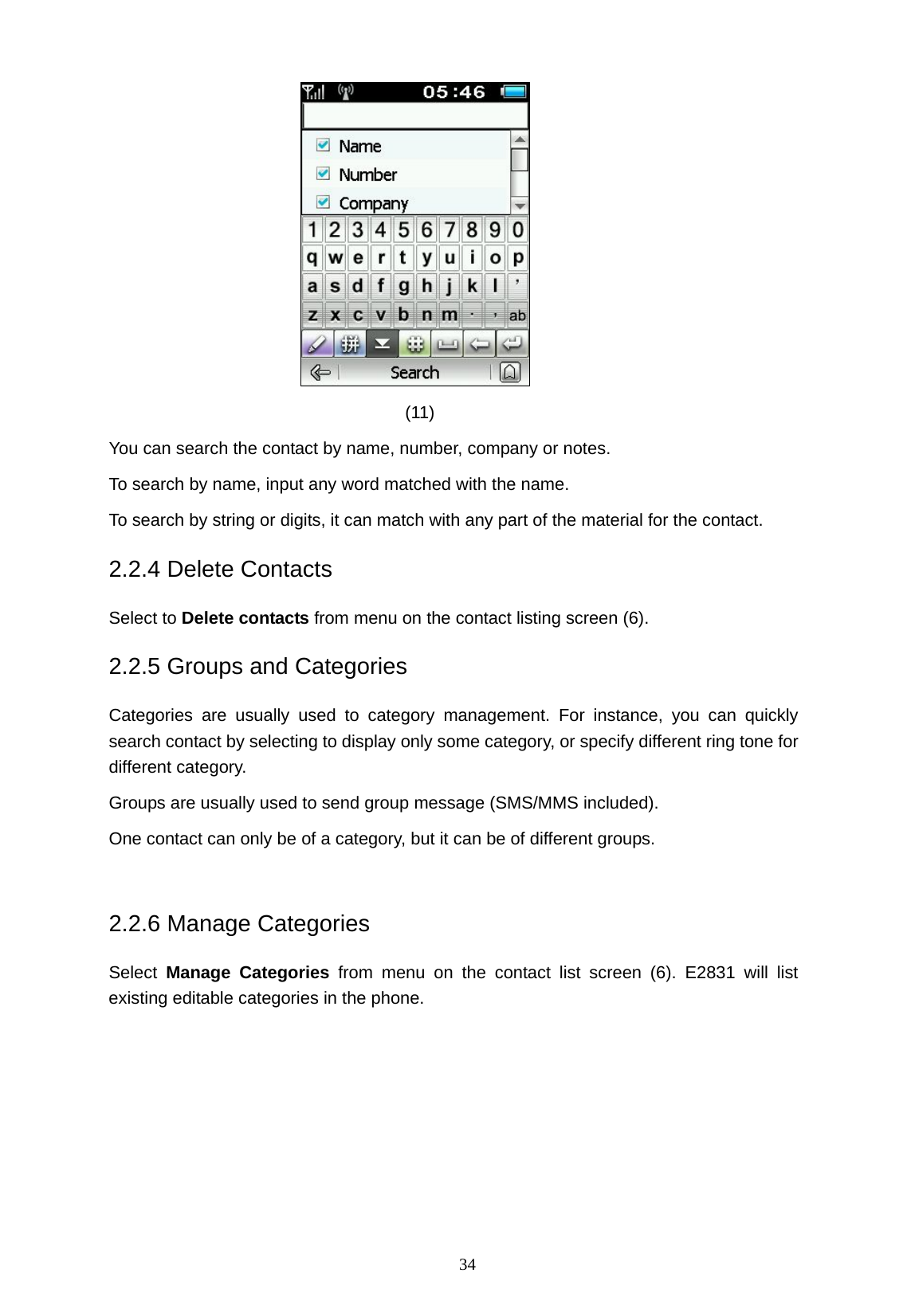

34 (11) You can search the contact by name, number, company or notes. To search by name, input any word matched with the name. To search by string or digits, it can match with any part of the material for the contact. 2.2.4 Delete Contacts Select to Delete contacts from menu on the contact listing screen (6). 2.2.5 Groups and Categories Categories are usually used to category management. For instance, you can quickly search contact by selecting to display only some category, or specify different ring tone for different category. Groups are usually used to send group message (SMS/MMS included). One contact can only be of a category, but it can be of different groups. 2.2.6 Manage Categories Select Manage Categories from menu on the contact list screen (6). E2831 will list existing editable categories in the phone.

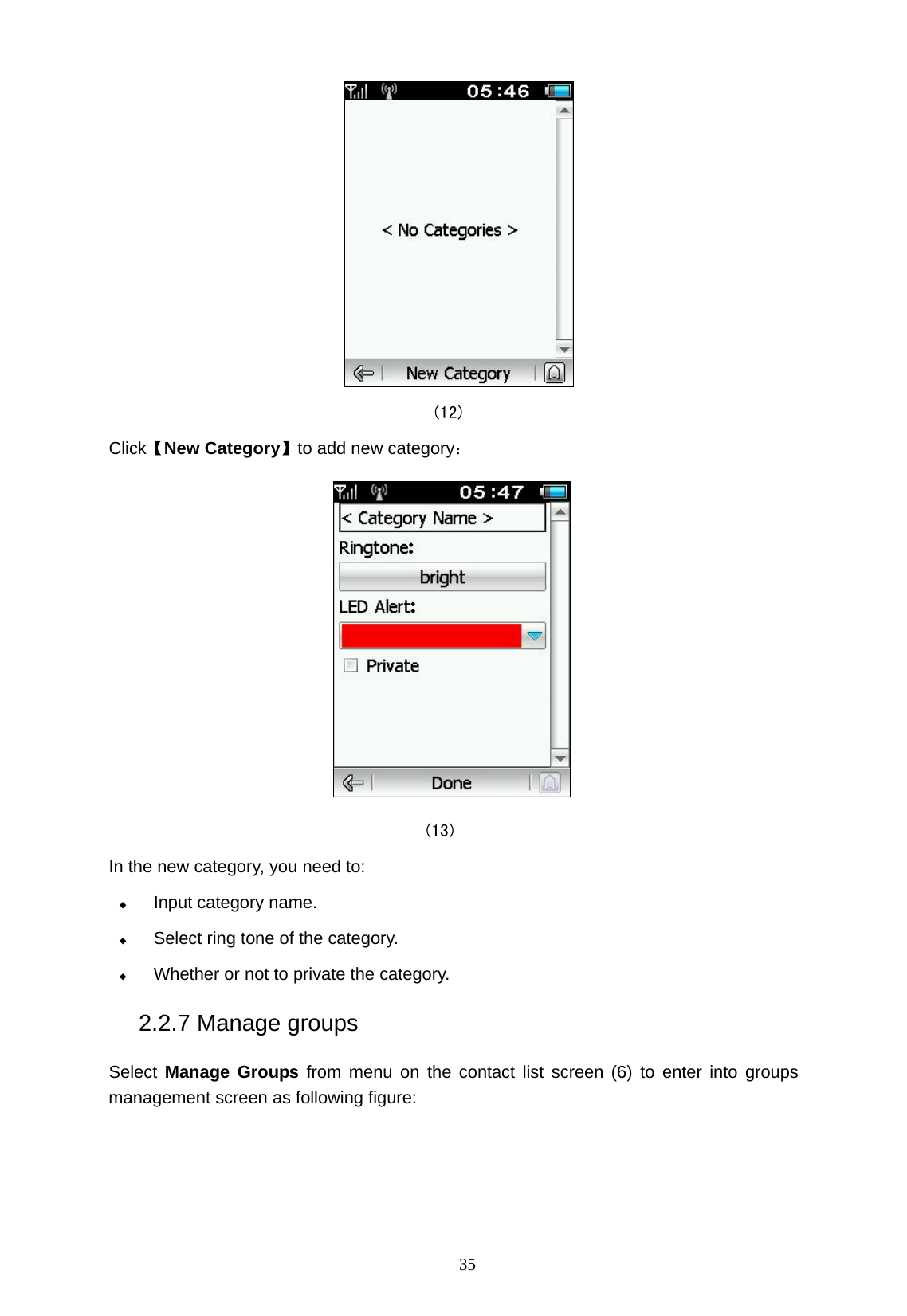

35 (12) Click【New Category】to add new category： (13) In the new category, you need to:  Input category name.  Select ring tone of the category.  Whether or not to private the category. 2.2.7 Manage groups Select Manage Groups from menu on the contact list screen (6) to enter into groups management screen as following figure:

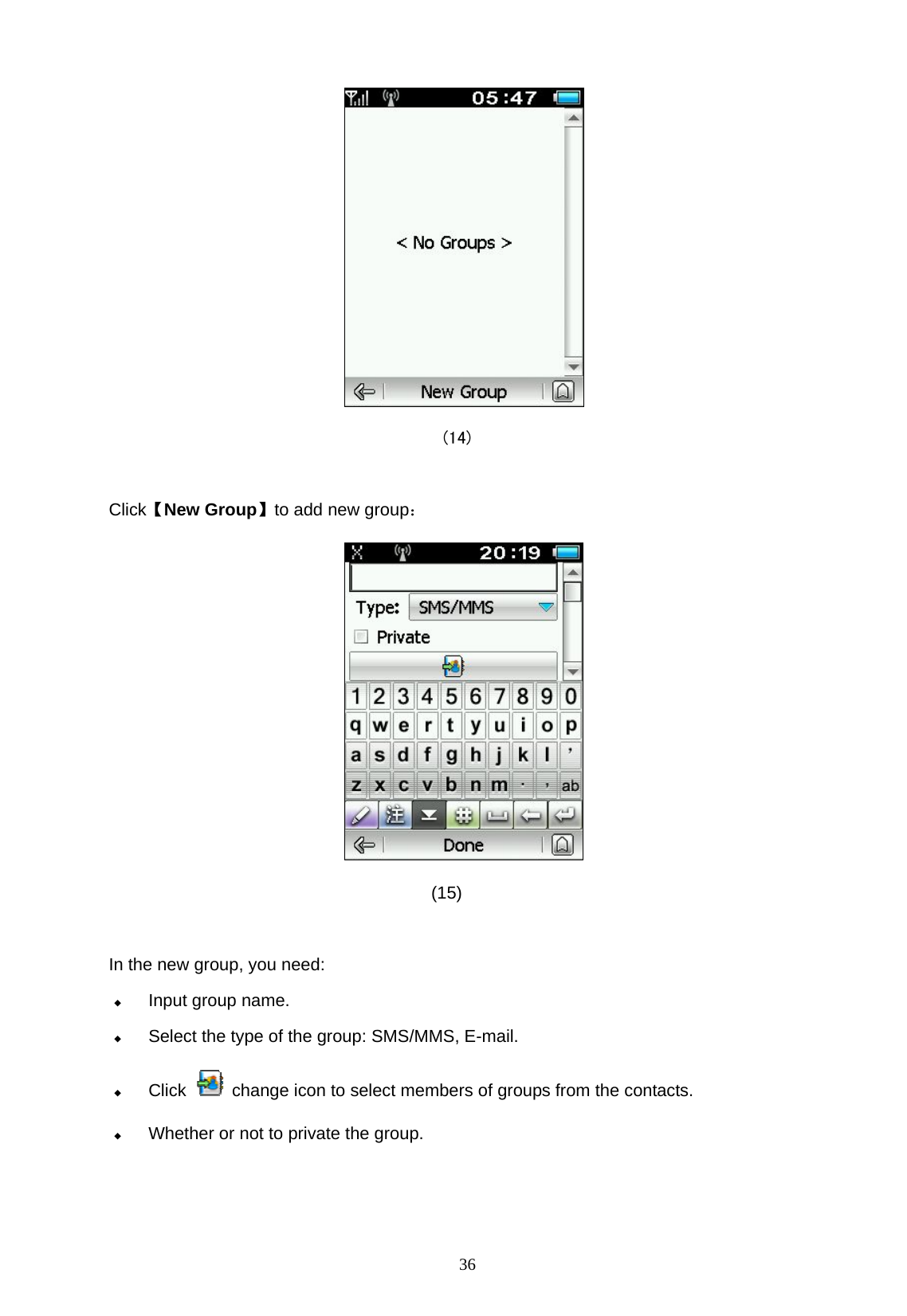

36 (14) Click【New Group】to add new group： (15) In the new group, you need:  Input group name.  Select the type of the group: SMS/MMS, E-mail.  Click change icon to select members of groups from the contacts.  Whether or not to private the group.

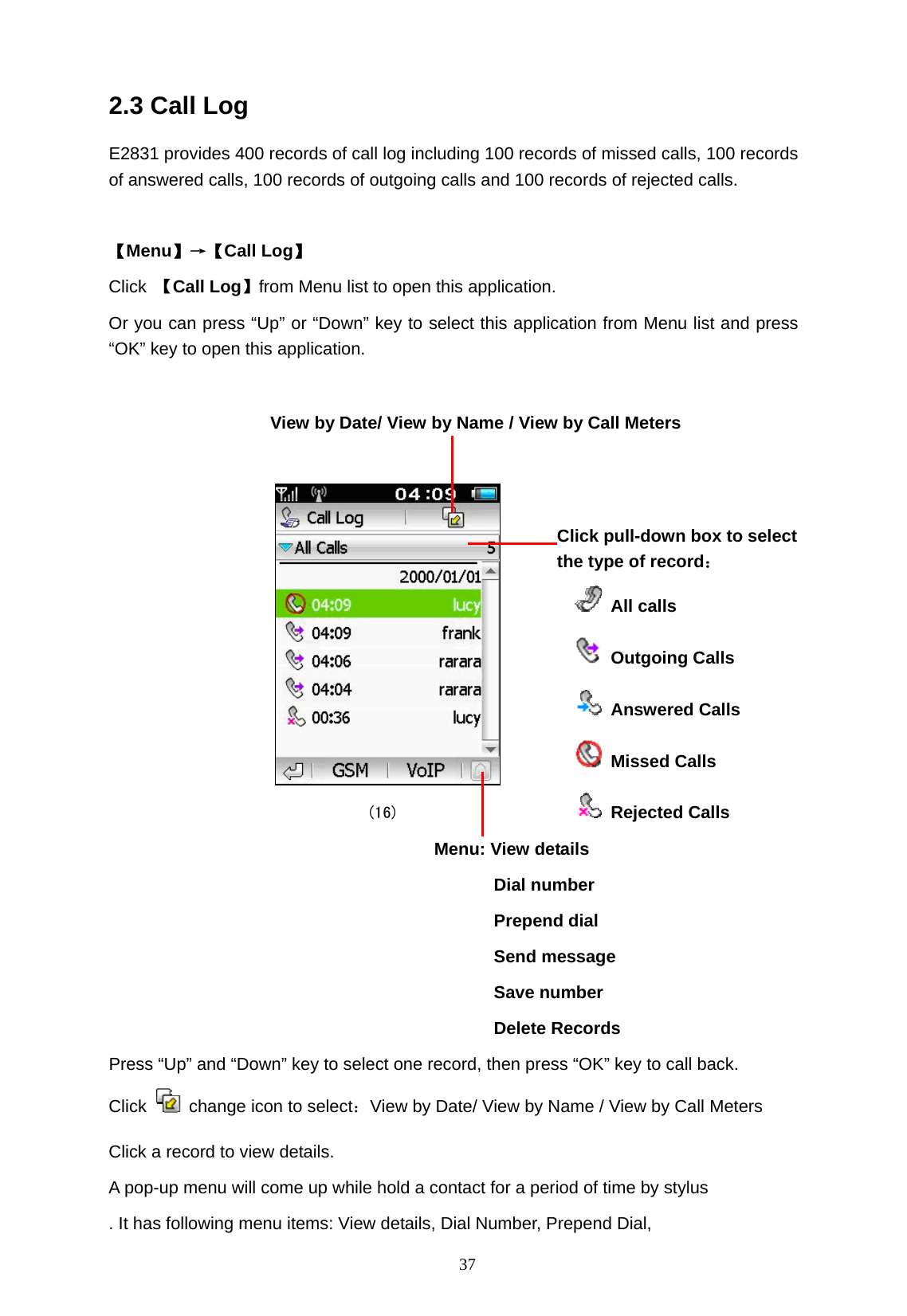

37 2.3 Call Log E2831 provides 400 records of call log including 100 records of missed calls, 100 records of answered calls, 100 records of outgoing calls and 100 records of rejected calls. 【Menu】→【Call Log】 Click 【Call Log】from Menu list to open this application. Or you can press “Up” or “Down” key to select this application from Menu list and press “OK” key to open this application. (16) Menu: View details Dial number Prepend dial Send message Save number Delete Records Press “Up” and “Down” key to select one record, then press “OK” key to call back. Click change icon to select：View by Date/ View by Name / View by Call Meters Click a record to view details. A pop-up menu will come up while hold a contact for a period of time by stylus . It has following menu items: View details, Dial Number, Prepend Dial, View by Date/ View by Name / View by Call Meters Click pull-down box to select the type of record： All calls Outgoing Calls Answered Calls Missed Calls Rejected Calls

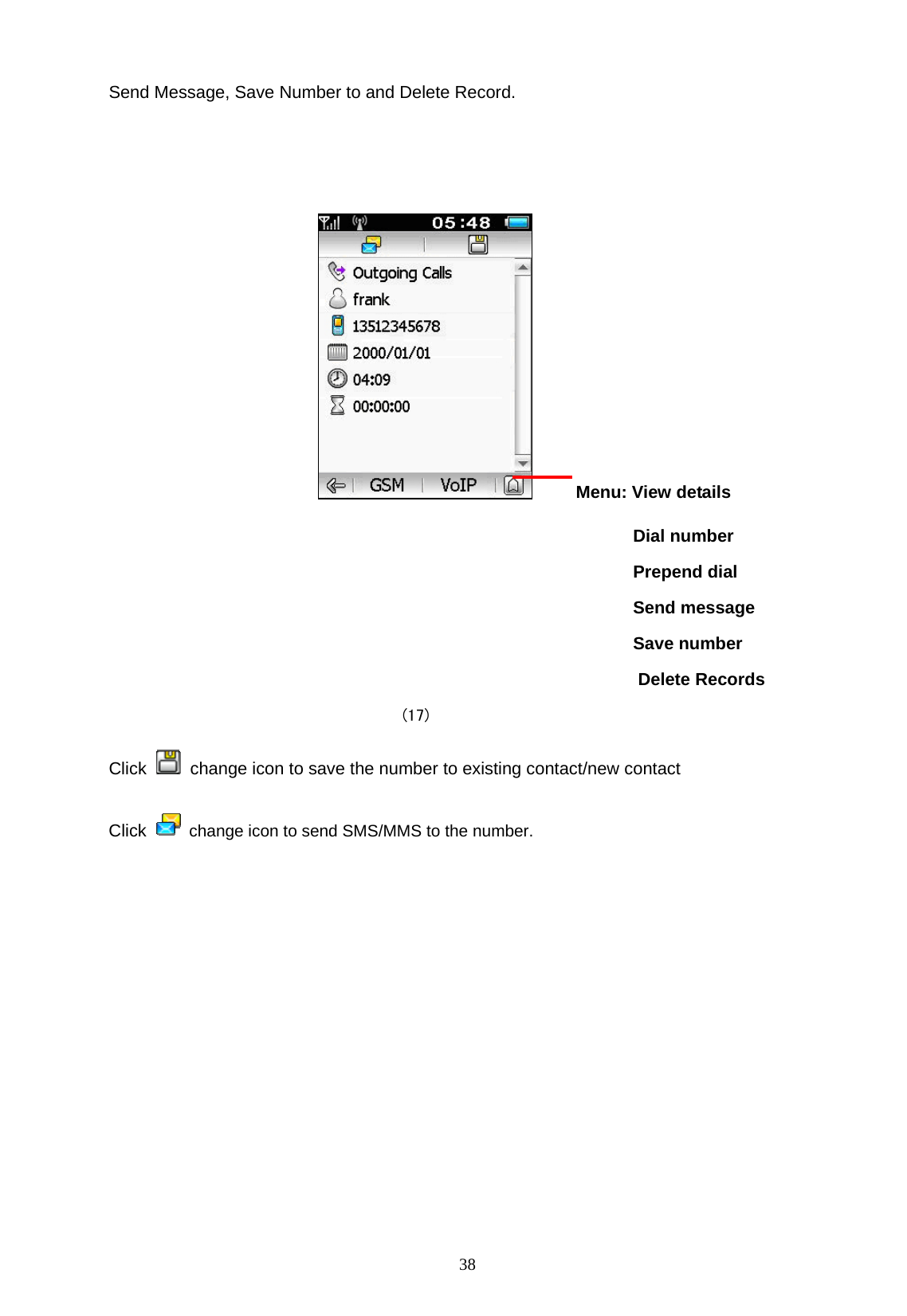

38 Send Message, Save Number to and Delete Record. Menu: View details Dial number Prepend dial Send message Save number Delete Records (17) Click change icon to save the number to existing contact/new contact Click change icon to send SMS/MMS to the number.

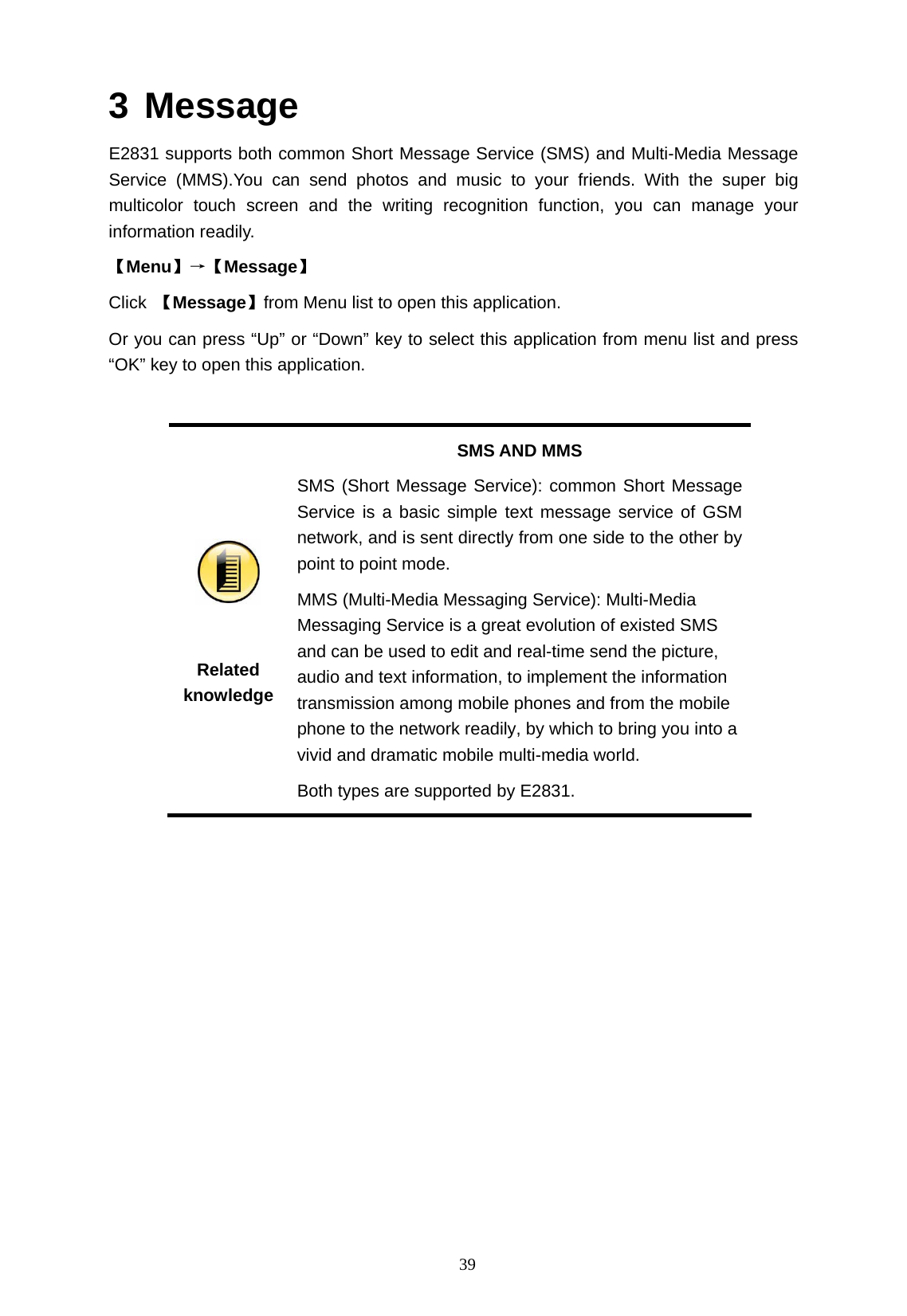

39 3 Message E2831 supports both common Short Message Service (SMS) and Multi-Media Message Service (MMS).You can send photos and music to your friends. With the super big multicolor touch screen and the writing recognition function, you can manage your information readily. 【Menu】→【Message】 Click 【Message】from Menu list to open this application. Or you can press “Up” or “Down” key to select this application from menu list and press “OK” key to open this application. Related knowledge SMS AND MMS SMS (Short Message Service): common Short Message Service is a basic simple text message service of GSM network, and is sent directly from one side to the other by point to point mode. MMS (Multi-Media Messaging Service): Multi-Media Messaging Service is a great evolution of existed SMS and can be used to edit and real-time send the picture, audio and text information, to implement the information transmission among mobile phones and from the mobile phone to the network readily, by which to bring you into a vivid and dramatic mobile multi-media world. Both types are supported by E2831.

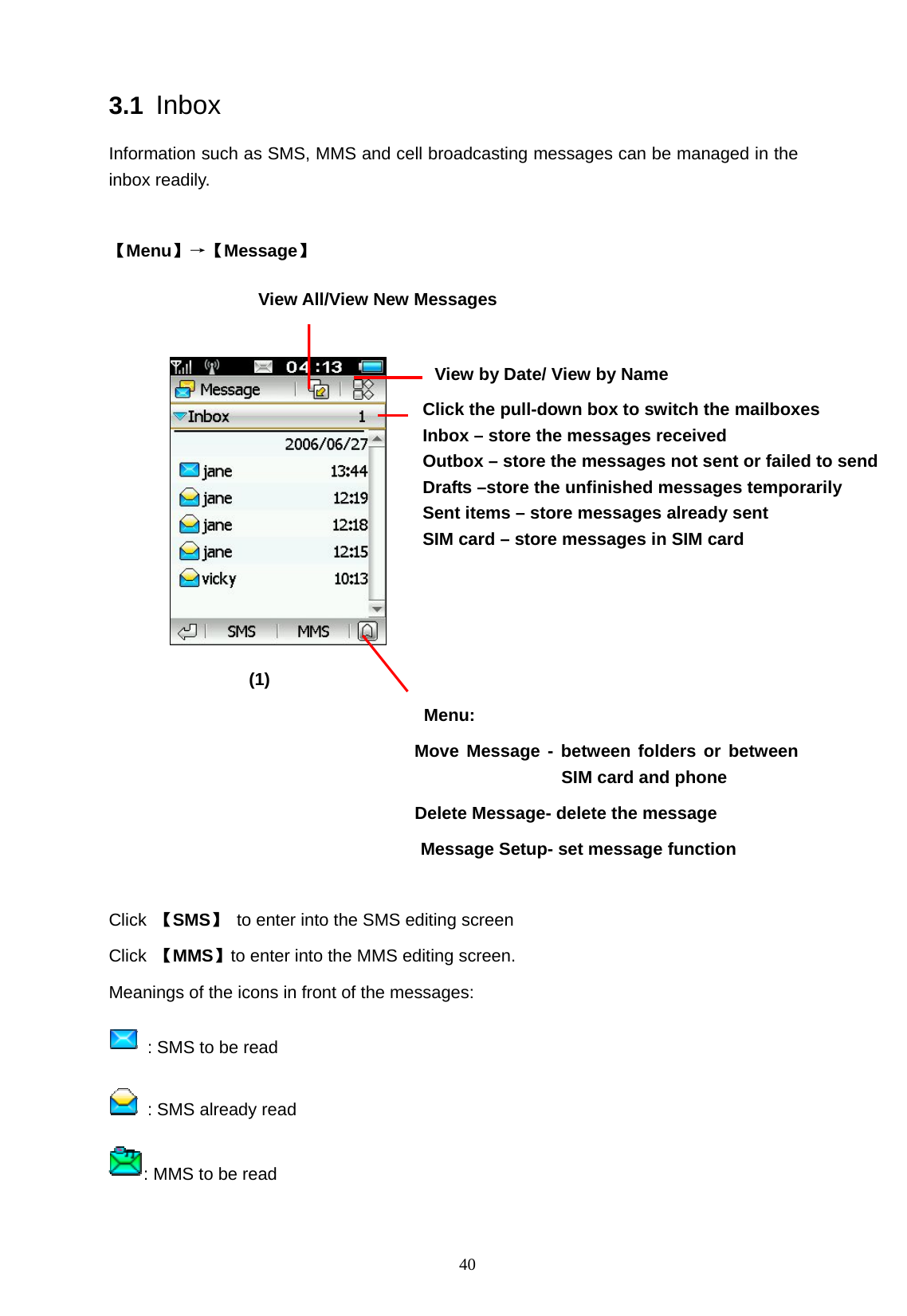

40 3.1 Inbox Information such as SMS, MMS and cell broadcasting messages can be managed in the inbox readily. 【Menu】→【Message】 (1) Menu: Move Message - between folders or between SIM card and phone Delete Message- delete the message Message Setup- set message function Click 【SMS】 to enter into the SMS editing screen Click 【MMS】to enter into the MMS editing screen. Meanings of the icons in front of the messages: : SMS to be read : SMS already read : MMS to be read Click the pull-down box to switch the mailboxes Inbox – store the messages received Outbox – store the messages not sent or failed to send Drafts –store the unfinished messages temporarily Sent items – store messages already sent SIM card – store messages in SIM card View All/View New Messages View by Date/ View by Name

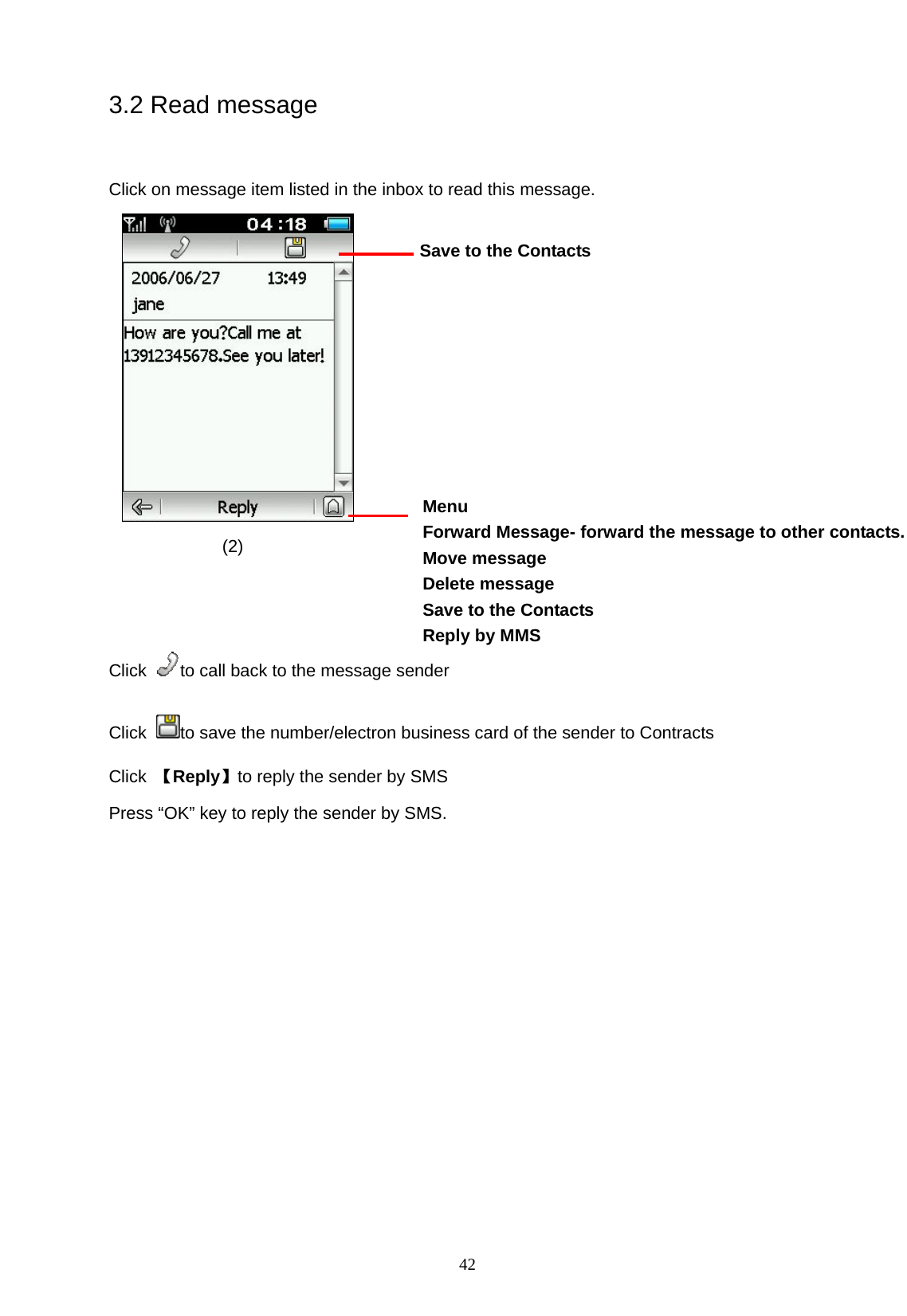

42 3.2 Read message Click on message item listed in the inbox to read this message. (2) Click to call back to the message sender Click to save the number/electron business card of the sender to Contracts Click 【Reply】to reply the sender by SMS Press “OK” key to reply the sender by SMS. Menu Forward Message- forward the message to other contacts. Move message Delete message Save to the Contacts Reply by MMS Save to the Contacts

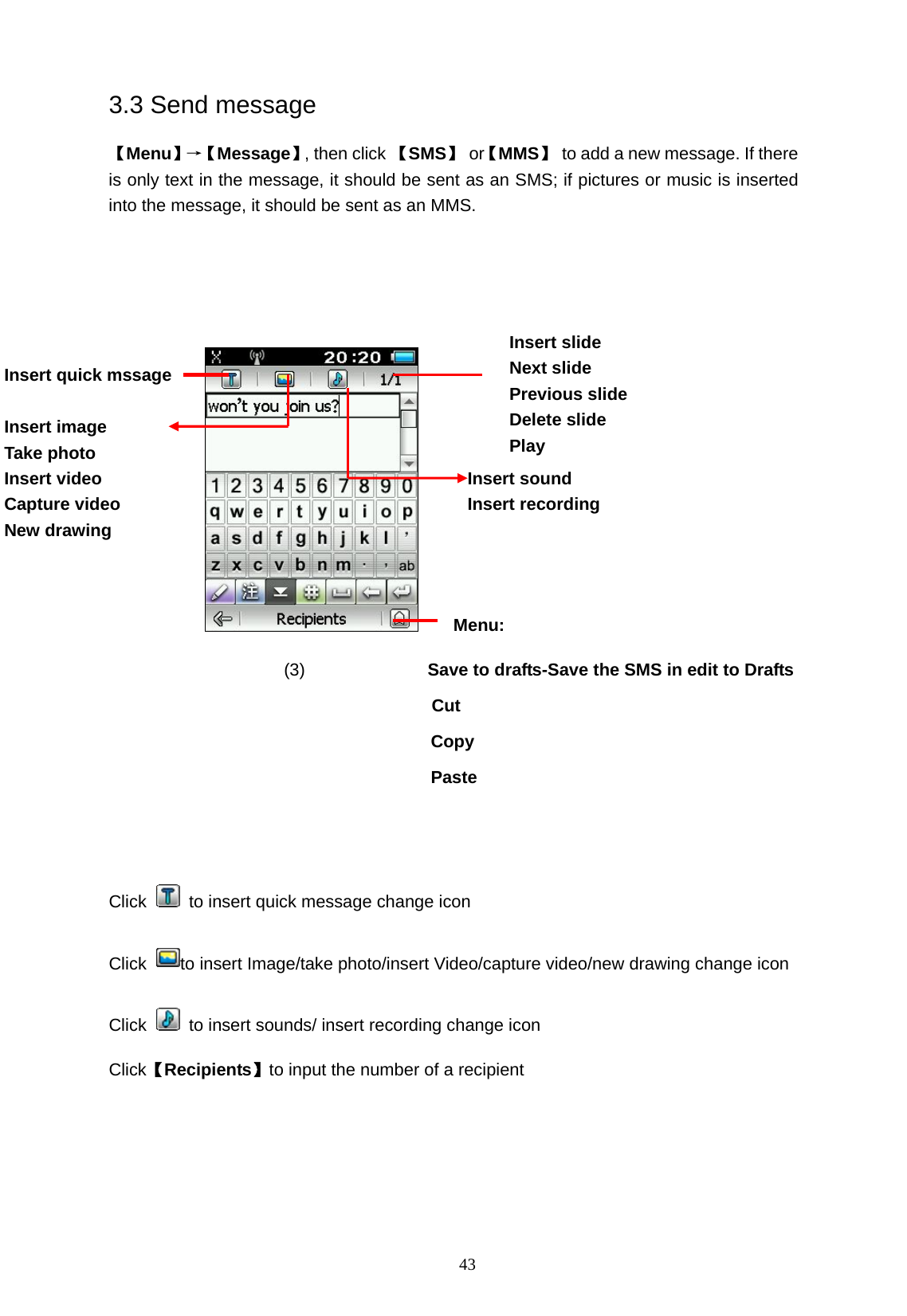

43 3.3 Send message 【Menu】→【 Message】, then click 【SMS】 or【MMS】 to add a new message. If there is only text in the message, it should be sent as an SMS; if pictures or music is inserted into the message, it should be sent as an MMS. Menu: (3) Save to drafts-Save the SMS in edit to Drafts Cut Copy Paste Click to insert quick message change icon Click to insert Image/take photo/insert Video/capture video/new drawing change icon Click to insert sounds/ insert recording change icon Click【Recipients】to input the number of a recipient Insert sound Insert recording Insert slide Next slide Previous slide Delete slide Play Insert quick mssage Insert image Take photo Insert video Capture video New drawing

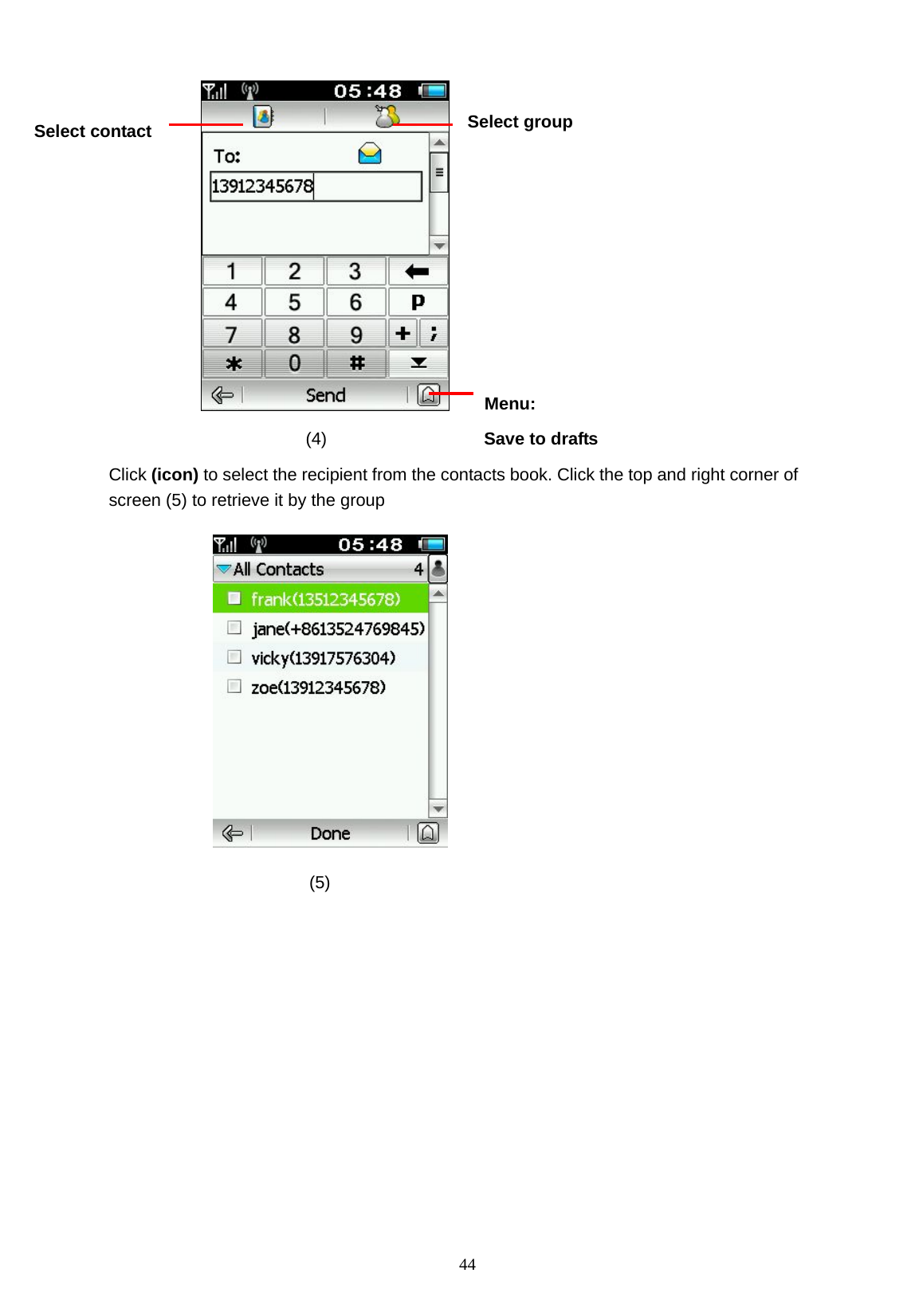

44 Menu: (4) Save to drafts Click (icon) to select the recipient from the contacts book. Click the top and right corner of screen (5) to retrieve it by the group (5) Select contact Select group

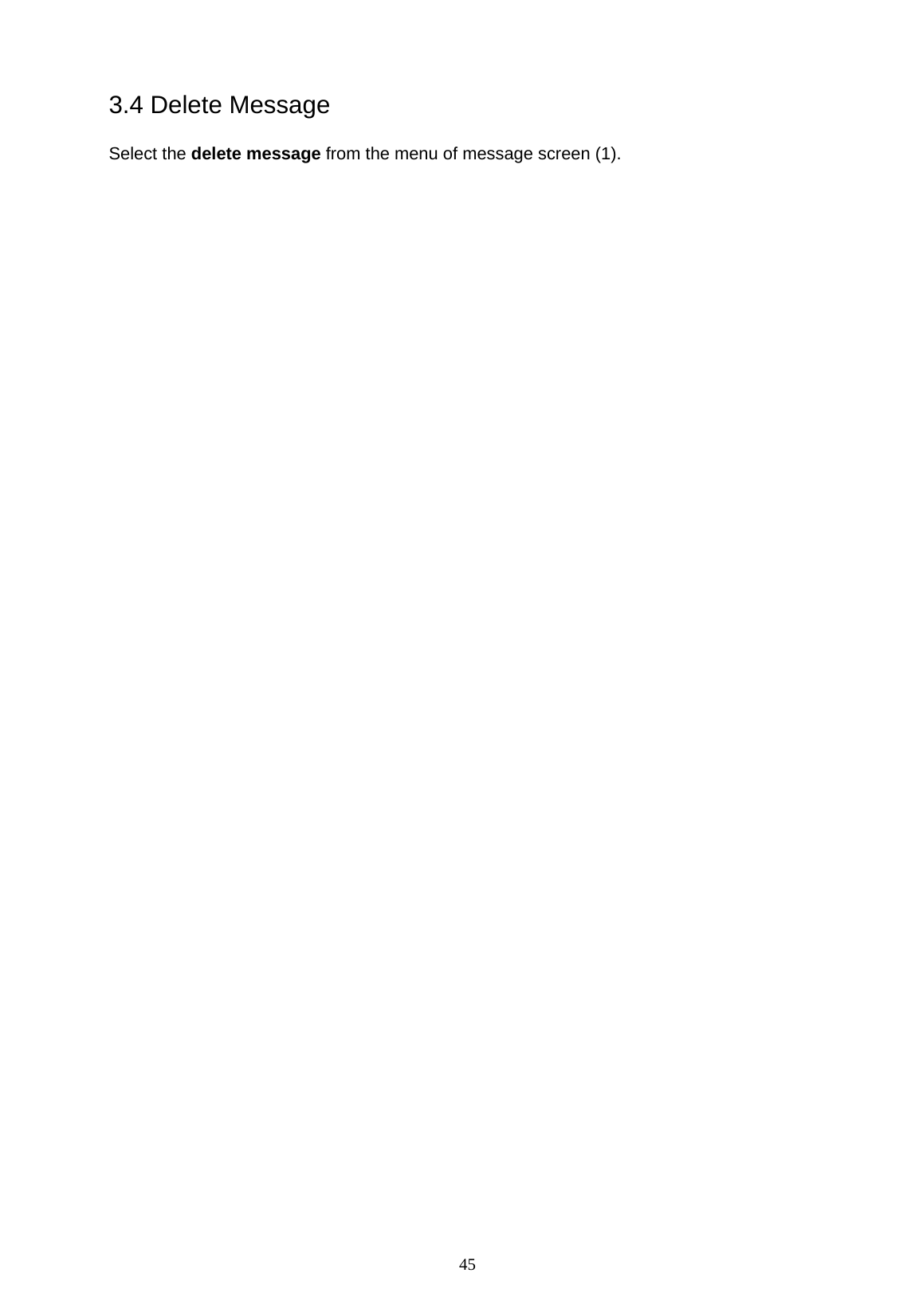

45 3.4 Delete Message Select the delete message from the menu of message screen (1).

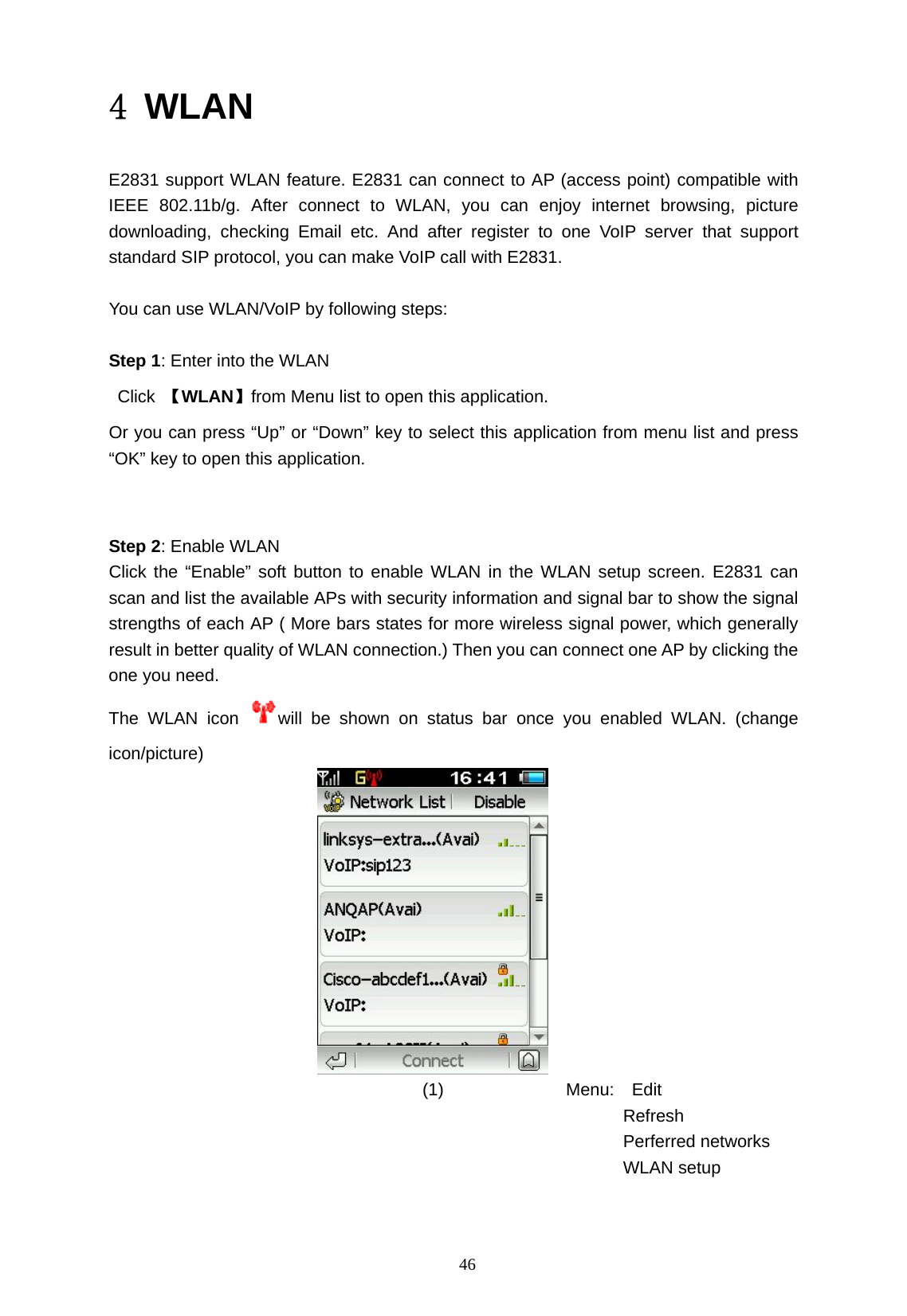

46 4 WLAN E2831 support WLAN feature. E2831 can connect to AP (access point) compatible with IEEE 802.11b/g. After connect to WLAN, you can enjoy internet browsing, picture downloading, checking Email etc. And after register to one VoIP server that support standard SIP protocol, you can make VoIP call with E2831. You can use WLAN/VoIP by following steps: Step 1: Enter into the WLAN Click 【WLAN】from Menu list to open this application. Or you can press “Up” or “Down” key to select this application from menu list and press “OK” key to open this application. Step 2: Enable WLAN Click the “Enable” soft button to enable WLAN in the WLAN setup screen. E2831 can scan and list the available APs with security information and signal bar to show the signal strengths of each AP ( More bars states for more wireless signal power, which generally result in better quality of WLAN connection.) Then you can connect one AP by clicking the one you need. The WLAN icon will be shown on status bar once you enabled WLAN. (change icon/picture) (1) Menu: Edit Refresh Perferred networks WLAN setup

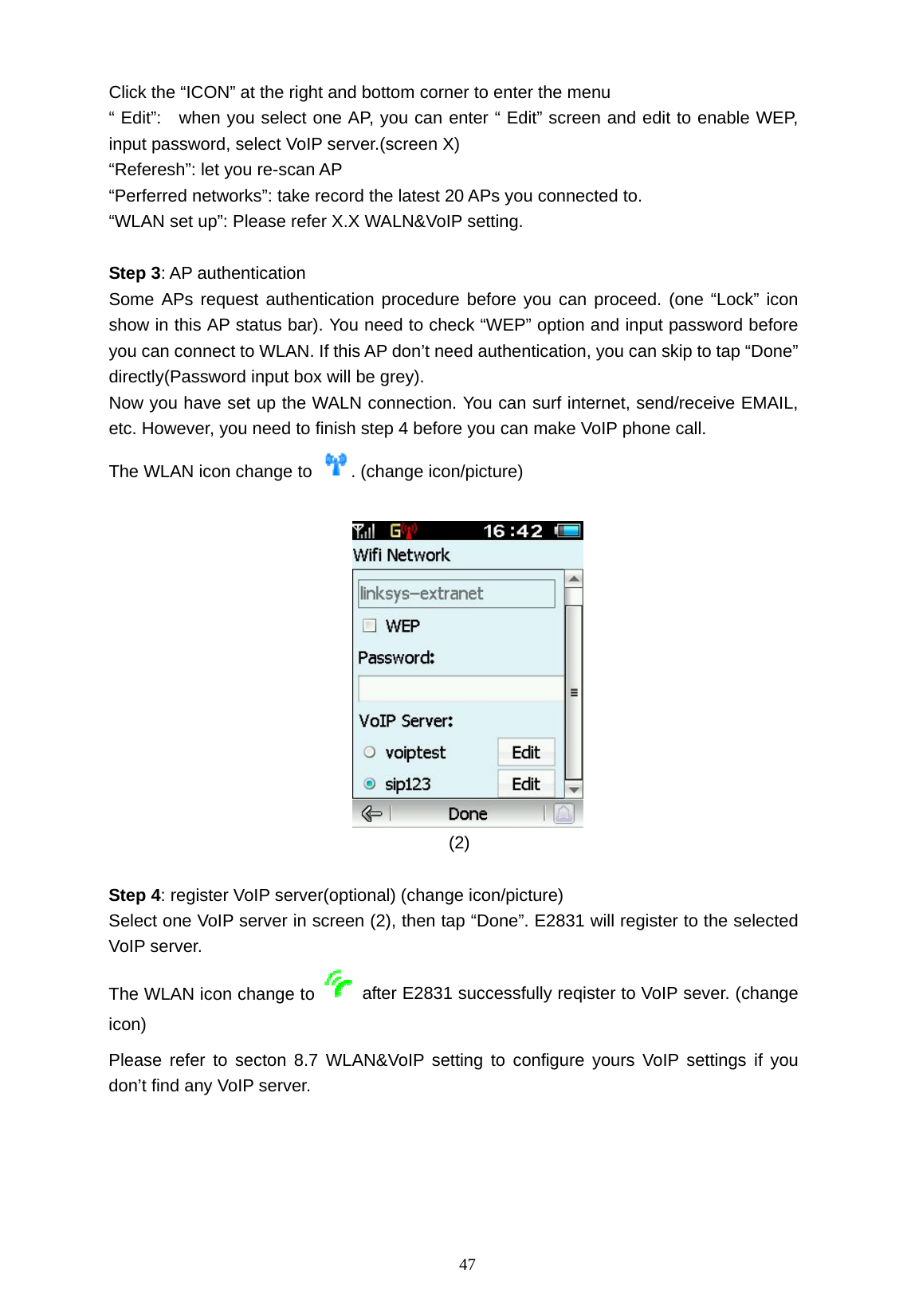

47 Click the “ICON” at the right and bottom corner to enter the menu “ Edit”: when you select one AP, you can enter “ Edit” screen and edit to enable WEP, input password, select VoIP server.(screen X) “Referesh”: let you re-scan AP “Perferred networks”: take record the latest 20 APs you connected to. “WLAN set up”: Please refer X.X WALN&VoIP setting. Step 3: AP authentication Some APs request authentication procedure before you can proceed. (one “Lock” icon show in this AP status bar). You need to check “WEP” option and input password before you can connect to WLAN. If this AP don’t need authentication, you can skip to tap “Done” directly(Password input box will be grey). Now you have set up the WALN connection. You can surf internet, send/receive EMAIL, etc. However, you need to finish step 4 before you can make VoIP phone call. The WLAN icon change to . (change icon/picture) (2) Step 4: register VoIP server(optional) (change icon/picture) Select one VoIP server in screen (2), then tap “Done”. E2831 will register to the selected VoIP server. The WLAN icon change to after E2831 successfully reqister to VoIP sever. (change icon) Please refer to secton 8.7 WLAN&VoIP setting to configure yours VoIP settings if you don’t find any VoIP server.

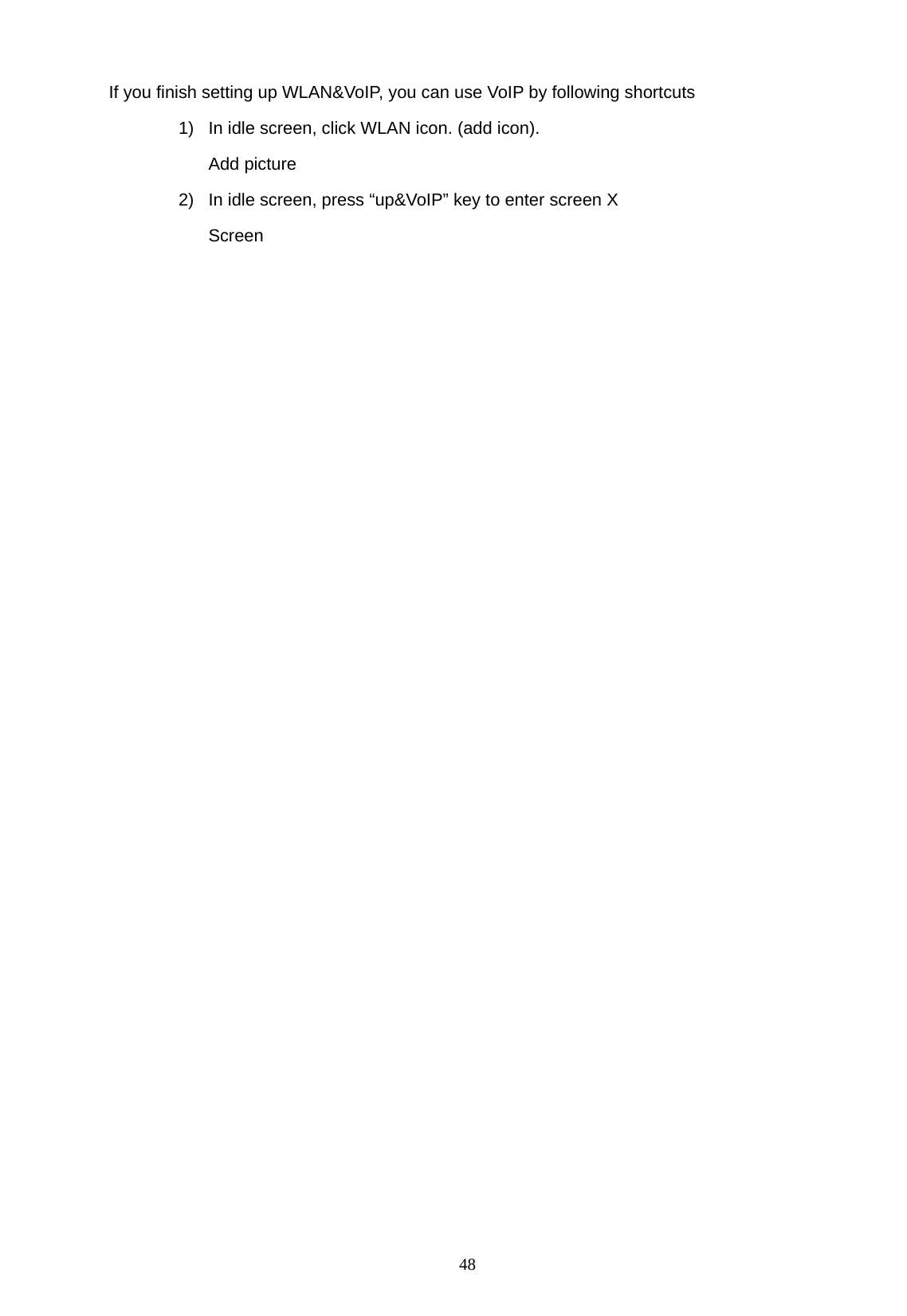

48 If you finish setting up WLAN&VoIP, you can use VoIP by following shortcuts 1) In idle screen, click WLAN icon. (add icon). Add picture 2) In idle screen, press “up&VoIP” key to enter screen X Screen

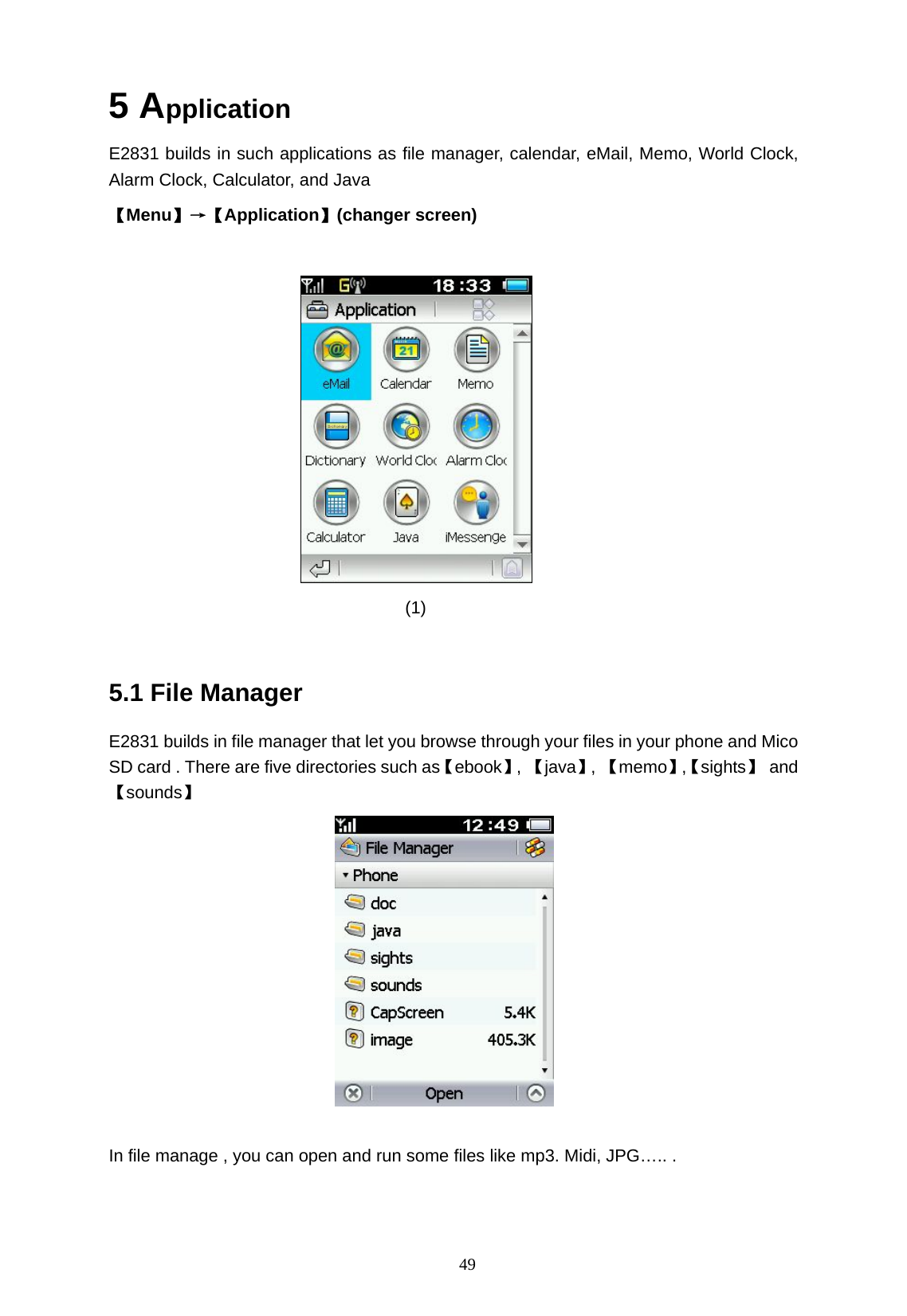

49 5 Application E2831 builds in such applications as file manager, calendar, eMail, Memo, World Clock, Alarm Clock, Calculator, and Java 【Menu】→【Application】(changer screen) (1) 5.1 File Manager E2831 builds in file manager that let you browse through your files in your phone and Mico SD card . There are five directories such as【ebook】, 【java】, 【memo】,【sights】 and 【sounds】 In file manage , you can open and run some files like mp3. Midi, JPG….. .

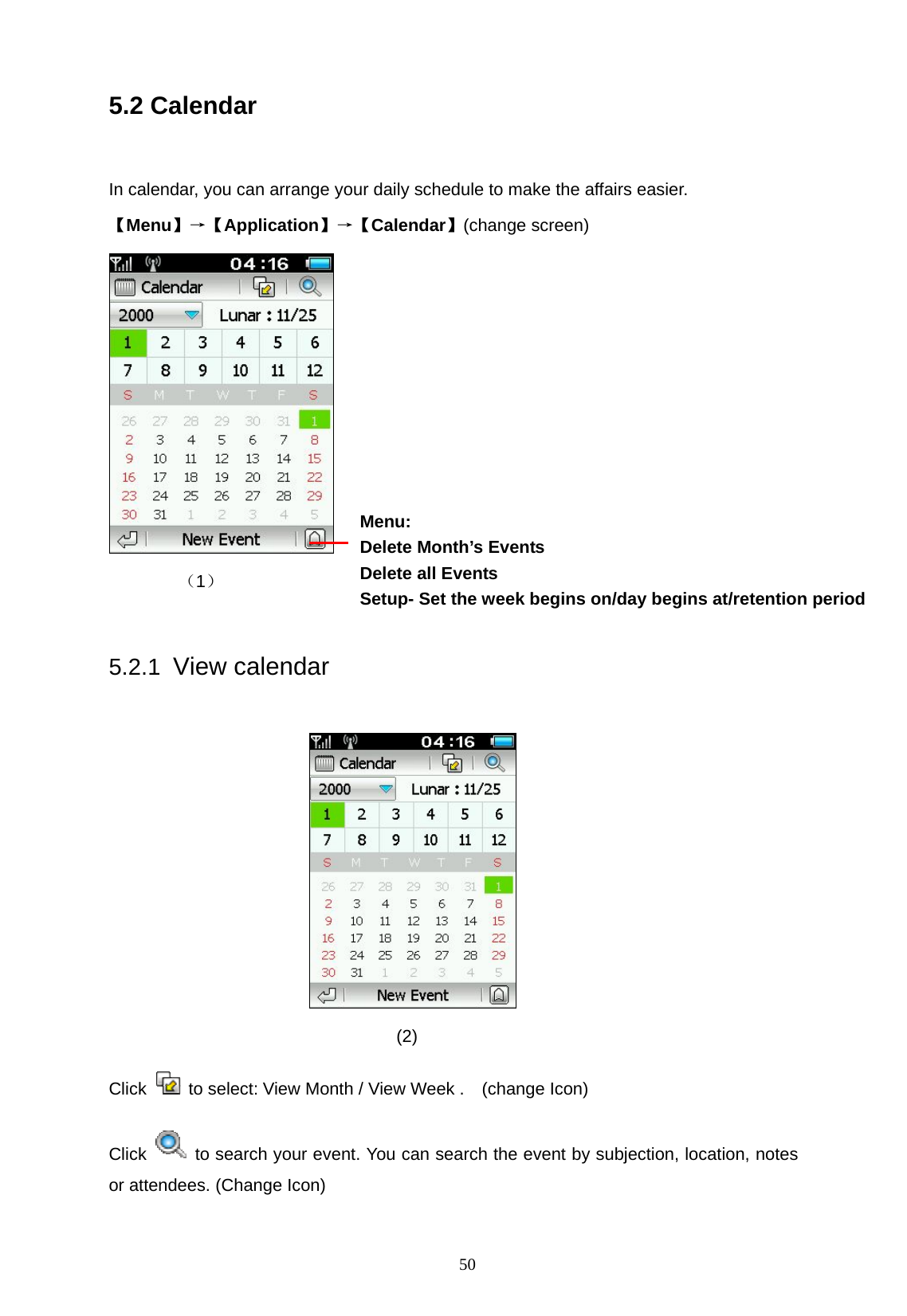

50 5.2 Calendar In calendar, you can arrange your daily schedule to make the affairs easier. 【Menu】→【Application】→【Calendar】(change screen) （1） 5.2.1 View calendar (2) Click to select: View Month / View Week . (change Icon) Click to search your event. You can search the event by subjection, location, notes or attendees. (Change Icon) Menu: Delete Month’s Events Delete all Events Setup- Set the week begins on/day begins at/retention period

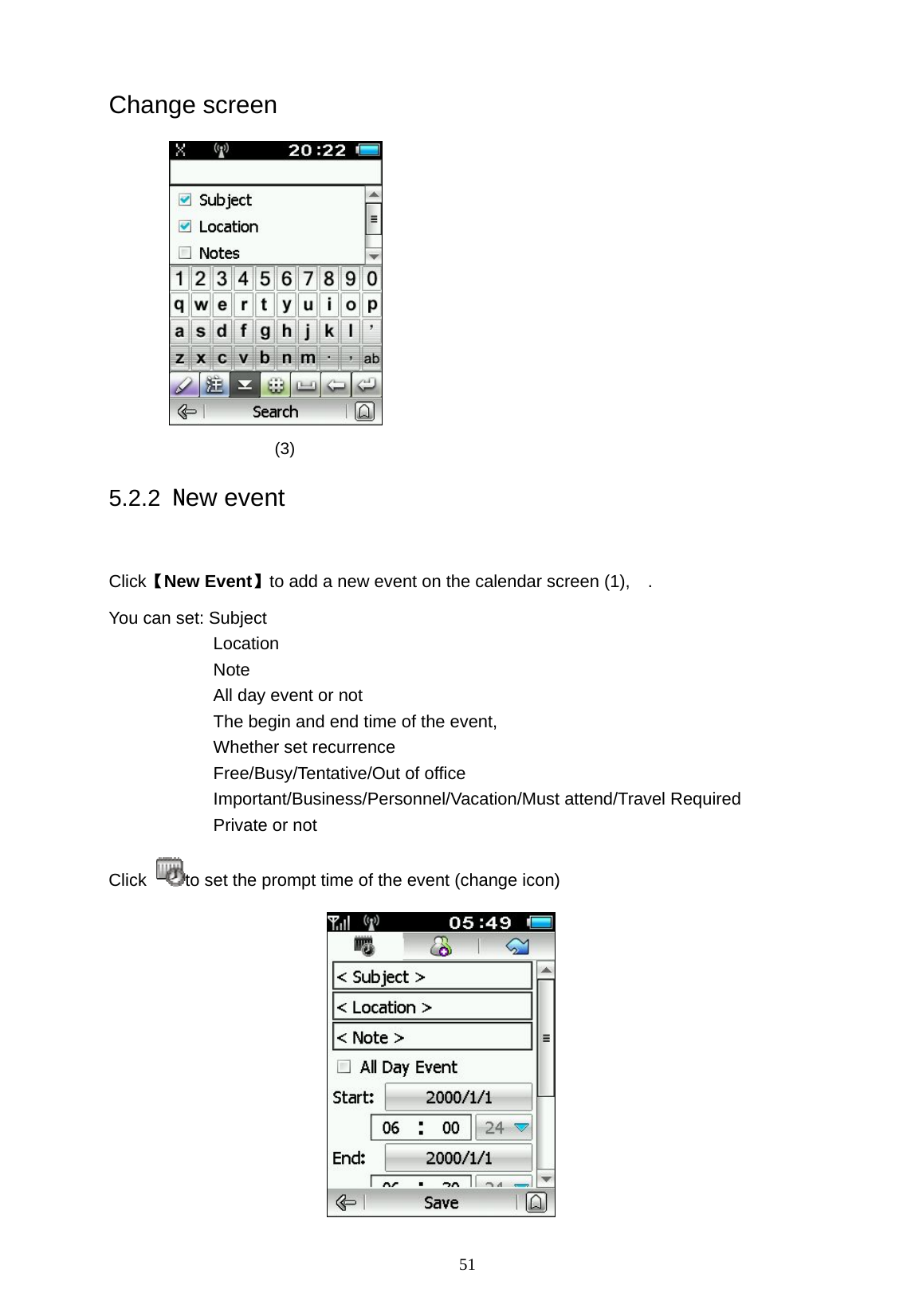

51 Change screen (3) 5.2.2 New event Click【New Event】to add a new event on the calendar screen (1), . You can set: Subject Location Note All day event or not The begin and end time of the event, Whether set recurrence Free/Busy/Tentative/Out of office Important/Business/Personnel/Vacation/Must attend/Travel Required Private or not Click to set the prompt time of the event (change icon)

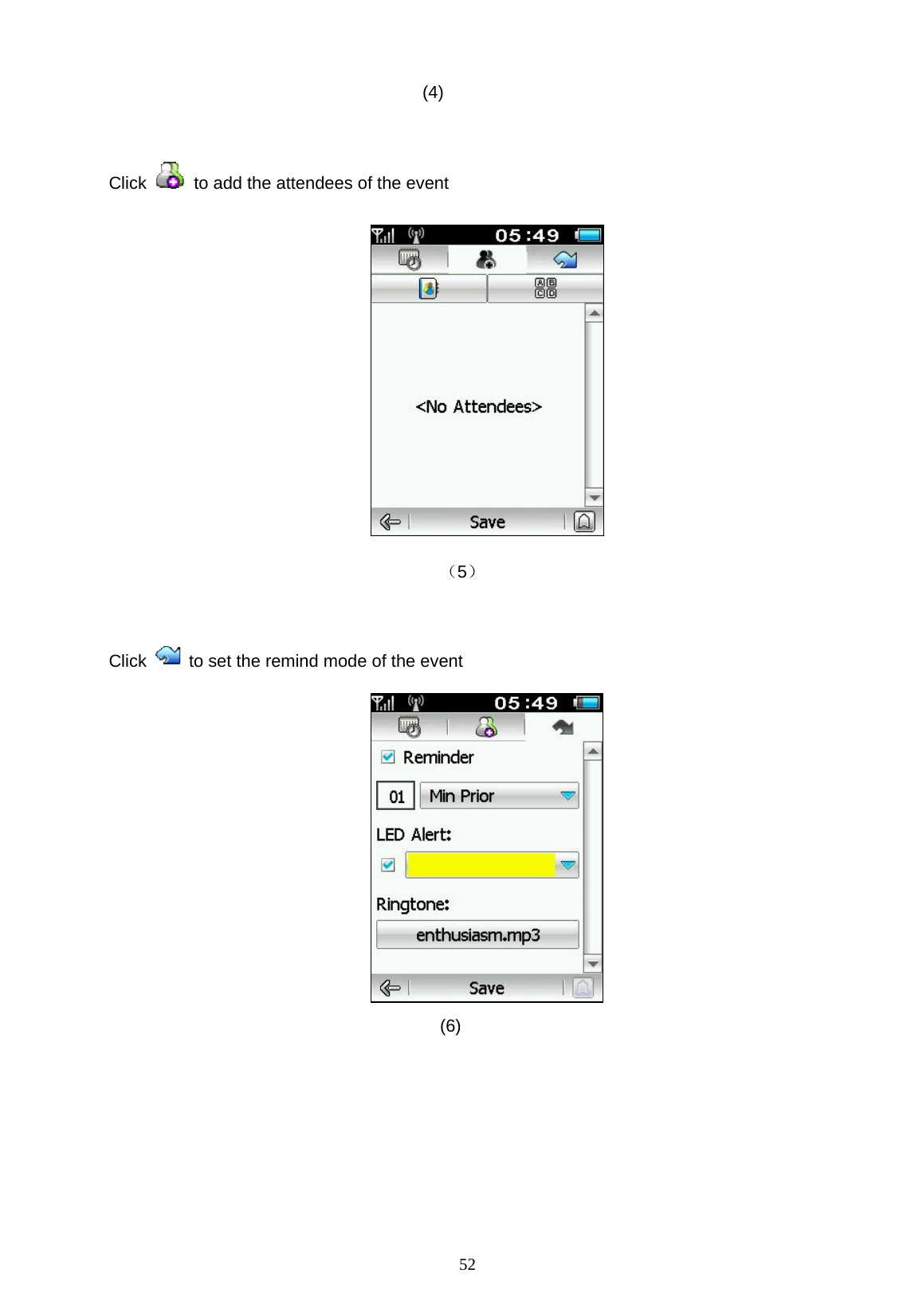

52 (4) Click to add the attendees of the event （5） Click to set the remind mode of the event (6)

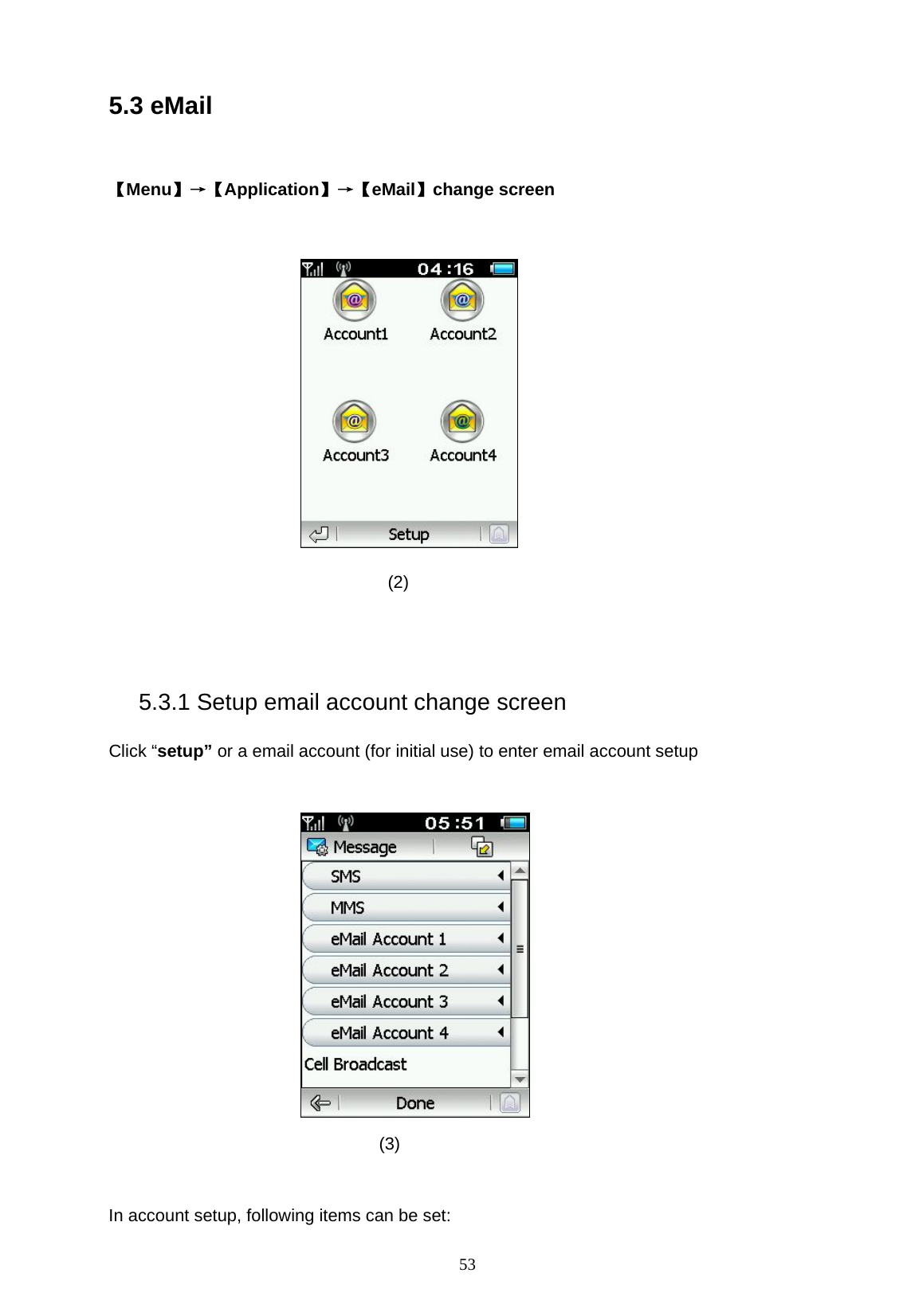

53 5.3 eMail 【Menu】→【Application】→【eMail】change screen (2) 5.3.1 Setup email account change screen Click “setup” or a email account (for initial use) to enter email account setup (3) In account setup, following items can be set:

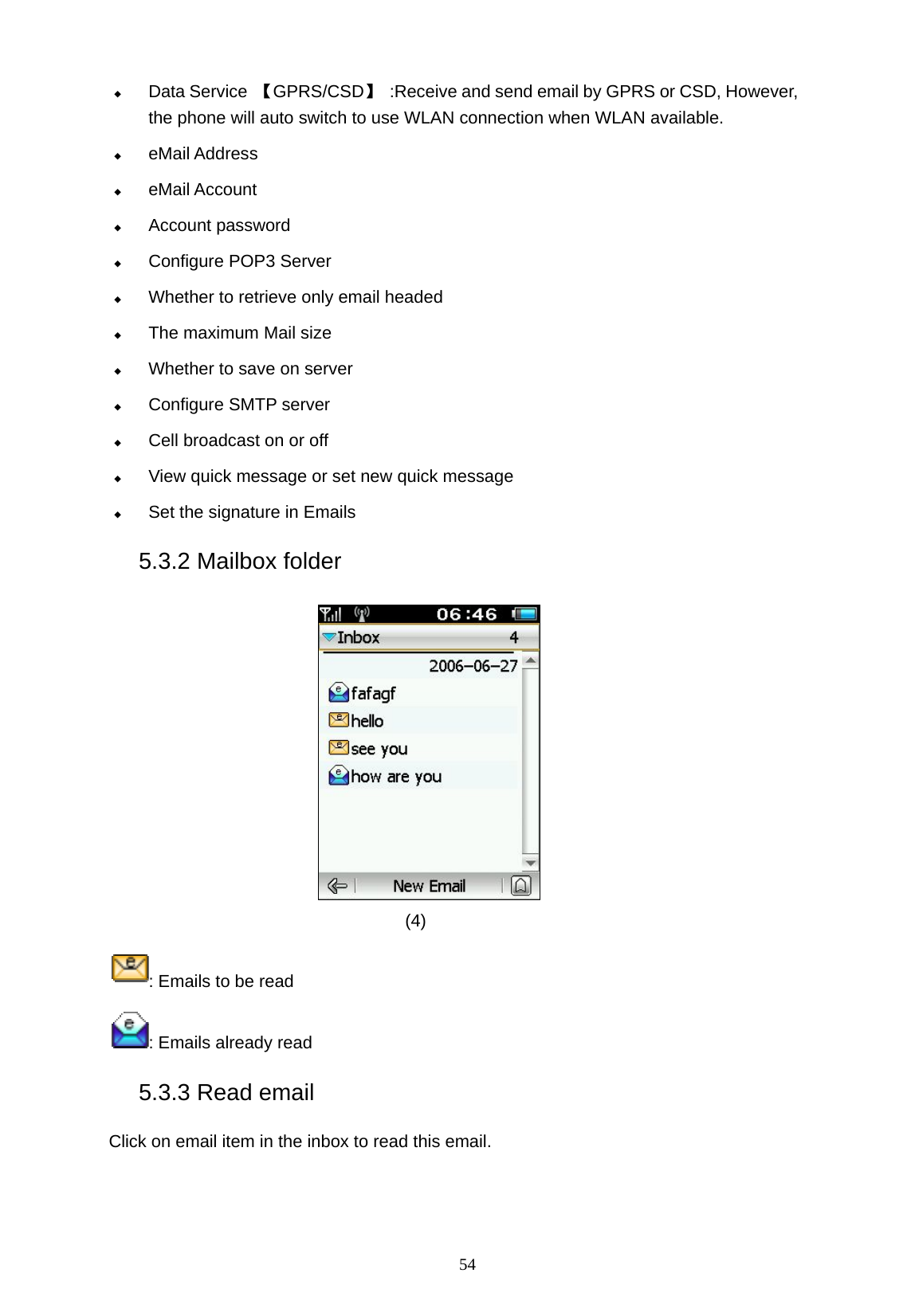

54  Data Service 【GPRS/CSD】 :Receive and send email by GPRS or CSD, However, the phone will auto switch to use WLAN connection when WLAN available.  eMail Address  eMail Account  Account password  Configure POP3 Server  Whether to retrieve only email headed  The maximum Mail size  Whether to save on server  Configure SMTP server  Cell broadcast on or off  View quick message or set new quick message  Set the signature in Emails 5.3.2 Mailbox folder (4) : Emails to be read : Emails already read 5.3.3 Read email Click on email item in the inbox to read this email.

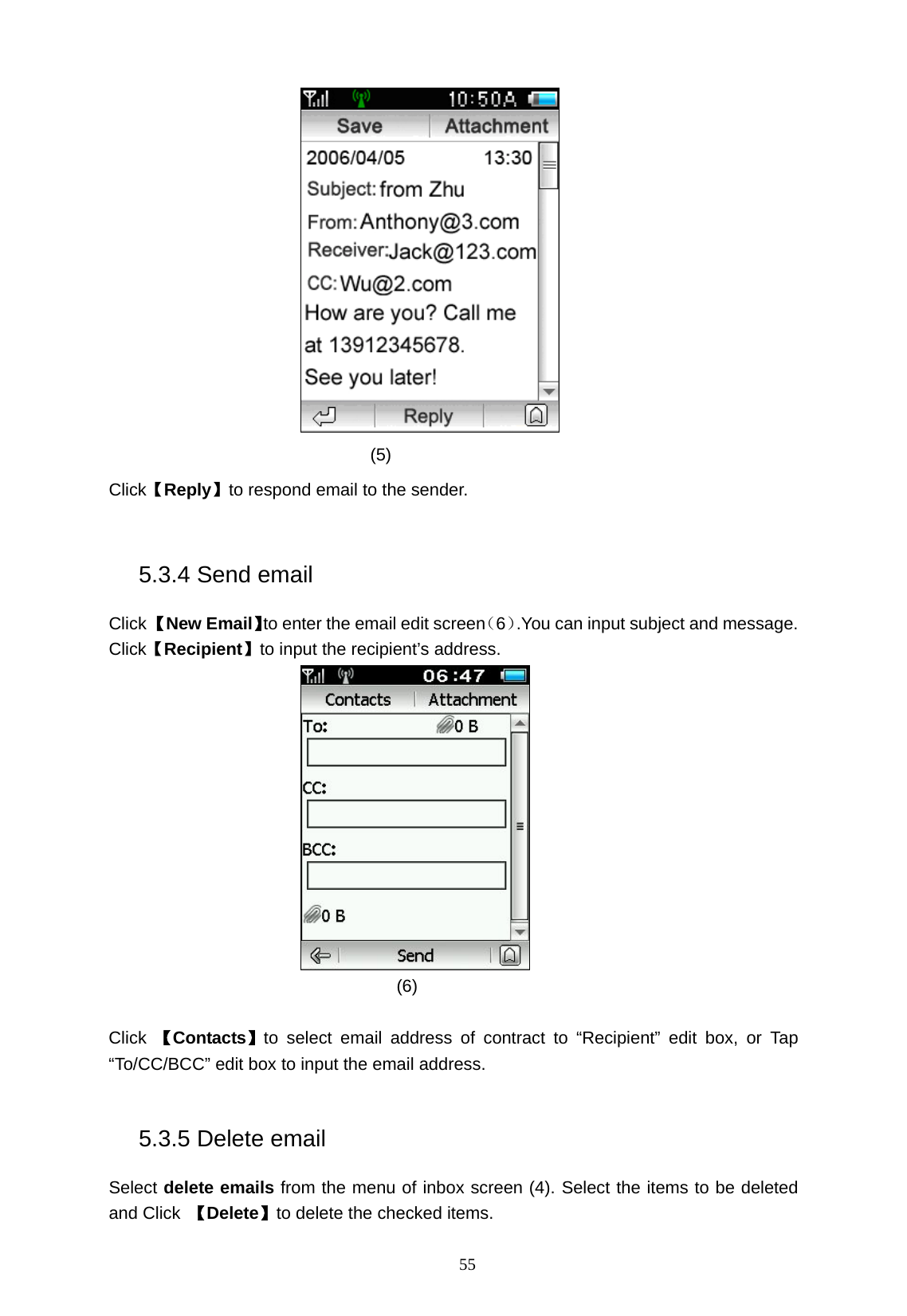

55 (5) Click【Reply】to respond email to the sender. 5.3.4 Send email Click 【New Email】to enter the email edit screen（6）.You can input subject and message. Click【Recipient】to input the recipient’s address. (6) Click 【Contacts】to select email address of contract to “Recipient” edit box, or Tap “To/CC/BCC” edit box to input the email address. 5.3.5 Delete email Select delete emails from the menu of inbox screen (4). Select the items to be deleted and Click 【Delete】to delete the checked items.

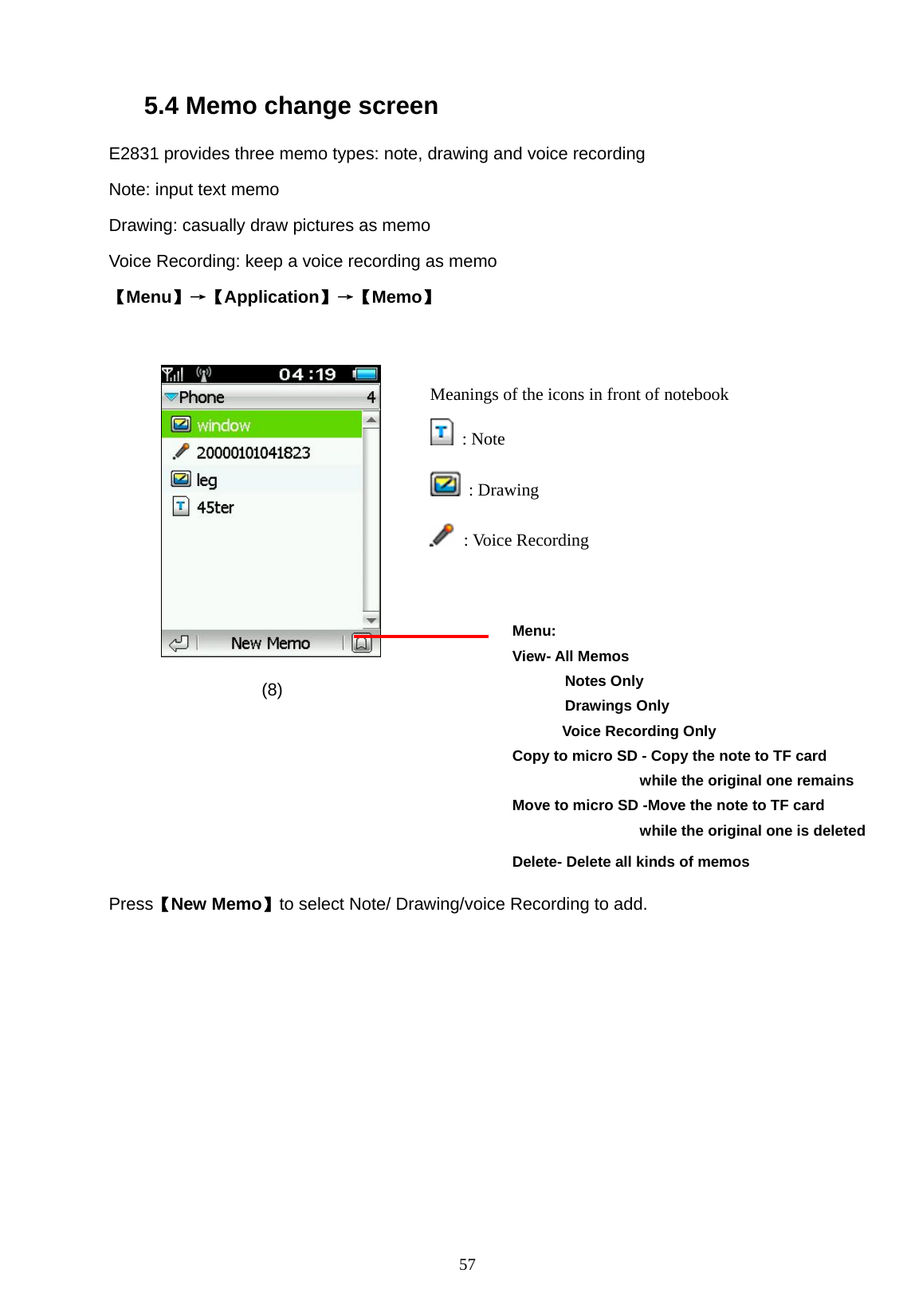

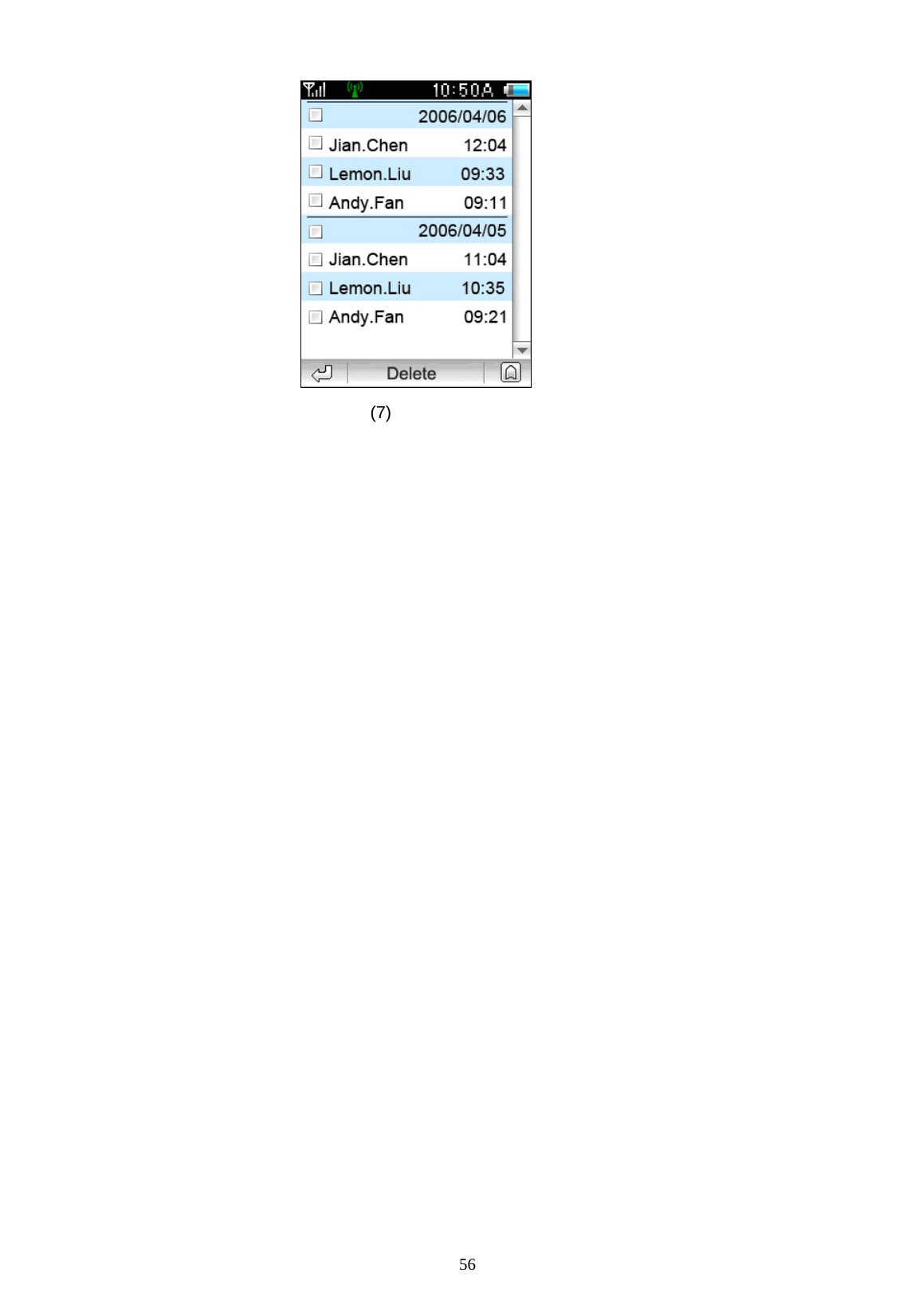

57 5.4 Memo change screen E2831 provides three memo types: note, drawing and voice recording Note: input text memo Drawing: casually draw pictures as memo Voice Recording: keep a voice recording as memo 【Menu】→【Application】→【Memo】 (8) Press【New Memo】to select Note/ Drawing/voice Recording to add. Menu: View- All Memos Notes Only Drawings Only Voice Recording Only Copy to micro SD - Copy the note to TF card while the original one remains Move to micro SD -Move the note to TF card while the original one is deletedDelete- Delete all kinds of memos Meanings of the icons in front of notebook : Note : Drawing : Voice Recording

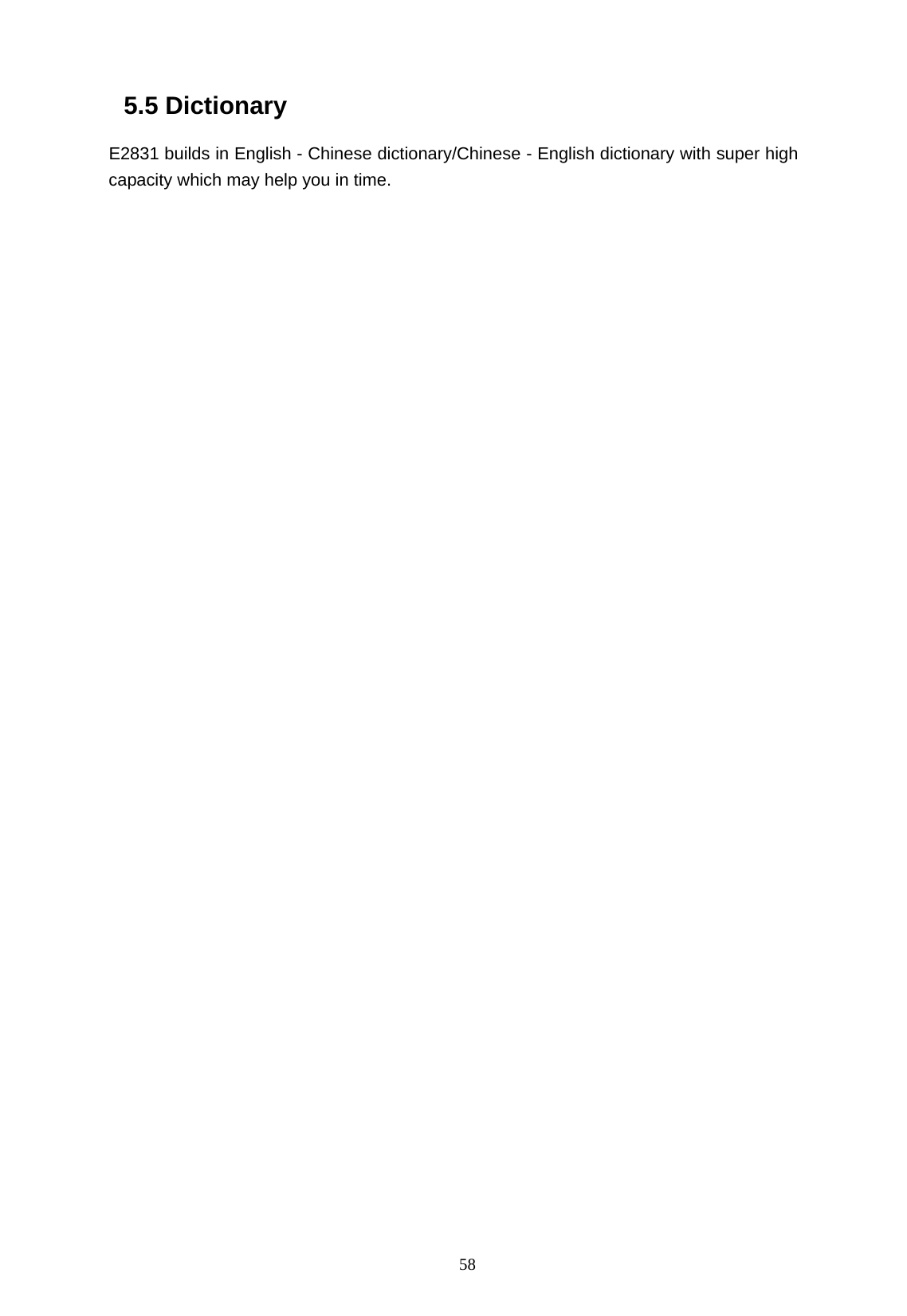

58 5.5 Dictionary E2831 builds in English - Chinese dictionary/Chinese - English dictionary with super high capacity which may help you in time.

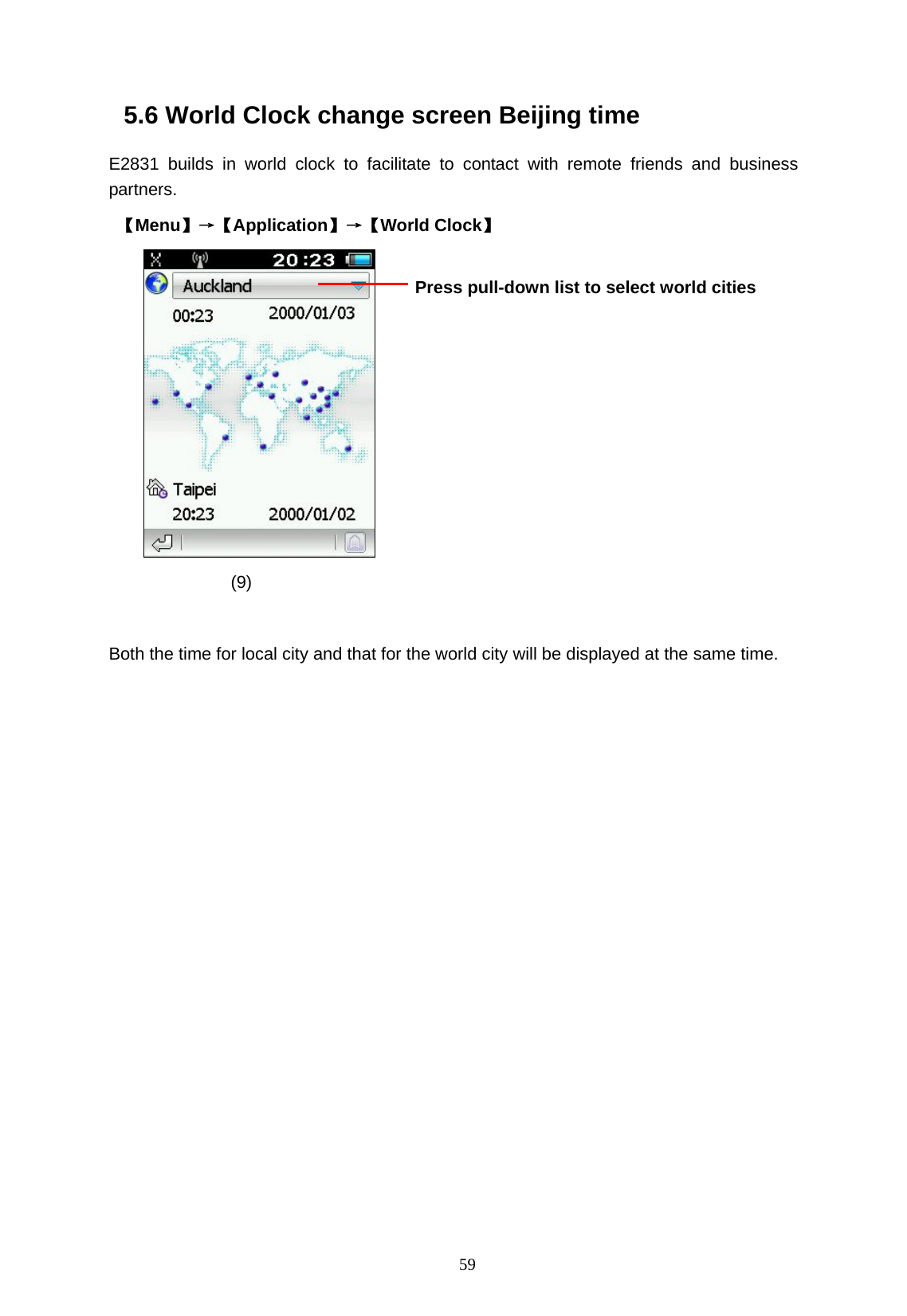

59 5.6 World Clock change screen Beijing time E2831 builds in world clock to facilitate to contact with remote friends and business partners. 【Menu】→【Application】→【World Clock】 (9) Both the time for local city and that for the world city will be displayed at the same time. Press pull-down list to select world cities

60 5.7 Alarm Clock Three sets of alarm clock are allowed to set and each of which can present its own repetition cycle. 【Menu】→【Application】→【Alarm Clock】 (10) (11) Menu: Turn All On Turn All Off You can set: Whether enable alarm clock Alarm time Repeat cycle Alert music Whether vibrate Snooze time

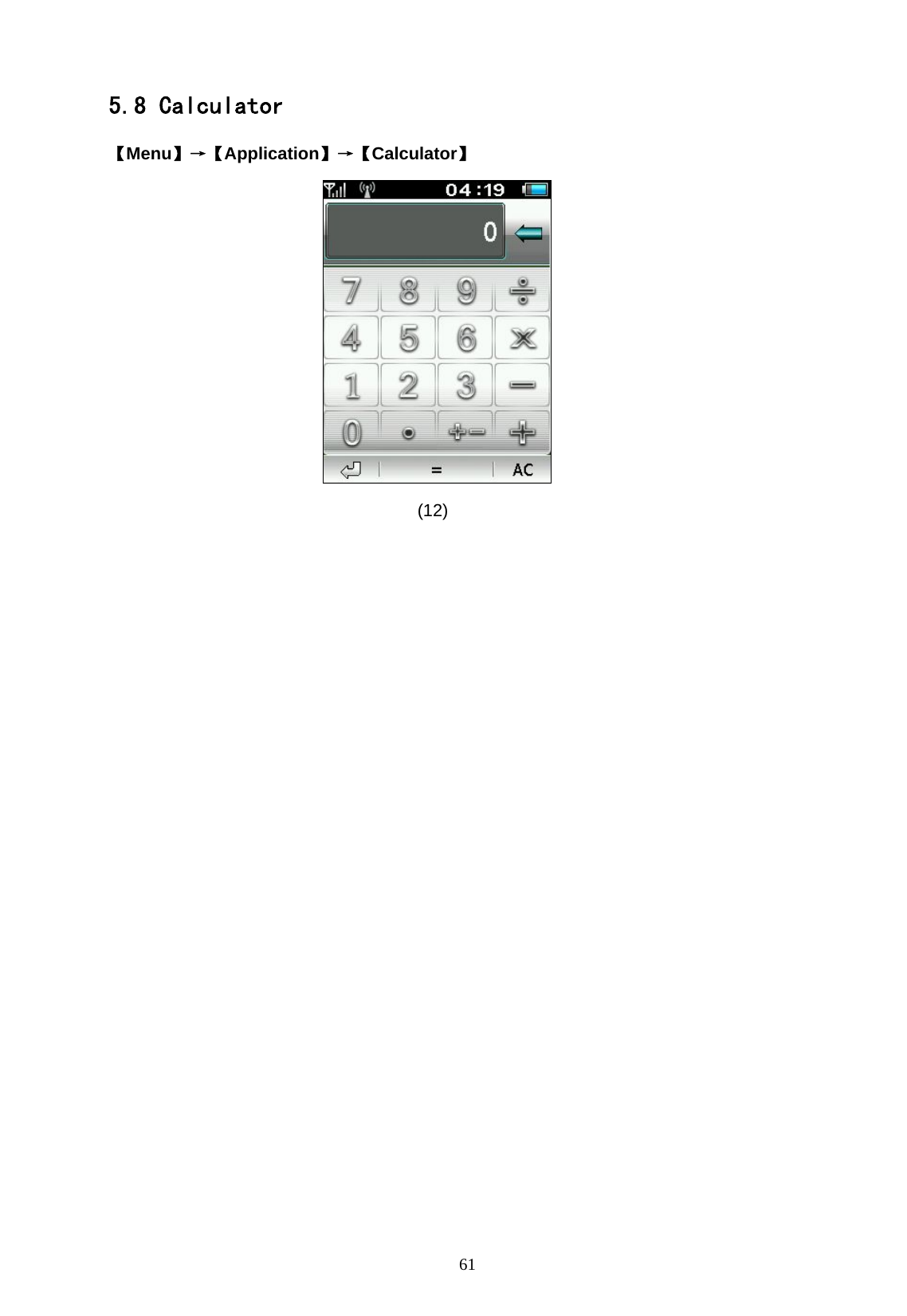

61 5.8 Calculator 【Menu】→【Application】→【Calculator】 (12)

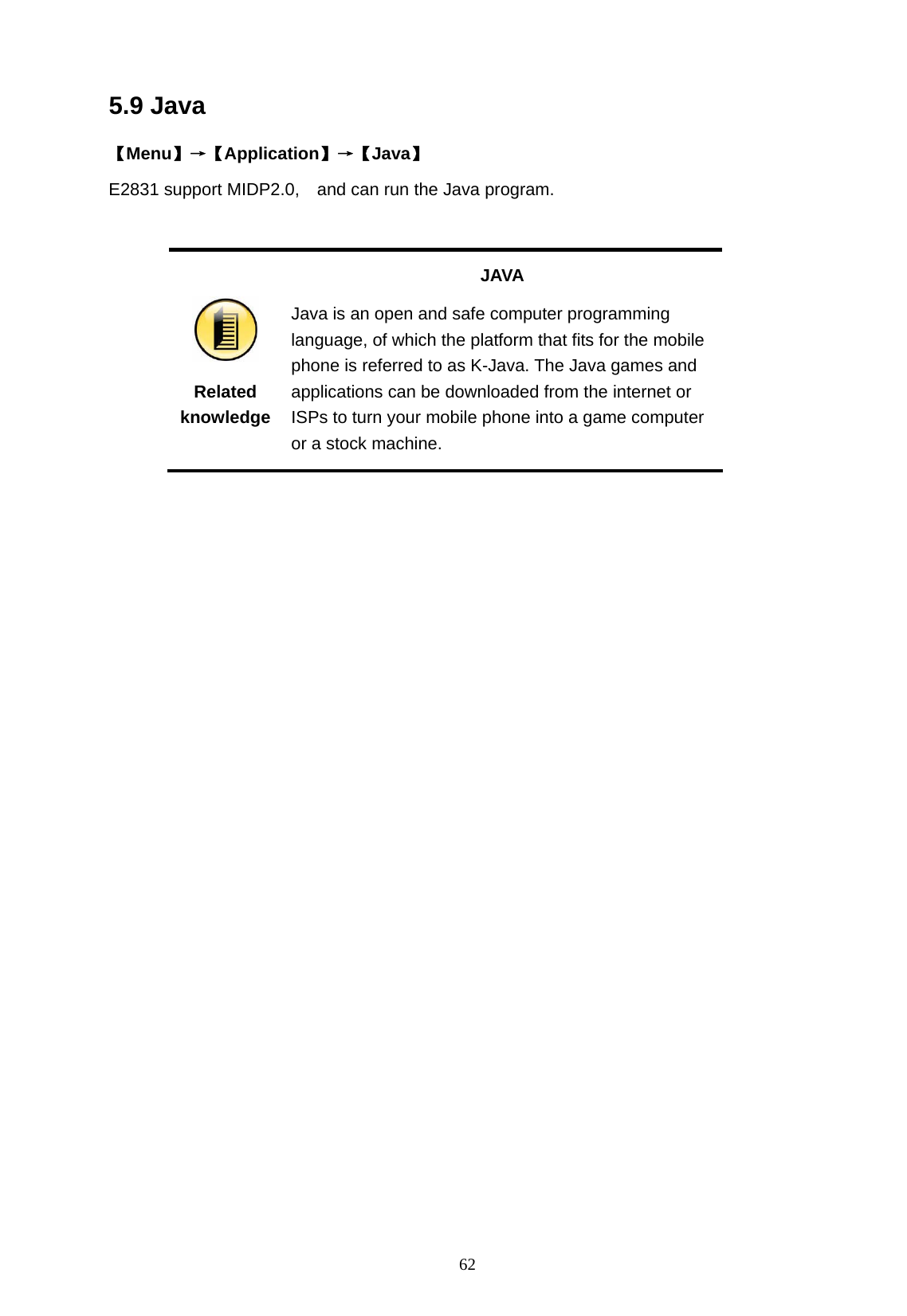

62 5.9 Java 【Menu】→【Application】→【Java】 E2831 support MIDP2.0, and can run the Java program. Related knowledge JAVA Java is an open and safe computer programming language, of which the platform that fits for the mobile phone is referred to as K-Java. The Java games and applications can be downloaded from the internet or ISPs to turn your mobile phone into a game computer or a stock machine.

63 5.10 Instant Messenger change screen&icon E2831 provides IM(Instant Messenger) function that you can contact your friends at any time. And you can enjoy same convenient IM in mobile as you are in office. Please refer to section 8.7 WLAN&VoIP settings to configure your WLAN&VoIP settings before you use IM function. And this IM function only can be used after connecting to WLAN and registering to VoIP server. 【Menu】→【Application】→【Instant Messenge】 (1) Click【Add】to add new friend to buddy list on the screen (2). Click to select: All/Online/Busy/offline/Black list Click the selected friend name to talk. screen (3) (2) (3)

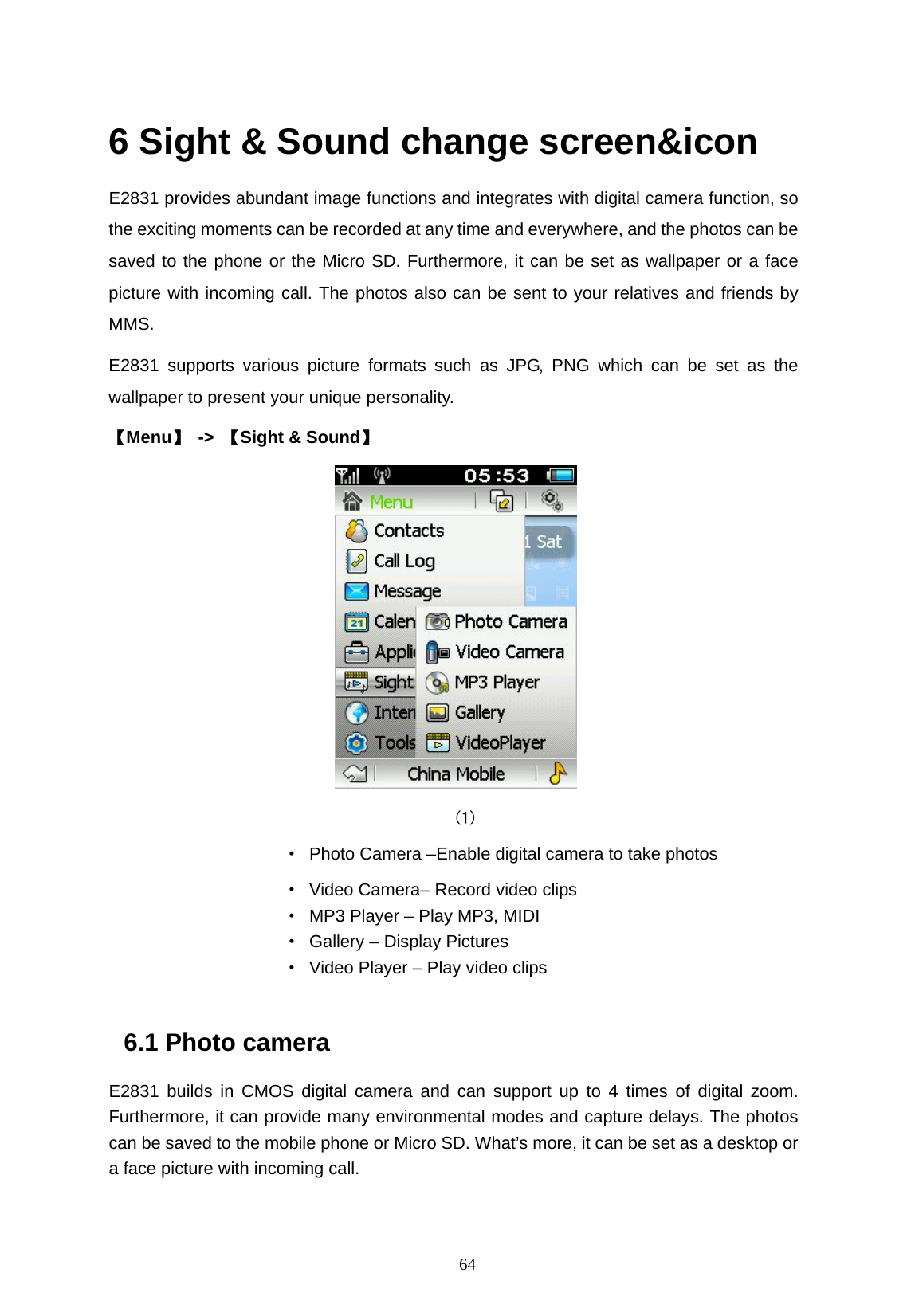

64 6 Sight & Sound change screen&icon E2831 provides abundant image functions and integrates with digital camera function, so the exciting moments can be recorded at any time and everywhere, and the photos can be saved to the phone or the Micro SD. Furthermore, it can be set as wallpaper or a face picture with incoming call. The photos also can be sent to your relatives and friends by MMS. E2831 supports various picture formats such as JPG, PNG which can be set as the wallpaper to present your unique personality. 【Menu】 -> 【Sight & Sound】 (1) · Photo Camera –Enable digital camera to take photos · Video Camera– Record video clips · MP3 Player – Play MP3, MIDI · Gallery – Display Pictures · Video Player – Play video clips 6.1 Photo camera E2831 builds in CMOS digital camera and can support up to 4 times of digital zoom. Furthermore, it can provide many environmental modes and capture delays. The photos can be saved to the mobile phone or Micro SD. What’s more, it can be set as a desktop or a face picture with incoming call.

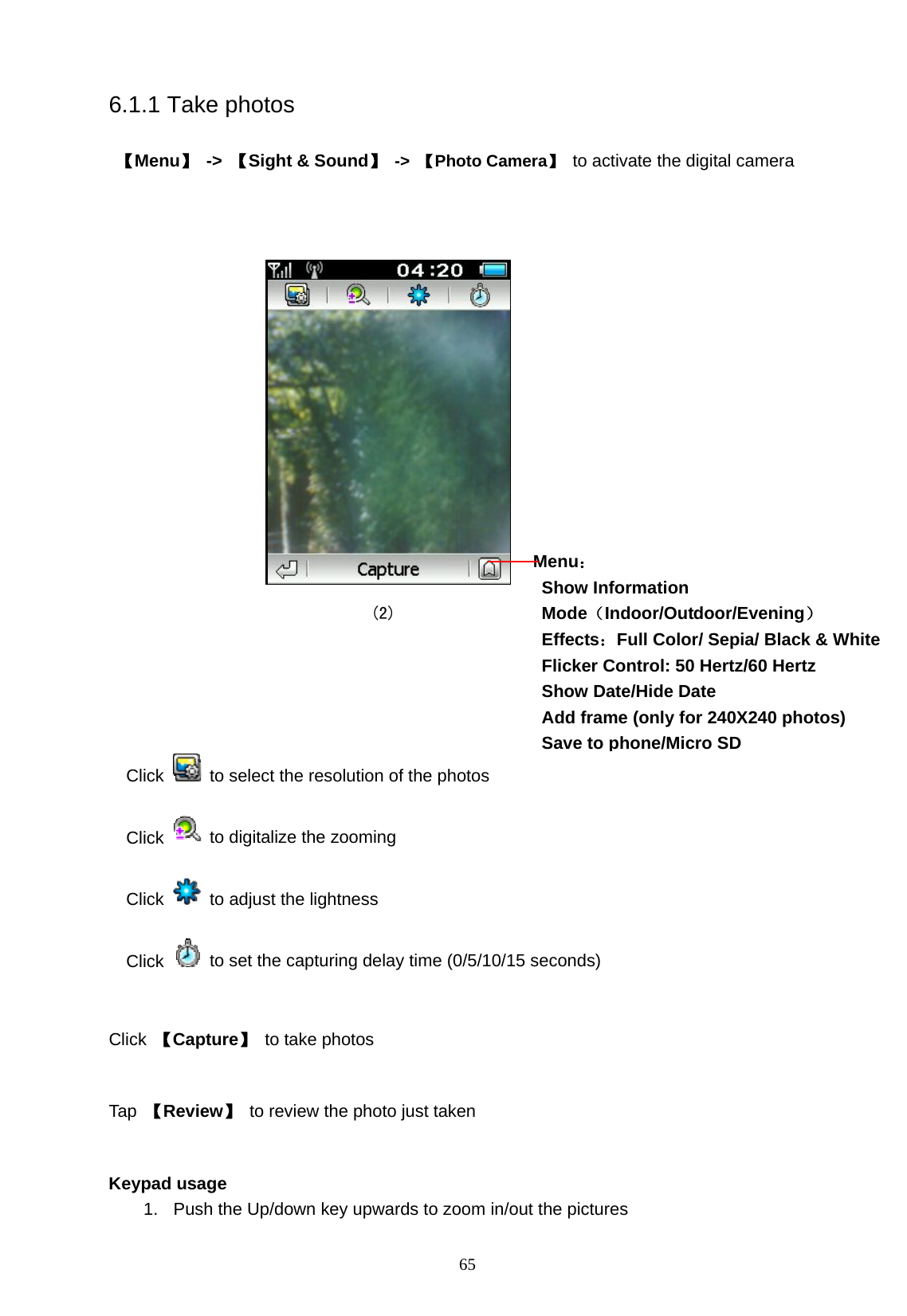

65 6.1.1 Take photos 【Menu】 -> 【Sight & Sound】 -> 【Photo Camera】 to activate the digital camera (2) Click to select the resolution of the photos Click to digitalize the zooming Click to adjust the lightness Click to set the capturing delay time (0/5/10/15 seconds) Click 【Capture】 to take photos Tap 【Review】 to review the photo just taken Keypad usage 1. Push the Up/down key upwards to zoom in/out the pictures Menu： Show Information Mode（Indoor/Outdoor/Evening） Effects：Full Color/ Sepia/ Black & White Flicker Control: 50 Hertz/60 Hertz Show Date/Hide Date Add frame (only for 240X240 photos) Save to phone/Micro SD

66 Tips Digital zooming varies depending on the size of the photo. For the resolution 240×240, up to four times of zooming can be achieved. For the resolution 1280×960, the digital zooming will not take into effect. 6.1.2 Review Photo (3) Click to edit the photo Click to set it as the photo ID of one contact Click to send it by MMS Menu: Original size Set as Wallpaper－Set the picture as wallpaperCopy to micro SD /phone Move to micro SD /phone Privacy On/Off

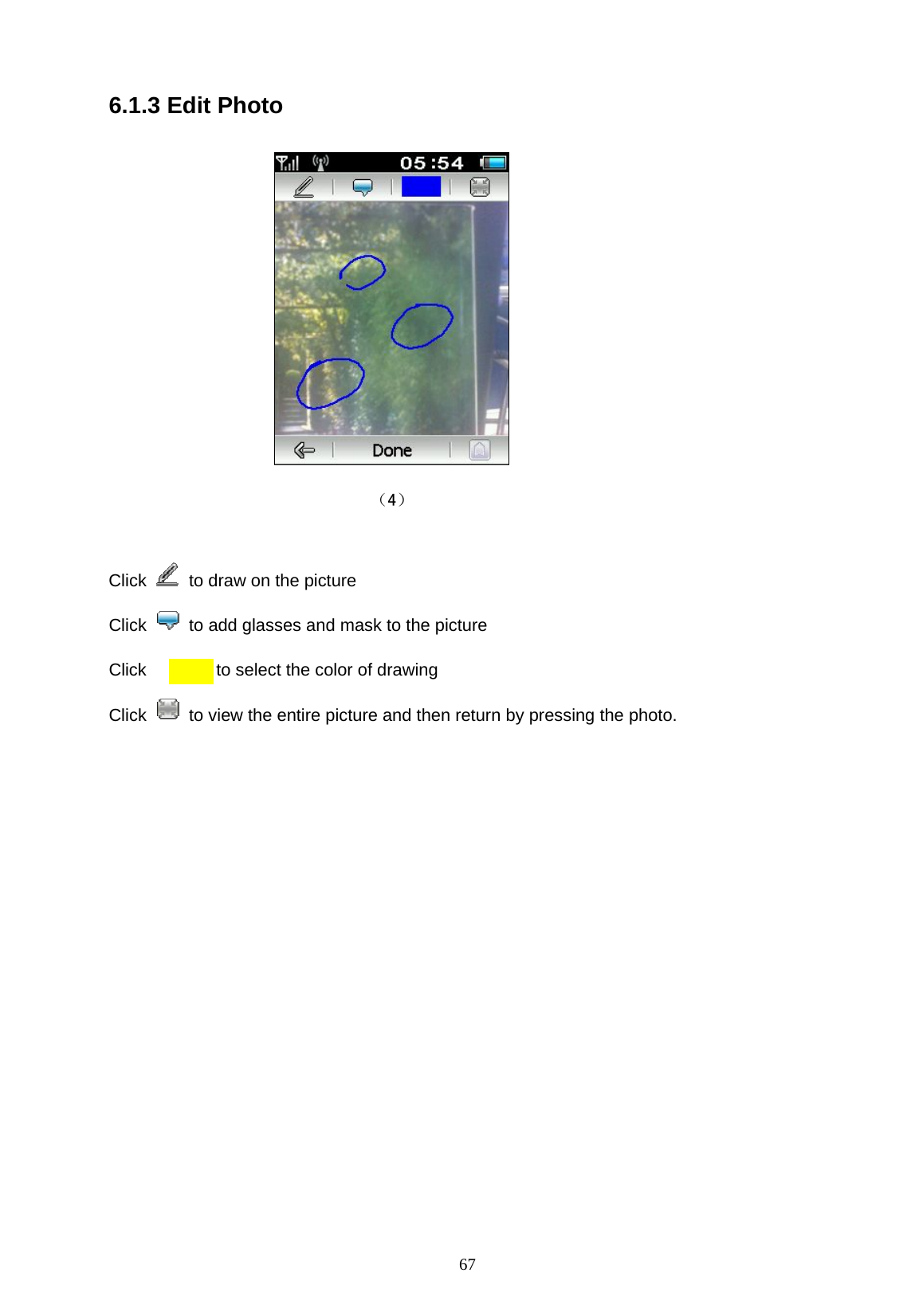

67 6.1.3 Edit Photo （4） Click to draw on the picture Click to add glasses and mask to the picture Click to select the color of drawing Click to view the entire picture and then return by pressing the photo.

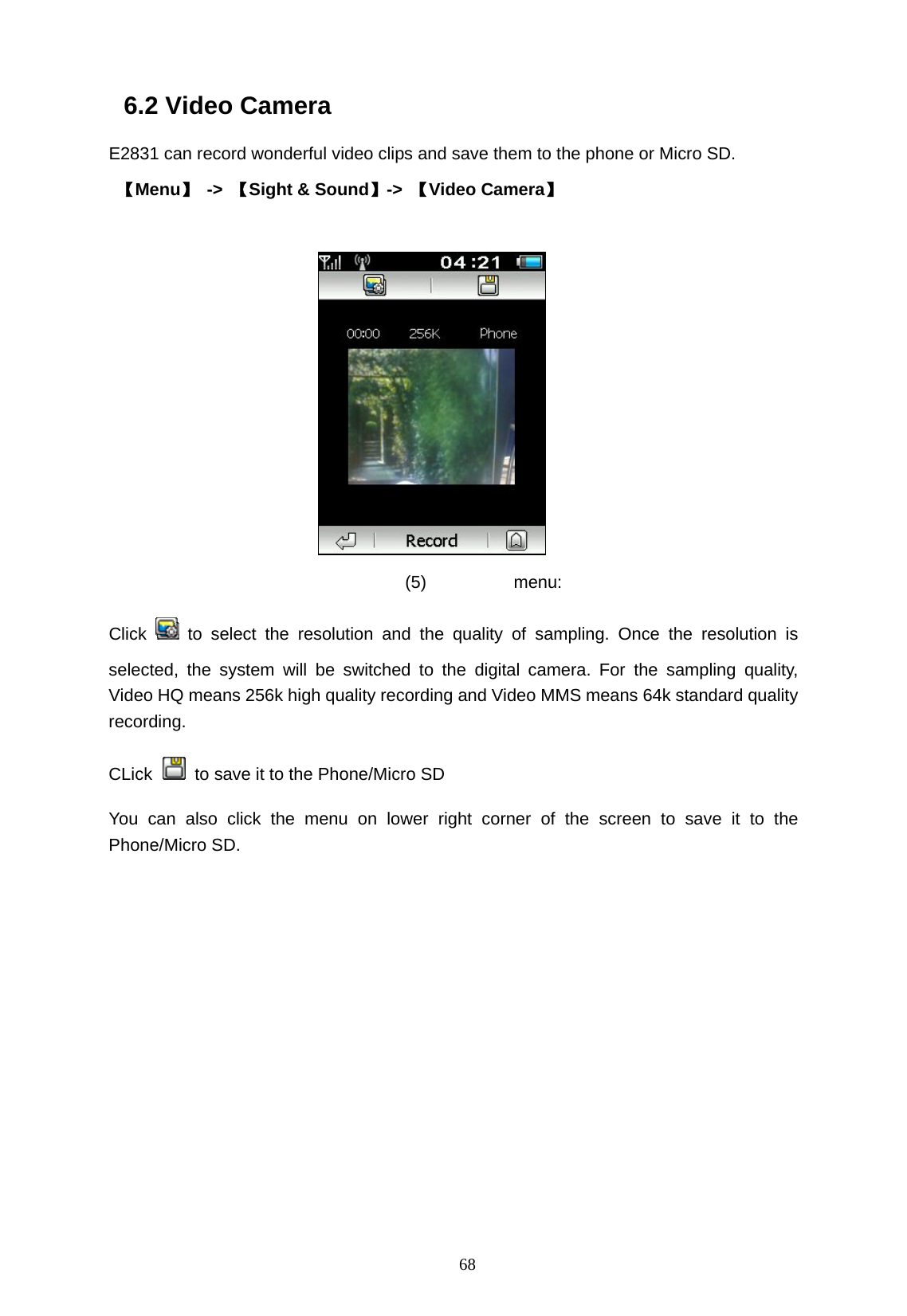

68 6.2 Video Camera E2831 can record wonderful video clips and save them to the phone or Micro SD. 【Menu】 -> 【Sight & Sound】-> 【Video Camera】 (5) menu: Click to select the resolution and the quality of sampling. Once the resolution is selected, the system will be switched to the digital camera. For the sampling quality, Video HQ means 256k high quality recording and Video MMS means 64k standard quality recording. CLick to save it to the Phone/Micro SD You can also click the menu on lower right corner of the screen to save it to the Phone/Micro SD.

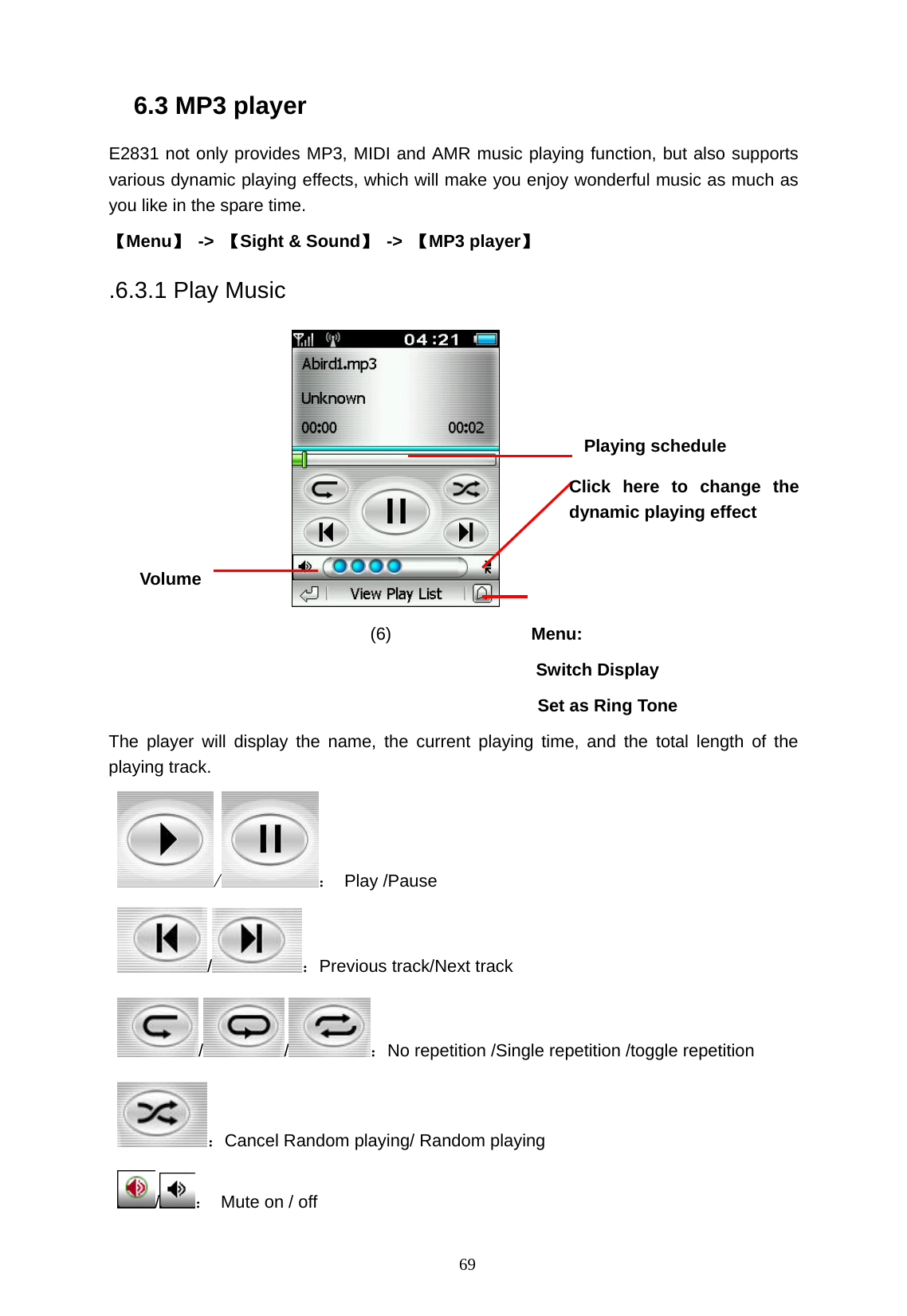

69 6.3 MP3 player E2831 not only provides MP3, MIDI and AMR music playing function, but also supports various dynamic playing effects, which will make you enjoy wonderful music as much as you like in the spare time. 【Menu】 -> 【Sight & Sound】 -> 【MP3 player】 .6.3.1 Play Music (6) Menu: Switch Display Set as Ring Tone The player will display the name, the current playing time, and the total length of the playing track. / ： Play /Pause /：Previous track/Next track / / ：No repetition /Single repetition /toggle repetition ：Cancel Random playing/ Random playing /： Mute on / off Playing schedule Volume Click here to change the dynamic playing effect

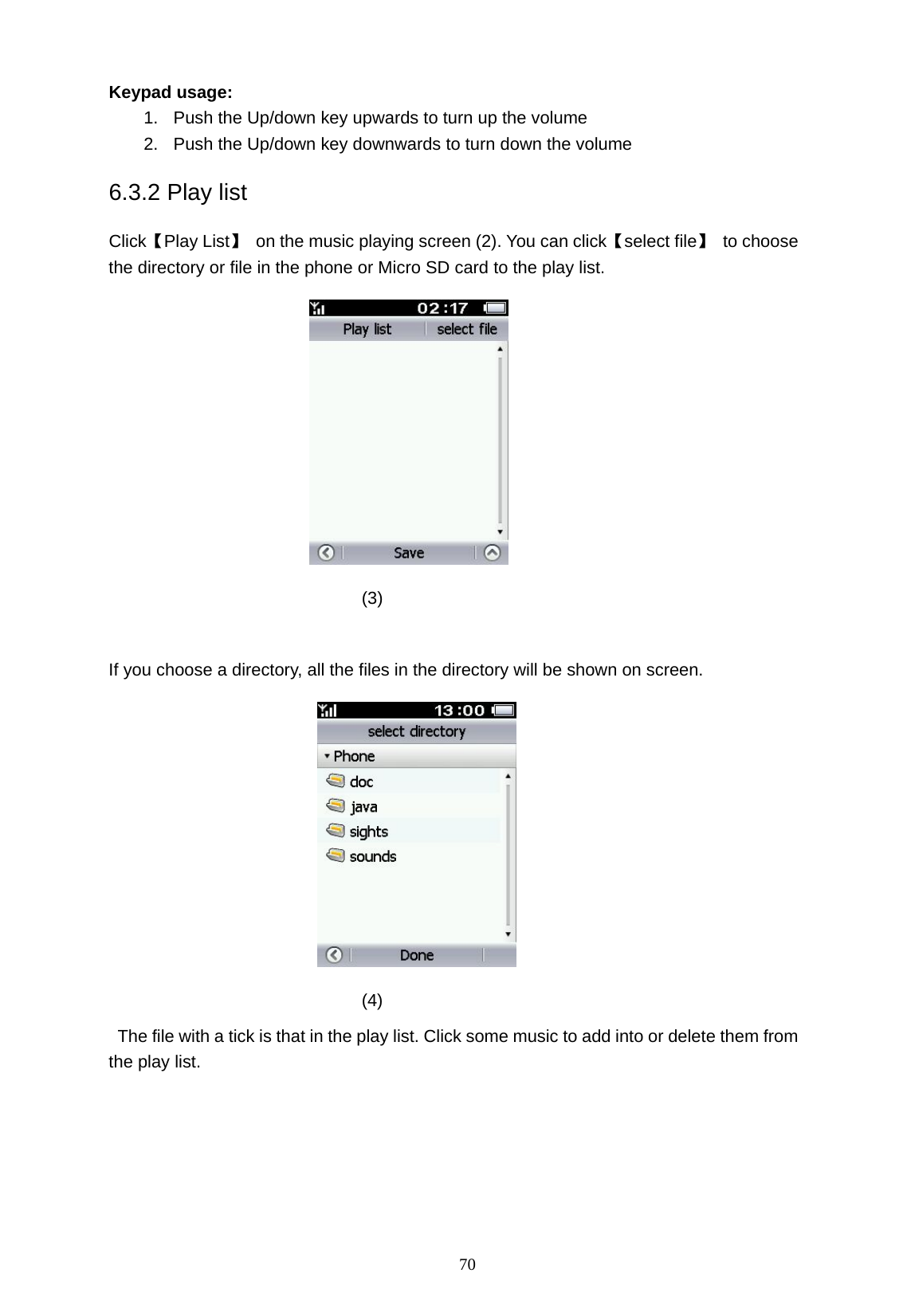

70 Keypad usage: 1. Push the Up/down key upwards to turn up the volume 2. Push the Up/down key downwards to turn down the volume 6.3.2 Play list Click【Play List】 on the music playing screen (2). You can click【select file】 to choose the directory or file in the phone or Micro SD card to the play list. (3) If you choose a directory, all the files in the directory will be shown on screen. (4) The file with a tick is that in the play list. Click some music to add into or delete them from the play list.

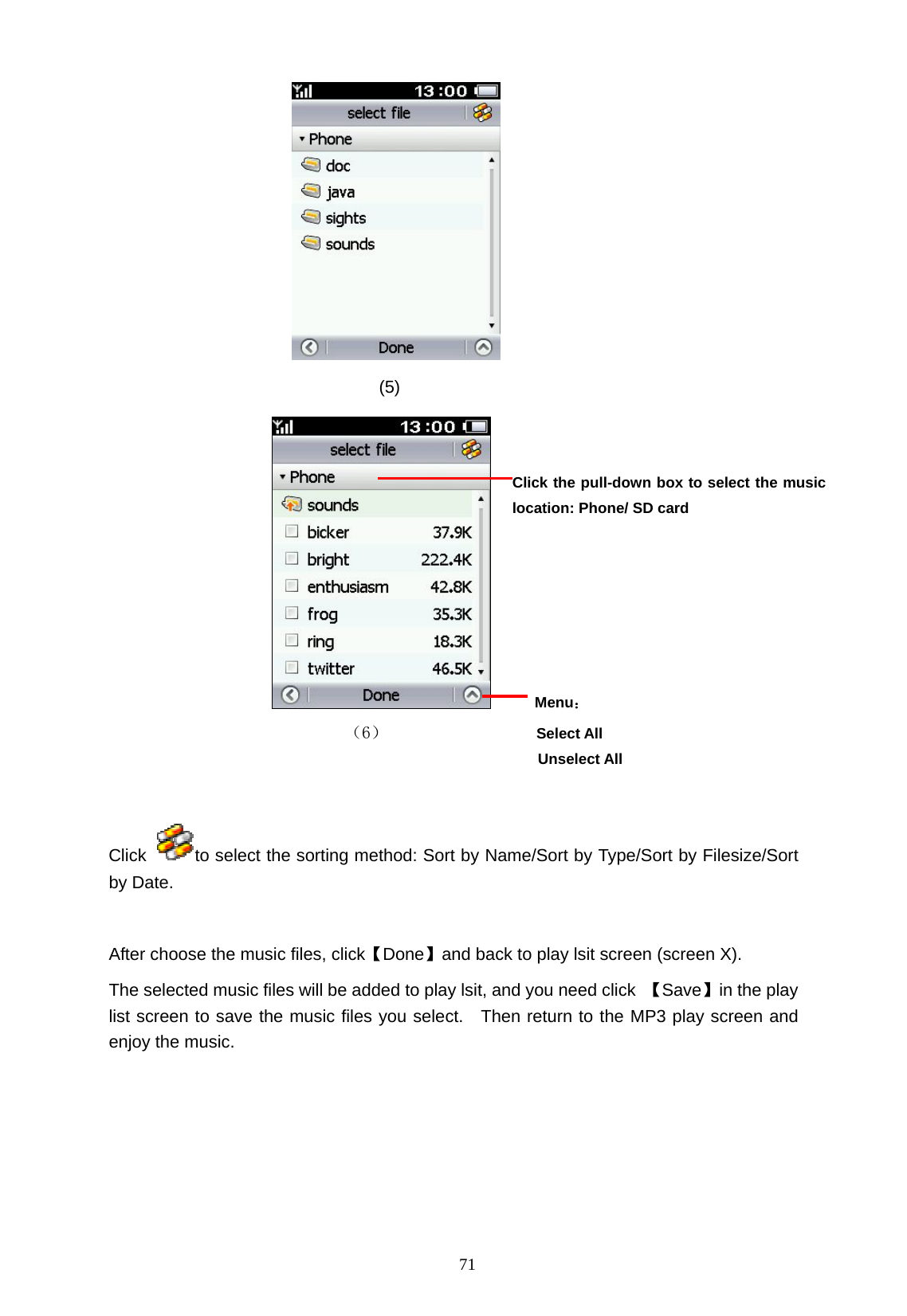

71 (5) Menu：（6） Select All Unselect All Click to select the sorting method: Sort by Name/Sort by Type/Sort by Filesize/Sort by Date. After choose the music files, click【Done】and back to play lsit screen (screen X). The selected music files will be added to play lsit, and you need click 【Save】in the play list screen to save the music files you select. Then return to the MP3 play screen and enjoy the music. Click the pull-down box to select the music location: Phone/ SD card

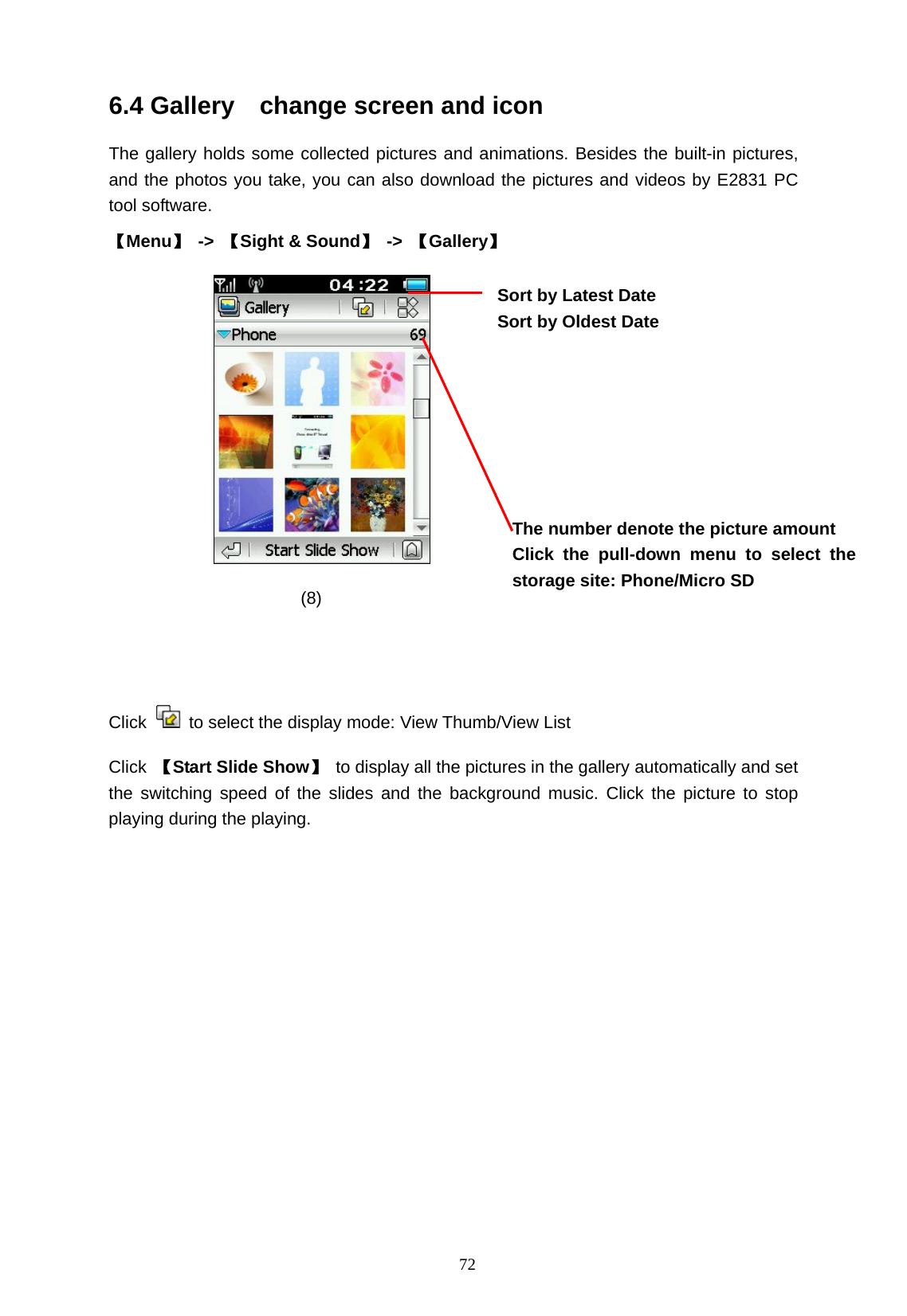

72 6.4 Gallery change screen and icon The gallery holds some collected pictures and animations. Besides the built-in pictures, and the photos you take, you can also download the pictures and videos by E2831 PC tool software. 【Menu】 -> 【Sight & Sound】 -> 【Gallery】 (8) Click to select the display mode: View Thumb/View List Click 【Start Slide Show】 to display all the pictures in the gallery automatically and set the switching speed of the slides and the background music. Click the picture to stop playing during the playing. The number denote the picture amount Click the pull-down menu to select the storage site: Phone/Micro SD Sort by Latest Date Sort by Oldest Date

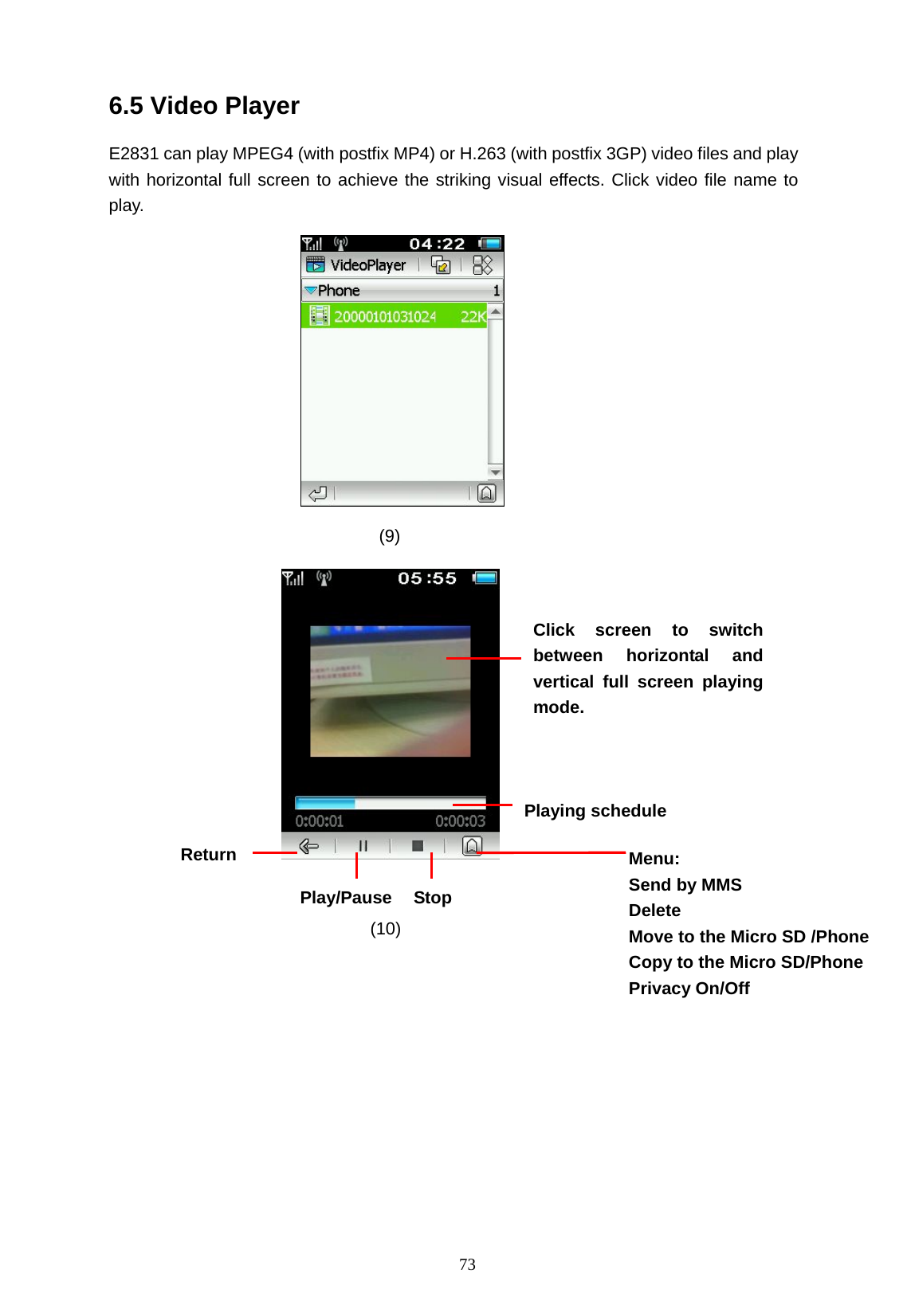

73 6.5 Video Player E2831 can play MPEG4 (with postfix MP4) or H.263 (with postfix 3GP) video files and play with horizontal full screen to achieve the striking visual effects. Click video file name to play. (9) (10) Click screen to switch between horizontal and vertical full screen playing mode. Return Stop Play/Pause Menu: Send by MMS Delete Move to the Micro SD /Phone Copy to the Micro SD/Phone Privacy On/Off Playing schedule

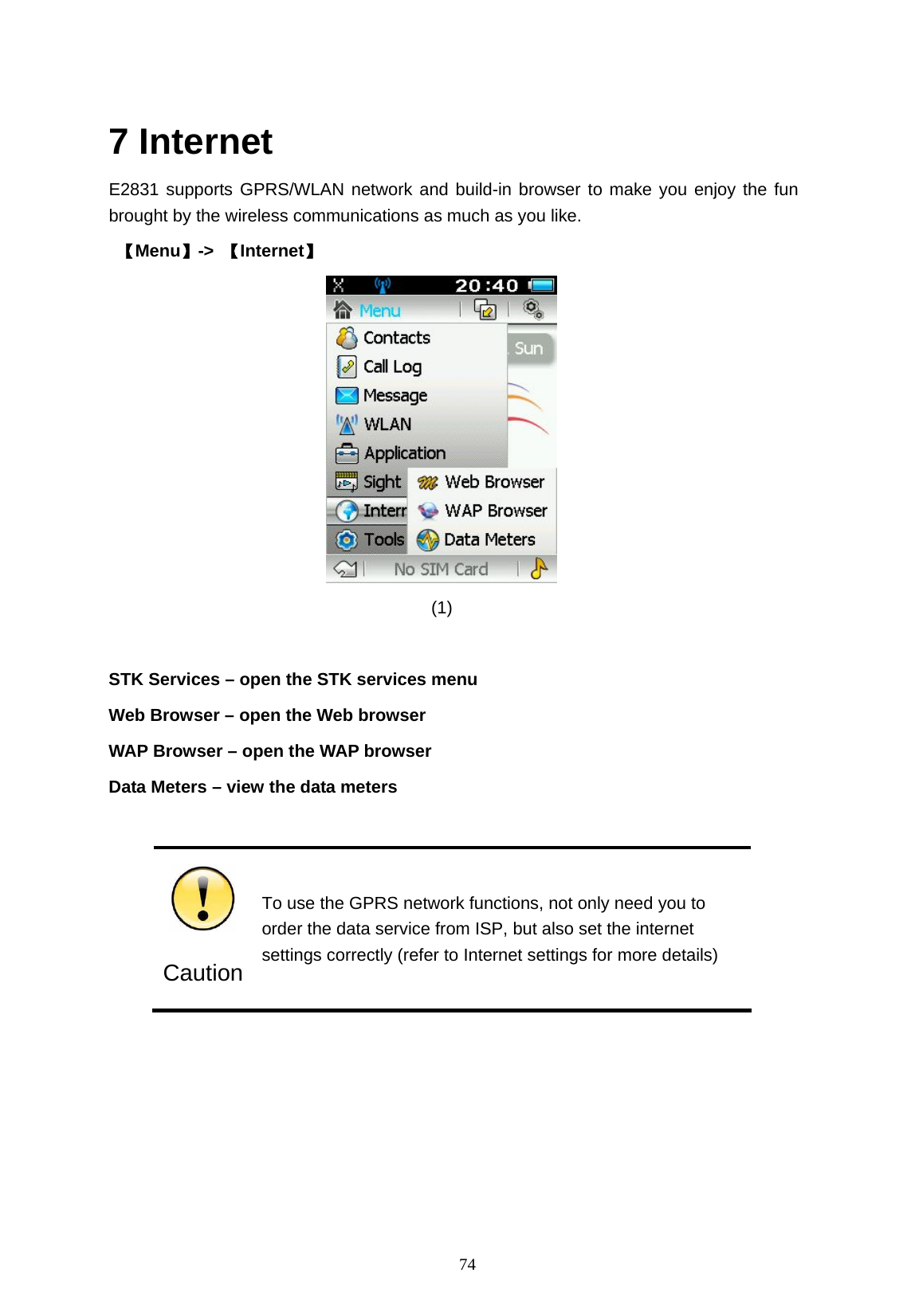

74 7 Internet E2831 supports GPRS/WLAN network and build-in browser to make you enjoy the fun brought by the wireless communications as much as you like. 【Menu】-> 【Internet】 (1) STK Services – open the STK services menu Web Browser – open the Web browser WAP Browser – open the WAP browser Data Meters – view the data meters Caution To use the GPRS network functions, not only need you to order the data service from ISP, but also set the internet settings correctly (refer to Internet settings for more details)

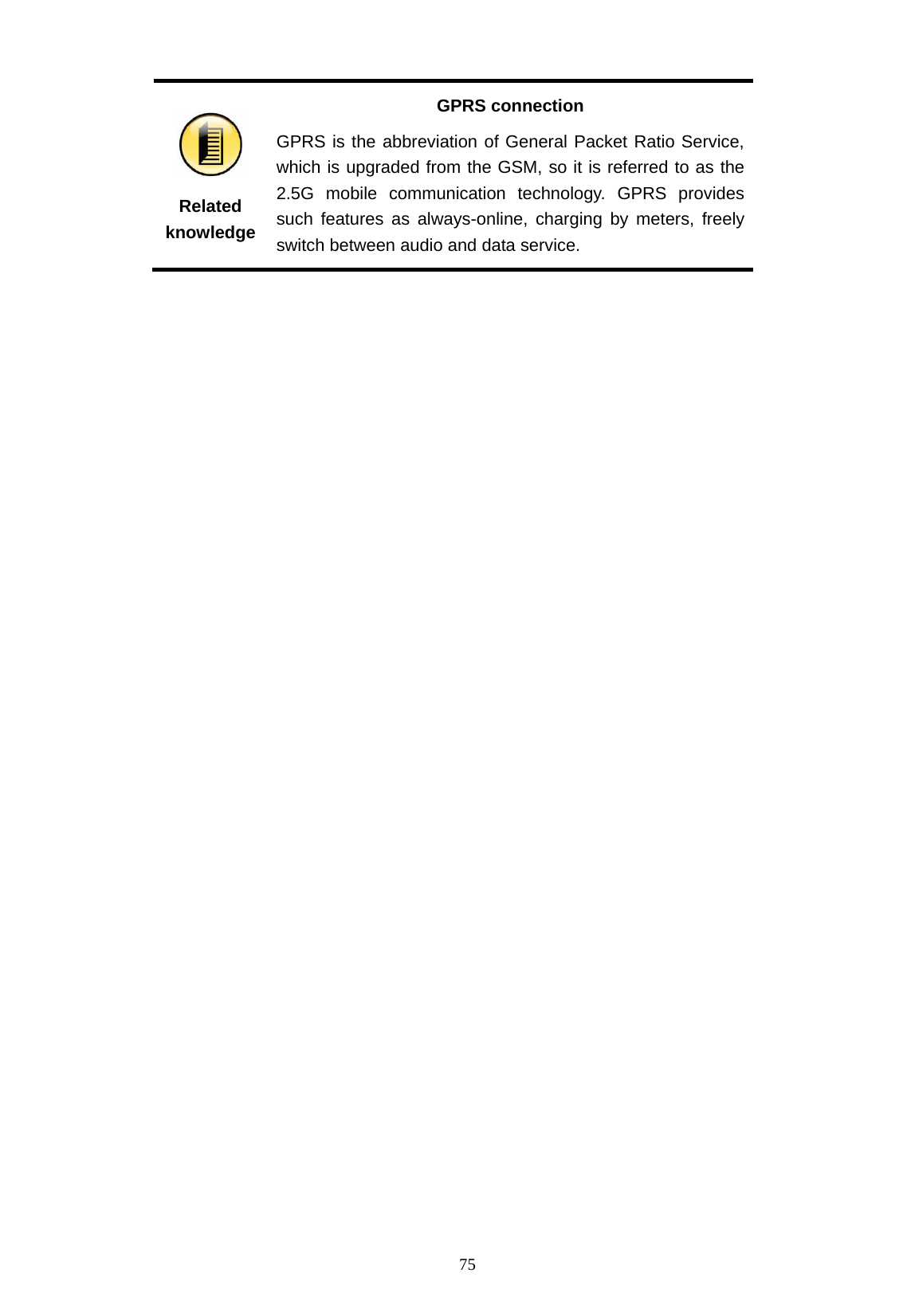

75 Related knowledgeGPRS connection GPRS is the abbreviation of General Packet Ratio Service, which is upgraded from the GSM, so it is referred to as the 2.5G mobile communication technology. GPRS provides such features as always-online, charging by meters, freely switch between audio and data service.

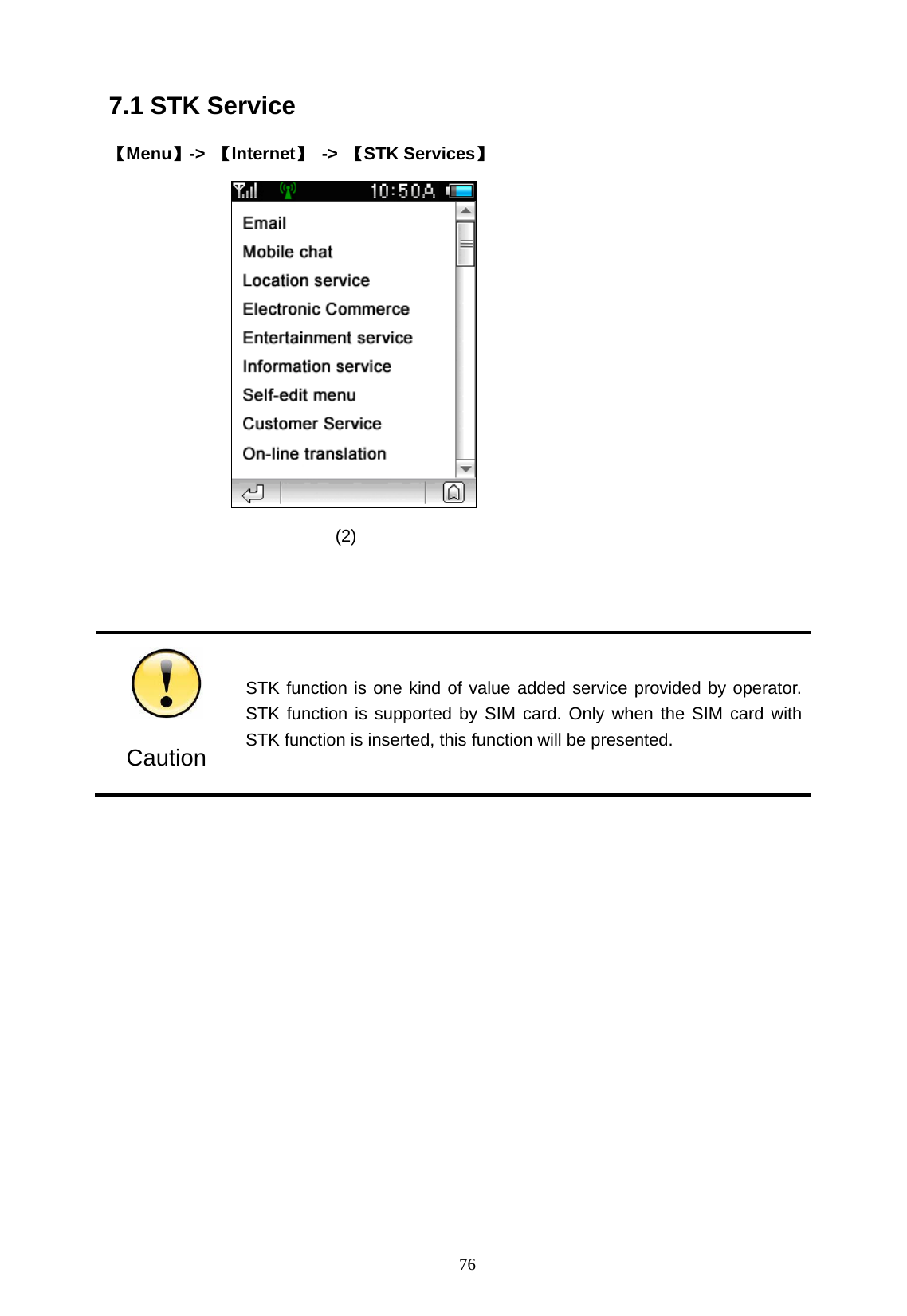

76 7.1 STK Service 【Menu】-> 【Internet】 -> 【STK Services】 (2) Caution STK function is one kind of value added service provided by operator. STK function is supported by SIM card. Only when the SIM card with STK function is inserted, this function will be presented.

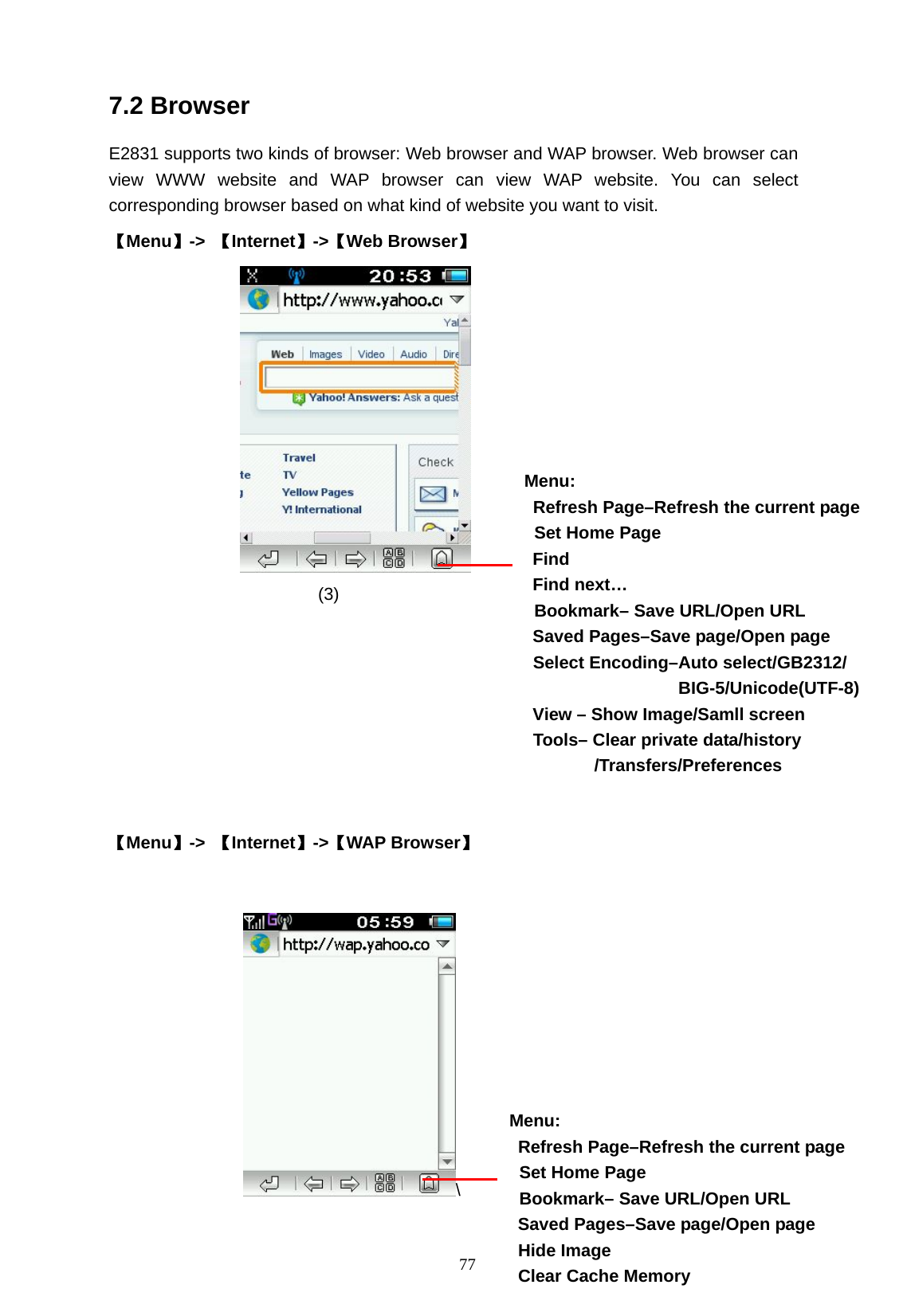

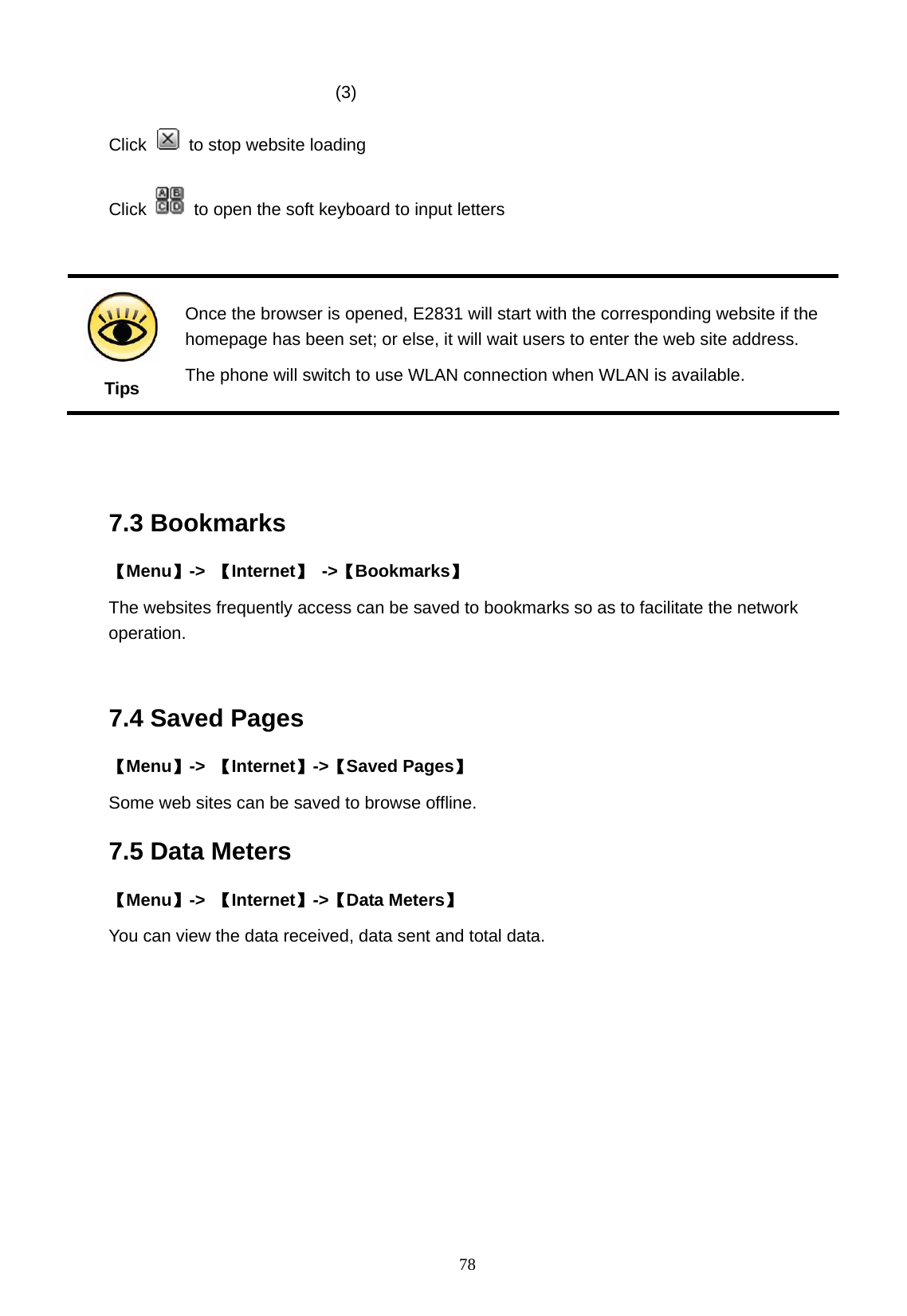

$77 7.2 Browser E2831 supports two kinds of browser: Web browser and WAP browser. Web browser can view WWW website and WAP browser can view WAP website. You can select corresponding browser based on what kind of website you want to visit. 【Menu】-> 【Internet】->【Web Browser】 (3) 【Menu】-> 【Internet】->【WAP Browser】 \ Menu: Refresh Page–Refresh the current page Set Home Page Find Find next… Bookmark– Save URL/Open URL Saved Pages–Save page/Open page Select Encoding–Auto select/GB2312/ BIG-5/Unicode(UTF-8) View – Show Image/Samll screen Tools– Clear private data/history /Transfers/Preferences Menu: Refresh Page–Refresh the current page Set Home Page Bookmark– Save URL/Open URL Saved Pages–Save page/Open page Hide Image Clear Cache Memory$
