EDMI >
Users Manual
Warming: Before operating this equipment, please
read the following content
★ During charging, do not force remove the battery
to prevent damage equipment.
★ If you open or damage the cabinet itself will not
enjoy the warranty service.
★ Please pay attention to protecting the screen, to
prevent wear and tear, or extrusion. Such injuries
are considered to be man-made damage.
★
Please backup data. The Company is not responsible
for product failure resulting in data loss caused
by all direct or indirect losses. Especially before
replace the battery in the more necessary to the
backup data.
★ This equipment is a precision electronic
equipment, do not put it in the static environment
with strong waves.
★
This device contains a lithium-ion battery. If the
battery is not handled properly, there will be fire
and burn hazard. Do not disassemble, crush,
puncture, do not short the external battery
connector, but can not be put into fire and water.
Do not attempt to open or maintain the battery, the
battery can only be specified using the product to
be replaced. Dispose of the battery, do not be
thrown away.
★ This product is professional equipment, do not
PDF pdfFactory Pro www.fineprint.cn
Directory
Quick Guide .................................................................................. 5
Overview: .............................................................................. 5
Product performance .................................................. 6
External Structure .................................................... 6
Key features .............................................................. 10
Random Accessories .................................................. 13
Optional Accessories .............................................. 13
Getting Started ........................................................................ 14
Battery installation and replacement...................... 14
Boot and shutdown ............................................................ 14
Battery Charge .................................................................. 17
The use of SD card .......................................................... 18
Sleep and wake up ............................................................ 19
Taskbar ................................................................................ 20
Desktop ................................................................................ 24
Device Reset ...................................................................... 26
Appendix I Troubleshooting.................................................. 27
Appendix II maintenance ............................................................ 28
Appendix III Customer Service .................................................... 29
Appendix IV to the other ............................................................. 29
PDF pdfFactory Pro www.fineprint.cn
Quick Guide
Overview:
Smart mobile data collection terminal is EDMI
Technology Co., Ltd. independently developed a new
wireless data acquisition products, embedded design,
with low power consumption, large screen, stable and
efficient, the entire Chinese operating system, support
Sub 1G RF ,etc.
PDF pdfFactory Pro www.fineprint.cn
Product performance
Project Features
CPU With ARM9 32-bit processor, the main
frequency of 400MHz
Operating System Support for Microsoft Windows CE 5.0
simplified Chinese version
Memory 64Mb/128Mb
FLASH Memory 256Mb
Display 2.8 inch TFT true color with 240 * 320
resolution Handwritten touch screen
Wireless Sub 1G RF, Frequency range 915~918.6MHz
Data Backup Double backup of SD card and FLASH
Secondary
development MS-EVC4.0 and above, or MS-VS2005
Protection class IP54
Drop resistance 1.5 m free fall
Ambient
temperature
Use: 0 ℃ -50 ℃ Storage: -20 ℃ -70 ℃
Interface USB,SD Card
Size 180MM*66MM*31MM
Weight

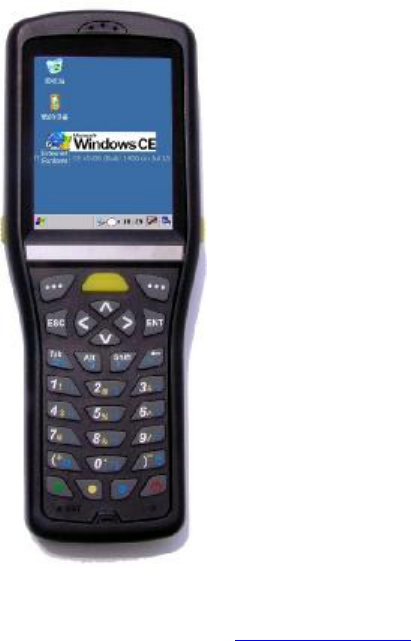

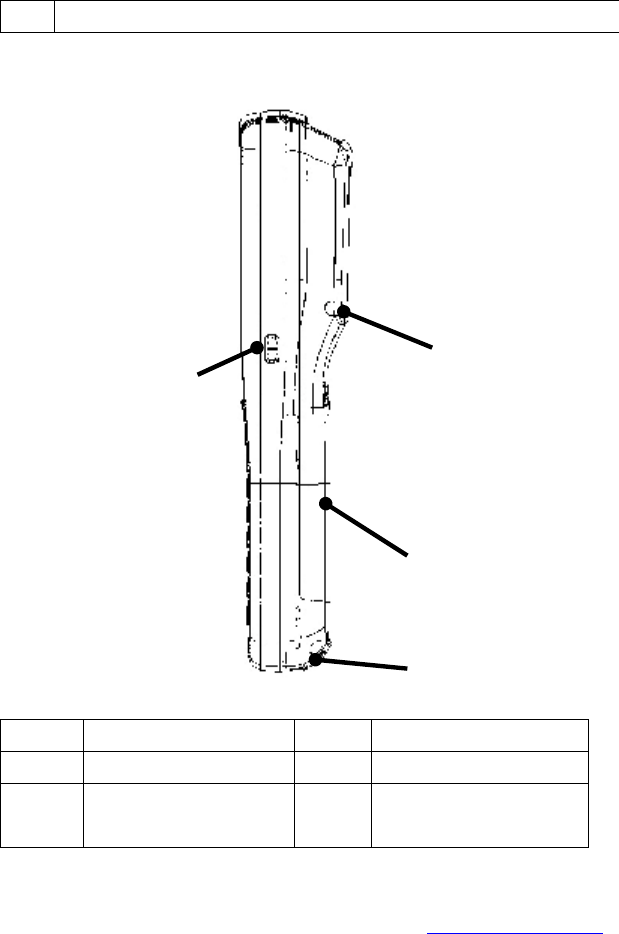

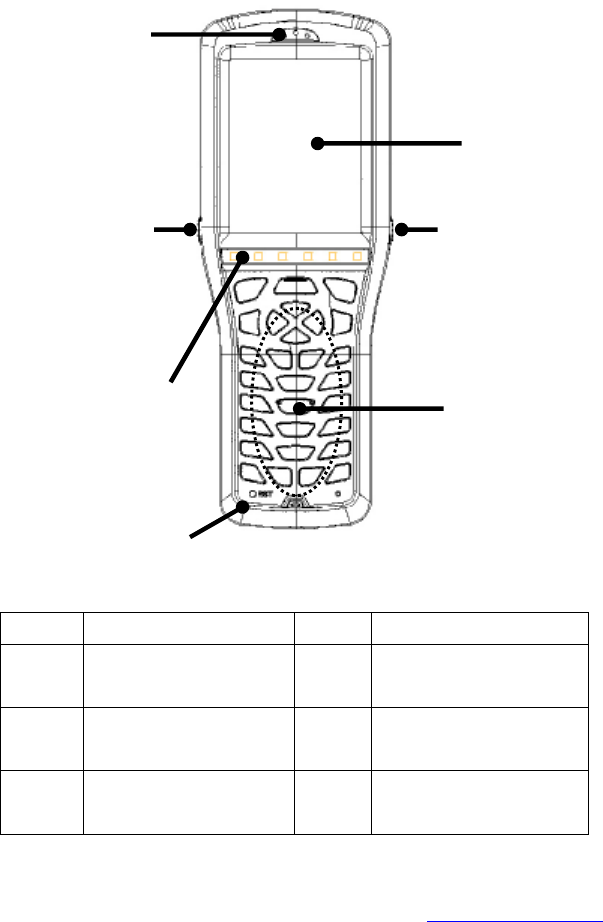

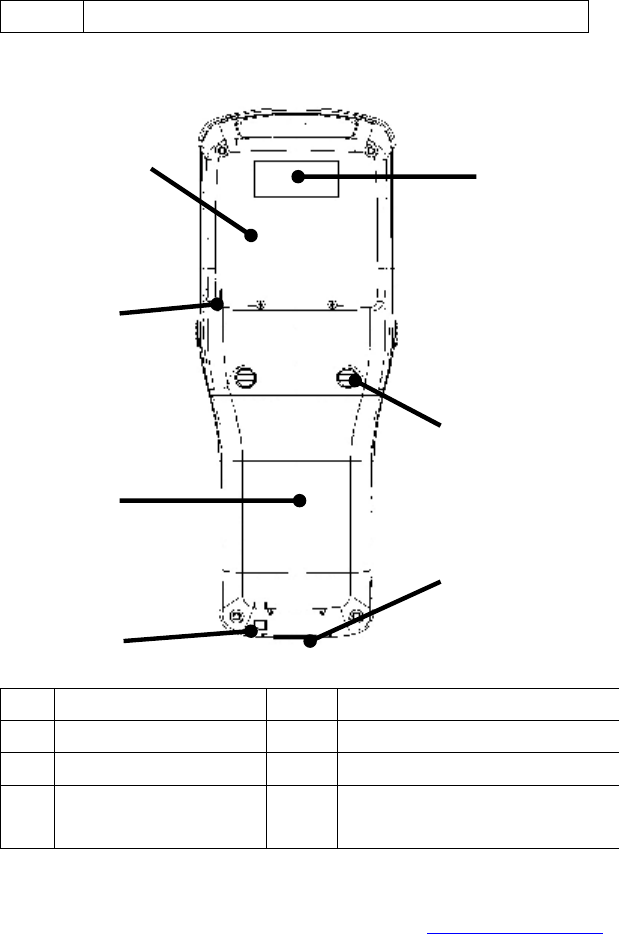

External Structure
Positive：
PDF pdfFactory Pro www.fineprint.cn

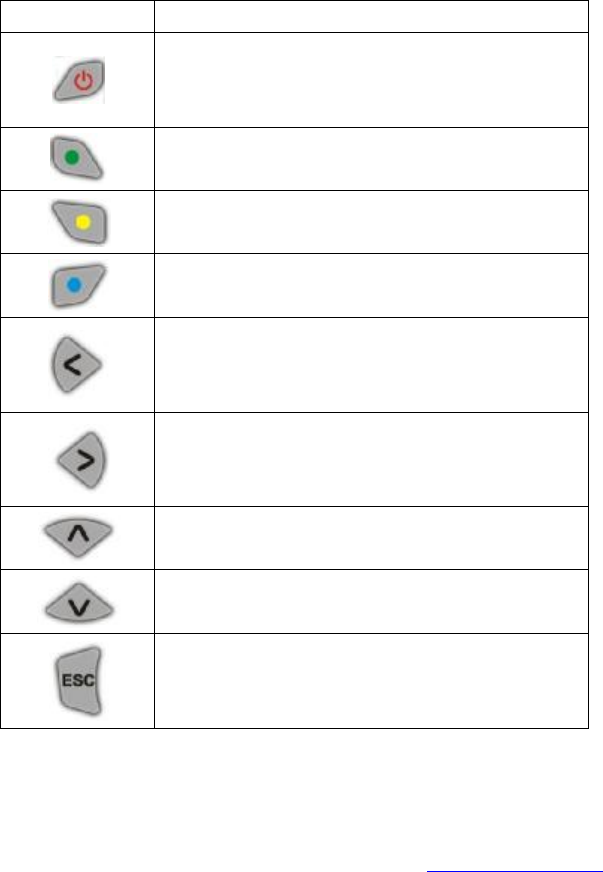

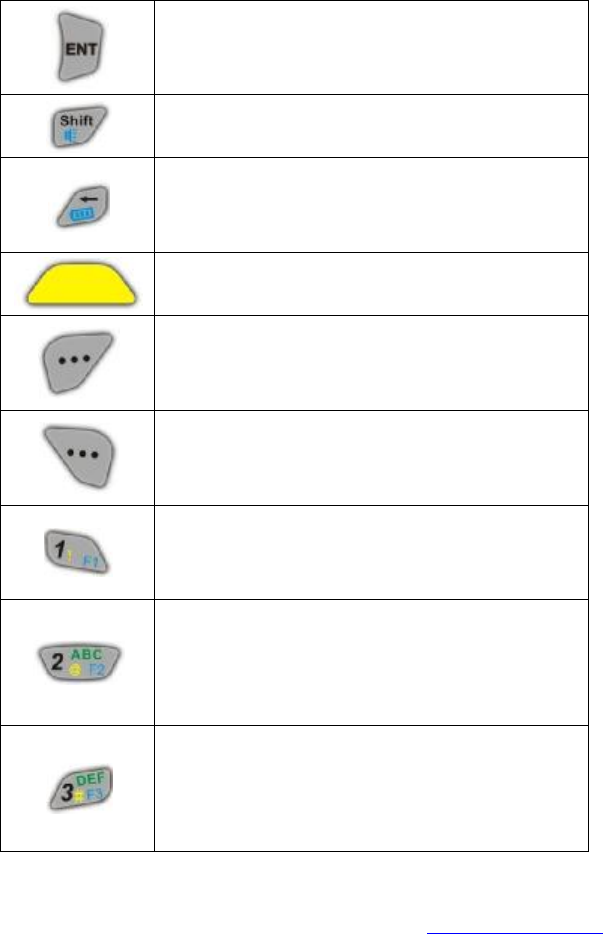

Key features
Button Function
Power button, turned off click start.
turned on, click into the sleep / wake-
up
for 3 seconds after the shutdown.
Green Ribbon switch button, press the
keyboard function to switch to green
Yellow
Ribbon switch button, press the
keyboard function to switch to yellow
Blue Ribbon switch button, press the blue
function after the switch to the keyboard
Arrow keys - left
Arrow keys - Right
Arrow keys –Up
Arrow keys - Down
Exit
PDF pdfFactory Pro www.fineprint.cn
Line
or the implementation of selected
projects
SHIFT key, blue mode, adjust the volume
Delete the character before the cursor, or
indicate a sense of movement back, blue
state, said backlight adjustment
Spare key
Left softkey
Right softkey
Digital -
1 yellow mode be expressed as a
symbol !, blue mode be expressed as
function key F1
Digital -
2 yellow mode be expressed as a
symbol @, blue mold be expressed as
function key F2, green mode be expressed
as the letters ABC
Digital -3 yellow mo
de be expressed as a
symbol #, blue mold be expressed as
function key F3, green mode be expressed
as the letters DEF
PDF pdfFactory Pro www.fineprint.cn

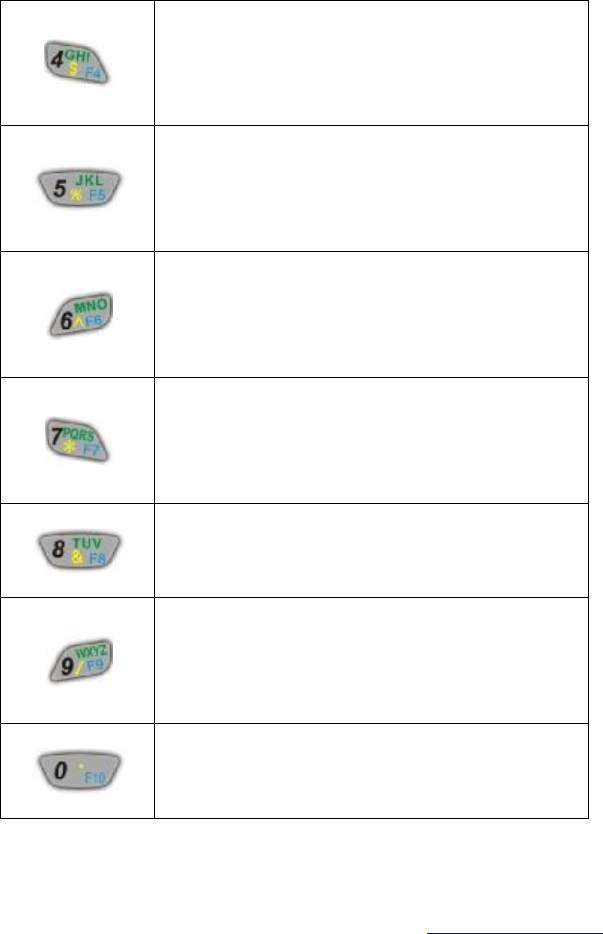

Digital -
4 yellow mode be expressed as a
symbol $, blue mold be expressed as
function key F4, green mode be expressed
as the letters GHI
Digital -
5 yellow mode be expressed as a
symbol %, blue mold be expressed as
function key F5, green mode be expressed
as the letters JKL
Digital -
6 yellow mode be expressed as a
symbol ^, blue mold be expressed as
function key F6, Green mode be
expressed
as the letters MON
Digital -
7 yellow mode be expressed as a
symbol *, blue mold be expressed as
function key F7, Green mode be expressed
as the letters PQR
Digital -8 yellow mode be expressed as a symbol
&, blue mold be expressed as function key F8,
Green mode be expressed as the letters TUV
Digital -
9 yellow mode be expressed as a
symbol /, blue mold be expressed as
function key F9, Green mode be expressed
as the letters WXYZ
Digital -
0 yellow mode be expressed as a
symbol ., blue
mold be expressed as
function key F10
PDF pdfFactory Pro www.fineprint.cn

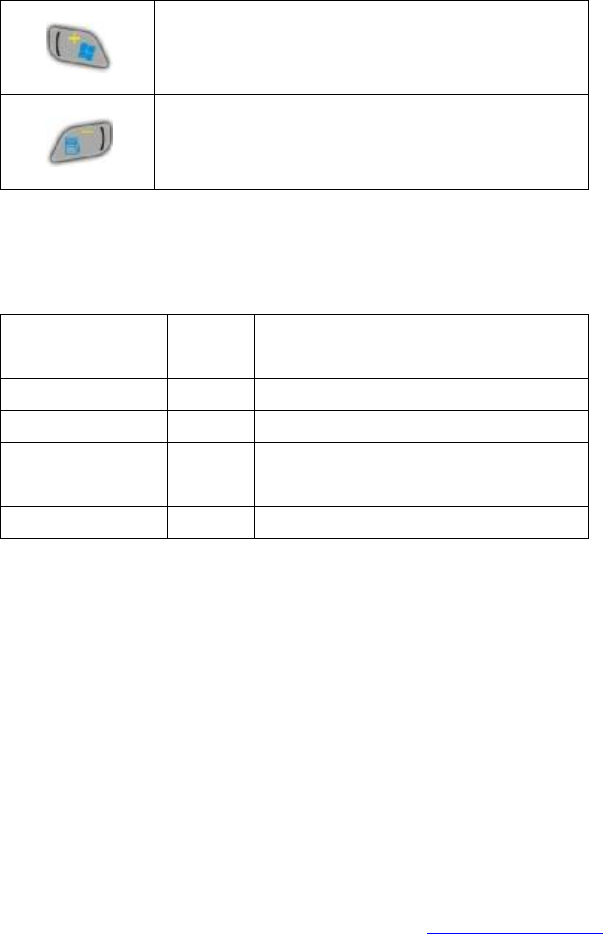

Symbol -
(yellow mode be expressed as a
symbol +, blue mold be expressed as button
for the Start Menu
Symbol -
) yellow mode be expressed as a
symbol -
, blue mold be expressed as
right-click menu
Random Accessories
Item Quanti
ty
Remarks
Device Host 1
AC Adapter 1 Input:AC100-240V 50Hz/60Hz
USB cable 1 And computer sync, and charge the
battery with the machine
Lithium Battery 1
Optional Accessories
You can be paid to the Company and dealers have the
following options:
● Thick lithium-ion battery
● USB extension cable
● Charging / communication base
PDF pdfFactory Pro www.fineprint.cn
Getting Started
Battery installation and replacement
1. Make sure the device is turned off
2. The battery compartment cover lock screw counter-clockwise
rotation
3. Open the back cover
4. Put the battery into the battery compartment
5. Close the back cover
6. The battery compartment cover lock screw clockwise, lock the
battery compartment
Boot and shutdown
1. Power

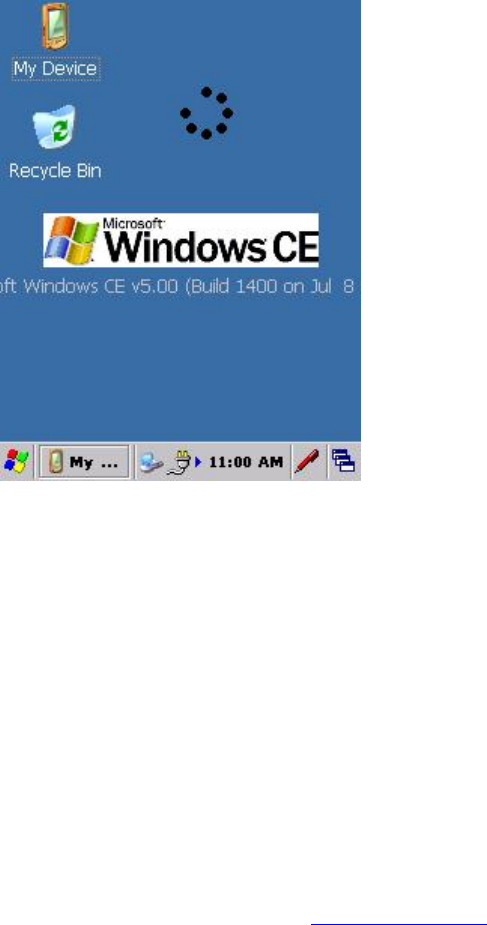

Put a fully charged battery into the device's battery
compartment, tap the button ，wait a system boot screen
will appear (see Figure 4),after the boot progress, that
entered the WinCE operating system (see Figure 5),than can be
related applications.
PDF pdfFactory Pro www.fineprint.cn

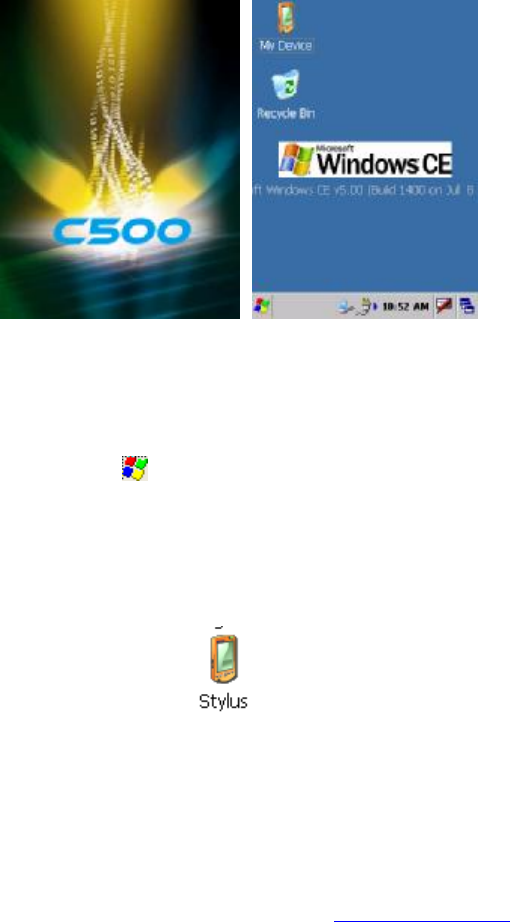

Figure 4 Figure 5
In the first boot, please system comes with a "stylus
calibration "procedure for calibration. Specific, steps are
as follows:
(1) Click thebutton lower left corner of the
screen, select Settings menu under "Control Panel”
menu item.
(2) Select the "Pen" key (see Figure 6),
double-entered.
Figure 6

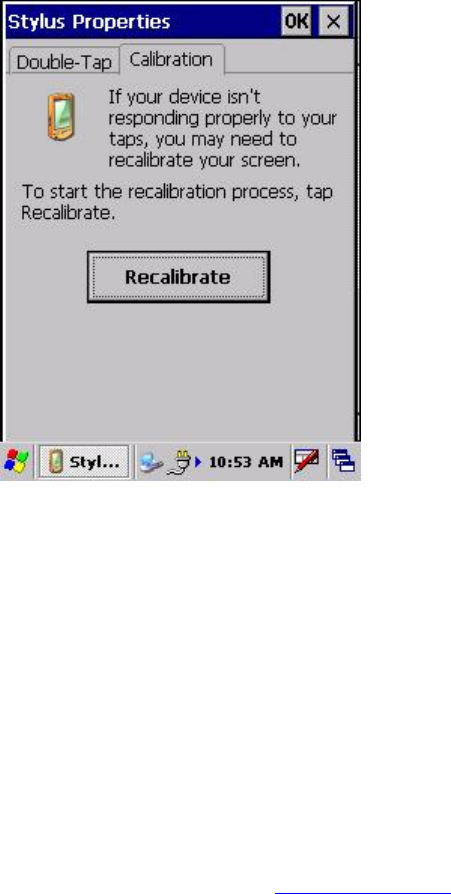

(3) Select the "calibration” property page, then
click the "recalibration" button (see Figure 7)
PDF pdfFactory Pro www.fineprint.cn
for calibration.
Figure 7
(4) The on-screen prompts to complete the
calibration
If the device uses the process, which does not match
with the actual location when clicked, such as the
operation can be re-calibrated.
2. Off
When turned off, before running your device in all
applications currently shut down to prevent data
PDF pdfFactory Pro www.fineprint.cn
loss.

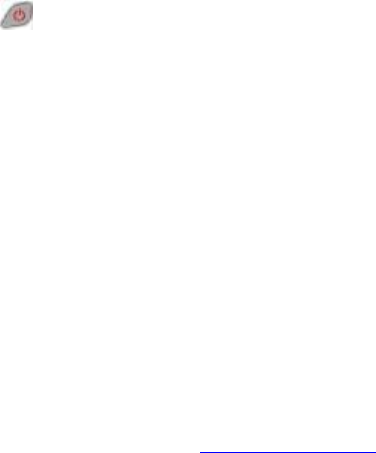

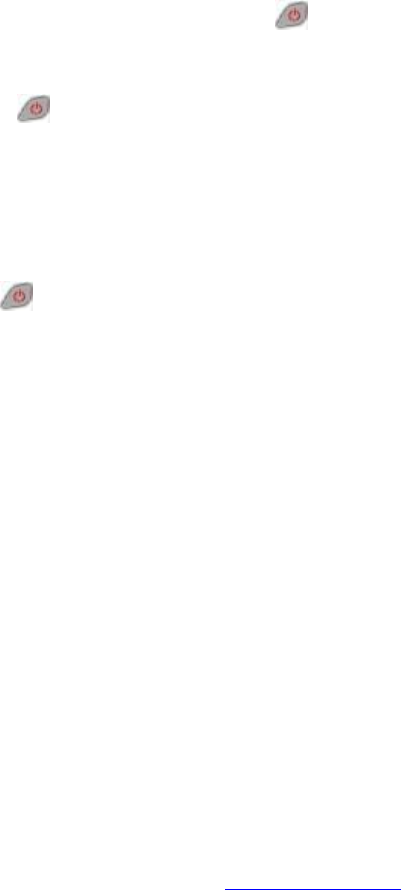

After more than three seconds long button , the
device will automatically turn off the screen, then
release the button ，the system begins to process
shutdown until the power indicator light turns off, it
means that the device is normally closed. This process
according to the actual situation , needs a few seconds
to complete, please be patient during this period, not
many other buttons or keyboard keys, so as to avoid
loss of data.
Battery Charge
Some of the new battery charge, the battery before
use full power. Charge the battery can choose one the
following ways:
1. Equipped with the battery charger into the random,
the plug charger access to electricity.
2. The battery into the battery compartment in the
device. The AC adapter (or USB cable) into the
appropriate port in the device, and access to the
mains AC adapter (USB cable to access the computer
USB port.)
Note：To ensure rapid and efficient completion of the
battery charging, we recommend the use of AC adapter or
PDF pdfFactory Pro www.fineprint.cn
USB cable charging, please turn off the machine after
charging.

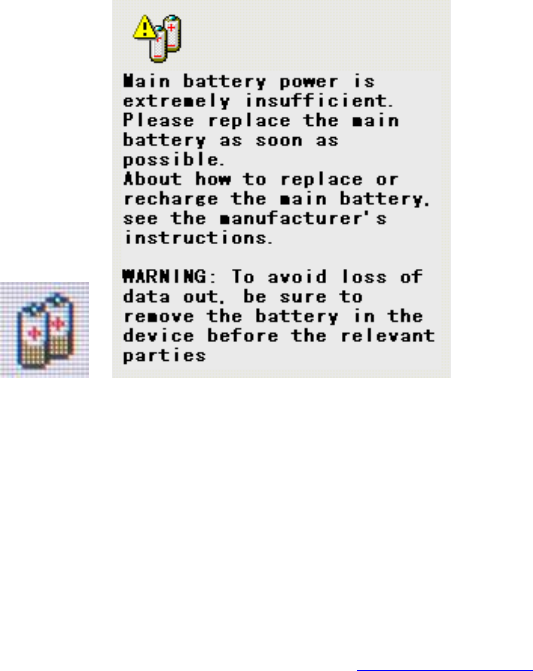

When the battery is low, the task bar at the bottom
of the screen displays the low battery icon (see Figure
9), when the battery is very low, the device will display
a warning message (see Figure 10), such as the above,
please save the data immediately Later, and charge the
battery.
Figure 9 Figure 10
The use of SD card
Open the battery compartment, remove the battery, put
the SD card into your device SD card slot

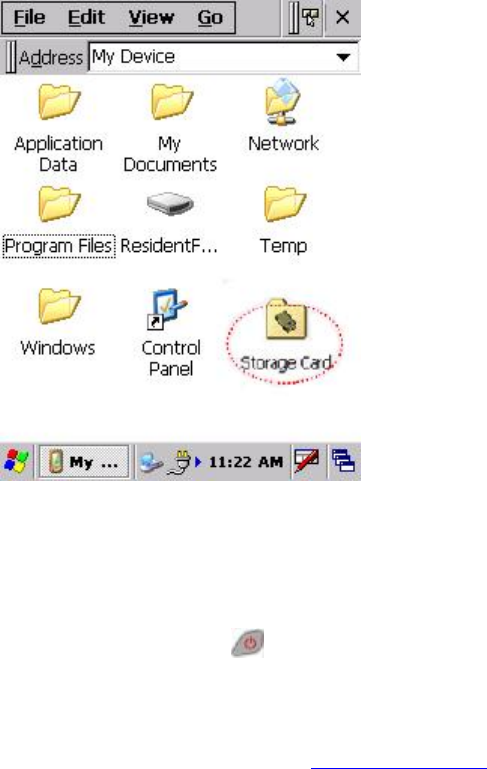

SD card inserted in the "My Device " will appear in
the "Storage Card" directory (see Figure 11), the
PDF pdfFactory Pro www.fineprint.cn
duration can not exceed 3 seconds, otherwise will be
treated as off operation), the device will immediately
turn off the screen. At this time to sleep, to sleep, the
keyboard and touch screen will stop responding until the
wake-up.
The state of the device open, if it is long time
operation, the device will automatically enter sleep mode
to reduce power consumption.
2. Wake
Dormant state in the device, wake the device if needed,
just a light button ，the device immediately wake up,
wake-up device can be normal after the operation.
Note: Be careful not to use multiple clicks in a short
time frequent key sleep / wake-up operation, or may cause
screen damage and data loss.

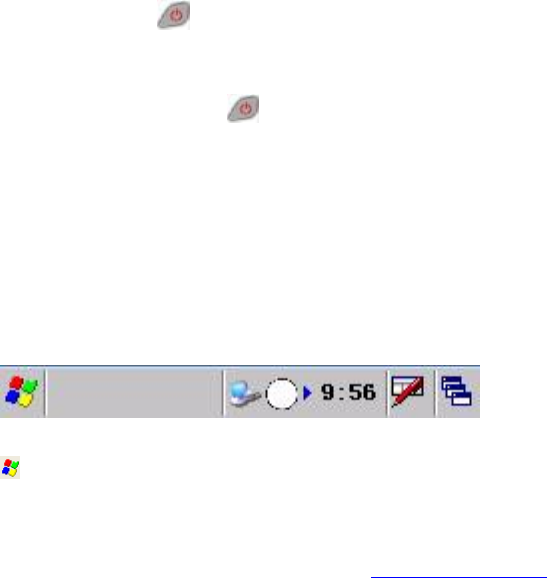

Taskbar

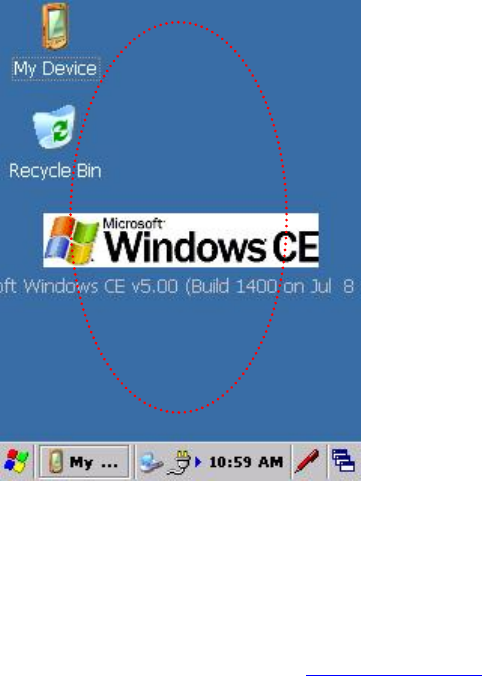

In the bottom of the screen a toolbar is the system
tray, as shown in Figure 12:
Figure 12

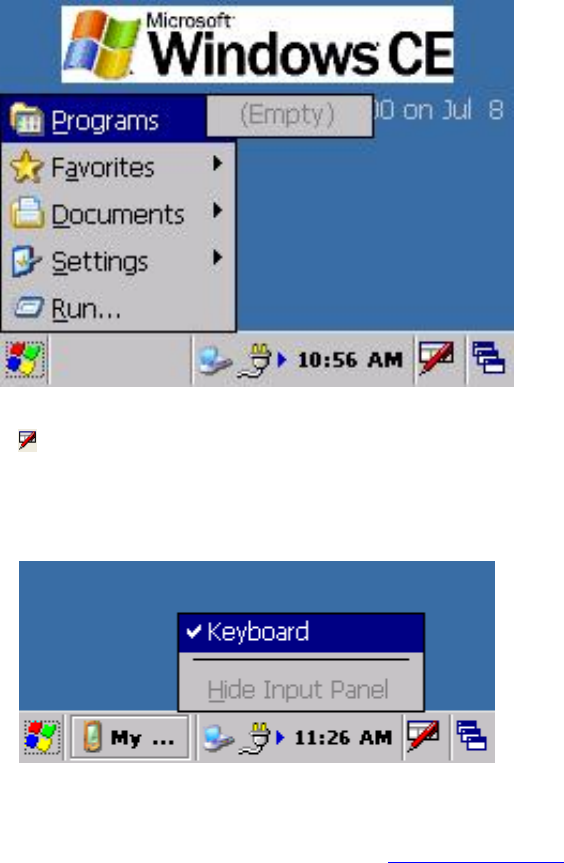

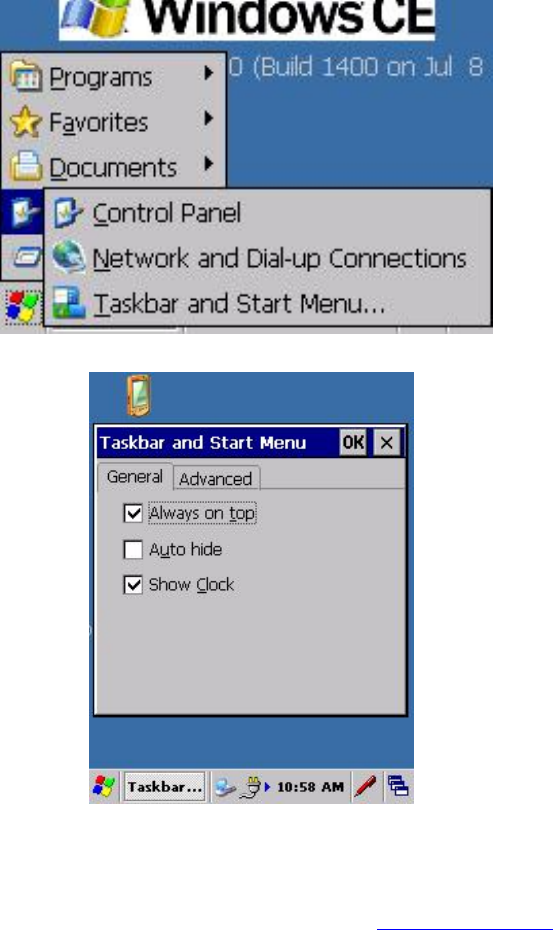

Icon to the Start menu, click on some menu items
PDF pdfFactory Pro www.fineprint.cn
will, by selecting the appropriate menu item can run the
application (see Figure 13).
Figure 13

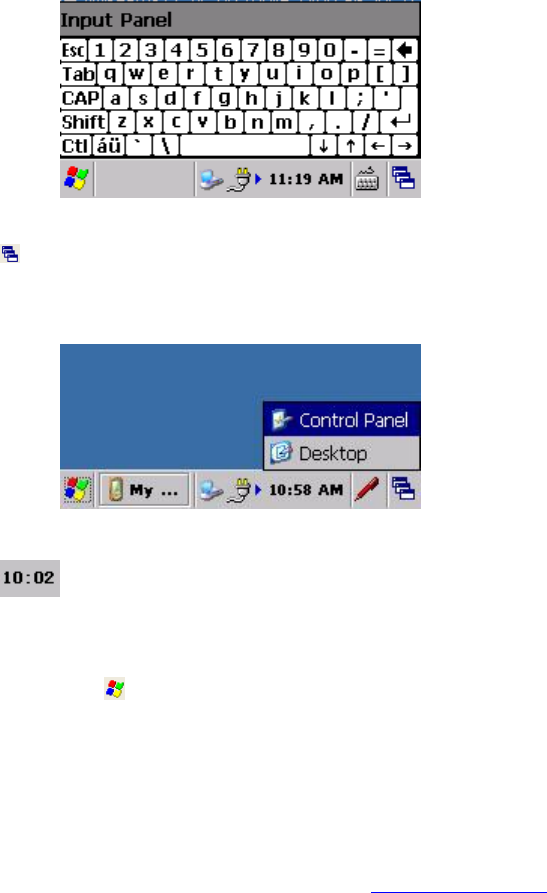

Input menu appears after clicking the menu items
currently available input method, click the menu item to
switch the input method, the menu offers soft keyboard
input method support.
PDF pdfFactory Pro www.fineprint.cn
Figure 14
Figure 15
Current task menu will appear after clicking the
task of all current entries can be achieved by clicking
on the task switching.
Figure 16
Clock item, display the current time, you can
double click into the "Date / Time Properties" page to
set the time, date and time zone and other attributes.
You can select ->"Settings"->"Taskbar and Start Menu
" in the "Show Clock " check box in front of the item on
the time display on and off.
PDF pdfFactory Pro www.fineprint.cn
Desktop
In the task bar at the top of the area known as the
desktop, the desktop icons and put a shortcut to some
common connection, you can quickly select applications.
By pressing the touch screen, will prompt a desktop
menu, via the menu item you can create a folder on the
desktop, shortcuts, you can choose the icon arrangement,
and view the desktop properties.

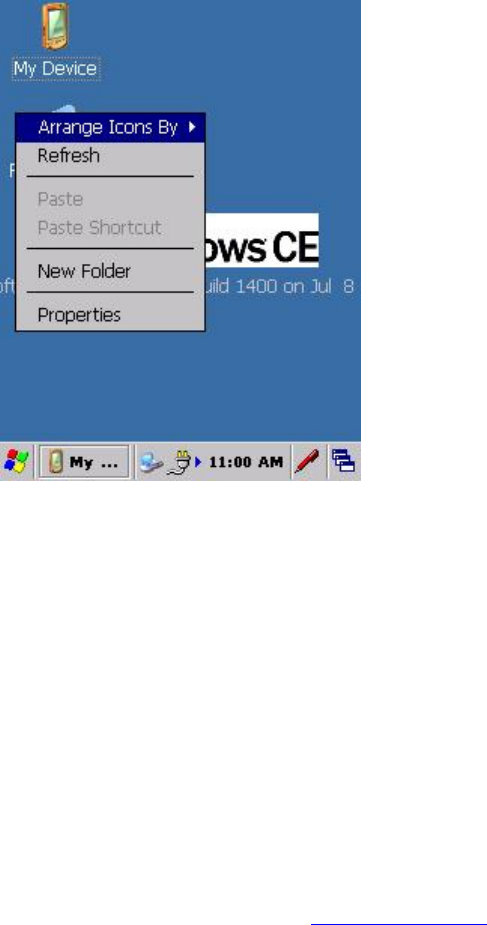

Figure 19
DESKTOP
PDF pdfFactory Pro www.fineprint.cn
Figure 21
Device Reset
When the equipment fails or can not boot system is
running, you can reset the device to restart device.
With a touch pen or other non-sharp object into the
reset pin hole (see Figure 2) seconds after pressing out
more than 1 can be realized a device reset; You can also
remove the battery and power on again to reset the device.
PDF pdfFactory Pro www.fineprint.cn
Appendix I Troubleshooting
Problems and Solutions
1. Equipment and system failures
Problem Solution
Terminal does not start ·Ensure that the batteries are
installed correctly
· Replace the battery with enough
power
· Remove the battery and re-install
the battery
· Device Reset
Touch screen not
responding
·Clean the touch screen
·Re-calibration using the calibration
routine
·Restart the device
Screen does not show ·Verify that the device is in sleep
mode
·Restart the device
·Replace the battery with enough power
Keyboard does not respond
·Verify that the device is in sleep
mode
·Restart the device
·Replace the battery with enough power
SD card not recognized ·Confirm the anti-SD card is plugged
in
·Sure SD card is inserted firmly
PDF pdfFactory Pro www.fineprint.cn
·Confirm whether the damage to the SD
card
·Restart the device
·Replace the battery with enough power
Battery will not charge ·Confirm whether the damage to the AC
adapter
·Sure AC adapter is connected to
utility
·Sure AC adapter is plugged firmly
2.Network and communication failure
Problem Solution
USB connection not
recognized
·Confirm the USB connection is plugged
·Confirm the PC Install the driver
·Restart the device
·Re-plug USB cable
Appendix II maintenance
·Do not use this equipment dedicated charger and battery, so as
not to damage the device
·Do not touch the screen scraping. Use the provided stylus. Do
not use the screen pen, pencil or other sharp objects.
·Do not drop or subject it to strong terminal shock at high altitude
·Do not use corrosive environment terminal
·Do not use the terminal stored in direct sunlight, high humidity,
PDF pdfFactory Pro www.fineprint.cn
and location near heat sources
·Do not put equipment into the water
·Such as the dirty surface of the screen, use soft cloth with
diluted detergent to clean the screen.
·Disposed of in accordance with the provisions of the lithium-ion
batteries used. Do not end in fire, or they may explode.
Appendix III Customer Service
In the computer connected to the Internet through the browser
to access www.justones.com, obtain the latest information on
products and accessories
Warranty: host portion of the date of purchase, enjoy 12 months
of warranty service, accessories and parts have 3 months warranty;
when unable to provide proof of purchase, the date calculated by
the factory.
Appendix IV to the other
Note 1: For the second development of the user, upon
request and related support documents and routines.
Note 2: available from our website to obtain the latest
manual version.
Note 3: In the operation, such as the problems can not
PDF pdfFactory Pro www.fineprint.cn
be resolved through the manual, you can contact us or
visit our website for help.
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by
the party responsible for compliance could void the user's
authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
PDF pdfFactory Pro www.fineprint.cn
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
PDF pdfFactory Pro www.fineprint.cn
