EION LM5800 WIRELESS NETWORKING DEVICE User Manual Preface
EION Inc. WIRELESS NETWORKING DEVICE Preface
EION >
Users Manual
Libra MAX-58 User
Guide
Version: 1.0.8
Released: January 2010
Item Number: 5722-0048
This guide is used for the following products;
Libra MAX-HD Chassis Base Station
Libra MAX-LT 5800 – 5.8 GHz ODU Base Station
Libra MAX-RBS 5800 – 5.8 GHz Rapid Backhaul System
Libra MAX-LT-IND 5800 – 5.8 GHz ODU Base Station, India Only Variant
Libra MAX-RBS-IND 5800 – 5.8 GHz Rapid Backhaul System, India Only Variant
Powered by
Libra MAX User Guide Copyright Notice: Copyright Page 4 of 120
Copyright Notice
1.1
Copyright
Copyright © 2009 EION, Inc.
All rights reserved.
This guide and the application and hardware described herein are furnished under
license and are subject to a confidentiality agreement. The software and hardware can
be used only in accordance with the terms and conditions of this agreement.
No part of this guide may be reproduced or transmitted in any form or by any means –
electronic, mechanical, or otherwise, including photocopying and recording – without
the express written permission of EION, Inc.
While every effort has been made to ensure that the information contained in this
guide is correct, EION Inc. does not warrant the information is free of errors or
omissions.
Information contained in this guide is subject to change without notice.
Table of Contents
1 Copyright Notice ...........................................................................................4
1.1 Copyright......................................................................................................4
2 Table of Contents..........................................................................................6
3 Preface ........................................................................................................10
3.1 Regulatory Notice ........................................................................................10
3.2 Other Notices .............................................................................................. 10
3.3 Warranty and Repair ....................................................................................11
3.4 Customer Support Contacts ..........................................................................11
3.4.1 Distributor Technical Support.................................................................. 11
3.4.2 Contacting EION Technical Support ......................................................... 12
4 Pre-installation ...........................................................................................14
4.1 Required Tools ............................................................................................14
4.2 Site Evaluation ............................................................................................15
4.3 Base Station Site Considerations ...................................................................16
4.3.1 Indoor Unit Site Considerations............................................................... 16
4.3.2 Outdoor Unit Site Considerations ............................................................16
4.3.3 Subscriber Station Site Considerations ..................................................... 17
4.4 Base Station Power Sources .........................................................................17
4.5 Grounding...................................................................................................18
4.5.1 ESD Warning......................................................................................... 18
4.5.2 Outdoor Unit Grounding ......................................................................... 18

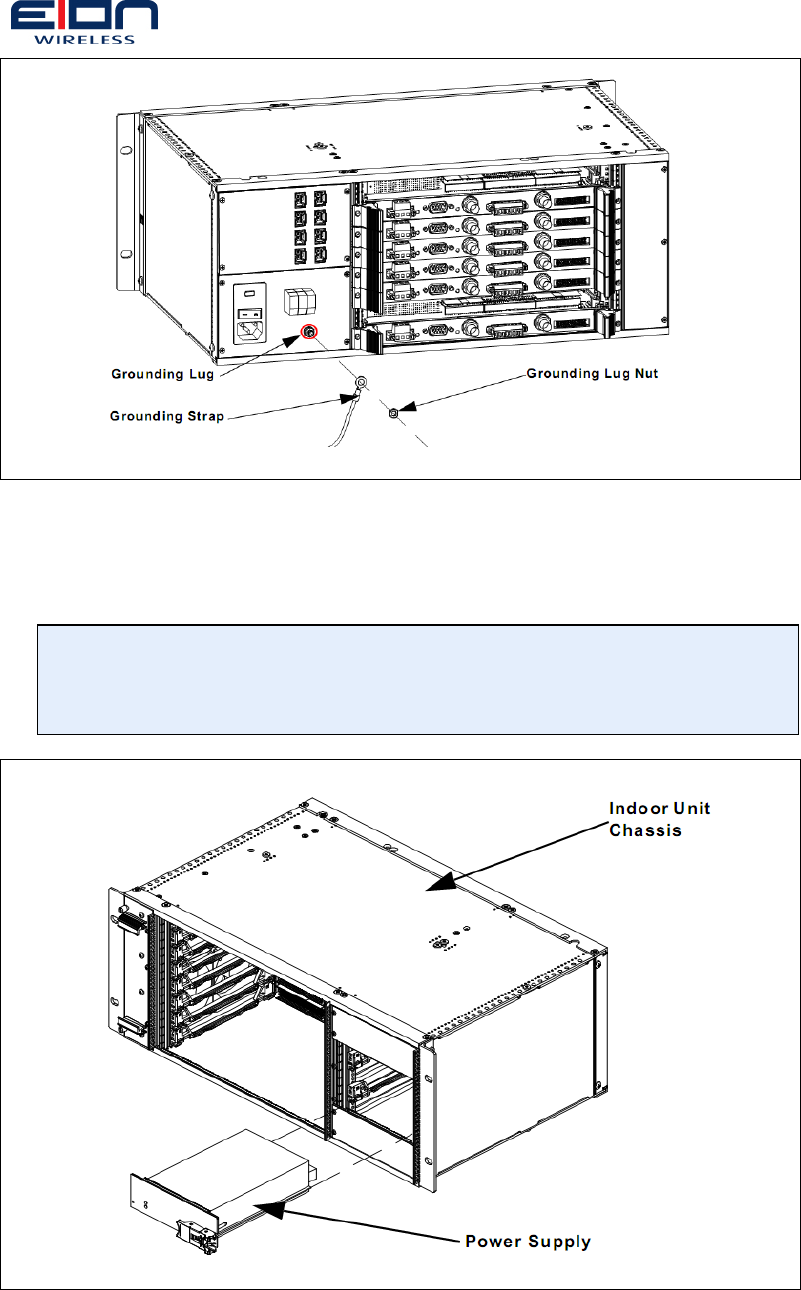

4.5.3 Indoor Unit Chassis Ground .................................................................... 20
4.6 Lightning Protectors.....................................................................................20
4.6.1 Surge Suppression Unit Location.............................................................21
4.7 Weatherproofing Connectors ........................................................................ 24
4.8 CAT-5 Ethernet Cable Shielding..................................................................... 25
5 Base Station Installation ............................................................................26

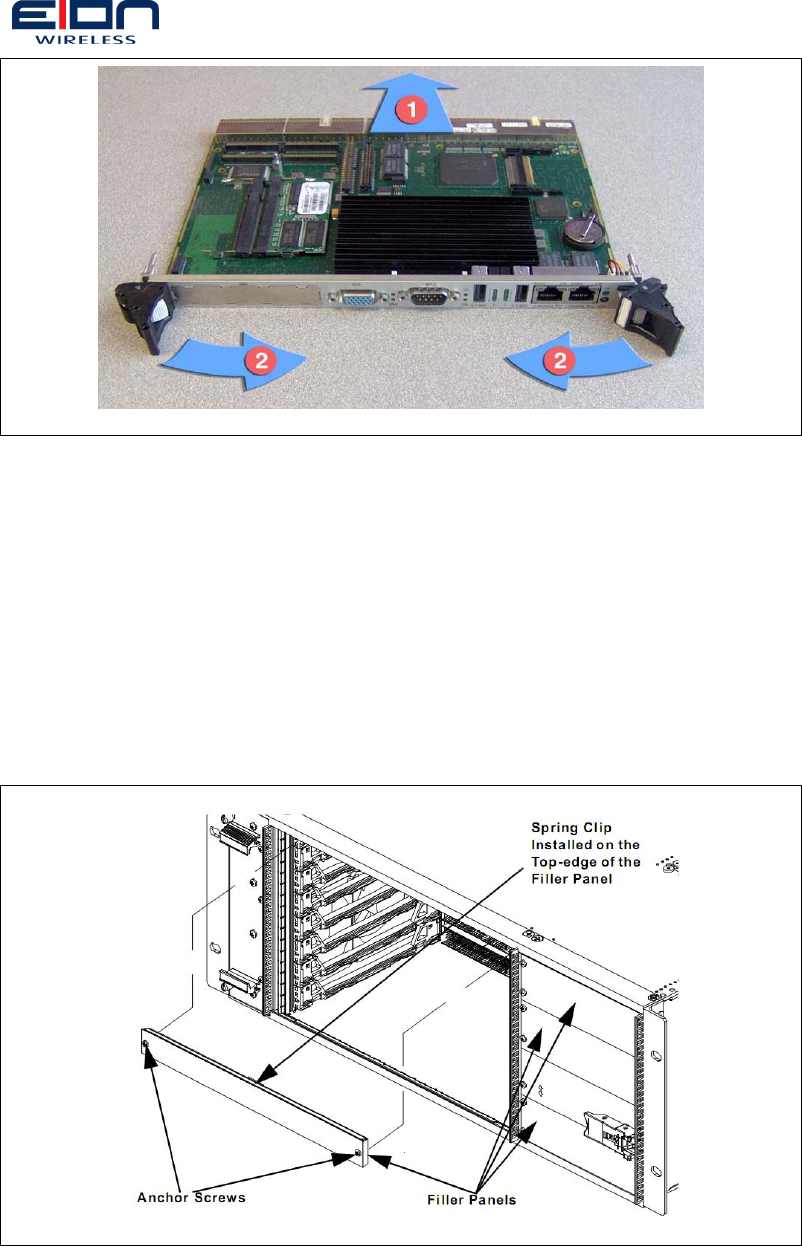

5.1 Installing the Indoor Unit ............................................................................. 26

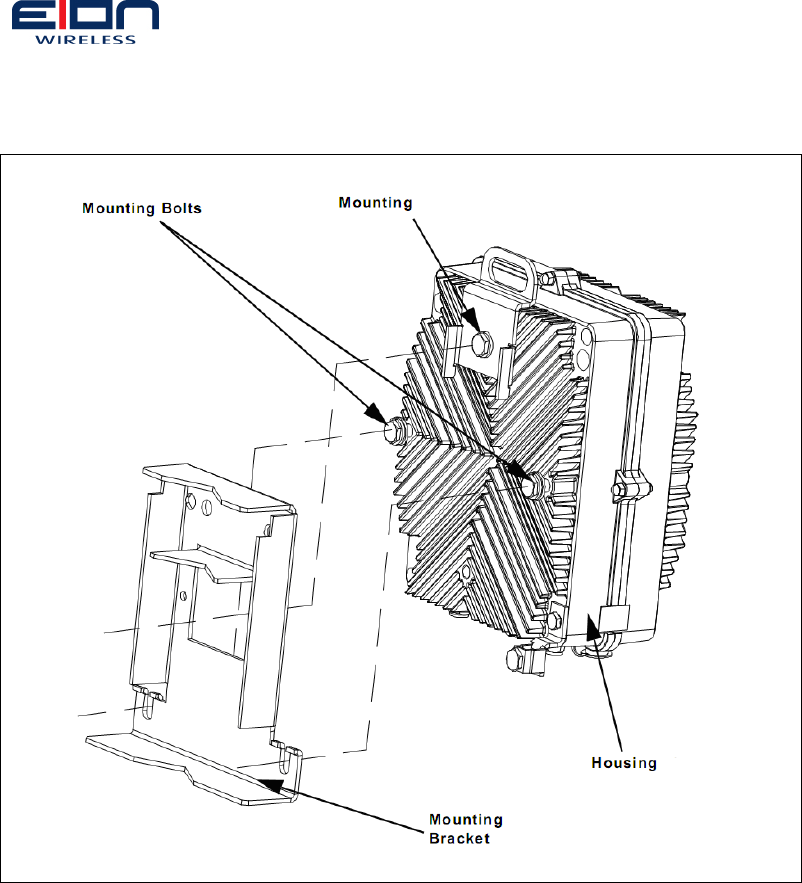

5.2 Installing the BS Outdoor Unit ...................................................................... 35

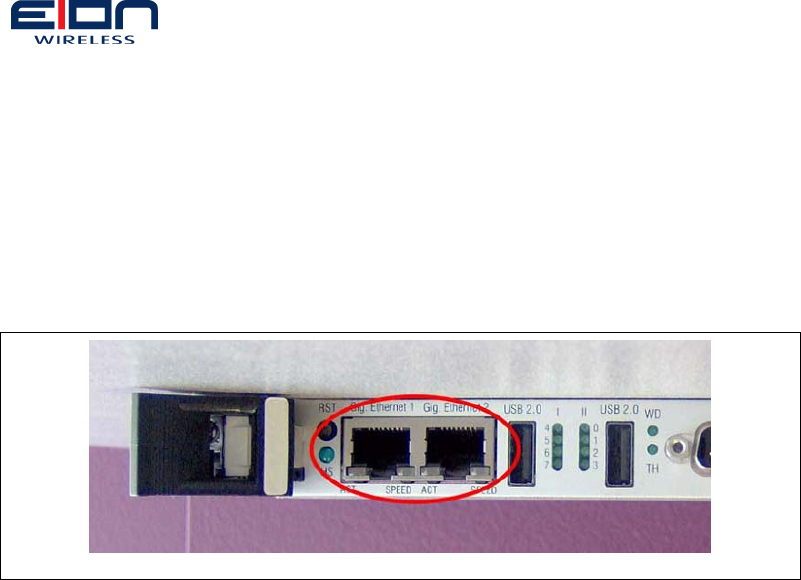

5.3 Connecting the Ethernet Cable......................................................................35
5.4 Mounting Conditions ....................................................................................35

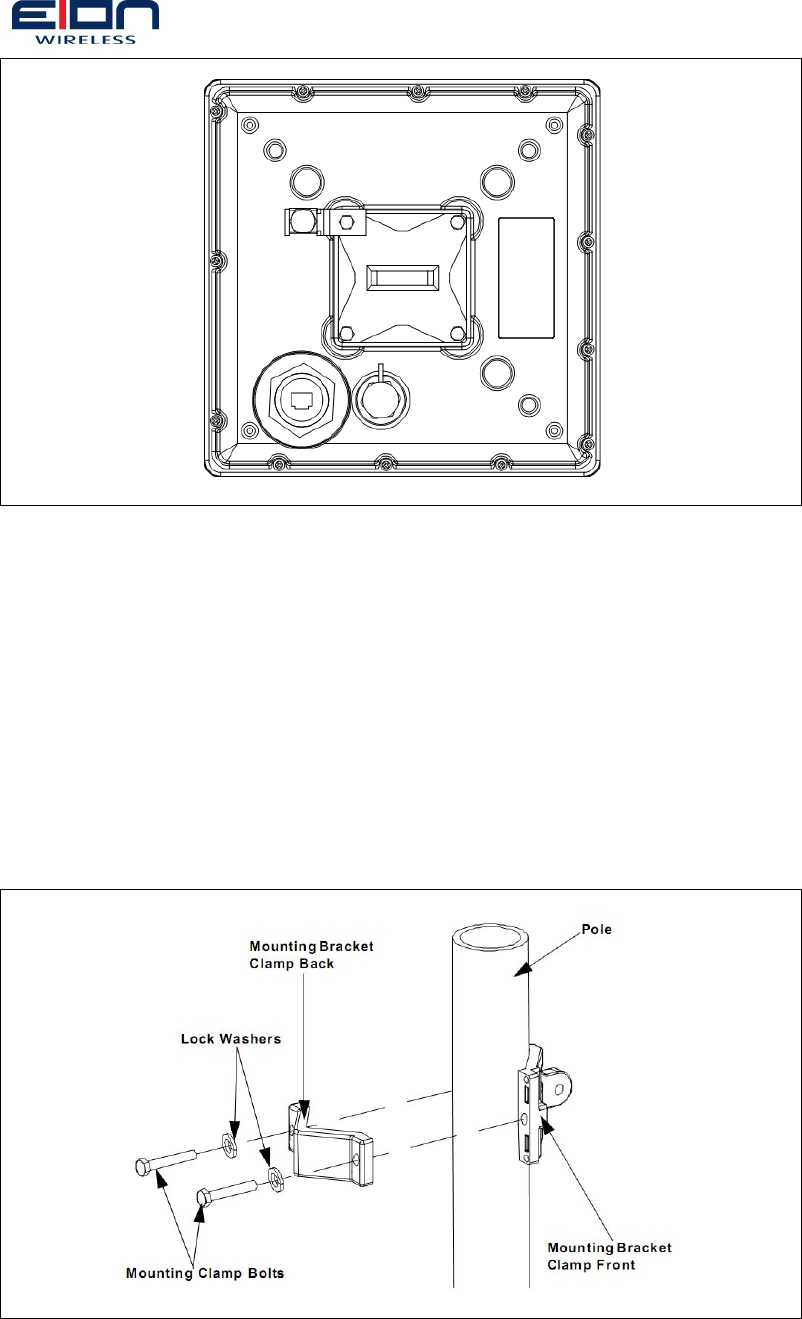

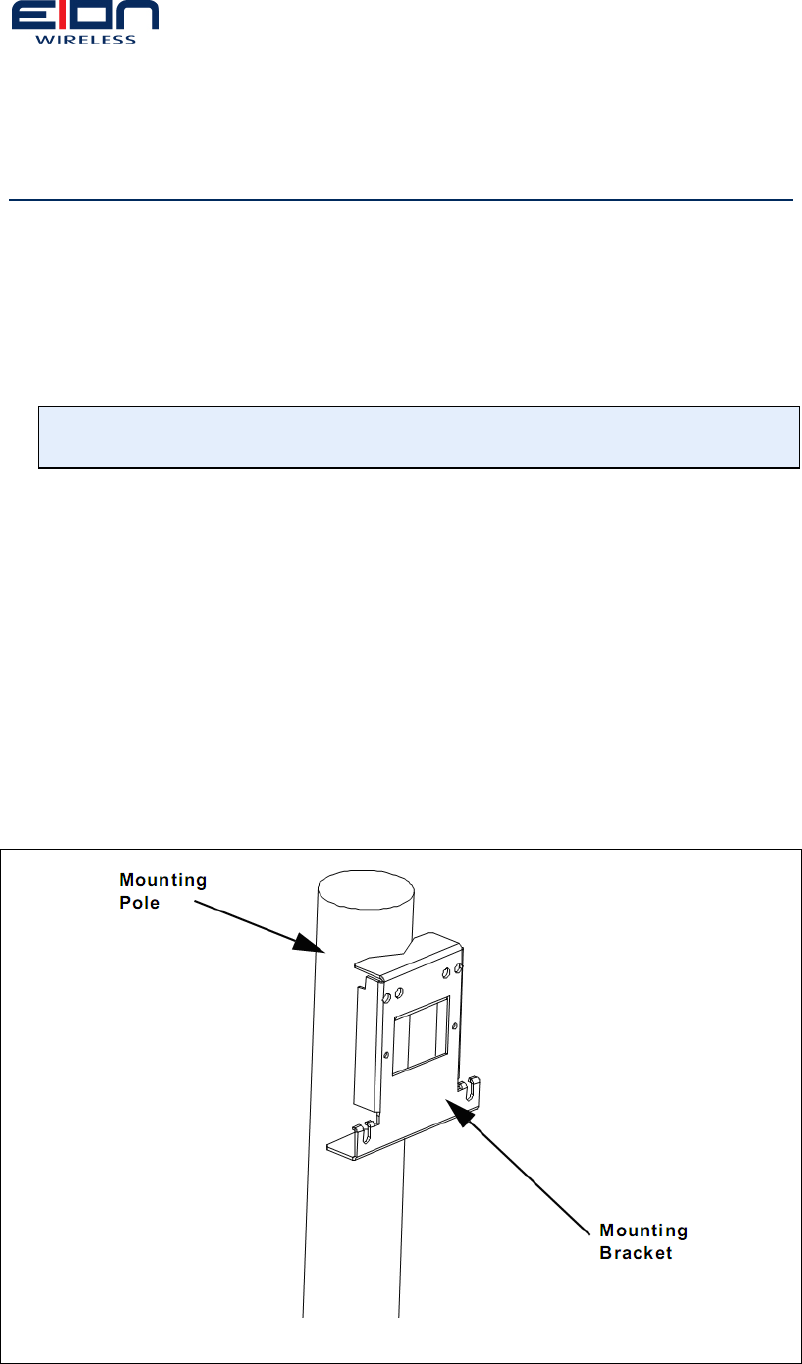

5.5 Pole Mounting ............................................................................................. 35

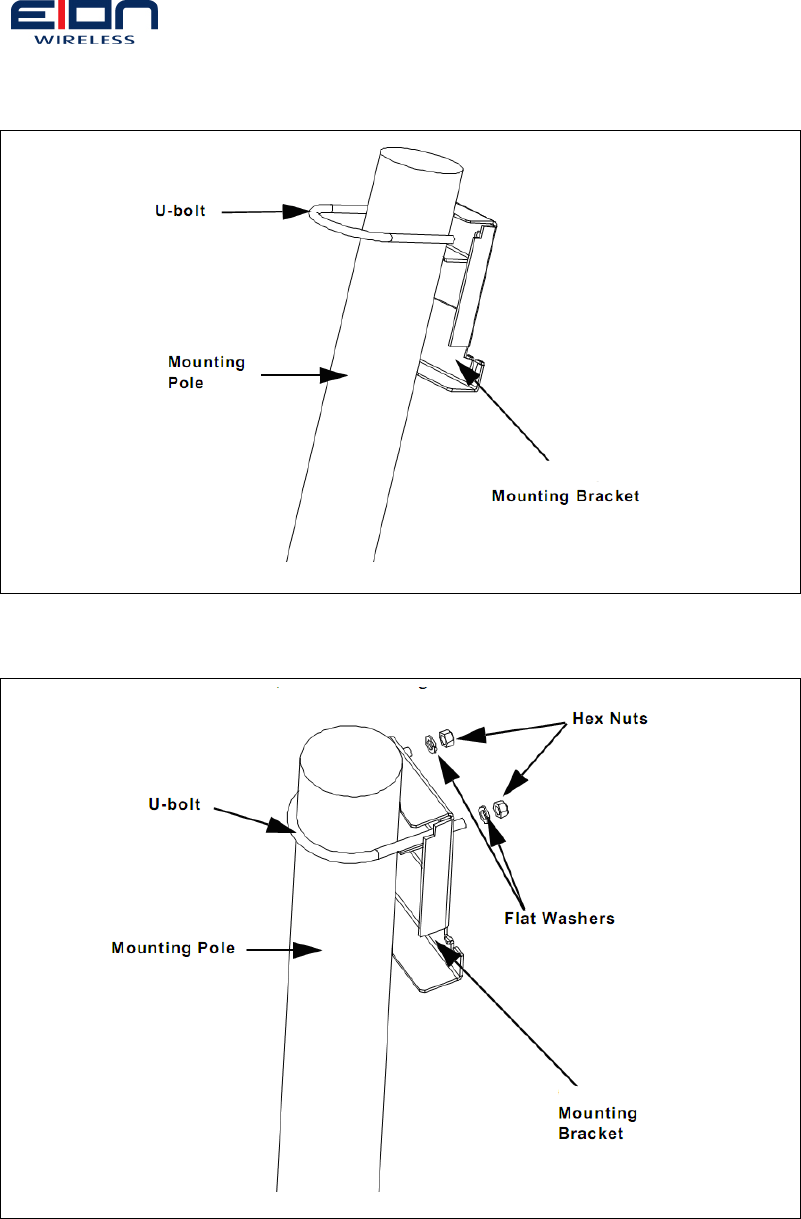

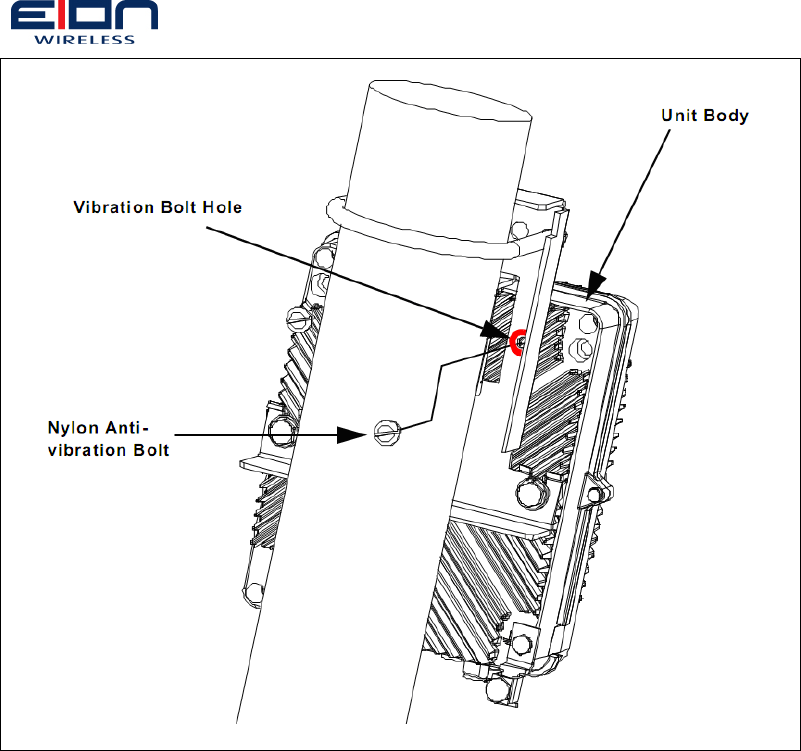

5.6 Pole-mounting the Outdoor Unit ...................................................................36

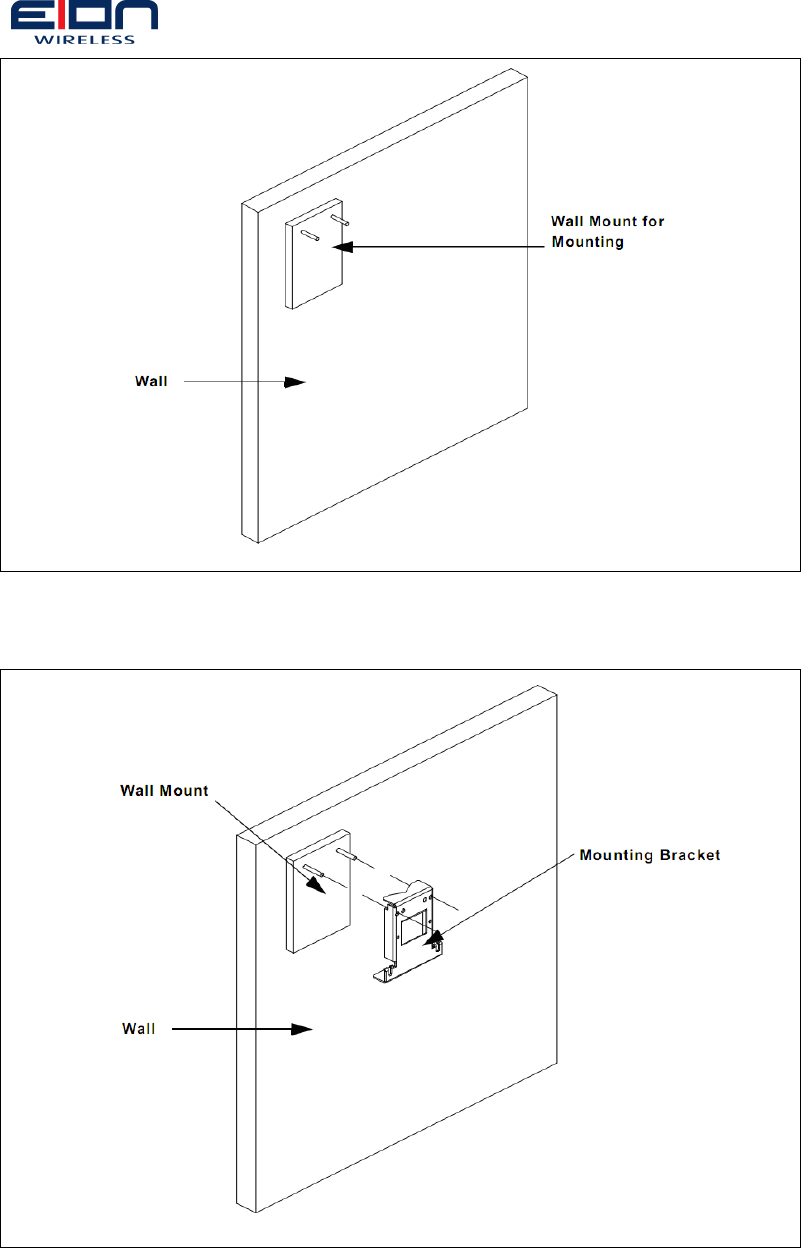

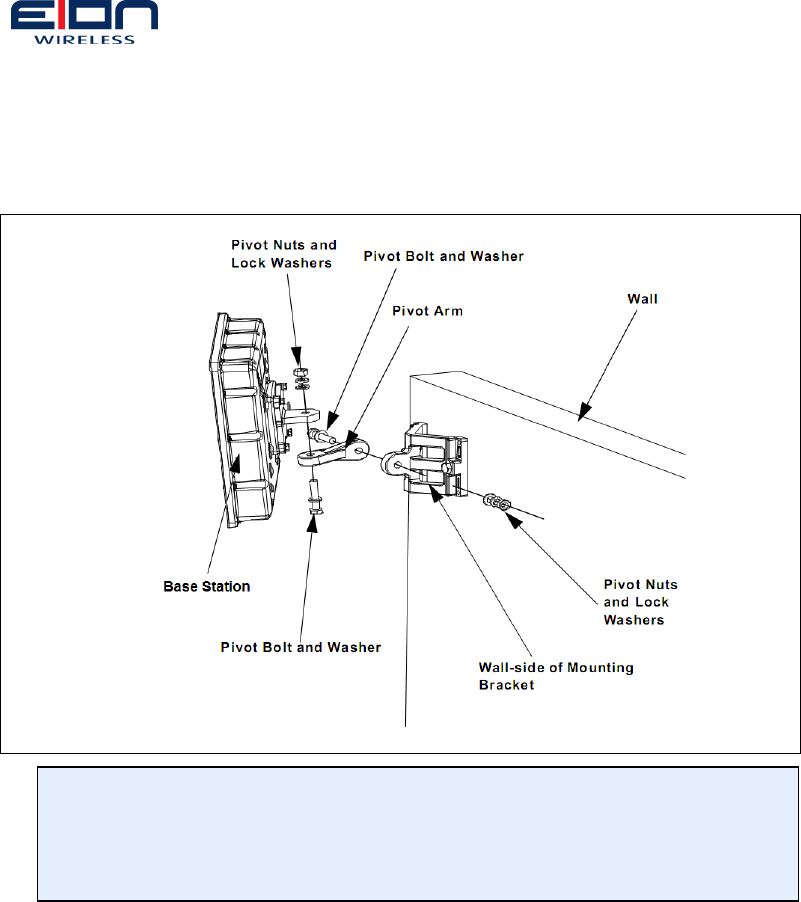

5.7 Wall-mounting the Outdoor unit.................................................................... 38
5.8 Antenna Mounting Guidelines .......................................................................39
5.8.1 Mounting the Structure .......................................................................... 39

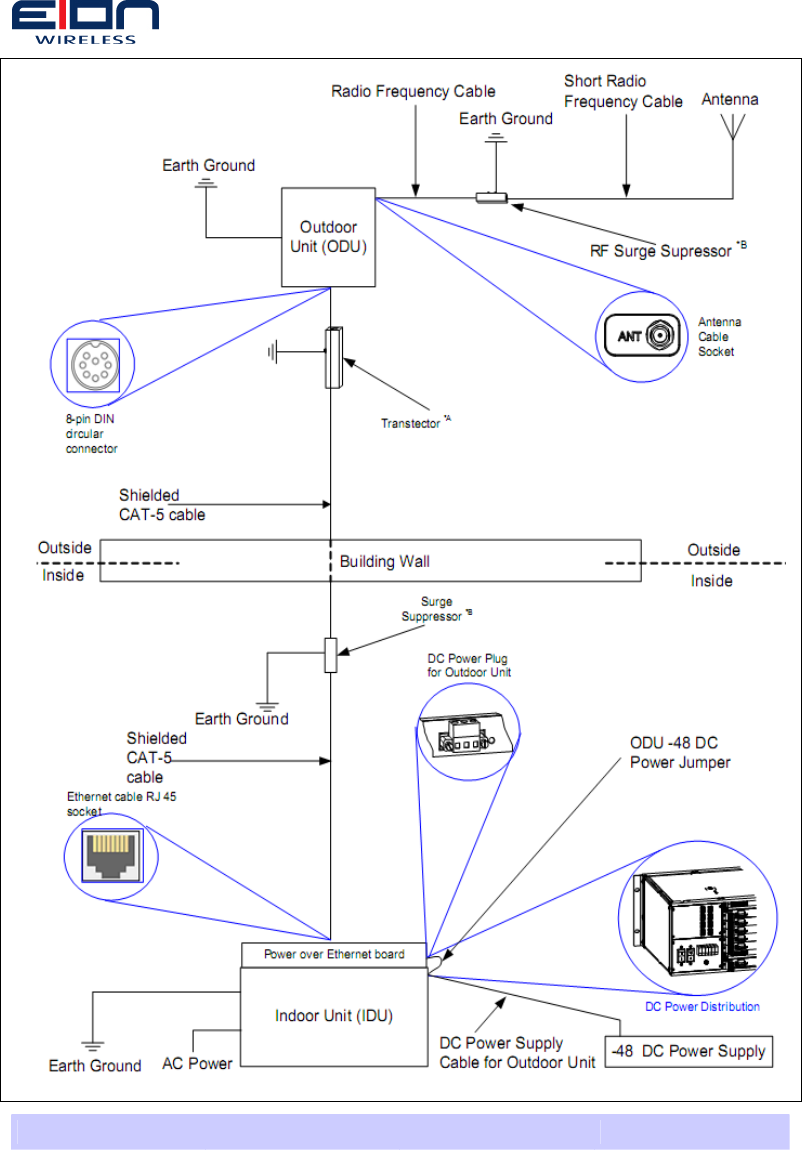

5.9 Cabling the Base Station .............................................................................. 40
5.10 Weatherproofing Cable Connections ............................................................ 44
5.10.1 Cable to Outdoor Unit Connections........................................................ 44
5.10.2 Cable to Cable Connections ..................................................................44
5.11 Installing a Drip Loop.................................................................................45
5.12 Cabling the Indoor Unit .............................................................................. 46
5.13 Cabling to the Outdoor Unit ........................................................................ 48
5.14 Cabling to the Antenna...............................................................................48
5.15 Connecting the Ethernet Cable.................................................................... 49
5.16 Powering on the Base Station .....................................................................49
Libra MAX User Guide Table of Contents: Copyright Page 6 of 120
5.16.1 AC Power ............................................................................................49

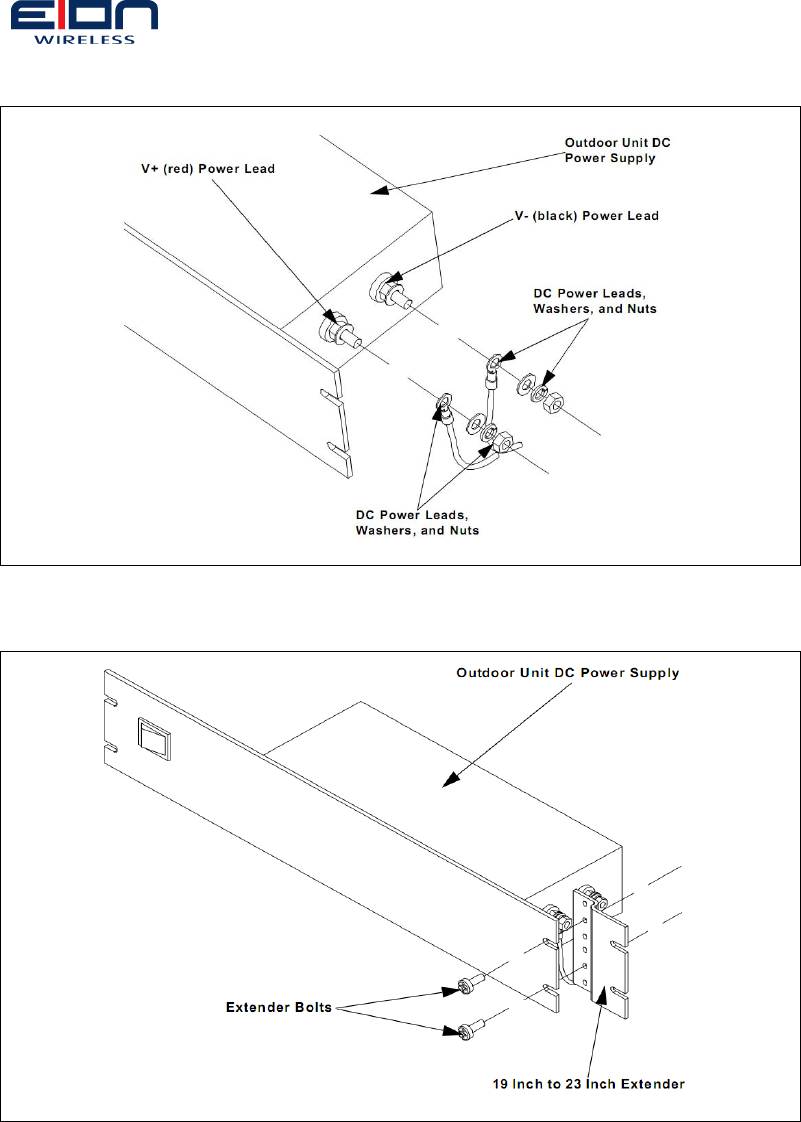

5.16.2 DC Power............................................................................................50
6 Rapid Backhaul System Installation........................................................... 52
6.1 Installing the RBS Unit .................................................................................52

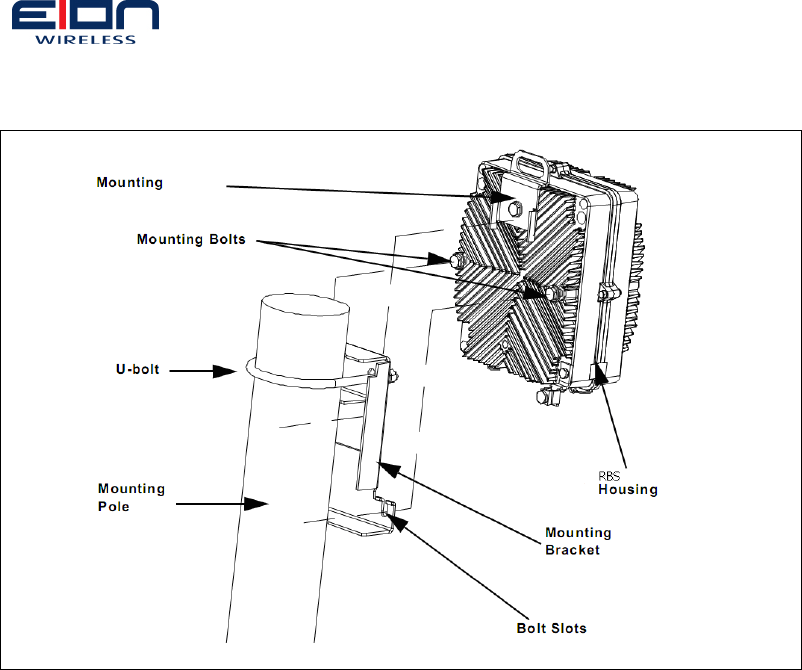

6.1.1 Pole-mounting the RBS Unit....................................................................52
6.1.2 Wall-mounting the RBS Unit....................................................................56
6.2 Antenna Mounting Guidelines........................................................................59
6.2.1 Mounting the Structure ..........................................................................59
6.3 Cabling the RBS...........................................................................................60
6.4 Weatherproofing Cable Connections ..............................................................61
6.4.1 Cable to RBS Connections.......................................................................62
6.4.2 Cable to Cable Connections ....................................................................62
6.5 Installing a Drip Loop...................................................................................63
6.6 Cabling to the RBS.......................................................................................64
6.7 Cabling to the Antenna.................................................................................64
6.8 Powering on the RBS ...................................................................................65
7 Base Station Configuration......................................................................... 68
7.1 Introduction ................................................................................................68

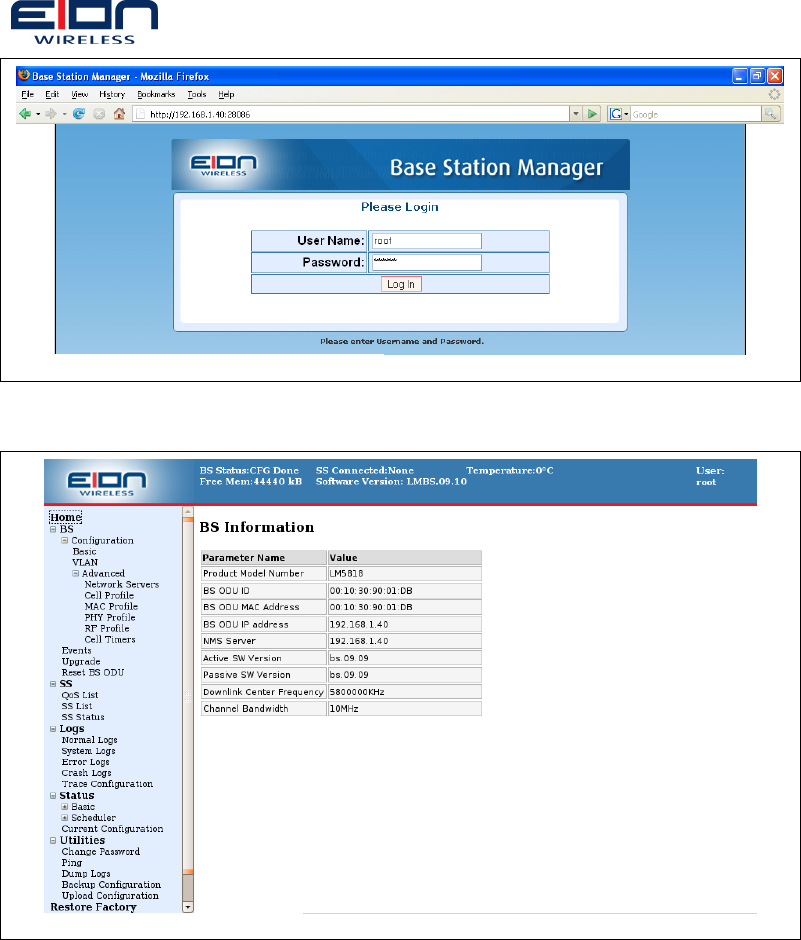

7.1.1 Connect to the BS Manager ....................................................................68
7.1.2 Screen Layout........................................................................................69
7.2 Base Station Configuration (BS) ....................................................................70

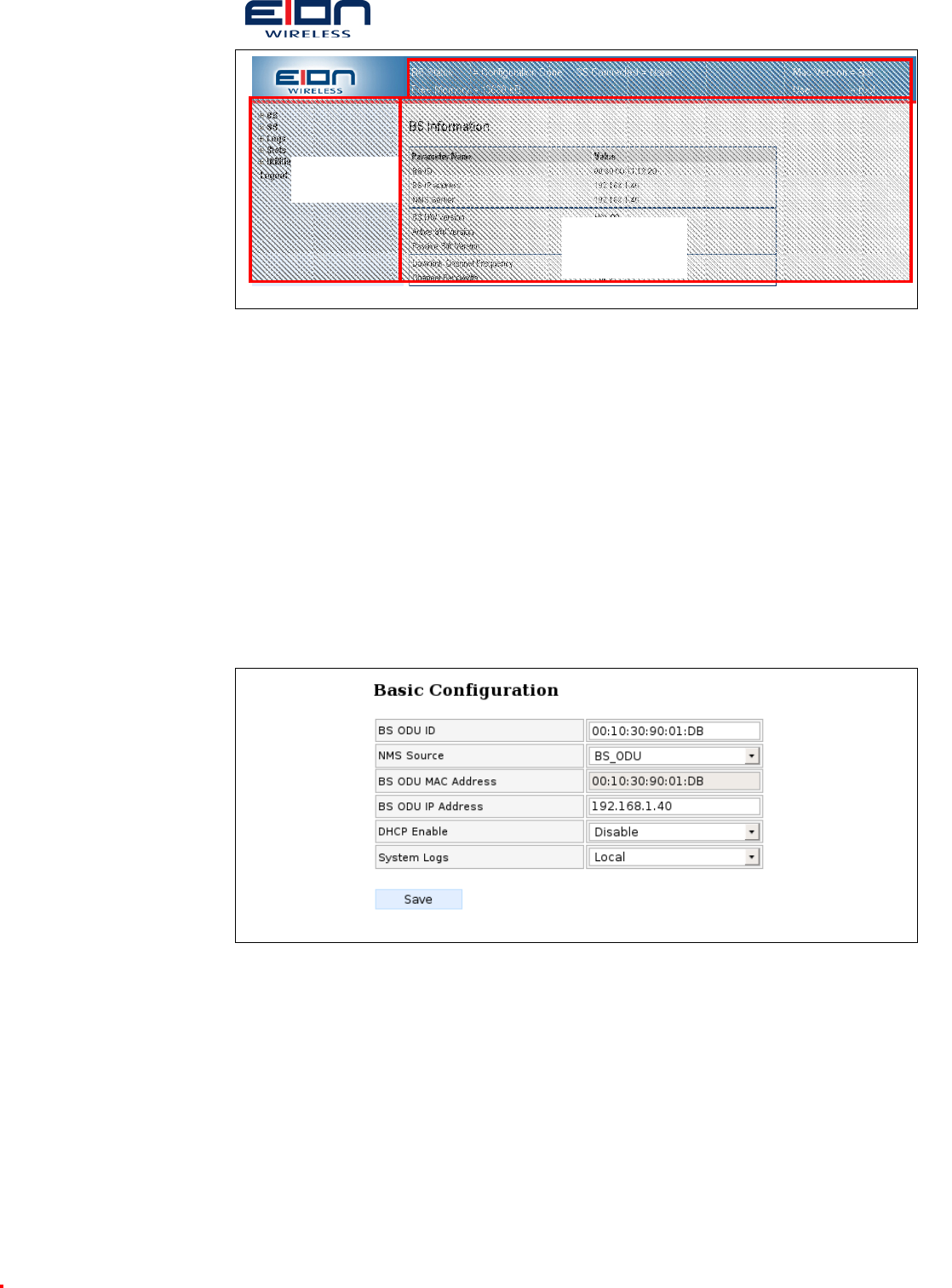

7.2.1 Basic Configuration ................................................................................70
7.2.2 VLAN Configuration................................................................................71

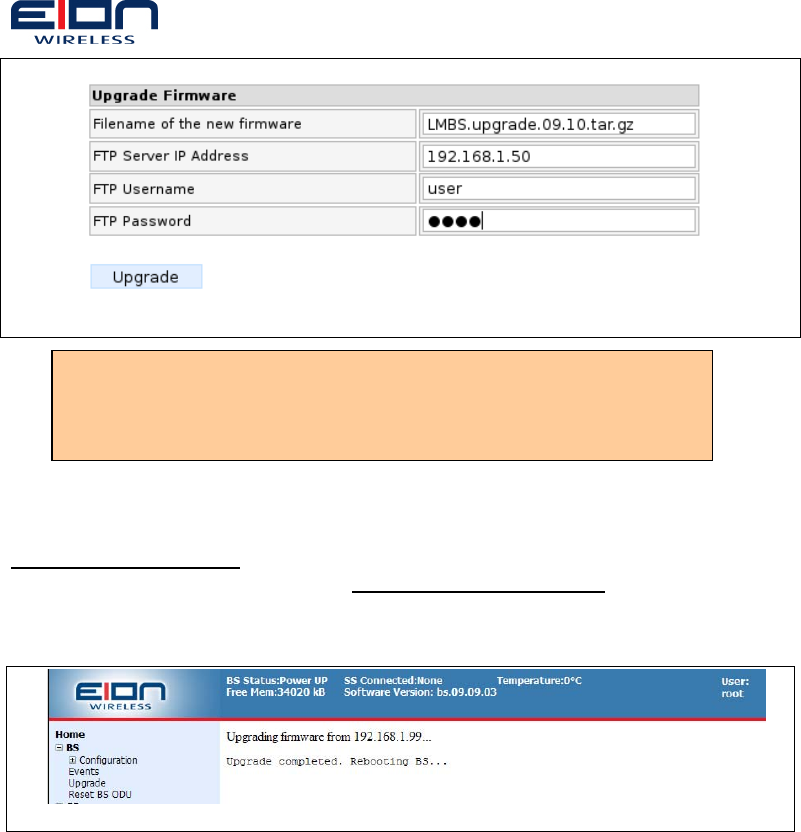

7.2.3 Firmware Upgrade .................................................................................72

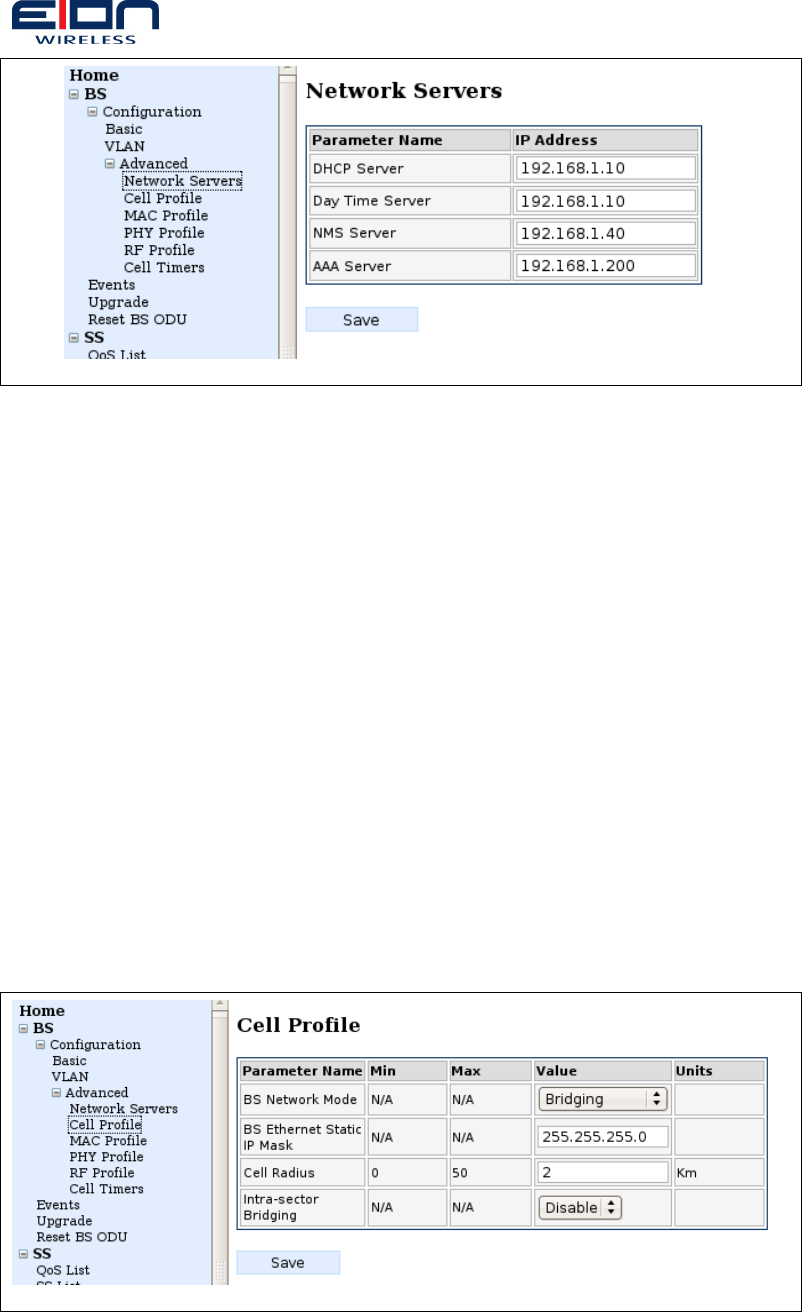

7.2.4 Advanced Configuration..........................................................................73
7.2.5 Events ..................................................................................................83
7.2.6 Base Station Reboot...............................................................................83
7.3 Subscriber Station Association (SS)................................................................84

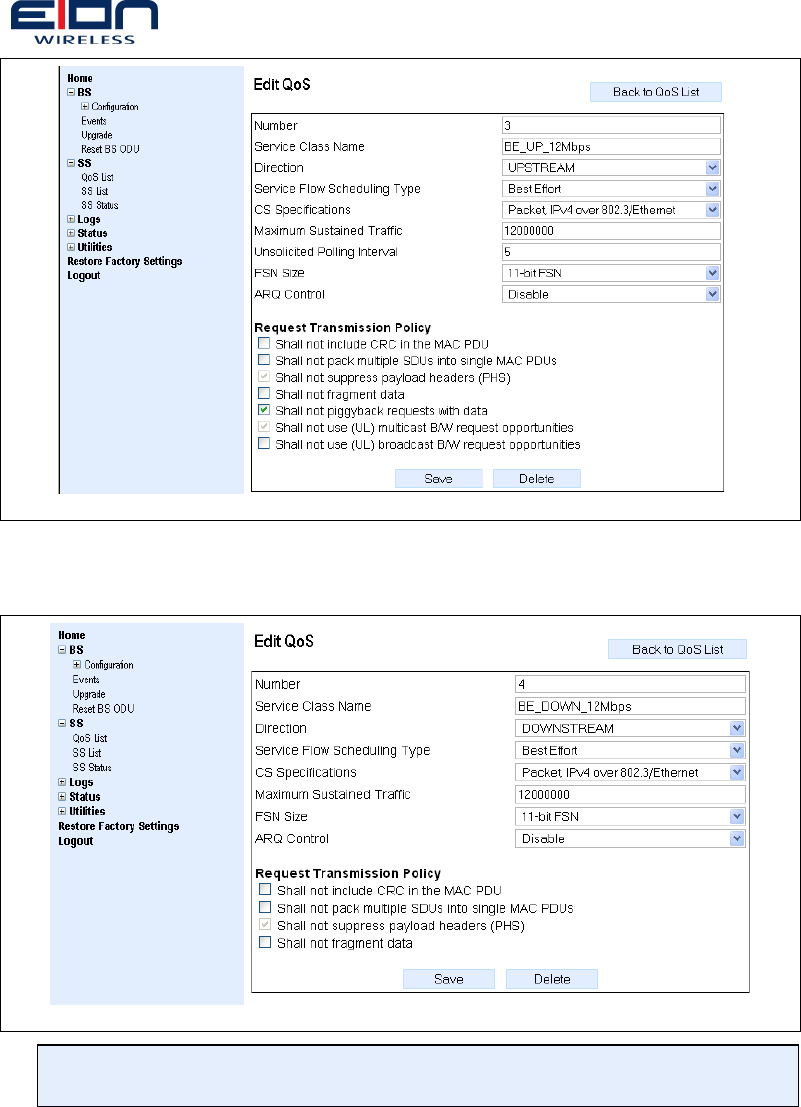

7.3.1 QoS ......................................................................................................84
7.3.2 SS List ..................................................................................................88
7.3.3 Adding a Subscriber Station ....................................................................88
7.3.4 Classifiers .............................................................................................90
7.3.5 SS Status ..............................................................................................93
7.4 Logs ...........................................................................................................93
7.4.1 Normal Logs ..........................................................................................93
7.4.2 Crash Logs ............................................................................................93
7.4.3 Stats .....................................................................................................93
7.4.4 IP Configuration ....................................................................................94
7.4.5 Current Configuration.............................................................................94
7.5 Utilities .......................................................................................................94
7.5.1 Change Password...................................................................................94
7.5.2 Ping......................................................................................................94
7.5.3 Dump Logs............................................................................................94
7.5.4 Backup Configuration .............................................................................95
7.5.5 Upload Configuration .............................................................................95
7.6 Restore Factory Default ................................................................................95
7.7 IP Address Recovery.....................................................................................96
8 Sector Card/Indoor Unit............................................................................. 98
8.1 Sector Card Management .............................................................................98
8.1.1 Accessing Sector Card............................................................................98
8.1.2 Time Configuration ................................................................................99

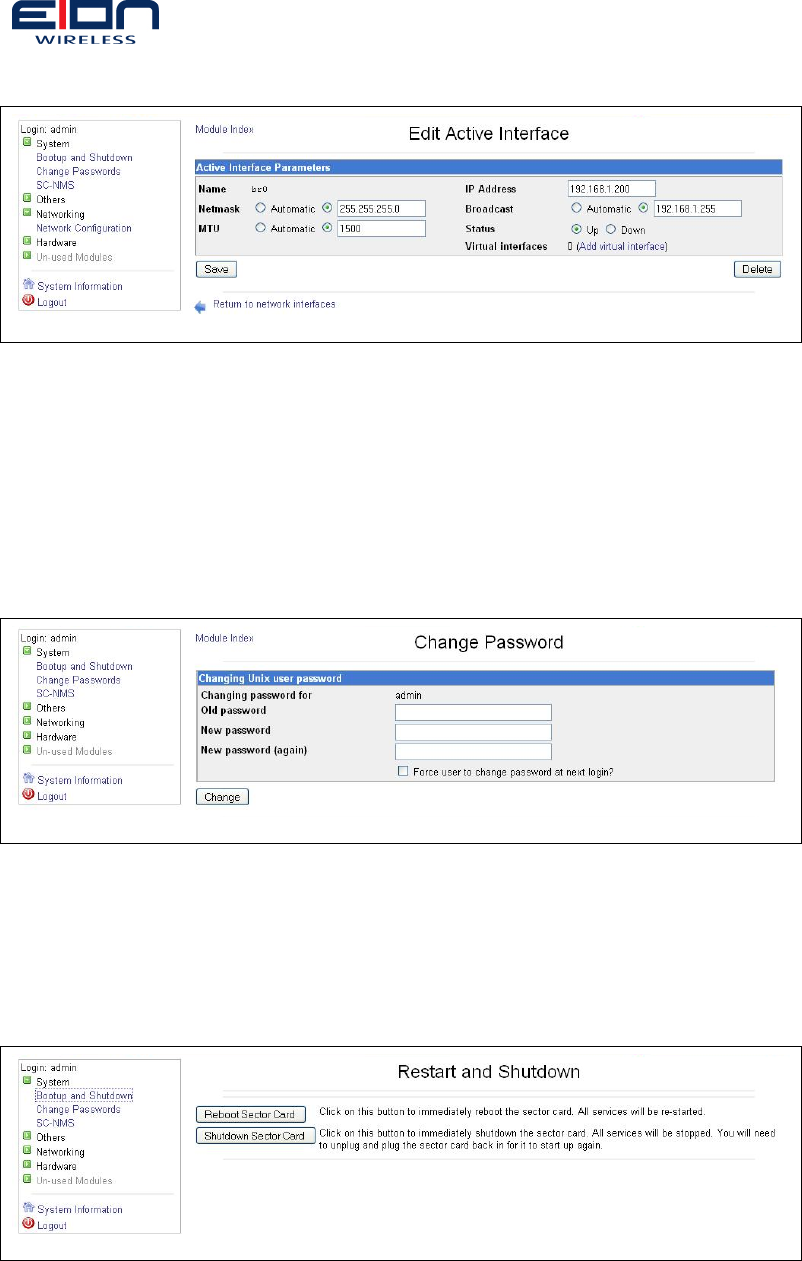

8.1.3 Network Configuration ...........................................................................99
Libra MAX User Guide Table of Contents: Copyright Page 7 of 120
Libra MAX User Guide Table of Contents: Copyright Page 8 of 120
8.1.4 Change Password ................................................................................ 100
8.1.5 Reboot/Shutdown Sector Card.............................................................. 100
8.2 BS Configuration ....................................................................................... 101
8.2.1 Connect to the BS Manager .................................................................. 101
8.2.2 Basic Configuration.............................................................................. 102
8.3 SC-NMS Configuration................................................................................ 103
8.3.1 Screen Layout ..................................................................................... 104
8.3.2 BS Configuration Using SC-NMS............................................................ 104
9 Subscriber Station Configuration..............................................................106
9.1 Introduction.............................................................................................. 106
9.2 Connect to the SS Manager ........................................................................ 106
9.3 Screen Layout ........................................................................................... 107
9.4 Configuration ............................................................................................ 107

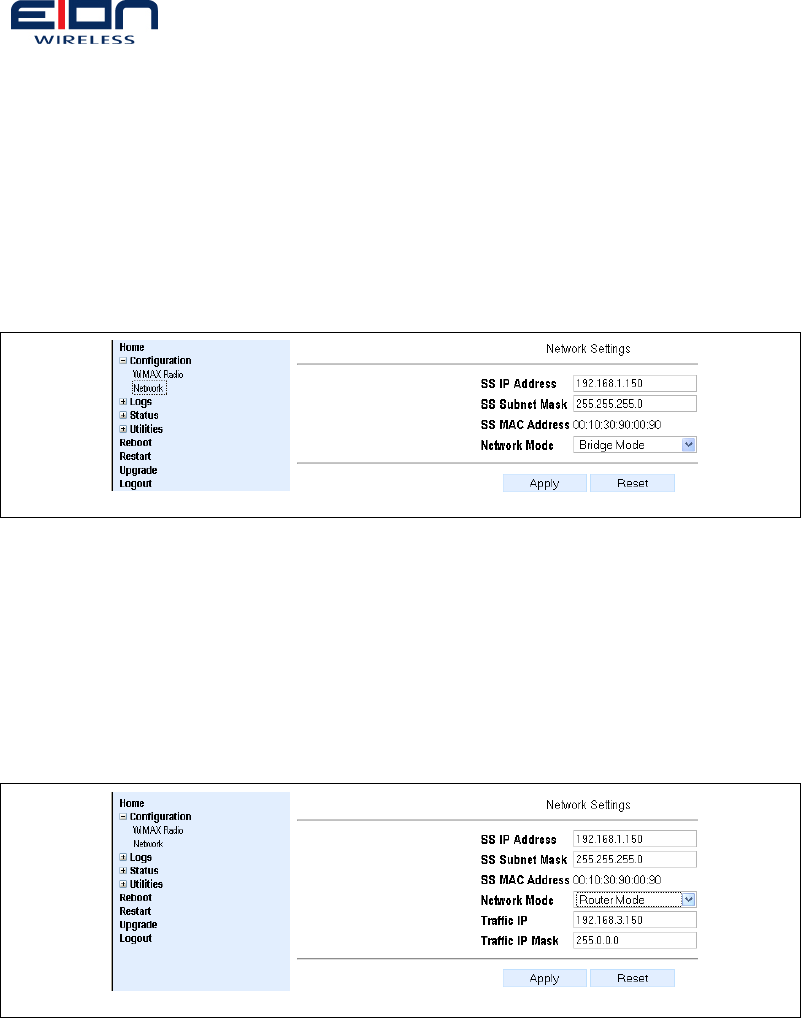

9.5 Network.................................................................................................... 109
9.6 Reboot ..................................................................................................... 109
9.7 Restart ..................................................................................................... 109
9.8 Logs ......................................................................................................... 109
9.8.1 Current Logs ....................................................................................... 110
9.9 Status....................................................................................................... 110
9.9.1 Network Status ................................................................................... 110
9.9.2 Other ................................................................................................. 110
9.9.3 MAC ................................................................................................... 111
9.10 Utilities ................................................................................................... 111
9.10.1 Ping.................................................................................................. 111
9.10.2 RF Alignment..................................................................................... 111
9.11 Upgrade.................................................................................................. 111
9.12 Logout.................................................................................................... 111
10 Troubleshooting......................................................................................112
10.1 Preventative Maintenance......................................................................... 112
10.2 Troubleshooting Areas.............................................................................. 112
10.3 Troubleshooting Chart .............................................................................. 113
11 Appendix A: Definitions ..........................................................................118
12 Appendix B: Abbreviations......................................................................120
Preface
1.2
Regulatory Notice
The specifications and parameters of the Libra MAX-58 devices described in this
document are subject to change without notice.
There is no guarantee that interference will not occur in any particular
installation.

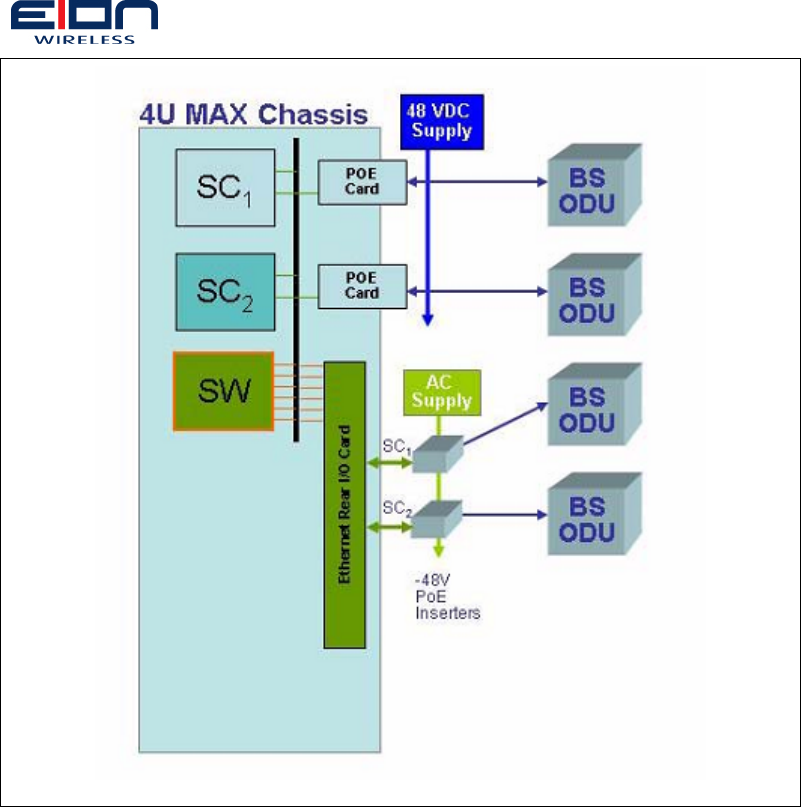

A Libra MAX-58 system consists of one or more chassis-based base stations and
multiple subscriber stations. The Libra MAX-58 allows for a carrier-grade wireless
network system that can offer video, voice, and data services.

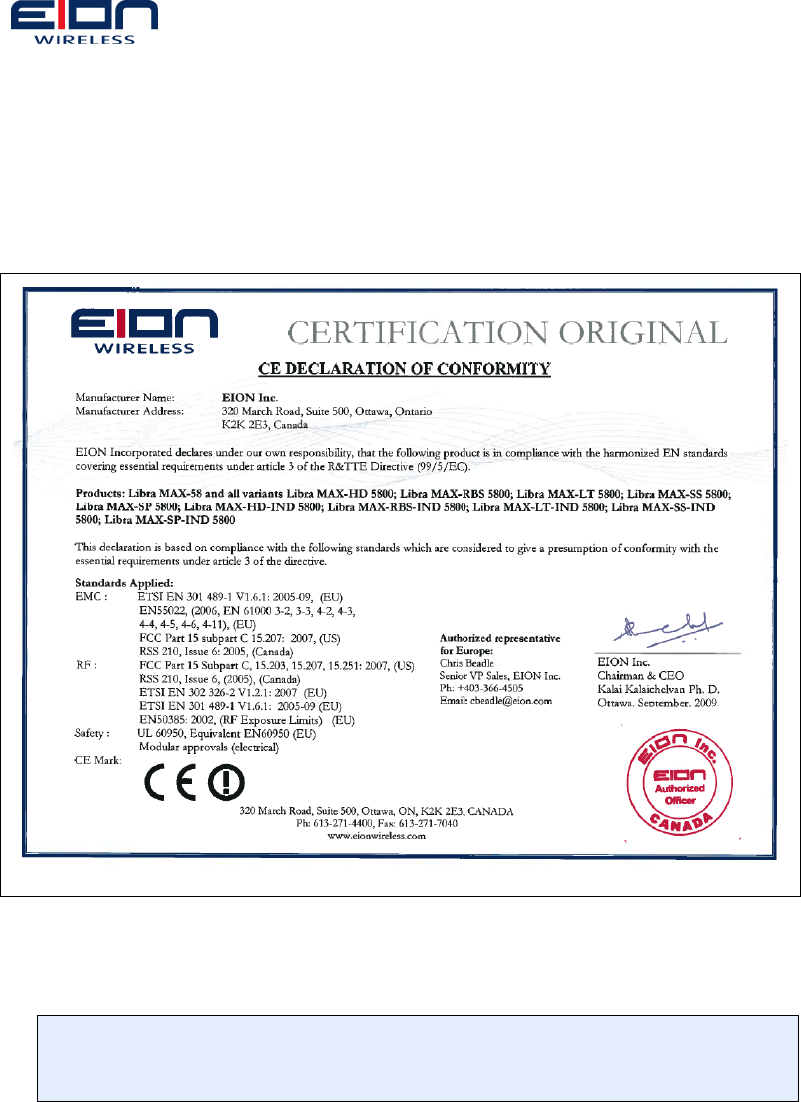

This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. Per FCC 15.19
If this equipment does cause harmful interference to radio or television reception, the
user is encouraged to correct the interference by one or more of the following
methods:
• reorient or relocate the radio antenna
• move the equipment and receiver farther apart
• connect equipment to an outlet on a circuit different from that to which the
receiver is connected
Both the Libra MAX’s base station and subscriber station equipment are intended to
connect to a 10/100 BaseT network; having the capability of transporting video, voice,
and data-based applications.
The base station equipment has the added capability of providing routing, switching,
protocol conversion (T1, E1, T3, E3, ATM, Fiber, etc), VoIP Gateways, Bandwidth
management, and other services through a wide variety of add-on products.
For more information on regulatory requirements, refer to the following web sites:
• For Canadian regulatory information, refer to the Industry Canada web site,
www.ic.gc.ca
• For United States of America regulatory information, refer to the Federal
Communications Commission web site, www.fcc.gov
• For European regulatory information, refer to the European
Telecommunications Standards Institute web site, www.etsi.org
For those areas not covered by the above listed regulatory bodies, please consult your
local regulatory body for more information.
1.3
Other Notices
• Changes or modifications to the equipment not expressly approved by EION,
Libra MAX User Guide Preface: Regulatory Notice Page 10 of 120
Inc., could void the user’s authority to operate the equipment, per FCC Part
15.21.
• All antenna installation work should be carried out by a professional installer.
• The parts in the Libra MAX-58 are Imperial sizes; i.e; inches and fractions of an
inch. Do not attempt to mix Imperial nuts, bolts and screws with similar metric
hardware. This will strip the threads.
Figure 0-1 Copy of Libra MAX-58 CE Declaration
1.4
Warranty and Repair
The standard warranty for the Libra MAX-58 is one year from the date of purchase.
EION provides no direct warranty to the end-users of this product.
Please contact the party from whom you purchased the Libra MAX-58
system for warranty and repair information.
1.5
Customer Support Contacts
Users of EION equipment who require technical assistance must contact their reseller
or distributor. For information on distributors in your area, please visit
www.eionwireless.com.
1.5.1 Distributor Technical Support
Distributors may contact EION’s Technical Support on EION’s products.
When requesting support, please have the following information available:
Libra MAX User Guide Preface: Warranty and Repair Page 11 of 120
Libra MAX User Guide Preface: Customer Support Contacts Page 12 of 120
• configuration of the system, including models of EION equipment, versions, serial
numbers, and MAC address
• antenna type and cable lengths
• site information, including possible RF path problems, such as trees, buildings
and other RF equipment in the area
• distance of the RF link
• configuration of unit.
• description of the problem
1.5.2 Contacting EION Technical Support
By Telephone Call: 1-866-346-6555 (NA Toll Free) or +1-613-271-4400
Hours of operation are 9:00 AM to 5:00 PM (EST)
By e-mail Send an email message to: techsupport@eion.com
RMA Information Send an email message to: rma@eion.com
Pre-installation
Before you begin installing your Libra MAX-58 base station and subscriber stations, you
need to take certain issues and conditions into consideration, prior to, and throughout,
the entire installation process. This chapter defines some of the more common
installation concerns.
Start by reviewing the equipment packing lists to ensure that you have all the cables,
connectors, surge protection devices, fasteners, antennas, and any other installation
material you will require to properly install your equipment. You should also visually
check all components for any physical damage.
Throughout this guide, the term “ODU” refers to the Base Station “Out
Door Unit” portion of the Libra MAX-58 system, this includes the Libra
MAX-RBS and the radio portion of the Libra MAX-HD.
If possible, you should connect all necessary cables and power up the radio equipment
to confirm that it has not been damaged during shipping. You can also perform the
units’ initial configuration before they are sent out to the field. This will ensure your
equipment and all interconnecting cables are functioning properly. Refer to chapters 4
and 5 for more information on configuring your Libra MAX-58 equipment for the first
time.
EION provides this document as a general set of guidelines for installing
its Libra MAX-58 equipment. In no way does EION provide any
warranties as to the effectiveness of these guidelines.
Implementation of these guidelines is solely at your discretion. You
must ensure that the equipment is installed and grounded in
accordance with the local electrical and building codes and the codes
of the country of operation. The Libra MAX-58 equipment must be
installed by a certified professional communication installer, familiar
with all necessary local regulations.
1.6
Required Tools
Before you go on-site or out into the field to install your equipment, make certain you
have all the necessary tools to perform the installation properly. The following list of
tools is a general guideline of the tools you may need. Some installations may require
more specialized tools, while others may only need a few of the tools listed here. Each
specific installation will dictate your tool requirements.
Basic Hand Tools
• socket set
• crescent wrench
• cable cutters
• pliers
• a variety of screwdriver types and sizes
Power Tools
Libra MAX User Guide Pre-installation: Required Tools Page 14 of 120
• electric drill
• drill bits of assorted sizes and lengths
• hole saw
Specialized Tools
• Crimp tools for:
• Ethernet connectors
• RF connectors
• power and grounding compression lugs
• Laptop or PDA
Test Equipment
• spectrum analyzer to check for interference
• site master to check the antennas for proper VSWR
Consumables
• butyl rubber tape or pads
• anti-oxidizing paste
• low temperature tape
Miscellaneous
• ladders
• compass
• GPS
• binoculars
Cables
• DB9 serial cable (male to female) for the base station
• EION proprietary serial cable for the subscriber station
• Ethernet crossover cable
1.7
Site Evaluation
Before you begin the actual installation of you Libra MAX-58 equipment, you need to
make certain that your equipment site is acceptable and has been properly prepared.
Site preparation will depend on whether you will be installing the MAX-HD chassis base
station, MAX-LT ODU, MAX-RBS ODU or a MAX-SS subscriber station.
Libra MAX User Guide Pre-installation: Site Evaluation Page 15 of 120
1.8
Base Station Site Considerations
When you are preparing your site for your Libra MAX-58 base station, you will need to
make allowances for both the base station’s Indoor Unit (IDU) and one or more
Outdoor Units (ODU).
1.8.1 Indoor Unit Site Considerations
Your first step should be to review your network plan and make certain that the chosen
site will be able to house all of your network equipment, not just your Libra MAX-58
system. During your site examination, make certain that you have left adequate service
access in both front and back of any cabinets or equipment racks you are installing.
The site environment for your base station’s IDU should be clean, dust-free, and if
possible, climate controlled. If a climate controlled environment is not possible, you
need to make certain that the equipment can be operated within its specified
environmental limits. Ensuring that there is enough room around your cabinets and
racks for proper ventilation will aid in proper operation of the units.
Proximity to the units’ power mains and correct cable length are other issues that need
to be considered when selecting and preparing your equipment site. The physical
location of the base station’s IDU in the site should be as close as possible to the AC or
DC mains in order to minimize cable length. This connection should be made with
appropriate sized cables. The following table provides the appropriate cable lengths for
a DC power source.
DC Power Cable Size - 10 amps 5%
voltage drop Maximum Cable length between the
equipment and DC distribution
(feet/meters)
14 AWG 22.97/7
12 AWG 0
10 AWG 0

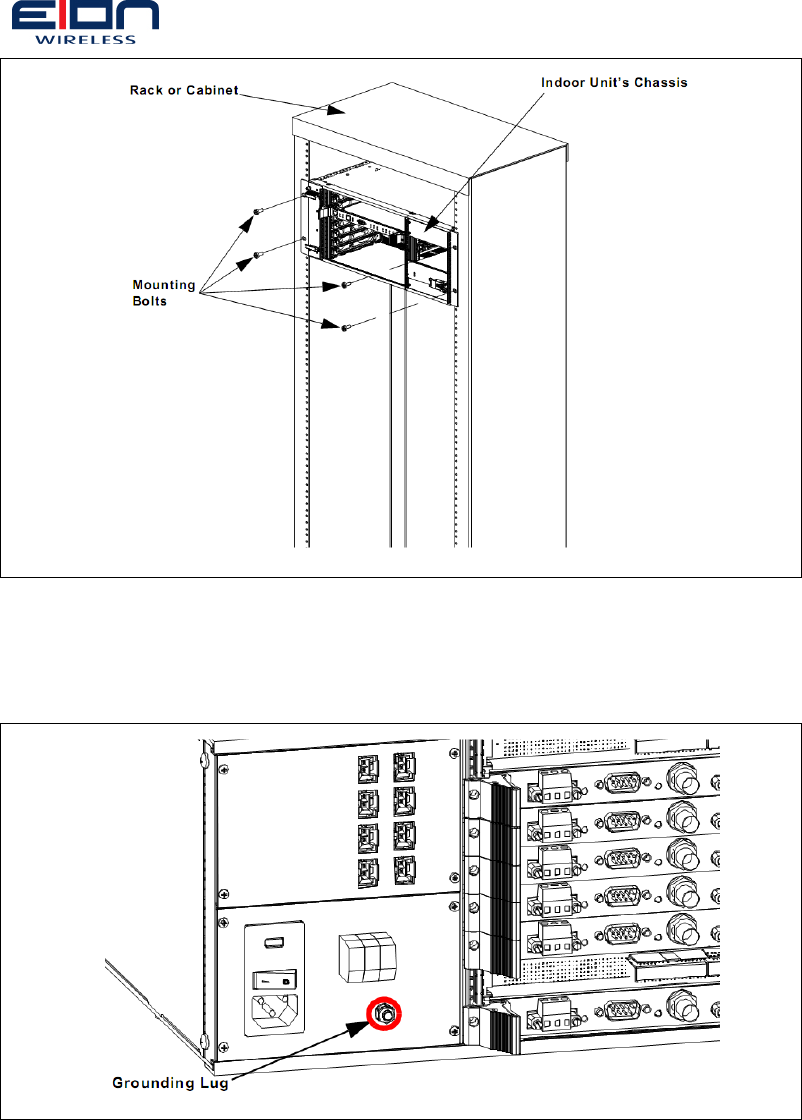

The site must also include a properly installed principle ground bar (PGB) that the
equipment cabinet or rack will be connected to. The physical location of your IDU
should also be influenced by its location to the base station’s ODU. It is important that
you locate the IDU as close to where the ODU will be mounted to minimize cable
lengths.
1.8.2 Outdoor Unit Site Considerations
Conversely, when making your decisions about the ODU’s mounting location, you need
to consider issues such as its proximity to the base station’s IDU if needed, cable
lengths between the IDU and the ODU, and so on.
You should first inspect the site to verify that the antenna mounting structure is
suitable for both the antenna and ODU. The ODU needs to be positioned in a location
that allows for easy maintenance access. You also must review routes that the cables
will follow, when connecting the IDU to the ODU.
Libra MAX User Guide Pre-installation: Base Station Site Considerations Page 16 of 120

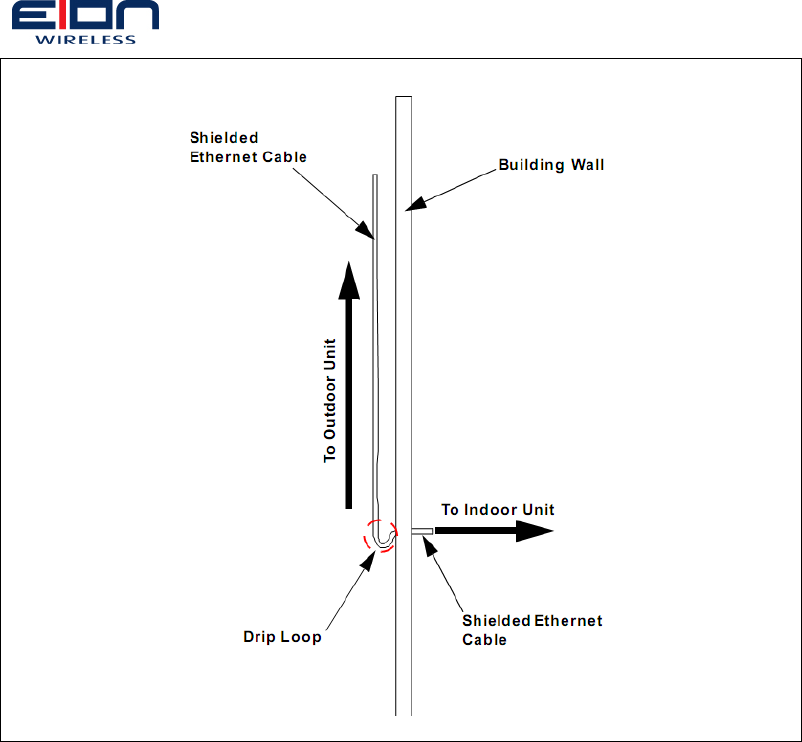

You should review the proposed cabling entrance/exit points for the site’s building;
they must be practical. You must be able to easily drill the holes for cable access and
the cables should be in a location that allows for easy maintenance.

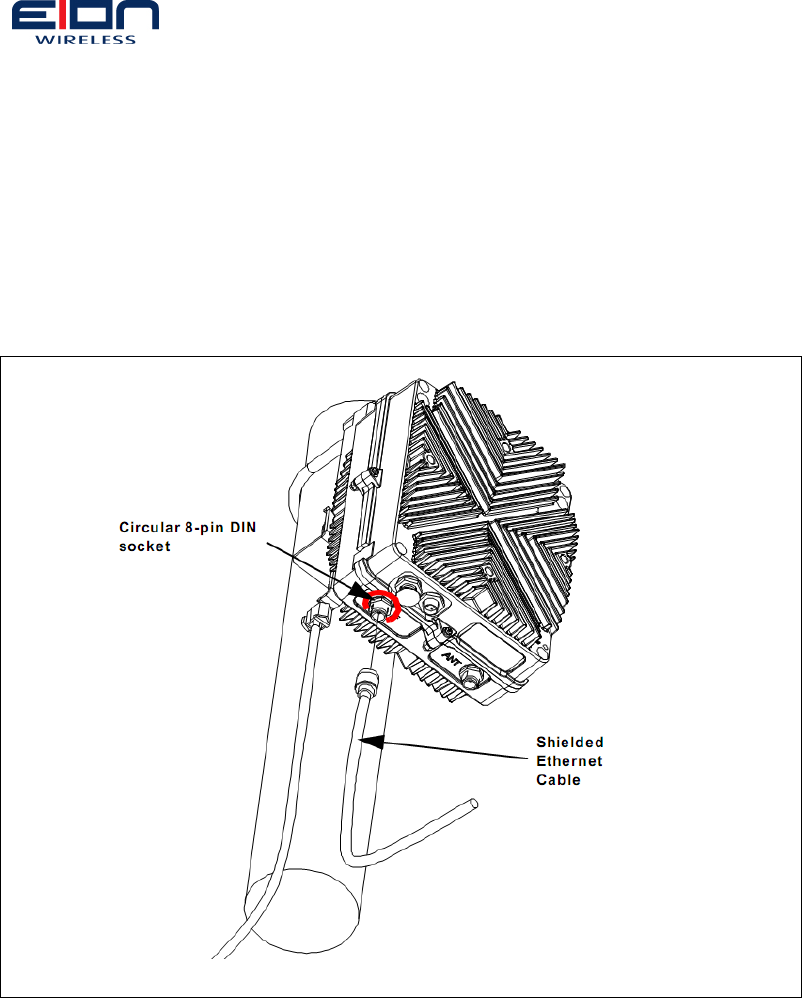

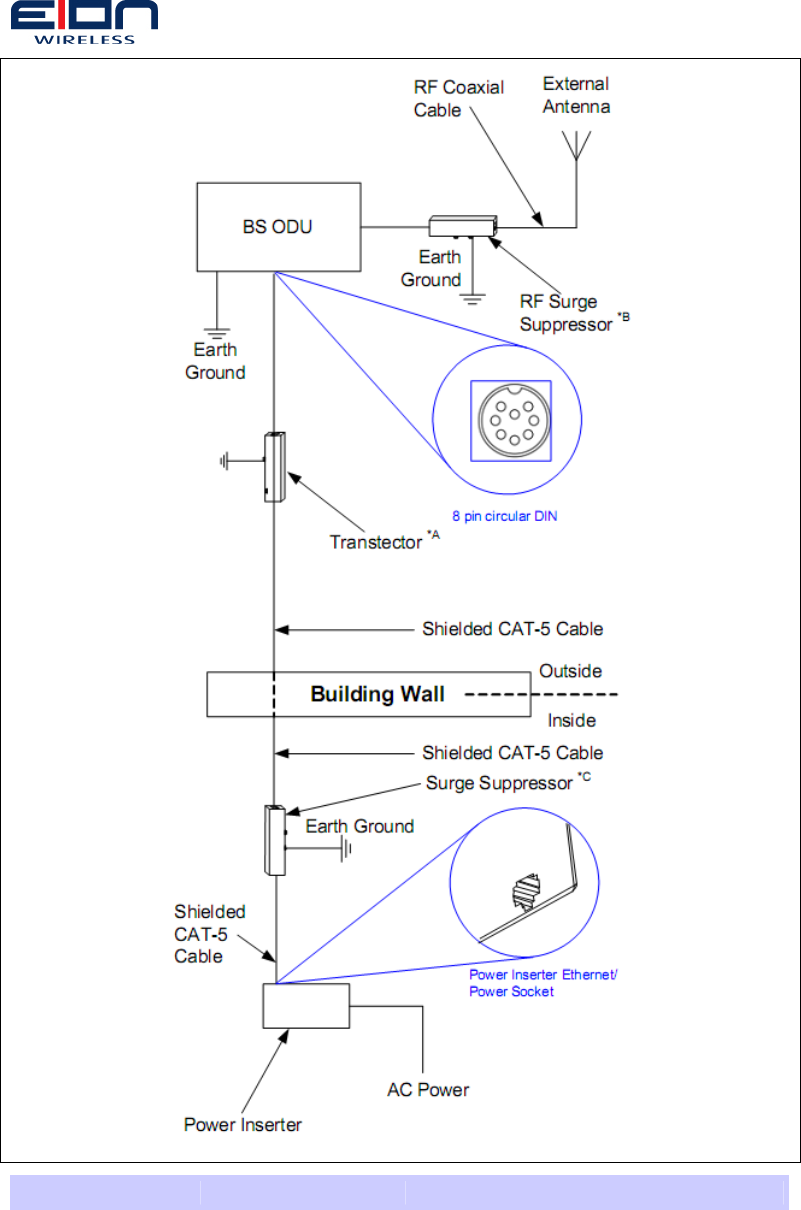

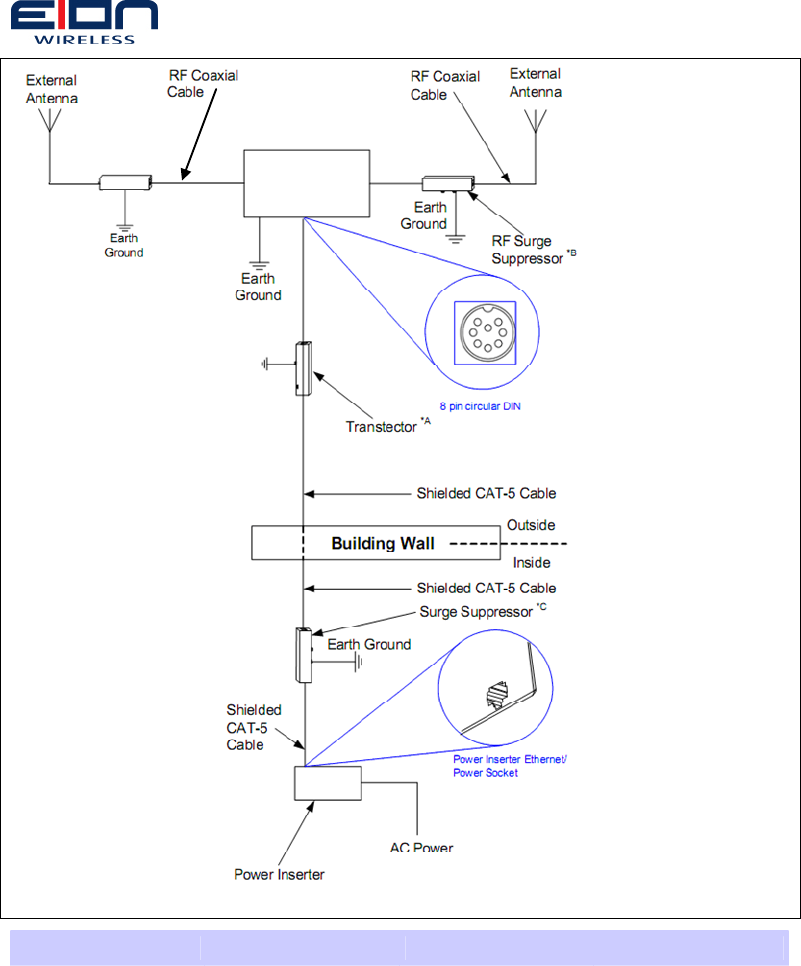

The MAX ODU has a single shielded CAT5/5e cable to connect the ODU to the IDU
sector card or to connect the ODU to the POE inserter. It is important not to exceed
the maximum allowed length of 100 meters for this cable. This Ethernet cable provides
power to the ODU.

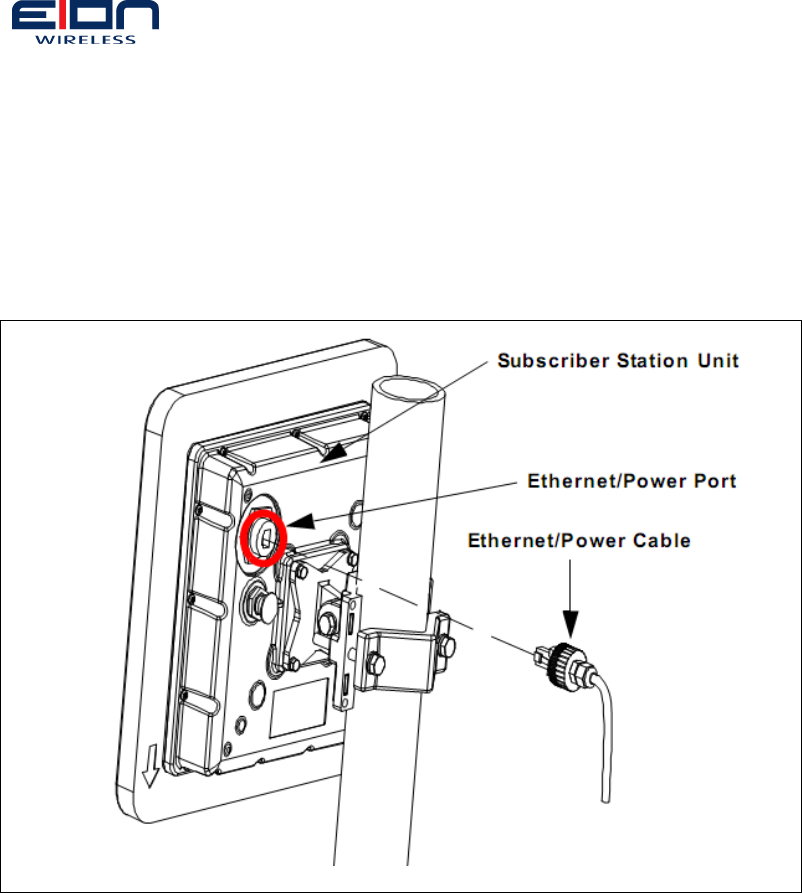

1.8.3 Subscriber Station Site Considerations
Preparing the site for your Libra MAX-58 subscriber station or stations is similar to the
site preparation for the base station’s ODU. You should first inspect the proposed site
to verify that the line-of-site and Fresnel Zone clearances can be met.
You also need to verify that the unit mounting structure is suitable for both the
subscriber station, and the subscriber station’s antenna, if a separate antenna is used.
The subscriber station needs to be positioned in a location that allows for easy
maintenance access.

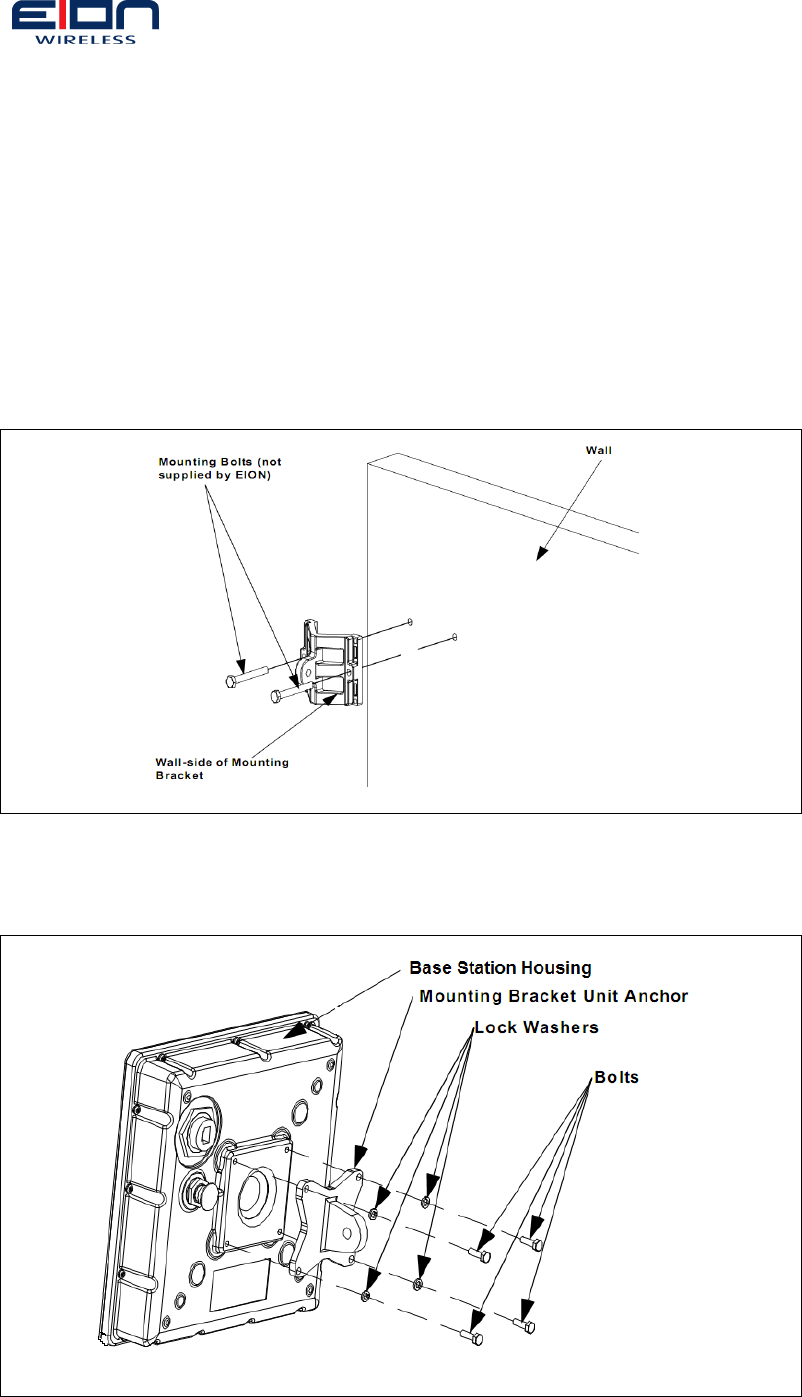

If the subscriber station is to be mounted to a wall, you will need to consider how the
wall’s material will affect your mounting strategies; the wall is made of cinder-block,
wood, concrete, and so on. You will then need to acquire the appropriate mounting
fasteners to fit the wall material.
You must also review routes that the cables will follow, when connecting the subscriber
station to your terminal equipment. Review the proposed cabling entrance/exit points
for the site’s building; they must be practical. You must be able to easily drill the holes
for cable access and the cables should be in a location that allows for easy
maintenance.
The subscriber station’s proximity to your terminal equipment must be considered as
this will affect the cable lengths between your terminal equipment and the subscriber
station unit. Cables must always be connected without exceeding their recommended
bend radius.
1.9

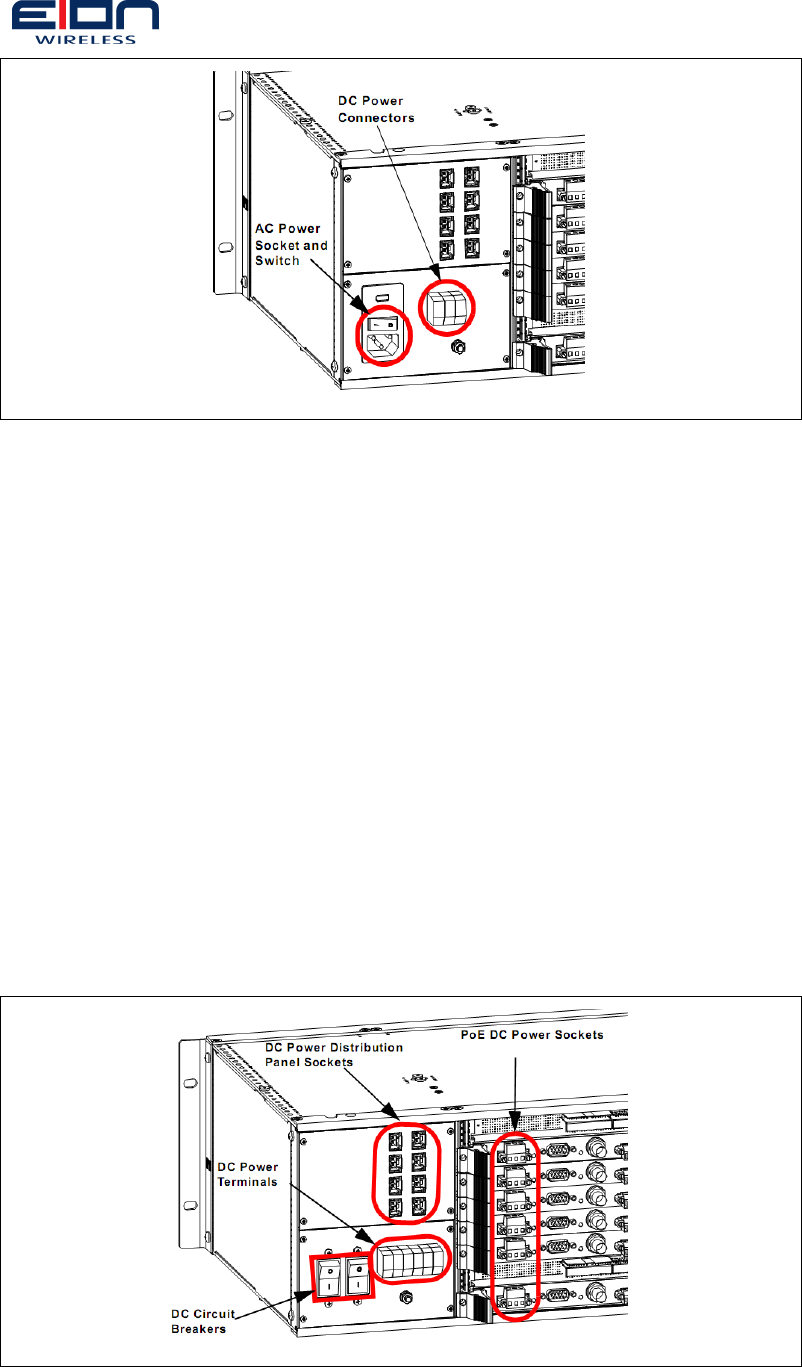

Base Station Power Sources
If your equipment uses AC power, make certain that the power is provided from a
separate, isolated circuit and that you are using a surge protected power source or a
dedicated Uninterruptible Power Supply (UPS). This will aid in protecting your
equipment against power surges, spikes and/or possible lightning damage. Providing
clean, filtered power will also minimize the possibility of system performance
degradation due to RF interference.
If your base station equipment uses DC power, your power should be supplied from the
main station DC power panel, through a dedicated fused output. A fuse of 15 Amps
should be used.
Libra MAX User Guide Pre-installation: Base Station Power Sources Page 17 of 120
1.10

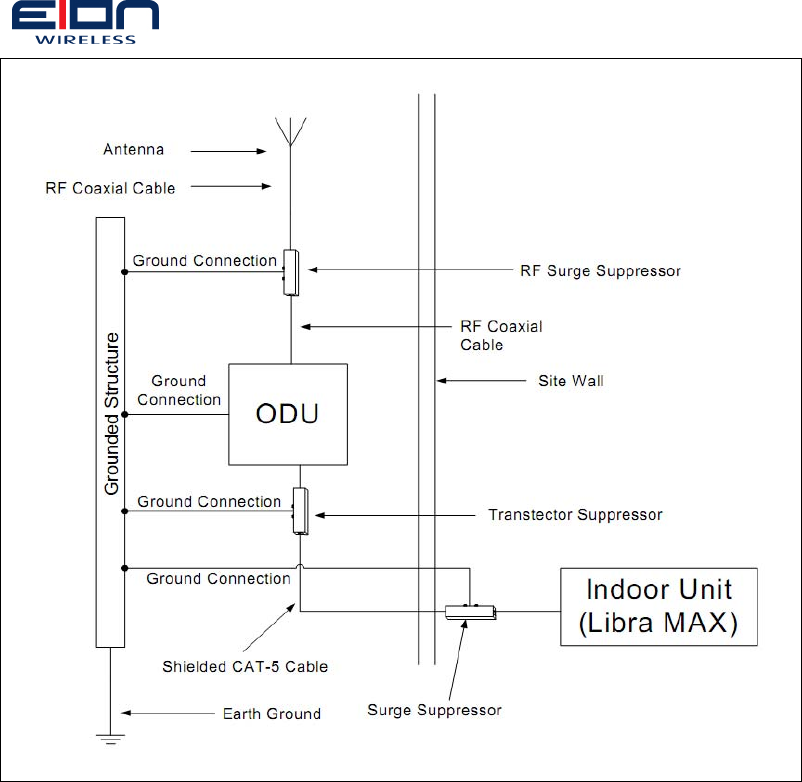

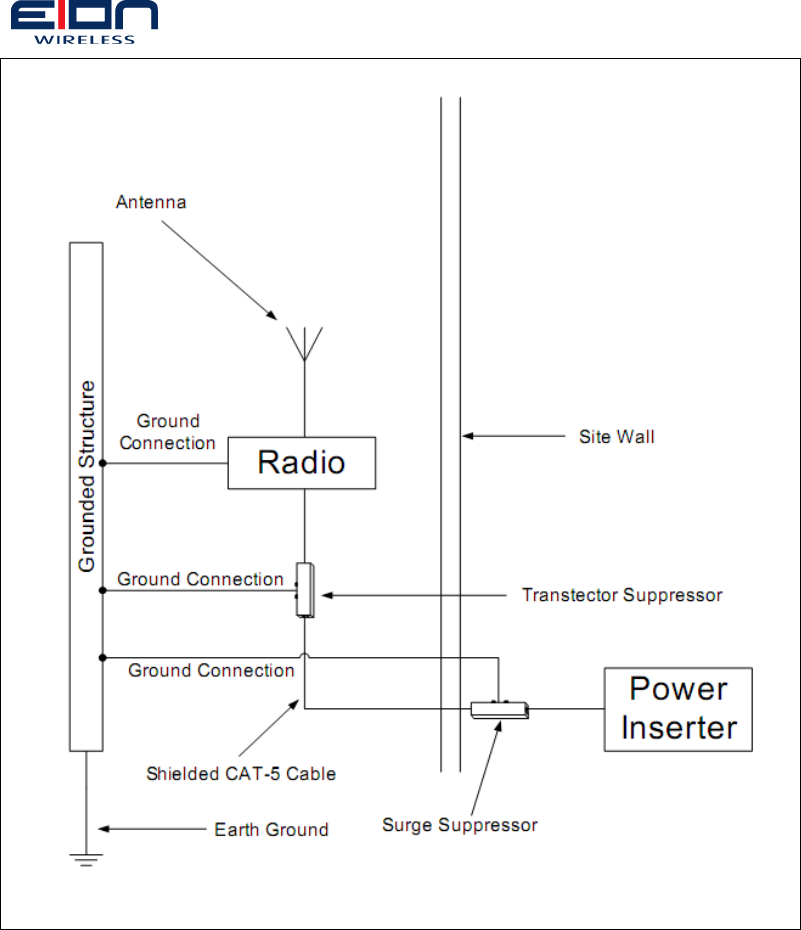

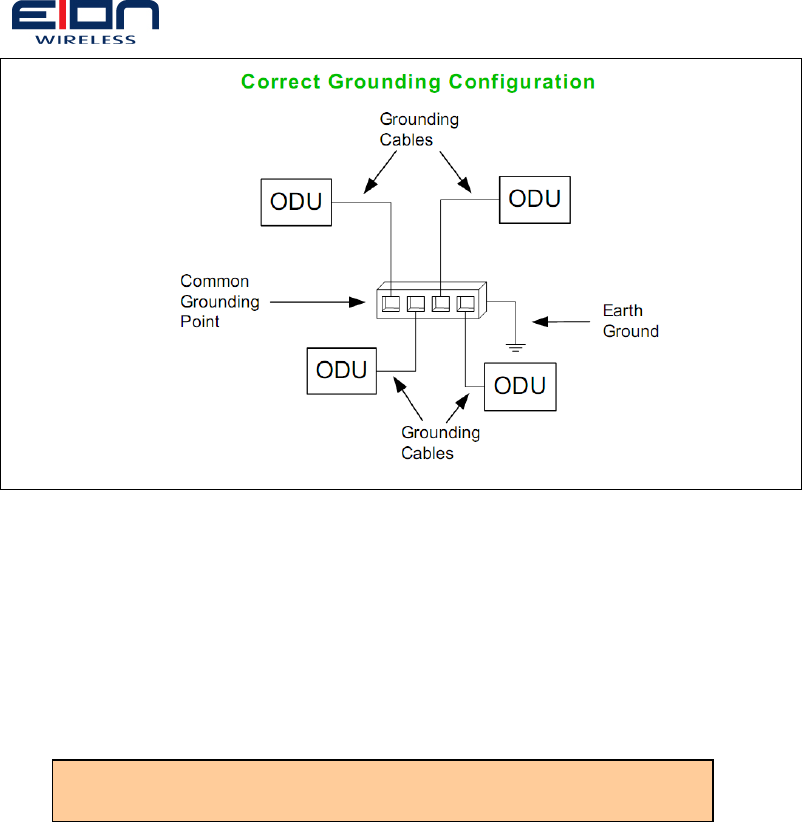

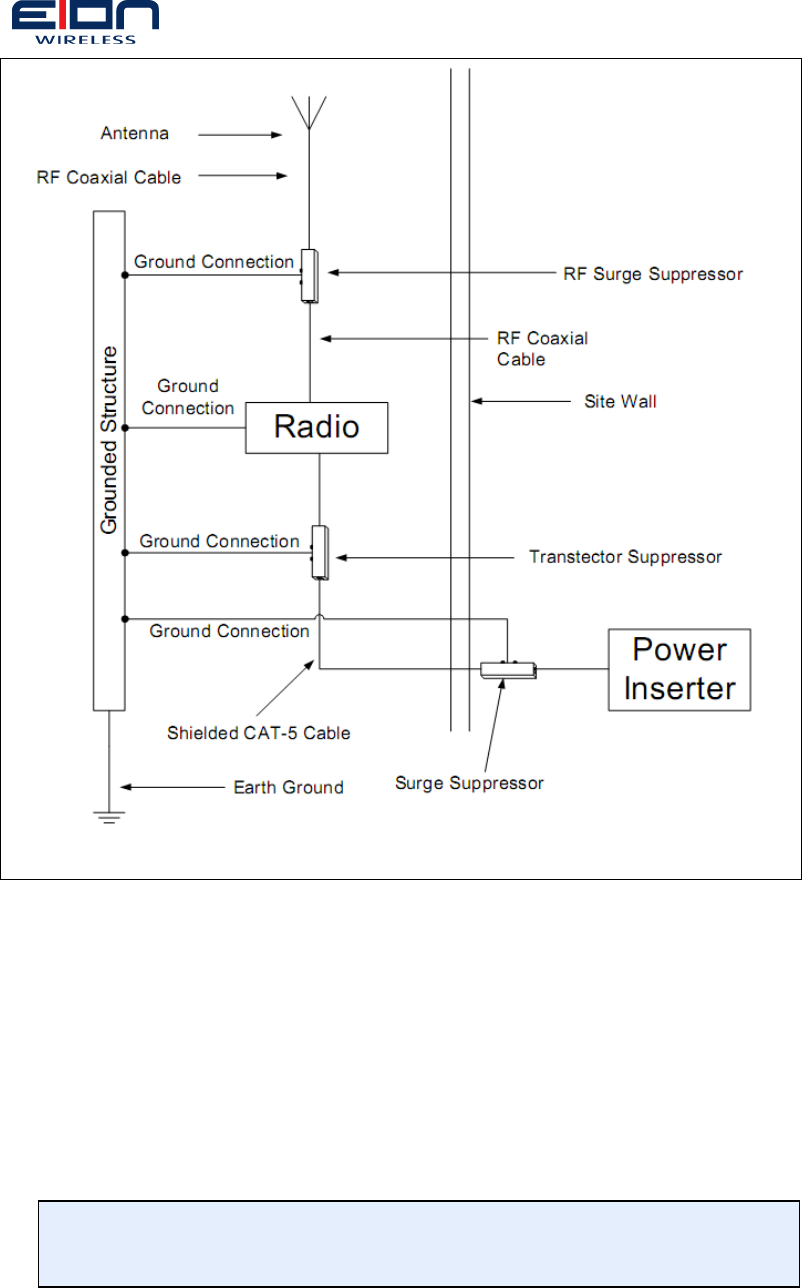

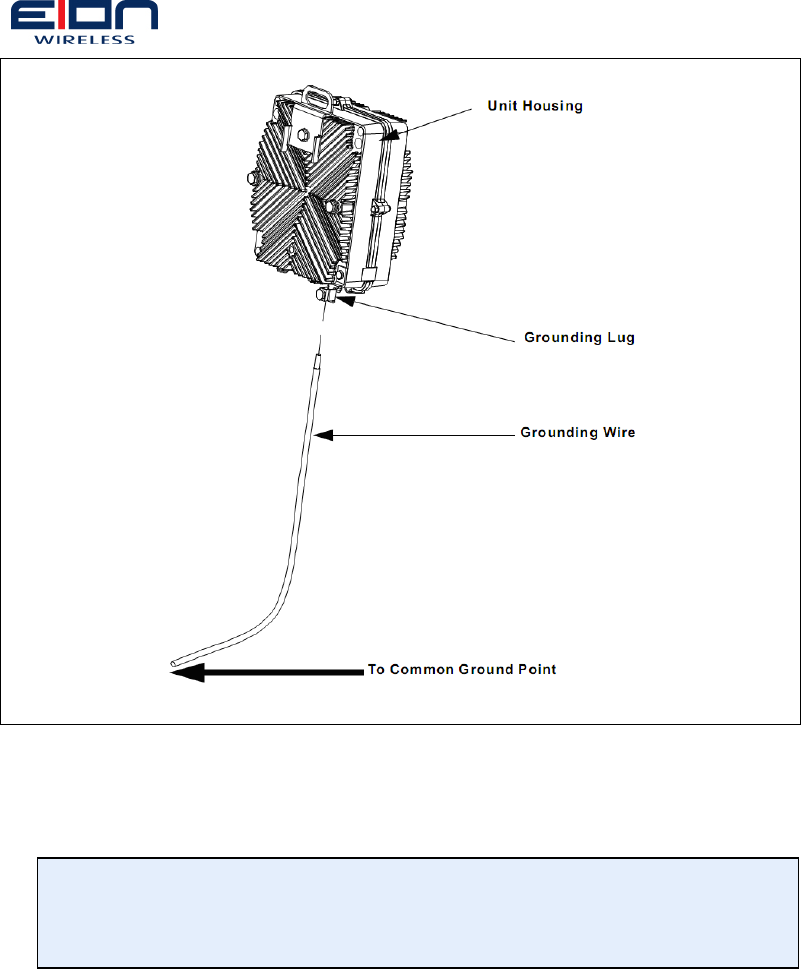

Grounding
Grounding your equipment properly is one of the most important operations you will
perform during installation. Equipment grounding is required for both safety and
effective operation of the installed lightning protection devices.
You must ensure that your system is grounded in accordance with your
local electrical codes and safety laws. EION does not provide any
warranties as to the effectiveness of the grounding concepts and
processes described here, they are for your reference only. EION is
not liable for any damage to your equipment or any injuries to you
resulting from improper grounding.
1.10.1 ESD Warning
Before you begin to install your base station and its components, you should ensure
that your equipment will be protected against electrostatic discharge (ESD). This
section lists some guidelines that you should take into account during installation.
• Proper grounding is extremely important. Make certain that you ground
yourself before you begin working with your equipment. Also try to ensure that
your workspace is static-free and make use of an anti-static wrist or leg straps.
If you do not have access to static protection, ground yourself to your
environment by first touching your finger to a metal surface before touching
your equipment.
• All electrical components should be moved or stored in an anti-static bag.
Before you remove a component from its anti-static bag, you should first hold
the bag in one hand while touching a metal surface with the other hand, then
perform the same action with the component.
• Handle electronic components as little as possible and when you do handle
them, hold all parts by their edge.
• Never slide static-sensitive equipment across any type of surface. Friction can
cause static build-up.
• Keep any non-conductive material, such as Styrofoam and other plastics, away
from your work area
1.10.2 Outdoor Unit Grounding
When you are installing your outdoor units, you need to follow proper grounding
practices. The proper grounding of outdoor units helps to minimize lightning damage
and dissipate static buildup. In general, grounding is accomplished by installing a single
heavy gauge wire, such as a 6 gauge, copper cable, between the outdoor unit’s
grounding lug and the mounting structure’s grounding point.
The following section sets out some grounding guidelines for you to follow during
installation.
• It is very important that the grounding system for your outdoor equipment be
installed by a fully qualified, professional installer, and that proper safety
practices are followed in accordance with your local electrical code.
Libra MAX User Guide Pre-installation: Grounding Page 18 of 120
• Locate your grounding point as close to the outdoor unit as possible. It must
be below the unit and must not be inside a building.
• The grounding point can be located on an unpainted section of a metal tower,
as section of a building’s metal structure or a ground riser per your applicable
local electrical code.
• When you run the ground cable to the grounding point, make certain that it
follows a direct path and that you avoid sharp bends in the cable.
• Do not drill holes in tower supports or cross braces to provide a grounding
point.
• Do not remove any paint on the outdoor unit chassis.
• Do not secure the ground cable in a bundle with other data, power, or RF
cables.
• The chassis of the outdoor unit’s power supply must be connected to the frame
or cabinet via a ground strap.
If you are installing more than one outdoor unit and they will be in close proximity to
each other, do not daisy chain the units’ grounds to each other. This means that you
should not connect the ground of one unit to the ground of another unit and finally to
the grounding system, as shown in Figure 0-1 Daisy Chain Configuration.
Figure 0-1 Daisy Chain Configuration
Daisy chaining the grounds of your units will cause problems such as ground loops,
high resistance paths between units, and reduced ability for dealing with lightning.
Instead, you should use a star configuration, as shown in Figure 0-2 Star
Configuration. In this configuration, each outdoor unit’s grounding lug is connected to a
common grounding point that is then connected to the earth ground.
Libra MAX User Guide Pre-installation: Grounding Page 19 of 120
Figure 0-2 Star Configuration
1.10.3 Indoor Unit Chassis Ground
The base station’s indoor unit shelf should be grounded to the cabinet or rack through
a grounding strap. This strap needs to be connected from the grounding bolt, located
at the back of the chassis, to the cabinet’s (or rack’s) grounding bar. It is not sufficient
to rely on the mounting screws to ground the chassis to the cabinet.
You must also run the cable to the grounding point in a direct path and avoid sharp
bends.
Do not secure the ground cable in a bundle with other data,
power, or radio frequency cables.
1.11
Lightning Protectors
The use of lightning protectors and surge suppressors is extremely important and,
although your Libra MAX-58 equipment will operate without them, it is highly
recommended that you make use of them. Lightning protectors and surge suppressors
are used to aid in the protection of your outdoor units against lightning damage and
static discharge.

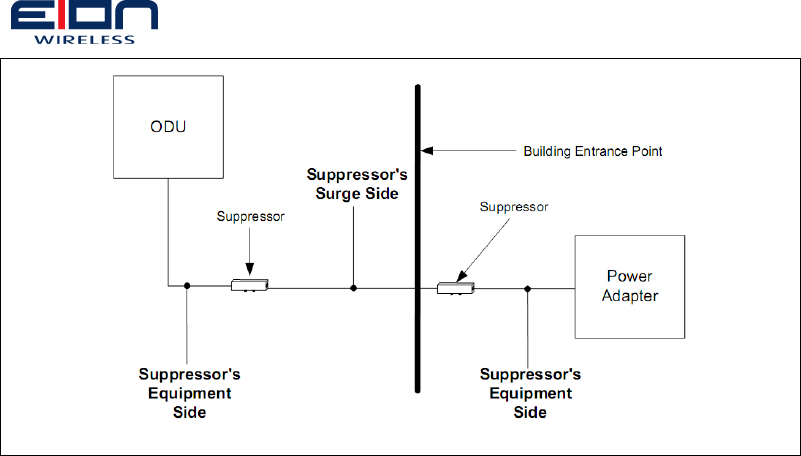

During installation, it is important to note that all lightning protection devices have a
surge (or cable-facing) side and an equipment facing side, as shown in Figure 0-3
Surge Suppressor Sides. The equipment side generally faces the outdoor unit or the
indoor power adapter. The surge side faces the other surge suppressor.
Libra MAX User Guide Pre-installation: Lightning Protectors Page 20 of 120
Figure 0-3 Surge Suppressor Sides
1.11.1 Surge Suppression Unit Location
Lightning arrestors and surge protectors should be installed at all input/output points
on the Libra MAX-58 equipment. Additionally, they should be properly grounded by
connecting the body of the arrestor or protector to the grounding system with a heavy
gauge (6 AWG) copper wire. This grounding wire should be as short as possible.
The following figures illustrate the locations where the surge suppressors must be
installed, when cabling both the base station and the subscriber station.
Figure 0-4 Libra MAX-58 Base Station Surge Suppressor Diagram, illustrates where the
surge suppressors must be installed when cabling the equipment for a Libra MAX-58
sector.
Libra MAX User Guide Pre-installation: Lightning Protectors Page 21 of 120
Figure 0-4 Libra MAX-58 Base Station Surge Suppressor Diagram
Figure 0-5 Subscriber Station (MAX-SP) Surge Protector Diagram with Integrated
Antenna illustrates where the surge suppressors must be installed when cabling the
equipment. This diagram takes the integrated antenna into account.
Libra MAX User Guide Pre-installation: Lightning Protectors Page 22 of 120
Figure 0-5 Subscriber Station (MAX-SP) Surge Protector Diagram with
Integrated Antenna
Figure 0-6 Subscriber Station (MAX-SP) Surge Protector Diagram with External Antenna,
illustrates where the surge suppressors must be installed when cabling the equipment.
Libra MAX User Guide Pre-installation: Lightning Protectors Page 23 of 120
Figure 0-6 Subscriber Station (MAX-SP) Surge Protector Diagram with
External Antenna
When installing surge suppressors between your outdoor unit and the antenna, use
protectors that provide a DC short such as an L-C circuit or one quarter-wave shorting
stub. These protectors should be physically located as close as possible to the ODU,
preferably no further than five (5) feet (1.52 metres). Also, a star configuration should
be used when grounding your surge suppressors.
1.12
Weatherproofing Connectors
One of the most common installation problems is water intrusion, due to improper
weatherproofing. Unfortunately, this activity is often overlooked and can lead to costly
repairs and unnecessary expenses if not completed properly or not performed at all.
Therefore, it is extremely important to properly weatherproof your connectors.
An additional reason for using tape to weatherproof your cable
connections is to prevent the connection loosening, due to
environmental conditions.

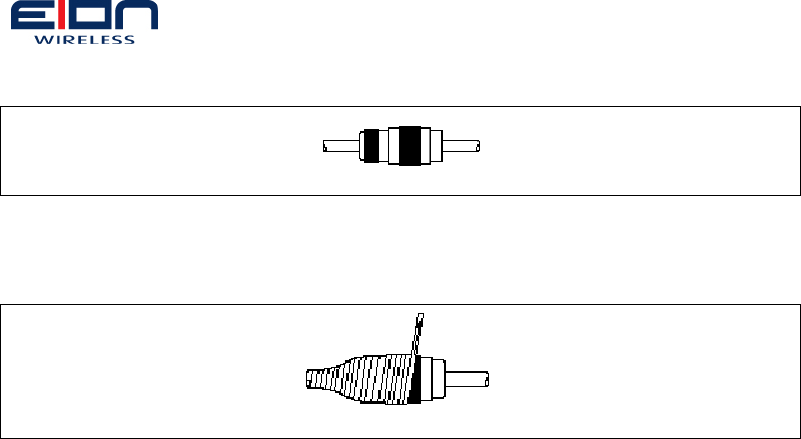

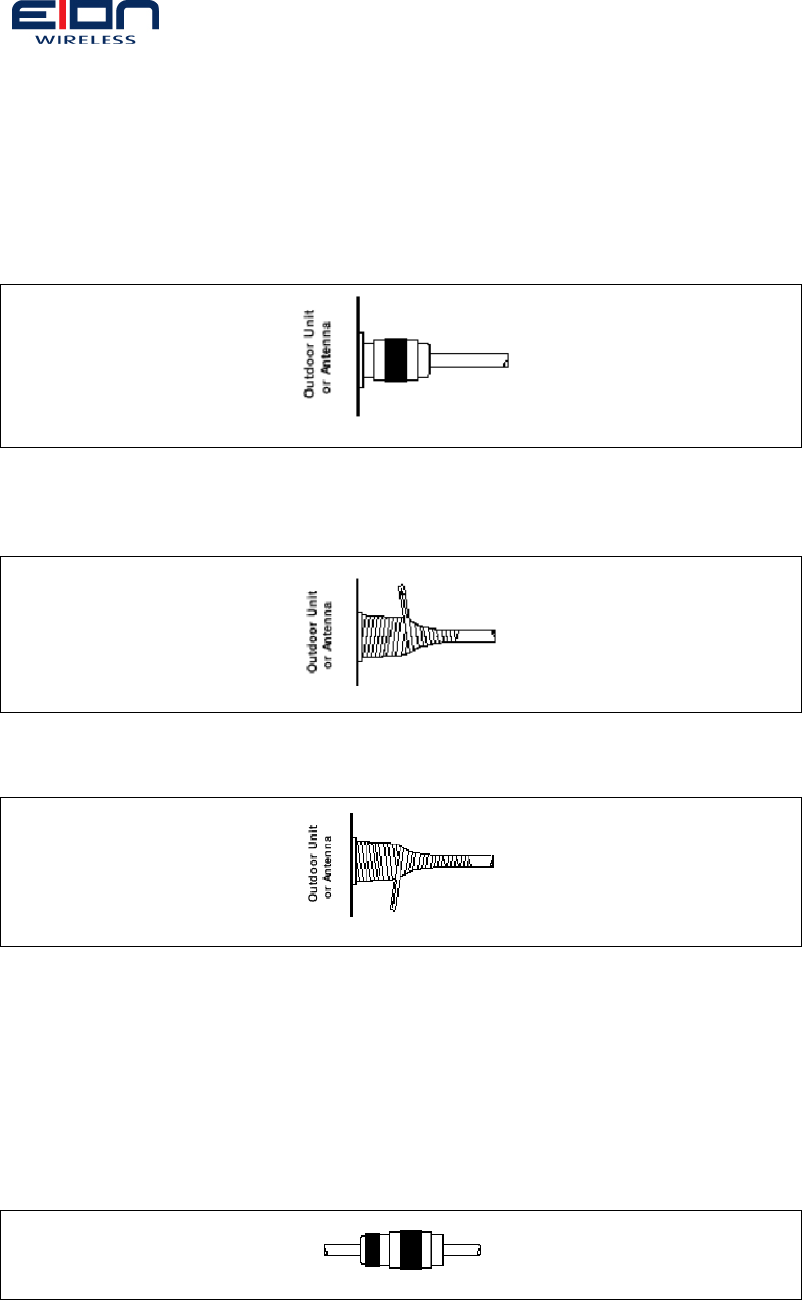

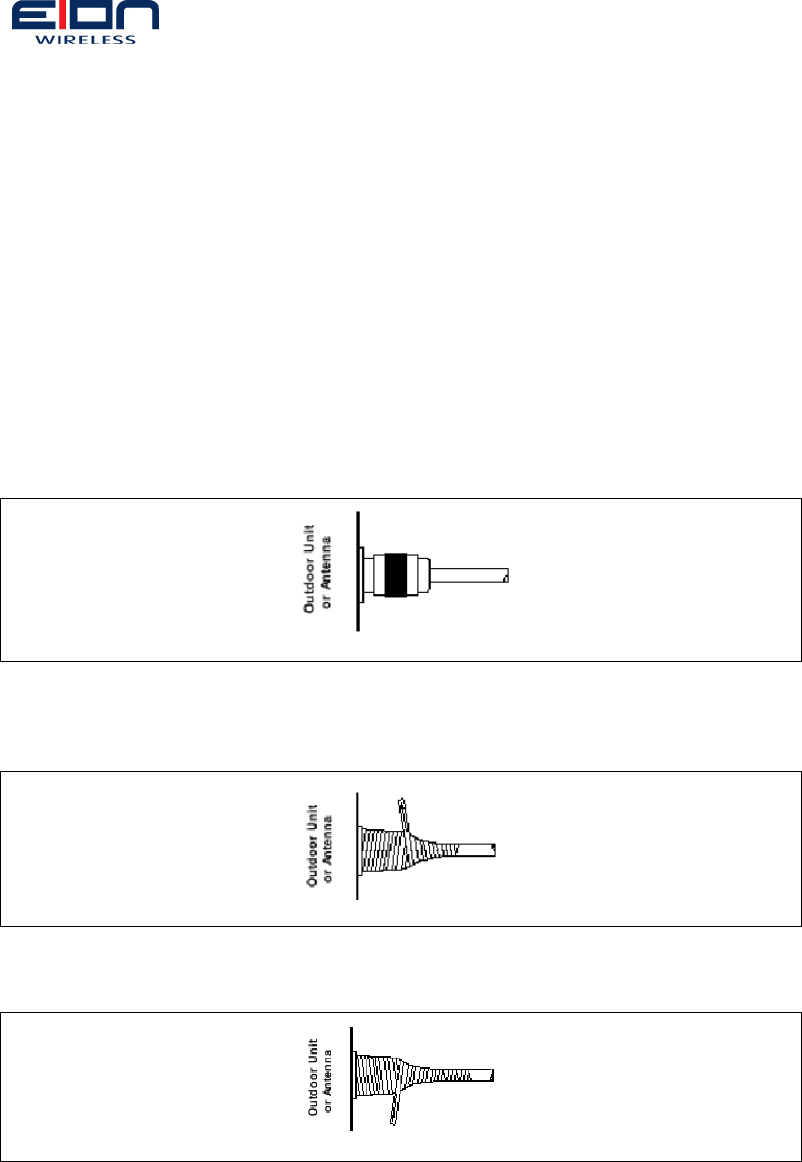

One method is to apply two layers of high quality rubber tape to the connectors, then
apply two layers of high quality vinyl electrical tape, such as:
Libra MAX User Guide Pre-installation: Weatherproofing Connectors Page 24 of 120
Libra MAX User Guide Pre-installation: CAT-5 Ethernet Cable Shielding Page 25 of 120
• Scotch® 130C Linerless Rubber Splicing Tape
• Scotch® Super 88 Premium Vinyl Electrical Tape
Corrosion is another problem that arises if your cabling system is not properly
weatherproofed. Corrosion can lead to high impedance at contact points, which can
drastically reduce the effectiveness of your lightning protection. To help stop corrosion,
you should use an anti-oxidizing paste on all contacts. When using anti-oxidization
paste, keep the following guidelines in mind:
• read the instructions and warnings for the selected product
• lock washers should be used since the anti-oxidization paste acts as a
lubricant
• use a small amount. A thin film applied to exposed surfaces and on contact
points is adequate
• do not apply the anti-oxidization paste to the data cable connections on the
outdoor unit. The anti-oxidization paste is conductive and may degrade
performance and damage equipment.
• using electrical or rubber tape is not recommended for sealing the
grounding connections when anti-oxidization paste is used
• do not use thread-locking compound on the same bolt or screw as anti-
oxidization paste is used.
1.13
CAT-5 Ethernet Cable Shielding

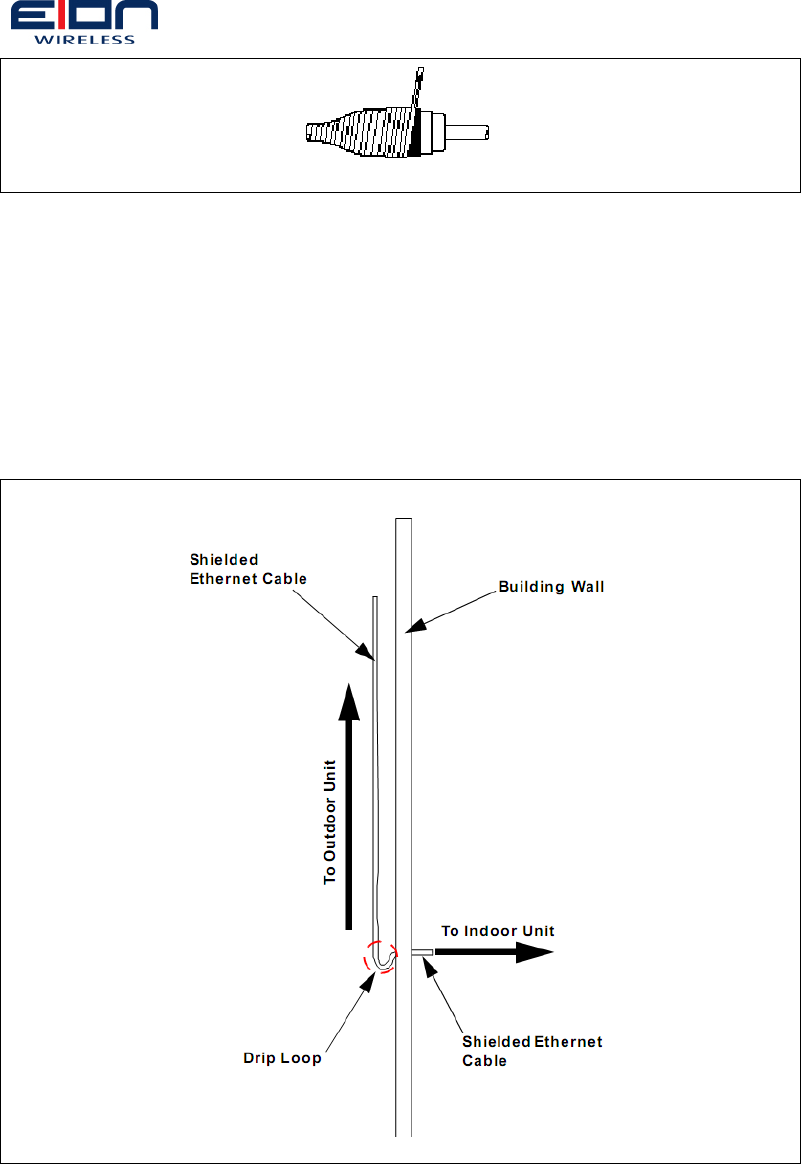

Using shielded CAT-5 Ethernet cable is very important when installing your BS or SS
ODU, as it will help in reducing data errors caused by nearby interference.
It is also very important that the shield be connected at only one end of the cable, the
end that connects to the indoor unit. This is required to eliminate ground loops caused
by current flowing between the indoor and outdoor units, due to a possible difference
in ground levels. Such currents can damage equipment at either end or introduce noise
that will interfere with the user data traffic on the cable.
Base Station Installation
This chapter discusses how to install your Libra MAX-58 base station equipment. There
are four general tasks that you will need to perform when you install your Libra MAX-58
base station. They are:
1. base station indoor unit installation
2. base station outdoor unit installation
3. mounting the antenna
4. cabling the base station
Please review the Pre-installation chapter before you begin installing
your base station equipment.
1.14
Installing the Indoor Unit
This Step applies to the MAX-HD ONLY. The MAX-RBS and MAX-LT units
do not have an indoor unit component.
Your first task is to install the base station’s indoor unit. Before you begin, review the
material in the Pre-installation chapter of this manual and make certain that you have
met all of the conditions laid out there.
Also, when you first receive your Libra MAX-58 indoor unit, the power supply, and fan
tray and filter should already be installed in the chassis.
If these two components, or any other components, are not installed, or if you are
adding functional components to the chassis, this procedure will instruct you in their
installation. If the components are installed from the factory, ignore those steps that
deal with component installation.
Visually inspect the chassis’ back plane connector pins, in both the front
and rear card slots, before you begin to install your indoor unit’s
chassis. You need to make certain that none of the pins are bent or
broken.
To install your base station indoor unit:
1. Install the indoor unit chassis in the rack or cabinet.
1.1. Make certain that you have allowed enough room in the rack or cabinet for
proper ventilation.

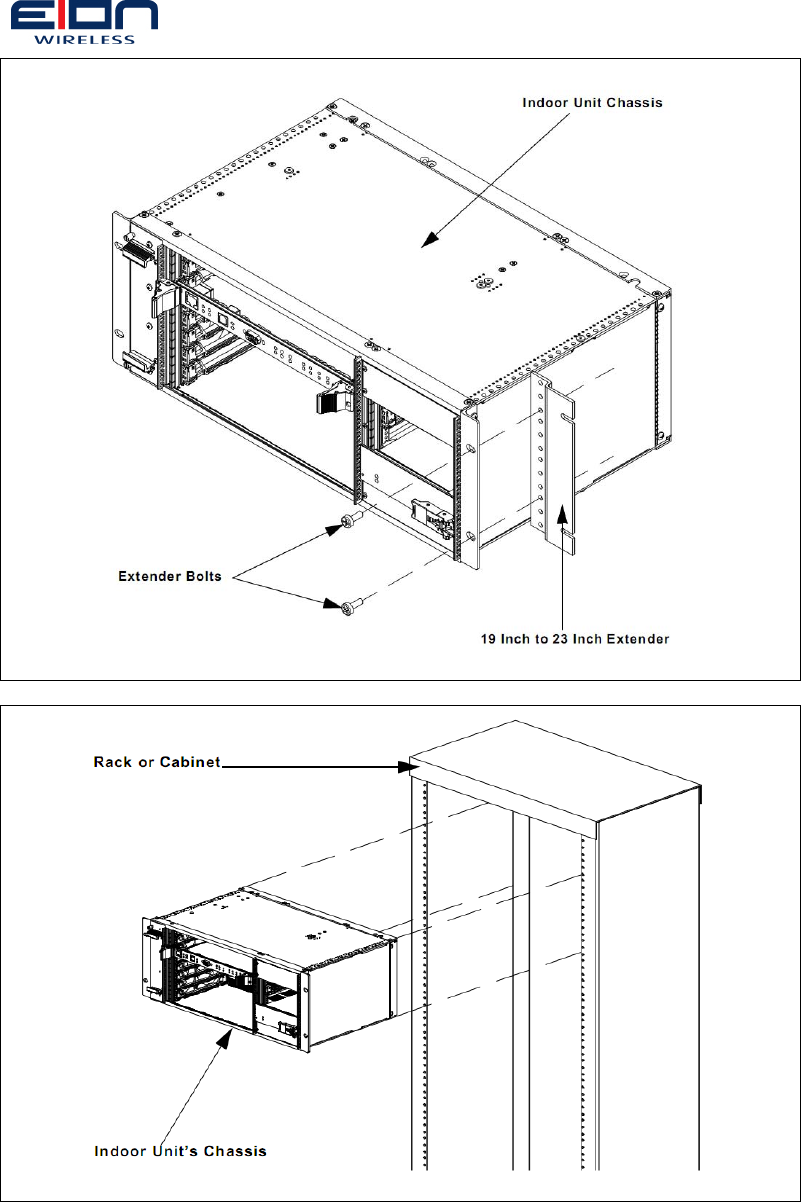

1.2. Install the 19 inch (48.26 cm) to 23 inch (58.42 cm) mounting extenders
on your indoor unit chassis, if necessary, as shown in on the next page.
1.3. Slide the indoor unit chassis into the desired shelf in the appropriate rack
or cabinet, as shown in Figure 0-1 Daisy Chain Configuration below.
Libra MAX User Guide Base Station Installation: Installing the Indoor Unit Page 26 of 120
Figure 0-1 Attaching Extender Plate
Figure 0-2 Inserting the Indoor Unit Chassis in the Cabinet
1.4. Use the mounting bolt kit that was supplied with your chassis to secure the
indoor unit chassis in the rack or cabinet, as shown in Figure 0-3 Installing
the Mounting Bolts.
Libra MAX User Guide Base Station Installation: Installing the Indoor Unit Page 27 of 120
Figure 0-3 Installing the Mounting Bolts
2. Ground the indoor unit’s chassis to the rack or cabinet.
2.1. Remove the nut and lock washer from the grounding pole, located at the
rear of the indoor unit’s chassis, as shown in Figure 0-4 Indoor Unit Chassis
Grounding Lug Location.
Figure 0-4 Indoor Unit Chassis Grounding Lug Location
2.2. Connect a grounding strap to the indoor unit’s grounding pole, as shown in
Figure 0-5 Connecting the Grounding Strap to the Indoor Unit Chassis.
Make certain that this grounding strap is a heavy gauge wire (10-12 AWG).
You should also have ring terminals at both ends of the strap.
Libra MAX User Guide Base Station Installation: Installing the Indoor Unit Page 28 of 120
Figure 0-5 Connecting the Grounding Strap to the Indoor Unit Chassis
2.3. Reinstall the lock washer and nut on the grounding pole and tighten them.
2.4. Connect the other end of the grounding strap to the grounding bar of the
rack or cabinet.
3. Install the power supply for your indoor unit chassis.
Before you begin to install components in the indoor unit’s chassis, make
certain that you are using an anti-static wrist strap. For more
information static discharge and grounding, refer to the ESD Warning
section, in the Pre-installation chapter.
Figure 0-6 Installing the Indoor Unit’s Chassis Power Supply
3.1. Slide the power supply into an empty slot on the right side of the chassis,
as shown in Figure 0-7 Locking the Power Supply Tab . Make certain that
you align the power supply mounting guides on the chassis rails.
Libra MAX User Guide Base Station Installation: Installing the Indoor Unit Page 29 of 120
3.2. Push the power supply into the chassis until it can go no further.
3.3. Push the locking tab against the face plate of the power supply and tighten
the locking screws, as shown in 7 below. This will secure the power supply
in the chassis.

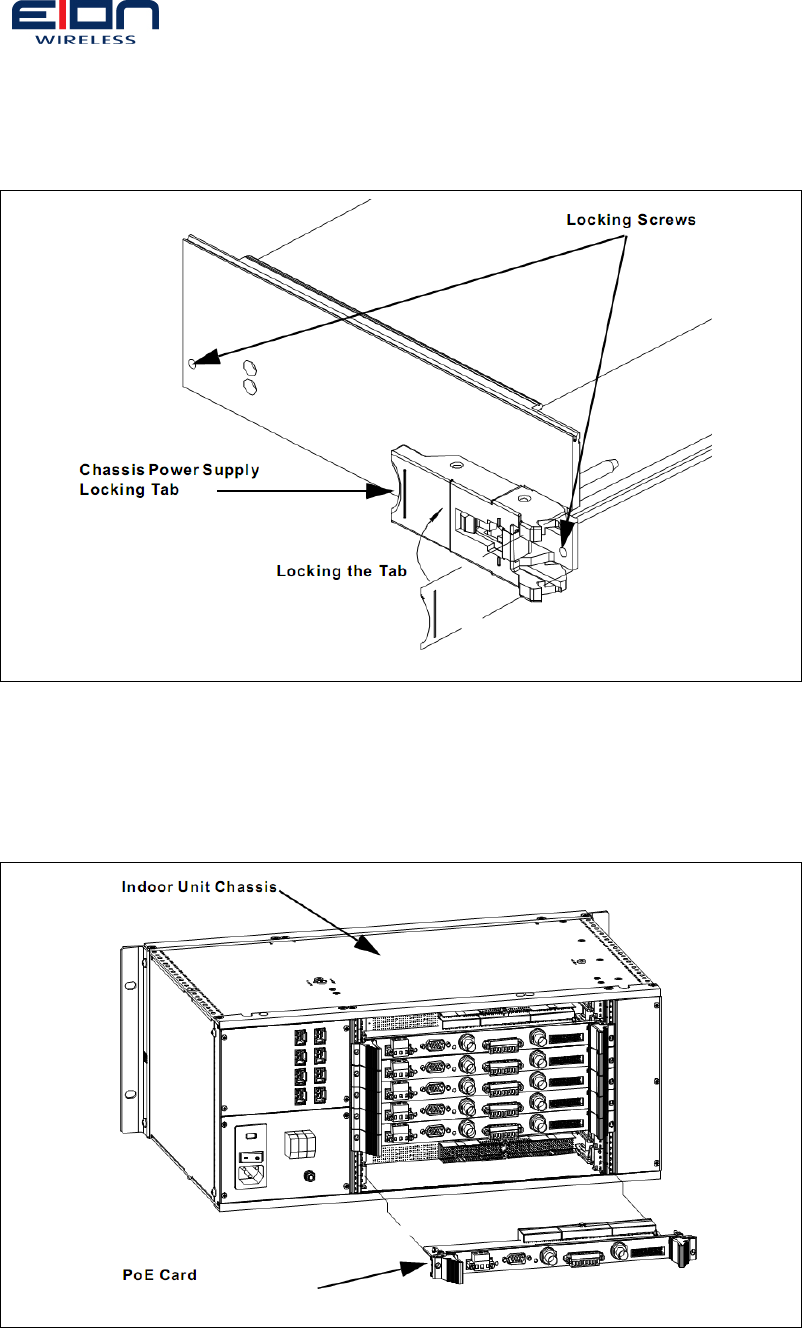

Figure 0-7 Locking the Power Supply Tab
4. Install the PoE card in the indoor unit chassis.
4.1. Slide the PoE card into an empty grey slot in the rear bay of the chassis, as
shown below. Make certain that you align the PoE card mounting guides
on the chassis rails.
4.2. The PoE card can only be installed in slots 1, 3, 4, 5, 6, and 7.
Figure 0-8 Installing the PoE Card
4.3. Gently push the PoE card into the chassis until it can go no further.
Libra MAX User Guide Base Station Installation: Installing the Indoor Unit Page 30 of 120
4.4. Push the outside of both locking tabs towards the center of the PoE’s face
plate until they stop, as shown below.

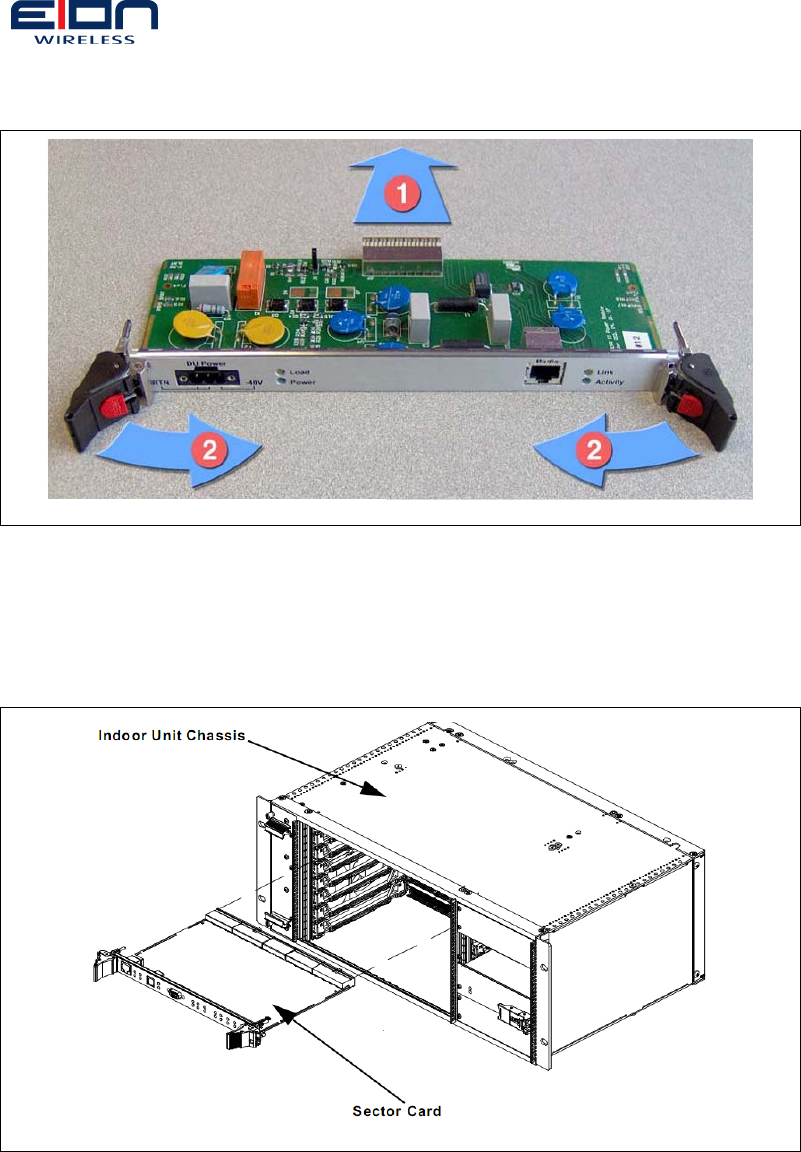

Figure 0-9 Locking the PoE Card Tabs
4.5. Tighten the locking screws; this will secure the PoE card in the chassis.
5. Install the sector card in the base station’s chassis.
5.1. Slide the sector card into an empty grey or red coloured slot in the central
bay of the chassis, as shown below. Make certain that you align the
mounting guides on the chassis rails.
Figure 0-10 Installing the Sector Card in the Chassis
5.2. Gently push the sector card into the chassis until it can go no further.
5.3. Push the outside of both locking tabs towards the center of the sector
card’s face plate until they stop, as shown in the following drawing.
Libra MAX User Guide Base Station Installation: Installing the Indoor Unit Page 31 of 120
Figure 0-11 Locking the Sector Card Tabs
5.4. Tighten the locking screws. This will secure the controller card in the
chassis.
6. Install the Libra MAX-58 switch fabric card. The switch fabric card must go into
either slot 1 or slot 7 (yellow slots).
7. Install any necessary third party cards, such as switches and so on. Make
certain that you carefully read the installation instructions that come with your
card and that you adhere to any conditions, cautions, and warnings.
8. Install filler panels in all of the open slots, for both front and rear card bays, in
the indoor unit’s chassis.
8.1. Place the filler panel over the empty slot and secure the screws to the
chassis, as shown in the following figure.
Figure 0-12 Installing Filler Panels on the Indoor Unit’s Chassis
9. Install the outdoor unit’s -48 volt power supply in the rack or cabinet. This
power supply should be installed near the indoor unit. If possible, it should be
installed above or below the indoor unit in the same rack or cabinet.
9.1. Connect the power leads to the DC power connectors, as shown in the
following figure, before you install the DC power supply unit in the rack or
Libra MAX User Guide Base Station Installation: Installing the Indoor Unit Page 32 of 120
cabinet. These leads will be used to connect to the PoE card.
Figure 0-13 Connecting the PoE Card Power Leads
9.2. Install the 19 inch (48.26 cm) to 23 inch (58.42 cm) mounting extenders
on your DC power supply, if necessary, as shown in the figure below.
Figure 0-14 Power Supply Housing Extender Installation

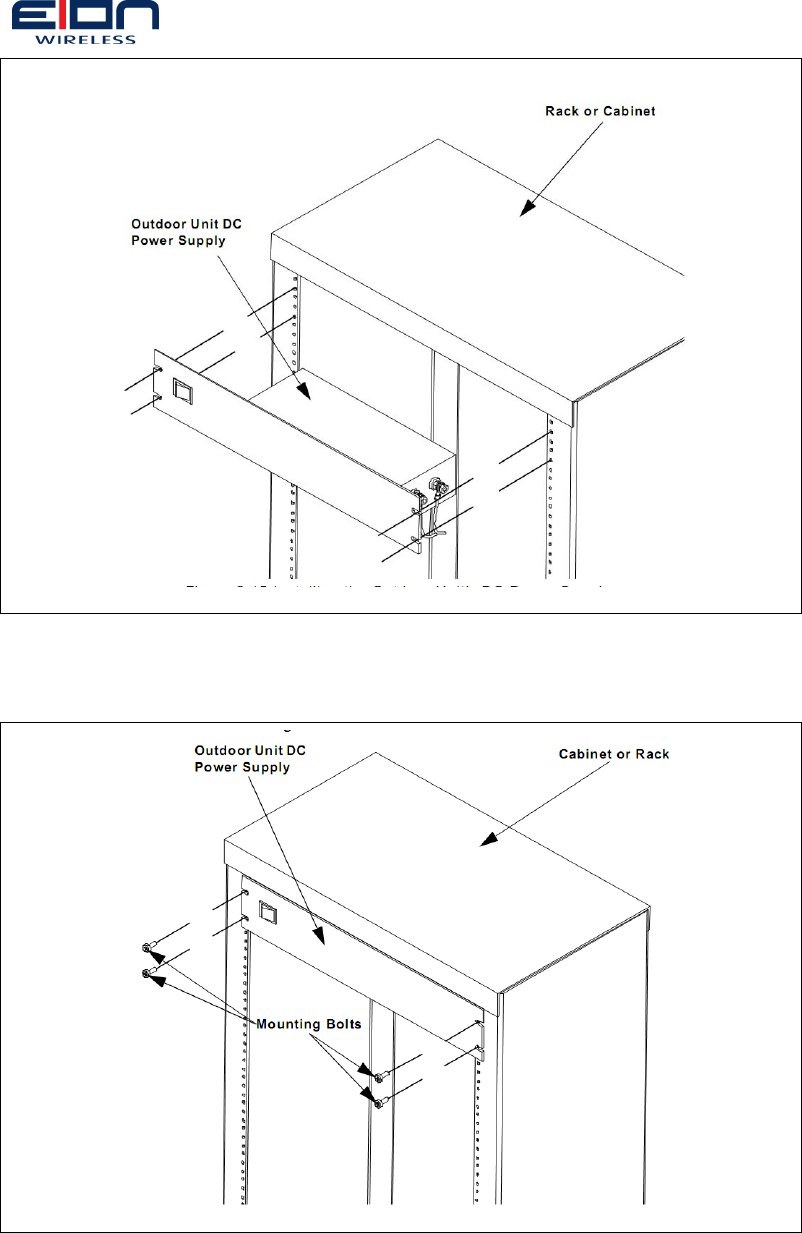

9.3. Slide the outdoor unit’s DC power supply into the desired position in the
appropriate rack or cabinet, as shown in the next figure.
Libra MAX User Guide Base Station Installation: Installing the Indoor Unit Page 33 of 120
Figure 0-15 Installing the Outdoor Unit’s DC Power Supply
9.4. Use the mounting bolts that were supplied with your cabinet or rack to
secure the outdoor unit’s DC power supply in the rack or cabinet, as shown
in the drawing below.
Figure 0-16 Installing the Mounting Bolts
You may now begin cabling the Libra MAX-58 indoor unit. Refer to the Cabling the Base
Station section, in the Base Station Installation chapter.
Libra MAX User Guide Base Station Installation: Installing the Indoor Unit Page 34 of 120
1.15
Installing the BS Outdoor Unit
This chapter discusses how to install your Libra MAX-58 Base Station Outdoor Unit
equipment. There are four general tasks that you will need to perform when you install
your Libra MAX-58 subscriber station. They are:
1. configuring your outdoor unit equipment
2. installing your outdoor unit equipment
3. mounting the antenna, if the equipment uses a separate antenna
4. cabling the outdoor unit
Please review the Pre-installation chapter before you begin installing
your equipment.
1.16
Connecting the Ethernet Cable
Before you mount your outdoor unit, either on a pole or a wall you will need to
temporarily connect an Ethernet cable between the unit and your computer’s Ethernet
port. This is to allow you to configure your outdoor unit.
If connecting the unit directly to a laptop or PC, a crossover Ethernet cable is required.
For information on configuring your outdoor unit for the first time, refer to the chapter
Base Station Configuration and Management.
1.17
Mounting Conditions
The two (2) general subscriber station mounting scenarios are:
1. pole mount
2. wall mount
1.18
Pole Mounting
If you are mounting your Base Station Outdoor Unit using an external antenna, you will
not have to concern yourself with the polarization of the antenna. In this instance,
attach the mounting bracket unit anchor to the side of the unit housing as shown in the
figure below.

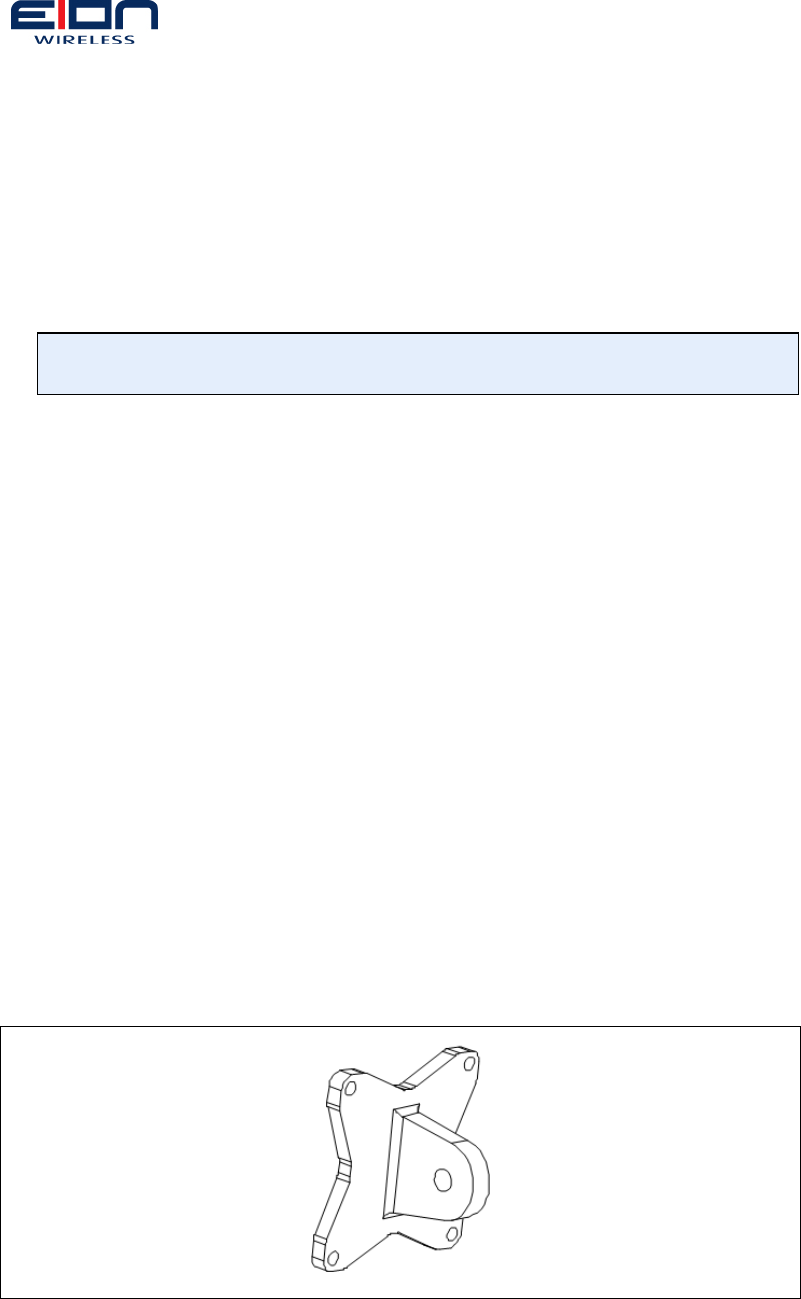

Figure 0-17 Mounting Bracket Unit Anchor
Libra MAX User Guide Base Station Installation: Installing the BS Outdoor Unit Page 35 of 120
Figure 0-18 Attaching the Mounting Bracket Unit Anchor
1.19
Pole-mounting the Outdoor Unit
Your next task is to install the Base Station outdoor unit. Before you begin, review the
material in the Pre-installation chapter of this manual and make certain that you have
met all of the conditions laid out there. Also, you should make certain that all of the
necessary brackets and bolts are included in the box with your unit.
To mount your outdoor unit on a pole:
1. Mount the outdoor unit on the pole.
1.1. Mount the bracket clamp to the pole, as shown in the figure below. If the
pole is two (2) inches (5.08 cm) in diameter or less, turn the mounting
bracket clamp back over so that the angle faces the pole. This will allow
you to mount the bracket to a smaller pole.
Figure 0-19 Attaching the Bracket to the Pole
1.2. Tighten the bolts so that the bracket will not move. The recommended
maximum torque is 24 N/m (17.7 ft/lbs).
Libra MAX User Guide Base Station Installation: Pole-mounting the Outdoor Unit Page 36 of 120
1.3. Bolt the mounting bracket’s unit anchor to the Base Station ODU’s housing,
as shown in the figure below. Tighten the bolts so that they are snug. Do
not over tighten the bolts, as they could crack the housing. The
recommended maximum torque is 5.7 N/m (17.7 ft/lbs).
Figure 0-20 Attaching the Bracket to the Outdoor unit
1.4. Secure the unit to the pole, as shown in the figure below.
Figure 0-21 Securing the Base Station to the Pole
1.5. Tighten the pivot nut and bolt. The recommended maximum torque is 24
N/m (17.7 ft/lbs). If your subscriber station has an integrated antenna, do
Libra MAX User Guide Base Station Installation: Pole-mounting the Outdoor Unit Page 37 of 120
not tighten the pivot nut and bolt until you have aligned your antenna.
1.20
Wall-mounting the Outdoor unit
1. To mount your outdoor unit to a wall:
1.1. Prepare the wall to hold the mounting bracket. The type of mount you
create will depend upon the type of wall surface and material your wall is
made of. It may be that you only need to drill holes and insert bolt
anchors, or you may have to fabricate a strong mount that will withstand
the unit’s weight, outside temperature change, or other variables. For this
reason, EION requires that you supply your own fastening bolts, lag-
screws, or other fastening devices.
1.2. Place the back of the bracket against the wall mount, as shown below.
Figure 0-22 Bolting the Wall-side Bracket to the Wall
1.3. Secure the mounting bracket to the wall, using the necessary bolts.
1.4. Bolt the bracket’s unit anchor to the base station outdoor unit’s housing, as
shown below.
Figure 0-23 Attaching the Bracket to the Base Station
Libra MAX User Guide Base Station Installation: Wall-mounting the Outdoor unit Page 38 of 120
1.5. Tighten the bolts so that they are snug. Do not over tighten the bolts, as
they could crack the housing. The recommended maximum torque is 5.7
N/m (4.2 ft/lbs).
1.6. Connect the base station ODU to the mounted wall-side bracket, using the
pivot arm, as shown below.
Figure 0-24 Bolting the Subscriber Station to the Wall Bracket
How you connect your grounding cable to a common earth ground will
depend on how you have prepared the installation site and where the
outdoor unit is installed. For more information on outdoor unit
grounding requirements, refer to the Outdoor Unit Grounding section
of this manual.
1.21
Antenna Mounting Guidelines
It is essential that you properly install your base station's antenna. This ensures that
your system is operating at optimum performance and aids in protecting it against
lightning damage.
To correctly install your antenna, it is very important that you follow your antenna
manufacturer's installation instructions closely. In addition, keep the following
guidelines and practices in mind while performing your installation.
1.21.1 Mounting the Structure
Make certain that the mounting structure (i.e.: pole mount, wall mount, etc.) is
perpendicular to the horizontal, as shown below. This is essential, because the
antenna’s mechanical tilt indicator or indicators rely on using a vertical mounting
surface for its reference point. The degree of vertical accuracy should be checked and,
if necessary, corrected prior to the installation of the antenna. The mounting surface's
vertical angle can be verified using a level or angle indicator.
Libra MAX User Guide Base Station Installation: Antenna Mounting Guidelines Page 39 of 120
Figure 0-25 Vertical Mounting Surface
1.22
Cabling the Base Station
Once you have installed and mounted all of your Libra MAX-58 base station equipment,
you will need to connect all of the cables required to power the units and transmit the
data. This will require that you connect all of the power and data cables to the base
station’s indoor unit, then connect all of the cables between the indoor unit and the
outdoor unit, then finally connect the cables between the outdoor unit and the
antenna.
Libra MAX User Guide Base Station Installation: Cabling the Base Station Page 40 of 120
Figure 0-26 Libra MAX-58 Base Station Layout Diagram
A Libra MAX-58 BS ODU can be connected to the Indoor Unit (IDU chassis) in one of
two ways. One way is to connect the ODU directly to the chassis using the PoE cards
with power provided by the 48V power supply. The other method is to connect the BS
ODU to the switch fabric card with power supplied by an External PoE injector. The
following layout diagram shows both of these options. The two different cabling options
are further explained with lightning and surge protection in the diagrams that follow.
The following sections set out the steps that you should follow in order to install the
cables needed by your Libra MAX-58 base station. When you have completed cabling
your Libra MAX-58 cable connections should resemble those shown in the following
drawing.
Libra MAX User Guide Base Station Installation: Cabling the Base Station Page 41 of 120
Figure 0-27 Base Station Complete Wiring Diagram
Tag EION Part Number Description Manufacturer
A 1220-0041 Surge Arrester
Ethernet Outdoor
Transtector
B Surge Arrester Huber and Suhner
Libra MAX User Guide Base Station Installation: Cabling the Base Station Page 42 of 120
Figure 0-28 Base Station to PoE Wiring Diagram
Tag EION Part Number Description Manufacturer
A 1220-0041 Surge Arrester
Ethernet Outdoor
Transtector
B Surge Arrester Huber and Suhner
C 1220-0042 10/100Base-T Shield
Surge Suppressor
Huber and Suhner
Libra MAX User Guide Base Station Installation: Cabling the Base Station Page 43 of 120
1.23
Weatherproofing Cable Connections
One task that is extremely important is weatherproofing the connections between your
cable and an outdoor unit or antenna. Not only does this prevent corrosion and keep
water from interfering with the connection, it also aids in keeping the connection tight.
In general, you will weatherproof two types of connection, cable to outdoor unit or
antenna and cable to cable.
1.23.1 Cable to Outdoor Unit Connections
Most antenna or outdoor unit problems are caused by coaxial cable connections that
loosen due to vibration, allowing moisture to penetrate the connector interface. EION
recommends that all outdoor unit to cable connections be weatherproofed using a
procedure similar to the one described below.
Fasten connectors securely together, as shown in below. Ensure the connector and
cables are free of foreign substances such as oil, water, grease, dirt, etc.
Figure 0-29 Secure Connector
Tightly wrap two (2) layers of rubber splicing tape over the connection extending one
(1) inch (2.54 cm) beyond the connectors and overlapping the tape on each turn, as
shown below.
Figure 0-30 Wrap two layers of rubber tape
Tightly wrap two (2) layers of electrical tape over the rubber splicing tape extending
one (1) inch (2.54 cm) beyond the rubber splicing tape, as shown below.
Figure 0-31 Wrap two layers of electrical tape
1.23.2 Cable to Cable Connections
Problems that occur in coaxial cable connections are often due to moisture penetration
and corrosion in loose connections, caused by vibration. EION recommends that all
cable to cable connections be weatherproofed using a procedure similar to the one
described below.
Fasten connectors securely together, as shown below. Ensure the connector and cables
Libra MAX User Guide Base Station Installation: Weatherproofing Cable Connections Page 44 of 120
are free of foreign substances such as oil, water, grease, dirt, etc.
Figure 0-32 Secure connection
Tightly wrap two (2) layers of rubber splicing tape over the connection extending one
(1) inch (2.54 cm) beyond the connectors and overlapping the tape on each turn, as
shown below.
Figure 0-33 Wrap two layers of rubber splicing and electrical tape
Tightly wrap two (2) layers of electrical tape over the rubber splicing tape extending
one (1) inch (2.54 cm) beyond the rubber splicing tape, as shown below.
1.24
Installing a Drip Loop
Another preventative measure that you can perform is to install a drip loop, as shown
in the figure below. Drip loops should be incorporated into the cable before it is
connected to outdoor devices, such as outdoor units, antennas, etc. For example, if
you are installing one of the cables that run between the indoor unit and outdoor unit,
you may want to install a drip loop in the cable immediately before it enters the
building.
Libra MAX User Guide Base Station Installation: Installing a Drip Loop Page 45 of 120
Figure 0-34 Cable Drip Loop
Drip loops should be incorporated into a system’s external cabling at any point where a
connection is made. Some examples of where a drip loop should be used are:
• cable to outdoor unit connection
• cable to antenna connection
• cable to cable connection
• the junction where a cable enters a building or structure
• a common grounding junction box or bar
1.25
Cabling the Indoor Unit
Your first task in cabling your Libra MAX-58 base station is to connect all of the wires
and cables to your indoor unit. To cable your indoor unit:
Connect the PoE translation card’s power plug to the DC power supply leads, as shown
in the figure on the next page.
Libra MAX User Guide Base Station Installation: Cabling the Indoor Unit Page 46 of 120

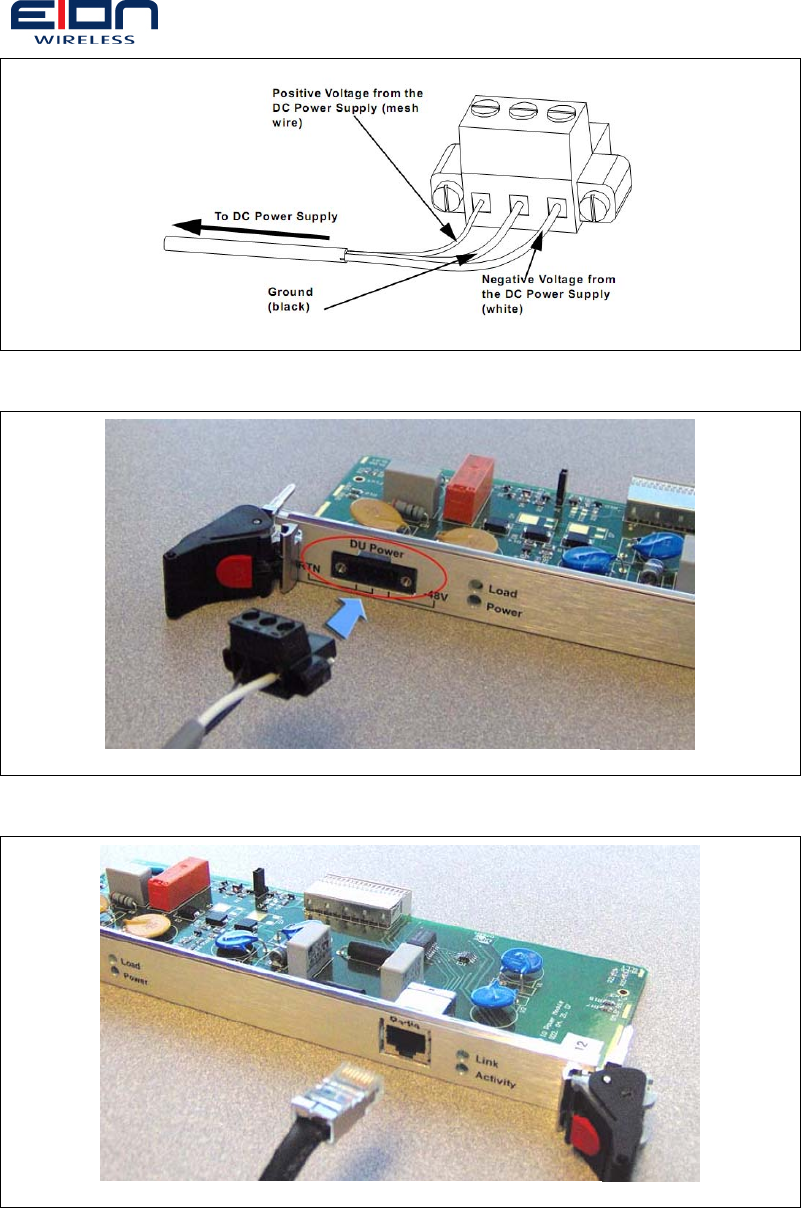

Figure 0-35 Wiring the PoE Card Power Plug
Connect the power plug to the PoE translation card, as shown in the figure below.
Figure 0-36 Plugging the DC Power Plug Into the PoE Card
Connect the Ethernet cable to the PoE card, as shown in the figure below.
Figure 0-37 Connecting the Ethernet Cable to the PoE Card
Plug the DC power supply’s power cord into your power bar or an Uninterruptible Power
Supply (UPS).
If using the EION switch fabric card, the power is supplied to the ODU using an
external power supply connected to an AC power source.
Libra MAX User Guide Base Station Installation: Cabling the Indoor Unit Page 47 of 120
1.26
Cabling to the Outdoor Unit
Once you have finished cabling your indoor unit, you will need to run your cables and
connect them to the outdoor unit. To cable your outdoor unit:
Run the Ethernet cable from the inside of your site, through your building wall opening,
to the outside of your building. How the cable will be run will depend on the strategy
you used to create the building opening and, as such, cannot be defined here.
Connect the Ethernet cable to the outdoor unit 8-pin DIN female circular connector, as
shown in the figure below.
Figure 0-38 Connecting the Ethernet Cable to the ODU
Weatherproof the connection, as described above.
1.27
Cabling to the Antenna
To connect the radio frequency cable between the base station’s outdoor unit and the
antenna, perform the following steps:
1. Connect the radio frequency cable to the outdoor unit socket labeled ANT.
2. Weatherproof the cable connection, as outlined on page 44 above.
3. Connect the surge suppressor to the cable, per the manufacturer’s instructions.
Selection of the lightning protector should be of the Non DC Pass as this will
also aid in the prevention of static discharge damaging the equipment or
degrading performance by introducing noise to the receiver portion of the
outdoor unit.
4. Weatherproof the suppressor connection, as outlined on page 44 above.
5. Connect the cable from the surge suppressor to the antenna, per the
manufacturer’s instructions.
6. Weatherproof the suppressor connection, as outlined on page 44 above.
Libra MAX User Guide Base Station Installation: Cabling to the Outdoor Unit Page 48 of 120
7. Ground the suppressor to a common earth ground, per the manufacturer's
instructions. RF cable sections (before and after the suppressor) should be kept
as short as possible.
1.28
Connecting the Ethernet Cable
You will need to connect your base station to your network via Ethernet. Connect an
Ethernet cable to your base station to either of the two ports shown shown below. If
you are connecting your base station’s Ethernet port directly to a computer, you will
need to use a cross-over cable for the connection.
Figure 0-39 Connecting an Ethernet Cable to the Sector Card’s Ethernet Port
1.29
Powering on the Base Station
Once all of the equipment has been installed and cabled, you should connect the power
to the base station and power it on to check that all components are operating
correctly.
You can use either AC or DC power for your base station, depending on your needs and
the chassis you choose to use.
1.29.1 AC Power
The AC chassis requires that you use both AC and DC to power the base station chassis
and components. AC is used to power the chassis itself and all of the cards installed in
it, through the built-in power supplies. The DC is used to provide the -48V power to
the outdoor units, through the PoE card or cards.
To plug your base station into an AC mains outlet:
1. Plug the AC power cord into the indoor unit chassis’ AC power socket, as
shown below.
Libra MAX User Guide Base Station Installation: Connecting the Ethernet Cable Page 49 of 120
Figure 0-40 AC Power Socket
2. Connect the DC power cord(s) from the DC power supply to the indoor unit
chassis’ DC Power Connectors, shown in Figure 0-40 AC Power Socket.
3. Plug the AC power cord into your power bar or UPS. Make certain that your
power bar or UPS is plugged into the AC wall outlet.
4. Turn on the indoor unit chassis power switch, shown in the above figure. When
the base station is first powered up, it takes roughly four (4) minutes for the
sector card to boot up. You cannot use the sector card until it has booted up
completely.
1.29.2 DC Power
The DC variant of the indoor unit’s chassis does not need any AC power to operate, it
only uses -48V DC power. You will, however, need to run a power jumper from the DC
power distribution panel sockets to the PoE card DC power sockets before you can use
the base station.
To plug your base station into a DC mains outlet:
1. Run a patch cord from each one of the DC power distribution panel sockets to
one of the PoE card DC power sockets, shown in Figure 0-41 DC Power Sockets
below. Make certain that you connect all of the installed PoE cards to the DC
power sockets.
Figure 0-41 DC Power Sockets
Libra MAX User Guide Base Station Installation: Powering on the Base Station Page 50 of 120
2. Connect the DC power cord(s) from the DC power supply to the indoor unit
chassis’ DC Power Terminals, shown above.
3. Turn on the indoor unit chassis circuit breakers, shown above. When the base
station is first powered up, it takes roughly four (4) minutes for the sector card
to boot up. You cannot use the sector card until it has booted up completely.
Libra MAX User Guide Base Station Installation: Powering on the Base Station Page 51 of 120
Rapid Backhaul System
Installation
This chapter discusses how to install your Libra MAX-58 base station equipment. There
are four general tasks that you will need to perform when you install your Libra MAX-58
base station. They are:
1. RBS unit installation
2. mounting the antenna
3. cabling the RBS
Please review the Pre-installation chapter before you begin installing
your equipment.
1.30
Installing the RBS Unit
Before you begin, review the material in the Pre-installation chapter of this manual and
make certain that you have met all of the conditions laid out there. Also, you should
make certain that all of the necessary brackets and bolts are included in the box with
your RBS unit.
1.30.1 Pole-mounting the RBS Unit
To mount your RBS on a pole:
1. Mount the bracket on the pole.
1.1. Place the back of the bracket against the pole, as shown.
Figure 0-1 The RBS Mounting Bracket Against Pole
Libra MAX User Guide Rapid Backhaul System Installation: Installing the RBS Unit Page 52 of 120
1.2. Slide the U-bolt around the pole and fit the threaded ends through the
holes in the bracket, as shown below.
Figure 0-2 Installing the RBS Mounting Bracket U-bolt
1.3. Place the washers on the U-bolt's threaded ends and thread the nuts onto
the U-bolt, as shown in the following figure.
Figure 0-3 Fixing the Hex Nuts to the U-bolt
1.4. Tighten the two nuts against the RBS unit’s body. The minimum pole
diameter 1 inches and the maximum is 4 inches.
2. Mount the RBS unit to the bracket.
2.1. Hang the RBS unit on the front of the bracket by sliding the installation
handle bolted to the back into the opening on the face of the bracket.
Libra MAX User Guide Rapid Backhaul System Installation: Installing the RBS Unit Page 53 of 120
Make certain that the two bolts in the middle, on the back of the RBS unit's
housing are sitting securely in the bolt slots at the bottom of the bracket.
Figure 0-4 Handing the RBS Unit on the Mounting Bracket
2.2. Tighten the two lower bolts.
2.3. Thread the nylon vibration bolt through the back of the bracket and tighten
it against the unit’s body until it will not tighten any further. Setting this
anti-vibration bolt is important to prevent any noise due to wind vibration.
Libra MAX User Guide Rapid Backhaul System Installation: Installing the RBS Unit Page 54 of 120
Figure 0-5 Installing the Nylon Anti-vibration Bolt
3. Ground the RBS unit.
3.1. Strip roughly one (1) inch (2.54 cm) of insulation from one end of your
grounding cable. The cable that you use for grounding your RBS unit
should be at least a 6 AWG cable.
3.2. Insert the bare end of the grounding cable in the grounding lug of the RBS
unit, as shown.
Libra MAX User Guide Rapid Backhaul System Installation: Installing the RBS Unit Page 55 of 120
Figure 0-6 Grounding the RBS Unit
3.3. Once you have inserted the grounding cable in the grounding lug, tighten
the bolt.
3.4. Connect the other end of the grounding cable to your common earth
ground.
How you connect your grounding cable to a common earth ground will
depend on how you have prepared the installation site and where the
RBS unit is installed. For more information on RBS grounding
requirements, refer to the RBS Unit Grounding section of this manual.
1.30.2 Wall-mounting the RBS Unit
To mount your RBS unit to a wall:
2. Prepare the wall to hold the mounting bracket, similar to the wall mount shown
below. The type of mount you create will depend upon the type of wall surface
and material your wall is made of. It may be that you only need to drill holes
and insert bolt anchors, or you may have to fabricate a strong mount that will
withstand the RBS’s weight, outside temperature change, or other variables.
Libra MAX User Guide Rapid Backhaul System Installation: Installing the RBS Unit Page 56 of 120
Figure 0-7 Wall Mount to Receive RBS Mounting Bracket
3. Mount the bracket on the wall.
3.1. Place the back of the bracket against the wall mount.
Figure 0-8 RBS Mounting Bracket against Wall
3.2. Secure the mounting bracket to the wall, using the necessary bolts, nuts,
or other fixtures.
4. Mount the RBS to the bracket.
4.1. Hang the RBS on the front of the bracket by sliding the installation handle
Libra MAX User Guide Rapid Backhaul System Installation: Installing the RBS Unit Page 57 of 120
into the opening on the face of the bracket. Make certain that the two
bolts in the middle, on the back of the RBS's housing are sitting securely in
the bolt slots at the bottom of the bracket.
Figure 0-9 Handing the RBS on the Wall Mounting Bracket
4.2. Tighten the two lower bolts.
5. Ground the RBS.
5.1. Strip roughly one (1) inch (2.54 cm) of insulation from one end of your
grounding cable. The cable that you use for grounding your RBS should be
at least a 6 AWG cable.
5.2. Insert the bare end of the grounding cable in the grounding lug of the RBS,
as shown in the next diagram.
Libra MAX User Guide Rapid Backhaul System Installation: Installing the RBS Unit Page 58 of 120
Figure 0-10 Grounding the RBS
5.3. Once you have inserted the grounding cable in the grounding lug, tighten
the bolt.
5.4. Connect the other end of the grounding cable to your common earth
ground.
How you connect your grounding cable to a common earth ground will
depend on how you have prepared the installation site and where the
RBS unit is installed. For more information on RBS unit grounding
requirements, refer to the RBS Grounding section of this manual.
1.31
Antenna Mounting Guidelines
It is essential that you properly install your RBS’s antenna. This ensures that your
system is operating at optimum performance and aids in protecting it against lightning
damage.
To correctly install your antenna, it is very important that you follow your antenna
manufacturer's installation instructions closely. In addition, keep the following
guidelines and practices in mind while performing your installation.
1.31.1 Mounting the Structure
Make certain that the mounting structure (i.e.: pole mount, wall mount, etc.) is
perpendicular to the horizontal, as shown below. This is essential, because the
antenna’s mechanical tilt indicator or indicators rely on using a vertical mounting
surface for its reference point. The degree of vertical accuracy should be checked and,
Libra MAX User Guide Rapid Backhaul System Installation: Antenna Mounting Guidelines Page 59 of 120
if necessary, corrected prior to the installation of the antenna. The mounting surface's
vertical angle can be verified using a level or angle indicator.
Figure 0-11 Vertical Mounting Surface
1.32
Cabling the RBS
Once you have installed and mounted all of your Libra MAX-58 RBS equipment, you will
need to connect all of the cables required to power the units and transmit the data.
This will require that you connect all of the power and data cables to the RBS and
connect the cables between the RBS and the antenna.
Libra MAX User Guide Rapid Backhaul System Installation: Cabling the RBS Page 60 of 120
RBSRBS
Figure 0-12 RBS to PoE Wiring Diagram
Tag EION Part Number Description Manufacturer
A 1220-0041 Surge Arrester
Ethernet Outdoor
Transtector
B Surge Arrester Huber and Suhner
C 1220-0042 10/100Base-T Shield
Surge Suppressor
Huber and Suhner
1.33
Weatherproofing Cable Connections
One task that is extremely important is weatherproofing the connections between your
cable and an RBS or antenna. Not only does this prevent corrosion and keep water
from interfering with the connection, it also aids in keeping the connection tight.
In general, you will weatherproof two types of connection, cable to RBS unit or antenna
and cable to cable.
Libra MAX User Guide Rapid Backhaul System Installation: Weatherproofing Cable Connections Page 61 of
120
1.33.1 Cable to RBS Connections
Most antenna or radio problems are caused by coaxial cable connections that loosen
due to vibration, allowing moisture to penetrate the connector interface. EION
recommends that all RBS to cable connections be weatherproofed using a procedure
similar to the one described below.
Fasten connectors securely together, as shown in below. Ensure the connector and
cables are free of foreign substances such as oil, water, grease, dirt, etc.
Figure 0-13 Secure Connector
Tightly wrap two (2) layers of rubber splicing tape over the connection extending one
(1) inch (2.54 cm) beyond the connectors and overlapping the tape on each turn, as
shown below.
Figure 0-14 Wrap two layers of rubber tape
Tightly wrap two (2) layers of electrical tape over the rubber splicing tape extending
one (1) inch (2.54 cm) beyond the rubber splicing tape, as shown below.
Figure 0-15 Wrap two layers of electrical tape
1.33.2 Cable to Cable Connections
Problems that occur in coaxial cable connections are often due to moisture penetration
and corrosion in loose connections, caused by vibration. EION recommends that all
cable to cable connections are weatherproofed using a procedure similar to the one
described below.
Fasten connectors securely together, as shown below. Ensure the connector and cables
are free of foreign substances such as oil, water, grease, dirt, etc.
Figure 0-16 Secure connection
Tightly wrap two (2) layers of rubber splicing tape over the connection extending one
(1) inch (2.54 cm) beyond the connectors and overlapping the tape on each turn, as
shown below.
Libra MAX User Guide Rapid Backhaul System Installation: Weatherproofing Cable Connections Page 62 of
120
Figure 0-17 Wrap two layers of rubber splicing and electrical tape
Tightly wrap two (2) layers of electrical tape over the rubber splicing tape extending
one (1) inch (2.54 cm) beyond the rubber splicing tape, as shown below.
1.34
Installing a Drip Loop
Another preventative measure that you can perform is to install a drip loop, as shown
in the figure below. Drip loops should be incorporated into the cable before it is
connected to outdoor devices, such as outdoor units, RBS, antennas, etc. For example,
if you are installing one of the cables that run indoors from an RBS, you may want to
install a drip loop in the cable immediately before it enters the building.
Figure 0-18 Cable Drip Loop
Drip loops should be incorporated into a system’s external cabling at any point where a
connection is made. Some examples of where a drip loop should be used are:
• cable RBS connection
• cable to antenna connection
• cable to cable connection
• the junction where a cable enters a building or structure
Libra MAX User Guide Rapid Backhaul System Installation: Installing a Drip Loop Page 63 of 120
• a common grounding junction box or bar
1.35
Cabling to the RBS
To cable your RBS unit:
Run the Ethernet cable from the inside of your site, through your building wall opening,
to the outside of your building. How the cable will be run will depend on the strategy
you used to create the building opening and, as such, cannot be defined here.
Connect the Ethernet cable to the RBS unit 8-pin DIN female circular connector, as
shown in the figure below.
Figure 0-19 Connecting the Ethernet Cable to the RBS
Weatherproof the connection, as described above.
1.36
Cabling to the Antenna
To connect the radio frequency cable between the RBS unit and the antenna, perform
the following steps:
8. Connect the RF cable for the antenna that is pointing at a subscriber station to
the RBS socket labeled ANT.
9. Connect the RF cable for the antenna that is pointing at a Base Station to the
RBS socket labeled IF.
10. Weatherproof the cable connection, as outlined on page 44 above.
11. Connect the surge suppressor to the cable, per the manufacturer’s instructions.
Selection of the lightning protector should be of the Non DC Pass as this will
Libra MAX User Guide Rapid Backhaul System Installation: Cabling to the RBS Page 64 of 120
Libra MAX User Guide Rapid Backhaul System Installation: Powering on the RBS Page 65 of 120
also aid in the prevention of static discharge damaging the equipment or
degrading performance by introducing noise to the receiver portion of the RBS.
12. Weatherproof the suppressor connection, as outlined on page 44 above.
13. Connect the cable from the surge suppressor to the antenna, per the
manufacturer’s instructions.
14. Weatherproof the suppressor connection, as outlined on page 44 above.
15. Ground the suppressor to a common earth ground, per the manufacturer's
instructions. RF cable sections (before and after the suppressor) should be kept
as short as possible.
1.37
Powering on the RBS
Once all of the equipment has been installed and cabled, you should connect the power
to the RBS and power it on to check that all components are operating correctly.
Libra MAX User Guide Rapid Backhaul System Installation: Powering on the RBS Page 66 of 120
Base Station Configuration
1.38
Introduction
Libra MAX-58 Base Station Manager controls the operation and configuration of a Libra
MAX-58 Base Station. It is administered over an Ethernet connection using a web-
based GUI.
This chapter will cover the basic operation of the Libra MAX-ODU 5800, Libra MAX-
LT 5800 and the Base Station Portion of the Libra MAX-RBS 5800.

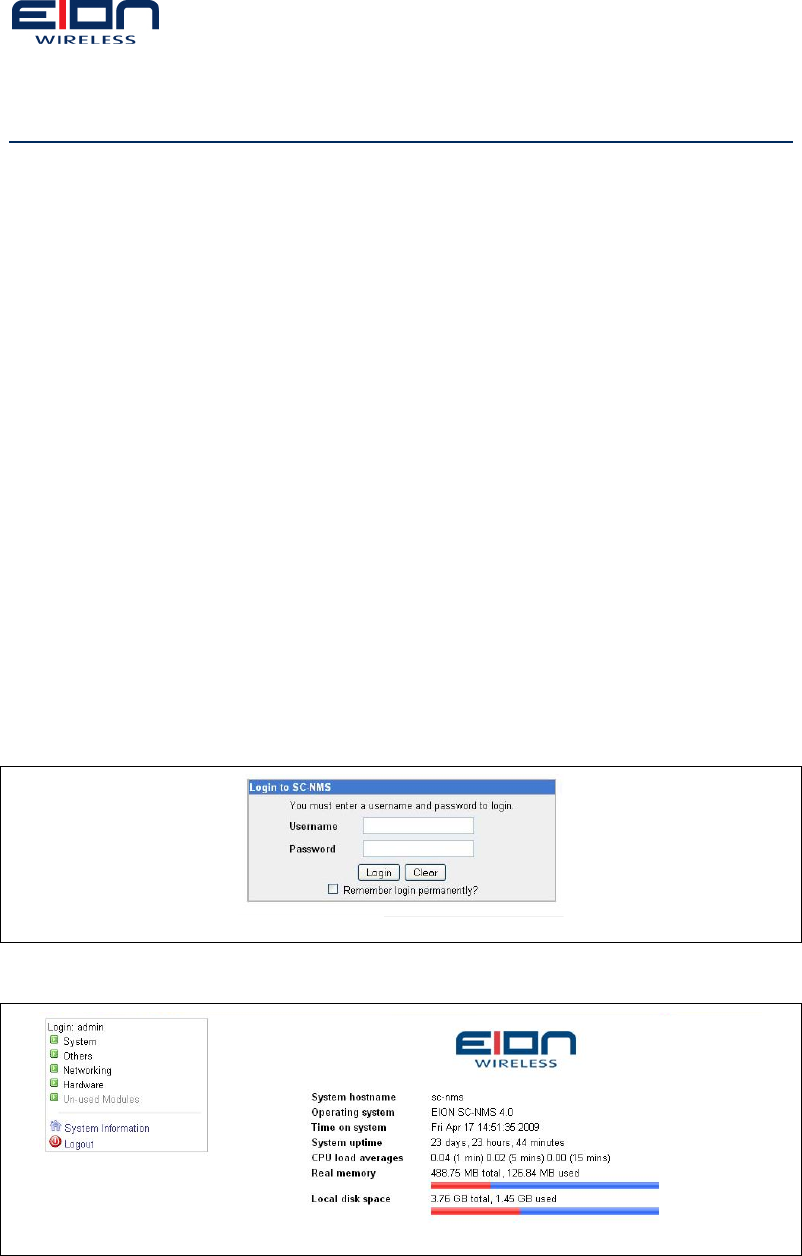

1.38.1 Connect to the BS Manager
Requirements:
• PC running Windows
• Web browser (Internet Explorer or Firefox)
• Java
To connect to the Libra MAX-58 BS do the following:
1. Configure a PC in the same subnet as the Libra MAX-58 BS ODU.
2. Open Firefox web browser on the PC.
3. Type the following URL including the port into the address bar:
http://192.168.1.40:28086
Note: The IP Address listed above is the default value.
4. The BS Manager Login Screen (Figure 0-1) will appear. Log in with the
following:
Username: root
Password: BS4400
NOTE: In older versions of the firmware the default password is “eionbs”
Libra MAX User Guide Base Station Configuration: Introduction Page 68 of 120

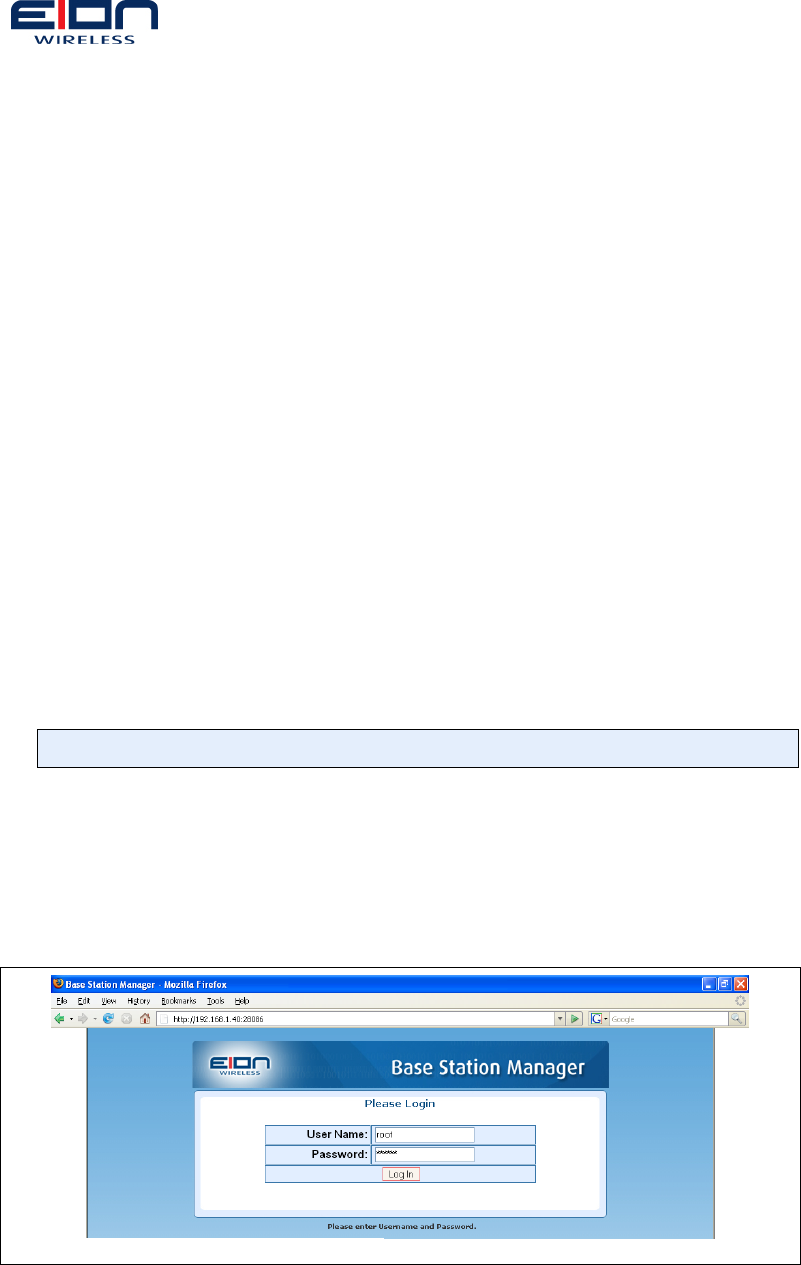

Figure 0-1: BS Manager Login Screen
5. After successful login the Post-login screen (Figure 0-2) appears.
Figure 0-2: Post-login screen
1.38.2 Screen Layout
The NMS GUI is divided into four distinct areas (Figure 0-1 and Figure 0-3).
Left Panel: This area contains a hierarchical view of all the elements in the system.
You can expand and collapse the sections by clicking on the ‘+’ and ‘-’ symbols beside
each element icon.
Main Menu: Select different functions in the main menu
Main Screen: The main portion of the screen shows configuration settings, topological
maps and performance charts.
Libra MAX User Guide Base Station Configuration: Introduction Page 69 of 120
Figure 0-3: BS Manager Layout
Status Screen
Main Screen
Left Panel
Status Screen: Status screen displays the current status of the BS ODU. After
successful configuration of the BS ODU, BS Status becomes ‘Configuration Done’. This
screen also displays other relevant information such as logged in user, current version
of firmware and the number of connected subscriber stations if any.
Navigating Groups on Left Panel: Click on the ‘+’ sign to the left of a group icon to
expand the group. This will display relevant configuration tree for a group.
1.39
Base Station Configuration (BS)
1.39.1 Basic Configuration
This screen appears after clicking on ‘BS’, then on ‘Configuration’ and then on ‘Basic’. It
allows configuration of the following:
Figure 0-4: Basic Configuration
BS ODU ID – It is a globally unique numeric identifier for the BS ODU and hence the
network. It is 6 bytes (48 bits) in length. This identifier has to be entered in the
subscriber stations for them to communication with this particular BS. By default this is
set as the MAC Address of the BS ODU. The Base Station must be rebooted for
changes to the BS ODU ID to take effect.
NMS Source – It configures whether the NMS and AAA server to be used should be
loaded from the BS ODU itself or a sector card with standalone NMS/AAA server. This
has to be set to BS_ODU for MAX-LT. For MAX-HD it can be set to either BS_ODU or
SECTOR_CARD as needed. The Base Station must be rebooted for changes to the NMS
Source to take effect.
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 70 of 120
BS ODU MAC Address – It displays the MAC address of the active port of the BS
ODU. This MAC address has to be configured into subscriber stations if you want them
to specifically connect to the particular BS ODU of interest. MAC address is not
configurable by user.
BS ODU IP Address – It is the IP of the active port of the BS ODU. IP address has to
be in the same subnet as the subscriber station. The Base Station must be rebooted for
changes to the BS ODU IP Address to take effect. Note that if the IP Address is
changed, you will need to login using the newly configured IP address.
NOTE: The default BS ODU IP Address is 192.168.1.40
DHCP Enable – Setting it to ‘Enable’ activates a DHCP server in BS ODU so that
subscriber stations associated with it can receive IP address automatically. It is
disabled by default. The Base Station must be rebooted for changes to DHCP to take
effect.
Syslogd – It configures where the log files for the BS ODU are stored. Its value is set
to ‘Local’ by default. The Base Station must be rebooted for changes to the Syslogd to
take effect.
1.39.2 VLAN Configuration
Currently the VLAN setting allows users to configure a management VLAN. This allows
network administrators access to the management GUI over a specified VLAN.
Support of Management VLAN will prevent this and will allow access to the Base Station
only from the specified VLAN (Management VLAN). So, the Base Station can be
accessed and managed only from a system that is in the specified VLAN either on the
Ethernet side of the Base Station or on any of the associated Subscriber Stations
network. The following figure depicts this behavior when a Management VLAN is
specified in the Base Station.
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 71 of 120

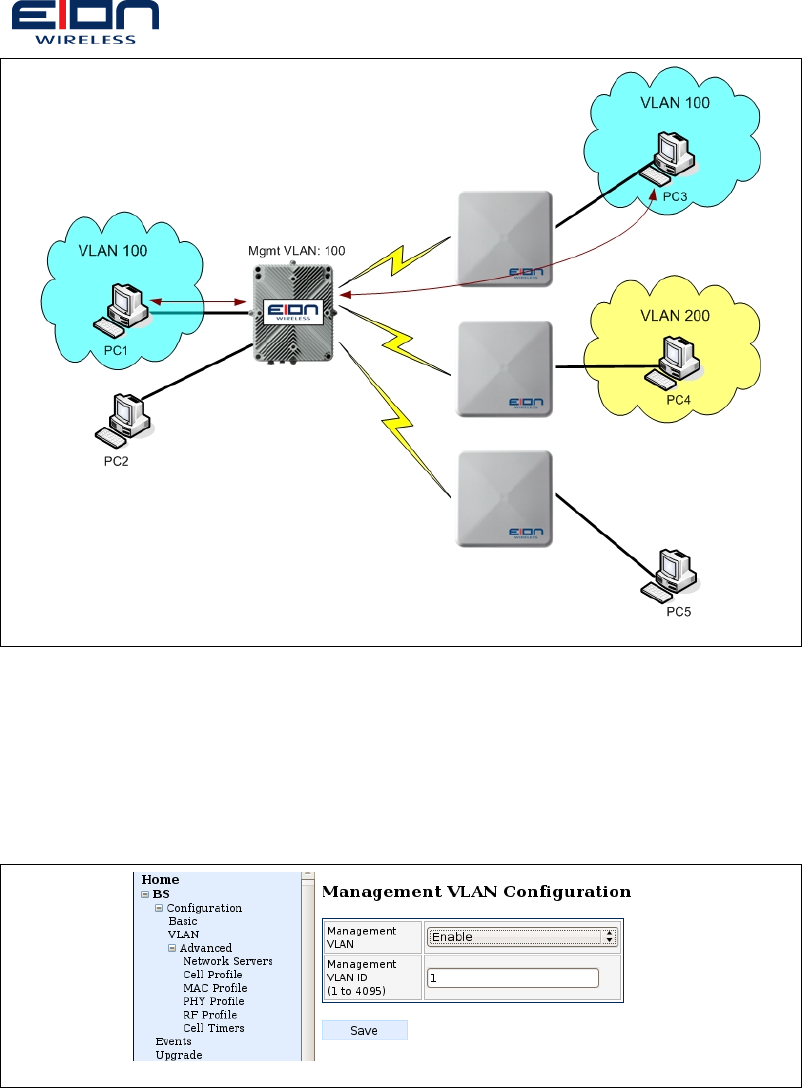

Figure 0-5: Base Station configured with a management VLAN
In the above figure, the Base Station is configured with a Management VLAN ID 100.
So, only PC1 and PC3 that are part of VLAN 100 can access the Base Station. The other
PCs cannot access the Base Station.
In the VLAN management screen, VLAN Management can be enabled or disabled and a
Management VLAN ID can be configured. The default management VLAN ID is ‘1’. The
allowed range of VLAN IDs is from 0 to 4092.
Figure 0-6: Management VLAN Configuration
1.39.3 Firmware Upgrade
The firmware for the Libra MAX Base Station (includes Libra MAX-LT, Libra MAX-HD
ODU and the BS side of the Libra MAX-RBS) can be upgraded using the GUI. To access
the firmware upgrade page, click on “Upgrade” in the “BS” menu. The following
screen will appear;
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 72 of 120
Figure 0-7: Upgrade Firmware Screen
IMPORTANT: In order to upgrade the firmware on the Base
Station, the upgrade package must be placed on an FTP
server that is accessible by the Base Station and the
upgrade package must be in the root directory.
If upgrading from firmware version prior to v09.10.xx, a patch must first be applied for
the upgrade procedure to work properly. First apply the patch file
“LMBS.patch.09.10.tar.gz”
using the regular upgrade process. When the upgrade is
complete apply the full upgrade patch
“LMBS.upgrade.09.10.tar.gz”
Upon successful firmware upgrade the base station will automatically reboot.
Figure 0-8: Upgrade Success
The upgrade process takes on average a total of three minutes with an average of two
minutes of network downtime.
1.39.4 Advanced Configuration
1.39.4.1
Network Servers
More detail network parameters can be set by clicking on ‘Advanced’ and then on
Network Servers’. This page allows configuration of the following:
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 73 of 120
Figure 0-9: Network Servers
DHCP Server IP Address – If enabled in basic configuration, it sets the IP of the
DHCP server. The Base Station must be rebooted for changes to the DHCP Server IP
Address to take effect.
Day Time Server IP Address – It sets the IP of the day time server and should be
set to the same value as set under basic configuration. The Base Station must be
rebooted for changes to the Day Time Server IP Address to take effect.
NMS Server – IP address of the NMS server needs to be entered here. If the value of
NMS Source is set to ‘BS_ODU’ then enter the same IP address as that of BS ODU. If
NMS Source is set to ‘SECTOR_CARD’ in the basic configuration, this value will be the
same as the IP address of the sector card. The Base Station must be rebooted for
changes to the NMS Server IP Address to take effect.
AAA Server – It is the IP address of the machine from which AAA configurations are
to be loaded. If NMS Source is set to ‘BS_ODU’ in the basic configuration, this value will
be the same as the IP address of the BS ODU. The Base Station must be rebooted for
changes to the AAA Server IP Address to take effect.
1.39.4.2
Cell Profile
Cell Profile screen can be accessed by clicking on ‘BS’ – ‘Configuration’ – ‘Advanced’ –
‘Cell Profile’. This page allows configuration of the following:
Figure 0-10: Cell Profile
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 74 of 120
BS Network Mode – It determines whether the BS ODU will operate as a bridge or a
router. It is set to bridge mode by default. The Base Station must be rebooted for
changes to the BS Network Mode to take effect.
BS Ethernet Static IP Mask – It specifies the subnet mask for the BS ODU. It is
used to determine what subnet the IP address of the BS ODU belongs to. The Base
Station must be rebooted for changes to the BS Ethernet Static IP Mask to take effect.
Cell Radius – Enter the cell radius in kilometers. This value is used to adjust the
timeout value used by the base station.
Intrasector Bridging – Activating the intrasector bridging allows the flow of traffic
between the Subscriber Stations in the same sector. Deactivating intra sector bridging
will stop the flow of traffic between the Subscriber Stations and will allow flow of traffic
only between a Subscriber Station and the Ethernet side of the Base Station to which it
is connected and vice-versa.
1.39.4.3
MAC Profile
MAC Profile screen can be accessed by clicking on ‘BS’ – ‘Configuration’ – ‘Advanced’ –
‘MAC Profile’. The parameters under this section need not be changed under most
operations. This page allows configuration of the following:
Figure 0-11: MAC Profile
Secondary Management Support – It provides information on whether BS supports
the secondary management of SS. Secondary management is used to manage the SS
from NMS. The Base Station must be rebooted for changes to the Secondary
Management to take effect.
IP Version Support – It sets the IP version for BS ODU. Currently, only IPv4 is
supported. The Base Station must be rebooted for changes to the IP Version to take
effect.
PHS Support – Payload Header Suppression is the process of removing or blocking
the transfer of packet header information. This field indicates the level of PHS support.
Currently, PHS support is not present in the current version. The Base Station must be
rebooted for changes to the PHS Support to take effect.
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 75 of 120
Authorization Policy Support – It notifies if the BS supports authorization policy.
This is disabled by default. The Base Station must be rebooted for changes to the
Authorization Policy Support to take effect.
Multicast Polling Support – It indicates the maximum number of simultaneous
Multicast Polling Groups the BS can belong to. It is not supported in the current
version. The Base Station must be rebooted for changes to the Multicast Polling to take
effect.
ARQ Support - Automatic Repeat Request is used to correct errors not corrected by
FEC, by having the information with errors resent. The Base Station must be rebooted
for changes to the ARQ Support to take effect.
1.39.4.4
PHY Profile
PHY Profile screen can be accessed by clicking on ‘BS’ – ‘Configuration’ – ‘Advanced’ –
‘PHY Profile’. This page allows configuration of the following:

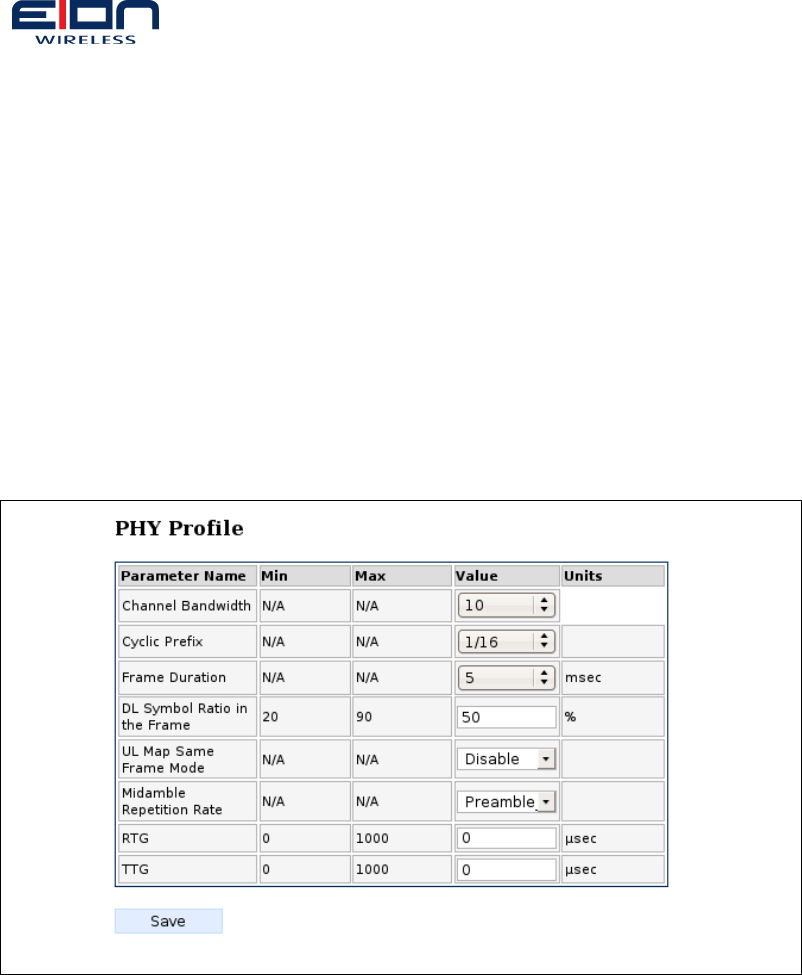

Figure 0-12: PHY Profile
Channel Bandwidth –For Libra MAX-58 5.8 GHz the supported channel bandwidth is
10 MHz. The Base Station must be rebooted for changes to the Channel Bandwidth to
take effect.
Cyclic Prefix - It is a repeat of the end of the symbol at the beginning. It allows multi-
path to settle before the main data arrives at the receiver. In OFDM, cyclic prefixes are
used to combat multi-path by making channel estimation easy. Possible values are 1/4,
1/8, 1/16 and1/32. The Base Station must be rebooted for changes to the Cyclic Prefix
to take effect.
Frame Duration - The frame duration code values indicate the specific frame
durations that are allowed. The frame duration used can be determined by the
periodicity of the frame start preambles. Once specific frame duration has been
selected by the BS, it cannot be changed in between. Changing the frame duration
forces all subscriber stations to resynchronize to the BS. The Base Station must be
rebooted for changes to the Frame Duration to take effect.
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 76 of 120
Code Frame Duration (ms) Frames per second
0 2.5 400
1 4 250
2 5 200
3 8 125
4 10 100
5 12.5 80
6 20 50
DL Symbol Ratio in the Frame – It provides information on how much percentage
of the symbols is used for downlink data. This is used to split bandwidth for the UL and
DL usage. If the total bandwidth is 20 Mbps and operator selects 70%, then 14 Mbps is
the maximum allowable for DL traffic. 6 Mbps will be allocated for UL traffic. This value
is set to 50% by default. The Base Station must be rebooted for changes to the UL
Map to take effect.
UL Map Same Frame Mode – If Uplink Same frame mode is enabled, MAP-IE grants
in the UL-MAP message will be meant for same frame in which UL- AP is received. If it
is disabled, MAP-IE grants in the UL-MAP message will be meant for next frame in
which ULMAP is received.
Midamble Repetition Rate – Setting this value other than "Preamble only" consumes
more bandwidth; but it improves the decoding at receiving end during adverse RF
conditions. Available options are:
• Preamble only
• Midamble after every 4 data symbols
• Midamble after every 16 data symbols
Midamble after every 8 data symbols The Base Station must be rebooted for changes
to the Midamble Repetition Rate to take effect.
RTG (Receive/Transmit Transition Gap) – It is a gap between the uplink burst and
the subsequent downlink burst in a TDD transceiver. During RTG, BS switches from
receive to transmit mode and subscriber stations switch from transmit to receive mode.
The Base Station must be rebooted for changes to the RTG to take effect.
TTG (Transmit/Receive Transition Gap) – It is a gap between the downlink burst
and the subsequent uplink burst in a TDD transceiver. During TTG, BS switches from
transmit to receive mode and subscriber stations switch from receive to transmit mode.
The Base Station must be rebooted for changes to the TTG to take effect.
Default values are recommended for these parameters.
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 77 of 120
1.39.4.5

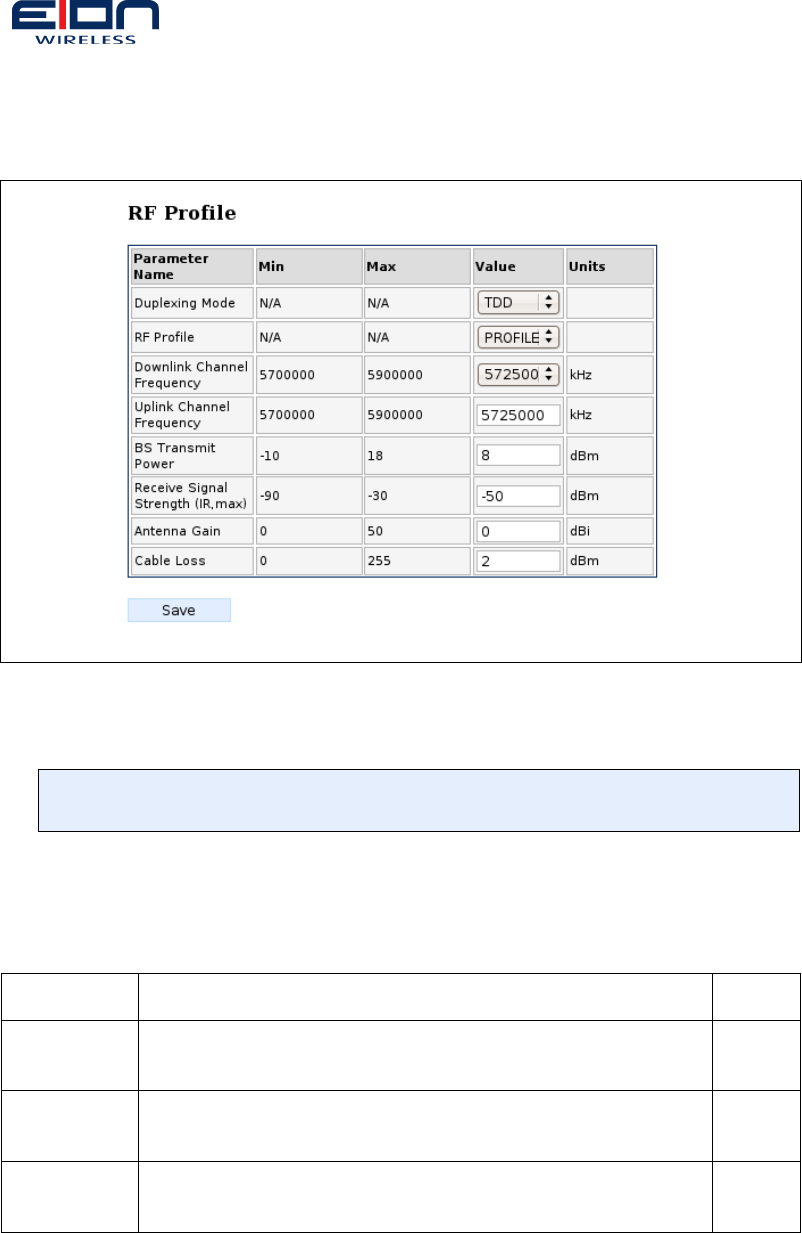

RF Profile
RF Profile screen can be accessed by clicking on ‘BS’ – ‘Configuration’ – ‘Advanced’ –
‘RF Profile’. This page allows configuration of the following:
Figure 0-13: RF Profile
Duplexing Mode – Sets the duplexing mode of the BS. Currently, only Time Division
Duplex (TDD) is supported. The Base Station must be rebooted for changes to the
Duplexing Mode to take effect.
NOTE: Frequency availability is subject to country specific regulatory
approval
RF Profile – RF profile is available for 5.8 GHz frequency range only. For such
systems, following three profiles are supported as defined by IEEE 802.16-2004
standard. The Base Station must be rebooted for changes to the RF Profile to take
effect.
Frequency Units
PROFILE_0 5725000, 5730000, 5840000, 5845000, 5850000, 5855000,
5860000 5865000, 5870000, 5875000
kHz
PROFILE_1 5735000, 5745000, 5755000, 5765000, 5775000, 5785000,
5795000, 5805000, 5815000, 5825000, 5835000
kHz
PROFILE_2 5740000, 5750000, 5760000, 5770000, 5780000, 5790000,
5800000, 5810000, 5820000, 5830000
kHz
Downlink Channel Frequency – Sets the center frequency for the BS ODU. All
subscriber stations communicating with the same base station need to be on the same
frequency. Since the current system only supports TDD which uses the same frequency
for both uplink and downlink (but at different time slots), this is the only frequency that
needs to be configured. Please note that this value is set in kHz, so 5.8 GHz is entered
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 78 of 120
as 5800000. The Base Station must be rebooted for changes to the Downlink Channel
Frequency to take effect.
Uplink Channel Frequency – Currently, since the system is TDD only, uplink channel
frequency is set to the same value as the downlink channel frequency by default.
Hence there is no option of configuring this parameter. This parameter is applicable to
FDD or H-FDD systems only.
BS Transmit Power – It is the power level (in dBm) at the transmitter of the BS ODU.
It is used by subscriber stations to adjust power level. The Base Station must be
rebooted for changes to the BS Transmit Power to take effect.
NOTE: BS Transmit Power is subject to country specific regulatory
approval
Receive Signal Strength (IR,max) – It is the minimum signal strength (in dBm)
that the receiver of the BS expects to establish a reliable connection with subscriber
stations. Its recommended values are between -50 to -70 dBm. The Base Station must
be rebooted for changes to the Receive Signal Strength to take effect.
Antenna Gain – It is the gain of the antenna connected to the BS ODU. The Base
Station must be rebooted for changes to the Antenna Gain to take effect.
Cable Loss – It refers to the RF cable loss between the antenna port at the BS ODU
and the antenna. The Base Station must be rebooted for changes to the Cable Loss to
take effect.
1.39.4.6
Cell Timers
Cell Timers screen can be accessed by clicking on ‘BS’ – ‘Configuration’ – ‘Advanced’ –
‘Cell Timers’. This page allows configuration of the following:
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 79 of 120

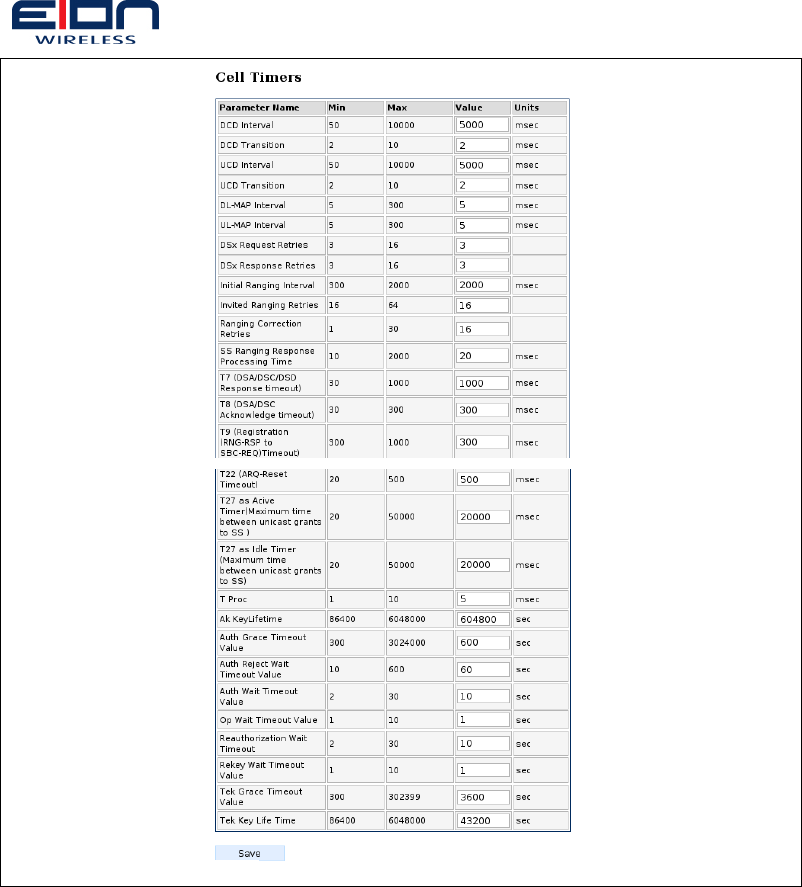

Figure 0-14: Cell Timers
DCD Interval – It is the time interval between transmissions of Downlink Channel
Description messages. DCD message contains parameters that are necessary or that
assists it to access the BS in receiving information from the downlink channel. Its
default value is 5000 ms. The Base Station must be rebooted for changes to the DCD
Interval to take effect.
DCD Transition – It is the time the BS shall wait after repeating a DCD message with
an incremented configuration change count before issuing a DL-MAP message referring
to Downlink_Burst_Profiles defined in that DCD message. The Base Station must be
rebooted for changes to the DCD Transition to take effect.
UCD Interval - Time between transmissions of UCD message. Its default value is
5000 ms. The Base Station must be rebooted for changes to the UCD Interval to take
effect.
UCD Transition – It is the time the BS shall wait after repeating a UCD message with
an incremented configuration change count before issuing a UL-MAP message referring
to Uplink_Burst_Profiles defined in that UCD message. The Base Station must be
rebooted for changes to the UCD Transition to take effect.
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 80 of 120
DL-MAP Interval - Time between transmissions of DL-MAP messages. Its default
value is 5 ms. The Base Station must be rebooted for changes to the DL-MAP Interval
to take effect.
UL-MAP Interval - Time between transmissions of UL-MAP messages. Its default
value is 5 ms. The Base Station must be rebooted for changes to the UL-MAP Interval
to take effect.
DSx Request Retries – It is the number of timeout retries on DSA/DSC/DSD
Requests. Its default value is 3. The Base Station must be rebooted for changes to the
DSx Request Retries to take effect.
DSx Response Retries – It is the number of timeout retries on DSA/DSC/DSD
Responses. Its default value is 3. The Base Station must be rebooted for changes to
the DSx Response Retries to take effect.
Initial Ranging Interval – It is the time interval between initial ranging regions
assigned by the BS. Its default value is 2000 ms. The Base Station must be rebooted
for changes to the Initial Ranging Interval to take effect.
Invited Ranging Retries – It is the number of retries on inviting Ranging Requests
by SS. Its default value is 16. The Base Station must be rebooted for changes to the
Invited Ranging Retries to take effect.
SS Ranging Response Processing Time – It is the time allowed for a subscriber
station following receipt of a ranging response before it is expected to reply to an
invited ranging request. Its default value is 20 ms. The Base Station must be rebooted
for changes to the SS Ranging Response Processing Time to take effect.
T7 (DSA/DSC/DSD Response timeout) – It sets the time to wait for DSA/DSC/DSD
response to timeout. Its default value is 1000 ms. The Base Station must be rebooted
for changes to T7 to take effect.
T8 (DSA/DSC Acknowledge timeout) – It is the time required for DSA/DSC
acknowledgement to timeout. Its default value is 300 ms. The Base Station must be
rebooted for changes to T8 to take effect.
T9 (Registration (RNG-RSP to SBC-REQ) Timeout) – It is the time allowed
between the BS sending a RNG-RSP (success) to an SS, and receiving a SBC-REQ from
that same SS. Its default value is 300 ms. The Base Station must be rebooted for
changes to T9 to take effect.
T10 (DSA/DSC/DSD Transaction End timeout) – It is the time to wait for
transaction end timeout. Its default value is 3000 ms. The Base Station must be
rebooted for changes to T10 to take effect.
T13 (SS REG-RSP to SS TFTP-CPLT timeout) – It is the time allowed for an SS,
following receipt of a REG-RSP message to send a TFTP- CPLT message to the BS. Its
default value is 15 minutes. The Base Station must be rebooted for changes to T13 to
take effect.
T15 (MCA-RSP Timeout) – It is the time needed to wait for MCA-RSP. Its default
value is 30 ms. The Base Station must be rebooted for changes to T15 to take effect.
T17 (Time allowed for SS to complete Authorization and Key) – It is the time
allowed for SS to complete SS authorization and key exchange. Its default value is 300
ms. The Base Station must be rebooted for changes to the T17 to take effect.
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 81 of 120
T22 (ARQ-Reset Timeout) – It is the time needed to wait for ARQ-Reset. Its default
value is 500 ms. The Base Station must be rebooted for changes to T22 to take effect.
T27 as Active Timer (Maximum time between unicast grants to SS) – It is the
maximum time between unicast grants to SS when BS believes SS uplink transmission
quality is not good enough. Its minimum value is Ranging Response Processing Time.
Its default value is 20000 ms. The Base Station must be rebooted for changes to T27
to take effect.
T27 as Idle Timer (Maximum time between unicast grants to SS) – It is the
maximum time between unicast grants to SS when BS believes SS uplink transmission
quality is good enough. Its maximum value is SS Ranging Response Processing Time.
Its default value is 20000 ms. The Base Station must be rebooted for changes to T27
to take effect.
T Proc – It is the wait time after receiving the ULMAP at SS & SS considering the
ULMAP for the grant usage. This parameter is not used in the current version. Its
default value is 10 ms. The Base Station must be rebooted for changes to T Proc to
take effect.
Ak KeyLifetime – This attribute contains the lifetime, in seconds, of an AK. It is a 32-
bit unsigned quantity representing the number of remaining seconds for which the
associated key shall be valid. Its default value is 604800 seconds. The Base Station
must be rebooted for changes to the Ak Key Lifetime to take effect.
Auth Grace Timeout Value – This value specifies the grace period for reauthorization
in seconds. Its default value is 600 seconds. The Base Station must be rebooted for
changes to the Auth Grace Timeout Value to take effect.
Auth Reject Wait Timeout Value – This value specifies time in seconds an SS waits
in the Authorize Reject Wait state after receiving an Authorization Reject. Its default
value is 60 seconds. The Base Station must be rebooted for changes to the Auth Reject
Wait Timeout Value to take effect.
Auth Wait Timeout Value – This value specifies retransmission interval, in seconds,
of Authorization Request messages from the Authorize Wait state. Its default value is
10 seconds. The Base Station must be rebooted for changes to the Auth Wait Timeout
Value to take effect.
Op Wait Timeout Value – This value specifies the retransmission interval, in
seconds, of Key Requests from the Operational Wait state. Its default value is 1
second. The Base Station must be rebooted for changes to the Op Wait Timeout Value
to take effect.
Reauthorization Wait Timeout – This value specifies the retransmission interval, in
seconds, of Reauthorization Wait Timeout. Its default value is 10 seconds. The Base
Station must be rebooted for changes to the Reauthorization Wait Timeout to take
effect.
Rekey Wait Timeout Value – This value specifies the retransmission interval, in
seconds, of Key Requests from the Rekey Wait state. Its default value is 1 second. The
Base Station must be rebooted for changes to the Rekey Wait Timeout Value to take
effect.
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 82 of 120
Tek Grace Timeout Value – This value specifies the grace period, in seconds, for
rekeying the TEK. Its default value is 3600 seconds. The Base Station must be
rebooted for changes to the Tek Grace Timeout Value to take effect.
Tek Key Lifetime – This value contains the lifetime, in seconds, of a TEK. It is a 32-
bit unsigned quantity representing the number of remaining seconds for which the
associated key shall be valid. Its default value is 43200 seconds. The Base Station must
be rebooted for changes to the Tek Key Lifetime to take effect.

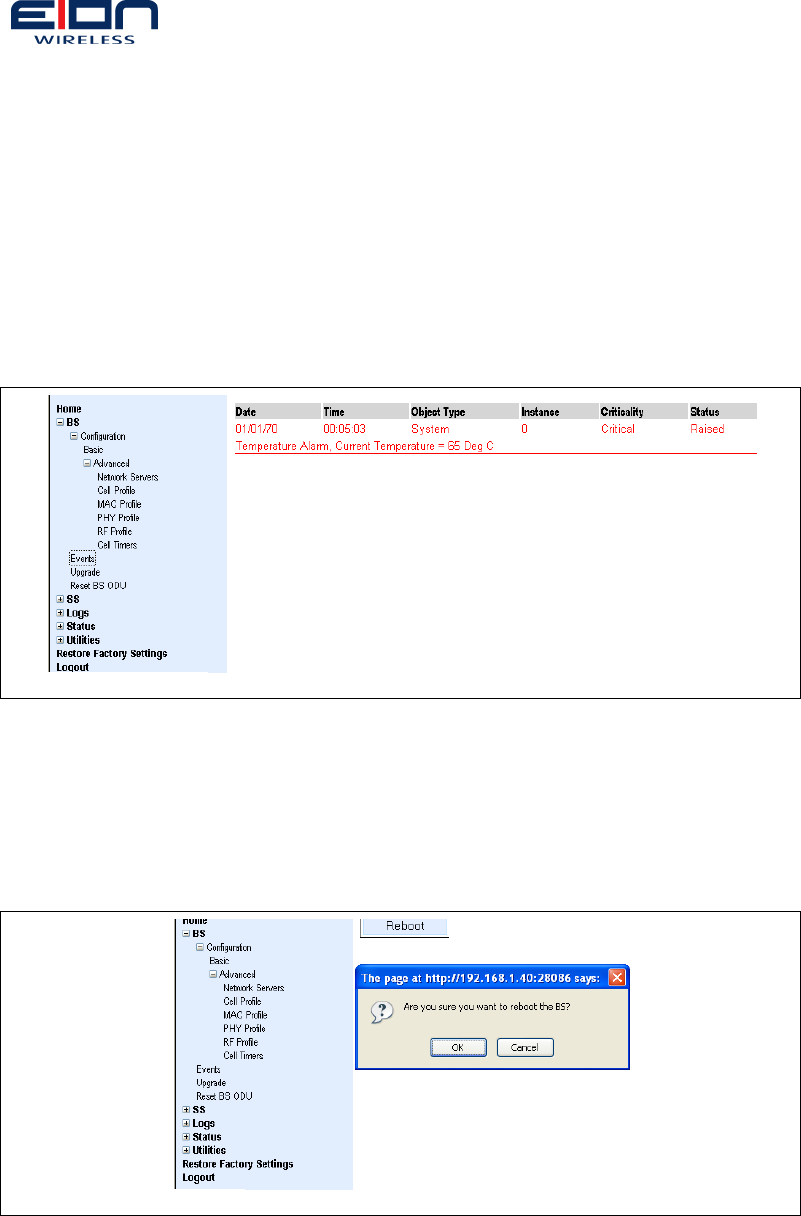

1.39.5 Events
It lists the recent activities of a base station. It can be accessed under ‘BS’ category.
Figure 0-15: Events
1.39.6 Base Station Reboot
BS ODU can be reset by clicking on ‘Reset BS ODU’ and then on ‘Reboot’. Confirmation
prompt will appear upon clicking any of the three options. None of these options will
alter the existing configuration. ‘Restart’ is used to reset the BS ODU after changing its
IP Address.
Figure 0-16: BS Reboot
Reboot – Complete reboot of the system will occur upon clicking this button. It is
equivalent to plugging off the power and plugging it back again.
Note: Do not use this feature during BS ODU IP configuration. Use Restart instead
under such circumstances.
Libra MAX User Guide Base Station Configuration: Base Station Configuration (BS) Page 83 of 120
Restart – After making changes in the configuration, click on this button to for the BS
to activate the changes. This option will stop and then restart the wireless interface of
the BS ODU. Depending on the memory usage and processes running, this action might
also result in the reboot of BS ODU.
Note: Always use this feature after BS ODU IP configuration.
1.40
Subscriber Station Association (SS)
This section contains information about the subscriber station(s) associated with the
BS. For a SS to associate with BS, MAC address of the SS has to be listed in the BS
apart from them being on the same RF frequency. Also, at least one QoS for downlink
and uplink has to be defined.
1.40.1 QoS
Quality of Service is a set of service related parameters given by the operator to the
subscriber (customer). It defines all parameters that are described in the IEEE 802.16d
documentation. This section can be accessed by clicking on ‘SS’ and then on ‘QoS’.
Existing QoS can either be edited or deleted.
Upon selecting a different direction, scheduling type or CS specification, the QoS
parameters will also be set to default and relevant set of fields are enabled.
Upon deletion of a PCID, the PCID has to be dissociated with each subscriber station
manually.

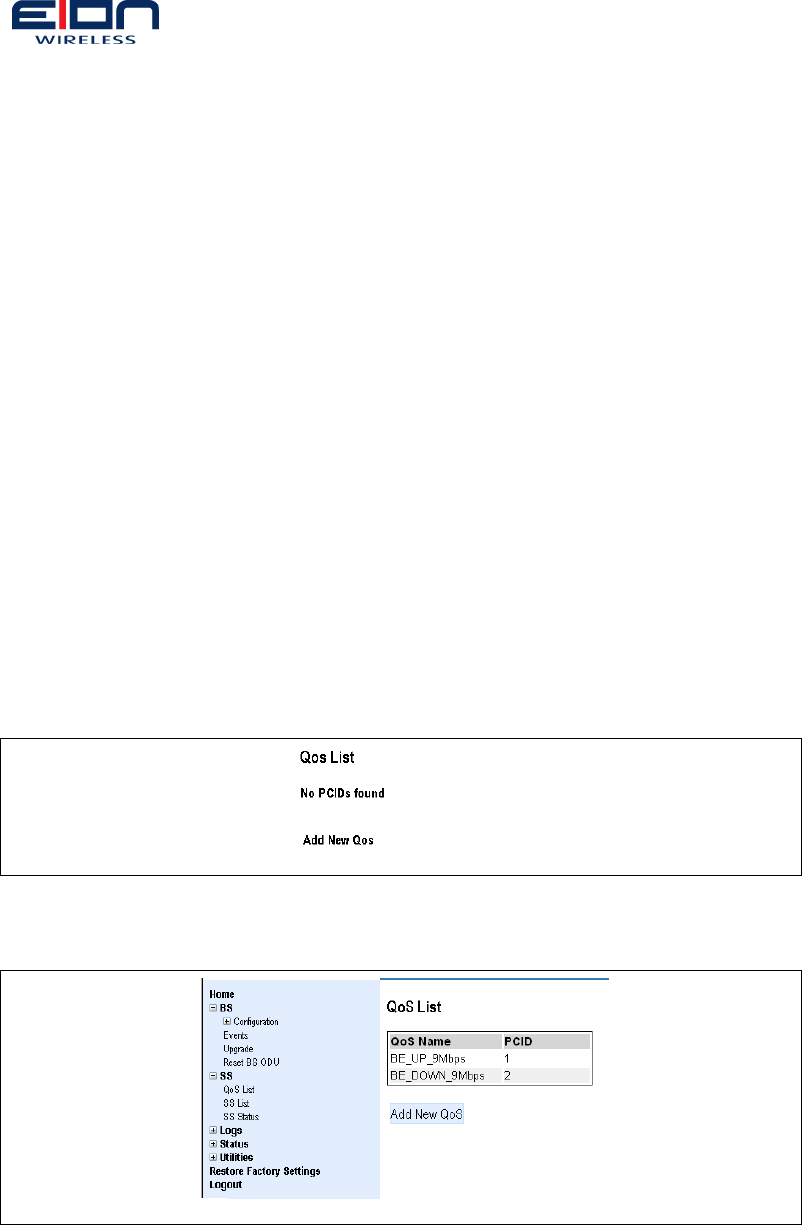

Figure 0-17: QoS Main Page
To add a new QoS, click on the link ‘Add New QoS’. The following screen appears. Two
sample QoS have been added by default.
Figure 0-18: Add QoS
Click on ‘Add New QoS’ and the following screen appears.
Libra MAX User Guide Base Station Configuration: Subscriber Station Association (SS) Page 84 of 120
Figure 0-19: Upstream QoS Configuration for BE
After configuring the QoS for downstream, click on ‘Back to QoS List’ on top and then
add another QoS, this time for the downstream.
Figure 0-20: Downstream QoS Configuration for BE
At least one uplink and one downlink classifier need to be defined for
successful communication between the base and subscriber stations.
Number – This should be a unique identifier given manually by the operator for ease
of use.
Service Class Name – A unique class name given to identify the service (DL or UL) &
its capabilities (data rates).
Example: SF_<Direction (UL/DL)>_<Data Rate (1024000bps)>
Direction – It provides the direction of the service flow whether in down-link or up-
link. Default is set for Request transmission policy. At least one upstream and one
downstream classifier have to be assigned to a SS.
Libra MAX User Guide Base Station Configuration: Subscriber Station Association (SS) Page 85 of 120
Service Flow Scheduling Type – The value of this parameter specifies the
scheduling service that shall be enabled for the associated service flow.
CS Specification – Service-specific CS resides on top of the MAC CPS and utilizes, via
the MAC SAP (Service Access Point), the services provided by the MAC CPS (Common
Part Sub layer). Recommended value is ‘Packet, IPv4 over 802.3/Ethernet’.
Traffic Priority – The value of this parameter specifies the priority assigned to a
service flow. Given two service flows identical in all QoS parameters besides priority,
the higher priority service flow should be given lower delay and higher buffering
preference. This field is mandatory for nrtPS. Its default and the minimum value is 0
and the maximum value is 7.
Maximum Sustained Traffic – This parameter defines the peak information rate of
the service. The rate is expressed in bits per second and pertains to the SDUs at the
input to the system. If this parameter is omitted or set to zero, then there is no
explicitly mandated maximum rate. This field specifies only a bound, not a guarantee
that the rate is available. This field is mandatory for BE. Its minimum value is 0 and the
maximum value is 20480000 bps.
Maximum Traffic Burst – This parameter defines the maximum burst size that shall
be accommodated for the service. Since the physical speed of ingress/egress ports, the
air interface, and the backhaul will, in general, be greater than the maximum sustained
traffic rate parameter for a service, this parameter describes the maximum continuous
burst the system should accommodate for the service.
Minimum Reserved Traffic – This parameter specifies the minimum rate reserved
for this service flow and is equal to (SDU Size)*8/(Maximum Latency). The rate is
expressed in bits per second and specifies the minimum amount of data to be
transported on behalf of the service flow when averaged over time. It is disabled by
default.
Min Tolerable Traffic – This parameter specifies the minimum tolerable rate in bits
per second for this service flow. This value should not be higher than the
corresponding Minimum Reserved Traffic Rate value. The difference between these two
values reflects SDUs’ loss rate. It is disabled by default.
Unsolicited Grant Interval – The value of this parameter specifies the nominal
interval in milliseconds between successive data-grant opportunities for this Service
Flow. The maximum unsolicited grant interval field specifies only a bound. It is
applicable to UGS. It is disabled by default. Its minimum value is 0 and maximum value
is 100 ms.
Unsolicited Polling Interval – This parameter defines the maximum nominal interval
in milliseconds between successive polling grants opportunities for a DL and UL service
flow. If this parameter is set to zero, then there is no explicitly mandated unsolicited
grant interval. It is mandatory for Best Effort, nrtPS and rtPS services in Uplink
direction only. Its default and minimum value is 0 ms and maximum value is 5000 ms.
FSN Size – This indicates the size of the FSN for the connection that is being setup. A
value of 0 indicates that FSN is 3-bit long and a value of 1 indicates that FSN is 11-bit
long. It is mandatory for rtPS service. Its default value is set at 11-bit FSN.
Tolerated Jitter – This parameter defines the maximum delay variation (jitter) for the
connection. It is disabled by default. It is mandatory for UGS service. Its minimum
value is 0 ms and the maximum value is 2048 ms.
Libra MAX User Guide Base Station Configuration: Subscriber Station Association (SS) Page 86 of 120
Maximum Latency – The value of this parameter specifies the maximum latency
between the reception of a packet by the BS or SS on its network interface and the
forwarding of the packet to its RF Interface. It is disabled by default but is mandatory
for rtPS and UGS services. Its minimum value is 0 ms and the maximum value is 2048
ms.
Request Transmission Policy – The value of this parameter provides the capability
to specify certain attributes for the associated service flow. One or more can be chosen
in these parameters. Only a few options are enabled depends on the service type.
Shall not Include CRC in the MAC PDU:
If checked, the service flow shall not include CRC in the MAC PDU.
If unchecked, this feature is on and will request bandwidth using CRC in the MAC PDU
(if CRC in the MAC PDU groups are created).
Shall not use Packing:
If checked, the service flow shall not pack multiple SDUs (or fragments).
If unchecked, this feature is on and will request bandwidth using packing (if packing
groups are created at BS).
Shall not suppress payload headers (PHS):
If checked, the service flow shall not suppress payload headers (CS parameters).
If unchecked, this feature is on and will request bandwidth using suppress payload
headers (if PHS groups are created at BS). PHS is disabled by default.
Shall not Use uplink Piggyback requests with data:
It is applicable to Upstream QoS.
If checked, the service flow shall not piggyback requests with data. Please keep this
checked.
If unchecked, this feature is on and will request bandwidth using uplink piggyback
requests (if Piggyback groups are created at BS)
Default: Piggyback is off.
Shall not Use Fragmentation:
If checked, the service flow shall not fragment data.
If unchecked, the feature is on. The packets can be fragmented and sent to SS on this
service. The number of bits in FSN Size is used as the sequence number of the
fragmented packet.
Shall not Use UL Broadcast-Bandwidth request opportunities:
It is applicable to Upstream QoS.
If checked, service flow shall not request broadcast bandwidth request opportunities.
Please keep this option checked.
Libra MAX User Guide Base Station Configuration: Subscriber Station Association (SS) Page 87 of 120
If unchecked, the feature is on. This particular service flow will request bandwidth
using uplink broadcast request opportunities. Broadcast bandwidth request is done on
the contention slot.
Shall not use UL multicast bandwidth request opportunities:
It is applicable to Upstream QoS.
If checked, service flow shall not request bandwidth using multicast connection
identifiers.
If unchecked, the feature is switched on. This particular service flow will request
bandwidth using multicast connection identifiers.
1.40.2 SS List
Subscriber stations are added in this section.
MAC Address – This parameter provides MAC address of SS. This is unique for a
particular SS. This is also used as SS ID to identify as SS. In order for the SS to
associate with the BS, correct OFDM MAC address of the SS has to be entered in the SS
list. This MAC address is printed on the label of the SS and can also be obtained by
logging into a SS. Please refer to ‘SS Manager Configuration Guide’ for detail
information.
SS Name – A unique user name should be given to the SS to identify it.
It can also give the location or the customer name to represent the SS.
PCID – PCID is used to associate a set of QOS parameters to the SS for downlink and
uplink service flow that are created with ‘Add QoS’. A number of PCIDs can be selected
depending on requirements.
Once PCIDs are selected, the user can associate classifiers which each PCID. Classifiers
are used to associate a particular traffic data to the Service flow (identified by QOS
parameters in BS).
1.40.3 Adding a Subscriber Station
To add a subscriber station, click on ‘SS’ and then ‘SS List’ the following screen
appears. Sample subscriber station may have been added by default. You can also
choose to edit it or start by adding a new one.
Libra MAX User Guide Base Station Configuration: Subscriber Station Association (SS) Page 88 of 120

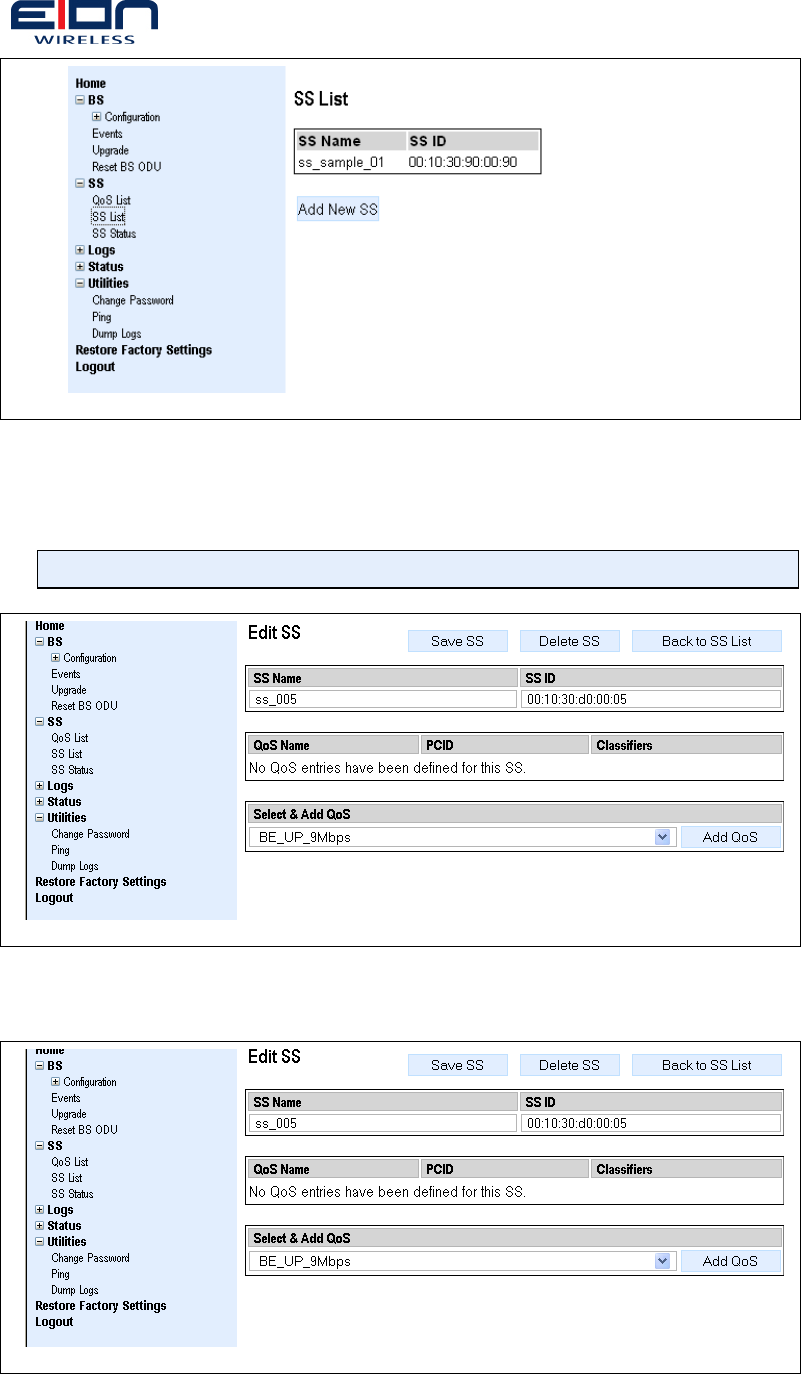

Figure 0-21: SS List Menu
To add a subscriber station, click on ‘Add New SS’ and it will prompt for name and MAC
address of the SS. Provide a unique name for the SS. Enter MAC address of the
subscriber you would like the BS to communicate with. Then click on ‘Save SS’ to save
before moving on to adding classifiers.
MAC addresses must be entered using lowercase characters
Figure 0-22: Configure Name and MAC Address of SS
After saving the name and MAC address of the subscriber station, the following screen
appears.
Figure 0-23: Assigning QoS to Subscriber Station
Libra MAX User Guide Base Station Configuration: Subscriber Station Association (SS) Page 89 of 120
Click on ‘Add QoS’ to assign QoS to the subscriber station.
Figure 0-24: Screen after assigning Uplink and Downlink QoS to SS

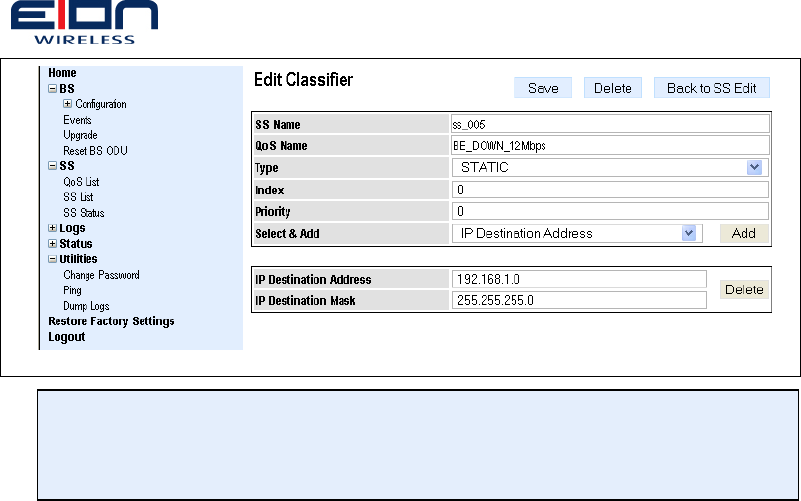

1.40.4 Classifiers
Classifiers are used for routing of packets to particular SS using IP rules (Classifier
maps an IP packet to a particular connection). Its length is 2 bytes (maximum number
of classifiers that the SS supports). It is mandatory to have classifiers for each PCID.
Type – There are two types of classifiers.
Static: User has to add the IP address of the system or router on the subscriber
station side as a classifier.
Dynamic: If DHCP is enabled at the subscriber station side, it will obtain an IP address
dynamically. In this case DHCP must be enabled at PC/Router connected to the
subscriber station.
Index – This specifies the priority for the classifier, which is used for determining the
order of the classification. Classifiers may have priorities in the range 0–255 with the
default value being 0.
Type of Service – The values of this field specify the matching parameters for the IP
type of service byte range and mask. An IP packet with IP type of service (ToS) byte
value “ip-tos” matches this parameter if tos-low ≤ (ip-tos AND tos-mask) ≤ tos-high. If
this field is omitted, then comparison of the IP packet ToS byte for this entry is
irrelevant.
Minimum: 0 (for low, high and mask)
Maximum: 65535 (for low, high and mask)
IP Source Address and Mask – This parameter specifies a IP source address
(designated “src”) and its corresponding address mask (designated “dmask”). An IP
packet with IP destination address “ip-dst” matches this parameter if src = (ip-dst AND
dmask). If this parameter is omitted, then comparison of the IP packet source address
for this entry is irrelevant.
Protocol Source Port Range: The value of the field specifies a range of protocol source
port values. Classifier rules with port numbers are protocol specific; i.e., a rule on port
numbers without a protocol specification shall not be defined. An IP packet with
Libra MAX User Guide Base Station Configuration: Subscriber Station Association (SS) Page 90 of 120
protocol port value “src-port” matches this parameter if src-port is greater than or
equal to sport low and src-port is less than or equal to sport high. If this parameter is
omitted, the protocol source port is irrelevant. This parameter is irrelevant for protocols
without port numbers.
Minimum: 0 (low, high and mask)
Maximum: 65535 (low, high and mask)
Protocol Destination Port Range – The value of the field specifies a range of
protocol destination port values. Classifier rules with port numbers are protocol specific;
i.e., a rule on port numbers without a protocol specification shall not be defined. An IP
packet with protocol port value “dst-port” matches this parameter if dst-port is greater
than or equal to dport low and dst-port is less than or equal to dport high. If this
parameter is omitted the protocol destination port is irrelevant. This parameter is
irrelevant for protocols without port numbers.
Minimum: 0 (low, high and mask)
Maximum: 65535 (low, high and mask)
Ethernet Source MAC Address – This parameter specifies a MAC source address
(designated “src”) and their corresponding address mask (designated “msk”). An IEEE
802.3/Ethernet packet with MAC source address “ethersrc” corresponds to this
parameter if src = (ethersrc AND msk). If this parameter is omitted, then comparison
of the IEEE 802.3/Ethernet source MAC address for this entry is irrelevant.
Notation: xx:xx:xx:xx:xx:xx
Ethernet Destination MAC Address – This parameter specifies a MAC destination
address (designated “dst”) and its corresponding address mask (designated “msk”). An
IEEE 802.3/Ethernet packet with MAC destination address “etherdst” corresponds to
this parameter if dst = (etherdst AND msk). If this parameter is omitted, then
comparison of the IEEE 802.3/Ethernet destination MAC address for this entry is
irrelevant.
Notation: xx:xx:xx:xx:xx:xx
The format of the Layer 3 protocol ID in the Ethernet packet is indicated by type,
eprot1, and eprot2 as follows:
If type = 0, the rule does not use the Layer 3 protocol type as a matching criteria. If
type = 0, eprot1, eprot2 are ignored when considering whether a packet matches the
current rule.
If type = 1, the rule applies only to SDUs that contain an Ethertype value. Ethertype
values are contained in packets using the DEC-Intel-Xerox (DIX) encapsulation or the
Sub-Network Access Protocol (SNAP) encapsulation (IEEE 802.2, IETF RFC 1042)
format. If type = 1, then eprot1, eprot2 gives the 16 bit value of the Ethertype that the
packet shall match in order to match the rule.
If type = 2, the rule applies only to SDUs using the IEEE 802.2 encapsulation format
with a Destination Service (DSAP) other than 0xAA (which is reserved for SNAP). If
type = 2, the lower 8 bits of the eprot1, eprot2 shall match the DSAP byte of the
packet in order to match the rule.
Libra MAX User Guide Base Station Configuration: Subscriber Station Association (SS) Page 91 of 120
If the Ethernet SDU contains an IEEE 802.1D and IEEE 802.1Q Tag header (i.e.,
Ethertype 0x8100), this object applies to the embedded Ethertype field within the IEEE
802.1D and IEEE 802.1Q header.
To add a classifier, go to ‘SS List’ window and click on the subscriber of interest in the
list. Then on the screen that appears as shown on Figure 0-24. Click on ‘Add Classifier’
next to ‘QoS Name’ and the following screen appears.
Figure 0-25: Adding Classifier
Next, select the classifier type to be based upon. Ethernet Destination Address is
chosen in the following example.
Figure 0-26: Adding Classifier based on Ethernet Destination MAC Address
Next click on ‘Save’ on top and then click on ‘Back to SS Edit’ to add another classifier
for downlink as shown in figure and then click on ‘Save’.
Libra MAX User Guide Base Station Configuration: Subscriber Station Association (SS) Page 92 of 120
Figure 0-27: Adding Classifier based on Ethernet Destination MAC Address
MAC Address and IP Address are verified real time for their format. If
invalid, it will highlight in red color. If such values are highlighted in
red despite the correct format, delete the last character and type it
again so that it appears in black.
1.40.5 SS Status
List of connected subscriber stations can be viewed by clicking on ‘SS Status’ under ‘SS’
menu. If any subscriber station is connected to the BS, a table will display its name,
MAC address, RSSI, CINR, uplink and downlink FEC. You can deregister any connected
subscriber station by clicking on ‘Deregister’. Detail information of the connected
subscriber station can be obtained by clicking on the MAC address.
1.41
Logs
This section contains information about the recent system activities and helps
troubleshoot system errors.
1.41.1 Normal Logs
Normal logs are generated after any system event. It lists activities such as
communication between BS and SS.
1.41.2 Crash Logs
Crash logs are generated if the system crash occurs at any point. It does not include
logs regarding system reboot. This is normally empty.
1.41.3 Stats
Statistics provides information about the BS ODU system such as its IP and MAC
addresses, uptime and system memory. It also provides statistics on schedulers such
as timing, grant timing, IUC mapping and DCD/UCD dumps.
Libra MAX User Guide Base Station Configuration: Logs Page 93 of 120

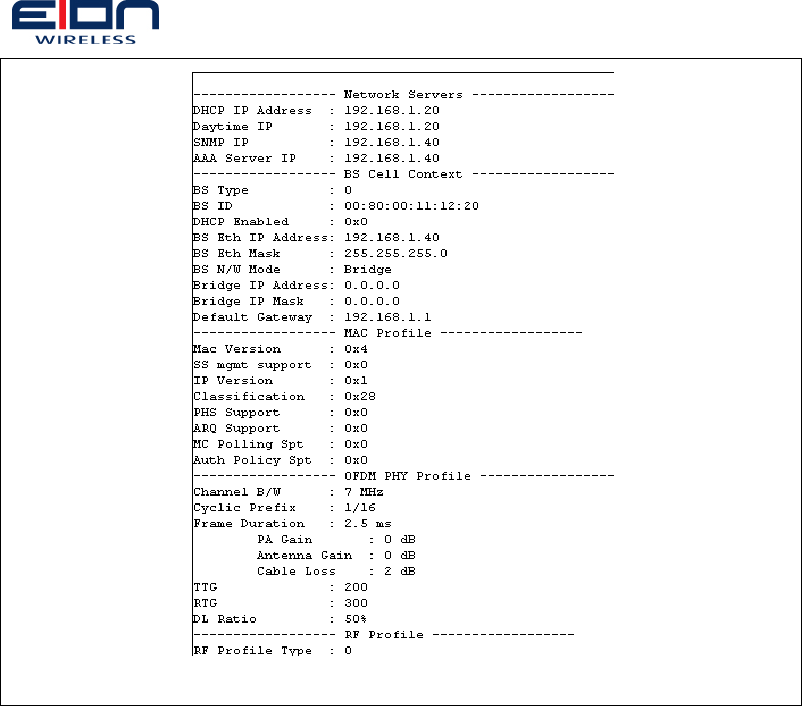

Figure 0-28: Current Configuration
1.41.4 IP Configuration
IP and MAC address of BS ODU can be known by clicking on ‘Stats’, then on ‘Basic’ and
then on ‘IP Configuration’
1.41.5 Current Configuration
Major current configuration is listed on this section.
1.42
Utilities
1.42.1 Change Password
Password can be changed by using this feature. Once the password has been changed,
the user must Logout for the new password settings to take effect.
1.42.2 Ping
Ping assists network administration and troubleshooting.
1.42.3 Dump Logs
This feature will clear the log files from the base station.
Libra MAX User Guide Base Station Configuration: Utilities Page 94 of 120
1.42.4 Backup Configuration
Use this feature to save an existing configuration file. When the “Download” button is
pressed, the user will be prompted to download a compressed configuration file that
can be saved on the local computer. This file can be used to recover a lost
configuration, or to load a second base station with similar settings. The configuration
can be re-loaded using the Upload Configuration function.

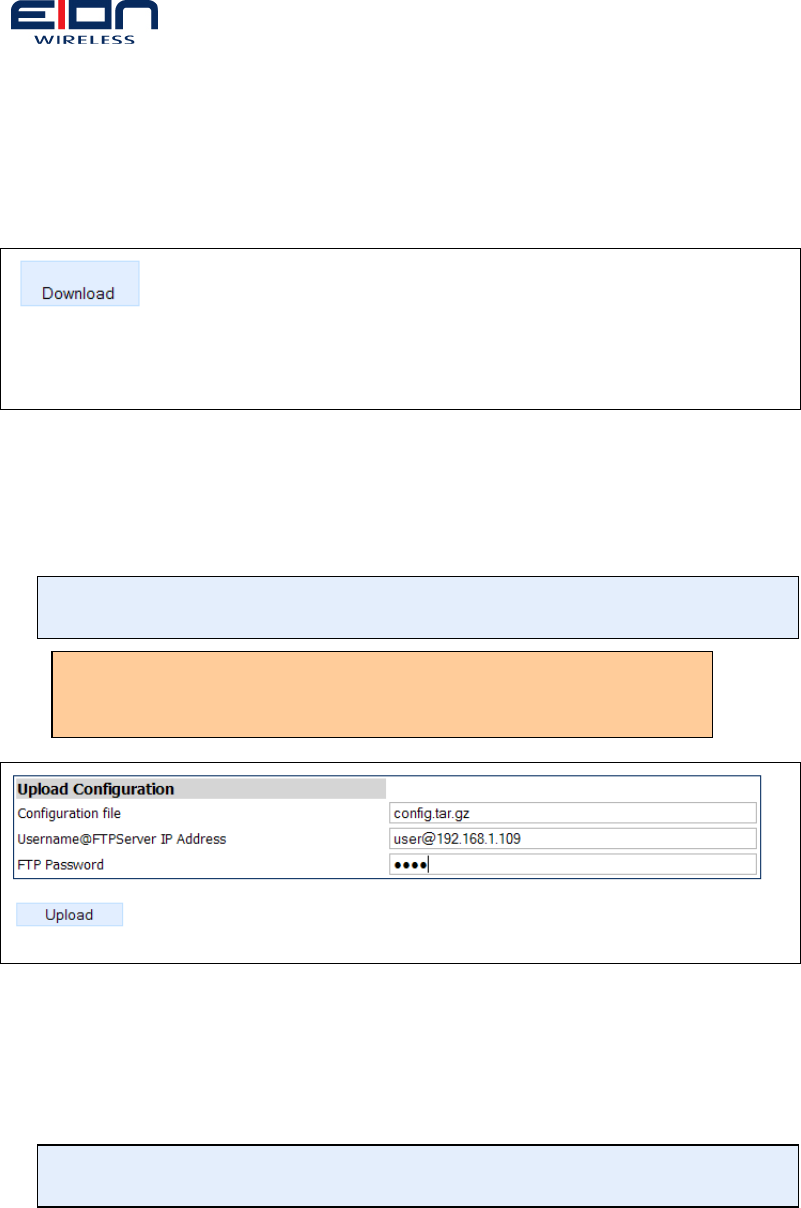

Figure 0-29: Download Backup Configuration
1.42.5 Upload Configuration
Once you have saved a configuration file, the tar.gz file can be used to restore the
previous configuration of the base station, or to load a known good configuration from
another base station.
NOTE: Prior to restoring a configuration, EION recommends that the Base
Station is reset to default values and rebooted.
ATTENTION: Ensure that the configuration filename is saved as
“config.tar.gz” Special characters in the filename will cause
the upload configuration to fail.
Figure 0-30: Upload Configuration Page
To restore a configuration tar.gz file, place the file on an FTP server that is accessible
from the base station. Enter the path to the configuration file in the “configuration file”
field and the coordinates of the FTP server as shown in the example above. When the
upload button is pressed, the tar.gz file will be loaded into the base station and the
configuration will be overwritten. In order for the new settings to take effect, the base
station must be rebooted.
NOTE: The existing GUI password will be overwritten by the password
that was saved in the configuration being uploaded.
1.43
Restore Factory Default
This feature sets all configurations to factory default, including IP address and
frequency configuration. Major factory settings are as follows:
Libra MAX User Guide Base Station Configuration: Restore Factory Default Page 95 of 120
Parameter Value
IP Address 192.168.1.40
NMS Server 192.168.1.40
AAA Server 192.168.1.40
Frequency: 5725000 kHz
Channel Bandwidth 10 MHz
BS Transmit Power -50 dBm
Subscriber stations and QoS parameters are not restored by factory
default. You will have to configure them manually.
1.44
IP Address Recovery
Loss of the Base Station’s IP address leads to loss of accessibility to the Base Station
and ability to manage the Base Station. This feature provides the ability to recover the
accessibility to the Base Station by assigning a new IP address to the Base Station.
This feature would require a utility program called “iprecover” to be executed from a
linux desktop that is connected to the Ethernet interface of the Base Station.
The iprecover utility can be executed as shown below. Executing the utility without
specifying any parameters will display a brief help on the various parameters that
should be provided while executing the utility.

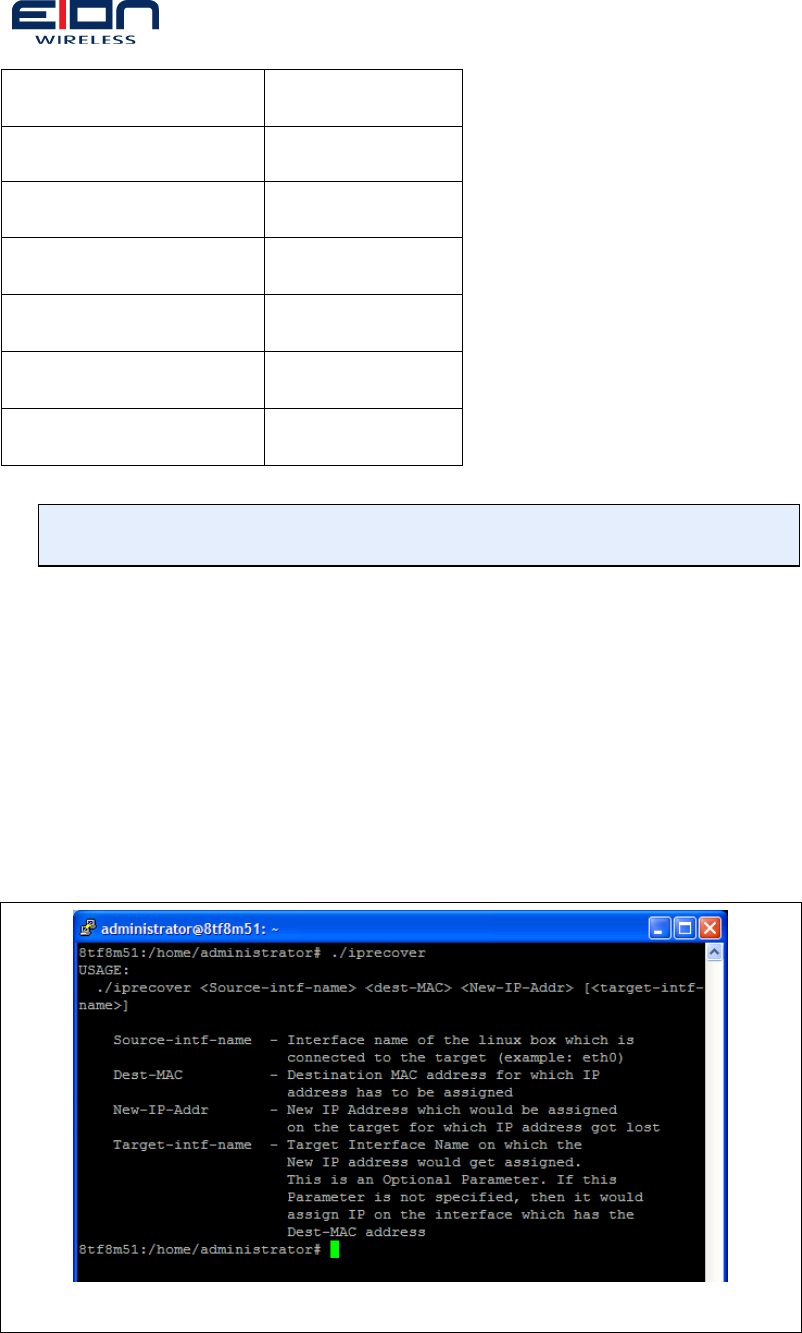

Figure 0-31: Executing the IP recovery utility without specifying any
parameters will display a help file
The values for each of the parameters in the iprecover utility adhere to the following:
Libra MAX User Guide Base Station Configuration: IP Address Recovery Page 96 of 120
• Source-intf-name is the name of the interface which is connected to the
Base Station
• Dest-MAC is the MAC Address of the Base Sation for which a new IP address
has to be assigned.
• New-IP-Addr is the IP Address that will be assigned to the Base Station
• Target-intf-name must be IXP0 when assigning a new IP Address for the
Base Station
An illustration of the command usage is shown below:

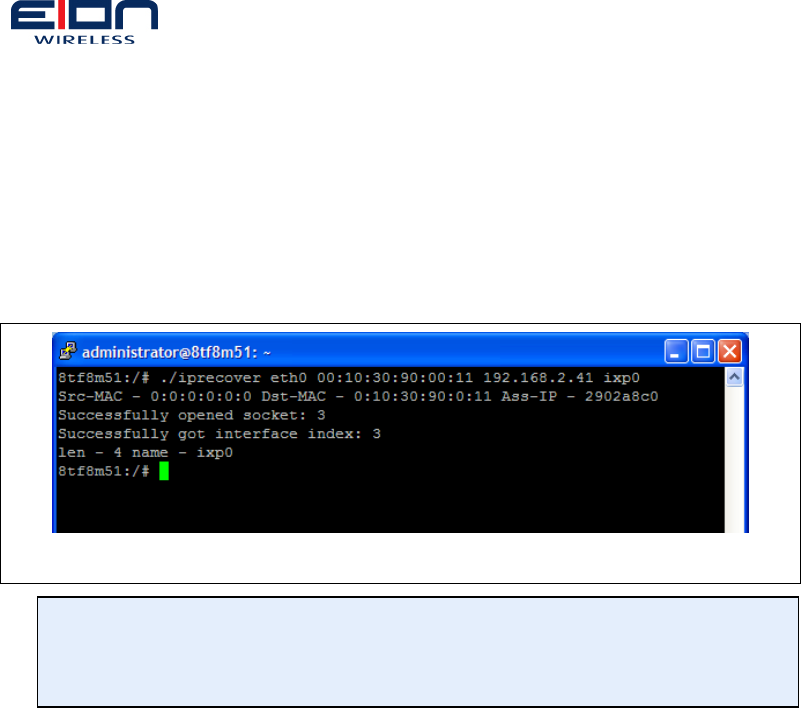

Figure 0-32: In this example, the IP address 192.168.2.41 is assigned to the
Base Station having a MAC address 00:10:30:90:00:11
NOTE: The new IP address assigned after the above step is complete is
only a temporary IP address and will not be reflected in the Base
Station GUI. Also, the new IP Address will be lost when the Base
Station is rebooted.
Once the above step is completed and the Base Station is accessible with the new IP
address, the IP address should be updated (or recorded) appropriately from the Base
Station GUI to make it as a permanent IP address.
Libra MAX User Guide Base Station Configuration: IP Address Recovery Page 97 of 120
Sector Card/Indoor Unit
1.45
Sector Card Management
Sector card plugs into any of the gray slots of the indoor unit chassis and is a part of
Libra MAX-HD Chassis. This allows configuration of multiple Base Stations as well as
their monitoring. It also provides the data path for multiple BS ODUs to their data
source (such as router or a switch) inside the NOC.
Since one sector card can manage multiple BS ODUs, management of sector card itself
is less frequent and is usually done at the time of its installation only. Most common
parameters to be changed on sector card are time zone and its network parameters
(such as IP address and subnet mask). Besides, sector card can be reset or shutdown
using its management interface.
1.45.1 Accessing Sector Card
In order to access sector card, open a web browser and type the following URL:
https://192.168.1.200:10101
Please note that it uses ‘HTTPS’ and that the IP address is factory default. On the
screen that appears next, log in with the following username and password.
Username: admin
Password: admin123

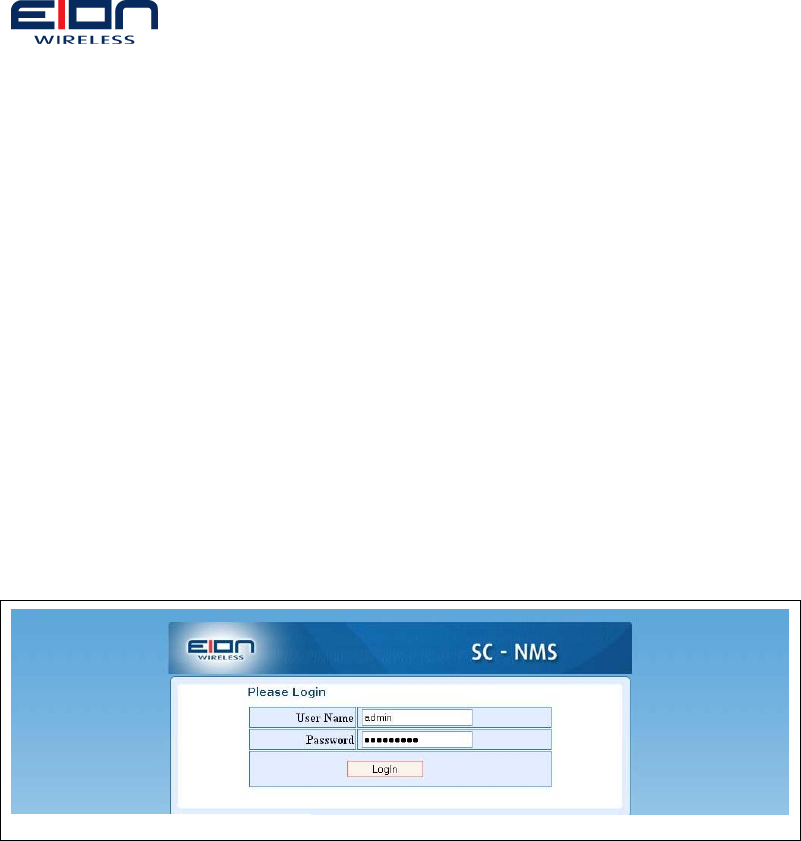

Figure 0-1: SC-Management – Log In
After successful login, the following screen appears.
Figure 0-2: SC-Management – Post Log In
Libra MAX User Guide Sector Card/Indoor Unit: Sector Card Management Page 98 of 120
1.45.2 Time Configuration

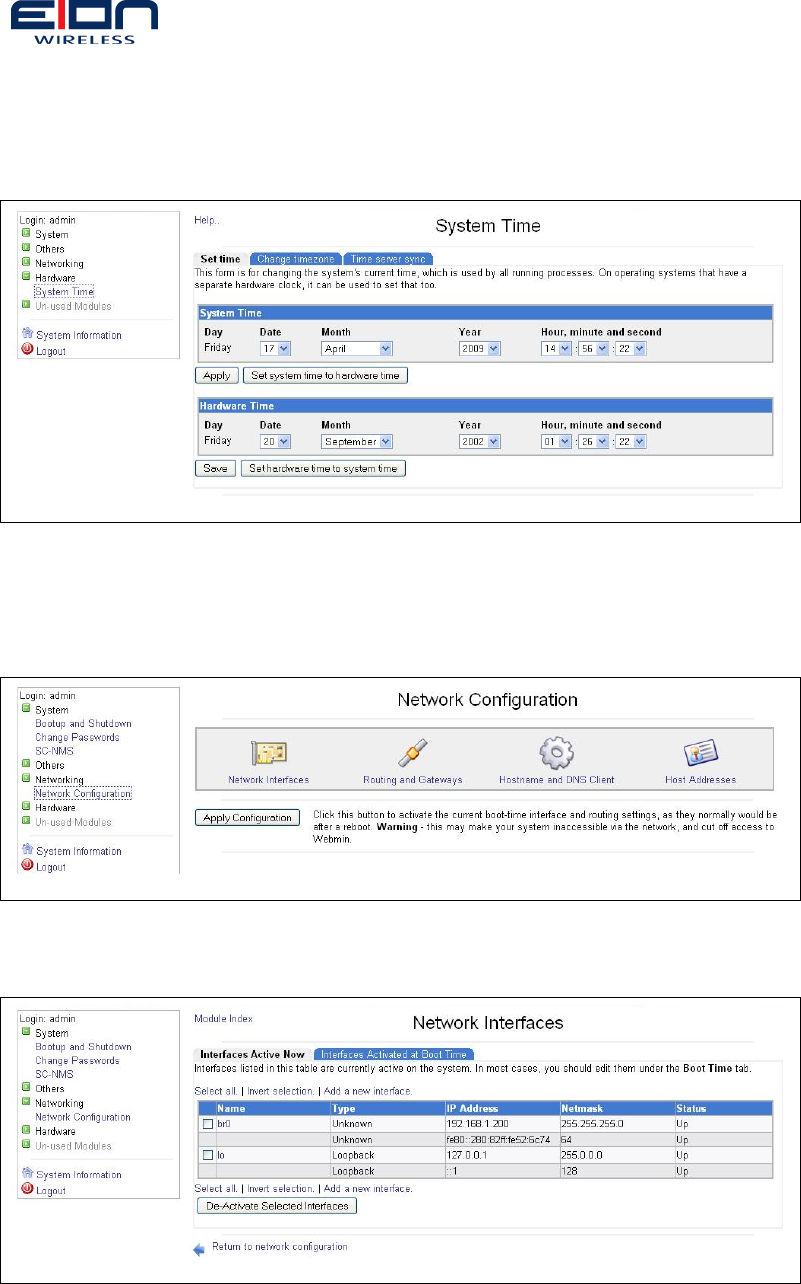

In order to set up time, log into to SC-Manager and then click on ‘Hardware’ – ‘System
Time’. The following window will appear. Configure your current time under ‘System
Time’ and then click on ‘Apply’. Ignore the configuration for ‘Hardware Time’.
Figure 0-3: SC-Management – Time Configuration
1.45.3 Network Configuration
In order to configure network settings of sector card, log into to SC-Manager and then
click on ‘Networking’ – ‘Network Configuration’ so that the following screen appears.
Figure 0-4: SC-Management – Network Configuration
To configure IP address, subnet mask and MTU of the sector card, click on ‘Network
Interfaces’ and the screen as shown on Figure 0-5: SC-Management – Network
Interfaces appears.
Figure 0-5: SC-Management – Network Interfaces
Next, click on ‘br0’ and the screen as shown in Figure 0-6: SC-Management – Change
IP Address appears. Configure the desired IP address, subnet mask and MTU for the
interface and then click on ‘Save’. Please note that although there are multiple ports on
the sector card, they are bridged into one. This allows use of either of the Ethernet
Libra MAX User Guide Sector Card/Indoor Unit: Sector Card Management Page 99 of 120
ports.
Figure 0-6: SC-Management – Change IP Address
Static Routes and Gateway can be added by clicking on ‘Routing and Gateways’ in
Figure 0-4: SC-Management – Network Configuration.
Hostname of the sector card and DNS client information can be configured under
‘Hostname and DNS Client’ in Figure 0-4: SC-Management – Network Configuration.
1.45.4 Change Password
Password of the sector card manager can be changed by clicking on ‘System’ and then
on ‘Change Passwords’
Figure 0-7: SC-Management – Change Password
1.45.5 Reboot/Shutdown Sector Card
Sector card can be reset or shutdown by clicking on ‘System’ and then the following
screen appears upon clicking on ‘Bootup and Shutdown’. Sector card can be either reset
or shutdown using the respective button. Please note that if you shutdown the sector
card, it would have to be unplugged and then plugged back again for it to start up.
Figure 0-8: SC-Management – Change Password
Libra MAX User Guide Sector Card/Indoor Unit: Sector Card Management Page 100 of 120
1.46
BS Configuration
Libra MAX Base Station Manager controls the operation and configuration of a Libra
MAX Base Station. It is administered over an Ethernet connection using a web-based
GUI.
This guide will cover the basic operation of the Libra MAX BS ODU and Libra MAX
Lite. It does not cover the installation of the Libra MAX BS or Libra MAX Lite hardware.
Please refer to installation guide for hardware installation.
1.46.1 Connect to the BS Manager
Requirements:
• PC running Windows
• Web browser (Internet Explorer or Firefox)
• Java
To connect to the Libra MAX BS do the following:
6. Configure a PC in the same subnet as the Libra MAX BS ODU.
7. Open Firefox web browser on the PC.
8. Type the following URL including the port into the address bar:
http://192.168.1.40:28086
Note: The IP Address listed above is the default value.
9. The BS Manager Login Screen (Figure 0-1) will appear. Log in with the
following:
Username: root
Password: BS4400
Figure 0-9: BS Manager Login Screen
10. After successful login the Post-login screen (Figure 0-2) appears.
Libra MAX User Guide Sector Card/Indoor Unit: BS Configuration Page 101 of 120
Figure 0-10: Post-login screen
1.46.2 Basic Configuration
This screen appears after clicking on ‘BS’, then on ‘Configuration’ and then on ‘Basic’. It
allows configuration of the following:
Figure 0-11: Basic Configuration
BS ODU ID – It is a globally unique numeric identifier for the BS ODU and hence the
network. It is 6 bytes (48 bits) in length. This identifier has to be entered in the
subscriber stations for them to communication with this particular BS. By default this is
set as the MAC Address of the BS ODU.
NMS Source – It configures whether the NMS and AAA server to be used should be
loaded from the BS ODU itself or a sector card with standalone NMS/AAA server. This
has to be set to BS_ODU for MAX-LT. For MAX-HD it can be set to either BS_ODU or
SECTOR_CARD as needed.
BS ODU MAC Address – It displays the MAC address of the active port of the BS
ODU. This MAC address has to be configured into subscriber stations if you want them
to specifically connect to the particular BS ODU of interest. MAC address is not
configurable by user.
BS ODU IP Address – It is the IP of the active port of the BS ODU. IP address has to
be in the same subnet as the subscriber station.
Note: Click on ‘Restart’ button for change in IP address to take effect.
Libra MAX User Guide Sector Card/Indoor Unit: BS Configuration Page 102 of 120
DHCP Enable – Setting it to ‘Enable’ activates a DHCP server in BS ODU so that
subscriber stations associated with it can receive IP address automatically. It is disabled
by default.
Syslogd – It configures where the log files for the BS ODU are stored. Its value is set
to ‘Local’ by default
After configuring the values, click on ‘Save’ button so that changes are saved.
1.47
SC-NMS Configuration
SC-NMS and ODU work together as a single entity. Both of them have to be in the
same subnet for them to communicate with each other. SC-NMS is used to configure
RF, MAC and classifiers for the BS ODU.
SC-NMS can be accessed either via SC-Manager by clicking on ‘System’ and then on
‘SC-NMS’ or directly at the following URL:
http://192.168.1.200:8080/nms
Username: admin
Password: eionnms
Figure 0-12: SC-NMS – Log In
Libra MAX User Guide Sector Card/Indoor Unit: SC-NMS Configuration Page 103 of 120
1.47.1 Screen Layout
The NMS GUI is divided into four distinct areas.
Left Panel: This area contains a hierarchical view of all the elements in the system.
You can expand and collapse the sections by clicking on the ‘+’ and ‘-’ symbols beside
each element icon. Each SC-NMS is shipped with sample data that allows new users to
gain familiarity with the SC-NMS. The instructions below will refer to this sample data.
Once you are comfortable using the NMS, you may delete these examples.
Main Menu: Select different NMS functions in the main menu
Contextual Menu: This menu shows different options depending on the selection
chosen in the main menu.
Main Screen: The main portion of the screen shows configuration settings, topological
maps and performance charts.
Main Menu
Contextual Menu
Main
Screen
Left
Panel
Figure 0-13: SC-NMS – Screen Layout
Groups and Subgroups: Elements in the NMS must belong to both a group and a
sub-group. In the example screen shot “ottawa” is the group name; and “ottawa” and
“ottawa-test” are the sub-groups. Typically, system elements are grouped based on
their geographical location (e.g. city and neighborhood).
Navigating Groups: Click on the ‘+’ sign to the left of a group icon to expand the
group. This will display any sub-groups that belong to this group. Click on the BS name
of a pre-configured BS station and information about the BS will appear. You will be
able to see its ID, current status, OFDM MAC address including its software and
hardware versions displayed in the main screen area.
1.47.2 BS Configuration Using SC-NMS
In order to configure BS ODU using SC-NMS, the following are the pre-requisites:
• Sector card has to be plugged on to any of the gray colored slots on the front of
the chassis
• PoE card at the rear has to be plugged in to the corresponding slot where sector card
is plugged in at the front of the chassis.
• BS ODU has to be physically connected to the sector card or to the PoE card at
the rear. Either of the two Ethernet ports of the sector card can be used.
Libra MAX User Guide Sector Card/Indoor Unit: SC-NMS Configuration Page 104 of 120
Libra MAX User Guide Sector Card/Indoor Unit: SC-NMS Configuration Page 105 of 120
• Both BS ODU and the sector card have to be on the same subnet. Factory shipped
units are all in the subnet 192.168.1.0/24
• BS ODU has to be configured so that its ‘NMS Source’ is set to ‘SECTOR_CARD’ and
the IP address of the NMS server has to be configured as that of the sector card.
Once these prerequisites are satisfied, turn on the chassis and this will also turn on the
sector card. It usually takes up to 3 minutes for the sector card to start up.
Then turn on the BS ODU. It takes up to a minute for the BS ODU to start up.
Subscriber Station
Configuration
1.48
Introduction
Libra MAX-58 Subscriber Station Manager controls the operation and configuration of a
Libra MAX-58 Subscriber Station. It is administered over an Ethernet connection using a
web-based GUI.
This chapter covers the basic operation of the Libra MAX-58 SS and the Subscriber
portion of the Libra MAX-RBS.
1.49
Connect to the SS Manager
Requirements:
• PC
• Web browser
• Java
To connect to the Libra MAX-58 BS do the following:
1. Configure a PC in the same subnet as the Libra MAX-58 BS ODU.
2. Open Firefox web browser on the PC.
3. Type the following URL into the address bar:
http://192.168.1.150
Note: The IP Address listed above is the default value.
4. The BS Manager Login Screen (Figure 0-1) will appear. Log in with the
following:
Username: admin
Password: admin123

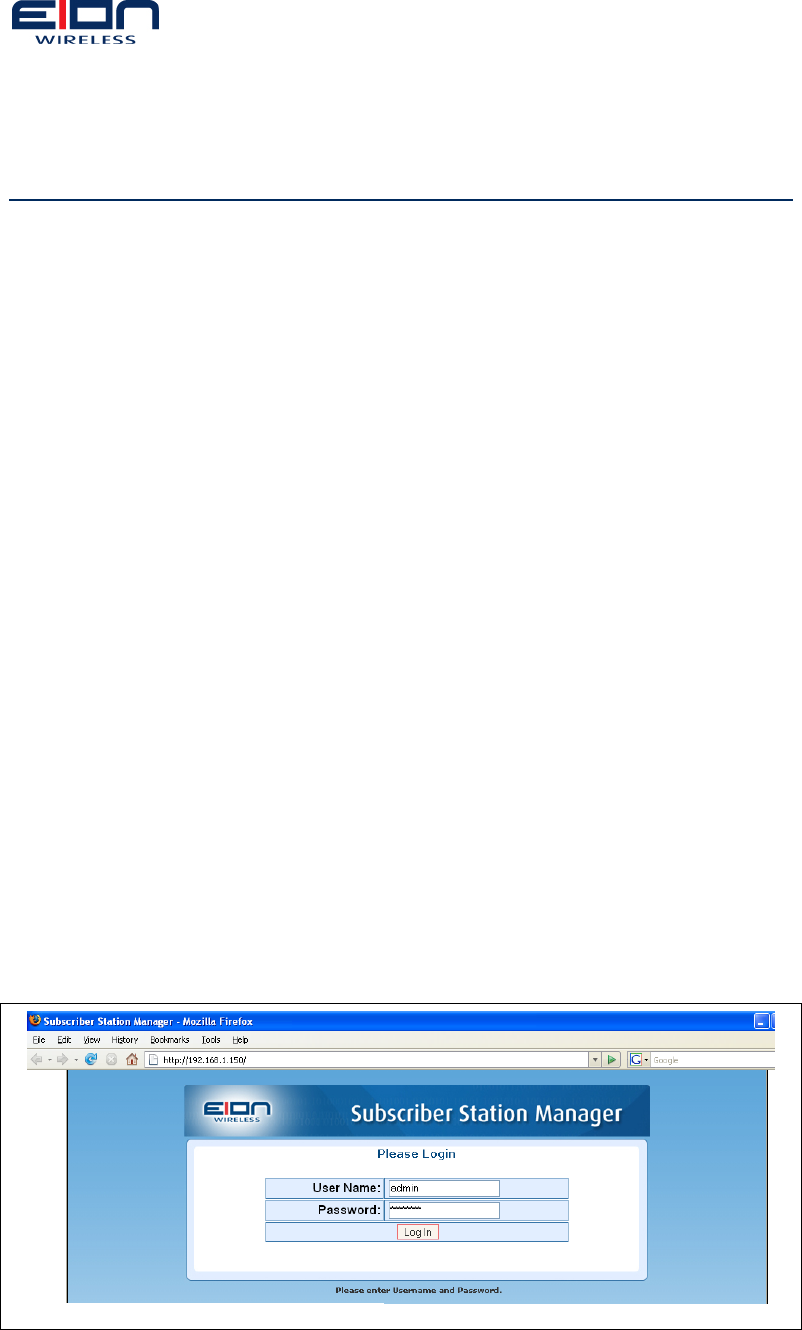

Figure 0-1: SS Manager Login Screen
Libra MAX User Guide Subscriber Station Configuration: Introduction Page 106 of 120
1.50
Screen Layout
The Web interface GUI is divided into four distinct areas (Figure 0-2: Screen Layout).
Figure 0-2: Screen Layout
Left Panel
Status Screen
Main
Screen
Left Panel: This area contains a hierarchical view of all the elements in the system.
You can expand and collapse the sections by clicking on the ‘+’ and ‘-’ symbols beside
each element icon.
Main Screen: The main portion of the screen shows configuration.
Status Screen: Status screen displays the current status of the SS. After a SS
successfully associates with a base station, SS Status becomes ‘Operational’. This
screen also displays other relevant information such as BS ID the SS is connected to,
RSSI and CINR at the SS.
Navigating Groups on Left Panel: Click on the ‘+’ sign to the left of a group icon to
expand the group. This will display relevant configuration tree for a group.
1.51
Configuration
Configuration of SS mainly involves entering the radio and network parameters. It
contains two sub-sections – WiMAX Radio and Network. WiMAX settings deal with RF
portion whereas Network is for IP settings.
WiMAX Radio
This section can be accessed by clicking on ‘Configuration’ and then on ‘WiMAX’. Radio
or RF configuration is done on this section. It allows configuration of the following:
Libra MAX User Guide Subscriber Station Configuration: Screen Layout Page 107 of 120

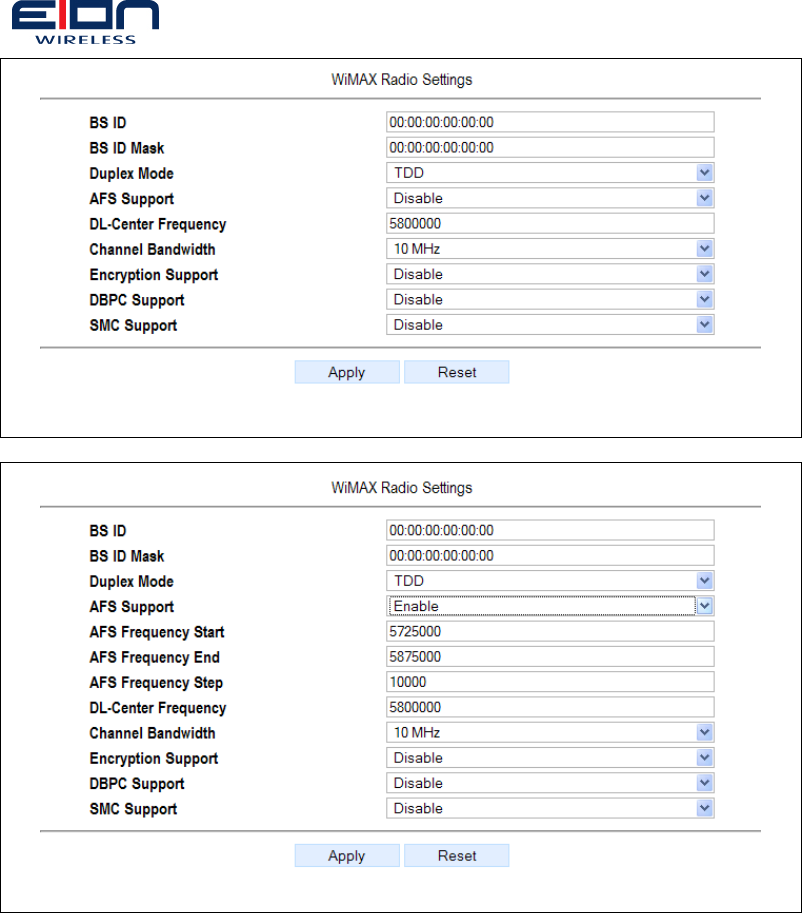

Figure 0-3: WiMAX Radio Settings, AFS Disabled
Figure 4: WiMAX Radio Settings with AFS Enabled
BS ID – It is the identifier of the BS to which the subscriber station is to be associated.
It is usually the MAC of the BS ODU. By default, SS is configured to be associated with
any Libra MAX-58 BS ODU.
BS ID Mask – This is the mask for BS ID. Its default value is 00:00:00:00:00:00
Duplex Mode – This is set to TDD as only TDD is supported at present.
AFS Support – Automatic Frequency Scanning mode allows selection of frequency
automatically within the range and in step size specified. Set the start and end
frequency range including the step size and a center frequency. Subscriber station will
then scan within the range of frequencies and locks the center frequency to the one
where the signal strength is optimum.
DL-Center Frequency – This should be set to that of the BS ODU. For a SS to
communicate with the BS, both have to be on the same frequency. Since, it’s a TDD
system, both uplink and downlink frequency will be the same.
Channel Bandwidth – For BS Type FBW-1050 (5.725 to 5.875 GHz), channel
bandwidth is 10 MHz. Larger the bandwidth, higher the throughput.
Encryption Support – This field indicates Encryption Support is Enabled or not. This
Libra MAX User Guide Subscriber Station Configuration: Configuration Page 108 of 120
is disabled by default.
DBPC Support – This field indicates DBPC (Down-Link Burst Profile Change) Support
is Enabled or not. It is disabled by default.
SMC Support – This field indicates SMC (Secondary Management Connection) is
Enabled or not. It is disabled by default.
1.52
Network
The following network related parameters are configured in this section.
Figure 0-4: Network Settings – Bridge Mode
SS IP Address – This is the IP address of the subscriber station.
SS Subnet Mask – Subnet mask of the subscriber station is configures in this section.
SS MAC Address – MAC Address of the subscriber station is displayed here. This MAC
address needs to be configured in the list of SS in the Base Station for them to
communicate.
Operation Mode – Subscriber station can work either in bridge mode or router mode.
It operates at bridge mode by default. In the router mode, traffic IP and its subnet has
to be configured.
Figure 0-5: Network Settings – Router Mode
1.53
Reboot
This will reset the subscriber station. Configurations are still retained on reboot.
1.54
Restart
This will stop and then restart the wireless interface of the subscriber station. It is
recommended to restart subscriber station after making changes. Restart takes shorter
time then reboot.
1.55
Logs
This section contains information about the recent system activities and helps
Libra MAX User Guide Subscriber Station Configuration: Network Page 109 of 120
troubleshoot system errors.
1.55.1 Current Logs
Current logs are generated after any system event. It lists sequence of activities
happening within a subscriber station. This is useful in troubleshooting in case SS does
not associate with the BS of interest.

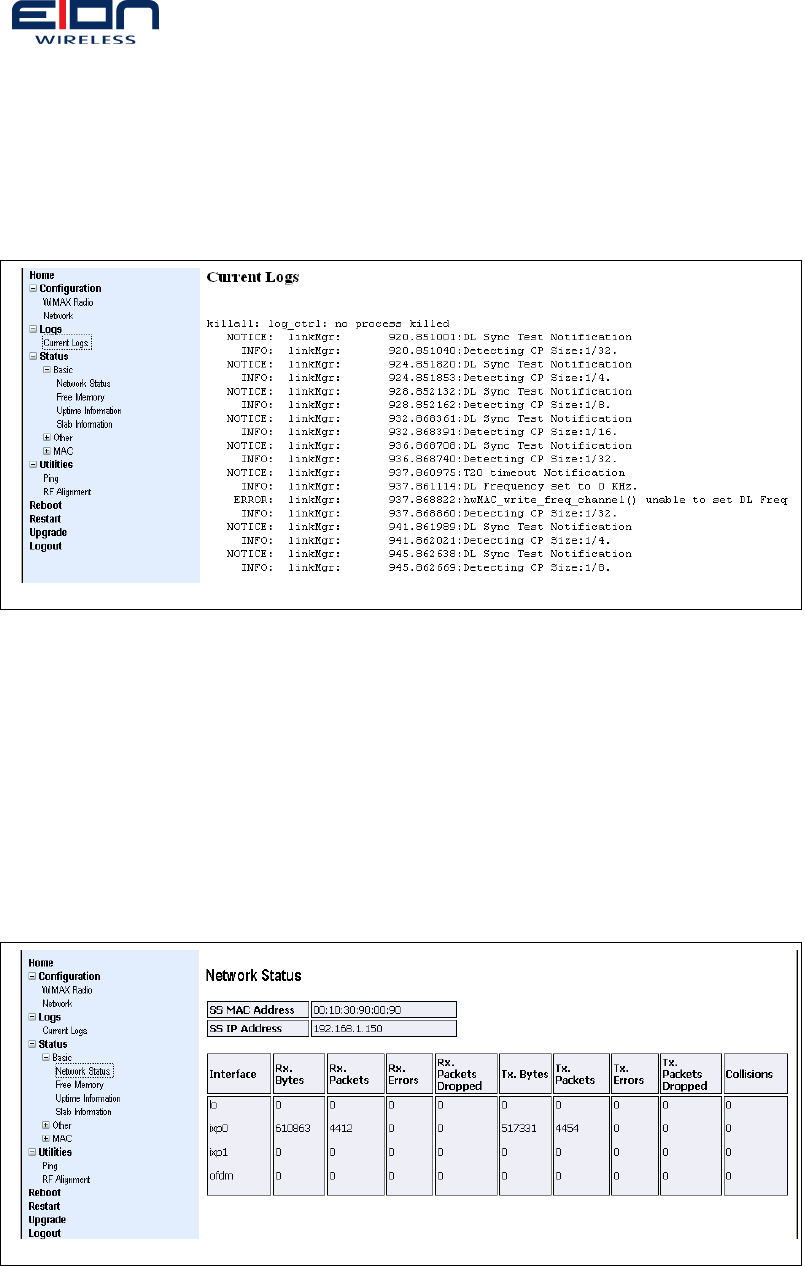

Figure 0-6: Logs – Current Logs
1.56
Status
Statistics provides information about the SS system such as its IP and MAC addresses,
uptime and system memory. It also provides statistics on uplink classifiers.
1.56.1 Network Status
IP and MAC address of SS can be known by clicking on ‘Stats’, then on ‘Basic’ and then
on ‘IP Configuration’. In order for the SS to associate with the BS, correct OFDM MAC
address of the SS has to be entered in the SS list. OFDM MAC address is also printed on
the label pasted on the unit. This feature displays the network status in tabular form.
Figure 0-7: Status – Network
1.56.2 Other
Other statistics such as state count, uplink classifiers, global counters and error
counters are grouped under this section.
Libra MAX User Guide Subscriber Station Configuration: Status Page 110 of 120
Libra MAX User Guide Subscriber Station Configuration: Utilities Page 111 of 120
1.56.3 MAC
MAC related statistics such as ARQ counters, DCD/UCD counters, PKM TEK/TK ,
counters, PDU MGR counters and QoS counters are grouped under this section.
1.57
Utilities
Utilities such as Ping assist network administration and troubleshooting.
1.57.1 Ping
It is a useful tool to verify if subscriber station can ping a particular IP address.
1.57.2 RF Alignment
A useful tool for antenna alignment. It displays the real time value of CINR, RSSI and
Transmit Power.
Figure 0-8: Utilities – RF Alignment
1.58
Upgrade
This option is currently not available. Please contact EION Tech Support for the latest
available firmware and procedure to upgrade.
1.59
Logout
Once the configuration is completed, it is advisable to logout using this feature.
Troubleshooting
1.60
Preventative Maintenance
Administering and maintaining your system properly can prevent many problems and
alert you to minor problems before they become serious. Some recommendations
follow.
• Measure and document system performance at the time of the original
installation.
• Change menu passwords so that only authorized people can reconfigure the
system.
• Maintain the integrity of the system design when adding to or changing a
system. The introduction of new elements to a system can cause problems
unless you revise the network plan to take into account the changes. For
example, improper installation of a co-located antenna can add unwanted
system interference.
• Keep records of all changes. Especially document the addition of units,
hardware and software changes, and changes to configuration settings.
Configuration errors often cause other problems. Current records can be
compared with original installation records and function as benchmarks to help
in troubleshooting.
• Keep a log of past and present problems and solutions. Store the log on-site for
easy reference, if possible. The log identifies common failure points and fixes.
Before contacting EION’s Technical Assistance Center, document the symptoms
of the fault and the steps taken to diagnose and fix the problem. Record the
current configuration of the system.
• Perform preventive maintenance at a regular interval, for example every six
months.
• Perform link monitor tests to verify the system after periods of extreme
weather, and inspect towers, antennas, ODUs, cables, and connectors for
damage.
• Monitor system performance regularly. Environmental change as well as normal
wear and tear on components can affect system performance.
• In some cases a bench test is a useful tool in diagnosing problems.
1.61
Troubleshooting Areas
There are four areas to keep in mind with troubleshooting:
1. Network integrity: The continued performance and reliability of a network
depend upon maintaining the integrity of the network. If you change a
network’s design, you will affect its operation. Be aware of recent changes to
your network.
2. Quality of RF links: Data communication depends first on good RF links. If you
establish and maintain high-quality RF links, then you can be sure the links will
carry high-speed data. If the quality of the RF links degrades for some reason,
the quality of the data and the associated performance will also degrade.
Libra MAX User Guide Troubleshooting: Preventative Maintenance Page 112 of 120
3. Radio Hardware: This consists of three parts: Main unit, antenna, and
mounting hardware.. (To verify the radio performance, you can run diagnostic
tests, such as RSSI and CINR)
4. Correct Unit Configuration: Units must be configured properly, according to the
network plan. Configuration errors can cause an inability to communicate or
poor performance. The addition of units or other changes to your system may
require you to change configuration settings.
1.62
Troubleshooting Chart
Indication Possible Cause Corrective Action
High BER Signal strength is too
low
• Record RSSI to determine
fade margin
• Check for RF absorbent
obstacles in the antenna path
• Search for indirect RF paths
between antennas (i.e. ones
that use beneficial reflections
or multipaths)
• Check and replace cables if
necessary
• Reposition antenna or if
possible remove obstruction
High BER Signal strength is too
high
• Adjust antennas
• Increase distance between
units to add attenuation
• Adjust Tx Power level
High BER Interference • Change center frequency
• Increase RF power
• Change polarization of
antennas
• Increase separation or change
location of antenna
• Increase separation between
co-located antennas
High BER Radio Performance
(Tx/Rx)
• Contact EION Inc. Technical
Support
Libra MAX User Guide Troubleshooting: Troubleshooting Chart Page 113 of 120
Indication Possible Cause Corrective Action
No Ethernet
connection
Bad CAT-5 cable • Visually inspect cable
• Change cable
No Ethernet
connection
Bad Connectors • Visually inspect connectors
• Change cable/connectors
No Ethernet
connection
Temperature • Determine if ambient
operating temperature is too
high or low
• Change ambient temperature
to specified range
Low signal
strength or fade
margin
Bad ratio • Bench test system
• Change Libra MAX-58 unit
Low signal
strength or fade
margin
Poor antenna alignment • Use RF diagnostics to realign
antenna
Low signal
strength or fade
margin
Bad cable • Visually inspect
cables/connectors
• Sweep cable
• Change cable/connectors
Low signal
strength or fade
margin
Incorrect radio
configuration
• Bench test the radio to
confirm configuration
• Reconfigure radio
Low signal
strength or fade
margin
No Fresnel zone
clearance or severe
NLOS
• Check LOS for obstacles such
as trees
• Change alignment of antenna
to take advantage of
beneficial multipath signals
• Increase antenna height to
obtain clearance
• Move antenna to better
location or remove obstacle if
possible
Libra MAX User Guide Troubleshooting: Troubleshooting Chart Page 114 of 120
Indication Possible Cause Corrective Action
High packet loss Signal to strength too
low
• Record RSSI to determine
fade margin
• Check for obstacles in RF path
• Check for interference
• Point antenna in different
directions to take advantage
of beneficial multipaths
• Reposition antenna to
establish better LOS
• Replace Libra MAX-58 and
perform bench test
High packet loss Interference • Change center frequency
• Increase RF power
• Change polarization of
antennas
• Get separation or change
physical location of antenna
High packet loss Temperature • Determine if ambient
operating temperature is too
high or low
• Increase or reduce ambient
temperature
Libra MAX User Guide Troubleshooting: Troubleshooting Chart Page 115 of 120
Indication Possible Cause Corrective Action
No communication
between units
Configuration problems Check the following configuration
settings:
• MAC Address–Each unit must
have a unique MAC Address
• SS must have BS ID set to
00:00:00:00:00:00
• Center frequency–Units must
have the same center
frequency to communicate
• IP address/subnet mask–
Incorrectly configured
• IP addresses result in units
being unable to communicate.
Check that IP addresses are
unique for each unit within a
subnet and that the correct
subnet mask is being used.
Poor Link
Performance
Distance • Check the distance
configuration setting on SS
Poor Link
Performance
Signal absorption • Check LOS for obstacles such
as trees
• Change alignment of antenna
to take advantage of
beneficial multipath signals
• Move antenna to better
location or remove obstacle if
possible
Poor Link
Performance
Interference • Set units from different
systems in the same
geographical area to different
center frequencies.
Overlapping wavelengths from
other systems will degrade
performance.
Poor Link
Performance
Overpowering Colocated
Unit
• Output power from one unit
can overpower another,
colocated, radio, even if units
operate on different channels
New configuration
will not take
Incorrectly upgraded
software
• Reload the software image
Libra MAX User Guide Troubleshooting: Troubleshooting Chart Page 116 of 120
Libra MAX User Guide Troubleshooting: Troubleshooting Chart Page 117 of 120
Indication Possible Cause Corrective Action
Unable to access
main configuration
menu
Invalid Passwords • Contact EION, Inc. for
information about how to re-
enter your system.
• Units will need to be reset
Unit will not
operate
Faulty unit • Bench test unit
Unit will not
operate
Corrupt unit software • Reload unit software
Appendix A: Definitions
Base station (BS): Generalized equipment set providing connectivity, management,
and control of the subscriber station (SS).
Subscriber station (SS): Generalized equipment set providing connectivity between
subscriber equipment and a base station (BS).
Multicast polling group: A group of zero or more subscriber stations (SSs) that are
assigned a multicast address for the purposes of polling.
Security association identifier (SAID): An identifier shared between the base
station (BS) and subscriber station that uniquely identifies a security association (SA).
IPV6: A network layer for packet-switched internetworks. It is designated as the
successor of IPv4, the current version of the Internet Protocol, for general use on the
Internet.
Ipv4: The fourth iteration of the Internet Protocol (IP) and the first version of the
protocol to be widely deployed. IPv4 is the dominant network layer protocol on the
Internet and apart from IPv6 it is the only standard internetwork-layer protocol used on
the Internet.
MAC Address: Media Access Control Address, a quasi-unique identifier attached to
most network adapters (NICs). It is a number that acts like a name for a particular
network adapter.
IP Address: A unique address that certain electronic devices currently use in order to
identify and communicate with each other on a computer network utilizing the Internet
Protocol standard (IP).
SAID: Security Association Identifier is an identifier shared between the base station
and a subscriber station that uniquely identifies a security association (SA).
PCID: Provisional Connection identifier. It’s a provisional service given by the operator.
PCID is equivalent to provisional service flow in IEEE 802.16D standard.
QOS: Quality of Service refers to resource reservation control mechanisms rather than
the achieved service quality. Quality of Service is the ability to provide different priority
to different applications, users, or data flows, or to guarantee a certain level of
performance to a data flow.
Classifier: A classifier is a set of matching criteria applied to each packet entering the
IEEE standard 802.16 network. It consists of some protocol-specific packet matching
criteria (destination IP address, for example), a classifier priority, and a reference to a
CID. If a packet matches the specified packet matching criteria, it is then delivered to
the SAP for delivery on the connection defined by the CID. Implementation of each
specific classification capability (as, for example, IPv4 based classification) is optional.
The service flow characteristics of the connection provide the QoS for that packet.
Configuration: A set of parameters by which a BS (base station) is configured to take
specific values and operate in that range.
Events: The information of the particular BS (base station) which is reported by a BS
on occurrence of state changes and faults.
Slab: Identifies a period of time used for billing purposes.
Upgrade: To update the software on the BS from existing load to another load.
Mapped SS: Shows the numbers and the detail of the SS which are associated to the
Libra MAX User Guide Appendix A: Definitions: Troubleshooting Chart Page 118 of 120
Libra MAX User Guide Appendix A: Definitions: Troubleshooting Chart Page 119 of 120
particular BS
UN Mapped SS: Unmapped SS are the SS which have been created by the operator
and have not been associated to any BS yet. The SS will get associated with the BS
once it starts communicating with the BS.
Deregister: This is the operation to delink the connectivity between the SS and BS.
Appendix B: Abbreviations
ATM Asynchronous transfer mode
ARQ Automatic repeat request
BS Base station
BE Best effort
CRC Cyclic redundancy check
DCD Downlink channel descriptor
DSx Dynamic service addition, change, or deletion
DES Data encryption standard
DL Downlink
FDD Frequency division duplex or duplexing
FSN Fragment sequence number
H-FDD Half-duplex frequency division duplex
IDU Indoor Unit
IP Internet protocol
MAC Medium access control layer
NRTPS Non-real-time polling service
ODU Outdoor Unit
OFDM Orthogonal frequency division multiplexing
PHS Payload header suppression
PDU Protocol data unit
PHY Physical Layer
PKM Privacy key management
QoS Quality of Service
RBS Rapid Backhaul System
RSSI Receive signal strength indicator
rtPS Real-time Polling Service
Rx Receiver
RNG Ranging
SAP Service access point
SA Security association
SAID Security association identifier
SS Subscriber Station
SF Service flow
TDD Time division duplex or duplexing
Tx Transmitter
UCD Uplink channel descriptor
UGS Unsolicited grant service
UL Uplink
Libra MAX User Guide Appendix B: Abbreviations: Troubleshooting Chart Page 120 of 120
