ELAD srl ART120 ELAD DUO ART 120W HF + 6m AMPLIFIER User Manual
ELAD srl ELAD DUO ART 120W HF + 6m AMPLIFIER
ELAD srl >
User Manual
www.eladit.com

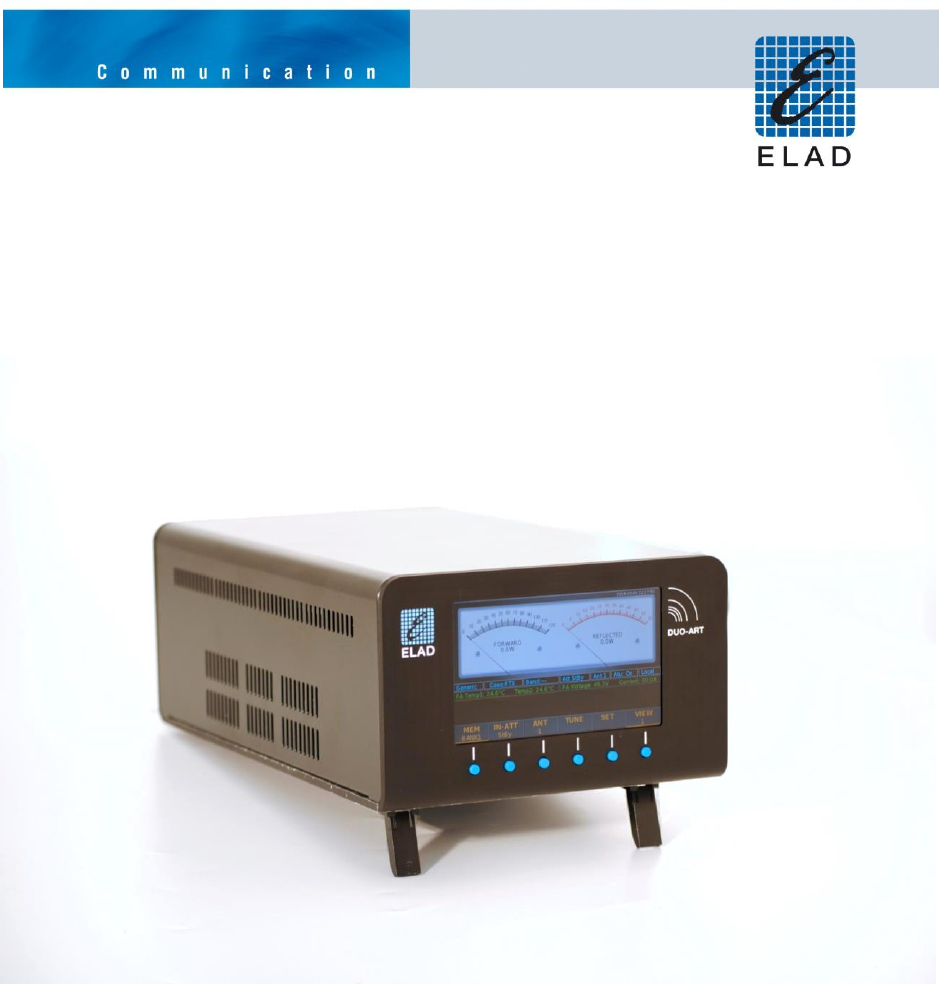

ELAD DUO-ART 120
HF/50MHz 120W amplifier
USER MANUAL
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
2
Contents
Contents ........................................................................................................................................................ 2
Revision History ............................................................................................................................................ 3
1 Introduction .......................................................................................................................................... 4
1.1 Notice ............................................................................................................................................ 4
1.2 Precautions ................................................................................................................................... 4
1.3 Software and firmware versions ................................................................................................... 4
1.4 Features ........................................................................................................................................ 4
2 Panels Description................................................................................................................................. 5
2.1 Front Panel Description ................................................................................................................ 5
2.2 Rear Panel Description .................................................................................................................. 6
3 User Interface ....................................................................................................................................... 8
3.1 Main View ..................................................................................................................................... 8
3.2 Memory Bank View ....................................................................................................................... 9
3.3 Information View .......................................................................................................................... 9
3.4 Messages ..................................................................................................................................... 10
Technical Specifications .............................................................................................................................. 13
Product Warranty ....................................................................................................................................... 15
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
3
Revision History
Revision
Date
Description
Rev 1.0
04/2018
• First version.
Rev 1.1
04/2018
• Added “Technical Specifications” section.
• Photos updated.
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
4
1 Introduction
1.1 Notice
Amateur radio regulations vary from country to country. Check your local amateur radio regulations and
requirements before operating the ELAD DUO-ART.
1.2 Precautions
• Connect the amplifier only to a power source described in this manual.
• Take care when plugging-in cables, avoid applying sideways pressure that might damage the
connectors.
• Avoid operating in wet conditions.
• Ground all outdoor antennas for this amplifier using approved methods. Grounding helps
protect against voltage surges caused by lightning. It also reduces the chance of build-up of
static charge.
1.3 Software and firmware versions
The features described in this manual refers to the following versions :
User Interface software
Internal firmware
Version 0.42 - date 04/12/2018
Version 0.58 – date 04/16/2018
1.4 Features
The DUO-ART 120 is an 120 watt amplifier for HF and 50MHz frequency ranges. It includes the internal
PA power supply, preselector filters, an antenna tuner (optional) and acts as remote controller for the
FDM-DUO. The DUO-ART 120 has three modes of operation that are called interfaces:
- FDMDUO interface : this interface is used when operating with the FDM-DUO,
- Generic interface : this interface is used when operating with another transceiver,
- FT-817 interface : this interface is used when there is the need to read the frequency through
the RS-232 port.
The DUO-ART 120 has 20 memory banks and each one saves :
- the interface used,
- the attenuators setting,
- the antenna used,
- the use of the antenna tuner,
- and other settings.
The USA version of the DUO-ART 120 has a security feature that prevents to amplify in the frequency
band 26-28MHz. Any attempt to drive the amplifier in the 26-28MHz frequency band will result in 0dB
gain from input to output of the amplifier.
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
5
2 Panels Description
2.1 Front Panel Description
1 - Display
5.0 inches LCD TFT display with resolution of 800x480 pixels. Displays menus, power values and
amplifier status.
2 - Push-buttons
These six push-buttons allow to navigate in the menus and change the various working modes.
3 - Power button
To powered up the amplifier, first switch the main power switch on the rear panel, then press the first
button on the left. When this button is released the amplifier emits an acoustic signal and in about ten
seconds it will be ready to operate.
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
6

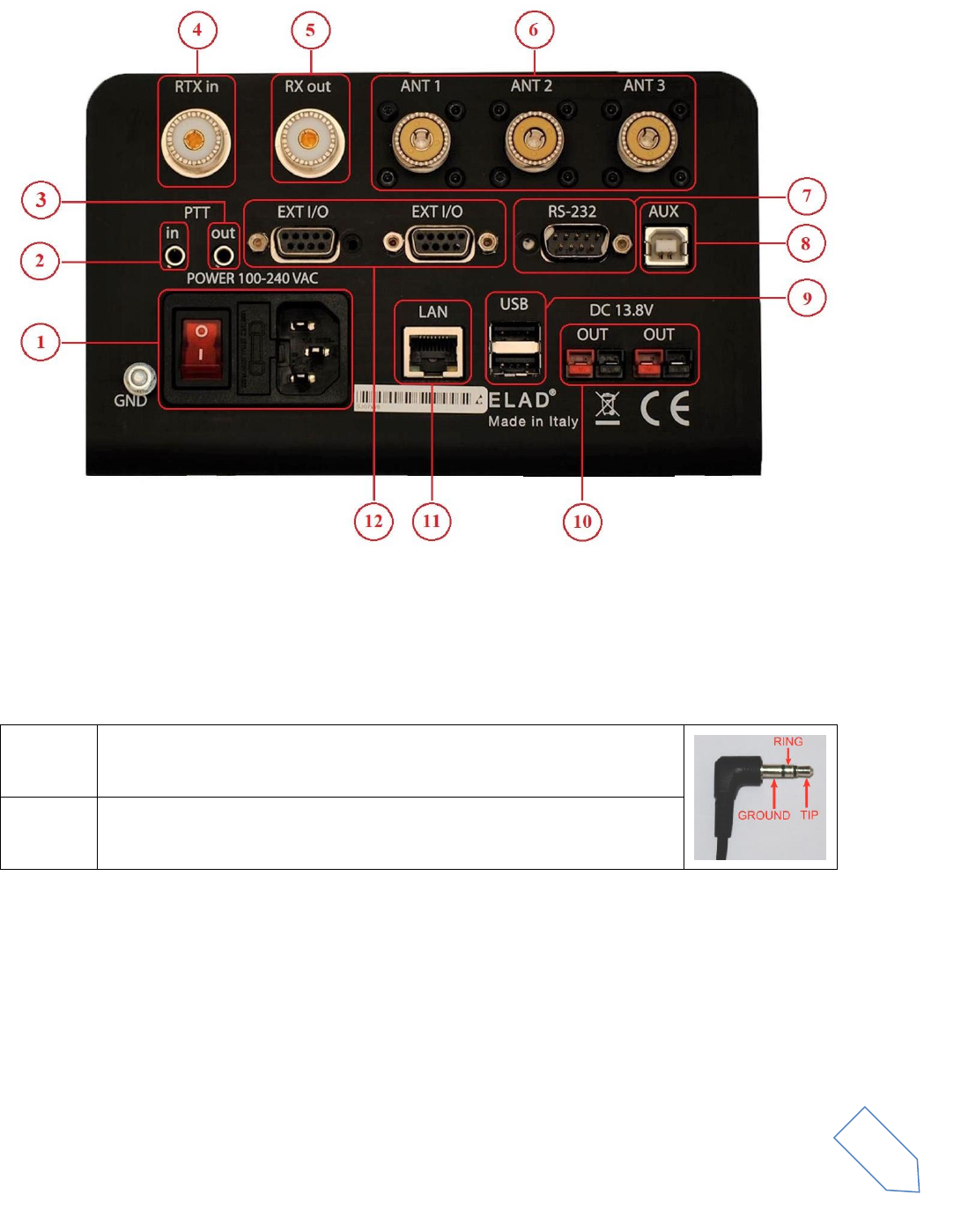

2.2 Rear Panel Description
1 - Main power supply
Power switch, fuse holder and 100-240Vac power supply connector. Insert the power supply cable and
use the power switch to power up the amplifier.
2/3 - PTT in/out
3.5mm jack connectors.
PTT in
Input for transmit control, connect TIP to ground to put the amplifier in
transmit state.
PTT out
The TIP goes to ground while transmitting.
RING connection is not used.
4 - RTX connection
SO-239 connector. Transmit path with the FDMDUO interface. Reception and transmit paths with the
other interfaces (Generic and FT-817).
5 - RX connection
SO-239 connector. Reception path with the FDMDUO interface.
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
7
6 - Antennas
SO-239 connectors to connect up to three antennas.
7 - RS-232 port
DB9 connector for the FT-817 interface acting on an RS-232 serial link.
8 - Reserved for service
9 - USB connection
USB type A female connectors for host type connections.
10 - Output power supply
Allows to power other devices without the need of other power units. Max 2A. Powerpole connector
type.
11 - LAN connection
RJ45 connector for LAN connection.
12 - EXT I/O
EXT I/O connection with external hardware such the FDM-DUO.
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
8
3 User Interface

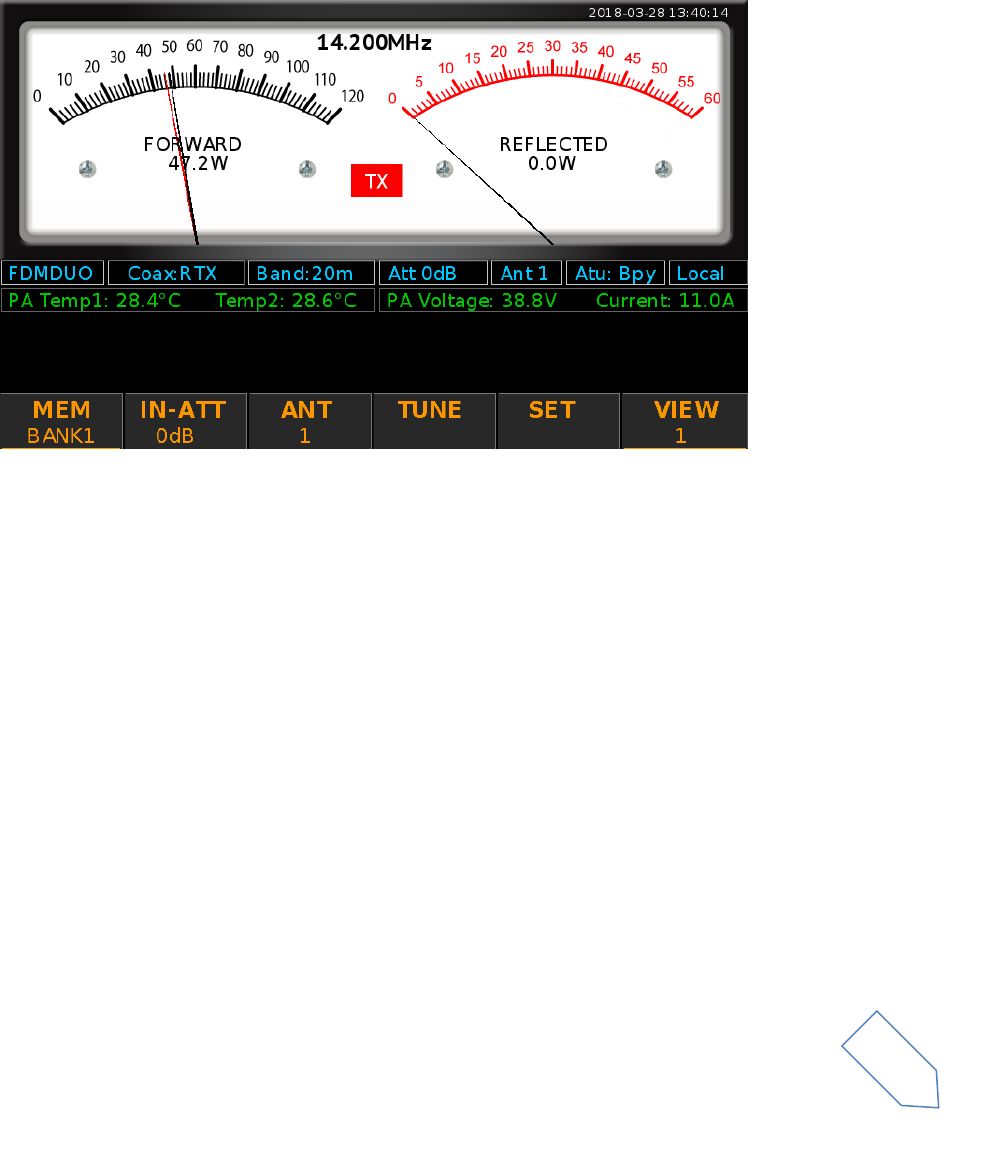

3.1 Main View
When the DUO-ART 120 is started the main view is displayed. The main view is divided in five horizontal
sections. The top one shows a graph with the current transmission power and transmission frequency.
The second section is a status bar that includes information about the current settings. The third section
is a diagnostic bar that shows some diagnostic information. The fourth section is used to show warnings.
The last section is the menu bar which is composed of six choice corresponding to the six push-buttons.
The first one and the last one have an long-press option to open other views.
The configurations are saved in memory banks, and it’s possible to switch between them pressing the
“MEM” button. The banks can be added or deleted until a maximum of 20 banks. The two underlined
button (MEM and VIEW) have a second function if pressed longer.
The “IN-ATT” button allows to choose the Stand-by mode and to set the input attenuators value (0, 2, 3
and 5 dB).
The “ANT” button allows to choose the antenna connector used to transmit.
The “TUNE” button allows to enter in the tune menu.
The “SET” button allows to enter in the settings menu.
The “VIEW” button allows to change the displayed graphic :
- View 1 : forward power and reflected power,
- View 2 : forward power and SWR,
- View 3 : forward power and input power,
- View 4 and 5 : spectrum view.
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
9

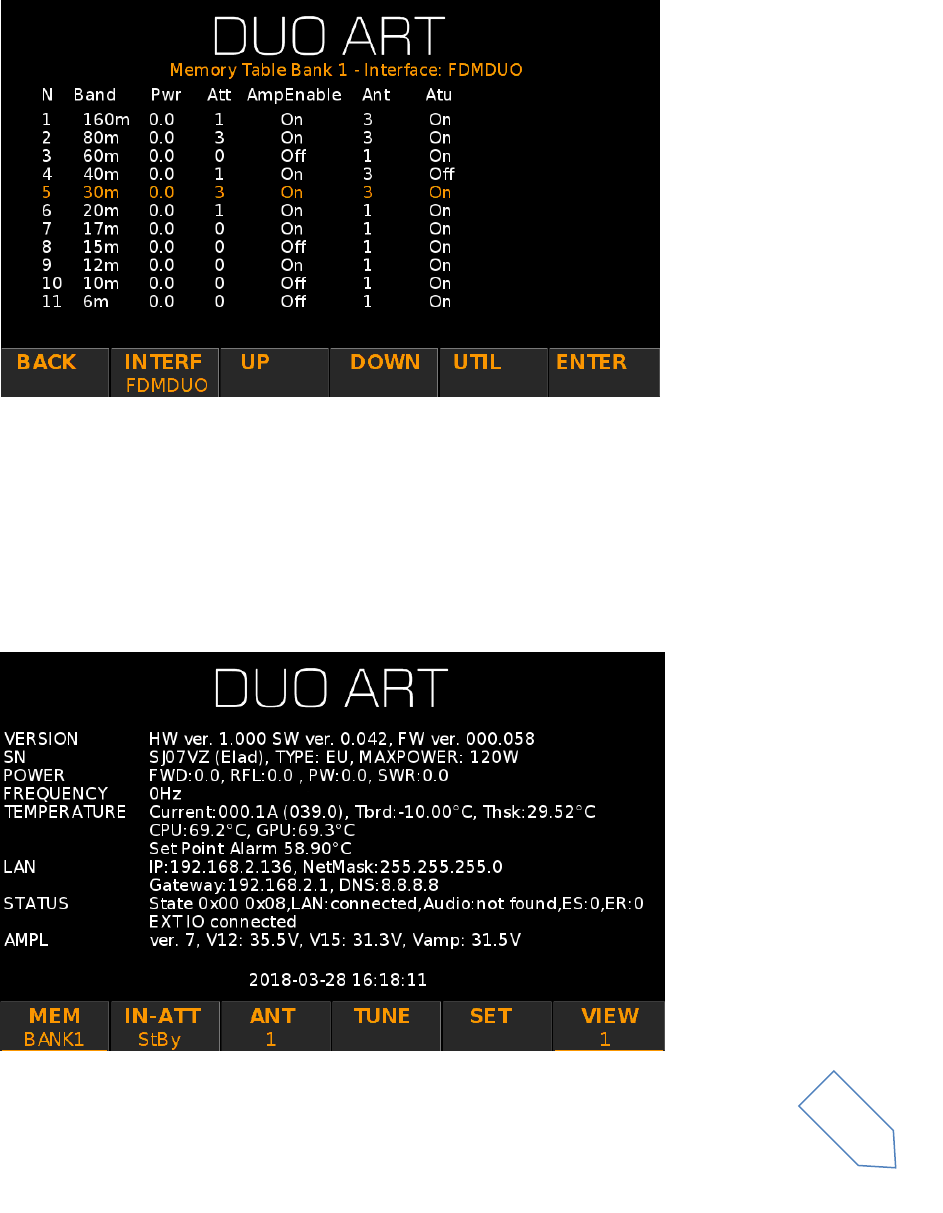

3.2 Memory Bank View
When the Main View is displayed, doing a long-press on the “MEM” button opens the Memory Bank
View that contains all the presets which can be personalized. There are different parameters and also
the possibility to change the interface used, the interfaces permit to the amplifier to work in different
ways in order to be use also if not used with the FDM-DUO.
Using the “UP” and “DOWN” button it is possible to go through the table and modify it.
3.3 Information View
When the Main View is displayed, doing a long-press on the “VIEW” button opens the Information View
which displays some information about the DUO-ART 120 amplifier.
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
10
3.4 Messages
This section provides the list of messages that can be viewed on the DUO-ART amplifier display. There
are two types of messages : warning and error. They are displayed in the lower left corner of the

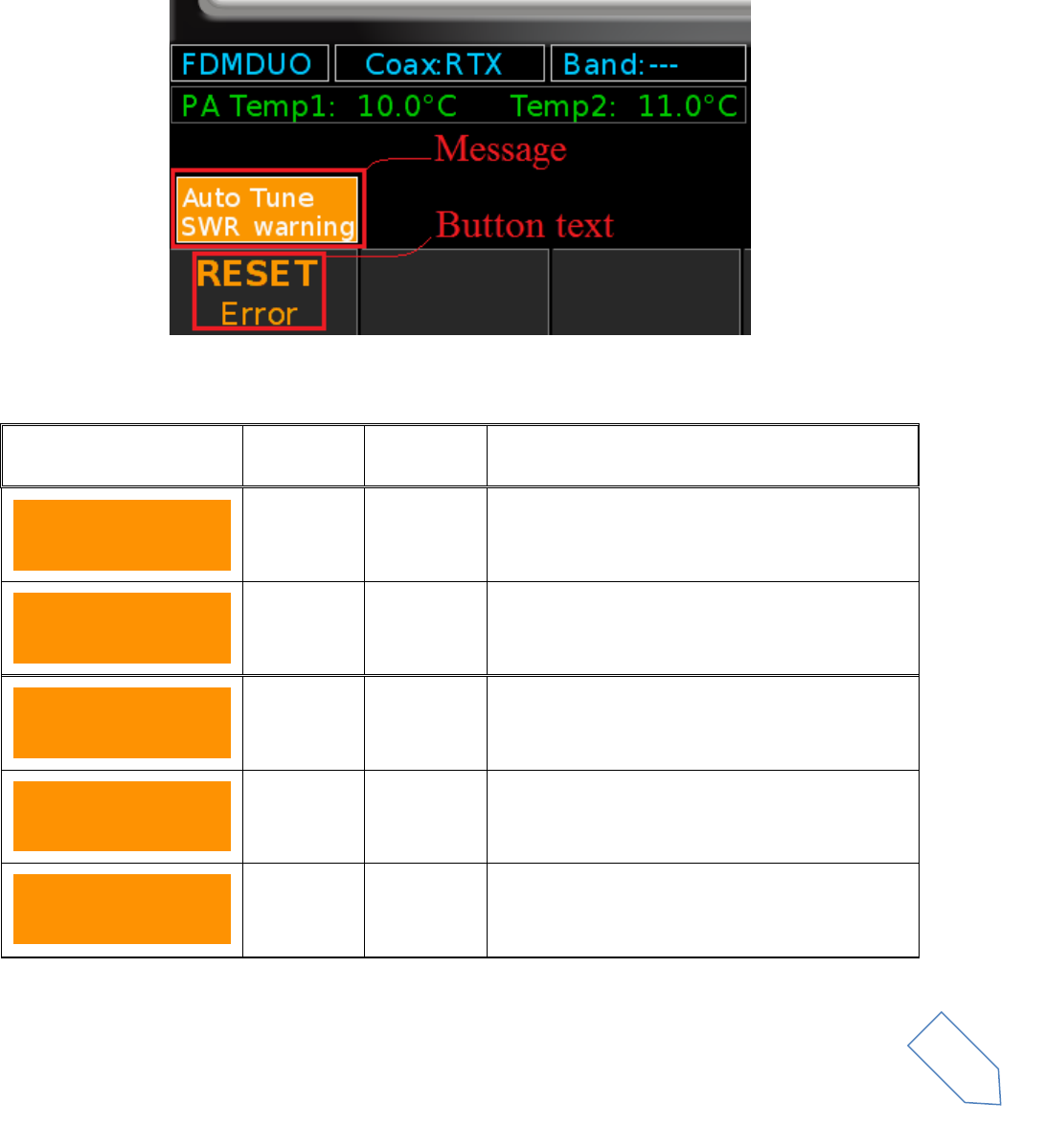

display. The image below shows the position of the message and which button to press to reset the
warning or error. More than one message may appear in the same time on the display. It is necessary to
reset the messages with the reset button before using again the DUO-ART amplifier.
The following table provides the list of all messages with their description.
Name
Type
Code
Description
Warning
W-100
-
Warning
W-101
-
Warning
W-115
The DUO-ART cannot find the sound card of the FDM-
DUO. This warning is only displayed if the REMOTE mode
is active.
Warning
W-116
Problem with receiving audio coming from the FDM-DUO.
This warning is only displayed if the REMOTE mode is
active.
Warning
W-117
Problem of audio transmission to the FDM-DUO. This
warning is only displayed if the REMOTE mode is active.
Audio write
warning
Audio read
warning
Audio
not found
Web socket
warning
No LAN
warning
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
11
Name
Type
Code
Description
Warning
W-130
The DUO-ART is in REMOTE mode but the active interface
is not FDMDUO.
Warning
W-131
Reporting a communication problem between the DUO-
ART and the FDM-DUO.
Warning
W-145
Indicates an internal communication problem. After
"warn" a code composed of alphanumeric characters is
added.
Warning
W-146
Indicates an internal problem of the operation of the
DUO-ART. This problem resolves automatically.
Warning code: ST-P10-b3.
Warning
W-147
Indicates the inability to perform an internal operation.
Warning
W-148
Automatic activation of the stand-by following an
unauthorized transmission.
Warning code: ST-P10-b2.
Warning
W-160
This warning appears when the maximum time available
for automatic tuning of the antenna expires. This time can
be set from the "AutoTune Timeout" menu.
Warning
W-161
This warning appears if the target SWR has not been
reached after the time-out has been set. This warning is
only displayed if the "Target SWR" menu is set to a value
other than 0.
Warning
W-162
The FDM-DUO has left the tuning mode (Tune) before the
DUO-ART. This warning is displayed if the tuning mode of
the FDM-DUO times out or if the FDM-DUO detects a high
SWR.
Warning
W-163
This warning appears if the DUO-ART has found a tuning
point but the calculated SWR is too high.
Warning
W-175
High temperature warning.
Error
E-400
Maximum temperature exceeded. This error cannot be
reset. It is necessary to wait for the temperature to
decrease before you can use the DUO-ART amplifier again.
High
temperature
High
temperature
Auto Tune
Max SWR
Auto Tune
DUO aborts
Auto Tune
SWR warning
Auto Tune
timeout
Band warn
StBy
CMD not
available
Micro Reset
warning
Comm
warn
DUO EXTIO
warning
DUO mode
not activated
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
12
Name
Type
Code
Description
Error
E-410
Error generated by a too high SWR. This is a hardware
protection.
Error code: ST-P2-b1.
Error
E-420
The current absorbed by the DUO-ART has exceeded the
maximum threshold.
Error code: ST-P9-b0.
Error
E-421
The calculated reflected power has exceeded the
maximum threshold.
Error code: ST-P9-b1.
Error
E-422
The calculated forward power has exceeded the maximum
threshold.
Error code: ST-P9-b2.
Error
E-423
The input power of the DUO-ART has exceeded the
maximum threshold.
Error code: ST-P9-b3.
Error
E-440
Set filter selection error. This error is generally due to an
incorrect frequency setting.
Error code: ST-P10-b0.
Error
E-441
Error regarding the input power of the amplifier. The
input power may be too high or the PTT input may not be
connected properly.
Error code: ST-P10-b1.
PWR IN
error
Error
FILTER TX
Error
SENS PW
Error
FWD
Error
REFL
Error
I OUT
HI SWR
error
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
13
Technical Specifications
AC Power Supply
100 – 240 Vac 50/60Hz
2.3A (115V)
1.2A (230V)
Frequency Range
1.8 – 30 MHz, 50 – 54 MHz
Not allowed 26 – 28 MHz (USA version)
Optimized Frequency Band
160m ->
80m ->
60m ->
40m ->
30m ->
20m ->
17m ->
15m ->
12m ->
10m ->
6m ->
1.800 – 2.000 MHz
3.500 – 4.000 MHz
5.3305 – 5.4035 MHz
7.000 – 7.300 MHz
10.100 – 10.150 MHz
14.000 – 14.350 MHz
18.068 – 18.168 MHz
21.000 – 21.450 MHz
24.890 – 24.990 MHz
28.000 – 29.700 MHz
50.000 – 54.000 MHz
Input Power
Typical 5W for 120 output (HF)
10W Maximum
Power Gain
Less than 15 dB, 14 dB typical
Output Power
Typical 100W with 5W input (160m band)
Typical 120W with 5W input (80-10m band)
Typical 100W with 5W input (6m band)
Output Harmonic / Spurious Distortion
> 50 dBc in HF band Typically 60 dBc
> 65 dBc in 6m band Typically 68 dBc
Meterering
Output Power, Input Power, VSWR,
Drain Current, Drain Voltage, Temperature
Ports
RTX Input Connector (SO239)
RX Input Connector (SO239)
PTT Input Connector (3.5 mm)
PTT Output Connector (3.5 mm)
Antenna Output 1 (SO239)
Antenna Output 2 (SO239)
Antenna Output 3 (SO239)
RF Ground
EXT I/O1 in/out Connector
EXT I/O2 in/out Connector
RS233 Connector
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
14
USB Connector (AUX)
LAN Connector
USB host1
USB host2
DC OUT1 Connector (Powerpole)
DC OUT2 Connector (Powerpole)
AC Power In Connector
Dimensions (H x W x L)
1100 mm x 1800 mm x 3150 mm
Weight
5 Kg
ELAD DUO-ART 120 User Manual - Rev. 1.1 - 04/2018
© 2018 ELAD S.r.l. All rights reserved. No part of this document may be reproduced, published, used, disclosed or disseminated
in any form or by any means, electronic, photocopying or otherwise, without prior written permission of ELAD S.r.l.
15
Product Warranty
ELAD S.r.l. warrants the DUO-ART 120 for a period of 2 years inside Europe, and for a period of 1 year
outside Europe unless otherwise specified. Warranty begins from the purchase date. All DUO-ART 120
will be repaired or replaced due to malfunction resulting from no fault of the end user. This warranty
covers normal intended usage of the product and does not cover misuse, abuse, accidents, viruses,
unauthorized service parts or the combination of other unauthorized branded products used in
conjunction with the DUO-ART 120.
