REVISED USERS MANUAL

Preface



The information in this document is subject to change without prior

notice in order to improve reliability, design and function and does not

represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special,

incidental, or consequential damages arising out of the use or inability to

use the product or documentation, even if advised of the possibility of

such damages.

This document contains proprietary information protected by copyright.

All rights are reserved. No part of this manual may be reproduced by any

mechanical, electronic, or other means in any form without prior written

permission of the manufacturer.

Trademarks

AutoCAD and Autoshade are trademarks of Autodesk, Inc. IBM, OS/2,

and VGA are trademarks of International Business Machines Corp. Lotus,

1-2-3, and Symphony are trademarks of Lotus Development Corp.

Windows, Word, MS-DOS, and Microsoft are trademarks of Microsoft

Corp. VESA is a trademark of Video Electronics Standards Association.

Other product names mentioned herein are used for identification

purposes only and may be trademarks and/or registered trademarks of

their respective companies.

Limitation of Liability

While reasonable efforts have been made to ensure the accuracy of this

manual, the manufacturer and distributor assume no liability resulting

from errors or omissions in this manual, or from the use of the

information contained herein.

Notices

Federal Communications Commission Radio Frequency

Interference Statement

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate

radio frequency energy and if not installed and used in

accordance with the instruction manual may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected

• Consult the dealer or an experienced radio TV technician for help

Notice:

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

Shielded interface cables and a non-shielded AC power cord must be used

in order to comply with emission limits.

This equipment is to be used with power supply:

I/P: 100-240 Vac, 50-60Hz, 2.5A

O/P: 19Vdc, 7.9A

There is no internal power supply.

iii

Table of Content

Before you Start........................................................................... 1

Conventions of This Manual ............................................................. 1

Regulatory Statement Sample............................................................ 1

Safety Precautions............................................................................. 3

Wichtige Sicherheitshinweise ........................................................... 5

Things you must remember before working on your computer.......... 8

Introduction.................................................................................11

Welcome to the Notebook PC ........................................................... 11

Unpacking the Notebook................................................................... 11

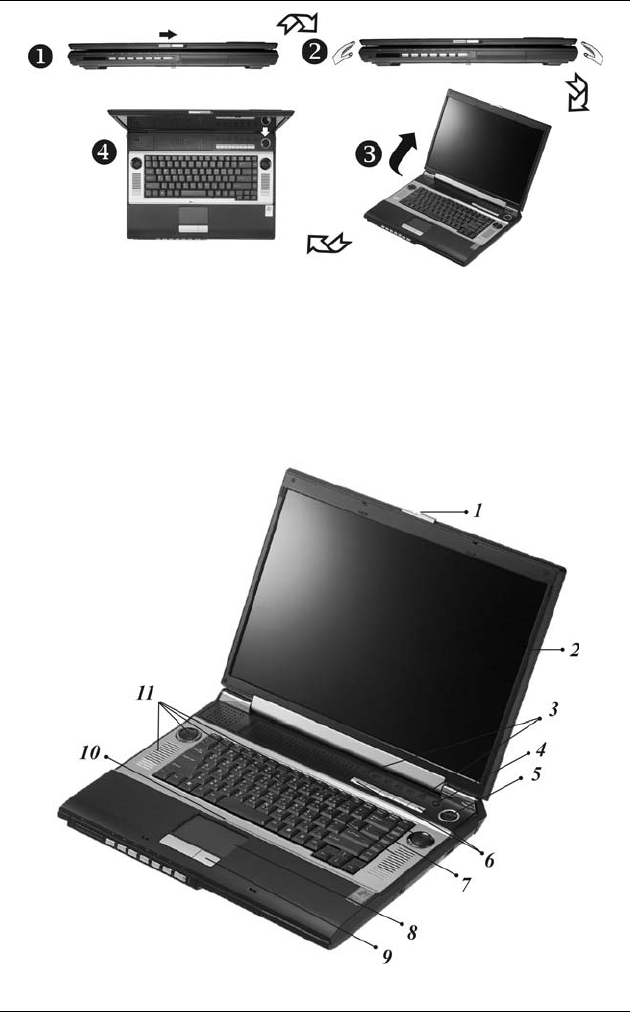

Getting to Know Your Computer ...................................................... 11

Getting Started............................................................................19

Connecting to a Power Source .......................................................... 19

Turning On Your Notebook Computer.............................................. 20

Inserting and Removing the Battery Pack.......................................... 21

Charging the Battery Pack................................................................. 22

Using the Notebook Computer ..................................................23

Adjusting the LCD Screen Display ................................................... 23

The TouchPad................................................................................... 25

Data Storage and Retrieval................................................................ 26

Power Saving Modes......................................................................... 28

Resetting the System......................................................................... 31

Desktop Operation......................................................................33

Audio................................................................................................ 33

Connecting Peripheral Devices ......................................................... 34

Internet Connection ....................................................................35

Using Both DHCP and Static IP for Connection to Internet .............. 38

Using Wireless LAN Network for Connection to Internet (Microsoft’s

Service Pack 2) (Optional) ................................................................ 40

Configuring and Maintaining your System ...............................41

Introduction ...................................................................................... 41

Raid Setting (Option) ..................................................................49

Raid Setting (If Your System Supports RAID).................................. 49

Installing the System OS................................................................... 50

Microsoft Center Edition (MCE) (Option) .................................53

Windows XP Media Center Edition (MCE)....................................... 53

MCE Application Sound Adjustment ................................................ 54

If you are using MCE’s “My TV” application ................................... 54

If you are using InterVideo’s WinDVR application........................... 55

Playing Live TV on an MCE............................................................. 56

The Software Utilities Disks .......................................................59

Viewing Live Video (OPTION) ....................................................71

Using the Remote Control................................................................. 71

WinDVR Mode................................................................................. 71

Defining the Video Source................................................................ 72

Limitation when playing DVD files .................................................. 75

Troubleshooting..........................................................................79

Locating a Problem ........................................................................... 79

Checking Cables and Connections .................................................... 79

The Power-On Self Test.................................................................... 80

General Hardware Problems.............................................................. 81

Contacting Your Dealer .................................................................... 83

How do I Expand my Notebook..................................................85

Upgrading your Memory................................................................... 86

Upgrading your VGA........................................................................ 86

Upgrading your CPU......................................................................... 87

Easy to Upgrade HDD Module.......................................................... 87

Specification ...............................................................................89

Detailed Notebook Specifications ..................................................... 89

Canadian DOC Notice For Class B Computing Devices

This Class B digital apparatus meets all requirements of the

Canadian Interference - Causing Equipment Regulations.

Cet appareil numerique de la classe B repecte toutes les

exigences du Règlement sur le matèriel brouilleur du Canada.

Personal Inventory

This Notebook computer system is designed for years of

productive and pleasurable computing. Use this section to keep

notes about details of your purchase. Update this section when

you add new options.

Date of Purchase:

Dealer’s Name:

Phone:

Address:

E-Mail Address:

WWW Site:

Serial Number:

CPU Type:

Hard Disk Capacity:

Memory Capacity:

Optional Equipment:

※User’s manual: Please include a statement as follows:

“Operations in the band 5.15-5.25GHz are restricted to

indoor usage only”

Before you Start

Conventions of This Manual

Use this manual will help you get the most from your notebook computer.

• If you are an experienced user of computers and/or Microsoft’s

Windows operating systems, you might find it useful to read the

Quick Start Guide that comes along with your accessories.

• If you are a less experienced user, you should through the manual

carefully before using your system.

Whether or not you are an experienced user, you should consult on the

Troubleshooting Chapter if you encounter any problems with your

notebook.

Regulatory Statement Sample

SAFETY COMPLIANCE NOTICE

This device has been tested and certified according to the following safety

standards and is intended for use only in Information Technology

Equipment which has been tested to these or other equivalent standards:

• EN 60950-1

EUROPE – EU DECLARATION OF CONFORMITY

Hereby, xxx Corporation, declares that this Product is in compliance with

the essential requirements and other relevant provisions of Directive

1999/5/EC.

EUROPE – RESTRICTIONS FOR USE OF 2.4GHZ FREQUENCIES IN EUROPEAN

COMMUNITY COUNTRIES

This device may be operated indoors or outdoors in all countries of the

European Community using the 2.4GHz band: Channels 1 – 13, except

where noted below.

• In Italy the end-user must apply for a license from the national

spectrum authority to operate this device outdoors.

• In Belgium outdoor operation is only permitted using the 2.46 –

2.4835 GHz band: Channel 13

• In France outdoor operation is only permitted using the 2.4 –

2.454 GHz band: Channels 1 – 7

EUROPE – RESTRICTIONS FOR USE OF 5GHZ FREQUENCIES IN EUROPEAN

COMMUNITY COUNTRIES

Allowed

Frequency Bands

Allowed Channel

Numbers

Countries

5.15-5.25GHz 36, 40, 44, 48 Austria

5.15-5.35GHz 36, 40, 44, 48, 52,

56, 60, 64

Cyprus, Czech

Republic, France,

Hungary, Slovakia

5.15-5.35 &

5.470-5.725GH z

36, 40, 44, 48, 52,

56, 60, 64, 100,

104, 108, 112,

116, 120, 124,

128, 132, 136,

140

Belgium, Bulgaria,

Denmark, Estonia,

Finland, Germany,

Greece, Iceland,

Ireland, Italy,

Latvia,

Liechtenstein,

Lithuania,

Luxembourg,

Malta,

Netherlands,

Norway, Poland,

Portugal,

Slovenia, Spain,

Sweden,

Switzerland, U.K.

• This device may not be operated outdoors when using the bands

5150-5350MHz (Channels 36, 40, 44, 48, 52, 56, 50, 64).

• In Italy the end-user must apply for a license from the national

spectrum authority to operate this device outdoors.

• To remain in conformance with European spectrum usage laws for

Wireless LAN operation, the above 5GHz channel limitations apply.

The user should check the current channel of operation. If

operation is occurring outside of the allowable frequencies as listed

above, the user must cease operating at that location and consult

the local technical support staff responsible for the wireless

network.

• The 5GHz Turbo mode feature is not allowed for operation in any

European Community country

• This device must not be operated in ad-hoc mode using channels in

the 5GHz bands in the European Community. Ad-hoc mode

provides a direct communication between two client devices

without a Wireless LAN Access Point.

This device must be used with Access Points that have employed and

activated a radar detection feature required for European Community

operation in the 5GHz bands. This device will operate under the control

of the Access Point in order to avoid operating on a channel occupied by

any radar system in the area. The presence of nearby radar operation may

result in temporary interruption in communications of this device. The

Access Point’s radar

You may consult with the local technical support staff responsible for the

wireless network to ensure the Access Point device(s) are properly

configured for European Community operation.

Safety Precautions

This section is designed to assist you in identifying potentially unsafe

conditions while working with this product. Required safety features have

been installed in the computer to protect you from injury. However, you

should use good judgment to identify potential safety hazards:

1. Please read these safety instructions carefully.

2. Please keep this User's Manual for later reference.

3. Please disconnect this equipment from AC outlet before cleaning.

Don't use liquid or sprayed detergent for cleaning. Use moisture

sheet or cloth for cleaning.

4. For pluggable equipment, that the socket-outlet shall be installed

near the equipment and shall be easily accessible.

5. Please keep this equipment from humidity.

6. Lay this equipment on a reliable surface when installed. A drop or

fall could cause injury.

7. Make sure to use the right voltage for the power source when

connecting the equipment to the power outlet.

8. Place the power cord in such a way that people can not step on it.

Do not place anything on top of the power cord.

9. All cautions and warnings on the equipment should be noted.

10. If the equipment is not use for a long time, disconnect the equipment

from the main power outlet to avoid being damaged by transient

overvoltage.

11. Never pour any liquid into the opening, this could cause fire or

electrical shock.

12. Never open the equipment. For safety reason, the equipment should

only be opened by a qualified service personnel.

13. If on the following situations arises, get the equipment checked by a

service personnel:

a. The Power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment has not worked well or you cannot get it work

according to the user's manual.

e. The equipment has dropped and damaged.

f. If the equipment has obvious sign of breakage.

14. Do not leave this equipment in an environment unconditioned,

storage temperature above 60°C (140°f), it may damage the

equipment.

15. The unit can be operated at an ambient temperature of max. 35°C.

16. The sound pressure level at the operators position according to IEC

704-1: 1982 is equal or less than 70 dB(A).

17. Power Cord Requirements

The power cord set used with the AC adaptor must meet the

requirements of the country where you use the AC adaptor, whether

it is 100-120 or 200-240 Vac. The following information explains

the requirements for power cord set selection.

 The cord set must be approved for the country in which

it is used.

 The appliance coupler must have a configuration for

mating with a CEE22/EN6032/IEC 320 appliance inlet.

A. For U.S. and Canada:

 The cord set must be UL Listed and CSA Certified.

 The minimum specifications for the flexible cord are

No. 18 AWG.

B. For Japan:

 All components of the cord set must bear a “PSE” or

“ T ” mark and registration number in accordance with

the Japanese Dentori Law.

 The minimum specifications for the flexible cord

are .75m ㎡ conductors.

C. For Other Countries:

 The cord set fittings must bear the certification mark of

the agency responsible for evaluation in a specific

country.

 The flexible cord must be of a HAR (harmonized) type

H05VV-F.

 The cord set must have a current capacity of a least 2.5

Amperes and voltage rating of 125 or 250 Vac.

18. When using your telephone equipment, basic safety precautions

should always be followed to reduce the risk of fire, electric shock

and injury to persons. These precautions includes the following:

• Do not use this product near water, for example, near a

bathtub, washbowl, kitchen sink or laundry tub, in a wet

basement or near a swimming pool.

• Avoid using a telephone (other than a cordless type)

during an electrical storm. There may be a remote risk of

electric shock from lightning.

• Do not use the telephone to report a gas leak in the

vicinity of the leak.

• Use only the power cord indicated in this manual.

19. Do not use the AC adapter near open water or other liquids. Never

spill liquid into the AC adapter.

20. Laser Warning: Laser Class I Product Caution - Invisible laser

radiation when open avoid exposure to beam.

21. Danger of explosion if battery is incorrectly replaced. Replace only

with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer's

instructions. Never remove the battery pack while the power is on as

this may result in data loss when the system loses power.

22. The input receptacle is used as the main disconnecting device.

Wichtige Sicherheitshinweise

1. Bitte lesen Sie diese Hinweis sorgfältig durch.

2. Heben Sie dirse Anleitung für den späteren Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen.

Versenden Sie Keine Flüssig- oder Aerosolreiniger. Am besten

eignet sich ein angefeuchtetes Tuch zur Reinigung.

4. Die Netzanschluβsteckdose soll nahe dem Gerät angebracht und

leicht zugänglich sein.

5. Das Gerät ist vor Feuchtigkeit zu schützen.

6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten.

Ein Kippen oder Fallen könnte Beschädigungen hervorrufen.

7. Beachten Sie beim Anschluß an das Stromnet die Anschlußwerte.

8. Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen

kann. Es sollte auch nichts auf der Leitun abgestellt werden.

9. Alle Hinweise und Warnungen, die sich am Gerät befinden, sind zu

beachten.

10. Wird das Gerät üeinen längeren Zeitraum nicht benutzt, sollten Sie

es vom Stromnetz trennen. Somit wird im Falle einer Überspannung

eine Beschädigung vermieden.

11. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder

Flüssigkeien in das Gerät gelangen. Dies könne einen Brand bzw.

Elektrischen Schlag auslösen.

12. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der

elektrischen Sicherheit nur von authorisiertem Servicepersonal

geöffnet werden.

13. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu

trennen und von einer qualifizierten Servicestelle zu Überprüfung.:

a. Netzlabel oder Netzstecker sind beschädigt.

b. Flüssigkeit ist in das Gerät eingedrungen.

c. Das Gerät war Feuchtigkeit ausgesetzt.

d. Wenn das Gerät nicht der Bedienungsanleitung entsprechend

funktioniert oder Sie mit Hilfe dieser Anleitung keine

Verbesserung erzielen.

e. Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.

f. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.

14. VORSICHT: Explosiongsgetahr bei unsachgemäßen Austausch der

Batterie. Ersatz nur durch denselben oder einem vom Hersteller

empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien

nach Angaben des Herstellers.

15. Dieses Schaltnetzteil kann bis zu einer Außentemperatur von

maximal 35ºC.

16. Die Ausgangswerte dürfen nicht die auf dem Label angegebenen

Werte überschreiten.

17. Anforderungen an das Stromkabel

Das Kabel-Set, das an das Netzteil angeschlossen wird, muss den

Anforderungen des Landes, in dem Sie das Netzteil einsetzen,

genügen, je nachdem, ob die Netzspannung 100-120 oder 200-240V

Wechselspannung beträgt.

 Das Kabel-Set muss für das Land, in dem es eingesetzt

wird, zugelassen sein.

 Der Gerätestecker des Kabels muss in eine CEE22/

EN603/ IEC 320 Buchse passen.

A. Für die USA und Kanada:

 Das Kabel-Set muss UL-gelistet und CSA zertifiziert

sein.

 Die Minimalanforderungen für das Kabel entsprechen

No. 18 AWG.

B. Für Japan:

 Alle Teile des Kabel-Sets müssen entsprechend dem

japanischen Dentori Law mit einem „PSE“ or „T”-

Symbol markiert sein

 Die Minimalanforderungen für das Kabel sind .75m ㎡

Leiter.

C. Für andere Länder:

 Die Zubehörteile des Kabel-Sets müssen das Prüfsiegel

derjenigen Stelle, die in dem jeweiligen Land für die

Sicherheitsprüfung zuständig ist, tragen.

 Das Kabel muss vom HAR (harmonisierten) Typ

H05VV-F sein.

 Das Kabel-Set muss eine Stromkapazität von

mindestens 2,5 Ampere haben und Spannungen von

125 oder 250 V Wechselstrom gestatten.

18. Bei der Benutzung Ihres Telefongerätes sollten Sie immer die

grundlegenden Sicherheitsmaßnahmen beachten, um das Risiko von

Feuer, Stromschlägen und Verletzungen zu minimieren. Zu beachten

sind u.a. folgende Punkte:

• Benutzen Sie das Gerät nicht in der Nähe von Wasser,

wie zum Beispiel Badewanne, Waschbecken, Spülbecken,

Waschbottich, in feuchten Kellerräumen oder in der Nähe

von Schwimmbecken.

• Benutzen Sie kein Telefon (ausgenommen schnurlose

Modelle) während eines Gewitters. Es besteht das

geringe Restrisiko eines Blitzschlages.

• Benutzen Sie das Telefon nicht um ein Gasleck zu

melden, falls es sich in der Nähe des Lecks befindet.

• Benutzen Sie nur solch ein Stromkabel, wie in dieser

Anleitung beschrieben.

19. Benutzen Sie das Netzteil nicht in unmittelbarer Nähe zu Wasser

oder anderen Flüssigkeiten. Gießen Sie nie Flüssigkeiten über das

Netzteil.

20. Achtung Laser: Laser Produkt der Klasse I. Achtung - Unsichtbarer

Laserstrahl, vermeiden Sie Kontakt mit dem Strahl bei offenem

Gehäuse.

21. Es besteht Explosionsgefahr, wenn der Akku nicht ordnungsgemäß

ersetzt wird. Ersetzen Sie den Akku nur durch einen Akku gleichen

oder äquivalenten Typs, der vom Hersteller empfohlen wird.

Entsorgen Sie Akkus entsprechend den Anweisungen des Herstellers.

Entfernen Sie den Akku auf keinen Fall bei eingeschaltetem

Notebook, da hierdurch Daten verloren gehen könnten.

22. Der Netzeingabeanschluss dient als Hauptschalter des Geräts.

Things you must remember before working on your

computer

Let your computer acclimate itself

Your notebook can easily stand temperature extremes but it doesn’t like

rapid changes in temperature, like going from the cold outdoors to a

warm office. Rapid changes in temperature can cause water droplets to

condense inside your case, threatening to damage the electronic parts

inside.

After receiving your notebook when it’s hot or cold outside, try not to

power up the computer immediately, let the computer adjust to the room

temperature gradually at least for three to four hours.

If your system arrives in cold weather, do not apply power to

the computer or monitor until they have been allowed to come

to room temperature.

Heat, Cold, Humidity, and Glare

Find a suitable place for your computer that’s not too hot, too cold, too

dark, or too bright. Glare can make it hard to read the screen.

• Try to avoid the computer components from being destroyed if it is

over heated, so try to allow plenty of room for air to circulate

around the case.

• Do not block the ventilation opening.

• Do not place your computer in direct sunlight.

Suitable place to work

Your computer will run well wherever you’re comfortable but extremes

of temperature and humidity can be challenging to your system’s parts.

There are some things you can tolerate that the computer can’t – things

like static electricity, dust, water, steam and oil. In case you decide to

pull over for roadside computing, try to choose a clean, comfortable work

area for your system.

A lithium-ion battery pack will be available when you are traveling. If

you are running your system for the first time on battery power, remove

the battery from the package, install it into the system and recharge the

battery to fully prepare for service.

Page intentionally left blank

Introduction

Welcome to the Notebook PC

Congratulations on your purchase of the Notebook PC. Your Notebook

features the latest advances in portable computing technology. The

Notebook’s modular design provides maximum expandability without

compromising portability. The high-performance CPU and enhanced IDE

hard drive provides you with extra processing power for handling

complex graphics and running large programs.

Unpacking the Notebook

The Notebook comes securely packaged in a sturdy cardboard shipping

carton. Upon receiving your Notebook, open the carton and carefully

remove the contents. If anything is missing or damaged, please contact

your Notebook dealer immediately. The shipping carton should contain

the following items:

• The Notebook computer

• An AC adapter

• An AC power cord

• Software Drivers CD

Do not throw the packaging materials away. You may need them later if

you have to ship the computer for repairs.

Because the Notebook computer is available in different

configurations, some of the features mentioned in this manual

might not be included on your computer or may differ slightly.

Getting to Know Your Computer

Opening the LCD Panel

At the front of the Notebook you will find a retaining latch on the display

panel that locks the display in closed position when the Notebook is not

in use.

To avoid damage to the display panel:

1. Try not to slam the display upon closing it.

2. Try not to place any object on top when it is closed or open.

3. Be sure the system is turned off or in suspend mode before you

close the display panel.

With the LCD screen open, you will see several features important for

operating your Notebook computer. Each of these features is briefly

described below:

1. LCD Cover Release Latch

2. LCD Screen

3. System Status Indicator Panel

Expess Card

access 2.

Hard Disk

access

Optical drive

access 4.

NumLock

mode

CapsLock

mode 6.

ScrollLock

mode

4. Wireless LAN Switch Button

5. Power/Resume Button

6. Short-cut Keys

Please noted that the Music/DVD/TV function will only be

applicable when the InterVideo applications on the Support

CD is installed into your system.

The Outlook/Explorer application will automatically installed

after the Windows OS is installed in your system.

Music Button (Launch the WinRIP

application)

2. DVD Button (Launch the WinDVD

application)

TV Button (Launch the WinDVR application)

4. Outlook Express Button

5. Internet Explorer Button

7. Keyboard

8. TouchPad

9. TouchPad Buttons

10. The Built-in Microphone

11. Stereo Speakers

The Front Side

1. Infrared Remote Control

2. The Stop Button

3. The Previous Track Button

4. The Play/Pause Button

5. The Next Track Button

6. The Volume Down Button

7. The Volume Up Button

8. Audio DJ Power Button

You will not be able to use this button to turn off the Windows

based CD Player application when the notebook computer is

in operation. This application only applies when the system is

off or on AC mode.

The Left Side

1. DC-in jack

2. 1394 slot

3. CardReader

4. Express Card Slot

5. USB Ports

LED Indicators

1. Battery Charge

This LED will light when the battery is in charging mode.

2. Suspend

This LED will light when the system is in suspend mode.

3. Power On

This LED will light when the system is power on.

The Right Side

1. Headphone Jack

2. Optical Drive

The Rear

1. MIC-in (Side-surround speaker)

2. Front Speaker Jack

3. Rear Speaker Jack

4. Bass & Center Speaker Jack

5. S/PDIF Out Optical Jack

6. LAN Port

When using a LAN, please use an EMI Shielding Cable to

minimize an inteference when transmitting.

7. Modem Port

Always disconnect all telephone lines from the wall outlet

before servicing or disassembling this equipment. To reduce

the risk of fire use only No. 26 AWG or larger

telecommunication line cord.

8. USB Ports

9. TV Out (S-Video) Port

10. Ventilation Opening

11. MCE

12. TV Signal Input

Before connecting the cable into the connector, be sure to

remove first the cover on the TV signal connector at the rear

of the computer with the aid of a screw driver.

13. External CRT Port

14. Kensington Lock

The Bottom Panel

1. Hard Disk Drive

2. Battery

3. Battery Release Latch

4. CPU/Expansion Compartment

5. Optical Drive Release Latch

6. Optical Drive

Page intentionally left blank

Getting Started

Connecting to a Power Source

Connecting the AC Adapter

A universal AC adapter is provided to supply your computer with power

and also charge the computer’s battery pack. The adapter’s AC input

voltage can range anywhere from 100 to 240 volts, covering the standard

voltages available in almost every country.

The power cord for the AC adapter requires a three-hole grounded AC

outlet. To connect the computer to an external power source:

Do not use inferior extension cords as this may result in

damage to your Notebook. The Notebook comes with its own

AC adapter. Do not use a different adapter to power the

computer and other electrical devices.

Whenever possible, keep the AC adapter plugged into the Notebook and

an electrical outlet to recharge the battery.

Never turn off or reset your Notebook while the hard disk is in

use and the CD-ROM status icon is lit; doing so can result in

loss or destruction of your data. Always wait at least 5

seconds after turning off your Notebook before turning it back

on; turning the power on and off in rapid succession can

damage the Notebook’s electrical circuitry.

Turning On Your Notebook Computer

Turn on your Notebook by pressing the power button. Hold the button

down for a 1 or 2 seconds and release. The Power-On Self Test (POST)

runs automatically.

After the POST is completed, the computer reads the operating system

from the hard disk drive into computer memory (this is commonly

referred to as “booting” a computer). If your OS (Operating System such

as Windows XP etc) is installed, it should start automatically.

To turn the Notebook off, save your work and close all open applications,

click on Start, then select the “Turn off the computer”. A selection box

will be displayed and click on the “Turn Off” button to shut down your

computer.

When your computer hangs up, press the power button for 4-

6 seconds to shut down the computer.

Operating on Battery Power

Your computer comes with a rechargeable battery pack that lets you

operate the computer without an external power source. When the battery

pack is fully charged, you can operate the computer for approximately 2.5

hours under the following conditions:

• The battery pack initially has a full charge.

• No peripheral devices are installed.

• The disk/DVD-ROM drives run no more than 10% of the time.

Only use batteries that are approved by an authorized dealer

for this model only. All batteries are not the same and

therefore should not be treated as such. Using the wrong

battery could cause serious damage to your computer and

yourself through toxic emissions.

Inserting and Removing the Battery Pack

The battery pack should already be inserted in your Notebook computer

when you unpack it. If not inserted, follow these directions:

1. Turn over the notebook with the front of the unit facing you and

place it on a solid, flat surface.

2. Angle the battery into the bay. The front edge of the battery should

slide into the grooves in the system case.

3. Gently lower the battery into the bay and push it until it clicks

securely in the bay.

To remove the battery pack:

1. Turn off the notebook, and disconnect the AC adapter. Close the

LCD panel and turn it over and place it on a solid, flat surface.

2. Lift the release latch to release the battery from the bay. At this time

the battery will now be angled slightly out of the bay.

3. Hold the battery at the finger grip and lift it out of the compartment.

Charging the Battery Pack

The installed battery pack charges automatically any time the computer is

connected to the AC adapter and an external power source.

If this is your first time to use the battery, be sure to fully discharge the

battery and recharged until it is fully charged.

Using the Notebook Computer

Adjusting the LCD Screen Display

The LCD screen display can be adjusted by the following key

combinations.

KEYS FUNCTIONS

[Fn] + [F7] Decreases the brightness level.

[Fn] + [F8] Increases the brightness level.

[Fn] + [F10] Use this key combination to expand your video

screen or toggle to its original size.

[Fn] + [F12] This key combination toggles the display between

the LCD, CRT, simultaneous LCD/CRT, TV,

simultaneous LCD/TV

LCD Care

LCD screens are delicate devices that need careful handling. Please pay

attention to the following precautions:

• When you are not using the computer, keep the LCD screen closed

to protect it from dust.

• If you need to clean your LCD screen, use a soft tissue to gently

wipe the LCD surface.

• Do not put your fingers or sharp objects directly on the surface and

never spray cleaner directly onto the display.

• Do not press on, or store any objects on the cover when it is closed.

Doing so may cause the LCD to break.

External CRT Display

You can hook up an external monitor through the 15-pin CRT connector.

• LCD only

• CRT only

• Simultaneous display of the LCD screen and CRT monitor

• TV only

• Simultaneous display of the LCD screen and TV screen

You can switch between these display configurations by pressing the key

combination [Fn] + [F12]. For information on connecting an external

display, please refer to Chapter Four.

A Tour of the Notebook’s Keyboard

The Notebook’s keyboard uses a standard QWERTY layout with the

addition of special function keys and an embedded numeric keypad for

number intensive data entry. Your keyboard supports Windows by

incorporating the two Windows specific keys.

With the two Windows keys you will be able to access and take

advantage of many of the timesaving features of Windows software. The

function keys (F1-F12) on the top row of the keyboard, serve different

purposes and carry out different tasks depending on the application you

are running.

The cursor (arrow) keys (which are all located in the lower right corner of

your keyboard) and the [PgUp], [PgDn], [Home] and [End] keys (which

are located along the right edge of the keyboard) allow you to move the

active cursor of the computer to various locations on the screen or within

the document.

The embedded numeric keypad consists of 15 keys that make number

intensive input more convenient. Like the [Num Lock] key, these keys are

labeled in blue on the keycaps. Numeric assignments are located at the

upper right of each key.

When the numeric keypad is engaged, the NumLock icon will appear in

the System Window. The keypad is activated by pressing the [Fn] +

[NumLk] key. If an external keyboard is connected, pressing the

NumLock key on either the Notebook or external keyboard will

enable/disable NumLock of both keyboards in unison.

To disable the Notebook numeric keypad while keeping the keypad on an

external keyboard activated, use the [Fn] + [NumLk] hot key on the

Notebook keyboard.

The Notebook’s Hot Key Controls

KEYS FUNCTION(S)

Power Button Press this button once to power on or enter

the suspend/resume mode.

Press this button for more than 4 seconds to

power off the system.

[Fn] + [F2] This key combination turns on/off the

KEYS FUNCTION(S)

volume.

[Fn] + [F3] Decreases the speaker volume.

[Fn] + [F4] Increases the speaker volume.

[Fn] + [F5] Enable/Disable the system Touchpad

function

[Fn] + [F7] Decreases the brightness level.

[Fn] + [F8] Increases the brightness level.

[Fn] + [F10] Use this key combination to expand your

video screen or reset to its original size.

[Fn] + [F12] This key combination toggles the display

between the LCD, CRT, simultaneous

LCD/CRT, TV only, simultaneous LCD/TV

Launch Button

KEYS FUNCTION(S)

TV Button Press this button to open the TV function.

(Launch the InterVideo WinDVR application)

DVD Button Press this button to open the DVD player for

playing any DVD file (Launch the InterVideo

WinDVD application)

Music Button Press this button to open the Music

application in playing any music file (Launch

the InterVideo WinRIP application)

Internet

Button

Open the Microsoft’s IE Internet Explorer

Email Button Open the Microsoft’s Outlook

The TouchPad

The touchpad is a rectangular electronic panel located just below your

keyboard. You can use the static-sensitive panel of the touchpad and slit it

to move the cursor.

You can use the buttons below the touchpad as left and right mouse

buttons.

TouchPad Precautions

The TouchPad is a pressure sensitive device. Please take note of the

following precautions.

• Make sure the TouchPad does not come into contact with dirt,

liquids or grease.

• Do not touch the TouchPad if your fingers are dirty.

• Do not rest heavy objects on the TouchPad or the TouchPad buttons.

You can use the TouchPad with Microsoft Windows as well as non-

Windows applications.

Data Storage and Retrieval

Data storage and retrieval are two of the most fundamental tasks you will

perform when working with your computer. The Notebook is equipped

with a hard disk drive (HDD).

The HDD is removable allowing for easy upgrades.

The DVD-ROM/Combo

Features of the DVD-ROM/Combo Module

The features of the DVD-ROM/Combo drive are listed below.

• The Audio Play feature allows you to play music CDs

• Front panel load/unload button

• Supports CD-DA, DVD-ROM mode 1 and mode 2, Multi-Session

Photo CD™, CD-I/Video CD (pcs.)

• Low power consumption

• 12.7mm height

Precautions for Handling DVD-ROM/Combo Discs

• Always hold the disc by the edges, avoid touching the surface.

• Use a clean, dry, cloth to remove dust, smudges, or fingerprints.

Wipe from the center outward.

• Do not write or place objects on the surface of the disc.

• Store discs in a cool dry place not to damage the disc.

• Do not use benzene, thinners, or cleaners with detergent. Only use

DVD-ROM cleaning kits.

• Do not bend or drop the discs.

Express Cards and Expansion Sockets

The Notebook features one Express Card expansion socket design to

interface with one Type 54 card.

Inserting an Express Card

Follow these instructions to insert an Express card:

1. Hold the Express card with the arrow side up and the connector side

toward the socket.

2. Align the card connectors with the socket and carefully slide into the

socket until it locks into place.

To remove an Express card push the Express Card will pop-out.

When inserting an Express card, make sure the connector is inserted in

the socket. Before ejecting a PC card, ensure that it is not being accessed

by the System.

For example, if the message “Express protect error writing Drive x” is

displayed, the user has to change the write protect switch setting on the

memory card. To change the switch setting, (a) eject the card, (b) change

the switch setting, and (c) re-insert the card.

Always disconnect all telephone lines from the wall outlet before

servicing or disassembling this equipment. To reduce the risk of fire, use

only No. 26 AWG or larger telecommunication line cord.

Power Saving Modes

This section contains information on the Notebook’s power system,

including the AC Adapter, the battery system, recharging the battery, and

tips for conserving battery power.

The power system is comprised of two parts, the AC Adapter and the

battery system. The AC Adapter converts AC power from a wall outlet to

the DC power required by the computer.

The Battery Power System

A fully charged pack will provide approximately 2.5 hours (Prescott

2.8GHz CPU, power saving mode runs battery mark 4.0.1) of battery life

depending on your system configuration application it runs.

Before using the computer on battery power for the first time, check the

battery status icon on the Windows Toolbar to make sure the battery is

fully charged.

See Battery Status later in this section for a description and explanation of

the Windows Battery icon. Charging the battery takes about 4 hours to

charge when the system is in off state. If possible, always charge the

battery completely.

Removing the Battery Pack

To remove the battery pack from its compartment, please refer to Chapter

Three, Inserting and Removing the Battery Pack.

Preparing the Battery Pack for Use

Before using the battery pack for the first time, the Smart Battery IC

within the battery pack should be calibrated in order to get accurate

reporting of remaining battery life status.

To calibrate the battery pack follows the instructions below:

1. Insert the battery into the battery compartment and turn on the

Notebook. If the battery is completely without power go to the next

step.

Otherwise, let the battery run down until the battery low-low

warning beeps are heard. The system will automatically enter

Suspend mode.

2. Turn the Notebook off. Connect the AC adapter and let the battery

fully recharge. When the battery charge indicator turns off, the

battery is fully charged.

3. Turn On the notebook, let the battery run down until the battery is in

low-low state and you hear a warning beeps. The system will

automatically enter the Suspend mode. You can now connect the AC

adapter.

4. The battery pack is now calibrated properly.

In general, using the battery until the low-low battery-warning indicator

appears and fully recharges the battery each time (full discharge/charge

cycle) will ensure the accurate reporting of the battery gauge status.

Automatic Battery Pack Charging Function

You can automatically charge the battery pack by using the AC Adapter.

The charge time is about three hours when the Notebook power is turned

off. The following table summarizes the charging modes:

Charge Mode Charge Time

Fast 4 hours with the system off or in Suspend

mode. The temperature must be 25°C or

below room temperature.

Pre-Charge A pre-charge is supplied to the Li-Ion

battery pack.

Battery Status

Windows XP has an applet in the Control Panel that will display an icon

in the Windows taskbar indicating when the Notebook is running on

battery power or is attached to the AC adapter.

This applet also displays a meter that indicates how much charge is

remaining in the battery.

Battery Low Warning

When the pack initially reaches the “Battery Low” state approximately 10

~ 15 minutes of the usable battery life is left.

You will hear an audible beep signal every 1.5 seconds alerting you to the

“Battery Low” status. When the battery power reaches the “Battery Low

Low” status the beeping sound will accelerate.

Your battery now has 1 ~ 2 minutes of battery charge remaining. You

must save your data or connect AC power immediately; otherwise, you

may lose your data.

Sound Meaning

Continuous

beeping every

1.5 seconds

Battery Low: Indicates that there is 10

to15 minutes charge remaining.

Beeping

accelerates

Battery Low Low: Indicates that there is 1

to 2 minutes of battery charge remaining.

Save your work and turn off the Notebook,

or connect the AC adapter.

When there is only one minute of battery charge remaining, the Notebook

will suspend to the HDD and power off. You should connect AC power

and resume to save your work.

Small Battery for the Real Time Clock

There is a small built-in battery pack that supplies power to the system in

order to maintain certain system information while the power is off. If the

Notebook is left without a power source for long period of time, this

battery will be exhausted and system information will be lost.

Danger of explosion if battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer. Dispose

of used batteries according to the manufacturer's instructions.

Never remove the battery pack while the power is on as this may result in

data loss when the system loses power.

Battery Calibration

The purpose for this process is to provide a longer battery life for your

system battery pack.

1. Turn on the computer, when the text appears, press [Del] or

the [Delete] key until the system enters the BIOS Setup screen,

you may now make the necessary changes.

2. Press the



arrow key until it reaches the “Exit” menu screen.

Again press the



arrow key and select the “Battery

Calibration” item.

Press the [Enter] key and disconnect the AC adapter then

press the [Y] key until you hear continuous battery low-low

warning beeping sounds. The system will be fully discharge

and shutdown completely.

3. Connect the AC adapter and let the battery fully recharge. The

“Battery Charge LED” of the notebook will light indicating it is

in charging status.

4. When the battery charge LED turns off will indicate the system

is fully charged.

5. Repeat step 1 to 4 once again.

6. The battery is now fully calibrated.

Resetting the System

After installing a software application package, you may be prompted to

reset the system to load the changed operating environment. To reset the

system, or “reboot,” press the [Ctrl] + [Alt] + [Delete] keys

simultaneously. This is known as “warm boot.” This key combination

acts as “software” reset switch when you encounter hardware or software

problems, which lock up the Notebook.

If this key combination does not shut down the Notebook, you can reset

the Notebook by using the Notebook’s power button. Should the

Notebook lock up for some reason, pressing this button powers the

Notebook off.

Adjusting the Brightness

To adjust the brightness on the LCD screen, press and hold down the [Fn]

key in the lower left hand corner of the keyboard and press the [F7] key

to reduce the brightness or [F8] to increase the brightness.

Page intentionally left blank

Desktop Operation

This chapter discusses those functions of your notebook that are typical of

desktop systems.

Audio

The Multimedia Sound System

The Notebook’s built-in audio capabilities allow you to take advantage of

a wide range of education and entertainment multimedia software. The

Notebook is equipped with internal stereo speakers, a microphone, and

input audio ports for external audio units.

An external microphone can be connected to the microphone jack.

External speakers or headphones can be connected to the Notebook’s

audio-out jack.

Audio Volume Control

The Notebook is equipped with hot-key volume controls: Pressing the [Fn]

+ [F3] hot-key combination decreases the audio output volume; press the

[Fn] + [F4] hot-key combination increases the audio output volume.

Audio Software

Your notebook comes equipped with an integrated sound system capable

of providing you with quality audio sound through the built-in speakers or

through external speakers connected via the system ports.

Sound Recording

Your system allows you to record sounds and store them as files using the

microphone via the microphone jack on the rear of the notebook

computer. Check the Windows Help and Support Center in Windows for

information on using the various elements in sound recording.

For a high-quality sound, click on the "Volume Control" at the lower right

end of your screen. From the Volume Control windows, click on the

"Advanced" tab, click and select the "Microphone Boost" item.

Playing Sound Files

Your notebook can play audio files stored in MIDI, WAVE or MP3 file

format. Check the Help and Support Center in Windows for information

on the functions of the Media Player.

External Speakers and Microphone

The sound system is capable in providing high-quality sound to external

speakers and receiving and processing sounds from an external

microphone or external sound source.

Connecting Peripheral Devices

Internet Connection

There are numerous ways to connect to the Internet. This may vary from

the user’s working environment as well as system specifications.

• Using a modem and a telephone line

• Using a wired LAN

• Using a wireless LAN (Optional)

Using a modem for Connection to Internet

• Use a telephone line to connect to the modem port of your

computer. Do not use a digital telephone line.

• Please apply to an Internet Service Provider (ISP) for Internet

service in order for you to connect the modem to the Internet and

use e-mail.

For more detail on the Network key, please refer to your local

ISP provider and follow the procedures describe in the “ISP

Installation Guide” to proceed with the installation.

Using a wired LAN for Connection to Internet

For you connect to the Internet, a wired LAN environment normally uses

the company’s LAN or a broadband modem.

5. Use the network (LAN) cable to connect to the LAN port of the

system.

6. Select on “My Network Places” and click on the “View Network

Connection” in the “Control Panel” window.

7. In the “Network Tasks” window, use your mouse pointer to click on

the “Local Area Connection”.

8. Select “Properties” from the popup menu that appears

9. In the “This connection uses the following items” field, select

“Internet Protocol (TCP/IP), and click “Properties”.

10. Enter the system’s IP and DNS server addresses on the General tab

of the “Internet Protocol (TCP/IP) Properties” window. If DHCP is

used, click “Obtain an IP address automatically” and “Obtain DNS

server address automatically” on the General tab.

11. After all the all the information are correctly entered in the “Internet

Protocol (TCP/IP) Properties” window, click “OK” to finish.

Using Both DHCP and Static IP for Connection to Internet

When you are alternatively using networks with either DHCP or static IP

addressing, you can use alternative settings that enable simultaneous

configurations of DHCP and static IP to use both of the network connects

without reconfiguring.

12. Follow the steps mentioned when you are using wired LAN

connection from 1 to 7.

13. Click on the “User configured” and enter the appropriate values in

the “Alternate Configuration” tab.

14. When you have completed the entire configuration, click “OK”.

Using Wireless LAN Network for Connection to Internet

(Microsoft’s Service Pack 2) (Optional)

Configuring and Maintaining

your System

Introduction

The BIOS (Basic Input and Output System) Setup program is a menu

driven utility that enables you to make changes to the system

configuration and tailor your system to reflect installed hardware or alter

system performance. When the Notebook is turned back on, the system is

configured with the values stored in CMOS. With easy-to-use menus, you

can configure such items as:

• Hard drives and peripherals

• Boot up Drive Sequence

• Password protection

• Power Management Features

The settings made in the BIOS Setup program intimately affect how the

Notebook performs.

Navigating through BIOS Setup

The Setup program has been designed to make it as easy to use as

possible. If you accidentally make a setting and don’t know which one to

switch back to, the Setup program has a hot key that allows you to return

to the previous value.

Accessing the BIOS Setup Program

To access the BIOS Setup program, press the DEL key after the

Notebook has run through its POST.

Item Specific Help

On the right side of the Setup screen is an area labeled Item Specific Help.

This area will list navigation key shortcuts and information that is specific

for the item that you are currently editing.

The Menu Bar

The top of the screen has a menu bar with the following selections:

• Main - Use this menu to make changes to the basic system

configuration.

• Advanced - Use this menu to enable and make changes to the

advanced features available on your system.

• Security - Use this menu to set a password. The password allows

boot up and controls access to the BIOS setup menu.

• Boot - Use this menu to configure the default system device used

to locate and load the Operating System and for booting up the

Notebook.

• Exit - Use this menu to exit the current menu or specify how to

exit the Setup program.

To access the menu bar items, press the right or left arrow key on the

keyboard until the desired item is highlighted.

The Legend Bar

At the bottom of the Setup screen you will notice a legend bar. The keys

in the legend bar allow you to navigate through the various setup menus.

The following table lists the keys found in the legend bar with their

corresponding alternates and functions.

Legend Key Alternate

Key

Function

F1 Displays the General Help

window. It can be enabled from

anywhere in the BIOS.

Esc Jumps to the Exit menu or returns

to the Main menu from a

submenu.

← Selects the menu item to the left.

→ Selects the menu item to the

right.

↑ or ↓ arrow keys Moves the cursor up and down

between fields.

Tab Enter Moves the cursor to the next

position available in the field.

Legend Key Alternate

Key

Function

Shift + Tab Moves the cursor to previous

position available in the field.

Minus key (-) Scrolls backward through the

values for the highlighted field.

Plus key (+) Scrolls forward through the values

for the highlighted field.

Home PgUp Moves the cursor to the field at

the top of the window.

End PgDn Moves the cursor to the field at

the bottom of the window.

F9 Sets the parameters for the

current menu to their default

values.

F10 Save and Exit.

Enter Will select a sub menu or show a

range of options for a field.

Launching Submenus

Note that a right pointer symbol  appears to the left of certain fields.

This pointer indicates that a submenu can be launched from this field. A

submenu contains additional options for a field parameter. To call up a

submenu, simply move the cursor to highlight the field and press the

[Enter] key. Use the [Esc] key to return to the Main menu.

General Help

In addition to the Item Specific Help window, the BIOS Setup program

also provides a General Help screen can be called up from any menu by

simply pressing [F1].

To exit the help window, press the [Enter] or the [Esc] key.

Save Changes and Exit the Setup Program

Refer to the Exit menu section of this chapter for detailed information on

saving changes and exiting the setup program.

The Main Menu

When the Setup program is accessed, the following screen appears:

The Advanced Menu

Selecting Advanced from the menu bar displays the advanced menu:

If your system support InterVideo application,

select the “InterVideo” item from the “Shortcut Key Working

With” selection menu.

If your system supports the WinXP MCE application, select

the “WinXP MCE” item from the “Shortcut Key Working With”

selection menu.

If your system supports the CyberLink application, select the

“CyberLink” item from the “Shortcut Key Working With”

selection menu.

The Security Menu

The Notebook’s advanced system of security allows you to set a

password to prevent unauthorized access to system resources, data, and

the BIOS Setup Program.

The Boot Menu

The Boot menu allows the user to specify the order in which the

Notebook is to check for a device to boot the system. You can also

configure the way that the system will boot up. To make changes, select

Boot from the menu bar.

The following screen appears:

Use the up and down arrows to select the boot device. Then press either

the plus key [+] to move the device up the list or the minus key [-] to

move the device down the list.

The Exit Menu

Once you have made all of your selections from the various menus in the

Setup program, you should save your changes and exit Setup. Select Exit

from the menu bar to display the following menu:

Raid Setting (Option)

Raid Setting (If Your System Supports RAID)

Short for Redundant Array of Independent (or Inexpensive) Disks, a

category of disk drives that employ one or more drives in combination

for to respond gracefully to an unexpected hardware or software failure

and performance. RAID disk drives are used frequently on servers but

aren't generally necessary for personal computers.

There are number of different RAID levels.

• Level 0: Provides data striping (spreading out blocks of each file

across multiple disks) but no redundancy. This improves

performance but does not deliver fault tolerance.

• Level 1: Provides a technique in which data is written to two

duplicate disks simultaneously.

Follow the following procedures:

• Power on your system.

• Press <Ctrl-F> key combination to further enter the available

option in installing the RAID setting.

• Select from 1 to 5 for various option.

• Press the “ESC” key to exit after the application has been properly

installed.

Installing the System OS

The support CD that comes along with your package contain the RAID

driver for you to install in order to run this application.

• Insert the Support CD into your notebook optical drive. Copy the

Driver\RAID\*.* to the diskette.

• You will have to boot the system with a disk before you copy the

driver to the diskette.

• Connect the floppy disk drive along with the diskette inserted

inside to your notebook computer.

• Insert your OS CD into the optical drive.

• Power on your computer and boot directly from the OS CD.

• Follow the instruction on the display and press the “F6” button.

• Press the “S” key to the additional device.

• Again press the “Enter” key to select the Win XP OS and proceed

with the installation of the Win XP on your system.

Microsoft Center Edition

(MCE) (Option)

Windows XP Media Center Edition (MCE)

The Windows MCE is a complete software for home PC operating system

for you to enjoy entertainment choices together in one place easily

accessible from anywhere in the room. This will benefits the consumers

to enjoy Media Center experience in their own living room.

For more information on the function of the MCE,

please refer to the Microsoft’s Windows XP MCE user’s guide

that goes along with your software package.

Please be advice that when you received your computer, the

MCE port at the rear side is block for the reason that It is not

available yet for this version.

MCE Application Sound Adjustment

This notice only applies to those systems that only support MCE

application when you are using the Windows volume adjustment function.

From your Windows, click on the lower left corner of the screen the

speaker icon and open the Volume Control Properties Window.

If you are using MCE’s “My TV” application

1. Use your mouse right button to click on the “Volume” icon and

select the “Open Volume Control” item.

2. The “Volume Control” display window is displayed on your screen.

3. Click on the “Options” tab and select the “Properties” item.

4. From the “Properties” display window, enable the “Aux” item and

click “OK”.

5. The “Aux” is now added on the “Volume Control” window.

6. Enable the “Mute” tab on the “Aux” item and close the window.

If you are using InterVideo’s WinDVR application

The procedures are almost the same as those mentioned above from steps

1 to 5 to adjust the volume control. On step 6, disable the “Mute” tab on

the “Aux” item and close the window.

Playing Live TV on an MCE

When playing Live TV under the MCE environment please note these

important instructions.

• If when you click on “Live TV” button on your MCE application

window you get the following error message:

• You will need to install the “WinDVD” software from the

WinCinema utility driver on your support CD. After insert the

support CD into your optical disk drive, the system will

automatically run the autorun application.

• Click on the “Application” tab to display the “Multi Menu”

window.

• Select “InterVideo WinCinema XP MCE” from the pull-down

menu, then click the “Setup” button.

• From the “Setup” window, choose the desired software or press the

“Select All” button.

• Follow the Wizard’s on-screen instructions to complete the

installation.

• Restart the system.

The Software Utilities Disks

Installing the Drivers

To make installation of the drivers easier, we offer an auto installation

method for the Microsoft Windows system. To install the driver for the

system, the attached CD disk contains the driver installation, users

manual. Follow the step-by-step procedures to execute the “AutoRun”

application by selecting the topic of “Driver Installation”.

Select the drivers that you desired and follow the instructions on the

screen. The drivers will be installed in the system automatically. During

the installation, it is very normal that the system may restart.

After you have restarted Windows, open the “Control Panel” and double

click on the “Display” icon. From the “Display Properties” window,

select the “Settings” tab and click on the “Advanced” tab to enter the

“(Multiple Monitors) on NVIDIA GeForce Go 6800” window.

Digital Flat Panel Settings

Performance & Quality Settings

Color Correction

Video Overlay Settings

Tools

PowerMizer

NVRotate

Screen Resolution & Refresh Rates

Desktop Management

Menu Editing

Viewing Live Video (OPTION)

The Utility allows you to access the entire range of display controls and

configuration options. Its live video can co-exist with other applications

running at the time. In addition, you have the choice of keeping the

default video window size, scaling it to any other size or using the entire

screen for video display. You can either sit in front of your monitor,

controlling the video with menu commands, toolbar buttons as well as the

TV Tuner, or lay back in your chair with the remote control pad in your

hand.

For more detailed information on the function for

each individual mode on the Remote Control, please refer to

the Remote Control Guide user’s manual.

Using the Remote Control

The Remote Control comes with three multimedia softwares: WinDVR,

WinDVD, and WinRip. These softwares use only one remote control; the

function of each buttons will vary on different software.

• DVR Mode Button - Press the DVR button if you

want to use the WinDVR software. “WinDVR”

gives you high-quality digital recording of your

favorite TV shows on your PC.

• DVD Mode Button - Press the DVD button if you

want to use the WinDVD software. “WinDVD”

uses the power of your PC to bring DVDs to life.

• Music/Audio DJ Mode Button

Under Windows environment – Pressing this

button will launch the InterVideo “WinRIP”

application to play your favorite music.

When the system is power off and on AC mode,

pressing this button will automatically open the

audio application to listen to your favorite music.

WinDVR Mode

Cable Connection

Your notebook supports three video standard namely: NTSC, PAL and

SECAM. Ask your local dealer on the type of standard being used in

your respective country of origin.

• Remove the cover on the cable TV connector at the rear of the

computer with the aid of a screwdriver .

• Connect one end of the cable wire to the RF connector of the

computer while the other end is connected to the wall socket or

directly to the antenna.

Defining the Video Source

Select the PAL, NTSC or SECAM, depending on which standard the

selected source is using. The factory default is the standard used by your

purchase country, and normally there is no need to change this setting.

If you are working outside your country, you are required to adjust the

setting of our video source. From the WinDVR window, click on your

mouse right button and select the “Setup” item.

From the “Setup” dialog window, click on the “Standard” selection

items and drag down the arrow to select on the type of TV standard based

on your respective country of origin.

Application buttons in DVR mode

 TV - Launch the WinDVR application

 Channel Surfing - Surf channels by

displaying 16 channels at once.

 Full screen - Change display size to full

screen.

 Mute - Mute or restore sound when

watching TV.

 C.C. (Close Caption) - Display overlay

text caption.

 MTS/SAP - Switch TV sound mode to

mono stereo or SAP

 Scan (Auto scan) - Scans all available

channels for context.

 Arrow Up and Down - Navigates up or

down.

 Arrow Left and Right - Navigates left or

right.

 Cancel - Cancel last operation.

 Select - Selection.

7. CH Up & Down - Selects next higher or

lower channel in channel memory.

 Replay – Playback previous sequel after pressing the TimeShift.

 Skip - Skip the recorded program.

 Volume (Volume up and down) - Increase and decrease sound.

 Stop - Stops functions such as record, play, rewind, forward and

pause.

 Play/Pause - Plays or pauses a scene.

 Record - Records TV and encodes it into MPEG I/II format.

 TimeShift - Pauses live TV.

 Real Screen (Go Live) – Stop timeshift.

 Snapshot - Captures a favorite screen shots from the program.

 Numeric Keypad (0-9) - Select a channel up to 99 by pressing

two numbers.

Application buttons in DVD mode

 DVD - Launch the WinDVD application.

 Audio Selection - Selects a language.

 Subtitle - Activates language subtitles.

 Full screen - Change display size to full screen.

 Angle (Angle Selection) - Allows multiple

angle viewing

 Mute - Mute or restore sound when

watching CD title or MPEG file.

 Arrow Up and Down - Navigates up or

down.

 Arrow Left and Right - Navigates left or

right.

 Cancel - Cancel last operation.

 Select - Selection.

 Speed - Speed up the play.

 CHAPTER (Previous & Next) - Selects

previous or next chapter.

 Volume (Volume up and down) -

Increase and decrease sound.

 REW - Play disc in fast reverse mode.

 FWD - Play disc in fast forward mode.

 Stop - Stops the current play.

8. Play/Pause - Starts or pause the disc.

 Step Forward Single frame advance while in pause mode.

 Bookmark - Instantly mark your favorite scene.

 Menu - Opens DVD title main menu.

 SnapShot - Captures still images of current playback.

 Numeric Keypad (0-9) - Inputs chapter number to playback.

Please take note that when you are playing the

DVD applicaton, you will only be able to use the Remote

Control DVD button if your system support the InterVideo

WinCinema application.If your system support the WinXPMCE

application, you will have to use the “Microsoft Remote

Control” that comes with your package.

Use Lunch key to chosoe between these two applications,

please proceed to BIOS Setup and select the “Advanced”

menu. From the “Shortcut Key Working With” selection item,

select the “InterVideo” if your system only support the

”InterVideo” application or the “WinXP MCE” application if

your system support the Microsoft’s WinXP MCE application.

Limitation when playing DVD files

The computer allows you to connect external devices such as monitor and

TV to your notebook computer. Open the “Control Panel” and double

click on the “Display” icon. From the “Display Properties” window,

select the “Settings” tab and click on the “Advanced” tab to enter the

“(Multiple Monitors) on ATi MOBILITY RADEON 9700 Series

Properties" window.

Click on the “Displays” tab to set the monitor or TV or LCD as your

“Primary” display device to play the DVD files.

The VGA driver default value set the LCD as Primary display

device. If the LCD is set as “Primary” display therefore the

video image will not display on the monitor or TV. However, if

you wish to have the video image display on your external

display devices, set the monitor or TV as your “Primary”

display device.

Application buttons in Music mode

 Music - Launch the WinRIP

application.

 DSP Toggle – Let you enable or

disable the DSP window when the

WinRIP application is launched.

 Mute - Mute or restore sound when

playing music.

 Arrow Up and Down - Navigates up

or down.

 Arrow Left and Right - Navigates left

or right.

 Cancel - Cancel last operation.

 Select - Selection.

 Track (Previous & Next) - Plays

previous or next track in the list.

 Volume (Volume up and down) -

Increase and decrease sound.

 Shuffle - Play tracks in random order.

9. Repeat - Repeat current track or all

tracks.

 Stop - Stop playback.

 Play/Pause - Play or pause a music track.

Application buttons in Audio DJ mode

 Audio DJ - Launch the Audio DJ

application when the system is off.

 Mute - Mute or restore sound when

listening audio DJ.

 Volume (Volume up and down) -

Increase and decrease sound.

 REW - Play disc in fast reverse

mode.

 FWD - Play disc in fast forward

mode.

 Stop - Stop the recording.

 Play/Pause - Play or pause a music

track.

Page intentionally left blank

Troubleshooting

This chapter describes locating and solving problems that you may

encounter while using your computer.

Locating a Problem

Problems with your computer can be caused by something as minor as an

unplugged power cord – or as major as a damaged hard disk. The

information in this chapter is designed to help you find and solve minor

problems. If you try all the suggested solutions and you still have a

problem, make a list of what steps you have taken to correct the problem

and contact your dealer.

Successful troubleshooting is the result of careful observation, deductive

reasoning, and an organized approach to solving the problem.

The problems that you will encounter can be divided into two basic

categories: hardware problems and software problems. Hardware

problems can be further divided into electrical and mechanical problems.

You will know you have a hardware problem if the screen is dark, the

computer cannot read the disk drives, or you get an error message during

the Power-On Self Test (POST).

Software errors can occur at several levels. The ROM BIOS and the

operating system can give you a large number of error messages. On top

of this, each application software package has its own set of error

messages. It is important to determine whether the software error message

you are getting is from the application or the operating system. Once you

know this, you can look in the respective manual for a solution to the

problem.

Checking Cables and Connections

Start by performing a careful visual inspection of the exterior of the

computer. If no LEDs are illuminated, make sure that your computer and

its peripherals are getting power and communicating with each other

properly.

To check the power cables, and connections:

1. If you have been using battery power, connect the Notebook to an

external power source and make sure that the battery has a charge.

2. If you are using the Notebook with the AC adapter, check the power

outlet, the power cord, and any power switches that may affect your

computer.

• Check the wall outlet or power strip with an item that you

know is functioning properly. A lamp or radio is a

convenient item for checking the power. You may also

need to check the fuses and breakers in your electric box.

• If the outlet is controlled by a wall switch, make sure that

the switch is on.

• If the outlet is controlled by a dimmer switch, use a

different outlet.

• If your computer is plugged into a power strip with an

On/Off switch, make sure the switch is on.

3. With the computer’s power switched off, check all cable connections.

If the computer is connected to any peripheral devices, look for loose

or disconnected cables.

• If the computer is too close to a wall, a cable connection

may be loose or the cables may be crimped.

• Do not substitute cables for different devices (other than

the manufacturer recommended cables) even if they look

exactly alike. The wiring inside the cable may be

different.

4. When you are certain that you have power available and all

connections are good, turn the computer on again. If the computer

still does not start, you may have a hardware problem.

The Power-On Self Test

The Power-On Self Test (POST) runs every time you turn on or reset the

Notebook. The POST checks memory, the main system board, the display,

the keyboard, the disk drives, and other installed options.

A few seconds after you turn on your computer, a copyright message

appears on your display screen. A memory test message appears next; as

the test continues, memory size increases until all installed memory is

tested. Normally, the only test routine visible on the screen will be the

memory test.

Two classifications of malfunctions can be detected during the POST:

• Error messages that indicate a failure with either the hardware, the

software, or the Basic Input/Output System (BIOS). These critical

malfunctions prevent the computer from operating at all or could

cause incorrect and apparent results. An example of a critical error

is microprocessor malfunction.

• Messages that furnish important information on the power-on and

boot processes (such as memory status). These non-critical

malfunctions are those that cause incorrect results that may not be

readily apparent. An example of a non-critical error would be a

memory chip failure.

In general, if the POST detects a system board failure (a critical error),

the computer halts and generates a series of beeps. If failure is detected in

an area other than the system board (such as the display, keyboard, or an

adapter card) an error message is displayed on the screen and testing is

stopped. It is important to remember that the POST does not test all areas

of the computer, only those that allow it to be operational enough to run

diagnostic programs.

If your system does not successfully complete the POST, but displays a

blank screen, emits a series of beeps, or displays an error code, consult

your dealer.

General Hardware Problems

A few common hardware problems and suggested solutions are presented

in the table below:

Problem: The capacity of the battery is between 95 to 99% but

can not fully charged.

Solution: Please discharged to less than 95% of its capacity

then recharge the battery.

Problem: Failure in the installation of the Audio driver.

Solution: Be sure to first remove the current audio device from

your system. Please follow the instruction on the installation of

audio driver.

Problem: The display screen is dark

Solution: Make sure that the computer is not in Suspend mode.

Check the Brightness controls for the screen. If the controls are

turned too far down, the screen will be dark.

Problem: An incorrect date and time are displayed.

Solution: Correct the date and time using the DOS DATE and

TIME commands or the options in the Setup Utility. If the date and

time become incorrect after a short time, your CMOS battery may

be depleted. Contact your dealer to change the battery.

Problem: You hear irregular beeps during operation of the

Notebook and the system halts.

Solution: The problem is beyond the scope of this manual.

Contact technical support.

Problem: An unidentified message is displayed.

Solution: Reboot the computer and run the BIOS system setup.

Confirm the Setup parameters. If the same message is displayed

after booting up again, contact technical support for assistance.

Problem: The system cannot access the DVD-ROM drive.

Solution: Check that a CD is properly inserted in the drive.

Make sure that you are using the correct program for that kind of

CD. For example, the system cannot read a data CD using an

audio program.

Problem: You cannot operate the printer.

Solution: Check the printer USB cable connection. Ensure that

the printer power switch is turned on. Confirm that the printer is

on-line.

Problem: You can’t save data to disk.

Solution: Ensure that the disk has been formatted.

Consult your operating system manual for information on

formatting floppy diskettes.

Problem: You cannot use the mouse.

Solution: Check the cable connection.

Check the mouse with another application to see if there is a

software incompatibility problem.

If possible, check the mouse with another computer to see if it

works. If it doesn’t operate on a different system, the mouse might

be broken.

Problem: The fan does not stop operating when the system

enters the suspend mode.

Solution: Before entering the suspend mode, the fan still

operates in full speed to lower down the temperature of the system.

When the system temperature reduces into normal condition then

the fan will gradually slow down into its normal speed.

Contacting Your Dealer

If you still have a problem after reading the preceding sections, the next

step is to contact your dealer. Your dealer can determine if the problem is

something that requires the computer to be taken to the shop. Before you

call your dealer, however, prepare the following information:

• How is your computer configured? Your dealer needs to know what

peripheral devices you are using.

• What messages, if any, are on the screen?

• What software were you running at the time?

• What have you done already to try to solve the problem? If you

have overlooked a step, your dealer may be able to solve the

problem over the phone.

Page intentionally left blank

How do I Expand my Notebook

Upgrading your Memory

Upgrading your VGA

Upgrading your CPU

Easy to Upgrade HDD Module

The hard drive in your notebook computer is made to be easily swapped

out for upgrading.

This system provides you with two hard drive slots if your

system supports RAID function. If your system does not

support the RAID function, the upper space will be empty.

How to Remove your Hard Drive

1. Power down the system completely. Turn the system over with the

front of the unit facing you.

2. Remove the two screws that secure the compartment cover and set

them in a safe place.

3. Slide the HDD cover away from the compartment.

4. The drive is attached to a special bracket that secures it to the

notebook computer.

5. Push the HDD slightly in the direction of the arrow as shown in the

illustration to release it from the pins of the drive.

6. Gently hold the grip of the HDD, lift it up to release from its

compartment.

Specification

Detailed Notebook Specifications

Processor

• Intel® Pentium® M processor (2nd Generation Mobile Micro-

architecture, 2MB L2 cache, 400/533MHz FSB)

• 478pin mFCPGA package

Operating System Compliance

• Microsoft® Windows® XP Professional Edition/Home

Edition/Media Center Edition

Core Logic

• Intel® 915PM (Alviso) + ICH6-M

Memory

• Expansion 2 slot of 200pin DDR II SO-DIMM Module, 2GB total

memory capacity

• Supports DDR II-400/533 module

LCD Display

• 17" WSXGA+ (1440 x 900) TFT Glare Type LCD display

Video & Graphics

• Graphic controller: NVIDIA® GeForce Go 6800 (NV42M, MXM-

III) / 6600 (NV43M, MXM-II), PCI-Express X16

• External 128/256 MB DDR VRAM on VGA board

Hard Drive

• 2.5" 9.5mm height, PATA/SATA (alternative) dual support,

Second HDD support

• Supports RAID function for PATA HDD only (optional)

Optical Drive

• 5.25” 12.7 mm height Combo Drive (DVD-ROM + CD-RW), DVD

Dual (DVD+/-RW), Super Multi (DVD-RAM+DVD+/-RW)

AV Feature Built-in

TV Tuner

• Mini PCI TV Tuner w/ Coaxial connector, support PAL, NTSC,

SECAM

• Support capture function to record the TV programs into Hard

Disk

• Multi-function remote control to enjoy TV program (power on the

system, play TV, DVD and music)

Audio DJ

• Control panel with LED display. Music CD play without powering

on the system

Pointing Device

• Synaptic touchpad

Application Launch Key

• Music, DVD, TV, Email, Internet, WLAN, Power

LED Status Indicator

• ExpressCard Insert, Hard Disk Access, Optical Drive Access,

NumLock mode, CapsLock mode, ScrollLock, WLAN mode

Keyboard

• 3.0mm travel, inverted-T, 88 keys with windows key

Express Card

• One ExpressCardTM slot for 34 / 54 mm with PCI Express and

USB interface support

Audio

• SPDIF out, Azalia 7.1 channel support

• Four headphone jacks support 8 channels surround sound

output

• Built-in high quality 2.1 channels speaker system with 5 drivers

(high frequency*2, median frequency*2 and subwoofer *1)

AC Adapter

• Input: 100-240V AC, 50-60Hz, 2.5A, Universal

• Output: 19V DC, 6.32A, 120W

Battery

• 8 cell Li-Ion battery pack/12 cell Li-Ion battery pack

Battery Charge

• 3 hours charge time to 100% capacity while system off (TBD)

• 4 hours charge time to 100% capacity when system on (TBD)

BIOS

• AMI, Support PnP, password, Bootable from USB FDD and

Optical Device

Card Reader

• 4 in 1 card reader (SD/MS/MS Pro/SDIO card support)

Communication

• 10/100/1000Mbps Gigabit Ethernet GbE PCI-Express interface

on board

• Intel® PRO / Wireless 2915ABG (802.11a / b / g) network

connection

• TV-tuner (Mini-PCI interface) with remote control feature,

support PAL / NTSC / SECAM

• MDC V.92 56Kbps Fax/Modem card

• MDC combo: V.92 56Kbps Fax / Modem + Bluetooth V1.2

(optional)

Power Management

• APCI 2.0 compliance, Support Stand-by, Suspend to Disk,

Suspend to RAM

Security

• Kensington Lock, BIOS password protection

Size

• 397.0(W) x 285.0(D) x 39.0(H)mm/44.0 mm (front/back)

Weight

• 4.5 kg with 17” panel, 8 cell battery and Optical drive installed

Accessories

Packing Accessories

• Quick Guide, Support CD (Driver, Utility, Manual), AC Adapter,

Power Cord

Factory Option

• Optical Device: Combo Drive (DVD-ROM+CD-RW), DVD Dual

(DVD+/-RW), Super Multi (DVD-RAM+DVD+/-RW)

• 802.11a/802.11b/802.11g Mini PCI WLAN Card

• MDC combo: V.92 56Kbps Fax / Modem + Bluetooth V1.2

• Internal MCE Module, TV Tuner Card + Remote Controller

• 2nd HDD, Spare Li-Ion Battery Pack

• Battery life will vary depending on your specific hardware and

software configuration

• Spec subject to change without notice

ELITEGROUP COMPUTER SYSTEMS 9100IABG NOTEBOOK WITH 802.11abg MINI PCI CARD User Manual 910 manual

Elitegroup Computer Systems Co., Ltd NOTEBOOK WITH 802.11abg MINI PCI CARD 910 manual

REVISED USERS MANUAL

Navigation menu

Namespaces

Views

Navigation
