ELITEGROUP COMPUTER SYSTEMS G532QGXX NOTEBOOK WITH WLAN User Manual 532 E v1 0 user manaul
Elitegroup Computer Systems Co., Ltd NOTEBOOK WITH WLAN 532 E v1 0 user manaul
users manual
i
Preface
Copyright 2004
All Rights Reserved.
The information in this document is subject to change without prior notice in order to improve reliability,
design and function and does not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages
arising out of the use or inability to use the product or documentation, even if advised of the possibility of
such damages.
This document contains proprietary information protected by copyright. All rights are reserved. No part of
this manual may be reproduced by any mechanical, electronic, or other means in any form without prior
written permission of the manufacturer.
Limitation of Liability
While reasonable efforts have been made to ensure the accuracy of this manual, the manufacturer and
distributor assume no liability resulting from errors or omissions in this manual, or from the use of the
information contained herein.
Notices
Federal Communications Commission Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
ii
This equipment generates, uses, and can radiate radio frequency energy and if not installed and
used in accordance with the instruction manual may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Ø Reorient or relocate the receiving antenna.
Ø Increase the separation between the equipment and receiver.
Ø Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Ø Consult the dealer or an experienced radio TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment. Shielded interface cables and a non-shielded AC
power cord must be used in order to comply with emission limits.
This equipment is to be used with power supply:
I/P: 100-240 Vac, 50-60Hz, 1.5A
O/P: 19Vdc, 3.16A
There is no internal power supply.
Canadian DOC Notice For Class B Computing Devices
This Class B digital apparatus meets all requirements of the Canadian Interference - Causing Equipment
Regulations.
Cet appareil numerique de la classe B repecte toutes les exigences du Règlement sur le matèriel brouilleur du
Canada.
iii
Table of Contents
Chapter 1: Before you Start----------------------------------------------------------------------------------------- 1
Conventions of This Manual....................................................................................................................................... 1
Things you must remember before working on your computer................................................................................... 7
Chapter 2: Introduction ---------------------------------------------------------------------------------------------- 9
Welcome to the Notebook PC..................................................................................................................................... 9
Getting to Know Your Computer................................................................................................................................ 10
Chapter 3: Getting Started ------------------------------------------------------------------------------------------ 19
Connecting to a Power Source .................................................................................................................................... 19
Turning On Your Notebook Computer ....................................................................................................................... 20
Operating on Battery Power........................................................................................................................................ 20
Chapter 4: Using the Notebook Computer--------------------------------------------------------------------- 23
Adjusting the LCD Screen Display............................................................................................................................. 23
A Tour of the Notebook’s Keyboard.......................................................................................................................... 24
The TouchPad............................................................................................................................................................. 25
Connecting an External Tracking Devices.................................................................................................................. 26
The CD-ROM/DVD-ROM/Combo Drive................................................................................................................... 27
Power Saving Modes................................................................................................................................................... 28
Chapter 5: Desktop Operation ------------------------------------------------------------------------------------- 33
Audio .......................................................................................................................................................................... 33
Connecting Peripheral Devices ................................................................................................................................... 35
iv
Chapter 6: Internet Connection------------------------------------------------------------------------------------ 37
Using a modem for Connection to Internet ................................................................................................................. 37
Using a wired LAN for Connection to Internet........................................................................................................... 37
Using Both DHCP and Static IP for Connection to Internet ....................................................................................... 41
Using Wireless LAN Network for Connection to Internet (Microsoft’s Service Pack 1)........................................... 42
Using Wireless LAN Network for Connection to Internet (Microsoft’s Service Pack 2)........................................... 44
Chapter 7: Running BIOS Setup ---------------------------------------------------------------------------------- 45
Introduction................................................................................................................................................................. 45
Navigating through BIOS Setup.................................................................................................................................. 45
Accessing the BIOS Setup Program............................................................................................................................ 45
The Menu Bar ............................................................................................................................................................. 46
The Legend Bar........................................................................................................................................................... 46
Launching Submenus .................................................................................................................................................. 47
General Help ............................................................................................................................................................... 47
The Main Menu........................................................................................................................................................... 48
The Advanced Menu................................................................................................................................................... 49
The Boot Menu ........................................................................................................................................................... 52
The Security Menu...................................................................................................................................................... 53
The Exit Menu ............................................................................................................................................................ 54
Chapter 8: The Software Utilities Disks------------------------------------------------------------------------- 55
VGA Utilities.............................................................................................................................................................. 56
Chapter 9: Troubleshooting ---------------------------------------------------------------------------------------- 63
Locating a Problem..................................................................................................................................................... 63
Checking Cables and Connections.............................................................................................................................. 64
The Power-On Self Test.............................................................................................................................................. 65
v
General Hardware Problems ....................................................................................................................................... 65
Contacting Your Dealer .............................................................................................................................................. 67
Chapter 10: Upgrading your System----------------------------------------------------------------------------- 69
Upgrading your Memory............................................................................................................................................. 69
The Easy to Upgrade HDD Module............................................................................................................................ 70
Upgrading your System CPU...................................................................................................................................... 72
Appendix A: Specification------------------------------------------------------------------------------------------- 75
Detailed Notebook Specifications............................................................................................................................... 75
1
B
Be
ef
fo
or
re
e
y
yo
ou
u
S
St
ta
ar
rt
t
Conventions of This Manual
Use this manual will help you get the most from your notebook computer.
Ø If you are an experienced user of computers and/or Microsoft’s Windows operating systems, you might
find it useful to read the Quick Start Guide that comes along with your accessories.
Ø If you are a less experienced user, you should through the manual carefully before using your system.
Whether or not you are an experienced user, you should consult on the Troubleshooting Chapter if you
encounter any problems with your notebook.
Safety Precautions
This section is designed to assist you in identifying potentially unsafe conditions while working with this
product. Required safety features have been installed in the computer to protect you from injury. However,
you should use good judgment to identify potential safety hazards:
1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from AC outlet before cleaning. Don't use liquid or sprayed detergent
for cleaning. Use moisture sheet or cloth for cleaning.
4. For pluggable equipment, that the socket-outlet shall be installed near the equipment and shall be
easily accessible.
5. Please keep this equipment from humidity.
2
6. Lay this equipment on a reliable surface when installed. A drop or fall could cause injury.
7. Make sure to use the right voltage for the power source when connecting the equipment to the power
outlet.
8. Place the power cord in such a way that people can not step on it. Do not place anything on top of the
power cord.
9. All cautions and warnings on the equipment should be noted.
10. If the equipment is not use for a long time, disconnect the equipment from the main power outlet to
avoid being damaged by transient overvoltage.
11. Never pour any liquid into the opening, this could cause fire or electrical shock.
12. Never open the equipment. For safety reason, the equipment should only be opened by a qualified
service personnel.
13. If on the following situations arises, get the equipment checked by a service personnel:
a. The Power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment has not worked well or you cannot get it work according to the user's manual.
e. The equipment has dropped and damaged.
f. If the equipment has obvious sign of breakage.
14. Do not leave this equipment in an environment unconditioned, storage temperature above 60°C (140°f),
it may damage the equipment.
15. The unit can be operated at an ambient temperature of max. 35°C.
16. The sound pressure level at the operators position according to IEC 704-1: 1982 is equal or less than
70 dB(A).
17. Power Cord Requirements
The power cord set used with the AC adaptor must meet the requirements of the country where you use
the AC adaptor, whether it is 100-120 or 200-240 Vac. The following information explains the
requirements for power cord set selection.
3
• The cord set must be approved for the country in which it is used.
• The appliance coupler must have a configuration for mating with a CEE22/EN6032/IEC 320
appliance inlet.
A. For U.S. and Canada:
• The cord set must be UL Listed and CSA Certified.
• The minimum specifications for the flexible cord are No. 18 AWG.
B. For Japan:
• All components of the cord set must bear a “PSE” or “ T ” mark and registration number in
accordance with the Japanese Dentori Law.
• The minimum specifications for the flexible cord are .75m ㎡ conductors.
C. For Other Countries:
• The cord set fittings must bear the certification mark of the agency responsible for evaluation in a
specific country.
• The flexible cord must be of a HAR (harmonized) type H03VV-F.
• The cord set must have a current capacity of a least 2.5 Amperes and voltage rating of 125 or 250
Vac.
18. When using your telephone equipment, basic safety precautions should always be followed to reduce
the risk of fire, electric shock and injury to persons. These precautions includes the following:
Ø Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink or laundry
tub, in a wet basement or near a swimming pool.
Ø Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a
remote risk of electric shock from lightning.
Ø Do not use the telephone to report a gas leak in the vicinity of the leak.
Ø Use only the power cord indicated in this manual.
19. Do not use the AC adapter near open water or other liquids. Never spill liquid into the AC adapter.
20. Laser Warning: Laser Class I Product Caution - Invisible laser radiation when open avoid exposure to
beam.
21. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
4
recommended by the manufacturer. Dispose of used batteries according to the manufacturer's
instructions. Never remove the battery pack while the power is on as this may result in data loss when
the system loses power.
22. The input receptacle is used as the main disconnecting device.
Wichtige Sicherheitshinweise
1. Bitte lesen Sie diese Hinweis sorgfältig durch.
2. Heben Sie dirse Anleitung für den späteren Gebrauch auf.
3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Versenden Sie Keine Flüssig- oder
Aerosolreiniger. Am besten eignet sich ein angefeuchtetes Tuch zur Reinigung.
4. Die Netzanschluâsteckdose soll nahe dem Gerät angebracht und leicht zugänglich sein.
5. Das Gerät ist vor Feuchtigkeit zu schützen.
6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen oder Fallen könnte
Beschädigungen hervorrufen.
7. Beachten Sie beim Anschluß an das Stromnet die Anschlußwerte.
8. Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen kann. Es sollte auch nichts auf
der Leitun abgestellt werden.
9. Alle Hinweise und Warnungen, die sich am Gerät befinden, sind zu beachten.
10. Wird das Gerät üeinen längeren Zeitraum nicht benutzt, sollten Sie es vom Stromnetz trennen. Somit
wird im Falle einer Überspannung eine Beschädigung vermieden.
11. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeien in das Gerät gelangen.
Dies könne einen Brand bzw. Elektrischen Schlag auslösen.
12. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit nur von
authorisiertem Servicepersonal geöffnet werden.
13. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von einer
qualifizierten Servicestelle zu Überprüfung.:
a. Netzlabel oder Netzstecker sind beschädigt.
b. Flüssigkeit ist in das Gerät eingedrungen.
5
c. Das Gerät war Feuchtigkeit ausgesetzt.
d. Wenn das Gerät nicht der Bedienungsanleitung entsprechend funktioniert oder Sie mit Hilfe dieser
Anleitung keine Verbesserung erzielen.
e. Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
f. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.
14. VORSICHT: Explosiongsgetahr bei unsachgemäßen Austausch der Batterie. Ersatz nur durch
denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien
nach Angaben des Herstellers.
15. Dieses Schaltnetzteil kann bis zu einer Außentemperatur von maximal 35ºC.
16. Die Ausgangswerte dürfen nicht die auf dem Label angegebenen Werte überschreiten.
17. Anforderungen an das Stromkabel
Das Kabel-Set, das an das Netzteil angeschlossen wird, muss den Anforderungen des Landes, in dem
Sie das Netzteil einsetzen, genügen, je nachdem, ob die Netzspannung 100-120 oder 200-240V
Wechselspannung beträgt.
• Das Kabel-Set muss für das Land, in dem es eingesetzt wird, zugelassen sein.
• Der Gerätestecker des Kabels muss in eine CEE22/ EN603/ IEC 320 Buchse passen.
A. Für die USA und Kanada:
• Das Kabel-Set muss UL-gelistet und CSA zertifiziert sein.
• Die Minimalanforderungen für das Kabel entsprechen No. 18 AWG.
B. Für Japan:
• Alle Teile des Kabel-Sets müssen entsprechend dem japanischen Dentori Law mit einem „PSE“ or
„T”-Symbol markiert sein
• Die Minimalanforderungen für das Kabel sind .75m ㎡ Leiter.
C. Für andere Länder:
• Die Zubehörteile des Kabel-Sets müssen das Prüfsiegel derjenigen Stelle, die in dem jeweiligen
Land für die Sicherheitsprüfung zuständig ist, tragen.
• Das Kabel muss vom HAR (harmonisierten) Typ H03VV-F sein.
• Das Kabel-Set muss eine Stromkapazität von mindestens 2,5 Ampere haben und Spannungen von
6
125 oder 250 V Wechselstrom gestatten.
18. Bei der Benutzung Ihres Telefongerätes sollten Sie immer die grundlegenden Sicherheitsmaßnahmen
beachten, um das Risiko von Feuer, Stromschlägen und Verletzungen zu minimieren. Zu beachten sind
u.a. folgende Punkte:
Ø Benutzen Sie das Gerät nicht in der Nähe von Wasser, wie zum Beispiel Badewanne, Waschbecken,
Spülbecken, Waschbottich, in feuchten Kellerräumen oder in der Nähe von Schwimmbecken.
Ø Benutzen Sie kein Telefon (ausgenommen schnurlose Modelle) während eines Gewitters. Es besteht
das geringe Restrisiko eines Blitzschlages.
Ø Benutzen Sie das Telefon nicht um ein Gasleck zu melden, falls es sich in der Nähe des Lecks
befindet.
Ø Benutzen Sie nur solch ein Stromkabel, wie in dieser Anleitung beschrieben.
19. Benutzen Sie das Netzteil nicht in unmittelbarer Nähe zu Wasser oder anderen Flüssigkeiten. Gießen
Sie nie Flüssigkeiten über das Netzteil.
20. Achtung Laser: Laser Produkt der Klasse I. Achtung - Unsichtbarer Laserstrahl, vermeiden Sie
Kontakt mit dem Strahl bei offenem Gehäuse.
21. Es besteht Explosionsgefahr, wenn der Akku nicht ordnungsgemäß ersetzt wird. Ersetzen Sie den
Akku nur durch einen Akku gleichen oder äquivalenten Typs, der vom Hersteller empfohlen wird.
Entsorgen Sie Akkus entsprechend den Anweisungen des Herstellers. Entfernen Sie den Akku auf
keinen Fall bei eingeschaltetem Notebook, da hierdurch Daten verloren gehen könnten.
22. Der Netzeingabeanschluss dient als Hauptschalter des Geräts.
7
Things you must remember before working on your computer
n Let your computer acclimate itself
Your notebook can easily stand temperature extremes but it doesn’t like rapid changes in temperature, like
going from the cold outdoors to a warm office. Rapid changes in temperature can cause water droplets to
condense inside your case, threatening to damage the electronic parts inside. After receiving your notebook
when it’s hot or cold outside, try not to power up the computer immediately, let the computer adjust to the
room temperature gradually at least for three to four hours.
If your system arrives in cold weather, do not apply power to the computer or monitor until they have
been allowed to come to room temperature.
n Heat, Cold, Humidity, and Glare
Find a suitable place for your computer that’s not too hot, too cold, too dark, or too bright. Glare can make it
hard to read the screen.
Ø Try to avoid the computer components from being destroyed if it is over heated, so try to allow plenty of
room for air to circulate around the case.
Ø Do not block the ventilation opening.
Ø Do not place your computer in direct sunlight.
n Suitable place to work
Your computer will run well wherever you’re comfortable but extremes of temperature and humidity can be
challenging to your system’s parts. There are some things you can tolerate that the computer can’t – things
like static electricity, dust, water, steam and oil. A lithium-ion battery pack will be available when you are
traveling. If you are running your system for the first time on battery power, remove the battery from the
package, install it into the system and recharge the battery to fully prepare for service.
8
Page intentionally left blank
9
I
In
nt
tr
ro
od
du
uc
ct
ti
io
on
n
There are more and more people spending large amounts of time in front of computer monitors now
that scientists from many fields including anatomy, psychology, and occupational safety are involved
in the study of ergonomically sound work environments.
A few tips to help you work effectively without a lot of physical discomfort:
Ø Purchase a chair with armrests and good back support. Don't slouch when sitting; keep your back straight.
Ø Try to place the LCD panel or external monitor so that there is little glare from the sun on the monitor.
Ø Walk around the room every hour.
Ø Every half hour look away from the computer screen for a few minutes.
Ø Place everything that you need to work within easy reach.
Welcome to the Notebook PC
Congratulations on your purchase of the Notebook PC. Your Notebook features the latest advances in
portable computing technology. The Notebook’s modular design provides maximum expandability without
compromising portability. The high-performance CPU and enhanced IDE hard drive provides you with extra
processing power for handling complex graphics and running large programs.
10
Getting to Know Your Computer

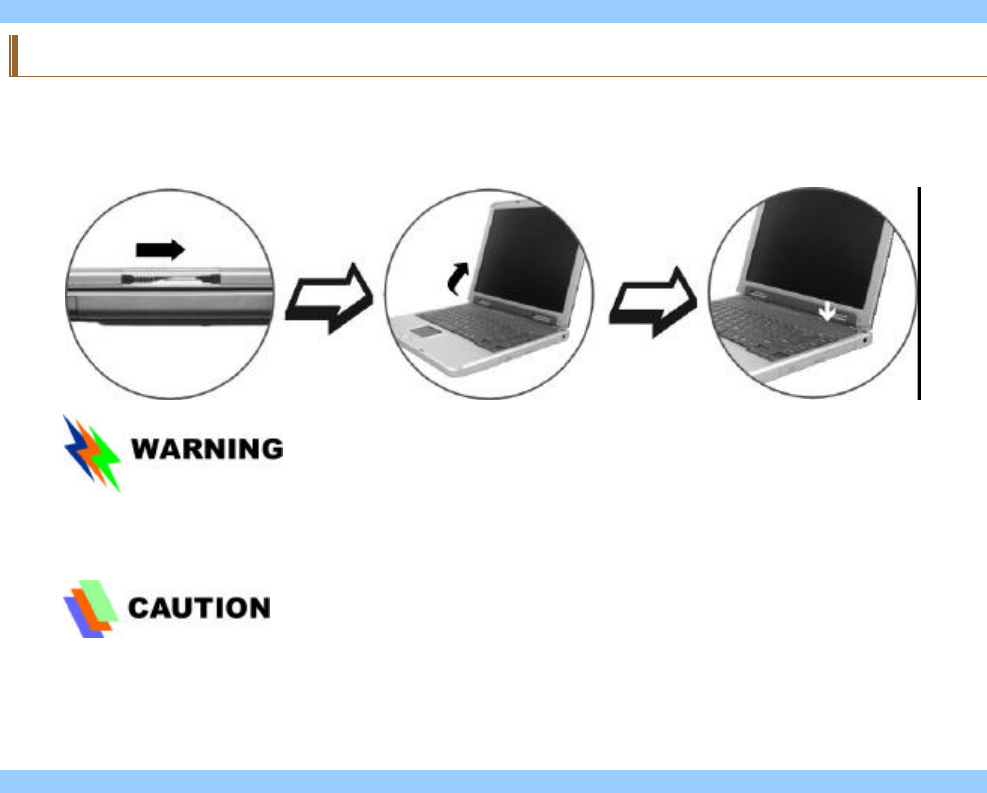

n Opening the LCD Panel
At the front of the Notebook you will find a retaining latch on the display panel that locks the display in
closed position when the Notebook is not in use.
To avoid damage to the display panel:
1. Try not to slam the display upon closing it.
2. Try not to place any object on top when it is closed or open.
3. Be sure the system is turned off or in suspend mode before you close the display panel.
To shutdown the system in non-Windows (DOS mode, System POST, Setup Menu or Quick Boot
Menu) based environment, enable the lid switch. This will prevent the system from damaged if it
exceeds the temperature limit. Windows will control the lid switch in windows environment.

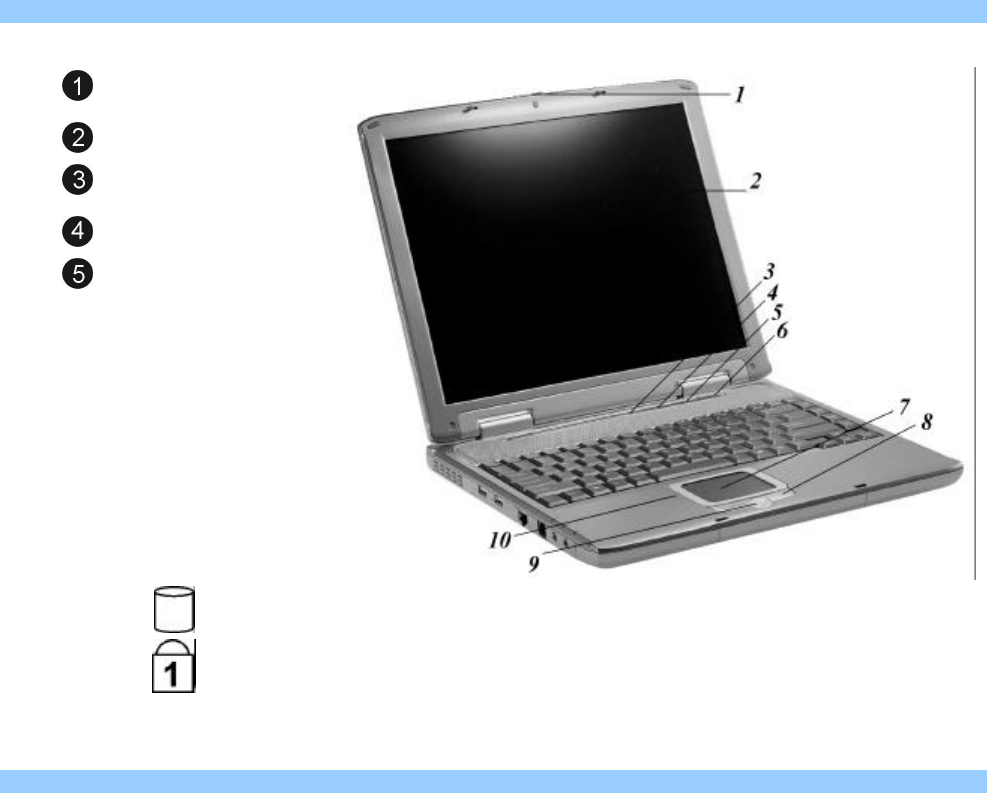

With the LCD screen open, you will see several features important for operating your Notebook computer.
11
Each of these features is briefly described below.
LCD Cover Release
Latch
LCD Screen
Internet Explorer
Button
Wireless LAN Button
System Status
Indicator Panel
HDD - Indicates that the computer is accessing the hard disk drive.
Numeric Lock - Indicates that the keyboard is in Num Lock mode.
12
Caps Lock - Indicates when the keyboard is in Caps Lock mode. In this mode, the
keyboard produces uppercase text when you press a key. When you press the Caps
Lock key again, the indicator goes off and the keyboard produces lowercase text.
Scroll Lock - Indicates when the keyboard is in Scroll Lock mode. Some applications
will move information across the screen differently when Scroll Lock is on.
Wireless - Indicates when the system LAN is functioning.
Power/Resume Button
TouchPad
TouchPad Buttons
Scroll Button
The Built-in Microphone
13
n The Left Side
Ventilation Opening
USB Ports
The LAN Port
When using a LAN, please use an EMI Shielding
Cable to minimize an inteference when
transmitting.
The Modem Port
Always disconnect all telephone lines from the
wall outlet before servicing or disassembling
this equipment. To reduce the risk of fire use
only No. 26 AWG or larger telecommunication
line cord.
Microphone Jack
Audio Line Out Jack
14
L
LE
ED
D
I
In
nd
di
ic
ca
at
to
or
rs
s

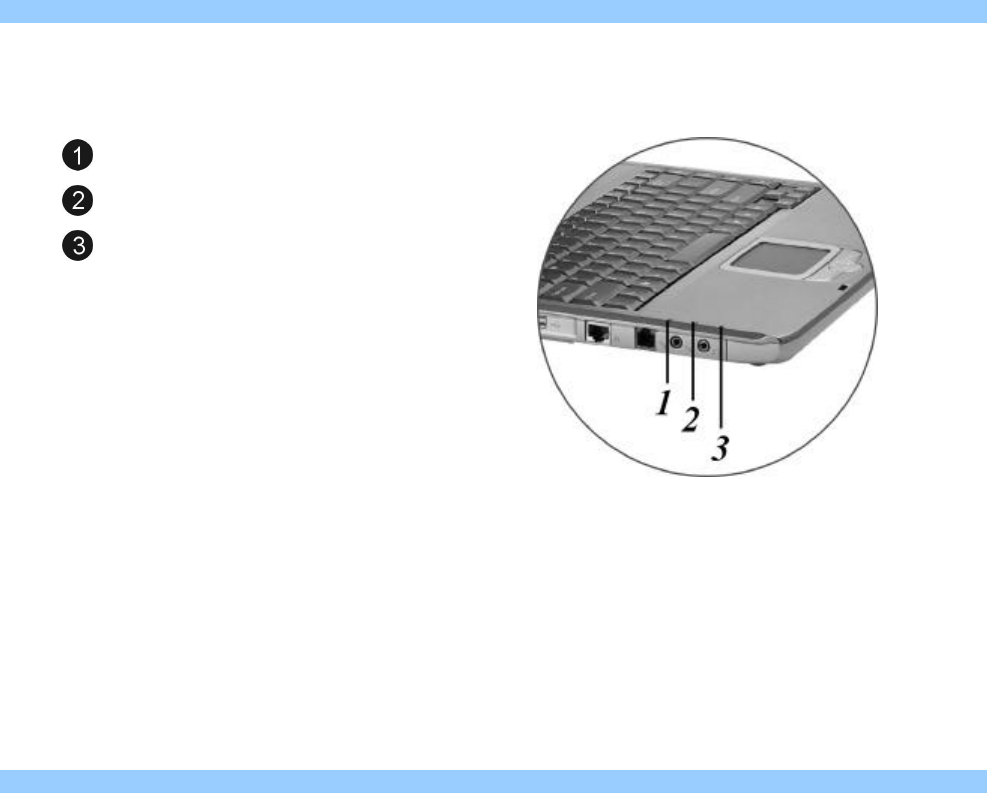

These three LED indicators are separately program for the following functions: Power On, Suspend Mode
and Battery Charge.
Power On
Battery Charge
Suspend Mode
15
n The Right Side
The CD-ROM/DVD-ROM or DVD
CD-RW Combo (Option)
DC IN Connector
16

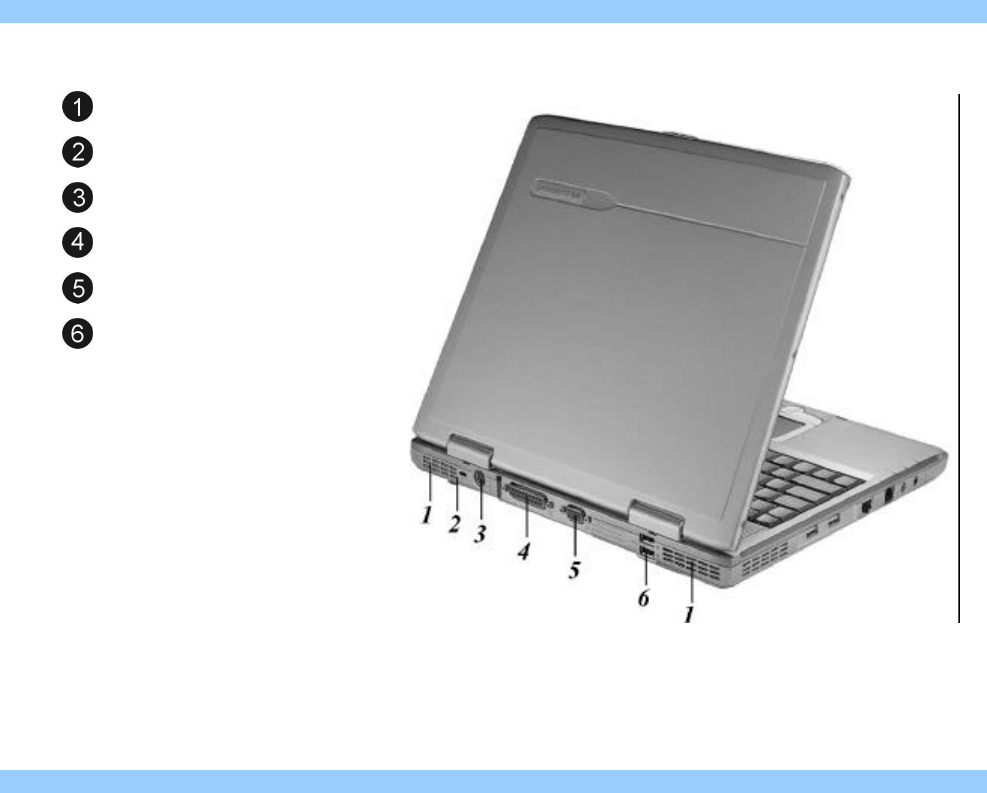

n The Rear
Ventilation Opening
Kensington Lock
S-Video Port
Parallel Port
External CRT Port
USB Ports
17

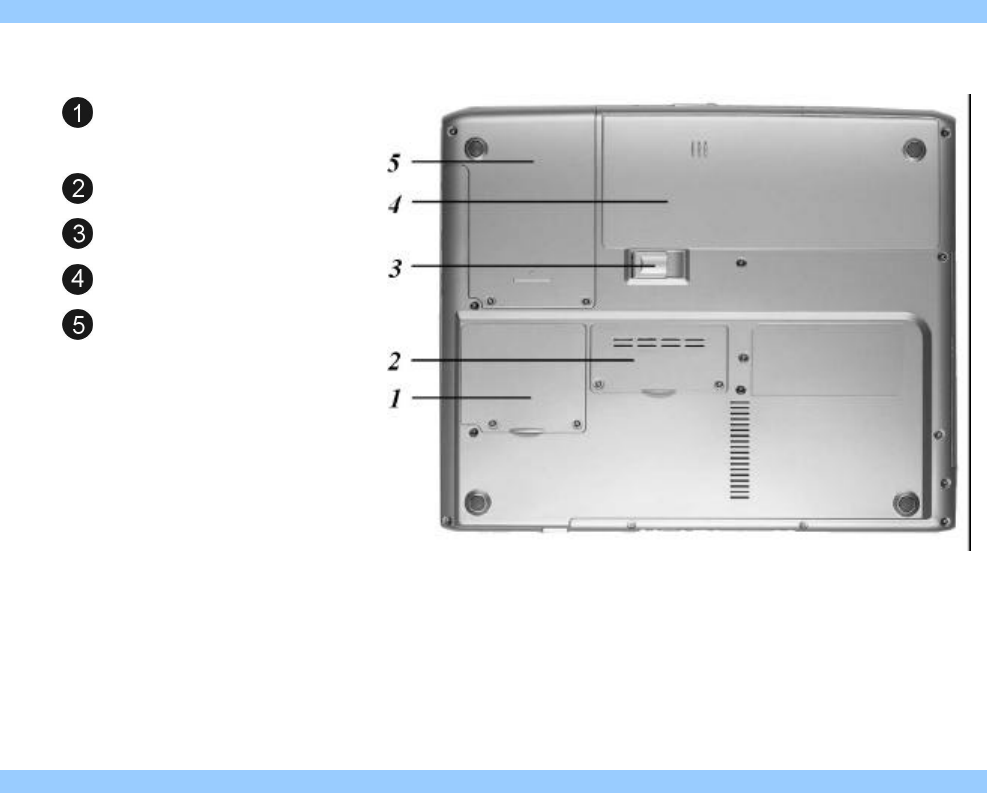

n The Bottom Panel
MiniPCI/Wireless
LAN/Modem Combo
Compartment (Option)
Expansion Compartment
Battery Release Latch
Battery
Hard Disk Drive
18
Page intentionally left blank
19
G
Ge
et
tt
ti
in
ng
g
S
St
ta
ar
rt
te
ed
d

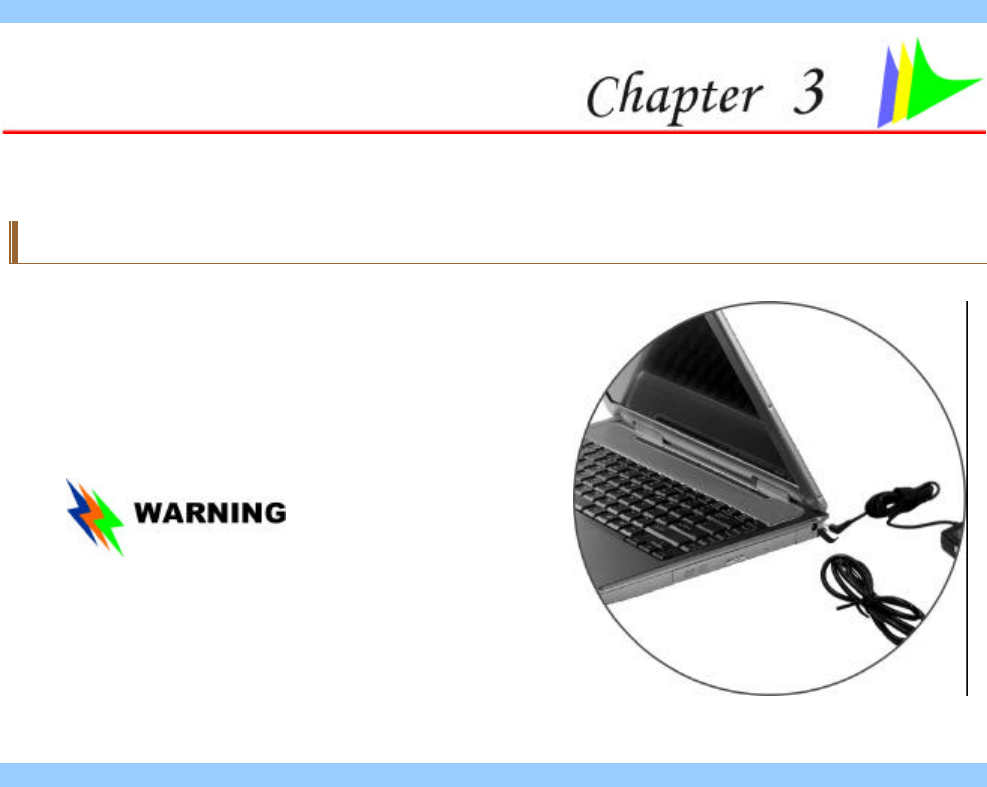

Connecting to a Power Source
n Connecting the AC Adapter
A universal AC adapter
is provided to supply your
computer with powe
r and also charge the computer’s
battery pack. The adapter’s AC input volt
age can range
covering the standard voltages available in almost every
country. The power cord for the AC adapter
requires a
three-
hole grounded AC outlet. To connect the computer
to an external power source:
The best kind of AC power source to connect your
Notebook to is a UPS
(Uninterruptible Power Supply).
Lacking this, use a power strip with a built-in surge
protector. Do not use inferior extension cords as this
may result in damage to your Notebook. The
Notebook comes with its own AC adapter. Do not use
a different adapter to power the computer and other
electrical devices.
20
Whenever possible, keep the AC adapter plugged into the Notebook and an electrical outlet to recharge the
battery.
Never turn off or reset your Notebook while the hard disk is in use and the HDD status icon is lit;
doing so can result in loss or destruction of your data. Always wait at least 5 seconds after turning
off your Notebook before turning it back on; turning the power on and off in rapid succession can
damage the Notebook’s electrical circuitry.
Turning On Your Notebook Computer
Turn on your Notebook by pressing the power button. Hold the button down for a second or two and release.
The Power-On Self Test (POST) runs automatically.
After the POST is completed, the computer reads the operating system from the hard disk drive into computer
memory (this is commonly referred to as “booting” a computer). If your OS (Operating System such as
Windows XP…. etc) is installed, it should start automatically.
To turn the Notebook off, save your work and close all open applications, click on Start, then select the “Turn
off the computer”. A selection box will be displayed and click on the “Turn Off” button to shut down your
computer.
When your computer hangs up, press the power button for 4-6 seconds to shut down the computer
Operating on Battery Power
Your computer comes with a rechargeable battery pack that lets you operate the computer without an external
power source. When the battery pack is fully charged, you can operate the computer for approximately 2
hours under the following conditions:
21
Ø The battery pack initially has a full charge.
Ø No peripheral devices are installed.
Ø The disk/CD-ROM drives run no more than 10% of the time.
Only use batteries that are approved by an authorized dealer. All batteries are not the same and
therefore should not be treated as such. Using the wrong battery could cause serious damage to
your computer and yourself through toxic emissions.
n Inserting and Removing the Battery Pack
The battery pack should already be inserted in your Notebook computer when you unpack it. If not inserted,
follow these directions:
1. Turn over the notebook with the front of the unit facing you and place it on a solid, flat surface.
2. Angle the battery into the bay. The front edge of the battery should slide into the grooves in the
system case.
3. Gently lower the battery into the bay and push it until it clicks securely in the bay.
22

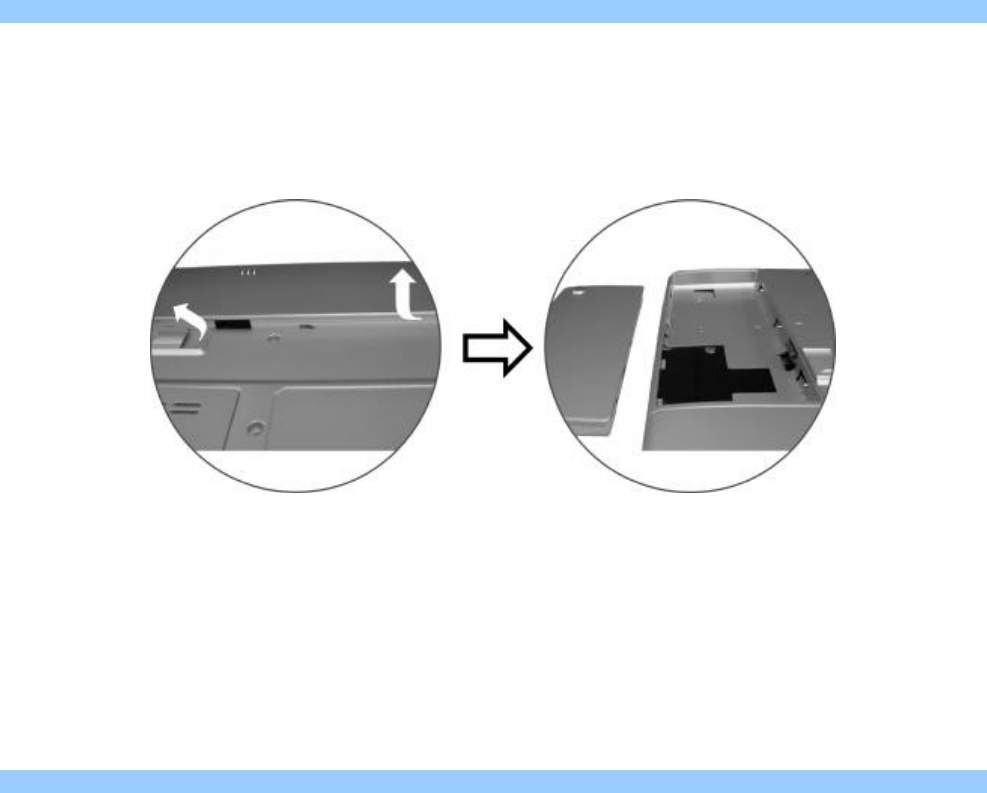

To remove the battery pack:
Ø Turn off the notebook, and disconnect the AC adapter. Close the LCD panel and turn it over and place it
on a solid, flat surface.
Ø Lift the release latch to release the battery from the bay. At this time the battery will now be angled
slightly out of the bay.
Ø Hold the battery at the finger grip and lift it out of the compartment.
n Charging the Battery Pack
The installed battery pack charges automatically any time the computer is connected to the AC adapter and an
external power source.
It is a good idea to occasionally discharge the battery pack fully to preserve its operating performance.
23
U
Us
si
in
ng
g
t
th
he
e
N
No
ot
te
eb
bo
oo
ok
k
C
Co
om
mp
pu
ut
te
er
r
Adjusting the LCD Screen Display
The LCD screen display can be adjusted by the following key combinations.
KEYS FUNCTIONS
[Fn] + [F7] Decreases the brightness level.
[Fn] + [F8] Increases the brightness level.
[Fn] + [F12] This key combination toggles the display between the LCD, CRT, simultaneous LCD/CRT.
This function will be disabled when the system is in Overlay (playing video) or Extended
Desktop mode.
n LCD Care
LCD screens are delicate devices that need careful handling. Please pay attention to the following precautions:
Ø When you are not using the computer, keep the LCD screen closed to protect it from dust.
Ø If you need to clean your LCD screen, use a soft tissue to gently wipe the LCD surface.
Ø Do not put your fingers or sharp objects directly on the surface and never spray cleaner directly onto the
display.
Ø Do not press on, or store any objects on the cover when it is closed. Doing so may cause the LCD to
break.
24
E
Ex
xt
te
er
rn
na
al
l
C
CR
RT
T
D
Di
is
sp
pl
la
ay
y
You can hook up an external monitor through the 15-pin CRT connector. Configurations are available:
Ø LCD only
Ø CRT only
Ø Simultaneous display of the LCD screen and CRT monitor
You can switch between these display configurations by pressing the key combination [Fn] + [F12].
A Tour of the Notebook’s Keyboard
The Notebook’s keyboard uses a standard QWERTY layout with the addition of special function keys and an
embedded numeric keypad for number intensive data entry. Your keyboard supports Windows by
incorporating the two Windows specific keys. With the two Windows keys you will be able to access and
take advantage of many of the timesaving features of Windows software.
The function keys (F1-F12) on the top row of the keyboard, serve different purposes and carry out different
tasks depending on the application you are running. The cursor (arrow) keys (which are all located in the
lower right corner of your keyboard) and the [PgUp], [PgDn], [Home] and [End] keys (which are located
along the right edge of the keyboard) allow you to move the active cursor of the computer to various
locations on the screen or within the document.
The embedded numeric keypad consists of 15 keys that make number intensive input more convenient. Like
the [Num Lock] key, these keys are labeled in blue on the keycaps. Numeric assignments are located at the
upper right of each key.
When the numeric keypad is engaged, the NumLock icon will appear in the System Window. The keypad is
activated by pressing the [Fn] + [NumLk] key. If an external keyboard is connected, pressing the NumLock
key on either the Notebook or external keyboard will enable/disable NumLock of both keyboards in unison.
To disable the Notebook numeric keypad while keeping the keypad on an external keyboard activated, use the
[Fn] + [NumLk] hot key on the Notebook keyboard.
25
n The Notebook’s Hot Key Controls
KEYS FUNCTION(S)
Power Button Press this button once to power on or enter the suspend/resume mode.
Press this button for more than 4 seconds to power off the system.
Internet Button Open Internet WWW Home short-cut key
Wireless LAN
On/Off Button Open Email Reader short-cut key
[Fn] + [F2] This key combination turns on/off the volume.
[Fn] + [F3] Decreases the speaker volume.
[Fn] + [F4] Increases the speaker volume.
[Fn] + [F7] Decreases the brightness level.
[Fn] + [F8] Increases the brightness level.
[Fn] + [F12] This key combination toggles the display between the LCD, CRT, simultaneous
LCD/CRT. This function will be disabled when the system is in Overlay (playing
video) or Extended Desktop mode.
The TouchPad

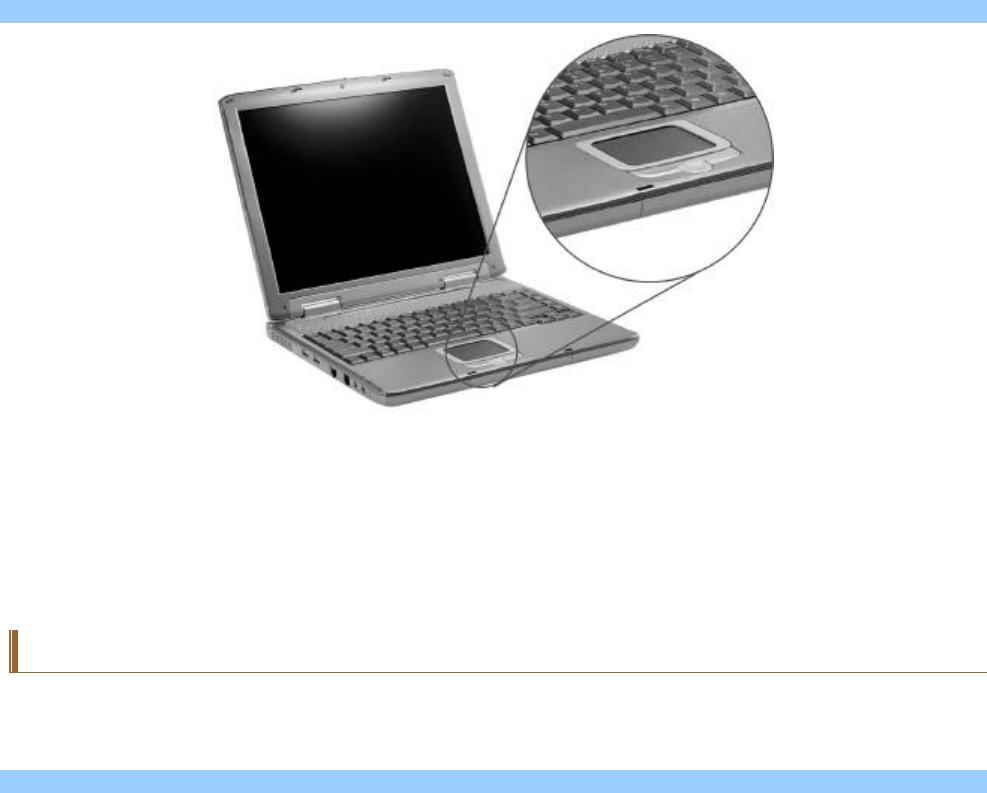

The touchpad is a rectangular electronic panel located just below your keyboard. You can use the static-
sensitive panel of the touchpad and slit it to move the cursor. You can use the buttons below the touchpad as
left and right mouse buttons.
26
n TouchPad Precautions
The TouchPad is a pressure sensitive device. Please take note of the following precautions.
Ø Make sure the TouchPad does not come into contact with dirt, liquids or grease.
Ø Do not touch the TouchPad if your fingers are dirty.
Ø Do not rest heavy objects on the TouchPad or the TouchPad buttons.
You can use the TouchPad with Microsoft Windows as well as non-Windows applications.
Connecting an External Tracking Devices
The system will only enables you to use one tracking device whether it is an internal or external tracking
device.
27
n Data Storage and Retrieval
Data storage and retrieval are two of the most fundamental tasks you will perform when working with your
computer. The Notebook is equipped with a hard disk drive (HDD). The HDD is removable allowing for easy
upgrades.
The CD-ROM/DVD-ROM/Combo Drive
n Precautions for Handling CD-ROM/DVD-ROM/Combo Drive
Ø Always hold the disc by the edges, avoid touching the surface.
Ø Use a clean, dry, cloth to remove dust, smudges, or fingerprints. Wipe from the center outward.
Ø Do not write or place objects on the surface of the disc.
Ø Store discs in a cool dry place not to damage the disc.
Ø Do not use benzene, thinners, or cleaners with detergent. Only use CD-ROM/DVD-ROM cleaning kits.
Ø Do not bend or drop the discs.
n Loading a Disc
To play a CD disc, follow the instructions listed below.
1. Push the CD-ROM/DVD-ROM/Combo Drive eject button on the CD drive door. Gently pull the tray
all the way out.
2. Carefully lift the CD-ROM/DVD-ROM/Combo Drive by the edges and make sure the shiny surface is
face down (the side with no writing on it). Carefully insert the CD-ROM onto the tray. Push the CD-
ROM/DVD-ROM/Combo Drive down gently so that it snaps onto the center ring.
3. Push the tray back into the drive.
To remove a disk, do the following:
1. Check the LED display and make sure that the computer is not accessing the CD-ROM/DVD-
ROM/Combo Drive.
2. Push the eject button and pull the tray all the way out.
28
3. Carefully pick up the CD disk by the edges and – while pressing down on the center ring – remove the
CD-ROM/DVD-ROM/Combo from the tray.
Do not insert any foreign objects into the disc tray. If you experience difficulty when ejecting the CD
disk tray, stretch a paper clip (or use a pin or a thin metal rod) and insert it into the emergency eject
hole located on the right side of the front panel. The CD disk tray should eject immediately. This
procedure can also be used to remove a CD from the drive when the Notebook is powered off.
Power Saving Modes
This section contains information on the Notebook’s power system, including the AC Adapter, the battery
system, recharging the battery, and tips for conserving battery power.
The power system is comprised of two parts, the AC Adapter and the battery system. The AC Adapter
converts AC power from a wall outlet to the DC power required by the computer.
n The Battery Power System
A fully charged pack will provide approximately 2 hours of battery life depending on your system
configuration application it runs. Before using the computer on battery power for the first time, check the
battery status icon on the Windows Toolbar to make sure the battery is fully charged.
See Battery Status later in this section for a description and explanation of the Windows Battery icon.
Charging the battery takes about 3 hours to charge when the system is in off state. If possible, always charge
the battery completely.
n Removing the Battery Pack
To remove the battery pack from its compartment, please refer to Chapter 3, Inserting and Removing the
Battery Pack.
29
n Preparing the Battery Pack for Use
Before using the battery pack for the first time, the Smart Battery IC within the battery pack should be
calibrated in order to get accurate reporting of remaining battery life status.
To calibrate the battery pack follows the instructions below:
1. Insert the battery into the battery compartment and turn on the Notebook. If the battery is completely
without power go to the next step.
Otherwise, let the battery run down until the battery low-low warning beeps are heard.
The system will automatically enter Suspend mode.
2. Turn the Notebook off. Connect the AC adapter and let the battery fully recharge. When the battery
charge indicator turns off, the battery is fully charged.
3. Turn On the notebook, let the battery run down until the battery is in low-low state and you hear a
warning beeps. The system will automatically enter the Suspend mode. You can now connect the AC
adapter.
4. The battery pack is now calibrated properly.
In general, using the battery until the low-low battery-warning indicator appears and fully recharges the
battery each time (full discharge/charge cycle) will ensure the accurate reporting of the battery gauge status.
n Automatic Battery Pack Charging Function
You can automatically charge the battery pack by using the AC Adapter. The charge time is about three hours
when the Notebook power is turned off. The following table summarizes the charging modes:
Charge Mode Charge Time
Fast 3 hours with the system off or in Suspend mode. The temperature must be 25°C
or below room temperature.
Pre-Charge A pre-charge is supplied to the Li-Ion battery pack.
30
n Battery Status
Windows XP has an applet in the Control Panel that will display an icon in the Windows taskbar indicating
when the Notebook is running on battery power or is attached to the AC adapter. This applet also displays a
meter that indicates how much charge is remaining in the battery.
n Battery Low Warning
When the pack initially reaches the “Battery Low” state approximately 10 ~ 15 minutes of the usable battery
life is left. You will hear an audible beep signal every 1.5 seconds alerting you to the “Battery Low” status.
When the battery power reaches the “Battery Low Low” status the beeping sound will accelerate. Your
battery now has 1 ~ 2 minutes of battery charge remaining. You must save your data or connect AC power
immediately; otherwise, you may lose your data.
Sound Meaning
Continuous beeping
every 1.5 seconds Battery Low: Indicates that there is 7 to 10 minutes charge remaining.
Beeping accelerates Battery Low Low: Indicates that there is 1 to 2 minutes of battery charge
remaining. Save your work and turn off the Notebook, or connect the AC
adapter.
n Small Battery for the Real Time Clock
There is a small built-in battery pack that supplies power to the system in order to maintain certain system
information while the power is off. If the Notebook is left without a power source for long period of time,
this battery will be exhausted and system information will be lost.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
Never remove the battery pack while the power is on as this may result in data loss when the system loses
power.
31
n Resetting the System
After installing a software application package, you may be prompted to reset the system to load the changed
operating environment.To reset the system, or “reboot,” press the [Ctrl] + [Alt] + [Delete] keys
simultaneously. This is known as “warm boot.” This key combination acts as “software” reset switch when
you encounter hardware or software problems, which lock up the Notebook.
If this key combination does not shut down the Notebook, you can reset the Notebook by using the
Notebook’s power button. Should the Notebook lock up for some reason, pressing this button powers the
Notebook off.
n Adjusting the Brightness
To adjust the brightness on the LCD screen, press and hold down the [Fn] key in the lower left hand corner
of the keyboard and press the [F7] key to reduce the brightness or [F8] to increase the brightness.
32
Page intentionally left blank
33
D
De
es
sk
kt
to
op
p
O
Op
pe
er
ra
at
ti
io
on
n
Your notebook is capable of providing you with efficient and productive mobile computing, it also has the
speed and capacity to service as a desktop system. This chapter discusses those functions of your notebook
that are typical of desktop systems.
Audio
n The Multimedia Sound System
The Notebook’s built-in audio capabilities allow you to take advantage of a wide range of education and
entertainment multimedia software. The Notebook is equipped with internal stereo speakers, a microphone,
and input audio ports for external audio units.
An external microphone can be connected to the microphone jack. External speakers or headphones can be
connected to the Notebook’s audio-out jack.
External audio devices can be connected to the Line in jack. All audio features are software controlled. The
Notebook’s multimedia sound system includes the following features:
Ø Supports Windows Sound System compatibility
Ø Full Duplex operation
Ø Dynamic filtering reduces noise and distortion rate
Ø 16-bit digitized audio playback
Ø A built-in microphone for convenient recording
Ø Built-in stereo speakers
34
Ø Digitized audio recording through the Notebook’s built-in microphone or any external source
n Audio Volume Control
The Notebook is equipped with hot-key volume controls: Pressing the [Fn] + [F3] hot-key combination
decreases the audio output volume, press the [Fn] + [F4] hot-key combination increases the audio output
volume.
n Audio Software
Your notebook comes equipped with an integrated sound system capable of providing you with quality audio
sound through the built-in speakers or through external speakers connected via the system ports.
n Sound Recording
Your system allows you to record sounds and store them as files using the microphone via the microphone
jack on the rear of the notebook computer. Check the Windows Help and Support Center in Windows for
information on using the various elements in sound recording.
For a high-quality sound, click on the "Volume Control" at the lower right end of your screen. From
the Volume Control windows, click on the "Advanced" tab, click and select the "Microphone Boost"
item.
n Playing Sound Files
Your notebook can play audio files stored in MIDI, WAVE or MP3 file format. Check the Help and Support
Center in Windows for information on the functions of the Media Player.
n External Speakers and Microphone
The sound system is capable in providing high-quality sound to external speakers and receiving and
processing sounds from an external microphone or external sound source.
35
Connecting Peripheral Devices
To expand your computing capabilities, you can add a variety of external devices to your computer. You
may, for example, want to add a mouse, modem, or a printer. The computer is equipped with several interface
ports, including an enhanced parallel (printer) port, a serial port, and USB ports. These are provided as a
means of connecting peripheral devices to the computer.

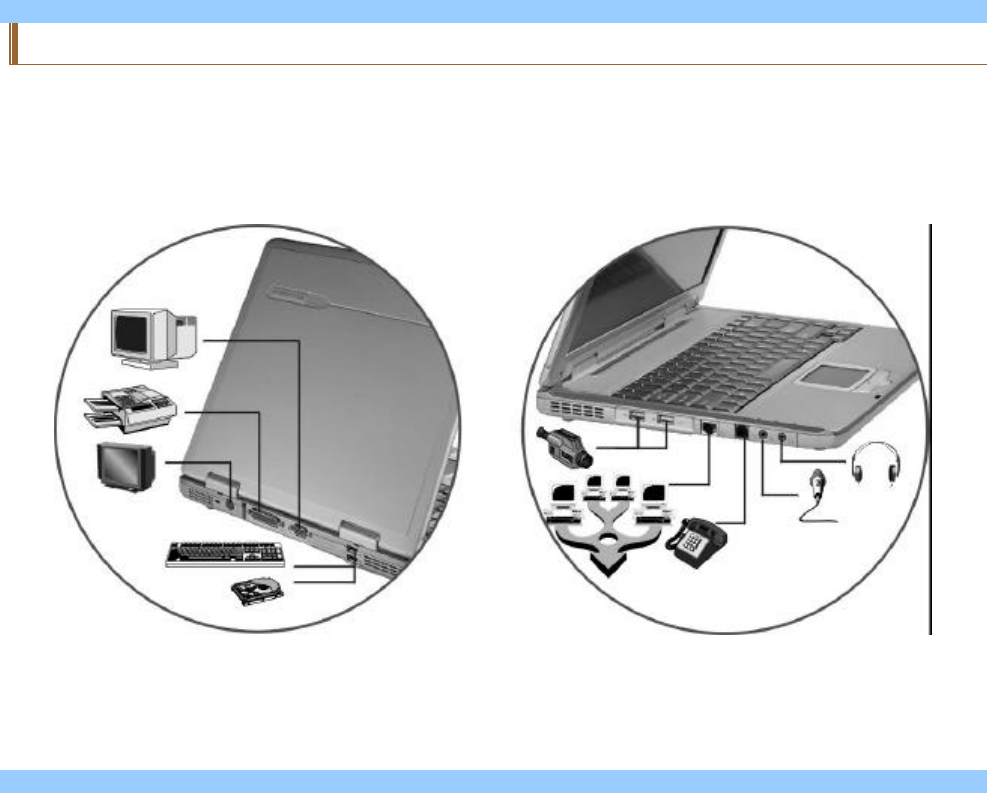

Connect peripheral devices to the computer's interface ports as shown below:
36
Page intentionally left blank
37
I
In
nt
te
er
rn
ne
et
t
C
Co
on
nn
ne
ec
ct
ti
io
on
n
There are numerous ways to connect to the Internet. This may vary from the user’s working environment as
well as system specifications.
Ø Using a modem and a telephone line
Ø Using a wired LAN
Ø Using a wireless LAN
Using a modem for Connection to Internet
Ø Use a telephone line to connect to the modem port of your computer. Do not use a digital telephone line.
Ø Please apply to an Internet Service Provider (ISP) for Internet service in order for you to connect the
modem to the Internet and use e-mail.
For more detail on the Network key, please refer to your local ISP provider and follow the procedures
describe in the “ISP Installation Guide” to proceed with the installation.
Using a wired LAN for Connection to Internet
For you connect to the Internet, a wired LAN environment normally uses the company’s LAN or a broadband
modem.
1. Use the network (LAN) cable to connect to the LAN port of the system.
38

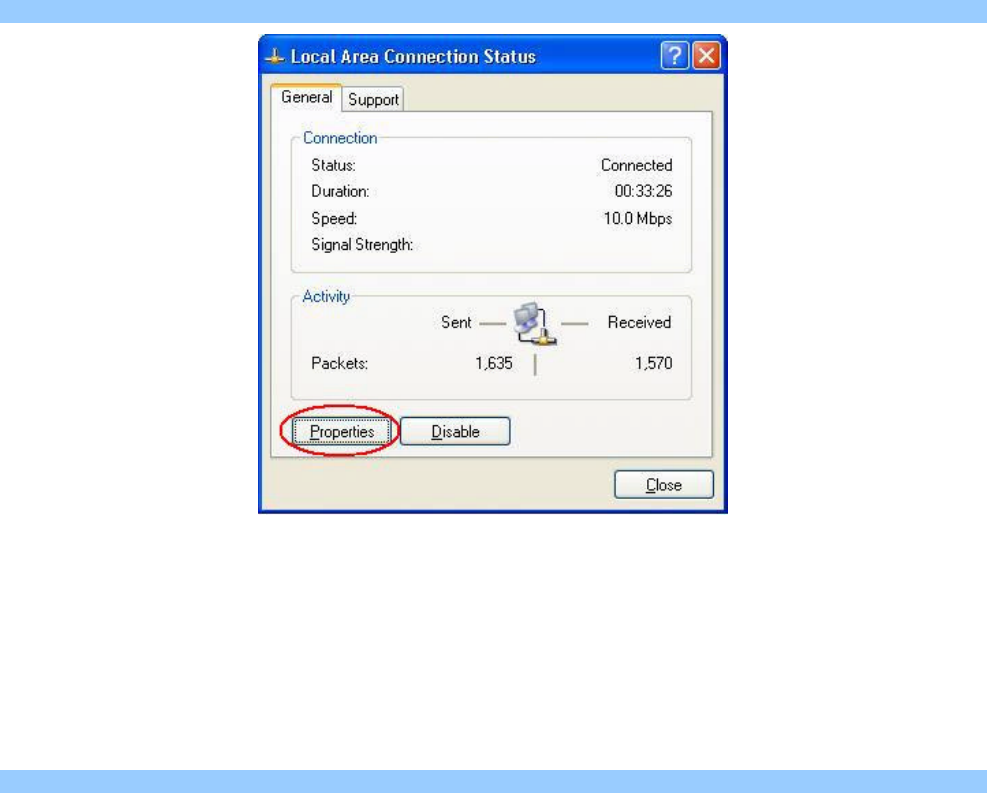

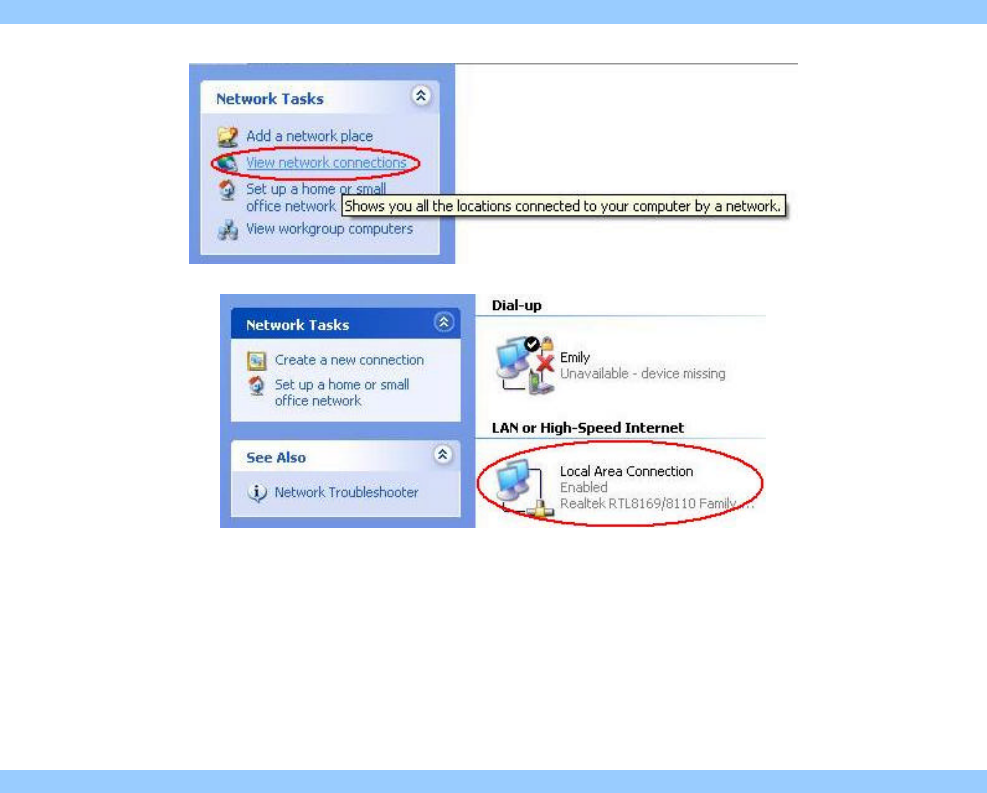

2. Select on “My Network Places” and click on the “View Network Connection” in the “Control Panel” window.
3. In the “Network Tasks” window, use your mouse pointer to click on the “Local Area Connection”.
4. Select “Properties” from the popup menu that appears
39
5. In the “This connection uses the following items” field, select “Internet Protocol (TCP/IP), and click
“Properties”.
40

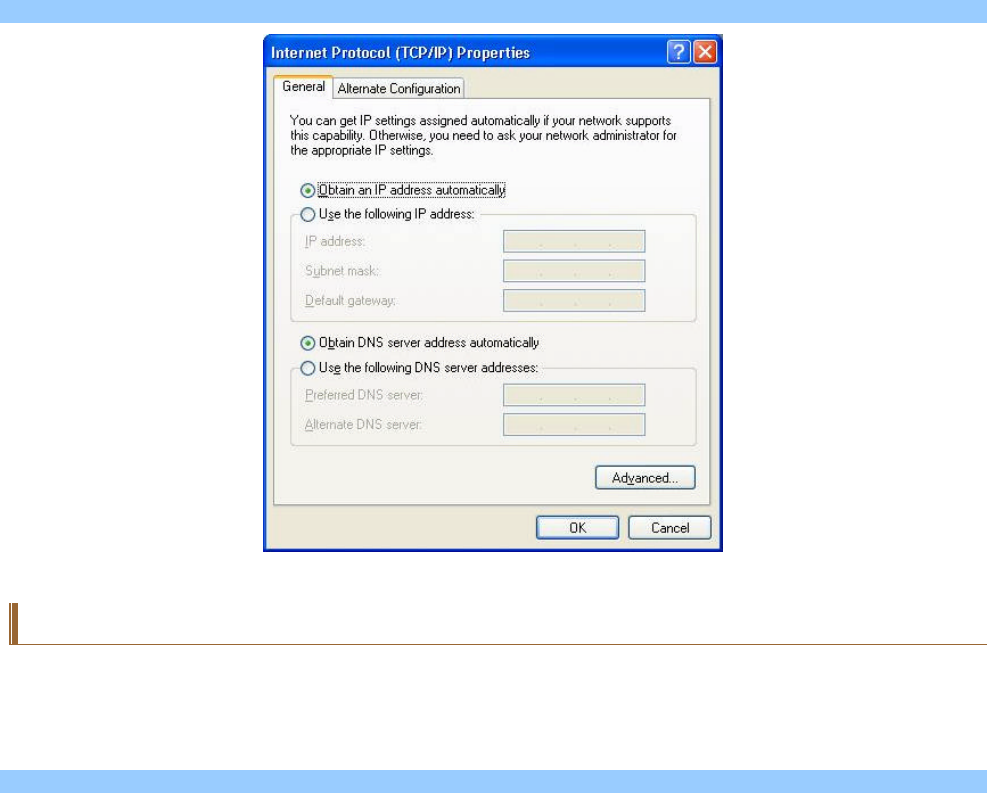

6. Enter the system’s IP and DNS server addresses on the General tab of the “Internet Protocol (TCP/IP)
Properties” window. If DHCP is used, click “Obtain an IP address automatically” and “Obtain DNS server
address automatically” on the General tab.
41
7. After all the all the information are correctly entered in the “Internet Protocol (TCP/IP) Properties” window,
click “OK” to finish.
Using Both DHCP and Static IP for Connection to Internet
When you are alternatively using networks with either DHCP or static IP addressing, you can use alternative
settings that enable simultaneous configurations of DHCP and static IP to use both of the network connects
without reconfiguring.
1. Follow the steps mentioned when you are using wired LAN connection from 1 to 7.
42

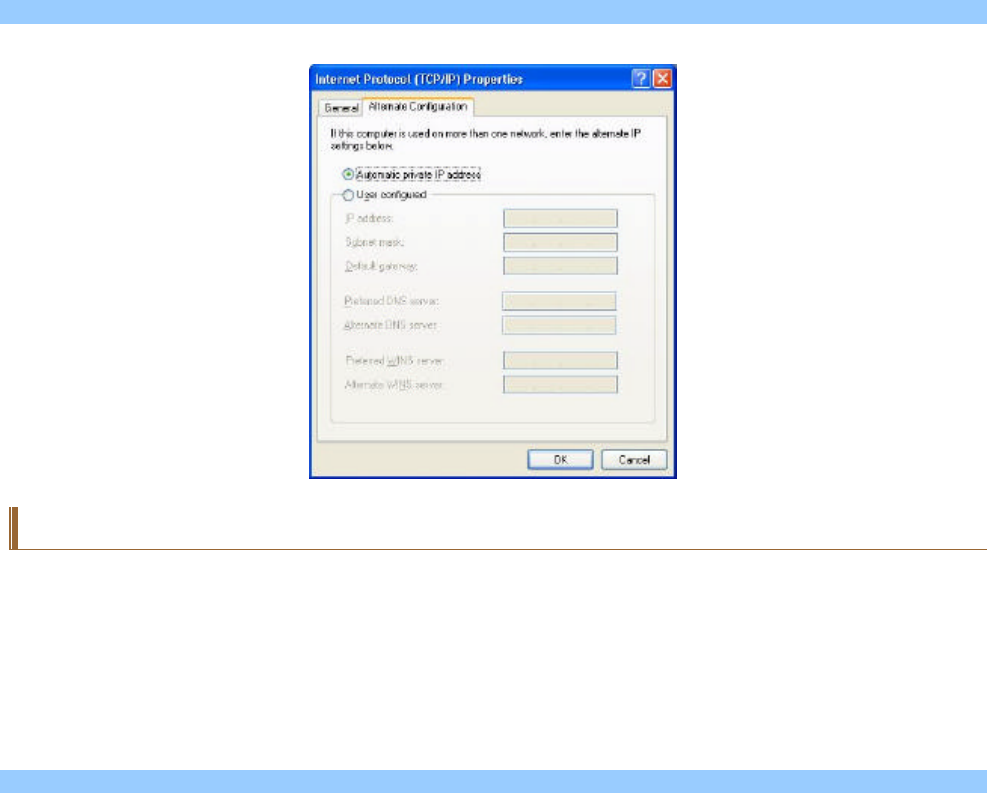

2. Click on the “User configured” and enter the appropriate values in the “Alternate Configuration” tab.
3. When you have completed the entire configuration, click “OK”.

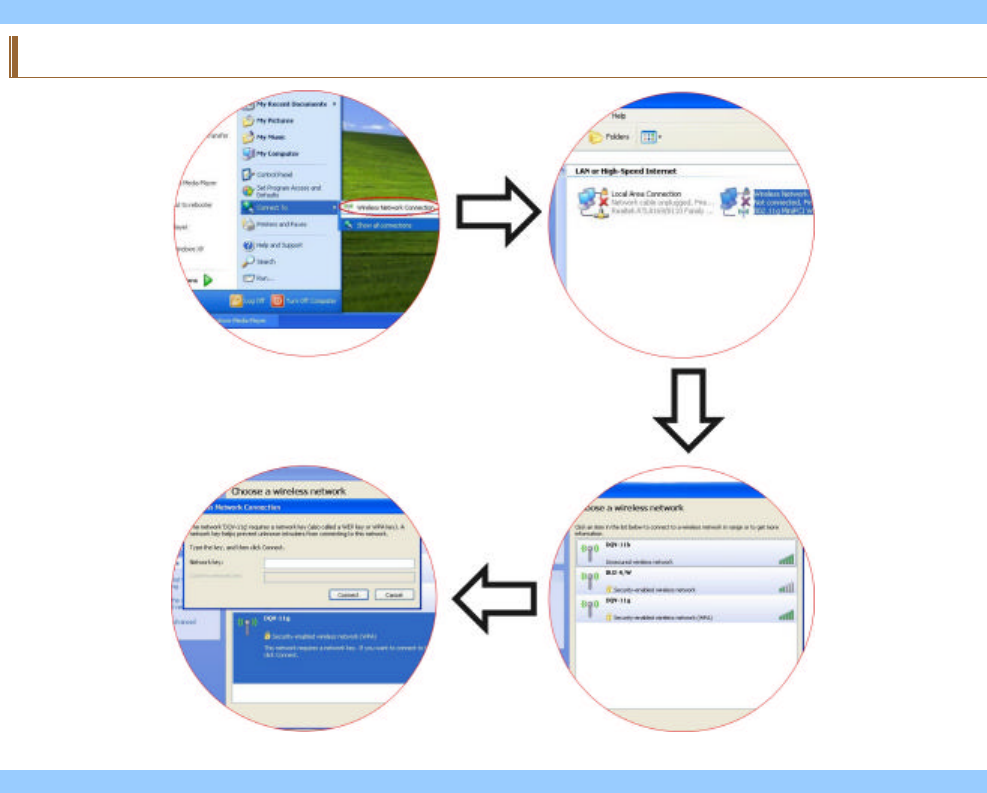

Using Wireless LAN Network for Connection to Internet (Microsoft’s Service Pack 1)

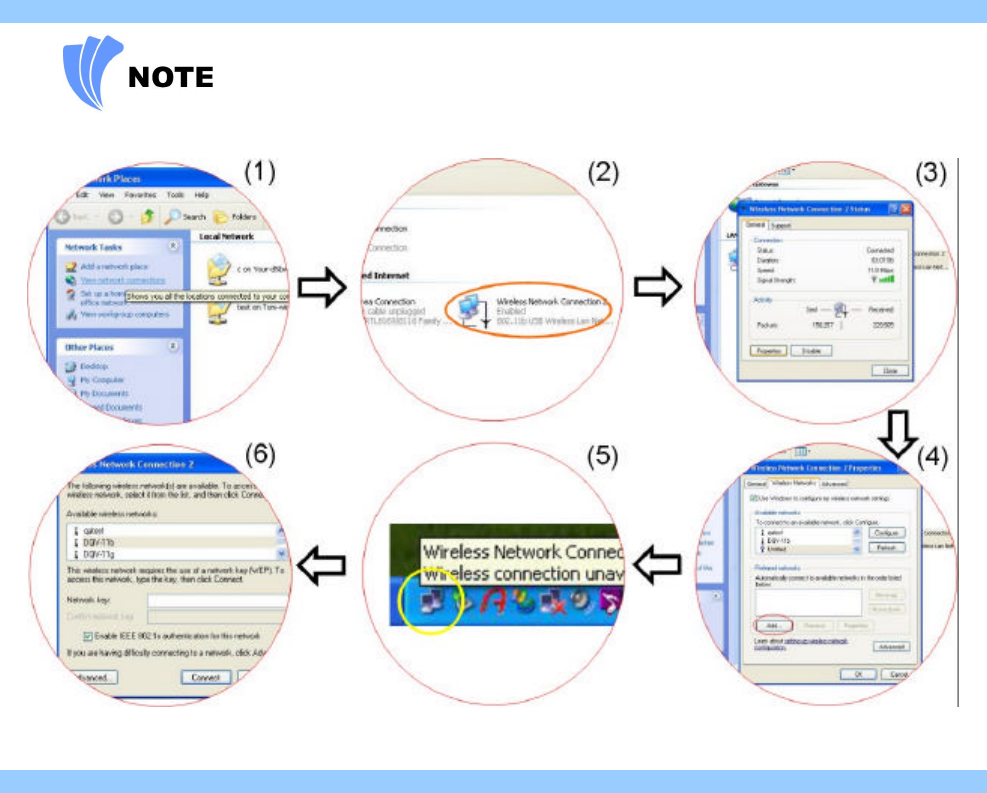

1. From Start, click on the "My Network Places" icon and click the "View Network Connection".
2. Select the “Wireless Network Connection” item from the “Network Connections” display window.
3. From the “Wireless Network Connection Status” display window, click on the “Properties” button.
4. Select the “Wireless Networks” tab and enable the “Use Windows to configure my wireless network Settings”.
Click “OK”.
5. A small icon will display on your lower right end of the Windows display.
6. Click on the icon and select the setting for the available network shown on the list and click on the “Connect”
button.
43
For more detail on the Network key, please refer to your local ISP provider and follow the procedures
describe in the “ISP Installation Guide” to proceed with the installation.
44
Using Wireless LAN Network for Connection to Internet (Microsoft’s Service Pack 2)
45
R
Ru
un
nn
ni
in
ng
g
B
BI
IO
OS
S
S
Se
et
tu
up
p
Introduction
The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make
changes to the system configuration and tailor your system to reflect installed hardware or alter system
performance. When the Notebook is turned back on, the system is configured with the values stored in CMOS.
With easy-to-use menus, you can configure such items as:
Ø Hard drives and peripherals
Ø Bootup Drive Sequence
Ø Password protection
The settings made in the BIOS Setup program intimately affect how the Notebook performs.
Navigating through BIOS Setup
The Setup program has been designed to make it as easy to use as possible. If you accidentally make a
setting and don’t know which one to switch back to, the Setup program has a hot key that allows you to
return to the previous value.
Accessing the BIOS Setup Program
To access the BIOS Setup program, press the DEL key after the Notebook has run through its POST.
46
n Item Specific Help
On the right side of the Setup screen is an area labeled Item Specific Help. This area will list navigation key
shortcuts and information that is specific for the item that you are currently editing.
The Menu Bar
The top of the screen has a menu bar with the following selections:
Main - Use this menu to make changes to the basic system configuration.
Advanced - Use this menu to enable and make changes to the advanced features available on your system,
such as enabling the FIR module.
Security - Use this menu to set a password. The password allows bootup and controls access to the BIOS
setup menu.
Boot - Use this menu to configure the default system device used to locate and load the Operating System
and for booting up the Notebook.
Exit - Use this menu to exit the current menu or specify how to exit the Setup program.
To access the menu bar items, press the right or left arrow key on the keyboard until the desired item is
highlighted.
The Legend Bar
At the bottom of the Setup screen you will notice a legend bar. The keys in the legend bar allow you to
navigate through the various setup menus. The following table lists the keys found in the legend bar with
their corresponding alternates and functions.
Legend Key Alternate Key Function
F1 Displays the General Help window. It can be enabled from anywhere
in the BIOS.
47
Esc Jumps to the Exit menu or returns to the Main menu from a
submenu.
← Selects the menu item to the left.
→ Selects the menu item to the right.
↑ or ↓ Keypad arrow
keys Moves the cursor up and down between fields.
Tab Enter Moves the cursor to the next position available in the field.
Minus key (-) Scrolls backward through the values for the highlighted field.
Plus key (+) Scrolls forward through the values for the highlighted field.
Home PgUp Moves the cursor to the field at the top of the window.
End PgDn Moves the cursor to the field at the bottom of the window.
F9 Sets the parameters for the current menu to their default values.
F10 Save and Exit.
Enter Will select a sub menu or show a range of options for a field.
Launching Submenus
Note that a right pointer symbol u appears to the left of certain fields. This pointer indicates that a submenu
can be launched from this field. A submenu contains additional options for a field parameter. To call up a
submenu, simply move the cursor to highlight the field and press the [Enter] key. Use the [Esc] key to return
to the Main menu.
General Help
In addition to the Item Specific Help window, the BIOS Setup program also provides a General Help screen
can be called up from any menu by simply pressing [F1]. Use the [PgUp] and [PgDn] keys or the up and
down arrow keys (
↑↓
) to scroll through the entire help document.
48
Press the Home key to display the first page, press End to go to the last page. To exit the help window, press
the [Enter] or the [Esc] key.
n Save Changes and Exit the Setup Program
Refer to the Exit menu section of this chapter for detailed information on saving changes and exiting the
setup program.
The Main Menu

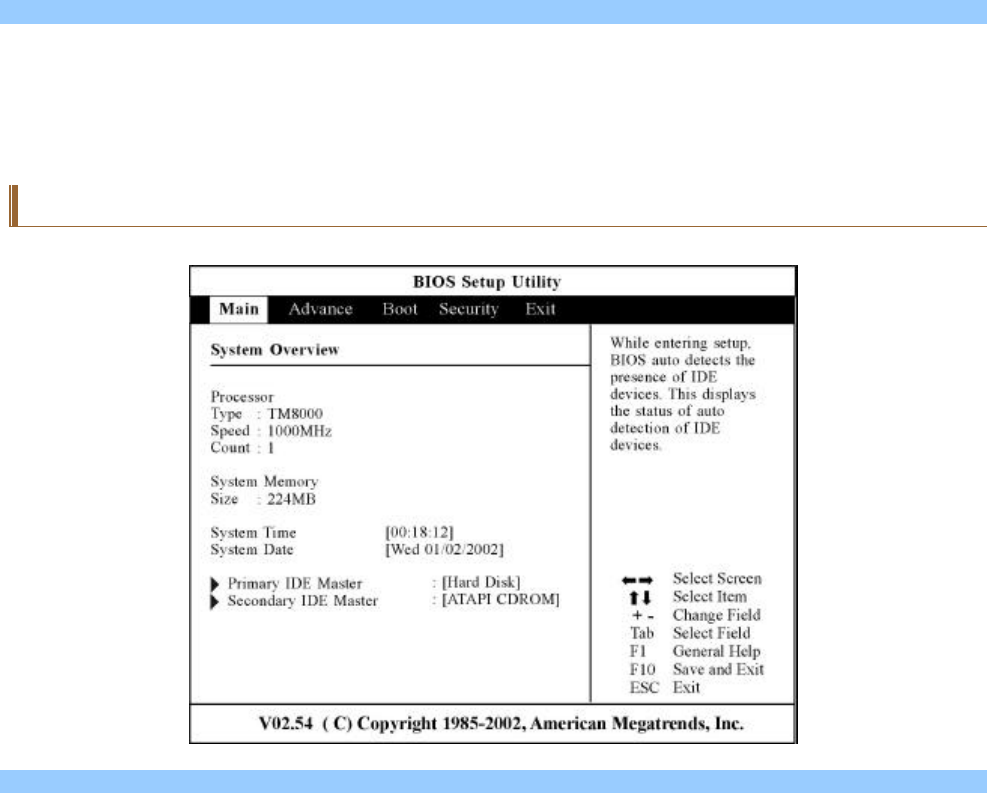

When the Setup program is accessed, the following screen appears:
49

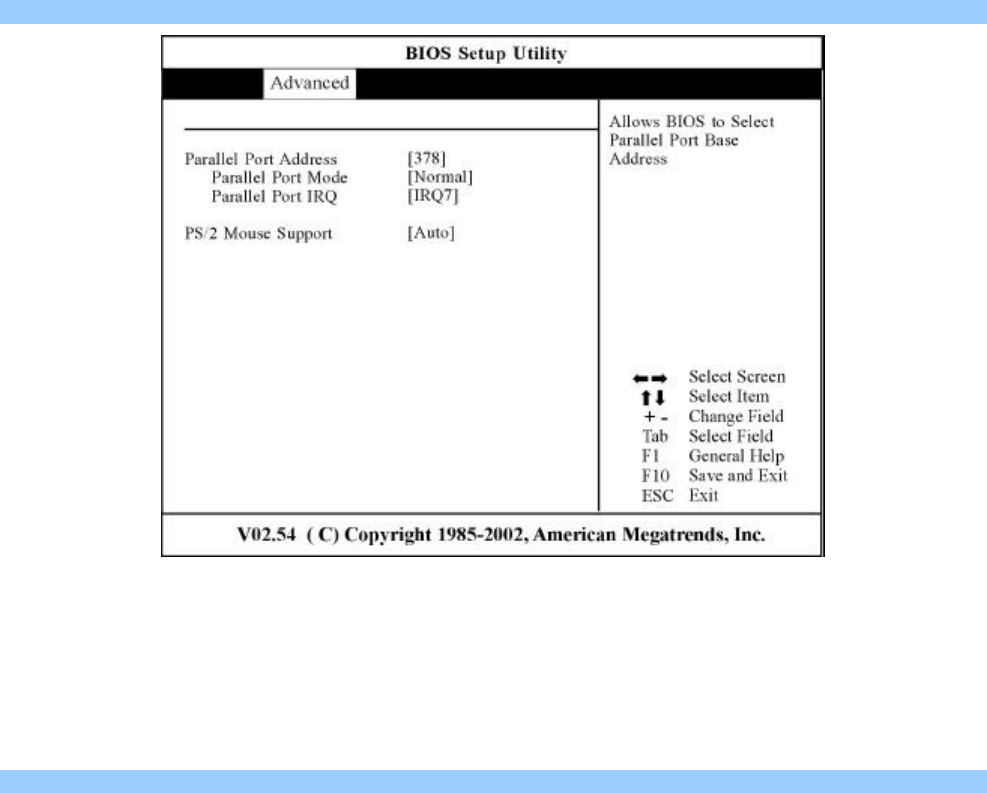

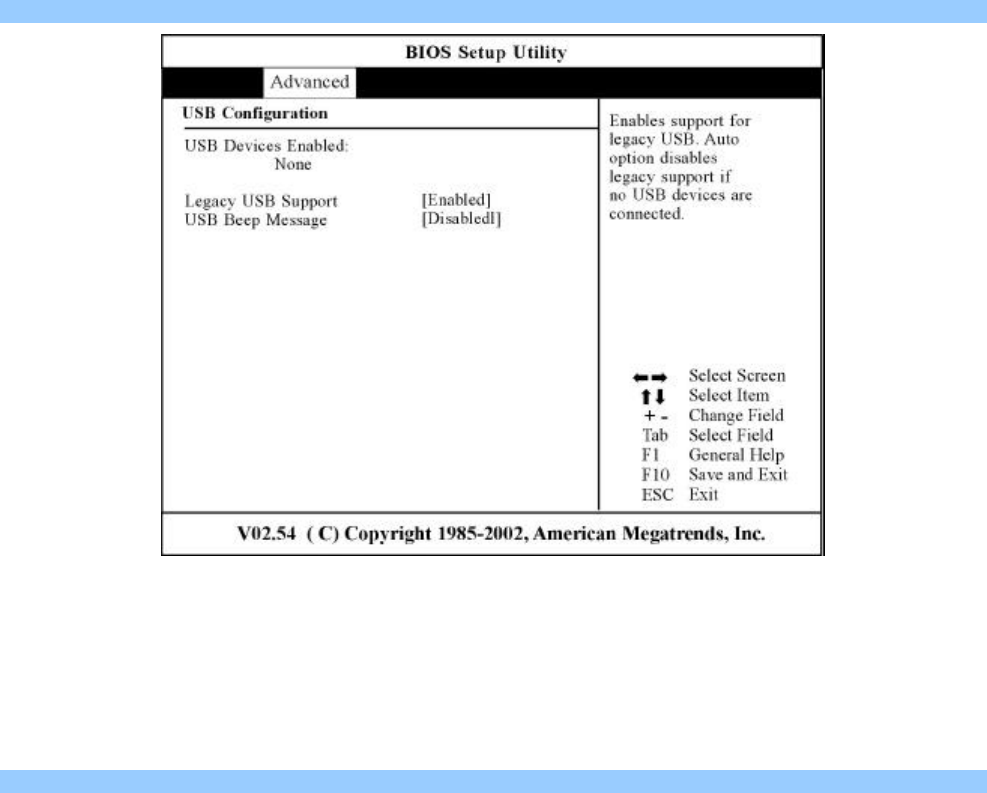

The Advanced Menu

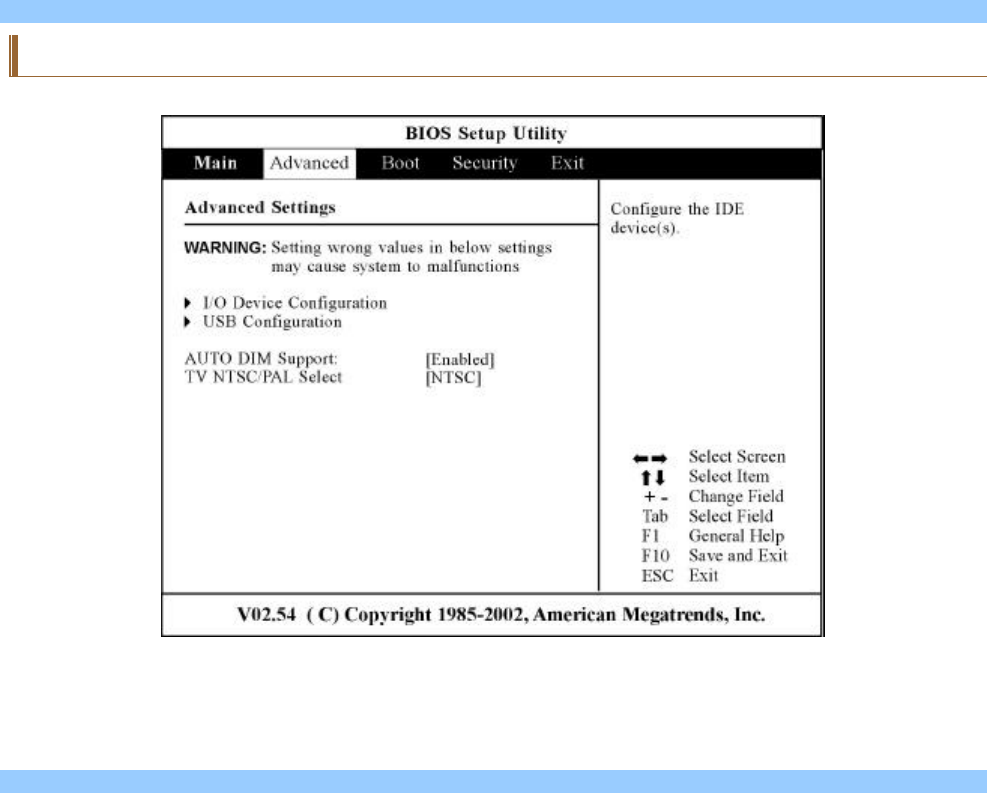

Selecting Advanced from the menu bar displays the Advanced menu:
50
51
52
The Boot Menu
The Boot menu allows the user to specify the order in which the Notebook is to check for a device to boot the
system. You can also configure the way that the system will boot up.

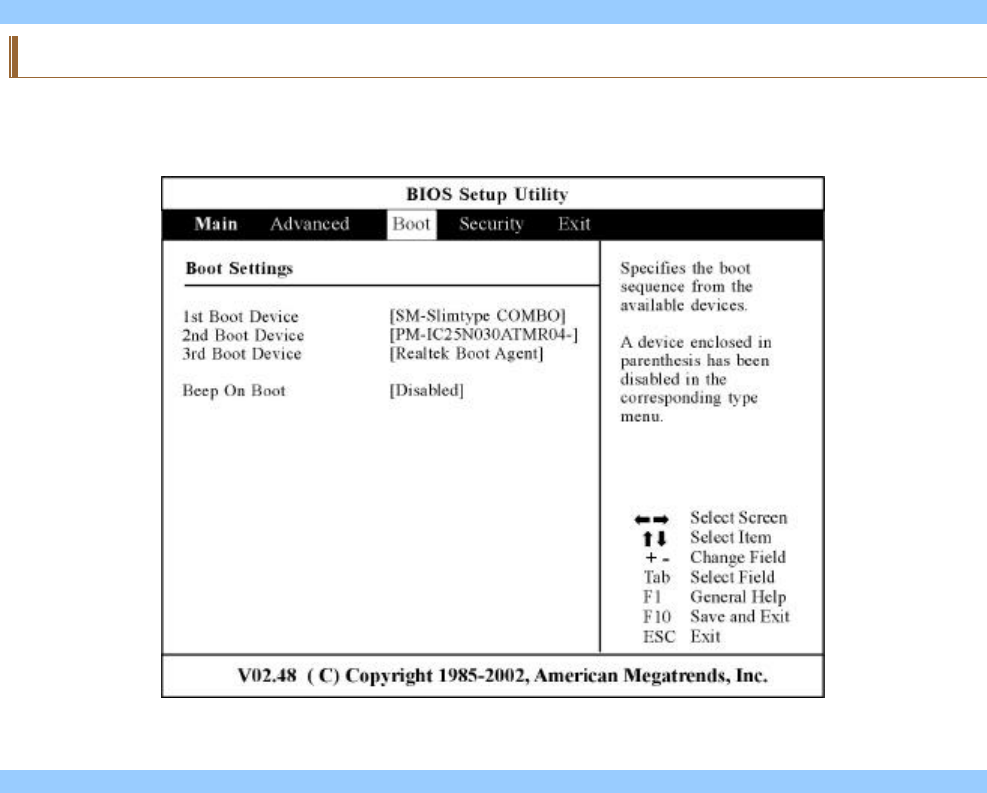

To make changes, select Boot from the menu bar. The following screen appears:
53

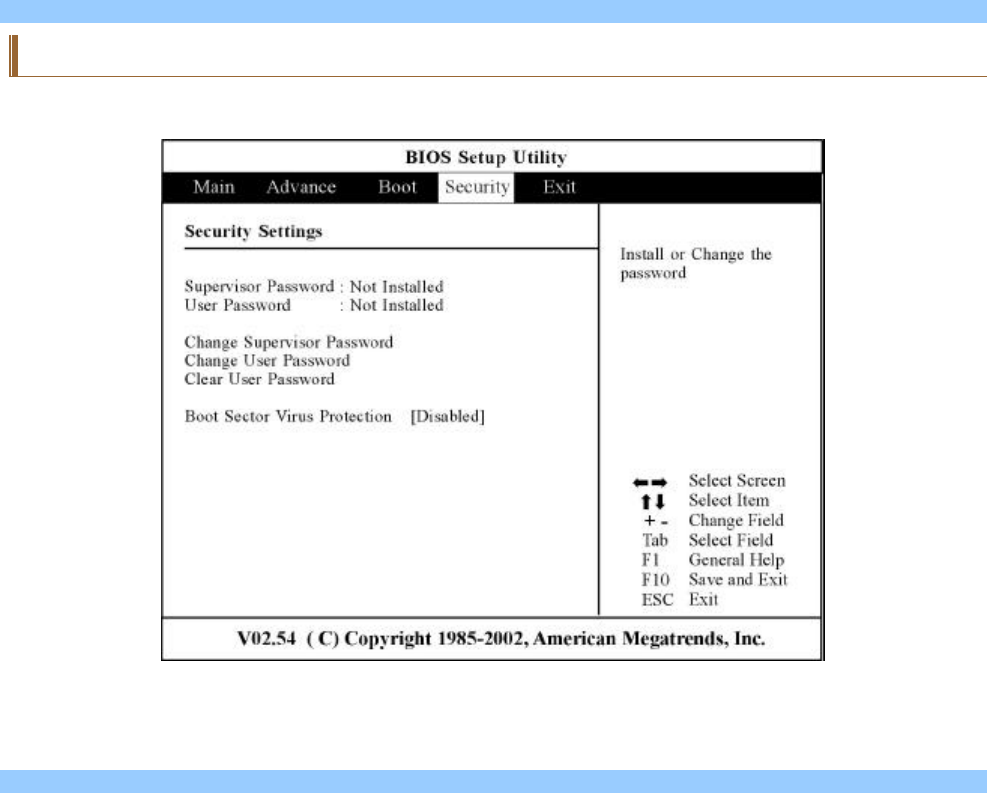

The Security Menu
The Notebook’s advanced system of security allows you to set a password to prevent unauthorized access to
system resources, data, and the BIOS Setup Program.
54
The Exit Menu

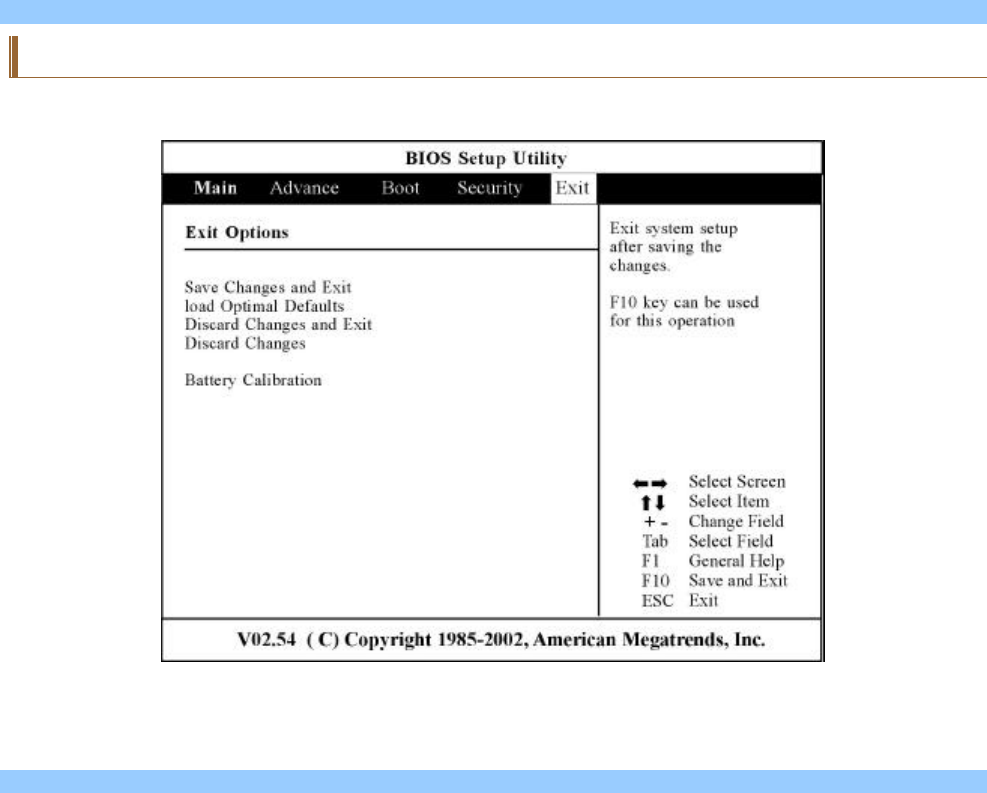

Once you have made all of your selections from the various menus in the Setup program, you should save
your changes and exit Setup. Select Exit from the menu bar to display the following menu:
55
T
Th
he
e
S
So
of
ft
tw
wa
ar
re
e
U
Ut
ti
il
li
it
ti
ie
es
s
D
Di
is
sk
ks
s
Installing the Drivers
To make installation of the drivers easier, we offer an auto installation method for the Microsoft Windows
system.
To install the driver for the system, the attached CD disk contains the driver installation, users manual.
Follow the step-by-step procedures to execute the "AutoRun" application by selecting the topic of "Driver
Installation".
Select the drivers that you desired and follow the instructions on the screen. The drivers will be installed in
the system automatically. During the installation, it is very normal that the system may restart.
56
VGA Utilities
After you have restarted Windows, open the
“Control
Panel” and double click on the
“Display” icon.

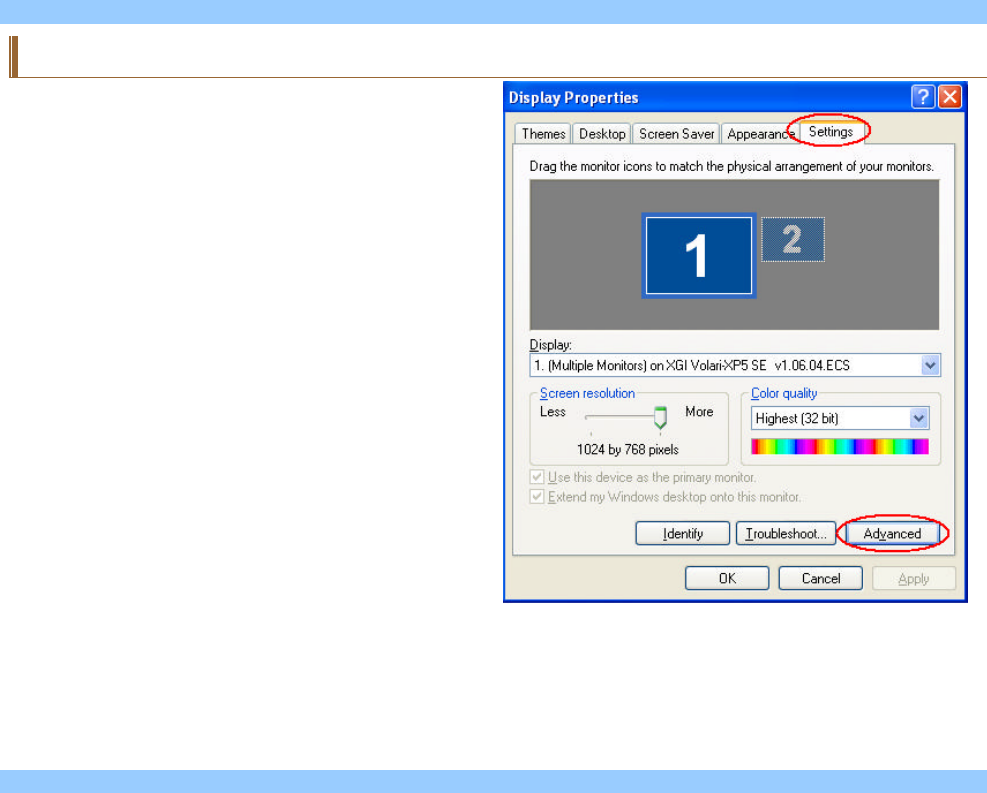

From the “Display Properties” window, select the
“Settings” tab and click on the “Advanced” tab.
57

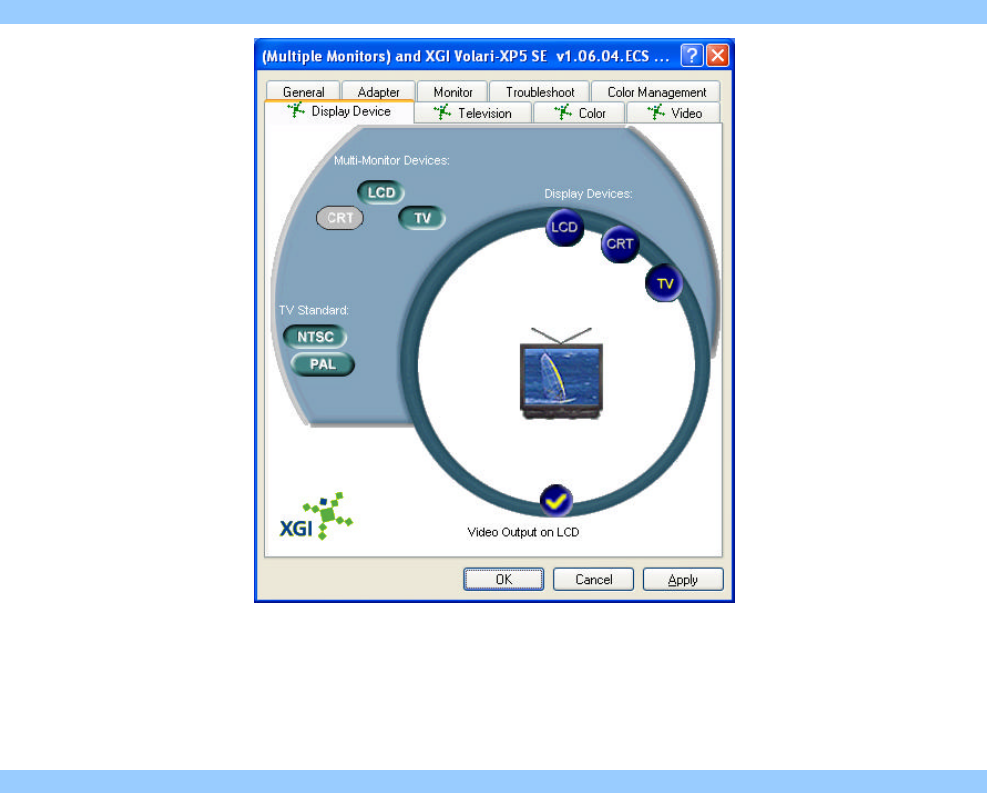

n Display Device Setting
58
59
n Television Setting

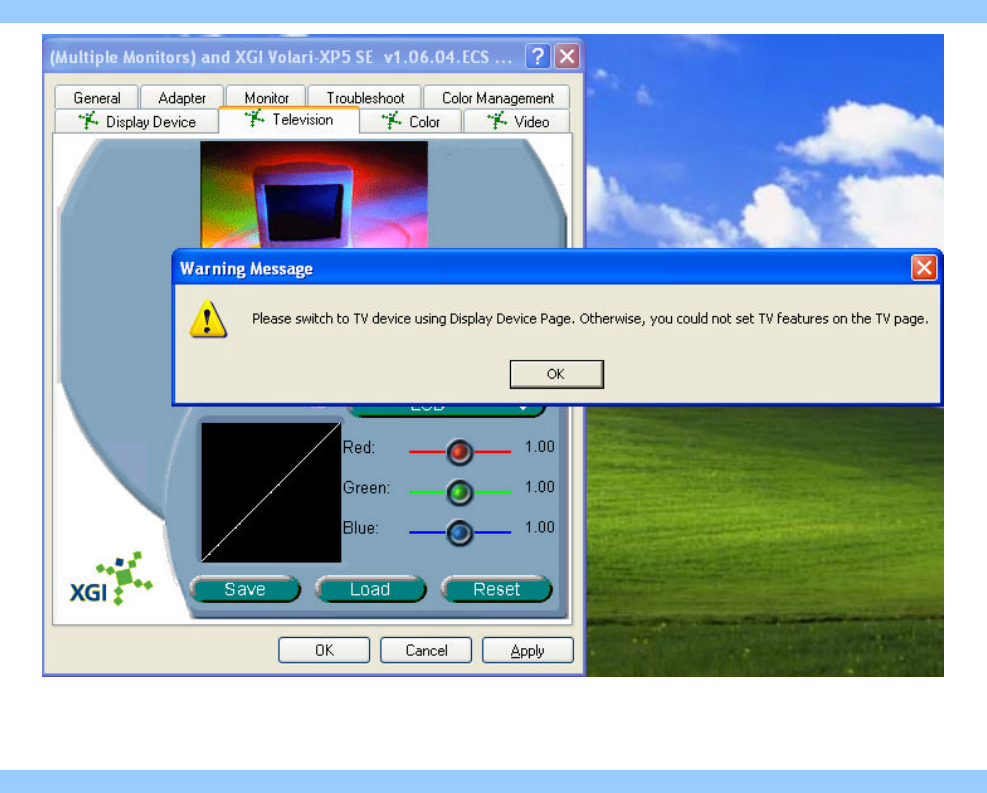

60

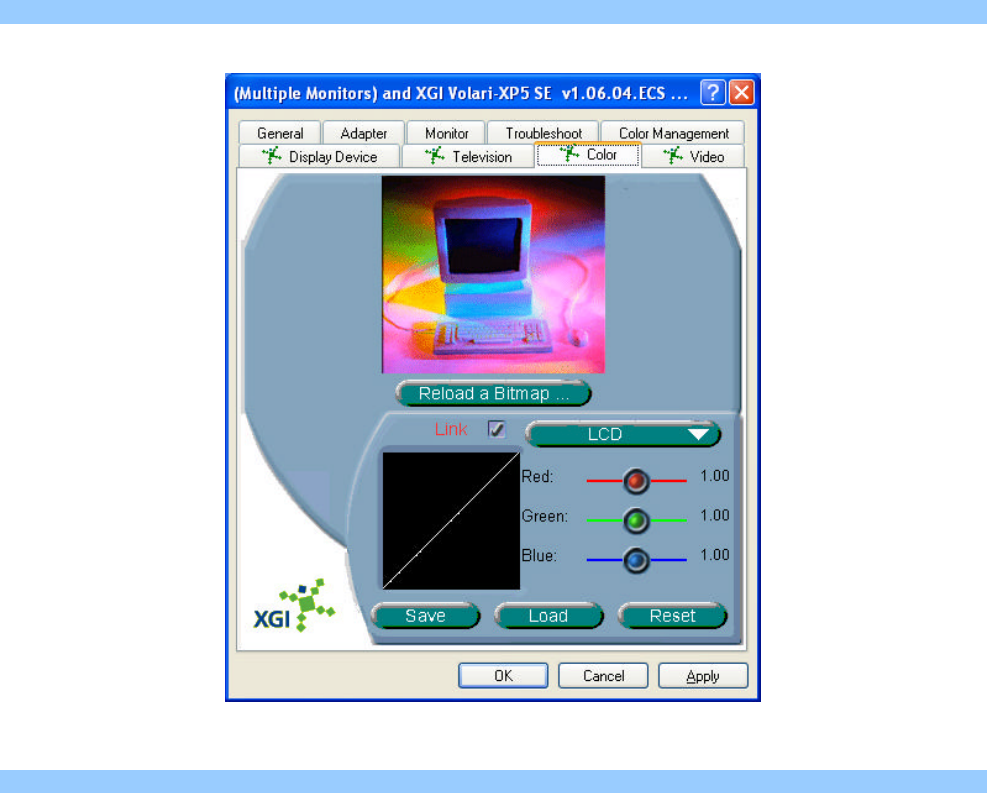

n Color Setting
61
62

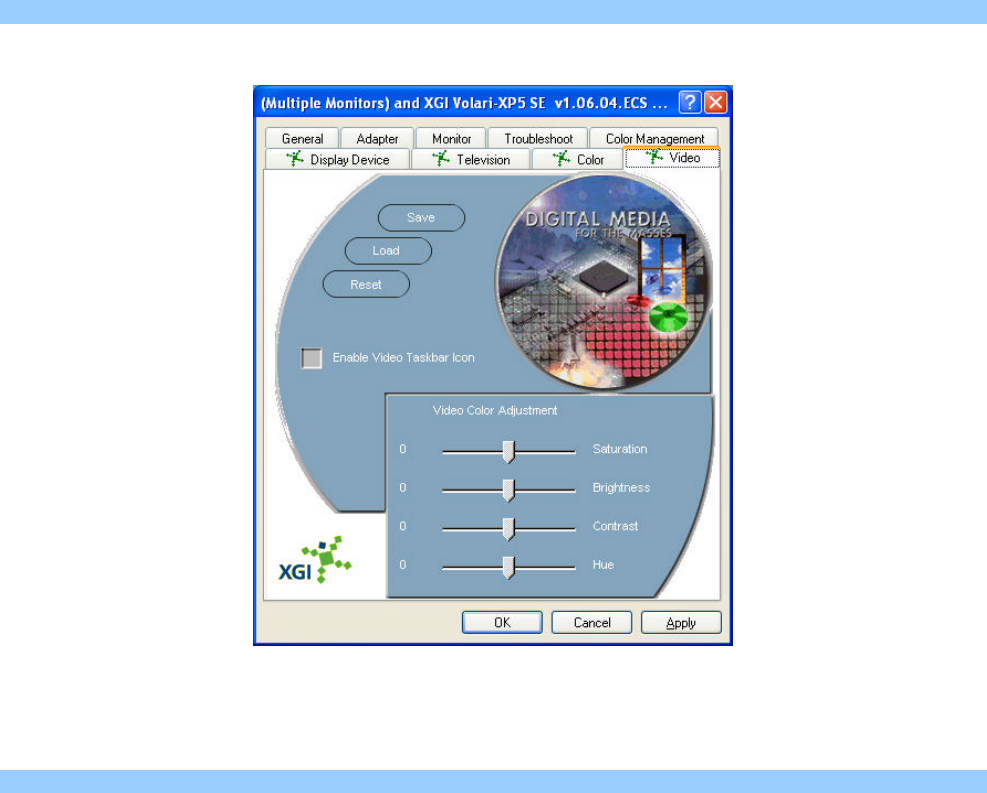

n Video Setting
63
T
Tr
ro
ou
ub
bl
le
es
sh
ho
oo
ot
ti
in
ng
g
This chapter describes locating and solving problems that you may encounter while using your computer.
Locating a Problem
Problems with your computer can be caused by something as minor as an unplugged power cord – or as major
as a damaged hard disk. The information in this chapter is designed to help you find and solve minor
problems. If you try all the suggested solutions and you still have a problem, make a list of what steps you
have taken to correct the problem and contact your dealer.
Successful troubleshooting is the result of careful observation, deductive reasoning, and an organized
approach to solving the problem.
The problems that you will encounter can be divided into two basic categories: hardware problems and
software problems. Hardware problems can be further divided into electrical and mechanical problems. You
will know you have a hardware problem if the screen is dark, the computer cannot read the disk drives, or
you get an error message during the Power-On Self Test (POST).
Software errors can occur at several levels. The ROM BIOS and the operating system can give you a large
number of error messages. On top of this, each application software package has its own set of error
messages. It is important to determine whether the software error message you are getting is from the
application or the operating system. Once you know this, you can look in the respective manual for a solution
to the problem.
64
Checking Cables and Connections
Start by performing a careful visual inspection of the exterior of the computer. If no LEDs are illuminated,
make sure that your computer and its peripherals are getting power and communicating with each other properly.
To check the power cables, and connections:
1. If you have been using battery power, connect the Notebook to an external power source and make
sure that the battery has a charge.
2. If you are using the Notebook with the AC adapter, check the power outlet, the power cord, and any
power switches that may affect your computer.
Ø Check the wall outlet or power strip with an item that you know is functioning properly. A lamp or
radio is a convenient item for checking the power. You may also need to check the fuses and
breakers in your electric box.
Ø If the outlet is controlled by a wall switch, make sure that the switch is on.
Ø If the outlet is controlled by a dimmer switch, use a different outlet.
Ø If your computer is plugged into a power strip with an On/Off switch, make sure the switch is on.
3. With the computer’s power switched off, check all cable connections. If the computer is connected to
any peripheral devices, look for loose or disconnected cables.
If the computer is too close to a wall, a cable connection may be loose or the cables may be crimped.
Do not substitute cables for different devices (other than the manufacturer recommended cables)
even if they look exactly alike. The wiring inside the cable may be different.
4. When you are certain that you have power available and all connections are good, turn the computer
on again. If the computer still does not start, you may have a hardware problem.
65
The Power-On Self Test
The Power-On Self Test (POST) runs every time you turn on or reset the Notebook. The POST checks
memory, the main system board, the display, the keyboard, the disk drives, and other installed options.
A few seconds after you turn on your computer, a copyright message appears on your display screen. A
memory test message appears next; as the test continues, memory size increases until all installed memory is
tested. Normally, the only test routine visible on the screen will be the memory test.
Two classifications of malfunctions can be detected during the POST:
Ø Error messages that indicate a failure with either the hardware, the software, or the Basic Input/Output
System (BIOS). These critical malfunctions prevent the computer from operating at all or could cause
incorrect and apparent results. An example of a critical error is microprocessor malfunction.
Ø Messages that furnish important information on the power-on and boot processes (such as memory
status). These non-critical malfunctions are those that cause incorrect results that may not be readily
apparent. An example of a non-critical error would be a memory chip failure.
In general, if the POST detects a system board failure (a critical error), the computer halts and generates a
series of beeps. If failure is detected in an area other than the system board (such as the display, keyboard, or
an adapter card) an error message is displayed on the screen and testing is stopped. It is important to
remember that the POST does not test all areas of the computer, only those that allow it to be operational
enough to run diagnostic programs.
If your system does not successfully complete the POST, but displays a blank screen, emits a series of beeps,
or displays an error code, consult your dealer.
General Hardware Problems
A few common hardware problems and suggested solutions are presented in the table below:
Problem: Failure in the installation of the Audio driver.
66
Solution: Be sure to first remove the current audio device from your system. Please follow the
instruction on the installation of audio driver.
Problem: The display screen is dark
Solution: Make sure that the computer is not in Suspend mode. Check the Brightness controls for
the screen. If the controls are turned too far down, the screen will be dark.
Problem: An incorrect date and time are displayed.
Solution: Correct the date and time using the DOS DATE and TIME commands or the options in
the Setup Utility. If the date and time become incorrect after a short time, your CMOS battery may
be depleted. Contact your dealer to change the battery.
Problem: The message: “Invalid system disk, Replace the disk, and then press any key”
appears during boot.
Solution: Check and make sure that you do not have a non-bootable floppy diskette inserted in
your floppy drive. If your USB FDD is empty, you may not have an operating system installed on
your drive. Contact technical support for assistance.
Problem: You hear irregular beeps during operation of the Notebook and the system halts.
Solution: The problem is beyond the scope of this manual. Contact technical support.
Problem: An unidentified message is displayed.
Solution: Reboot the computer and run the BIOS system setup. Confirm the Setup parameters.
If the same message is displayed after booting up again, contact technical support for assistance.
Problem: The system cannot access the CD-ROM/DVD-ROM drive.
67
Solution: Check that a CD is properly inserted in the drive. Make sure that you are using the
correct program for that kind of CD. For example, the system cannot read a data CD using an
audio program.
Problem: You cannot operate the printer.
Solution: Check the printer cable connection. Ensure that the printer power switch is turned on.
Confirm that the printer is on-line.
Problem: You can’t save data to disk.
Solution: Ensure that the disk has been formatted.
Consult your operating system manual for information on formatting floppy diskettes.
Problem: The diskette is write-protected.
Solution: Eject the diskette, remove the write protection, and try again.
Problem: The diskette if full.
Solution: Try using another diskette or free up some space on the diskette. The disk drive is not
operating. Contact your dealer for support.
Problem: You cannot use the mouse.
Ø Check the cable connection.
Ø Check the mouse with another application to see if there is a software incompatibility problem.
Ø If possible, check the mouse with another computer to see if it works. If it doesn’t operate on a different
system, the mouse might be broken.
Contacting Your Dealer
If you still have a problem after reading the preceding sections, the next step is to contact your dealer.
68
Your dealer can determine if the problem is something that requires the computer to be taken to the shop.
Before you call your dealer, however, prepare the following information:
Ø How is your computer configured? Your dealer needs to know what peripheral devices you are using.
Ø What messages, if any, are on the screen?
Ø What software were you running at the time?
Ø What have you done already to try to solve the problem? If you have overlooked a step, your dealer may
be able to solve the problem over the phone.
69
U
Up
pg
gr
ra
ad
di
in
ng
g
y
yo
ou
ur
r
S
Sy
ys
st
te
em
m
Upgrading your Memory

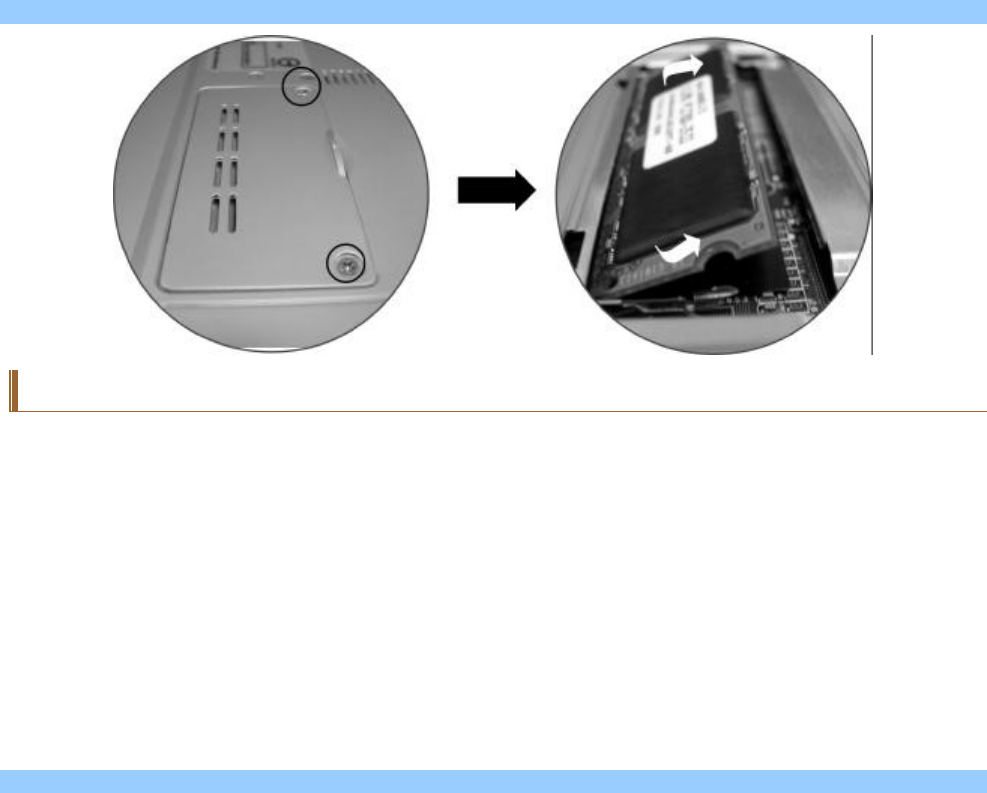

Refer to the following instructions and illustration for information on upgrading your notebook's memory.
Ø Turn off the computer and disconnect the AC adapter and all peripherals.
Ø Turn the notebook over so that the rear ports are facing you and locate the memory module compartment.
Ø Remove the screws that secure the RAM module compartment cover and set it aside in a safe place.
Ø Remove the compartment cover and then angling it up and out.
Ø If you need to install a higher capacity module, gently push the edge clips on both sides to release the
module. Angle the card slightly upward and gently slide it from its edge connector slot. Store the card
in the anti-static bag that contains your new module(s).
Ø To install the new memory card, hold the card with its gold edge connector toward the edge connector
slot of the compartment. To help you orient the cards, the edge connector has been made with two
unequal-length sections. You will only be able to insert the card in one direction.
Ø Insert the edge connector into the slot. The gold edge connector of the card should not be visible when
the card is fully inserted.
Ø Press the card downward where you should hear an audible click as the latches of the connector secure
the card in place.
Ø Once the module is properly seated, you can replace the cover on this compartment.
Ø Replace and tighten the screw.
70
The Easy to Upgrade HDD Module
The hard drive in your notebook computer is made to be easily swapped out for upgrading. You should back
up your hard drive before attempting o change the hard drive. Make sure that before you install a new drive,
all the files in your system should be backed up.

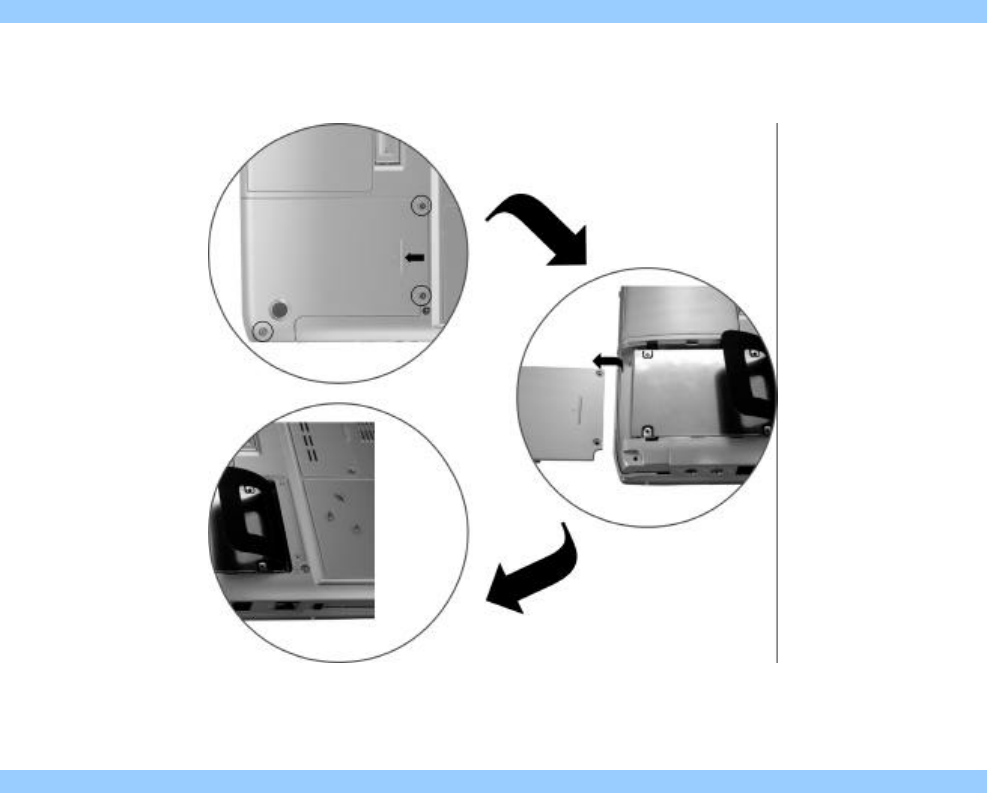

n To upgrade your Hard Drive
Ø Power down the system completely. Turn the system over with the front of the unit facing you.
Ø Remove the three screws that secure the compartment cover and set them in a safe place.
Ø Slide the HDD cover away from the compartment.
Ø The drive is attached to a special bracket that secures it to the notebook computer. There are 4 screws
hold the bracket. Remove the screws and set them in a safe place.
Ø Push the HDD slightly in the direction of the arrow as shown in the illustration to release it from the pins
of the drive.
Ø Gently hold the grip of the HDD, lift it up to release from its compartment.
71
Ø To install the new HDD, you will need to align the tabs on the drive bracket with the slots on the bay.
Press down gently on the drive bracket until it engages with the system. Do not force the drive into
place this can bend the pins on the hard drive.
Ø Slide the compartment cover into place and be sure the screw holes on the cover align completely with
the screw holes in the case.
Ø Secure the cover with the three screws.
72
Upgrading your System CPU
Refer to the following instructions and illustration for information on upgrading your notebook's CPU

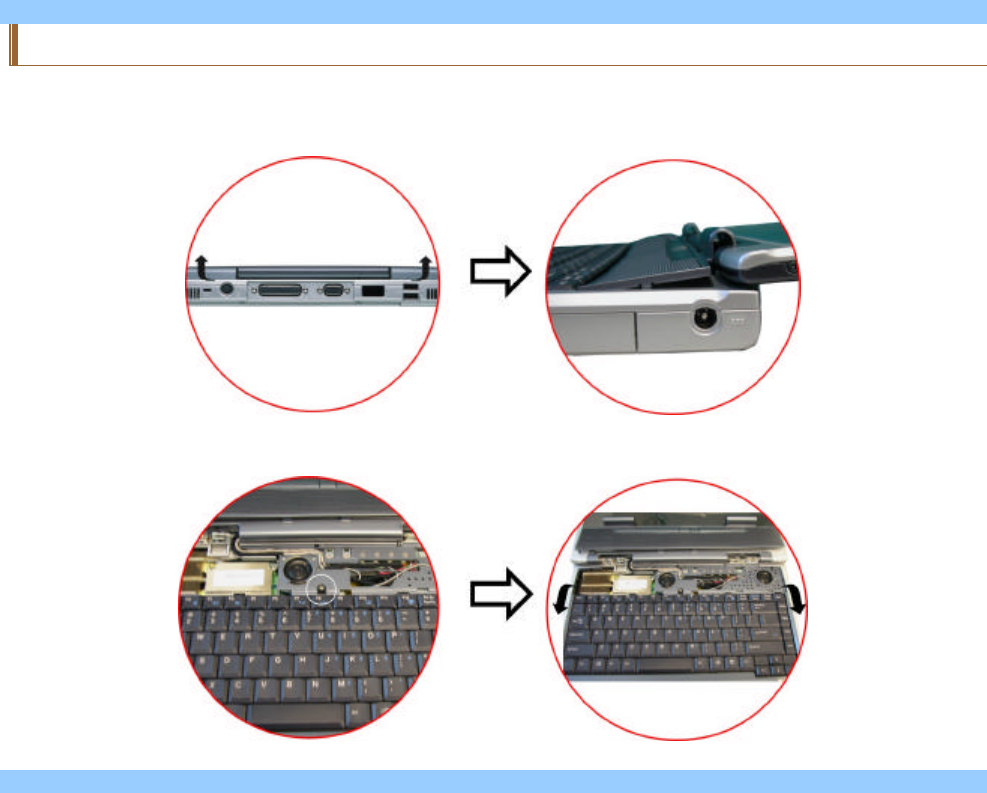

Ø Turn off the computer and disconnect the AC adapter and all peripherals. From the rear side of your
notebook, use your index finger to lift up the hinge cover attached to the LCD screen.
Ø Bend your LCD screen into 90 degree angle then carefully lift up the hinge cover.
Ø Remove the screen that is attached to the keyboard in order to remove the heatsink on top of the CPU.
73

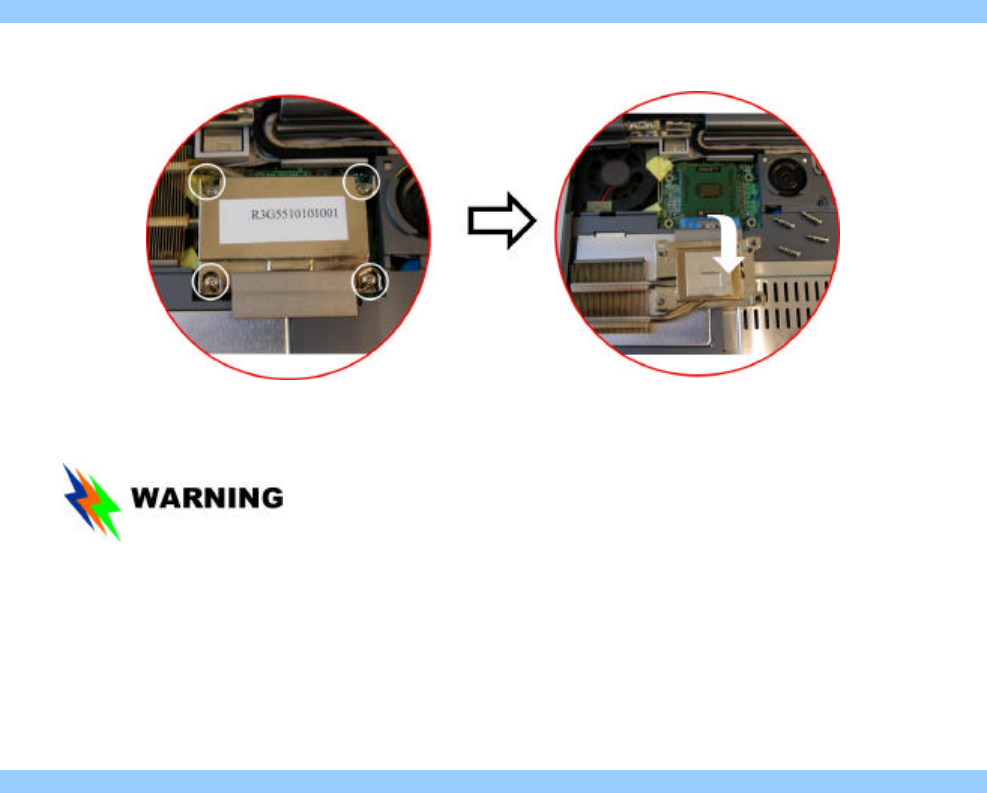

Ø Remove all the screws attached to the heatsink.
Ø Before removing the screws, there are certain measures to followed in removing the heatsink
Ø To remove the heatsink, first loosen the screw carefully.
Ø After loosening one screw, be certain that the next to be loosen should be the screw on its adjacent side
as shown on the illustration.
Be sure to loosen all the screws first before removing it totally to release the heatsink. Failure to do
so will cause a major damage to the heatsink.
Ø Now you can totally remove all the screws also in that order when you first loosen the screw.
74
Page intentionally left blank
75
S
Sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
n
Detailed Notebook Specifications
Processor Ø On board Transmata® Efficeon TM-8600 1.0GHz, TM-8800 1.4GHz /
1.6GHz with 1MB L2 cache on die
Ø 783pin PC-OBGA package
Operating System Compliance
Ø Microsoft® Windows® XP Professional Edition
Ø Microsoft® Windows® XP Home Edition
Core Logic Ø Embedded in Transmata® CPU on board+ ULi® M1563M
Memory Ø Expansion 2 slot of 200pin DDR SO-DIMM DDR Module, expandable up
to 2GB system memory
Ø Supports DDR 266 / 333 module
LCD Display Ø 14.1” XGA / 15” XGA (1024 x 768) TFT LCD display
Video & Graphics Ø Graphic Memory: 32MB DDR-SDRAM on board
Ø AGP interface, XGI XP5 discrete high performance graphic chip
Ø 128bit bus interface to external DDR SDRAM
Hard Drive Ø 2.5" 9.5mm height, ATA 33 / 66 / 100 support
Optical Drive
Ø 5.25” 12.7 mm height CD-ROM, DVD-ROM, Combo Drive (DVD-ROM +
CD-RW), DVD Dual (DVD+/-RW), Super Multi (DVD+/-RW + DVD-RAM)
76
Pointing Device Ø Synaptic touchpad with 4 way scrolling button
Application Launch Key Ø WLAN, Internet hot key
LED Status Indicator Ø Power on, Battery Charge, Suspend Mode
Keyboard Ø 3.0mm travel, inverted-T, 88 keys with windows key
Left Ø USB 2.0 port * 2, Modem port, Audio line out, LAN port, Mic-in
Right Ø DC in jack
Interface Ports
Rear Ø Kensington Lock, Parallel Port, USB 2.0 port* 2, TV out (S Video) port,
VGA port
Audio Ø Built in chipset Audio Controller, Audio Codec: Realtek ALC655
Ø AC’97 2.3 compliant, with SPDIF cable output for 5.1 channel decoder
chamber
Ø built-in two stereo speakers
AC Adapter Ø Input:100-240V AC, 1.5A, 50-60Hz, Universal
Ø Output:19V DC, 3.16A, 60W
Battery Ø 4 / 8 cell Li-Ion battery pack
Battery Charge Ø 4 cell: approximately 2hours charging time to 100% capacity while
system off
Ø 8 cell: approximately 3.5hours charging time to 100% capacity while
system off
Battery Life Ø More than 1.5hours for 4 cell battery pack
Ø More than 3.0hours for 8 cell battery pack
BIOS Ø ACPI and DMI supported, Plug & Play, password
Ø Bootable from USB FDD and Optical Device
Ø Smart Battery System support
77
Communication Ø 10/100/1000Mbps Gigabit Ethernet on board
Ø MDC 56Kbps V.92 Fax/Modem on board
Ø 802.11b / g WLAN
Power Management Ø APCI 2.0 compliance
Ø Support Stand-by, Suspend to Disk, Suspend to RAM
Security Ø Kensington Lock, BIOS password protection
Size Ø 326 (W) x 258(D) x 25mm(H)/32mm(front/ back)
Weight Ø 2.7kg with 14.1" panel, 8-cell battery and DVD-ROM drive installed
Packing
Accessories
Ø Quick Guide, Support CD (Driver, Utility, Manual), AC Adapter, Power
Cord, Battery Pack, Phone card
Accessories
Factory
Option
Ø Optical Device: CD-ROM, DVD-ROM, Combo Drive (DVD-ROM + CD-
RW), DVD Dual (DVD+/-RW), Super Multi (DVD+/-RW + DVD-RAM)
Ø 802.11b / g WLAN, MiniPCI interface
Ø MDC 56Kbps V.92 Modem combo on board,
Ø Battery pack: 8-cell battery
Spec subject to change without notice
Battery life will vary depending on your specific hardware and software configuration
