ELITEGROUP COMPUTER SYSTEMS GWS-QX Intelligent Gateway User Manual

ELITEGROUP COMPUTER SYSTEMS CO., LTD Intelligent Gateway

User Manual

Quick Manual
Intelligent Gateway
GWS-QX
Copyright
The documentation and the software included with this product are copyrighted 2014 by
ECS Co., Ltd. All rights are reserved. ECS Co., Ltd. reserves the right to make
improvements in the products described in this manual at any time without notice. No part
of this manual may be reproduced, copied, translated or transmitted in any form or by any
means without the prior written permission of ECS Co., Ltd. Information provided in this
manual is intended to be accurate and reliable. However, ECS Co., Ltd. assumes no
responsibility for its use, nor for any infringements of the rights of third parties, which may
result from its use.
Acknowledgements
Intel® Quark SoC X1000 series are trademarks of Intel Corporation.
McAfee* Embedded Control* and the Wind River* Intelligent Device Platform*
All other product names or trademarks are properties of their respective owners.
Declaration of Conformity
FCC Class B
Part No. Edition 1
Printed in China Dec 2014
GWS-QX Intelligent Gateway ii
Waste disposal instruction
Do not throw this electronic device into the trash can when discarding.
To minimize pollution and ensure utmost protection of the global environment,
please recycle it in European WEEE (waste electrical and electronic
equipment) directive system or recycle system in Taiwan.
MPE 警語
Exposure to Radio Frequency Radiation:
To comply with FCC RF exposure compliance requirements, a separation distance of at least 20cm must be
maintained between the antenna of this device and all persons. This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
NCC 警語
本產品符合低功率電波輻射性電機管理辦法 第十二條、第十四條等條文規定
1. 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設
計之特性及功能。
2. 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,並改善至無干擾
時方得繼續使用。
前項合法通信,指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
電磁波曝露量 MPE 標準值 1mW/cm2,送測產品實測值為:0.0941mW/cm2
Caution! Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the manufacturer's
instructions
Warning! Any changes or modifications made to the equipment which are not
expressly approved by the relevant standards authority could void your
authority to operate the equipment.
Attention! Toute modification apportée à l'équipement qui n'est pas expressément
approuvé par l'autorité des normes pertinentes peuvent annuler votre
droit à faire fonctionner l'équipement.
Attention!
Danger d'explosion si la pile est remplacée de façon incorrecte.
Remplacez-la uniquement avec le même type ou équivalent recommandé
par le fabricant. Jetez les piles usagées selon les instructions du fabricant
Part No. Edition 1
Printed in China Dec 2014
GWS-QX Intelligent Gateway
Packing List
Before setting up the system, check that the items listed below are included and in good
condition. If any items are missing, please contact your dealer immediately.
 GWS-QX x1
 Adapter x1
 Power Cord x1
 User Manual x1
 USB to RS-232 cable x1 (Optional)
 Null Cable (RS-232) x1 (Optional)
 Antenna x2 (Optional)
 VESA Mount Bracket x1 (Optional)
Warning!
To prevent electric shock, Do not remove cover.
No user serviceable parts inside, refer servicing to qualified personnel.
Additional Information and Assistance
1. Visit the ECS websites at www.ECS.com.tw where you can find the latest information
about the product.
2. Contact your distributor, sales representative, or ECS's customer service center for
technical support if you need additional assistance. Please have the following
information ready before you call:
- Product name and serial number
- Description of your peripheral attachments
- Description of your software (operating system, version, application software, etc.)
- A complete description of the problem
- The exact wording of any error messages
- This equipment is a source of electromagnetic waves. Before use, please make
sure that there are not EMI sensitive devices in its surrounding which may
malfunction therefore
Warning! 1. Input voltage rated 100-240 VAC, 47-63 Hz, 2.0 A,
Output Voltage rated 24 VDC, 5 A
2. Maintenance: to properly maintain and clean the surfaces, use only
approved products or clean with a dry applicator
iii GWS-QX Intelligent Gateway
Attention! Pour éviter un choc électrique, ne pas retirer le couvercle.
Aucune pièce réparable par l'utilisateur, voir l'entretien à du personnel
qualifié.
Attention! 1. Tension de sortie Tension d'entrée nominale 100-240
VAC, 47-63 Hz, 2,0 A, la note de 24 VDC, 5 A
2. Entretien: bien entretenir et nettoyer les surfaces, utiliser uniquement des
produits approuvés ou nettoyer avec un applicateur sec
Warning!
To prevent electric shock, Do not remove cover.
No user serviceable parts inside, refer servicing to qualified personnel.
Additional Information and Assistance
1. Visit the ECS websites at www.ECS.com.tw where you can find the latest information
about the product.
2. Contact your distributor, sales representative, or ECS's customer service center for
technical support if you need additional assistance. Please have the following
information ready before you call:
- Product name and serial number
- Description of your peripheral attachments
- Description of your software (operating system, version, application software, etc.)
- A complete description of the problem
- The exact wording of any error messages
- This equipment is a source of electromagnetic waves. Before use, please make
sure that there are not EMI sensitive devices in its surrounding which may
malfunction therefore
Warning! 1. Input voltage rated 100-240 VAC, 47-63 Hz, 2.0 A,
Output Voltage rated 24 VDC, 5 A
2. Maintenance: to properly maintain and clean the surfaces, use only
approved products or clean with a dry applicator
Attention! Pour éviter un choc électrique, ne pas retirer le couvercle.
Aucune pièce réparable par l'utilisateur, voir l'entretien à du personnel
qualifié.
Attention! 1. Tension de sortie Tension d'entrée nominale 100-240
VAC, 47-63 Hz, 2,0 A, la note de 24 VDC, 5 A
2. Entretien: bien entretenir et nettoyer les surfaces, utiliser uniquement des
produits approuvés ou nettoyer avec un applicateur sec
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth.
Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment
and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall
may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from
overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything over
the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to
avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service
personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according to the
user's manual.
e. The equipment has been dropped and damaged. f.
The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE
TEMPERATURE MAY GO BELOW -20° C (-4° F) OR ABOVE 60°C (140° F). THIS
COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A
CONTROLLED ENVIRONMENT.
16. If your computer is losing time significantly or the BIOS configuration resets itself
to the default, the battery may have no power.
17. IMPROPER INSTALLATION OF VESA MOUNTING CAN RESULT IN SERIOUS
PERSONAL INJURY! VESA mount installation should be performed by a
professional technician; please contact the service technician or your retailer if you
need this service.
GWS-QX Intelligent Gateway iv
18. Maintenance: to properly maintain and clean the surfaces, use only the
approved products or clean with a dry applicator.
v GWS-QX Intelligent Gateway
Contents
Chapter 1 General Information ............................1
1.1 Introduction .............................................................................................. 2
1.2 Specifications .......................................................................................... 2
Table 1.1: GWS-QX Specification ........................................... 2
1.3 Cleaning/Disinfecting ............................................................................... 4
Chapter 2 Getting Started.....................................5

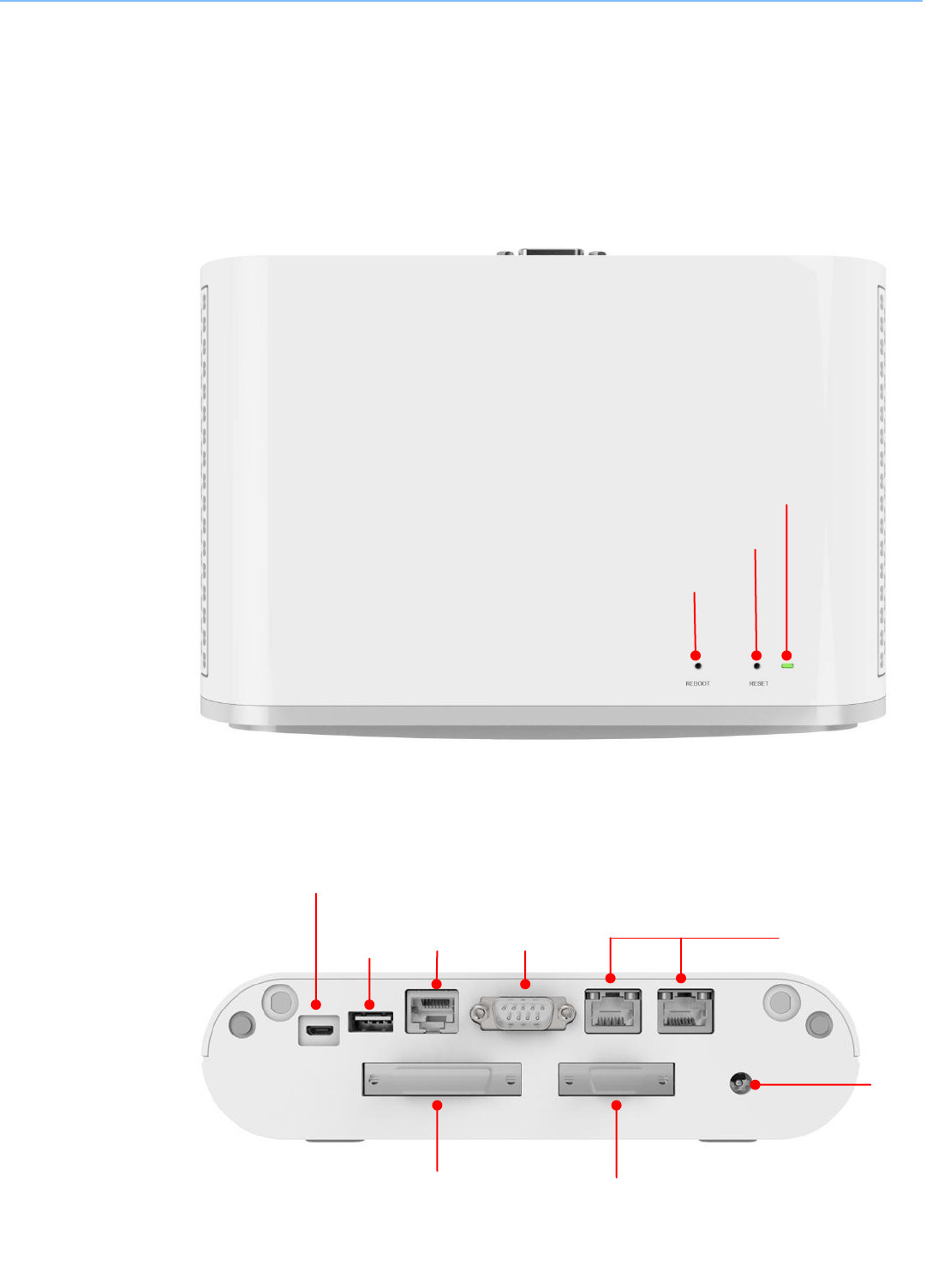

2.1 A Quick Tour of GWS-QX ........................................................................ 6
Figure 2.1 Top View .................................................................. 6
Figure 2.2 I/O Side View............................................................. 6
vii
Chapter 1
1 General Information
1.1 Introduction
GWS-QX Intelligent Gateway solutions was based on the Intel® Quark SoC X1000 series.
The processors are supported by software components, including McAfee* Embedded
Control* and the Wind River* Intelligent Device Platform*, needed to connect, manage, and
secure gateways.
Common industrial applications include factory automation systems, precision machinery,
and production process control. It is also suitable for many non-industrial applications,
including interactive kiosk systems, entertainment management, and car park automation.
Users can securely aggregate, filter, and share data from edge devices to the cloud in areas
such as energy, industrial, and transportation infrastructure.
GWS-QX is a reliable, cost-effective solution to meet an application’s processing
requirements
1.2 Specifications
GWS-QX Intelligent Gateway 2
Item
Description
Dimensions (WxDxH)
192 x 130 x 49 mm
Weight
0.55 Kg without Accessories
CPU
Intel® Quark SoC X1021 400 MHz
Memory
DDR3 1G (512MB x 2)
Storage
Mirco SD 8GB up to 32G
ROM
8MB NVRAM SPI NOR flash chip
External I/O
10/100M LAN Port
X2
Micro USB 2.0
X1
USB 2.0 Type A
X1
RS-232
X1
RS-485
X1
DC-in
X1
MCR 20pin connector
Analog Input / Output
6 in/4 out (4~20mA)
MCR 40pin connector
Digital Input / Output
16 in
Normal Open. Max. Input = DC 24V
16 out
Normal Open. Max carry current 1A
Thermal Solution
Fanless Design
Operating System
Integrated Intel solution (Moon Island)
Control Button
Reboot
X1
Reset
X1
WIFI (Optional)
Azurewave AW-NB159H
X1
Item
Description
Indicated LED
Power/ State LED
X1
Power Adapter
DA-120B24
INPUT: 100 ~ 240 V, 2.0 A Max., 47/63 Hz
OUTPUT: 24 V, 5 A
X1
System Operating
Temperature
-10° C ~ 60° C
System Operating
Humidity
10% ~ 85% @ 40° C, non-condensing
System Storage
Temperature
-40° C ~ 60° C
Storage Humidity
10% ~ 90%, non-condensing
3 GWS-QX Intelligent Gateway
1.3 Cleaning/Disinfecting
During normal use GWS-QX may become soiled and should, therefore, be cleaned regularly.
Steps:
1. Wipe GWS-QX with a clean cloth that has been moistened in the cleaning solution.
2. Prepare agent per manufacturers instructions or hospital protocol.
3. Wipe thoroughly with a clean cloth.
Caution! Do not immerse or rinse GWS-QX or its peripherals. If you accidentally spill
liquid on the device, disconnect the unit from the power source. Contact your
Biomed personnel regarding the continued safety of the unit before placing it
back in operation.
Do not spray cleaning agent on the chassis.
Do not use disinfectants that contain phenol.
Do not autoclave or clean GWS-QX or its peripherals with strong aromatic,
chlorinated, ketone, ether, or other solvents, sharp tools or abrasives. Never
immerse electrical connectors in water or other liquids.
GWS-QX Intelligent Gateway 4
Attention! Ne pas immerger ou rincer GWS-QX ou ses périphériques. Si vous
renversez par accident un liquide sur l'appareil, débranchez l'appareil de la
source d'alimentation. Contactez votre Biomed concernant la sécurité
continue de l'unité avant de la remettre en service.
Ne pas pulvériser l'agent de nettoyage sur le châssis.
Ne pas utiliser de désinfectants contenant du phénol.
Ne pas passer à l'autoclave ou GWS-QX propre ou sesripriques avec
fortes, cétone, éther, ou d'autres solvants, des outils tranchants ou abrasifs
aromatiques chlorés. Ne jamais plonger connecteurs électriques dans l'eau
ou d'autres liquids.
5 GWS-QX Intelligent Gateway
Chapter 2
2 Getting Started
2.1 A Quick Tour of GWS-QX
Before you start to set up GWS-QX, take a moment to become familiar with the locations
and purposes of the controls, drives, connections and ports, which are illustrated in the
figures below.
When placed upright on the desktop, the GWS-QX top side appears as shown in
Figure 2.1.
Figure 2.1 Top View
Figure 2.2 IO Side View
GWS-QX Intelligent Gateway 6
REBOOT Button
RESET Button
Power LED
DC-In
10/100 LAN Port x2
Analog I/O Port
Digital I/O port
Client USB 2.0
RS-485
USB 2.0
RS-232
www.ECS.com.tw
Please verify specifications before quoting. This guide is intended for reference
purposes only.
All product specifications are subject to change without notice.
No part of this publication may be reproduced in any form or by any means,
electronic, photocopying, recording or otherwise, without prior written permis-
sion of the publisher.

Navigation menu
