ELITEGROUP COMPUTER SYSTEMS TABC0001 Tablet PC User Manual
ELITEGROUP COMPUTER SYSTEMS CO., LTD Tablet PC
User Manual.pdf
1
TA10CA1
Quick Start Guide
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
2
- Consult the dealer or an experienced radio/TV technician for
help.
FCC Caution: Any changes or modifications not expressly approved
by the party responsible for compliance could void the user's
authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
FOR PORTABLE DEVICE USAGE
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set
forth for an uncontrolled environment and are safe for intended
operation as described in this manual. The further RF exposure
reduction can be achieved if the product can be kept as far as
possible from the user body or set the device to lower output
power if such function is available.
FOR COUNTRY CODE SELECTION USAGE
Note: The country code selection is for non-US model only and is
not available to all US model. Per FCC regulation, all WiFi product
marketed in US must fixed to US operation channels only.
Package contents
If any of the items is missing or damaged, please contact your
dealer immediately:
• One Tablet • One AC adapter • One USB cable
• This guide
3

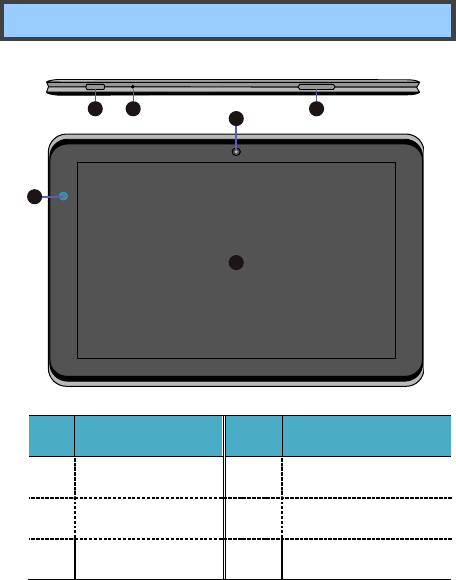

Tablet layout

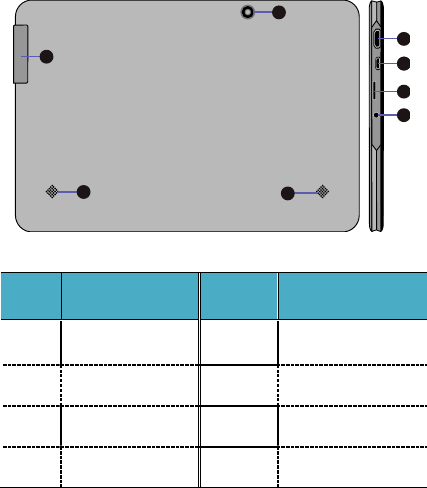

No.
Name
No.
Name
1
Power button
4
Front facing camera
2
Microphone
5
Light sensor
3
Volume up/ down
6
Touchscreen
31 2 4
6
5
4
No.
Name
No.
Name
1
Mini HDMI port
5
Rear facing camera
2
Micro USB port
6
3G module slot
3
Micro SD card slot
7
Speaker
4
Headphone plug
1
52
3
4
5
6
77
5

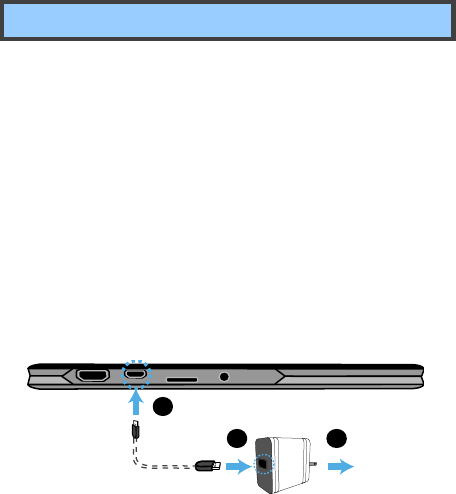

Charging your tablet
If your tablet is just being unpacked from the box, you need to
charge the tablet first. It will take around 6 to 7 hours to be
fully charged.
First, take out the USB cable and the adapter provided with
your tablet. And then:
1. Plug the USB head of the cable into the adapter.
2. Plug the micro-USB head of the cable into the
micro-USB port on your tablet.
3. Plug the adapter into a wall-socket.
3
1
2
6

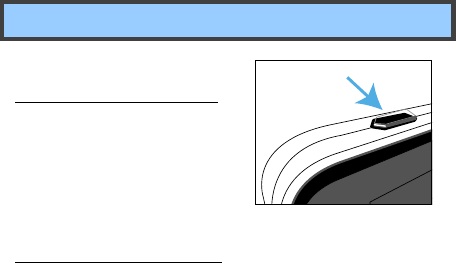

Powering ON/OFF your tablet
To power on your tablet
Press and hold the power
button down until the
screen turn on.
To power off your tablet
1. Press and hold the power button until the power
options menu appears on the screen.
2. Tap and choose OK from the menu.
7
Inserting a storage card
Your tablet supports micro-SD cards with storage space
ranging from 128M to 32G. You can insert the micro SD card
and pull it out without powering down the tablet. To do so,
follow the steps below.

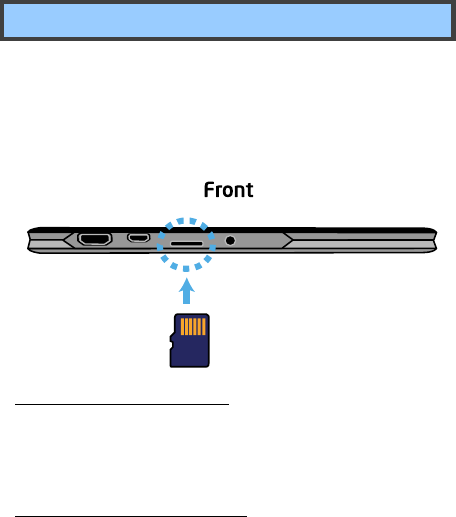

Install your Micro SD Card
1. Hold your tablet with front side up.
2. Insert your micro SD card in the direction as shown.
Remove your Micro SD Card
1. Push and release the micro SD card. This will unlock
the card.
2. Pull out the micro SD card.
8
Specifications
Processor
Intel Clovertrail+ Z2520
Memory
1 GB or 2 GB (optional)
LPDDR2
Storage
16GB
Wireless
WLAN, Bluetooth
Display
10.1-inch 1280x800 screen
Support10-pointsmulti-touch
Cameras
Front camera: 2.0 M
Rear camera: 5.0M
Battery
3Cell, 1S3P
Li-polymer
5100mAh
TCL: TA10-1S5100-T1T2
Input/Output
1 x micro-USB 2.0, OTG port
(Type A/B)
1 x Mic/head phone jack
combo
1 x mini-HDMI 1.3a type C
1 x micro-SD card slot
(128M-32G)
1 x Analog MIC
Speaker & Mic
Build-in Speaker x 2
Internal Analog MIC x 1
9
AC-Adapter
DC Output: 5V/2A
Input Voltage: 100 ~ 240VAC
Input Frequency: 47 ~ 63Hz.
Chicony:
W12-010N3A, W12-010N3B,
W12-010N3C, W12-010N3D,
W12-010N3E
ASIA POWER:
WB-10G05Fx(x=A,U,C,G,K,B)
Dimension (mm)
260 (W) x 175 (H) x 9.8 (D)
Weight
609 g (w/o adapter)
