ELITEGROUP COMPUTER SYSTEMS TABC7CA1 Wireless Motherboard User Manual TA70CA1 Motherboard Bx

ELITEGROUP COMPUTER SYSTEMS CO., LTD Wireless Motherboard TA70CA1 Motherboard Bx

Contents

UserMan

TA70CA1
Motherboard Guide
!
1!
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
! Reorient or relocate the receiving antenna.
! Increase the separation between the equipment and receiver.
! Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
! Consult the dealer or an experienced radio/ TV technician for
help.
CAUTION:
Any changes or modifications not expressly approved by the
grantee of this device could void the user's authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
!
2!
RF Exposure Warning
This equipment must be installed and operated in accordance with
provided instructions and the antenna(s) used for this transmittermust
be installed to provide a separationdistance of at least 20cm from
all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.
End-users and installers must be provide with antenna installation
instructions and transmitter operating conditions for satisfying RF
exposure compliance.
End Product Labeling
This transmitter module is authorized only for use in device where
the antenna may be installed such that 20cm may be maintained
between the antenna and users. The final end product must be
labeled in a visible area with the following: "Contains FCC ID:
WL6-TABC7CA1 ”
Information for the OEMs and Integrators
The following statement must be included with all versions of this
document supplied to an
OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
2) Please see the full Grant of Equipment document for other
restrictions.
This radio transmitter FCC ID: WL6-TABC7CA1 has been
approved by FCC to operate with the antenna types listed below
with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this
device.
!
3!
Antenna List
No.
Manufacturer
Antenna
Type
Peak Gain
1
JEM
PIFA
Antenna
2.98 dBi for
2.4GHz
2.
WGT
PIFA
Antenna
2.48 dBi for
2.4GHz
Note: The antenna connector is I-PEX type.
!
4!

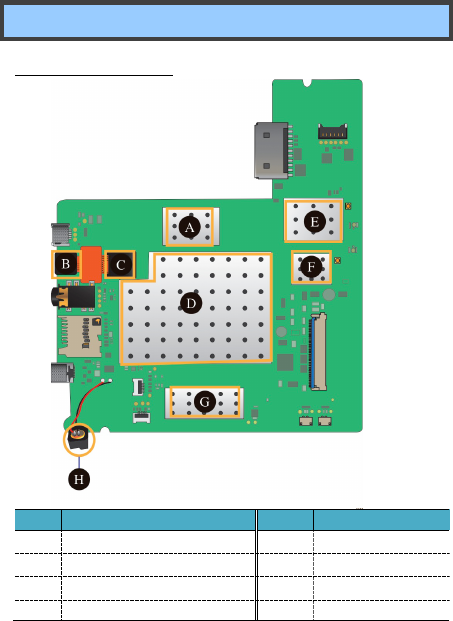

Motherboard layout
Main components
No.
Name
No.
Name
A
Charger IC
E
WiFi/BT IC
B
Front facing camera
F
GPS IC
C
Rear facing camera
G
Audio Codec
D
CPU+PMIC+DDR+EMMC
Ｈ
Microphone
!
5!

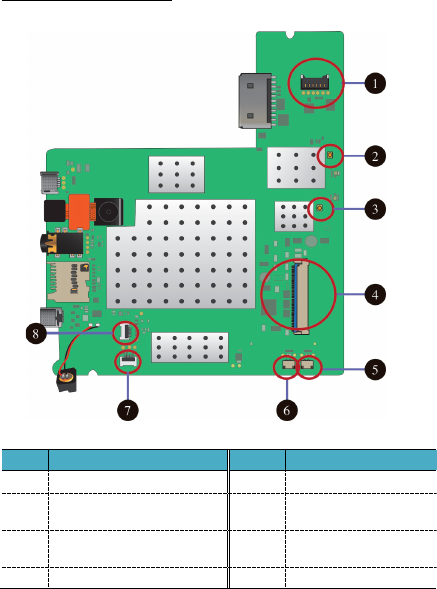

System connectors
No.
Name
No.
Name
1
Battery Connector
5
Speaker Connector
2
WiFi Antenna
Connector
6
Speaker Connector
3
GPS Antenna
Connector
7
Side Key FPC
Connector
4
LCD Connector
8
TP Connector
!
6!

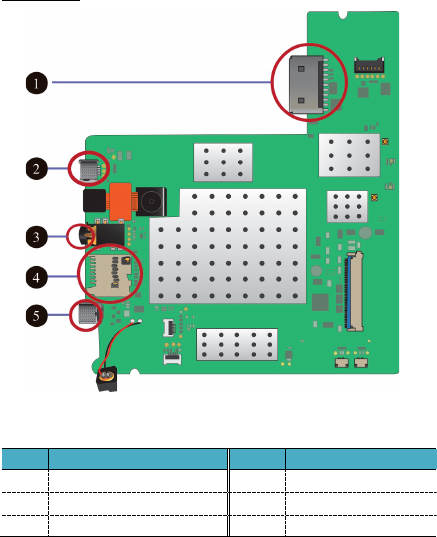

I/O Ports
No.
Name
No.
Name
1
3G card slot
4
Micro SD card slot
2
Micro USB port
5
Micro HDMI port
3
Headphone plug
!
7!
Features
Processor
" Intel Clovertrail+ Z2520
" Up to 1.2GHz, Dual core
Memory
" 8bit, LP DDR2 Mobile RAM PoP
" 1GB / 2GB (optional)
Storage
" Single eMMCv4.4.1
" Default 8GB
Wireless
" Wi-Fi 802.11 b/g/n
" Wi-Fi hotspot
" Bluetooth 2.1+EDR support
Display
" LVDS interface
" Resolution: 1024(H) × 3 (RGB) ×
600(V) pixels
" Support 5-points multi-touch
Cameras
" Front camera: 2.0 M
# MIPI-CSI
# Mirror mode
# Support 4:3 aspect ratio
# Support Indicate
" Rear camera: 5.0 M
# MIPI-CSI
# Normal non-mirror mode
# Support 16:10 aspect ratio
# Auto-focus
!
8!
Input/Output
" 1 x micro-USB 2.0, OTG port
(Type A/B)
" 1 x Mic/head phone jack combo
" 1 x micro-HDMI 1.4
" 1 x micro-SD card slot
(128M-32G)
" 1 x 3G card slot
Speaker & Mic
" Build-in Speaker x 2
" Internal Analog MIC x 1
