ELITEGROUP COMPUTER SYSTEMS TE70SA3 Tablet PC User Manual
ELITEGROUP COMPUTER SYSTEMS CO., LTD Tablet PC Users Manual
Users Manual
Quick Start Guide
For Android Tablet
TE70SA3
1
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
Caution:
Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure
to radio waves. This device is designed and manufactured not to
exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the
U.S. Government.
The exposure standard employs a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit set by
the FCC is 1.6 W/kg. Tests for SAR are conducted using
standard operating positions accepted by the FCC with the EUT
transmitting at the specified power level in different channels.
The highest SAR value for the device as reported to the FCC is
1.39 W/kg when placed next to the body.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Attention: Teachers, Parents and Adult Supervisors
This product is an educational tool designed for school children,
ages 6 and up. There must be supervision by an adult on school
children under 10 when using this tablet. It is a must to have a
thorough explanation to students on safe and proper handling of
the tablet, power supply, battery pack, and power cord.
3

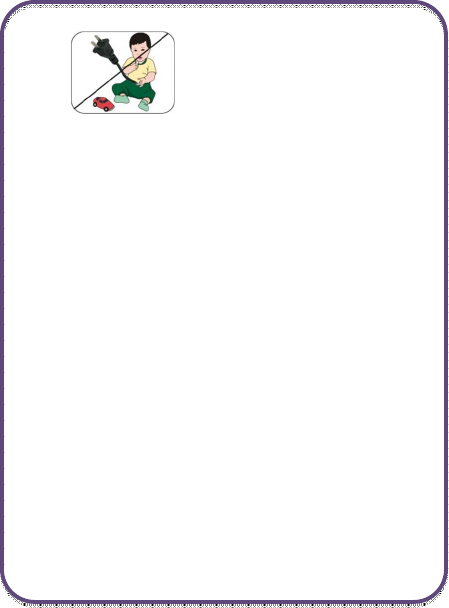

Be sure to keep the
power cord away from
younger children
Please ensure that students understand the following:
As with all electrical products, precautions should be
observed during handling and use to prevent electric
shock. The power supply (adapter) should not be handled
by the children.”
Emphasize to students that this device is an educational
tool and not a toy. The tablet, power supply, battery pack
or power cord should not be dropped, crushed, stepped
on or otherwise abused.
Ensure students understand the safe and proper
handling of power cord and power supply. Misuse could
result in serious injury.
The teacher, parent or adult supervisor should
periodically inspect the tablet; power supply and power
cord for damage and replace it, if necessary.
Students should report any damage or loose parts to their
teacher, parents or adult supervisor, immediately.
Do not leave the tablet plugged in or “on” when enclosed
in a non-vented container, such as a school backpack, as
overheating may occur.
It is recommended that students should take a 5-minute
break every 30 minutes of use.
4

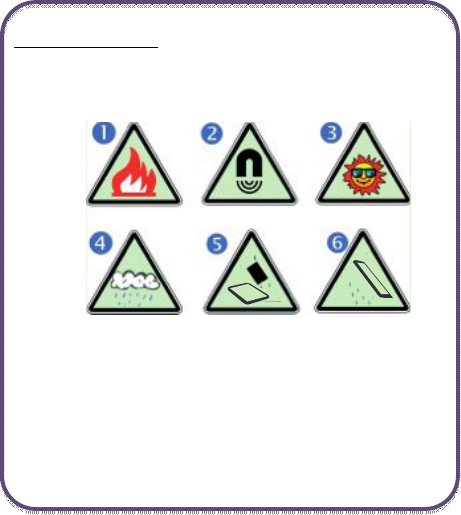

Safety Precautions
The following are lists of precautionary measure the students
must understand before using this tablet inside the classroom or
home environment:
1. Do not place near the fire or other sources of heat.
2. Do not expose to magnetic fields.
3. Do not expose to direct sunlight.
4. Do not expose to rain or moisture.
5. Do not place heavy objects to add heavy pressure
on the tablet.
6. Do not drop the tablet.
5
Package contents
Carefully unpack your box and take out the items listed
below. If any of the items are missing or damaged, please
contact your dealer immediately:
• One tablet • One AC adapter
• One USB cable • This guide
6
Tablet layout
No.
Name No.
Name
1 Power lock button 4 Touchscreen
2 Volume up/down 5 Microphone
3 Front facing camera
7
No.
Name No.
Name
1 Volume up/down 4 Speaker
2 Power lock button 5 Headphone jack
3 Rear facing camera 4 Micro USB 2.0/DC-in
8

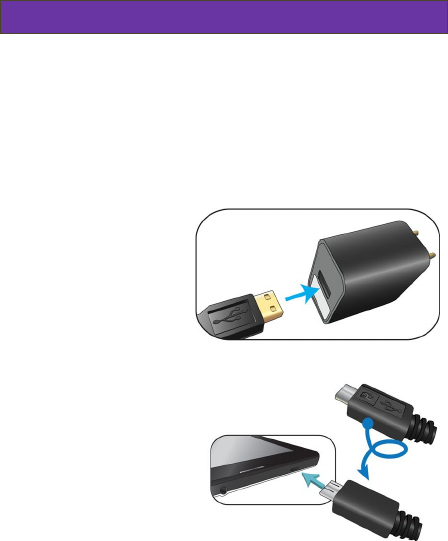

Charging your tablet
If your tablet is just being unpacked from the box, you need
to charge the tablet first. It will take around 4 to 5 hours to be
fully charged.
1. Place your tablet with the screen facing up, and the
provided USB cable.
2. Plug the USB
head of the
cable into the
adapter, and
the micro-USB
head of the
cable into the
micro-USB
port on your
tablet.
3. Plug the
adapter into a
wall-socket.
9
Powering ON/OFF your tablet
To power on your tablet
Press and hold the power button down until the screen
turn on.

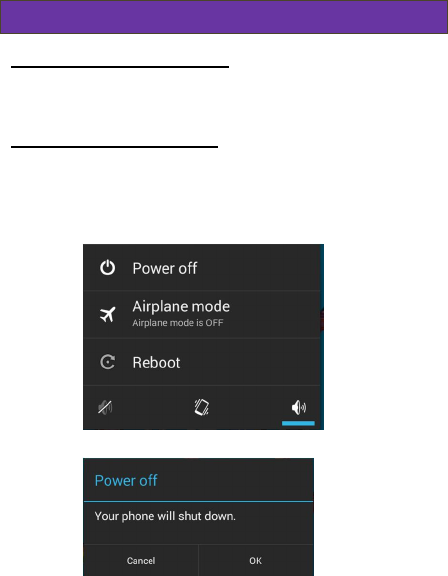

To power off your tablet
To turn off your tablet, follow these steps:
1. Press and hold the Power Lock button.
2. Touch Power off from the menu as shown below..
3. Touch OK to power down your tablet.
10
Specifications
Processor Intel® AtomTM DC
1.x GHz, 64bit
Memory DDR3- 1600
1 GB
Storage eMMC v4.4.1
8 GB
Wireless Wi-Fi 802.11 b/g/n,
Bluetooth 4.0
LCD 7-inch TN LCD
Resolution: 600 x1024 pixels
Touchscreen
5-point multi-touch and
Capacitive multi-touch support
Camera Front: 0.3M
Rear: 2.0M (Flash LED optional)
Battery
1 Cell
Li-polymer
2800 mAh
Input/Output
1 x micro-USB 2.0 OTG port
(type B)
1 x mic/head phone jack combo
Speaker &
Mic
Build-in Speaker x 1
Internal analog MIC x 1
11
USB-Charger
DC Output: 5V/2A/10 Watt
Input Voltage: 100 – 240VAC
Input Frequency: 47 – 63Hz
Dimension
(mm) 188.2 x 108 x 10.4
Weight 0.4 kg
