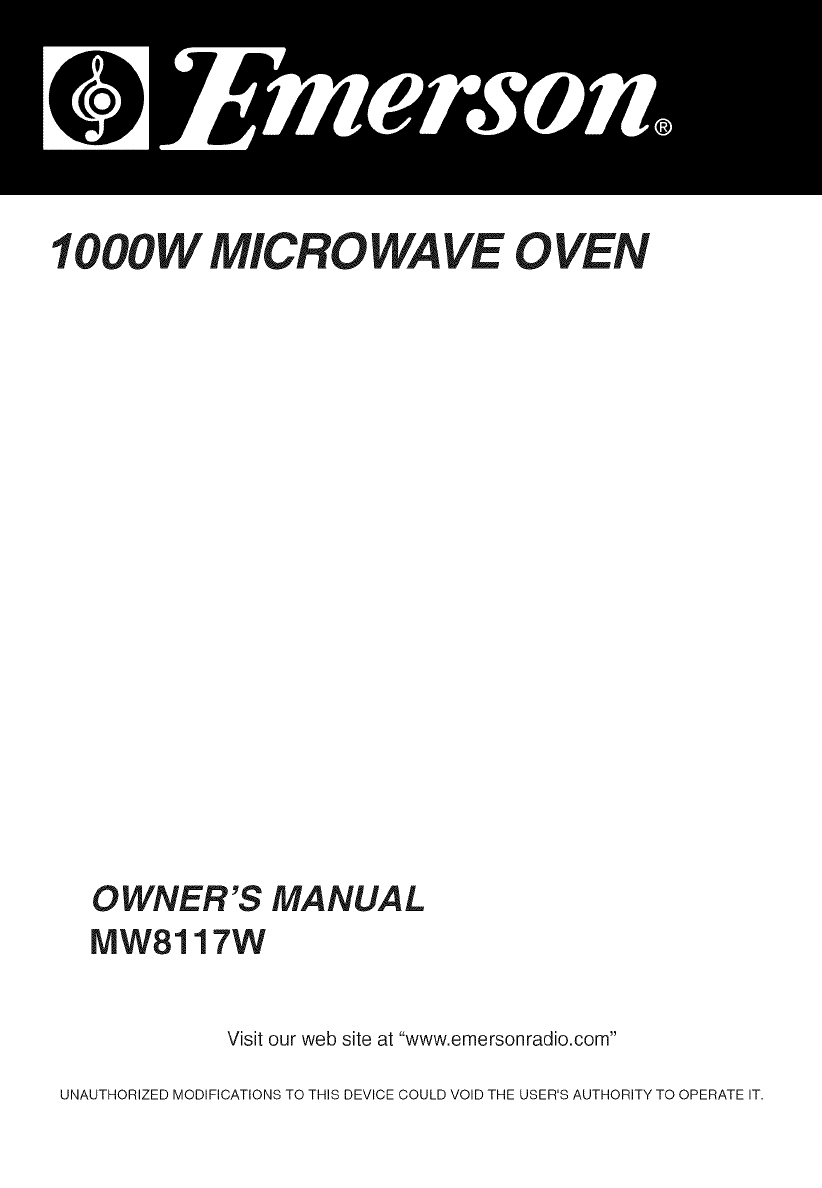

IO00W OVEN

OWNER'S MANUAL

IVIW8117W

Visit our web site at "www.emersonradio.com"

UNAUTHORIZED MODIFICATIONS TO THIS DEVICE COULD VOID THE USER'S AUTHORITY TO OPERATE IT.

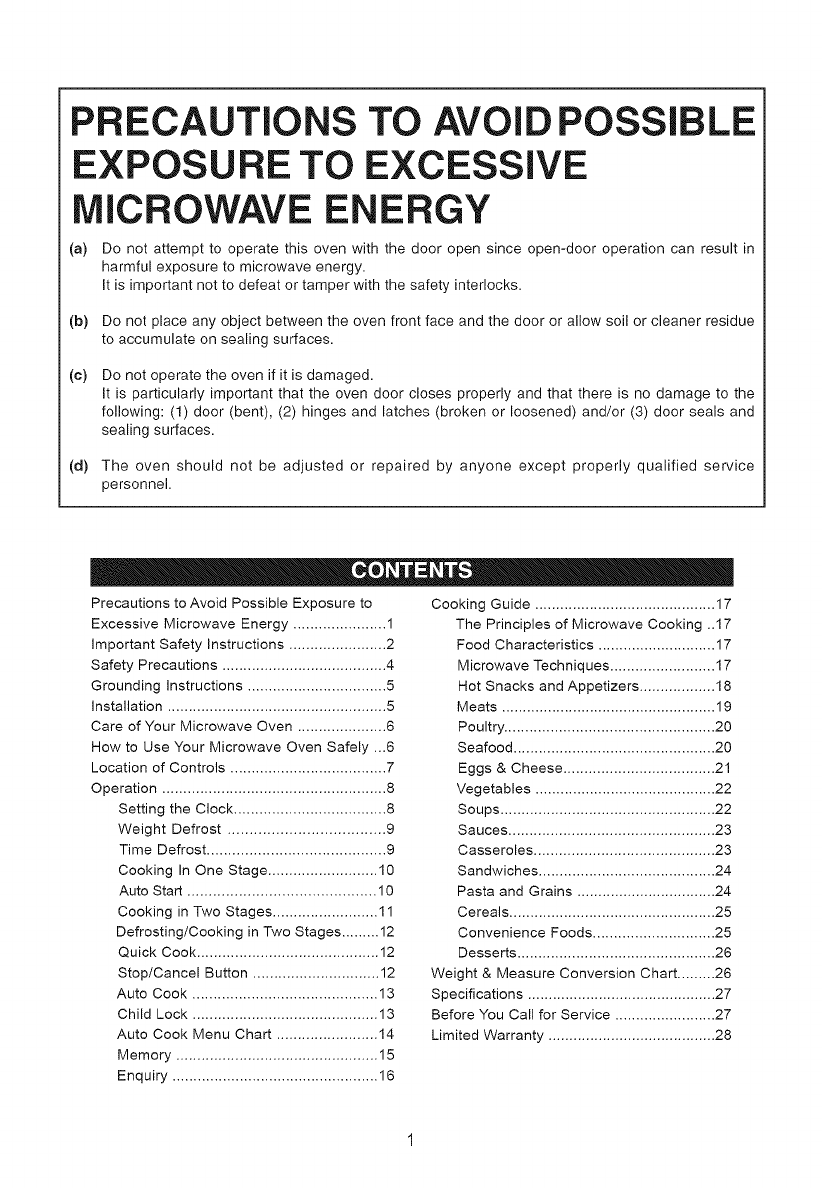

PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in

harmful exposure to microwave energy.

It is important not to defeat or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue

to accumulate on sealing surfaces.

It is particularly important that the oven door closes properly and that there is no damage to the

following: (1) door (bent), (2) hinges and latches (broken or loosened) and/or (3) door seals and

sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service

personnel.

Precautions to Avoid Possible Exposure to

Excessive Microwave Energy ...................... 1

Important Safety Instructions ....................... 2

Safety Precautions ....................................... 4

Grounding Instructions ................................. 5

Installation .................................................... 5

Care of Your Microwave Oven ..................... 6

How to Use Your Microwave Oven Safely ...6

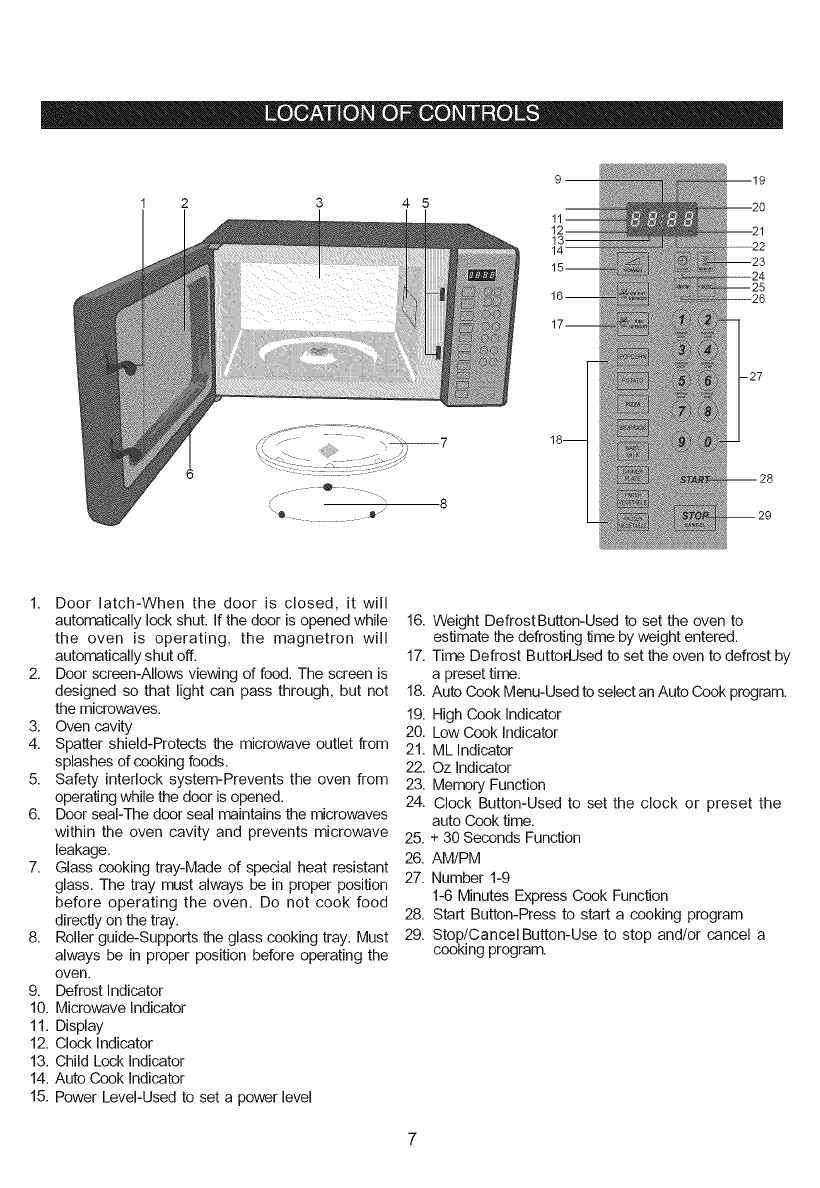

Location of Controls ..................................... 7

Operation ..................................................... 8

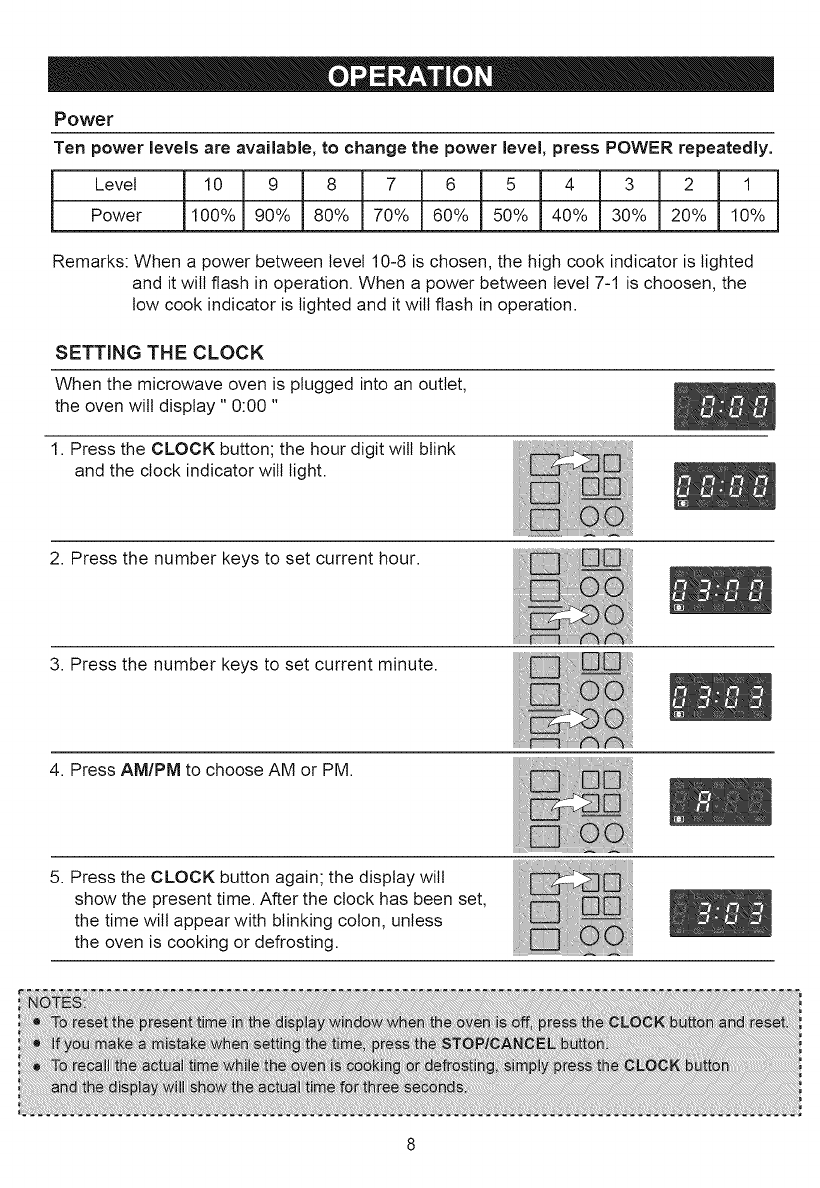

Setting the Clock .................................... 8

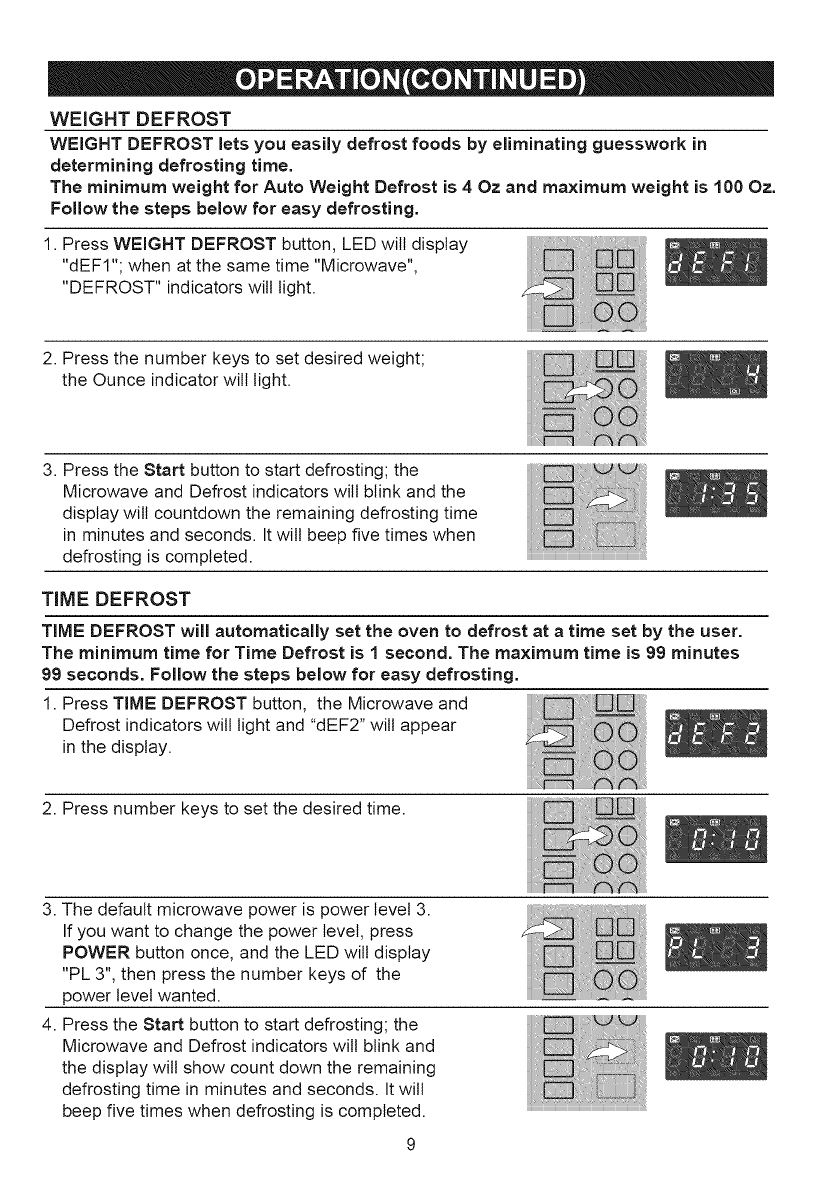

Weight Defrost .................................... 9

Time Defrost .......................................... 9

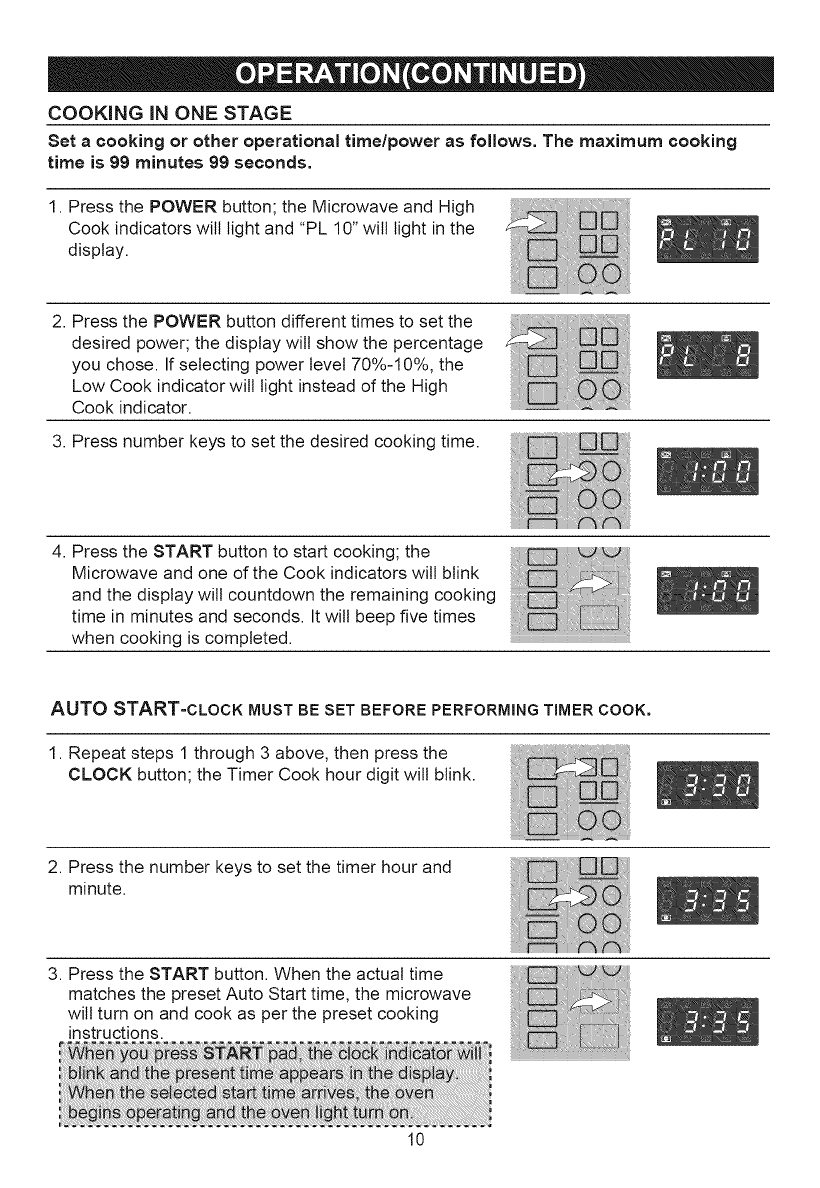

Cooking In One Stage .......................... 10

Auto Start ............................................ 10

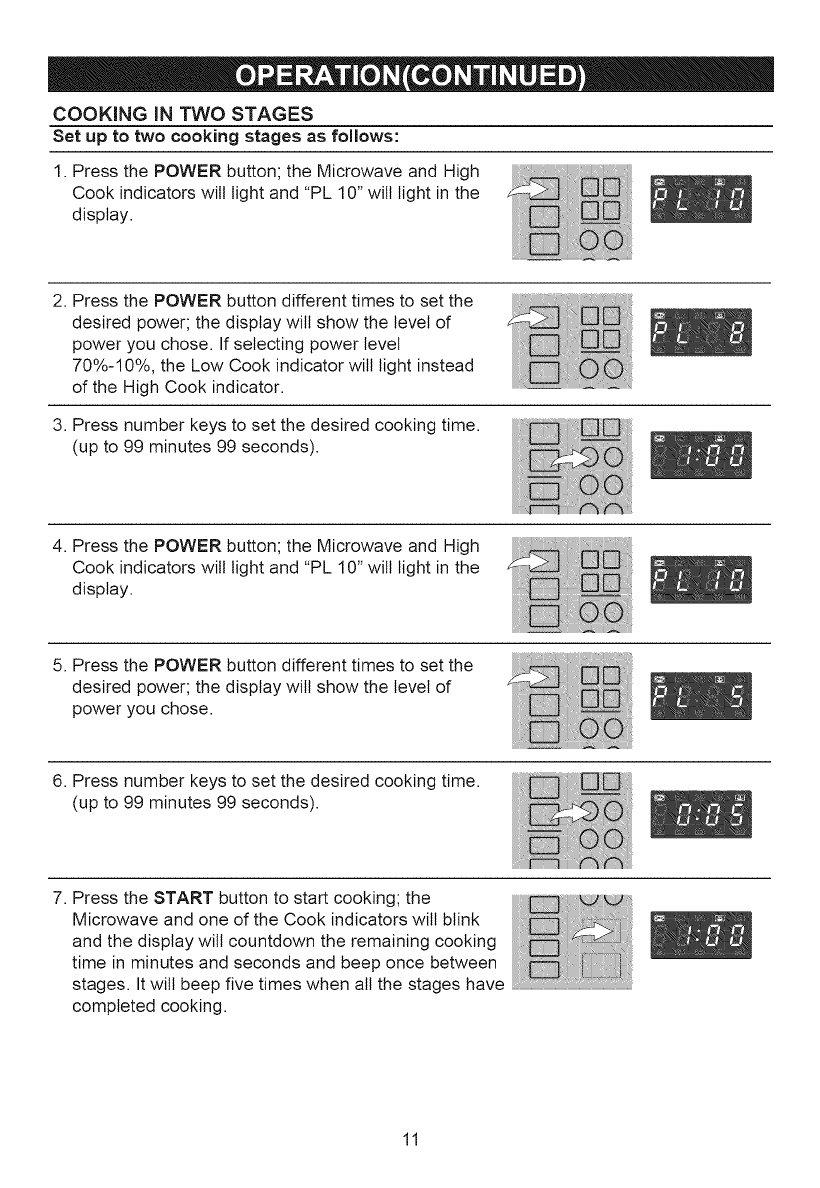

Cooking in Two Stages ......................... 11

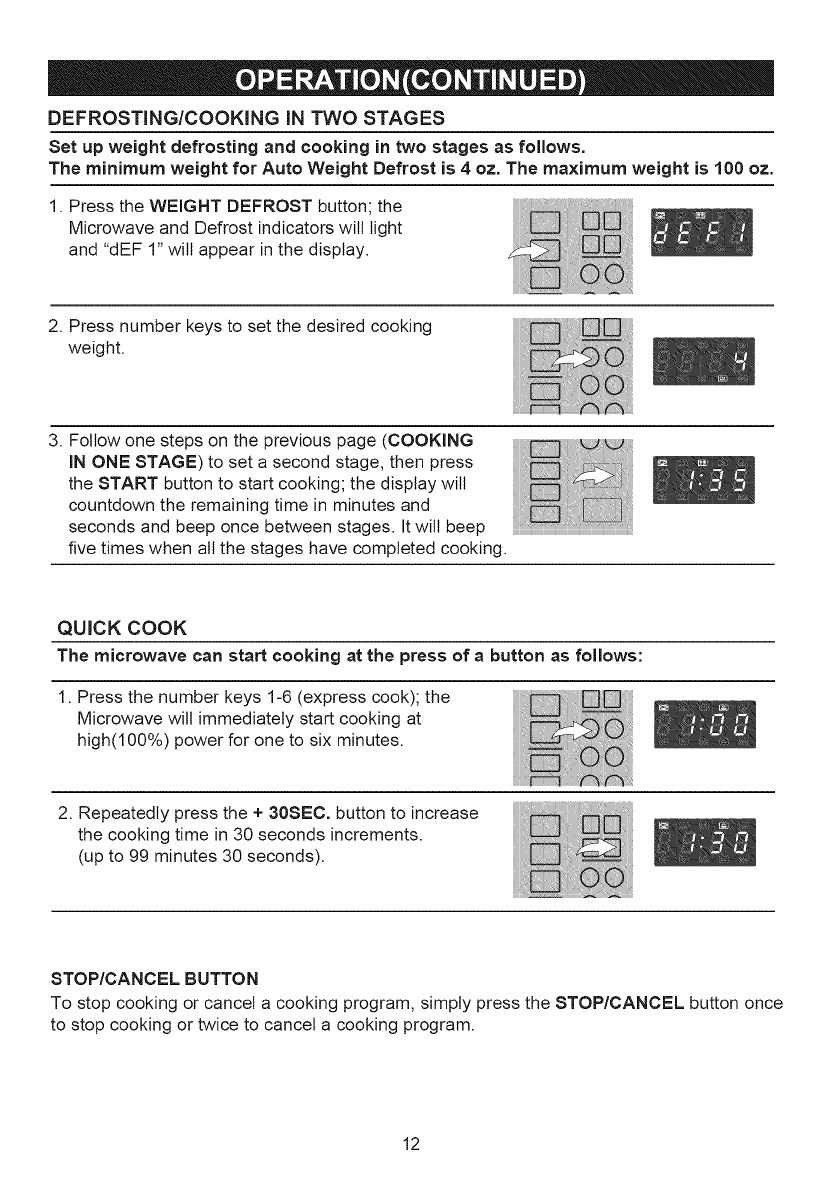

Defrosting/Cooking in Two Stages ......... 12

Quick Cook ........................................... 12

Stop/Cancel Button .............................. 12

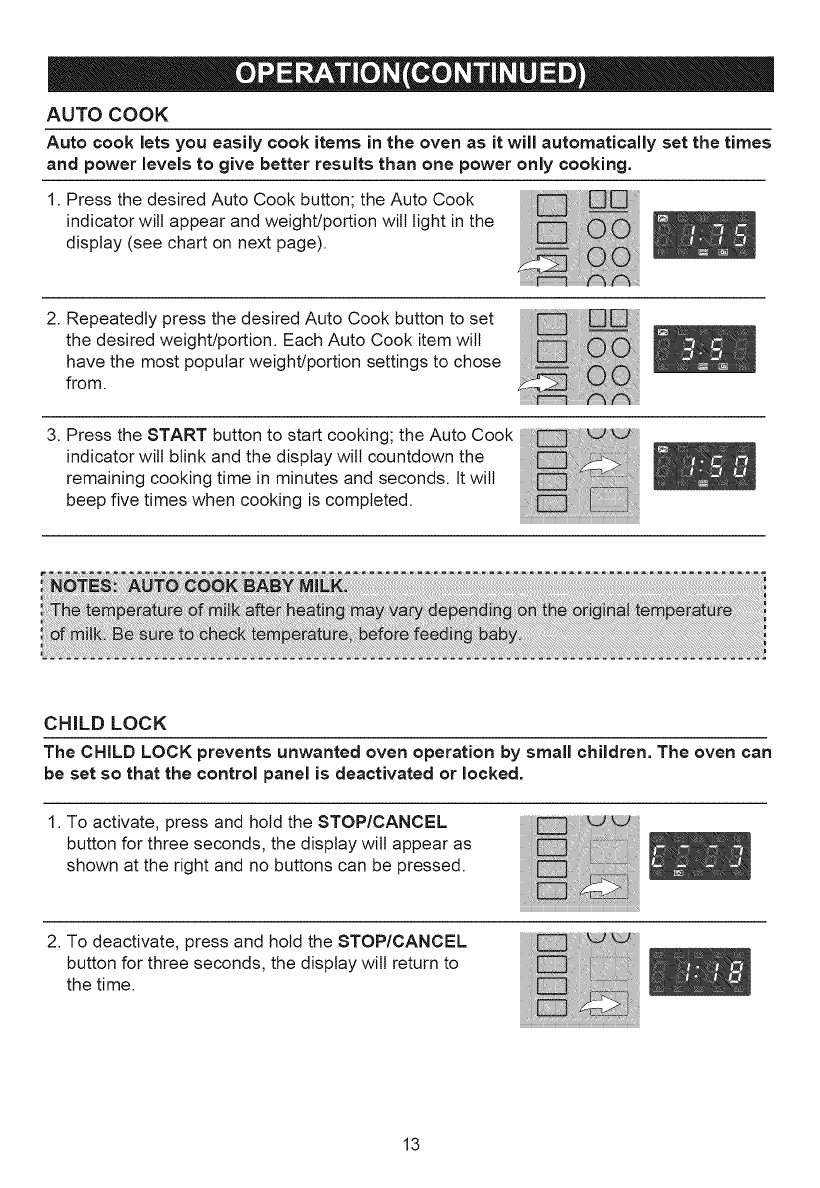

Auto Cook ............................................ 13

Child Lock ............................................ 13

Auto Cook Menu Chart ........................ 14

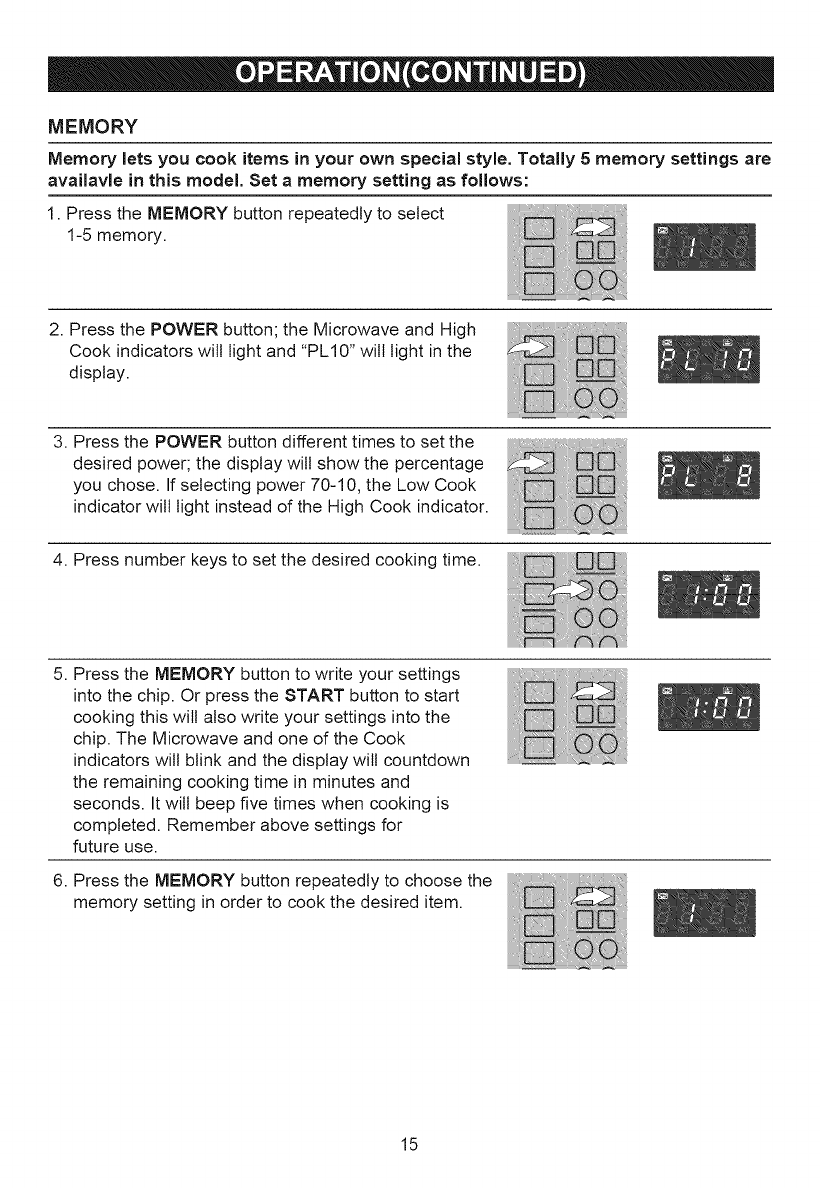

Memory ................................................ 15

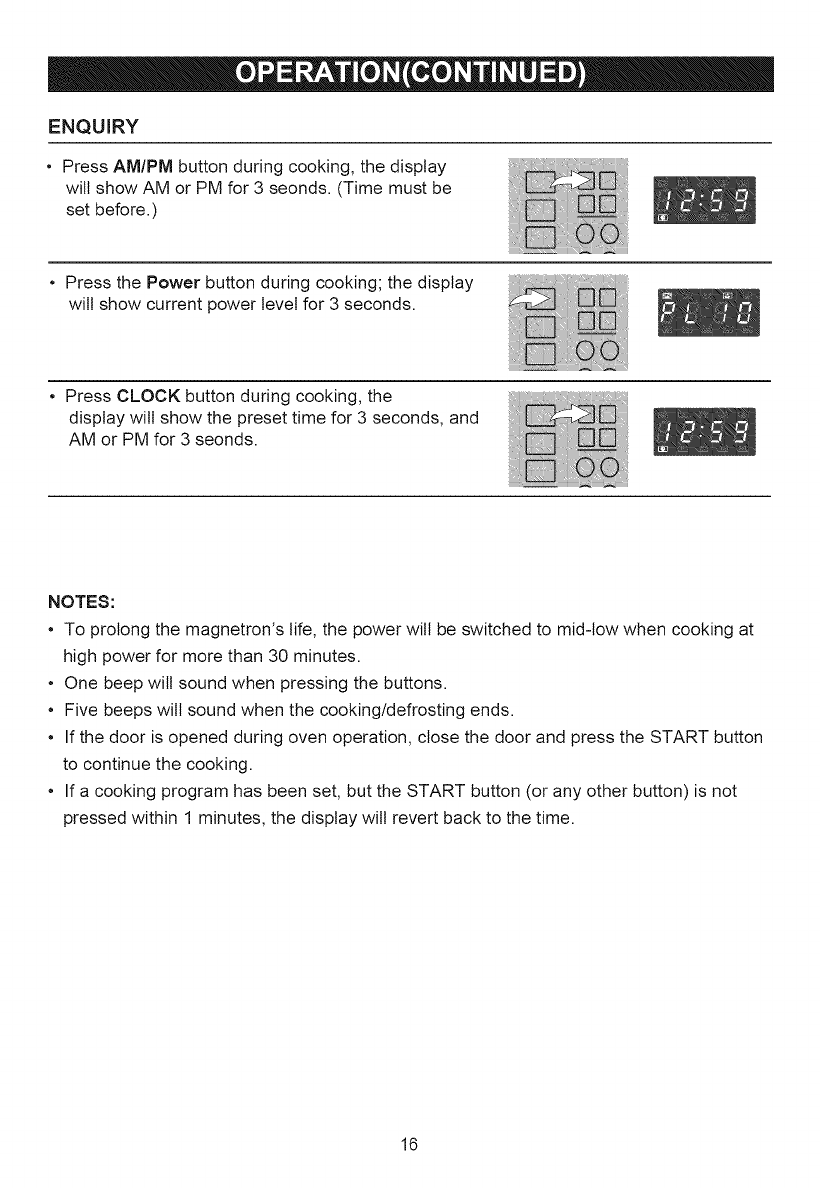

Enquiry ................................................. 16

Cooking Guide ........................................... 17

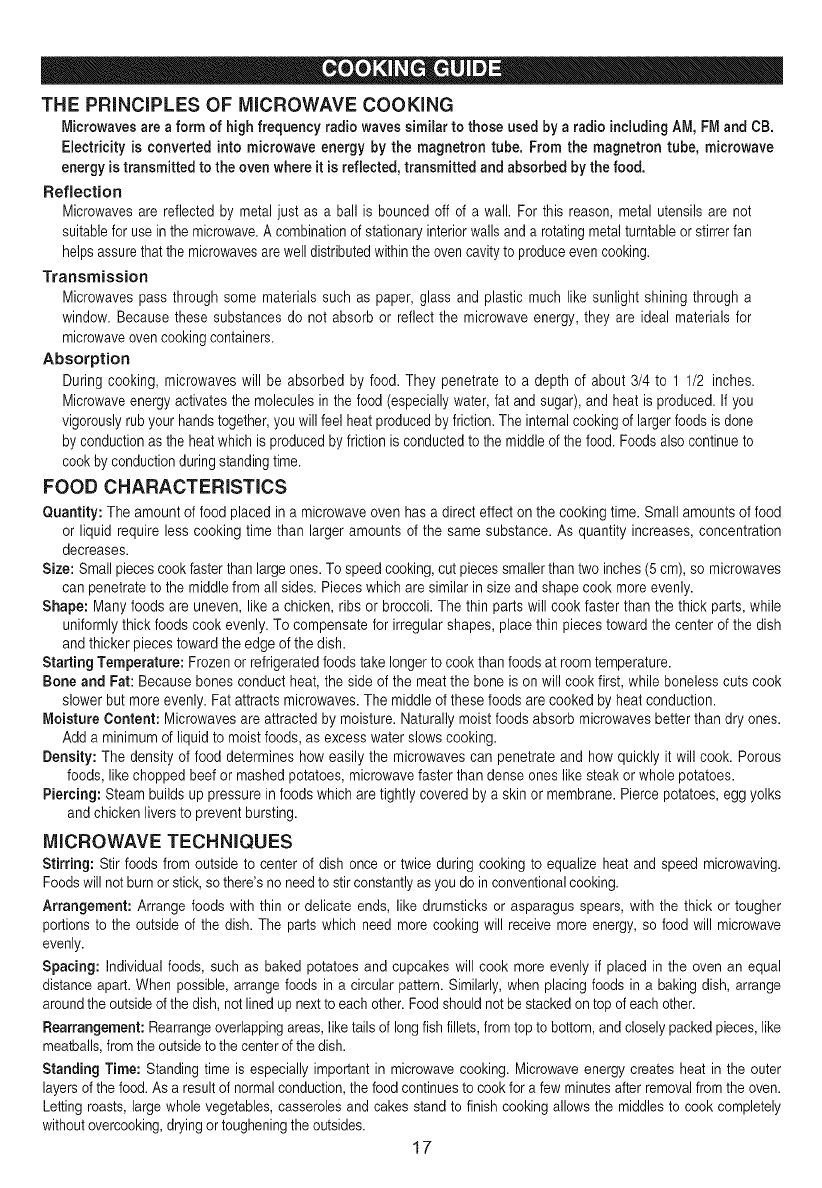

The Principles of Microwave Cooking ..17

Food Characteristics ............................ 17

Microwave Techniques ......................... 17

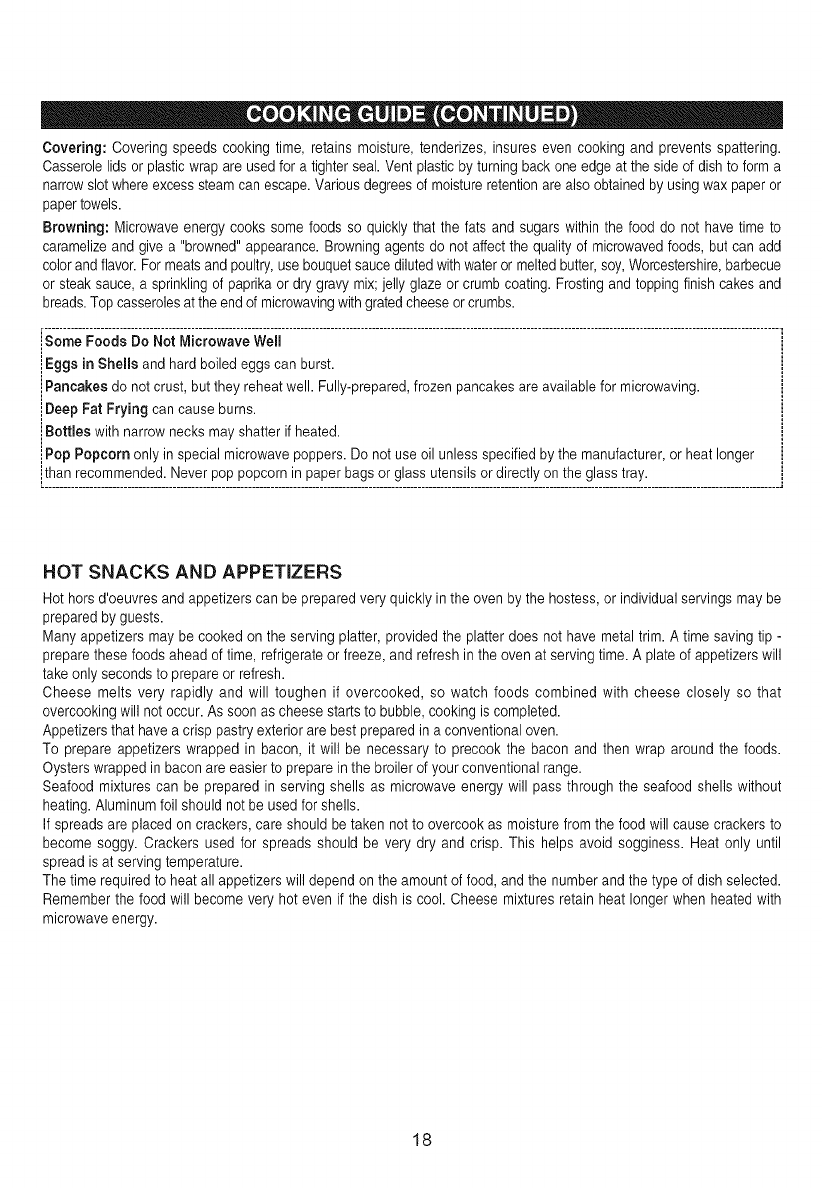

Hot Snacks and Appetizers .................. 18

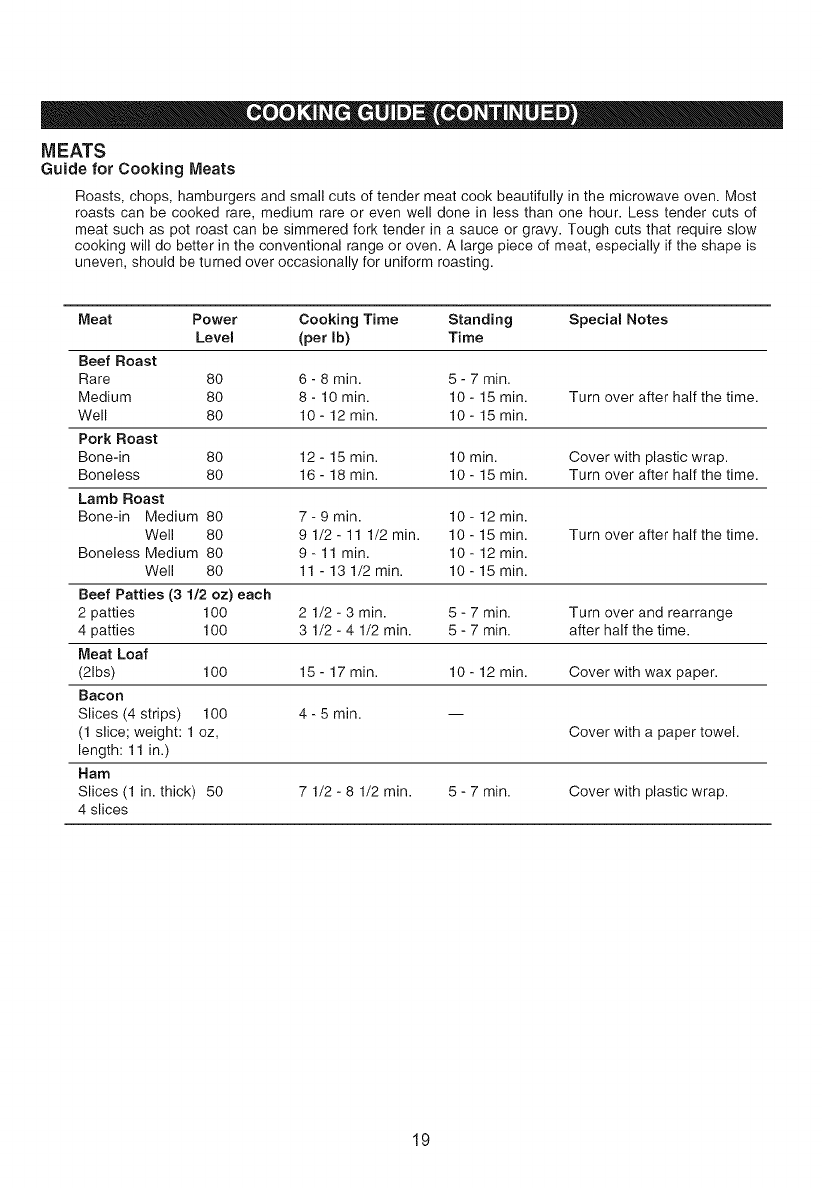

Meats ................................................... 19

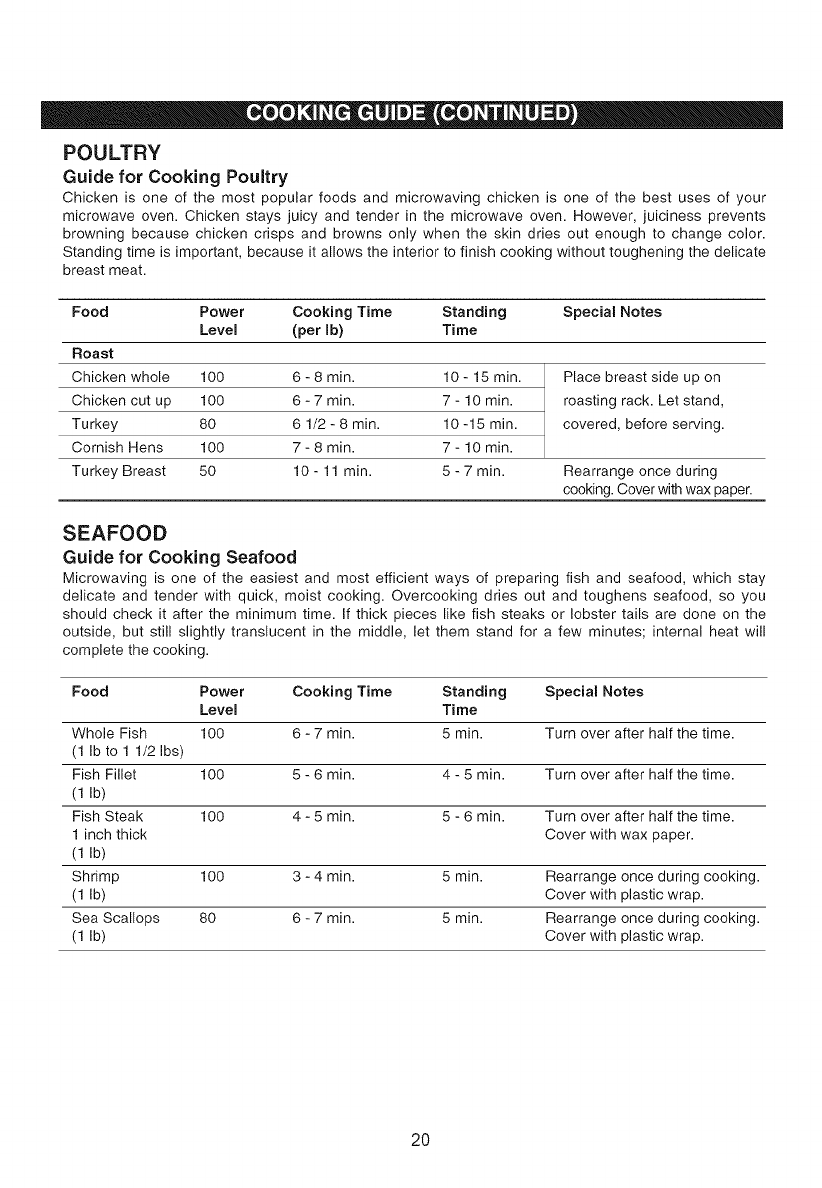

Poultry .................................................. 20

Seafood ................................................ 20

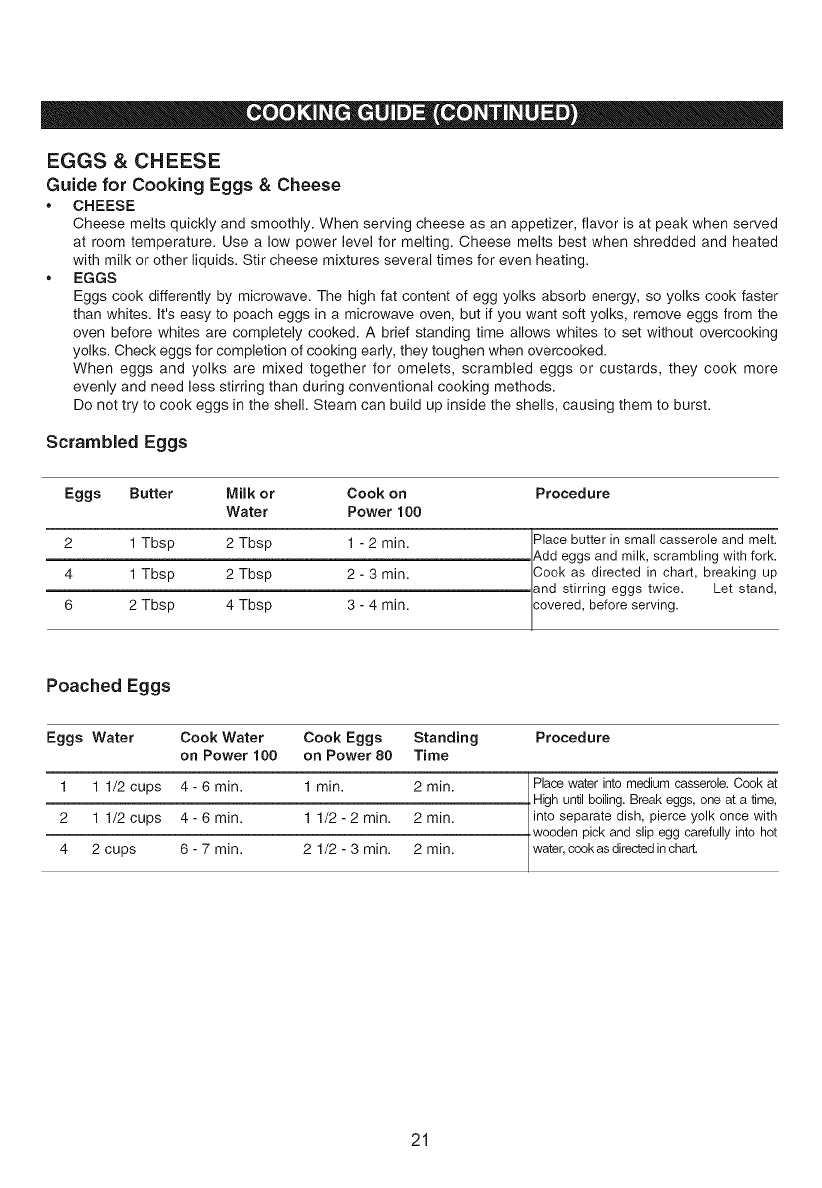

Eggs & Cheese .................................... 21

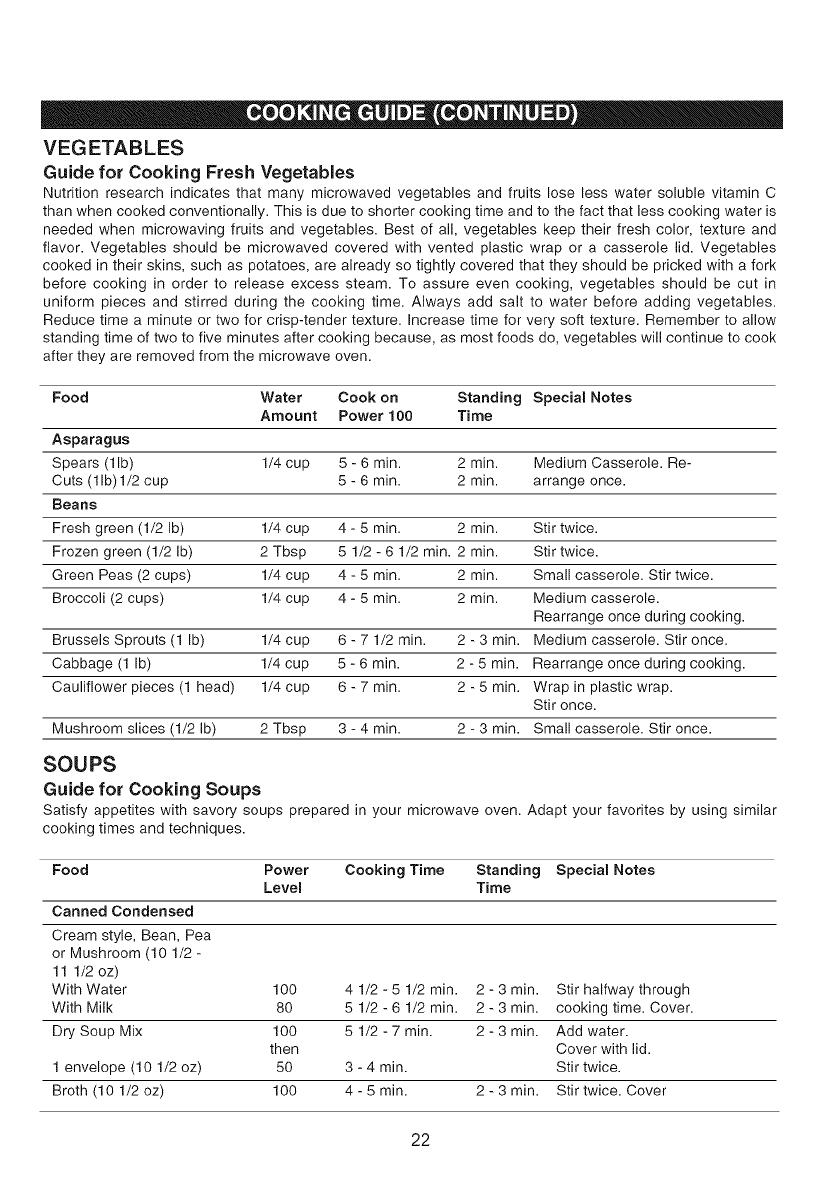

Vegetables ........................................... 22

Soups ................................................... 22

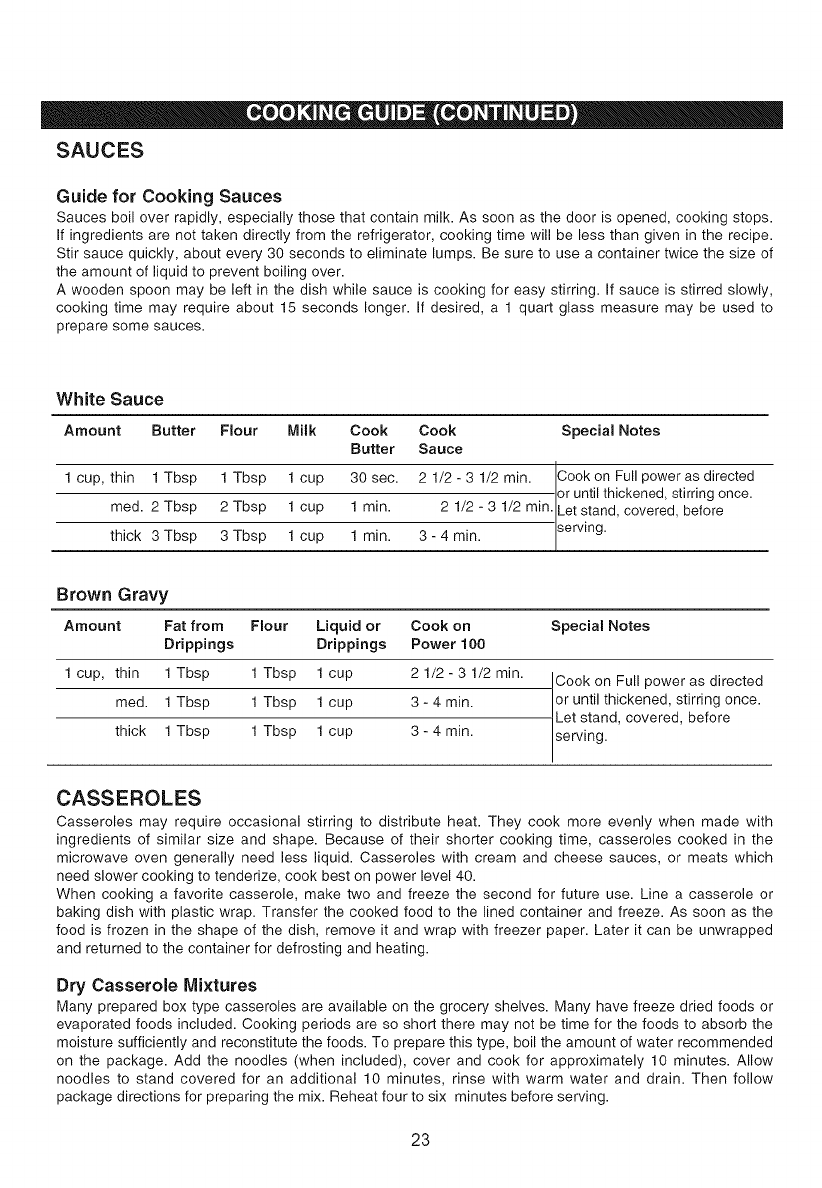

Sauces ................................................. 23

Casseroles ........................................... 23

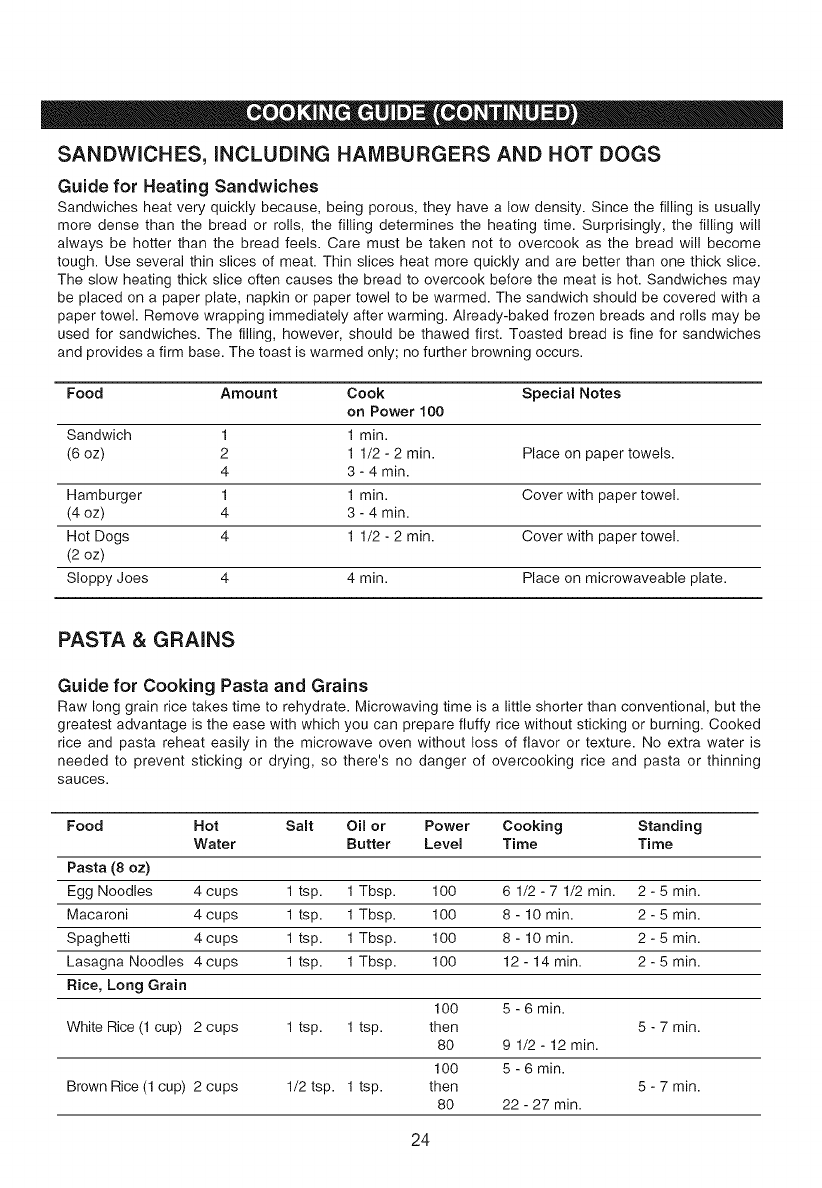

Sandwiches .......................................... 24

Pasta and Grains ................................. 24

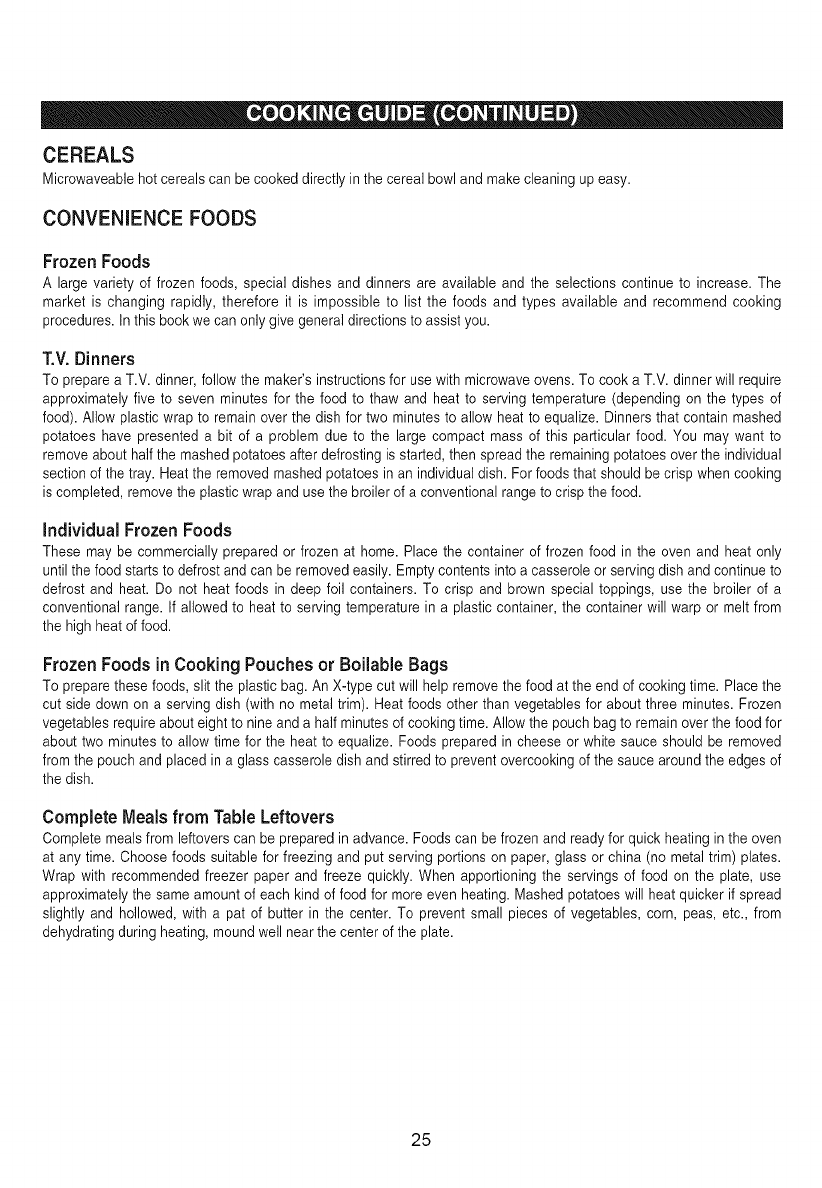

Cereals ................................................. 25

Convenience Foods ............................. 25

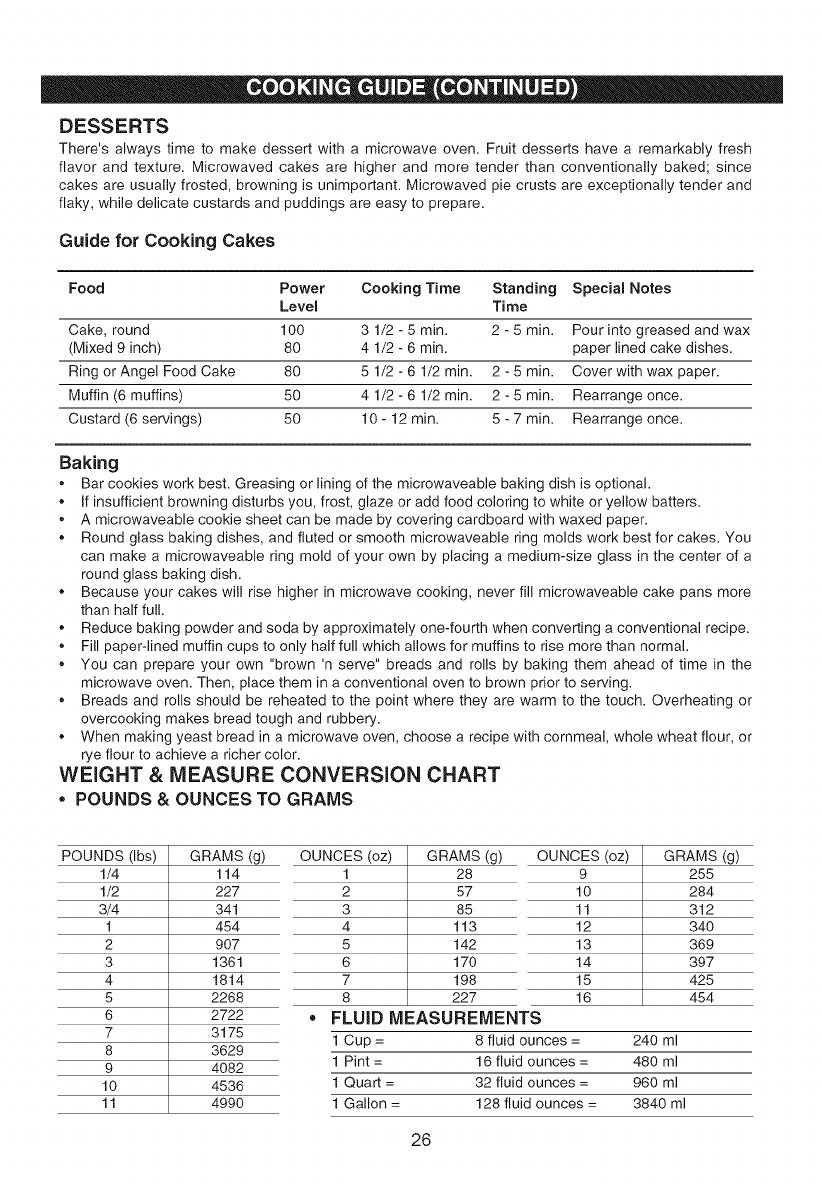

Desserts ............................................... 26

Weight & Measure Conversion Chart ......... 26

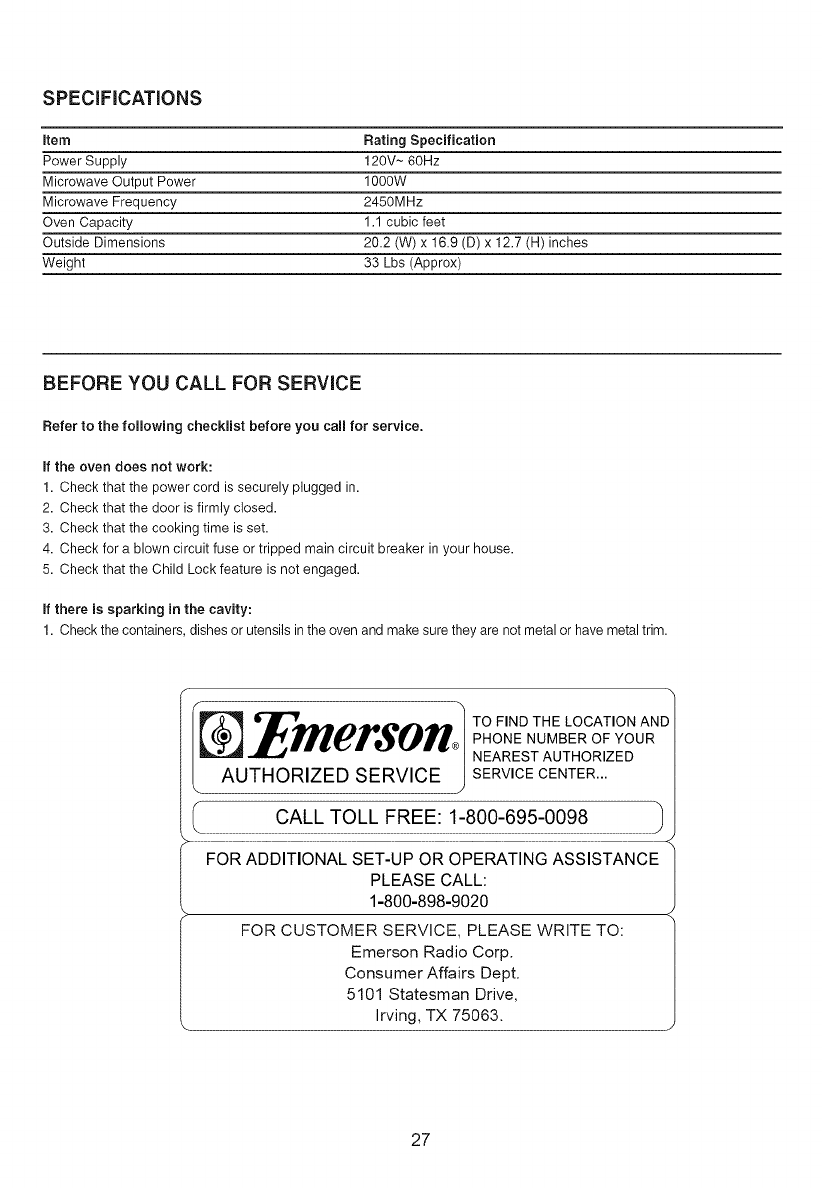

Specifications ............................................. 27

Before You Call for Service ........................ 27

Limited Warranty ........................................ 28

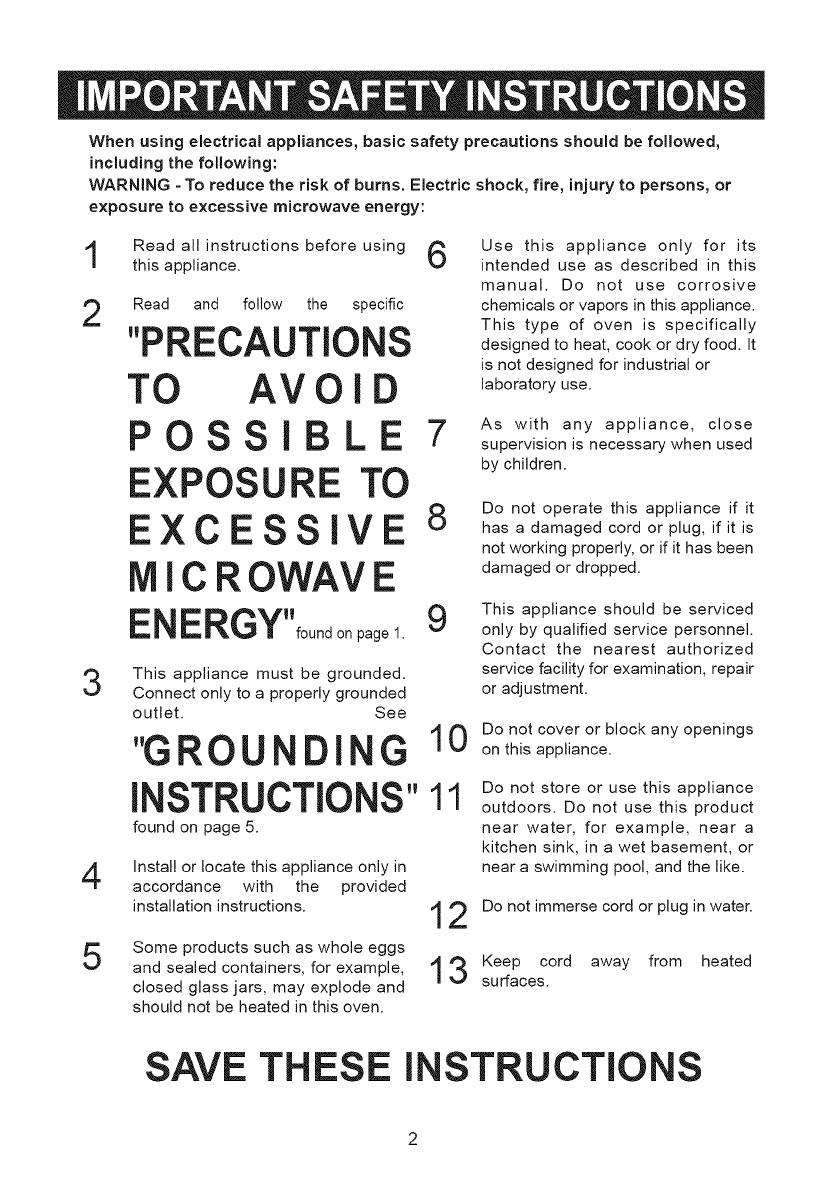

When using electrical appliances, basic safety precautions should be followed,

including the following:

WARNING -To reduce the risk of burns. Electric shock, fire, injury to persons, or

exposure to excessive microwave energy:

Read all instructions before using 6

this appliance.

Read and follow the specific

"PRECAUTIONS

TO AVOID

POSSIBLE 7

EXPOSURE TO

EXCESSIVE 8

IVl!C R OWAV E

ENERGY",0_0_00_a0_I9

This appliance must be grounded.

Connect only to a properly grounded

outlet. See

"GROUNDING

Use this appliance only for its

intended use as described in this

manual. Do not use corrosive

chemicals or vapors in this appliance.

This type of oven is specifically

designed to heat, cook or dry food. It

is not designed for industrial or

laboratory use.

As with any appliance, close

supervision is necessary when used

by children.

Do not operate this appliance if it

has a damaged cord or plug, if it is

not working properly, or if it has been

damaged or dropped.

This appliance should be serviced

only by qualified service personnel.

Contact the nearest authorized

service facility for examination, repair

or adjustment.

0 Do not cover or block any openings

on this appliance.

INSTRUCTIONS" 11

found on page 5.

Install or locate this appliance only in

accordance with the provided

installation instructions.

Some products such as whole eggs

and sealed containers, for example,

closed glass jars, may explode and

should not be heated in this oven.

Do not store or use this appliance

outdoors. Do not use this product

near water, for example, near a

kitchen sink, in a wet basement, or

near a swimming pool, and the like.

52Do not immerse cord or plug in water.

13 Keep cord away from heated

surfaces.

SAVE THESE INSTRUCTIONS

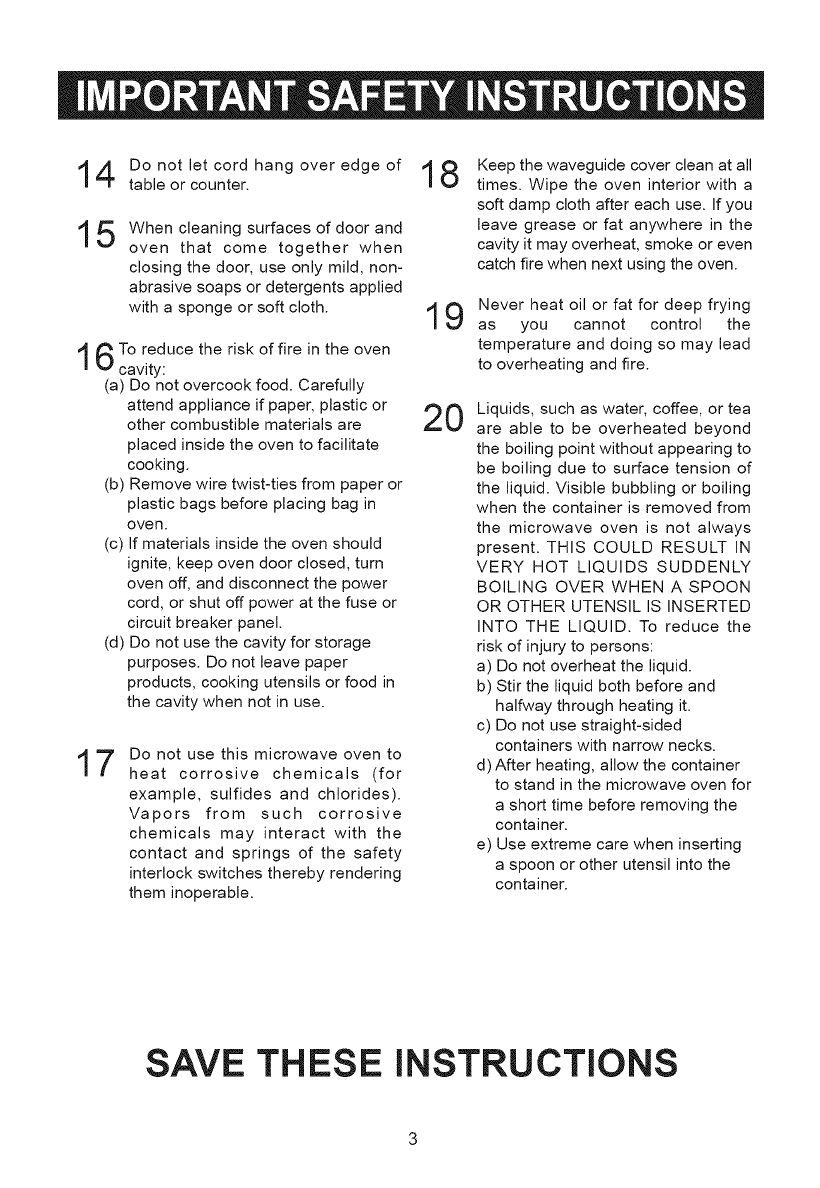

14 Do not let cord hang over edge of 18

table or counter.

15 When cleaning surfaces of door and

oven that come together when

closing the door, use only mild, non-

abrasive soaps or detergents applied

with a sponge or soft cloth.

1_ To reduce the risk of fire in the oven

v cavity:

(a) Do not overcook food. Carefully

attend appliance if paper, plastic or

other combustible materials are

placed inside the oven to facilitate

cooking.

(b) Remove wire twist-ties from paper or

plastic bags before placing bag in

oven.

ignite, keep oven door closed, turn

oven off, and disconnect the power

cord, or shut off power at the fuse or

circuit breaker panel.

(d) Do not use the cavity for storage

purposes. Do not leave paper

products, cooking utensils or food in

the cavity when not in use.

17 Do not use this microwave oven to

heat corrosive chemicals (for

example, sulfides and chlorides).

Vapors from such corrosive

chemicals may interact with the

contact and springs of the safety

interlock switches thereby rendering

them inoperable.

Keep the waveguide cover clean at all

times. Wipe the oven interior with a

soft damp cloth after each use. If you

leave grease or fat anywhere in the

cavity it may overheat, smoke or even

catch fire when next using the oven.

Never heat oil or fat for deep frying

as you cannot control the

temperature and doing so may lead

to overheating and fire.

Liquids, such as water, coffee, or tea

are able to be overheated beyond

the boiling point without appearing to

be boiling due to surface tension of

the liquid. Visible bubbling or boiling

when the container is removed from

the microwave oven is not always

present. THIS COULD RESULT IN

VERY HOT LIQUIDS SUDDENLY

BOILING OVER WHEN A SPOON

OR OTHER UTENSIL IS INSERTED

INTO THE LIQUID. To reduce the

risk of injury to persons:

a) Do not overheat the liquid.

b) Stir the liquid both before and

halfway through heating it.

c) Do not use straight-sided

containers with narrow necks.

d) After heating, allow the container

to stand in the microwave oven for

a short time before removing the

container.

e) Use extreme care when inserting

a spoon or other utensil into the

container.

SAVE THESE INSTRUCTIONS

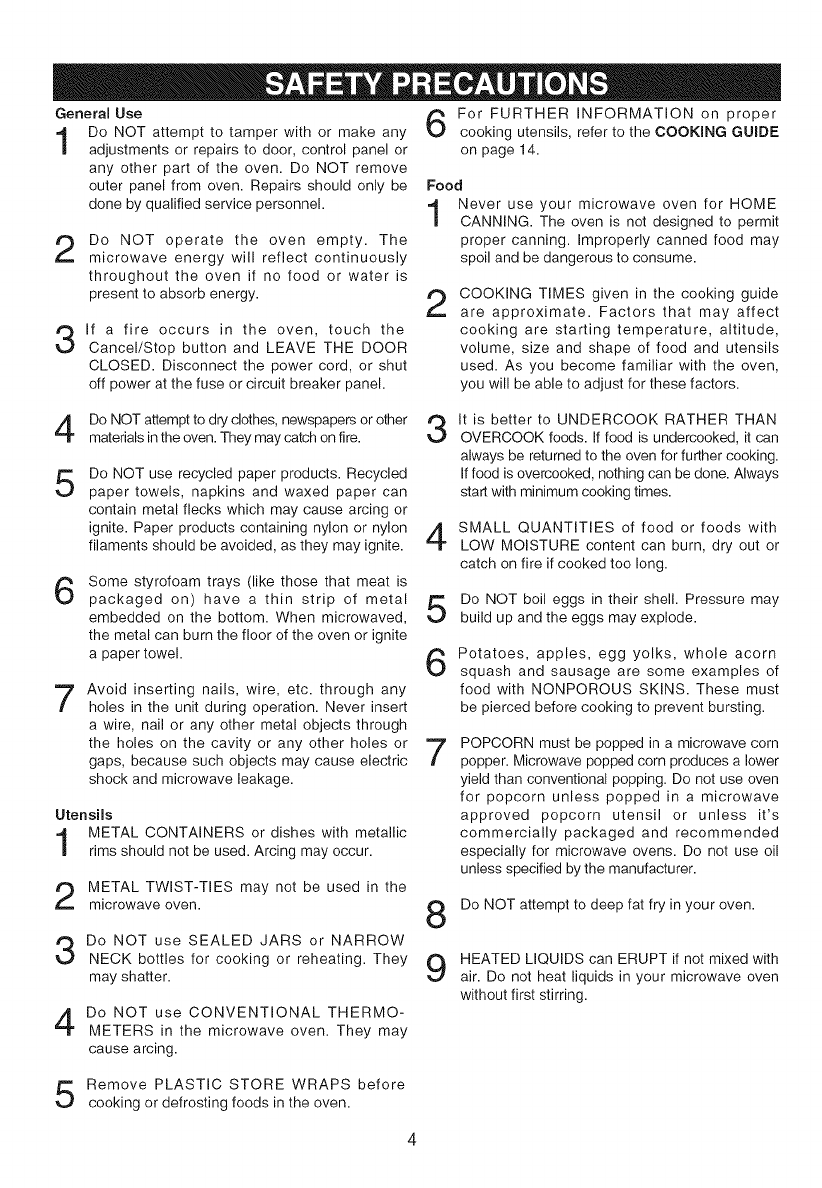

General Use

Do NOT attempt to tamper with or make any

adjustments or repairs to door, control panel or

any other part of the oven. Do NOT remove

outer panel from oven. Repairs should only be

done by qualified service personnel.

Do NOT operate the oven empty. The

microwave energy will reflect continuously

throughout the oven if no food or water is

present to absorb energy.

If a fire occurs in the oven, touch the

Cancel/Stop button and LEAVE THE DOOR

CLOSED. Disconnect the power cord, or shut

off power at the fuse or circuit breaker panel.

For FURTHER INFORMATION on proper

cooking utensils, refer to the COOKING GUIDE

on page 14.

Food

Never use your microwave oven for HOME

CANNING. The oven is not designed to permit

proper canning. Improperly canned food may

spoil and be dangerous to consume.

2COOKING TIMES given in the cooking guide

are approximate. Factors that may affect

cooking are starting temperature, altitude,

volume, size and shape of food and utensils

used. As you become familiar with the oven,

you will be able to adjust for these factors.

Do NOT attempt to dry clothes, newspapers or other

materials in the oven. They may catch on fire. 3

5Do NOT use recycled paper products. Recycled

paper towels, napkins and waxed paper can

contain metal flecks which may cause arcing or

ignite. Paper products containing nylon or nylon

filaments should be avoided, as they may ignite.

It is better to UNDERCOOK RATHER THAN

OVERCOOK foods. If food is undercooked, it can

always be returned to the oven for further cooking.

If food is overcooked, nothing can be done. Always

start with minimum cooking times.

SMALL QUANTITIES of food or foods with

LOW MOISTURE content can burn, dry out or

catch on fire if cooked too long.

Some styrofoam trays (like those that meat is

packaged on) have a thin strip of metal

embedded on the bottom. When microwaved, LJ

the metal can burn the floor of the oven or ignite

a paper towel. U

Avoid inserting nails, wire, etc. through any

holes in the unit during operation. Never insert

a wire, nail or any other metal objects through

the holes on the cavity or any other holes or

gaps, because such objects may cause electric

shock and microwave leakage.

Utensils

METAL CONTAINERS or dishes with metallic

rims should not be used. Arcing may occur.

METAL TWIST-TIES may not be used in the

microwave oveR.

Do NOT use SEALED JARS or NARROW

NECK bottles for cooking or reheating. They

may shatter.

Do NOT use CONVENTIONAL THERMO-

METERS in the microwave oven. They may

cause arcing.

Do NOT boil eggs in their shell. Pressure may

build up and the eggs may explode.

Potatoes, apples, egg yolks, whole acorn

squash and sausage are some examples of

food with NONPOROUS SKINS. These must

be pierced before cooking to prevent bursting.

POPCORN must be popped in a microwave corn

popper. Microwave popped corn produces a lower

yield than conventional popping. Do not use oven

for popcorn unless popped in a microwave

approved popcorn utensil or unless it's

commercially packaged and recommended

especially for microwave ovens. Do not use oil

unless specified by the manufacturer.

Do NOT attempt to deep fat fry in your oven.

HEATED LIQUIDS can ERUPT if not mixed with

air. Do not heat liquids in your microwave oven

without first stirring.

Remove PLASTIC STORE WRAPS before

cooking or defrosting foods in the oven.

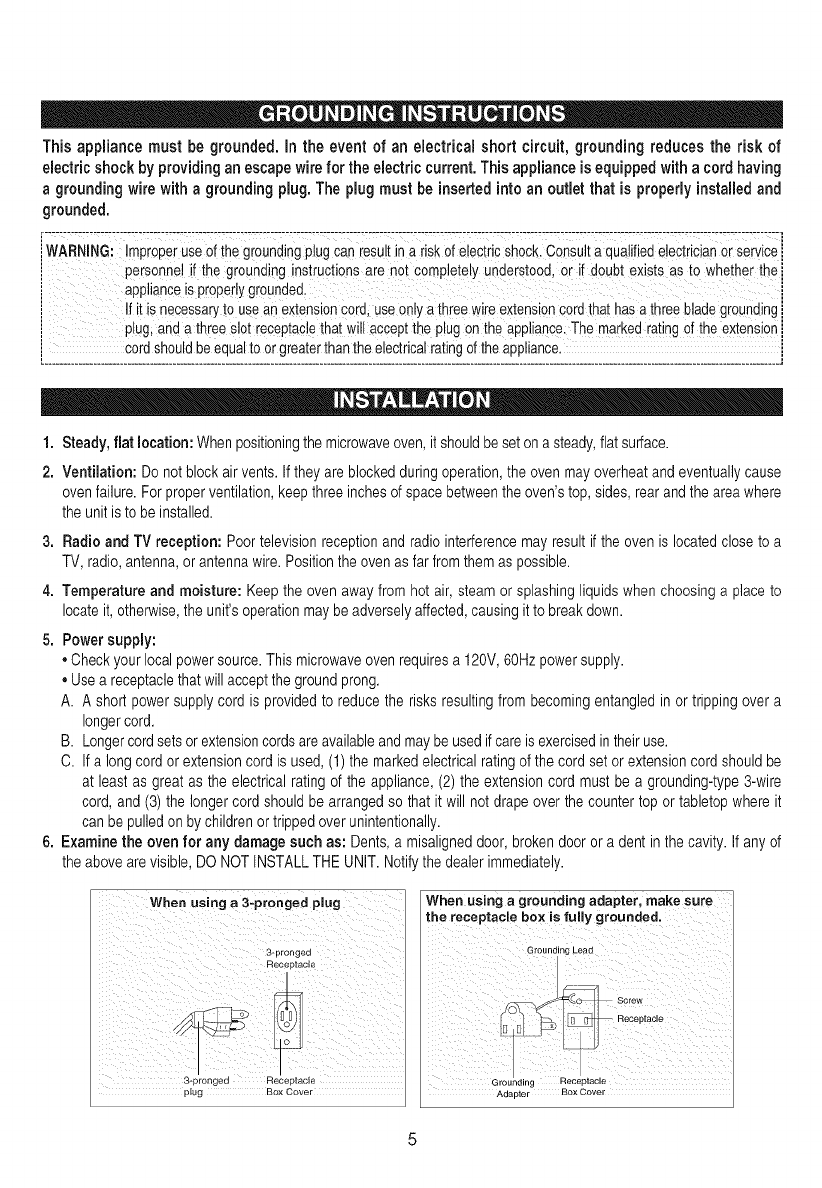

This appliance must be grounded, in the event of an electrical short circuit, grounding reduces the risk of

electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having

a grounding wire with a grounding plug. The plug must be inserted into an outlet that is properly installed and

grounded.

iWARNING: ImproPeruseof the groundingPlug Canresult in a risk OfelectricShock.Consulta qualified electrician0r Servicei

personnel if the groundinginstructbns are not COmPletelyunderstood, Orif doubt exists as to whether the

applianceisproper!ygrounded, i

i if it is necessarYto usean extensionCOt&useonly a threewire extensioncord that has a three bladegrounding

plug; and a three Slot receptaclethatwill accept the p!ug onthe appliance.The markedratingOfthe extenSioni

i cordshouldbeequaltoorgreaterthantheelectricalratingoftheappliance, i

L................................................................................................................................................................................................... J

1. Steady, flat location: When positioningthe microwaveoven, it shouldbe seton a steady, flatsurface.

2. Ventilation: Do not block air vents. If they are blockedduring operation,the oven may overheatand eventually cause

oven failure. For properventilation, keep threeinches of space between the oven's top, sides, rear and the area where

the unit is to be installed.

3. Radio and TV reception: Poortelevision reception and radio interferencemay result if the oven is located close to a

TV, radio,antenna, or antenna wire. Positionthe oven as far fromthem as possible.

4. Temperature and moisture: Keep the oven away from hot air, steam or splashing liquids when choosing a place to

locate it, otherwise, the unit's operation may be adversely affected, causing it to break down.

5. Power supply:

* Check your local powersource. This microwaveoven requires a 120V, 60Hz powersupply.

* Use a receptaclethat will accept the ground prong.

A. A short powersupply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a

longer cord.

B. Longercord sets or extensioncordsare availableand maybe usedif care is exercisedintheir use.

C. If a longcord or extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be

at least as great as the electrical rating of the appliance, (2) the extension cord must be a grounding-type 3-wire

cord, and (3) the longer cord should be arranged so that it will not drape over the counter top or tabletop where it

can be pulled on by children or tripped over unintentionally.

6. Examine the oven for any damage such as: Dents, a misaligned door, broken door or a dent in the cavity. If any of

the above are visible, DO NOT INSTALL THE UNIT. Notify the dealer immediately.

When using a3-pronged plug

3-pronged

Receptacle

3-pronged Receptacle

Plug BOX Cove_

When using a grounding adapter, make sure

the receptacle box is fully grounded.

Grounding Lead

Grounding ReceDlacle

Adapler Box Cover

Disconnect the AC plug from the outlet before 6It is occasionally necessary to remove the

cleaning, glass tray for cleaning. Wash the tray in warm,

Keep the inside of the oven clean. When food sudsy water or in a dishwasher.

spatters or spilled liquids adhere to oven

walls, wipe with a damp cloth. Mild detergent

may be used if the oven gets very dirty. The

use of harsh detergent or abrasives is not

recommended.

The outside oven surface should be cleaned

with soap and water, rinsed and dried with a

soft cloth. To prevent damage to the operat-

ing parts inside the oven, water should not be

allowed to seep into the ventilation slots.

If the Control Panel becomes dirty or wet,

clean with a soft, dry cloth. Do not use harsh

detergents or abrasives on Control Panel.

If steam accumulates on both sides of the

oven door, wipe with a soft cloth. This may

occur when the microwave oven is operated

under high humidity conditions and this is not

an indication of a malfunction in the unit.

7The roller guide and oven cavity floor should

be cleaned regularly to avoid excessive noise.

Simply wipe the bottom surface of the oven

with mild detergent water or window cleaner

and dry. The roller guide may be washed in

mild, sudsy water or in the dishwasher.

Roller Guide

The ROLLER GUIDE and oven floor should be

cleaned frequently to prevent excessive noise.

The ROLLER GUIDE MUST ALWAYS be used for

cooking together with the Glass Tray.

Glass Tray

Do NOT operate the oven without the Glass Tray

in place.

Do NOT use any other Glass Tray with this oven.

If the Glass Tray is hot, ALLOW IT TO COOL

before cleaning it or placing it in water.

Do NOT cook directly on the Glass Tray.

Glass Tray Roller Guide

Although your oven is provided with safety features, it is important to observe the foJJowing:

a) It is important not to defeat or tamper with safety interlocks.

b) Do not place any object between the oven face and the door or allow residue to accumulate on

sealing surfaces. Wipe the sealing area frequently with a mild detergent, rinse and wipe dry. Never

use abrasive powders or pads.

c) When opened, the door must not be subjected to strain, for example, a child hanging on an open

door or any load which could cause the oven to fall forward and cause injury and damage to the

door. Do not operate the oven if it is damaged, until it has been repaired by a qualified person. It is

particularly important that the oven door close properly and that there is no damage to the following:

i) Door (bent), ii) Hinges and Latches (broken or loosened), iii) Door seals and sealing surfaces.

d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

4 5

1. Door latch-When the door is closed, it will

automatically lock shut. If the door is opened while

the oven is operating, the magnetron will

automatically shut off.

2. Door screen-Allows viewing of food. The screen is

designed so that light can pass through, but not

the microwaves.

3. Oven cavity

4. Spatter shield-Protects the microwave outlet from

splashes of cooking foods.

5. Safety interlock system-Prevents the oven from

operating while the door is opened.

6. Door seal-The door seal maintains the microwaves

within the oven cavity and prevents microwave

leakage.

7. Glass cooking tray-Made of special heat resistant

glass. The tray must always be in proper position

before operating the oven. Do not cook food

directly on the tray.

8. Roller guide-Supports the glass cooking tray. Must

always be in proper position before operating the

oven.

9. Defrost Indicator

10. Microwave Indicator

11. Display

12. Clock Indicator

13. Child Lock Indicator

14. Auto Cook Indicator

15. Power Level-Used to set a power level

16. Weight DefrostButton-Used to set the oven to

estimate the defrosting time by weight entered.

17. Time Defrost ButtoFUsed to set the oven to defrost by

a preset time.

18. Auto Cook Menu-Used to select an Auto Cook program.

19. High Cook Indicator

20. Low Cook Indicator

21. ML Indicator

22. Oz Indicator

23. Memory Function

24. Clock Button-Used to set the clock or preset the

auto Cook time.

25. + 30 Seconds Function

26. AM/PM

27. Number 1-9

1-6 Minutes Express Cook Function

28. Start Button-Press to start a cooking program

29. StoplCancel Button-Use to stop and/or cancel a

cooking program.

Power

Ten power levels are available, to change the power level, press POWER repeatedly.

Level 10 9 8 7 6 5 4 3 2 1

Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10%

Remarks: When a power between level 10-8 is chosen, the high cook indicator is lighted

and it will flash in operation. When a power between level 7-1 is choosen, the

low cook indicator is lighted and it will flash in operation.

SETTING THE CLOCK

When the microwave oven is plugged into an outlet,

the oven will display" 0:00 "

1. Press the CLOCK button; the hour digit will blink

and the clock indicator will light.

2. Press the number keys to set current hour.

3. Press the number keys to set current minute.

4. Press AM/PM to choose AM or PM.

5. Press the CLOCK button again; the display will

show the present time. After the clock has been set,

the time wilt appear with blinking colon, unless

the oven is cooking or defrosting.

WEIGHTDEFROST

WEIGHT DEFROST lets you easily defrost foods by eliminating guesswork in

determining defrosting time.

The minimum weight for Auto Weight Defrost is 40z and maximum weight is 100 Oz.

Follow the steps below for easy defrosting.

1. Press WEIGHT DEFROST button, LED will display

"dEFI"; when at the same time "Microwave",

"DEFROST" indicators will light.

2. Press the number keys to set desired weight;

the Ounce indicator wilt light.

3. Press the Start button to start defrosting; the

Microwave and Defrost indicators wilt blink and the

display will countdown the remaining defrosting time

in minutes and seconds. It will beep five times when

defrosting is completed.

TiME DEFROST

TIME DEFROST will automatically set the oven to defrost at a time set by the user.

The minimum time for Time Defrost is 1 second. The maximum time is 99 minutes

99 seconds. Follow the steps below for easy defrosting.

1. Press TIME DEFROST button, the Microwave and

Defrost indicators wilt light and "dEF2" will appear

in the display.

2. Press number keys to set the desired time.

3. The default microwave power is power level 3.

If you want to change the power level, press

POWER button once, and the LED will display

"PL 3", then press the number keys of the

power level wanted.

4. Press the Start button to start defrosting; the

Microwave and Defrost indicators will blink and

the display will show count down the remaining

defrosting time in minutes and seconds. It will

beep five times when defrosting is completed.

COOKINGiN ONE STAGE

Set acooking or other operational time/power as follows. The maximum cooking

time is 99 minutes 99 seconds.

1. Press the POWER button; the Microwave and High

Cook indicators wilt Sightand "PL 10" will Sightin the

display.

2. Press the POWER button different times to set the

desired power; the display will show the percentage

you chose. If selecting power level 70%-10%, the

Low Cook indicator will light instead of the High

Cook indicator.

3. Press number keys to set the desired cooking time.

4. Press the START button to start cooking; the

Microwave and one of the Cook indicators will blink

and the display wilt countdown the remaining cooking

time in minutes and seconds. It will beep five times

when cooking is completed.

AUTO START-cLOCK MUST BE SET BEFORE PERFORMINGTIMER COOK.

1. Repeat steps 1 through 3 above, then press the

CLOCK button; the Timer Cook hour digit will blink.

2. Press the number keys to set the timer hour and

minute.

3. Press the START button. When the actual time

matches the preset Auto Start time, the microwave

will turn on and cook as per the preset cooking

instructions.

COOKING iN TWO STAGES

Set up to two cooking stages as follows:

1. Press the POWER button; the Microwave and High

Cook indicators will light and "PL 10" will light in the

display.

2. Press the POWER button different times to set the

desired power; the display will show the level of

power you chose. If selecting power level

70%-10%, the Low Cook indicator will light instead

of the High Cook indicator.

3. Press number keys to set the desired cooking time.

(up to 99 minutes 99 seconds).

4. Press the POWER button; the Microwave and High

Cook indicators will light and "PL 10" will light in the

display.

5. Press the POWER button different times to set the

desired power; the display will show the level of

power you chose.

6. Press number keys to set the desired cooking time.

(up to 99 minutes 99 seconds).

7. Press the START button to start cooking; the

Microwave and one of the Cook indicators will blink

and the display wilt countdown the remaining cooking

time in minutes and seconds and beep once between

stages. It wilt beep five times when all the stages have .............................................................................................................................

completed cooking.

DEFROSTING/COOKINGIN TWO STAGES

Set up weight defrosting and cooking in two stages as follows.

The minimum weight for Auto Weight Defrost is 4 oz. The maximum weight is 100 oz.

1. Press the WEIGHT DEFROST button; the

Microwave and Defrost indicators will light

and "dEF 1" will appear in the display,

2. Press number keys to set the desired cooking

weight.

3. Follow one steps on the previous page (COOKING

IN ONE STAGE) to set a second stage, then press

the START button to start cooking; the display will

countdown the remaining time in minutes and

seconds and beep once between stages. It will beep .......

five times when all the stages have completed cooking.

QUICK COOK

The microwave can start cooking at the press of a button as follows:

1. Press the number keys 1-6 (express cook); the

Microwave will immediately start cooking at

high(100%) power for one to six minutes.

2. Repeatedly press the + 30SEC. button to increase

the cooking time in 30 seconds increments.

(up to 99 minutes 30 seconds).

STOP/CANCEL BUTTON

To stop cooking or cancel a cooking program, simply press the STOP/CANCEL button once

to stop cooking or twice to cancel a cooking program.

AUTOCOOK

Auto cook lets you easily cook items in the oven as it will automatically set the times

and power levels to give better results than one power only cooking.

1. Press the desired Auto Cook button; the Auto Cook

indicator will appear and weight/portion wilt Sightin the

display (see chart on next page).

2. Repeatedly press the desired Auto Cook button to set

the desired weight/portion. Each Auto Cook item will

have the most popular weight/portion settings to chose

from.

3. Press the START button to start cooking; the Auto Cook

indicator wilt blink and the display wilt countdown the

remaining cooking time in minutes and seconds. It will

beep five times when cooking is completed.

CHILD LOCK

The CHILD LOCK prevents unwanted oven operation by small children. The oven can

be set so that the control panel is deactivated or locked.

1. To activate, press and hold the STOP/CANCEL

button for three seconds, the display will appear as

shown at the right and no buttons can be pressed.

2. To deactivate, press and hold the STOP/CANCEL

button for three seconds, the display will return to

the time.

Auto Cook Menu Chart

Menu Press Times Weight/Portion Display Cooking Time

Once 1.75 Oz 1'20"

POPCORN

Twice 3.50z 1'50"

Once 1 PCS _ 4'30"

POTATO Twice 2 PCS 7'00"

Thrice 3 PCS 8'30"

Once 1 Slice(60z) 1'10"

PIZZA Twice 2 Slices(90z) 1'30"

Thrice 3 Slices(12 Oz) 1'50"

Once 1 Cup 1'20"

BEVERAGE Twice 2 Cups 2'20'

Thrice 3 Cups 3'20"

Once 100 m L 30"

BABY MILK Twice 150 mL 40"

Thrice 200 mL 50"

Once 9.00z 1'50"

DINNER PLATE Twice 12.00z 2'40"

Thrice 18.00z 3'30"

Once 4.00z 2'20"

FRESH Twice 8.00z 3'50"

VEGETABLE

Thrice 16.00z 6'30"

Once 4.00z 2'50"

FROZEN Twice 8.00z 5'10"

VEGETABLE

Thrice 16.00z 8'30"

MEMORY

Memory lets you cook items in your own special style. Totally 5 memory settings are

availavle in this model. Set a memory setting as follows:

1. Press the MEMORY button repeatedly to select

1-5 memory.

2. Press the POWER button; the Microwave and High

Cook indicators will light and "PL10" wilt light in the

display.

3. Press the POWER button different times to set the

desired power; the display will show the percentage

you chose. If selecting power 70-10, the Low Cook

indicator wilt light instead of the High Cook indicator.

4. Press number keys to set the desired cooking time.

5. Press the MEMORY button to write your settings

into the chip. Or press the START button to start

cooking this will also write your settings into the

chip. The Microwave and one of the Cook

indicators will blink and the display will countdown

the remaining cooking time in minutes and

seconds. It wilt beep five times when cooking is

completed. Remember above settings for

future use.

6. Press the MEMORY button repeatedly to choose the

memory setting in order to cook the desired item.

ENQUIRY

• Press AM/PM button during cooking, the display

will show AM or PM for 3 seonds. (Time must be

set before,)

•Press the Power button during cooking; the display

will show current power level for 3 seconds.

•Press CLOCK button during cooking, the

display wilt show the preset time for 3 seconds, and

AM or PM for 3 seonds.

NOTES:

•To prolong the magnetron's life, the power wilt be switched to mid-tow when cooking at

high power for more than 30 minutes.

•One beep will sound when pressing the buttons.

•Five beeps wilt sound when the cooking/defrosting ends.

•If the door is opened during oven operation, close the door and press the START button

to continue the cooking.

•If a cooking program has been set, but the START button (or any other button) is not

pressed within 1 minutes, the display will revert back to the time.

THE PRINCIPLES OF MICROWAVE COOKING

Microwavesare a form of highfrequency radio waves similar to those used by aradio includingAM, FMand CB.

Electricity is converted into microwave energy by the magnetron tube. From the magnetron tube, microwave

energy is transmitted to the ovenwhereit is reflected, transmitted and absorbed by the food.

Reflection

Microwavesare reflected by metaljust as a ball is bouncedoff of a wall. For this reason, metal utensils are not

suitablefor use in the microwave.A combinationof stationaryinteriorwalls anda rotatingmetal turntableorstirrer fan

helpsassurethat the microwavesare well distributedwithinthe oven cavityto produceevencooking.

Transmission

Microwavespass through some materials such as paper, glass and plastic much like sunlight shining through a

window. Because these substances do not absorb or reflect the microwaveenergy, they are ideal materials for

microwaveovencookingcontainers.

Absorption

During cooking, microwaveswill be absorbed by food. They penetrate to a depth of about 3/4 to 1 1/2 inches.

Microwaveenergyactivatesthe moleculesin the food (especiallywater, fat and sugar), and heat is produced.If you

vigorouslyrubyour handstogether,you will feel heat producedby friction.The internalcookingof larger foodsis done

by conductionas the heatwhich is producedby friction isconductedto the middle of the food. Foodsalso continueto

cook byconductionduringstandingtime.

FOOD CHARACTERiSTiCS

Quantity: The amount offood placed in a microwave oven has a directeffect on the cooking time. Small amounts of food

or liquid require less cooking time than larger amounts of the same substance. As quantity increases, concentration

decreases.

Size: Small piecescook faster than largeones.To speedcooking, cut piecessmallerthantwo inches(5 cm), so microwaves

can penetrate to the middle from allsides. Pieces which are similar in size and shape cook moreevenly.

Shape: Many foods are uneven, like a chicken, ribs or broccoli. The thin parts will cook faster than the thick parts, while

uniformly thick foods cook evenly. To compensate for irregular shapes, place thin pieces towardthe center of the dish

and thicker pieces towardthe edge of the dish.

StartingTemperature: Frozen or refrigeratedfoods take longer to cook than foodsat room temperature.

Bone and Fat: Becausebones conduct heat, the side of the meat the bone is on will cook first, while bonelesscuts cook

slower but more evenly.Fat attracts microwaves.The middle of these foodsare cooked by heat conduction.

Moisture Content: Microwaves are attracted by moisture. Naturally moist foods absorb microwaves better than dry ones.

Add a minimumof liquid to moist foods,as excesswater slowscooking.

Density: The density of food determines how easily the microwavescan penetrate and how quickly it will cook. Porous

foods, like choppedbeef or mashed potatoes,microwave faster than dense ones like steak or whole potatoes.

Piercing: Steam builds up pressurein foods which aretightly covered by a skin or membrane. Piercepotatoes,egg yolks

and chicken livers to prevent bursting.

MICROWAVE TECHNIQUES

Stirring: Stir foods from outside to center of dish once or twice during cooking to equalize heat and speed microwaving.

Foodswill notburnor stick,so there'sno need tostirconstantlyas youdo inconventionalcooking.

Arrangement:Arrange foods with thin or delicate ends, like drumsticks or asparagusspears, with the thick or tougher

portions to the outside of the dish. The parts which need more cooking will receive more energy, so food will microwave

evenly.

Spacing: Individual foods, such as baked potatoes and cupcakes will cook more evenly if placed in the oven an equal

distanceapart. When possible, arrangefoods in a circular pattern. Similarly,when placingfoods in a baking dish, arrange

aroundthe outside of the dish, not linedup nextto eachother. Food shouldnot be stackedon top of each other.

Rearrangement: Rearrangeoverlappingareas, liketails of longfish fillets,from top to bottom,and closelypacked pieces,like

meatballs,from the outsidetothe centerof the dish.

StandingTime: Standing time is especially importantin microwavecooking. Microwave energy creates heat in the outer

layers of the food. Asa result of normalconduction,the foodcontinues to cook for afew minutesafter removalfrom the oven.

Lettingroasts, large wholevegetables, casserolesand cakes stand to finish cookingallows the middlesto cook completely

withoutovercooking,dryingortougheningthe outsides.

Covering:Coveringspeedscookingtime,retainsmoisture,tenderizes,insuresevencookingandpreventsspattering.

Casserolelidsorplasticwrapareusedforatighterseal.Ventplasticbyturningbackoneedgeatthesideofdishtoforma

narrowslotwhereexcesssteamcanescape.Variousdegreesofmoistureretentionarealsoobtainedbyusingwaxpaperor

papertowels.

Browning:Microwaveenergycookssomefoodssoquicklythatthefatsandsugarswithinthefooddonothavetimeto

caramelizeandgivea"browned"appearance.Browningagentsdonotaffectthequalityofmicrowavedfoods,butcanadd

colorandflavor.Formeatsandpoultry,usebouquetsaucedilutedwithwaterormeltedbutter,soy,Worcestershire,barbecue

orsteaksauce,asprinklingofpaprikaordrygravymix;jellyglazeorcrumbcoating.Frostingandtoppingfinishcakesand

breads.Topcasserolesattheendofmicrowavingwithgratedcheeseorcrumbs.

!SomeFoodsDoNotMicrowaveWell

!Eggs in Shells and hard boiled eggs can burst.

!Pancakes do not crust, but they reheat well. Fully-prepared,frozen pancakesare available for microwaving.

::DeepFat Frying can cause burns.

!Bottles with narrow necks may shatter if heated.

Pop Popcorn only in special microwavepoppers. Do not use oil unlessspecified by the manufacturer, or heat longer

than recommended. Never pop popcornin paper bags or glass utensils or directly on the glass tray.

...................................................................................................................................................................................................

HOT SNACKS AND APPETIZERS

Hot hors d'oeuvresand appetizerscan be prepared very quickly in the oven by the hostess,or individualservings may be

preparedby guests.

Many appetizers may be cooked on the serving platter, provided the platter does not have metal trim. A time saving tip -

prepare these foods ahead of time, refrigerate or freeze, and refreshin theoven at serving time. A plateof appetizerswill

take only seconds to prepare or refresh.

Cheese melts very rapidly and will toughen if overcooked, so watch foods combined with cheese closely so that

overcooking will not occur. As soon as cheese starts to bubble, cooking is completed.

Appetizersthat havea crisp pastryexterior are best preparedin a conventionaloven.

To prepare appetizers wrapped in bacon, it will be necessary to precook the bacon and then wrap around the foods.

Oysterswrapped in bacon are easier to preparein the broiler of your conventionalrange.

Seafood mixtures can be prepared in serving shells as microwave energy will pass through the seafood shells without

heating. Aluminum foil should not be usedfor shells.

If spreads are placed on crackers, care should be taken not to overcook as moisture from the food will cause crackers to

become soggy. Crackers used for spreads should be very dry and crisp. This helps avoid sogginess. Heat only until

spread is at serving temperature.

The time required to heat all appetizerswill depend on the amount of food, and the numberand the type of dish selected.

Remember the food will become very hot even if the dish is cool. Cheese mixtures retain heat longer when heated with

microwave energy.

MEATS

Guide for Cooking Meats

Roasts, chops, hamburgers and small cuts of tender meat cook beautifully in the microwave oven. Most

roasts can be cooked rare, medium rare or even well done in less than one hour. Less tender cuts of

meat such as pot roast can be simmered fork tender in a sauce or gravy. Tough cuts that require slow

cooking will do better in the conventional range or oven. A large piece of meat, especially if the shape is

uneven, should be turned over occasionally for uniform roasting.

Meat Power Cooking Time Standing Special Notes

Level (per Ib) Time

Beef Roast

Rare 80 6 - 8 min. 5 - 7 min.

Medium 80 8 - 10 min. 10 -15 min. Turn over after half the time.

Well 80 10 -12 min. 10 -15 min.

Pork Roast

Bone-in 80 12 -15 min. 10 min. Cover with plastic wrap.

Boneless 80 16 -18 min. 10 -15 min. Turn over after half the time.

Lamb Roast

Bone-in Medium 80 7- 9 min. 10- 12 rain.

Well 80 9 1/2 - 11 1/2 min. 10 - 15 min. Turn over after half the time.

Boneless Medium 80 9 - 11 min. 10 - 12 rain.

Well 80 11 - 13 1/2 min. 10 - 15 min.

Beef Patties (3 1/2 oz) each

2 patties 100 2 1/2 - 3 min. 5 - 7 rain. Turn over and rearrange

4 patties 100 3 1/2 - 4 1/2 min. 5 - 7 min. after half the time.

Meat Loaf

(21bs) 100 15 - 17 min. 10 - 12 min. Cover with wax paper.

Bacon

Slices (4 strips) 100 4 - 5 min. --

(1 slice; weight: 1 oz, Cover with a paper towel.

length: 11 in.)

Ham

Slices (1 in. thick) 50 7 1/2 - 8 1/2 min. 5 - 7 min. Cover with plastic wrap.

4 slices

POULTRY

Guide for Cooking Poultry

Chicken is one of the most popular foods and microwaving chicken is one of the best uses of your

microwave oven. Chicken stays juicy and tender in the microwave oven. However, juiciness prevents

browning because chicken crisps and browns only when the skin dries out enough to change color.

Standing time is important, because it allows the interior to finish cooking without toughening the delicate

breast meat.

Food Power Cooking Time Standing Special Notes

Level (per Ib) Time

Roast

Chicken whole 100 6 - 8 min. 10 - 15 min.

Chicken cut up 100 6-7 min. 7- 10 min.

Turkey 80 6 1/2 - 8 min. 10 -15 min.

Cornish Hens 100 7 - 8 min. 7 - 10 min.

Turkey Breast 50 10 - 11 min. 5 - 7 min.

Place breast side up on

roasting rack. Let stand,

covered, before serving.

Rearrange once during

cooking. Cover with wax paper.

SEAFOOD

Guide for Cooking Seafood

Microwaving is one of the easiest and most efficient ways of preparing fish and seafood, which stay

delicate and tender with quick, moist cooking. Overeooking dries out and toughens seafood, so you

should check it after the minimum time. If thick pieces like fish steaks or lobster tails are done on the

outside, but still slightly translucent in the middle, let them stand for a few minutes; internal heat will

complete the cooking.

Food Power Cooking Time Standing Special Notes

Level Time

Whole Fish 100 6 - 7 min. 5 min. Turn over after half the time.

(1 Ib to 1 1/2 Ibs)

Fish Fillet 100 5 - 6 min. 4 - 5 min. Turn over after half the time.

(1 Ib)

Fish Steak 100 4 - 5 min. 5 - 6 min. Turn over after half the time.

1 inch thick Cover with wax paper.

(1 Ib)

Shrimp 100 3 - 4 min. 5 min. Rearrange once during cooking.

(1 Ib) Cover with plastic wrap.

Sea Scallops 80 6 - 7 min. 5 min. Rearrange once during cooking.

(1 Ib) Cover with plastic wrap.

EGGS & CHEESE

Guide for Cooking Eggs & Cheese

* CHEESE

Cheese melts quickly and smoothly. When serving cheese as an appetizer, flavor is at peak when served

at room temperature. Use a low power level for melting. Cheese melts best when shredded and heated

with milk or other liquids. Stir cheese mixtures several times for even heating.

* EGGS

Eggs cook differently by microwave. The high fat content of egg yolks absorb energy, so yolks cook faster

than whites. It's easy to poach eggs in a microwave oven, but if you want soft yolks, remove eggs from the

oven before whites are completely cooked. A brief standing time allows whites to set without overcooking

yolks. Check eggs for completion of cooking early, they toughen when overcooked.

When eggs and yolks are mixed together for omelets, scrambled eggs or custards, they cook more

evenly and need less stirring than during conventional cooking methods.

Do not try to cook eggs in the shell. Steam can build up inside the shells, causing them to burst.

Scrambled Eggs

Eggs Butter

Milk or Cook on

Water Power 100

1 Tbsp 2 Tbsp 1 - 2 min.

1 Tbsp 2 Tbsp 2 - 3 rain.

2 Tbsp 4 Tbsp 3 - 4 rain.

Procedure

Place butter in small casserole and melt.

Add eggs and milk, scrambling with fork.

Cook as directed in chart, breaking up

and stirring eggs twice. Let stand,

covered, before serv ng.

Poached Eggs

Eggs Water

1 1 1/2 cups

2 1 1/2 cups

4 2 cups

Cook Water Cook Eggs

on Power 100 on Power 80

4 - 6 rain. 1 rain.

4- 6 rain. 1 1/2 - 2 rain.

6- 7 rain. 2 1/2 - 3 rain.

Standing

Time

2 min.

Procedure

I Place into medium casserole. Cook

water at

High until boiling. Break eggs, one at a time,

Jinto separate dish, pierce yolk once with

wooden pick and slip egg carefully into hot

water, cook as directedin chart.

VEGETABLES

Guide for Cooking Fresh Vegetables

Nutrition research indicates that many microwaved vegetables and fruits lose less water soluble vitamin C

than when cooked conventionally. This is due to shorter cooking time and to the fact that less cooking water is

needed when microwaving fruits and vegetables. Best of all, vegetables keep their fresh color, texture and

flavor. Vegetables should be microwaved covered with vented plastic wrap or a casserole lid. Vegetables

cooked in their skins, such as potatoes, are already so tightly covered that they should be pricked with a fork

before cooking in order to release excess steam. To assure even cooking, vegetables should be cut in

uniform pieces and stirred during the cooking time. Always add salt to water before adding vegetables.

Reduce time a minute or two for crisp-tender texture. Increase time for very soft texture. Remember to allow

standing time of two to five minutes after cooking because, as most foods do, vegetables will continue to cook

after they are removed from the microwave oven.

Food Water Cook on Standing Special Notes

Amount Power 100 Time

Asparagus

Spears (11b) 1/4 cup 5 - 6 min. 2 min. Medium Casserole. Re-

Cuts (11b)1/2 cup 5 - 6 min. 2 min. arrange once.

Beans

Fresh green (1/2 Ib) 1/4 cup 4 - 5 min. 2 min. Stir twice.

Frozen green (1/2 Ib) 2 Tbsp 5 1/2 - 6 1/2 min. 2 min. Stir twice.

Green Peas (2 cups) 1/4 cup 4 - 5 min. 2 min. Small casserole. Stir twice.

Broccoli (2 cups) 1/4 cup 4 - 5 min. 2 min. Medium casserole.

Rearrange once during cooking.

Brussels Sprouts (1 Ib) 1/4 cup 6 - 7 1/2 min. 2 - 3 min. Medium casserole. Stir once.

Cabbage (1 Ib) 1/4 cup 5 - 6 min. 2 - 5 min. Rearrange once during cooking.

Cauliflower pieces (1 head) 1/4 cup 6 - 7 min. 2 - 5 min. Wrap in plastic wrap.

Stir once.

Mushroom slices (1/2 Ib) 2 Tbsp 3 - 4 min. 2 - 3 min. Small casserole. Stir once.

SOUPS

Guide for Cooking Soups

Satisfy appetites with savory soups prepared in your microwave oven. Adapt your favorites by using similar

cooking times and techniques.

Food Power Cooking Time Standing Special Notes

Level Time

Canned Condensed

Cream style, Bean, Pea

or Mushroom (10 1/2 -

11 1/2 oz)

With Water 100 4 1/2 - 5 1/2 min. 2 - 3 min. Stir halfway through

With Milk 80 5 1/2 - 6 1/2 min. 2 - 3 min. cooking time. Cover.

Dry Soup Mix 100 5 1/2 - 7 min. 2 - 3 min. Add water.

then Cover with lid.

1 envelope (10 1/2 oz) 50 3- 4 min. Stir twice.

Broth (10 1/2 oz) 100 4 - 5 min. 2 - 3 min. Stir twice. Cover

SAUCES

Guide for Cooking Sauces

Sauces boil over rapidly, especially those that contain milk. As soon as the door is opened, cooking stops.

if ingredients are net taken directly from the refrigerator, cooking time will be less than given in the recipe.

Stir sauce quickly, about every 30 seconds to eliminate lumps. Be sure to use a container twice the size of

the amount of liquid to prevent boiling over.

A wooden spoon may be left in the dish while sauce is cooking for easy stirring. If sauce is stirred slowly,

cooking time may require about 15 seconds longer, if desired, a 1 quart glass measure may be used to

prepare some sauces.

White Sauce

Amount Butter Flour Milk Cook

Butter

1 cup, thin 1 Tbsp 1 Tbsp 1 cup 30 sec.

reed. 2 Tbsp 2 Tbsp 1 cup 1 min.

thick 3 Tbsp 3 Tbsp 1 cup 1 rain.

Cook Special Notes

Sauce

2 1/2 - 3 1/2 min. Cook on Full power as directed

...... ..Ior until thickened, stirring once.

2 1/2 - 3 1/2 mm.lLet stand, covered, before

3 _ _ ]serving.

Brown Gravy

Amount Fat from Flour Liquid or Cook on Special Notes

Drippings Drippings Power 100

1 cup, thin 1 Tbsp 1 Tbsp 1 cup 2 1/2 - 3 1/2 rain. ICook on Full power as directed

reed. 1 Tbsp 1 Tbsp 1 cup 3 - 4 rain. /or until thickened, stirring once.

1Let stand, covered, before

thick 1 Tbsp 1 Tbsp 1 cup 3 - 4 rain. _serving.

CASSEROLES

Casseroles may require occasional stirring to distribute heat. They cook more evenly when made with

ingredients of similar size and shape. Because of their shorter cooking time, casseroles cooked in the

microwave oven generally need less liquid. Casseroles with cream and cheese sauces, or meats which

need slower cooking to tenderize, cook best on power level 40.

When cooking a favorite casserole, make two and freeze the second for future use. Line a casserole or

baking dish with plastic wrap. Transfer the cooked food to the lined container and freeze. As soon as the

food is frozen in the shape of the dish, remove it and wrap with freezer paper. Later it can be unwrapped

and returned to the container for defrosting and heating.

Dry Casserole Mixtures

Many prepared box type casseroles are available on the grocery shelves. Many have freeze dried foods or

evaporated foods included. Cooking periods are so short there may not be time for the foods to absorb the

moisture sufficiently and reconstitute the foods. To prepare this type, boil the amount of water recommended

on the package. Add the noodles (when included), cover and cook for approximately 10 minutes. Allow

noodles to stand covered for an additional 10 minutes, rinse with warm water and drain. Then follow

package directions for preparing the mix. Reheat four to six minutes before serving.

SANDWICHES, iNCLUDiNG HAMBURGERS AND HOT DOGS

Guide for Heating Sandwiches

Sandwiches heat very quickly because, being porous, they have a low density. Since the filling is usually

more dense than the bread or rolls, the filling determines the heating time. Surprisingly, the filling will

always be hotter than the bread feels. Care must be taken not to overcook as the bread will become

tough. Use several thin slices of meat. Thin slices heat more quickly and are better than one thick slice.

The slow heating thick slice often causes the bread to overcook before the meat is hot. Sandwiches may

be placed on a paper plate, napkin or paper towel to be warmed. The sandwich should be covered with a

paper towel. Remove wrapping immediately after warming. Already-baked frozen breads and rolls may be

used for sandwiches. The filling, however, should be thawed first. Toasted bread is fine for sandwiches

and provides a firm base. The toast is warmed only; no further browning occurs.

Food Amount Cook Special Notes

on Power 100

Sandwich 1 1 min.

(6 oz) 2 1 1/2 - 2 min. Place on paper towels.

4 3 - 4 min.

Hamburger 1 1 min. Cover with paper towel.

(4 oz) 4 3 - 4 min.

Hot Dogs 4 1 1/2 - 2 min. Cover with paper towel.

(2 oz)

Sloppy Joes 4 4 min. Place on microwaveable plate.

PASTA & GRAINS

Guide for Cooking Pasta and Grains

Raw long grain rice takes time to rehydrate. Microwaving time is a little shorter than conventional, but the

greatest advantage is the ease with which you can prepare fluffy rice without sticking or burning. Cooked

rice and pasta reheat easily in the microwave oven without loss of flavor or texture. No extra water is

needed to prevent sticking or drying, so there's no danger of overcooking rice and pasta or thinning

sauces.

Food Hot Salt Oil or Power Cooking Standing

Water Butter Level Time Time

Pasta (8 oz)

Egg Noodles 4 cups 1 tsp. 1 Tbsp. 100 6 1/2 - 7 1/2 min. 2 - 5 min.

Macaroni 4 cups 1 tsp. 1 Tbsp. 100 8 - 10 min. 2 - 5 min.

Spaghetti 4 cups 1 tsp. 1 Tbsp. 100 8 - 10 min. 2 - 5 min.

Lasagna Noodles 4 cups 1 tsp. 1 Tbsp. 100 12 - 14 min. 2 - 5 min.

Rice, Long Grain

100 5 - 6 min.

White Rice (1 cup) 2 cups 1 tsp. 1 tsp. then 5 - 7 min.

80 9 1/2 - 12 min.

100 5 - 6 min.

Brown Rice (1 cup) 2 cups 1/2 tsp. 1 tsp. then 5 - 7 min.

80 22 - 27 min.

CEREALS

Microwaveable hot cereals can be cooked directlyin the cereal bowl and make cleaningup easy.

CONVENIENCE FOODS

Frozen Foods

A large variety of frozen foods, special dishes and dinners are available and the selections continue to increase. The

market is changing rapidly, therefore it is impossible to list the foods and types available and recommend cooking

procedures. In this book we can only give general directions to assist you.

T.V. Dinners

To prepare a T.V. dinner, follow the maker's instructionsfor usewith microwave ovens. To cook a T.V. dinner will require

approximately five to seven minutes for the food to thaw and heat to serving temperature (dependingon the types of

food). Allow plastic wrap to remain over the dish for two minutes to allow heat to equalize. Dinners that contain mashed

potatoes have presented a bit of a problem due to the large compact mass of this particular food. You may want to

remove about half the mashedpotatoesafter defrosting isstarted, then spread the remainingpotatoes over the individual

section of the tray. Heat the removed mashed potatoes in an individual dish. For foods that should be crisp when cooking

is completed, removethe plastic wrap and use the broiler of a conventional range to crisp the food.

IndividualFrozenFoods

These may be commercially prepared or frozen at home. Place the container of frozen food in the oven and heat only

until the food starts to defrost and can be removedeasily. Empty contents into a casserole or serving dish and continueto

defrost and heat. Do not heat foods in deep foil containers. To crisp and brown special toppings, use the broiler of a

conventional range. If allowed to heat to serving temperature in a plastic container, the container will warp or melt from

the high heat of food.

FrozenFoods inCooking Pouches or Boilable Bags

To prepare these foods, slit the plastic bag. An X-type cut will help remove the food at the end of cookingtime. Place the

cut side down on a serving dish (withno metaltrim). Heat foods other than vegetables for about three minutes. Frozen

vegetables require about eight to nine and a half minutes of cookingtime. Allow the pouch bag to remainover the food for

about two minutes to allow time for the heat to equalize. Foods prepared in cheese or white sauce should be removed

from the pouch and placed in a glass casserole dish and stirred to prevent overeookingof the sauce around the edgesof

the dish.

Complete Meals from Table Leftovers

Complete mealsfrom leftoverscan be prepared in advance. Foods can be frozen and ready for quick heating in theoven

at any time. Choose foods suitable for freezing and put serving portions on paper, glass or china (no metal trim) plates.

Wrap with recommended freezer paper and freeze quickly. When apportioning the servings of food on the plate, use

approximately the same amount of each kind of food for moreeven heating. Mashed potatoes will heat quicker if spread

slightly and hollowed, with a pat of butter in the center. To prevent small pieces of vegetables, corn, peas, etc., from

dehydrating during heating,mound well near the center of the plate.

DESSERTS

There's always time to make dessert with a microwave oven. Fruit desserts have a remarkably fresh

flavor and texture. Microwaved cakes are higher and more tender than conventienally baked; since

cakes are usually frosted, browning is unimportant. Microwaved pie crusts are exceptionally tender and

flaky, while delicate custards and puddings are easy to prepare.

Guide for Cooking Cakes

Food Power Cooking Time Standing Special Notes

Level Time

Cake, round 100 3 1/2 - 5 min. 2 - 5 min. Pour into greased and wax

(Mixed 9 inch) 80 4 1/2 - 6 min. paper lined cake dishes.

Ring or Angel Food Cake 80 5 1/2 - 6 1/2 min. 2 - 5 min. Cover with wax paper.

Muffin (6 muffins) 50 4 1/2 - 6 1/2 min. 2 - 5 min. Rearrange once.

Custard (6 servings) 50 10 - 12 min. 5 - 7 min. Rearrange once.

Baking

,, Bar cookies work best. Greasing or lining of the microwaveable baking dish is optional.

,, If insufficient browning disturbs you, frost, glaze or add food coloring to white or yellow batters.

,, A microwaveable cookie sheet can be made by covering cardboard with waxed paper.

,, Round glass baking dishes, and fluted or smooth microwaveable ring molds work best for cakes. You

can make a microwaveable ring mold of your own by placing a medium-size glass in the center of a

round glass baking dish.

,, Because your cakes will rise higher in microwave cooking, never fill microwaveable cake pans more

than half full.

,, Reduce baking powder and soda by approximately one-fourth when converting a conventional recipe.

,, Fill paper-lined muffin cups to only half full which allows for muffins to rise more than normal.

,, You can prepare your own "brown 'n serve" breads and rolls by baking them ahead of time in the

microwave oven. Then, place them in a conventional oven to brown prior to serving.

,, Breads and rolls should be reheated to the point where they are warm to the touch. Overheating or

overcooking makes bread tough and rubbery.

,, When making yeast bread in a microwave oven, choose a recipe with cornmeal, whole wheat flour, or

rye flour to achieve a richer color.

WEIGHT & MEASURE CONVERSION CHART

,POUNDS & OUNCES TO GRAMS

POUNDS (Ibs)

1/4

1/2

3/4

GRAMS(g)

114

227

341

454

907

1361

1814

2268

2722

3175

3629

4082

4536

4990

OUNCES (oz)

GRAMS (g)

113

142

170

198

227

FLUID MEASUREMENTS

1 Cup =

1 Pint =

1 Quart =

1 Gallon =

OUNCES (oz) GRAMS (g)

9 255

10 284

11 312

12 340

13 369

14 397

15 425

16 454

8fluid ounces = 240 ml

16fluid ounces = 480 ml

32 fluid ounces = 960ml

128fluid ounces = 3840 ml

SPECiFiCATiONS

item Rating Specification

Power Supply 120V ~ 60Hz

Microwave Output Power 1000W

Microwave Frequency 2450MHz

Oven Capacity 1.1 cubic feet

Outside Dimensions 20.2 (W) x 16.9 (D) x 12.7 (H) inches

Weight 33 Lbs (Approx)

BEFORE YOU CALL FOR SERVICE

Refer to the following checklist before you call for service,

If the oven does not work:

1. Check that the power cord is securely plugged in.

2. Check that the door is firmly closed.

3. Check that the cooking time is set.

4. Check for a blown circuit fuse or tripped main circuit breaker in your house.

5. Check that the Child Lock feature is not engaged.

If there is sparking in the cavity:

1. Check the containers, dishes or utensils in the oven and make sure they are not metal or have metal trim.

[ Fmersono ITO. OT.E OC.T.O...

PHONE NUMBER OF YOUR

NEAREST AUTHORIZED

AUTHORIZED SERVICE J SERVICECENTER...

C...............................................................................................

FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE

PLEASE CALL:

1-800-898-9020

FOR CUSTOMER SERVICE, PLEASE WRITE TO:

Emerson Radio Corp.

Consumer Affairs Dept.

5101 Statesman Drive,

Irving, TX 75063.

LiMiTED WARRANTY

MICROWAVE OVENS

Emerson Radio Corp. warrants this product to be free from manufacturing defects in original material, including original

parts, and workmanship under normal use and conditions ("manufacturing defect") for a period of one (1) year from date

of original purchase in, and if used in, the United States ("warranty"). Should service be necessary under this warranty,

Emerson will provide the following at an Independent Service Center or Regional Repair Facility permitted by Emerson to

perform repairs, provided the manufacturing defect is verified along with the date of purchase:

* Repair service for one (1) year from date of original purchase at no charge for labor and parts.

* Replacement of a defective magnetron for seven (7) years from date of original purchase (labor not included after

initial twelve (12) months).

There are Independent Service Center and Regional Repair Facilities located through out the country. For one nearest

you, DIAL TOLL FREE: 1-800-695-0098. In the event the product must be mailed to a Regional Repair Facility which is

permitted by Emerson to perform repairs:

* Pack the unit in a well-padded heavy corrugated box.

* Enclose your check or money order payable to the REGIONAL REPAIR FACILITY in the amount of $15.00 to cover

return shipping and handling costs.

* Enclose a copy of your proof of purchase (warranty service will not be provided without dated proof of purchase).

* Ship the unit prepaid via UPS or parcel post (insured).

NOTE: This warranty does not cover:

(a) Damage to equipment not properly connected to the product.

(b) Cost incurred in the shipping of the product to and from a Regional Repair Facility permitted by Emerson to perform

warranty repairs.

instructions provided with the product.

(d) Ordinary adjustments to the product which can be performed by customer as outlined in the owner's manual.

(e) Signal reception problems caused by external antenna or cable systems.

(f) Products not purchased in the United States.

(g) Damage to product if used outside the United States.

THIS WARRANTY IS NON-TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER AND DOES NOT

EXTEND TO SUBSEQUENT OWNERS OF THE PRODUCT. ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING

THE WARRANTY OF MERCHANTABILITY, ARE LIMITED IN DURATION TO A PERIOD OF THE EXPRESSED

WARRANTY AS PROVIDED HEREIN BEGINNING WITH THE DATE OF ORIGINAL PURCHASE AT RETAIL AND NO

WARRANTIES, WHETHER EXPRESSED OR IMPLIED, SHALL APPLY TO THE PRODUCT THEREAFTER. EMERSON

MAKES NO WARRANTY AS TO THE FITNESS OF THE PRODUCT FOR ANY PARTICULAR PURPOSE OR USE.

THE EXTENT OF EMERSON RADIO CORP'S LIABILITY UNDER THIS LIMITED WARRANTY IS THE REPAIR OR

REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL EMERSON RADIO CORP'S LIABILITY EXCEED

THE PURCHASE PRICE PAID BY THE PURCHASER OF THE PRODUCT. UNDER NO CIRCUMSTANCES SHALL

EMERSON RADIO CORP. BE LIABLE FOR ANY LOSS, DIRECT, INDIRECT, INCIDENTAL, SPECIAL, OR

CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH THE USE OF THIS PRODUCT. THIS

WARRANTY IS VALID ONLY IN THE UNITED STATES OF AMERICA.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. HOWEVER, YOU MAY HAVE OTHER RIGHTS WHICH

MAY VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATIONS ON IMPLIED WARRANTIES

OR EXCLUSION OF CONSEQUENTIAL DAMAGE, THEREFORE THESE RESTRICTIONS MAY NOT APPLY TO YOU.

The serial number can be found on the back cabinet. We suggest that you record

the serial number of your unit in the space below for future reference

Model Number:

Serial Number:

MV1094F

__'mersono

EMERSON

PART NO.:80-5124

511-02 Printed in China

EMERSON Countertop Microwave Manual L0903719

Navigation menu

Versions of this User Manual:

Views

Navigation
