EMS Technologies 0A5EC2PCS EKOCELL II PCS FIBER OPTIC DAS User Manual USERS MANUAL
EMS Technologies EKOCELL II PCS FIBER OPTIC DAS USERS MANUAL
USERS MANUAL
FCC Part 24E
Transmitter Certification
Test Report
FCC ID: DNY0A5EC2PCS
FCC Rule Part: CFR 47 Part 24 Subpart E
ACS Report Number: 06-0467-24E
Manufacturer: EMS Wireless
Equipment Type: PCS Fiber-Optic DAS Remote
Tradename: EkoCell® II
Model: EC2PCS
Manual
A Division of EMS Technologies, Inc.
IM610852-1 Rev 01
10 Jan 2007 1
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282

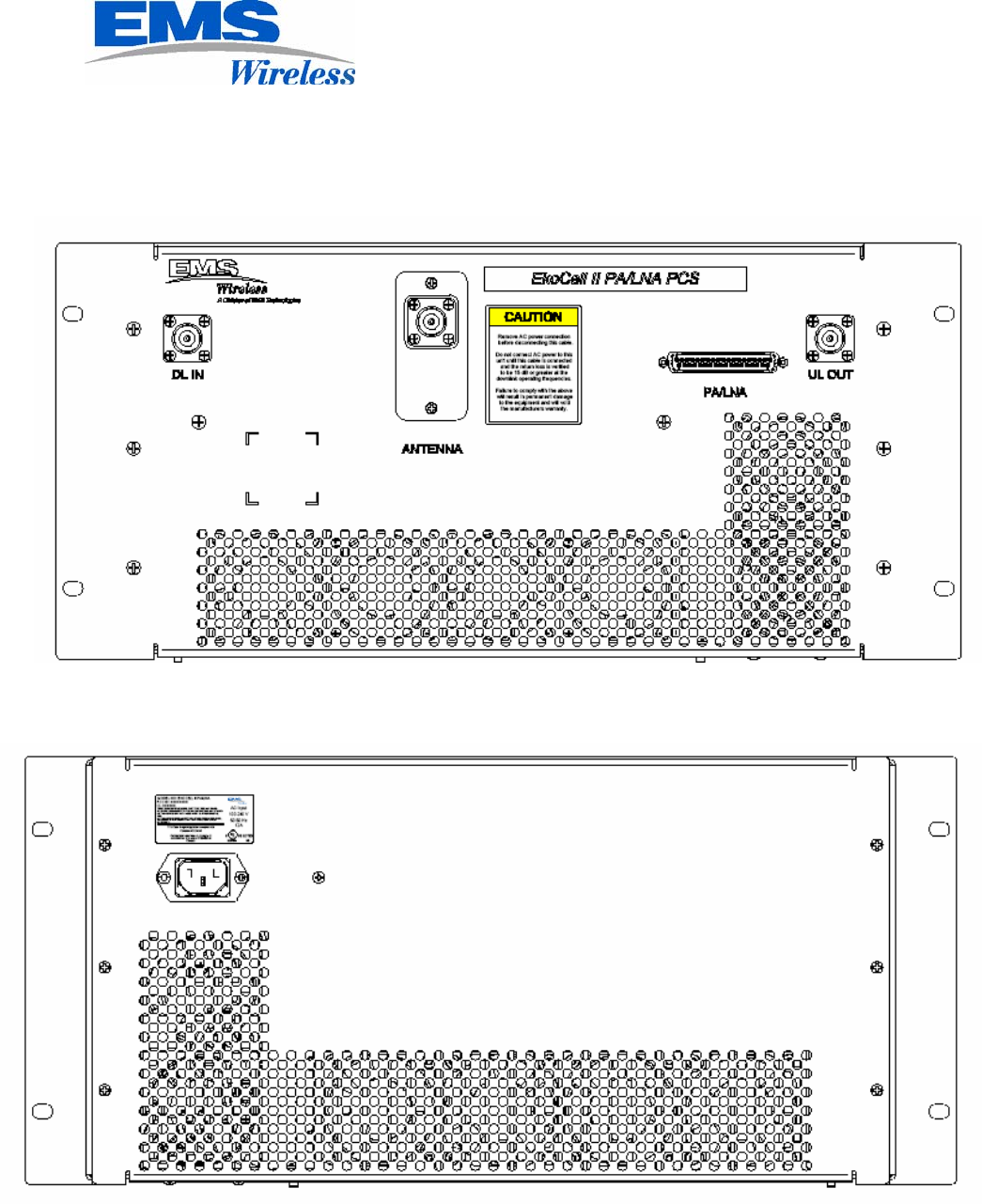

Installation Guide
EkoCellTM II PA/LNA
Model Numbers:
EC2PCS
EC2CELL
EC2ESMR
EC2900
A Division of EMS Technologies, Inc.
IM610852-1 Rev 01
10 Jan 2007 2
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
Every attempt has been made to make this material complete, accurate, and up-to-date.
Users are cautioned, however, that EMS Wireless reserves the right to make changes
without notice and shall not be responsible for any damages, including consequential,
caused by reliance on the material presented, including, but not limited to, typographical,
arithmetical, or listing errors.
Copyright Information
© EMS Wireless, Norcross, Georgia
Safety Considerations
When installing or using this product, observe all safety precautions during handling and
operation. Failure to comply with the following general safety precautions and with
specific precautions described elsewhere in this manual violates the safety standards of
the design, manufacture, and intended use of this product. EMS Wireless assumes no
liability for the customer's failure to comply with these precautions.
WARNING
WARNING calls attention to a procedure or practice, which if ignored, may result in
damage to the system or system component. Do not perform any procedure preceded
by a WARNING until described conditions are fully understood and met.
WARNINGS, CAUTIONS, AND GENERAL NOTES
FCC Class A
Note: This equipment has been tested and found to comply with the limits for a class A
digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This Class A digital apparatus meets all requirements of the Canadian Interference Causing
Equipment Regulations. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Cet appareillage numérique de la classe A répond à toutes les exigences de l'interférence
canadienne causant des règlements d'équipement.L'opération est sujette aux deux
conditions suivantes: (1) ce dispositif peut ne pas causer l'interférence nocive, et (2) ce
dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence qui peut
causer l'opération peu désirée.
A Division of EMS Technologies, Inc.
IM610852-1 Rev 01
10 Jan 2007 3
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
The Manufacturer's rated output power of this equipment is for single carrier operation. For
situations when multiple carrier signals are present, the rating would have to be reduced by 3.5
dB, especially where the output signal is re-radiated and can cause interference to adjacent band
users. This power reduction is to be by means of input power or gain reduction and not by an
attenuator at the output of the device.
Installation should be made per ANSI/NFPA 70, the National Electrical Code (NEC), Article 810
specifically for clearances from power and lighting conductors, mounting and grounding.
The screen of the coax cable must be connected to earth (grounded) at the entrance to the building.
This should be done in accordance with applicable National Electrical Code (NEC) installation codes.
In the U.S., this is required by Section 820.93 of the National Electrical Code, ANSI/NFPA
This unit is intended for use in Restricted Access Areas only.
Disconnect all power before servicing the unit.
Install the product securely on a stable surface. Install the product in a protected
location where no one can step or trip over the supply cord, and where the supply
cord will not be damaged.
Do not expose this device to rain or other moisture.
If a system is installed in a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be greater than the room
ambient. Consideration should be given to installing the unit in an environment
compatible with the maximum recommended ambient temperature of 45º C.
Install the unit in a rack so that the amount of airflow required for safe operation is
not compromised. The recommended clearance on the front, top, and rear of the
unit is at least 1”.
Mounting of the unit in a rack should be such that no hazardous condition is
achieved due to uneven mechanical loading.
Use supplied hardware to mount the unit to the equipment rack, EMS part number
SCR160145, Panel Mount Screw or SCR160146 and WSH170179, Screw and
Washer.
A readily accessible disconnect device that is suitably approved and rated shall
be incorporated into the field wiring.
A Division of EMS Technologies, Inc.
IM610852-1 Rev 01
10 Jan 2007 4
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
If You Need Help
If you need additional copies of this manual, or have questions about system options, or
need help with installation and using of the system, please contact EMS Wireless'
Customer Support Department.
EMS Wireless
Customer Support Department
2850 Colonnades Court NW, Norcross, GA 30071
770.582.0555 x5310
Service
Only authorized service personnel will service any part of this product and only in
accordance with procedures outlined in this manual. If the product does not meet its
warranted specifications, or if a problem is encountered that requires service, notify EMS
Wireless' customer support department. Service will be rendered according to the EMS
Wireless' warranty and repair policy. The product shall not be returned without
contacting EMS Wireless and obtaining a return authorization number from the
Customer Support department.
When returning a product for service, include the following information: Owner, Model
Number, Serial Number, Return Authorization Number (obtained in advance from EMS
Wireless Customer Support Department), service required and/ or a description of the
problem encountered.
Warranty and Repair Policy
The EMS Wireless Quality Plan includes product test and inspection operations to verify
the quality and reliability of our products.
EMS Wireless uses every reasonable precaution to ensure that every device meets
published electrical, optical, and mechanical specifications prior to shipment. Customers
are asked to advise their incoming inspection, assembly, and test personnel as to the
precautions required in handling and testing ESD sensitive opto-electronic components.
Physical damage to the external surfaces voids warranty.
These products are covered by the following warranties:
1. General Warranty
A Division of EMS Technologies, Inc.
IM610852-1 Rev 01
10 Jan 2007 5
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
EMS Wireless warrants to the original purchaser all standard products sold by EMS
Wireless to be free of defects in material and workmanship for the duration of the
warranty period of one (1) year from date of shipment from EMS Wireless. During the
warranty period, EMS Wireless' obligation, at our option, is limited to repair or
replacement of any product that EMS Wireless proves to be defective. This warranty
does not apply to any product, which has been subject to alteration, abuse, improper
installation or application, accident, electrical or environmental over-tress, negligence in
use, storage, transportation or handling.
2. Specific Product Warranty Instructions
All EMS Wireless products are manufactured to high quality standards and are
warranted against defects in workmanship, materials and construction, and to no further
extent. Any claim for repair or replacement of a device found to be defective on
incoming inspection by a customer must be made within 30 days of receipt of the
shipment, or within 30 days of discovery of a defect within the warranty period.
This warranty is the only warranty made by EMS Wireless and is in lieu of all other
warranties, expressed or implied, except as to title, and can be amended only by a
written instrument signed by an officer of EMS Wireless. EMS Wireless customer
support representatives are not authorized to make commitments on warranty returns.
In the event that it is necessary to return any product against the above warranty, the
following procedure shall be followed:
a. Return authorization shall be received from the EMS Wireless Customer Support
prior to returning any device. Advise EMS Wireless Customer Support of the model,
serial number, and the discrepancy. The device shall then be forwarded to EMS
Wireless, transportation prepaid. Devices returned freight collect or without
authorization may not be accepted.
b. Prior to repair, EMS Wireless Customer Support will advise the customer of EMS
Wireless test results and will advise the customer of any charges for repair (usually for
customer caused problems or out-of-warranty conditions).
If returned devices meet full specifications and do not require repair, or if non-warranty
repairs are not authorized by the customer, the device may be subject to a standard
evaluation charge. Customer approval for the repair and any associated costs will be
the authority to begin the repair at EMS Wireless. Customer approval is also necessary
for any removal of certain parts, such as connectors, which may be necessary for EMS
Wire- less testing or repair.
c. Repaired products are warranted for the balance of the original warranty period, or at
least 90 days from date of shipment.
3. Limitations of Liabilities
A Division of EMS Technologies, Inc.
IM610852-1 Rev 01
10 Jan 2007 6
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
EMS Wireless' liability on any claim of any kind, including negligence, for any loss or
damage arising from, connected with, or resulting from the purchase order, contract, or
quotation, or from the performance or breach thereof, or from the design, manufacture,
sale, delivery, installation, inspection, operation or use of any equipment covered by or
furnished under this contract, shall in no case exceed the purchase price of the device
which gives rise to the claim.
EXCEPT AS EXPRESSLY PROVIDED HEREIN, EMS WIRELESS MAKES NO WAR-
RANTY OF ANY KIND, EXPRESSED OR IMPLIED, WITH RESPECT TO ANY GOODS,
PARTS AND SERVICES PROVIDED IN CONNECTION WITH THIS AGREEMENT
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. EMS WIRE-
LESS SHALL NOT BE LIABLE FOR ANY OTHER DAMAGE INCLUDING, BUT NOT
LIMITED TO, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT
OF OR IN CONNECTION WITH FURNISHING OF GOODS, PARTS AND SERVICE
HEREUNDER, OR THE PERFORMANCE, USE OF, OR INABILITY TO USE THE
GOODS, PARTS AND SERVICE.
EMS Wireless test reports or data indicating mean-time-to-failure, mean-time-between-
failure, or other reliability data are design guides and are not intended to imply that
individual products or samples of products will achieve the same results. These
numbers are to be used as management and engineering tools, and are not necessarily
indicative of expected filed operations. These numbers assume a mature design, good
parts and no degradation of reliability due to manufacturing procedures and processes.
A Division of EMS Technologies, Inc.
IM610852-1 Rev 01
10 Jan 2007 7
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
Field Wiring instructions
The voltage input range for the EkoCell TM II PA/LNA is 100-240 VAC, single phase,
50-60 Hz.
Use supplied power cord, EMS Part Number PSC-532F for making connection to a
grounded electrical outlet.
Use only a grounded electrical outlet when connecting the unit to a power source.
If you do not know whether the outlet is grounded, consult with a qualified
electrician.
Reliable earth grounding of rack-mount equipment should be maintained.
Particular attention should be given to supply connection other than direct
connections to the branch circuit (e.g., use of power strips).
Wiring methods used for the connection of this equipment to the DC Mains supply
shall be in accordance with the U.S. National Electrical Code, ANSI/NFPA 70, and
the Canadian Electrical Code, Part 1, CSA C22.
Note: Antenna installation shall be in accordance with NEC Article 810
and CEC Section 54.
Refer to the following caution label on the unit prior to connecting power to unit:
A Division of EMS Technologies, Inc.
IM610852-1 Rev 01
10 Jan 2007 8
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
Figure 1
Front View
Figure 2
Rear View
A Division of EMS Technologies, Inc.
IM609073-1 Rev 01
10 Jan 2007 1
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
Installation Guide
EkoCellTM II REMOTE
Model Numbers:
EC2PCS
EC2CELL
EC2ESMR
EC2900
A Division of EMS Technologies, Inc.
IM609073-1 Rev 01
10 Jan 2007 2
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
Every attempt has been made to make this material complete, accurate, and up-to-date.
Users are cautioned, however, that EMS Wireless reserves the right to make changes
without notice and shall not be responsible for any damages, including consequential,
caused by reliance on the material presented, including, but not limited to, typographical,
arithmetical, or listing errors.
Copyright Information
© EMS Wireless, Norcross, Georgia
Safety Considerations
When installing or using this product, observe all safety precautions during handling and
operation. Failure to comply with the following general safety precautions and with
specific precautions described elsewhere in this manual violates the safety standards of
the design, manufacture, and intended use of this product. EMS Wireless assumes no
liability for the customer's failure to comply with these precautions.
WARNING
WARNING calls attention to a procedure or practice, which if ignored, may result in
damage to the system or system component. Do not perform any procedure preceded
by a WARNING until described conditions are fully understood and met.
WARNINGS, CAUTIONS, AND GENERAL NOTES
FCC Class A
Note: This equipment has been tested and found to comply with the limits for a class A
digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This Class A digital apparatus meets all requirements of the Canadian Interference Causing
Equipment Regulations. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Cet appareillage numérique de la classe A répond à toutes les exigences de l'interférence
canadienne causant des règlements d'équipement.L'opération est sujette aux deux
conditions suivantes: (1) ce dispositif peut ne pas causer l'interférence nocive, et (2) ce
dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence qui peut
causer l'opération peu désirée.
A Division of EMS Technologies, Inc.
IM609073-1 Rev 01
10 Jan 2007 3
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
The Manufacturer's rated output power of this equipment is for single carrier operation. For
situations when multiple carrier signals are present, the rating would have to be reduced by 3.5
dB, especially where the output signal is re-radiated and can cause interference to adjacent band
users. This power reduction is to be by means of input power or gain reduction and not by an
attenuator at the output of the device.
Installation should be made per ANSI/NFPA 70, the National Electrical Code (NEC), Article 810
specifically for clearances from power and lighting conductors, mounting and grounding.
The screen of the coax cable must be connected to earth (grounded) at the entrance to the building.
This should be done in accordance with applicable National Electrical Code (NEC) installation codes.
In the U.S., this is required by Section 820.93 of the National Electrical Code, ANSI/NFPA 70.
This unit is intended for use in Restricted Access Areas only.
Disconnect all power before servicing the unit.
Install the product securely on a stable surface. Install the product in a protected
location where no one can step or trip over the supply cord, and where the supply
cord will not be damaged.
Do not expose this device to rain or other moisture.
If a system is installed in a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be greater than the room
ambient. Consideration should be given to installing the unit in an environment
compatible with the maximum recommended ambient temperature of 45º C.
Install the unit in a rack so that the amount of airflow required for safe operation is
not compromised. The recommended clearance on the front, top, and rear of the
unit is at least 1”.
Mounting of the unit in a rack should be such that no hazardous condition is
achieved due to uneven mechanical loading.
Use supplied hardware to mount the unit to the equipment rack, EMS part number
SCR160145, Panel Mount Screw or SCR160146 and WSH170179, Screw and
Washer.
A Division of EMS Technologies, Inc.
IM609073-1 Rev 01
10 Jan 2007 4
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
INVISIBLE LASER RADIATION
AVOID DIRECT EXPOSURE TO BEAM
PEAK POWER 30 mW
WAVELENGTH 1300/1550 nm
CLASS IIIb LASER PRODUCT
THIS PRODUCT COMPLIES WITH 21 CFR
CH
A
PTER I SUBCH
A
PTER J
DANGER
If You Need Help
If you need additional copies of this manual, or have questions about system options, or
need help with installation and using of the system, please contact EMS Wireless'
Customer Support Department.
EMS Wireless
Customer Support Department
2850 Colonnades Court NW, Norcross, GA 30071
770.582.0555 x5310
Service
Only authorized service personnel will service any part of this product and only in
accordance with procedures outlined in this manual. If the product does not meet its
warranted specifications, or if a problem is encountered that requires service, notify EMS
Wireless' customer support department. Service will be rendered according to the EMS
Wireless' warranty and repair policy. The product shall not be returned without
contacting EMS Wireless and obtaining a return authorization number from the
Customer Support department.
When returning a product for service, include the following information: Owner, Model
Number, Serial Number, Return Authorization Number (obtained in advance from EMS
Wireless Customer Support Department), service required and/ or a description of the
problem encountered.
Warranty and Repair Policy
The EMS Wireless Quality Plan includes product test and inspection operations to verify
the quality and reliability of our products.
A Division of EMS Technologies, Inc.
IM609073-1 Rev 01
10 Jan 2007 5
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
EMS Wireless uses every reasonable precaution to ensure that every device meets
published electrical, optical, and mechanical specifications prior to shipment. Customers
are asked to advise their incoming inspection, assembly, and test personnel as to the
precautions required in handling and testing ESD sensitive opto-electronic components.
Physical damage to the external surfaces voids warranty.
These products are covered by the following warranties:
1. General Warranty
EMS Wireless warrants to the original purchaser all standard products sold by EMS
Wireless to be free of defects in material and workmanship for the duration of the
warranty period of one (1) year from date of shipment from EMS Wireless. During the
warranty period, EMS Wireless' obligation, at our option, is limited to repair or
replacement of any product that EMS Wireless proves to be defective. This warranty
does not apply to any product, which has been subject to alteration, abuse, improper
installation or application, accident, electrical or environmental over-tress, negligence in
use, storage, transportation or handling.
2. Specific Product Warranty Instructions
All EMS Wireless products are manufactured to high quality standards and are
warranted against defects in workmanship, materials and construction, and to no further
extent. Any claim for repair or replacement of a device found to be defective on
incoming inspection by a customer must be made within 30 days of receipt of the
shipment, or within 30 days of discovery of a defect within the warranty period.
This warranty is the only warranty made by EMS Wireless and is in lieu of all other
warranties, expressed or implied, except as to title, and can be amended only by a
written instrument signed by an officer of EMS Wireless. EMS Wireless customer
support representatives are not authorized to make commitments on warranty returns.
In the event that it is necessary to return any product against the above warranty, the
following procedure shall be followed:
a. Return authorization shall be received from the EMS Wireless Customer Support
prior to returning any device. Advise EMS Wireless Customer Support of the model,
serial number, and the discrepancy. The device shall then be forwarded to EMS
Wireless, transportation prepaid. Devices returned freight collect or without
authorization may not be accepted.
b. Prior to repair, EMS Wireless Customer Support will advise the customer of EMS
Wireless test results and will advise the customer of any charges for repair (usually for
customer caused problems or out-of-warranty conditions).
If returned devices meet full specifications and do not require repair, or if non-warranty
repairs are not authorized by the customer, the device may be subject to a standard
A Division of EMS Technologies, Inc.
IM609073-1 Rev 01
10 Jan 2007 6
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
evaluation charge. Customer approval for the repair and any associated costs will be
the authority to begin the repair at EMS Wireless. Customer approval is also necessary
for any removal of certain parts, such as connectors, which may be necessary for EMS
Wire- less testing or repair.
c. Repaired products are warranted for the balance of the original warranty period, or at
least 90 days from date of shipment.
3. Limitations of Liabilities
EMS Wireless' liability on any claim of any kind, including negligence, for any loss or
damage arising from, connected with, or resulting from the purchase order, contract, or
quotation, or from the performance or breach thereof, or from the design, manufacture,
sale, delivery, installation, inspection, operation or use of any equipment covered by or
furnished under this contract, shall in no case exceed the purchase price of the device
which gives rise to the claim.
EXCEPT AS EXPRESSLY PROVIDED HEREIN, EMS WIRELESS MAKES NO WAR-
RANTY OF ANY KIND, EXPRESSED OR IMPLIED, WITH RESPECT TO ANY GOODS,
PARTS AND SERVICES PROVIDED IN CONNECTION WITH THIS AGREEMENT
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. EMS WIRE-
LESS SHALL NOT BE LIABLE FOR ANY OTHER DAMAGE INCLUDING, BUT NOT
LIMITED TO, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT
OF OR IN CONNECTION WITH FURNISHING OF GOODS, PARTS AND SERVICE
HEREUNDER, OR THE PERFORMANCE, USE OF, OR INABILITY TO USE THE
GOODS, PARTS AND SERVICE.
EMS Wireless test reports or data indicating mean-time-to-failure, mean-time-between-
failure, or other reliability data are design guides and are not intended to imply that
individual products or samples of products will achieve the same results. These
numbers are to be used as management and engineering tools, and are not necessarily
indicative of expected filed operations. These numbers assume a mature design, good
parts and no degradation of reliability due to manufacturing procedures and processes.
A Division of EMS Technologies, Inc.
IM609073-1 Rev 01
10 Jan 2007 7
2850 Colonnades Court NW
Norcross, GA 30071
Phone: 770-582-0555
Fax: 770-263-0282
Figure 1
Front View
Figure 2
Rear View
