POSI‐TRAIL,USER’SMANUAL

80‐A0012‐000



WWW.SURPROINC.COM

450‐692‐2850

sales@surproinc.com





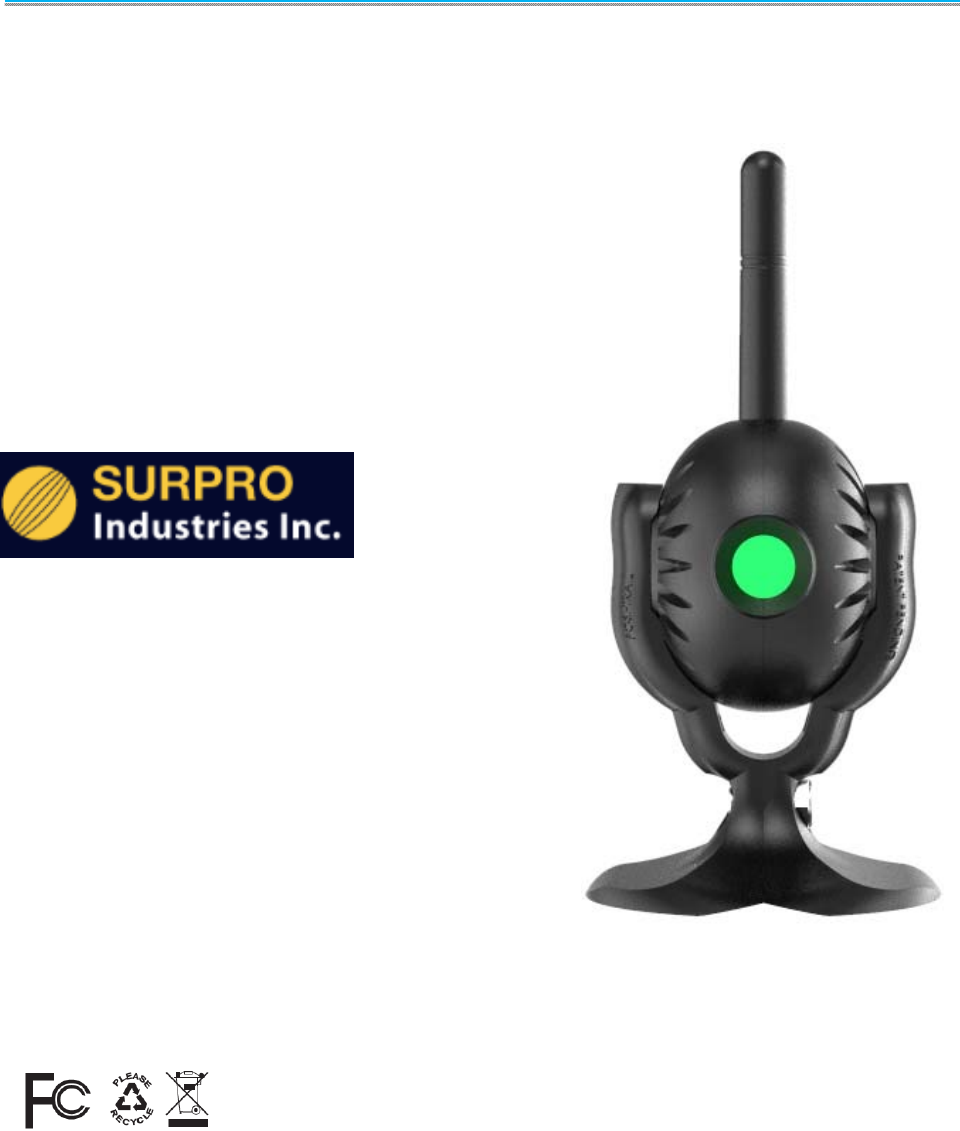

POSI-TRAIL

RECREATIONAL VEHICLE TRAFFIC DETECTION SYSTEM



2|Page



TableofContents

INTRODUCTION.............................................................................................................................................3

WARNING......................................................................................................................................................4

FCCNOTICES:................................................................................................................................................5

ISEDNOTICES................................................................................................................................................6

PARTSLIST.....................................................................................................................................................7

TECHNICALSPECIFICATION...........................................................................................................................8

INSTALLATION...............................................................................................................................................9

BASICOPERATION.......................................................................................................................................10





POSI-TRAIL

RECREATIONAL VEHICLE TRAFFIC DETECTION SYSTEM



3|Page



INTRODUCTION

POSI‐TRAILisatrafficdetectionunitforSnowmobiles,Quads,andotherOff‐roadvehicles.Theunit

containsRFreceptionandbroadcastingcapability,andthuscapableofdetectingsurroundingtraffic

withina600metersrange‐andsogivingwarningtothedriverofanoff‐roadvehiclethatothervehicles

arepresentinthenearbyenvironment.

WithPOSI‐TRAILyouwillnotdependonmanualsignalsorneedtouseyourhandstomakemanual

signals.Bothyourhandswillbefreetooperateyoursteeringhandle.

VehiclesequippedwithPOSI‐TRAILwillbeawareofthepresenceofsurroundingtraffic–thepresence

ofoneormorevehicles–ofsurfacingmachines–ofemergencyvehicles.(Thecolorcodeswillkeepyou

informedatalltimes).



POSI-TRAIL

RECREATIONAL VEHICLE TRAFFIC DETECTION SYSTEM



4|Page



WARNING

POSI‐TRAILisanalertdevice.POSI‐TRAILisintendedonlytoprovidespecific

trafficinformationtothedriverofarecreationalvehicle.Thisisnotasecurity

device

Thedetectionof"surrounding"trafficisspecifictodetectingonlythosevehicles

whichareequippedwiththePosi‐Trailproduct.Anyvehiclenotequippedwith

thePosi‐Trailproductwillnotbedetected.

Dependingonthetypeofenvironment‐openfields,heavywoods,highandlowgrounds,obstacles,

curves,etc.‐thedetectionrangeofPosi‐Trailwillvaryfrom200metersupto600meters.

ItisourobjectivethatthePosi‐Trailproductwillbecomeamandatorytrafficdetectiondeviceforalloff‐

roadrecreationalvehicles.Thiswillmakedrivingamuchsafersport.





POSI-TRAIL

RECREATIONAL VEHICLE TRAFFIC DETECTION SYSTEM



5|Page



FCCNOTICES:

CAUTION:

ChangesormodificationsnotexpresslyapprovedbyENASIIndustriesInc.couldvoidtheuser's

authoritytooperatetheequipment.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst

harmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradio

frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccur

inaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision

reception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotry

tocorrecttheinterferencebyoneormoreofthefollowingmeasures:

—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:

1. Thisdevicemaynotcauseinterference.

2. Thisdevicemustacceptanyinterference,includinginterferencethatmaycause

undesiredoperationofthedevice.

RFEXPOSUREINFORMATION

ThisequipmentcomplieswithFCCandISEDradiationexposurelimitssetforthforgeneral

population/uncontrolledexposure.Thistransmittermustbeinstalledtoprovideaseparationdistanceof

atleast20cmfromallpersonsandmustnotbecollocatedoroperatinginconjunctionwithanyother

antennaortransmitter.





POSI-TRAIL

RECREATIONAL VEHICLE TRAFFIC DETECTION SYSTEM



6|Page



ISEDNOTICES

Thisdevicecontainslicence‐exempttransmitter(s)/receiver(s)thatcomplywithInnovation,Science

andEconomicDevelopmentCanada’slicence‐exemptRSS(s).Operationissubjecttothefollowingtwo

conditions:

1. Thisdevicemaynotcauseinterference.

2. Thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesired

operationofthedevice.



POSI-TRAIL

RECREATIONAL VEHICLE TRAFFIC DETECTION SYSTEM



7|Page



PARTSLIST

POSI‐TRAILPODASSEMBLY(1)POSI‐TRAILLEGASSEMBLY(1)USER’SMANUAL(1)









POSI-TRAIL

RECREATIONAL VEHICLE TRAFFIC DETECTION SYSTEM



8|Page



TECHNICALSPECIFICATION



 PowerSupplyRequirement:12Vdc

 Transmitting/ReceivingAntennaType:Integral

 RFOuputPowerRating:7.5dBm

 OperatingFrequencyRange:903MHz

 RFOutputImpedance:50Ohm

 IntermediateFrequency:100MHz

 OscillatorFrequency:12.8MHz

 ModulationType:FSKDigitalModulation



POSI-TRAIL

RECREATIONAL VEHICLE TRAFFIC DETECTION SYSTEM



9|Page



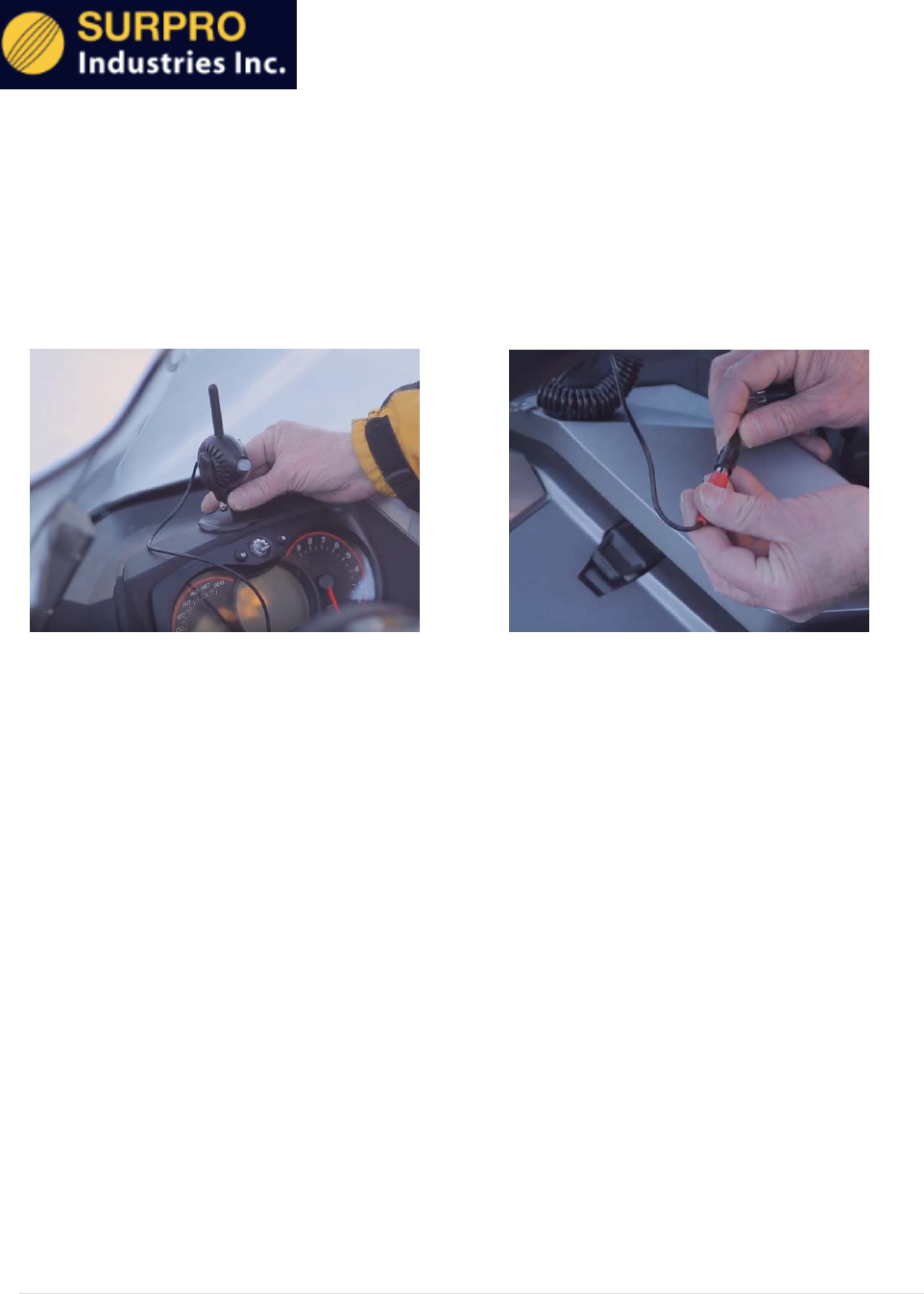

INSTALLATION

POSI‐TRAIListobeinstalledwithinthedriver’seasyfieldofvisionwhiledriving.

 Simplypeelthedoublesidedtapeonthelegbaseandstickitonyourvehicledashboard.

 ConnectthepowerconnectortoyourRCApowerplugandyouarereadytogo.

 

POSI-TRAIL

RECREATIONAL VEHICLE TRAFFIC DETECTION SYSTEM



10|Page



BASICOPERATION

YourPOSI‐TRAILwillwarnyouwhenoneormorevehicles(alsoequippedwithPOSI‐TRAIL)aredetected

withinadistanceof200to600metersfromyourvehicle,inanydirection.TheLEDlightwillindicate

continuouslythetrafficactivitypresentinyourdrivingenvironment.Seethetablebelowforthe

warninglight.

LEDWARNINGLIGHTCOLORWARNINGDESCRIPTION

Solidgreen‐Monitoractive,noothervehicles

withinsurroundings

Solidred‐Oneothervehiclewithinsurroundings

Flashingred‐Morethanonevehiclewithin

surroundings

Flashingred&blue–Presenceofsnowgroomer

withinsurroundings

Flashingred&purple–Presenceofemergency

vehiclewithinsurroundings



Solidyellow–Youareinaconvoywithnoother

vehiclepresentwithinsurroundings(ifyouleave

theconvoyforlongerthan15minutes–ifyou

thenreturn–youwillbeidentifiedasanew

vehicle)

Flashingred&Yellow–Dangerpointontrail


