ENCORE ELECTRONICS 00000001 WIRELESS N300 PCI ADAPTER User Manual ENLWI NX2 v3 QIG en 100908
ENCORE ELECTRONICS INC. WIRELESS N300 PCI ADAPTER ENLWI NX2 v3 QIG en 100908
Users Manual
© 2010 Encore Electronics, Inc. All rights reserved.COVER
Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
All trademarks and brand names are the properties of their respective holders.
© 2010 Encore Electronics, Inc.
1
www.encore-usa.com
TABLE OF CONTENTS
A — OVERVIEW....................................................................................... 2
A.1 PACKAGE CONTENTS ...................................................................... 2
A.2 SYSTEM REQUIREMENTS................................................................. 2
B — HARDWARE INSTALLATION.......................................................... 2
C — SOFTWARE INSTALLATION .......................................................... 3
D — USING WINDOWS WIRELESS MANAGER IN WINDOWS 7® AND
WINDOWS VISTA®........................................................................... 5
E — USING ENCORE WIRELESS WIZARD IN WINDOWS XP®........... 6
F — TECHNICAL SUPPORT................................................................... 6
Product specifications, size, and shape are subject to change without notice, and actual product appearance
may differ from that depicted herein. All trademarks and brand names are the properties of their respective
holders. © 2010 Encore Electronics, Inc. All rights reserved.
2
www.encore-usa.com
A — Overview
Thank you for choosing Encore Electronics’ Wireless N300 Adapter (ENLWI-NX2). This
pamphlet explains the essential steps to connect to your home or office wireless network. For
more details and screenshots, please refer to the User Manual in the Installation CD.
A.1 Package Contents
Wireless N300 PCI Adapter x 1
Quick Installation Guide x 1
Installation CD (User Manual on CD) x 1
A.2 System Requirements
Available PCI slot
Operating System: Windows® 7, Windows Vista®, or Windows® XP
CD-ROM Drive

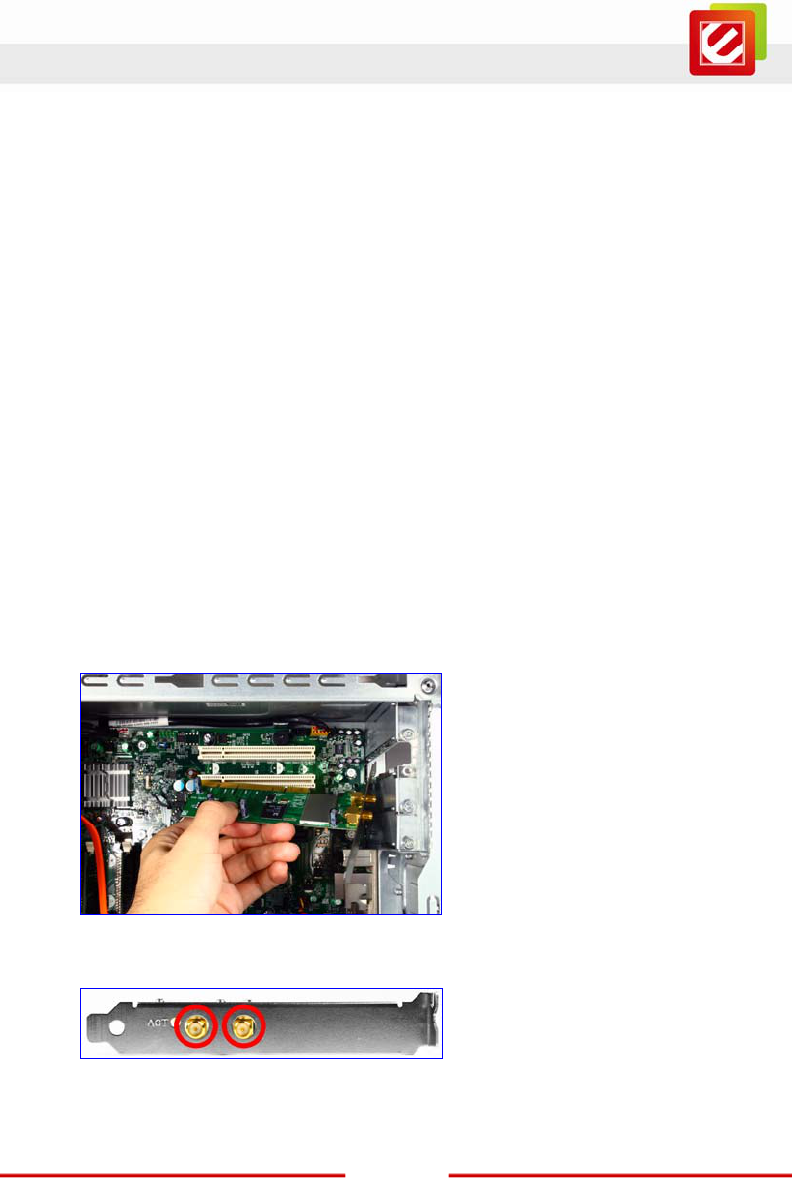

B — Hardware Installation
1. Shut down your computer, and then, disconnect your computer’s power cord.
2. Open the case of your computer
3. Locate an empty PCI slot. Make sure the ENLWI-NX2 can fit.
4. Insert the ENLWI-NX2 firmly into the empty PCI slot.
5. Put the cover back to your computer case.
6. Attach the two external antennas to the connectors on the back of the ENLWI-NX2.
7. Reconnect the power cord, and then, turn on your computer.
3
www.encore-usa.com

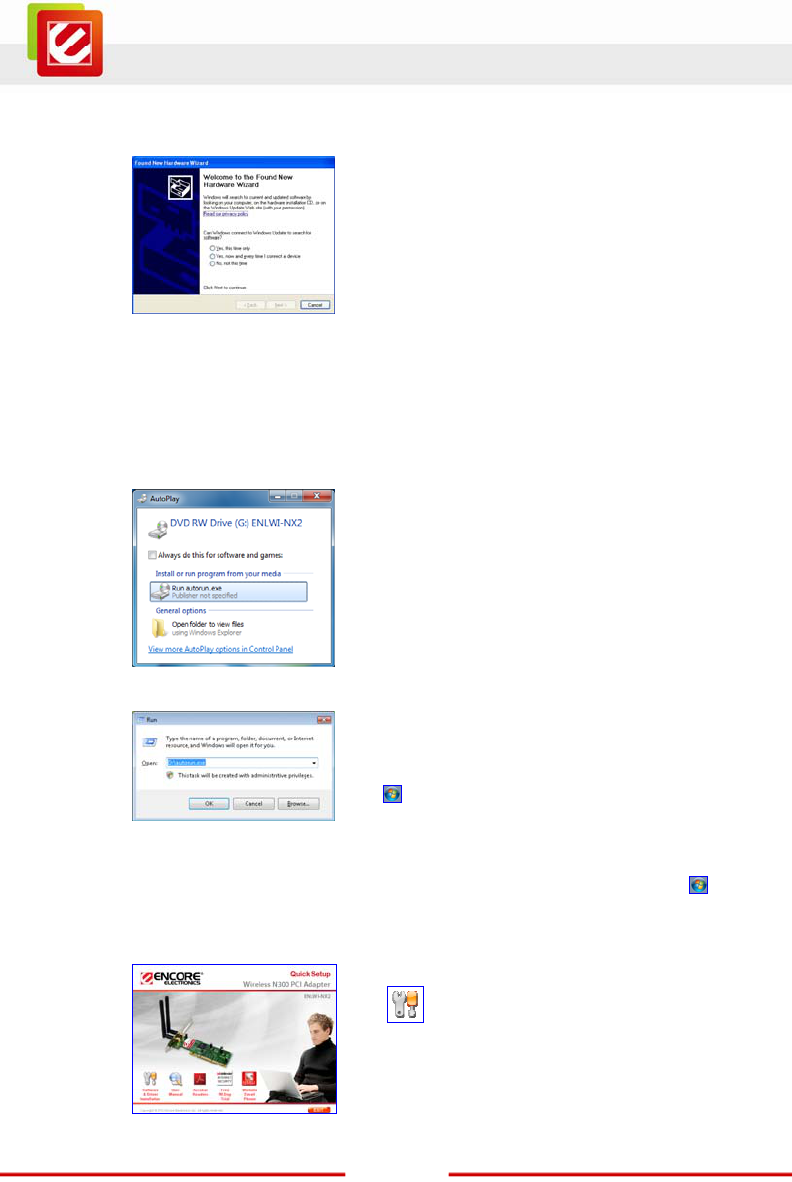

C — Software Installation
1.
Click “Cancel,” if you see the ‘Found New
Hardware Wizard’ window when you start
Windows for the first time after installing the
hardware.
2. Insert the ‘Installation CD” to the CD-ROM drive. Depending on your computer’s
configuration, one of the following 3 scenarios will happen (A , B or C).
A. The ‘Encore Welcome Window’ appears automatically, and then, the window
switches to the ‘Quick Setup’ window in Step 3.
B. The ‘AutoPlay’ window appears automatically
If you see the ‘AutoPlay’ window instead, select
“Run autorun.exe.”
C. Use ‘Run Command’ when A or B does not appear.
If neither the ‘Encore Welcome Window nor the
‘AutoPlay’ window appears, type “D:\autorun.exe”
in the “Run Command” window in the Start menu
() (‘D’ is the drive letter of your CD-ROM drive).
Note:
You can use “Browse” to find the CD-ROM drive letter.
If the “Run command” window is not in the Start menu, go to the Start menu ( )
→ type “run” in the “search box” → select “Run” in the list of results.
3. Quick Setup Window
Click the “Software & Driver Installation
()” icon.
4
www.encore-usa.com

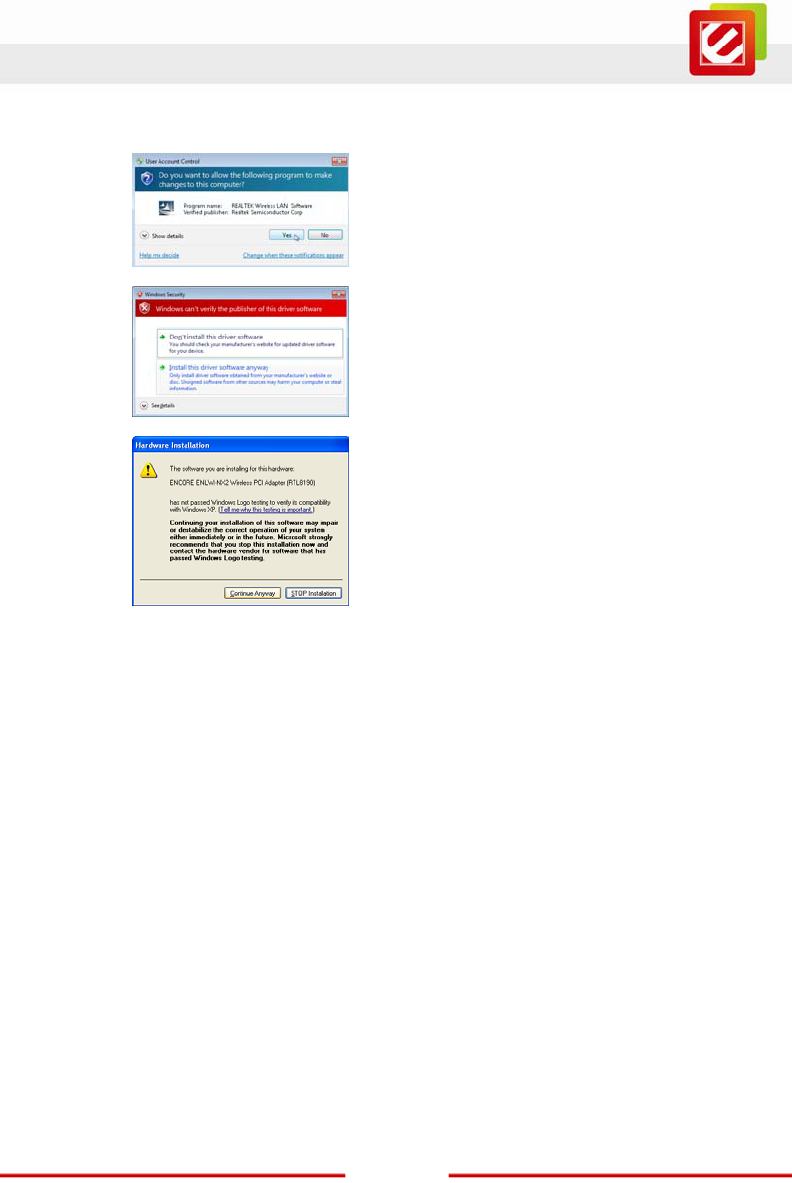

4. Follow the on-screen instructions.
Note:
Click “Yes” to continue, if you see ‘Do you
want to allow the following program to
make changes to this computer?’ in the
‘User Account Control’ window in Windows
7 or Windows Vista.
Click “Install this driver software anyway,” if
you see ‘Windows can’t verify the
publisher of this driver software’ in the
‘Windows Security’ window in Windows 7 or
Windows Vista.
Click “Continue Anyway,” if you see this
warning message in the ‘Hardware
Installation’ window in Windows XP.
5
www.encore-usa.com

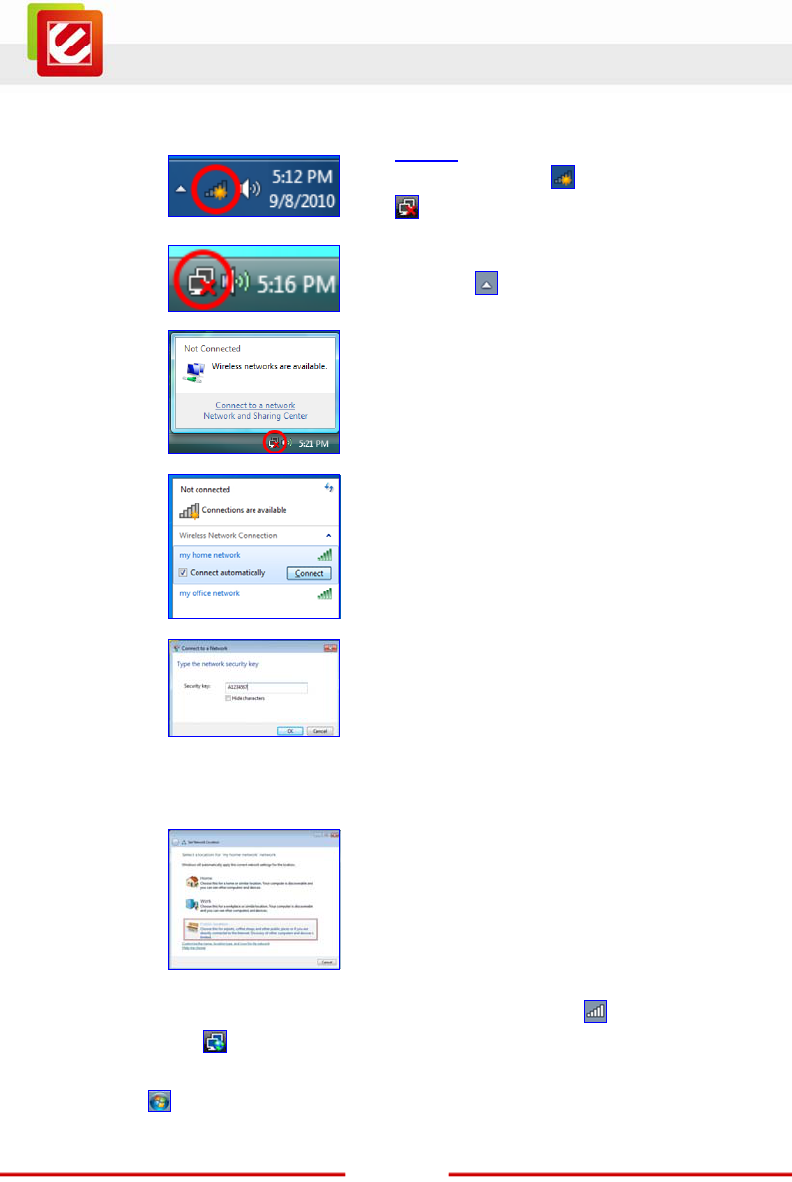

D — Using Windows Wireless Manager in Windows 7® and Windows Vista®
1. Windows 7 Tray Icon
Windows Vista Tray Icon
Left-click on the “Windows Wireless
Manager Tray Icon” ( in Windows 7 and
in Windows Vista).
Note: If you cannot see the icon, click the “Show
hidden icons ()” arrow in the system tray.
2.
Click “Connect to a network”
(NOT “Network and Sharing center.”)
Note: This step only applies to Windows Vista.
3.
1. Select the “Wireless Network Connection”
of your choice.
2. Click “Connect.”
4.
1. Enter the “Security Key” (also called
password, passphrase or pre-shared key).
2. Click “OK.”
Note: If no wireless security is turned on, the warning message ‘Information
sent over this network might be visible to others.’ will appear. Select
“Connect Anyway” if you want to proceed.
5.
The ‘Set Network Location’ window may appear.
1. Select “Home”, “Work” or “Public.” Windows
will automatically configure the appropriate
firewall settings.
2. Click “Close” in the follow-up window.
Note: This step only applies to Windows Vista.
6. The “Window Wireless Manager Tray Icon” will become in Windows 7
and in Windows Vista
Note: For help with the Windows Wireless Manager, please refer to “Help and Support” in the
Start menu ( ) at the lower left corner of your screen.
6
www.encore-usa.com

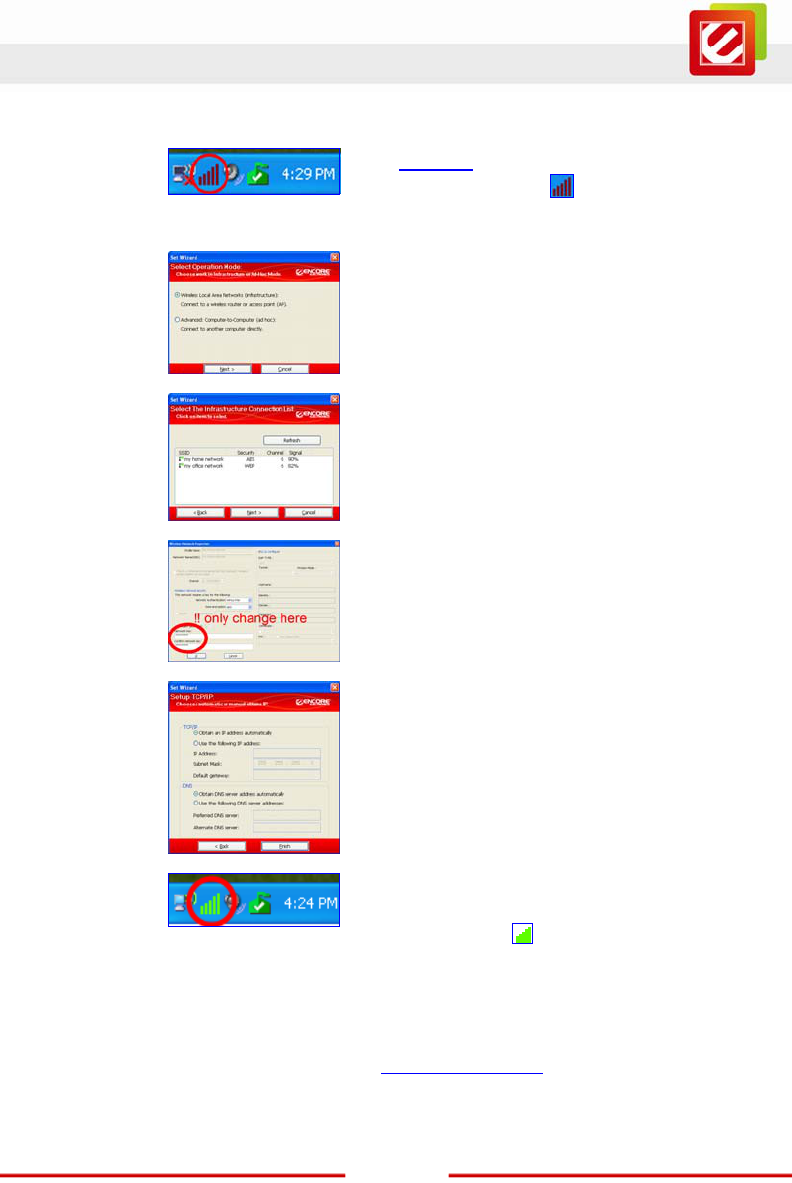

E — Using Encore Wireless Wizard in Windows XP®
1.
1. Right-click on the “Encore Wireless
Manager Tray Icon ().”
2. Select “Set Wizard.”
2.
1. Check “Wireless Local Area Networks
(Infrastructure).”
2. Click “Next,”
in the ‘Select Operation Mode’ window.
3.
1. Select the ‘SSID’ (wireless network name)
you want to connect to.
2. Click “Next,”
in the ‘Select The Infrastructure Connection
List’ window.
4.
Only enter and confirm the “Network Key”
(also called password, passphrase or
pre-shared key) of your router or access
point,
in the ‘Wireless Network Properties’ window.
5.
1. Check “Obtain an IP address
automatically” and “Obtain DNS server
address automatically.”
2. Click “Finish,”
in the “Setup TCP/IP” window.
6.
The ‘Encore Wireless Manager Tray Icon’
at the lower right corner of the screen will
become green ( ) when connection is
successful.
F — Technical Support
Before you contact our technical support, please read the User Manual in the Installation CD
and visit the support section in our website at www.Encore-USA.com. You can submit your
support request directly on our webpage. You can also reach us through one of the support
hotlines or emails listed on the back of this pamphlet.
7
www.encore-usa.com
––
* Local tech-support numbers are provided in selected countries. Service may change without prior notice.
Please visit www.encore-usa.com for more details.
Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
All trademarks and brand names are the properties of their respective holders.
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This device must be installed to provide a separation distance of at least 20 cm from all persons
and must not be collocated or operating in conjunction with any other antenna or transmitter.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
NOTE 3: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
