ENTERMEDIA R19 Wireless MIC User Manual
ENTERMEDIA CO., LTD. Wireless MIC
User Manual
R19 Manual
Product Overview
1. Overview
•Wireless MIC with TI CC8530
2. Specifications
•Transmission : 2406~2474MHz
•Reception : 2406~2474MHz
•Power: AA 1.5V *2
Dynamic MIC
Unit
LPF
CODEC
TLV320AIC3104
2.4 GHz RF SoC
CC8530
RF Front
END
CC2591
POWER
SAW
FILTER
3V
3.3V
1.8V
Analog
Digital
Power
RF
BAT 3V
R19
I2S
I2C
X-tal 48MHz

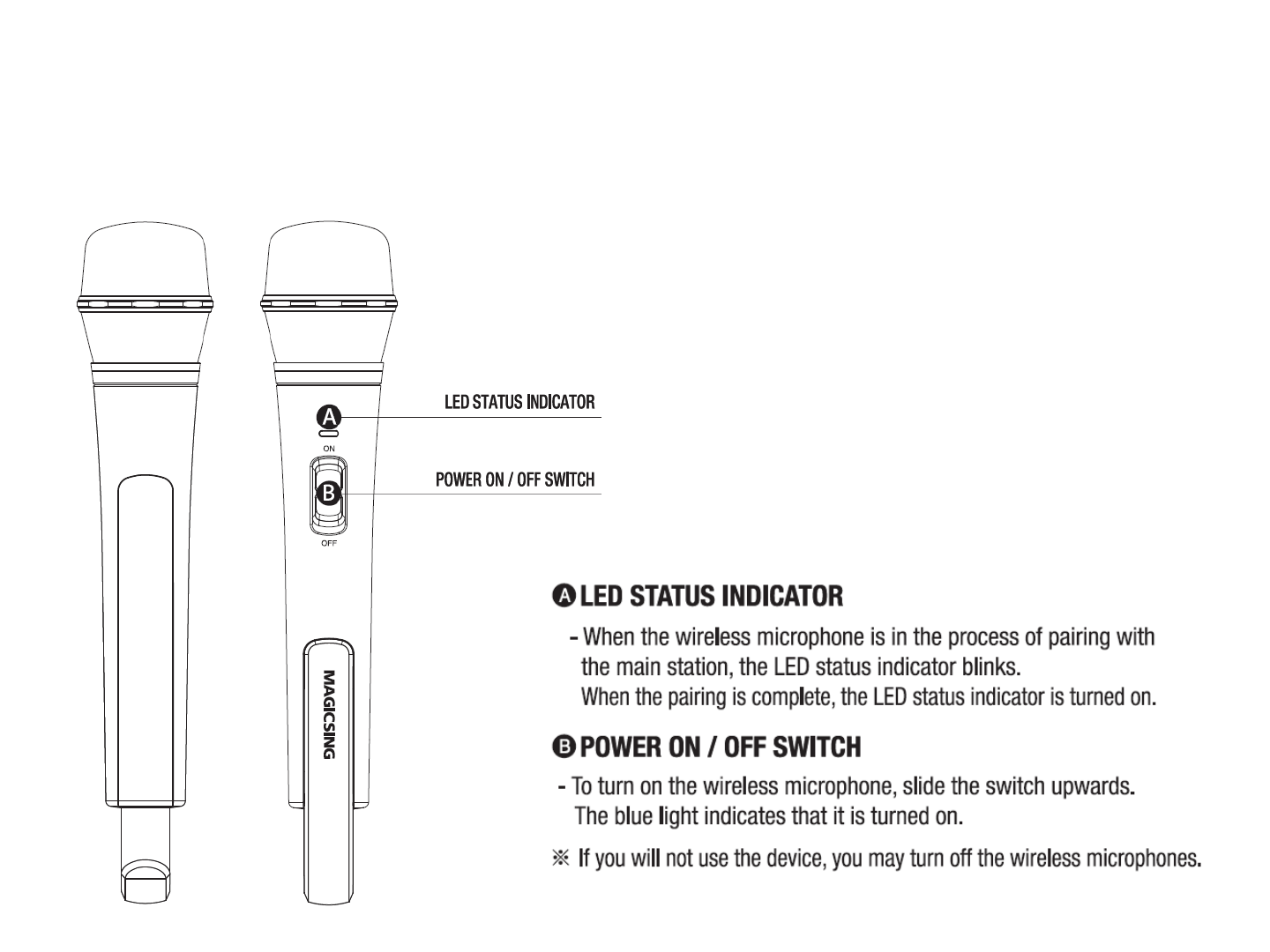

Product Guide
Approval Information
FCC compliance Information
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation
Including interference that may cause undesired operation. Modifications not expressly approved by the
manufacturer could void the user’s authority To operated the equipment under FCC rules. To satisfy FCC
exterior labeling requirements, the following text must be placed on the exterior of the end product.
Contains Transmitter Module FCC ID : PBNR19
CAUTION : This device and its antenna(s) must not be co-located or operated in conjunction with any other
antenna or transmitter. End users cannot modify this transmitter device. Any unauthorized modification
could void the user’s authority to operate this device.
