Product Instruction Manual
产品名称: LED 筒灯
Product Name: LED downlight
型号编码: 53199101
Model No.: 53199101
生产商:广东德豪润达电气股份有限公司
Manufacturer: Elec-tech International.,Co.Ltd
地 址:广东省珠海市唐家湾镇金凤路 1号
Address: Guangdong Province Zhihai City, Tanjiawan, No.1 Jinfeng Rd
电 话Tel:0756-3390990
传 真Fax:0756-3390778
![](/img.php?id=3740637&img=bg2.png)
网 址Web:www.electech.com.cn
1. 产品简介 Product Introduction
1.1. 产品描述:Product Description :
1.2. 产品示意图:
oduct schematic diagram:
![](/img.php?id=3740637&img=bg3.png)
2. 产品特性 Product features
1.1 技术参数 Specification
项目 /单位
参数
电气参数 Electronic ratings
整灯功率 /W Rated Power/W
10W
输入电压 /V Rated Input voltage/V
AC 120V
工作频率/Hz Frequency/Hz
60Hz
电源效率/% Rated Power efficiency
>90%
功率因数(PF) Rated Power Factor
>0.9
调光方式 Dimming method
SCR and APP dimmer
光源参数 Photometric ratings
LED 类型/数量 LED Type/Quantity
2835/28pcs,3030/15pcs
整灯光通量 /Lm Lumen
625lm
色温/K Temprature/K
2700-5000K,R+G+B
显色指数/Ra CRI
90
物理参数 Physical information
材质 Material
AL、PC
工作温度 operating temperature
45℃
防护等级 IP rating
wet location

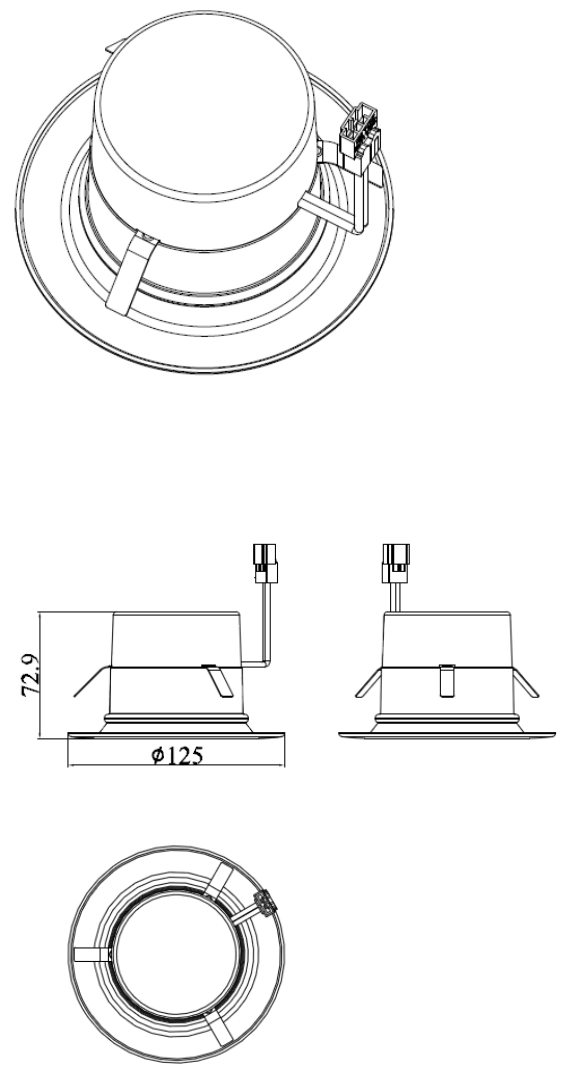

灯具规格(L×W×H)/mm
Luminaire dimension(L×W×H)/mm
125*125*72.9mm
2 使用方法 Method of application

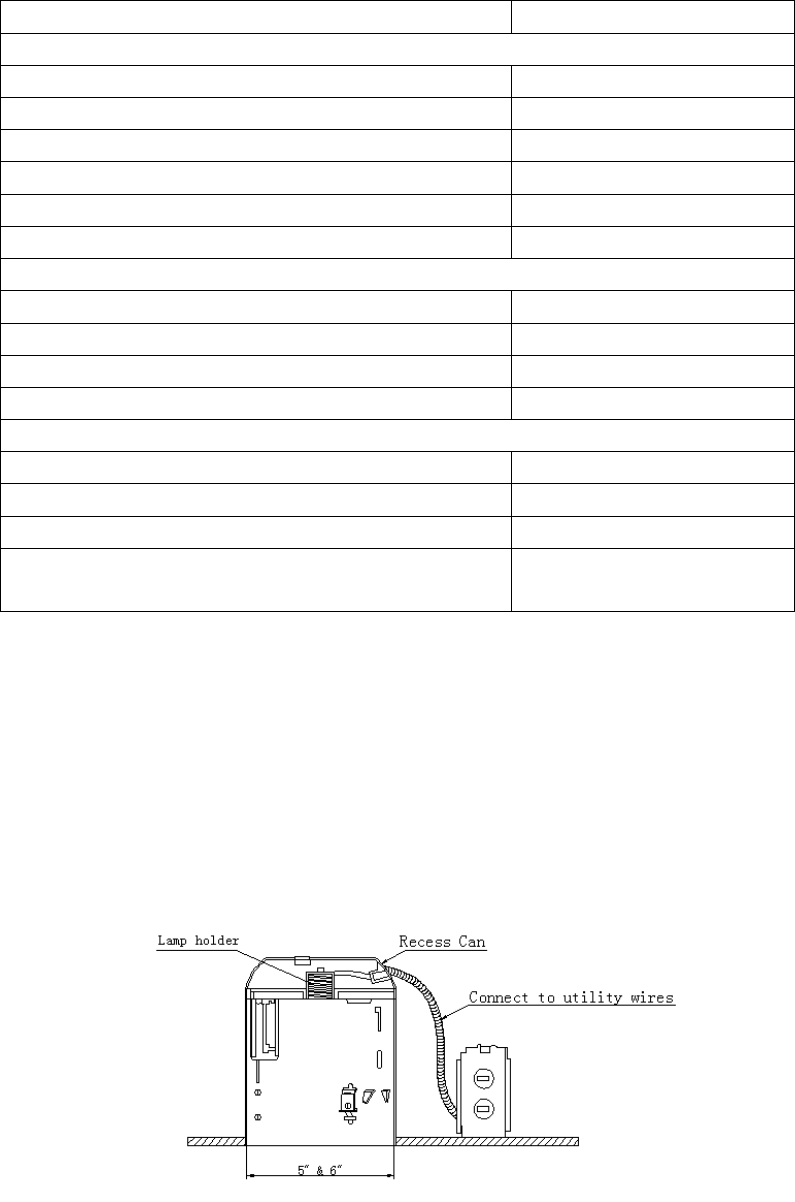

2.1 安装示意图(A) Installation schematic diagram(A)
A 切断电源,检查安装筒尺寸。
A:Turn off the power supply. Check the dimension of recessed can and the lamp holder type to see whether the retrofit
kit can fit the luminaire.
![](/img.php?id=3740637&img=bg4.png)

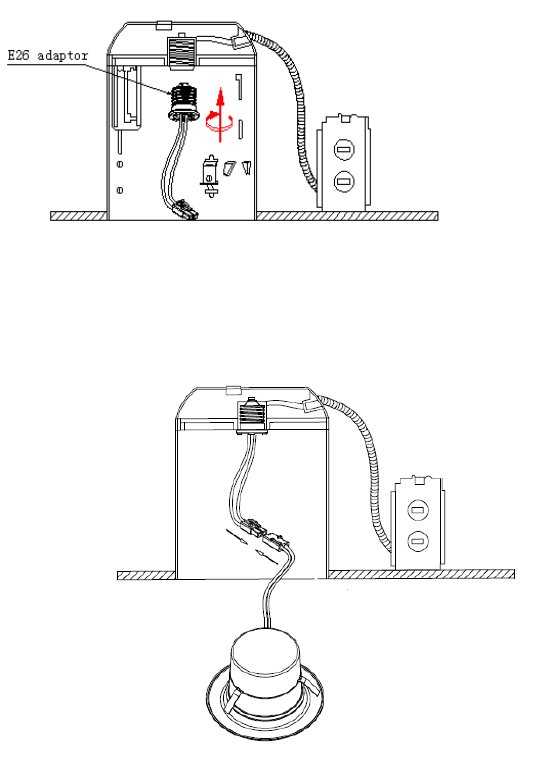

B:将E26 灯头旋进并旋紧
B: crew clockwise the E26 adaptor into the lamp holder. Tighten.
C:连接好连接器。
C: Connect the male to the female connector.

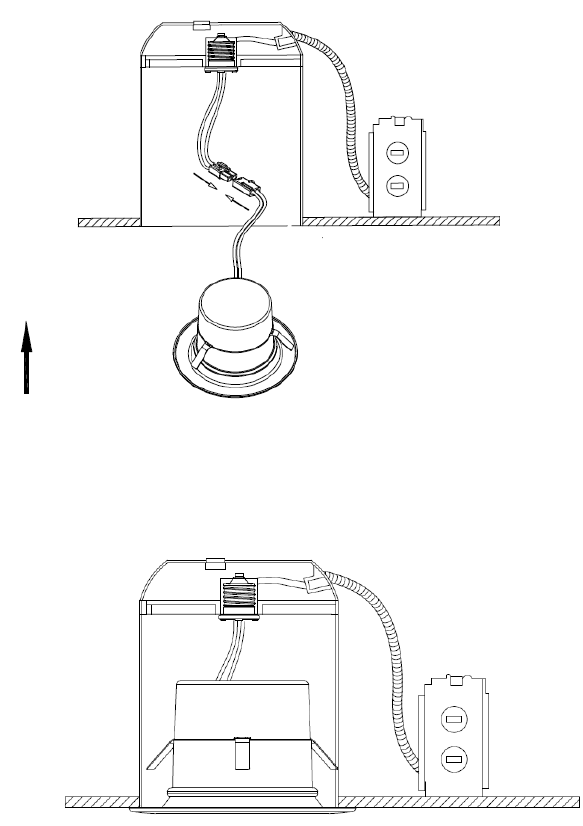

D:将筒灯装进安装筒并卡紧。
D: Squeeze the “V shape” clips to match the grooves on the inside of the can, and slide the luminaire up into the can firmly.
![](/img.php?id=3740637&img=bg5.png)
E:导通电源
E: Make sure the trim ring is flush with ceiling. Turn on the light to check the luminaire working status.
![](/img.php?id=3740637&img=bg6.png)
6
蓝牙 APP 使用说明
Controlling the Light with Bluetooth® wireless technology

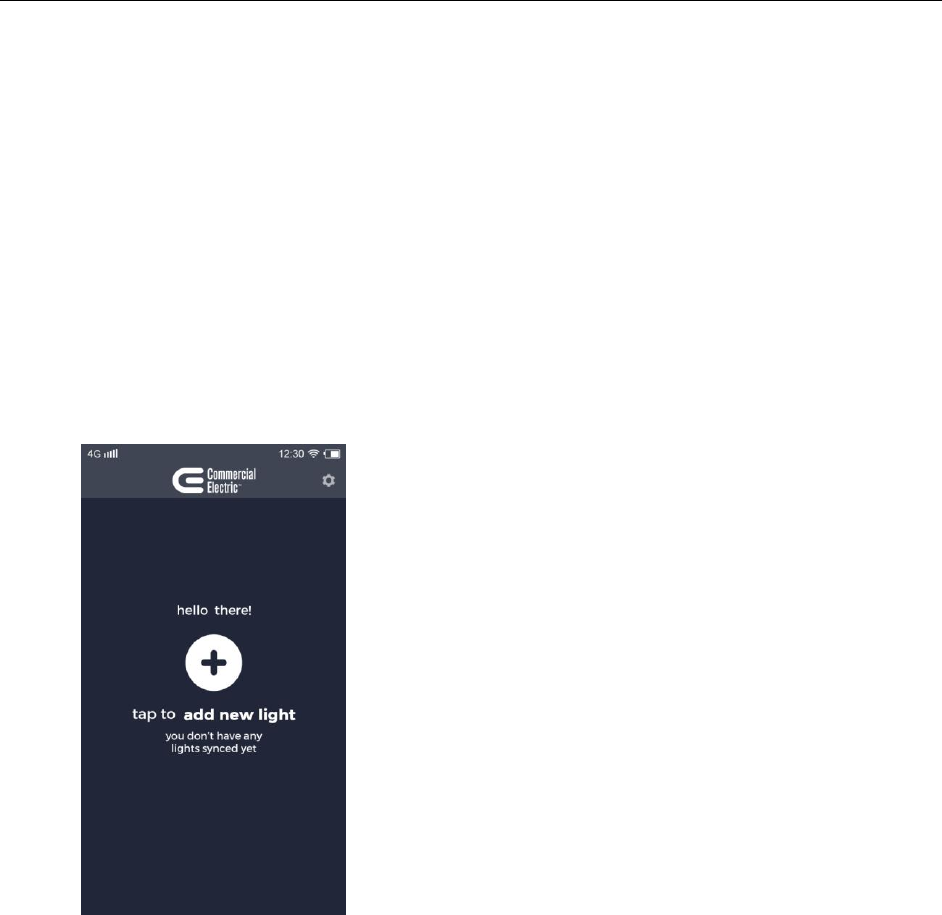

1添加灯
Turn on your LED downlight.
Enable Bluetooth on your smart device.
Open the Commercial Electric™ Lighting app, wait for the smart device to detect the
downlight, and select the downlight to pair the device to the light. The light will blink
four times if pairing is successful.
2扫描灯
Now that the downlight is paired with your Bluetooth wireless technology enabled
device, you can directly control the light whenever it is in range.
![](/img.php?id=3740637&img=bg7.png)
7

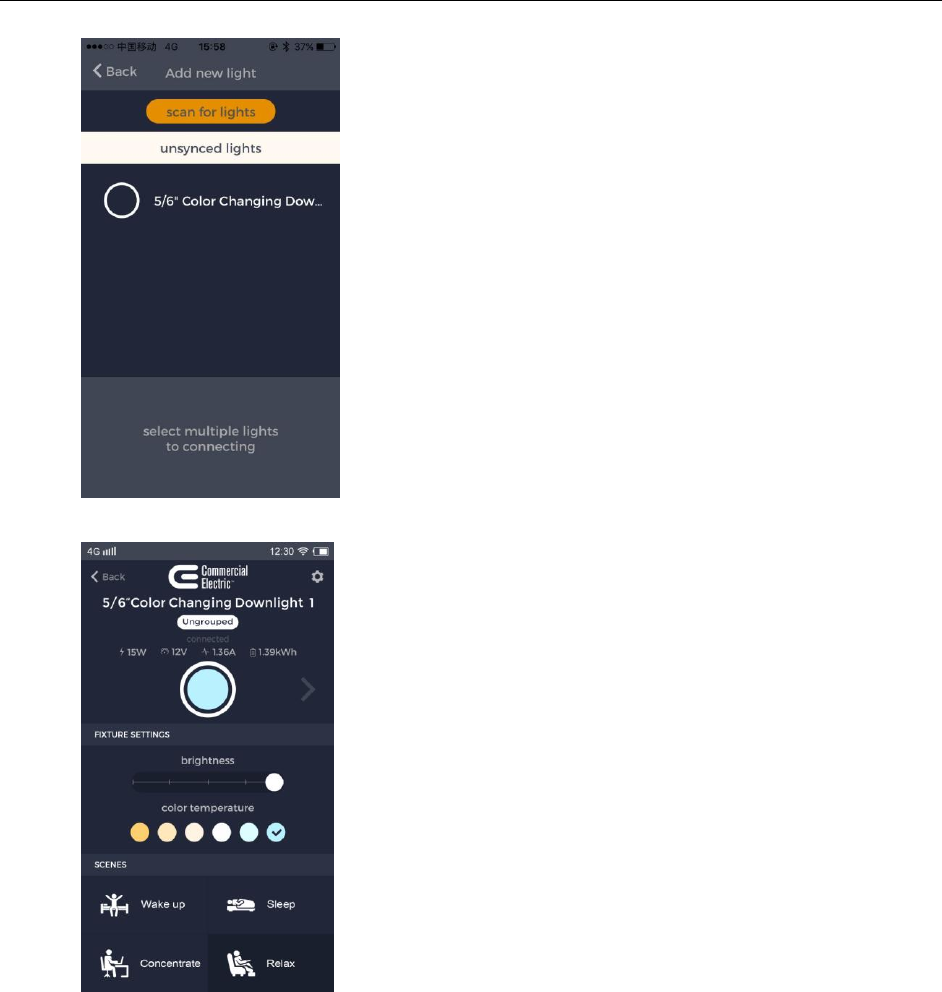

3白光使用界面 White Light(CCT) User Screen

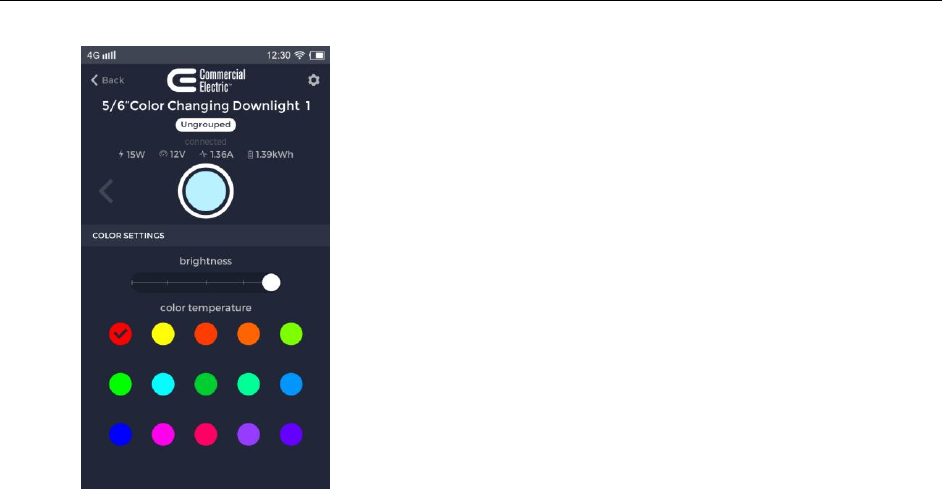

4 RGB 使用界面 Color Light(RGB) User Screen
![](/img.php?id=3740637&img=bg8.png)
8
3.3 维护说明 Maintenance Instruction
*为延长使用寿命请勿使用酒精等挥发性溶剂擦拭灯体;
*Do Not use volatile solvent such as alcohol to clean the troffer.
*清洁时可以使用柔棉布沾肥皂水拧干后擦拭灯体;
*Use soft cotton cloth with suds to clean the troffer .
*非专业人士请勿拆修灯具;
*Non-profecssional do Not attempt to take apart and repair the troffer .
*不可拆卸软缆或软线,如果损坏须请专业人士或制造厂商更换。
*No disassemble the soft cord, if broken, please invite professional personnel or ask the manufacturer to
change
3 环境要求 Environmental requirement
使用环境温度 Operating temperature:45℃;
4 警告语
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
![](/img.php?id=3740637&img=bg9.png)
9
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
IC STATEMENT
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to
the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscept
ible d'en compromettre le fonctionnement.
