User Manual

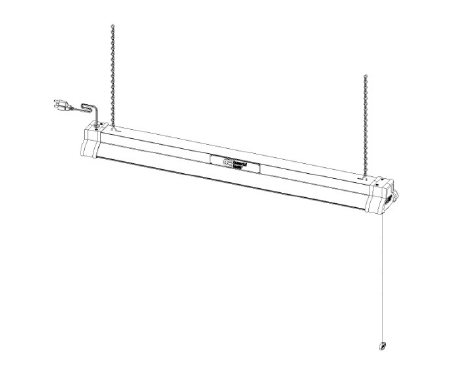

545691XXLEDShoplightInstallationInstructions



1. The product package includes the following components:

1.1 LED shop light (1 unit)

1.2 Installation Instructions

1.3 Hanging chain (2pcs)



2. IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS：

2.1 Use hook to support chain, not the electrical cord.

2.2 Do not install on radiant-heating type ceiling

2.3 The hooks are to engage the chain only and not the electric cord shall be included.

2.6 Servicing should not be carried out while the luminaire and/or the surroundings are damp unless the plug

is disconnected from the power supply

2.7 DONOTSUBMERSE

2.8 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and 2) this device must accept any interference received,

including interference that may cause undesired operation.

3. DO NOT USE WITH DIMMERS.

Electrical Characteristics (Typical value):

Length 3ft (545691XX)

Voltage AC (V) 120

Current AC (mA) 600

Power (W) 50

PFC >0.9

Rated Frequency (Hz) 60



FCCComplianceStatement:ThisdevicecomplieswithPart15oftheFCCrules.Operationis

subjectedtothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,

and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause

undesiredoperation.



ICComplianceStatement:ThisdevicecomplieswithIndustryCanada’slicence‐exempt

RSSs.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcause

interference,and(2)thisdevicemustacceptanyinterference,includinginterferencethatmay

causeundesiredoperationofthedevice.

CetappareilestconformeauxCNRexemptesdelicenced'IndustrieCanada.Sonfonctionnement

estsoumisauxdeuxconditionssuivantes:

(1)Cedispositifnepeutcauserd'interférences;et

(2)Cedispositifdoitacceptertouteinterférence,ycomprislesinterférencesquipeuventcauser

unmauvaisfonctionnementdel'appareil.

Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould

voidyourauthoritytooperatetheequipment.

Changes or modifications not expressly approved by the party responsible for compliance could void your

authority to operate the equipment.

4.ToolsRequired:

5.InstallationSteps:

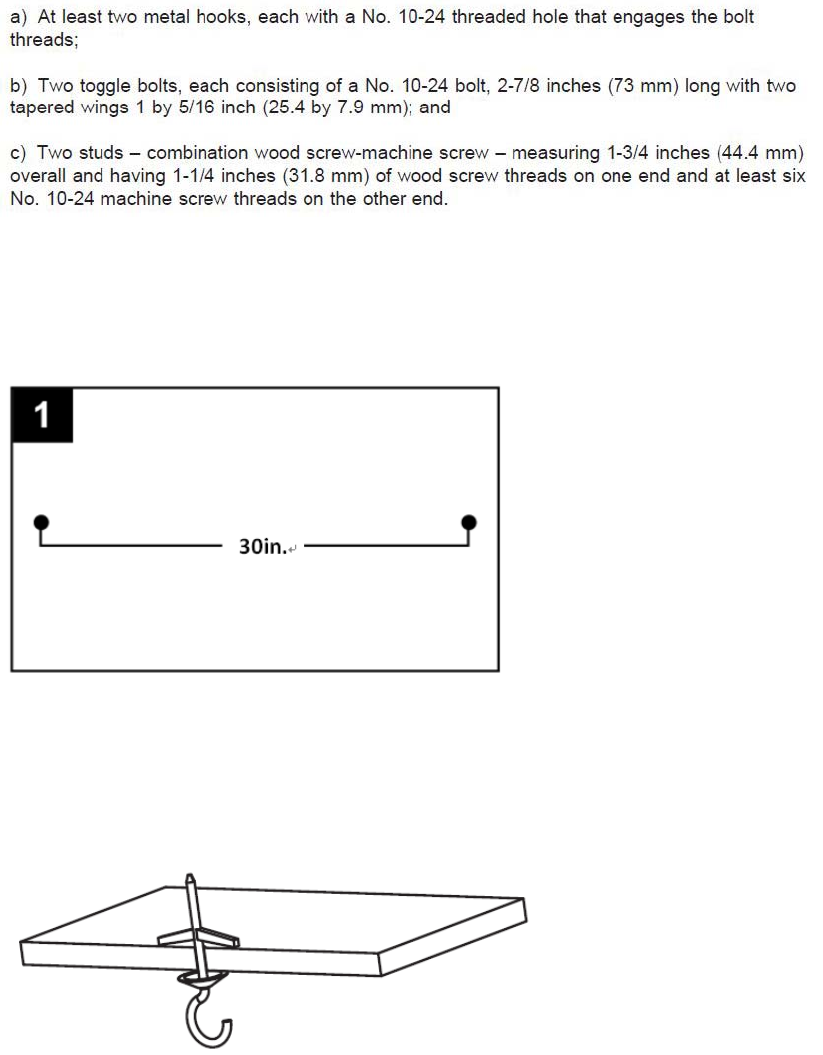

1.Selectsuitablelocationthatcansupporttheweightofthefixture.Determinemethodof

mountingbeforedrilling.Marktwospotsontheceiling30in.apartforthemountinghardware

(notincluded).



2.

Mounting to drywall

■Drilla¼in.holeintheceilingtocleartheclosedflapsofthetogglebolt(notincluded).Make

suretofastenthetoggleboltintothebutterflynutbeforeinsertingtheflapsintotheceiling.

Tightenthetogglebolt.



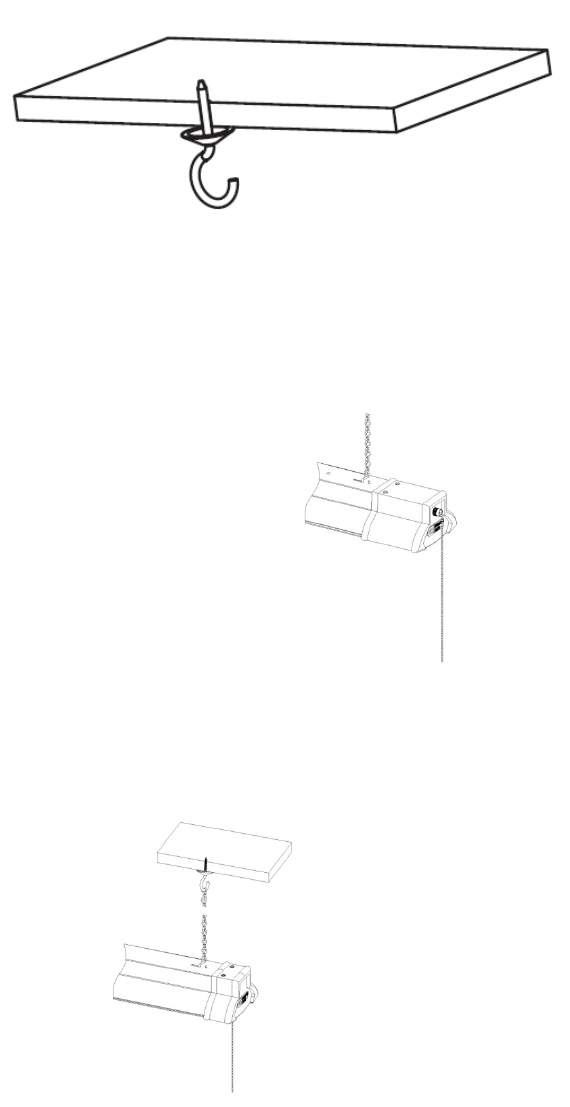

Mounting to wood

■Drilla1/16in.diameterpilotholeintheceiling.Makesuretofastenthecombo

wood‐machineendintothemetalhook.Tightenthehookscrew(notincluded)intothewood.



760mm



3.Attaching the light to the chain

Installoneclosedloopofhangingchain(B)tothemetal“T”shapedhook(A)onthefixturebody.

Repeatthisstepontheothersideofthefixture.



4.Attaching the chain to the ceiling

■Hangthefixturebodybyplacingonechainset(AA)overeachhook(notincluded)thathas

beeninstalledontheceiling.Adjustchainstolevellight.Thefixturemusthangatleast3in.from

theceiling.



5. Connecting the power cord

■Afterinstallation,plugthepowercord(B)intotheendoflightandthenintothepower

supply.

■Pullchaindowntoturnon.



ControlwithBluetooth

1.OpentheBluetoothonyoursmartphone.

2.Thephonewillsearchfor“CE3ftBNshoplight”,press“CE3ftBNshoplight”toconnectthe

phonetothelight.Afterconnectedsuccessfully,thelightwillsound“Thelightisconnected”.

3.ThenopenyoumusicAPP,choosethesongsandstarttoplat.

4.Todisconnecttheshoplight,hitthe“CE3ftBNshoplight”again,afterdisconnectedsuccessfully,

itwillsound“Thephoneisdisconnected”.


