User Manual



Elec-Tech International Co., Ltd.

Product Instruction Manual

Product Name: LED ceiling lamp

Model No.： 546203XX

Manufacturer: Elec-tech International.,Co.Ltd

Address: No.1 Jinfeng Road, Tangjiawan Town, Xiangzhou District, Zhuhai City,

Guangdong Province, P.R. China 519085

Tel：0756-3390990

Fax：0756-3390778

Web：www.electech.com.cn



Content

1.ProductIntroduction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐2

1.1ProductDescription‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐2

1.2SchematicDiagram‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐2

2.ProductFeature‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐2

2.1Productcharacteristic‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐2

2.2Specification‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3

2.3LightDistribution‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐4

3. Methodofapplication‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐4‐7

4.MaintenanceInstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐7

5.Environmentalrequirement‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐8

6.Productcarriedstandard‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐8

7.Packageinstruction‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐8

7.1Packagespecification‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐8

7.2Packagelist‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐8

8．FCC STATEMENT



1.Product Introduction

1.1. Product Description

1 Dimension:Φ408x95mm

Lampplate:SPCCPowderspray,lampcover:PMMAopticaldiffuser

Built‐indrive&firepreventiondrivebox



2 SUM‐LED‐2835



3 Built‐buletoothlouder



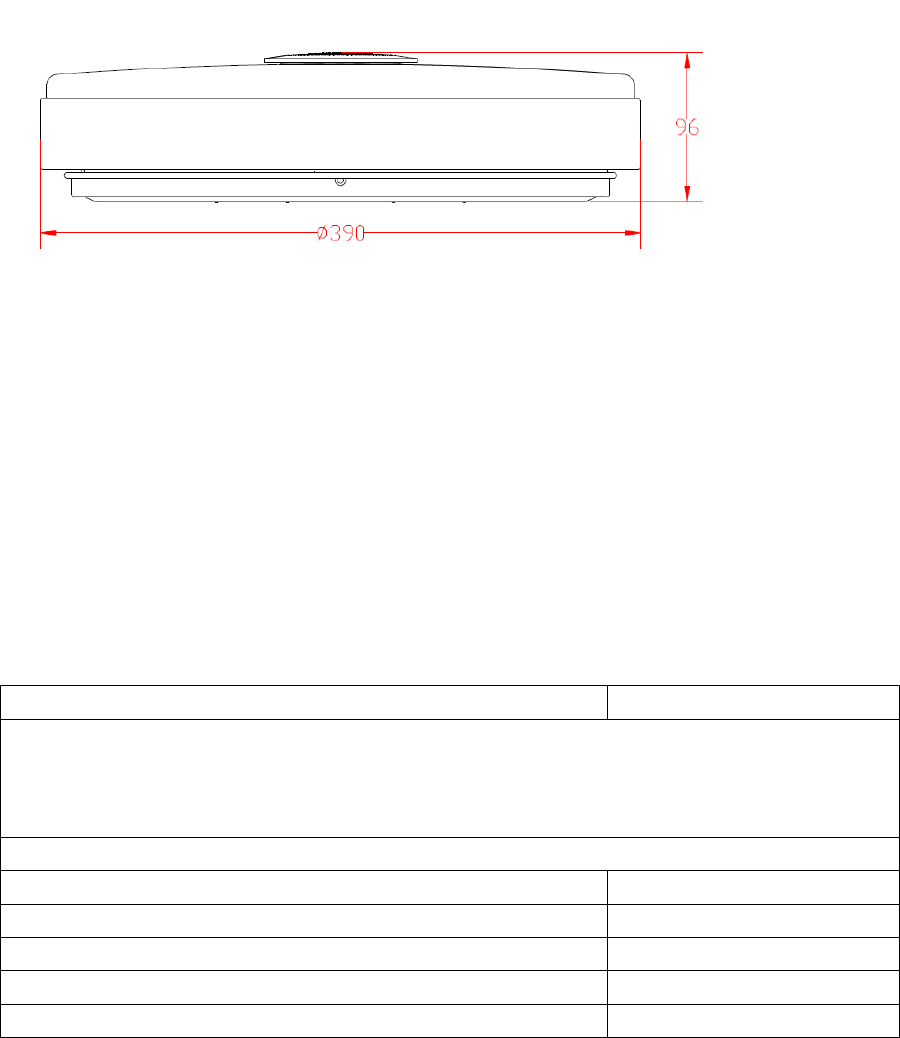

1.2. Product schematic diagram: 

2. Product Featuers:

2.1. Product characteristics ：

a. Long lifetime (above 50,000hrs), 7 times of lifetime of fluorescent lamp:

b. High efficiency, energy saving, environmental friendly (A 14W led lamp can replace a 60 w electric

incandescent lamp , saving 60% of energy )

c. Impact resistant, shock resistant, no UV and IR radiation: high conversion rate and adaptable to severe

environment , universal application to office ,hotel ,supermarket ,school and library ,etc

d. Green Initiative, no harmful gas is emitted, low heat is generated while used, safe and reliable .

e. Authentic and pure light color, no flicker, protecting your eyes while providing better visual enjoyment .

2.2 Specification

ItemParameter

Bluetoothversion:



BT V4.1 Single mode

This report is for BT classic

mode

Electronicratings

RatedPower/W28W

RatedInputvoltage/VAC120V

Frequency/Hz60Hz

RatedPowerefficiency85%

RatedPowerFactor0.8



RatedInputcurrent/A0.2A

RatedI‐THD<20%

WhetherthedimmingYes

RatedR9>15



LEDtype/Qty.SMD2835/30+30PCS



LmRatedLumenOutput

3000K＝1500lm

4000K＝1600lm

5000K＝1500lm

LuxIlluminance(1.5m)/Lux

KCCT3000K/4000K/5000K

RaCRI≥80

BeamAngle≥110

Physicalinformation

MaterialSPCC+PMMA

Operatingtemperature‐20～40℃

Storagetemperature‐40～60℃

IPratingIP20

Luminairedimension(L×W×H)/mmΦ408x95

Netweight

hrsLifetime/hrs50000h

2.3 Light distribution （Light distribution pattern）（Illuminance distribution ）

3 Installation Instructions

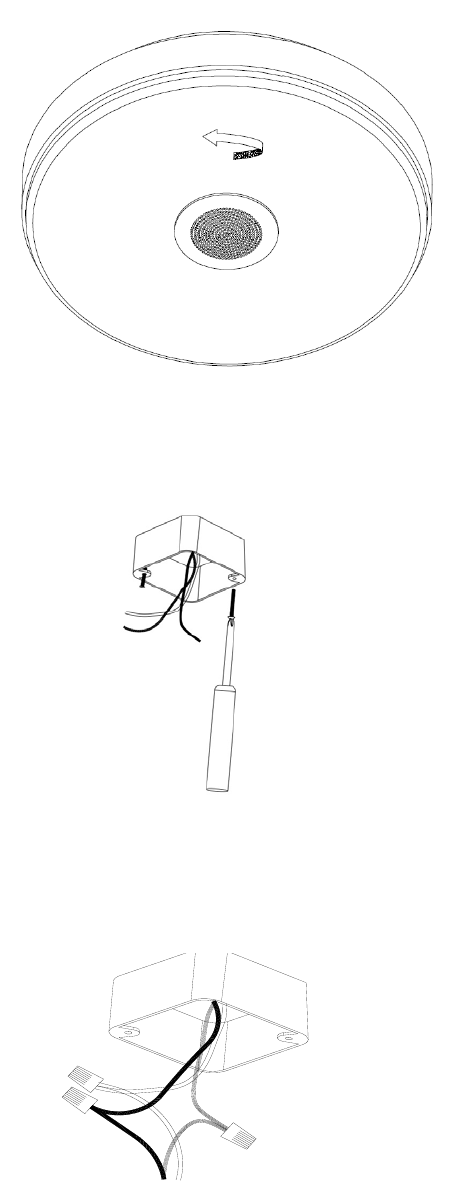

Put the Fixture flat on the desktop, turn the lamp shade counterclockwise , and then take out the lamp

shade 。



Install the electrical box screws（#8-32UNC） in the junction box.

Connect the black color L line(Mark 1) to the L line come out from junction box with the wirecap. Connect the

white color N line(Mark 2) to the N line come out from junction box with the wirecap. Connect green color

ground line(Mark 3) to the ground line come out from junction box with the wirecap.

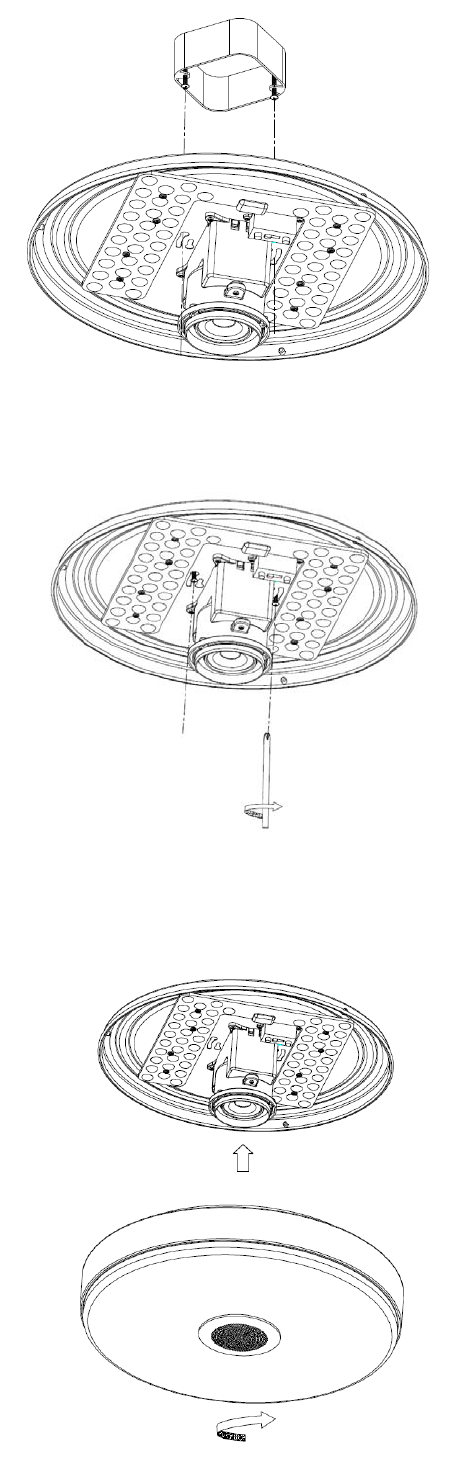

Put the central holes of the fixture plate across the screw of the junction box.



Rotate fixture plateperthe direction of arrow and lock it tightly with the screw lock

confirm the fixture installed firmly, switch on the power , make sure the lamp lights, and then turn

clockwise and mount with shade



4. Maintenance instruction

4.1 Do Not use volatile solvent such as alcohol to clean the troffer.

4.2 Use soft cotton cloth with suds to clean the troffer .

4.3 Non-profecssional Do not attempt to take apart and repair the troffer .

4.4 Please use the constant-current driver exclusively adaptive to the troffer, do not change the driver without

permission .

5．Environment requirement

Operating temperature ：-20～40℃；Storage temperature ：-40～60℃。

6．Product carried standard UL-1598/UL8750/

ENERGY STAR

7． Package Instruction

7.1Packing Specification

7.2Package list

Package size mm

Lamp Qty./box

Net weight

Gross weight

Item Qty.

Ceiling lamp 1

Instruction manual 1

screw 2

Wiring cap 3



8．FCCSTATEMENT

1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and

(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.

2.Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’s

authoritytooperatetheequipment.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15

oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceina

residentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled

andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,

thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause

harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,

theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:

—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

FCCRadiationExposureStatement:

ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.Inorderto

avoidthepossibilityofexceedingtheFCCradiofrequencyexposurelimits,Humanproximitytotheantennashallnot

belessthan20cm(8inches)duringnormaloperation

IndustryCanadaNotice

ThisdevicecomplieswithIndustryCanadalicence‐exemptRSSstandard(s).

1.Operationissubjecttothefollowingtwoconditions:

(1)thisdevicemaynotcauseinterference,and

(2)thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthe

device."

2.Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’s

authoritytooperatetheequipment.

Avisd’IndustrieCanadaLeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradio

exemptsdelicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:

(1)l'appareilnedoitpasproduiredebrouillage,et

(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptible

d'encompromettrelefonctionnement.CetappareilnumériquenedépassepaslesRèlementssurl’interférence

radioparunappareilnumériquedeclasseBstipuléesdanslesRèglementsurl’interférencerediod’industrieCanada
