User ManualCombo Scanner

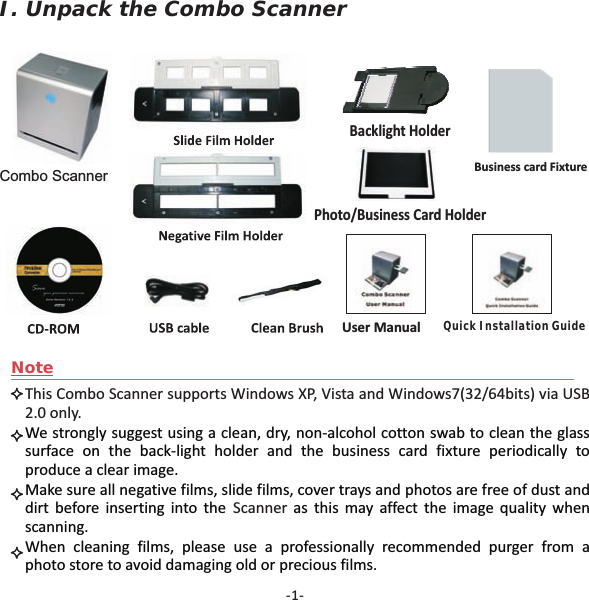

-1-NoteThis Combo Scanner supports Windows XP, Vista and Windows7(32/64bits) via USB2.0 only.ScannerWe strongly suggest using a clean, dry, non-alcohol cotton swab to clean the glasssurface on the back-light holder and the business card fixture periodically toproduce a clear image.Make sure all negative films, slide films, cover trays and photos are free of dust anddirt before inserting into the as this may affect the image quality whenscanning.When cleaning films, please use a professionally recommended purger from aphoto store to avoid damaging old or precious films.I. Unpack the Combo ScannerCombo ScannerUser ManualBacklight HolderPhoto/Business Card HolderQuick Installation GuideBusiness card Fixture
II. Driver Installation1. Turn on the computer2. Insert the installation CD into the CD-ROM drive and the installation CDmenu will appear3. Click the “Installation” button to begin.4. After the installation completed, you can browse the video instructionsand user manual from the CD.5. Click ''Exit'' to quit the driver installation menu.To use the Combo Scanner, please complete the following installation inadvance.-2-scanner Installation

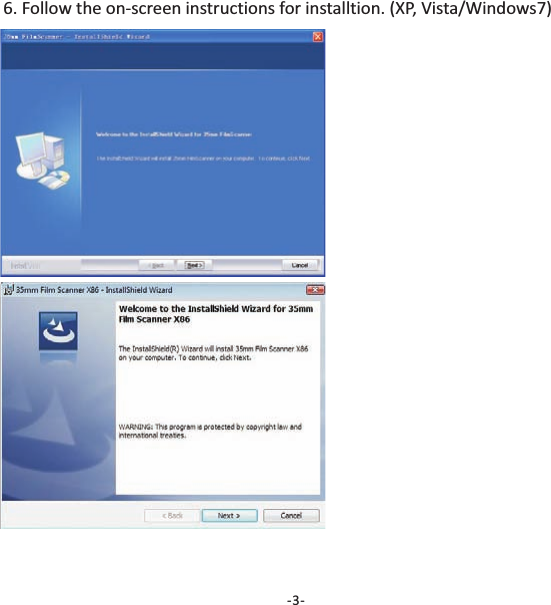

6. Follow the on-screen instructions for installtion. (XP, Vista/Windows7)-3-

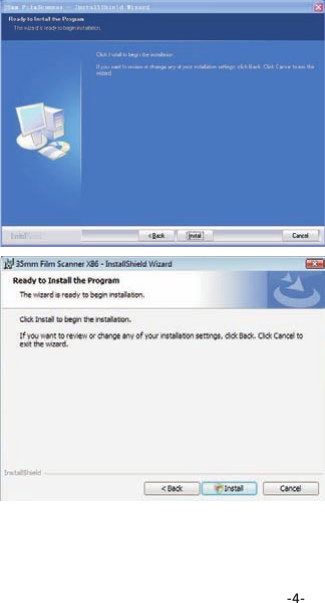

-4-

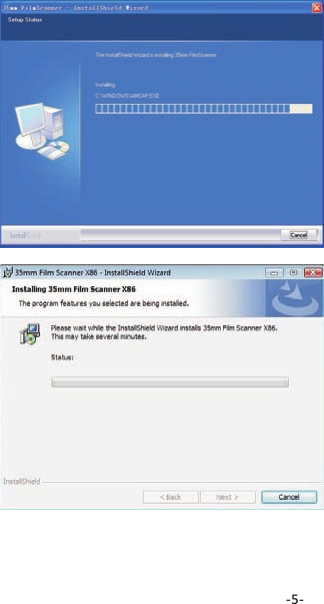

-5-

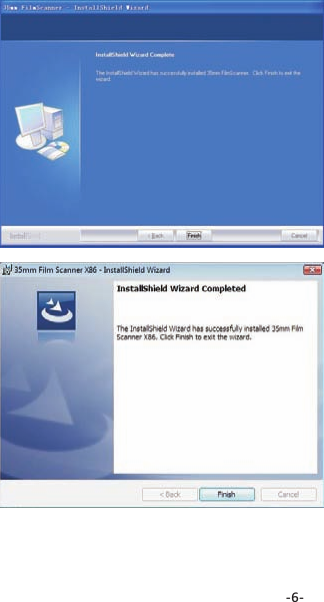

-6-

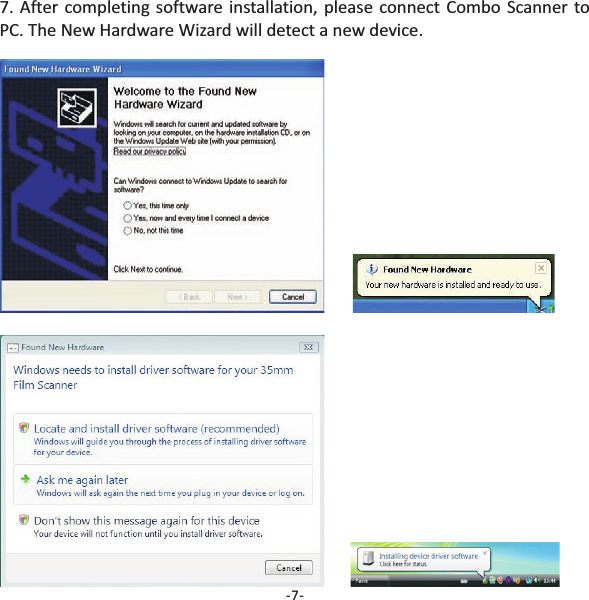

7. After completing software installation, please connect toPC. The New Hardware Wizard will detect a new device.Combo Scanner-7-

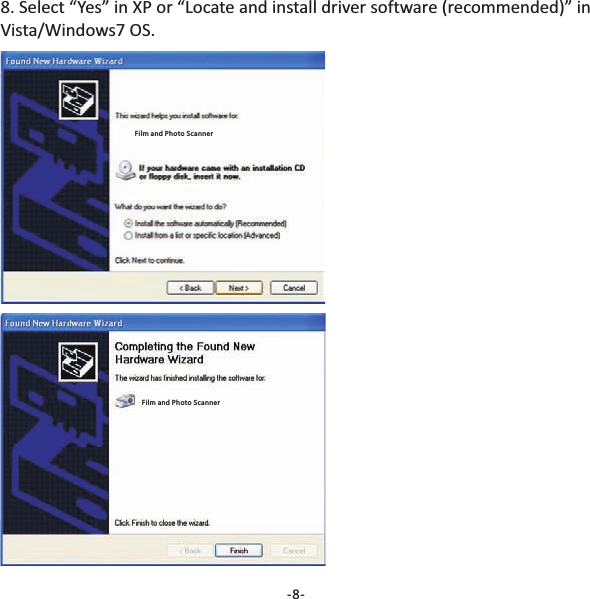

8. Select “Yes” in XP or “Locate and install driver software (recommended)” inVista/Windows7 OS.-8-Film and Photo ScannerFilm and Photo Scanner

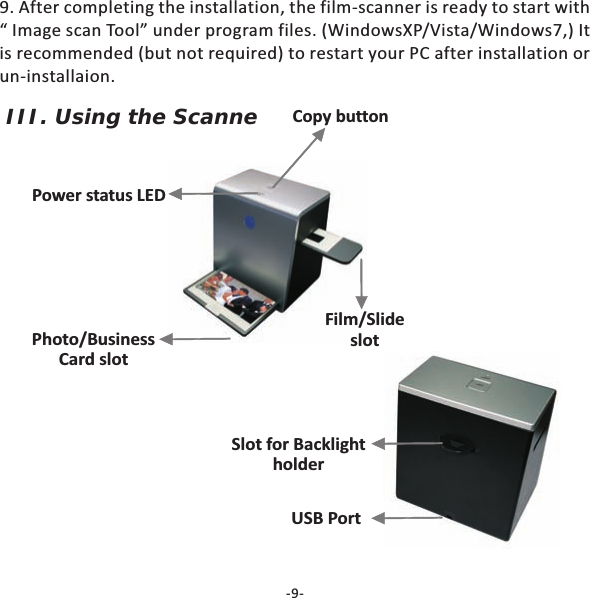

-9-III. Using the ScannePower status LEDCopy buttonPhoto/BusinessCard slotFilm/SlideslotSlot for BacklightholderUSB Port9. After completing the installation, the film-scanner is ready to start with“ Image scan Tool” under program files. (WindowsXP/Vista/Windows7,) Itis recommended (but not required) to restart your PC after installation orun-installaion.

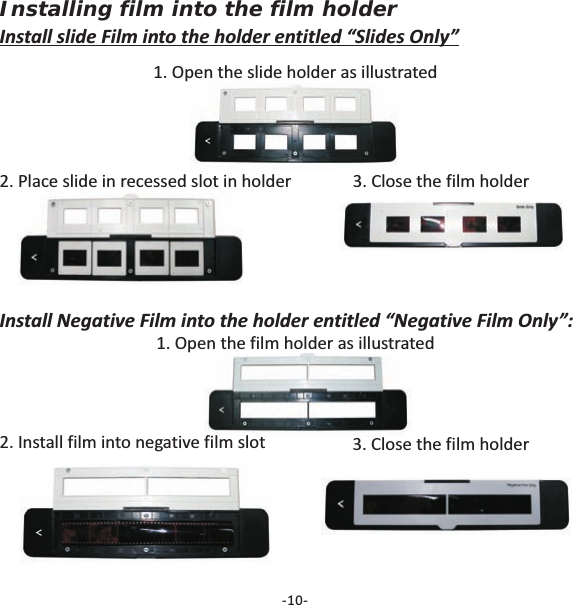

Installing film into the film holderInstall slide Film into the holder entitled “Slides Only”1. Open the slide holder as illustrated2. Place slide in recessed slot in holder 3. Close the film holder-10-Install Negative Film into the holder entitled “Negative Film Only”:1. Open the film holder as illustrated2. Install film into negative film slot 3. Close the film holder
NoteTo avoid a mirror image, follow the serial numbers (from left to right) ontop of film when installing negative film into holder.Figure 1If the image is upside down [see fig.2], the image can be corrected by”Rotate” function in after capture [see fig.3].Image scan ToolFigure 2Figure 3-11-

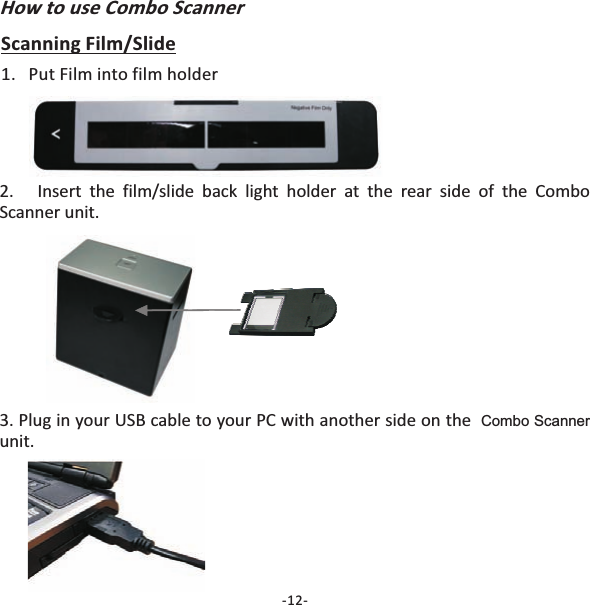

How to use Combo Scanner1. Put Film into film holder2. Insert the film/slide back light holder at the rear side of theunit.ComboScanner-12-Scanning Film/Slide3. Plug in your USB cable to your PC with another side on theunit.Combo Scanner

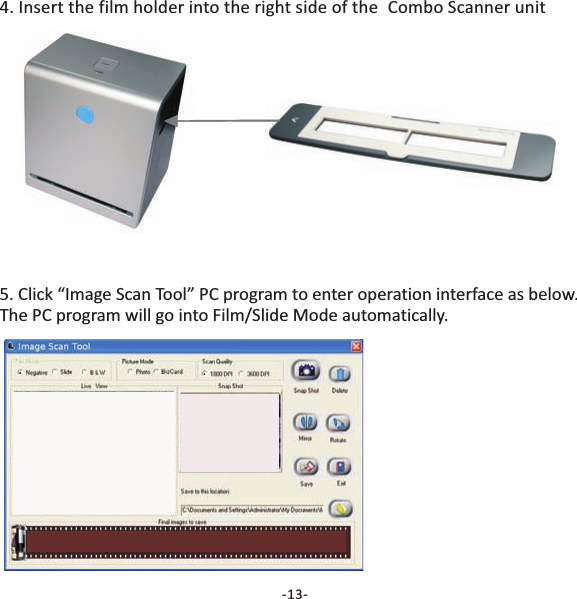

-13-4. Insert the film holder into the right side of the unitCombo Scanner5. Click “Image Scan Tool” PC program to enter operation interface as below.The PC program will go into Film/Slide Mode automatically.

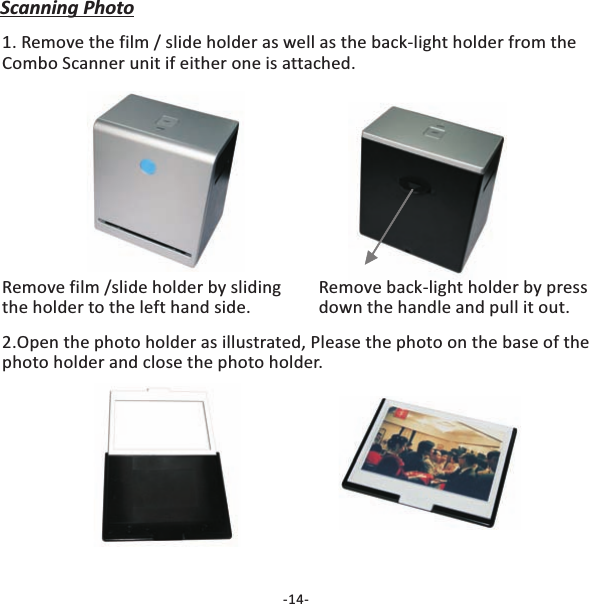

Scanning Photo1. Remove the film / slide holder as well as the back-light holder from theCombo Scanner unit if either one is attached.Remove film /slide holder by slidingthe holder to the left hand side.Remove back-light holder by pressdown the handle and pull it out.2.Open the photo holder as illustrated, Please the photo on the base of thephoto holder and close the photo holder.-14-

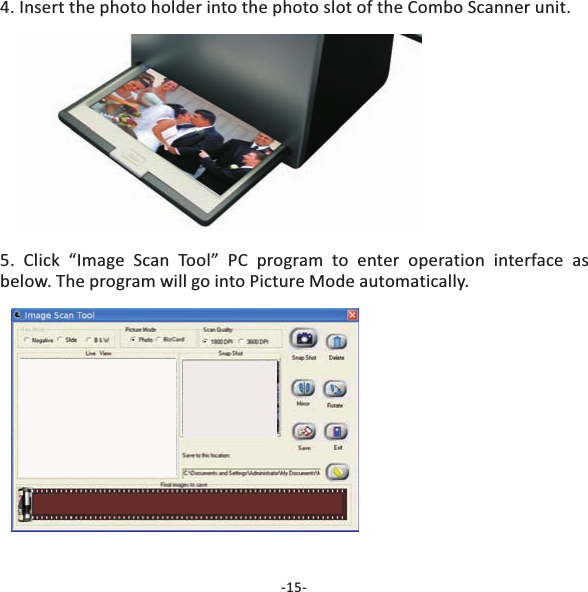

4. Insert the photo holder into the photo slot of the Combo Scanner unit.5. Click “Image Scan Tool” PC program to enter operation interface asbelow. The program will go into Picture Mode automatically.-15-

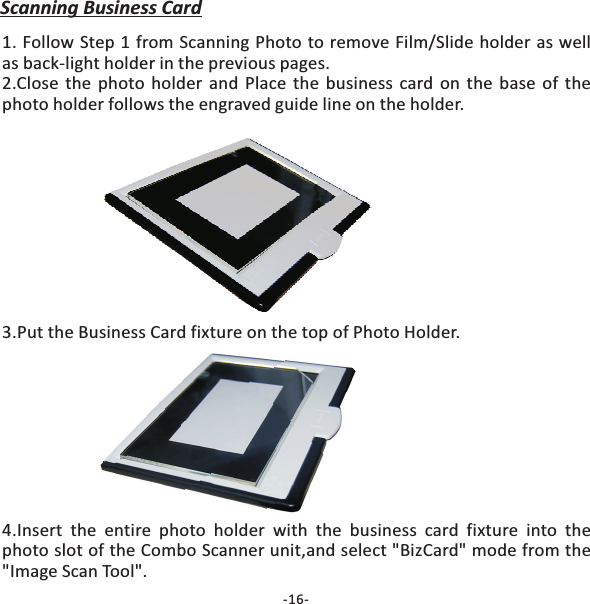

-16-Scanning Business Card1. Follow Step 1 from Scanning Photo to remove Film/Slide holder as wellas back-light holder in the previous pages.2.Close the photo holder and Place the business card on the base of thephoto holder follows the engraved guide line on the holder.3.Put the Business Card fixture on the top of Photo Holder.4.Insert the entire photo holder with the business card fixture into thephoto slot of the unit,and select "BizCard" mode from the"Image Scan Tool".Combo Scanner

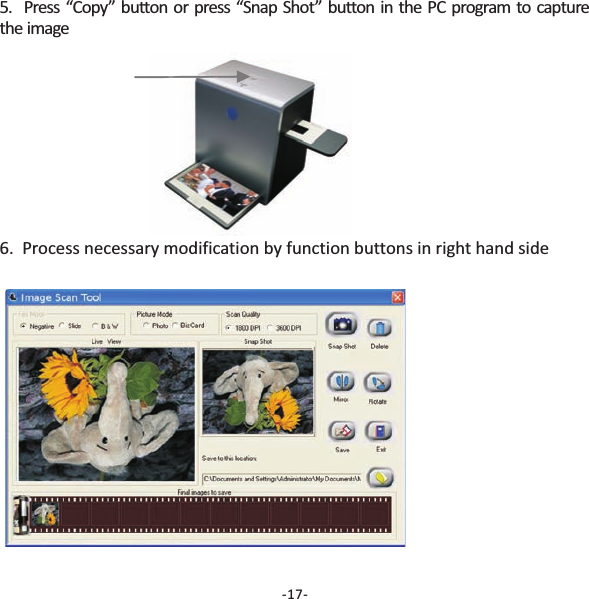

-17-5. Press “Copy” button or press “Snap Shot” button in the PC program to capturethe image6.  Process necessary modification by function buttons in right hand side

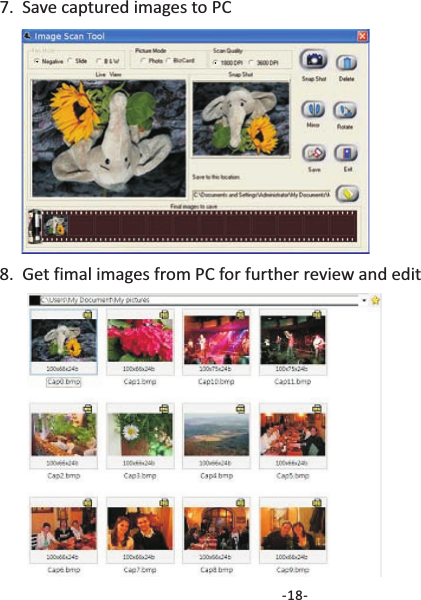

-18-7.  Save captured images to PC8.  Get fimal images from PC for further review and edit

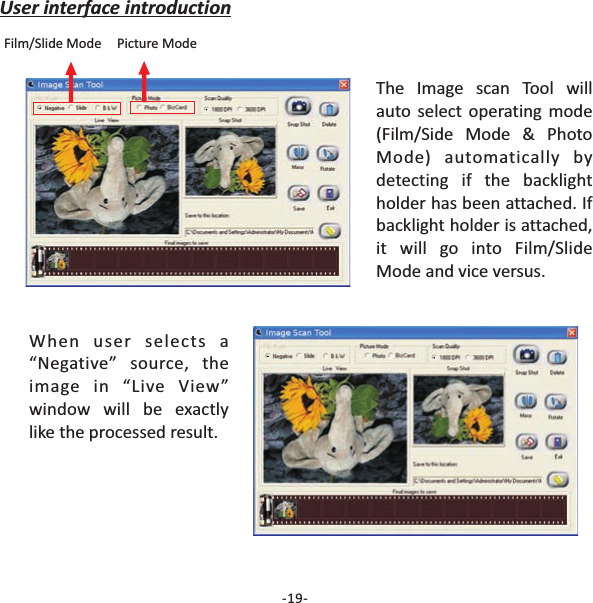

-19-User interface introductionFilm/Slide Mode Picture ModeThe willauto select operating mode(Film/Side Mode & PhotoMode) automatically bydetecting if the backlightholder has been attached. Ifbacklight holder is attached,it will go into Film/SlideMode and vice versus.Image scan ToolWhen user selects a“Negative” source, theimage in “Live View”window will be exactlylike the processed result.

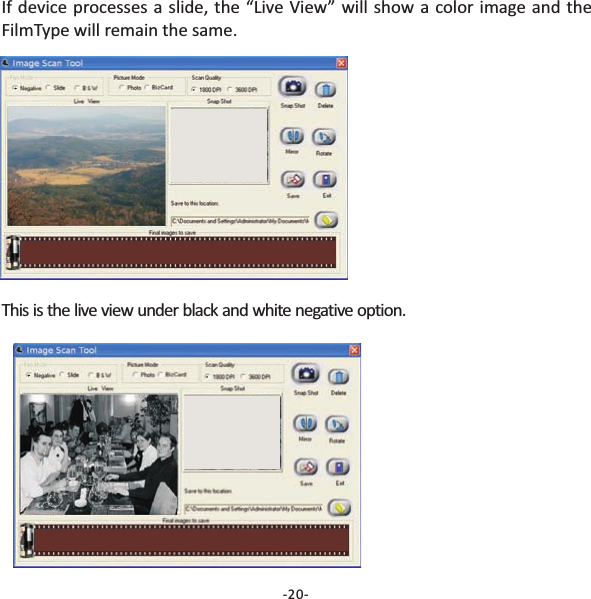

-20-If device processes a slide, the “Live View” will show a color image and theFilmType will remain the same.This is the live view under black and white negative option.

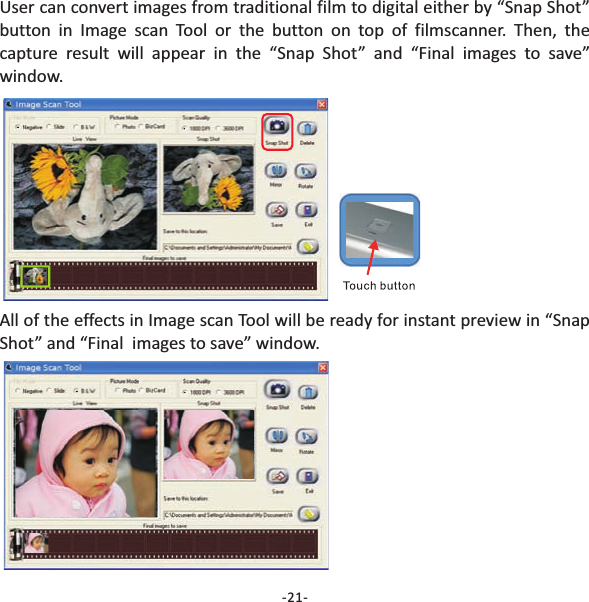

-21-User can convert images from traditional film to digital either by “Snap Shot”button in or the button on top of filmscanner. Then, thecapture result will appear in the “Snap Shot” and “Final images to save”window.Image scan ToolAll of the effects in will be ready for instant preview in “SnapShot” and “Final  images to save” window.Image scan Tool

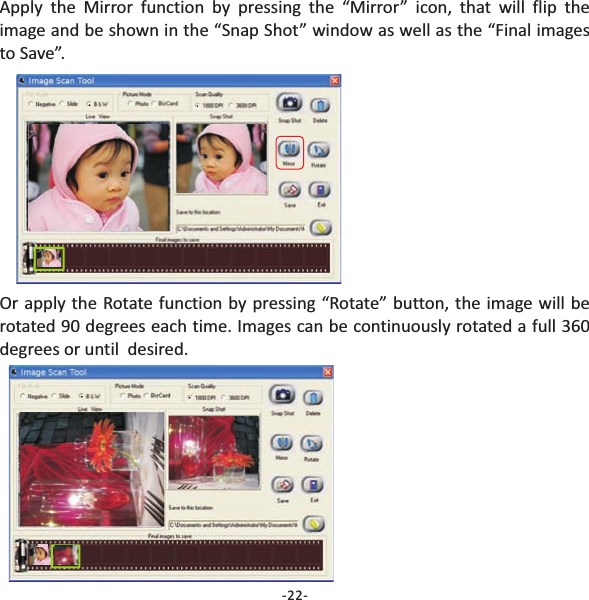

-22-Apply the Mirror function by pressing the “Mirror” icon, that will flip theimage and be shown in the “Snap Shot” window as well as the “Final imagesto Save”.Or apply the Rotate function by pressing “Rotate” button, the image will berotated 90 degrees each time. Images can be continuously rotated a full 360degrees or until  desired.

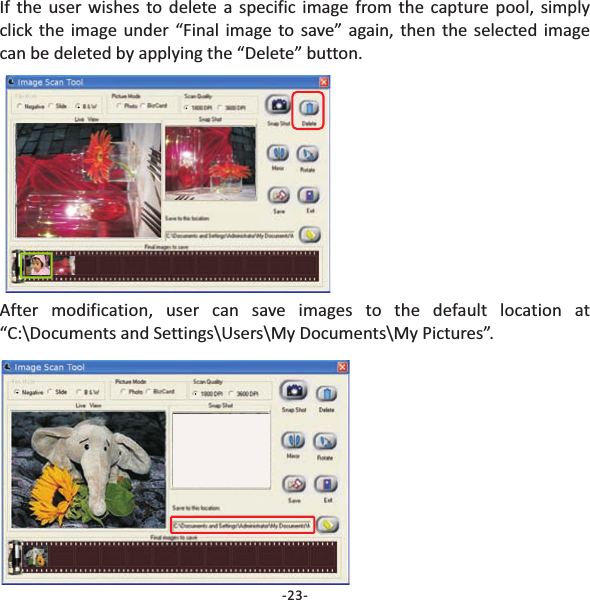

If the user wishes to delete a specific image from the capture pool, simplyclick the image under “Final image to save” again, then the selected imagecan be deleted by applying the “Delete” button.After modification, user can save images to the default location at“C:\Documents and Settings\Users\My Documents\My Pictures”.-23-
Once press “Save” key, all of captures images will be saved into definedlocation. The “final image” saving window shall be empty after press the“Save” button.-24-Or define preferable location for saving captures images by pressing thedirectory button. Another window will pop out for user to select requiredlocation.

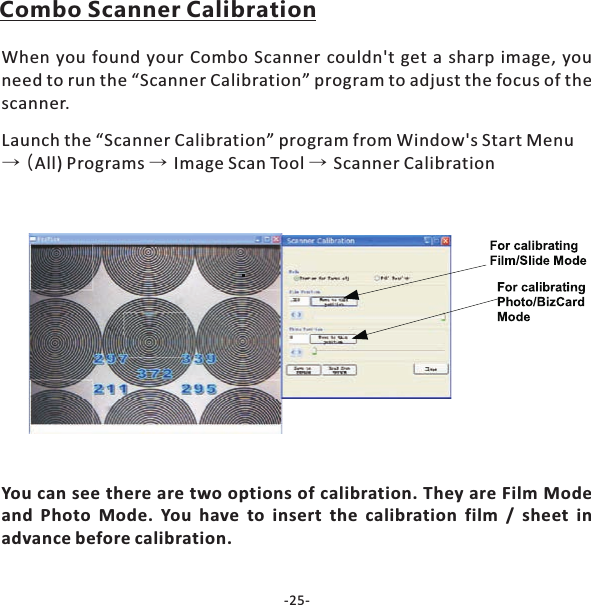

-25-Combo Scanner CalibrationWhen you found your Combo Scanner couldn't get a sharp image, youneed to run the “Scanner Calibration” program to adjust the focus of thescanner.Launch the “Scanner Calibration” program from Window's Start MenuAll) Programs Image Scan Tool Scanner Calibration→( → →You can see there are two options of calibration. They are Film Modeand Photo Mode. You have to insert the calibration film / sheet inadvance before calibration.

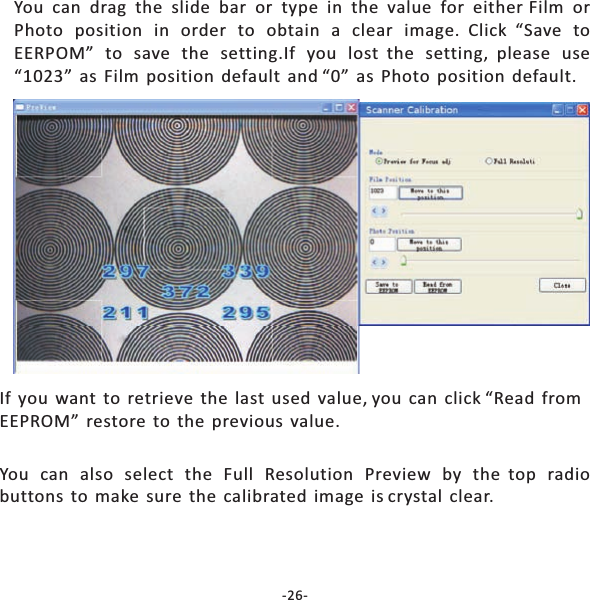

You can drag the slide bar or type in the value for either Film orPhoto position in order to obtain a clear image. Click “Save toEERPOM” to save the setting.If you lost the setting, please use“1023” as Film position default and “0” as Photo position default.If you want to retrieve the last used value, you can click “Read fromEEPROM” restore to the previous value.You can also select the Full Resolution Preview by the top radiobuttons to make sure the calibrated image is crystal clear.-26-

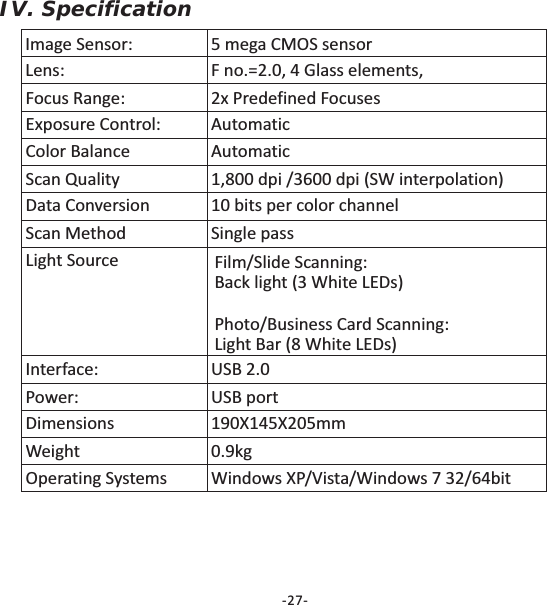

IV. SpecificationImage Sensor: 5 mega CMOS sensorLens: F no.=2.0, 4 Glass elements,Focus Range: 2x Predefined FocusesExposure Control: AutomaticColor Balance AutomaticScan Quality 1,800 dpi /3600 dpi (SW interpolation)Data Conversion 10 bits per color channelScan Method Single passLight Source Film/Slide Scanning:Back light (3 White LEDs)Photo/Business Card Scanning:Light Bar (8 White LEDs)Interface: USB 2.0Power: USB portDimensionsWeight 0.9kgOperating Systems Windows XP/Vista/Windows 7 32/64bit190X145X205mm-27-

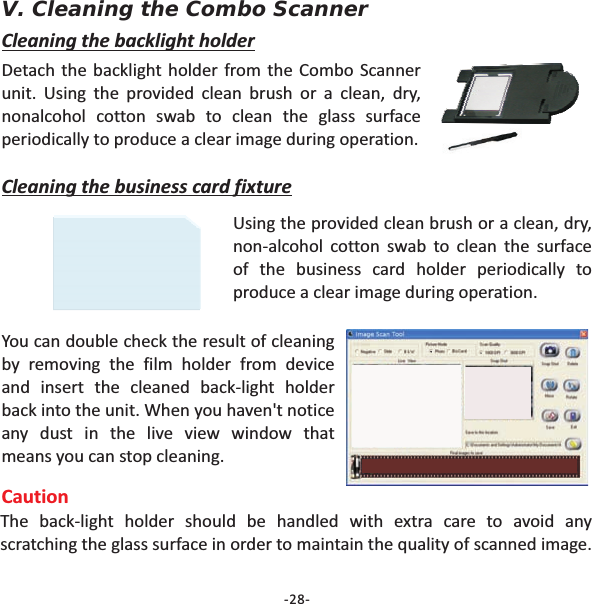

V. Cleaning the Combo ScannerDetach the backlight holder from the Combo Scannerunit. Using the provided clean brush or a clean, dry,nonalcohol cotton swab to clean the glass surfaceperiodically to produce a clear image during operation.Cleaning the backlight holderCleaning the business card fixtureUsing the provided clean brush or a clean, dry,non-alcohol cotton swab to clean the surfaceof the business card holder periodically toproduce a clear image during operation.You can double check the result of cleaningby removing the film holder from deviceand insert the cleaned back-light holderback into the unit. When you haven't noticeany dust in the live view window thatmeans you can stop cleaning.CautionThe back-light holder should be handled with extra care to avoid anyscratching the glass surface in order to maintain the quality of scanned image.-28-

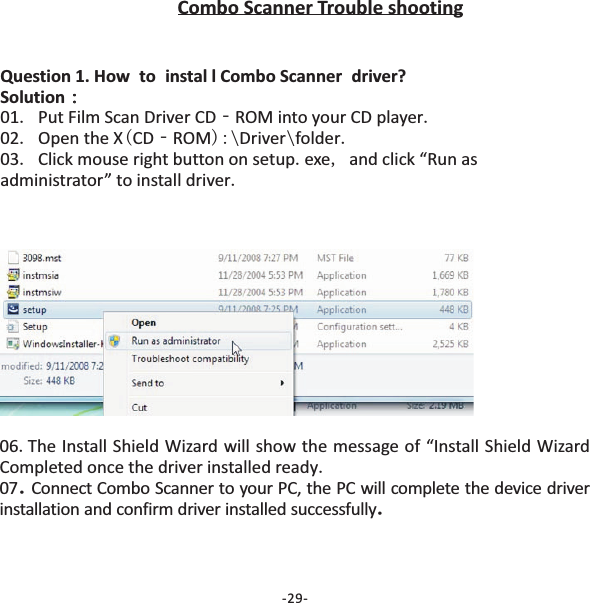

Combo Scanner Trouble shooting.‐.. ( ‐ ):\ \ ...,.Question 1. How to instal l Combo Scanner driver?Solution:01 Put Film Scan Driver CD ROM into your CD player02 Open the X CD ROM Driver folder03 Click mouse right button on setup exe and click “Run asadministrator” to install driver:06 The Install Shield Wizard will show the message of “Install Shield WizardCompleted once the driver installed ready..07 Connect Combo Scanner to your PC, the PC will complete the device driverinstallation and confirm driver installed successfully..-29-

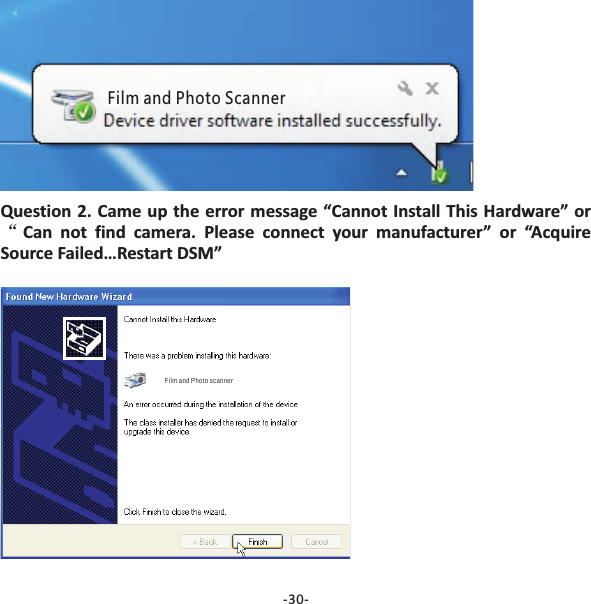

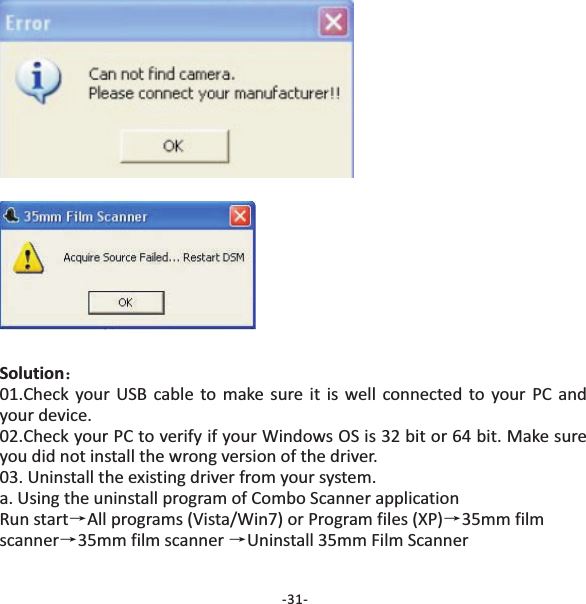

Question 2. Came up the error message “Cannot Install This Hardware” orCan not find camera. Please connect your manufacturer” or “AcquireSource Failed…Restart DSM”“Film and Photo ScannerFilm and Photo scanner-30-
Solution:→→→→01.Check your USB cable to make sure it is well connected to your PC andyour device.02.Check your PC to verify if your Windows OS is 32 bit or 64 bit. Make sureyou did not install the wrong version of the driver.03. Uninstall the existing driver from your system.a. Using the uninstall program of applicationRun start All programs (Vista/Win7) or Program files (XP) 35mm filmscanner 35mm film scanner Uninstall 35mm Film ScannerCombo Scanner-31-

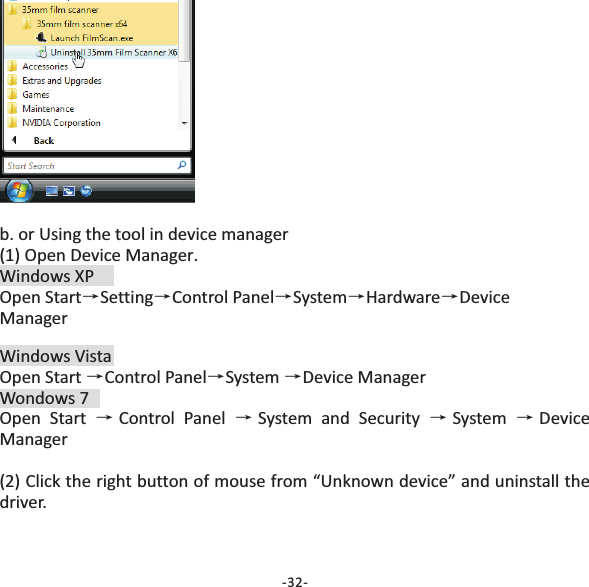

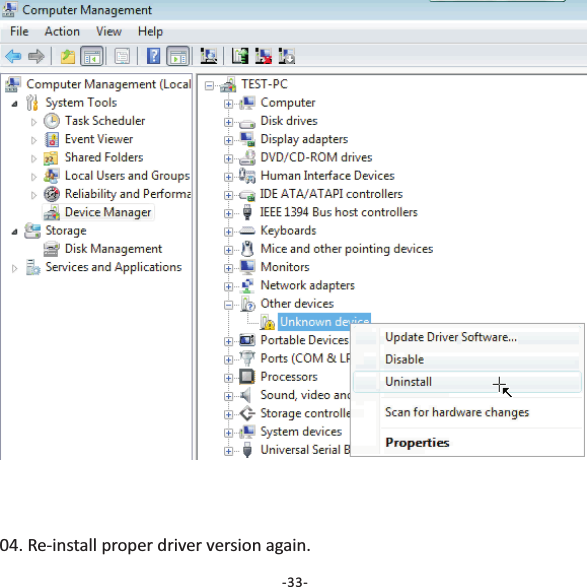

b. or Using the tool in device manager(1) Open Device Manager.Windows XPOpen Start Setting Control Panel System Hardware DeviceManager→→ →→ →Windows VistaOpen Start Control Panel System Device ManagerWondows 7Open Start Control Panel System and Security System DeviceManager(2) Click the right button of mouse from “Unknown device” and uninstall thedriver.→→→→→ →→-32-
04. Re‐install proper driver version again.-33-

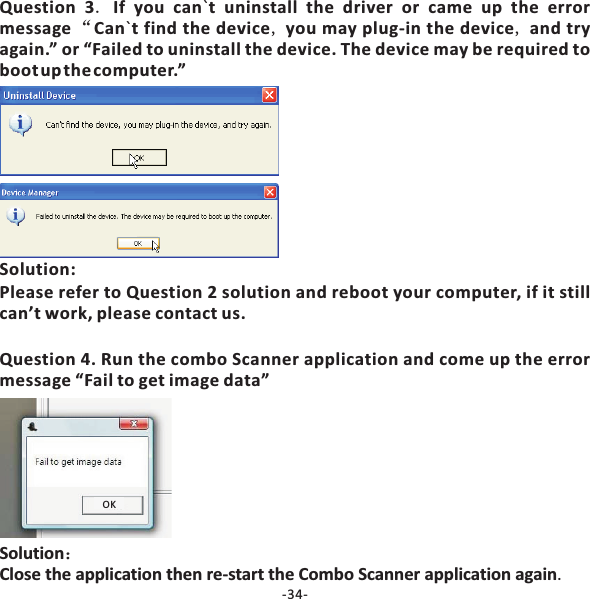

Question 3 If you can t uninstall the driver or came up the errormessage Can t find the device you may plug‐in the device and tryagain.” or “Failed to uninstall the device. The device may be required tobootupthecomputer.”.“, ,``SolutionClose the application then re‐start the Combo Scanner application again:.OKSolution:Please refer to Question 2 solution and reboot your computer, if it stillcan’t work, please contact us.Question 4. Run the combo Scanner application and come up the errormessage “Fail to get image data”-34-

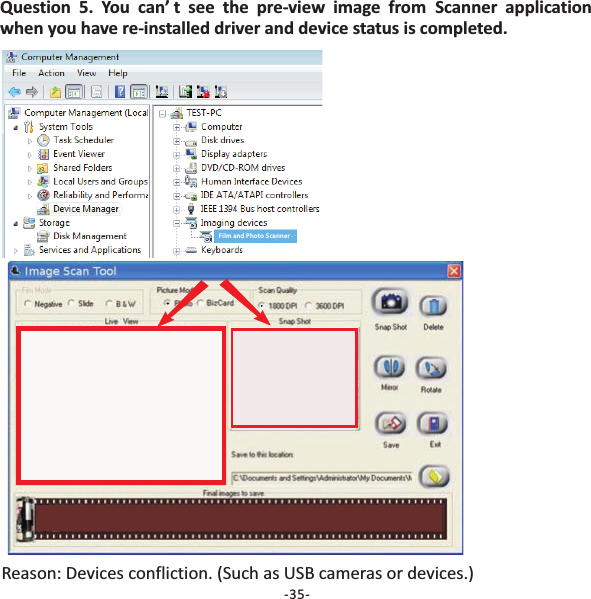

Question 5. You can’ t see the pre‐view image from applicationwhen you have re‐installed driver and device status is completed.ScannerReason: Devices confliction. (Such as USB cameras or devices.)Image scanToolFilm and Photo Scanner-35-

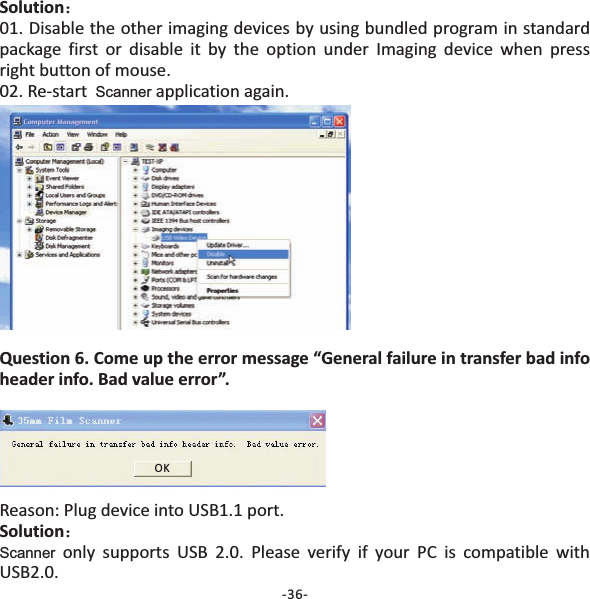

Solution:01. Disable the other imaging devices by using bundled program in standardpackage first or disable it by the option under Imaging device when pressright button of mouse.02. Re‐start application again.ScannerQuestion 6. Come up the error message “General failure in transfer bad infoheader info. Bad value error”.Reason: Plug device into USB1.1 port.only supports USB 2.0. Please verify if your PC is compatible withUSB2.0.Solution:ScannerOK-36-

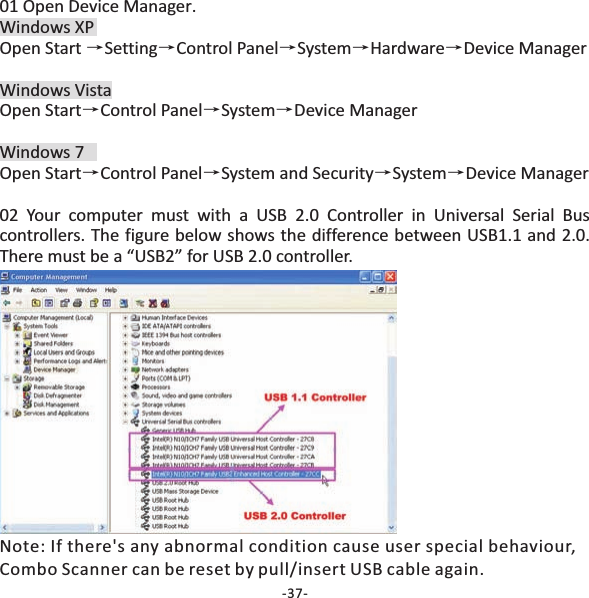

01 Open Device Manager.Windows XPOpen Start Setting Control Panel System Hardware Device ManagerWindows VistaOpen Start Control Panel System Device ManagerWindows 7Open Start Control Panel System and Security System Device Manager02 Your computer must with a USB 2.0 Controller in Universal Serial Buscontrollers. The figure below shows the difference between USB1.1 and 2.0.There must be a “USB2” for USB 2.0 controller.→→ →→ →→→→→→ →→Note: If there's any abnormal condition cause user special behaviour,Combo Scanner can be reset by pull/insert USB cable again.-37-

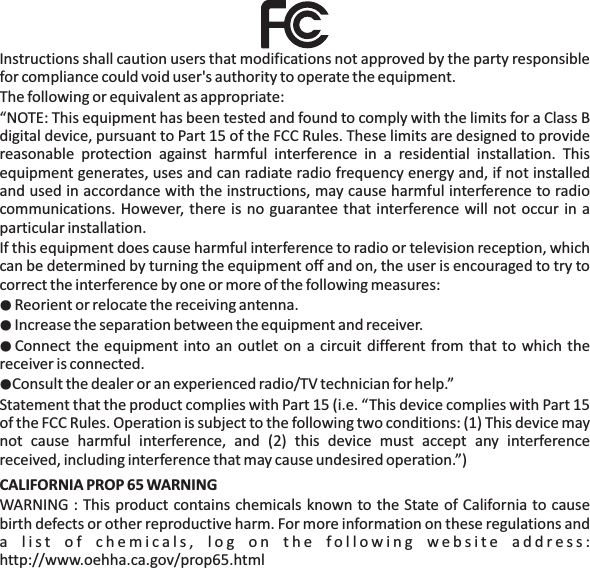

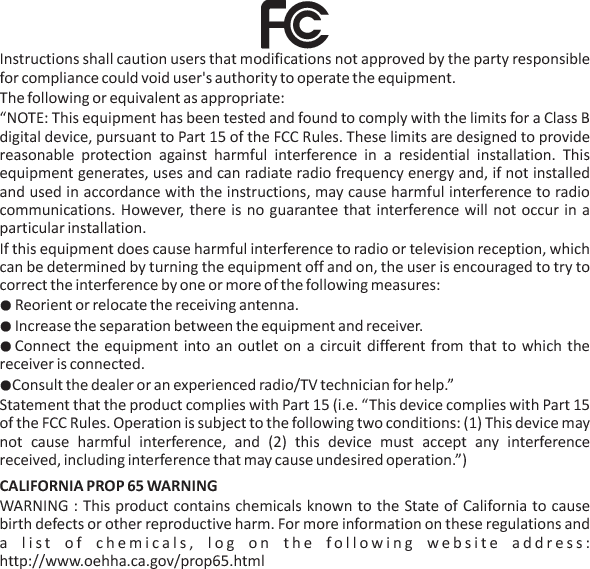

Instructions shall caution users that modifications not approved by the party responsiblefor compliance could void user's authority to operate the equipment.The following or equivalent as appropriate:“NOTE: This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. Thisequipment generates, uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in aparticular installation.If this equipment does cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.Consult the dealer or an experienced radio/TV technician for help.”Statement that the product complies with Part 15 (i.e. “This device complies with Part 15of the FCC Rules. Operation is subject to the following two conditions: (1) This device maynot cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation.”)WARNING : This product contains chemicals known to the State of California to causebirth defects or other reproductive harm. For more information on these regulations anda list of chemicals, log on the following website address:http://www.oehha.ca.gov/prop65.html●●●●CALIFORNIA PROP 65 WARNING
