EUROCAVE ORIGINE1 Temperature Controller Pair User Manual Origine notice 2 GB

EUROCAVE Temperature Controller Pair Origine notice 2 GB

Contents

Manual 2

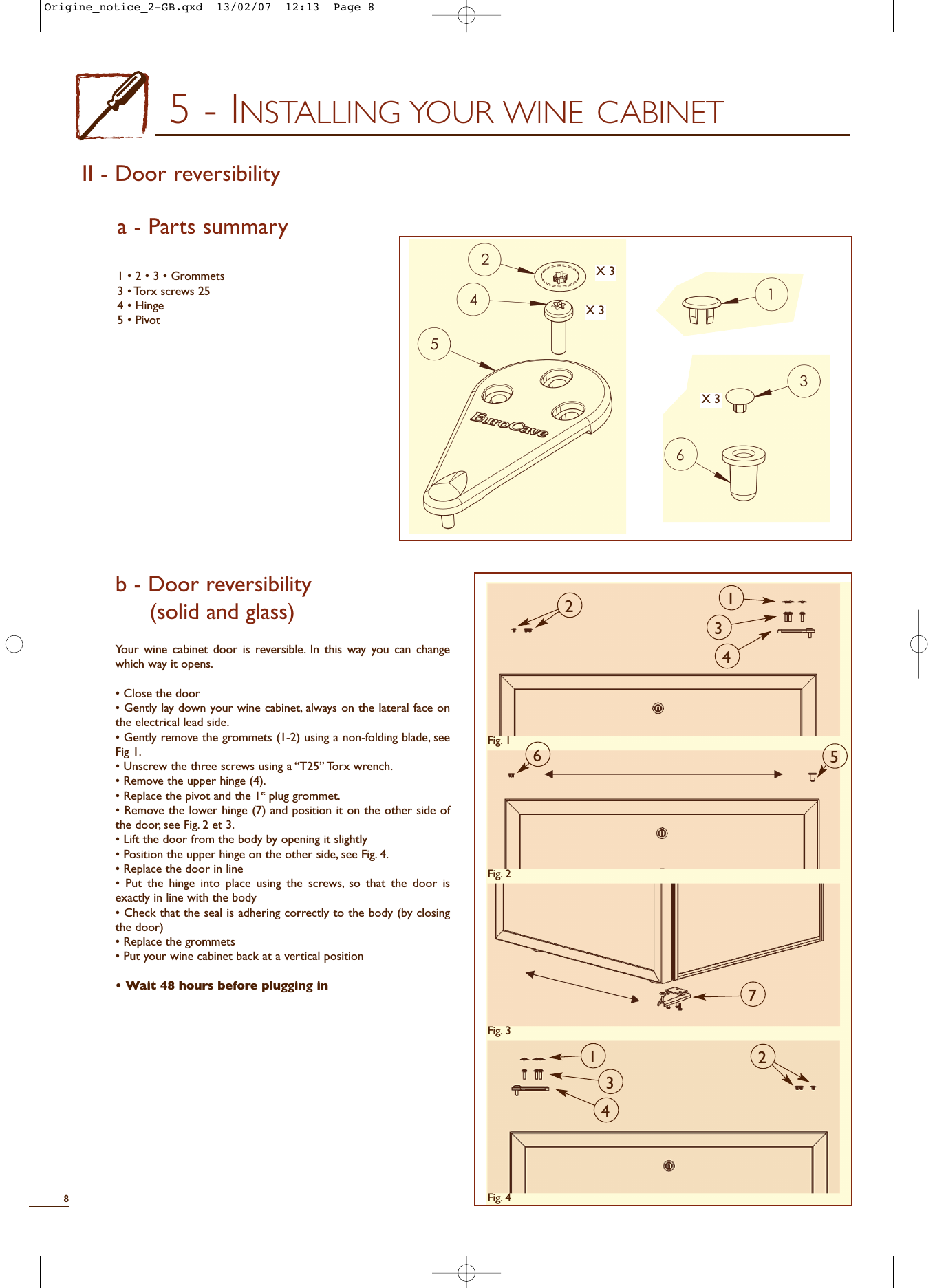

5 - INSTALLING YOUR WINE CABINETb - Door reversibility (solid and glass)Your wine cabinet door is reversible. In this way you can changewhich way it opens.• Close the door• Gently lay down your wine cabinet, always on the lateral face onthe electrical lead side.• Gently remove the grommets (1-2) using a non-folding blade, seeFig 1.• Unscrew the three screws using a “T25” Torx wrench.• Remove the upper hinge (4).• Replace the pivot and the 1st plug grommet.• Remove the lower hinge (7) and position it on the other side ofthe door, see Fig. 2 et 3.• Lift the door from the body by opening it slightly• Position the upper hinge on the other side, see Fig. 4.• Replace the door in line• Put the hinge into place using the screws, so that the door isexactly in line with the body• Check that the seal is adhering correctly to the body (by closingthe door) • Replace the grommets• Put your wine cabinet back at a vertical position• Wait 48 hours before plugging in81 • 2 • 3 • Grommets3 • Torx screws 254 • Hinge5 • PivotII - Door reversibility a - Parts summaryX 3X 3X 326751342431Fig. 1Fig. 2Fig. 3Fig. 4Origine_notice_2-GB.qxd 13/02/07 12:13 Page 8

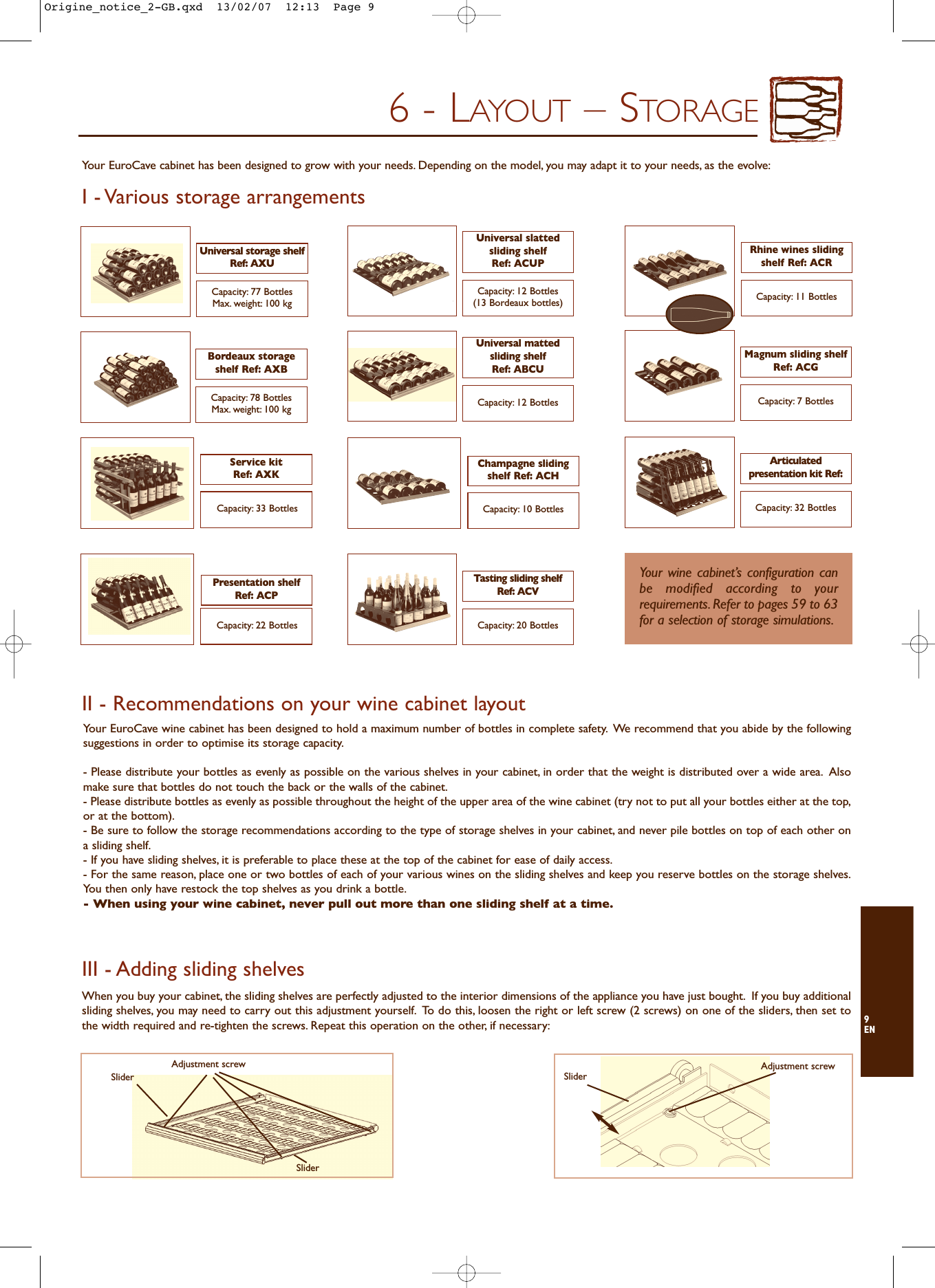

9EN6 - LAYOUT – STORAGEI - Various storage arrangementsCapacity: 7 BottlesMagnum sliding shelfRef: ACGCapacity: 32 BottlesArticulatedpresentation kit Ref:Capacity: 77 BottlesMax. weight: 100 kgCapacity: 78 BottlesMax. weight: 100 kgUniversal storage shelfRef: AXUBordeaux storageshelf Ref: AXBCapacity: 12 Bottles(13 Bordeaux bottles)Universal slatted sliding shelfRef: ACUPCapacity: 12 BottlesUniversal mattedsliding shelfRef: ABCUCapacity: 11 BottlesRhine wines slidingshelf Ref: ACRCapacity: 33 BottlesService kitRef: AXKCapacity: 10 BottlesChampagne slidingshelf Ref: ACHCapacity: 22 BottlesPresentation shelfRef: ACPCapacity: 20 BottlesTasting sliding shelfRef: ACVYour wine cabinet’s configuration canbe modified according to yourrequirements. Refer to pages 59 to 63for a selection of storage simulations.III - Adding sliding shelves II - Recommendations on your wine cabinet layoutYour EuroCave wine cabinet has been designed to hold a maximum number of bottles in complete safety. We recommend that you abide by the followingsuggestions in order to optimise its storage capacity.- Please distribute your bottles as evenly as possible on the various shelves in your cabinet, in order that the weight is distributed over a wide area. Alsomake sure that bottles do not touch the back or the walls of the cabinet.- Please distribute bottles as evenly as possible throughout the height of the upper area of the wine cabinet (try not to put all your bottles either at the top,or at the bottom).- Be sure to follow the storage recommendations according to the type of storage shelves in your cabinet, and never pile bottles on top of each other ona sliding shelf.- If you have sliding shelves, it is preferable to place these at the top of the cabinet for ease of daily access.- For the same reason, place one or two bottles of each of your various wines on the sliding shelves and keep you reserve bottles on the storage shelves.You then only have restock the top shelves as you drink a bottle.- When using your wine cabinet, never pull out more than one sliding shelf at a time.When you buy your cabinet, the sliding shelves are perfectly adjusted to the interior dimensions of the appliance you have just bought. If you buy additionalsliding shelves, you may need to carry out this adjustment yourself. To do this, loosen the right or left screw (2 screws) on one of the sliders, then set tothe width required and re-tighten the screws. Repeat this operation on the other, if necessary:Adjustment screwSliderSliderAdjustment screwSliderYour EuroCave cabinet has been designed to grow with your needs. Depending on the model, you may adapt it to your needs, as the evolve:Origine_notice_2-GB.qxd 13/02/07 12:13 Page 9

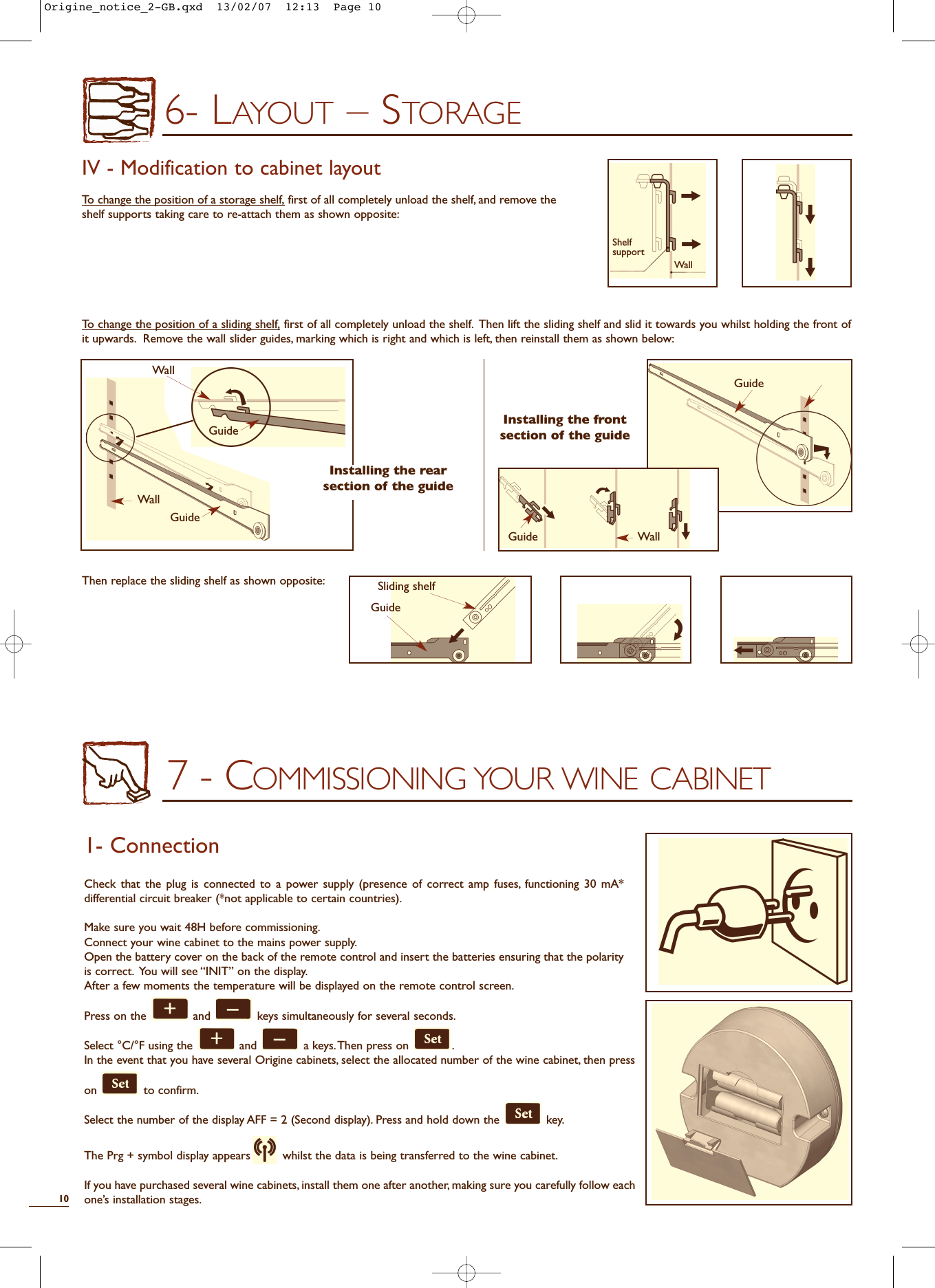

7 - COMMISSIONING YOUR WINE CABINET1- ConnectionCheck that the plug is connected to a power supply (presence of correct amp fuses, functioning 30 mA*differential circuit breaker (*not applicable to certain countries).Make sure you wait 48H before commissioning.Connect your wine cabinet to the mains power supply.Open the battery cover on the back of the remote control and insert the batteries ensuring that the polarityis correct. You will see “INIT” on the display.After a few moments the temperature will be displayed on the remote control screen.Press on the and keys simultaneously for several seconds.Select °C/°F using the and a keys.Then press on .In the event that you have several Origine cabinets, select the allocated number of the wine cabinet, then presson to confirm.Select the number of the display AFF = 2 (Second display). Press and hold down the key.The Prg + symbol display appears whilst the data is being transferred to the wine cabinet.If you have purchased several wine cabinets,install them one after another, making sure you carefully follow eachone’s installation stages.106- LAYOUT – STORAGEIV - Modification to cabinet layoutTo change the position of a storage shelf, first of all completely unload the shelf, and remove theshelf supports taking care to re-attach them as shown opposite:To change the position of a sliding shelf, first of all completely unload the shelf. Then lift the sliding shelf and slid it towards you whilst holding the front ofit upwards. Remove the wall slider guides, marking which is right and which is left, then reinstall them as shown below:Then replace the sliding shelf as shown opposite:Installing the frontsection of the guideInstalling the rearsection of the guideGuideWallGuideWallGuideWallGuideGuideSliding shelfWallShelfsupportOrigine_notice_2-GB.qxd 13/02/07 12:13 Page 10

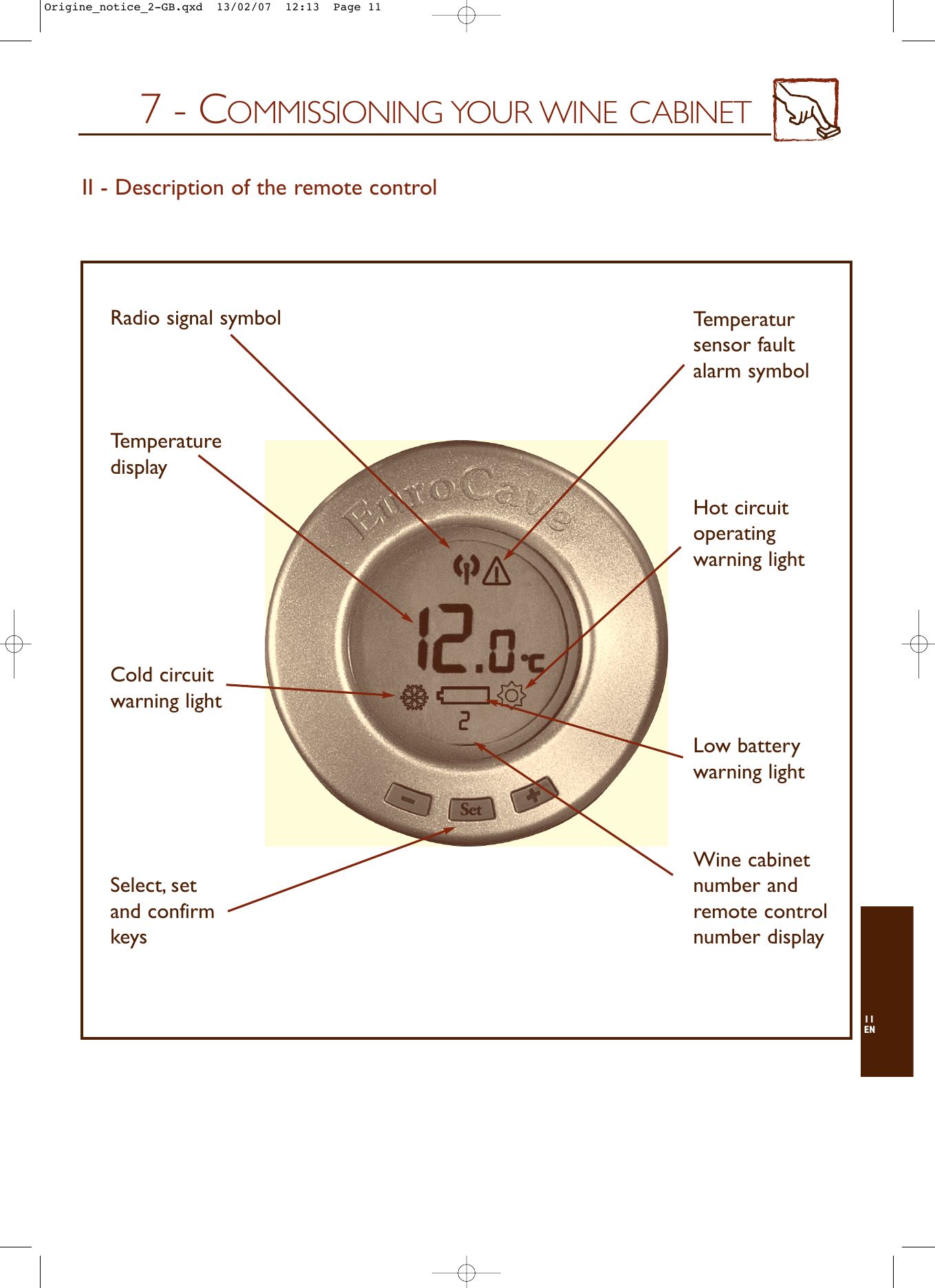

11EN7 - COMMISSIONING YOUR WINE CABINETII - Description of the remote controlRadio signal symbolSelect, set and confirm keysTemperatursensor fault alarm symbolHot circuitoperating warning lightLow batterywarning lightWine cabinet number and remote control number displayTemperature displayCold circuitwarning lightOrigine_notice_2-GB.qxd 13/02/07 12:13 Page 11

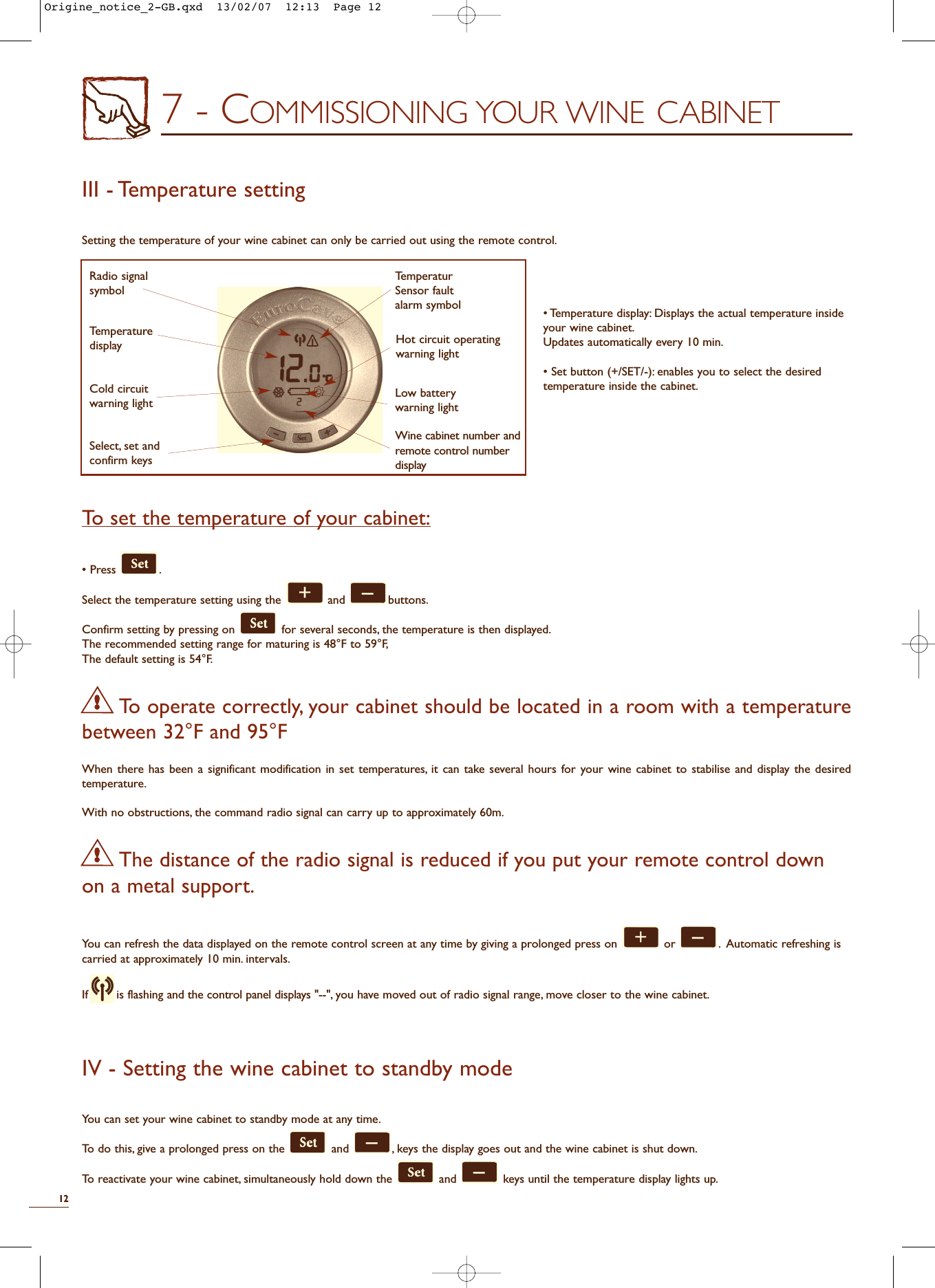

III - Temperature settingSetting the temperature of your wine cabinet can only be carried out using the remote control.• Temperature display: Displays the actual temperature insideyour wine cabinet.Updates automatically every 10 min.• Set button (+/SET/-): enables you to select the desiredtemperature inside the cabinet.To set the temperature of your cabinet:• Press .Select the temperature setting using the and buttons.Confirm setting by pressing on for several seconds, the temperature is then displayed.The recommended setting range for maturing is 48°F to 59°F,The default setting is 54°F.To operate correctly, your cabinet should be located in a room with a temperaturebetween 32°F and 95°FWhen there has been a significant modification in set temperatures, it can take several hours for your wine cabinet to stabilise and display the desiredtemperature.With no obstructions, the command radio signal can carry up to approximately 60m.The distance of the radio signal is reduced if you put your remote control downon a metal support.You can refresh the data displayed on the remote control screen at any time by giving a prolonged press on or . Automatic refreshing iscarried at approximately 10 min. intervals.If is flashing and the control panel displays "--", you have moved out of radio signal range, move closer to the wine cabinet.IV - Setting the wine cabinet to standby modeYou can set your wine cabinet to standby mode at any time.To do this, give a prolonged press on the and , keys the display goes out and the wine cabinet is shut down.To reactivate your wine cabinet, simultaneously hold down the and keys until the temperature display lights up.7 - COMMISSIONING YOUR WINE CABINETRadio signalsymbol TemperaturedisplayCold circuit warning lightSelect, set and confirm keysTemperaturSensor fault alarm symbolHot circuit operatingwarning lightLow battery warning lightWine cabinet number andremote control number display12Origine_notice_2-GB.qxd 13/02/07 12:13 Page 12

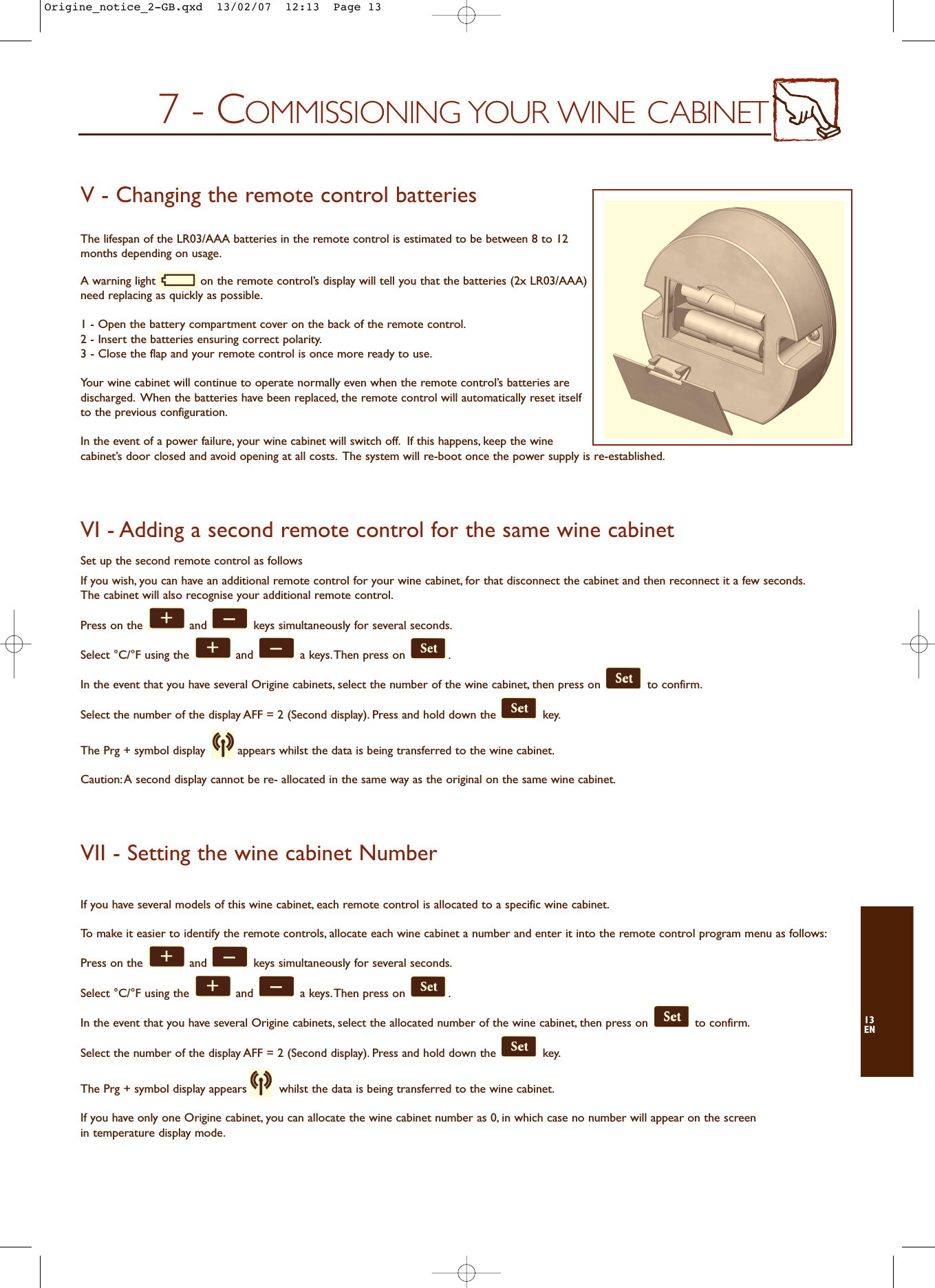

13EN7 - COMMISSIONING YOUR WINE CABINETV - Changing the remote control batteriesThe lifespan of the LR03/AAA batteries in the remote control is estimated to be between 8 to 12months depending on usage.A warning light on the remote control’s display will tell you that the batteries (2x LR03/AAA)need replacing as quickly as possible.1 - Open the battery compartment cover on the back of the remote control.2 - Insert the batteries ensuring correct polarity.3 - Close the flap and your remote control is once more ready to use.Your wine cabinet will continue to operate normally even when the remote control’s batteries aredischarged. When the batteries have been replaced, the remote control will automatically reset itselfto the previous configuration.In the event of a power failure, your wine cabinet will switch off. If this happens, keep the winecabinet’s door closed and avoid opening at all costs. The system will re-boot once the power supply is re-established.VI - Adding a second remote control for the same wine cabinetSet up the second remote control as followsIf you wish, you can have an additional remote control for your wine cabinet, for that disconnect the cabinet and then reconnect it a few seconds.The cabinet will also recognise your additional remote control.Press on the and keys simultaneously for several seconds.Select °C/°F using the and a keys.Then press on .In the event that you have several Origine cabinets, select the number of the wine cabinet, then press on to confirm.Select the number of the display AFF = 2 (Second display). Press and hold down the key.The Prg + symbol display appears whilst the data is being transferred to the wine cabinet.Caution:A second display cannot be re- allocated in the same way as the original on the same wine cabinet.VII - Setting the wine cabinet NumberIf you have several models of this wine cabinet, each remote control is allocated to a specific wine cabinet.To make it easier to identify the remote controls, allocate each wine cabinet a number and enter it into the remote control program menu as follows:Press on the and keys simultaneously for several seconds.Select °C/°F using the and a keys.Then press on .In the event that you have several Origine cabinets, select the allocated number of the wine cabinet, then press on to confirm.Select the number of the display AFF = 2 (Second display). Press and hold down the key.The Prg + symbol display appears whilst the data is being transferred to the wine cabinet.If you have only one Origine cabinet, you can allocate the wine cabinet number as 0, in which case no number will appear on the screen in temperature display mode.Origine_notice_2-GB.qxd 13/02/07 12:13 Page 13

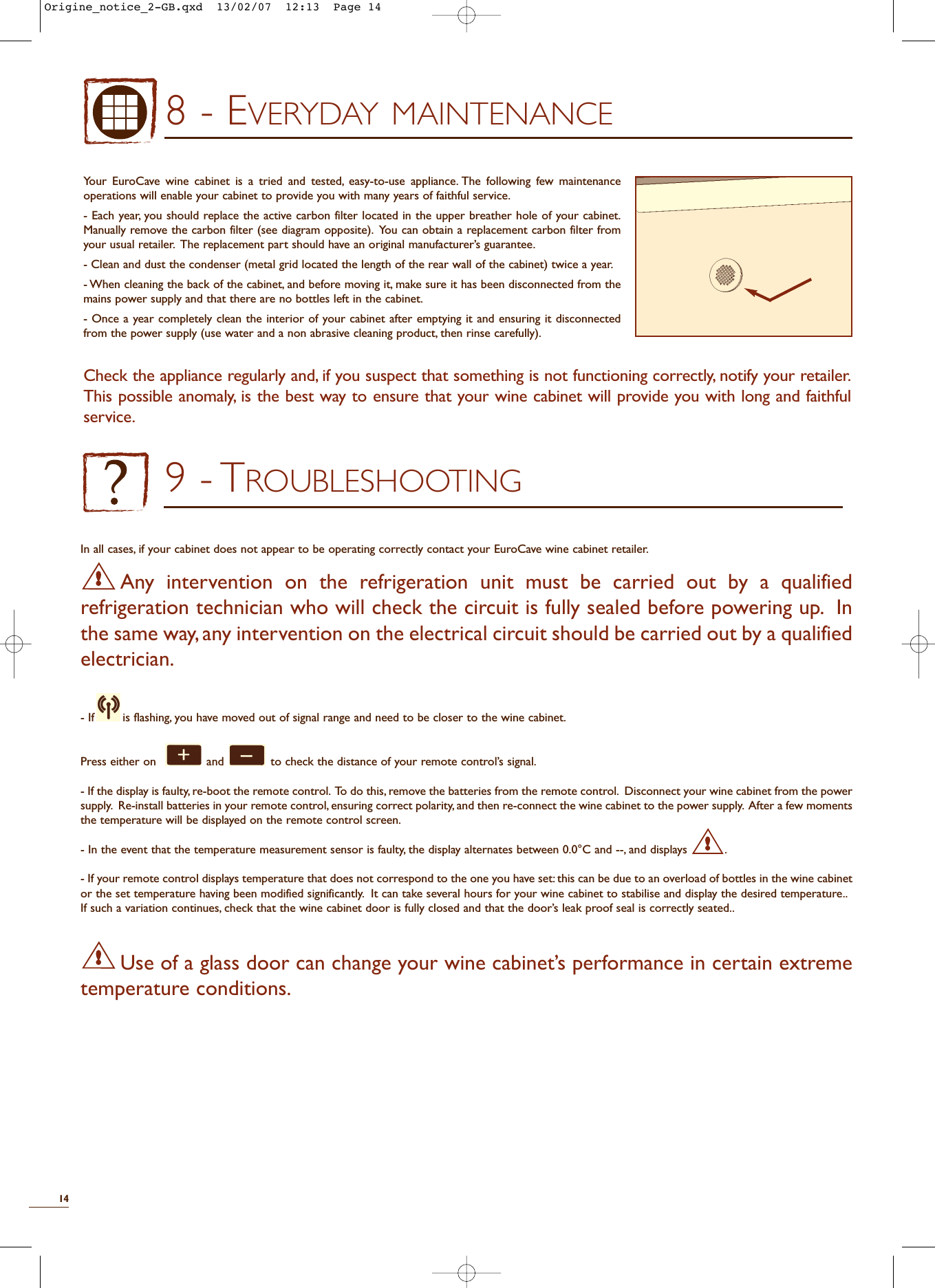

14Your EuroCave wine cabinet is a tried and tested, easy-to-use appliance. The following few maintenanceoperations will enable your cabinet to provide you with many years of faithful service.- Each year, you should replace the active carbon filter located in the upper breather hole of your cabinet.Manually remove the carbon filter (see diagram opposite). You can obtain a replacement carbon filter fromyour usual retailer. The replacement part should have an original manufacturer’s guarantee.- Clean and dust the condenser (metal grid located the length of the rear wall of the cabinet) twice a year.- When cleaning the back of the cabinet, and before moving it, make sure it has been disconnected from themains power supply and that there are no bottles left in the cabinet.- Once a year completely clean the interior of your cabinet after emptying it and ensuring it disconnectedfrom the power supply (use water and a non abrasive cleaning product, then rinse carefully).Check the appliance regularly and, if you suspect that something is not functioning correctly, notify your retailer.This possible anomaly, is the best way to ensure that your wine cabinet will provide you with long and faithfulservice.9 - TROUBLESHOOTING8 - EVERYDAY MAINTENANCEIn all cases, if your cabinet does not appear to be operating correctly contact your EuroCave wine cabinet retailer.Any intervention on the refrigeration unit must be carried out by a qualifiedrefrigeration technician who will check the circuit is fully sealed before powering up. Inthe same way,any intervention on the electrical circuit should be carried out by a qualifiedelectrician.- If is flashing, you have moved out of signal range and need to be closer to the wine cabinet.Press either on and to check the distance of your remote control’s signal.- If the display is faulty, re-boot the remote control. To do this, remove the batteries from the remote control. Disconnect your wine cabinet from the powersupply. Re-install batteries in your remote control, ensuring correct polarity, and then re-connect the wine cabinet to the power supply. After a few momentsthe temperature will be displayed on the remote control screen.- In the event that the temperature measurement sensor is faulty, the display alternates between 0.0°C and --, and displays .- If your remote control displays temperature that does not correspond to the one you have set: this can be due to an overload of bottles in the wine cabinetor the set temperature having been modified significantly. It can take several hours for your wine cabinet to stabilise and display the desired temperature..If such a variation continues, check that the wine cabinet door is fully closed and that the door’s leak proof seal is correctly seated..Use of a glass door can change your wine cabinet’s performance in certain extremetemperature conditions.Origine_notice_2-GB.qxd 13/02/07 12:13 Page 14
15ENHeight Width Depth Empty weight Min. T°F Max. T°F Consumption(kg) per 24h* (kWh)V100 950 654 689 44 32 95 0.7V180 1444 654 689 64 32 95 0.8* 24H consumption measured with a solid door and an outside temperature of 77°F.Setting precision: +/- 2°F, Display precision: +/- 2°F.10 - TECHNICAL SPECIFICATIONS AND STANDARDS1 SAFETY (article 3.1a of directive 1999/5/EC)Standard(s) EN60335-2-24EN60371 Ed.022 EMC (Article 3.1 b of directive 1999/5/EC and additional requirements 89/336/EC)Standard(s) EN55014-1/A1/A2Ed.00/01/02EN55014-2/A1/A2Ed.97/02EN61000-3-2Ed.00EN61000-3-3/A1Ed.95/01EN301489-3v1.4.13 Use of the radio frequency spectrum (Article 3.2 of directive 1999/5/EC)Standard(s) EN300220-3V1.1.1- Your product conforms to article 3 of directive RTTE 1999/5/EC when used according to the conditions specified in the instructions and conforms to thefollowing standards:4 FCC statement:Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.- This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmfulinterference, and (2) this device must accept any interference received, including interference that may cause undesired operation.NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limitsare designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televisionreception which can be determined by turning the equipment off and on, the user is encouraged to try to correct interference by one or more of thefollowing measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on circuit different from that to which the receiver isconnected.- Consult the dealer or an experienced radio/TV technician for help.Origine_notice_2-GB.qxd 13/02/07 12:13 Page 15
16Origine_notice_2-GB.qxd 13/02/07 12:13 Page 16
