EUROTECH NZB01 ZigBeeModule User Manual Alla

EUROTECH SpA ZigBeeModule Alla

Users Manual

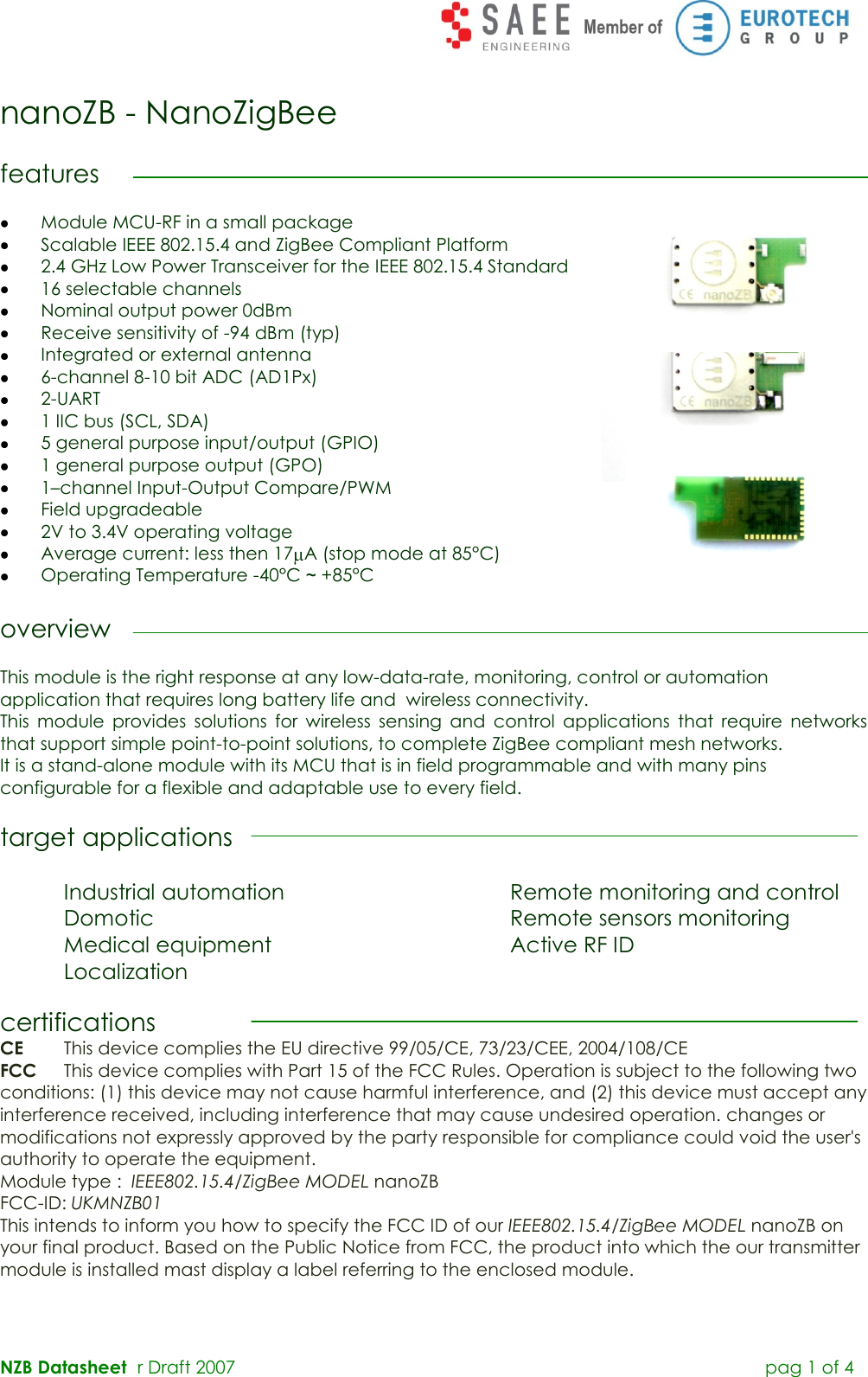

NZB Datasheet r Draft 2007 pag 1 of 4 nanoZB - NanoZigBee features Module MCU-RF in a small package Scalable IEEE 802.15.4 and ZigBee Compliant Platform 2.4 GHz Low Power Transceiver for the IEEE 802.15.4 Standard 16 selectable channels Nominal output power 0dBm Receive sensitivity of -94 dBm (typ) Integrated or external antenna 6-channel 8-10 bit ADC (AD1Px) 2-UART 1 IIC bus (SCL, SDA) 5 general purpose input/output (GPIO) 1 general purpose output (GPO) 1–channel Input-Output Compare/PWM Field upgradeable 2V to 3.4V operating voltage Average current: less then 17 A (stop mode at 85°C) Operating Temperature -40°C ~ +85°C overview This module is the right response at any low-data-rate, monitoring, control or automation application that requires long battery life and wireless connectivity. This module provides solutions for wireless sensing and control applications that require networks that support simple point-to-point solutions, to complete ZigBee compliant mesh networks. It is a stand-alone module with its MCU that is in field programmable and with many pins configurable for a flexible and adaptable use to every field. target applications Industrial automation Remote monitoring and control Domotic Remote sensors monitoring Medical equipment Active RF ID Localization certifications CE This device complies the EU directive 99/05/CE, 73/23/CEE, 2004/108/CE FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Module type : IEEE802.15.4/ZigBee MODEL nanoZB FCC-ID: UKMNZB01 This intends to inform you how to specify the FCC ID of our IEEE802.15.4/ZigBee MODEL nanoZB on your final product. Based on the Public Notice from FCC, the product into which the our transmitter module is installed mast display a label referring to the enclosed module.

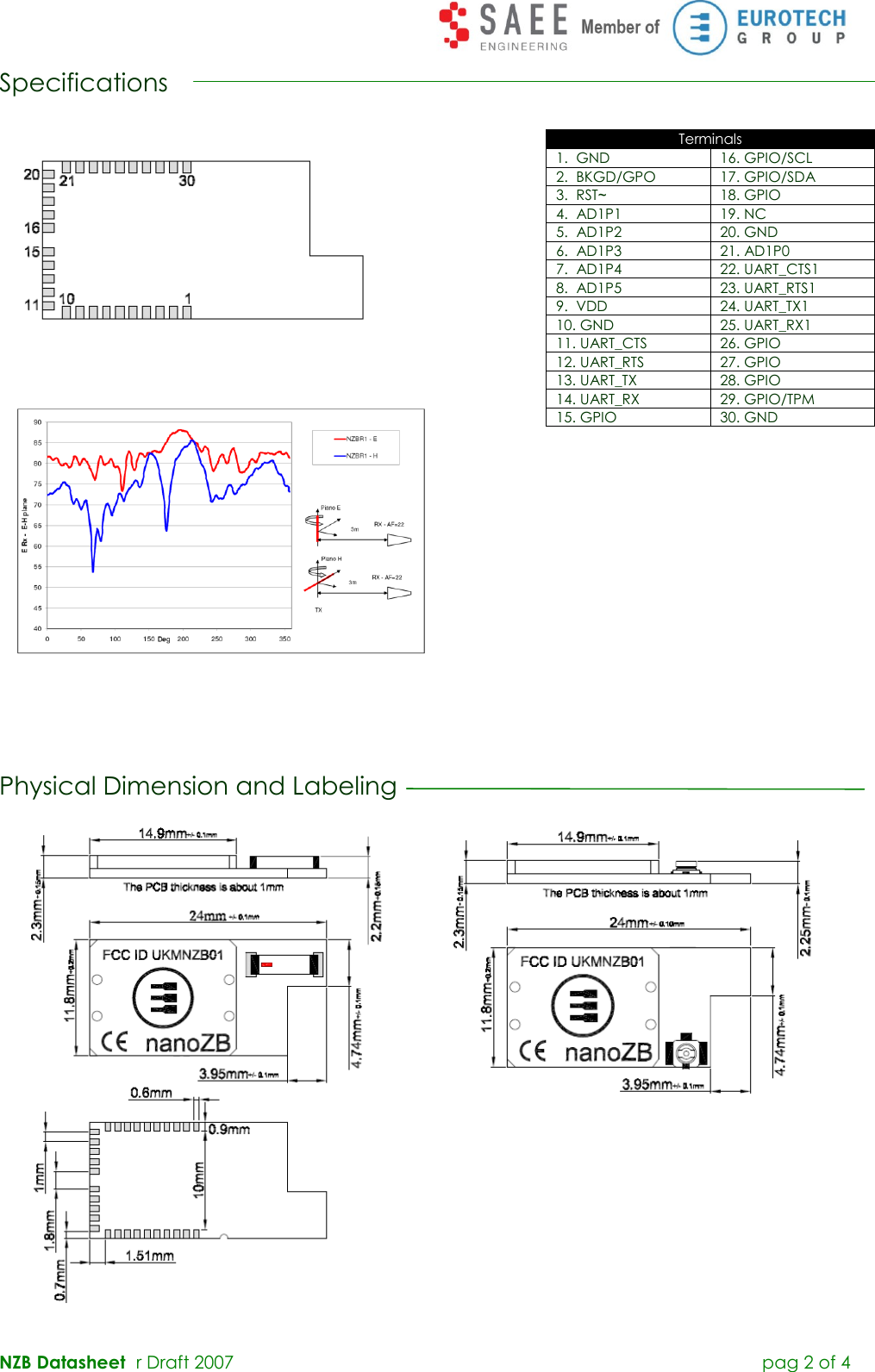

NZB Datasheet r Draft 2007 pag 2 of 4 Specifications Physical Dimension and Labeling Terminals 1. GND 16. GPIO/SCL 2. BKGD/GPO 17. GPIO/SDA 3. RST~ 18. GPIO 4. AD1P1 19. NC 5. AD1P2 20. GND 6. AD1P3 21. AD1P0 7. AD1P4 22. UART_CTS1 8. AD1P5 23. UART_RTS1 9. VDD 24. UART_TX1 10. GND 25. UART_RX1 11. UART_CTS 26. GPIO 12. UART_RTS 27. GPIO 13. UART_TX 28. GPIO 14. UART_RX 29. GPIO/TPM 15. GPIO 30. GND

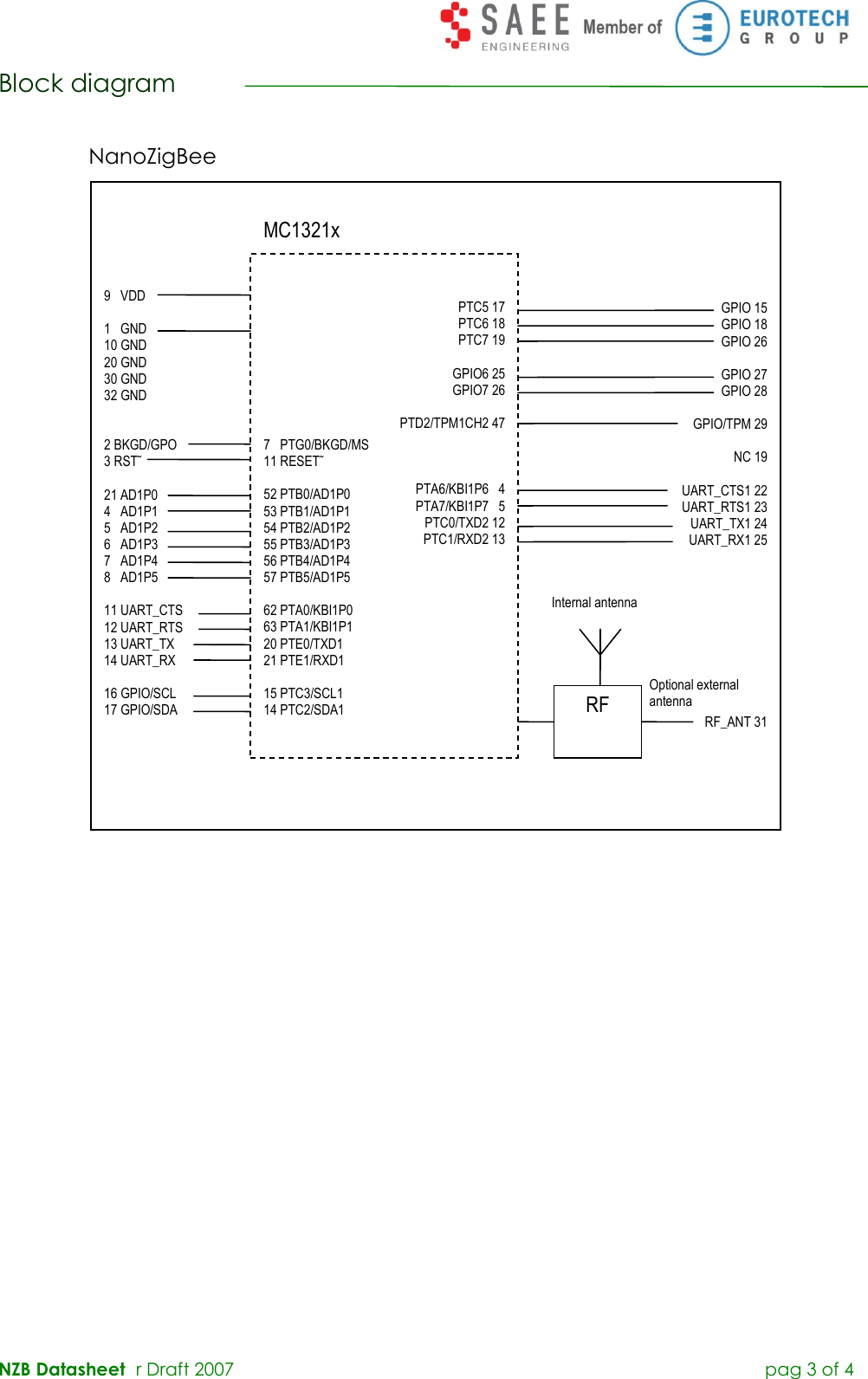

NZB Datasheet r Draft 2007 pag 3 of 4 Block diagram PTC5 17 PTC6 18 PTC7 19 GPIO6 25 GPIO7 26 PTD2/TPM1CH2 47 PTA6/KBI1P6 4 PTA7/KBI1P7 5 PTC0/TXD2 12 PTC1/RXD2 13 7 PTG0/BKGD/MS 11 RESET˜ 52 PTB0/AD1P0 53 PTB1/AD1P1 54 PTB2/AD1P2 55 PTB3/AD1P3 56 PTB4/AD1P4 57 PTB5/AD1P5 62 PTA0/KBI1P0 63 PTA1/KBI1P1 20 PTE0/TXD1 21 PTE1/RXD1 15 PTC3/SCL1 14 PTC2/SDA1 9 VDD 1 GND 10 GND 20 GND 30 GND 32 GND 2 BKGD/GPO 3 RST˜ 21 AD1P0 4 AD1P1 5 AD1P2 6 AD1P3 7 AD1P4 8 AD1P5 11 UART_CTS 12 UART_RTS 13 UART_TX 14 UART_RX 16 GPIO/SCL 17 GPIO/SDA GPIO 15 GPIO 18 GPIO 26 GPIO 27 GPIO 28 GPIO/TPM 29 NC 19 UART_CTS1 22 UART_RTS1 23 UART_TX1 24 UART_RX1 25 RF_ANT 31 MC1321x RF Internal antenna Optional external antenna NanoZigBee
