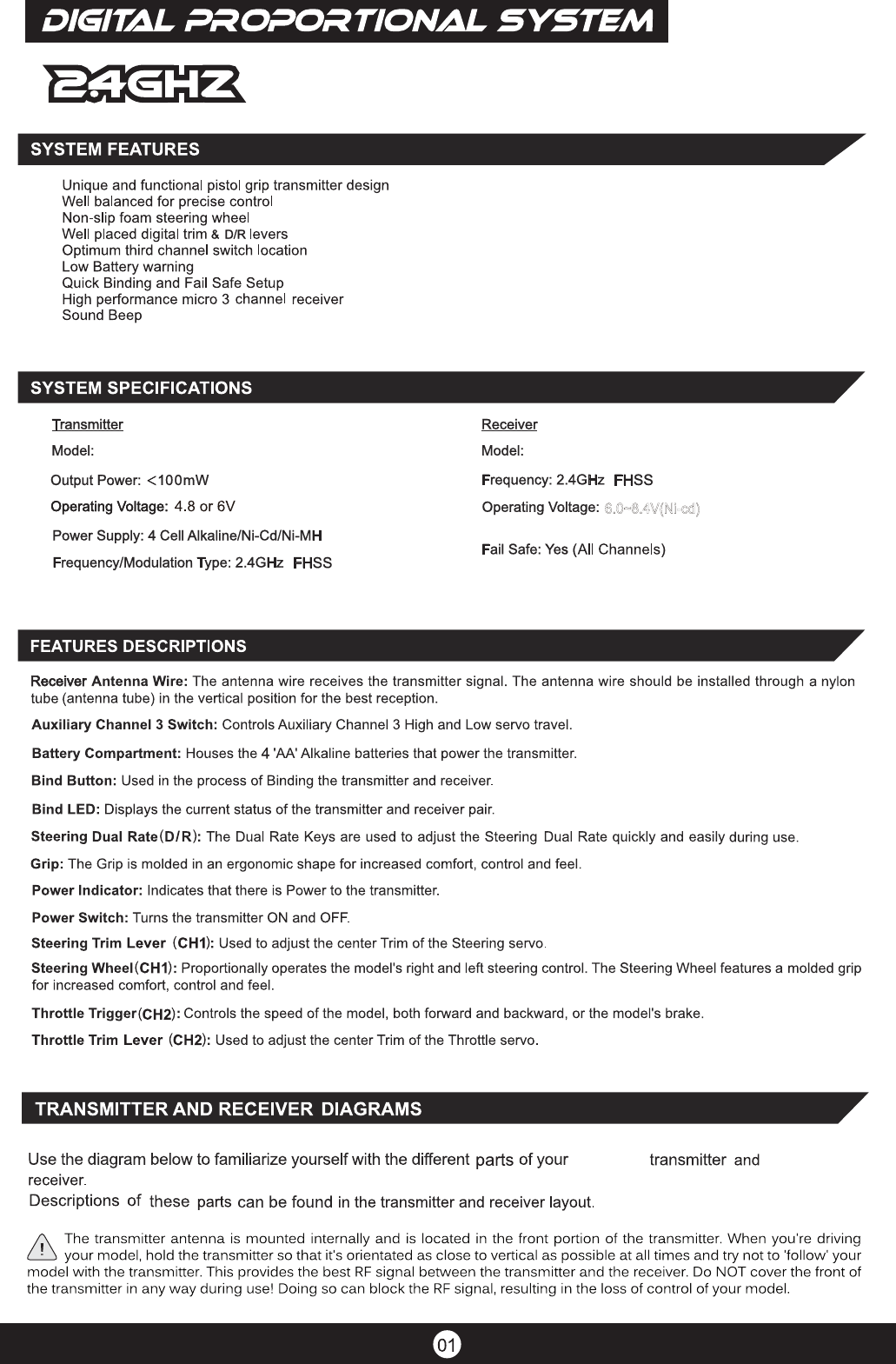

EXPORTPRO TECHNOLOGY MT-301 Digital Proportional System User Manual 1
SHENZHEN EXPORTPRO TECHNOLOGY CO., LTD Digital Proportional System 1
15_MT-301 UserMan
MT-301TX
MT-301TX MT-301RX
7.4~11.1V(Li-poly3S)
MT-301RX
MT-301
6.0~8.4V(Ni-cd)
2
Do not mix alkaline batteries, standard(carbon-zinc)
or rechargeable(Nickel-Cadmium) batteries
Working Station
Indicator
3
VCC
CH3BIND
CH2
CH1
MT-301RX
MT-301RX
Steering Trim Lever
CH1
Throttle Trim Lever
CH2
Steering D/R Lever
D/R
Throttle EPA
- + - +
4
MT-301RX
1)Press and hold the bind button on the receiver and then turn the receiver on, the LED indicator flashes quickly.
Now the receiver is in the binding mode, then loosen the button.
2)Turn the tramsmitter on, it will bind with the receiver automatically. It shows the binding process is sucessful,
if the LED indicator on the receiver is continuesly lit.If it is not sucessful because of long binding distance,
Under the situation of the binding sucessfully, press and hold the bind button for 2 seconds, it comes to fail-safe
setup for 5 seconds, the LED indicator flashes quickly and it will come back to the normal mode once it the process
is over. During the process of fail-safe setup, choose 3CH when out of control and then wait the receiver comes back to
the normal mode.
turn the transmitter off and then turn it on once again.(Do not keep the reciever far away from the transmitter
when binding.)
FAIL-SAFE SETUP'S PROCEDURE
FCC STATEMENT
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: 1) this device may not cause harmful interference, and 2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void your authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
5
