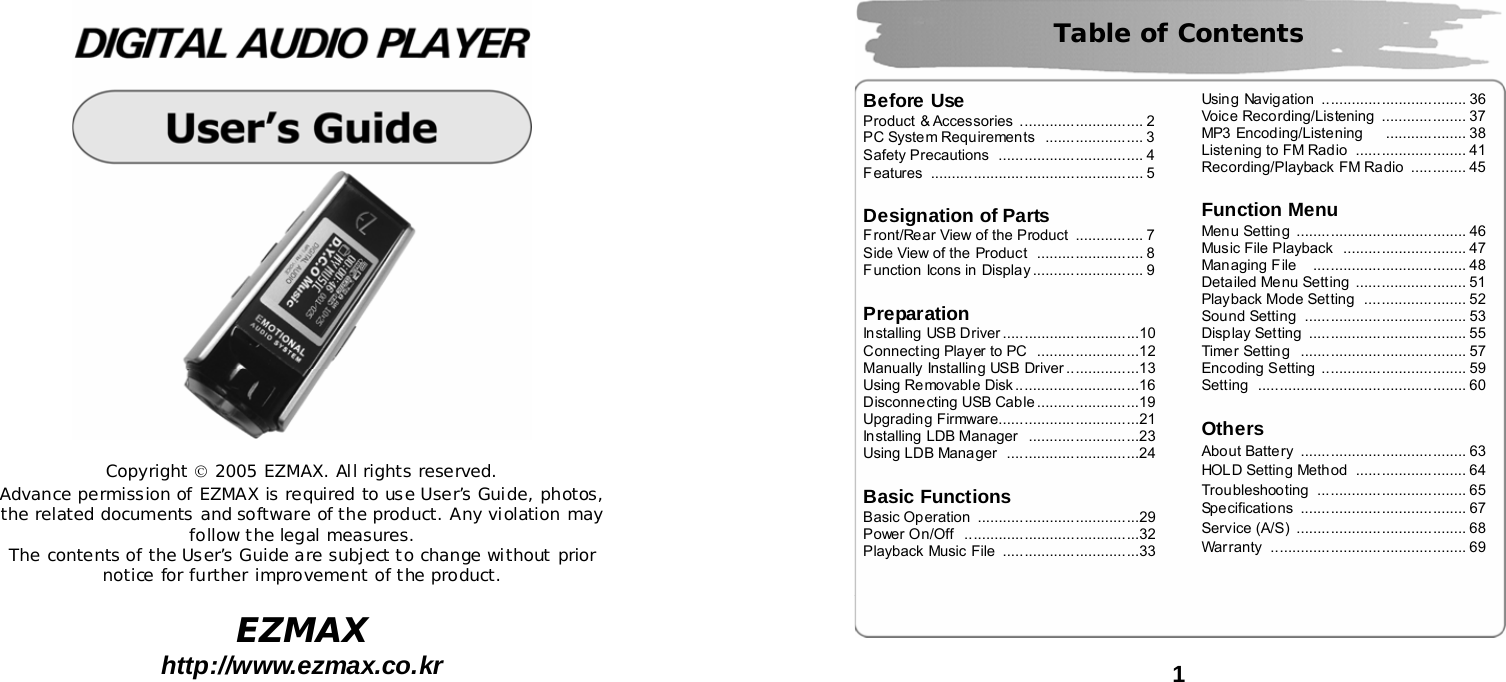

EZMAX EZMP-4200 Digital Audio Player User Manual EZMP 4200 Manual English

EZMAX Co.,Ltd. Digital Audio Player EZMP 4200 Manual English

Users Manual

Copyright © 2005 EZMAX. All rights reserved. Advance permission of EZMAX is required to use User’s Guide, photos, the related documents and software of the product. Any violation may follow the legal measures. The contents of the User’s Guide are subject to change without prior notice for further improvement of the product. EZMAX http://www.ezmax.co.kr 1 Table of Contents Before Use Product & Accessories ............................. 2 PC System Requirements ....................... 3 Safety Precautions .................................. 4 Features .................................................. 5 Designation of Parts Front/Rear View of the Product ................ 7 Side View of the Product ......................... 8 Function Icons in Display .......................... 9 Preparation Installing USB Driver ................................10 Connecting Player to PC ........................12 Manually Installing USB Driver .................13 Using Removable Disk .............................16 Disconnecting USB Cable ........................19 Upgrading Firmware.................................21 Installing LDB Manager ..........................23 Using LDB Manager ...............................24 Basic Functions Basic Operation ......................................29 Power On/Off .........................................32 Playback Music File ................................33 Using Navigation .................................. 36 Voice Recording/Listening .................... 37 MP3 Encoding/Listening ................... 38 Listening to FM Radio .......................... 41 Recording/Playback FM Radio ............. 45 Function Menu Menu Setting ........................................ 46 Music File Playback ............................. 47 Managing File .................................... 48 Detailed Menu Setting .......................... 51 Playback Mode Setting ........................ 52 Sound Setting ...................................... 53 Display Setting ..................................... 55 Timer Setting ....................................... 57 Encoding Setting .................................. 59 Setting ................................................. 60 Others About Battery ....................................... 63 HOLD Setting Method .......................... 64 Troubleshooting ................................... 65 Specifications ....................................... 67 Service (A/S) ........................................ 68 Warranty .............................................. 69

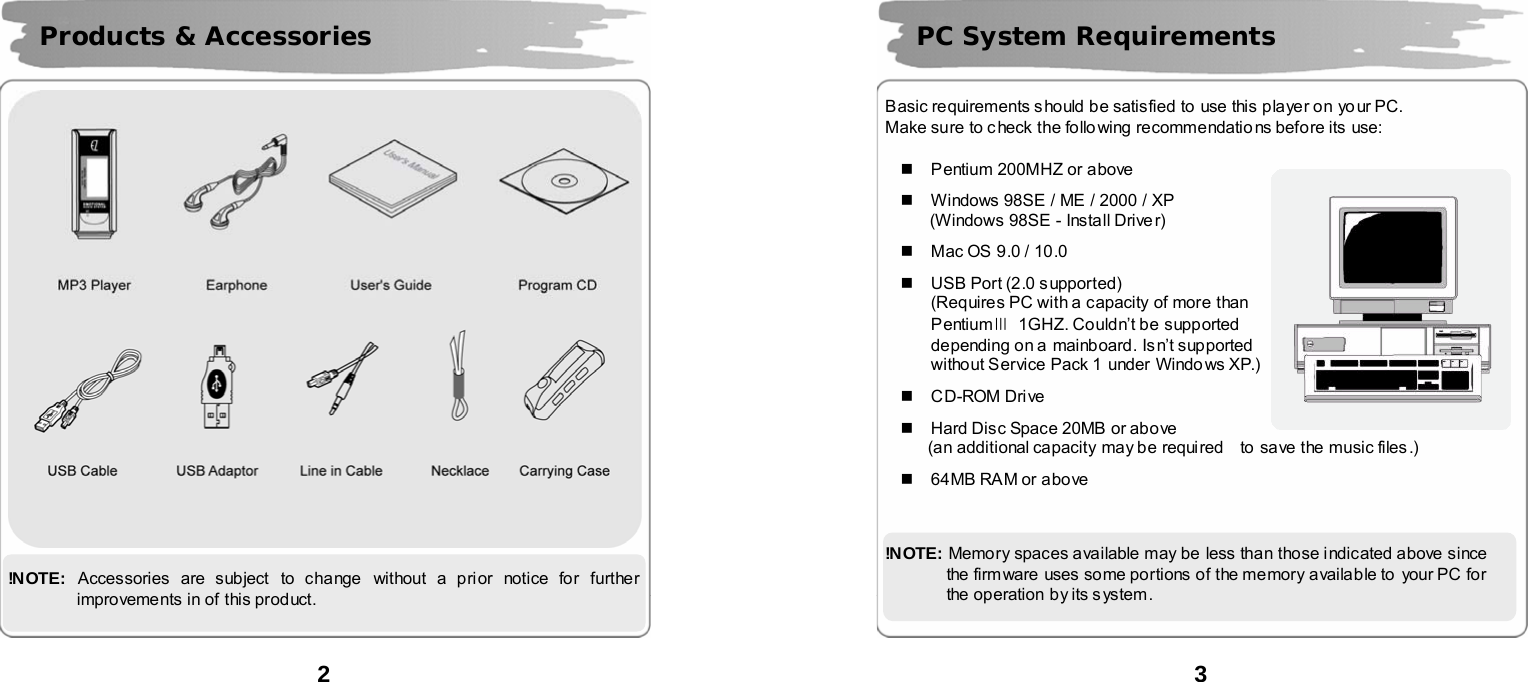

2 !N OTE: Accessories are subject to change without a prior notice for further improvements in of this product. Products & Accessories 3 Basic requirements should be satisfied to use this player on yo ur PC. Make sure to c heck the following recommendatio ns before its use:  Pentium 200MHZ or above  Windows 98SE / ME / 2000 / XP (Windows 98SE - Install Drive r)  Mac OS 9.0 / 10.0  USB Port (2.0 supported) (Requires PC with a capacity of more than PentiumⅢ 1GHZ. Couldn’t be supported depending on a mainboard. Isn’t supported without Service Pack 1 under Windo ws XP.)  CD-ROM Drive  Hard Disc Space 20MB or above (an additional capacity may be required to save the music files.)  64MB RAM or above !N OTE: Memory spaces available may be less than those indicated above since the firmware uses some portions of the memory available to your PC for the operation by its s ystem. PC System Requirements

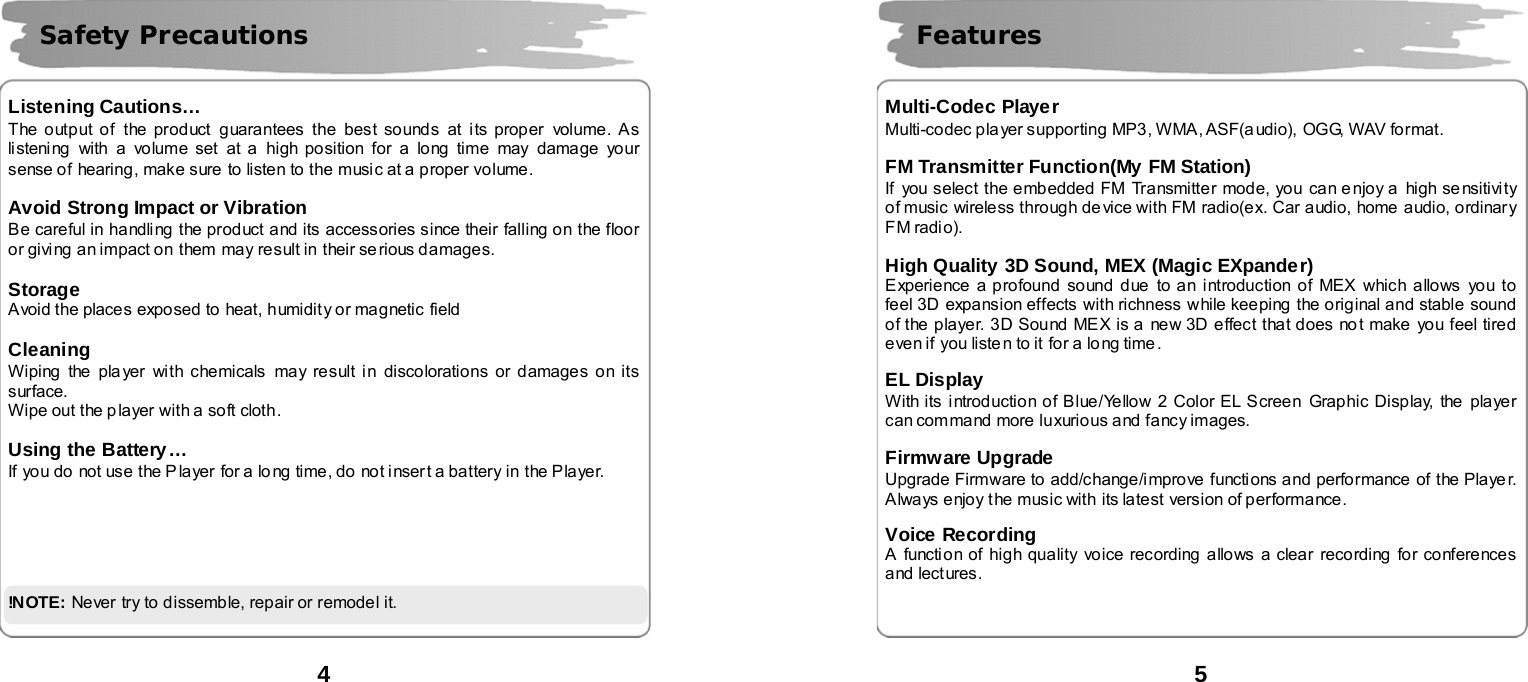

4 Listening Cautions… The output of the product guarantees the best sounds at i ts proper volume. As listening with a volume set at a high position for a long time may damage your sense of hearing, make sure to listen to the music at a proper volume. Avoid Strong Impact or Vibration Be careful in handling the product and its accessories since their falling on the floor or giving an impact on them may result in their serious damages. Storage Avoid the places exposed to heat, humidity or magnetic field Cleaning Wiping the player with chemicals may result in discolorations or damages on its surface. Wipe out the p layer with a soft cloth. Using the Battery… If you do not use the P layer for a long time, do not inser t a battery in the Player. !N OTE: Never try to dissemble, repair or remode l it. Safety Precautions 5 Multi-Codec Player Multi-codec player supporting MP3, WMA, ASF(audio), OGG, WAV format. FM Transmitter Function(My FM Station) If you select the embedded FM Transmitter mode, you can e njoy a high se nsitivity of music wireless through device with FM radio(ex. Car audio, home audio, ordinary FM radio). High Quality 3D Sound, MEX (Magic EXpander) Experience a profound sound due to an introduction of MEX which allows you to feel 3D expansion effects with richness while keeping the original and stable sound of the player. 3D Sound MEX is a new 3D effect that does not make you feel tired even if you liste n to it for a lo ng time . EL Display With its introduction of Blue/Yellow 2 Color EL Screen Graphic Display, the player can command more luxurious and fancy images. Firmware Upgrade Upgrade Firmware to add/change/improve functions and performance of the Playe r. Always enjoy the music with its latest version of performance. Voice Recording A function of high quality voice recording allows a clear recording for conferences and lectures. Features

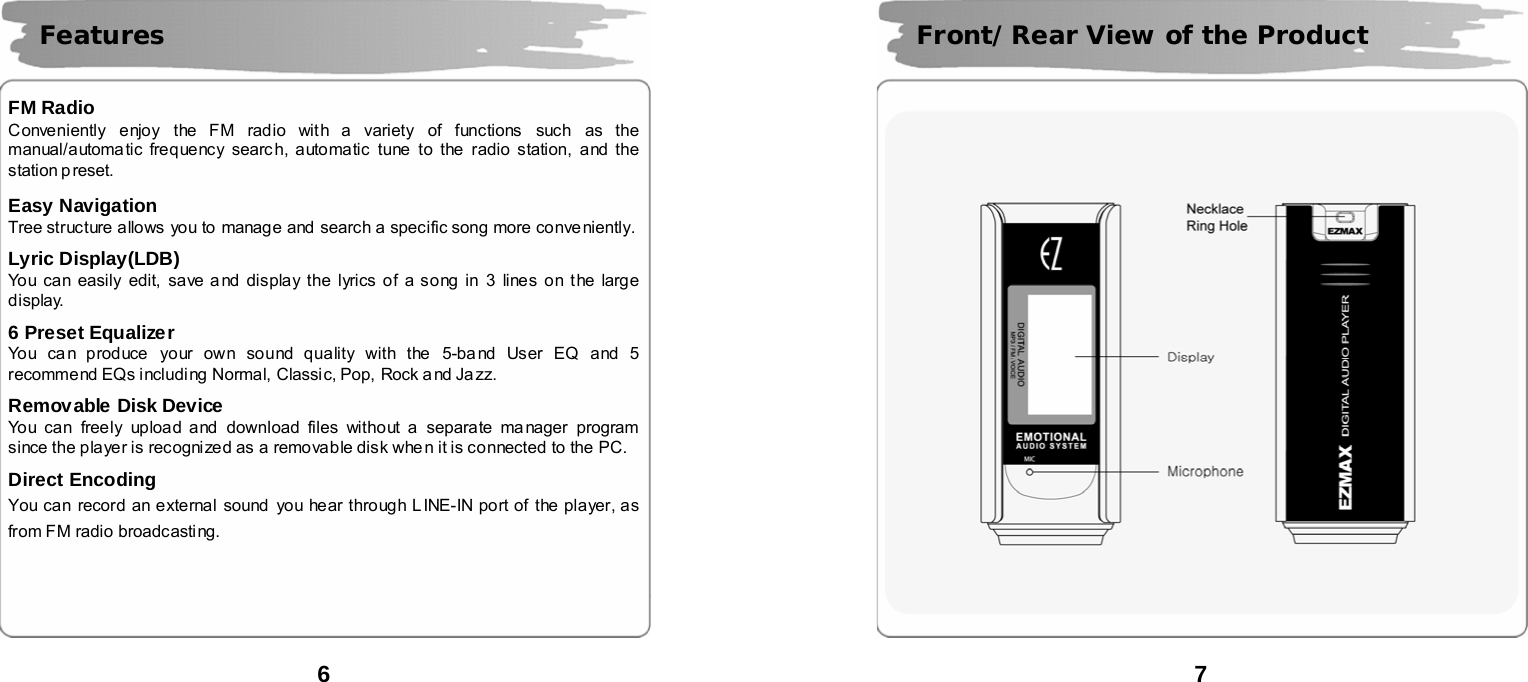

6 FM Radio Conveniently enjoy the FM radio with a variety of functions such as the manual/automa tic frequency search, automatic tune to the radio station, and the station p reset. Easy Navigation Tree structure allows you to manage and search a specific song more conve niently. Lyric Display(LDB) You can easily edit, save a nd display the lyrics of a song in 3 lines on the large display. 6 Preset Equalizer You can produce your own sound quality with the 5-band User EQ and 5 recommend EQs including Normal, Classic, Pop, Rock a nd Ja zz. Removable Disk Device You can freely upload and download files without a separate manager program since the player is recognized as a removable disk when it is connected to the PC. Direct Encoding You can record an external sound you hear through LINE-IN port of the player, as from FM radio broadcasting. Features 7 Front/Rear View of the Product

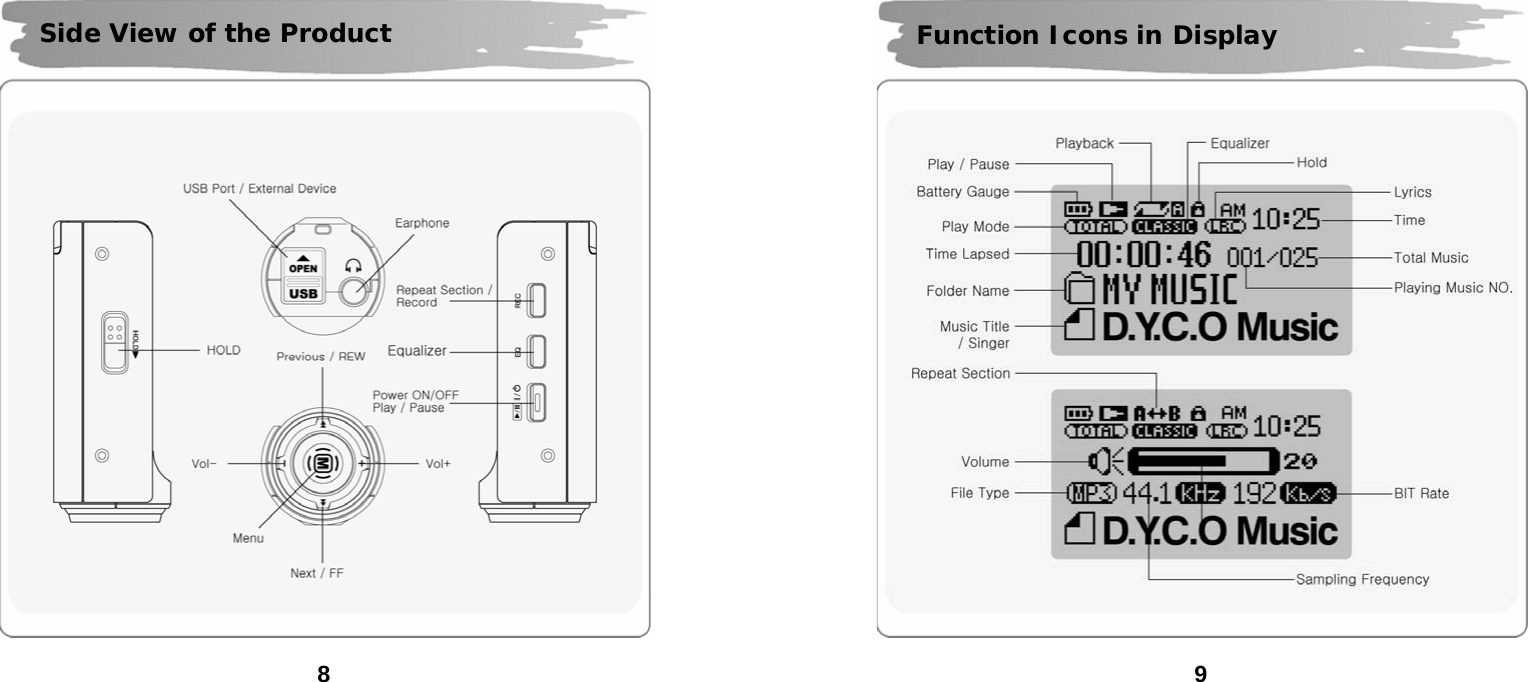

8 Side View of the Product 9 Function Icons in Display

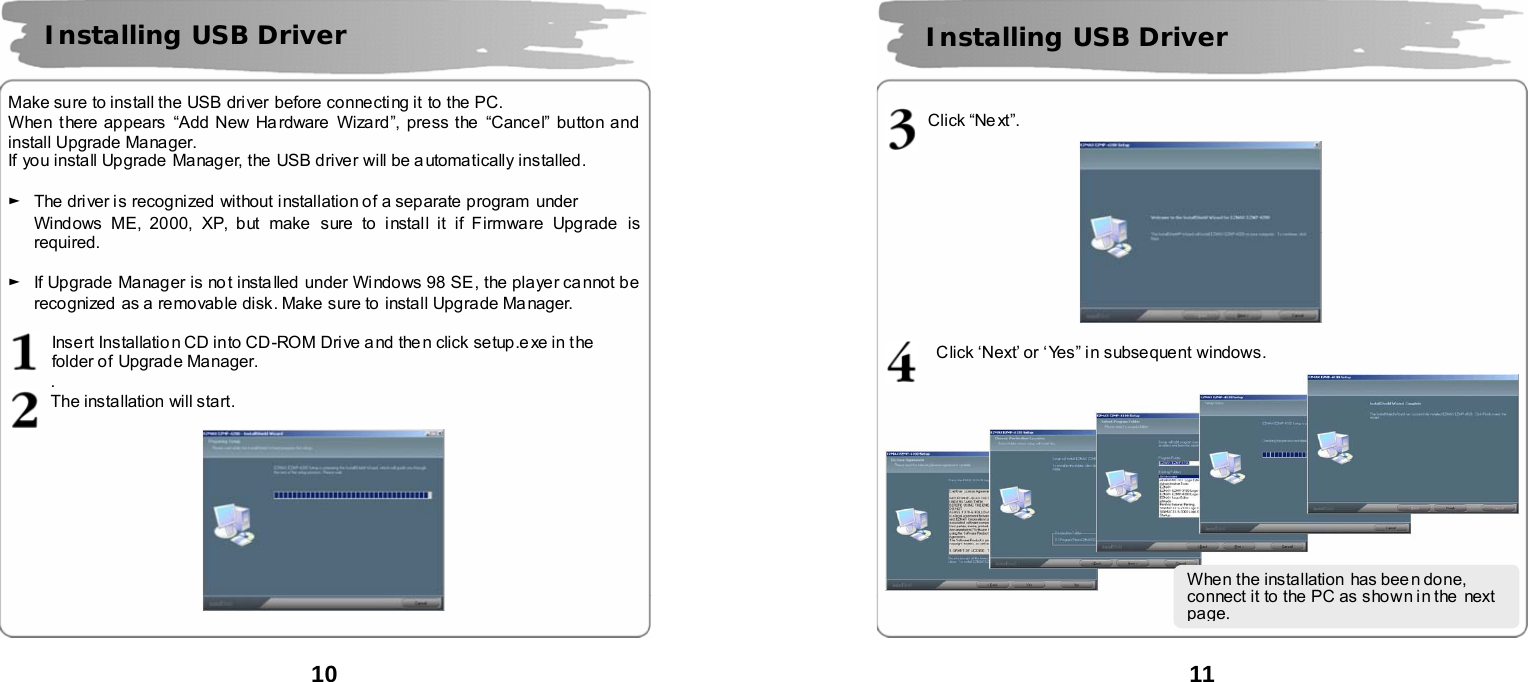

10 Make sure to install the USB driver before connecting it to the PC. When there appears “Add New Ha rdware Wizard”, press the “Cancel” button and install Upgrade Manager. If you install Upgrade Manager, the USB driver will be a utomatically installed. ► The driver is recognized without installation of a separate program under Windows ME, 2000, XP, but make sure to install it if Firmware Upgrade is required. ► If Upgrade Manager is no t installed under Windows 98 SE, the player ca nnot be recognized as a removable disk. Make sure to install Upgrade Manager. Insert Installatio n CD into CD -ROM Drive a nd the n click setup.e xe in t he folder of Upgrade Manager. . The installation will start. Installing USB Driver 11 Click “Ne xt”. Click ‘Next’ or ‘Yes” in subsequent windows. Installing USB Driver When the installation has been done, connect it to the PC as shown in the next page.

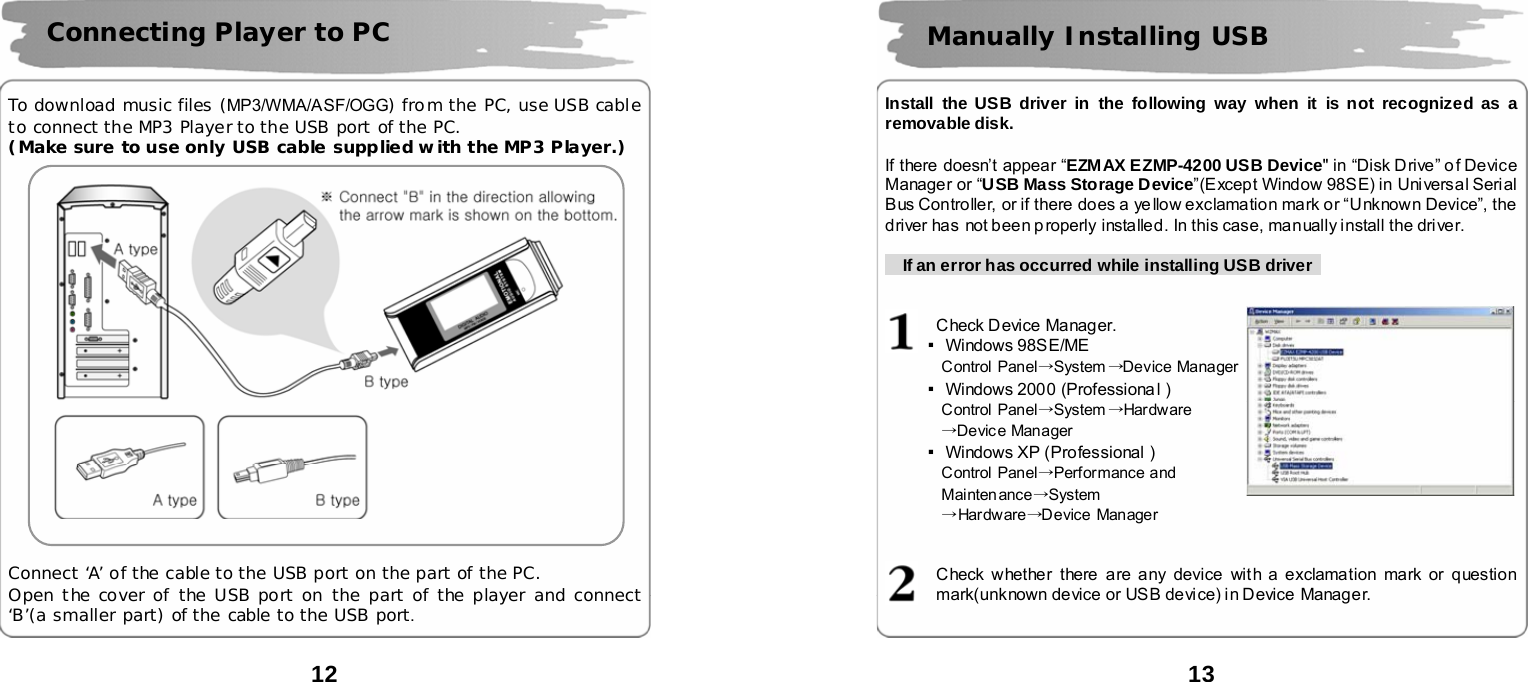

12 To download music files (MP3/WMA/ASF/OGG) from the PC, use USB cable to connect the MP3 Player to the USB port of the PC. (Make sure to use only USB cable supplied with the MP3 Player.) Connect ‘A’ of the cable to the USB port on the part of the PC. Open the cover of the USB port on the part of the player and connect ‘B’(a smaller part) of the cable to the USB port. Connecting Player to PC 13 Install the USB driver in the following way when it is not recognized as a removable disk. If there doesn’t appear “EZMAX EZMP-4200 USB Device" in “Disk Drive” of Device Manager or “USB Mass Storage Device”(Except Window 98SE) in Universal Serial Bus Controller, or if there does a ye llow exclamation mark or “Unknown Device”, the driver has not been p roperly installed. In this case, manually install the driver. If an error has occurred while installing USB driver Check Device Manager. ▪Windows 98SE/ME Control Panel→System →Device Manager ▪Windows 2000 (Professiona l ) Control Panel→System →Har dw are →Device Manager ▪Windows XP (Professional ) Control Panel→Performance and Mainten ance→System →Har dw are →Device Manager Check whether there are any device with a exclamation mark or question mark(unknown device or USB device) in Device Manager. Manually Installing USB

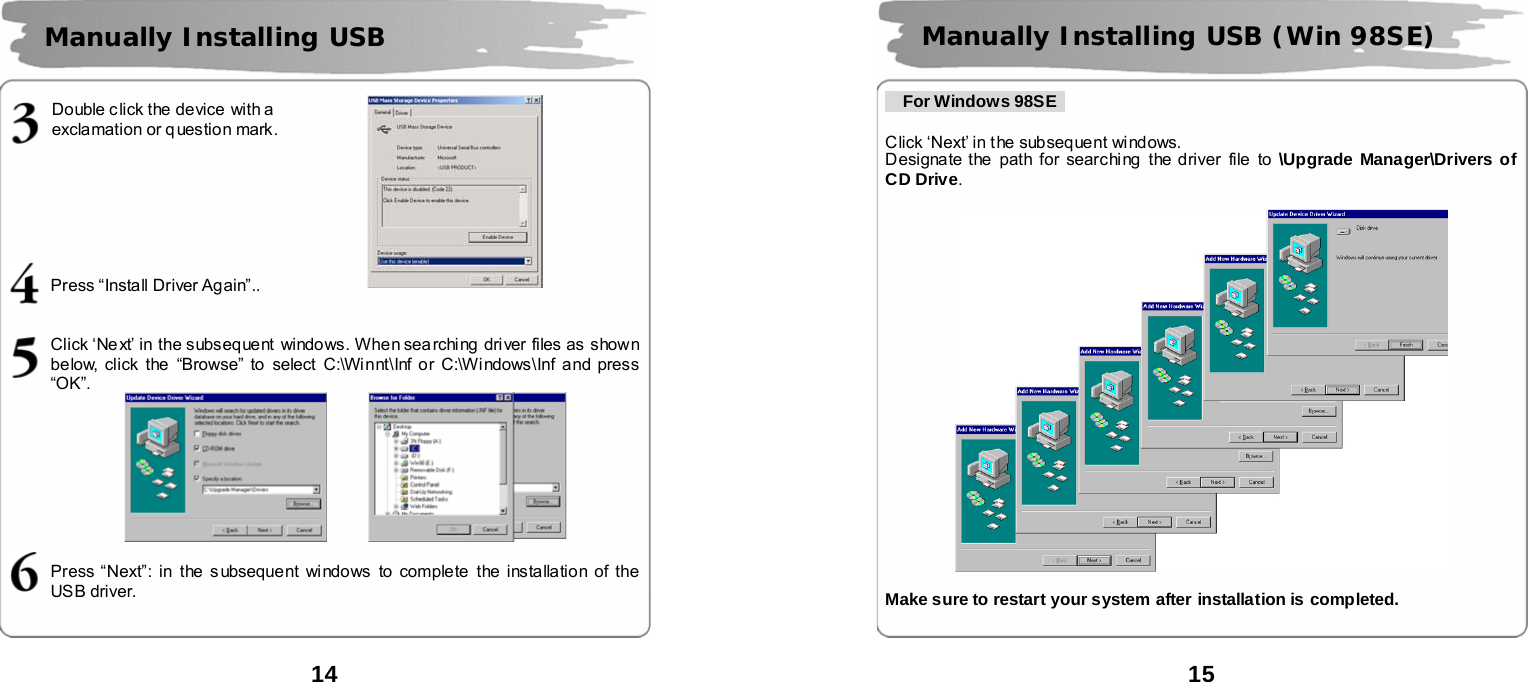

14 Double click the device with a exclamation or q uestion mark. Press “Install Driver Again”.. Click ‘Next’ in the subsequent windows. When sea rching driver files as shown below, click the “Browse” to select C:\Winnt\Inf or C:\Windows\Inf and press “OK”. Press “Next”: in the s ubsequent windows to complete the installation of the USB driver. Manually Installing USB 15 For Windows 98SE Click ‘Next’ in the subsequent windows. Designate the path for searching the driver file to \Upgrade Manager\Drivers of CD Drive. Make sure to restart your system after installation is completed. Manually Installing USB (Win 98SE)

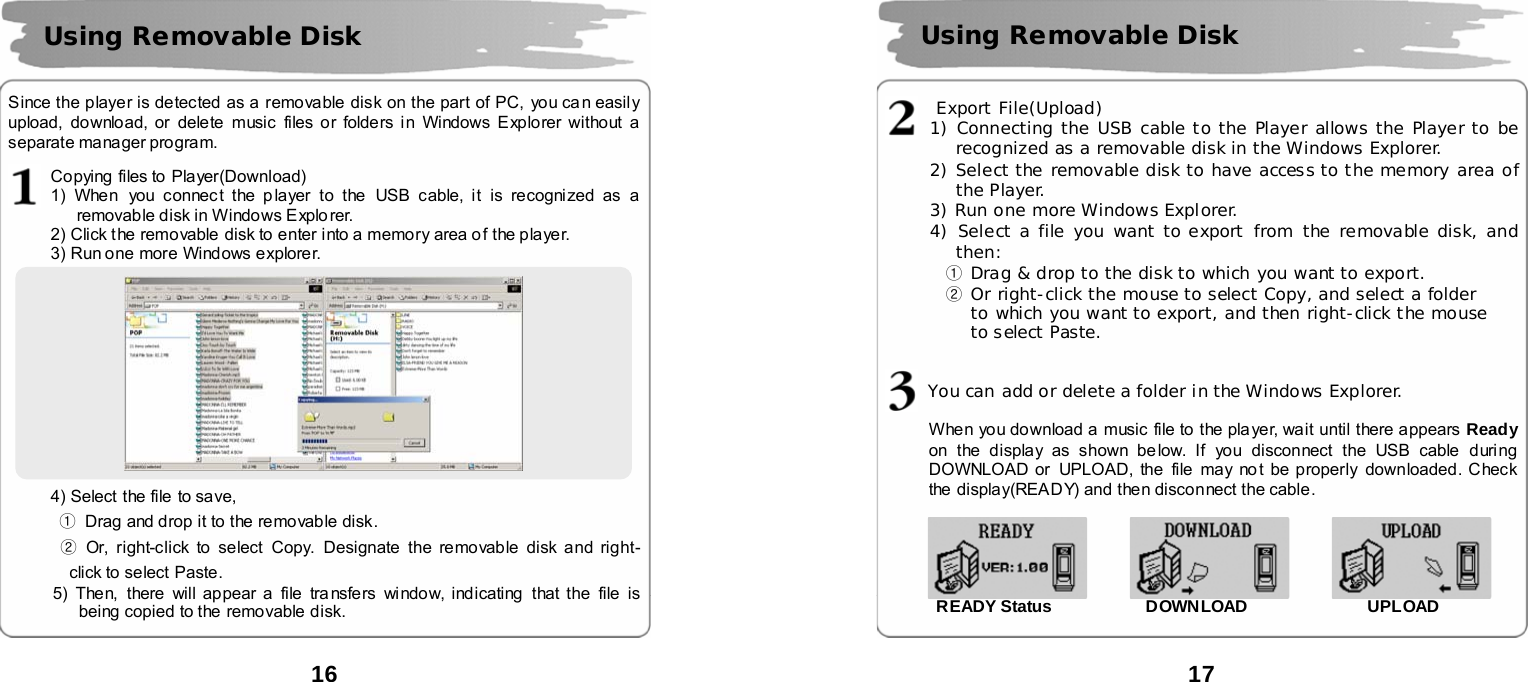

16 Since the player is detected as a removable disk on the part of PC, you ca n easily upload, download, or delete music files or folders in Windows Explorer without a separate manager program. Copying files to Player(Download) 1) When you connec t the p layer to the USB cable, it is recognized as a removable disk in Windows Explo rer. 2) Click the removable disk to enter into a memory area of the player. 3) Run one more Windows explorer. 4) Select the file to save, ① Drag and drop it to the removable disk. ② Or, right-click to select Copy. Designate the removable disk and right-click to select Paste. 5) Then, there will appear a file tra nsfers window, indicating that the file is being copied to the removable disk. Using Removable Disk 17 Export File(Upload) 1) Connecting the USB cable to the Player allows the Player to be recognized as a removable disk in the Windows Explorer. 2) Select the removable disk to have access to the memory area of the Player. 3) Run one more Windows Explorer. 4) Select a file you want to export from the removable disk, and then: ① Drag & drop to the disk to which you want to export. ② Or right-click the mouse to select Copy, and select a folder to which you want to export, and then right-click the mouse to select Paste. You can add or delete a folder in the Windows Explorer. When you download a music file to the player, wait until there appears Ready on the display as shown be low. If you disconnect the USB cable during DOWNLOAD or UPLOAD, the file may no t be properly downloaded. Check the display(READY) and then disconnect the cable. READY Status DOWNLOAD UPLOAD Using Removable Disk

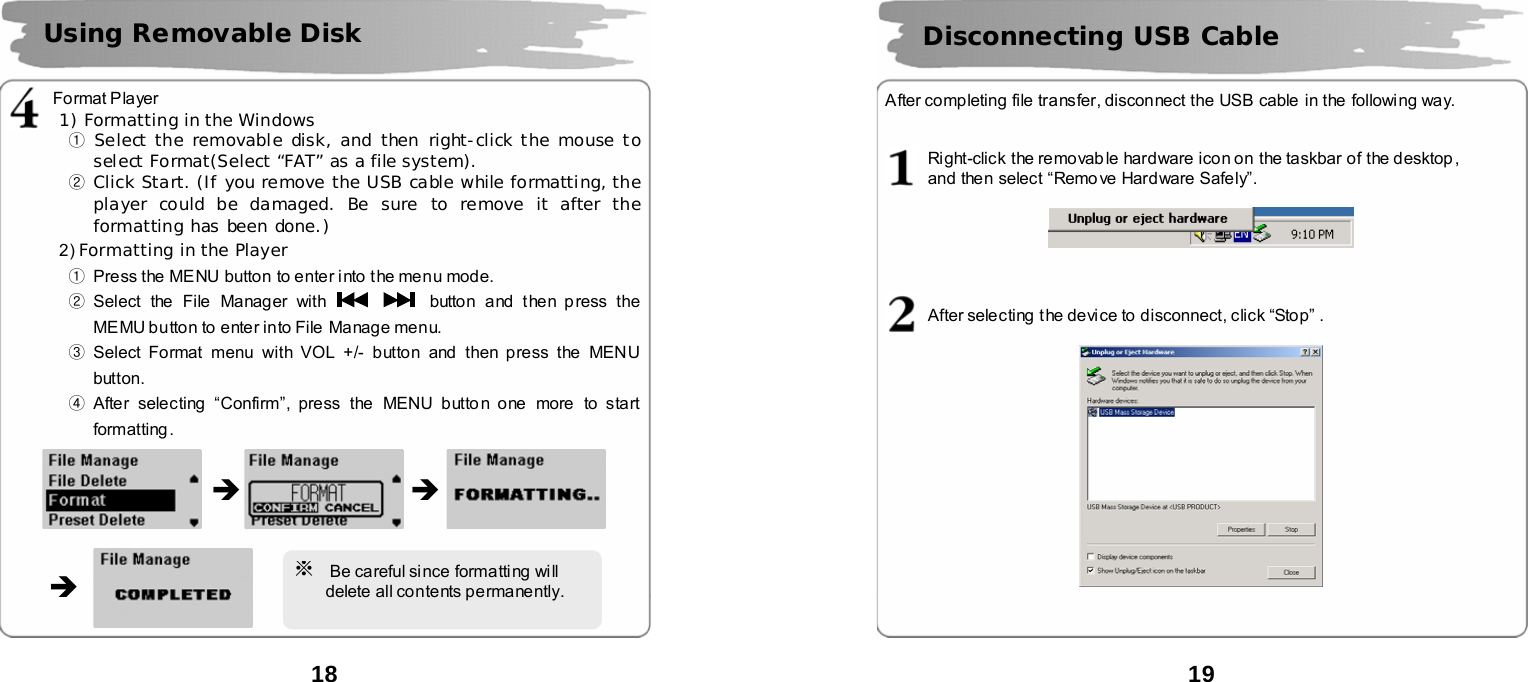

18 Format Player 1) Formatting in the Windows ① Select the removable disk, and then right-click the mouse to select Format(Select “FAT” as a file system). ② Click Start. (If you remove the USB cable while formatting, the player could be damaged. Be sure to remove it after the formatting has been done.) 2) Formatting in the Player ① Press the MENU button to enter i nto the menu mode. ② Select the File Manager with button and then p ress the MEMU button to ente r into File Manage menu. ③ Select Format menu with VOL +/- button and then press the MENU button. ④ After selecting “Confirm”, press the MENU button one more to start formatting . Using Removable Disk Î Î Î ※ Be careful since formatting wi ll delete all contents permanently. 19 After completing file transfer, disconnect the USB cable in the following way. Right-click the removab le hardware icon on the taskbar of the desktop , and then select “Remove Hardware Safely”. After selecting the device to disconnect, click “Stop” . Disconnecting USB Cable

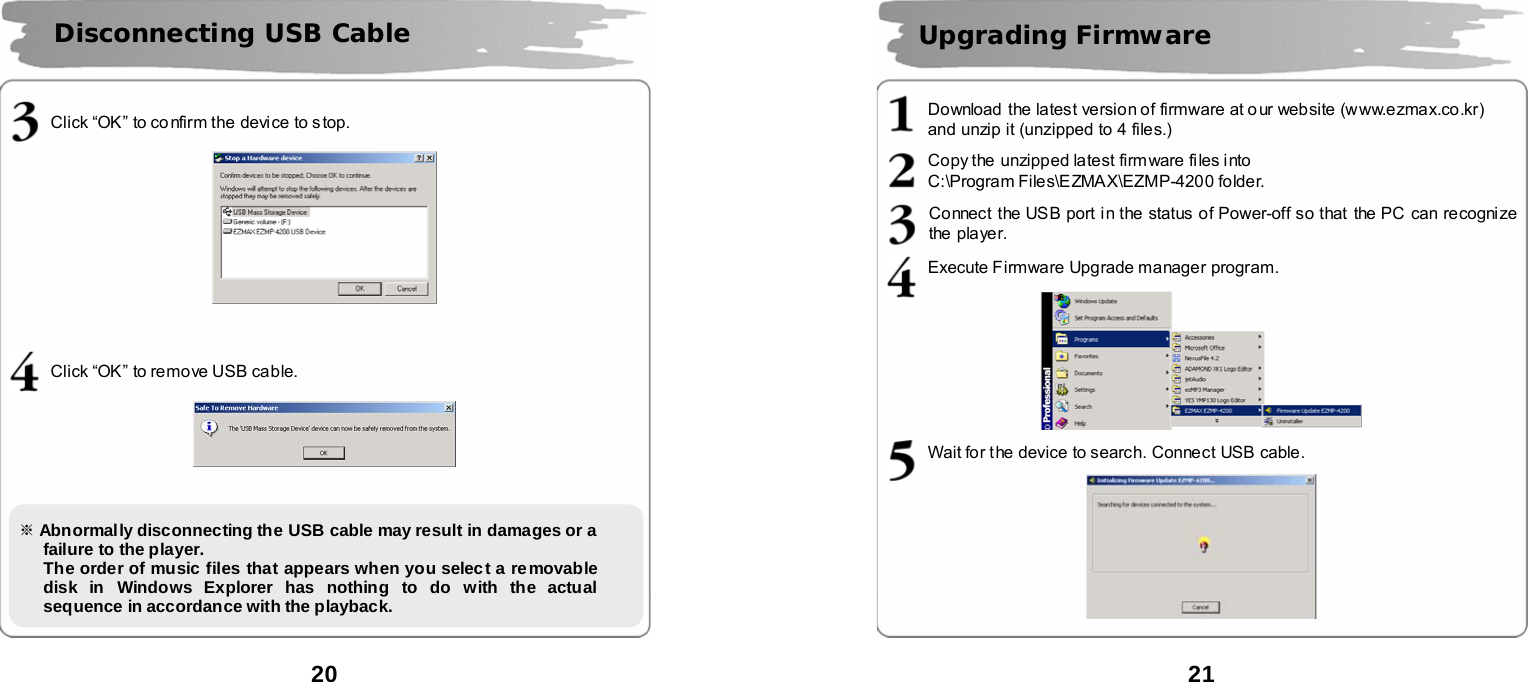

20 Click “OK” to confirm the device to stop. Click “OK” to remove USB cable. Disconnecting USB Cable ※ Abnormally disconnecting the USB cable may result in damages or a failure to the player. The order of music files that appears when you select a removable disk in Windows Explorer has nothing to do with the actual sequence in accordance with the playback. 21 Download the latest version of firmware at o ur website (www.ezmax.co.kr) and unzip it (unzipped to 4 files.) Copy the unzipped latest firm ware files i nto C:\Program Files\EZMAX\EZMP-4200 folder. Connect the USB port in the status of Power-off so that the PC can recognize the player. Execute Firmware Upgrade manager program. Wait for the device to search. Connect USB cable. Upgrading Firmware

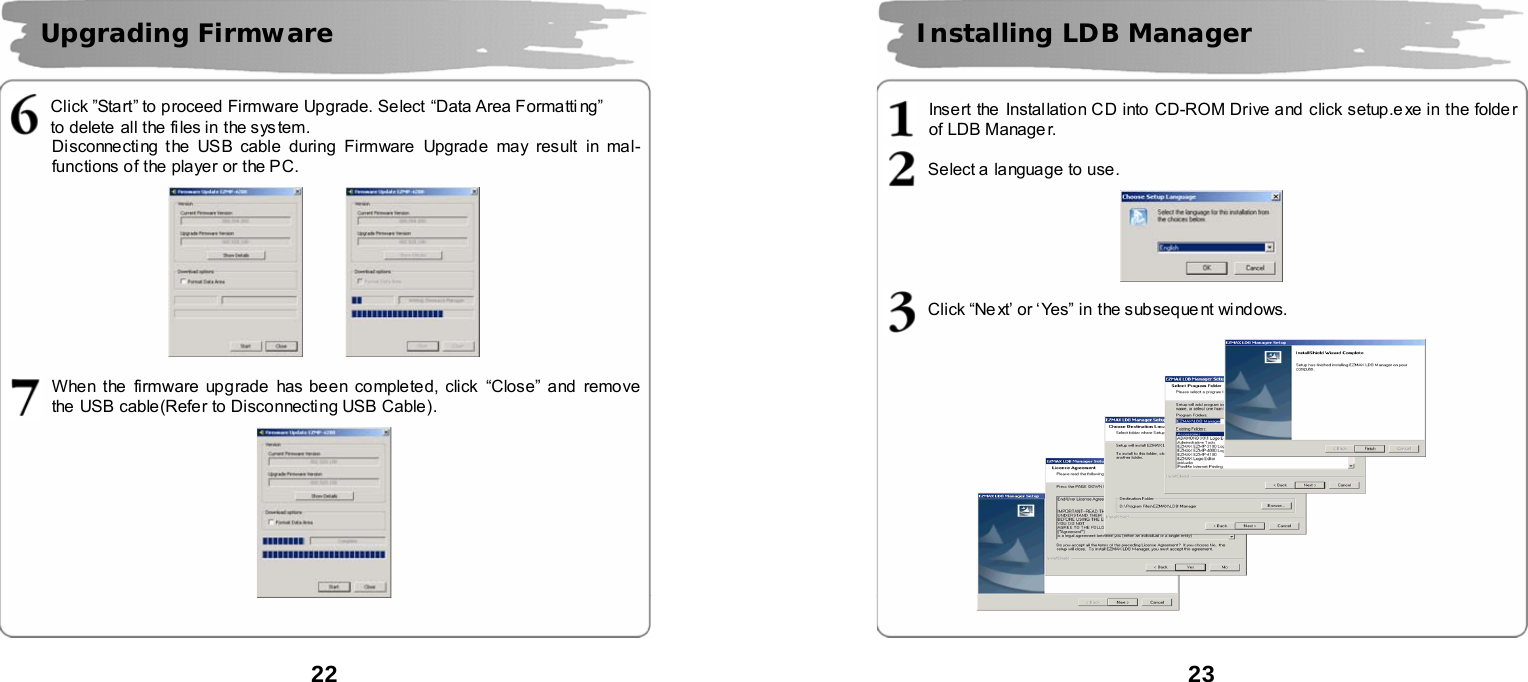

22 Click ”Start” to proceed Firmware Upgrade. Select “Data Area Formatti ng” to delete all the files in the sys tem. Disconnecting t he USB cable during Firmware Upgrade may result in mal-functions of the player or the PC. When the firmware upgrade has been completed, click “Close” and remove the USB cable(Refer to Disconnecting USB Cable). Upgrading Firmware 23 Insert the Instal lation CD into CD-ROM Drive and click setup.e xe in the folde r of LDB Manage r. Select a language to use. Click “Ne xt’ or ‘Yes” in the subsequent windows. Installing LDB Manager

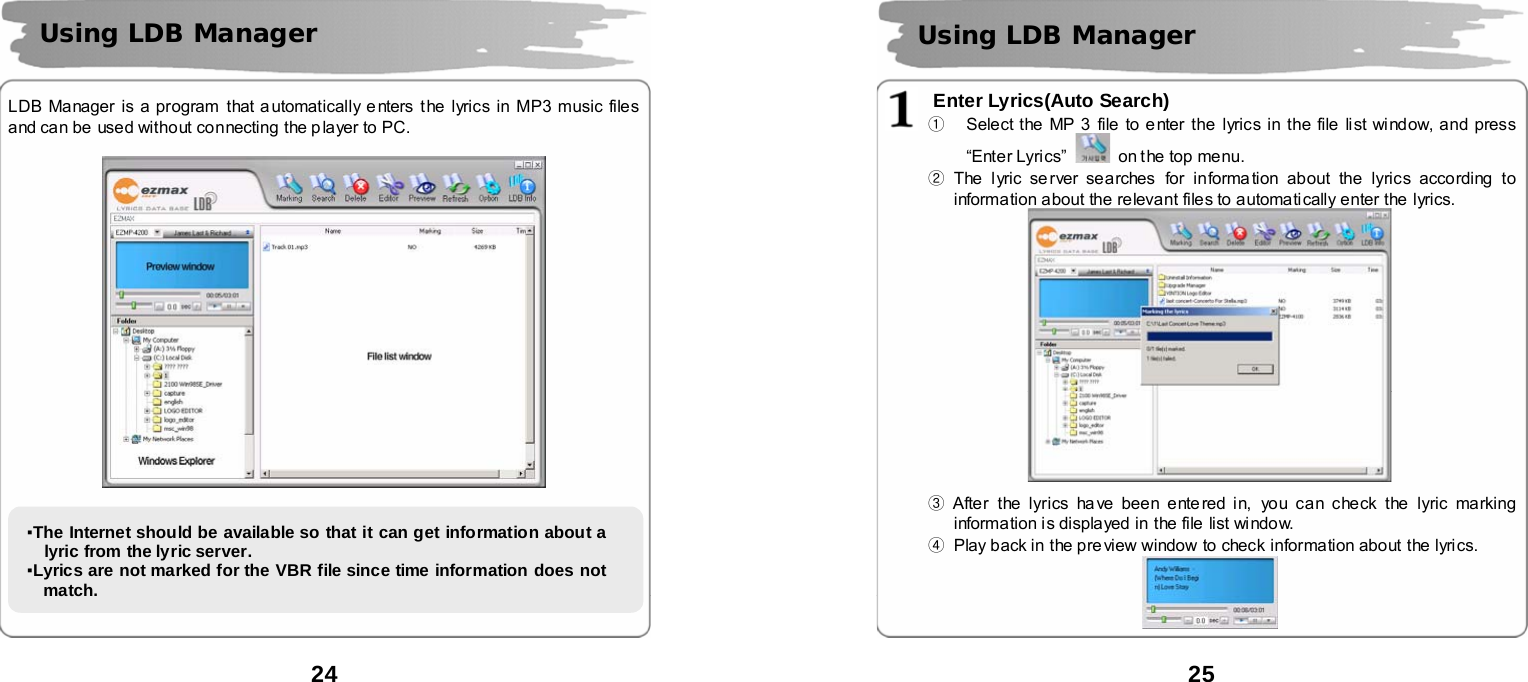

24 LDB Manager is a program that automatically e nters the lyrics in MP3 music files and can be used without connecting the p layer to PC. Using LDB Manager ▪The Internet should be available so that it can get information about a lyric from the lyric server. ▪Lyrics are not marked for the VBR file since time information does not match. 25 Enter Lyrics(Auto Search) ① Select the MP 3 file to e nter the lyrics in the file list window, and press “Enter Lyri cs” on the top menu. ② The lyric se rver searches for informa tion about the lyrics according to information about the relevant files to automatically enter the lyrics. ③ After the lyrics ha ve been entered in, you can check the lyric marking information i s displayed in the file list window. ④ Play back in the pre view window to check information about the lyrics. Using LDB Manager

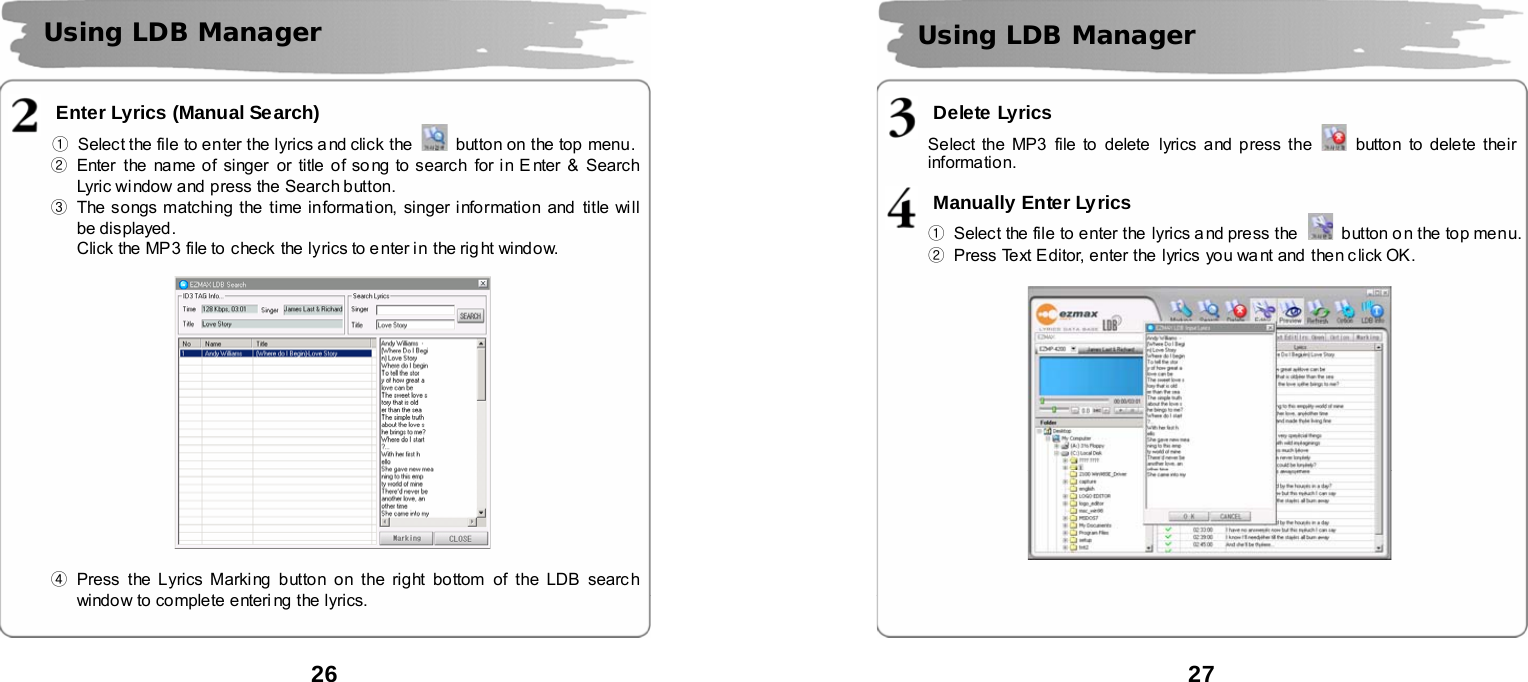

26 Enter Lyrics (Manual Search) ① Select the file to enter the lyrics and click the button on the top menu. ② Enter the name of singer or title of song to search for in E nter & Search Lyric window and press the Search button. ③ The songs matching the time information, singer information and title will be displayed. Click the MP3 file to check the lyrics to e nter i n the rig ht window. ④ Press the Lyrics Marking button on the right bottom of the LDB searc h window to complete enteri ng the lyrics. Using LDB Manager 27 Delete Lyrics Select the MP3 file to delete lyrics and press the button to delete their information. Manually Enter Lyrics ① Select the file to enter the lyrics a nd press the button o n the top menu. ② Press Text Editor, enter the lyrics you want and then click OK. Using LDB Manager

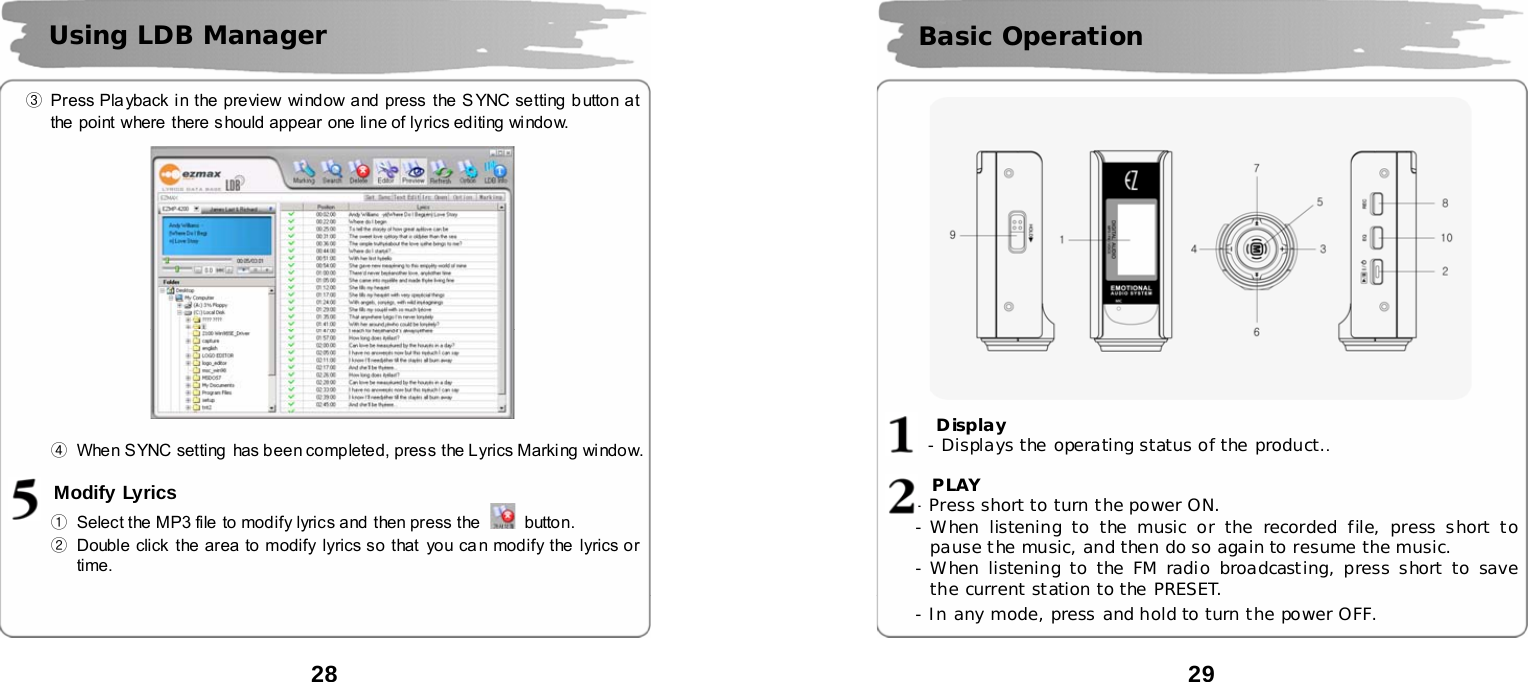

28 ③ Press Playback in the preview window and press the SYNC setting b utton at the point where there should appear one line of lyrics editing window. ④ When SYNC setting has been completed, press the Lyrics Marking window. Modify Lyrics ① Select the MP3 file to modify lyrics and then press the button. ② Double click the area to modify lyrics so that you ca n modify the lyrics or time. Using LDB Manager 29 Display - Displays the operating status of the product.. PLAY - Press short to turn the power ON. - When listening to the music or the recorded file, press short to pause the music, and then do so again to resume the music. - When listening to the FM radio broadcasting, press short to save the current station to the PRESET. - In any mode, press and hold to turn the power OFF. Basic Operation

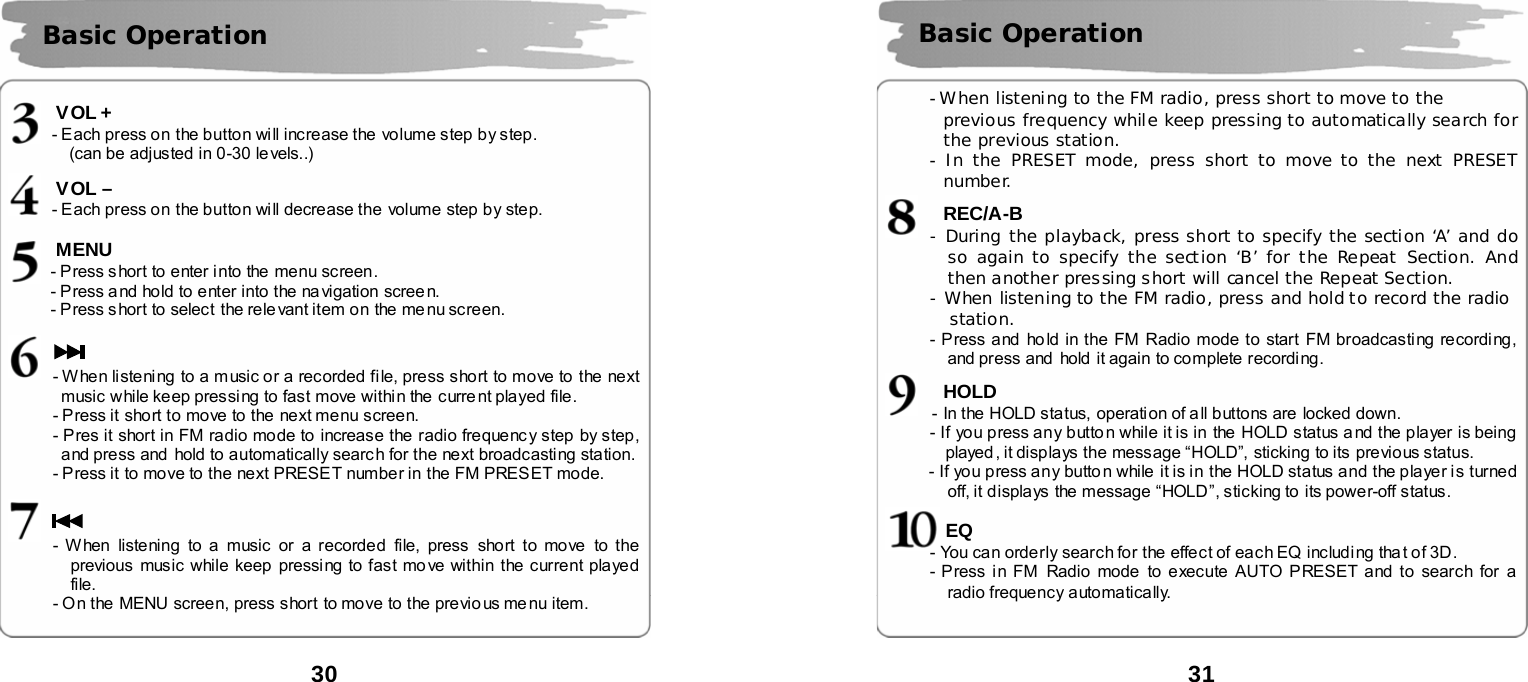

30 VOL + - Each press on the button will increase the volume step by step. (can be adjusted in 0-30 le vels..) VOL – - Each press on the button will decrease the volume step by step. MENU - P ress s hort to enter into the menu screen. - Press a nd hold to enter into the na vigation screen. - Press short to select the relevant item on the menu screen. - When listening to a music or a recorded file, press short to move to the next music while keep pressing to fast move within the current played file. - Press it short to move to the next menu screen. - Pres it short in FM radio mode to increase the radio frequenc y step by step, and press and hold to automatically search for the next broadcasting station. - Press it to move to the next PRESET number in the FM PRESET mode. - When listening to a music or a recorded file, press short to move to the previous music while keep pressing to fast mo ve within the current played file. - On the MENU screen, press short to move to the previo us me nu item. Basic Operation 31 - When listening to the FM radio, press short to move to the previous frequency while keep pressing to automatically search for the previous station. - In the PRESET mode, press short to move to the next PRESET number. REC/A-B - During the playback, press short to specify the section ‘A’ and do so again to specify the section ‘B’ for the Repeat Section. And then another pressing short will cancel the Repeat Section. - When listening to the FM radio, press and hold to record the radio station. - Press and ho ld in the FM Radio mode to start FM broadcasting recording, and press and hold it again to complete recording. HOLD - In the HOLD status, operation of all buttons are locked down. - If you press any button while it is in the HOLD status and the player is being played , it displays the message “HOLD”, sticking to its previous status. - If you press any button while it is in the HOLD status and the player is turned off, it displays the message “HOLD ”, sticking to its power-off status. EQ - You can orderly search for the effect of each EQ including tha t of 3D. - Press in FM Radio mode to execute AUTO PRESET and to search for a radio frequency automatically. Basic Operation

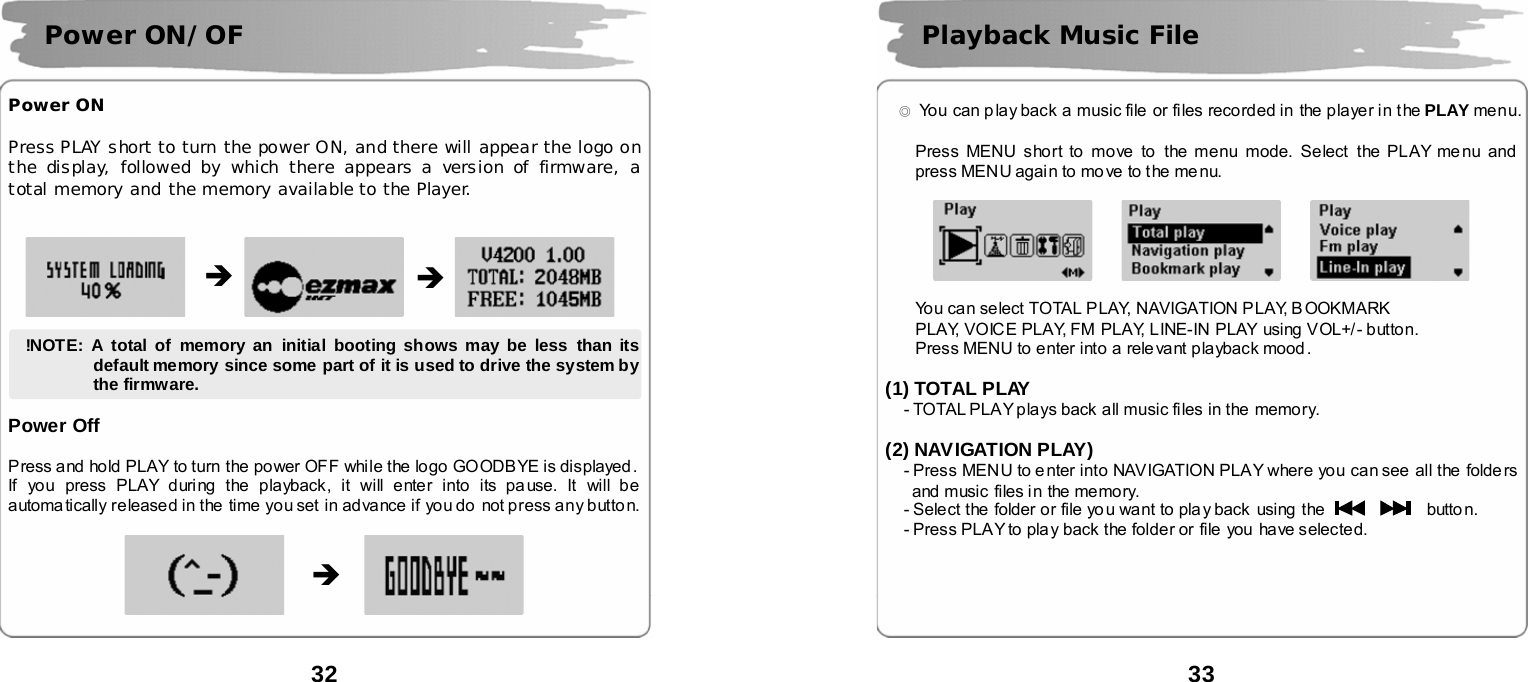

32 Power ON Press PLAY short to turn the power ON, and there will appear the logo on the display, followed by which there appears a version of firmware, a total memory and the memory available to the Player. !NOTE: A total of memory an initial booting shows may be less than its default memory since some part of it is used to drive the system by the firmware. Power Off Press and hold PLAY to turn the power OFF while the logo GOODBYE is displayed . If you press PLAY during the playback, it will enter into its pause. It will be automatically released in the time you set in advance if you do not press any button. Î Î Power ON/OF Î 33 ◎ You can p lay back a music file or files recorded in the player in the PLAY menu. Press MENU short to move to the menu mode. Select the PLAY menu and press MENU again to move to the me nu. You can select TOTAL P LAY, NAVIGATION PLAY, B OOKMARK PLAY, VOICE PLAY, FM PLAY, LINE-IN PLAY using VOL+/- button. Press MENU to enter into a rele vant playback mood. (1) TOTAL PLAY - TOTAL PLAY plays back all music files in the memory. (2) NAVIGATION PLAY) - Press MENU to enter into NAVIGATION PLAY where you can see all the folde rs and music files in the memory. - Select the folder or file yo u want to play back using the butto n. - Press PLAY to pla y back the folder or file you have selected. Playback Music File

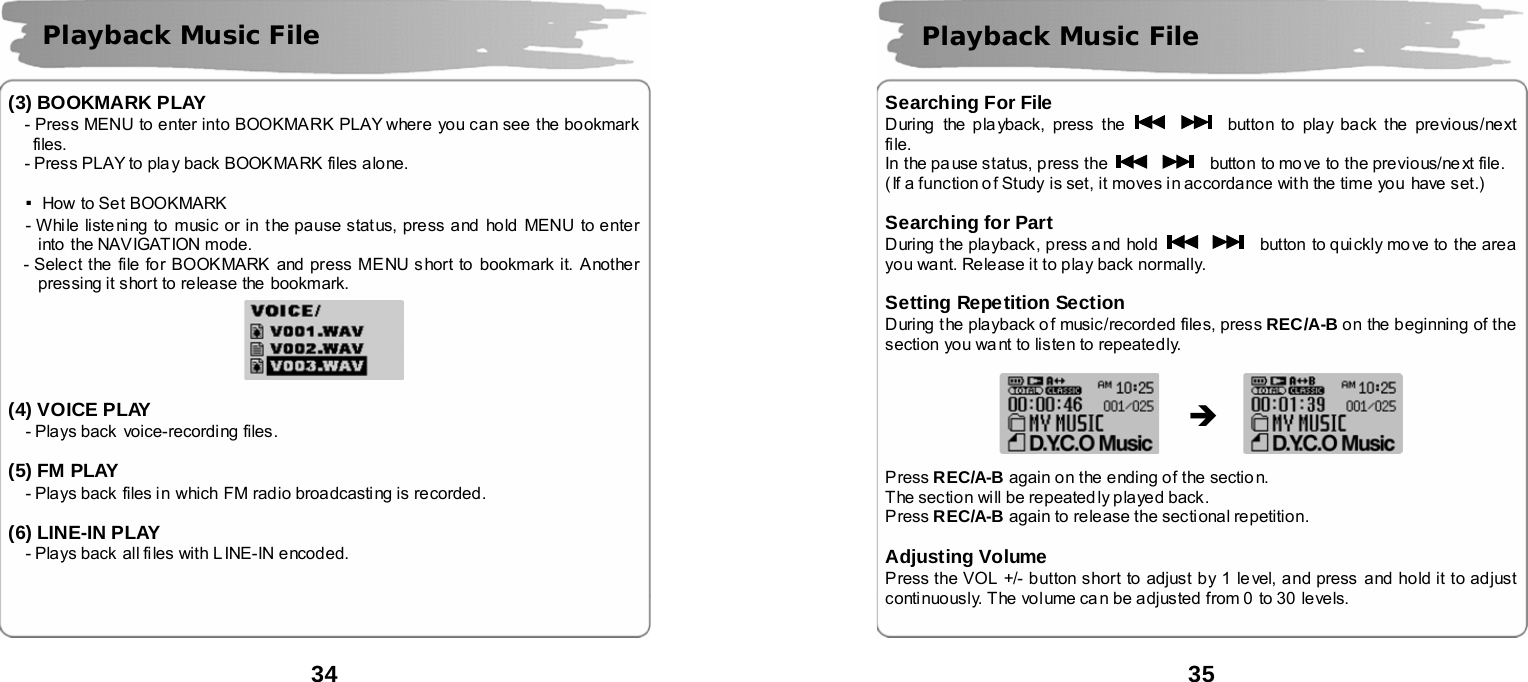

34 (3) BOOKMARK PLAY - Press MENU to enter into BOOKMARK PLAY where you can see the bookmark files. - Press PLAY to pla y back BOOKMARK files alone. ▪How to Set BOOKMARK - While listening to music or in the pause status, press and hold MENU to enter into the NAVIGATION mode. - Select the file for BOOKMARK and press MENU s hort to bookmark it. Another pressing it short to release the bookmark. (4) VOICE PLAY - Plays back voice-recording files. (5) FM PLAY - Plays back files in which FM radio broadcasting is recorded. (6) LINE-IN PLAY - Plays back all files with L INE-IN encoded. Playback Music File 35 Searching For File During the playback, press the button to play back the previous/next file. In the pa use status, press the button to mo ve to the previous/ne xt file. ( If a function o f Study is set, it moves i n accordance with the time you have set.) Searching for Part During the playback, press and hold button to quickly move to the area you want. Release it to play back normally. Setting Repetition Section During the playback o f music/recorded files, press REC/A-B on the beginning of the section you wa nt to listen to repeatedly. Press REC/A-B again on the ending of the sectio n. The section will be repeatedly played back. Press REC/A-B again to release the sectional repetition. Adjusting Volume Press the VOL +/- button short to adjust by 1 level, and press and hold it to adjust continuously. The volume can be adjusted from 0 to 30 levels. Playback Music File Î

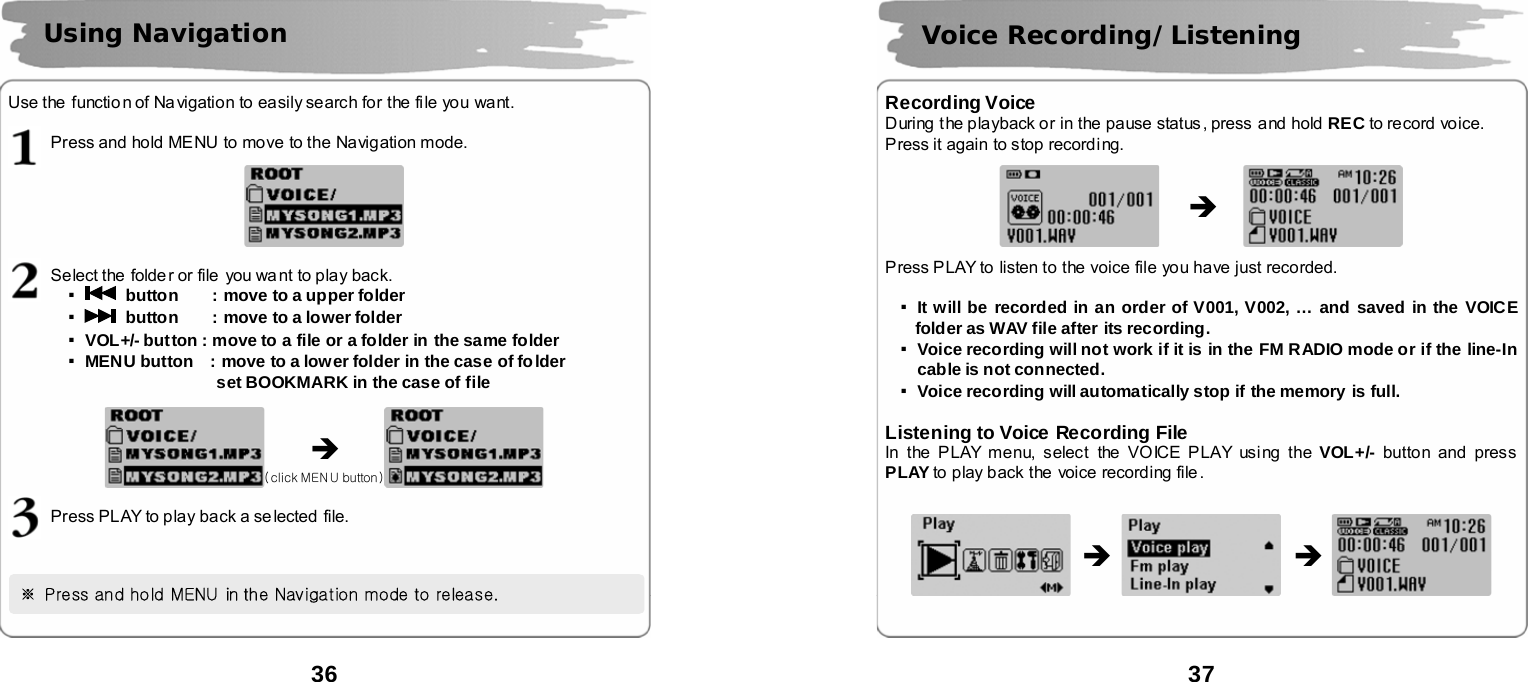

36 Use the functio n of Navigation to easily search for the file you want. Press and hold MENU to move to the Navigation mode. Select the folde r or file you wa nt to play back. ▪ button : move to a upper folder ▪ button : move to a lower folder ▪VOL+/- button : move to a file or a folder in the same folder ▪MENU button : move to a lower folder in the case of folder set BOOKMARK in the case of file Press PLAY to play back a se lected file. Using Navigation Î ※ Press and ho ld MENU in the Navigation mode to release. ( click ME N U button ) 37 Recording Voice During the playback or in the pause status , press and hold REC to record voice. Press it again to stop recording. Press PLAY to listen to the voice file you have just recorded. ▪It will be recorded in an order of V001, V002, … and saved in the VOICE folder as WAV file after its recording. ▪Voice recording will not work if it is in the FM RADIO mode or if the line-In cable is not connected. ▪Voice recording will automatically stop if the memory is full. Listening to Voice Recording File In the PLAY menu, select the VOICE PLAY using the VOL+/- button and press PLAY to play back the voice recording file. Voice Recording/Listening Î Î Î

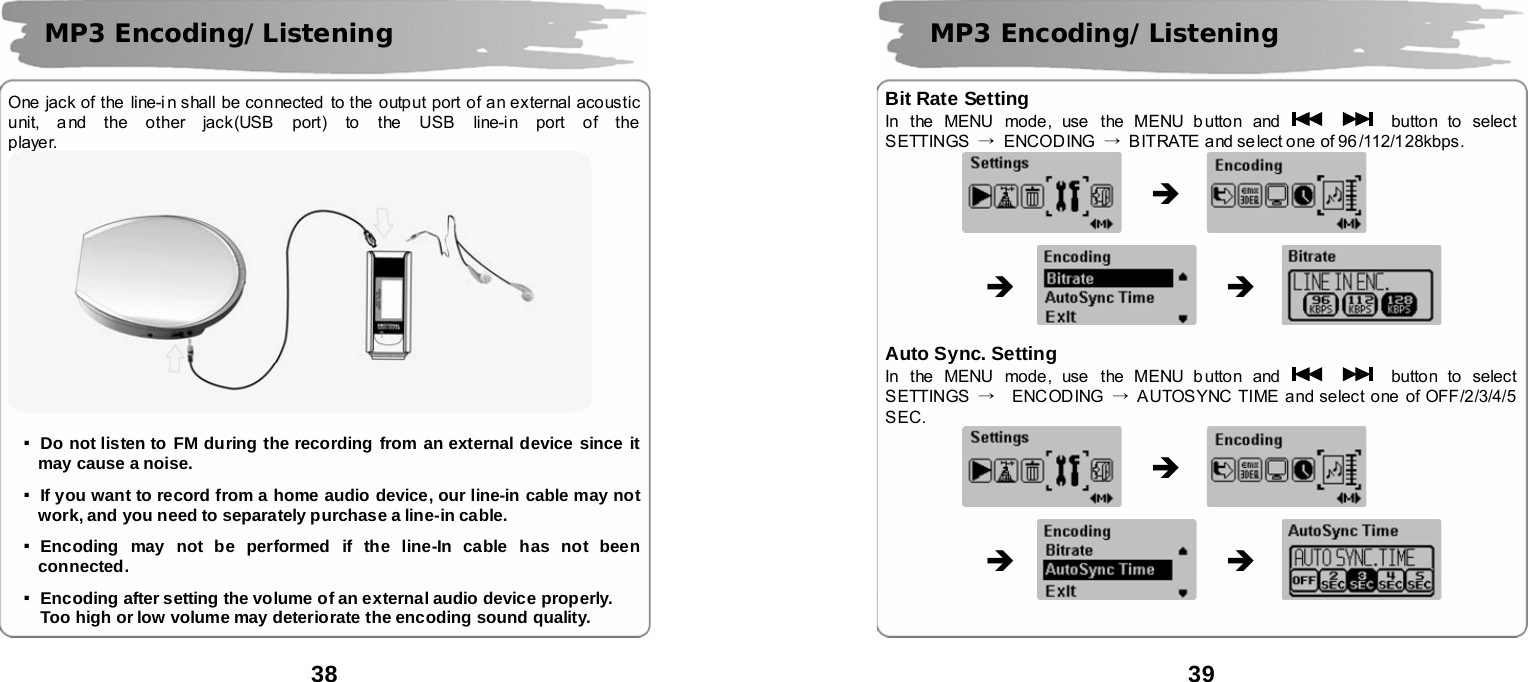

38 One jack of the line-i n shall be connected to the output port of an external acoustic unit, a nd the other jack(USB port) to the USB line-in port of the player. ▪Do not listen to FM during the recording from an external device since it may cause a noise. ▪If you want to record from a home audio device, our line-in cable may not work, and you need to separately purchase a line-in cable. ▪Encoding may not be performed if the line-In cable has not been connected. ▪Encoding after setting the volume of an external audio device properly. Too high or low volume may deteriorate the encoding sound quality. MP3 Encoding/Listening 39 Bit Rate Setting In the MENU mode, use the MENU b utton and button to select SETTINGS → ENCODING → BITRATE and se lect one of 96/112/128kbps. Auto Sync. Setting In the MENU mode, use the MENU b utton and button to select SETTINGS → ENCODING → AUTOSYNC TIME and select one of OFF/2/3/4/5 SEC. MP3 Encoding/Listening Î Î Î Î Î Î

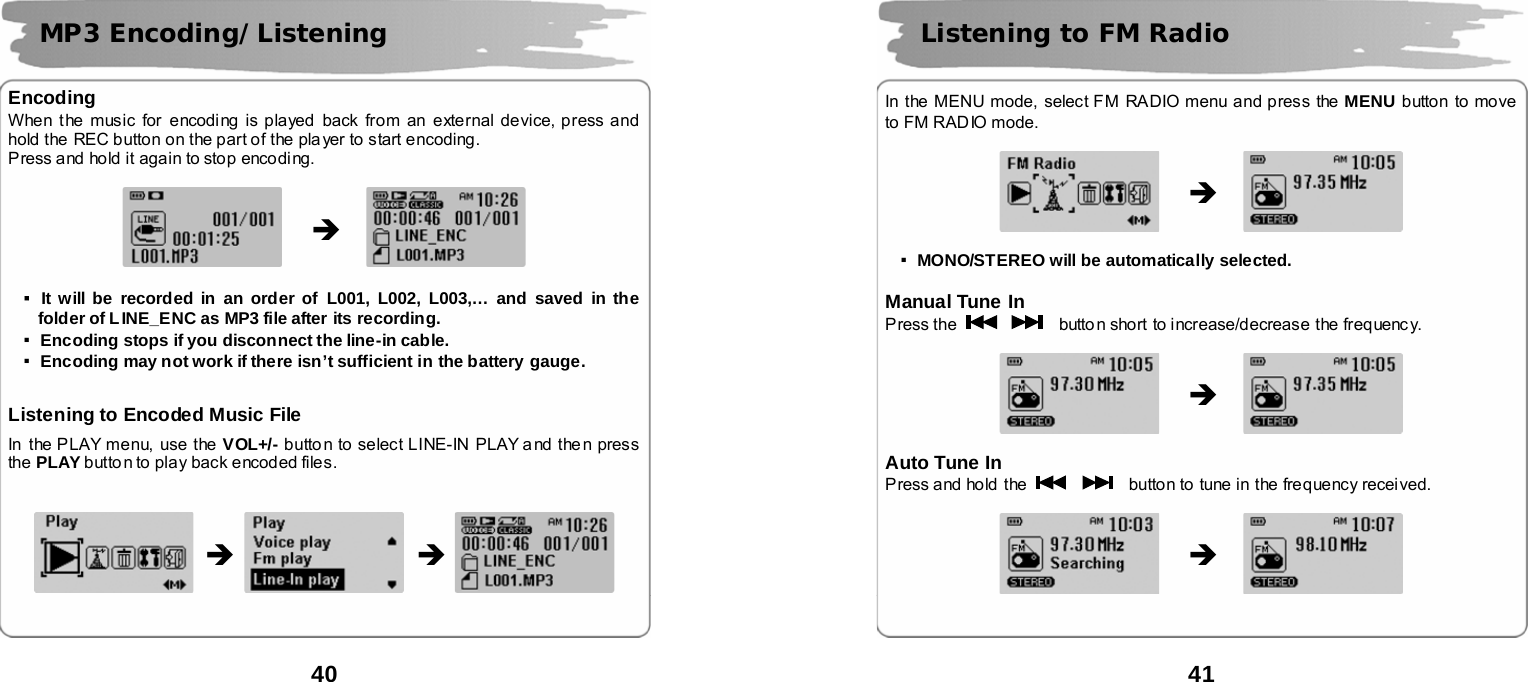

40 Encoding When the music for encoding is played back from an external device, press and hold the REC button on the part of the player to start encoding. Press and hold it again to stop encoding. ▪It will be recorded in an order of L001, L002, L003,… and saved in the folder of L INE_ENC as MP3 file after its recording. ▪Encoding stops if you disconnect the line-in cable. ▪Encoding may not work if there isn’t sufficient in the battery gauge. Listening to Encoded Music File In the PLAY menu, use the VOL+/- button to select LINE-IN PLAY and then press the PLAY button to play back encoded files. MP3 Encoding/Listening Î Î Î 41 In the MENU mode, select FM RADIO menu and press the MENU button to move to FM RADIO mode. ▪MONO/STEREO will be automatically selected. Manual Tune In Press the butto n short to increase/decrease the frequency. Auto Tune In Press and hold the butto n to tune in the frequency recei ved. Listening to FM Radio Î Î Î

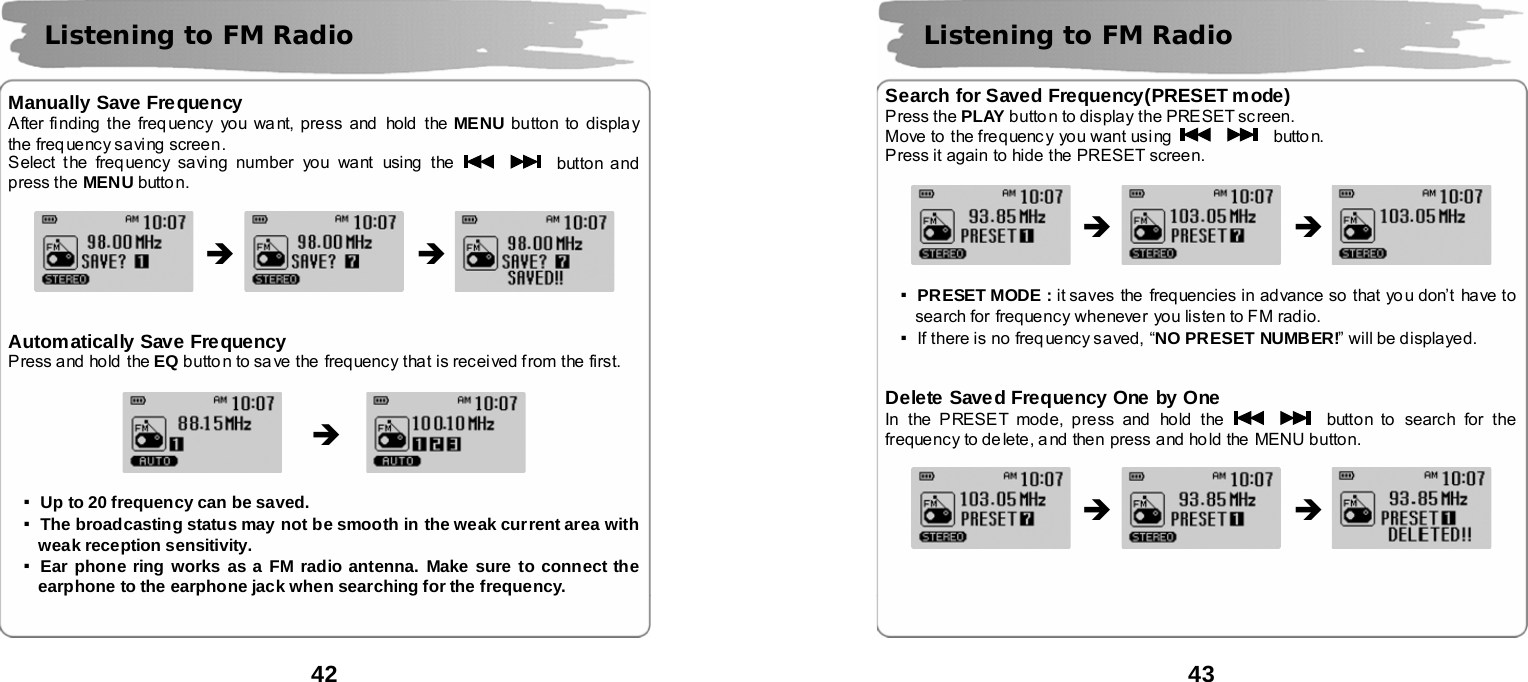

42 Manually Save Frequency After finding the frequency you wa nt, press and hold the MENU button to display the freq ue nc y sa vi ng screen . Select the freq uency saving number you want using the button and press the MENU butto n. Automatically Save Frequency Press and hold the EQ butto n to sa ve the frequency that is recei ved f rom the first. ▪Up to 20 frequency can be saved. ▪The broadcasting status may not be smooth in the weak current area with weak reception sensitivity. ▪Ear phone ring works as a FM radio antenna. Make sure to connect the earphone to the earphone jack when searching for the frequency. Listening to FM Radio Î Î Î 43 Search for Saved Frequency(PRESET mode) Press the PLAY butto n to display the PRESET sc reen. Move to the frequenc y you want using butto n. Press it again to hide the PRESET screen. ▪PRESET MODE : it saves the frequencies in advance so that yo u don’t have to search for frequency whenever you listen to FM radio. ▪If there is no freq uency saved, “NO PRESET NUMBER!” will be displayed. Delete Saved Frequency One by One In the PRESET mode, press and hold the button to search for the frequency to de lete, a nd then press and ho ld the MENU b utton. Listening to FM Radio Î Î Î Î

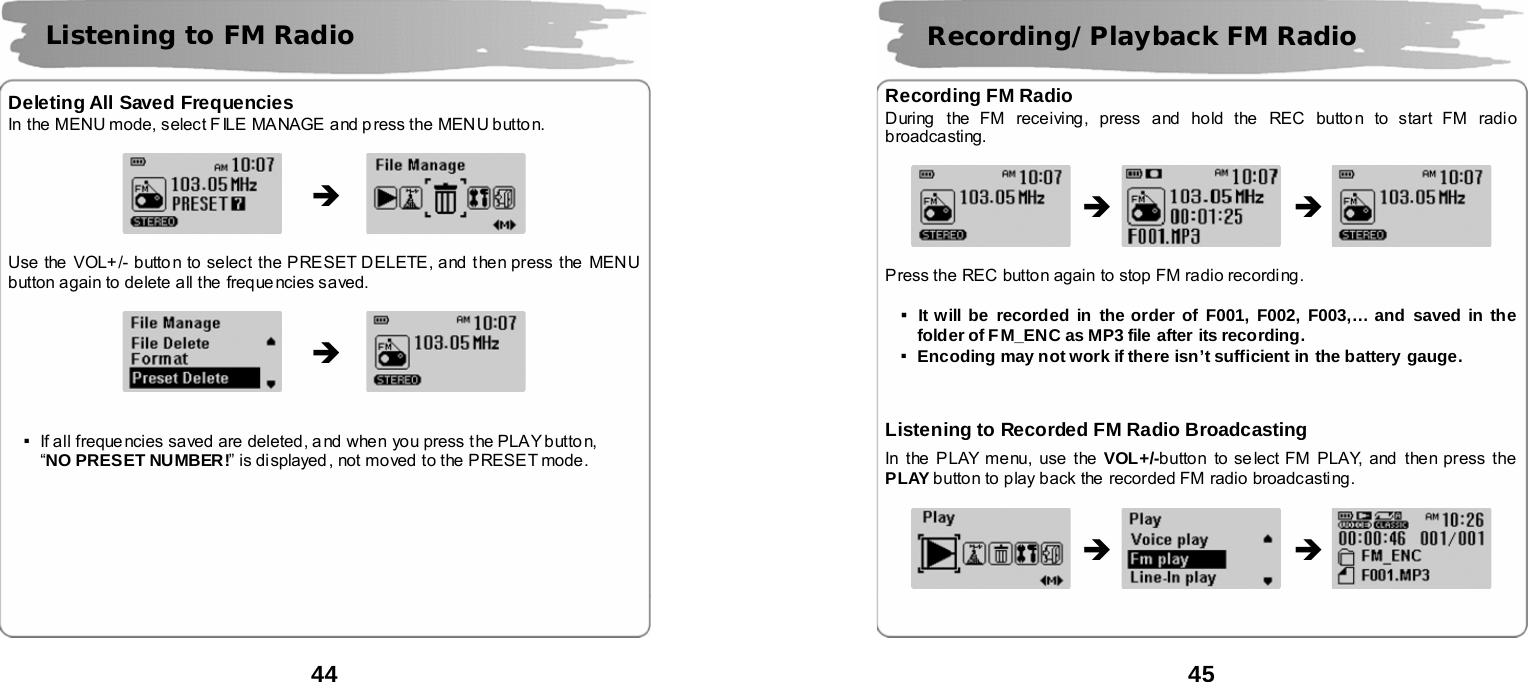

44 Deleting All Saved Frequencies In the MENU mode, select F ILE MANAGE and p ress the MENU button. Use the VOL+/- butto n to select the PRESET DELETE, and then press the MENU button again to delete all the freque ncies saved. ▪If all freque ncies saved are deleted, a nd when you press the PLAY button, “NO PRESET NUMBER!” is displayed , not moved to the PRESET mode. Listening to FM Radio Î Î 45 Recording FM Radio During the FM receiving, press and hold the REC button to start FM radio broadcasting. Press the REC button again to stop FM radio recording. ▪It will be recorded in the order of F001, F002, F003,… and saved in the folder of FM_ENC as MP3 file after its recording. ▪Encoding may not work if there isn’t sufficient in the battery gauge. Listening to Recorded FM Radio Broadcasting In the PLAY menu, use the VOL+/-button to se lect FM PLAY, and then press the PLAY button to play back the recorded FM radio broadcasting. Recording/Playback FM Radio Î Î Î Î

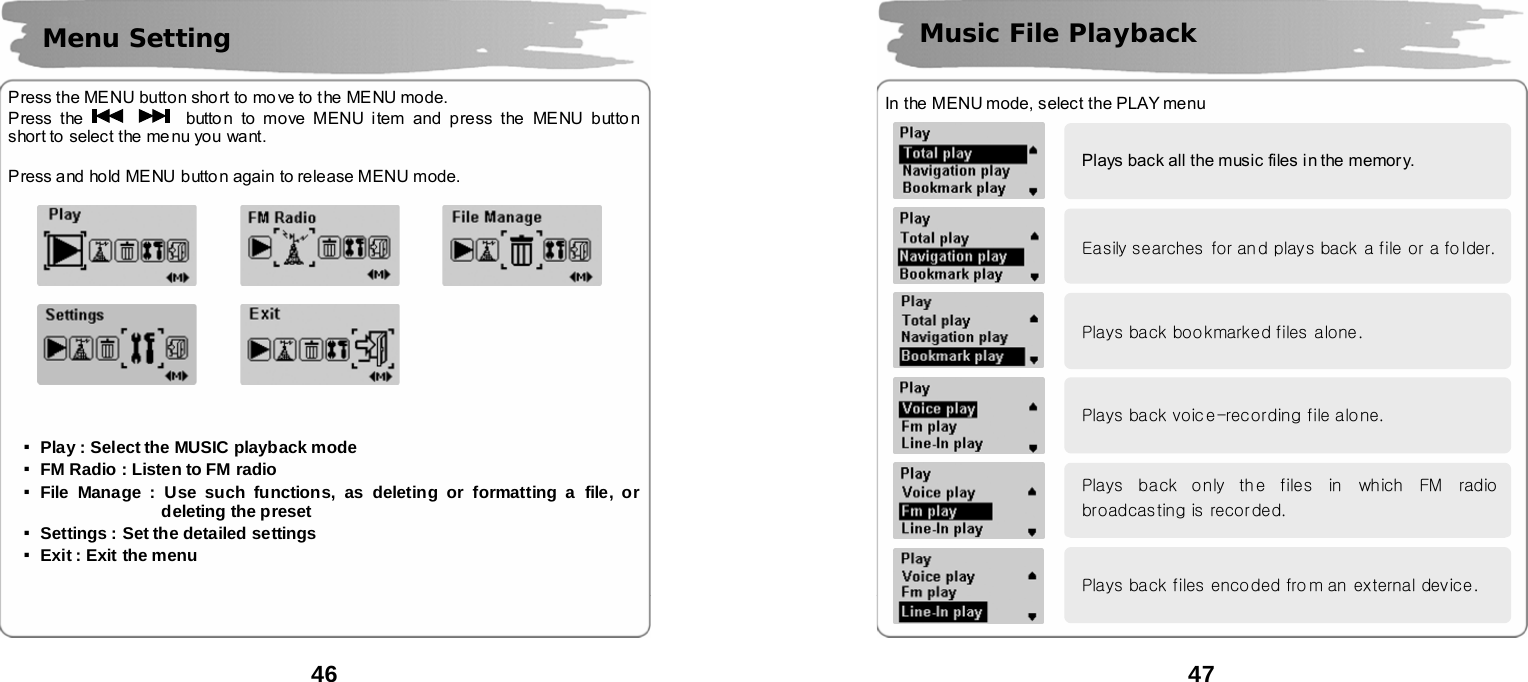

46 Press the MENU button sho rt to move to t he MENU mode. Press the button to move MENU item and press the MENU button short to select the menu you want. Press and hold MENU button again to release MENU mode. ▪Play : Select the MUSIC playback mode ▪FM Radio : Listen to FM radio ▪File Manage : Use such functions, as deleting or formatting a file, or deleting the preset ▪Settings : Set the detailed settings ▪Exit : Exit the menu Menu Setting 47 In the MENU mode, select the PLAY menu Music File Playback Plays back all the music files in the memory. Easily searches for an d plays back a file or a fo lder. Plays back bookmarked files alone. Plays back voice-recording file alone. Plays back only the files in which FM radio broadcasting is recorded. Plays back files encoded fro m an external device.

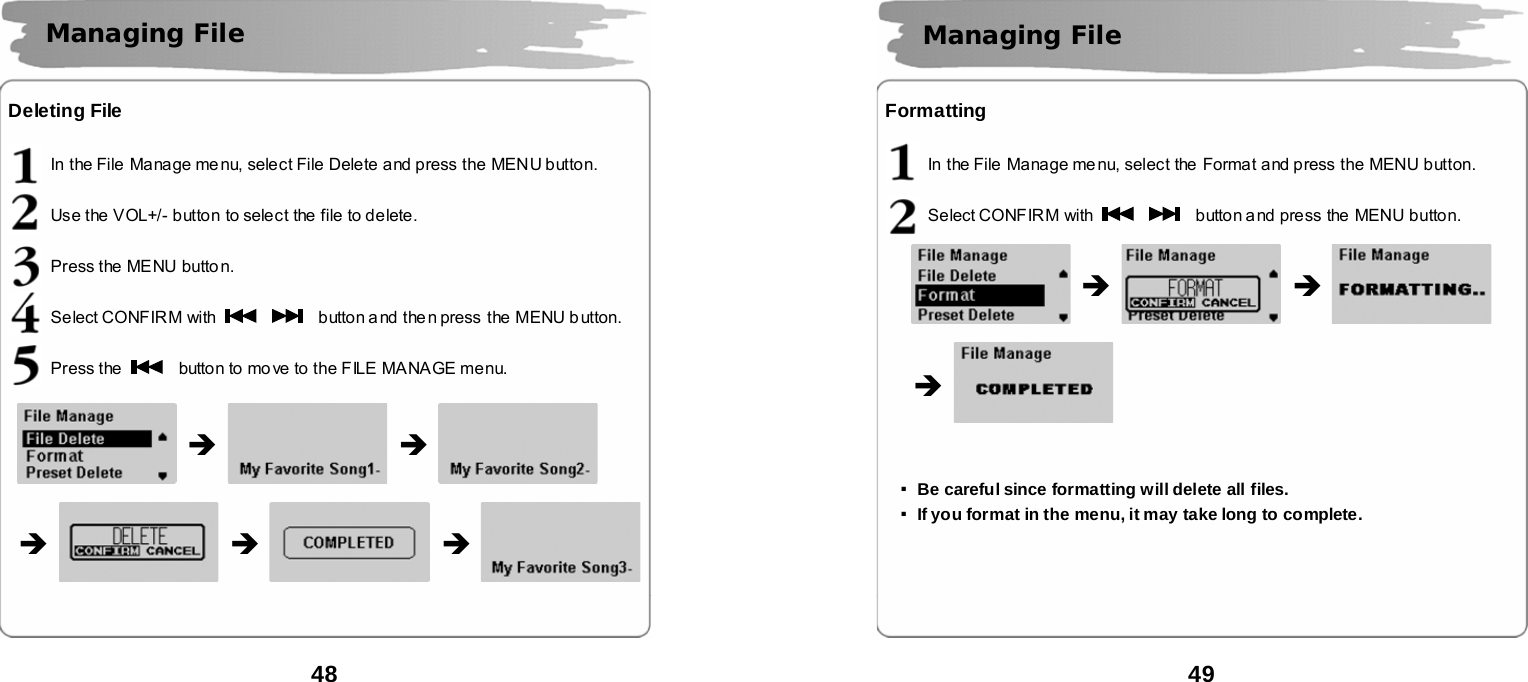

48 Deleting File In the File Manage menu, select File Delete and press the MENU button. Use the VOL+/- button to select the file to delete. Press the MENU butto n. Select CONFIR M with button a nd the n press the MENU b utton. Press the button to mo ve to the FILE MANAGE menu. Managing File Î Î Î Î Î 49 Formatting In the File Manage menu, select the Format and press the MENU button. Select CONFIR M with button and press the MENU button. ▪Be careful since formatting will delete all files. ▪If you format in the menu, it may take long to complete. Managing File Î Î Î

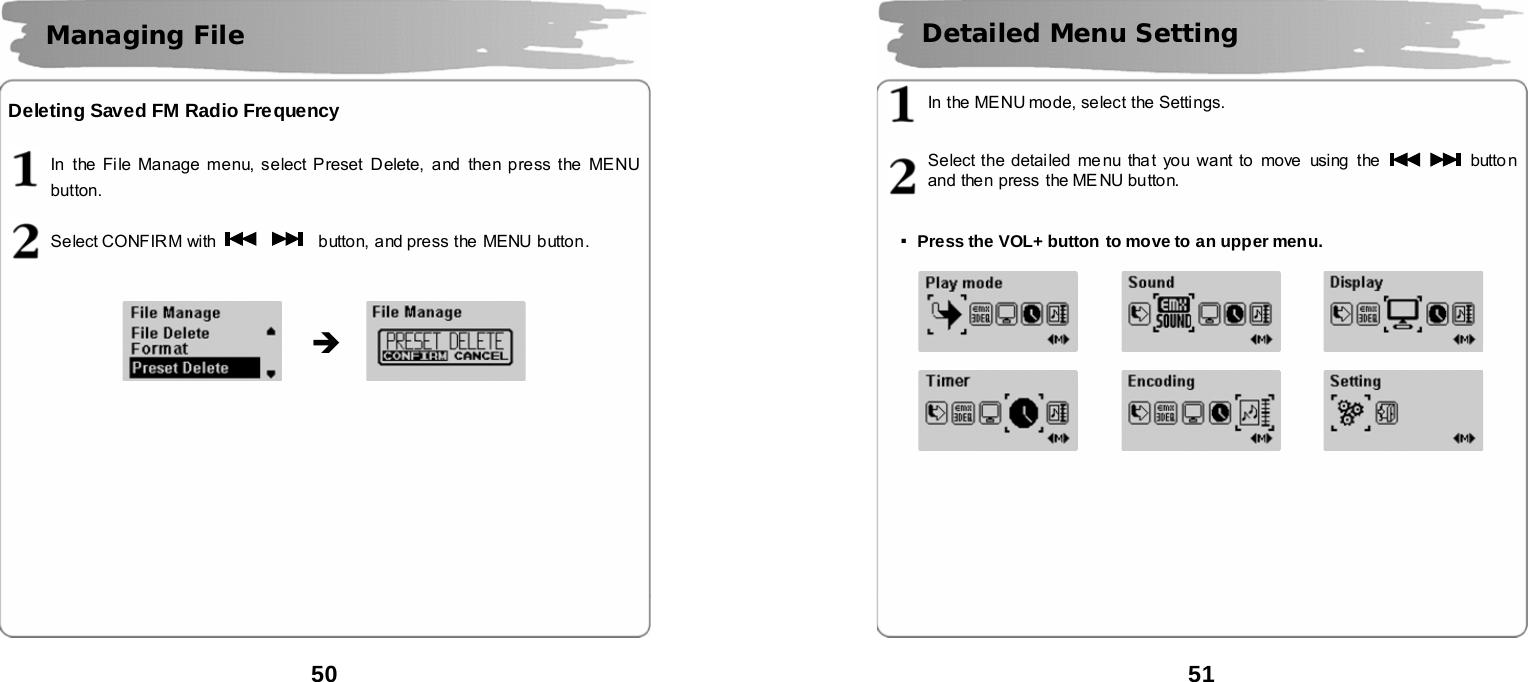

50 Deleting Saved FM Radio Frequency In the File Manage menu, select Preset Delete, and then press the MENU button. Select CONFIR M with button, and press the MENU button. Managing File Î 51 In the MENU mode, select the Setti ngs. Select the detailed menu tha t you want to move using the button and then press the MENU button. ▪Press the VOL+ button to move to an upper menu. Detailed Menu Setting

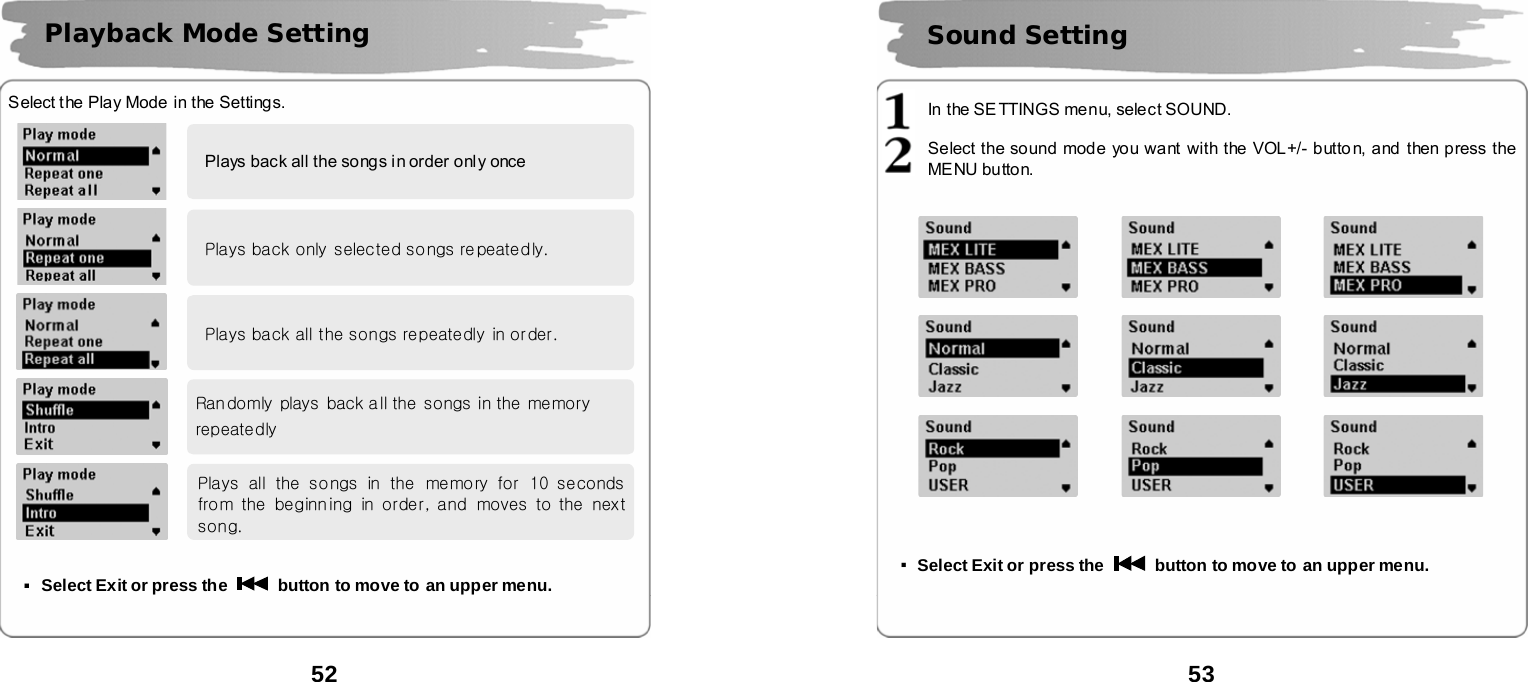

52 Select the Play Mode in the Settings. ▪Select Exit or press the button to move to an upper menu. Playback Mode Setting Plays back all the songs in order only once Plays back only selected songs re peatedly. Plays back all the songs repeatedly in order. Ran domly plays back a ll the songs in the memory repeatedly Plays all the songs in the memory for 10 seconds from the beginning in order, and moves to the next song. 53 In the SE TTINGS me nu, select SOUND. Select the sound mode you want with the VOL+/- button, and then press the MENU button. ▪Select Exit or press the button to move to an upper menu. Sound Setting

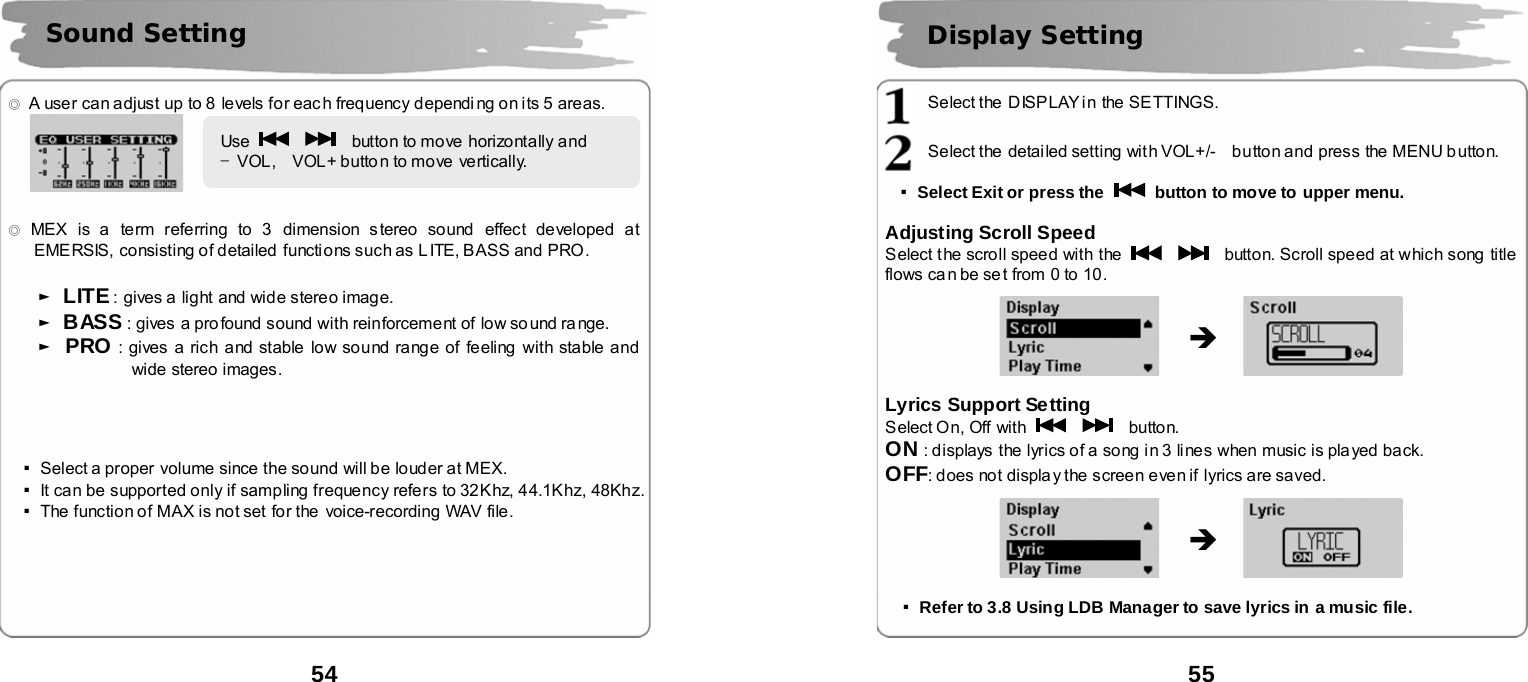

54 ◎ A user can adjust up to 8 levels for eac h frequency dependi ng on its 5 areas. ◎ MEX is a term referring to 3 dimension s tereo sound effect developed at EMERSIS, consisting of detailed functions such as L ITE, BASS and PRO. ► LITE : gives a light and wide stereo image. ► BASS : gives a profound sound with reinforcement of low so und range. ► PRO : gives a rich and stable low sound range of feeling with stable and wide stereo images. ▪Select a proper volume since the sound will be louder at MEX. ▪It can be supported only if sampling frequency refers to 32Khz, 44.1Khz, 48Khz. ▪The function of MAX is not set for the voice-recording WAV file. Sound Setting Use button to move horizontally and –VOL, VOL+ butto n to move vertically. 55 Select the DISP LAY i n the SETTINGS. Select the detai led setting with VOL+/- button and press the MENU b utton. ▪Select Exit or press the button to move to upper menu. Adjusting Scroll Speed Select the scroll speed with the button. Scroll speed at which song title flows ca n be se t from 0 to 10. Lyrics Support Setting Select On, Off with button. ON : displays the lyrics of a song in 3 lines when music is played back. OFF: does not display the screen even if lyrics are saved. ▪Refer to 3.8 Using LDB Manager to save lyrics in a music file. Display Setting Î Î

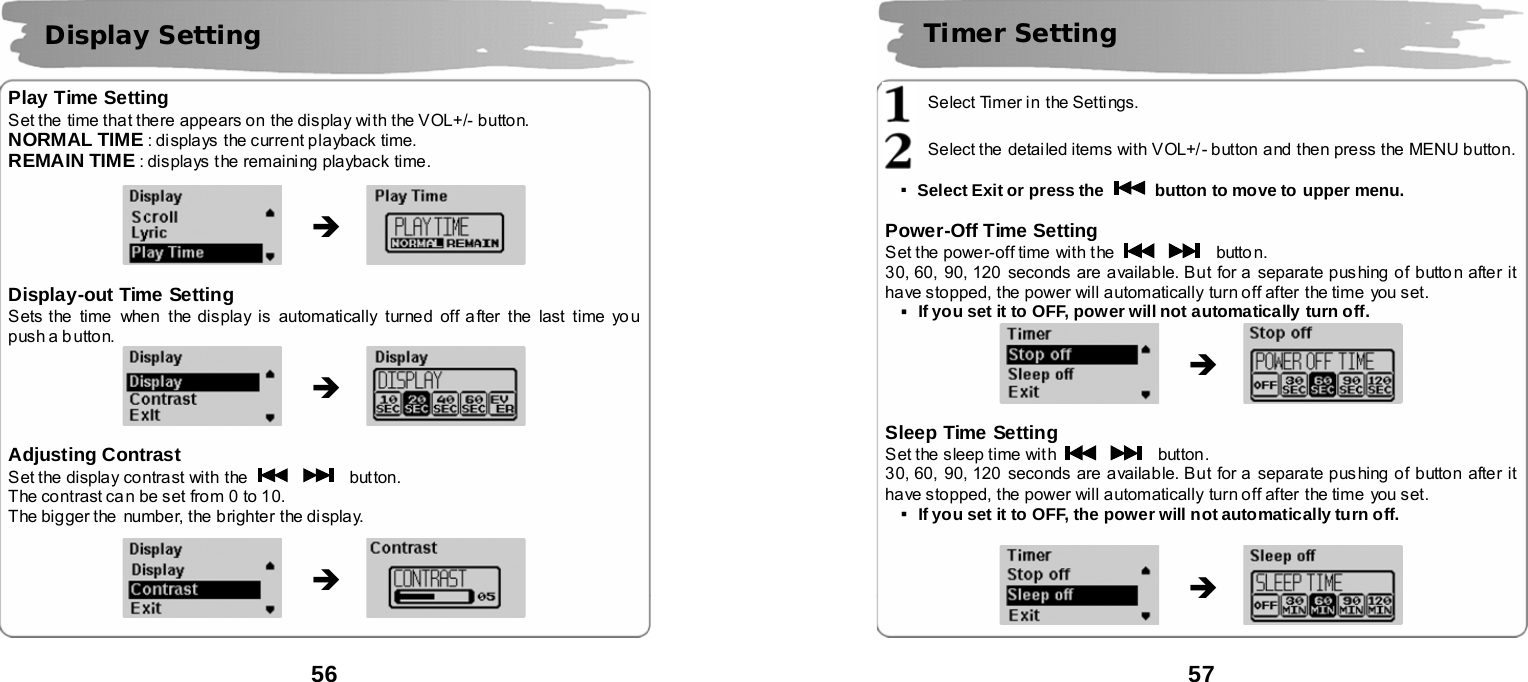

56 Play Time Setting Set the time that there appears on the display with the VOL+/- button. NORMAL TIME : di splays the current playback time. REMAIN TIME : displays t he remaining playback time. Display-out Time Setting Sets the time when the display is automatically turned off a fter the last time yo u push a b utton. Adjusting Contrast Set the display contrast with the button. The contrast ca n be set from 0 to 10. The bigger the number, the brighter the display. Display Setting Î Î Î 57 Select Timer in the Settings. Select the detailed items with VOL+/- button and then press the MENU button. ▪Select Exit or press the button to move to upper menu. Power-Off Time Setting Set the power-off time with t he butto n. 30, 60, 90, 120 seconds are available. But for a separate pushing of butto n after it have stopped, the power will automatically turn off after the time you set. ▪If you set it to OFF, power will not automatically turn off. Sleep Time Setting Set the sleep time with button. 30, 60, 90, 120 seconds are available. But for a separate pushing of button after it have stopped, the power will automatically turn off after the time you set. ▪If you set it to OFF, the power will not automatically turn off. Timer Setting Î Î

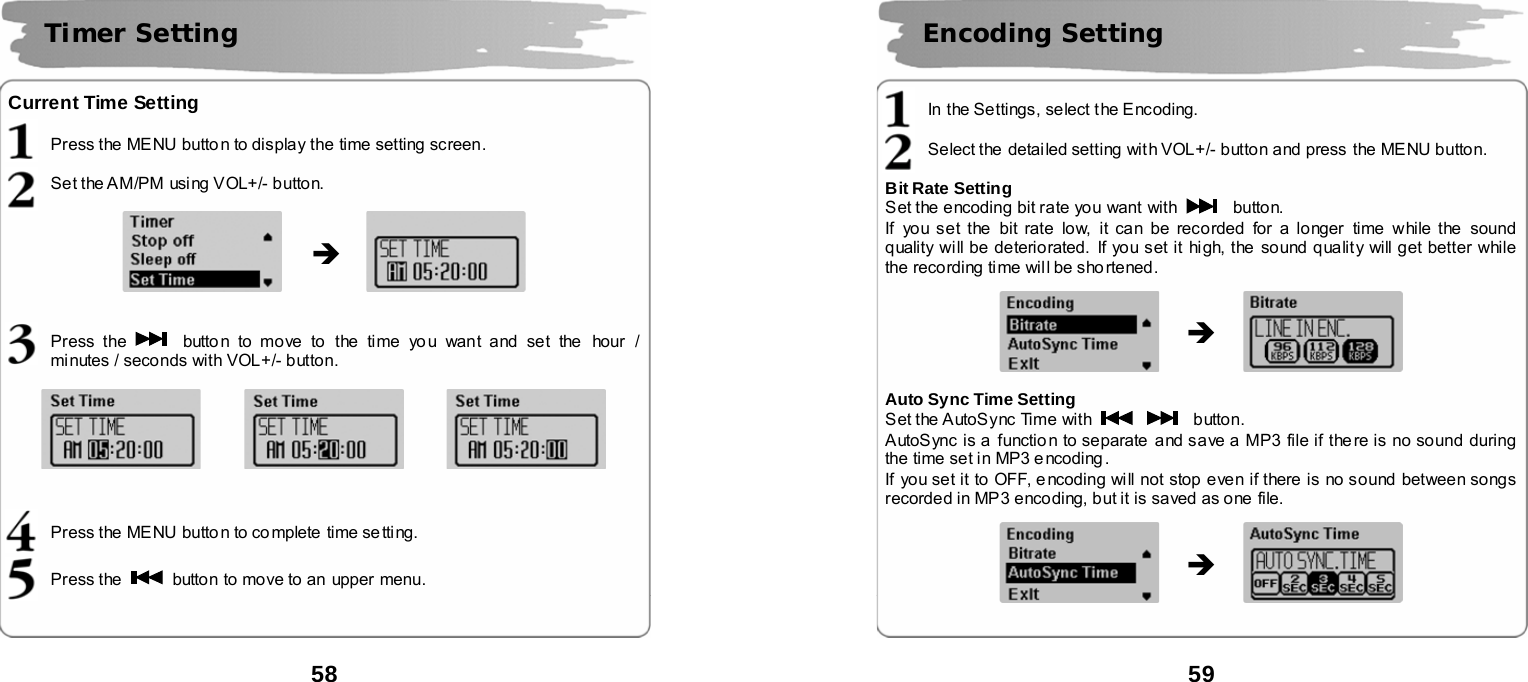

58 Current Time Setting Press the MENU butto n to display the time setting screen. Set the AM/PM usi ng V OL+/- button. Press the butto n to move to the ti me yo u want and set the hour / mi nutes / seconds with VOL+/- button. Press the MENU butto n to co mplete time se tting. Press the button to move to an upper menu. Timer Setting Î 59 In the Settings, select the Encoding. Select the detailed setting with VOL+/- button and press the MENU button. Bit Rate Setting Set the encoding bit rate you want with button. If you set the bit rate low, it can be recorded for a longer time while the sound quality will be deteriorated. If you set it high, the sound quality will get better while the recording time wil l be sho rtened. Auto Sync Time Setting Set the AutoSync Time with b utton. AutoSync is a functio n to separate and save a MP3 file if the re is no sound during the time set i n MP3 e ncoding . If you set it to OFF, e ncoding will not stop even if there is no sound between songs recorded in MP3 encoding, but it is saved as one file. Encoding Setting Î Î

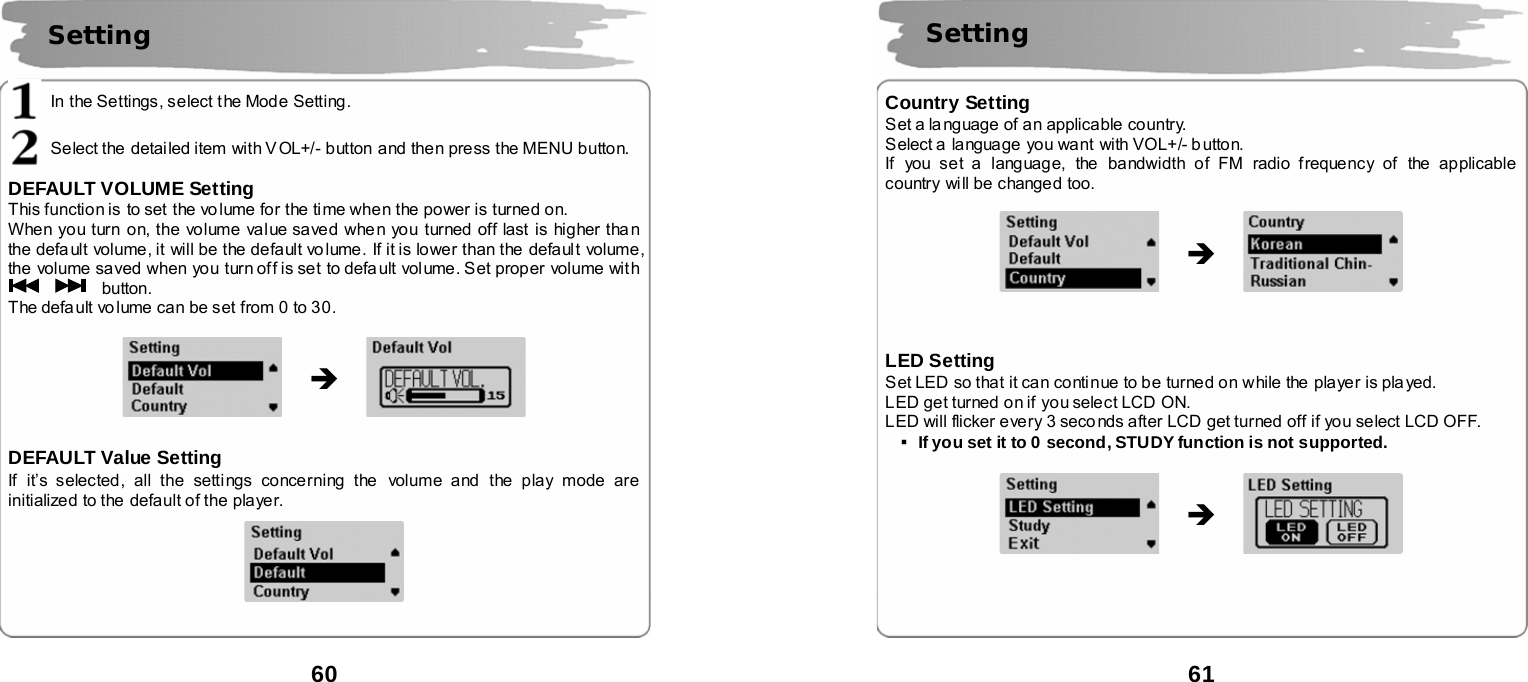

60 In the Settings, select the Mode Setting. Select the detailed item with V OL+/- button and then press the MENU button. DEFAULT VOLUME Setting This function is to set the vo lume for the ti me when the power is turned on. When you turn on, the volume value saved whe n you turned off last is higher tha n the default volume, it will be the default vo lume. If it is lower than the default volume, the volume saved when you turn off is set to default volume. Set proper volume with button. The default vo lume can be set from 0 to 30. DEFAULT Value Setting If it’s selected, all the settings concerning the volume and the play mode are initialized to the default of the player. Setting Î 61 Country Setting Set a la nguage of an applicable country. Select a language you want with VOL+/- b utton. If you set a language, the bandwidth of FM radio frequency of the applicable country will be changed too. LED Setting Set LED so that it can continue to be turned on w hile the player is pla yed. LED get turned on if you select LCD ON. LED will flicker every 3 seco nds after LCD get turned off if you select LCD OFF. ▪If you set it to 0 second, STUDY function is not supported. Setting Î Î

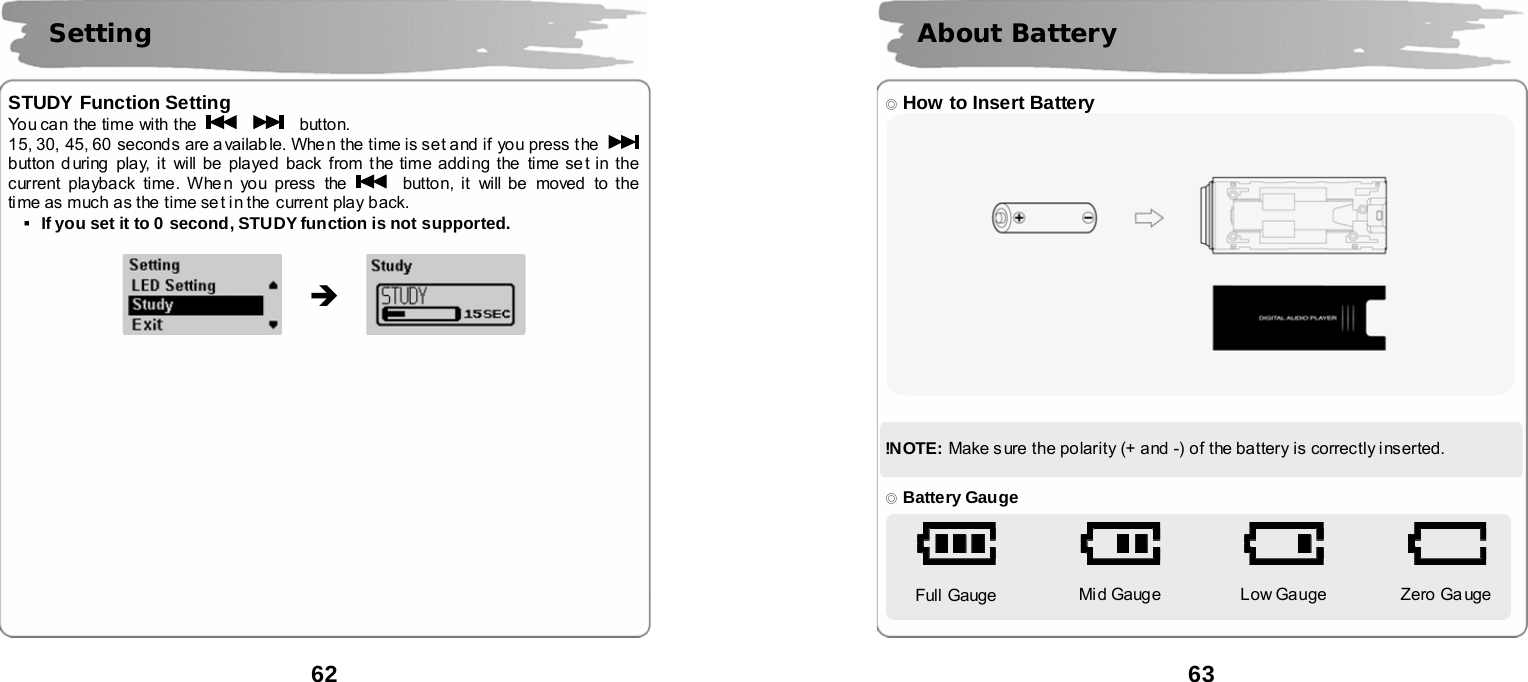

62 STUDY Function Setting You can the time with the button. 15, 30, 45, 60 seconds are available. When the time is set and if you press t he button during play, it will be played back from the time adding the time se t in the current playback time. Whe n you press the button, it will be moved to the ti me as much as the time se t in the current play b ack. ▪If you set it to 0 second, STUDY function is not supported. Setting Î 63 ◎ How to Insert Battery !N OTE: Make sure the polarity (+ and -) of the battery is correctly inserted. ◎ Battery Gauge Full Gauge Mid Gauge Low Gauge Zero Ga uge About Battery

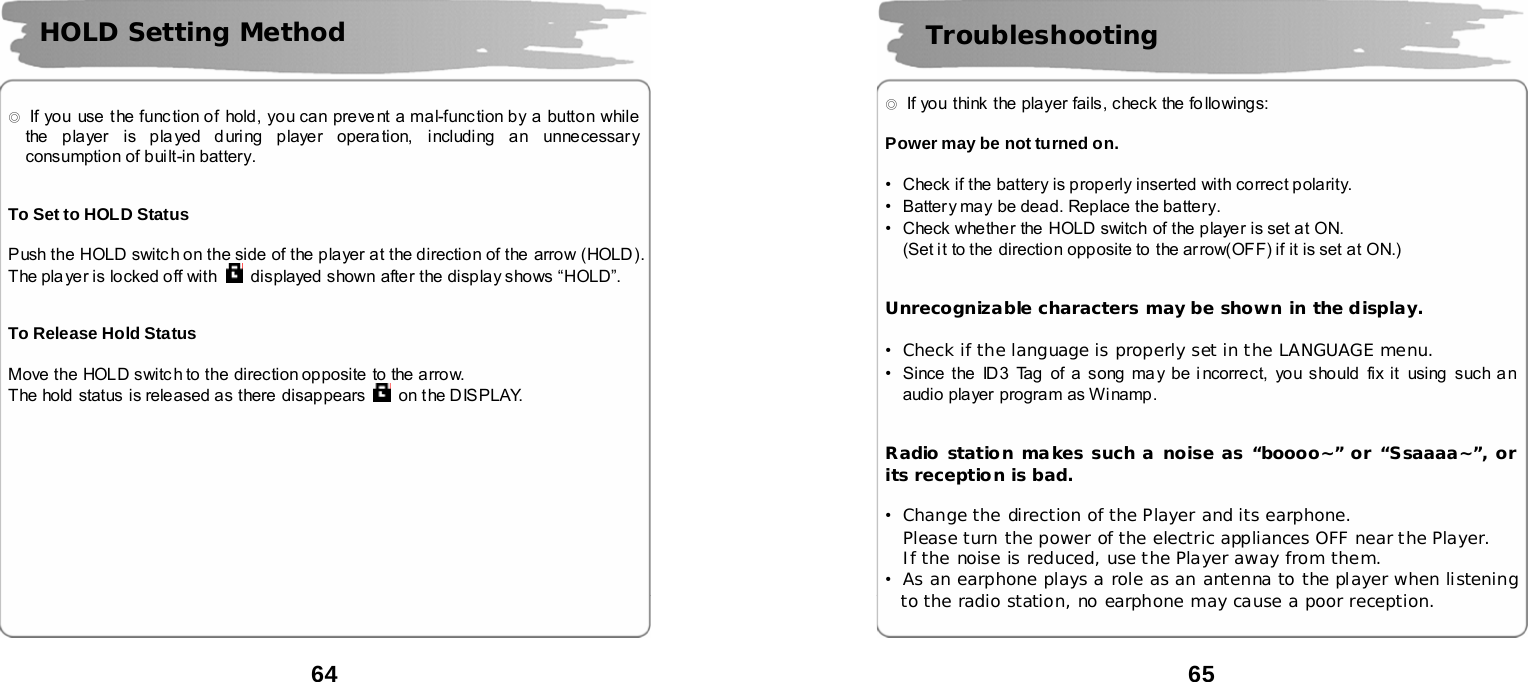

64 ◎ If you use the func tion of hold, you can preve nt a mal-function by a button while the player is pla yed d uring player opera tion, including an unnecessary consumption of built-in battery. To Set to HOLD Status Push the HOLD switch on the side of the player at the direction of the arrow (HOLD). The player is locked off with displayed shown after the display shows “HOLD”. To Release Hold Status Move the HOLD switch to the direction opposite to the arrow. The hold status is released as there disappears on the DISPLAY. HOLD Setting Method 65 ◎ If you think the player fails, check the fo llowings: Power may be not turned on. •Check if the battery is properly inserted with correct polarity. •Battery may be dead. Replace the battery. •Check whether the HOLD switch of the player is set at ON. (Set it to the direction opposite to the arrow(OFF) if it is set at ON.) Unrecognizable characters may be shown in the display. •Check if the language is properly set in the LANGUAGE menu. •Since the ID3 Tag of a song may be incorrect, you should fix it using such an audio player program as Winamp. Radio station makes such a noise as “boooo~” or “Ssaaaa~”, or its reception is bad. •Change the direction of the Player and its earphone. Please turn the power of the electric appliances OFF near the Player. If the noise is reduced, use the Player away from them. •As an earphone plays a role as an antenna to the player when listening to the radio station, no earphone may cause a poor reception. Troubleshooting

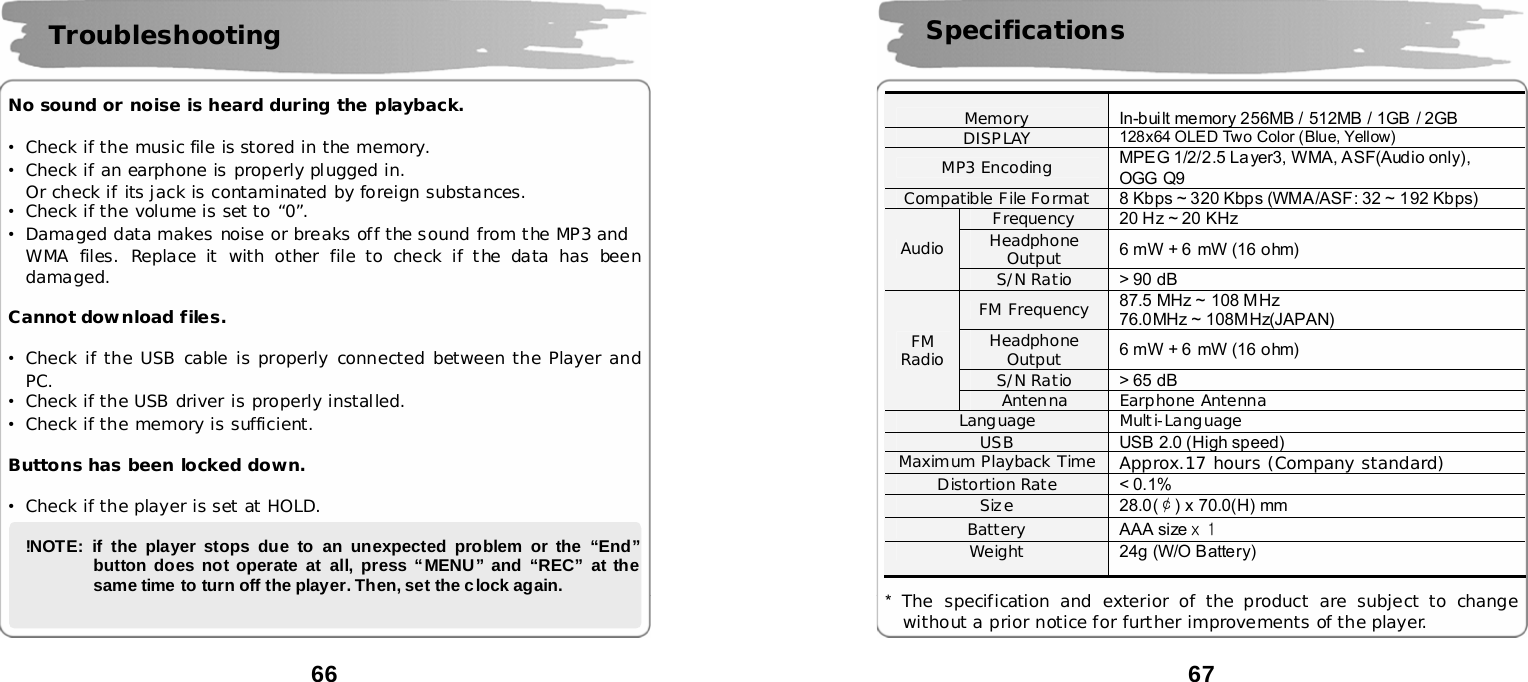

66 No sound or noise is heard during the playback. •Check if the music file is stored in the memory. •Check if an earphone is properly plugged in. Or check if its jack is contaminated by foreign substances. •Check if the volume is set to “0”. •Damaged data makes noise or breaks off the sound from the MP3 and WMA files. Replace it with other file to check if the data has been damaged. Cannot download files. •Check if the USB cable is properly connected between the Player and PC. •Check if the USB driver is properly installed. •Check if the memory is sufficient. Buttons has been locked down. •Check if the player is set at HOLD. !NOTE: if the player stops due to an unexpected problem or the “End” button does not operate at all, press “MENU” and “REC” at the same time to turn off the player. Then, set the clock again. Troubleshooting 67 Memory In-built memory 256MB / 512MB / 1GB / 2GB DISPLAY 128x64 OLED Two Color ( Blue, Yellow) MP3 Encoding MPEG 1/2/2.5 La yer3, WMA, ASF(Audio only), OGG Q9 Compatible File Format 8 Kbps ~ 320 Kbps (WMA/ASF: 32 ~ 192 Kbps) Frequency 20 Hz ~ 20 KHz Headphone Output 6 mW + 6 mW (16 ohm) Audio S/N Ratio > 90 dB FM Frequency 87.5 MHz ~ 108 MHz 76.0MHz ~ 108MHz(JAPAN) Headphone Output 6 mW + 6 mW (16 ohm) S/N Ratio > 65 dB FM Radio Antenna Earphone Antenna Language Multi-Language USB USB 2.0 (High speed) Maximum Playback Time Approx.17 hours (Company standard) Distortion Rate < 0.1% Size 28.0(￠) x 70.0(H) mm Battery AAA size x 1 Weight 24g (W/O Battery) * The specification and exterior of the product are subject to change without a prior notice for further improvements of the player. Specifications

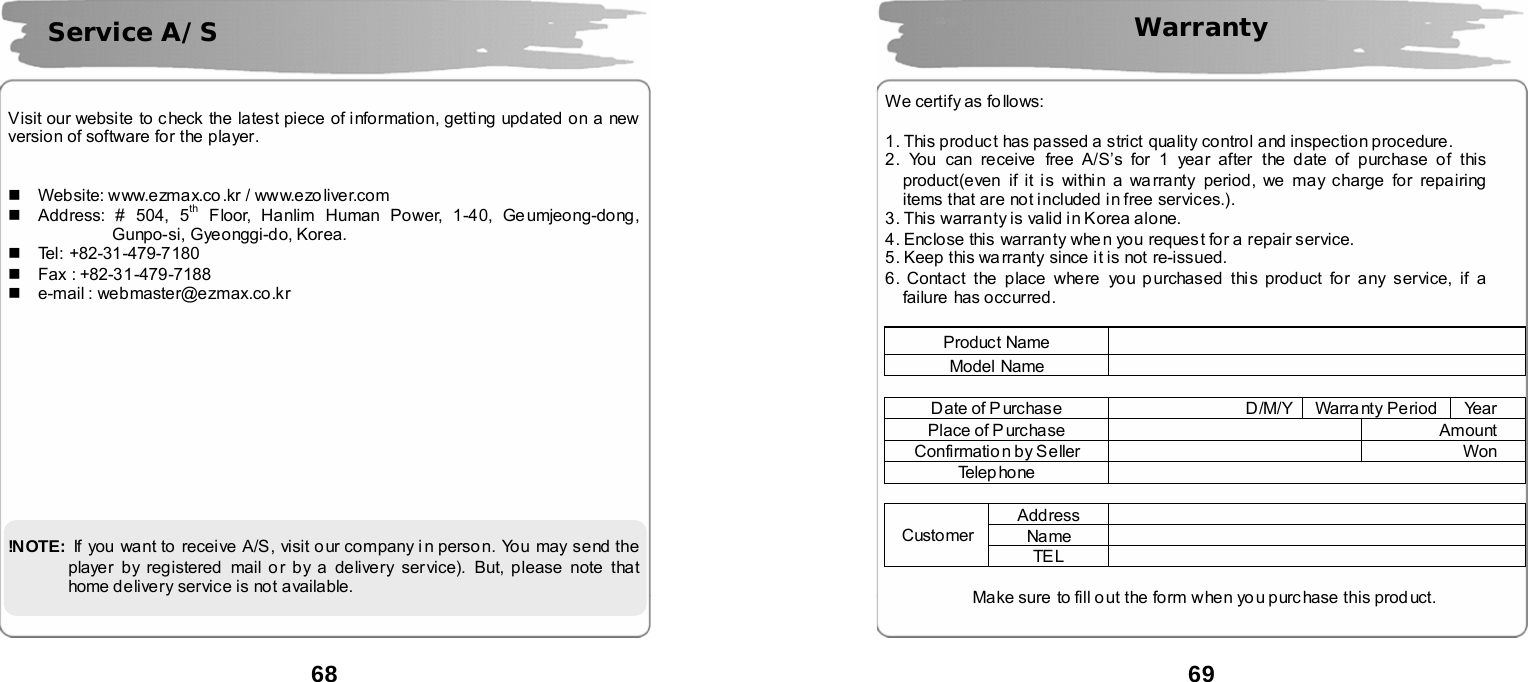

68 Visit our website to c heck the latest piece of information, getting updated on a new version of software for the player.  Website: www.ezmax.co.kr / www.ezoliver.com  Address: # 504, 5th Floor, Hanlim Human Power, 1-40, Ge umjeong-dong, Gunpo-si, Gyeonggi-do, Korea.  Tel: +82-31-479-7180  Fax : +82-31-479-7188  e-mail : webmaster@ezmax.co.kr !N OTE: If you want to receive A/S, visit our company i n perso n. You may send the player by registered mail or by a delivery service). But, please note that home delivery service is not available. Service A/S 69 Warranty We certify as fo llows: 1. This produc t has passed a strict quality control and inspection procedure. 2. You can receive free A/S’s for 1 year after the date of purchase of this product(even if it is within a wa rranty period, we may charge for repairing items that are not included i n free services.). 3. This warranty is valid in Korea alone. 4. Enclose this warranty whe n you request for a repair service. 5. Keep this warranty since it is not re-issued. 6. Contact the place where you purchased this product for any service, if a failure has occurred. Product Name Model Name Date of Purchase D/M/Y Warra nty Period Year Place of Purchase Amount Confirmatio n by Seller Won Te l e p ho n e Address Name Customer TE L Make sure to fill o ut the form w hen yo u purc hase this prod uct.

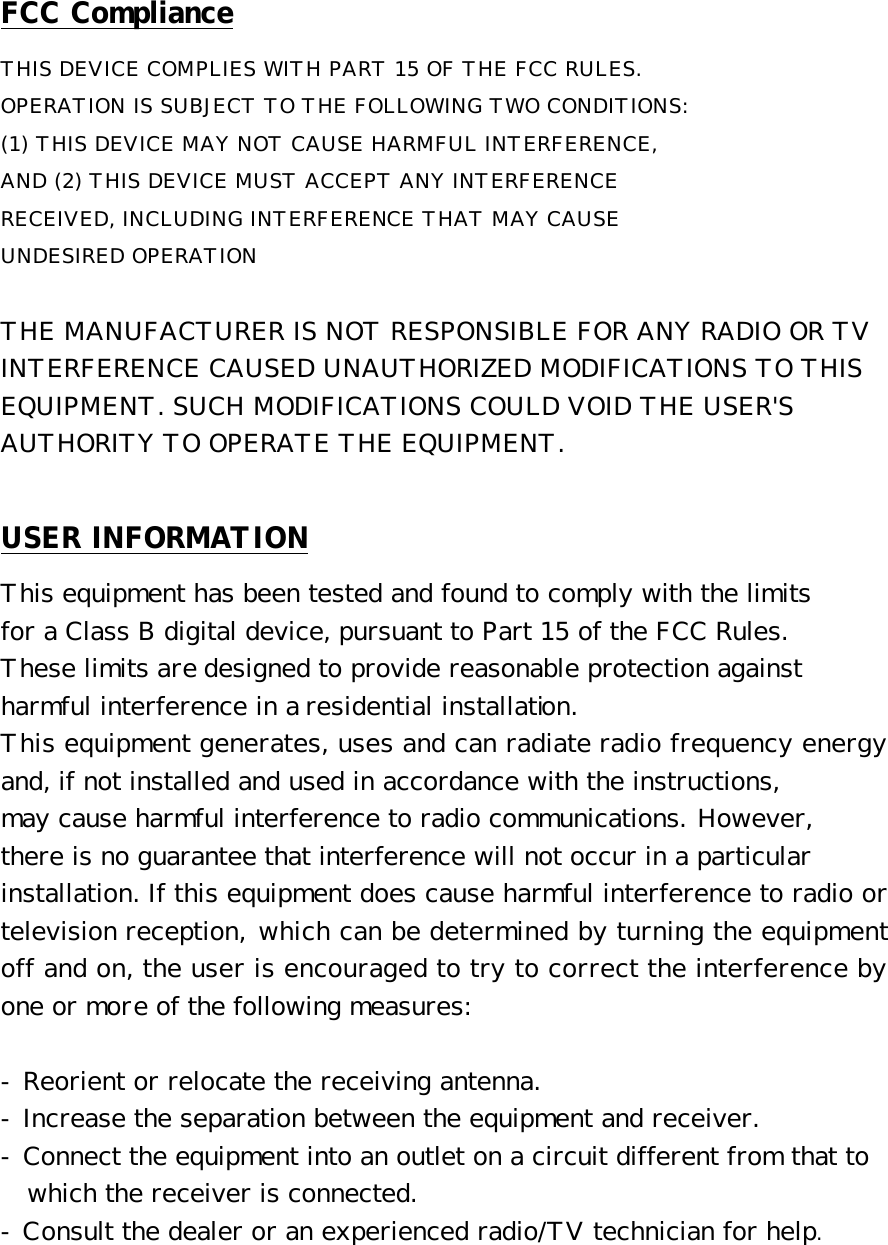

FCC Compliance THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. USER INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.
