Eastech Electronics TL901X DIGITAL WIRELESS AUDIO LINK TRANSCEIVER User Manual 15 1974

Eastech Electronics (Taiwan) Inc. DIGITAL WIRELESS AUDIO LINK TRANSCEIVER 15 1974

manual

©2003 RadioShack Corporation.All Rights Reserved.RadioShack and RadioShack.com are trademarksused by RadioShack Corporation.OWNER’S MANUAL —Please read before using this equipment.www.radioshack.comSMThis wireless transmitter and receiver systemuse the latest 5.8 GHz technology that travelsthrough walls, floors, ceilings and otherobstacles, delivering high quality sound foryour home theater system’s rear surroundspeakers. Using this wireless system, you willexperience movie theater quality sound inyour own home using your current hometheater surround system. We have designedthis system for use with your surround soundhome theater system to enhance the qualityof the sound and balance coming from yourspeakers. You can now eliminate runninglong speaker wires through your rooms, whileenhancing the sound coming from thosespeakers.How It WorksThe transmitter converts the audio signalfrom your audio source into a 5.8GHz radiofrequency and transmits it to the receiver.The receiver will pick up the best signal fromone of its two antennas and convert thesignal back to its original form. Using apowerful amplifier, the signal is passed toyour connected rear surround speakers. Theresult is an enhanced sound quality resultingin a theater quality surround soundexperience.This system is compatible with most audiosources such as televisions, VCRs, stereoreceivers/amplifiers, CD players, andpersonal stereos. This unit allows you tolisten to wired speakers in any room in thehouse when a two-channel source isconnected to the transmitter. The audio linksystem also tracks the volume setting of youraudio source, so that when you increase ordecrease the volume on the audio source,the link’s connected speakers respondaccordingly.Some of this system’s other features include:• 6 user-adjustable channels• 2 diversity receiver antennas for optimalaudio reception.• Adjustable speaker and line level inputcontrol• 256 option personal ID Code• Ideal for Dolby 5.1 Digital, Pro Logic II,DTS, SCAD and DVD Audio Systems• Provides digital transmission for superbaudio clarity• Immunetointerferencefrommicrowaveovens and other popular 2.4GHzequipment• Signal range of 30 feetRECEIVERTRANSMITTERSTANDBY / ON/OFF — Press to togglebetween standby mode and power on.LED — Lights red when the transmitter isin power on mode, and turns green whenin standby mode.POWER/PUSH OFF —Press to power the receiveron or off.Power LED — Lightsred when thereceiver is poweredon.Signal LED — This green LED flashes whenthe receiver is searching for a signal from thetransmitter. It glows steadier and brighter asthe signal strength increases.VOLUME — Turn toadjust sound level of theconnected surroundspeakers. You mayneed to adjust your A/Vreceiver’s volume forbalance.PACKAGE CONTENTS• Transmitter• Speaker wire (for transmitter only)• Receiver• AC adapter• Adjustable stand• Owner’s Manual• WarrantyThe lightning symbol is intended to alert you to thepresence of uninsulated dangerous voltage within thisproduct’s enclosure that might be of sufficientmagnitudetoconstituteariskofelectricshock.Donotopen the product’s case.The exclamation symbol is intended to inform you thatimportant operating and maintenance instructions areincluded in the literature accompanying this product.WARNING: Toreducetheriskoffireorshockhazard,do not expose this product to rain or moisture.CAUTIONCAUTION: TO REDUCE THE RISK OF ELECTRICSHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TOQUALIFIED PERSONNEL.RISK OF ELECTRIC SHOCKDO NOT OPEN!!! IMPORTANT !If an icon appears at the end of a paragraph, go to the box on that page with the corresponding icon forpertinent information.o —Warning !—Important Ô—NoteWireless 5.8 GHz Digital Audio Link15-197415-1974.fm Page 1 Tuesday, September 9, 2003 3:14 PM

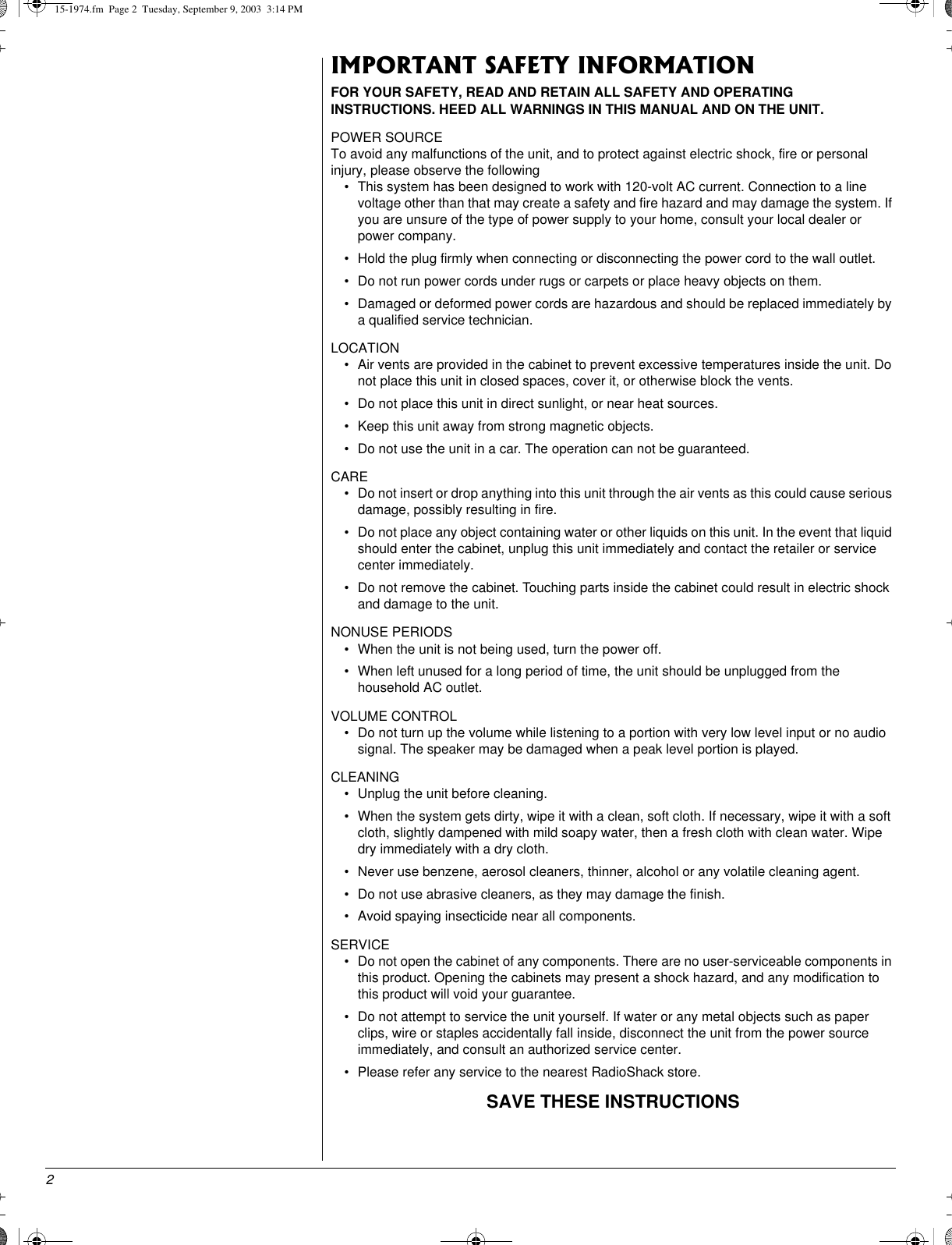

2IMPORTANT SAFETY INFORMATIONFOR YOUR SAFETY, READ AND RETAIN ALL SAFETY AND OPERATINGINSTRUCTIONS. HEED ALL WARNINGS IN THIS MANUAL AND ON THE UNIT.POWER SOURCETo avoid any malfunctions of the unit, and to protect against electric shock, fire or personalinjury, please observe the following• This system has been designed to work with 120-volt AC current. Connection to a linevoltage other than that may create a safety and fire hazard and may damage the system. Ifyou are unsure of the type of power supply to your home, consult your local dealer orpower company.• Hold the plug firmly when connecting or disconnecting the power cord to the wall outlet.• Do not run power cords under rugs or carpets or place heavy objects on them.• Damaged or deformed power cords are hazardous and should be replaced immediately bya qualified service technician.LOCATION• Air vents are provided in the cabinet to prevent excessive temperatures inside the unit. Donot place this unit in closed spaces, cover it, or otherwise block the vents.• Do not place this unit in direct sunlight, or near heat sources.• Keep this unit away from strong magnetic objects.• Do not use the unit in a car. The operation can not be guaranteed.CARE• Do not insert or drop anything into this unit through the air vents as this could cause seriousdamage, possibly resulting in fire.• Do not place any object containing water or other liquids on this unit. In the event that liquidshould enter the cabinet, unplug this unit immediately and contact the retailer or servicecenter immediately.• Do not remove the cabinet. Touching parts inside the cabinet could result in electric shockand damage to the unit.NONUSE PERIODS• When the unit is not being used, turn the power off.• When left unused for a long period of time, the unit should be unplugged from thehousehold AC outlet.VOLUME CONTROL• Do not turn up the volume while listening to a portion with very low level input or no audiosignal. The speaker may be damaged when a peak level portion is played.CLEANING• Unplug the unit before cleaning.• Whenthesystemgetsdirty,wipeitwithaclean,softcloth.Ifnecessary,wipeitwithasoftcloth, slightly dampened with mild soapy water, then a fresh cloth with clean water. Wipedry immediately with a dry cloth.• Never use benzene, aerosol cleaners, thinner, alcohol or any volatile cleaning agent.• Do not use abrasive cleaners, as they may damage the finish.• Avoid spaying insecticide near all components.SERVICE• Do not open the cabinet of any components. There are no user-serviceable components inthis product. Opening the cabinets may present a shock hazard, and any modification tothis product will void your guarantee.• Do not attempt to service the unit yourself. If water or any metal objects such as paperclips, wire or staples accidentally fall inside, disconnect the unit from the power sourceimmediately, and consult an authorized service center.• Please refer any service to the nearest RadioShack store.SAVE THESE INSTRUCTIONS15-1974.fm Page 2 Tuesday, September 9, 2003 3:14 PM

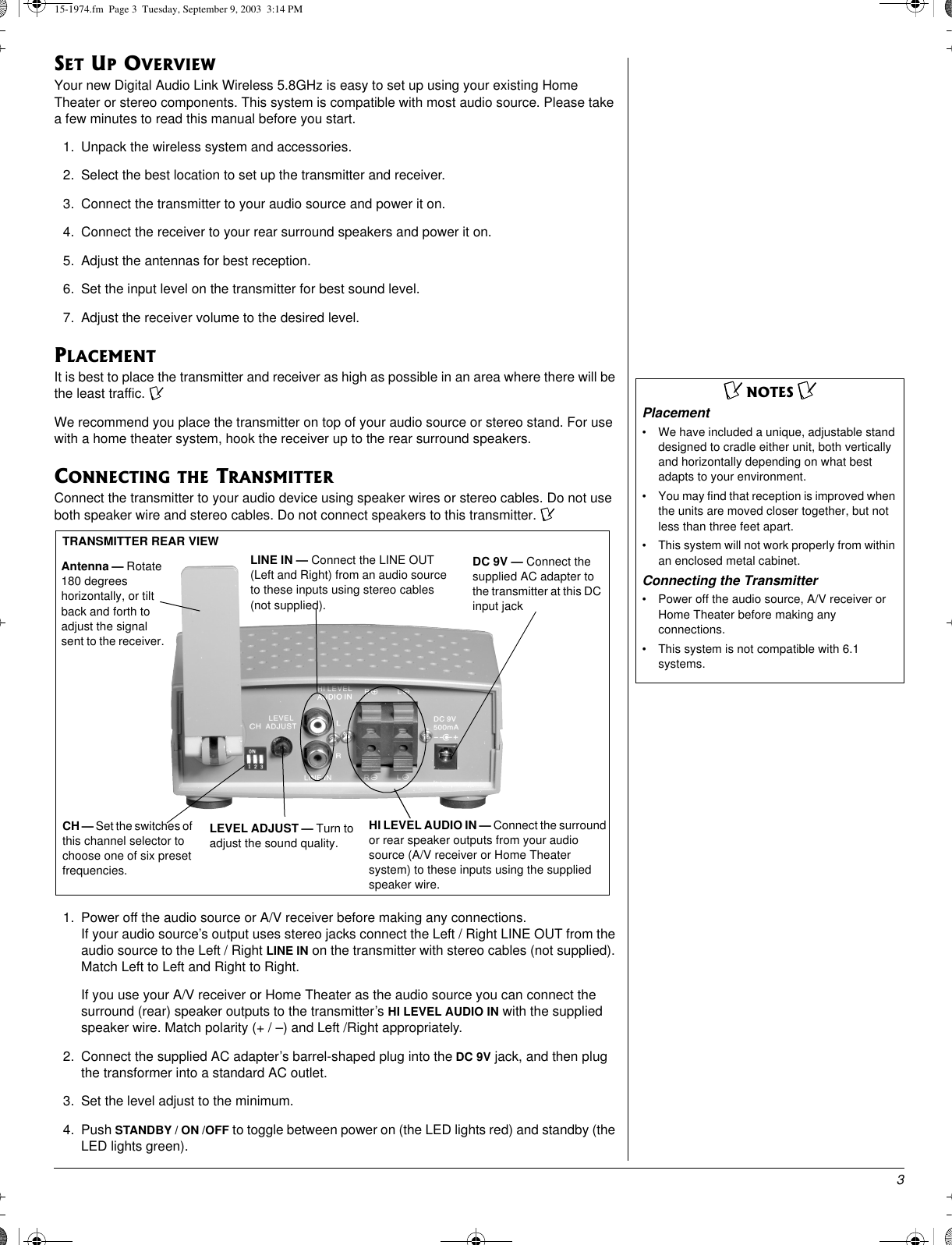

3SET UP OVERVIEWYour new Digital Audio Link Wireless 5.8GHz is easy to set up using your existing HomeTheater or stereo components. This system is compatible with most audio source. Please takea few minutes to read this manual before you start.1. Unpack the wireless system and accessories.2. Select the best location to set up the transmitter and receiver.3. Connect the transmitter to your audio source and power it on.4. Connect the receiver to your rear surround speakers and power it on.5. Adjust the antennas for best reception.6. Set the input level on the transmitter for best sound level.7. Adjust the receiver volume to the desired level.PLACEMENTIt is best to place the transmitter and receiver as high as possible in an area where there will bethe least traffic. ÔWe recommend you place the transmitter on top of your audio source or stereo stand. For usewith a home theater system, hook the receiver up to the rear surround speakers.CONNECTING THE TRANSMITTERConnect the transmitter to your audio device using speaker wires or stereo cables. Do not useboth speaker wire and stereo cables. Do not connect speakers to this transmitter. Ô1. Power off the audio source or A/V receiver before making any connections.If your audio source’s output uses stereo jacks connect the Left / Right LINE OUT from theaudio source to the Left / Right LINE IN on the transmitter with stereo cables (not supplied).Match Left to Left and Right to Right.If you use your A/V receiver or Home Theater as the audio source you can connect thesurround (rear) speaker outputs to the transmitter’s HI LEVEL AUDIO IN with the suppliedspeaker wire. Match polarity (+ / –) and Left /Right appropriately.2. Connect the supplied AC adapter’s barrel-shaped plug into the DC 9V jack, and then plugthe transformer into a standard AC outlet.3. Set the level adjust to the minimum.4. Push STANDBY / ON /OFF to toggle between power on (the LED lights red) and standby (theLED lights green).ÔNOTES ÔPlacement• We have included a unique, adjustable standdesigned to cradle either unit, both verticallyand horizontally depending on what bestadapts to your environment.• You may find that reception is improved whenthe units are moved closer together, but notless than three feet apart.• This system will not work properly from withinan enclosed metal cabinet.Connecting the Transmitter• Power off the audio source, A/V receiver orHome Theater before making anyconnections.• This system is not compatible with 6.1systems.TRANSMITTER REAR VIEWAntenna — Rotate180 degreeshorizontally, or tiltback and forth toadjust the signalsent to the receiver.DC 9V — Connect thesupplied AC adapter tothe transmitter at this DCinput jackLEVEL ADJUST — Turn toadjust the sound quality.LINE IN — Connect the LINE OUT(Left and Right) from an audio sourceto these inputs using stereo cables(not supplied).HI LEVEL AUDIO IN — Connect the surroundor rear speaker outputs from your audiosource (A/V receiver or Home Theatersystem) to these inputs using the suppliedspeaker wire.CH — Set the switches ofthis channel selector tochoose one of six presetfrequencies.15-1974.fm Page 3 Tuesday, September 9, 2003 3:14 PM

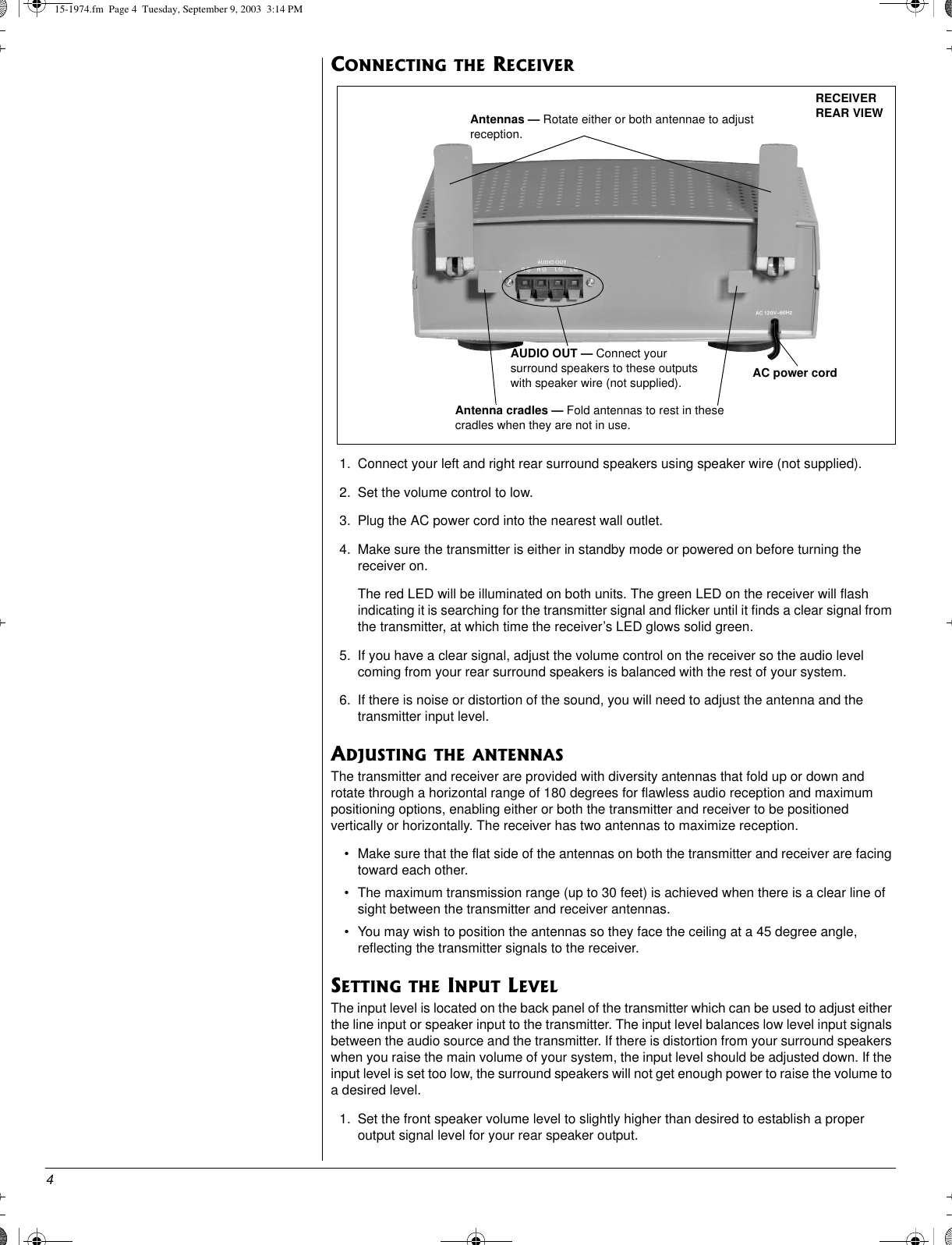

4CONNECTING THE RECEIVER1. Connect your left and right rear surround speakers using speaker wire (not supplied).2. Set the volume control to low.3. Plug the AC power cord into the nearest wall outlet.4. Make sure the transmitter is either in standby mode or powered on before turning thereceiver on.The red LED will be illuminated on both units. The green LED on the receiver will flashindicating it is searching for the transmitter signal and flicker until it finds a clear signal fromthe transmitter, at which time the receiver’s LED glows solid green.5. If you have a clear signal, adjust the volume control on the receiver so the audio levelcoming from your rear surround speakers is balanced with the rest of your system.6. If there is noise or distortion of the sound, you will need to adjust the antenna and thetransmitter input level.ADJUSTING THE ANTENNASThe transmitter and receiver are provided with diversity antennas that fold up or down androtate through a horizontal range of 180 degrees for flawless audio reception and maximumpositioning options, enabling either or both the transmitter and receiver to be positionedvertically or horizontally. The receiver has two antennas to maximize reception.• Make sure that the flat side of the antennas on both the transmitter and receiver are facingtoward each other.• The maximum transmission range (up to 30 feet) is achieved when there is a clear line ofsight between the transmitter and receiver antennas.• You may wish to position the antennas so they face the ceiling at a 45 degree angle,reflecting the transmitter signals to the receiver.SETTING THE INPUT LEVELThe input level is located on the back panel of the transmitter which can be used to adjust eitherthe line input or speaker input to the transmitter. The input level balances low level input signalsbetween the audio source and the transmitter. If there is distortion from your surround speakerswhen you raise the main volume of your system, the input level should be adjusted down. If theinput level is set too low, the surround speakers will not get enough power to raise the volume toa desired level.1. Set the front speaker volume level to slightly higher than desired to establish a properoutput signal level for your rear speaker output.RECEIVERREAR VIEWAUDIO OUT — Connect yoursurround speakers to these outputswith speaker wire (not supplied).Antennas — Rotate either or both antennae to adjustreception.AC power cordAntenna cradles — Fold antennas to rest in thesecradles when they are not in use.15-1974.fm Page 4 Tuesday, September 9, 2003 3:14 PM

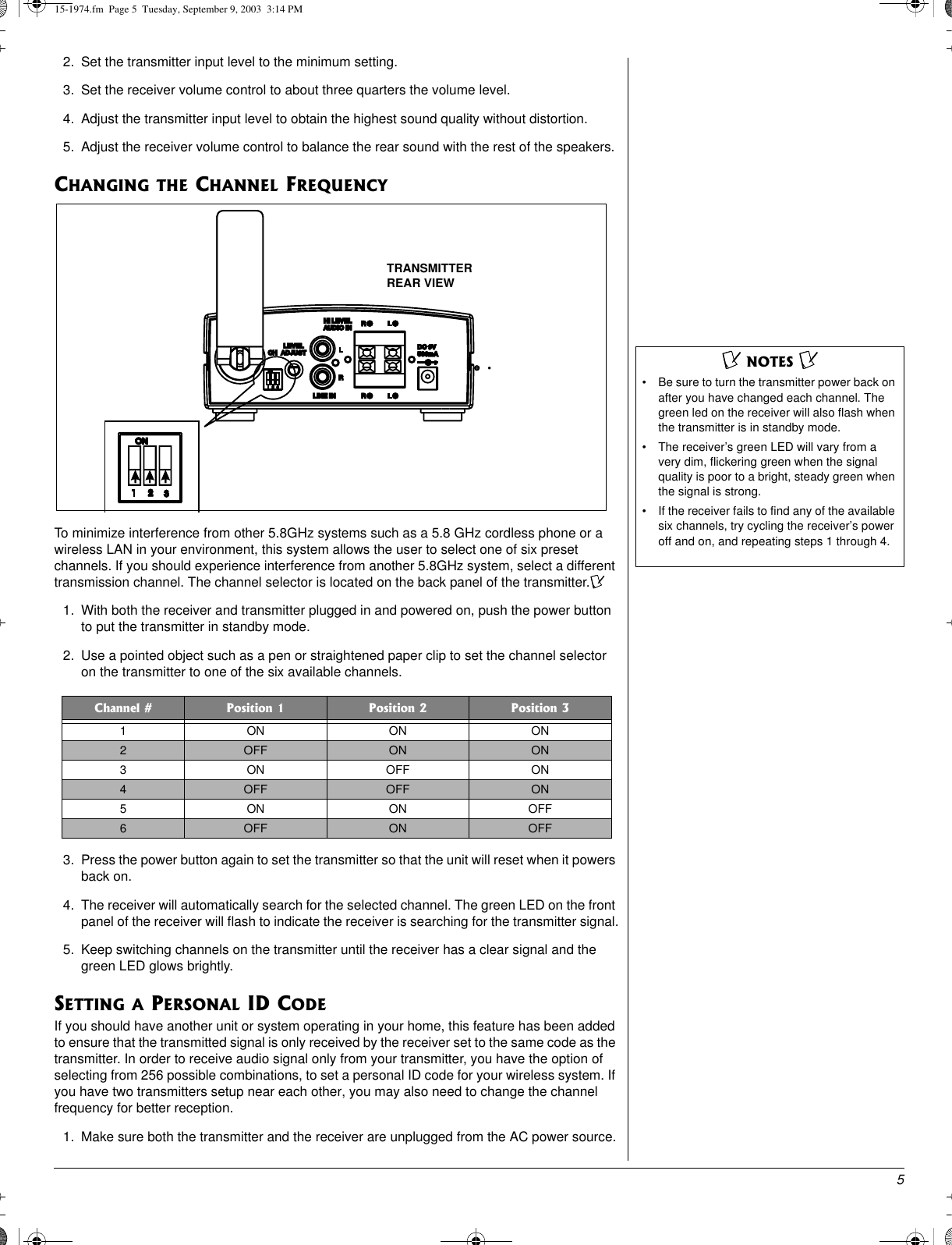

52. Set the transmitter input level to the minimum setting.3. Set the receiver volume control to about three quarters the volume level.4. Adjust the transmitter input level to obtain the highest sound quality without distortion.5. Adjust the receiver volume control to balance the rear sound with the rest of the speakers.CHANGING THE CHANNEL FREQUENCYTo minimize interference from other 5.8GHz systems such as a 5.8 GHz cordless phone or awireless LAN in your environment, this system allows the user to select one of six presetchannels. If you should experience interference from another 5.8GHz system, select a differenttransmission channel. The channel selector is located on the back panel of the transmitter.Ô1. With both the receiver and transmitter plugged in and powered on, push the power buttonto put the transmitter in standby mode.2. Use a pointed object such as a pen or straightened paper clip to set the channel selectoron the transmitter to one of the six available channels.3. Press the power button again to set the transmitter so that the unit will reset when it powersback on.4. The receiver will automatically search for the selected channel. The green LED on the frontpanel of the receiver will flash to indicate the receiver is searching for the transmitter signal.5. Keep switching channels on the transmitter until the receiver has a clear signal and thegreen LED glows brightly.SETTING A PERSONAL ID CODEIf you should have another unit or system operating in your home, this feature has been addedto ensure that the transmitted signal is only received by the receiver set to the same code as thetransmitter. In order to receive audio signal only from your transmitter, you have the option ofselecting from 256 possible combinations, to set a personal ID code for your wireless system. Ifyou have two transmitters setup near each other, you may also need to change the channelfrequency for better reception.1. Make sure both the transmitter and the receiver are unplugged from the AC power source.Channel # Position 1 Position 2 Position 31ONONON2OFF ON ON3ONOFFON4OFF OFF ON5ON ONOFF6OFF ON OFFÔ NOTES Ô • Be sure to turn the transmitter power back onafter you have changed each channel. Thegreen led on the receiver will also flash whenthe transmitter is in standby mode.• The receiver’s green LED will vary from avery dim, flickering green when the signalquality is poor to a bright, steady green whenthe signal is strong.• If the receiver fails to find any of the availablesix channels, try cycling the receiver’s poweroff and on, and repeating steps 1 through 4.TRANSMITTERREAR VIEW15-1974.fm Page 5 Tuesday, September 9, 2003 3:14 PM

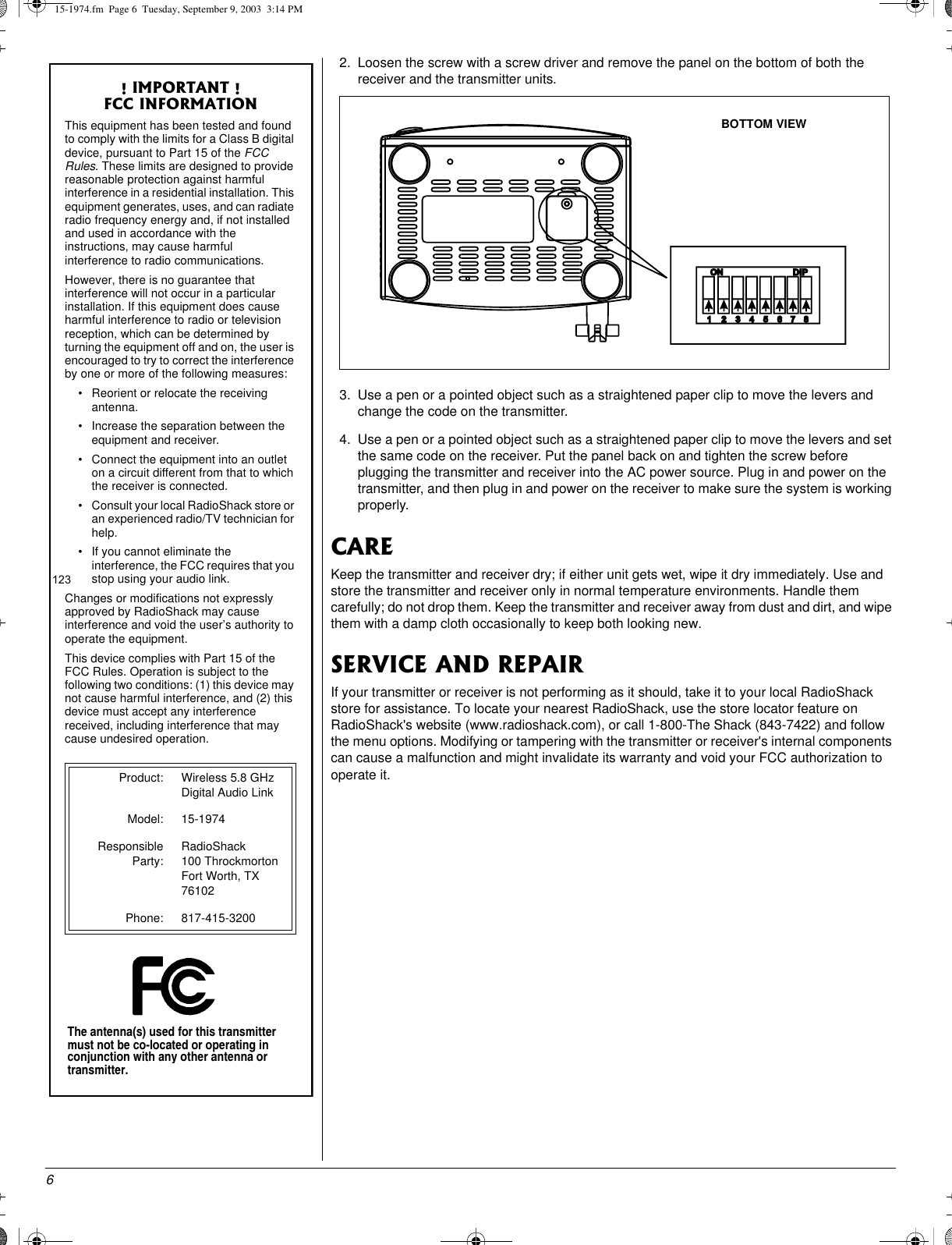

62. Loosen the screw with a screw driver and remove the panel on the bottom of both thereceiver and the transmitter units.3. Use a pen or a pointed object such as a straightened paper clip to move the levers andchange the code on the transmitter.4. Use a pen or a pointed object such as a straightened paper clip to move the levers and setthe same code on the receiver. Put the panel back on and tighten the screw beforeplugging the transmitter and receiver into the AC power source. Plug in and power on thetransmitter, and then plug in and power on the receiver to make sure the system is workingproperly.CAREKeep the transmitter and receiver dry; if either unit gets wet, wipe it dry immediately. Use andstore the transmitter and receiver only in normal temperature environments. Handle themcarefully; do not drop them. Keep the transmitter and receiver away from dust and dirt, and wipethem with a damp cloth occasionally to keep both looking new.SERVICE AND REPAIRIf your transmitter or receiver is not performing as it should, take it to your local RadioShackstore for assistance. To locate your nearest RadioShack, use the store locator feature onRadioShack's website (www.radioshack.com), or call 1-800-The Shack (843-7422) and followthe menu options. Modifying or tampering with the transmitter or receiver's internal componentscan cause a malfunction and might invalidate its warranty and void your FCC authorization tooperate it.! IMPORTANT !FCC INFORMATIONThis equipment has been tested and foundto comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCCRules. These limits are designed to providereasonable protection against harmfulinterference in a residential installation. Thisequipment generates, uses, and can radiateradio frequency energy and, if not installedand used in accordance with theinstructions, may cause harmfulinterference to radio communications.However, there is no guarantee thatinterference will not occur in a particularinstallation. If this equipment does causeharmful interference to radio or televisionreception, which can be determined byturning the equipment off and on, the user isencouraged to try to correct the interferenceby one or more of the following measures:• Reorient or relocate the receivingantenna.• Increase the separation between theequipment and receiver.• Connect the equipment into an outleton a circuit different from that to whichthe receiver is connected.• Consult your local RadioShack store oran experienced radio/TV technician forhelp.• If you cannot eliminate theinterference, the FCC requires that youstop using your audio link.Changes or modifications not expresslyapproved by RadioShack may causeinterference and void the user’s authority tooperate the equipment.This device complies with Part 15 of theFCC Rules. Operation is subject to thefollowing two conditions: (1) this device maynot cause harmful interference, and (2) thisdevice must accept any interferencereceived, including interference that maycause undesired operation.Product: Wireless 5.8 GHzDigital Audio LinkModel: 15-1974ResponsibleParty:RadioShack100 ThrockmortonFort Worth, TX76102Phone: 817-415-3200BOTTOM VIEW15-1974.fm Page 6 Tuesday, September 9, 2003 3:14 PM123The antenna(s) used for this transmittermust not be co-located or operating inconjunction with any other antenna ortransmitter.

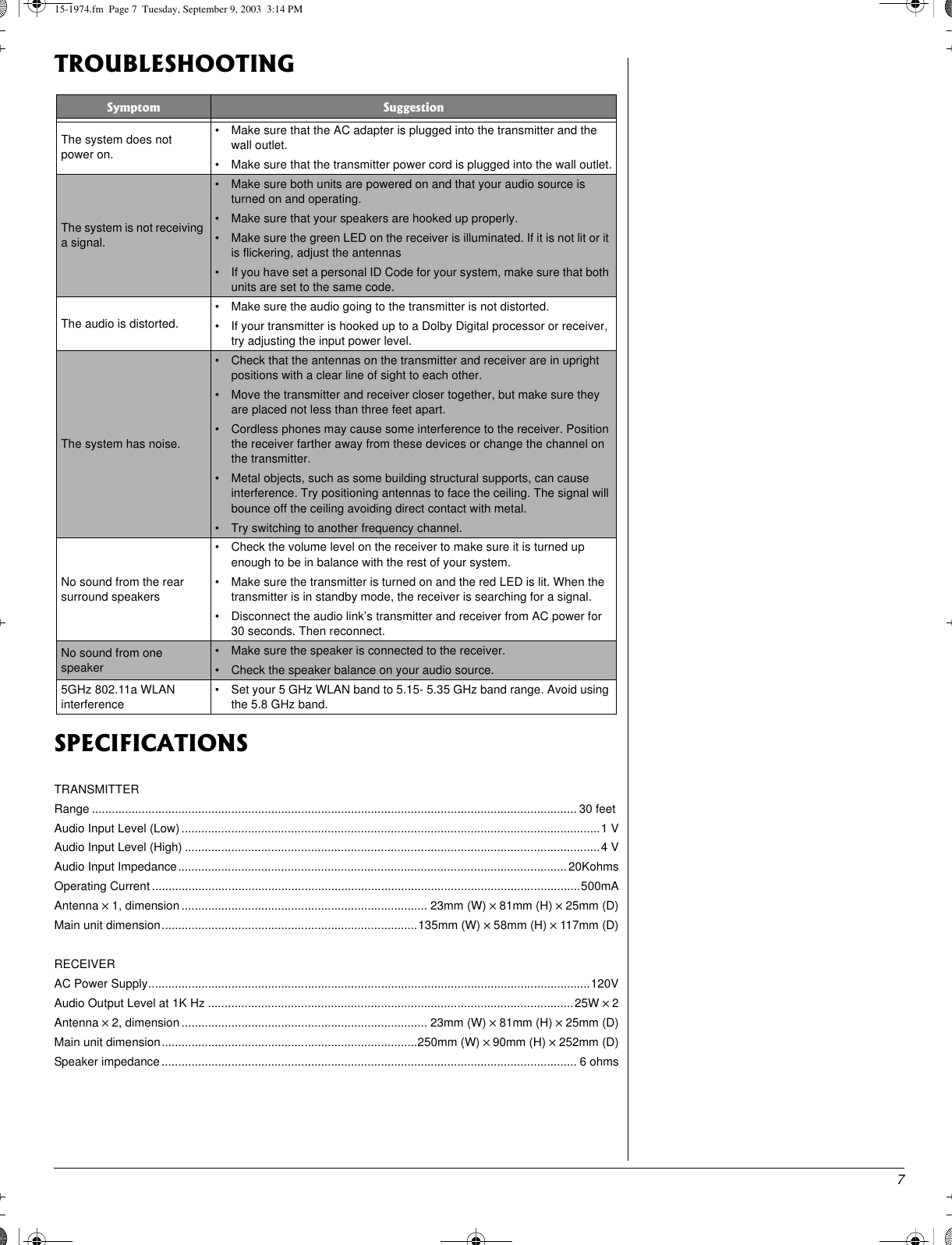

7TROUBLESHOOTINGSPECIFICATIONSTRANSMITTERRange .................................................................................................................................................. 30 feetAudio Input Level (Low) ..............................................................................................................................1 VAudio Input Level (High) .............................................................................................................................4 VAudio Input Impedance..................................................................................................................... 20KohmsOperating Current .................................................................................................................................500mAAntenna ×1, dimension.......................................................................... 23mm (W) ×81mm (H) ×25mm (D)Main unit dimension.............................................................................135mm (W) ×58mm (H) ×117mm (D)RECEIVERAC Power Supply.....................................................................................................................................120VAudio Output Level at 1K Hz ..............................................................................................................25W × 2Antenna ×2, dimension.......................................................................... 23mm (W) ×81mm (H) ×25mm (D)Main unit dimension.............................................................................250mm (W) × 90mm (H) ×252mm (D)Speaker impedance ............................................................................................................................. 6 ohmsSymptom SuggestionThe system does notpower on.• Make sure that the AC adapter is plugged into the transmitter and thewall outlet.• Make sure that the transmitter power cord is plugged into the wall outlet.The system is not receivinga signal.• Make sure both units are powered on and that your audio source isturned on and operating.• Make sure that your speakers are hooked up properly.• Make sure the green LED on the receiver is illuminated. If it is not lit or itis flickering, adjust the antennas• If you have set a personal ID Code for your system, make sure that bothunits are set to the same code.The audio is distorted.• Make sure the audio going to the transmitter is not distorted.• If your transmitter is hooked up to a Dolby Digital processor or receiver,try adjusting the input power level.The system has noise.• Check that the antennas on the transmitter and receiver are in uprightpositions with a clear line of sight to each other.• Move the transmitter and receiver closer together, but make sure theyare placed not less than three feet apart.• Cordless phones may cause some interference to the receiver. Positionthe receiver farther away from these devices or change the channel onthe transmitter.• Metal objects, such as some building structural supports, can causeinterference. Try positioning antennas to face the ceiling. The signal willbounce off the ceiling avoiding direct contact with metal.• Try switching to another frequency channel.No sound from the rearsurround speakers• Check the volume level on the receiver to make sure it is turned upenough to be in balance with the rest of your system.• Make sure the transmitter is turned on and the red LED is lit. When thetransmitter is in standby mode, the receiver is searching for a signal.• Disconnect the audio link’s transmitter and receiver from AC power for30 seconds. Then reconnect.No sound from onespeaker• Make sure the speaker is connected to the receiver.• Check the speaker balance on your audio source.5GHz 802.11a WLANinterference• Set your 5 GHz WLAN band to 5.15- 5.35 GHz band range. Avoid usingthe 5.8 GHz band.15-1974.fm Page 7 Tuesday, September 9, 2003 3:14 PM

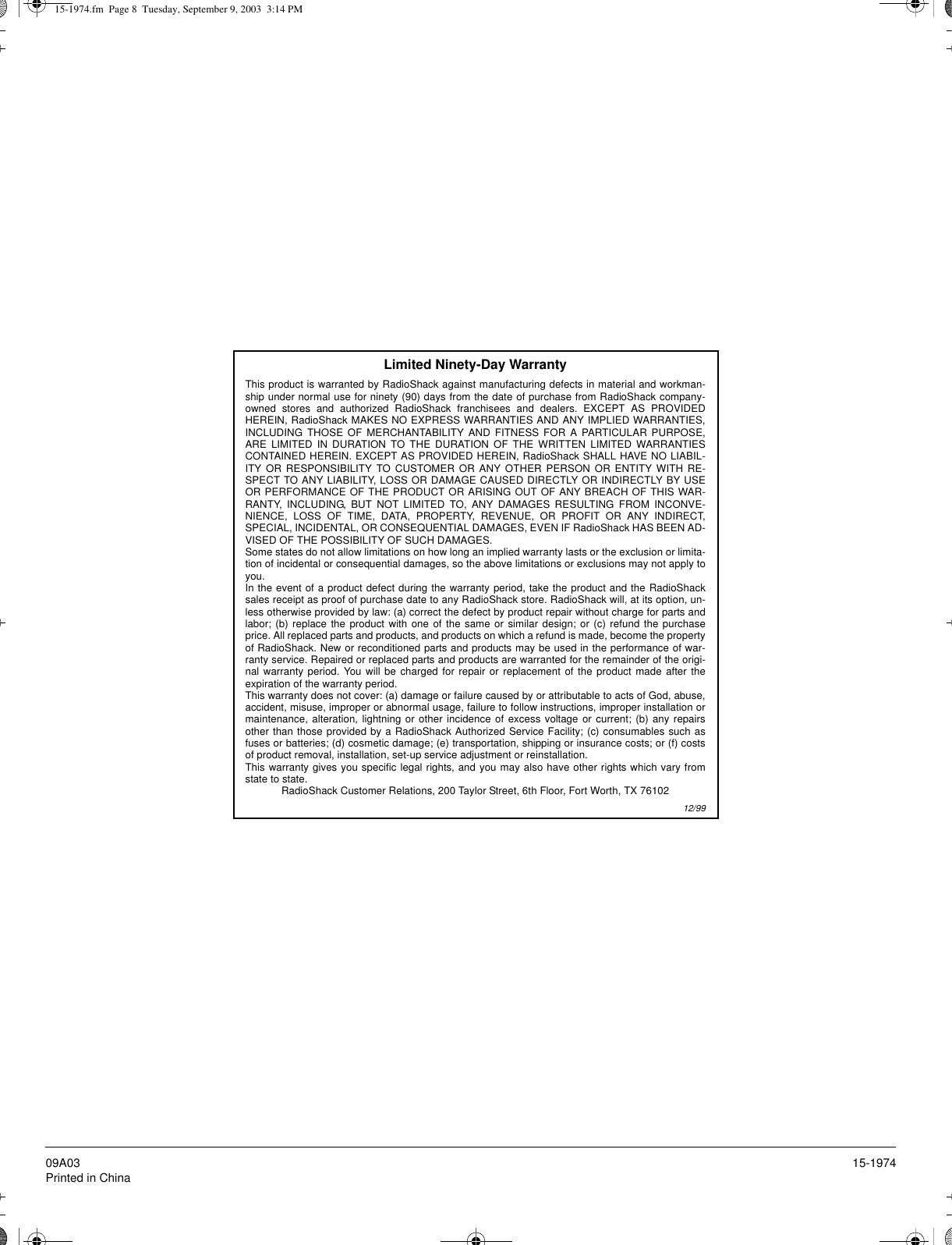

15-197409A03PrintedinChinaLimited Ninety-Day WarrantyThis product is warranted by RadioShack against manufacturing defects in material and workman-ship under normal use for ninety (90) days from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDEDHEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES,INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED WARRANTIESCONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABIL-ITY OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON OR ENTITY WITH RE-SPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USEOR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WAR-RANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVE-NIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT,SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN AD-VISED OF THE POSSIBILITY OF SUCH DAMAGES.Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limita-tion of incidental or consequential damages, so the above limitations or exclusions may not apply toyou.In the event of a product defect during the warranty period, take the product and the RadioShacksales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option, un-less otherwise provided by law: (a) correct the defect by product repair without charge for parts andlabor; (b) replace the product with one of the same or similar design; or (c) refund the purchaseprice. All replaced parts and products, and products on which a refund is made, become the propertyof RadioShack. New or reconditioned parts and products may be used in the performance of war-ranty service. Repaired or replaced parts and products are warranted for the remainder of the origi-nal warranty period. You will be charged for repair or replacement of the product made after theexpiration of the warranty period.This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse,accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation ormaintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairsother than those provided by a RadioShack Authorized Service Facility; (c) consumables such asfuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costsof product removal, installation, set-up service adjustment or reinstallation.This warranty gives you specific legal rights, and you may also have other rights which vary fromstatetostate.RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 7610212/9915-1974.fm Page 8 Tuesday, September 9, 2003 3:14 PM
