Eastech >
Manual
Bluetooth stereo Headset
(EH-03C )
User’s manual
SPECIFICATION
MODEL NO EH-03(ITEH03LBB) Version BLUETOOTH 4.0+EDR
Bluetooth profiles HSP,HFP,A2DP,AVRCP Effective
range
20 meters
Music Time 13 hours Talk time 15 hours
Standby time Up to 250 hours input DC:5V/280mAh
Charge Time 2 hours dimensions 145*165*45 mm
Battery life may vary depending on usage.
Specifications may change without notice due to continuous product enhancement.
About the EH-03C(ITEH03LBB)
EH-03 is a stereo headset with Bluetooth technology. it supports the following
Bluetooth profiles:
Bluetooth V4.0 specification support
HFP V1.6 wideband speech (HD voice read)
HSP—V1.2 headset profile
HFP—hands-free-profile
A2DP—Advanced Audio distribution profile
AVRCP—Audio/Video remote control profile
Support for smart phone application (apps)
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING
THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE
Improved Audio Quality
CSR’s latest 2-mic CVC audio enhancements for narrowband and wideband connections
including:
* 1-mic far-end audio enhancements
* Near-end audio enhancements(noise suppression and AEQ)
* Wind noise reduction
* Packet loss concealment
* Bit error concealment
* Automatic gain control and automatic volume control
* Frequency expansion for improved speech intelligibility
* mSBC codec support for wideband speech.
Music Enhancement
* configurable 5 –band EQ for music playback.(rock, pap, classical, jazz, dance, etc)
* SBC, MP3, AAC and Fast stream decoder.
* Stereo widening ( S3D)
* CSR’s proximity pairing and CSR’s proximity connection
* Multipoint support for HFP connection to 2 handsets for voice
* Multipoint support for A2DP connection to 2A2DP sources for Music playback
* Talk-time extension

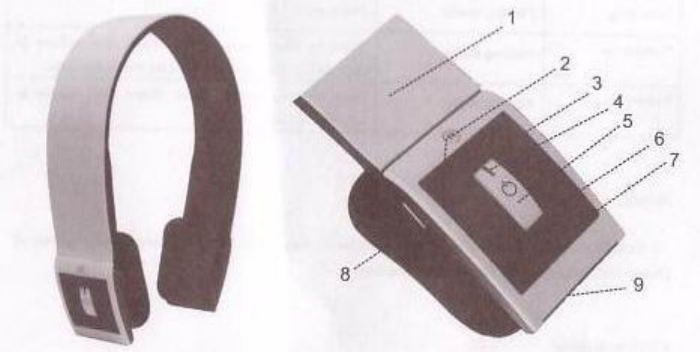

Overview:
1． Retractable string
2． ,<key: last song
3． >key: next song
4． Multifunction button (MFB): a) Answer; b): end; c) reject call; d) Pause; e) Play
5． LED indicator
6． + key: volume up
7． -key: volume down
8． Charging port
9． Build-in microphone
Re-mark:
1. the battery is rechargeable
2.first time charging: before using the Bluetooth headset, please charge the battery of headset
fully.
3. the battery consume rate could be showed on i-phone screen ,etc Bluetooth device.
How to use
1) Switching on /off the headset
Function Operation LED indicator
Switch on Press and hold the MFB for 3 second Blue LED is flashing 1 or 2 second
Switch off Press and hold the MFB for 3 second Blue LED is flashing 1 or 2 second
2) Pairing the headset with Bluetooth device
2.1 how to enter pairing mode
be sure the headset is in power off status first. Press and hold the MFB for 5-6 seconds until
blue LED blink alternately, then release the MFB, the unit is becoming pairing mode.
2.2 Pairing the headset with Bluetooth mobile phone:
Make sure your mobile phone with Bluetooth function. Then, turn on its Bluetooth function
and searching Bluetooth device.
2.3 Keep the headset and mobile within 0.8 meter when pairing.
2.4 Make the Bluetooth headset in pairing mode, after searched, select the model No “EH-03L” in
the Bluetooth device list.
2.5 After successful pairing ,the red LED of headset will be quickly blinks.
Wearing the headset
The string of headset is retractable, the user could be adjust it until feel comfortable.
Making calls with the headset
Function Status of headset Operation
Answer calling Ringing Press MFB shortly
Volume up Conversation model Press +key
Volume down Conversation model Press - key
Warning: Excessive pressure on the headset would cause hearing loss.
TROUBLESHOOTING GUIDE
Symptom Possible Problems Solution
The headset
does not turn
on.
- No power.
- Power Switch is not set to “ON”
correctly
- Recharge batteries enough time with
cable .
Press MFB( Power switch) on about 3
second again.
There’s no
music from the
headset
- The headset hasn’t pair the
Bluetooth device.
- Too Long distance between the
headset and device
-
- turn of the headset and turn on it
again. And make the Bluetooth device
in the status mode.
- short the distance between the
device..
-
90 DAY LIMITED WARRANTY AND SERVICE
VALID IN THE COUNTRY ONLY
ITEK warrants this unit to be free from defective materials or factory workmanship for a period
of 90 days from the date of original customer purchase and provided the product is utilized
within the COUNTRY . This warranty is not assignable or transferable. Our obligation under
this warranty is the repair or replacement of the defective unit or any part thereof, when it is
returned to the Service Department, accompanied by proof of the date of original consumer
purchase, such as a duplicated copy of a sales receipt. You must pay all shipping charges
required to ship the product to THE SERVICE CENTER for warranty service.
This warranty is valid only in accordance with the conditions set forth below:
1. The warranty applies to the ITEK product only while:
a. It remains in the possession of the original purchaser and proof of purchase is
demonstrated.
b. It has not been subjected to accident, misuse, abuse, improper service, usage
outside the descriptions and warnings covered within the owner’s manual
c. Claims are made within the warranty period.
2. This warranty does not cover damage or equipment failure caused by owner’s manual
specifications, or failure to provide reasonable care and necessary maintenance as
outlined in the owner’s manual.
3. Warranty of the headset applies to residential use only and is void when products are used
in a nonresidential environment or installed outside the Italy.
To register your product, visit the link below on the website to enter your information.
http://www.itek-europe.com
FCC ID: ZPF- EH-03C
This equipment has been tested. And it found to comply with the limits for
a Class B digital device pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates and
uses and radiates radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio /TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment
