5D WIRELESS OPTICAL MOUSE USER MANUAL
Welcome
Thank you for selecting our newly developed item! It combines
with 27MH RF wireless technology, user-defined keys, and
outstanding design, so that you can use it freely to improve your
efficiency and enjoy your beautiful life from the high technology.
Product Features
1. Radio frequency 27MHz, 256 ID code, there is no
interference even many mice being used at the same time.
2. 800DPI resolution make you use the mouse freely
3. Automatically save power sleeping functions, battery
life be prolonged.
4. 5 buttons and free definition functions .
Systems Compatibility
IBM PC and Win 95/98/Me/2000/XP
The Steps of Install Battery
1Please prepare for two PCS new AA alkaline batteries
2Open the cover at the bottom of the mouse (Please see the
reference picture)
3Please insert the batteries correctly according to the polarity
marks of the battery grooves.
4Pull the battery covers forward, when you hear “crack” sound
5, Please connect the receiver with USB port in computer.
ID Setup
1, Please move the mouse near to the receiver
2press the ID button I the front of the receiver,the light of the
receiver begains to flicker.
3Press the ID button of the mouse bottom with some hard and
acuate object within 10 seconds, the receiver light will flash very
fast, a few seconds later it will be on which shows it is successfully
to finish the digital transmission between the mouse and the
receiver. You may start to use it.
4.Working distance: 1-2M
ID Connect
user-defined buttons
after the installation of drive program,users can self define the
buttons freely, as long as to press the button predefined, we can
turn on the preseted functionbefore use self defined buttons,
please install drive program first, so that we can use software to
define functions

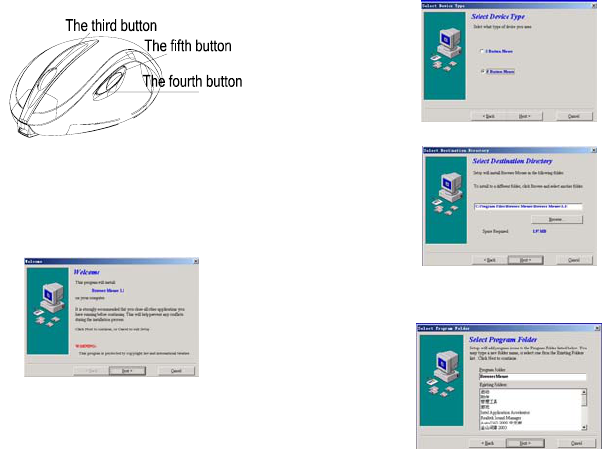

Installation of drive program
put the drive program disk into the CD-room,unfold the disk and
run the file named setup.exe.The system will run files
automatically and appear the picture below
we can choose windows default and then click “next” button for
necessary information;
choose five keys, click “next” to continue,
the system requires the address of installation,we can choose
windows default and then click “next” button
system requires the catalog of installation,click “next” to use the
windows default
information of copy files appears,click “next” to copy files
when copy finished,system requires to restart PC.choose “finish”
and PC begines to restart
settings of self-defined buttons
after PC restarted,there is a icon appeared in taskbar,
double click this icon and enter the picture of self-definition for
the third, fourth and fifth key,
Auto scroll
Back space
Close Application
Connect To Internet
Control Lock
Control Panel
Copy
Cut
Delete
Double click
Down
Drag Lock
End
Enter
Esc
Explorer
F1~F10
Find computer
Find File
Home
Horizontal wheel
Internet Explorer Backward
Internet Explorer forward
Launch Default Browser
Launch Default E-mail
Left Equal to ← in keyboard
Maximize Window
Middle Button
Minimize All Windows
Minimize windows
Page Down
Page Up
Paste
Redo
Right Equal to → in keyboard
Run
Shift Lock
Space
Start Menu
System Default
System Help
System Property
Tab
Undo
Undo Minimize All Windows
Universal Scroll
Universal Zoom
Up Equal to ↑ in keyboard
Rechargeable Function
It is because the batteries is run out when the cursor is not very
freely to use. Please change or recharge the batteries. You can use
a USB cable to recharge the mouse. First, connect the computer
with the USB cable with the USB port, then, plug the other side of
the USB cable into the charge connector of the mouse( Please refer
to the reference photo below). The batteries will be full 8-10 hours
after recharge, then please stop recharge.
Attention Please
1, Please don’t make the mouse far away from the receiver in order to
work more smoothly.
2, You’d better use the mouse on the white desk, in this way the
batteries can be used longer time. Please remove the batteries if
the mouse will not be used for a long time.
3, This mouse with save power sleeping functions, please press any
key or scroll the wheel to wake up the mouse when it is sleeping.
4, you want to take off the mouse power, please continue to press
the ID switch of the mouse bottom over 3 seconds. If you want to
take on the power, please click the ID switch once again.
5The optical mouse will not work freely on a smooth desk ,glass, any
reflecting surface, 3D mouse pad.
6No need to check the digital connection within 10 seconds when
change the batteries, if more than that please according to the above
way to re-operate.
Caution
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
Note
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interfer-
ence to radio com- munications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
