Eastern Times Technology DS2166A Wireless Optical Mouse Pen User Manual
Eastern Times Technology Co., Ltd. Wireless Optical Mouse Pen Users Manual
Users Manual
Wireless Optical Mouse Pen Manual
Thanks for your selecting this product. It is newly developed wireless mouse like a pen in our company, adopts
global-used 27MHz frequency with ergonomic design, frees you from wired connection and brings you wonderful life
due to high technology. Pen mouse is like a pen, which is comfortable, smart and portable, has the outstanding
situation at the same products.
Feature
1． Data transmitted with global-used 27MHz radio frequency, making you enjoy enough free wireless space.
2． It has 256 ID code, there is no interference even many mice being used at the same time.
3． Automatic sleeping and cut off the power functions save the power, battery life prolonged.
4． Pen-style design, comfortable and better to use, the shape is smart and exquisite.
Compatibility
IBM PC and compatible computer; Operating System Windows 98/Me/2000/XP, no drive required.

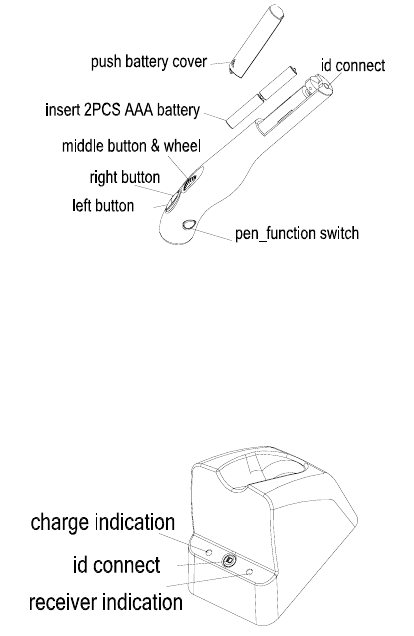

Battery Installation
Press battery cover and pull it backward, put 2 piece of new AAA alkaline batteries or charged battery into battery
groove according to correct polarity marks (refer to graph). Then close the battery cover, at the moment the light
of front mouse will flash, this means access to the state of working.
Data Connection Between Transmitter and Receiver
1， First make sure USB port of receiver plug into corresponding connector of computer. If it is PS/2, please
forward it with adaptor into compute.
2， Press down id connect at the front of receiver， indication will flash.
3， Then press down id connect at the end of mouse， at the indicator flash once but stop the flash right away,
this means data transmission is succeeded.
4，Once finishing of data transmission, mouse can be used. Using detective distance is 0.6M to 1.5M.
downloaded from website), you may start written function. You can freely input with pen and all kinds of character to
avoid the bored typing, and easily chat with others.
If you want to cancel the function, please press down the button of pen function switch.
Attention Please
1. Please don’t make the mouse far away from the receiver in
order to work more smoothly.
2. You’d better use the mouse on the white desk, in this way the batteries can be used longer time. Please
remove the batteries if the mouse will not be used for a long time.
3. This mouse with save power sleeping functions, please press any key or scroll the wheel to wake up the
mouse when it is sleeping.
4. If you want to take off the mouse power, please continue to press the ID switch of the mouse bottom over 3
seconds. If you want to take on the power, please click the ID switch once again.
5. The optical mouse will not work freely on a smooth desk ,glass, any reflecting surface, 3D mouse pad.
Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Note
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
