Eastern Times Technology MSEB Wireless Optical Mouse User Manual 2134 alt
Eastern Times Technology Co., Ltd. Wireless Optical Mouse 2134 alt
Users Manual
RF Wireless Optical Mouse User Manual
Welcome
Thank you for selecting this product!
Your RF wireless optical mouse uses a newly
developed RF wireless technology 27MHz
that replaces the traditional wired mouse. You
can use your wireless optical mouse freely
and improve your efficiency and enjoy your
beautiful life from the high technology. The
receiver of this mouse can be put into its
transmitter, and it is an outstanding design.
Product Features
1. Radio frequency 27MHz,
enjoy your freely wireless
space
2. It has 256 ID code, there is
no interference even many
mice being used at the
same time.
3. Automatically save power
sleeping functions, battery
life be prolonged.
4. super mini build-in
receiver, outstanding
design.
Systems Compatibility
IBM PC and Win
95/98/Me/2000/XP, No need driver
Build-in mini receiver

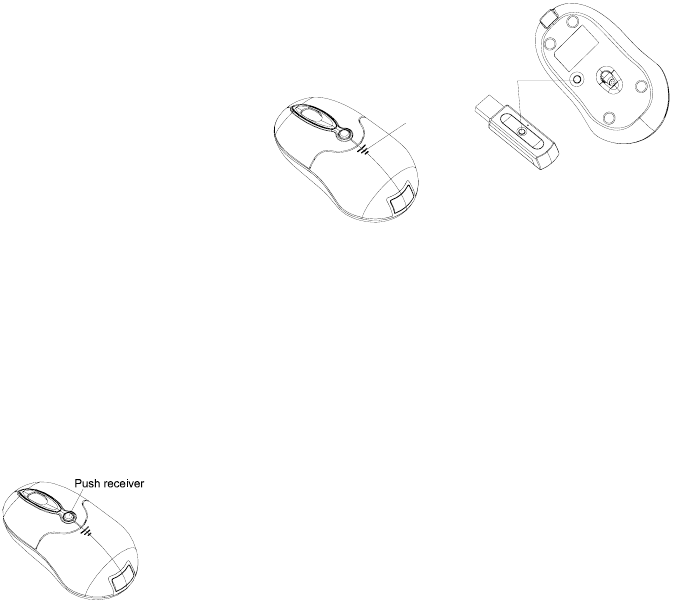

As bellow, press the receiver-out
button, and then the receiver can
spring out automatically, at this
time, mouse begin to work. If
you push the receiver back to the
transmitter, power will be cut
down automatically.
The Steps of Install Battery
1. Please prepare for two PCS
new AAA alkaline batteries
2. Press the button of the mouse
upper cover and pull the battery
cover rearward (Please see the
reference picture)
3. Please insert the batteries
correctly according to the
polarity marks of the battery
grooves.
4. Pull the battery covers forward,
when you hear “crack” sound
which shows the battery cover
is locked successfully.。
Receiver Installation
1. please use extended cable, and
put the receiver and transmitter
on one desktop, in this way,
you may have higher working
efficiency.
Push battery
cover
2. If you use PS/2 connector,
please use the USB to PS/2
adaptor and connect with the
connector before your
computer start-up.
3. For laptop, you may connect
the receiver directly with the
USB connector.
ID Setup
1. Please move the mouse near to
the receiver
2. Press the ID button of the mouse
bottom with some hard and
acuate object within 10 seconds,
the receiver light will flash very
fast, a few seconds later it will
be on which shows it is
successfully to finish the digital
transmission between the mouse
and the receiver. You may start
to use it.
3. 3. Working distance: within
0.6-1.5 m.
Attention Please
1. Please don’t make the mouse far
away from the receiver in
ID connect
order to work more smoothly.
2. You’d better use the mouse on the
white desk, in this way the batteries
can be used longer time. Please
remove the batteries if the mouse
will not be used for a long time.
3. This mouse with save power sleeping
functions, please press any key or
scroll the wheel to wake up the
mouse when it is sleeping.
4. If you want to take off the mouse
power, please continue to press the
ID switch of the mouse bottom
over 3 seconds. If you want to take
on the power, please click the ID
switch once again.
5. The optical mouse will not work
freely on a smooth desk ,glass, any
reflecting surface, 3D mouse pad.
6. when you are moving the mouse, if
the low-power indication light
flickers, it shows that the batteries
are using up, please change another
two new right batteries.
7. No need to check the digital
connection within 10 seconds when
change the batteries, if more than
that please according to the above
way to re-operate.
8. if you put the receiver into
transmitter, power are cut down
automatically, and you can take
them away.
Caution
Any changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
Note
Note: This device complies with Part 15 of
the FCC Rules.
Operation is subject to the following
two conditions:
(1) This device may not cause
harmful interference, and
(2) This device must accept any
interference received, including
interference that may cause
undesired operation.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or
television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more
of the following measures:
* Reorient or relocate the receiving
antenna.
* Increase the separation between
the equipment and receiver.
* Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
* Consult the dealer or an
experienced radio/TV technician
for help.
